Article

Online Adaptive MRI-Guided Stereotactic Body Radiotherapy for Pancreatic and Other Intra-Abdominal Cancers

by
Danny Lee
1,2,*,
Paul Renz
1,
Seungjong Oh
1,2,
Min-Sig Hwang
1,2,
Daniel Pavord
1,2,
Kyung Lim Yun
1,
Colleen Collura
1,
Mary McCauley
1,
Athanasios (Tom) Colonias
1,
Mark Trombetta
1,2 and
Alexander Kirichenko
1,2
1
Radiation Oncology, Allegheny Health Network, Pittsburgh, PA 15012, USA
2
College of Medicine, Radiologic Sciences/Drexel University, Philadelphia, PA 19129, USA
*
Author to whom correspondence should be addressed.
Cancers 2023, 15(21), 5272; https://doi.org/10.3390/cancers15215272
Submission received: 29 September 2023 / Revised: 31 October 2023 / Accepted: 1 November 2023 / Published: 3 November 2023
(This article belongs to the Special Issue Stereotactic Body Radiation and Stereotactic Ablative Radiotherapy Therapy for Cancers)
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

MRI can provide better visualization of tumors and nearby organs at risk (OAR) than CT for fast and accurate contouring during online adaptive MRI-guided stereotactic body radiation treatment (MRI-guided SBRT) for pancreatic and other intra-abdominal cancers. Pre-set MRI sequences provided in a 1.5T MRI scanner hybrid with a linear accelerator can be used during MRI-guided SBRT, but they often limit tumor and OAR visualization and require a long image acquisition time. This study retrospectively analyzed 26 patients with pancreatic and intra-abdominal cancers that underwent CT and MR simulations and 3–5 fractionated MRI-guided SBRT. The visualization of tumors and OAR was improved with T1W imaging, which is essential for online adaptive planning and resulted in fast and accurate contouring in a shorter imaging time.

Abstract

A 1.5T MRI combined with a linear accelerator (Unity®, Elekta; Stockholm, Sweden) is a device that shows promise in MRI-guided stereotactic body radiation treatment (SBRT). Previous studies utilized the manufacturer’s pre-set MRI sequences (i.e., T2 Weighted (T2W)), which limited the visualization of pancreatic and intra-abdominal tumors and organs at risk (OAR). Here, a T1 Weighted (T1W) sequence was utilized to improve the visualization of tumors and OAR for online adapted-to-position (ATP) and adapted-to-shape (ATS) during MRI-guided SBRT. Twenty-six patients, 19 with pancreatic and 7 with intra-abdominal cancers, underwent CT and MRI simulations for SBRT planning before being treated with multi-fractionated MRI-guided SBRT. The boundary of tumors and OAR was more clearly seen on T1W image sets, resulting in fast and accurate contouring during online ATP/ATS planning. Plan quality in 26 patients was dependent on OAR proximity to the target tumor and achieved 96 ± 5% and 92 ± 9% in gross tumor volume D90% and planning target volume D90%. We utilized T1W imaging (about 120 s) to shorten imaging time by 67% compared to T2W imaging (about 360 s) and improve tumor visualization, minimizing target/OAR delineation uncertainty and the treatment margin for sparing OAR. The average time-consumption of MRI-guided SBRT for the first 21 patients was 55 ± 15 min for ATP and 79 ± 20 min for ATS.

1. Introduction

Magnetic resonance imaging (MRI) combined with a linear accelerator (MRI-Linac) [1,2,3,4] yields a technique that shows promise in MRI-guided stereotactic body radiotherapy (SBRT) [5]. MRI-Linac [6] provides superior visualization of target tumors and surrounding organs at risk (OAR) to improve delineation accuracy; MRI-guidance accounts for position, size, and shape changes during online adaptive SBRT planning [7]. Therefore, MRI-guided SBRT [8,9,10] is increasingly used for pancreatic and other intra-abdominal cancers using currently two clinically available MRI-Linacs [11].
True fast imaging with steady state precession (TrueFISP) combined with breath holding (BH) is possible on the first MRI-Linac, a 0.35T MRI combined with a linear accelerator (MRIdian®, ViewRay Inc., Mountain View, CA, USA) [12,13,14]. A T2-Weighted with exhalation-navigating (T2W + Nav) MRI scan with the second MRI-Linac is acquired on a 1.5T MRI combined with a linear accelerator (Unity®, Elekta; Stockholm, Sweden) [15]. In each fraction of MRI-guided SBRT on these MRI-Linacs, one (or more) TrueFISP or T2W + Nav image sets are acquired as daily-MRIs to account for inter-fractional changes of targets and OAR. The contours can be adjusted during online adaptive planning, and patient setup can be verified before and after beam delivery while patients are on the treatment couch.
Online adaptive planning heavily relies on the image quality of daily-MRIs, which requires superior soft-tissue contrast for fast and accurate contour adjusting of the target tumor and OAR [8,16,17,18]. An MRI scan with BH acquires a 3D volume in a short period of time (i.e., 17 s with TrueFISP + BH) [19], but pancreatic tumors can move more than 4 mm during the scan [20]. On the other hand, an MRI scan with exhalation-navigating acquires a 3D volume in a longer period of time but is dependent on the breathing period and regularity in individual patients (i.e., up to 882 s with T2W + Nav) [21]. In terms of the target motion, a gating technique, which measures real-time target motion by deformably registering fast cine images to daily-MRI, is utilized to account for the respiratory-induced target motion during beam delivery [13,19]. As an alternative, T2W with a compression belt in free-breathing significantly reduced the range of target motion [22,23,24]. However, it could still include respiratory-induced motion blurring artifacts, which leads to some degree of difficulty in adjusting with daily-MRI. Therefore, fast and precise online adaptive planning requires high-quality images from the daily-MRI with minimal or no blurring artifacts. The changing positions of the patient and their internal anatomy must also be accounted for during online adaptive planning for both adapt-to-position (ATP) and adapt-to-shape (ATS) [7,25].
Pancreatic and intra-abdominal malignancies are challenging to treat with SBRT [16,26], and require high-quality imaging with appropriate motion management [27,28]. However, most studies of online adaptive MRI-guided SBRT on clinical MRI-Lianc(s) used the pre-set MRI sequences provided by the manufacturer [11,12,13,14,15], which limited the visualization of the target and OAR on MR image sets. Furthermore, the pre-set daily-MRI required a long imaging time and had poor visualization of the target and OAR, causing difficulties in fusion, contouring [21], and fraction-to-fraction contour propagation using a rigid or deformable algorithm [29,30]. Therefore, our clinic utilized a customized T1W MRI sequence to achieve rapid imaging with superior visualization of the target and OAR and improve contouring accuracy during online adaptive planning. This study retrospectively analyzed and compared visualizing tumors and OAR on T1W image sets and pre-set T2W image sets. We also evaluated the treatment data produced in multi-fractionated MRI-guided SBRT.

2. Materials and Methods

In this institutional review board-approved study, multiple MR image sets were acquired from patients with pancreatic and intra-abdominal tumors before undergoing multi-fractionated online adaptive MRI-guided SBRT. All MR image sets were inspected to determine which set would be used as an MRI sequence to acquire daily-MRI for superior visualization of tumors and OAR.

2.1. The Workflow of CT and MRI Simulations, and MRI-Guided SBRT

Our workflow comprised 4 steps (Figure 1). First, selected patients were asked to complete the first MRI screening sheet (Figure 1a). Then, each patient underwent CT and MRI simulations (Figure 1b), where free-breathing CT (FB-CT) was used to develop a CT reference plan for online adaptive MRI-guided SBRT. Four-dimensional CT (4D-CT) image sets with an abdominal compression belt (ZiFixTM, Qfix, PA, USA) were used to measure tumor motion range [22]. If tumor motion was equal to or less than 0.5 cm, the patient was eligible for MRI-guided SBRT and was asked to complete the second MRI screening sheet for MRI safety before the MRI simulation [31,32]. On the same day as the CT simulation, MR image sets of T2W + Nav, T1-Weighted (T1W), and T1W + Fat Saturated (FS) were acquired using a 1.5T Unity®, and one of them was chosen (typically T1W) to contour the target tumor and use it as a sequence of daily-MRI. The third step was SBRT planning (Figure 1c), during which a FB-CT was rigidly registered to a chosen T1W, and target tumors and OAR were contoured on a chosen T1W and FB-CT image set, respectively. A CT reference plan (CTRef) was then developed on a FB-CT for all patients. Additionally, an MRI reference plan (MRRef) was developed on a T1W for the first few patients.
The fourth step was treating the patient with online adaptive MRI-guided SBRT. In each fraction of MRI-guided SBRT (Figure 1d), 3 image sets for daily-MRI were acquired: 1 set for online adaptive planning (plan-MRI) and 2 sets for patient setup verifications before (verification-MRI) and after beam delivery (post-MRI). Orthogonal, sagittal, and coronal cine images were acquired to verify internal target volume (ITV) by measuring target motion range on MiM (v7.0.6, MiM Software Inc, Cleveland, OH, USA). In this study, the patient setup was maintained by using the same Unity® couch top and MRI-safe or conditional immobilization devices during each CT and MRI simulation and multi-fractionated MRI-guided SBRT.

2.2. Patients

Patients were usually treated every other day using a 1.5T Unity®. The imaging, planning, and treatment data of each patient’s CT and MRI simulation and consecutive 3–5 fractionated MRI-guided SBRT were retrospectively analyzed.

2.3. CT and MRI Simulations with Immobilization Devices

On the same day, all patients underwent both a CT and an MRI simulation to acquire FB-CT images with and without a gadolinium-based contrast agent for OAR contouring, 4D-CT images for measuring target motion range, and multiple MR image sets of T2W + Nav, T1W, and T1W + FS for target tumor contouring. In addition, a 2D orthogonal coronal and sagittal image set (2D-Cine) was acquired to manually measure the range of target motion for individual patients and determine the margin of ITV. The target motion range was used to verify and adjust the initial target motion range measured in 4D-CT. An abdominal compression belt, which is safe for both CT and MRI scanning, was used for abdominal imaging to manage target and organ motion up to 0.5 cm in all directions induced by respiration [22]. The pressure level of an abdominal compression belt for each patient, measured in a CT simulation, was used to set up that patient in an MRI simulation and throughout the entire MRI-guided SBRT. Two patients were scanned without the abdominal compression belt due to their discomfort.
Imaging parameters of the T1W and T1W + FS sequences were optimized during scans of volunteers and the first few patients in the study. The optimized MRI sequences were then used for all patients. For the MRI simulation, we used a T2W + Nav with a 3D turbo spin echo (TSE) MRI pulse sequence and a T1W and T1W + FS of a 3D turbo field echo (TFE) MRI pulse sequence on a 1.5T Unity®, with 2 MRI receiver coils (a 4-channel anterior coil and a 4-channel posterior coil). Imaging parameters of T2W + Nav were repetition time (TR)/echo time (TE) = 1800/205 ms, field of view (FOV) = 400 × 400 mm2, pixel size = 1.56 × 1.56 mm2, image matrix = 480 × 480, thickness = 2.4 mm, flip angle = 90°, bandwidth = 727 Hz, and number of signals (average = 5). Each MR image set took approximately 228 to 410 s; 233 images were acquired in total. A navigating window was set at the liver dome scout (1/3 on the lung side and 2/3 on the liver side).
Imaging parameters of T1W were TR/TE = 4.5/2.2 ms, FOV = 400 × 400 mm2, pixel size = 1.1 × 1.1 mm2, image matrix = 280 × 280, thickness = 2 mm, flip angle = 10°, bandwidth = 383, Hz and number of signal average = 5. Each MR image set took approximately 120 s; 161 images were acquired in total. All image sets acquired during the CT and MRI simulations were transferred to MiM in a Digital Imaging and Communications in Medicine format.

2.4. SBRT Planning

CT and MRI simulation image sets were used to develop 1 or more CTRef or MRRef plans for each patient. For the first 5 patients in the study, we developed both a CTRef and a MRRef, but we developed only a CTRef for the rest of the patients. The T1W image sets were used to develop MRRef plans through off-line adaptive ATS planning from the CTRef plans. Average electron densities of the tumor and OAR from the CTRef were assigned to corresponding contours in the MRRef. Both CTRef and MRRef plans were developed to meet the dose constraints listed in Table 1. One of the CTRef and MRRef plans was peer-reviewed in the department chart round at Radiation Oncology, Allegheny Health Network Cancer Center.
On the MiM software, the OAR delineated on a FB-CT image set were heart, kidneys, liver, spinal cord, duodenum, small bowel, stomach, jejunum, colon, bone, body, spleen, and extras (i.e., air, contrast, vein, and celiac). Gross tumor volume (GTV), delineated on a T1W (or T1W + FS) MR image set, was determined for pancreatic tumors, left adrenal tumors, and pancreatic lymph nodes. The GTV contour was transferred from the T1W image set to the FB-CT image set for addition to the OAR contours. A FB-CT image set with all contours was exported to the treatment planning system (TPS, MR-Linac Monaco v5.51.11, CMS; St. Louis, MO, USA), and a patient-specific SBRT plan was developed. Each SBRT plan with 15–45 Gy in 3–5 fractions (Table 1) was calculated using Monte Carlo® and used 7–14 beams delivered in a step-and-shoot intensity-modulated radiation therapy (IMRT) technique with 7FFF (flattening filter-free) photons. A reference plan developed on the FB-CT was exported to the oncology system (Mosaiq v2.8.3, CMS; St. Louis, MO, USA) for a treatment schedule every other day.
A patient-specific quality assurance (QA) was performed for CTRef and MRRef plans and the first adaptive ATS plan (MRATS) to verify the applicability and deliverability of these QA plans on the Unity®. This QA test was performed using an ion chamber (Exradin A1SLMR, Standard Imaging, Inc., Middleton, WI, USA) [33] and using an MRI-conditional cylindrical diode array dosimeter (ArcCHECK-MR, Sun Nuclear Corporation, Melbourne, FL, USA) [34].

2.5. Online Adaptive MRI-Guided SBRT

Patients were treated with 3–5 fractionated MRI-guided SBRT, using our Unity®, between May 2020 and May 2023. For each fraction, 1 CTRef or MRRef plan was chosen for online adaptive ATP or ATS MRI-guided SBRT, and 1 or more MRATS(s) was added to the list of reference plans for the next online adaptive MRI-guided SBRT. Three T1W (or T1W + FS) image sets were acquired during each fraction. The first T1W image set, the plan-MRI, was used to account for inter-fraction changes of targets and OAR shape, position, and size. After image fusion between the CTRef (or MRRef) and plan-MRI by a physicist (or a therapist), an attending physician determined ATP or ATS for further online adaptive planning. Then, GTV and OAR contours, rigidly or deformably transferred from the CTRef (or MRRef), were adjusted to match the plan-MRI. For ATS, GTV and the contours of the stomach, duodenum, small bowel, colon, and jejunum were usually adjusted or re-delineated by an attending physician, and the contours of the air and body were adjusted or removed by an attending physicist.
Next, 2 T1W image sets, the verification-MRI and post-MRI images, were acquired before and after the beam delivery to verify patient setup. Once the patient setup was verified, the target motion, moving within the planning target volume (PTV), was visually evaluated by the attending physician prior to the beam delivery. If there were patient setup differences between the plan-MRI and verification-MRI in GTV and OAR contours, the verification-MRI was used as the new plan-MRI to repeat online adaptive planning. A little over 10% of the fractions in all patients enrolled in this study experienced the changes in anatomical position and size found in the verification-MRI.

2.6. Statistical Analysis of Plan Quality

For each patient, we compared the image quality of T1W, FB-CT, and T2W + Nav image sets by inspecting tumor and OAR visualization on the plan-MRI acquired during 3–5 fractionated MRI-guided SBRT. The changes in tumor and OAR contours adjusted during ATS were quantified as a function of their variability in volume. Next, the quality of online adaptive SBRT plans was evaluated by quantifying the coverage of radiation dose to tumors and OAR. Both image quality and plan quality were evaluated for all patients using MiM. Lastly, the time-consumption of each step in our workflow was analyzed in individual, online adaptive ATP/ATS plans to determine our workflow’s efficiency.

3. Results

All patients successfully completed CT and MRI simulations to acquire planning image sets and were treated with 3–5 fractionated online adaptive MRI-guided SBRT.

3.1. Patients

Twenty-six patients with pancreatic (n = 19), left adrenal (n = 3), and lymph node cancer (n = 4), who were treated using Unity® between May 2021 and May 2023, were included in this study. Of the 26 patients, 16 were male and 10 were female, and the cohort had an average age of 71 years [range: 57–95] (Table 2). Average tumor volumes of reference plans (CTRef or MRRef) and adaptive ATP/ATS plans were measured at 37.1 mL [range: 3.4 mL to 105.5 mL] and 35.4 mL [range: 3.4 mL to 106.4 mL], respectively. The same air-pressure of an abdominal compression belt recorded at the CT simulation was reproduced during the MRI simulation and consecutive 3–5 fractionated MRI-guided SBRT.

3.2. CT and MR Image Sets and Target Contouring

Figure 2 shows an example of pancreatic tumor and OAR visualization on FB-CT, T2W + Nav, and T1W image sets. Like FB-CT, the boundaries of a pancreatic tumor and OAR were well visualized on T1W, but not on T2W + Nav. Regarding tumor and OAR contouring, T1W images more clearly showed the boundaries of tumors in all 26 patients than the T2W + Nav images (Figure 3). The clear interface of organs required for higher accuracy and precision of SBRT planning was shown in T1W images, but it was unclear in T2W + Nav images.
The average GTV and PTV, measured in the CTRef or MRRef across all 26 patients, were 36.6 mL (range: 3.4 mL to 106.4 mL) and 74.9 mL (range: 7.1 mL to 181.4 mL), respectively. A target motion of 0.2–0.4 cm was measured with 4D-CT or 2D-Cine and added to the GTV as a margin along all directions for ITV, accounting for respiratory-induced target motion when using the abdominal compression belt.

3.3. Plan Quality of Reference SBRT Plans

Figure 4 shows 2 examples of patient CTRef and MRRef plans. All QA testing CTRef, MRRef, and MRATS plans showed a >95% passing rate for the 3%-3mm gamma analysis and a <2% point dose difference between data measured by an ion chamber and data calculated by TPS.

3.4. Online Adaptive MRI-Guided SBRT

Superior visualization of tumors and OAR on T1W image sets contributed to minimizing contouring uncertainty and improving the efficiency of image fusion between a chosen reference plan and plan-MRI. Furthermore, the total acquisition time of plan-MRI, verification-MRI, and post-MRI was reduced three times from 360 s for T2W + Nav to 120 s for T1W (a 67% reduction of the total acquisition time). Figure 5 shows the visualization of tumors and OAR on 5 MRATS plans created with 5 fractioned online adaptive plans.
The difference in GTV and PTV contours in all MRATS(s), compared to CTRef (or MRRef), was minimal. The average GTV was 37.1 mL in all CTRef(s) and MRRef and 35.4 mL in all MRATS(s). Similarly, the average PTV was 74.1 mL in all CTRef(s) and MRRef and 72.1 mL in all MRATS(s). In addition, the dose coverages of GTV D95% and D90% for all CTRef(s) were 94.2% [range: 78.8% to 100.0%] and 96.9% [range: 86.1% to 100.0%], respectively. The dose coverages of PTV D95% and D90% were slightly lower at 89.7% [range: 69.3% to 99.7%] and 94% [range: 78.8% to 100%], respectively. For all MRATS(s), GTV/PTV D95% and D90% were approximately at 83.7% [range: 16.8% to 100.0%]/91.6% [range: 52.8% to 100.0%], respectively. The dose coverages of GTV and PTV were mainly dependent on the locations of OAR, such as duodenum or jejunum (n = 10), stomach (n = 7), small bowel or colon (n = 9), and spleen (n = 11). Other OAR, such as the liver, kidneys, and spinal cords, had a negligible effect on GTV and PTV dose coverages since the beams’ gantry angles avoided these OAR.

3.5. Overall Time-Consumption of Online MRI-Guided SBRT in 10 Steps

The average time-consumption of online MRI-guided SBRT for the first 21 patients was 55 min for ATP and 79 min for ATS (Table 3). The most time-consuming steps were fusion/contouring and beam delivery (5 Gy to 9 Gy in each fraction with 7–13 beams), followed by patient setup, plan optimization, and plan QA/approval.

4. Discussion

SBRT planning requires that the tumor be superiorly visualized in CT or MR image sets to determine the radiation dose limit for OAR in patients with pancreatic and intra-abdominal caners [5,9,12,13,14]. In this study, we utilized T1W imaging (about 120 s) to reduce the imaging time of plan-MRI, verification-MRI, and post-MRI by approximately 67%, compared to T2W + Nav imaging (about 360 s). T1W imaging also improved tumor visualization to (1) minimize delineation uncertainty, (2) reduce GTV, and (3) spare OAR during MRI-guided SBRT. We demonstrated the efficiency of T1W imaging by inspecting all images within the clear boundaries of contoured tumors and OAR.
Intra- and inter-fractional changes in a tumor’s anatomical position and shape and a patient’s setup are often found in image-guided radiotherapy, required re-planning, or online adaptive planning [35,36,37]. To account for an inter-fractional change between a reference plan (CTRef, MRRef, or MRATS) and the plan-MRI, we performed online adaptive ATP or ATS planning, and we repeated adaptive planning within a fraction if we found an intra-fractional change between the plan-MRI and verification-MRI. To repeat adaptive planning, the latest verification-MRI was used as the plan-MRI and fused to a reference plan or the latest MRATS, followed by contouring and/or plan optimization. More than one adaptive planning was required in 10% of all fractions, which could be improved by increasing patient comfort [38]. For example, we minimized the time patients stayed on the treatment couch during online adaptive planning. T1W imaging can achieve fast imaging and efficient contouring of tumors and OAR, but it still requires patient setup for those with pre-existing health conditions, causing discomfort and pain (i.e., surgery, injury, and claustrophobia), eliminating (or minimizing) the idle waiting time for the attending physician, and reducing the delivery time of uncomplicated SBRT plans [39,40,41].
The tumor contours delineated on T1W image sets matched the contours in FB-CT image sets because they account for the respiratory-induced motion during image acquisition. However, T2W + Nav image sets were acquired at exhalation in Unity®, so the contour size of tumors was slightly smaller than it was in T1W image sets [42]. Our ITV was determined at every fraction by encompassing GTV delineated on a T1W image set and motion range measured on orthogonal, sagittal, and coronal cine images in between inhalation and exhalation over the multiple breathing cycles (i.e., about 5–7 breathing cycles). This helps to clarify fractional breathing patterns for increasing the reliability of ITV margins in the presence of inter-fractional breathing variability [43].
Patient immobilization is critical for maintaining patient setup and preventing changes in target/OAR position and shape [32,44]. A thin or medium-sized vac-bag was tested with the first 5 patients during patient setup, but this required a long setup time. The vac-bag also required the patient to rotate so that the ATS could be achieved during the long treatment time. Instead of a vac-bag, we used an abdominal compression belt to control the target motion moving within 5 mm [22]. The setup consistency of an abdominal compression belt was dependent on the level of experience of individual therapists, and it was more consistent when the same therapist set it up every time across all simulations and multi-fractionated MRI-guided SBRT.
Our study has limitations. Limitations of this study include the basic analysis of image and plan quality using T1W imaging. However, our clinical protocol is continuously being improved to increase workflow efficiency using immobilization devices, MRI sequences, and auto-contouring and planning. Compared to our T1W sequence, the newly released MRI sequence (b3DVaneXD) and research sequences (compressed sensing and mDIXON) were not tested to compare tumor and OAR visualization. The present manual measurement of ITV margin may not be required when using a respiratory gating technique in the near future.
This is an ongoing project at our institution and will include more quantitative analysis when compared with other MRI sequences, such as b3DVaneXD, compressed sensing, and mDIXON, to provide alternative imaging for less motion-dependent imaging, faster imaging, and fat/water suppression imaging, respectively. In addition, we will assess the complexity and dose coverage of our SBRT plans by comparing them with other plans using other imaging techniques for cross-validation.

5. Conclusions

This was the first study that utilized a customized and optimized T1W sequence to improve the visualization of tumors and OAR for reference planning and online adaptive planning on a 1.5T Unity®. The tumor and OAR boundaries were clearly visible for delineation. Our results can facilitate consistent visualization of pancreatic and other intra-abdominal tumors to achieve fast and accurate MRI-guided SBRT.

Author Contributions

D.L. wrote the manuscript and acquired the T1W and T2W + Nav image sets. P.R. recruited the patients with pancreatic and intra-abdominal cancers. P.R., A.K., M.T. and A.C. worked as attending physicians. S.O., M.-S.H., K.L.Y., D.P. and D.L. worked as attending physicists. C.C. and M.M. worked as the attending therapist and dosimetrist. D.L. oversaw statistical analyses. The authors reviewed the final manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was approved by the Institutional Review Board of Allegheny Health Network Cancer Institute (Pittsburgh, PA, USA).

Informed Consent Statement

Patient consent was waived since this was a retrospective study that analyzed imaging and treatment data.

Data Availability Statement

The data can be shared upon request.

Acknowledgments

We thank the physicians, therapists, nurses, dosimetrists, and staff at Allegheny Health Network and the Department of Radiation Oncology for their continuous support. The authors thank Sarah Carey, Jade Chang, and Jacalyn Newman of Allegheny Health Network’s Health System Publication Support Office (HSPSO) for their assistance in editing and formatting the manuscript. The HSPSO is funded by Highmark Health (Pittsburgh, PA, United States of America), and all work was performed in accordance with Good Publication Practice (GPP3) guidelines (http://www.ismpp.org/gpp3, accessed on 12 September 2023).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mutic, S.; Dempsey, J.F. The ViewRay System: Magnetic Resonance–Guided and Controlled Radiotherapy. Semin. Radiat. Oncol 2014, 24, 196–199. [Google Scholar] [CrossRef]
  2. Lagendijk, J.J.W.; Raaymakers, B.W.; van Vulpen, M. The Magnetic Resonance Imaging–Linac System. Semin. Radiat. Oncol. 2014, 24, 207–209. [Google Scholar] [CrossRef]
  3. Fallone, B.G. The Rotating Biplanar Linac–Magnetic Resonance Imaging System. Semin. Radiat. Oncol. 2014, 24, 200–202. [Google Scholar] [CrossRef]
  4. Keall, P.J.; Barton, M.; Crozier, S. The Australian Magnetic Resonance Imaging–Linac Program. Semin. Radiat. Oncol. 2014, 24, 203–206. [Google Scholar] [CrossRef]
  5. Heerkens, H.D.; van Vulpen, M.; Erickson, B.; Reerink, O.; Intven, M.P.; van den Berg, C.A.; Meijer, G.J. MRI guided stereotactic radiotherapy for locally advanced pancreatic cancer. Br. J. Radiol. 2018, 91, 20170563. [Google Scholar] [CrossRef]
  6. Klüter, S. Technical design and concept of a 0.35 T MR-Linac. Clin. Transl. Radiat. Oncol. 2019, 18, 98–101. [Google Scholar] [CrossRef]
  7. Winkel, D.; Bol, G.H.; Kroon, P.S.; van Asselen, B.; Hackett, S.S.; Werensteijn-Honingh, A.M.; Intven, M.P.; Eppinga, W.S.; Tijssen, R.H.; Kerkmeijer, L.G.; et al. Adaptive radiotherapy: The Elekta Unity MR-linac concept. Clin. Transl. Radiat. Oncol. 2019, 18, 54–59. [Google Scholar] [CrossRef]
  8. Hall, W.A.; Small, C.; Paulson, E.; Koay, E.J.; Crane, C.; Intven, M.; Daamen, L.A.; Meijer, G.J.; Heerkens, H.D.; Bassetti, M.; et al. Magnetic Resonance Guided Radiation Therapy for Pancreatic Adenocarcinoma, Advantages, Challenges, Current Approaches, and Future Directions. Front. Oncol. 2021, 11, 628155. [Google Scholar] [CrossRef]
  9. Rodriguez, L.L.; Kotecha, R.; Tom, M.C.; Chuong, M.D.; Contreras, J.A.; Romaguera, T.; Alvarez, D.; McCulloch, J.; Herrera, R.; Hernandez, R.J.; et al. CT-guided versus MR-guided radiotherapy: Impact on gastrointestinal sparing in adrenal stereotactic body radiotherapy. Radiother. Oncol. 2022, 166, 101–109. [Google Scholar] [CrossRef]
  10. Hoegen, P.; Katsigiannopulos, E.; Buchele, C.; Regnery, S.; Weykamp, F.; Sandrini, E.; Ristau, J.; Liermann, J.; Meixner, E.; Forster, T.; et al. Stereotactic magnetic resonance-guided online adaptive radiotherapy of adrenal metastases combines high ablative doses with optimized sparing of organs at risk. Clin. Transl. Radiat. Oncol. 2023, 39, 100567. [Google Scholar] [CrossRef]
  11. Rammohan, N.; Randall, J.W.; Yadav, P. History of Technological Advancements towards MR-Linac: The Future of Image-Guided Radiotherapy. JCM 2022, 11, 4730. [Google Scholar] [CrossRef] [PubMed]
  12. Luterstein, E.; Cao, M.; Lamb, J.; Raldow, A.C.; Low, D.A.; Steinberg, M.L.; Lee, P. Stereotactic MRI-Guided Adaptive Radiation Therapy (SMART) for Locally Advanced Pancreatic Cancer: A Promising Approach. 2018. Available online: https://www.cureus.com/articles/10922-stereotactic-mri-guided-adaptive-radiation-therapy-smart-for-locally-advanced-pancreatic-cancer-a-promising-approach (accessed on 4 April 2023).
  13. Hassanzadeh, C.; Rudra, S.; Bommireddy, A.; Hawkins, W.G.; Wang-Gillam, A.; Fields, R.C.; Cai, B.; Park, J.; Green, O.; Roach, M.; et al. Ablative Five-Fraction Stereotactic Body Radiation Therapy for Inoperable Pancreatic Cancer Using Online MR-Guided Adaptation. Adv. Radiat. Oncol. 2021, 6, 100506. [Google Scholar] [CrossRef] [PubMed]
  14. Michalet, M.; Bordeau, K.; Cantaloube, M.; Valdenaire, S.; Debuire, P.; Simeon, S.; Portales, F.; Draghici, R.; Ychou, M.; Assenat, E.; et al. Stereotactic MR-Guided Radiotherapy for Pancreatic Tumors: Dosimetric Benefit of Adaptation and First Clinical Results in a Prospective Registry Study. Front. Oncol. 2022, 12, 842402. [Google Scholar] [CrossRef] [PubMed]
  15. Bordeau, K.; Michalet, M.; Keskes, A.; Valdenaire, S.; Debuire, P.; Cantaloube, M.; Cabaillé, M.; Portales, F.; Draghici, R.; Ychou, M.; et al. Stereotactic MR-Guided Adaptive Radiotherapy for Pancreatic Tumors: Updated Results of the Montpellier Prospective Registry Study. Cancers 2022, 15, 7. [Google Scholar] [CrossRef]
  16. Heerkens, H.; Hall, W.; Li, X.; Knechtges, P.; Dalah, E.; Paulson, E.; Berg, C.v.D.; Meijer, G.; Koay, E.; Crane, C.; et al. Recommendations for MRI-based contouring of gross tumor volume and organs at risk for radiation therapy of pancreatic cancer. Pract. Radiat. Oncol. 2017, 7, 126–136. [Google Scholar] [CrossRef]
  17. Hall, W.A.; Heerkens, H.D.; Paulson, E.S.; Meijer, G.J.; Kotte, A.N.; Knechtges, P.; Parikh, P.J.; Bassetti, M.F.; Lee, P.; Aitken, K.L.; et al. Pancreatic gross tumor volume contouring on computed tomography (CT) compared with magnetic resonance imaging (MRI): Results of an international contouring conference. Pract. Radiat. Oncol. 2018, 8, 107–115. [Google Scholar] [CrossRef]
  18. Rhee, H.; Park, M.S. The Role of Imaging in Current Treatment Strategies for Pancreatic Adenocarcinoma. Korean J. Radiol. 2021, 22, 23. [Google Scholar] [CrossRef]
  19. Chuong, M.D.; Bryant, J.; Mittauer, K.E.; Hall, M.; Kotecha, R.; Alvarez, D.; Romaguera, T.; Rubens, M.; Adamson, S.; Godley, A.; et al. Ablative 5-Fraction Stereotactic Magnetic Resonance–Guided Radiation Therapy With On-Table Adaptive Replanning and Elective Nodal Irradiation for Inoperable Pancreas Cancer. Pract. Radiat. Oncol. 2021, 11, 134–147. [Google Scholar] [CrossRef]
  20. Lens, E.; van der Horst, A.; Versteijne, E.; Bel, A.; van Tienhoven, G. Considerable pancreatic tumor motion during breath-holding. Acta Oncol. 2016, 55, 1360–1368. [Google Scholar] [CrossRef]
  21. Lee, D.; Greer, P.B.; Arm, J.; Keall, P.; Kim, T. Audiovisual biofeedback improves image quality and reduces scan time for respiratory-gated 3D MRI. J. Phys. Conf. Ser. 2014, 489, 012033. [Google Scholar] [CrossRef]
  22. Tyagi, N.; Liang, J.; Burleson, S.; Subashi, E.; Scripes, P.G.; Tringale, K.R.; Romesser, P.B.; Reyngold, M.; Crane, C.H. Feasibility of ablative stereotactic body radiation therapy of pancreas cancer patients on a 1.5 Tesla magnetic resonance-linac system using abdominal compression. Phys. Imaging Radiat Oncol. 2021, 19, 53–59. [Google Scholar] [CrossRef] [PubMed]
  23. Lee, M.; Simeonov, A.; Stanescu, T.; Dawson, L.A.; Brock, K.K.; Velec, M. MRI evaluation of normal tissue deformation and breathing motion under an abdominal compression device. J. Appl. Clin. Med. Phys. 2021, 22, 90–97. [Google Scholar] [CrossRef] [PubMed]
  24. Alam, S.; Veeraraghavan, H.; Tringale, K.; Amoateng, E.; Subashi, E.; Wu, A.J.; Crane, C.H.; Tyagi, N. Inter-and intrafraction motion assessment and accumulated dose quantification of upper gastrointestinal organs during magnetic resonance-guided ablative radiation therapy of pancreas patients. Phys. Imaging Radiat Oncol. 2022, 21, 54–61. [Google Scholar] [CrossRef] [PubMed]
  25. Axford, A.; Dikaios, N.; Roberts, D.A.; Clark, C.H.; Evans, P.M. An end-to-end assessment on the accuracy of adaptive radiotherapy in an MR-linac. Phys. Med. Biol. 2021, 66, 055021. [Google Scholar] [CrossRef]
  26. Tirkes, T.; Menias, C.O.; Sandrasegaran, K. MR Imaging Techniques for Pancreas. Radiol. Clin. North Am. 2012, 50, 379–393. [Google Scholar] [CrossRef]
  27. Keall, P.J.; Mageras, G.S.; Balter, J.M.; Emery, R.S.; Forster, K.M.; Jiang, S.B.; Kapatoes, J.M.; Low, M.J.; Murphy, S.B.; Murray, B.R.; et al. The management of respiratory motion in radiation oncology report of AAPM Task Group 76a): Respiratory motion in radiation oncology. Med. Phys. 2006, 33, 3874–3900. [Google Scholar] [CrossRef]
  28. Grimbergen, G.; Eijkelenkamp, H.; Heerkens, H.D.; Raaymakers, B.W.; Intven, M.P.W.; Meijer, G.J. Intrafraction pancreatic tumor motion patterns during ungated magnetic resonance guided radiotherapy with an abdominal corset. Phys. Imaging Radiat. Oncol. 2022, 21, 1–5. [Google Scholar] [CrossRef]
  29. Oh, S.; Kim, S. Deformable image registration in radiation therapy. Radiat Oncol. J. 2017, 35, 101–111. [Google Scholar] [CrossRef]
  30. Rong, Y.; Rosu-Bubulac, M.; Benedict, S.H.; Cui, Y.; Ruo, R.; Connell, T.; Kashani, R.; Latifi, K.; Chen, Q.; Geng, H.; et al. Rigid and Deformable Image Registration for Radiation Therapy: A Self-Study Evaluation Guide for NRG Oncology Clinical Trial Participation. Pr. Radiat. Oncol. 2021, 11, 282–298. [Google Scholar] [CrossRef]
  31. Expert Panel on MR Safety; Kanal, E.; Barkovich, A.J.; Bell, C.; Borgstede, J.P.; Bradley, W.G., Jr.; Froelich, J.W.; Gimbel, J.R.; Gosbee, J.W.; Kuhni-Kaminski, E.; et al. ACR guidance document on MR safe practices. J. Magn. Reson. Imaging 2013, 37, 501–530. [Google Scholar]
  32. Glide-Hurst, C.K.; Paulson, E.S.; McGee, K.; Tyagi, N.; Hu, Y.; Balter, J.; Bayouth, J. Task group 284 report: Magnetic resonance imaging simulation in radiotherapy: Considerations for clinical implementation, optimization, and quality assurance. Med. Phys. 2021, 48, E636–E670. Available online: https://aapm.onlinelibrary.wiley.com/doi/10.1002/mp.14695 (accessed on 7 September 2023). [CrossRef] [PubMed]
  33. Malkov, V.N.; Rogers, D.W.O. Sensitive volume effects on Monte Carlo calculated ion chamber response in magnetic fields. Med. Phys. 2017, 44, 4854–4858. [Google Scholar] [CrossRef]
  34. Strand, S.; Boczkowski, A.; Smith, B.; E Snyder, J.; Hyer, D.E.; Yaddanapudi, S.; Dunkerley, D.A.P.; St-Aubin, J. Analysis of patient-specific quality assurance for Elekta Unity adaptive plans using statistical process control methodology. J. Appl. Clin. Med. Phys. 2021, 22, 99–107. [Google Scholar] [CrossRef] [PubMed]
  35. Sonke, J.J.; Aznar, M.; Rasch, C. Adaptive Radiotherapy for Anatomical Changes. Semin. Radiat. Oncol. 2019, 29, 245–257. [Google Scholar] [CrossRef] [PubMed]
  36. Ashida, R.; Nakamura, M.; Yoshimura, M.; Mizowaki, T. Impact of interfractional anatomical variation and setup correction methods on interfractional dose variation in IMPT and VMAT plans for pancreatic cancer patients: A planning study. J. Appl. Clin. Med. Phys. 2020, 21, 49–59. [Google Scholar] [CrossRef]
  37. Qiu, Z.; Olberg, S.; Den Hertog, D.; Ajdari, A.; Bortfeld, T.; Pursley, J. Online adaptive planning methods for intensity-modulated radiotherapy. Phys. Med. Biol. 2023, 68, 10TR01. [Google Scholar] [CrossRef]
  38. Goldsworthy, S.; Latour, J.M.; Palmer, S.; McNair, H.A.; Cramp, M. Patient and therapeutic radiographer experiences of comfort during the radiotherapy pathway: A qualitative study. Radiography 2023, 29, S24–S31. [Google Scholar] [CrossRef]
  39. Matuszak, M.M.; Larsen, E.W.; Fraass, B.A. Reduction of IMRT beam complexity through the use of beam modulation penalties in the objective function: IMRT beam complexity reduction using modulation penalties. Med. Phys. 2007, 34, 507–520. [Google Scholar] [CrossRef]
  40. Kamperis, E.; Kodona, C.; Hatziioannou, K.; Giannouzakos, V. Complexity in Radiation Therapy: It’s Complicated. Int. J. Radiat. Oncol. Biol. Phys. 2020, 106, 182–184. [Google Scholar] [CrossRef]
  41. Saroj, D.; Yadav, S.; Paliwal, N. Does fluence smoothing reduce the complexity of the intensity-modulated radiation therapy treatment plan? A dosimetric analysis. J. Med. Phys. 2022, 47, 336. [Google Scholar]
  42. Prunaretty, J.; Boisselier, P.; Aillères, N.; Riou, O.; Simeon, S.; Bedos, L.; Azria, D.; Fenoglietto, P. Tracking, gating, free-breathing, which technique to use for lung stereotactic treatments? A dosimetric comparison. Rep. Pract. Oncol. Radiother. 2019, 24, 97–104. [Google Scholar] [CrossRef] [PubMed]
  43. Cusumano, D.; Dhont, J.; Boldrini, L.; Chiloiro, G.; Romano, A.; Votta, C.; Longo, S.; Placidi, L.; Azario, L.; De Spirito, M.; et al. Reliability of ITV approach to varying treatment fraction time: A retrospective analysis based on 2D cine MR images. Radiat Oncol. 2020, 15, 152. [Google Scholar] [CrossRef] [PubMed]
  44. Dolde, K.; Dávid, C.; Echner, G.; Floca, R.; Hentschke, C.; Maier, F.; Niebuhr, N.I.; Ohmstedt, K.; Saito, N.; Alimusaj, M.; et al. 4DMRI-based analysis of inter—And intrafractional pancreas motion and deformation with different immobilization devices. Biomed Phys. Eng. Express 2019, 5, 025012. [Google Scholar] [CrossRef]
Cancers 15 05272 g001

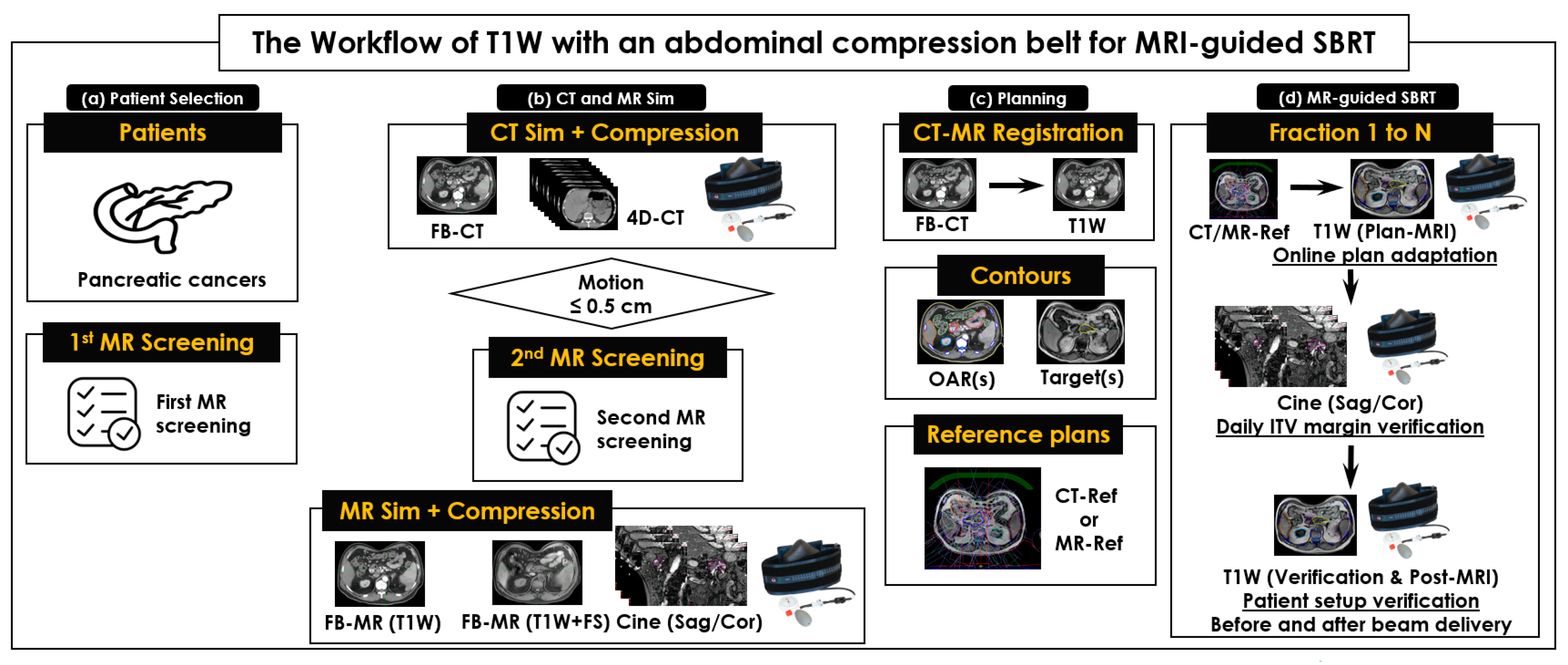

Figure 1. The workflow of simulations and multi-fractionated stereotactic body radiotherapy for pancreatic and intra-abdominal cancers (MRI-guided SBRT) on a 1.5T Unity®. (a) Patient selection and 1st MRI screening to check the eligibility of each patient; (b) CT and MRI simulations with an abdominal compression belt to acquire CT and MR image sets; (c) contouring organs at risk (OAR) on FB-CT images and target tumors on T1W images to develop a CT reference plan (CTRef) and an MRI reference plan (MRRef); and (d) MRI-guided SBRT in 3–5 fractions. An identical Unity® couch top and the same abdominal compression belt were used in CT and MRI simulations and across all SBRT fractions. Orthogonal sagittal and coronal 2D cine images were acquired to measure the range of target motion induced by respiration for determining an internal target volume (ITV) margin.
Figure 1. The workflow of simulations and multi-fractionated stereotactic body radiotherapy for pancreatic and intra-abdominal cancers (MRI-guided SBRT) on a 1.5T Unity®. (a) Patient selection and 1st MRI screening to check the eligibility of each patient; (b) CT and MRI simulations with an abdominal compression belt to acquire CT and MR image sets; (c) contouring organs at risk (OAR) on FB-CT images and target tumors on T1W images to develop a CT reference plan (CTRef) and an MRI reference plan (MRRef); and (d) MRI-guided SBRT in 3–5 fractions. An identical Unity® couch top and the same abdominal compression belt were used in CT and MRI simulations and across all SBRT fractions. Orthogonal sagittal and coronal 2D cine images were acquired to measure the range of target motion induced by respiration for determining an internal target volume (ITV) margin.
Cancers 15 05272 g001
Cancers 15 05272 g002

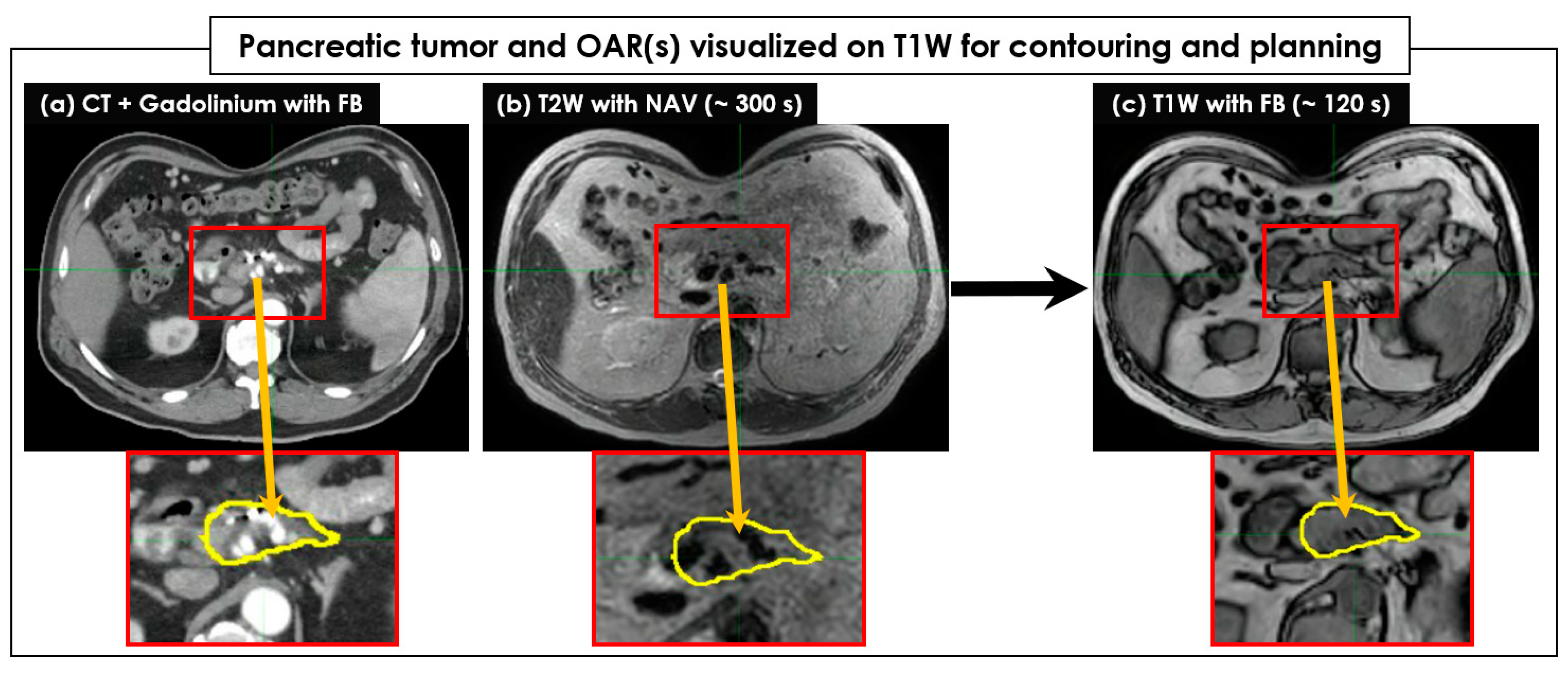

Figure 2. The pancreatic tumor and organs at risk (OAR) visualized on T1W for contouring and further SBRT planning. A CT image set (a) acquired in free-breathing (FB) with Gadolinium was compared to a T2W with exhalation-navigating (+Nav) image set (b) and a T1W image set (c). The target tumor areas were magnified, and the target tumors were contoured on a CT image set with the yellow color and copied to MR image sets. The boundary of the target tumor was clearly visible on the T1W image set acquired in a short period of time, but it was unclear on the T2W + Nav image set. The body shape due to the use of an abdominal compression belt was identical across all FB-CT, T2W + Nav, and T1W image sets.
Figure 2. The pancreatic tumor and organs at risk (OAR) visualized on T1W for contouring and further SBRT planning. A CT image set (a) acquired in free-breathing (FB) with Gadolinium was compared to a T2W with exhalation-navigating (+Nav) image set (b) and a T1W image set (c). The target tumor areas were magnified, and the target tumors were contoured on a CT image set with the yellow color and copied to MR image sets. The boundary of the target tumor was clearly visible on the T1W image set acquired in a short period of time, but it was unclear on the T2W + Nav image set. The body shape due to the use of an abdominal compression belt was identical across all FB-CT, T2W + Nav, and T1W image sets.
Cancers 15 05272 g002
Cancers 15 05272 g003

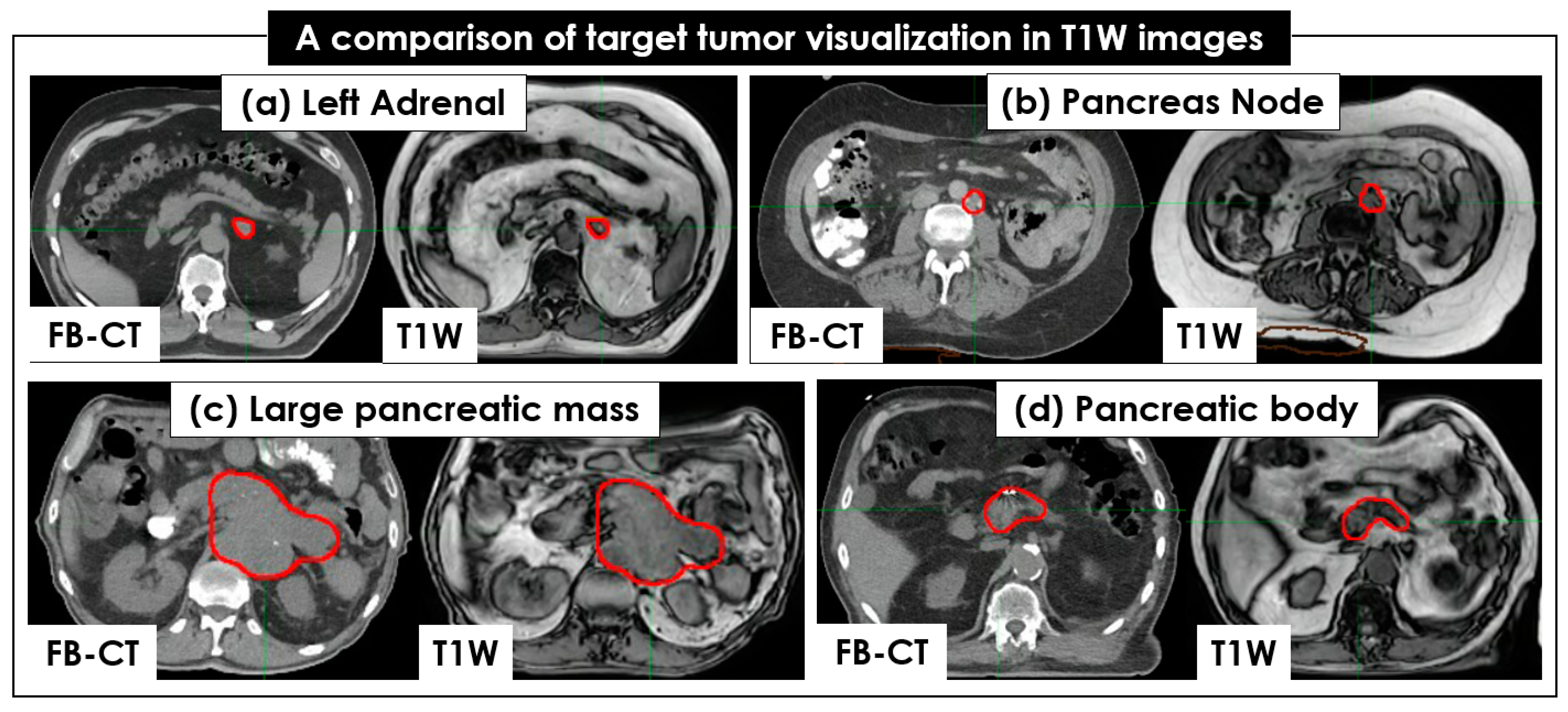

Figure 3. Comparison of tumor visualization between CT and 4 T1W image sets. The same target tumors of 4 patients, colored in red, are shown in free-breathing (FB)-CT and T1W: (a) left adrenal, (b) pancreatic node, (c) large pancreatic mass, and (d) pancreatic body. The target tumors are clearly seen in both the FB-CT and T1W image sets.
Figure 3. Comparison of tumor visualization between CT and 4 T1W image sets. The same target tumors of 4 patients, colored in red, are shown in free-breathing (FB)-CT and T1W: (a) left adrenal, (b) pancreatic node, (c) large pancreatic mass, and (d) pancreatic body. The target tumors are clearly seen in both the FB-CT and T1W image sets.
Cancers 15 05272 g003
Cancers 15 05272 g004

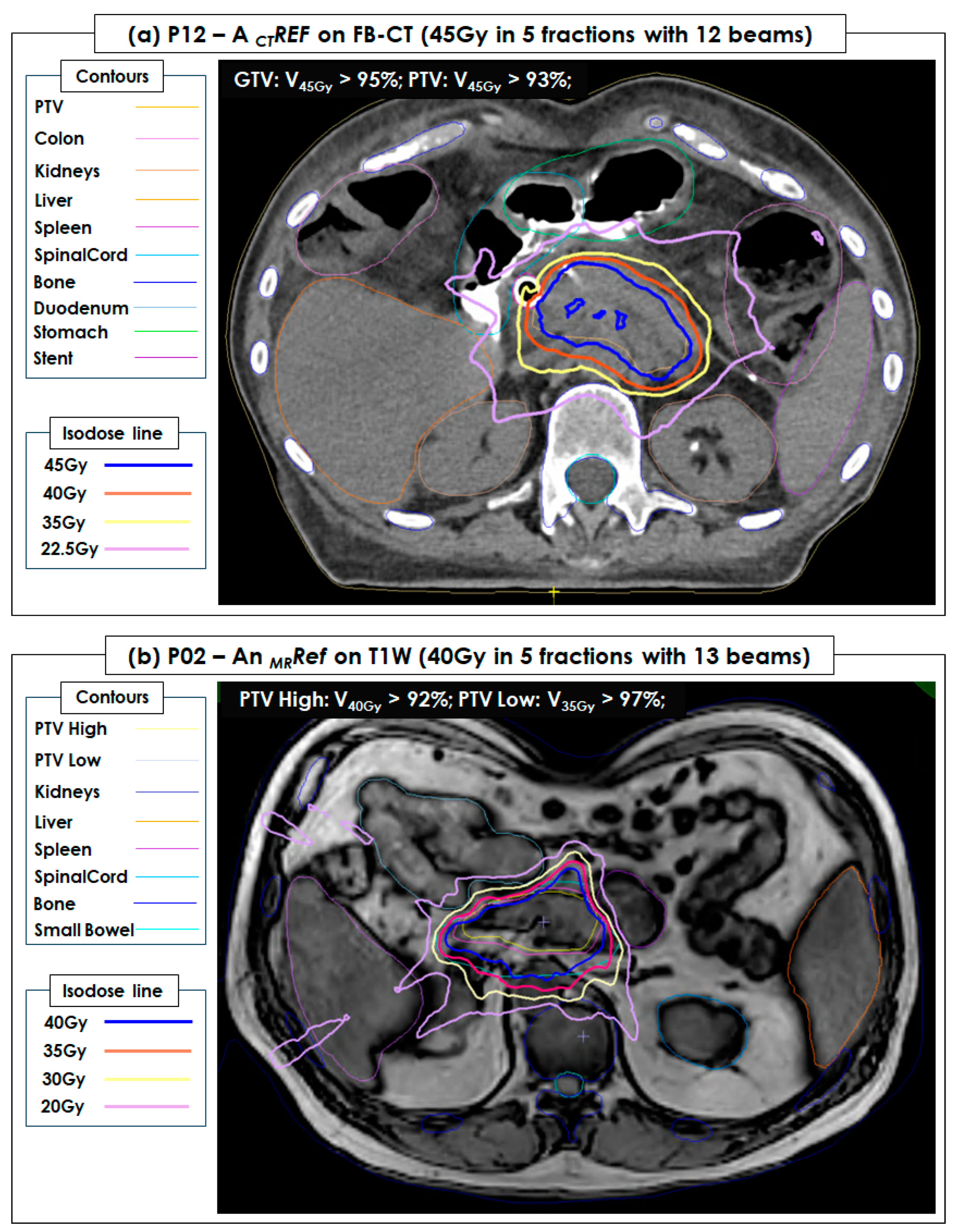

Figure 4. A CT reference plan (CTRef) of P12 and an MRI reference plan (MRRef) of P02 developed in a free-breathing (FB) CT image set (45 Gy = 9 Gy × 5 fractions with 12 beams) and a T1W image set (40 Gy = 8 Gy × 5 fractions with 13 beams), respectively. PTV and OAR (kidneys, liver, spleen, spinal cord, duodenum, bone, body (external), and small bowel) were contoured and shown in the FB-CT and T1W image sets. Both were successfully used for pancreatic and intra-abdominal cancers during 5 fractionated MRI-guided stereotactic body radiotherapy (SBRT). (a) The dose coverage of gross tumor volume (GTV) and planning target volume (PTV) in CTRef achieved V45Gy > 95% and V45Gy > 93%, respectively. (b) The dose coverage of PTV High and PTV Low in MRRef achieved V40Gy > 92% and V35Gy > 97%, respectively.
Figure 4. A CT reference plan (CTRef) of P12 and an MRI reference plan (MRRef) of P02 developed in a free-breathing (FB) CT image set (45 Gy = 9 Gy × 5 fractions with 12 beams) and a T1W image set (40 Gy = 8 Gy × 5 fractions with 13 beams), respectively. PTV and OAR (kidneys, liver, spleen, spinal cord, duodenum, bone, body (external), and small bowel) were contoured and shown in the FB-CT and T1W image sets. Both were successfully used for pancreatic and intra-abdominal cancers during 5 fractionated MRI-guided stereotactic body radiotherapy (SBRT). (a) The dose coverage of gross tumor volume (GTV) and planning target volume (PTV) in CTRef achieved V45Gy > 95% and V45Gy > 93%, respectively. (b) The dose coverage of PTV High and PTV Low in MRRef achieved V40Gy > 92% and V35Gy > 97%, respectively.
Cancers 15 05272 g004
Cancers 15 05272 g005

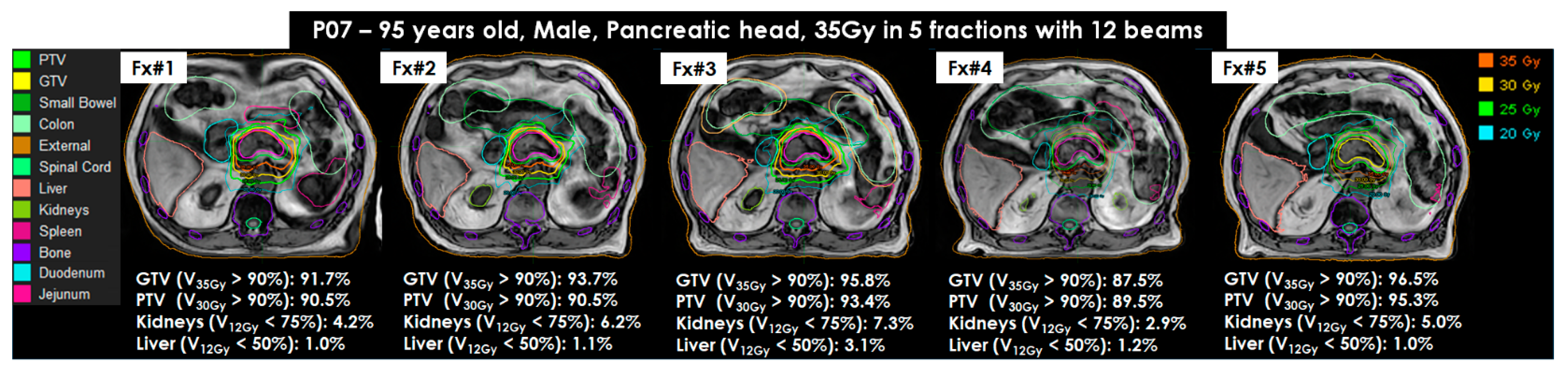

Figure 5. Online adaptive MRI-guided stereotactic body radiotherapy for pancreatic and intra-abdominal cancers of (MRI-guided SBRT) for P07 using 35Gy in 5 fractions with 12 beams (95 years old, male, pancreas head). All MRI adapt-to-shape (MRATS) plans were created on T1W image sets. The target coverages of gross tumor volume (GTV) and planning target volume (PTV) were greater than 90% in 4 fractions (Fx#1, Fx#2, Fx#3, and Fx#5), except for Fx#4. Organs at risk (OAR), the duodenum and jejunum, were very close to the target tumor and resulted in less than 90% in Fx#4. All OAR coverages were achieved in all MRATS(s).
Figure 5. Online adaptive MRI-guided stereotactic body radiotherapy for pancreatic and intra-abdominal cancers of (MRI-guided SBRT) for P07 using 35Gy in 5 fractions with 12 beams (95 years old, male, pancreas head). All MRI adapt-to-shape (MRATS) plans were created on T1W image sets. The target coverages of gross tumor volume (GTV) and planning target volume (PTV) were greater than 90% in 4 fractions (Fx#1, Fx#2, Fx#3, and Fx#5), except for Fx#4. Organs at risk (OAR), the duodenum and jejunum, were very close to the target tumor and resulted in less than 90% in Fx#4. All OAR coverages were achieved in all MRATS(s).
Cancers 15 05272 g005
Table 1. The dose constraints of planning target volume (PTV) and organs at risk for stereotactic body radiotherapy for pancreatic and other intra-abdominal cancers. This is an example of 40 Gy in 5 fractions, so the dose constraints varied on the prescription dose (15 Gy to 45 Gy).
Table 1. The dose constraints of planning target volume (PTV) and organs at risk for stereotactic body radiotherapy for pancreatic and other intra-abdominal cancers. This is an example of 40 Gy in 5 fractions, so the dose constraints varied on the prescription dose (15 Gy to 45 Gy).
OrgansDose Constraints (5 Fractions) of 40 Gy in 8 Gy × 5 Fractions
PTV (or PTV_eval)>90% coverage
GTV90–95% Rx to cover 90–95%
CordV20Gy < 0.03 cc
LiverV12Gy < 50%
Bilat kidneysV12Gy < 50%
Stomach PRV (2 mm)V40Gy < 0.5 cc, V35Gy < 1 cc, V30Gy < 2 cc
Duodenum PRV (2 mm)V40Gy < 0.5 cc, V35Gy < 1 cc, V30Gy < 2 cc
Small bowel PRV (2 mm)V40Gy < 0.5 cc, V35Gy < 1 cc, V30Gy < 2 cc
Colon PRV (2 mm)V40Gy < 0.5 cc, V35Gy < 1 cc, V30Gy < 2 cc
Jejunum PRV (2 mm)V40Gy < 0.5 cc, V35Gy < 1 cc, V30Gy < 2 cc
Spleen< 4 Gy
Heart Dmax ≤ 20 Gy
GTV: Gross tumor volume; PRV: Planning of organ at-risk volume.
Table 2. Demographic and disease profiles of 26 patients with pancreatic (n = 19) and intra-abdominal cancers (n = 7). The cohort had an average age of 71 years [range: 57–95]; 16 patients were male and 10 were female. All patients were treated with 126 fractionated MRI-guided SBRT (ATP (n = 49) and ATS (n = 77)) with the SBRT prescription (25 Gy to 45 Gy in 3–5 fractions for 25 patients and 15 Gy in 5 fractions for 1 patient). Patient P09 was treated with the stereotactic boost for the postoperative recurrence of pancreatic cancer after 45 Gy conventional fractionation.
Table 2. Demographic and disease profiles of 26 patients with pancreatic (n = 19) and intra-abdominal cancers (n = 7). The cohort had an average age of 71 years [range: 57–95]; 16 patients were male and 10 were female. All patients were treated with 126 fractionated MRI-guided SBRT (ATP (n = 49) and ATS (n = 77)) with the SBRT prescription (25 Gy to 45 Gy in 3–5 fractions for 25 patients and 15 Gy in 5 fractions for 1 patient). Patient P09 was treated with the stereotactic boost for the postoperative recurrence of pancreatic cancer after 45 Gy conventional fractionation.
Patient #DiagnosisAgeGenderSBRT Prescription# of BeamsType of Adaptive Planning
P01Pancreatic head70M35 Gy in 5 fractions13ATP (n = 0), ATS (n = 5)
P02Pancreatic head65M40 Gy in 5 fractions13ATP (n = 0), ATS (n = 5)
P03Left adrenal61M30 Gy in 3 fractions11ATP (n = 0), ATS (n = 3)
P04Left pancreatic lymph nodes72M45 Gy in 5 fractions13ATP (n = 0), ATS (n = 5)
P05Left pancreatic lymph nodes60F40 Gy in 5 fractions8ATP (n = 0), ATS (n = 5)
P06Left adrenal gland63M30 Gy in 3 fractions9ATP (n = 0), ATS (n = 3)
P07Pancreatic head95M35 Gy in 5 fractions12ATP (n = 0), ATS (n = 5)
P08Pancreatic head65F45 Gy in 5 fractions12ATP (n = 4), ATS (n = 1)
P09Pancreas Boost 64F15 Gy in 5 fractions12ATP (n = 0), ATS (n = 5)
P10Pancreatic tail67M40 Gy in 5 fractions12ATP (n = 3), ATS (n = 2)
P11Pancreas 79M35 Gy in 5 fractions8ATP (n = 0), ATS (n = 5)
P12Pancreas head/body83M35 Gy in 5 fractions11ATP (n = 0), ATS (n = 5)
P13Aortocaval lymph nodes64M25 Gy in 5 fractions11ATP (n = 4), ATS (n = 1)
P14Pancreatic body77F45 Gy in 5 fractions12ATP (n = 1), ATS (n = 4)
P15Pancreatic head57F37.5 Gy in 5 fractions12ATP (n = 3), ATS (n = 2)
P16Pancreatic head67F37.5 Gy in 5 fractions14ATP (n = 3), ATS (n = 2)
P17Pancreatic head74M40 Gy in 5 fractions11ATP (n = 3), ATS (n = 2)
P18Pancreatic head73F45 Gy in 5 fractions7ATP (n = 4), ATS (n = 1)
P19Portocaval node62M40 Gy in 5 fractions10ATP (n = 5), ATS (n = 0)
P20Pancreas 83M40 Gy in 5 fractions13ATP (n = 2), ATS (n = 3)
P21Pancreas 71M45 Gy in 5 fractions10ATP (n = 3), ATS (n = 2)
P22Pancreatic tail72F40 Gy in 5 fractions12ATP (n = 2), ATS (n = 3)
P23Pancreatic body mass79F40 Gy in 5 fractions12ATP (n = 1), ATS (n = 4)
P24Pancreatic head61F40 Gy in 5 fractions8ATP (n = 4), ATS (n = 1)
P25Pancreatic head72M45 Gy in 5 fractions8ATP (n = 4), ATS (n = 1)
P26Left adrenal81M32 Gy in 4 fractions7ATP (n = 3), ATS (n = 2)
Mean ± STD or Total number71 ± 9M (n = 16), F (n = 10)15 Gy to 45 Gy in 3–5 fractions7–14ATP (n = 49), ATS (n = 77)
P = Patient; M = Male; F = Female; ATP = Adapt-to-position; ATS = Adapt-to-shape; STD = Standard deviation.
Table 3. Time-consumption of online adaptive MRI-guided stereotactic body radiotherapy for pancreatic and intra-abdominal cancers (SBRT) in 10 steps. The step of fusion and contouring included some waiting time of attending physicians. The step of plan QA and approval included an independent dose verification and a visual inspection of the target tumor moving within the PTV contour.
Table 3. Time-consumption of online adaptive MRI-guided stereotactic body radiotherapy for pancreatic and intra-abdominal cancers (SBRT) in 10 steps. The step of fusion and contouring included some waiting time of attending physicians. The step of plan QA and approval included an independent dose verification and a visual inspection of the target tumor moving within the PTV contour.
AdaptiveMRI ScreeningPatient SetupImaging Plan-MRIFusion/ContouringPlan OptimizationPlan ReviewPlan QA/ApprovalTherapist CheckBEAM DeliveryImaging Post-MRISecondsMinutes
Imaging Verification-MRI
ATP81 ± 35493 ± 144276 ± 99763 ± 546330 ± 180264 ± 328248 ± 11317 ± 17725 ± 23897 ± 143296 ± 92554.9 ± 15.4
ATS77 ± 39622 ± 254238 ± 901629 ± 739545 ± 545337 ± 271337 ± 39626 ± 45850 ± 26198 ± 174759 ± 124379.3 ± 20.7
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Lee, D.; Renz, P.; Oh, S.; Hwang, M.-S.; Pavord, D.; Yun, K.L.; Collura, C.; McCauley, M.; Colonias, A.; Trombetta, M.; et al. Online Adaptive MRI-Guided Stereotactic Body Radiotherapy for Pancreatic and Other Intra-Abdominal Cancers. Cancers 2023, 15, 5272. https://doi.org/10.3390/cancers15215272

AMA Style

Lee D, Renz P, Oh S, Hwang M-S, Pavord D, Yun KL, Collura C, McCauley M, Colonias A, Trombetta M, et al. Online Adaptive MRI-Guided Stereotactic Body Radiotherapy for Pancreatic and Other Intra-Abdominal Cancers. Cancers. 2023; 15(21):5272. https://doi.org/10.3390/cancers15215272

Chicago/Turabian Style

Lee, Danny, Paul Renz, Seungjong Oh, Min-Sig Hwang, Daniel Pavord, Kyung Lim Yun, Colleen Collura, Mary McCauley, Athanasios (Tom) Colonias, Mark Trombetta, and et al. 2023. "Online Adaptive MRI-Guided Stereotactic Body Radiotherapy for Pancreatic and Other Intra-Abdominal Cancers" Cancers 15, no. 21: 5272. https://doi.org/10.3390/cancers15215272

APA Style

Lee, D., Renz, P., Oh, S., Hwang, M. -S., Pavord, D., Yun, K. L., Collura, C., McCauley, M., Colonias, A., Trombetta, M., & Kirichenko, A. (2023). Online Adaptive MRI-Guided Stereotactic Body Radiotherapy for Pancreatic and Other Intra-Abdominal Cancers. Cancers, 15(21), 5272. https://doi.org/10.3390/cancers15215272

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
