Article

RB1-Negative Retinal Organoids Display Proliferation of Cone Photoreceptors and Loss of Retinal Differentiation

1
Institute of Human Genetics, University Hospital Essen, University of Duisburg-Essen, 45147 Essen, Germany
2
Eye Oncogenetics Research Group, University Hospital Essen, University of Duisburg-Essen, 45147 Essen, Germany
3
Imaging Center Essen (LMU), Institute for Experimental Immunology and Imaging, University Hospital Essen, University of Duisburg-Essen, 45147 Essen, Germany
4
West German Genome Center (WGGC), University of Cologne, 50931 Cologne, Germany
5
Core Facility Genomics, Berlin Institute of Health at Charite, Universitätsmedizin Berlin, 10115 Berlin, Germany
6
Max Delbrück Center for Molecular Medicine in the Helmholtz Association, 13125 Berlin, Germany
7
Bioinformatics and Databases, Leibniz Institute DSMZ—German Collection of Microorganisms and Cell Cultures, 38124 Braunschweig, Germany
8
Human and Animal Cell Lines, Leibniz Institute DSMZ—German Collection of Microorganisms and Cell Cultures, 38124 Braunschweig, Germany
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Cancers 2022, 14(9), 2166; https://doi.org/10.3390/cancers14092166
Received: 11 March 2022 / Revised: 14 April 2022 / Accepted: 22 April 2022 / Published: 26 April 2022
(This article belongs to the Special Issue New Perspectives of Ocular Oncology)

Abstract

:

Simple Summary

Retinoblastoma is a tumor of the eye’s retina, which is the very specialized tissue responsible for vision. In 98% of cases, the tumor is caused by inactivation of the RB1 gene. Due to lack of material and models, the understanding of RB1 mutations in tumor development is still unsatisfactory. We aimed to establish a human laboratory model for retinoblastoma. While differentiating stem cells with a mutation in RB1 into retina, we observed reduced differentiation potential but enhanced proliferation—general hallmarks of tumor development. The gene expression signature in the model resembled that of tumor material. This approach now enables research on retinoblastoma and probably therapy in the correct tissue, the human retina.

Abstract

Retinoblastoma is a tumor of the eye in children under the age of five caused by biallelic inactivation of the RB1 tumor suppressor gene in maturing retinal cells. Cancer models are essential for understanding tumor development and in preclinical research. Because of the complex organization of the human retina, such models were challenging to develop for retinoblastoma. Here, we present an organoid model based on differentiation of human embryonic stem cells into neural retina after inactivation of RB1 by CRISPR/Cas9 mutagenesis. Wildtype and RB1 heterozygous mutant retinal organoids were indistinguishable with respect to morphology, temporal development of retinal cell types and global mRNA expression. However, loss of pRB resulted in spatially disorganized organoids and aberrant differentiation, indicated by disintegration of organoids beyond day 130 of differentiation and depletion of most retinal cell types. Only cone photoreceptors were abundant and continued to proliferate, supporting these as candidate cells-of-origin for retinoblastoma. Transcriptome analysis of RB1 knockout organoids and primary retinoblastoma revealed gain of a retinoblastoma expression signature in the organoids, characterized by upregulation of RBL1 (p107), MDM2, DEK, SYK and HELLS. In addition, genes related to immune response and extracellular matrix were specifically upregulated in RB1-negative organoids. In vitro retinal organoids therefore display some features associated with retinoblastoma and, so far, represent the only valid human cancer model for the development of this disease.

1. Introduction

Retinoblastoma is a rare tumor of the neural retina in children mainly diagnosed before the age of five. The main cause of retinoblastoma is biallelic inactivation of RB1, which can occur as part of a heritable tumor predisposition disease. So far, BCOR is the only gene recurrently mutated in retinoblastoma, found in about 10% of cases, leaving inactivation of RB1 as the main driver of tumor formation [1,2,3]. About 1–2% of patients with retinoblastoma show no RB1 alteration but instead amplification of MYCN [4]. Retinoblastoma progression appears to be associated with a shift in the transcriptome pattern from photoreceptor to RNA-metabolism associated genes [5,6,7,8]. Models to understand retinoblastoma development and the role of RB1 therein have been established in mice, human fetal retina tissue, cell lines and most recently as 3D retinal organoids. Cell lines are of value in pharmacological studies investigating target gene chemosensitivity and -resistance to certain cytotoxic drugs and often serve as controls in xenograft models [9,10]. However, they represent the end stage of retinoblastoma development and are unsuitable for studies on tumor initiation and development. Studies in mice cannot be translated to humans because the two species exhibit non-homologous retinoblastoma development. Thus, homozygous knockout of Rb1 in mice is lethal in the embryo and heterozygous animals frequently develop pituitary tumors, but not retinoblastoma [11]. Models using conditional knockout of Rb1 in the retina on p107−/− and/or p130−/− backgrounds result in loss of layered retina structure and impaired retinal differentiation [11,12,13,14]. Histopathological studies on mouse retinoblastoma pointed to an amacrine/horizontal cell-of-origin rather than a photoreceptor cell as reported for humans [13,15]. RB1 knockdown experiments on explanted human fetal retina specimens showed that early postmitotic LM-type cone precursor cells are especially vulnerable to pRB loss and are deemed likely cells-of-origin [15,16,17]. It has been suggested that this vulnerability to RB1 loss depends on the high expression of pRB, MDM2 and MYCN in human cone precursor cells. The availability of human pluripotent stem cells, their potential to differentiate into neural retina and their accessibility to genetic engineering enabled the establishment of human cellular models for retinoblastoma where tumor initiation during retinal differentiation can be monitored. Several protocols have been described for robust neural retina differentiation of human pluripotent stem cells in 3D organoids, employing organoid formation in suspension or via an intermediate adherent step [18,19,20,21,22,23]. Retinal organoids develop all seven cell types of the mature retina with timing and organization similar to that seen in vivo [24]. To date, four studies discussed the differentiation of retinal organoids in modelling retinoblastoma [25,26,27,28]. Three studies focused on in vitro differentiation of RB1 mutant human pluripotent stem cells into retinal organoids for 90 to 150 days, whereas one study investigated tumor formation of organoid-derived cells of d45 in orthotopic xenograft models. All studies reported consistently on persistent proliferation and changes in retinal cell-type composition. All, except for the study of Zheng et al., showed tumorigenic potential of organoid-derived cells in vitro or in mouse xenograft models. Xenograft tumors showed features of human retinoblastoma. Although some features are described by all studies, some differences remain, which might be due to differences in the genetic background of the cells used, use of similar but different differentiation protocols and discrepancies in analyses applied. Detailed analyses of several retinoblastoma in vitro models will contribute to formation of a consensus in the application of such models.
The present study adds to the previous studies and confirms their in vitro data, contributing to the decision-making process whether retinal organoids could be useful models of retinoblastoma. The data suggest that retinoblastoma originates from immature or maturing cone photoreceptor cells. Differentiation of RB1-modified hESCs into retinal organoids revealed loss of structure and overrepresentation of proliferating cone photoreceptors only in organoids derived from hESCs not expressing RB1 (RB1ko). Transcriptome analysis of primary retinoblastoma and organoids revealed the development of a retinoblastoma expression signature in RB1ko organoids. Expression of proliferation-associated genes was maintained and accompanied by reduced expression of retinal differentiation-associated genes. Gene ontology and enrichment analyses pointed to differences in extracellular matrix organization and the development of a parainflammation signature in late RB1ko organoids.

2. Materials and Methods

2.1. Human Embryonic Stem Cells and Tumor Specimens

All experiments were performed in accordance with relevant guidelines and regulations. Use of human embryonic stem cells (hESCs) has been reviewed and approved by the Central Ethical Review Board for Stem Cell Research at the Robert Koch Institute, Berlin, Germany (Az.3.04.02/0101) and the Ethical Review Board of the University of Duisburg-Essen (16-7215-BO). For patient tumor samples, written informed consent was obtained and use of tumor samples for RNA-seq was reviewed and approved by the Ethical Review Board of the University of Duisburg-Essen (17-7384-BO). Tumor specimens were obtained after primary enucleation, directly frozen and kept at −80 °C until RNA preparation. Samples were chosen based on availability, loss-of-heterozygosity in the tumor (used as measure for absence of normal retina tissue), early age at diagnosis and type of mutation (premature stop codon) in RB1. Sole presence of mutant RB1 transcript was verified by RT-PCR and sequencing.

2.2. Generation and Cultivation of hESCs

Cells were cultivated on Matrigel-coated plasticware in StemMACS iPS-Brew XF medium (Miltenyi Biotec, Bergisch Gladbach, Germany) at 37 °C in 5% CO2 humidified atmosphere. Cell splitting was performed with Gentle Cell Dissociation Reagent (STEMCELL Technologies, Cologne, Germany) at a ratio of 1:8 every 4–5 days. Human ESCs were genetically modified by CRISPR/Cas9 as described [29,30]. Cell lines H9_RB1ex3_G12LS and H9_RB1ex3_C07, modified in RB1 exon 3, carry an identical deletion of seven basepairs (LRG_517t1:c.374_380del p.Glu125Valfs*9; GRCh38: Chr13:48342708-48342714) in heterozygous and homozygous states, respectively. Cell lines H9_RB1ex1_8B3 and H9_RB1ex1_8F2 carry deletions of entire RB1 exon 1 of circa 400 basepairs in heterozygous and compound heterozygous state, respectively (heterozygous: GRCh38: Chr13:48303704-48304100; compound heterozygous: GRCh38: Chr13:48303687-48304103 and GRCh38: Chr13:48303708-48304102).

2.3. Differentiation of hESCs into Neural Retina

Organoid differentiation of hESCs into neural retina was performed as described and illustrated in Figure S1 [31]. Differentiations were set up as three independent biological replicates.

2.4. Cryosectioning and Immunofluorescent Staining of 3D Organoids and Quantification

Cryosectioning and immunofluorescent staining and signal quantification was performed as described in [31]. Antibodies for immunostaining are listed in Table S1. Images were taken with a Leica SP8 confocal laser scanning microscope. Quantification was performed as described, but with an adapted macro for three channel images (Supplementary File 1). Wilcoxon rank sum test was applied to test for significance with * p ≤ 0.05, ** p ≤ 0.01, *** p ≤ 0.001, **** p ≤ 0.0001. Boxplots were generated using ggplot2 with default settings.

2.5. RNA-seq

Organoids were harvested at d35, d96 and d152 of differentiation and total RNA was isolated using Monarch Total RNA Miniprep kit (NEB, Frankfurt, Germany). Where possible, equal amounts of RNA of three organoids per experiment were pooled (for exceptions, see Table S2) and sequenced using the TruSeq Stranded mRNA kit (Illumina, Berlin, Germany) by CeGaT, Tübingen, Germany. Paired reads were quality controlled using FastQC (v0.11.9; https://www.bioinformatics.babraham.ac.uk/projects/fastqc/, accessed on 23 September 2020) and trimmed via fastq-mcf (ea-utils, 1.05). Trimmed reads were aligned to the GENCODE genome release 35 (GRCh38.p13) via STAR (2.7.5c) and mapped reads counted via htseq-count (0.13.0; -q -m intersection-nonempty --stranded = reverse –r;) [32,33]. Samtools served for conversion/sorting of sam and bam files (0.1.19) [34]. Normalization and further analyses were performed in the R environment (4.0.2; www.r-project.org, accessed on 14 April 2022) including DESeq2 (1.30.0) enriched by ENSEMBL gene annotations (v101) [35]. Batch effects in the gene expression model were corrected and FDR-corrected p-values calculated. R-packages clusterProfiler (3.18.0) and enrichplot (1.10.1) were used to construct heatmaps [36]. GOSemSim (2.16.1) was used for reduced redundancy GO term enrichment analysis of differentially expressed genes and gene set enrichment analysis performed via GSEA (v4.1.0) using default settings and the Hallmark gene set of MSigDB (h.all.v7.2.symbols.gmt) on normalized gene expression data of d152/d160 organoid samples for genes with minimal expression of 10 reads [37,38]. Datasets were normalized based on DESeq2, before and after exclusion of the three outlier samples G12LS_30DK. Otherwise, samples shown in the same figure were normalized against each other and analyzed using DESeq2 before plotting. For representation in heatmaps, p-values and log2FC (indicated with the respective figures) were chosen such that each heatmap displayed a comparable number of genes. Since gene expression changes between genotypes at d152 were the main point of interest, DEGs retrieved in multiparametric analysis) were filtered with p < 0.05 and log2FC > 1. Log2FC plotted for the retinoblastoma expression signature was calculated as follows: ratio 1 = RB1wt/het_d152/RB1wt/het _d35, ratio 2 = RB1ko_d152/RB1ko_d35, log2FC = ratio 2/ratio1.

3. Results

3.1. Differentiation into Neural Retina Is Impaired in RB1ko

RB1 mutant H9 human embryonic stem cells were generated and subsequently differentiated into retinal organoids. The clonal sublines H9_RB1ex3_G12LS and H9_RB1ex3_C07 were generated after CRISPR/Cas9 editing of RB1 and carry identical deletions of seven basepairs in RB1 exon 3 in both heterozygous and homozygous state, respectively. Absence of pRB in H9_RB1ex3_C07 has been confirmed (Figure S2) [29]. Genome integrity of the cell lines was analyzed by whole genome sequencing and revealed 19 and 21 variants private to H9_RB1ex3_G12LS and H9_RB1ex3_C07, respectively (Figure S3, Supplementary Methods, Supplementary File 2, Supplementary File 3). None of these variants coincided with a predicted CRISPR/Cas9 off-target site (Table S3), indicating random and independent acquisition during cell cultivation. The H9 hESC line used here, and consequently the two sublines, carry a heterozygous D281N mutation in TP53 (GRCh38/hg38, chr17:7673779 C > T), a variant deemed pathogenic (https://www.ncbi.nlm.nih.gov/clinvar, accessed on 30 April 2021).
Retina differentiation and development of retinal cell types in 3D organoids were compared between parental H9 hESCs and clonal sublines H9_RB1ex3_G12LS and H9_RB1ex3_C07 [31]. Organoids of the respective genotypes are designated RB1wt, RB1het and RB1ko throughout the manuscript. Morphologically, development of retinal tissue was observed from d12 onward (Figure S1A). Success of organoid formation, size and formation of retinal loops were comparable between the genotypes up to d126. However, at d152, RB1ko organoids were smaller and surrounded by shed cells, while the outer retinal layer appeared to be absent in brightfield microscopy (Figure S1B). Immunofluorescent staining was used to determine the appearance of the seven retinal cell types (ganglion, horizontal, amacrine, rod and cone photoreceptors, bipolar and Müller glia) during differentiation. Induction of the eye field was verified at d35 by presence of retinal progenitor cells, staining positive for PAX6, RX, VSX2 and early photoreceptor cells, staining positive for CRX (Figure S4). Ganglion cells expressing BRN3 isoforms (encoded by POU4F1, POU4F2 and POU4F3) were observed at d35 in the inner part of organoids and their number appeared similar in all types of organoids (Figure S5). Horizontal and amacrine interneurons developed from d61 onward and located in the middle and innermost layers of organoids, respectively (Figure 1A). Based on the quantification of PROX1-positive cells at d126, numbers of horizontal cells were not significantly different between the three genotypes (Figure 1B). The numbers of amacrine cells (AP2α) at d126 correlated with RB1 genotype: 10% in RB1wt, 7% in RB1het and only 3% in RB1ko (Figure 1B), which was also described by Rozanska et al. [27].
Bipolar and Müller glia cells arose late during differentiation. Bipolar cells (PKCα, VSX2) located in the middle layer of the organoid in RB1wt and RB1het but were absent in RB1ko (Figure S5). Müller glia cells (VIM, SOX9, SOX2) interconnect all retinal layers and their abundance was reduced in RB1ko, compared to RB1wt and RB1het (Figure S5). Rod and cone photoreceptors are the light-sensitive cells of the retina and markers for proper retinal differentiation in vitro. They started to develop around d90 of differentiation. In RB1ko, photoreceptors did not form a highly organized cell layer at the outer rim of the organoid, which might correlate with the observed difficulty of detecting a visible retinal layer in brightfield images (Figure 2A and Figure S1B). Developing and mature rod photoreceptors (NRL, RHO) were less abundant in RB1ko when compared to RB1wt and RB1het specimens (Figure 2 and Figure S6). Immature cone photoreceptors (RXRγ) were detectable at d152 in reasonable and stable numbers and enriched in RB1ko (Figure 2). Maturing cone photoreceptors (ARR3) developed up to d152 and numbers did not differ between the three genotypes (Figure 2).
In summary, retinal differentiation resulted in formation of all seven retinal cell types in RB1wt and RB1het organoids. In RB1ko, layered organization of the retina was lost and, while differentiation of most retinal cell types was inefficient, immature RXRγ-positive cone photoreceptor cells developed abundantly.

3.2. Persistent Proliferation in RB1ko

To analyze whether the observed gain in RXRγ-positive cone photoreceptor cells was a result of their excess proliferation, co-staining of proliferation marker Ki67 with cone marker proteins was performed (Figure 3A). With ongoing differentiation, numbers of proliferating cells (Ki67) decreased in RB1wt and RB1het but represented 15–20% of all cells in RB1ko at d152 (Figure S7). Of the cells expressing RXRγ or ARR3, 11–25% and 10–12%, respectively, were also positive for Ki67 (Figure 3B).
LM-type cone photoreceptors are reportedly especially sensitive to loss of pRB [16,17]. Staining for LM-opsin and S-opsin revealed overall few positive cells with no significant difference in percentage in all three genotypes (Figure S8). Cells staining positive in RB1ko show less mature photoreceptor morphology, more nuclear than cytoplasmic localization and lower overall signal intensity when compared to staining in RB1wt and RB1het (Figure S8). Co-staining of LM-opsin and S-opsin with Ki67 was observed in RB1ko only (Figure 4). In comparison, co-staining of Ki67 was not detected in Müller glia cells (VIM) and bipolar cells (PKCα), observed very rarely in rod photoreceptors (NRL) and seen more often in horizontal cells (PROX1) (Figure S9). In summary, cone photoreceptors, identified by expression of RXRγ, ARR3, LM-opsin or S-opsin, were the main proliferating cells in RB1ko organoids.

3.3. RNA-seq Confirmed Aberrant Retinal Differentiation and Proliferation in RB1ko

To relate the observed phenotype of RB1ko to changes in gene expression, transcriptomes of organoids were generated. To validate and strengthen the obtained results, organoids heterozygous or homozygous for deletion of the entire exon 1 of RB1 were included in transcriptome analysis (Table S2) [30]. Analysis of such organoids showed absence of pRB and expression of retinal markers comparable to organoids with modifications in RB1 exon 3 (Figures S2 and S10–S12). Principal component analysis (PCA) showed separation of RB1wt and RB1het samples by day of differentiation (Figure 5A). RB1ko samples clustered separately from RB1wt and RB1het and did not separate between d96 and d152. Based on the PCA plot, we concluded that the type of mutation had no influence on differentiation, because the RB1ko sample groups did not split according to the RB1 mutation whether involving exon 3 or exon 1 modifications. Of note, results of RB1het samples of one differentiation experiment were classified as outliers and excluded from further analyses (Figure S13, Table S2).
In a first analysis, changes in gene expression between d35 and d152 of retinal differentiation were determined in RB1wt (Figure 5B). The obtained differentially expressed genes (DEG) were assigned to four clusters. Genes upregulated during differentiation were associated with GO terms (biological processes) sensory perception of light and synaptic transmission; downregulated genes were enriched for cell division and mRNA processing (Figure 5C). This reflects induction of retina differentiation accompanied by ceasing proliferation. No substantial differences in gene expression were evident between RB1het and RB1wt, confirming that heterozygous inactivation of RB1 has no effect on retinal differentiation. In RB1ko, gene expression deviated after d35: genes involved in retina differentiation were not upregulated, while those affecting DNA replication and proliferation were not downregulated (Figure 5B). Plotting expression of specific retinal marker genes confirmed the results obtained by immunofluorescence and highlighted the lack of retinal differentiation in RB1ko after d35 (Figure 5D). Only the markers for cone photoreceptors RXRG and GNAT2 were markedly upregulated in RB1ko in later stages of differentiation. On the other hand, expression of several cell-cycle regulators and the pRB-regulated E2F transcription factors remained high in RB1ko (Figure S14). In a second analysis, the influence of parameters time and genotype on gene expression was determined. To simplify analysis, RB1wt and RB1het were combined in one genotype since immunostaining and gene expression patterns look alike. Differences between RB1wt/het and RB1ko in gene expression patterns were observed in five clusters (Figure 6A, clusters 3, 6, 7, 8, 10).
As already described, genes associated with visual perception (c3) became upregulated in RB1wt/het but not in RB1ko, and genes needed for G1/S transition of mitotic cell cycle (c10) were upregulated in RB1ko but downregulated in RB1wt/het (Figure 6B and Figure S15). Additionally, genes related to cell fate commitment and neurogenesis (c6) and development of anatomical structure size (c8) were active at d35 in RB1wt/het but only at d152 in RB1ko, illustrating the delay in differentiation in RB1ko. Interestingly, genes clustered in c7 were strongly upregulated in RB1ko only and were enriched in the process extracellular matrix organization. This might be related to the observed disintegration of RB1ko organoids after d126 of differentiation (Figure S1B). GSEA analysis of expression data of d152 delivered similar results with prominent enrichment of gene sets E2F_targets, MYC_targets, mitotic_spindle and epithelial-mesenchymal transition (Figure S16). In addition, gene sets related to immune pathways were highlighted.
Gene expression profiles of the retinal organoids were compared to publicly available data. DEG and cluster analysis between fetal and adult retina revealed that organoid differentiation mimics retina development in vivo: the transition of gene expression in clusters c1, c4 and c5 over time was similar to the shift of gene expression from fetal retina to adult retina (Figure S17). The DEG expression pattern determined in RB1wt (Figure 5) was comparable to that obtained in the retinal organoid study reported by Kaya et al. (Figure S18) [39].

3.4. RB1ko Organoids Gain Retinoblastoma Expression Signature

To determine whether gene expression of RB1ko organoids resembles that of retinoblastoma, transcriptomes of five tumor specimens were generated. Tumor samples were selected based on young age at diagnosis, mutation in RB1 in a 5′-exon and presence of LOH in the tumor (Figure 7A). Public data for fetal retina at days 115, 125, 132 and 136 post conception were used for comparison, because gene expression at this stage appeared most similar to organoids at d152 [40,41]. DEGs between fetal retina and tumor samples were determined and after clustering, eight clusters were evident (Figure 7B, Figure S19). Genes in c1 to c4 were upregulated in tumor samples but weakly expressed in developing retina. Reduced redundancy GO term analysis revealed terms associated with immune regulation (c1, c4), cell-cycle progression (c2) and visual perception (c3). Genes in clusters c5 to c8 were expressed in fetal retina but not in tumor samples. GO analysis revealed enrichment for processes involved in neuronal differentiation (c5, c7, c8). The small cluster c6 connoted T-cell-mediated immune regulation. Organoids RB1wt and RB1het at d152 were more similar to fetal retina (c1, c2, c4, c7 and c8) than to tumor samples, showing weak expression in immune and cell cycle-related clusters (c1, c2, c4) but prominent expression in processes of neuronal differentiation (c7, c8). In contrast, RB1ko at d152 were more similar to tumor samples with enhanced expression in clusters related to cell cycle (c2), visual perception (c3) and type I interferon response (c4) but low expression of genes related to neuronal differentiation (c5, c7). A retinoblastoma gene expression signature was distilled from data of two earlier studies and transcriptome data of RB1ko at d152 and the tumor samples were compared to this signature [5,6]. In the study by Ganguly et al., gene expression in six tumors was compared to that of normal retina, whereas Kapatai et al. compared 21 tumors to publicly available expression data from fetal and adult retina. The gene set common to these two earlier studies consisted of 510 members, 240 down- and 270 upregulated in retinoblastoma when compared to normal retina. We analyzed the expression of these DEGs in RB1ko and tumor samples. The gene expression signature of the tumor samples confirmed that of the two earlier studies (Figure 7C).
In RB1ko organoids, the similarity to the retinoblastoma signature increased from d35 to d152 of differentiation. Plotting the expression of genes known to be associated with retinoblastoma development, such as MDM2, DEK, SYK and HELLS, confirmed their upregulation in RB1ko when compared to RB1wt and RB1het and in the tumor specimens (Figure 7D). Expression of RB1 mRNA was highest in RB1wt, intermediate in RB1het and lowest in RB1ko. The two other members of the pocket protein family, RBL1 (p107) and RBL2 (p130), showed distinct expression changes during retinal differentiation: in RB1wt and RB1het, RBL1 was expressed at d35 only, whereas RBL2 became upregulated from d96 onward. In RB1ko, RBL1 was not downregulated upon differentiation and RBL2 not upregulated. This reflects the expression pattern observed in native retinoblastoma with prominent expression of RBL1 but almost undetectable expression of RBL2, further reinforcing the validity of the retinal organoid model [17].

4. Discussion

We present RB1-modified 3D retinal organoids as a model system for in vitro analysis of retinoblastoma. RB1wt and RB1het organoids were indistinguishable in retinal differentiation by morphology, immunofluorescent staining and global RNA expression. In contrast, while in RB1ko organoids differentiation was initiated, proper development of retinal cell types was impaired. Instead, proliferation, specifically of cone photoreceptors, persisted. Lack of differentiation and persistent proliferation was accompanied by loss of structure in RB1ko organoids and their disintegration after d126. Transcriptome profiles revealed gradual development of a retinoblastoma expression signature in RB1ko with upregulation of proliferation-associated genes and retinoblastoma-related oncogenes such as DEK, SYK and HELLS.
CRISPR/Cas9 edited cell lines were analyzed for off-target effects by whole genome sequencing (WGS, Figure S3). Of 58 single nucleotide variants detected in the edited cell lines, 18 were shared between H9_RB1ex3_G12LS and H9_RB1ex3_C07 cell sublines. This could indicate the presence of low-level subclones in the parental hESC line H9, which went undetected in global WGS, and only became apparent through the establishment of clonal edited cell lines. None of the acquired variants was related to predicted off-target sites of the sgRNA used for editing. A missense variant in TP53 (p.D281N), hitherto unreported in H9 hESCs, was present with variant allele fractions of 43% in H9 and H9_RB1ex3_G12LS and 55% in H9_RB1ex3_C07. This indicates fixation of the mutant allele in a heterozygous state in all three cell lines. This variant has been classified as pathogenic (https://www.ncbi.nlm.nih.gov/clinvar, accessed on 30 April 2021). Recurrent acquisition of TP53 mutations in hESCs reportedly confers growth advantage [42].
In organoid differentiation, RB1ko showed persistent proliferation, delayed differentiation and loss of structure. These observations are in line with the role of pRB as negative cell-cycle regulator and RNA-seq analyses confirmed upregulation of E2F-transcription factors and their target genes (Figures S14–S16) [43]. The enrichment of genes associated with MYC-targets might indicate that deregulation of gene expression by MYCN could be an important factor in retinoblastoma development, strengthened by rare retinoblastoma entities in which MYCN amplification substitutes for mutational RB1 inactivation [4]. Accordingly, the MYC-target gene PLK1 was one of the top upregulated genes in RB1ko, which fits the anti-proliferative effect of PLK1-inhibition in retinoblastoma cell lines [9].
Several stem-cell models with engineered biallelic inactivation of RB1 have been described [25,26,27,28,44,45]. In our study, as well as in those previous studies, RB1 loss did not alter stem-cell properties or cell-cycle kinetics in undifferentiated stem cells, nor did aberrant karyotypes appear. Including this one, five studies describe differentiation of RB1 mutant human pluripotent stem cells into retinal organoids [25,26,27,28]. Norrie et al. used iPSCs of patients carrying a germline heterozygous mutation in RB1 and differentiated them in vitro up to d45 before injecting them into the vitreous of mouse eyes [26]. For tumor formation, inactivation of the second allele of RB1 needed to occur in the xenografts, which was observed with low frequency only. However, the tumors that developed resembled retinoblastoma based on gene expression, DNA methylation and morphology. This model might be the one that most resembles retinoblastoma formation in humans, but it is rather inefficient and costly. Clean in vitro models of retinoblastoma development might be preferable for studying certain aspects. In our study and the ones by Liu et al., Rozanska et al. and Zheng et al., H9 hESCs modified in RB1 were differentiated into neural retina for up to 150 days in organoid cultures in vitro [25,27,28]. Modifications in RB1, differentiation protocols and types of analyses differed between the studies. Still, increased proliferation and reduced numbers of other retinal cell types was a common finding. Applying staining for photoreceptor markers, it could be shown that predominantly cone precursors (RXRγ) and maturing cone photoreceptors (ARR3) were proliferating in RB1 mutant organoids, which was confirmed by single-cell RNA-seq by Liu et al. and Rozanska et al. (Figure 3 and Figure 4) [25,27]. This gain of proliferating cone photoreceptors was accompanied by a reduction of amacrine and bipolar cells especially, as well as rod photoreceptors, suggesting a need for pRB in the differentiation into these retinal cell types (Figure 1, Figure 2 and Figure S6) [25,27]. Expression studies also showed the development of a retinoblastoma signature and upregulation of specific genes associated with retinoblastoma in late RB1 mutant organoids (Figure 7D and Figure S14) [25,27], since the deviation of differentiation in RB1 knockout organoids became evident only after about 40 days (Figure 5B) [25]. Disintegration of organoids and shedding of cells at later stages of differentiation was observed by us and Liu et al., who could further show that injection of the shed cells resulted in the development of tumors in mice (Figure S1B) [25]. Tumorigenic potential of cells derived by organoid differentiation of RB1 mutant stem cells was shown using different in vitro and xenograft approaches [25,26,27]. Taken together, all these studies present evidence for proliferating cone photoreceptors as likely cells-of-origin of retinoblastoma and the potential of retinal organoid differentiation in retinoblastoma research, as exemplified by their use in drug-testing strategies in two of the studies [25,27].
Cone photoreceptors of the LM-type have been described as sensitive to RB1 loss, reacting by re-entry into the cell cycle [17]. We detected Ki67 expression both in S- or LM-opsin-positive cone photoreceptor cells, but only in RB1ko (Figure 4). In the developing retina, S-type cones develop first, while LM-type cones are supposed to develop from this population by a shift in opsin expression. In the transition period, co-expression of S- and LM-opsin has been described [46]. In native retinoblastoma, expression of LM-opsin was dominant, while S-opsin was expressed only rarely in conjunction with LM-opsin [15]. The organoid model might indicate that also S-opsin expressing cone cells could serve as cells-of-origin of retinoblastoma, later switching to LM-opsin expression.
The presence of photoreceptor cells in retinoblastoma has long been under debate since tumors contain rosette structures suggestive of primitive photoreceptors and clinical diagnosis is based on positivity for the photoreceptor marker CRX and the proliferation marker Ki67 [47]. The formation of rosette structures in certain areas of RB1-negative organoids was described [25,27]. Staining for CRX was strongly positive at d35 in RB1ko, consistent with the findings in retinoblastoma (Figure S4). In 2009, Xu et al. suggested that retinoblastoma shows properties of cone photoreceptors but not other retinal cell types [15]. This is consistent with a lack or reduced development of rods, amacrine, bipolar and Müller glia cells in RB1ko (Figure 1, Figure 2, Figures S5 and S6) [25,27]. Subseqeunt studies supported the notion that ARR3-positive maturing cone photoreceptor cells are especially sensitive to loss of RB1 expression, reacting with re-entry into cell cycle and development of retinoblastoma [16,17]. Cells positive for ARR3 and Ki67 could be detected only in RB1ko organoids, supporting the link between loss of RB1 and proliferative ARR3-positive cone photoreceptors (Figure 3). Expression studies reported progenitor- and photoreceptor-related gene expression signatures in retinoblastoma and could not clarify the cells-of-origin debate [6,8]. Marker gene expression of more than one retinal cell type was also described in single-cell RNA-seq studies performed on retinal organoids [25,27]. Follow-up studies rather suggested the presence of two subtypes in retinoblastoma, differing in the degree of photoreceptorness [7,48]. Using a multi-omics approach, retinoblastoma was classified into two subtypes: Subtype 1 retinoblastoma are associated with younger age at diagnosis, heritable disease, low rate of genetic aberrations other than RB1 and a higher grade of photoreceptor differentiation. In contrast, subtype 2 retinoblastoma are, on average, diagnosed at older age, carry the known retinoblastoma-associated chromosomal aberrations, exhibit a less differentiated phenotype and more often result in metastasis [48]. Based on RNA-seq data, subtype 1 tumors are associated with GSEA hallmarks immune and interferon response, photoreceptor differentiation and fatty acid metabolism, whereas subtype 2 tumors show enrichment of genes in hallmarks E2F and MYC genes, cell cycle and neuron differentiation. Comparing the data of RB1ko organoids, hallmarks of both subtypes were identified (Figure S16), indicating that at this stage organoids cannot be clearly assigned to one or the other subtype of retinoblastoma.
Our study demonstrates that retinal organoids derived from the RB1 mutant pluripotent stem-cell model certain aspects of retinoblastoma in vitro. However, some limitations remain, such as the disintegration of RB1ko organoids after d126 of differentiation. Since disintegration was not observed in RB1wt and RB1het samples differentiated in the same experiments, it must relate to a lack of pRB. GO term analysis and GSEA revealed enrichment of genes associated with endothelial–mesenchymal transition (EMT) and immune response specifically in RB1ko (Figures S15 and S16). Since the presence of cytokine-secreting immune cells in retinal organoids is implausible and mRNA expression of interferons or interleukins was not detected, these gene signatures may reflect parainflammation [24,49,50]. Parainflammation is described as cell-autonomous, low-grade inflammation without immune-cell infiltrate and a low secretory component mediated by the interferon pathway [49]. The upregulation of genes associated with EMT might relate to changes in the extracellular matrix that could be cause or consequence of inflammatory processes [50]. Parainflammation can be triggered by DNA damage, persistent cell stress or senescence. Of the 40 genes signifying parainflammation, 12 were significantly upregulated in RB1ko but not in RB1wt or RB1het (Figure S20). Given the manifold functions of pRB, the connection between RB1 loss and parainflammation remains unclear, but RB1ko organoids open a possibility for further studies in this direction. Another deficit of our study is that the nature of the cells shed by RB1ko after d126 was not addressed. However, Liu et al. also observed shedding of cells in organoids lacking pRB and could show that these cells are able to form tumors in orthotopic xenograft models [25]. Since the analysis of the shed cells by molecular methods and their ability of in vitro or in vivo tumorgenicity is important in a valid retinoblastoma model, such analyses need to be included in future experiments. By immunofluorescence, expression of S- and LM-opsin in retinal organoids was restricted to only a few cells with no significant differences between the genotypes. However, the RNA-seq data clearly indicate upregulation of the opsin genes OPN1SW, OPN1MW and OPN1LW at d152 of differentiation in RB1wt and RB1het, but not in RB1ko, which is consistent with the delay of retina differentiation in the latter (Figure 5D). Why the observed mRNA upregulation does not correlate with an increase of cells staining positive for these markers in RB1wt and RB1het remains unclear. Rozanska et al. reported a similar low overall percentage of cells staining positive for S- or LM-opsin in wildtype organoids but indicated a decrease of S- or LM-opsin-positive cells in RB1-null organoids [27]. Further experiments using retinal organoids are needed to clarify this issue.

5. Conclusions

Biallelic mutation of RB1 in hESCs and their subsequent differentiation into retinal organoids resulted in aberrant differentiation and enhanced proliferation of cone photoreceptor cells especially, in vitro. The gene expression signature of these organoids became increasingly similar to native tumor material over time. These features were not observed in differentiating wildtype hESCs or hESCs carrying the RB1 mutation only on one allele. Our findings support the analyses performed in previous studies using retinal organoid differentiation of RB1 mutant human pluripotent stem cells. This provides good evidence that organoids can serve as useful in vitro models for human retinoblastoma as they exhibit some of the morphological, cellular and molecular markers of the tumor. Moreover, the possibility of time-course analyses and experimental manipulation further strengthens their use in future retinoblastoma research.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cancers14092166/s1, Supplementary Methods. DNA preparation and whole genome sequencing. Figure S1. Retinal organoid differentiation. Figure S2. Analysis of pRB expression in edited H9 hESCs. Figure S3. Whole genome sequencing of cell lines. Figure S4. Presence of retinal progenitors. Figure S5. Immunofluorescent staining of ganglion, bipolar and Müller glia cells. Figure S6. Immunofluorescent staining for rod photoreceptors. Figure S7. Quantification of Ki67-positive cells based on microscopy images. Figure S8. Immunofluorescent staining for LM-opsin and S-opsin. Figure S9. Ki67 in horizontal cells, rod photoreceptors and Müller glia. Figure S10. Retinal differentiation of H9_RB1ex1. Figure S11. Retinal differentiation of H9_RB1ex1. Figure S12. Retinal differentiation of H9_RB1ex1.Figure S13. Gene expression analysis in RB1het samples of experiment 30. Figure S14. Gene expression of E2F transcription factors and cell cycle marker genes. Figure S15. Heatmaps of DEGs determined by multiparametric analysis. Figure S16. Gene set enrichment analysis (GSEA). Figure S17. Comparison of gene expression between organoids and retina. Figure S18. Comparison of gene expression in RB1wt to retinal organoids generated by Kaya et al. Figure S19. Top 5 GO terms in fetal retina versus retinoblastoma. Figure S20. Parainflammation gene expression signature in RB1ko organoids at d152. Supplementary file 1. Macro for signal quantification using ImageJ (three channels: green/red/blue). Supplementary file 2. Varbank export. Supplementary file 3. Varbank export after filtering for new variants. Table S1. Antibodies. Table S2. Samples for RNA-seq. Table S3. Predicted off-targets for gRNA targeting RB1 exon 3.

Author Contributions

Conceptualization, D.K., D.L. and L.S.; methodology, D.K., J.W., H.D. and L.S.; software, H.D., A.B., C.P. and F.K.; validation, D.K., J.W., H.D. and M.B.; formal analysis, D.K., J.W., H.D., M.B. and L.S.; investigation, D.K., J.W., H.D. and M.B.; resources, D.K., J.A. and L.S.; data curation, D.K., D.L., C.P., F.K. and L.S.; writing—original draft preparation, D.K., J.W. and L.S.; writing—review and editing, D.K., J.W., D.L., C.P. and L.S.; visualization, D.K., J.W., H.D., C.P. and L.S.; supervision, D.K. and L.S.; project administration, D.K. and L.S.; funding acquisition, D.K. and L.S. All authors have read and agreed to the published version of the manuscript.

Funding

The study was funded by grant STE1987/6-1 of the Deutsche Forschungsgemeinschaft, several grants of the Kinderaugenkrebsstiftung covering sequencing costs and the Ernst und Berta Grimmke Stiftung (9/18).

Institutional Review Board Statement

All experiments were performed in accordance with relevant guidelines and regulations. Use of hESCs has been reviewed and approved by the Central Ethical Review Board for Stem Cell Research at the Robert Koch Institute, Berlin, Germany (Az.3.04.02/0101) and the Ethical Review Board of the University of Duisburg-Essen (16-7215-BO).

Informed Consent Statement

For patient tumor samples, written informed consent was obtained and use of tumor samples for RNA-seq was reviewed and approved by the Ethical Review Board of the University of Duisburg-Essen (17-7384-BO).

Data Availability Statement

The publicly available datasets used in this study are mentioned in this article and Supplementary Material. Data generated in this study are available under ArrayExpress E-MTAB-10320 (WGS), E-MTAB-10330 (RNA-seq tumors) and E-MTAB-10331 (RNA-seq organ-oids).

Acknowledgments

We thank Jennifer Aparicio and David Cobrinik (The Vision Center, Department of Surgery, Children’s Hospital Los Angeles, USA) for technical advice, training and valuable discussion. We thank Petra Ketteler, Kinderklinik III, University Hospital Essen, for constant motivational support and helpful discussions about retinoblastoma. Moreover, we thank Claudia Mertel for performing DNA extraction and mycoplasma testing by PCR. The monoclonal antibody AP2α, developed by T.J. Williams (University of Colorado, Denver) was obtained from the Developmental Studies Hybridoma Bank, created by NICHD of the NIH and maintained at the University of Iowa, Department of Biology, Iowa City, Iowa.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Gröbner, S.N.; Worst, B.C.; Weischenfeldt, J.; Buchhalter, I.; Kleinheinz, K.; Rudneva, V.A.; Johann, P.D.; Balasubramanian, G.P.; Segura-Wang, M.; Brabetz, S.; et al. The landscape of genomic alterations across childhood cancers. Nature 2018, 555, 321–327. [Google Scholar] [CrossRef] [PubMed][Green Version]
  2. Kooi, I.E.; Mol, B.M.; Massink, M.P.; Ameziane, N.; Meijers-Heijboer, H.; Dommering, C.J.; van Mil, S.E.; de Vries, Y.; van der Hout, A.H.; Kaspers, G.J.; et al. Somatic genomic alterations in retinoblastoma beyond RB1 are rare and limited to copy number changes. Sci. Rep. 2016, 6, 25264. [Google Scholar] [CrossRef] [PubMed][Green Version]
  3. Zhang, J.; Benavente, C.A.; McEvoy, J.; Flores-Otero, J.; Ding, L.; Chen, X.; Ulyanov, A.; Wu, G.; Wilson, M.; Wang, J.; et al. A novel retinoblastoma therapy from genomic and epigenetic analyses. Nature 2012, 481, 329–334. [Google Scholar] [CrossRef] [PubMed]
  4. Rushlow, D.E.; Mol, B.M.; Kennett, J.Y.; Yee, S.; Pajovic, S.; Thériault, B.L.; Prigoda-Lee, N.L.; Spencer, C.; Dimaras, H.; Corson, T.W.; et al. Characterisation of retinoblastomas without RB1 mutations: Genomic, gene expression, and clinical studies. Lancet Oncol. 2013, 14, 327–334. [Google Scholar] [CrossRef][Green Version]
  5. Ganguly, A.; Shields, C.L. Differential gene expression profile of retinoblastoma compared to normal retina. Mol. Vis. 2010, 16, 1292–1303. [Google Scholar] [PubMed]
  6. Kapatai, G.; Brundler, M.A.; Jenkinson, H.; Kearns, P.; Parulekar, M.; Peet, A.C.; McConville, C.M. Gene expression profiling identifies different sub-types of retinoblastoma. Br. J. Cancer 2013, 109, 512–525. [Google Scholar] [CrossRef][Green Version]
  7. Kooi, I.E.; Mol, B.M.; Moll, A.C.; van der Valk, P.; de Jong, M.C.; de Graaf, P.; van Mil, S.E.; Schouten-van Meeteren, A.Y.; Meijers-Heijboer, H.; Kaspers, G.L.; et al. Loss of photoreceptorness and gain of genomic alterations in retinoblastoma reveal tumor progression. EBioMedicine 2015, 2, 660–670. [Google Scholar] [CrossRef][Green Version]
  8. McEvoy, J.; Flores-Otero, J.; Zhang, J.; Nemeth, K.; Brennan, R.; Bradley, C.; Krafcik, F.; Rodriguez-Galindo, C.; Wilson, M.; Xiong, S.; et al. Coexpression of normally incompatible developmental pathways in retinoblastoma genesis. Cancer Cell 2011, 20, 260–275. [Google Scholar] [CrossRef][Green Version]
  9. Schwermer, M.; Dreesmann, S.; Eggert, A.; Althoff, K.; Steenpass, L.; Schramm, A.; Schulte, J.H.; Temming, P. Pharmaceutically inhibiting polo-like kinase 1 exerts a broad anti-tumour activity in retinoblastoma cell lines. Clin. Exp. Ophthalmol. 2017, 45, 288–296. [Google Scholar] [CrossRef]
  10. Schwermer, M.; Hiber, M.; Dreesmann, S.; Rieb, A.; Theißen, J.; Herold, T.; Schramm, A.; Temming, P.; Steenpass, L. Comprehensive characterization of RB1 mutant and MYCN amplified retinoblastoma cell lines. Exp. Cell Res. 2019, 375, 92–99. [Google Scholar] [CrossRef]
  11. Cobrinik, D. Learning About Retinoblastoma from Mouse Models That Missed. In Animal Models of Brain Tumors; Martínez Murillo, R., Martínez, A., Eds.; Neuromethods; Humana Press: Totowa, NJ, USA, 2012; Volume 77. [Google Scholar] [CrossRef]
  12. Chen, D.; Livne-bar, I.; Vanderluit, J.L.; Slack, R.S.; Agochiya, M.; Bremner, R. Cell-specific effects of RB or RB/p107 loss on retinal development implicate an intrinsically death-resistant cell-of-origin in retinoblastoma. Cancer Cell 2004, 5, 539–551. [Google Scholar] [CrossRef] [PubMed][Green Version]
  13. MacPherson, D.; Sage, J.; Kim, T.; Ho, D.; McLaughlin, M.E.; Jacks, T. Cell type-specific effects of Rb deletion in the murine retina. Genes Dev. 2004, 18, 1681–1694. [Google Scholar] [CrossRef] [PubMed][Green Version]
  14. Zhang, J.; Gray, J.; Wu, L.; Leone, G.; Rowan, S.; Cepko, C.L.; Zhu, X.; Craft, C.M.; Dyer, M.A. Rb regulates proliferation and rod photoreceptor development in the mouse retina. Nat. Genet. 2004, 36, 351–360. [Google Scholar] [CrossRef]
  15. Xu, X.L.; Fang, Y.; Lee, T.C.; Forrest, D.; Gregory-Evans, C.; Almeida, D.; Liu, A.; Jhanwar, S.C.; Abramson, D.H.; Cobrinik, D. Retinoblastoma has properties of a cone precursor tumor and depends upon cone-specific MDM2 signaling. Cell 2009, 137, 1018–1031. [Google Scholar] [CrossRef][Green Version]
  16. Singh, H.P.; Wang, S.; Stachelek, K.; Lee, S.; Reid, M.W.; Thornton, M.E.; Craft, C.M.; Grubbs, B.H.; Cobrinik, D. Developmental stage-specific proliferation and retinoblastoma genesis in RB-deficient human but not mouse cone precursors. Proc. Natl. Acad. Sci. USA 2018, 115, E9391–E9400. [Google Scholar] [CrossRef][Green Version]
  17. Xu, X.L.; Singh, H.P.; Wang, L.; Qi, D.L.; Poulos, B.K.; Abramson, D.H.; Jhanwar, S.C.; Cobrinik, D. Rb suppresses human cone-precursor-derived retinoblastoma tumours. Nature 2014, 514, 385–388. [Google Scholar] [CrossRef][Green Version]
  18. Browne, A.W.; Arnesano, C.; Harutyunyan, N.; Khuu, T.; Martinez, J.C.; Pollack, H.A.; Koos, D.S.; Lee, T.C.; Fraser, S.E.; Moats, R.A.; et al. Structural and Functional Characterization of Human Stem-Cell-Derived Retinal Organoids by Live Imaging. Investig. Ophthalmol. Vis. Sci. 2017, 58, 3311–3318. [Google Scholar] [CrossRef]
  19. Capowski, E.E.; Samimi, K.; Mayerl, S.J.; Phillips, M.J.; Pinilla, I.; Howden, S.E.; Saha, J.; Jansen, A.D.; Edwards, K.L.; Jager, L.D.; et al. Reproducibility and staging of 3D human retinal organoids across multiple pluripotent stem cell lines. Development 2019, 146, dev171686. [Google Scholar] [CrossRef][Green Version]
  20. Kuwahara, A.; Ozone, C.; Nakano, T.; Saito, K.; Eiraku, M.; Sasai, Y. Generation of a ciliary margin-like stem cell niche from self-organizing human retinal tissue. Nat. Commun. 2015, 6, 6286. [Google Scholar] [CrossRef][Green Version]
  21. Llonch, S.; Carido, M.; Ader, M. Organoid technology for retinal repair. Dev. Biol. 2018, 433, 132–143. [Google Scholar] [CrossRef]
  22. Nakano, T.; Ando, S.; Takata, N.; Kawada, M.; Muguruma, K.; Sekiguchi, K.; Saito, K.; Yonemura, S.; Eiraku, M.; Sasai, Y. Self-formation of optic cups and storable stratified neural retina from human ESCs. Cell Stem Cell 2012, 10, 771–785. [Google Scholar] [CrossRef] [PubMed][Green Version]
  23. Zhong, X.; Gutierrez, C.; Xue, T.; Hampton, C.; Vergara, M.N.; Cao, L.H.; Peters, A.; Park, T.S.; Zambidis, E.T.; Meyer, J.S.; et al. Generation of three-dimensional retinal tissue with functional photoreceptors from human iPSCs. Nat. Commun. 2014, 5, 4047. [Google Scholar] [CrossRef] [PubMed][Green Version]
  24. Cowan, C.S.; Renner, M.; De Gennaro, M.; Gross-Scherf, B.; Goldblum, D.; Hou, Y.; Munz, M.; Rodrigues, T.M.; Krol, J.; Szikra, T.; et al. Cell Types of the Human Retina and Its Organoids at Single-Cell Resolution. Cell 2020, 182, 1623–1640.e34. [Google Scholar] [CrossRef] [PubMed]
  25. Liu, H.; Zhang, Y.; Zhang, Y.Y.; Li, Y.P.; Hua, Z.Q.; Zhang, C.J.; Wu, K.C.; Yu, F.; Zhang, Y.; Su, J.; et al. Human embryonic stem cell-derived organoid retinoblastoma reveals a cancerous origin. Proc. Natl. Acad. Sci. USA 2020, 117, 33628–33638. [Google Scholar] [CrossRef]
  26. Norrie, J.L.; Nityanandam, A.; Lai, K.; Chen, X.; Wilson, M.; Stewart, E.; Griffiths, L.; Jin, H.; Wu, G.; Orr, B.; et al. Retinoblastoma from human stem cell-derived retinal organoids. Nat. Commun. 2021, 12, 4535. [Google Scholar] [CrossRef]
  27. Rozanska, A.; Cerna-Chavez, R.; Queen, R.; Collin, J.; Zerti, D.; Dorgau, B.; Beh, C.S.; Davey, T.; Coxhead, J.; Hussain, R.; et al. pRB-Depleted Pluripotent Stem Cell Retinal Organoids Recapitulate Cell State Transitions of Retinoblastoma Development and Suggest an Important Role for pRB in Retinal Cell Differentiation. Stem Cells Transl. Med. 2022. Online ahead of print. [Google Scholar] [CrossRef]
  28. Zheng, C.; Schneider, J.W.; Hsieh, J. Role of RB1 in human embryonic stem cell-derived retinal organoids. Dev. Biol. 2020, 462, 197–207. [Google Scholar] [CrossRef]
  29. Schipper, L.; Kanber, D.; Steenpass, L. Generation of heterozygous and homozygous hESC H9 sublines carrying inactivating mutations in RB1. Stem Cell Res. 2018, 33, 41–45. [Google Scholar] [CrossRef]
  30. Döpper, H.; Horstmann, M.; Menges, J.; Bozet, M.; Kanber, D.; Steenpass, L. Biallelic and monoallelic deletion of the RB1 promoter in six isogenic clonal H9 hESC lines. Stem Cell Res. 2020, 45, 101779. [Google Scholar] [CrossRef]
  31. Döpper, H.; Menges, J.; Bozet, M.; Brenzel, A.; Lohmann, D.; Steenpass, L.; Kanber, D. Differentiation Protocol for 3D Retinal Organoids, Immunostaining and Signal Quantitation. Curr. Protoc. Stem Cell Biol. 2020, 55, e120. [Google Scholar] [CrossRef]
  32. Anders, S.; Pyl, P.T.; Huber, W. HTSeq—A Python framework to work with high-throughput sequencing data. Bioinformatics 2015, 31, 166–169. [Google Scholar] [CrossRef] [PubMed]
  33. Dobin, A.; Davis, C.A.; Schlesinger, F.; Drenkow, J.; Zaleski, C.; Jha, S.; Batut, P.; Chaisson, M.; Gingeras, T.R. STAR: Ultrafast universal RNA-Seq aligner. Bioinformatics 2013, 29, 15–21. [Google Scholar] [CrossRef] [PubMed]
  34. Li, H.; Handsaker, B.; Wysoker, A.; Fennell, T.; Ruan, J.; Homer, N.; Marth, G.; Abecasis, G.; Durbin, R. 1000 Genome Project Data Processing Subgroup. The Sequence Alignment/Map format and SAMtools. Bioinformatics 2009, 25, 2078–2079. [Google Scholar] [CrossRef] [PubMed][Green Version]
  35. Love, M.I.; Huber, W.; Anders, S. Moderated estimation of fold change and dispersion for RNA-Seq data with DESeq2. Genome Biol. 2014, 15, 550. [Google Scholar] [CrossRef][Green Version]
  36. Yu, G.; Wang, L.G.; Han, Y.; He, Q.Y. ClusterProfiler: An R package for comparing biological themes among gene clusters. Omics 2012, 16, 284–287. [Google Scholar] [CrossRef]
  37. Yu, G.; Li, F.; Qin, Y.; Bo, X.; Wu, Y.; Wang, S. GOSemSim: An R package for measuring semantic similarity among GO terms and gene products. Bioinformatics 2010, 26, 976–978. [Google Scholar] [CrossRef]
  38. Subramanian, A.; Tamayo, P.; Mootha, V.K.; Mukherjee, S.; Ebert, B.L.; Gillette, M.A.; Paulovich, A.; Pomeroy, S.L.; Golub, T.R.; Lander, E.S.; et al. Gene set enrichment analysis: A knowledge-based approach for interpreting genome-wide expression profiles. Proc. Natl. Acad. Sci. USA 2005, 102, 15545–15550. [Google Scholar] [CrossRef][Green Version]
  39. Kaya, K.D.; Chen, H.Y.; Brooks, M.J.; Kelley, R.A.; Shimada, H.; Nagashima, K.; de Val, N.; Drinnan, C.T.; Gieser, L.; Kruczek, K.; et al. Transcriptome-based molecular staging of human stem cell-derived retinal organoids uncovers accelerated photoreceptor differentiation by 9-cis retinal. Mol. Vis. 2019, 25, 663–678. [Google Scholar]
  40. Hoshino, A.; Ratnapriya, R.; Brooks, M.J.; Chaitankar, V.; Wilken, M.S.; Zhang, C.; Starostik, M.R.; Gieser, L.; La Torre, A.; Nishio, M.; et al. Molecular Anatomy of the Developing Human Retina. Dev. Cell 2017, 43, 763–779.e4. [Google Scholar] [CrossRef][Green Version]
  41. Mellough, C.B.; Bauer, R.; Collin, J.; Dorgau, B.; Zerti, D.; Dolan, D.W.P.; Jones, C.M.; Izuogu, O.G.; Yu, M.; Hallam, D.; et al. An integrated transcriptional analysis of the developing human retina. Development 2019, 146, dev169474. [Google Scholar] [CrossRef][Green Version]
  42. Merkle, F.T.; Ghosh, S.; Kamitaki, N.; Mitchell, J.; Avior, Y.; Mello, C.; Kashin, S.; Mekhoubad, S.; Ilic, D.; Charlton, M.; et al. Human pluripotent stem cells recurrently acquire and expand dominant negative P53 mutations. Nature 2017, 545, 229–233. [Google Scholar] [CrossRef] [PubMed][Green Version]
  43. Burkhart, D.L.; Sage, J. Cellular mechanisms of tumour suppression by the retinoblastoma gene. Nat. Rev. Cancer 2008, 8, 671–682. [Google Scholar] [CrossRef] [PubMed]
  44. Avior, Y.; Lezmi, E.; Yanuka, D.; Benvenisty, N. Modeling Developmental and Tumorigenic Aspects of Trilateral Retinoblastoma via Human Embryonic Stem Cells. Stem Cell Rep. 2017, 8, 1354–1365. [Google Scholar] [CrossRef] [PubMed][Green Version]
  45. Matsui, T.; Nieto-Estévez, V.; Kyrychenko, S.; Schneider, J.W.; Hsieh, J. Retinoblastoma protein controls growth, survival and neuronal migration in human cerebral organoids. Development 2017, 144, 1025–1034. [Google Scholar] [CrossRef][Green Version]
  46. Cornish, E.E.; Xiao, M.; Yang, Z.; Provis, J.M.; Hendrickson, A.E. The role of opsin expression and apoptosis in determination of cone types in human retina. Exp. Eye Res. 2004, 78, 1143–1154. [Google Scholar] [CrossRef]
  47. Santagata, S.; Maire, C.L.; Idbaih, A.; Geffers, L.; Correll, M.; Holton, K.; Quackenbush, J.; Ligon, K.L. CRX is a diagnostic marker of retinal and pineal lineage tumors. PLoS ONE 2009, 4, e7932. [Google Scholar] [CrossRef]
  48. Liu, J.; Ottaviani, D.; Sefta, M.; Desbrousses, C.; Chapeaublanc, E.; Aschero, R.; Sirab, N.; Lubieniecki, F.; Lamas, G.; Tonon, L.; et al. A high-risk retinoblastoma subtype with stemness features, dedifferentiated cone states and neuronal/ganglion cell gene expression. Nat. Commun. 2021, 12, 5578. [Google Scholar] [CrossRef]
  49. Aran, D.; Lasry, A.; Zinger, A.; Biton, M.; Pikarsky, E.; Hellman, A.; Butte, A.J.; Ben-Neriah, Y. Widespread parainflammation in human cancer. Genome Biol. 2016, 17, 145. [Google Scholar] [CrossRef][Green Version]
  50. Medzhitov, R. Origin and physiological roles of inflammation. Nature 2008, 454, 428–435. [Google Scholar] [CrossRef]

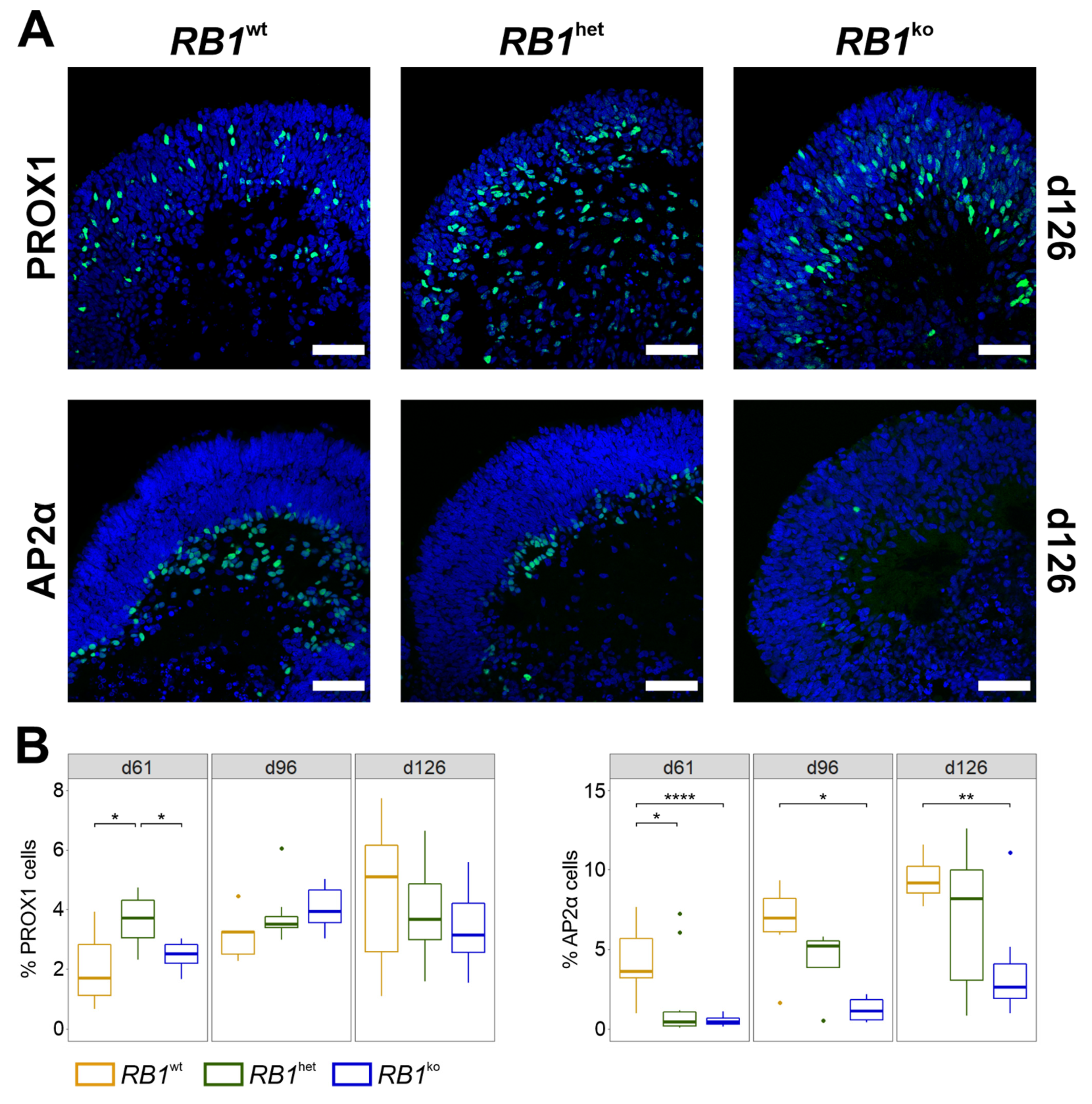

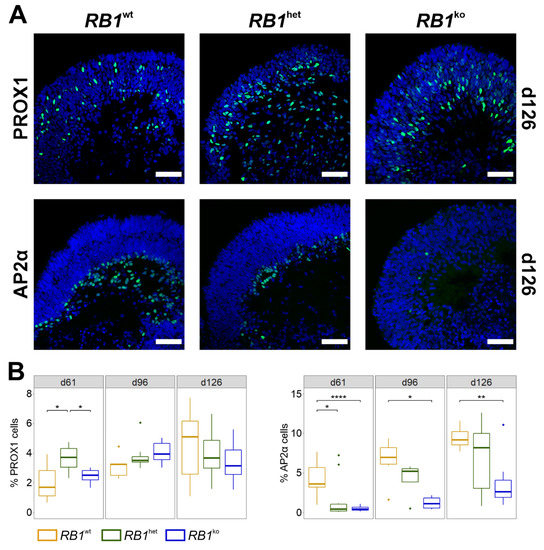

Figure 1. Amacrine and horizontal cells in differentiating retinal organoids. (A) Representative images of immunofluorescent staining of organoids at d126 for marker proteins PROX1 (horizontal cells) and AP2α (amacrine cells) (green). Nuclei were counterstained with DAPI (blue). Scale bar 50 μm. (B) Quantification of PROX1- and AP2α-positive cells based on microscopy images. Percentages of marker-positive cells per total DAPI-positive area are given. * p ≤ 0.05, ** p ≤ 0.01, **** p ≤ 0.0001.
Figure 1. Amacrine and horizontal cells in differentiating retinal organoids. (A) Representative images of immunofluorescent staining of organoids at d126 for marker proteins PROX1 (horizontal cells) and AP2α (amacrine cells) (green). Nuclei were counterstained with DAPI (blue). Scale bar 50 μm. (B) Quantification of PROX1- and AP2α-positive cells based on microscopy images. Percentages of marker-positive cells per total DAPI-positive area are given. * p ≤ 0.05, ** p ≤ 0.01, **** p ≤ 0.0001.
Cancers 14 02166 g001

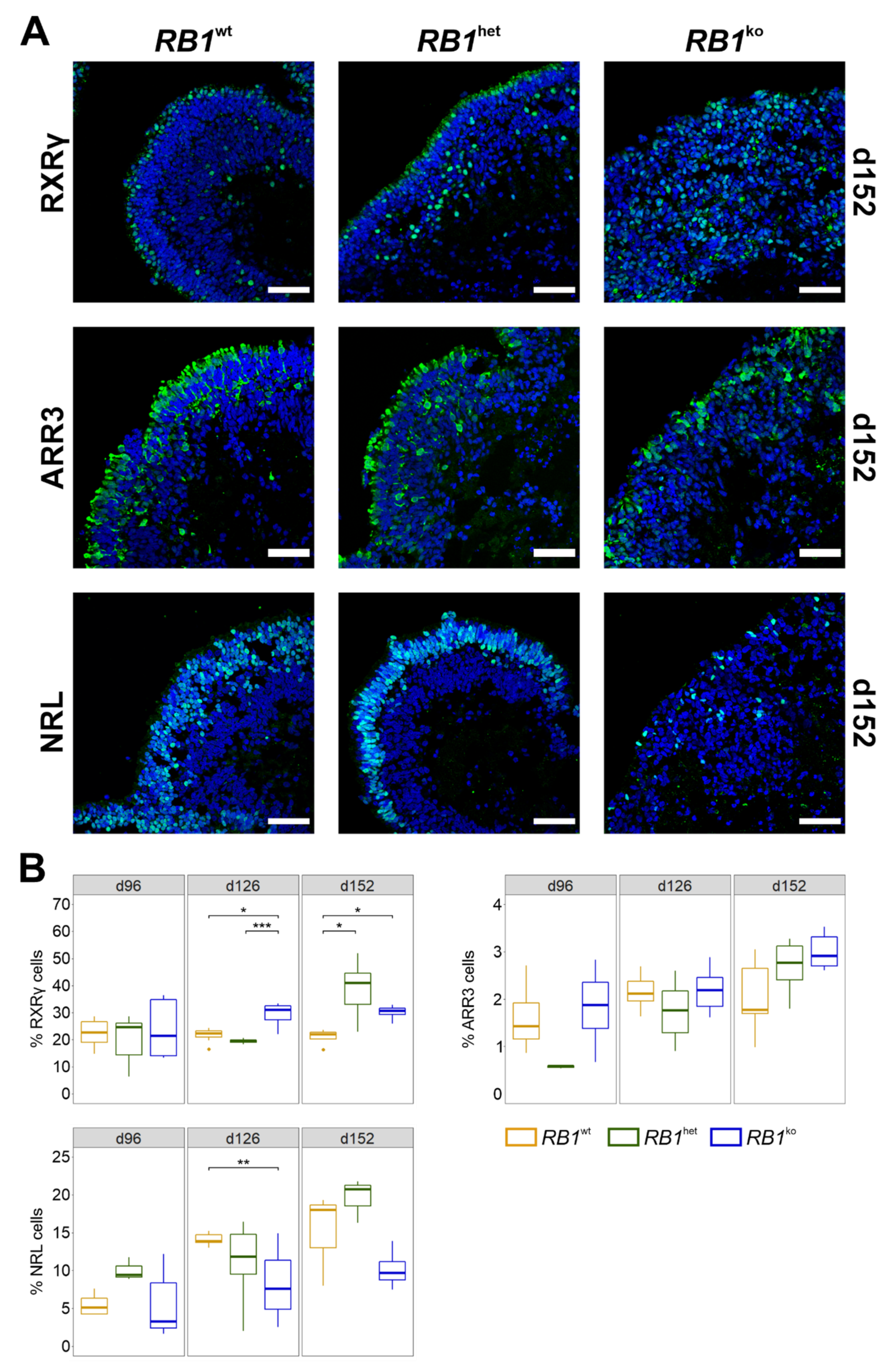

Figure 2. Cone and rod photoreceptors at d152. (A) Representative images of immunofluorescent staining of cells expressing RXRγ (immature cone marker), ARR3 (maturing cone marker), NRL (early rod marker). Marker proteins in green, nuclei counterstained with DAPI (blue). Scale bar 50 μm. (B) Quantification of RXRγ- and ARR3-positive cone photoreceptors and NRL-positive rod photoreceptors based on microscopy images. Percentages of marker-positive cells per total DAPI-positive area are given. * p ≤ 0.05, ** p ≤ 0.01, *** p ≤ 0.001.
Figure 2. Cone and rod photoreceptors at d152. (A) Representative images of immunofluorescent staining of cells expressing RXRγ (immature cone marker), ARR3 (maturing cone marker), NRL (early rod marker). Marker proteins in green, nuclei counterstained with DAPI (blue). Scale bar 50 μm. (B) Quantification of RXRγ- and ARR3-positive cone photoreceptors and NRL-positive rod photoreceptors based on microscopy images. Percentages of marker-positive cells per total DAPI-positive area are given. * p ≤ 0.05, ** p ≤ 0.01, *** p ≤ 0.001.
Cancers 14 02166 g002

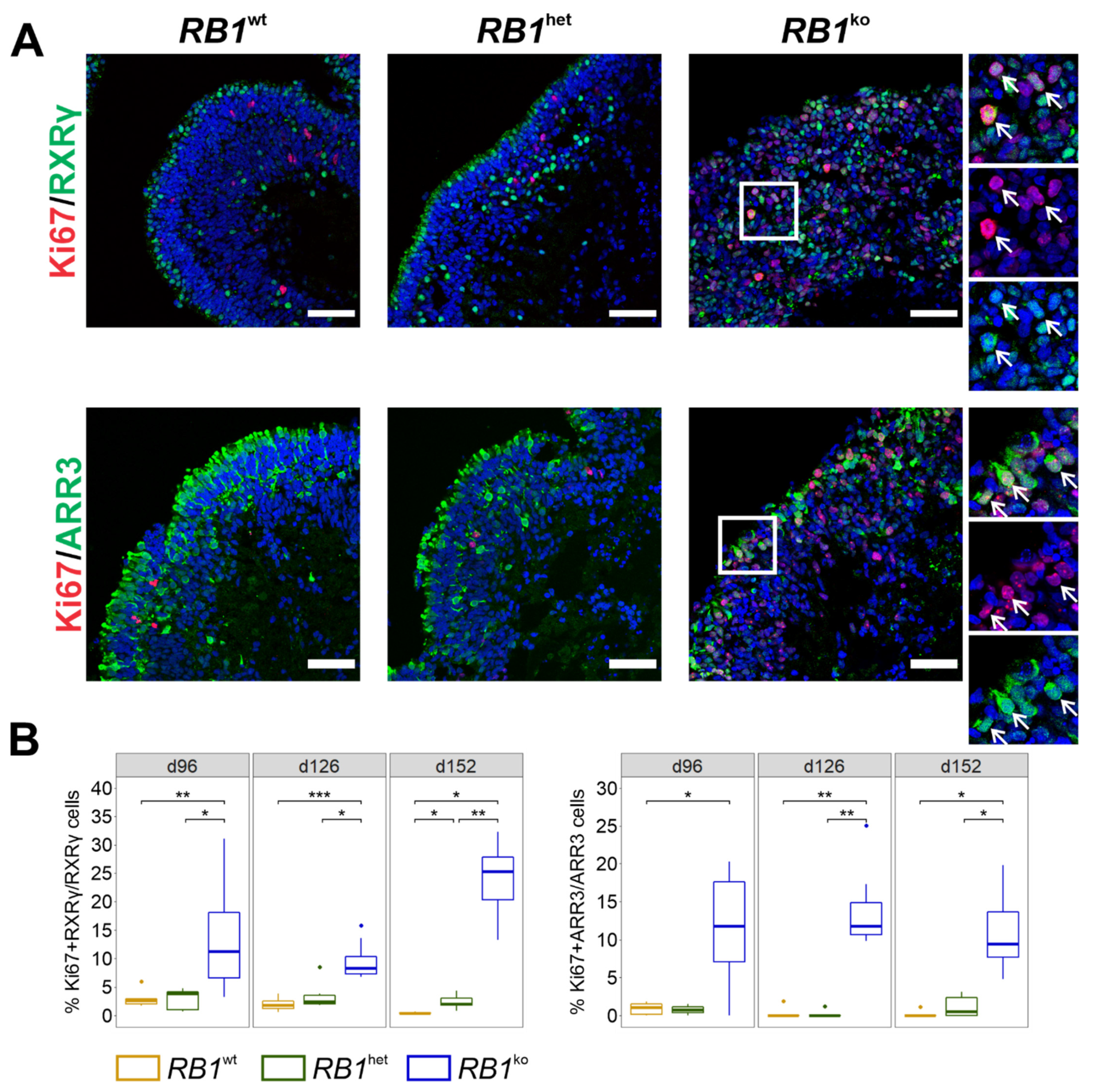

Figure 3. RB1ko organoids develop proliferating RXRγ- or ARR3-positive cone photoreceptors. (A) Representative images of co-immunofluorescent staining of cone marker proteins RXRγ and ARR3 (green) with Ki67 (red) at d152 of differentiation. Arrows indicate double-positive cells. Nuclei were counterstained with DAPI (blue). Scale bar 50 μm. (B) Quantification of cells staining positive for cone marker proteins and Ki67. The percentage of double-positive area normalized to cone marker-positive area is given. * p ≤ 0.05, ** p ≤ 0.01, *** p ≤ 0.001.
Figure 3. RB1ko organoids develop proliferating RXRγ- or ARR3-positive cone photoreceptors. (A) Representative images of co-immunofluorescent staining of cone marker proteins RXRγ and ARR3 (green) with Ki67 (red) at d152 of differentiation. Arrows indicate double-positive cells. Nuclei were counterstained with DAPI (blue). Scale bar 50 μm. (B) Quantification of cells staining positive for cone marker proteins and Ki67. The percentage of double-positive area normalized to cone marker-positive area is given. * p ≤ 0.05, ** p ≤ 0.01, *** p ≤ 0.001.
Cancers 14 02166 g003

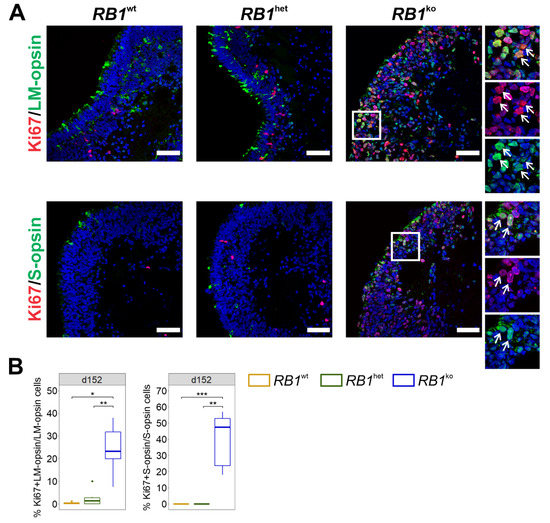

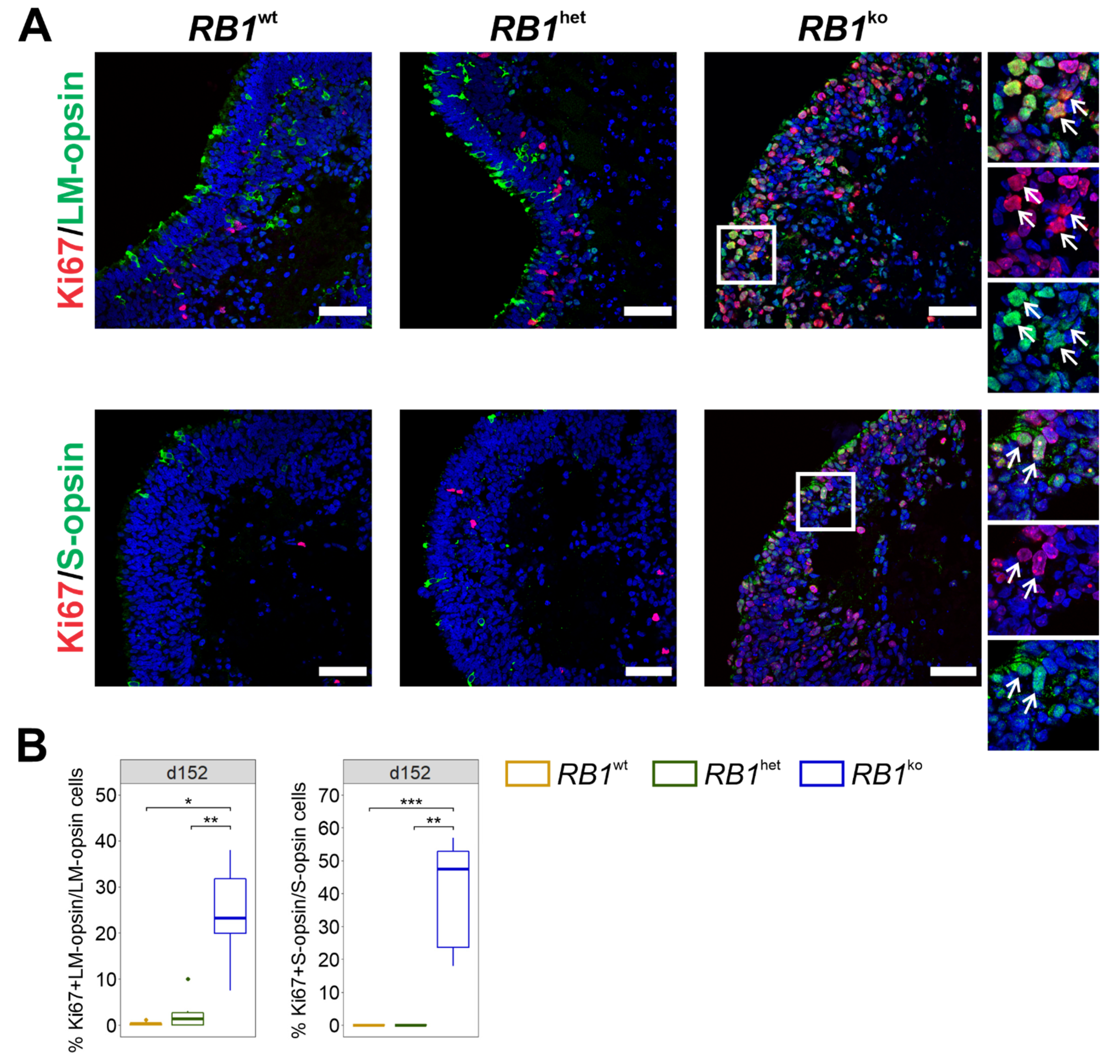

Figure 4. RB1ko organoids exhibit proliferating LM- or S-opsin-positive photoreceptors. (A) Representative images of co-immunofluorescent staining of cone marker proteins LM-opsin or S-opsin (green) with Ki67 (red) at d152 of differentiation. Arrows indicate double-positive cells. Nuclei were counterstained with DAPI (blue). Scale bar 50 μm. (B) Quantification of cells staining positive for cone marker proteins and Ki67. The percentage of double-positive area normalized to cone marker-positive area is given. * p ≤ 0.05, ** p ≤ 0.01, *** p ≤ 0.001.
Figure 4. RB1ko organoids exhibit proliferating LM- or S-opsin-positive photoreceptors. (A) Representative images of co-immunofluorescent staining of cone marker proteins LM-opsin or S-opsin (green) with Ki67 (red) at d152 of differentiation. Arrows indicate double-positive cells. Nuclei were counterstained with DAPI (blue). Scale bar 50 μm. (B) Quantification of cells staining positive for cone marker proteins and Ki67. The percentage of double-positive area normalized to cone marker-positive area is given. * p ≤ 0.05, ** p ≤ 0.01, *** p ≤ 0.001.
Cancers 14 02166 g004

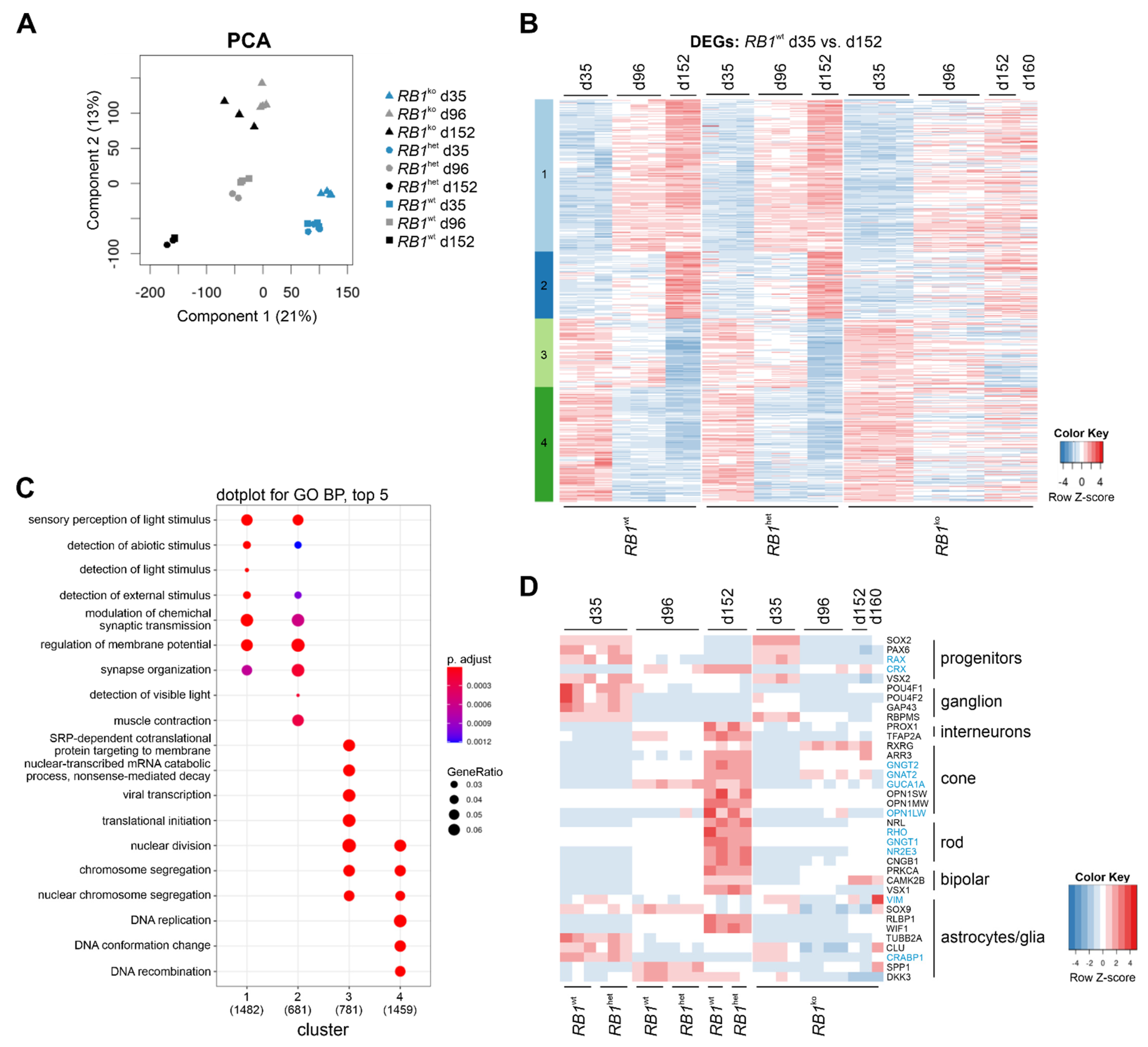

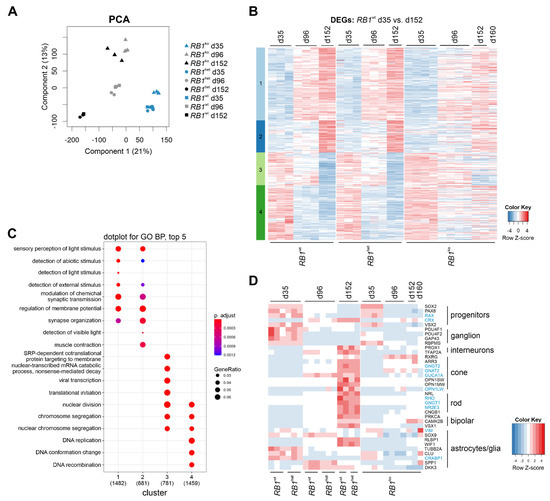

Figure 5. Transcriptome analysis revealed impaired retinal differentiation in RB1ko after d35. (A) Principal component analysis. Color: time point (blue d35, grey d96, black d152), symbols: genotype (triangle: RB1ko, dot: RB1het, square: RB1wt, filled: H9_RB1ex3, open: H9_RB1ex1). (B) DEG analysis of RB1wt d35 versus d152 using log2(FC) > 1, p-adjust < 0.05 for filtering. Heatmap shows 7254 genes clustered into c1 to c4. Expression of the identified DEGs in RB1het and RB1ko was plotted. (C) Top 5 (p-adjust < 0.05) enriched biological processes per cluster determined by reduced redundancy GO analysis. The total number of DEGs in each cluster associated with a GO-term is given in parentheses, dot size: ratio of number of DEGs present in the specific GO-term versus total number GO-term associated DEGs in this cluster, dot color: p-adjust. If any of the top 5 terms of one cluster is present in another cluster, corresponding dots are plotted. (D) Gene expression of marker genes for retinal differentiation (normalized counts, scaling per row). Black/blue: genes identified/not identified as DEGs in multiparametric analysis (Figure 6).
Figure 5. Transcriptome analysis revealed impaired retinal differentiation in RB1ko after d35. (A) Principal component analysis. Color: time point (blue d35, grey d96, black d152), symbols: genotype (triangle: RB1ko, dot: RB1het, square: RB1wt, filled: H9_RB1ex3, open: H9_RB1ex1). (B) DEG analysis of RB1wt d35 versus d152 using log2(FC) > 1, p-adjust < 0.05 for filtering. Heatmap shows 7254 genes clustered into c1 to c4. Expression of the identified DEGs in RB1het and RB1ko was plotted. (C) Top 5 (p-adjust < 0.05) enriched biological processes per cluster determined by reduced redundancy GO analysis. The total number of DEGs in each cluster associated with a GO-term is given in parentheses, dot size: ratio of number of DEGs present in the specific GO-term versus total number GO-term associated DEGs in this cluster, dot color: p-adjust. If any of the top 5 terms of one cluster is present in another cluster, corresponding dots are plotted. (D) Gene expression of marker genes for retinal differentiation (normalized counts, scaling per row). Black/blue: genes identified/not identified as DEGs in multiparametric analysis (Figure 6).
Cancers 14 02166 g005

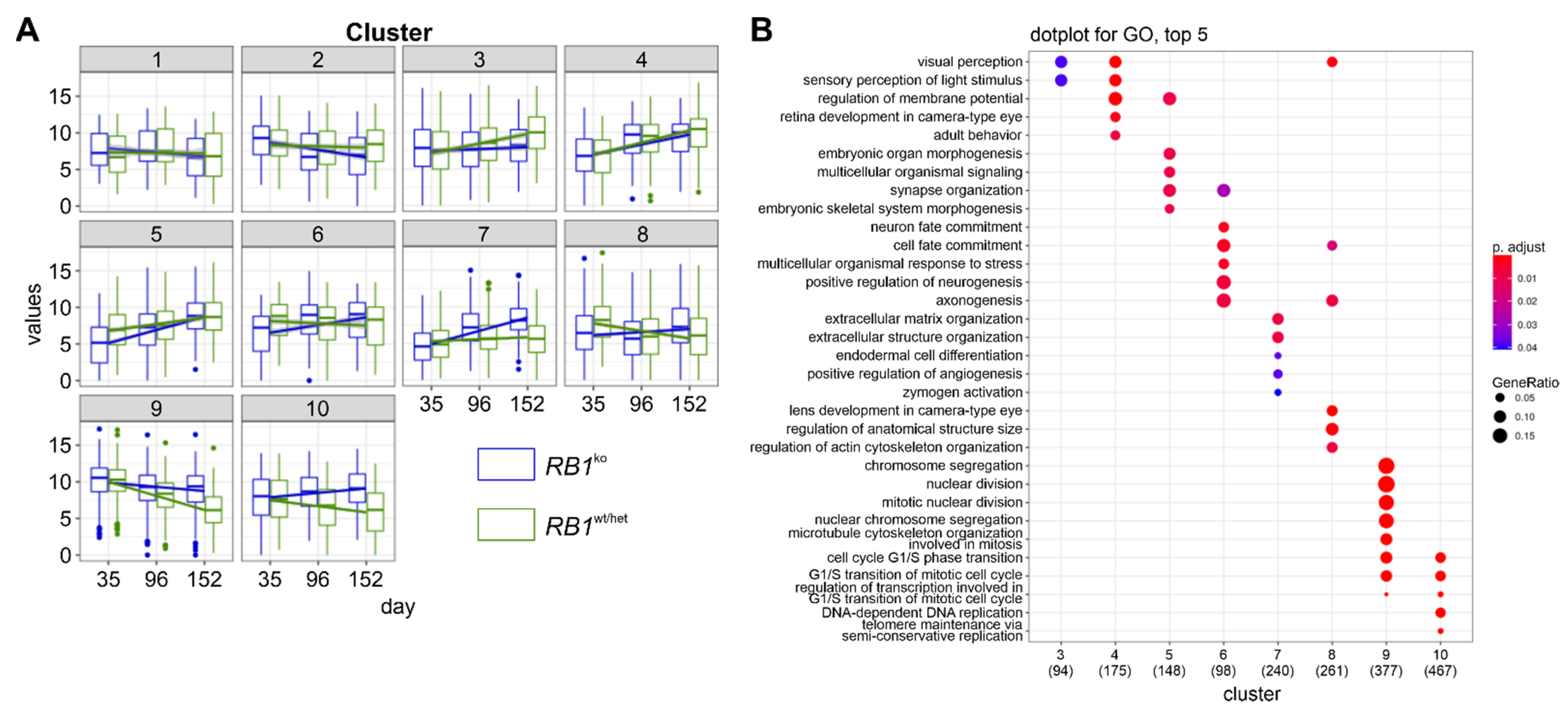

Figure 6. Multiparametric analysis of differential gene expression in retinal differentiation. (A) Multiparametric analysis considering genotype (RB1wt/het versus RB1ko), day of differentiation and batch effects of independent experiments. DEGs were filtered by p-adjust < 0.05 and log2FC > 1. Filtered DEGs were assigned to 10 clusters. Expression of genes in clusters over time is shown. (B) Top 5 (p-adjust < 0.05) enriched biological processes per cluster determined by reduced redundancy GO analysis. The total number of DEGs in each cluster associated with a GO-term is given in parentheses, dot size: ratio of number of DEGs present in the specific GO-term versus total number of GO-term associated DEGs in this cluster, dot color: p-adjust. If any of the top 5 terms of one cluster is present in another cluster, corresponding dots are plotted.
Figure 6. Multiparametric analysis of differential gene expression in retinal differentiation. (A) Multiparametric analysis considering genotype (RB1wt/het versus RB1ko), day of differentiation and batch effects of independent experiments. DEGs were filtered by p-adjust < 0.05 and log2FC > 1. Filtered DEGs were assigned to 10 clusters. Expression of genes in clusters over time is shown. (B) Top 5 (p-adjust < 0.05) enriched biological processes per cluster determined by reduced redundancy GO analysis. The total number of DEGs in each cluster associated with a GO-term is given in parentheses, dot size: ratio of number of DEGs present in the specific GO-term versus total number of GO-term associated DEGs in this cluster, dot color: p-adjust. If any of the top 5 terms of one cluster is present in another cluster, corresponding dots are plotted.
Cancers 14 02166 g006

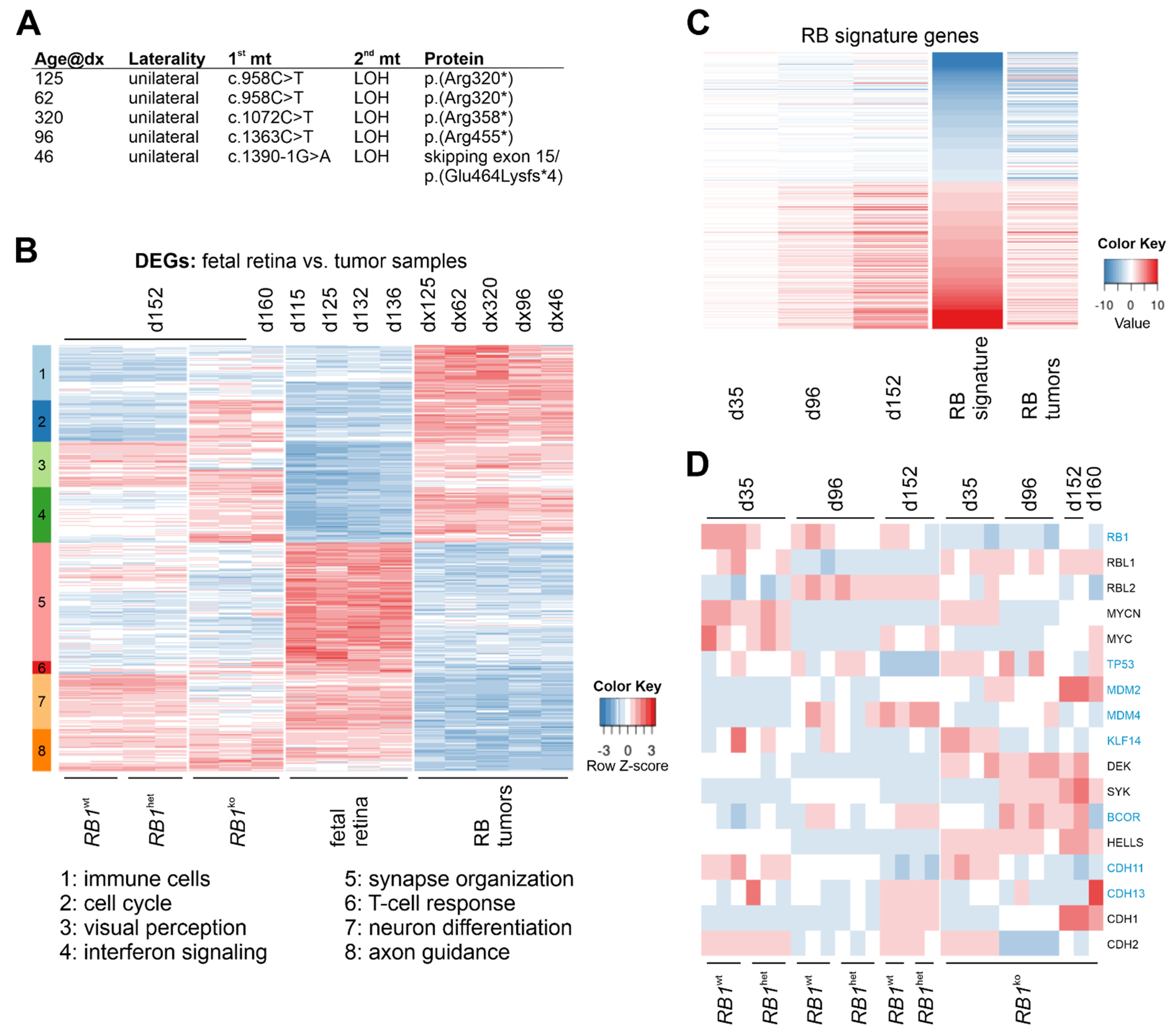

Figure 7. RB1ko gain retinoblastoma signature during differentiation. (A) Data of tumor samples sequenced. [email protected]: age at diagnosis in days after birth; 1st mt/2nd mt: first/second mutation in tumor (note: c.1 is A of ATG start codon of LRG_517t1). * indicates generation of translational stop codon. (B) DEGs were determined between fetal retina and retinoblastoma samples (p < 0.001, log2(FC) > 2). Expression of these genes in organoids at d152/d160 was plotted. Cluster analysis retrieved eight clusters. (C) Expression of 510 retinoblastoma signature genes in RB1ko. Log2(FC) values of the DEGs in RB1ko were normalized to log2(FC) values in RB1wt samples at d35, d96 and d152 of differentiation; expression in the five tumor samples was normalized to public data for fetal retina. (D) Gene expression (normalized counts, scaling per row) of genes associated with retinoblastoma as observed in retinal organoids and tumor samples. Black/blue: genes identified/not identified as DEGs in multiparametric analysis (Figure 6).
Figure 7. RB1ko gain retinoblastoma signature during differentiation. (A) Data of tumor samples sequenced. [email protected]: age at diagnosis in days after birth; 1st mt/2nd mt: first/second mutation in tumor (note: c.1 is A of ATG start codon of LRG_517t1). * indicates generation of translational stop codon. (B) DEGs were determined between fetal retina and retinoblastoma samples (p < 0.001, log2(FC) > 2). Expression of these genes in organoids at d152/d160 was plotted. Cluster analysis retrieved eight clusters. (C) Expression of 510 retinoblastoma signature genes in RB1ko. Log2(FC) values of the DEGs in RB1ko were normalized to log2(FC) values in RB1wt samples at d35, d96 and d152 of differentiation; expression in the five tumor samples was normalized to public data for fetal retina. (D) Gene expression (normalized counts, scaling per row) of genes associated with retinoblastoma as observed in retinal organoids and tumor samples. Black/blue: genes identified/not identified as DEGs in multiparametric analysis (Figure 6).
Cancers 14 02166 g007
