Systematic Review

Orbital Metastases: A Systematic Review of Clinical Characteristics, Management Strategies, and Treatment Outcomes

Department of Neurosurgery, Trauma Center, Gamma Knife Center, Cannizzaro Hospital, 95126 Catania, Italy
Department of Radiation Oncology, REM Radioterapia srl, 95029 Viagrande, Italy
John A. Burns School of Medicine, University of Hawai’i, Honolulu, HI 96813, USA
Kiran C. Patel College of Allopathic Medicine, Nova Southeastern University, Davie, FL 33328, USA
Department of Neurosurgery, King Abdullah International Medical Research Center, Riyadh 11451, Saudi Arabia
College of Medicine, Texas A&M University, Houston, TX 77030, USA
Department of Neurosurgery, Highly Specialized Hospital and of National Importance “Garibaldi”, 95126 Catania, Italy
Department of Neurosurgery, Brain Metastasis Center, Memorial Sloan Kettering Cancer Center, New York, NY 10065, USA
Department of Neurological Surgery, Indiana University School of Medicine, Indianapolis, IN 46077, USA
Department of Neurosurgery, Anderson Cancer Center, The University of Texas M.D., Houston, TX 77030, USA
Author to whom correspondence should be addressed.
Cancers 2022, 14(1), 94;
Submission received: 28 November 2021 / Revised: 18 December 2021 / Accepted: 23 December 2021 / Published: 24 December 2021
(This article belongs to the Special Issue New Perspectives of Ocular Oncology)



Simple Summary

Orbital metastases may significantly worsen the functional status of oncological patients, leading to debilitating visual impairments. Surgical resection, orbital exenteration, and complementary therapies may result in heterogeneous clinical outcomes. In this systematic review, we aimed to comprehensively analyze the current literature on orbital metastases, describing clinical and imaging features, available management, and treatment outcomes. We found that most orbital metastases occur at later stages after primary tumors, frequently showing diffuse location within the orbit and rarely invading intracranial structures. Biopsy-only techniques were more frequently preferred in view of the less invasive approaches, but surgical resection and orbital radiotherapy were related to improved clinical outcomes. Although patients with primary breast cancer and patients undergoing resection showed superior prognoses, overall survival rates were generally poor, suggesting the need to better understand orbital metastases’ microenvironments for devising optimal systemic treatment strategies.


Background: Orbital metastases often lead to severe functional impairment. The role of resection, orbital exenteration, and complementary treatments is still debated. We systematically reviewed the literature on orbital metastases. Methods: PubMed, Scopus, Web-of-Science, and Cochrane were searched upon PRISMA guidelines to identify studies on orbital metastases. Clinical characteristics, management strategies, and survival were analyzed. Results: We included 262 studies comprising 873 patients. Median age was 59 years. The most frequent primary tumors were breast (36.3%), melanoma (10.1%), and prostate (8.5%) cancers, with median time interval of 12 months (range, 0–420). The most common symptoms were proptosis (52.3%) and relative-afferent-pupillary-defect (38.7%). Most metastases showed a diffuse location within the orbit (19%), with preferential infiltration of orbital soft tissues (40.2%). In 47 cases (5.4%), tumors extended intracranially. Incisional biopsy (63.7%) was preferred over fine-needle aspiration (10.2%), with partial resection (16.6%) preferred over complete (9.5%). Orbital exenteration was pursued in 26 patients (3%). A total of 305 patients (39.4%) received chemotherapy, and 506 (58%) received orbital radiotherapy. Post-treatment symptom improvement was significantly superior after resection (p = 0.005) and orbital radiotherapy (p = 0.032). Mean follow-up was 14.3 months, and median overall survival was 6 months. Fifteen cases (1.7%) demonstrated recurrence with median local control of six months. Overall survival was statistically increased in patients with breast cancer (p < 0.001) and in patients undergoing resection (p = 0.024) but was not correlated with orbital location (p = 0.174), intracranial extension (p = 0.073), biopsy approach (p = 0.344), extent-of-resection (p = 0.429), or orbital exenteration (p = 0.153). Conclusions: Orbital metastases severely impair patient quality of life. Surgical resection safely provides symptom and survival benefit compared to biopsy, while orbital radiotherapy significantly improves symptoms compared to not receiving radiotherapy.

1. Introduction

Orbital metastases represent 1–13% of all orbital neoplasms and affect approximately 2–5% of patients with systemic malignancies [1,2,3]. Breast, melanoma, and prostate cancers comprise the prevalent primary tumors, and their incidence is increasing due to improved surveillance, systemic disease control and management of oncological patients [3,4,5]. Orbital metastases can often be detected in those with no previous history of cancer due to their common presenting of symptoms of visual disturbance, thus preceding the diagnosis of primary tumors [4,6]. Common presenting symptoms include diplopia, ocular pain, and vision loss, coupled with globe displacement and palpable orbital masses [7,8]. Metastases frequently appear on imaging as irregular and contrast-enhancing lesions in the anterior orbit involving bones and extraocular muscles [8,9,10].
Treatment strategies depend on the clinical presentation and primary tumor pathology; however, a gold standard for treatment has yet to be defined [3,11]. In poor surgical candidates, orbital irradiation can be utilized to facilitate reduction in tumor volume and symptom relief [12]. Surgical debulking is effective in decreasing mass-effect and improving symptoms but can also lead to serious complications such as permanent visual deficits [13]. Chemotherapy, hormonal therapy, and/or targeted therapy have the benefit of simultaneous control of primary and metastatic lesions [7,9].
There is a limited number of individual studies on orbital metastases, and feasible therapeutic options are still debated [14,15]. In this systematic review, we evaluate the clinical features and management strategies of patients with orbital metastases, focusing on factors related to symptom improvement and survival.

2. Materials and Methods

2.1. Literature Search

A systematic review was conducted following the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines [16] and registered to PROSPERO (ID: 293984). PubMed, Scopus, Web of Science, and Cochrane were searched from database inception to 10 May 2021 using the combination of the Boolean operators “OR” and “AND”, and the search terms “orbital” and “metastases”. Studies were exported to Mendeley; duplicates were removed.

2.2. Study Selection

Inclusion and exclusion criteria were set a priori. Studies were included if they (1) involved ≥ 1 patients aged ≥ 18 years with histologically confirmed distant metastases originating from solid tumors and affecting periocular intra-orbital structures; (2) reported clinical, management and survival data; (3) were written in English. Studies were excluded if they (1) were reviews, technical notes, or autopsy reports; (2) contained only patients with intraocular/eyelid metastases and/or craniofacial/ocular tumors directly extending into the orbit; (3) did not clearly differentiate data between patients with orbital metastases and patients with intraocular metastases or primary orbital lesions; (4) contained insufficient clinical and management data.
Two authors (C.S. and P.P.) independently screened titles and abstracts of all collected citations and subsequently assessed full texts of articles that met the inclusion criteria. A third author (A.S.H.) settled any disagreements. Eligible articles were included, and references were searched to retrieve additional relevant studies.

2.3. Data Extraction

Data were extracted from one author (P.P.) and then independently verified by two additional authors (A.S.H. and O.B.A.). Missing data were either not reported or not differentiable from other data. Data included author, year, study design, age, gender, primary tumor, time interval between primary tumor and orbital metastasis, laterality, orbital localization, tissue infiltration, intracranial extension, symptoms, imaging features, extent-of-surgery, surgery techniques, complementary treatment strategies, radiation protocols (i.e., type, fractionation, total dose), clinical/radiological treatment responses, orbital metastases recurrence, local control (LC), overall survival (OS), and survival status. Extent-of-surgical resection was defined as “complete resection” for 100% tumor resection and “partial resection” for <100% tumor resection. Clinical and radiological treatment responses were assessed at available time points or at last follow-up. Radiological responses were evaluated following the proposed RANO criteria, describing post-treatment lesions’ volumetric changes in patients undergoing tumor biopsy and chemotherapy and/or radiotherapy: complete response (CR)—complete resolution; partial response (PR)—decreased volume; stable disease (SD)—no volume change; progression (PD)—increased volume [17].

2.4. Data Synthesis and Quality Assessment

Primary outcomes of interest were clinical characteristics, management strategies, and survival analysis of orbital metastases. Levels of evidence were assessed upon the 2011 Oxford Centre For Evidence-Based Medicine guidelines [18]. Meta-analysis was precluded because all included articles had levels IV-V of evidence, and hazard ratios could not be deducted. Risk-of-bias was independently appraised by two authors (P.P. and O.B.A.) using the Joanna Briggs Institute checklists for case reports and case series [19,20].

2.5. Statistical Analysis

The software SPSS V.25 (IBM Corp, Armonk, New York, NY, USA) was used for all statistical analyses, and a bilateral p-value < 0.05 was considered significant for all tests. Continuous variables are reported as medians or means with ranges and categorical variables reported as frequencies and percentages. Clinical and radiologic treatment responses for patients undergoing biopsy and surgical resection were compared using χ2 and Fisher exact tests. Multivariate logistic regression analyses were conducted to ascertain variables associated with clinical and radiological treatment responses, including all the variables deemed of potential relevance—corresponding to a cut-off of p < 0.05 at the univariate analysis—and retained in the multivariate model with a statistically significant power (p < 0.05). In a similar fashion, a multivariate Cox proportional-hazards model was performed to identify variables correlated with OS. Kaplan–Meier methods and log-rank tests were used to compare survival outcomes based on patient-level clinical and treatment characteristics.

3. Results

3.1. Study Selection

Figure 1 displays the study selection process. The initial search yielded 4689 articles, of which 262 were finally included in accordance with the pre-determined criteria. Forty were case series (including 651 patients) and 222 were case reports, categorized as evidence level IV and V, respectively (overview and references of all included studies are reported in Table S1). Critical appraisal returned low risk of bias for all included studies (Table S2).

3.2. Demographics and Clinical Characteristics

A total of 873 patients were included (Table 1). Patients were predominantly female (56.7%), with a median age of 59 years (range, 18–90). Breast cancers were the most frequent primary lesions (36.3%), followed by melanoma (10.1%) and prostate cancers (8.5%), while 37 patients (4.2%) were diagnosed with carcinomas of unknown primary (CUP). Median time interval between primary tumor diagnosis and orbital metastasis was 12 months (range, 0–420), with orbital metastasis preceding primary tumor diagnosis in 218 cases (30.1%). No prevalence in orbital laterality was noted (left orbit 46.2%, right 46.1%), and 57 patients had bilateral lesions (7.7%). Metastases mostly showed a diffuse location within the orbit (19%), frequently infiltrating orbital soft tissues (40.2%) and extraocular muscles (26.8%). In 47 cases (15.7%), lesions extended intracranially into the anterior/middle fossae. Except for five cases (0.6%), all orbital metastases were symptomatic, frequently presenting with proptosis (52.3%), relative afferent pupillary defect (RAPD; 38.7%), and diplopia of the ipsilateral eye (35.5%). On imaging, orbital metastases uncommonly exhibited osteolytic (14.7%) or osteoblastic (1.3%) appearances.

3.3. Management Strategies and Treatment Outcomes

Most patients (556, 63.7%) underwent incisional biopsy, while noninvasive fine-needle aspiration biopsy (FNAB) was pursued in 89 (10.2%) (Table 2). Partial tumor resection (145, 16.6%) was preferred over complete resection (83, 9.5%), while orbital exenteration was performed in 26 patients (26/83, 31.3%) undergoing complete resection. Among 751 patients with available data on complementary treatments, 305 (40.6%) received chemotherapy, and 506 (67.4%) received orbital radiotherapy with a median dose of 35.5 Gy. Additional treatments were reported in 151 cases: hormonal therapy (128, 84.8%), immunotherapy (12, 7.9%), steroids (7, 4.6%), and radioiodine (4, 2.6%). Although included studies comprised a 56-year time period characterized by major advances in management of oncological patients, the lack of granular data on per-patient time-of-treatment precluded a detail analysis on clinical outcomes from a chronological point-of-view.
Data on post-treatment clinical responses were described in 315 patients, of which 203 (64.4%) showed symptom improvement. Among patients receiving complementary chemo/radiotherapy, symptom improvement was significantly higher after tumor resection than biopsy only (p = 0.007). There was no statistical difference in symptom improvement with greater extent of resection (p = 0.268) or biopsy approach comparing incisional biopsy to FNAB (p = 0.768). On multivariate analysis, symptom improvement rates were significantly superior in patients undergoing tumor resection compared to patients undergoing biopsy (OR: 1.985, 95% CI: 1.096–3.100, p = 0.005) and in patients receiving radiotherapy (OR: 1.311, 95% CI: 1.066–2.127, p = 0.032) (Table 3).
Data on post-treatment radiological responses were available in 287 patients. CR occurred in 52 patients (18.1%), PR in 143 (49.9%), SD in 18 (6.3%), and PD in 74 (25.8%). Among patients receiving complementary chemo/radiotherapy, radiological reduction in tumor volume (CR and PR) was significantly superior after tumor resection rather than biopsy only (p = 0.007), but no differences were noted based on biopsy approach (p = 0.699) or extent-of-resection (p = 0.477). On multivariate analysis, significantly worse rates of tumor volume reduction were found in patients with primary melanoma compared to patients with primary breast cancer (OR: 0.244, 95% CI: 0.076–0.783, p = 0.018). Significantly decreased rates of tumor volume reduction were also seen in patients with bilateral lesions compared to patients with unilateral lesions (OR: 0.217, 95% CI: 0.065–0.728, p = 0.013) (Table 4).

3.4. Survival

Patients were followed for a mean of 14.3 months (range, 0.2–144). Recurrence of orbital metastases was reported in only 15 cases (1.7%), with a median LC of 6 months (range, 0.2–122). Among 641 patients with available survival data, there were 416 deaths (64.9%), with a median OS of 6 months (range, 0.2–144), a 1-year survival rate of 40%, and a 2-year survival rate of 29%. The log-rank tests showed a significant difference in OS when comparing patients with the 8 most common primary tumors (each with available patient-level data in ≥15 patients) (p < 0.001), with 1-year survival rates highest in breast-cancer (57%) and carcinoid (53%), and lowest in lung cancer (14%), liver cancer (27%), and melanoma (29%) (Figure 2). Among patients receiving complementary chemo/radiotherapy, we found statistically higher OS in patients undergoing tumor resection over patients undergoing biopsy (p = 0.024). No significant differences in OS were noted based on orbital location (p = 0.174), intracranial extension (p = 0.073), biopsy approach (p = 0.344), extent-of-resection (p = 0.429), and orbital exenteration (p = 0.153). Cox regression further confirmed the log-rank tests’ findings (Table 5). On multivariate analysis, melanoma (HR: 2.047, 95% CI: 1.353–3.096, p = 0.001), lung cancer (HR: 3.859, 95% CI: 2.130–6.993, p < 0.001), and liver cancer (HR: 3.249, 95% CI: 1.888–5.590, p < 0.001) were associated with poorer survival compared to breast cancer, while tumor resection was associated with improved survival compared to biopsy (HR:0.642, 95% CI:0.475–0.868, p = 0.004). We found no statistical difference in mortality with any other clinical or treatment variable.

4. Discussion

In this review, we found that surgical tumor resection significantly increased symptom relief and survival compared to biopsy-only. While orbital radiotherapy may effectively prevent tumor progression in the long term, the role of advanced systemic therapies requires further evaluation.
Although some differences in primary tumors have been reported between studies, probably mirroring the underlying geographic variations of cancer rates, we found that breast cancer (36.3%), melanoma (10.1%) and prostate cancer (8.5%) were the most frequent among the 29 different primary neoplasms included in this review [3,4,5]. Similar prevalence rates have been reported for patients with uveal metastases, likely suggesting common routes of tumoral hematogenous spread and organotrophic seeding to both ocular and orbital structures [21,22,23,24]. The true incidence of orbital metastases from primary tumors may be difficult to ascertain only from clinical series of patients with histopathology reports, paving the way to a detection bias in the data collection for this paper. Cancers with more aggressive disease courses may rapidly metastasize to multiple major organs besides the orbit, severely debilitating patient functional status and thus making histological confirmation of suspected orbital metastases unnecessary. This likely explains the lower rates of primary lung cancers (5.6%) compared to other tumors such as carcinoid (6.6%). Indeed, carcinoids are less common malignancies, but they often show better prognoses and slower disease courses, with rare concurrent systemic metastases [5,8]. We also found that the median time interval between primary tumor diagnosis and the onset of orbital metastases was 12 months, further reflecting the long-lasting process of metastatic seeding into the orbit. In line with the literature on patients with choroidal metastases, the detection of orbital lesions preceded the primary tumor diagnosis in 30.1% of patients, with 37 cases of CUPs (4.2%). CUPs represent metastatic carcinomas with no primary neoplasms identified at diagnostic workup and mostly deriving from older case series [3,25,26,27,28,29]. More recently, upfront whole-body PET/CT scans are frequently recommended in patients with no history of cancer and clinical suspicion of orbital or intraocular metastases to expedite management and systemic treatments [6,30,31].
As opposed to benign orbital tumors, orbital metastases frequently manifest clinically with an abrupt onset of rapidly progressive symptoms [1,32]. We found that most metastases occurred unilaterally and diffusely infiltrated intra/extraconal orbital soft tissues, causing globe displacement with proptosis, diplopia and impaired eye motility [3,4,5]. The direct compression of the optic nerve, commonly at the orbital apex, additionally led to RAPD and vision decline, with a serious impact on patients’ functional status [33,34]. Less frequently, paradoxical enophthalmos of the affected eye resulted from the infiltration of neoplastic cells into the extraocular muscles and retro-bulbar stromal tissues causing desmoplasia, fibrosis and globe retraction [35,36,37]. Some ocular symptoms, such as visual impairments and periocular pain, may share similarities between orbital and choroidal metastases, thus requiring further assessment with orbital imaging [7,38]. This is especially the case in patients with no evident orbital or ocular masses. We noted that some primary cancers tend to infiltrate specific orbital tissues, such as breast cancers localizing within the orbital fat pad due to the local hormonal patterns, and melanomas invading and enlarging the extraocular muscles as seen clearly on MRI scans [39,40]. Similarly, prostate and liver cancers commonly infiltrate the orbital bony structures inducing osteoblastic or osteoclastic reactions, and this is better identified on CT scans [7,41].
We found that both incisional and fine-needle aspiration biopsy showed no benefits in clinical and survival outcomes but were chosen over tumor resection in most patients. On par with choroidal metastases, biopsy of suspected orbital metastases is often required for differential diagnosis in patients with no cancer history or for histomolecular characterization when biopsy of other metastatic sites is less viable [6,42]. When surgery is not deemed feasible, biopsy represents a safe alternative advantageous to initiate systemic therapy; however, tumor resection should be preferred in eligible patients. Indeed, we noted that tumor debulking, regardless of the extent-of-resection, led to significant clinical (p = 0.005), radiological (p = 0.007), and survival (p = 0.004) improvement when compared to biopsy. The mechanism for this result may likely be the prompt decompression with relief of mass effect and decrease in tumor burden with increased effectiveness of complementary therapies [14,39,43]. However, we note that our findings may also be related to the selection bias intrinsic in surgical series on orbital metastases because patients planning to receive surgical resection may be characterized by underlying clinical characteristics and tumor features (e.g., satisfactory performance status and single metastasis) not present in patients deemed preferable to receive less invasive and/or nonsurgical treatments.
Regarding orbital exenteration, we found no survival benefit compared to patients undergoing orbital-preserving complete tumor resection (p = 0.153). Such a finding substantiates once again that survival is more likely affected by systemic disease control than metastasis-directed local therapy. Orbital exenteration is often considered for treating aggressive craniofacial malignancies with orbital infiltration and perineural invasion, effectively reducing rates of local recurrences and re-operations [44,45]. In orbital metastases, the limited benefit of orbital exenteration is likely due to the underlying systemic spreading of tumor cells and related poor prognoses [46,47]. Hence, orbital exenteration may be unnecessary for treating orbital metastases in patients with systemic malignancies, and thus surgery should be intended to preserve acceptable quality of life while avoiding highly disfiguring procedures. However, orbital exenteration may play a role in providing relief of severe orbital pain in patients with already poor or absent pre-operative vision function, as we found in seven cases [3,4,39].
In some cases, orbital metastases may extend intracranially into the anterior and middle cranial fossa, similarly to other craniofacial malignancies such as nasopharyngeal carcinomas. While intracranial extension relates with poorer OS in patients with nasopharyngeal carcinomas, we found no differences in clinical (p = 0.582), radiological (p = 0.306), and survival (p = 0.073) outcomes between cranio-orbital and intra-orbital metastases [48]. We postulate that, contrary to primary craniofacial malignancies, both metastatic entities share similar histomolecular characteristics with comparable responsiveness to the systemic and/or radiation therapies when surgical procedures are unviable [49,50]. Still, a more in-depth evaluation of specific tumor microenvironments is highly encouraged to identify favorable therapeutic targets and support less-invasive treatment strategies specifically for patients with cranio-orbital metastases.
Radiotherapy is a well-established palliative therapeutic option for benign and malignant orbital lesions, as well as for periocular ones [11,12,32,51,52,53]. In line with previous reports on choroidal metastases, we also found that radiotherapy significantly ameliorates clinical and functional status in patients with orbital metastases (p = 0.032), favoring nonsurgical lesion shrinkage and relief of mass effect [22,54]. Although some cases of radiation-induced cataracts have been reported in earlier studies [55], modern image-guided radiotherapy planning allows the delivery of maximal doses to selected targets [56,57], sparing critical orbital structures and preventing the onset of severe adverse events [55,58,59,60]. Thus, radiotherapy appears to be safe and effective in the treatment of orbital metastases similarly to choroidal metastases, but the severity of radiation-induced complications might differ due to the unfortunate proximity of choroidal metastases to the macula and lens [54,61]. The usefulness of particle therapy, a type of radiotherapy characterized by a peculiarly beneficial dose distribution to the target (Bragg peak), to maximize the sparing of critical ocular structures with respect to the photon-based radiotherapy needs to be further investigated to evaluate its cost effectiveness [62,63]. However, particle therapy has not a widespread distribution, and classic radiotherapy could be more easily accessible. In such critical anatomical sites, safely delivering a high ablative dose in those tumor layers more distantly located from organs at risk while gradually underdosing the successive ones might have a radiobiological rationale in addition to a potentially successful effect. This approach with partial tumor irradiation or with spatially fractionation of the radiation dose is just a hypothesis because it has been effectively tested only for treatment of bulky tumors at different body sites from those examined here [64,65].
While chemotherapy, immunotherapy, and hormonal therapies (for breast and prostate cancers) proved to be significantly effective in concurrently treating both primary tumors and choroidal metastases, their impact on orbital metastases requires further analysis [66,67,68,69]. We found no significant correlation between systemic therapies and clinical (p = 0.247) or survival (p = 0.361) response, perhaps due to the different entry routes of medications into orbital tumors as compared to choroidal tumors [1,28].
The prognosis of patients with orbital metastases is poor with one-year survival rates, (40%) lower than patients with choroidal metastases (52%) and comparable to patients with brain metastases (39–46%), implying that their occurrence is more frequent at the very advanced disease stages, which call for an effective improvement in current systemic therapeutic strategies [22,50,70,71]. In line with previous reports, we found significant survival differences amongst primary tumors (p < 0.001), with one-year survival rates highest in breast cancer (57%) and carcinoid (53%), and lowest in lung (14%), liver (27%), and melanoma (29%) cancers, likely attributed to their underlying aggressiveness and responsiveness to treatments [3,5,8,9,39]. Hence, our findings further substantiate that the current treatments for orbital metastases are palliative and should be aimed at improving symptoms while preserving patient quality of life.


Our study has specific limitations. All included articles were retrospective case reports and case series exposed to selection bias, and they comprised a 56-year time-period characterized by major advances in surgical, radiotherapy and systemic oncological treatments, thus likely introducing a chronological bias into our analysis. As mentioned above, our study design involves only histologically confirmed orbital metastases: the exclusion from this data collection of the biopsy-unproven ones could lead to an underestimation of their overall prevalence as well as of their treatment-related outcomes (detection bias). However, our selective inclusion criteria were set to minimize the risks of introducing possible confounding variables related to misdiagnoses of orbital metastases only suspected at clinical and radiological assessments. Indeed, the nature of this systematic review—coupled with the lack of detailed information on criteria used to diagnose suspected orbital metastases among the vast majority of studies found in the literature—prevented us from calculating and adjusting the between-studies inter-observer variability in clinical and/or radiological diagnosis using appropriate statistical tests. The assessment of ocular symptoms was subjective in most studies, based on patient reports. Indeed, we are not able to fully explain why the improvement in symptoms does not correlate with the extent of surgical resection. Presumably, this finding could be affected by an apprehension bias if the risk for disabling and disfiguring consequences discourages patients from submitting themselves to more demolitive surgical procedures. The role of higher aggressive vs. lower palliative radiation doses could not be evaluated due to the lack of granular data across included articles. Due to the commonly missing data in the literature, we could not comprehensively analyze post-surgery adverse events, the impact of tumor size and concurrent systemic metastases on patient survival, or the role of advanced immune/targeted therapies. These confounding variables, coupled with missing information on baseline patients’ performance statuses and the likely selection bias related to our inclusion criteria, may have also limited our survival analysis based on surgery vs. biopsy.

5. Conclusions

Orbital metastases are rare, debilitating lesions in oncological patients. Histopathological examination is recommended to guide complementary therapeutic protocols, but surgery is often challenging. Tumor resection, regardless of its extent, showed improved clinical and survival outcomes over biopsy, but the impact of underlying clinical and tumor characteristics should be still considered on a case-by-case basis before planning surgical strategies. Orbital exenteration appears less useful when used in addition to complete tumor resection because no survival benefit was found. Furthermore, the positive clinical impact of orbital radiotherapy may favor its implementation in patients not eligible to undergo surgery or who underwent a subtotal resection. Future prospective studies are required to better understand the role of multimodal systemic therapeutic strategies in the management of orbital metastases based on primary tumor histopathology.

Supplementary Materials

The following are available online at, Table S1: Overview and references of all included studies, Table S2: Risk of bias assessments for all included studies.

Author Contributions

Conceptualization, P.P. and A.S.H.; methodology, P.P.; validation, G.F., T.Y.E.A. and A.S.H.; formal analysis, P.P.; resources, G.F., C.O., W.W., O.B.A., A.D.G., G.S., A.M.G.L., K.Y., G.E.U., A.A.C.-G., T.Y.E.A. and A.S.H.; data curation, P.P.; writing—Original draft preparation, P.P.; writing—Review and editing, G.F., C.O., W.W., O.B.A., A.D.G., G.S., A.M.G.L., K.Y., G.E.U., A.A.C.-G., T.Y.E.A. and A.S.H.; visualization, P.P.; supervision, T.Y.E.A. and A.S.H.; project administration, P.P., T.Y.E.A. and A.S.H. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Shields, J.A.; Shields, C.L.; Scartozzi, R. Survey of 1264 patients with orbital tumors and simulating lesions: The 2002 Montgomery Lecture, part 1. Ophthalmology 2004, 111, 997–1008. [Google Scholar] [CrossRef] [PubMed]
  2. Bonavolontà, G.; Strianese, D.; Grassi, P.; Comune, C.; Tranfa, F.; Uccello, G.; Iuliano, A. An Analysis of 2480 Space-Occupying Lesions of the Orbit from 1976 to 2011. Ophthalmic Plast. Reconstr. Surg. 2013, 29, 79–86. [Google Scholar] [CrossRef]
  3. Magliozzi, P.; Strianese, D.; Bonavolontà, P.; Ferrara, M.; Ruggiero, P.; Carandente, R.; Bonavolontà, G.; Tranfa, F. Orbital metastases in Italy. Int. J. Ophthalmol. 2015, 8, 1018–1023. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Valenzuela, A.A.; Archibald, C.W.; Fleming, B.; Ong, L.; O’Donnell, B.; Crompton, J.J.; Selva, D.; McNab, A.A.; Sullivan, T.J. Orbital Metastasis: Clinical Features, Management and Outcome. Orbit 2009, 28, 153–159. [Google Scholar] [CrossRef]
  5. Eldesouky, M.A.; Elbakary, M.A. Clinical and imaging characteristics of orbital metastatic lesions among Egyptian patients. Clin. Ophthalmol. 2015, 9, 1683–1687. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Allen, R. Orbital metastases: When to suspect? When to biopsy? Middle East Afr. J. Ophthalmol. 2018, 25, 60. [Google Scholar] [CrossRef] [PubMed]
  7. Ahmad, S.M.; Esmaeli, B. Metastatic tumors of the orbit and ocular adnexa. Curr. Opin. Ophthalmol. 2007, 18, 405–413. [Google Scholar] [CrossRef]
  8. Kamieniarz, L.; Armeni, E.; O’Mahony, L.F.; Leigh, C.; Miah, L.; Narayan, A.; Bhatt, A.; Cox, N.; Mandair, D.; Navalkissoor, S.; et al. Orbital metastases from neuroendocrine neoplasms: Clinical implications and outcomes. Endocrine 2020, 67, 485–493. [Google Scholar] [CrossRef] [PubMed]
  9. Shields, J.A.; Shields, C.L.; Brotman, H.K.; Carvalho, C.; Perez, N.; Eagle, R.C. Cancer Metastatic to the Orbit. Ophthal. Plast. Reconstr. Surg. 2001, 17, 346–354. [Google Scholar] [CrossRef]
  10. Tailor, T.D.; Gupta, D.; Dalley, R.W.; Keene, C.D.; Anzai, Y. Orbital Neoplasms in Adults: Clinical, Radiologic, and Pathologic Review. RadioGraphics 2013, 33, 1739–1758. [Google Scholar] [CrossRef]
  11. Wladis, E.J.; Lee, K.W.; Nazeer, T. Metastases of systemic malignancies to the orbit: A major review. Orbit 2021, 40, 93–97. [Google Scholar] [CrossRef]
  12. Ioakeim-Ioannidou, M.; MacDonald, S.M. Evolution of Care of Orbital Tumors with Radiation Therapy. J. Neurol. Surg. Part B Skull Base 2020, 81, 480–496. [Google Scholar] [CrossRef]
  13. Newman, S.A. Orbital Surgery: Evolution and Revolution. J. Neurol. Surg. Part B Skull Base 2021, 82, 7–19. [Google Scholar] [CrossRef] [PubMed]
  14. Tsagkaraki, I.M.; Kourouniotis, C.D.; Gomatou, G.L.; Syrigos, N.K.; Kotteas, E.A. Orbital metastases of invasive lobular breast carcinoma. Breast Dis. 2019, 38, 85–91. [Google Scholar] [CrossRef]
  15. Sklar, B.A.; Gervasio, K.A.; Karmazin, K.; Wu, A.Y. Orbital Metastasis From Urothelial Carcinoma: A Comprehensive Literature Review. Ophthalmic Plast. Reconstr. Surg. 2019, 35, 213–217. [Google Scholar] [CrossRef]
  16. Page, M.J.; McKenzie, J.E.; Bossuyt, P.M.; Boutron, I.; Hoffmann, T.C.; Mulrow, C.D.; Shamseer, L.; Tetzlaff, J.M.; Akl, E.A.; Brennan, S.E.; et al. The PRISMA 2020 statement: An updated guideline for reporting systematic reviews. BMJ 2021, 372, n71. [Google Scholar] [CrossRef]
  17. Lin, N.U.; Lee, E.Q.; Aoyama, H.; Barani, I.J.; Barboriak, D.P.; Baumert, B.G.; Bendszus, M.; Brown, P.D.; Camidge, D.R.; Chang, S.M.; et al. Response assessment criteria for brain metastases: Proposal from the RANO group. Lancet Oncol. 2015, 16, e270–e278. [Google Scholar] [CrossRef]
  18. Howick, J.; Chalmers, I.; Glasziou, P.; Greenhalgh, T.; Heneghan, C.; Liberati, A.; Moschetti, I.; Phillips, B. Explanation of the 2011 Oxford Centre for Evidence-Based Medicine (OCEBM) Levels of Evidence (Background Document). Available online: (accessed on 10 June 2021).
  19. Joanna Briggs Institute Checklist for Case Reports. Available online: (accessed on 25 June 2021).
  20. Joanna Briggs Institute Checklist for Case Series. Available online: (accessed on 25 June 2021).
  21. Paget, S. The distribution of secondary growths in cancer of the breast. Lancet 1889, 133, 571–573. [Google Scholar] [CrossRef] [Green Version]
  22. D’Abbadie, I.; Arriagada, R.; Spielmann, M.; Lê, M.G. Choroid metastases: Clinical features and treatments in 123 patients. Cancer 2003, 98, 1232–1238. [Google Scholar] [CrossRef] [PubMed]
  23. Arepalli, S.; Kaliki, S.; Shields, C.L. Choroidal metastases: Origin, features, and therapy. Indian J. Ophthalmol. 2015, 63, 122–127. [Google Scholar] [CrossRef] [PubMed]
  24. Konstantinidis, L.; Damato, B. Intraocular Metastases—A Review. Asia-Pac. J. Ophthalmol. 2017, 6, 208–214. [Google Scholar] [CrossRef]
  25. Huh, S.H.; Nisce, L.Z.; Simpson, L.D.; Chu, F.C.H. Value of radiation therapy in the treatment of orbital metastases. Am. J. Roentgenol. 1974, 120, 589–594. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Char, D.H.; Miller, T.; Kroll, S. Orbital metastases: Diagnosis and course. Br. J. Ophthalmol. 1997, 81, 386–390. [Google Scholar] [CrossRef] [PubMed]
  27. Holland, D.; Maune, S.; Kovács, G.; Behrendt, S. Metastic tumors of the orbit: A retrospective study. Orbit 2003, 22, 15–24. [Google Scholar] [CrossRef]
  28. Shields, C.L.; Shields, J.A.; Gross, N.E.; Schwartz, G.P.; Lally, S.E. Survey of 520 Eyes with Uveal Metastases. Ophthalmology 1997, 104, 1265–1276. [Google Scholar] [CrossRef]
  29. Amer, R.; Pe’er, J.; Chowers, I.; Anteby, I. Treatment Options in the Management of Choroidal Metastases. Ophthalmologica 2004, 218, 372–377. [Google Scholar] [CrossRef] [PubMed]
  30. Das, S.; Pineda, G.; Goff, L.; Sobel, R.; Berlin, J.; Fisher, G. The eye of the beholder: Orbital metastases from midgut neuroendocrine tumors, a two institution experience. Cancer Imaging 2018, 18, 1–7. [Google Scholar] [CrossRef] [Green Version]
  31. Mathis, T.; Jardel, P.; Loria, O.; Delaunay, B.; Nguyen, A.; Lanza, F.; Mosci, C.; Caujolle, J.-P.; Kodjikian, L.; Thariat, J. New concepts in the diagnosis and management of choroidal metastases. Prog. Retin. Eye Res. 2019, 68, 144–176. [Google Scholar] [CrossRef]
  32. Laplant, J.; Cockerham, K. Primary Malignant Orbital Tumors. J. Neurol. Surg. Part B Skull Base 2021, 82, 81–90. [Google Scholar] [CrossRef]
  33. Strachan, K.; Jamieson, A. The relative afferent pupillary defect: Its role in the diagnosis of metastatic malignancy. QJM 2012, 105, 463–466. [Google Scholar] [CrossRef] [Green Version]
  34. Crisostomo, S.; Cardigos, J.; Fernandes, D.H.; Luís, M.E.; Pires, G.N.; Duarte, A.F.; Boavida, A.M. Bilateral metastases to the extraocular muscles from small cell lung carcinoma. Arq. Bras. Oftalmol. 2019, 82, 422–424. [Google Scholar] [CrossRef] [PubMed]
  35. Goldberg, R.A.; Rootman, J. Clinical Characteristics of Metastatic Orbital Tumors. Ophthalmology 1990, 97, 620–624. [Google Scholar] [CrossRef]
  36. Homer, N.; Jakobiec, F.A.; Stagner, A.; Cunnane, M.E.; Freitag, S.K.; Fay, A.; Yoon, M.K. Periocular breast carcinoma metastases: Correlation of clinical, radiologic and histopathologic features. Clin. Experiment. Ophthalmol. 2017, 45, 606–612. [Google Scholar] [CrossRef]
  37. El-Khazen Dupuis, J.; Marchand, M.; Javidi, S.; Nguyen, T.Q.T. Enophthalmos as the Initial Systemic Finding of Undiagnosed Metastatic Breast Carcinoma. Int. Med. Case Rep. J. 2021, 14, 25–31. [Google Scholar] [CrossRef]
  38. Shah, S.U.; Mashayekhi, A.; Shields, C.L.; Walia, H.S.; Hubbard, G.B.; Zhang, J.; Shields, J.A. Uveal Metastasis from Lung Cancer. Ophthalmology 2014, 121, 352–357. [Google Scholar] [CrossRef]
  39. Sindoni, A.; Fama’, F.; Vinciguerra, P.; Dionigi, G.; Manara, S.A.A.M.; Gaeta, R.; Gioffre’-Florio, M.; di Maria, A. Orbital metastases from breast cancer: A single institution case series. J. Surg. Oncol. 2020, 122, 170–175. [Google Scholar] [CrossRef]
  40. Zografos, L.; Ducrey, N.; Beati, D.; Schalenbourg, A.; Spahn, B.; Balmer, A.; Othenin-Girard, C.B.; Chamot, L.; Egger, E. Metastatic melanoma in the eye and orbit. Ophthalmology 2003, 110, 2245–2256. [Google Scholar] [CrossRef]
  41. Eldesouky, M.A.; Elbakary, M.A.; Shalaby, O.E.; Shareef, M.M. Orbital Metastasis From Hepatocellular Carcinoma. Ophthalmic Plast. Reconstr. Surg. 2014, 30, e78–e82. [Google Scholar] [CrossRef]
  42. Shields, J.A.; Shields, C.L.; Ehya, H.; Eagle, R.C.; Potter, P. De Fine-needle Aspiration Biopsy of Suspected Intraocular Tumors. Ophthalmology 1993, 100, 1677–1684. [Google Scholar] [CrossRef]
  43. Schick, U.; Lermen, O.; Hassler, W. Management of Orbital Metastases. Zentralbl. Neurochir. 2006, 67, 1–7. [Google Scholar] [CrossRef] [PubMed]
  44. Martel, A.; Baillif, S.; Nahon-Esteve, S.; Gastaud, L.; Bertolotto, C.; Lassalle, S.; Lagier, J.; Hamedani, M.; Poissonnet, G. Orbital exenteration: An updated review with perspectives. Surv. Ophthalmol. 2021, 66, 856–876. [Google Scholar] [CrossRef] [PubMed]
  45. Traylor, J.I.; Christiano, L.D.; Esmaeli, B.; Hanasono, M.M.; Yu, P.; Suki, D.; Zhang, W.; Raza, S.M.; Hanna, E.Y.; DeMonte, F. Outcomes of orbital exenteration for craniofacial lesions. Cancer 2021, 127, 2465–2475. [Google Scholar] [CrossRef] [PubMed]
  46. Montejano-Milner, R.; López-Gaona, A.; Fernández-Pérez, P.; Sánchez-Orgaz, M.; Romero-Martín, R.; Arbizu-Duralde, A. Orbital metastasis: Clinical presentation and survival in a series of 11 cases. Arch. Soc. Española Oftalmol. 2020. [Google Scholar] [CrossRef]
  47. Mehta, J.S.; Abou-Rayyah, Y.; Rose, G.E. Orbital Carcinoid Metastases. Ophthalmology 2006, 113, 466–472. [Google Scholar] [CrossRef]
  48. Cao, C.; Luo, J.; Gao, L.; Yi, J.; Huang, X.; Li, S.; Xiao, J.; Zhang, Z.; Xu, G. Magnetic Resonance Imaging–Detected Intracranial Extension in the T4 Classification Nasopharyngeal Carcinoma with Intensity-Modulated Radiotherapy. Cancer Res. Treat. 2017, 49, 518–525. [Google Scholar] [CrossRef]
  49. Cao, C.; Jiang, F.; Jin, Q.; Jin, T.; Huang, S.; Hu, Q.; Chen, Y.; Piao, Y.; Hua, Y.; Feng, X.; et al. Locoregional extension and patterns of failure for nasopharyngeal carcinoma with intracranial extension. Oral Oncol. 2018, 79, 27–32. [Google Scholar] [CrossRef]
  50. Peinado, H.; Zhang, H.; Matei, I.R.; Costa-Silva, B.; Hoshino, A.; Rodrigues, G.; Psaila, B.; Kaplan, R.N.; Bromberg, J.F.; Kang, Y.; et al. Pre-metastatic niches: Organ-specific homes for metastases. Nat. Rev. Cancer 2017, 17, 302–317. [Google Scholar] [CrossRef]
  51. Pontoriero, A.; Iatì, G.; Conti, A.; Minutoli, F.; Bottari, A.; Pergolizzi, S.; de Renzis, C. Treatment of periocular basal cell carcinoma using an advanced stereotactic device. Anticancer Res. 2014, 34, 873–875. [Google Scholar]
  52. Ferini, G.; Molino, L.; Bottalico, L.; de Lucia, P.; Garofalo, F. A small case series about safety and effectiveness of a hypofractionated electron beam radiotherapy schedule in five fractions for facial non melanoma skin cancer among frail and elderly patients. Rep. Pract. Oncol. Radiother. J. Gt. Cancer Cent. Pozn. Polish Soc. Radiat. Oncol. 2021, 26, 66–72. [Google Scholar] [CrossRef]
  53. Palmisciano, P.; Haider, A.S.; Sabahi, M.; Nwagwu, C.D.; Bin Alamer, O.; Scalia, G.; Umana, G.E.; Cohen-Gadol, A.A.; El Ahmadieh, T.Y.; Yu, K.; et al. Primary Skull Base Chondrosarcomas: A Systematic Review. Cancers 2021, 13, 5960. [Google Scholar] [CrossRef]
  54. Rudoler, S.B.; Shields, C.L.; Corn, B.W.; de Potter, P.; Hyslop, T.; Curran, W.J.; Shields, J.A. Functional vision is improved in the majority of patients treated with external-beam radiotherapy for choroid metastases: A multivariate analysis of 188 patients. J. Clin. Oncol. 1997, 15, 1244–1251. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Mortada, A. Roentgenography in Orbital Metastases by Exophthalmos. Am. J. Ophthalmol. 1968, 65, 48–53. [Google Scholar] [CrossRef]
  56. Conti, A.; Pontoriero, A.; Midili, F.; Iatì, G.; Siragusa, C.; Tomasello, C.; la Torre, D.; Cardali, S.M.; Pergolizzi, S.; de Renzis, C. CyberKnife multisession stereotactic radiosurgery and hypofractionated stereotactic radiotherapy for perioptic meningiomas: Intermediate-term results and radiobiological considerations. Springerplus 2015, 4, 1–8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Pontoriero, A.; Iatì, G.; Cacciola, A.; Conti, A.; Brogna, A.; Siragusa, C.; Ferini, G.; Davì, V.; Tamburella, C.; Molino, L.; et al. Stereotactic Body Radiation Therapy With Simultaneous Integrated Boost in Patients With Spinal Metastases. Technol. Cancer Res. Treat. 2020, 19, 153303382090444. [Google Scholar] [CrossRef] [PubMed]
  58. Hu, W.; Hu, J.; Gao, J.; Yang, J.; Qiu, X.; Kong, L.; Lu, J.J. Outcomes of orbital malignancies treated with eye-sparing surgery and adjuvant particle radiotherapy: A retrospective study. BMC Cancer 2019, 19, 1–10. [Google Scholar] [CrossRef] [Green Version]
  59. Monroe, A.T.; Bhandare, N.; Morris, C.G.; Mendenhall, W.M. Preventing radiation retinopathy with hyperfractionation. Int. J. Radiat. Oncol. 2005, 61, 856–864. [Google Scholar] [CrossRef]
  60. Palmisciano, P.; Haider, A.S.; Nwagwu, C.D.; Wahood, W.; Aoun, S.G.; Abdullah, K.G.; El Ahmadieh, T.Y. Bevacizumab vs. laser interstitial thermal therapy in cerebral radiation necrosis from brain metastases: A systematic review and meta-analysis. J. Neurooncol. 2021, 154, 13–23. [Google Scholar] [CrossRef]
  61. Wiegel, T.; Bottke, D.; Kreusel, K.-M.; Schmidt, S.; Bornfeld, N.; Foerster, M.H.; Hinkelbein, W. External beam radiotherapy of choroidal metastases-final results of a prospective study of the German Cancer Society (ARO 95-08). Radiother. Oncol. 2002, 64, 13–18. [Google Scholar] [CrossRef]
  62. Munzenrider, J.E. Proton therapy for uveal melanomas and other eye lesions. Strahlenther. Und Onkol. 1999, 175, 68–73. [Google Scholar] [CrossRef] [PubMed]
  63. Hirai, A.; Mizota, A.; Mine, S.; Mizoe, J. Two cases of orbital adenocarcinoma treated with heavy charged carbon particle irradiation. Graefe’s Arch. Clin. Exp. Ophthalmol. 2005, 243, 610–614. [Google Scholar] [CrossRef]
  64. Tubin, S.; Gupta, S.; Grusch, M.; Popper, H.H.; Brcic, L.; Ashdown, M.L.; Khleif, S.N.; Peter-Vörösmarty, B.; Hyden, M.; Negrini, S.; et al. Shifting the Immune-Suppressive to Predominant Immune-Stimulatory Radiation Effects by SBRT-PArtial Tumor Irradiation Targeting HYpoxic Segment (SBRT-PATHY). Cancers 2020, 13, 50. [Google Scholar] [CrossRef] [PubMed]
  65. Ferini, G.; Valenti, V.; Tripoli, A.; Illari, S.I.; Molino, L.; Parisi, S.; Cacciola, A.; Lillo, S.; Giuffrida, D.; Pergolizzi, S. Lattice or Oxygen-Guided Radiotherapy: What If They Converge? Possible Future Directions in the Era of Immunotherapy. Cancers 2021, 13, 3290. [Google Scholar] [CrossRef]
  66. George, B.; Wirostko, W.J.; Connor, T.B.; Choong, N.W. Complete and Durable Response of Choroid Metastasis from Non-small Cell Lung Cancer with Systemic Bevacizumab and Chemotherapy. J. Thorac. Oncol. 2009, 4, 661–662. [Google Scholar] [CrossRef] [PubMed]
  67. Manquez, M.E.; Brown, M.M.; Shields, C.L.; Shields, J.A. Management of choroidal metastases from breast carcinomas using aromatase inhibitors. Curr. Opin. Ophthalmol. 2006, 17, 251–256. [Google Scholar] [CrossRef]
  68. Mendia, A.; Shah, C.P.; Grajo, J.R.; Yachnis, A.; Yeung, A.; Cardenas-Goicoechea, J.; Murphy, M. Orbital metastasis of squamous cell cervical cancer: A case report and review of literature. Gynecol. Oncol. Rep. 2021, 35, 100689. [Google Scholar] [CrossRef] [PubMed]
  69. Bullock, J.D.; Yanes, B. Ophthalmic Manifestations of Metastatic Breast Cancer. Ophthalmology 1980, 87, 961–973. [Google Scholar] [CrossRef]
  70. Park, K.; Bae, G.H.; Kim, W.K.; Yoo, C.-J.; Park, C.W.; Kim, S.-K.; Cha, J.; Kim, J.W.; Jung, J. Radiotherapy for brain metastasis and long-term survival. Sci. Rep. 2021, 11, 1–8. [Google Scholar] [CrossRef]
  71. Palmisciano, P.; El Ahmadieh, T.Y.; Haider, A.S.; Bin Alamer, O.; Robertson, F.C.; Plitt, A.R.; Aoun, S.G.; Yu, K.; Cohen-Gadol, A.; Moss, N.S.; et al. Thalamic gliomas in adults: A systematic review of clinical characteristics, treatment strategies, and survival outcomes. J. Neurooncol. 2021, 155, 215–224. [Google Scholar] [CrossRef]

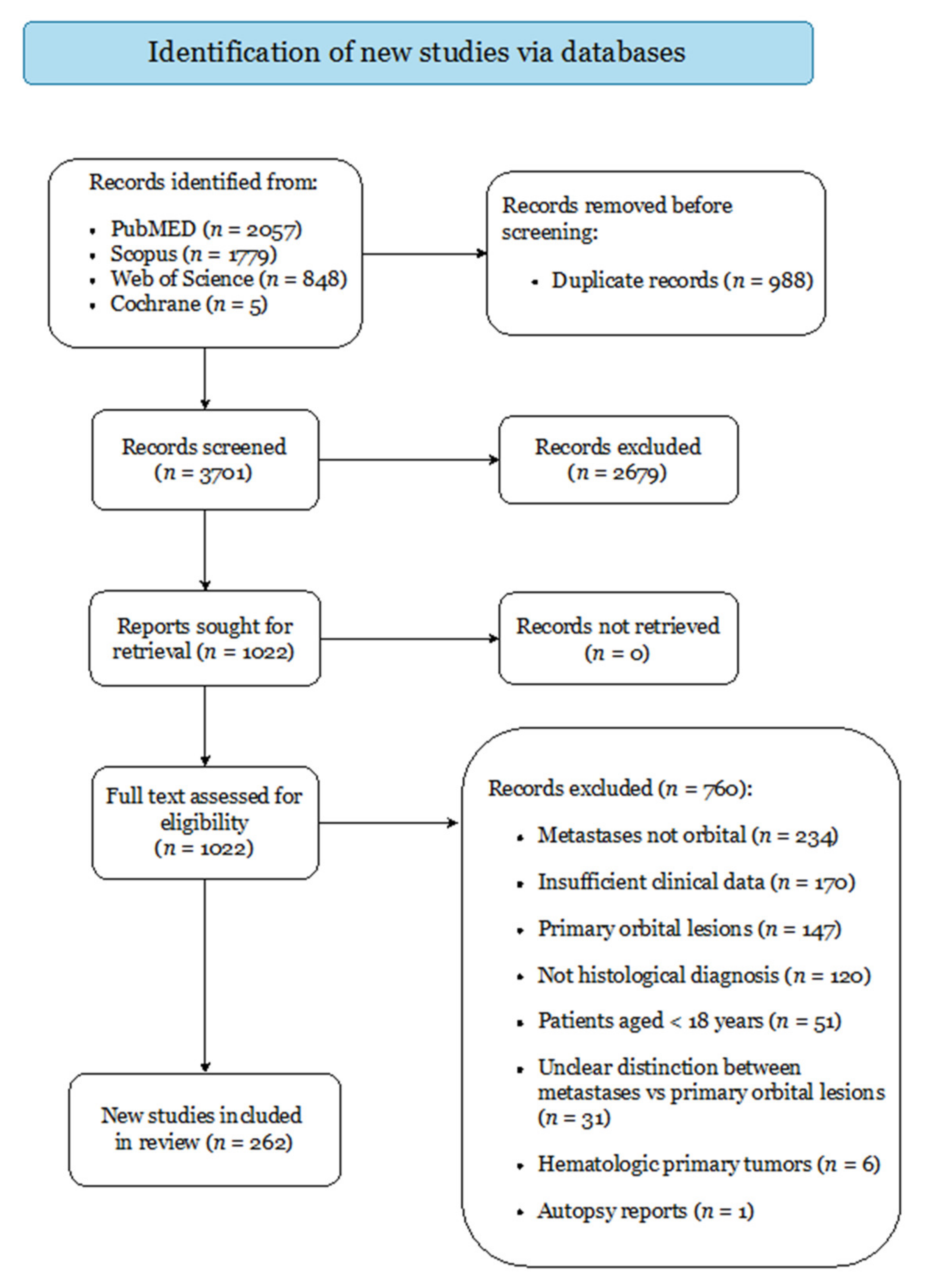

Figure 1. PRISMA 2020 Flow-Diagram.
Figure 1. PRISMA 2020 Flow-Diagram.
Cancers 14 00094 g001

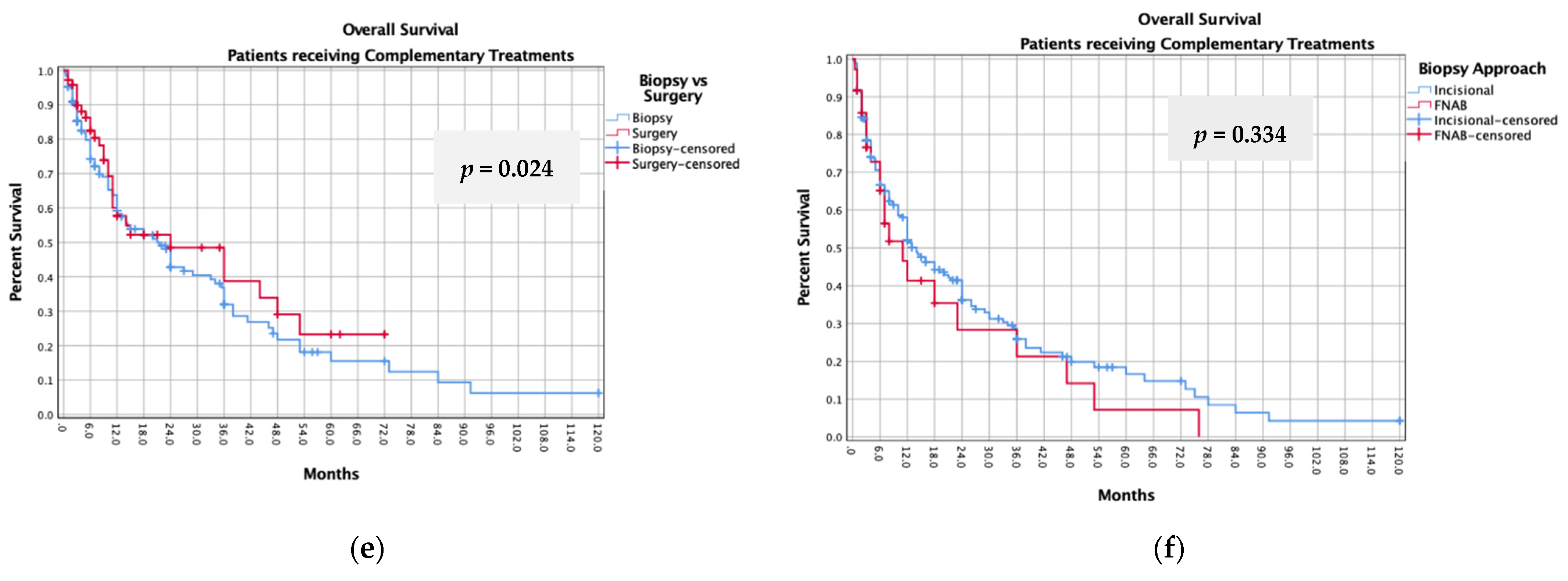

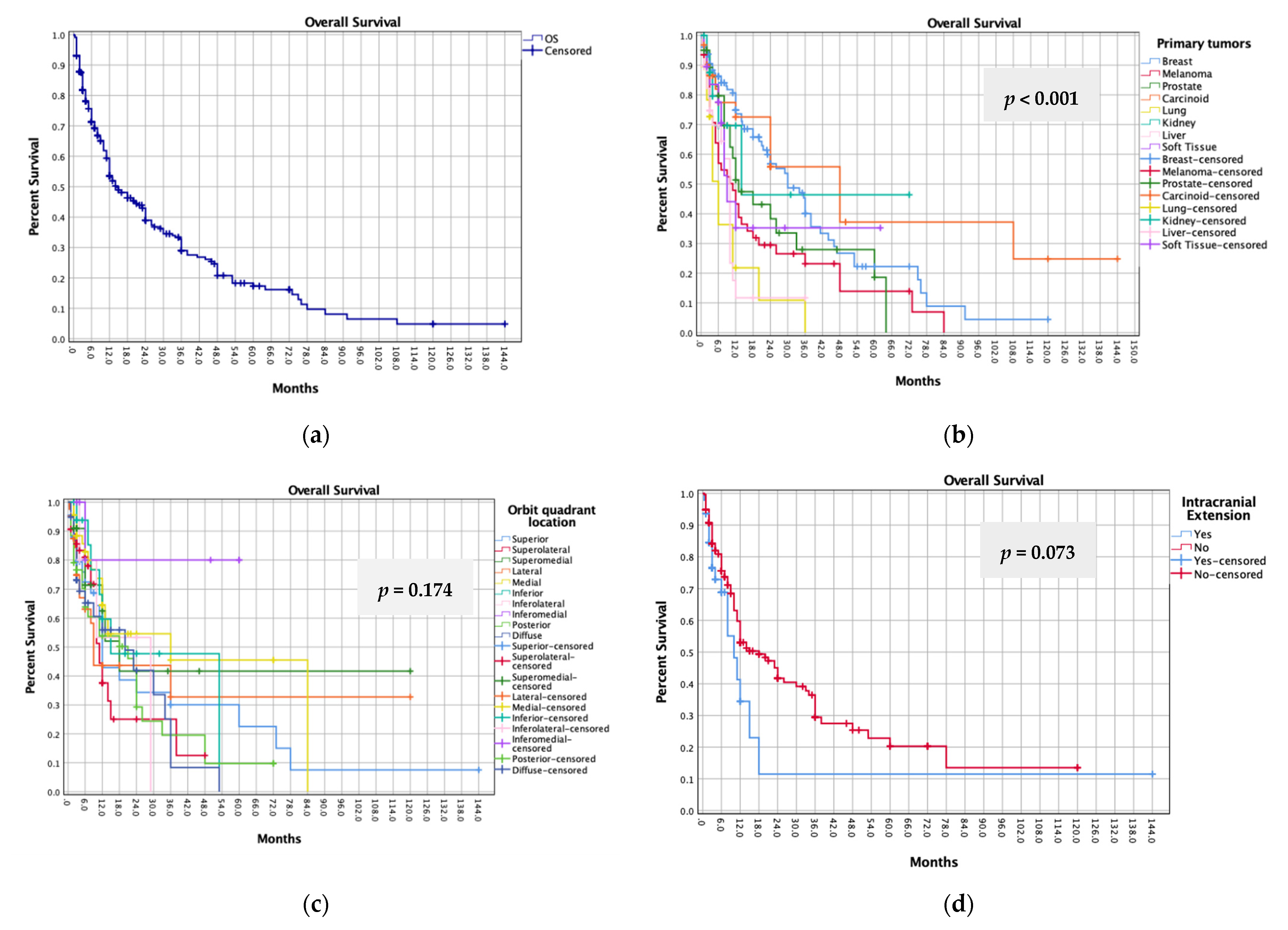

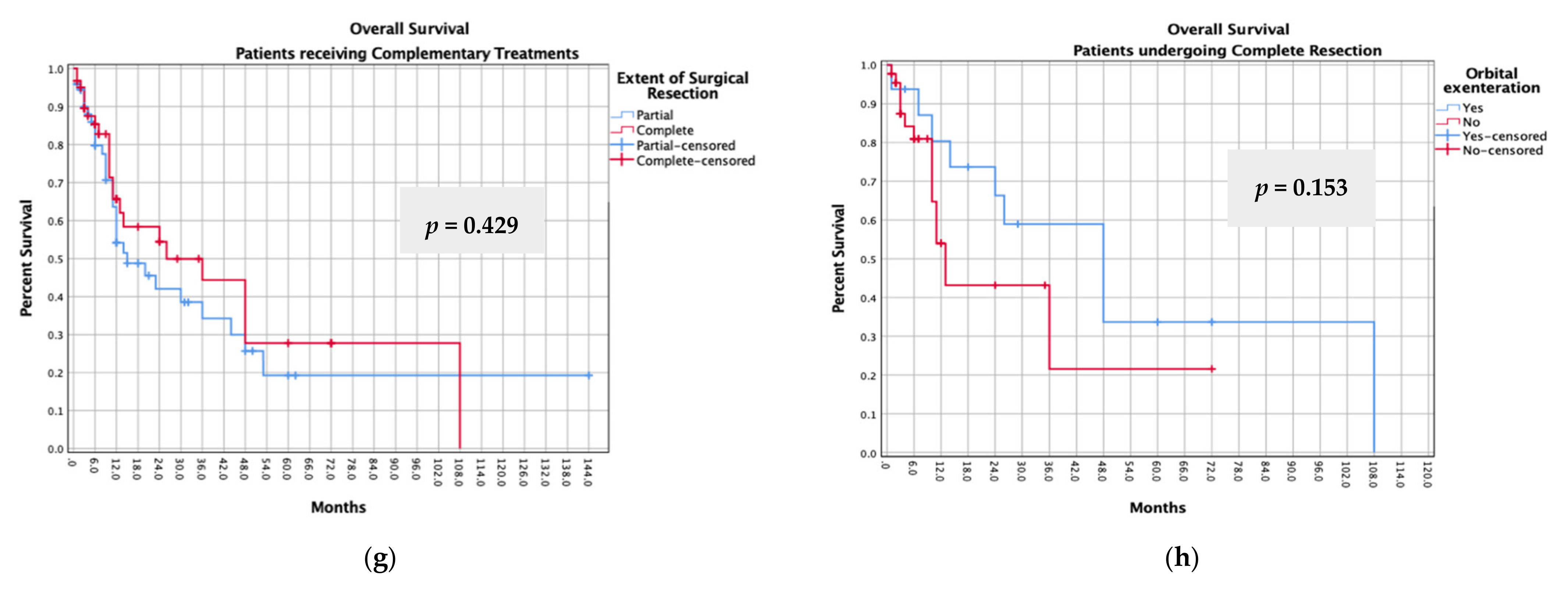

Figure 2. Kaplan–Meier curves of (a) overall survival of the pooled cohort; (b) overall survival based on the most common primary tumors; (c) overall survival based on orbital quadrant location; (d) overall survival based on intracranial extension; (e) OS (n = 377) based on biopsy vs. tumor resection in patients receiving complementary treatments (chemotherapy and/or radiotherapy); (f) overall survival based on biopsy approach (incisional vs. FNAB) in patients receiving complementary treatments; (g) overall survival based on complete (100%) vs. partial (<100%) tumor resection in patients receiving complementary treatments; (h) overall survival based on orbital exenteration in patients undergoing complete surgical resection.
Figure 2. Kaplan–Meier curves of (a) overall survival of the pooled cohort; (b) overall survival based on the most common primary tumors; (c) overall survival based on orbital quadrant location; (d) overall survival based on intracranial extension; (e) OS (n = 377) based on biopsy vs. tumor resection in patients receiving complementary treatments (chemotherapy and/or radiotherapy); (f) overall survival based on biopsy approach (incisional vs. FNAB) in patients receiving complementary treatments; (g) overall survival based on complete (100%) vs. partial (<100%) tumor resection in patients receiving complementary treatments; (h) overall survival based on orbital exenteration in patients undergoing complete surgical resection.
Cancers 14 00094 g002aCancers 14 00094 g002bCancers 14 00094 g002c
Table 1. Summary of clinical and anatomical characteristics of all pooled patients.
Table 1. Summary of clinical and anatomical characteristics of all pooled patients.
Cohort size (no.)873
Age (years), median (range) (n = 683)59, 18–90
Gender (female) (n = 868)492 (56.7%)
Primary Tumor Sites (n = 873)No. (%)
Breast317 (36.3%)
Melanoma88 (10.1%)
Prostate74 (8.5%)
Carcinoid58 (6.6%)
Lung49 (5.6%)
Carcinoma of Unknown Primary (CUP)37 (4.2%)
Kidney34 (3.9%)
Liver30 (3.4%)
Bone27 (3.1%)
Soft Tissue20 (2.3%)
Salivary Gland16 (1.8%)
Small Intestine16 (1.8%)
Skin (not melanoma)15 (1.7%)
Colorectal14 (1.6%)
Thyroid13 (1.5%)
Bladder12 (1.4%)
Others53 (6.1%)
Clinical Presentation (n = 705)
Orbital metastases preceding primary, no. (%)218 (30.1%)
Time interval from primary (months)
Median (range)12 (0–420)
Mean (SD)40.9 (± 6.4)
Laterality (n = 744)No. (%)
Left344 (46.2%)
Right343 (46.1%)
Bilateral57 (7.7%)
Location (n = 443)No. (%)
Superior59 (13.3%)
Superolateral64 (14.4%)
Superomedial22 (5%)
Lateral59 (13.3%)
Medial69 (15.6%)
Inferior20 (4.5%)
Inferolateral5 (1.1%)
Inferomedial7 (1.6%)
Posterior54 (12.2%)
Posterior84 (19%)
Tissue Infiltrated (n = 545)No. (%)
Soft Tissue219 (40.2%)
Muscle146 (26.8%)
Bone114 (20.9%)
Fat66 (12.1%)
Intracranial Extension (n = 299)47 (15.7%)
Presenting Symptoms (n = 848)No. (%)
Proptosis444 (52.3%)
Relative afferent pupillary defect (RAPD)328 (38.7%)
Diplopia301 (35.5%)
Impaired eye motility247 (29.1%)
Palpable/visible mass183 (21.6%)
Orbital Pain163 (19.2%)
Blurred/decreased vision159 (18.7%)
Ptosis133 (15.7%)
Swelling108 (12.7%)
Vision Loss65 (7.7%)
Enophthalmos39 (4.6%)
Red eye38 (4.5%)
No Symptoms5 (0.6%)
Radiological Appearance (n = 759)No. (%)
Osteolytic112 (14.7%)
Osteoblastic10 (1.3%)
Table 2. Summary of management strategies of all pooled patients.
Table 2. Summary of management strategies of all pooled patients.
Surgery (n = 873)No. (%)
Incisional biopsy556 (63.7%)
Fine needle aspiration biopsy (FNAB)89 (10.2%)
Partial Resection (<100%)145 (16.6%)
Complete Resection (100%)83 (9.5%)
Orbital exenteration26/83 (31.3%)
Chemotherapy (n = 751)305 (40.6%)
Radiotherapy (n = 751)506 (67.4%)
Dose (Gy), median (range)35.5 (10.0–60.0)
Additional Treatments (n = 151)No. (%)
Hormonal therapy128 (84.8%)
Immunotherapy12 (7.9%)
Steroids7 (4.6%)
Radioiodine therapy4 (2.6%)
Clinical Response (n = 315)No. (%)
Symptom improvement203 (64.4%)
Radiological Response (n = 287)No. (%)
Complete Response (CR)52 (18.1%)
Partial Response (PR)143 (49.9%)
Stable Disease (SD)18 (6.3%)
Progression (PD)74 (25.8%)
Follow-up (months), mean (range)14.3 (0.2–144.0)
Recurrence of Orbital Metastases15 (1.7%)
Survival (months) (n = 873)No. (%)
Local Control
Median (range)6.0 (0.2–120.0)
Mean (SD)13.8 (± 3.8)
Overall Survival
Median (range)6.0 (0.2–144.0)
Mean (SD)15.3 (± 3.9)
Status (n = 641)No. (%)
Alive225 (35.1%)
Dead416 (64.9%)
Table 3. Univariate and multivariate logistic regression analyses predicting patients’ post-treatment symptom improvement in patients with orbital metastases.
Table 3. Univariate and multivariate logistic regression analyses predicting patients’ post-treatment symptom improvement in patients with orbital metastases.
CharacteristicsNo. (%)Univariate AnalysisMultivariate Analysis
OR95% CIp-Value *OR95% CIp-Value *
Age 1.0120.994–1.0300.200
Male117 (47.8%)Ref
Female128 (52.2%)1.1150.688–1.9380.586
Primary Tumor
Breast60 (35.7%)Ref
Melanoma8 (4.8%)0.3950.089–1.7640.224
Prostate27 (16.1%)1.7400.567–5.3400.333
Carcinoid16 (9.5%)0.6590.207–2.0970.480
Lung8 (4.8%)0.3950.089–1.7640.224
Kidney13 (7.7%)0.8900.241–3.2800.860
Liver22 (13.1%)0.3950.144–1.0820.071
Soft Tissue14 (8.3%)0.5270.159–1.7470.295
Right109 (44.5%)Ref
Left117 (47.8%)0.9980.581–1.7140.993
Bilateral19 (7.7%)0.6440.241–1.7180.380
Orbital Location
Superior36 (14.8%)Ref
Superolateral50 (20.6%)1.8370.743–4.5430.188
Superomedial17 (7%)1.0200.316–3.2920.973
Lateral32 (13.2%)0.6300.241–1.6460.346
Medial34 (14%)1.7140.636–4.6210.287
Inferior15 (6.2%)1.4290.405–5.0440.579
Inferolateral3 (1.2%)1.4290.118–7.2340.779
Inferomedial6 (2.5%)1.3410.107–6.0670.890
Posterior25 (10.3%)0.5610.200–1.5730.272
Diffuse25 (10.3%)1.5180.521–4.4260.445
Tissue Infiltrated
Bone52 (21.6%)Ref
Muscle74 (30.7%)0.6030.288–1.2630.180
Soft Tissue93 (38.6%)0.8050.394–1.6460.552
Fat22 (9.1%)1.6510.521–5.2330.394
Intracranial Extension
Yes39 (15.7%)Ref
No198 (84.3%)1.2170.604–2.4530.582
Radiological Features
Osteolytic43 (84.3%)Ref
Osteoblastic8 (15.7%)2.7100.301–4.4230.374
Biopsy vs. Surgery
Biopsy152 (62%)Ref Ref
Surgery93 (38%)2.1441.226–3.7500.0081.9851.096–3.1000.005
Biopsy Approach
Incisional131 (85.6%)Ref
FNAB22 (14.4%)1.1480.459–2.8720.769
Extent of Resection
Complete54 (58.7%)Ref
Partial38 (41.3%)1.7230.654–4.5380.271
Yes7 (26.7%)Ref
No30 (73.3%)1.6000.247–10.3600.622
No158 (61%)Ref
Yes85 (39%)1.3860.798–2.4090.247
No113 (46.5%)Ref Ref
Yes130 (53.5%)1.8901.232–2.8710.0471.3111.066–2.1270.032
Abbreviations: OR, Odds ratio; CI, Confidence Interval; Ref, Reference group; FNAB, Fine needle aspiration biopsy. * Two-tailed p-value < 0.05 was considered statistically significant for all tests. In bold are statistically significant results. For each variable, numbers may not sum up to the total number of patients with available data on clinical improvement (n = 315) due to the limited granular data found across included articles.
Table 4. Univariate and multivariate logistic regression analyses predicting patients’ post-treatment radiological tumor volume reduction in patients with orbital metastases.
Table 4. Univariate and multivariate logistic regression analyses predicting patients’ post-treatment radiological tumor volume reduction in patients with orbital metastases.
CharacteristicsNo. (%)Univariate AnalysisMultivariate Analysis
OR95% CIp-Value *OR95% CIp-Value *
Age 0.9920.973–1.0110.411
Male107 (49.3%)Ref
Female110 (50.7%)0.9590.545–1.6880.885
Primary Tumor
Breast61 (38.6%)Ref Ref
Melanoma17 (10.8%)0.2900.095–0.8850.0300.2440.076–0.7830.018
Prostate26 (16.4%)2.5000.657–9.5170.1791.7680.443–7.0490.420
Carcinoid12 (7.6%)0.6520.172–2.4760.5030.7180.179–2.8810.640
Lung5 (3.2%)0.4890.075–3.2110.4560.3500.051–2.3940.284
Kidney10 (6.3%)0.4890.121–1.9700.3140.4020.095–1.7020.216
Liver16 (10.1%)0.4190.133–1.3200.1370.3230.097–1.0700.064
Soft Tissue11 (7%)0.3910.104–1.4680.1640.3930.100–1.5500.182
Right96 (44.2%)Ref Ref
Left102 (47%)0.7490.409–1.3710.3490.6280.284–1.3900.251
Bilateral19 (8.8%)0.3520.129–0.9620.0420.2170.065–0.7280.013
Orbital Location
Superior29 (14.8%)Ref
Superolateral40 (20.4%)1.3880.494–3.9000.534
Superomedial12 (6.1%)0.5260.134–2.0640.357
Lateral27 (13.8%)0.4890.167–1.4320.192
Medial28 (14.3%)1.9300.591–6.3040.276
Inferior14 (7.1%)1.9300.436–8.5510.387
Inferolateral2 (1%)0.5260.030–9.3350.662
Inferomedial4 (2%)1.0970.204–5.6230.790
Posterior18 (9.2%)0.8270.245–2.7970.760
Diffuse22 (11.2%)0.5260.169–1.6350.267
Tissue Infiltrated
Bone42 (21.6%)Ref
Muscle63 (32.3%)1.4690.624–3.3480.379
Soft Tissue76 (39%)0.6180.282–1.3540.229
Fat14 (7.2%)1.2500.332–4.7040.741
Intracranial Extension
Yes29 (16%)Ref
No152 (84%)1.5290.670–3.4530.306
Radiological Features
Osteolytic34 (82.9%)Ref
Osteoblastic7 (17.1%)2.1600.228–20.4920.502
Biopsy vs. Surgery
Biopsy154 (68.1%)Ref
Surgery72 (31.9%)1.6790.872–3.2330.121
Biopsy Approach
Incisional135 (87.1%)Ref
FNAB20 (12.9%)0.8280.316–2.1650.700
Extent of Resection
Complete38 (61.5%)Ref
Partial24 (38.5%)1.5480.462–5.1870.479
Yes3 (13%)Ref
No20 (87%)1.7420.870–4.8740.369
No129 (40.3%)Ref
Yes87 (59.7%)0.6270.353–1.1150.112
No77 (35.6%)Ref
Yes139 (64.4%)1.7600.982–3.1540.057
Abbreviations: OR, Odds ratio; CI, Confidence Interval; Ref, Reference group; FNAB, Fine needle aspiration biopsy. * Two-tailed p-value < 0.05 was considered statistically significant for all tests. In bold are statistically significant results. For each variable, numbers may not sum up to the total number of patients with available data on post-treatment radiological tumor volume (n = 287) due to the limited granular data found across included articles.
Table 5. Univariate and multivariate adjusted Cox proportional hazards analyses of variables associated with overall survival among patients with orbital metastases.
Table 5. Univariate and multivariate adjusted Cox proportional hazards analyses of variables associated with overall survival among patients with orbital metastases.
CharacteristicsNo. (%)Univariate AnalysisMultivariate Analysis
HR95% CIp-Value *HR95% CIp-Value *
Age 1.0040.994–1.0140.426
Male229 (53.8%)Ref
Female197 (46.2%)1.2860.990–1.6710.060
Primary Tumor
Breast127 (38.7%)Ref Ref
Melanoma46 (14%)1.8931.257–2.8510.0022.0471.353–3.0960.001
Prostate40 (12.2%)1.4620.896–2.3870.1281.4930.915–2.4380.109
Carcinoid31 (9.4%)0.7220.391–1.3360.3000.8830.468–1.6660.700
Lung19 (5.8%)3.5931.989–6.488<0.0013.8592.130–6.993<0.001
Kidney17 (5.2%)1.0740.430–2.6820.8781.4940.571–3.9080.413
Liver29 (8.8%)3.0521.777–5.240<0.0013.2491.888–5.590<0.001
Soft Tissue19 (5.8%)1.6350.808–3.3080.1722.0650.992–4.3020.053
Right182 (44.4%)Ref
Left191 (46.6%)0.9830.739–1.3060.904
Bilateral37 (9%)1.1360.720–1.7920.584
Orbital Location
Superior44 (13.5%)Ref
Superolateral64 (19.6%)1.1930.675–2.1080.543
Superomedial22 (6.7%)0.7110.317–1.5910.406
Lateral41 (12.6%)1.1020.587–2.0690.763
Medial45 (13.8%)0.6460.344–1.2120.174
Inferior17 (5.2%)0.7600.324–1.7810.528
Inferolateral5 (1.5%)1.0750.321–3.6030.907
Inferomedial7 (2.1%)0.1750.024–1.3000.089
Posterior43 (13.1%)1.2490.712–2.1910.438
Diffuse39 (11.9%)1.2530.688–2.2800.461
Tissue Infiltrated
Bone77 (22.5%)Ref
Muscle106 (31%)0.7860.511–1.2100.274
Soft Tissue127 (37.1%)0.9280.674–1.5410.928
Fat32 (9.4%)0.9610.531–1.7380.896
Intracranial Extension
Yes47 (15.7%)Ref
No252 (84.3%)0.6460.394–1.0590.083
Radiological Features
Osteolytic54 (84.4%)Ref
Osteoblastic10 (15.6%)0.5590.209–1.4960.275
Biopsy vs. Surgery
Biopsy297 (68.7%)Ref Ref
Surgery135 (31.3%)0.6420.475–0.8680.0040.6490.441–0.9550.028
Biopsy Approach
Incisional262 (87.9%)Ref
FNAB36 (12.1%)1.2340.789–1.9330.357
Extent of Resection
Complete61 (45.5%)Ref
Partial73 (54.5%)1.2320.725–2.0940.440
Yes16 (26.7%)Ref
No44 (73.3%)1.9260.757–4.9040.169
No229 (61%)Ref
Yes147 (39%)0.8740.654–1.1670.361
No176 (46.8%)Ref
Yes200 (53.2%)0.8200.618–1.0880.170
Abbreviations: HR, Hazard ratio; CI, Confidence Interval; Ref, Reference group; FNAB, Fine needle aspiration biopsy. * Two-tailed p-value < 0.05 was considered statistically significant for all tests. In bold are statistically significant results. For each variable, numbers may not sum up to the total number of patients with available survival data (n = 641) due to the limited granular data found across included articles.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Palmisciano, P.; Ferini, G.; Ogasawara, C.; Wahood, W.; Bin Alamer, O.; Gupta, A.D.; Scalia, G.; Larsen, A.M.G.; Yu, K.; Umana, G.E.; et al. Orbital Metastases: A Systematic Review of Clinical Characteristics, Management Strategies, and Treatment Outcomes. Cancers 2022, 14, 94.

AMA Style

Palmisciano P, Ferini G, Ogasawara C, Wahood W, Bin Alamer O, Gupta AD, Scalia G, Larsen AMG, Yu K, Umana GE, et al. Orbital Metastases: A Systematic Review of Clinical Characteristics, Management Strategies, and Treatment Outcomes. Cancers. 2022; 14(1):94.

Chicago/Turabian Style

Palmisciano, Paolo, Gianluca Ferini, Christian Ogasawara, Waseem Wahood, Othman Bin Alamer, Aditya D. Gupta, Gianluca Scalia, Alexandra M. G. Larsen, Kenny Yu, Giuseppe E. Umana, and et al. 2022. "Orbital Metastases: A Systematic Review of Clinical Characteristics, Management Strategies, and Treatment Outcomes" Cancers 14, no. 1: 94.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
