Article

Femtosecond Laser Irradiation of Plasmonic Nanoparticles in Polymer Matrix: Implications for Photothermal and Photochemical Material Alteration

Institute of Applied Physics of Russian Academy of Sciences, 46 Ul'yanov Street, Nizhny Novgorod 603950, Russia
*
Author to whom correspondence should be addressed.
Micromachines 2014, 5(4), 1202-1218; https://doi.org/10.3390/mi5041202
Received: 14 October 2014 / Revised: 11 November 2014 / Accepted: 11 November 2014 / Published: 19 November 2014
(This article belongs to the Special Issue Laser Micro- and Nano- Processing)

Abstract

:
We analyze the opportunities provided by the plasmonic nanoparticles inserted into the bulk of a transparent medium to modify the material by laser light irradiation. This study is provoked by the advent of photo-induced nano-composites consisting of a typical polymer matrix and metal nanoparticles located in the light-irradiated domains of the initially homogeneous material. The subsequent irradiation of these domains by femtosecond laser pulses promotes a further alteration of the material properties. We separately consider two different mechanisms of material alteration. First, we analyze a photochemical reaction initiated by the two-photon absorption of light near the plasmonic nanoparticle within the matrix. We show that the spatial distribution of the products of such a reaction changes the symmetry of the material, resulting in the appearance of anisotropy in the initially isotropic material or even in the loss of the center of symmetry. Second, we analyze the efficiency of a thermally-activated chemical reaction at the surface of a plasmonic particle and the distribution of the product of such a reaction just near the metal nanoparticle irradiated by an ultrashort laser pulse.

1. Introduction

A plasmonic particle inserted in a transparent material can enhance the effect of laser radiation. The particle absorbs incident radiation and is heated, causing the elevation of the temperature of adjacent material layers. This effect has been considered in numerous papers (for references, see the recent reviews [1,2]). Heating could be provided by irradiation of the materials containing plasmonic particles using sufficiently long laser pulses or continuous waveform (CW) lasers. In this case, the stationary distribution of temperature around the particle is established [3]. Heating of gold nanoparticles within the tumor is considered as a way to kill cancer cells [4]. Heating of metal nanoparticles in water can cause the water to boil. The work in [5] considers the melting of the polymer mediated by laser-irradiated metal particles. It is recognized [5] that the CW irradiation of a separate nanoparticle cannot provide a significant temperature elevation of the surrounding material, whereas the cumulative effect provided by a great number of compactly-situated particles can be dramatic.
The effect of femtosecond laser pulses on the plasmonic particles in a transparent material is reviewed in [2]. Here, a significant heating effect can be provided even by a separate particle.
It should be noted that in both cases of long and short pulse irradiation, the effect of electron emission from the laser-irradiated particle into the surrounding medium could occur. This effect is considered in detail in [1]. It is shown that in the case of long or CW laser irradiation, the electron emission is noticeable for relatively small-sized particles with diameters of about several nanometers.
With femtosecond pulses, the breakdown of the surrounding material is provoked by the laser field enhancement near the plasmonic particles. Here, the effect of electron emission from the metal particle can promote additional seed electrons for the breakdown. This effect provides bubbling of water in a biological tissue, optoporation and transfection of a cell membrane [2].
The effect of the plasmonic particles due to laser heating, field enhancement and electron transfer on some photocatalytic chemical reactions is considered in, e.g., [6] and a recent review [7].
The effect of the plasmonic particles on the surrounding medium is of particular interest concerning the so-called photo-induced nanocomposites [8,9,10]. Here, the nanoparticles are produced by UV irradiation of the matrix containing dissolved precursor molecules that typically include atoms of a noble metal. After the UV-mediated reduction of those molecules, the extracted metal atoms form an oversaturated solid solution; then, the plasmonic particles appear as nuclei of the new phase [11]. Thus, these nanocomposites are products of the light-material interaction. However, taking into account the ability of the metal nanoparticles to enhance the effect of light, the further irradiation of the formed nanocomposites can provide a further modification of the material, resulting in the alteration of the material properties in a rather sophisticated manner.
The enhanced laser light can modify the properties of the matrix in the vicinity of the nanoparticle, either directly or through specially introduced molecules that serve as initiators of the subsequent transformations.
In [12], photo-induced isomerization in an azobenzene-dye polymer is used for the sub-diffraction imaging of the optical near-field around the plasmonic nanoparticles on the surface of a polymer film irradiated by the laser light.
In this article, we consider a photochemical reaction initiated by the two-photon absorption of light near the plasmonic nanoparticle within the matrix. We also consider the material heating caused by this absorption in comparison with the heating by the light directly absorbed by the particle and analyze the distribution of the product of a thermally-activated chemical reaction just near the metal nanoparticle irradiated by the laser pulse.
This study aims at developing the laser-induced production of 3D nanoplasmonic systems where the formation of photo-induced nanocomposites is only the first step.

2. The Near-Field Effects

Let us consider the irradiation of a metal spherical nanoparticle in a transparent matrix by a series of ultrashort pulses from the laser operated in the visible, near-IR or near-UV ranges (see Figure 1).

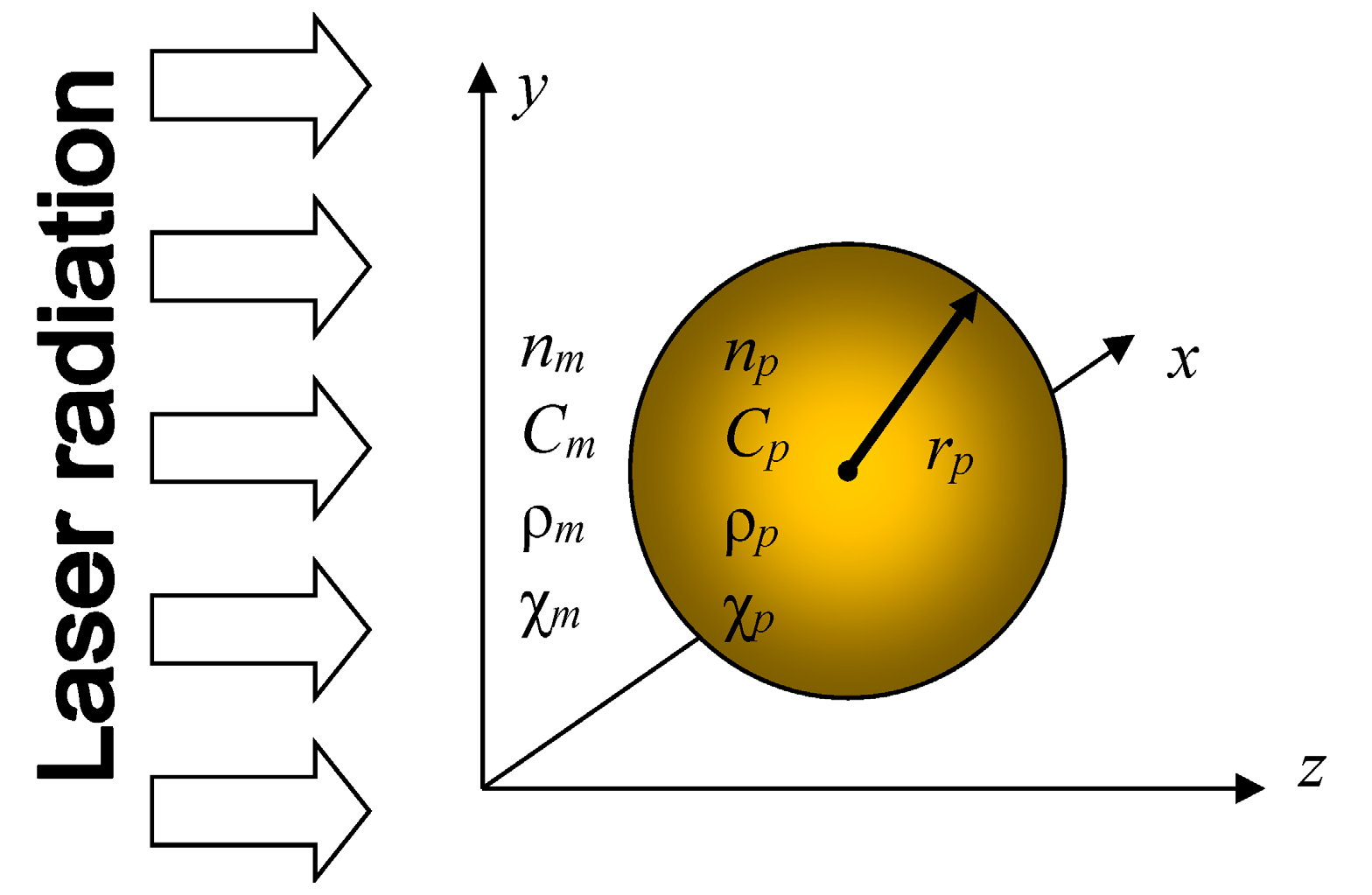

Figure 1. The modeling setup. A spherical gold nanoparticle of radius rp is irradiated by femtosecond laser pulses at the central wavelength λ. The complex refractive index of the particle, its specific heat, density and heat diffusivity are np, Cp, ρp and χp, respectively. The corresponding properties of the matrix are denoted by nm, Cm, ρm and χm. For a complete list of notations, see in Appendix A1.
Figure 1. The modeling setup. A spherical gold nanoparticle of radius rp is irradiated by femtosecond laser pulses at the central wavelength λ. The complex refractive index of the particle, its specific heat, density and heat diffusivity are np, Cp, ρp and χp, respectively. The corresponding properties of the matrix are denoted by nm, Cm, ρm and χm. For a complete list of notations, see in Appendix A1.
Micromachines 05 01202 g001
The laser light is significantly enhanced in the near-field domain. We consider a simple photochemical reaction promoted by the two-photon absorption by species X within the matrix. Species X can either belong to the matrix base being, e.g., chromophore groups within the polymer chains or being some dopant molecules dissolved in the matrix.
Assume that the particle radius rp is on the order of 10 nm and the pulse length τpulse lies in a range of 10 fs to 1 ps. We approximate the incident laser radiation as a quasi-monochromatic wave at the central wavelength λ.
The evolution of the number density N X ( r , t ) of species X is described by the equation:
N X ( r , t ) t = N X η  σ X ( 2 ) 2 ( ω ) 2 I 2 ( r , t )
Here, I is the local laser field intensity, σX(2) is two-photon absorption cross-section of X, ω = 2 π c / λ is the photon energy and η is the quantum yield. The solution of Equation (1) reads:
N X = N X 0 exp ( 0 t η  σ X ( 2 ) 2 ( ω ) 2 I 2 ( r , t ) d t )
where NX0 is the initial concentration of X. The fraction v = (NX0NX)/NX0 of reacted species X is further referred to as the conversion.
In the vicinity of a nanoparticle, the incident field can be approximated as a quasi-monochromatic plane wave with the intensity Iinc = I0f(t), where I0 is the peak incident intensity and function f(t) is of a unity amplitude. If the dispersion on the particle size-scale is neglected, then the actual function I ( r , t ) can be calculated by means of Mie theory [13]:
I ( r , t ) = I 0 f ( t ) | E M i e ( r ) | 2 E 0 2
Here, | E M i e ( r ) | 2 / E 0 2 is the enhancement of the electric field squared calculated near the metal nanoparticle irradiated by a plane monochromatic wave. Thus, Equation (2) can be evaluated as:
N X = N X 0 exp ( η  σ X ( 2 ) I 0 2 τ p u l s e N p u l s e 2 ( ω ) 2 | E M i e ( r ) | 4 E 0 4 )
where Npulse is the number of laser pulses applied.
The distribution of | E M i e ( r ) | / E 0 2 can be calculated by means of different near-field Mie codes; some of them can be found here [14]. The linear absorption of the matrix is assumed to be negligible at the laser wavelength, and the refractive index of the polymer is nm. The complex refractive index of the metal particle is np = np' + inp".
In Figure 2, we plot typical spatial distributions of the conversion after a series of laser pulses. The case where rp = 10 nm and λ = 800 nm is presented in Figure 2a,b. Here, two field maxima are formed near the sphere opposite each other, following the dipole approximation. The locations of the maxima are directed by the incident wave polarization and, thus, are the same for all irradiated nanoparticles within the matrix. This gives an opportunity to induce anisotropy into laser-irradiated domains of the material. The results for rp = 35 nm and λ = 400 nm are presented in Figure 2c,d. Here, the dipole approximation is not applicable, because the thickness of the skin-layer becomes smaller than the diameter of the particle. Thus, the higher-order spherical modes become important, resulting in the shift of the maxima towards the direction of the incident wave propagation. The photochemical reaction in this case results not only in laser-induced anisotropy, but also in the laser-induced loss of the center of symmetry. This is important for the applications in nonlinear optics, in particular for the second harmonic generation. It is notable that such a modification can be performed using reasonable irradiation regimes and materials without an outstanding two-photon sensitivity (see Figure 2 caption). This allows for possible applications of commercially available materials and lasers for a single-step modification of large volumes of about 1 cm3.
Thermo-sensitive rather than photo-sensitive additives can also be employed. Thermal alteration processes can also be locally induced due to laser irradiation of nanoparticles. In what follows, we consider two main possibilities to heat a transparent matrix near the nanoparticle: either to do it directly via multi-photon absorption or to heat the particle and rely on the heat diffusion. We calculate the temperature rise in the particle and in the surrounding polymer provided by a single laser pulse.
Once an ultra-short laser pulse is absorbed by the gold nanoparticle, the electron subsystem is excited. The electron energy is transferred to the lattice during the electron-phonon coupling time on the order of τe–ph = 1–3 ps [2]. This is the period during which the particle is effectively heated, even if the actual laser pulse length is shorter. The temperature diffusion time over the particle is τdiffus = rp2χp−1, where χp is the heat diffusion coefficient, which is on the order of 1 cm2/s for many metals, including gold and silver. For rp = 10 nm, the value τdiffus = 1 ps, which is on the order of τe–ph.

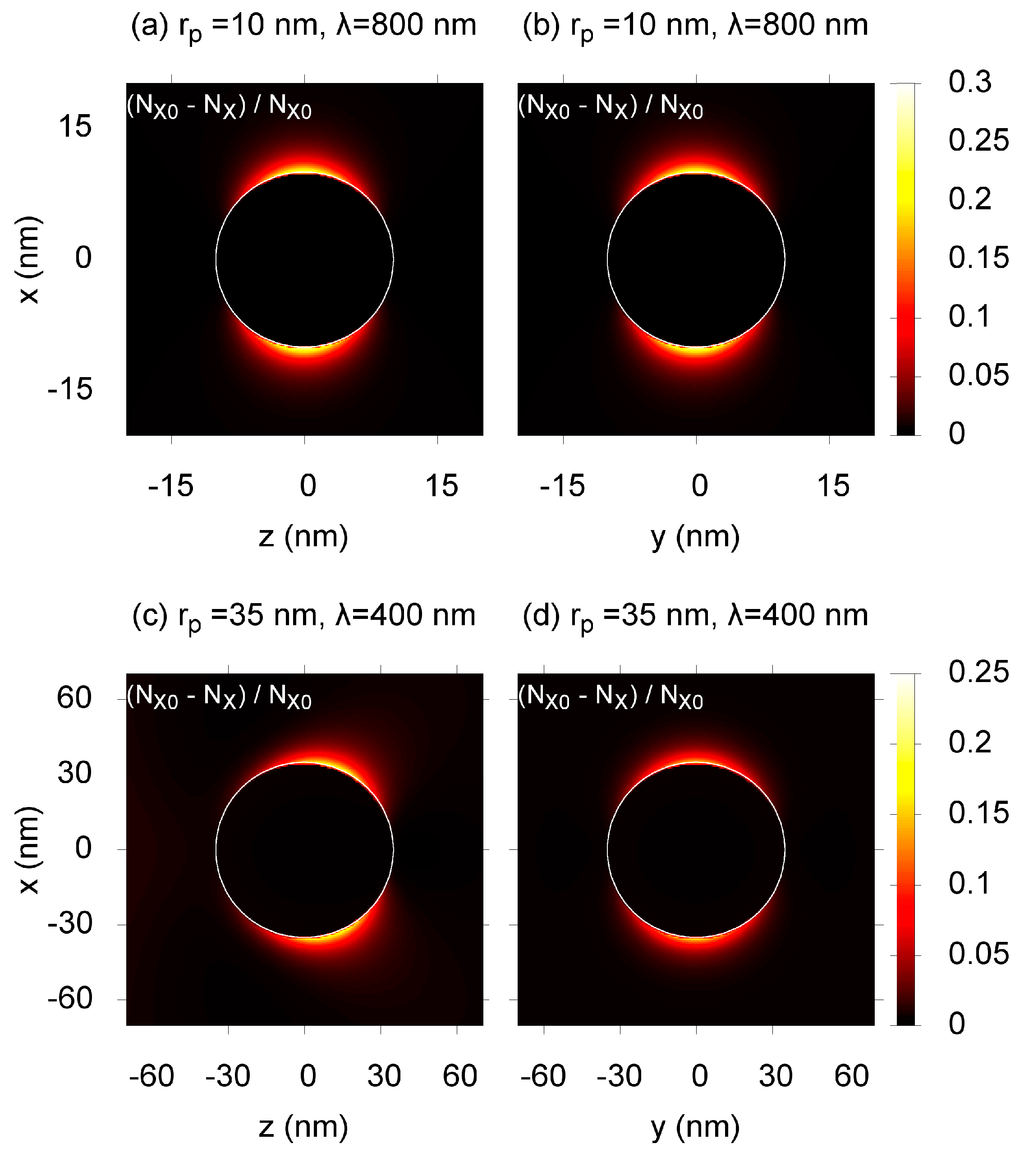

Figure 2. The conversion of species X near the gold nanoparticle (indicated by a white circle) irradiated by Npulse = 105 laser pulses of length τpulse = 100 fs. The two-photon absorption cross-section is σX(2) = 10 GM (1 GM = 10−50 cm4·s). The quantum yield is η = 0.8, and the incident wave is linearly polarized along the x and propagates toward the z direction. For (a) and (b): rp = 10 nm, λ = 800 nm; the complex refractive index of gold is np = 0.15 + 4.91i [15], the refractive index of polymethyl methacrylate (PMMA) is nm = 1.484 [16]; the incident beam intensity is I0 = 5 × 108 W/cm2. For (c) and (d): rp = 35 nm, λ = 400 nm, np = 1.47 + 1.954i [15], nm = 1.503 [16], I0 = 2 × 109W/cm2.
Figure 2. The conversion of species X near the gold nanoparticle (indicated by a white circle) irradiated by Npulse = 105 laser pulses of length τpulse = 100 fs. The two-photon absorption cross-section is σX(2) = 10 GM (1 GM = 10−50 cm4·s). The quantum yield is η = 0.8, and the incident wave is linearly polarized along the x and propagates toward the z direction. For (a) and (b): rp = 10 nm, λ = 800 nm; the complex refractive index of gold is np = 0.15 + 4.91i [15], the refractive index of polymethyl methacrylate (PMMA) is nm = 1.484 [16]; the incident beam intensity is I0 = 5 × 108 W/cm2. For (c) and (d): rp = 35 nm, λ = 400 nm, np = 1.47 + 1.954i [15], nm = 1.503 [16], I0 = 2 × 109W/cm2.
Micromachines 05 01202 g002
The temperature rise over the particle can be considered uniform if the radius of the particle is well below the thickness of the skin-layer or after the irradiation period t >> τdiffus and t >> τe–ph.
The heating and thermalization can be considered adiabatic over the time period τadiab if the fraction of heat that leaks from the particle to the matrix during this period can be neglected. The heat penetration depth from the particle into the matrix by the moment t can be evaluated as χ m t . Provided ΔTp is the temperature rise of the particle due to the laser pulse, the amount of heat transferred to the matrix is evaluated as Q m C m ρ m Δ T p 4 π r p 2 χ m t . The amount of heat transferred to the particle is QpCpρpΔTp·4πrp3/3. The ratio is:
Q m Q p C m ρ m C p ρ p 3 χ m t r p
where Cp and Cm are the specific heat capacities; ρp and ρm are the densities. Subscripts “p” and “m” denote the particle and the matrix, respectively. It is seen in Equation (5) that Qm/Qp << 1 if:
t < < τ a d i a b = 1 9 ( C p ρ p C m ρ m ) 2 r p 2 χ m 1
The ratio of volume-specific heat capacities can be considered Cpρp/Cmρm ~ 1 for gold particles in a polymer matrix; thus, τadiabrp2χm−1. The thermal diffusivity of the polymer, χm, is on the order of 10−3 cm2/s. Thus, for a 10-nm particle, τadiab ~ 100 ps.
It is seen that due to χm << χp, the heat transfer from the particle to the matrix may be neglected during the time period needed to equalize the temperature inside the particle. The different time scales allow the solution of the problems of the particle heating and the heat diffusion from the particle to the matrix separately. Namely, the laser irradiation causes the uniform temperature rise in the particle by:
Δ T p = 1 C p ρ p V p V p d r 0 τ p u l s e d t w ( r , t )
which is the starting condition for the calculations of the heat diffusion within the matrix. Such calculations will be performed in the next section of the paper. In Equation (7), Vp is the volume of the particle and w ( r , t ) is the heat power density, which is given by:
w ( r , t ) = 4 π λ n p I ( r , t )
Laser field intensity inside the particle can be calculated by employing the Mie solution again:
I ( r , t ) = n p I 0 f ( t ) n m | E M i e ( r ) | 2 E 0 2
Finally,
Δ T p = F 0 C p ρ p 4 π  n p n p n m λ | E M i e ( r ) E 0 | 2 V p
where < > V p means averaging over the volume of the particle and F 0 = 0 τ p u l s e I 0 f ( t ) d t is the incident fluence. In the case of Rayleigh scattering, for the small particles, Equation (10) transforms [17] to:
Δ T p = F 0 C p ρ p 2 π  n p λ 9 ε ( ε + 2 ) 2 + ε 2
where ε' and ε" are the real and imaginary parts of ε = np2/nm2.
The multi-photon heating of the matrix directly due to the field maxima near the particles can be treated in a similar way. The temperature rise in the matrix after the electron-phonon thermalization is calculated as:
Δ T m ( r ) = 1 C m ρ m 0 τ p u l s e w 2 p h ( r , t ) d t
where:
w 2 p h ( r , t ) = η T N m σ m ( 2 ) I 2 ( r , t ) ω
is the heat power density due to the two-photon absorption in the matrix. In Equation (13), Nm is the number density of chromophores in the matrix and ηT is the quantum yield. Taking I(r, t) outside the particle from Equation (3), one can evaluate the temperature rise in the matrix as:
Δ T m ( r ) = η T N m σ m ( 2 ) C m ρ m ω I 0 2 τ p u l s e | E M i e ( r ) | 4 E 0 4
The dependencies of both the temperature rise ΔTp in the particle and the maximal temperature rise max(ΔTm) in the matrix due to two-photon absorption exhibit a pronounced plasmonic resonance, as is shown in Figure 3.

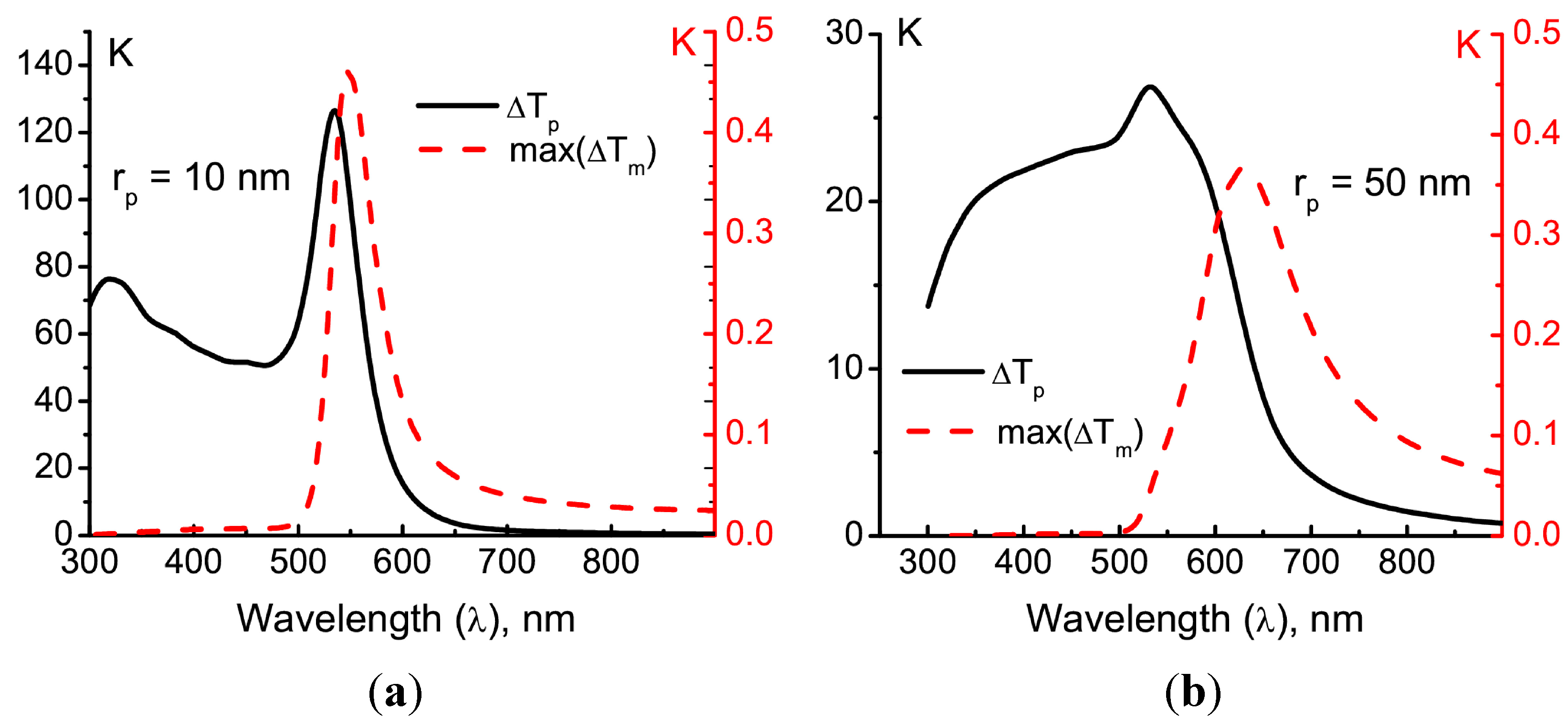

Figure 3. Temperature rise in the particle (black solid lines, left axis) and the temperature rise in the matrix due to the two-photon absorption (red dashed lines, right axis) after irradiation by a single laser pulse of duration τpulse = 100 fs. The particle radius is either 10 nm (a) or 50 nm (b). The incident laser fluence is F0 = 2 × 10−4 J/cm2, which corresponds to the maximum field intensity I0 = 2 × 109 W/cm2. The incident polarization is circular. The volume-specific heat values for the particle and the matrix are Cpρp = 2.5 J·cm−3K−1 and Cmρm = 1.7 J·cm−3K−1, respectively. The dependencies of np(λ) and nm(λ) for gold and PMMA are taken from [15,16], respectively. For the two-photon absorption, σm(2) = 100 GM, Nm = 6 × 1020 cm−3 and ηT = 1 are employed.
Figure 3. Temperature rise in the particle (black solid lines, left axis) and the temperature rise in the matrix due to the two-photon absorption (red dashed lines, right axis) after irradiation by a single laser pulse of duration τpulse = 100 fs. The particle radius is either 10 nm (a) or 50 nm (b). The incident laser fluence is F0 = 2 × 10−4 J/cm2, which corresponds to the maximum field intensity I0 = 2 × 109 W/cm2. The incident polarization is circular. The volume-specific heat values for the particle and the matrix are Cpρp = 2.5 J·cm−3K−1 and Cmρm = 1.7 J·cm−3K−1, respectively. The dependencies of np(λ) and nm(λ) for gold and PMMA are taken from [15,16], respectively. For the two-photon absorption, σm(2) = 100 GM, Nm = 6 × 1020 cm−3 and ηT = 1 are employed.
Micromachines 05 01202 g003
Now, we can compare the contributions of either of the heating mechanisms for typical experimental cases. For that, using Equation (10), we find the incident field intensity needed to achieve a certain temperature rise in the particle (e.g., ΔTp = 100 K). Then, we calculate the maximum temperature rise max(ΔTm) in the matrix for that intensity. Additionally, we calculate the maximum field intensity that is reached near the particle.
Figure 4 shows the calculation results for two different matrices. The first one has an unrealistically high two-photon sensitivity, σm(2) = 100 GM, and the number density of chromophores Nm = 6 × 1021 cm−3 nearly matches the typical number density of monomer chains in the polymer. The other has realistic parameters: σm(2) = 10 GM and Nm = 1 × 1020 cm−3. It is seen that direct heating of the matrix due to the two-photon absorption becomes advantageous in the longer wavelength part of the visible and near-IR spectrum. However, the field intensity reached near the particle in order to provide a temperature rise comparable to the one in the particle is above 1011 W/cm2 even in the case where the two-photon absorption is overestimated. This intensity is even higher for realistic matrices, overcoming the optical breakdown level.
For the small enough particles (see Figure 4a), the irradiation at wavelengths shorter than the plasmonic resonance (530 nm) causes significant heating of the particle without reaching the breakdown level of intensities near the particle. In this case, direct heating of the matrix due to the multi-photon absorption can also be neglected. This case will be analyzed in the next section of the paper. For the longer wavelengths, the optical breakdown must be taken into account [2].

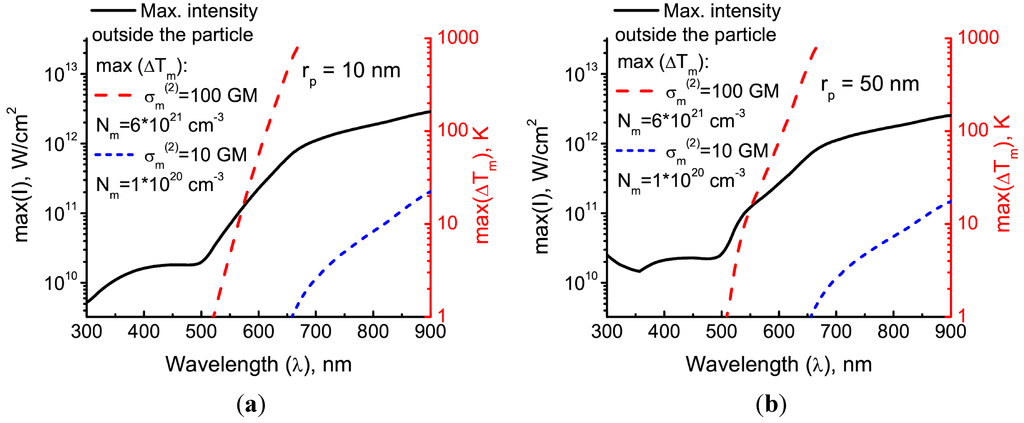

Figure 4. The maximum temperature rise (dashed lines, right axis) and maximum field intensity (black solid lines, left axis) outside the particle reached when the temperature of the particle is raised by 100 K due to irradiation by a circularly-polarized single laser pulse of duration τpulse = 100 fs. The particle radius is either 10 nm (a) or 50 nm (b). The volume-specific heat values for the particle and the matrix are Cpρp = 2.5 J·cm−3K−1 and Cmρm = 1.7 J·cm−3K−1, respectively. The dependencies of np(λ) and nm(λ) for gold and PMMA are taken from [15,16], respectively. The quantum yield ηT = 1.
Figure 4. The maximum temperature rise (dashed lines, right axis) and maximum field intensity (black solid lines, left axis) outside the particle reached when the temperature of the particle is raised by 100 K due to irradiation by a circularly-polarized single laser pulse of duration τpulse = 100 fs. The particle radius is either 10 nm (a) or 50 nm (b). The volume-specific heat values for the particle and the matrix are Cpρp = 2.5 J·cm−3K−1 and Cmρm = 1.7 J·cm−3K−1, respectively. The dependencies of np(λ) and nm(λ) for gold and PMMA are taken from [15,16], respectively. The quantum yield ηT = 1.
Micromachines 05 01202 g004

3. The Particle Heating Effect

Below, we consider the effect of heat diffusion from the metal nanoparticle uniformly heated by an ultrashort laser pulse. We consider the thermal destruction of some dopant X by a simple, thermally-activated chemical reaction promoted by the temperature elevation resulting from the heat flow from the particle. These molecules are dissolved within the matrix with the starting number density NX0.
The heat diffusion problem is formulated as follows:
{ T ( R , p ) p = 1 β 2 1 R 2 ( R T ( R , p ) ) R 2 T ( R = 1 , p ) p = 1 β T ( R , p ) R | R = 1 T ( R , p = 0 ) = T r T ( R = 1 , p = 0 ) = T r + Δ T p
Here, Tr is the “room” temperature (the initial temperature of the surrounding matter or a thermostat), ΔTp is the initial particle temperature increment after the pulse (above the room temperature), rp is the radius of the particle, χm is the heat diffusivity of the matrix and r is the radial coordinate. Here, we introduce the dimensionless parameter β = (3Cmρm)/(Cpρp) (for gold nanoparticles in PMMA matrix, we have β = 1.821) and use the dimensionless variables: p = (β2/rp2mt is the dimensionless time and R = r/rp is the dimensionless coordinate (normalized by the nanoparticle radius). We suppose that only a small amount of dopant molecules are converted due to a single pulse. This allows us to neglect the effect of reaction enthalpy on the heat propagation process.
The way of solving Equation (15) is the Laplace transform. The result is given in [18]:
T ( R , p ) = T r + Δ T p 2 π R e β ( R 1 ) + p 2 p β 0 p ( β ( R 1 ) + p ξ 3 / 2 1 ξ 1 / 2 ) e ( 1 β 1 4 ) ξ ( β ( R 1 ) + p ) 2 4 ξ d ξ
This expression can be rewritten via a special function.
We assume the Arrhenius law for the reaction rate:
N X ( r , t ) t = N X A exp ( T A T ( r , t ) )
where TA is the activation temperature and A is the reaction constant. We calculate the part of reacted molecules after one laser pulse. We suppose that this part is much less than unity, so that NX under the integral can be considered as a constant.
Δ N X ( r ) = N X ( r ) A 0 exp ( T A T ( r , t ) ) d t
Let us introduce:
G ( R ) = A 0 exp ( T A T ( R , t ) ) d t
Expression (17) represents the fraction of the destroyed species in a pulse. After Npulse pulses, the conversion ν reads:
ν ( R ) = 1 ( 1 G ( R ) ) N p u l s e )
According to (16), we have the distribution of temperature in the matrix in the form T(R, p) = Tr + ΔTpg(R, p), where g(R, p) is the normalized function, so that g(R = 1, p = 0) = 1.
Figure 5 shows the time dependence of temperature at different points in the vicinity of the particle. It is seen that the temperature increases rather fast to its maximum and then slowly returns to the initial value. Another situation is on the surface of the particle where the temperature decreases just after the pulse. The most important contribution to the reaction yield occurs during the time interval when the temperature value is close to its maximum.

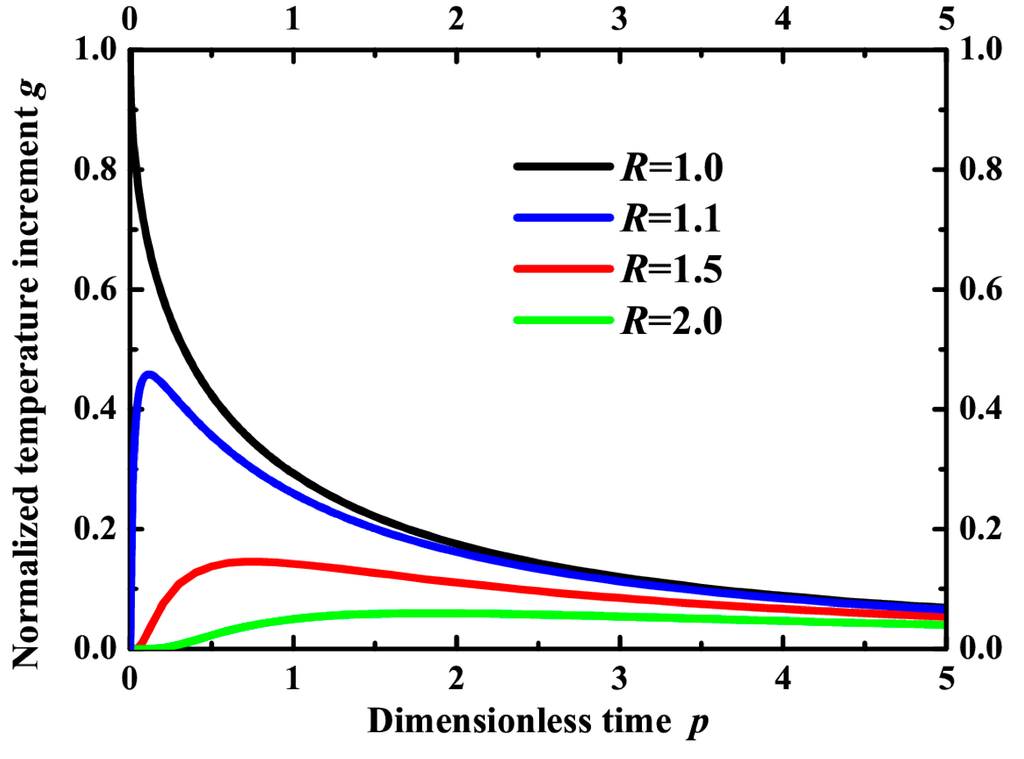

Figure 5. Evolution of normalized temperature g as a function of dimensionless time p in different points of the polymer matrix surrounding a gold nanoparticle: R = 1 (black line), R = 1.1 (blue line), R = 1.5 (red line) and R = 2 (green line).
Figure 5. Evolution of normalized temperature g as a function of dimensionless time p in different points of the polymer matrix surrounding a gold nanoparticle: R = 1 (black line), R = 1.1 (blue line), R = 1.5 (red line) and R = 2 (green line).
Micromachines 05 01202 g005
On the surface of the particle, the highest temperature is in the beginning of the process. That is why we can use an approximation for temperature dependence on time on the surface for times close to zero. This approximation follows from Equation (16):
T ( R = 1 , p ) Δ T p ( 1 2 π p ) + T r
In the problem of the estimation of the integral G, we have large parameter TA/(Tr + ΔTp). It allows one to use the saddle-point method. Here, we can approximately calculate the integral G (see Equation (17)):
G ( R = 1 ) r p 2 β 2 χ m A exp ( T A Δ T p + T r ) π ( Δ T p + T r ) 4 ( Δ T p T A ) 2
This result is in good agreement with numerical calculations (Figure 6).
Having a simple formula, such as Equation (19), for the integral G, we can estimate the realistic conversion of dopant molecules, which can be provided by the particle heating just near the particle surface. We can reach a repetition rate of up to 103 pulses per second. Each pulse raises the nanoparticle temperature to ΔTp. It was mentioned above that for small particles, ΔTp can be calculated using Equation (11). The laser pulse at the plasmon resonance wavelength (λ = 530 nm) with the fluence F0 = 10−4 J/cm2 increases the temperature up to about 100 K. This value of fluence is available from commercial lasers and makes it possible to irradiate simultaneously an area of about 1 cm2. Thus, for our estimates, we will use ΔTp ~ 100 K. It should be noted that when energetic femtosecond laser pulses are employed for large-volume processing, the beam power may be significantly higher than the critical value for self-focusing. However, the considered intensities (not higher than 109 W/cm2) are not sufficient to provide filamentation within a sample of reasonable thickness. Indeed, for the filamentation development, the retardation integral B = 2 π λ 0 l I n 2 d z should be larger than unity. Here, l is the distance at which filamentation starts to develop and n2 is the nonlinear refractive index. With the typical value n2 ≈ 10−14 cm2/W and the intensity I ≈ 109 W/cm2, B = 1 will be reached at l ≈ 1.5 cm. This is an estimate for the possible thickness of the sample. Moreover, our studies [10,19] show that the presence of the plasmonic nanoparticles within the polymer matrix provides a significant negative input in the nonlinear refractive index, which essentially hinders the filamentation.

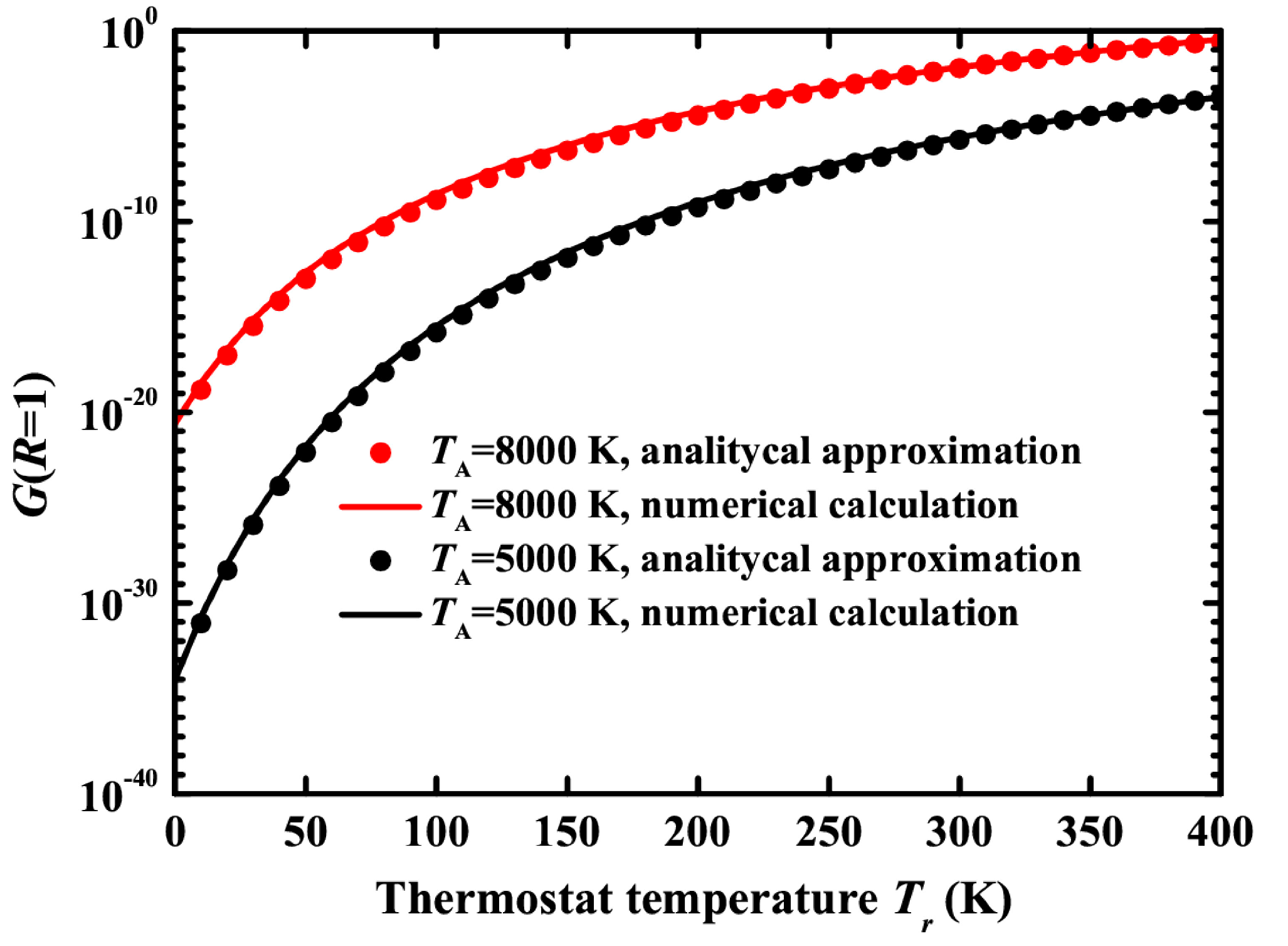

Figure 6. The integral G(R = 1) as a function of thermostat temperature for TA = 8000 K (black color) and TA = 5000 K (red color). The points show numerical calculations using Equation (16), and the line shows the approximation by Equation (19). The radius of a gold nanoparticle is rp = 20 nm.
Figure 6. The integral G(R = 1) as a function of thermostat temperature for TA = 8000 K (black color) and TA = 5000 K (red color). The points show numerical calculations using Equation (16), and the line shows the approximation by Equation (19). The radius of a gold nanoparticle is rp = 20 nm.
Micromachines 05 01202 g006
We assume the room temperature value to be about 300 K. However, it should be noted that we can control it by using a thermostat. The reaction constant A is supposed to be less than 1013 s−1. An activation temperature range TA less than 12,000 K is typical of precursor molecules (see, for example, [20,21,22,23]). The typical heat diffusivity of polymers is χm ~ 10−3 cm2/s. The radius rp of a nanoparticle is about 20 nm. The number of pulses Npulse can be up to 106 for a few minutes. Thus, the conversion near the particle surface, according to Equations (18) and (19), is:
ν ( R = 1 ) = 1 ( 1 a 2 β 2 χ m A exp ( T A Δ T p + T r ) π ( Δ T p + T p ) 4 ( Δ T p T A ) 2 ) N p u l s e
Irradiation by a large number of pulses results in overall heating of the sample. It depends on many factors, including the repetition rate, the beam radius, the sample thickness, cooling conditions on the surface, etc. The effect of the overall heating on G could be understood from its dependence on Tr (see Equation (19) and Figure 6). The complete analysis of this phenomenon is beyond the scope of this paper.
It can be noted (Figure 7) that for TA = 10,000 K, the increase in temperature by 100 K is not enough for the reaction. ΔTp = 150 K will transform about 10% of the dopant molecules, and ΔTp = 200 K is much more efficient. On the other hand, a large increase in temperature is not desirable, since it can lead to damage of the polymer matrix.

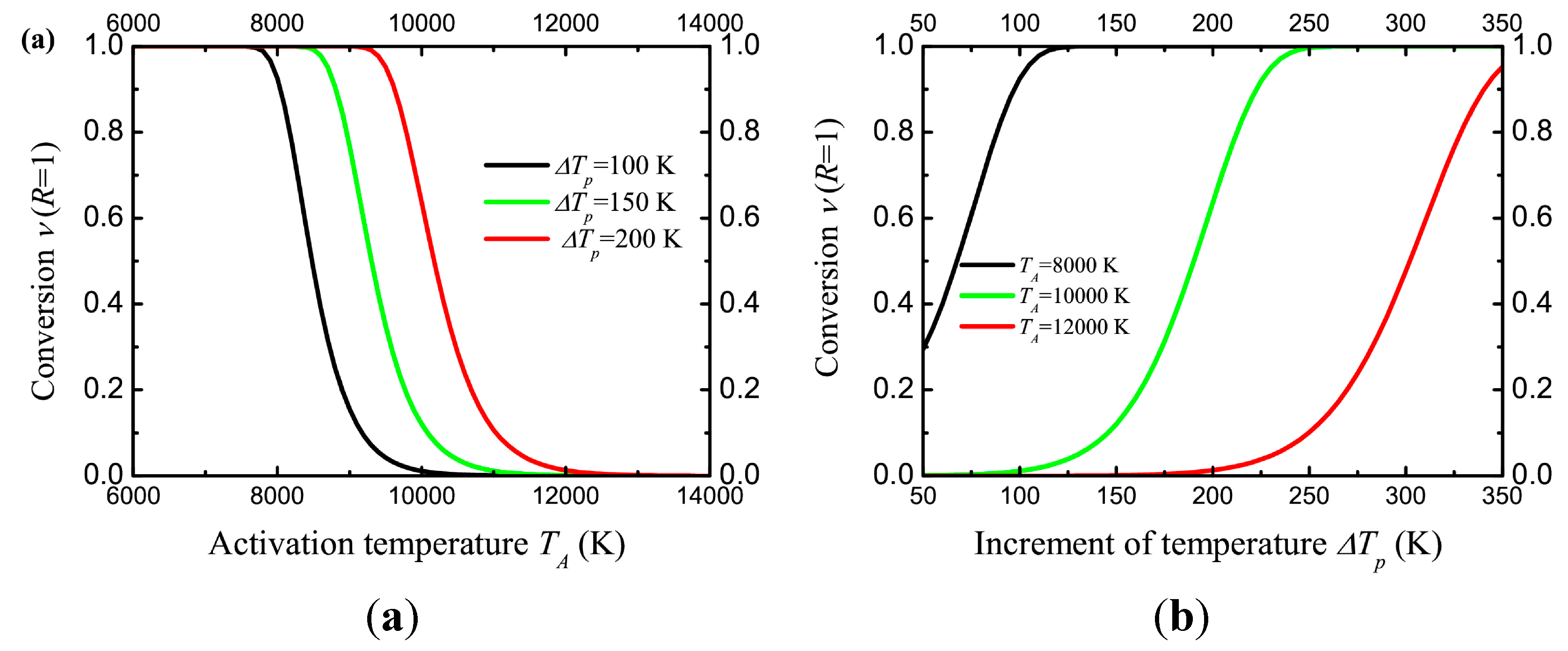

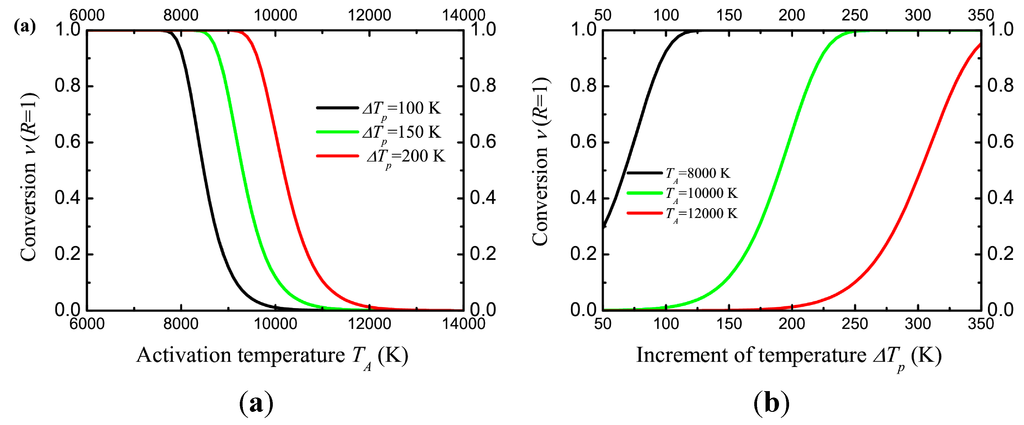

Figure 7. (a) The conversion in the polymer matrix on the surface of a gold nanoparticle (radius rp = 20 nm) as a function of activation temperature, for different temperature increment ΔTp. (b) The conversion in the polymer matrix on the surface of a gold nanoparticle (radius rp = 20 nm) as a function of temperature increment ΔTp, for different activation temperature TA. The thermostat temperature Tr = 300 K. The number of pulses Npulse = 106. The curves are calculated using Equation (20).
Figure 7. (a) The conversion in the polymer matrix on the surface of a gold nanoparticle (radius rp = 20 nm) as a function of activation temperature, for different temperature increment ΔTp. (b) The conversion in the polymer matrix on the surface of a gold nanoparticle (radius rp = 20 nm) as a function of temperature increment ΔTp, for different activation temperature TA. The thermostat temperature Tr = 300 K. The number of pulses Npulse = 106. The curves are calculated using Equation (20).
Micromachines 05 01202 g007
It has been mentioned above that the maximum temperature at the point is a very important characteristic of the process. It determines the highest rate of reaction. Figure 8 represents spatial distributions of normalized temperature increment g in different moments of time and the envelope of these distributions. The maximum temperature increment can be approximated by the formula gmax(R) = exp(−a(R − 1)b).
This form of temperature confinement was described in [24] for a gold nanoparticle in water with another parameter β. For most of the materials, however, β is of the order of unity. This is the only parameter in the system. The distribution of temperature depends on β. The parameters a and b in the approximation of the maximum temperature can be linearly fitted as functions of β (see inset in Figure 8).
Figure 9 represents the result of the calculation of G(R), introduced above. For a nonzero room temperature, this integral diverges. In fact, at room temperature, the rate of reaction is negligibly small. Since we calculate the laser heating effect, we subtract this background. The resulting expression is:
G 1 ( R ) = r p 2 β 2 χ m A 0 ( exp ( T A T r + Δ T p g ( R , p ) ) exp ( T A T r ) ) d p
In order to compare the volume of reaction, we calculate the normalized distribution G1(R)/G1(R = 1). It is seen that a higher activation energy leads to a smaller volume of reaction. It is seen that the thermally-activated reaction can be effective enough at the very surface of the heated particle. However, the reaction domain is highly localized just near the particle, thus preventing the conversion of a large net amount of molecules. In order to convert remote molecules that are initially located at more significant distances from the plasmonic particles than the particle radius, one should use nonlocal effects, which are beyond the scope of this paper.

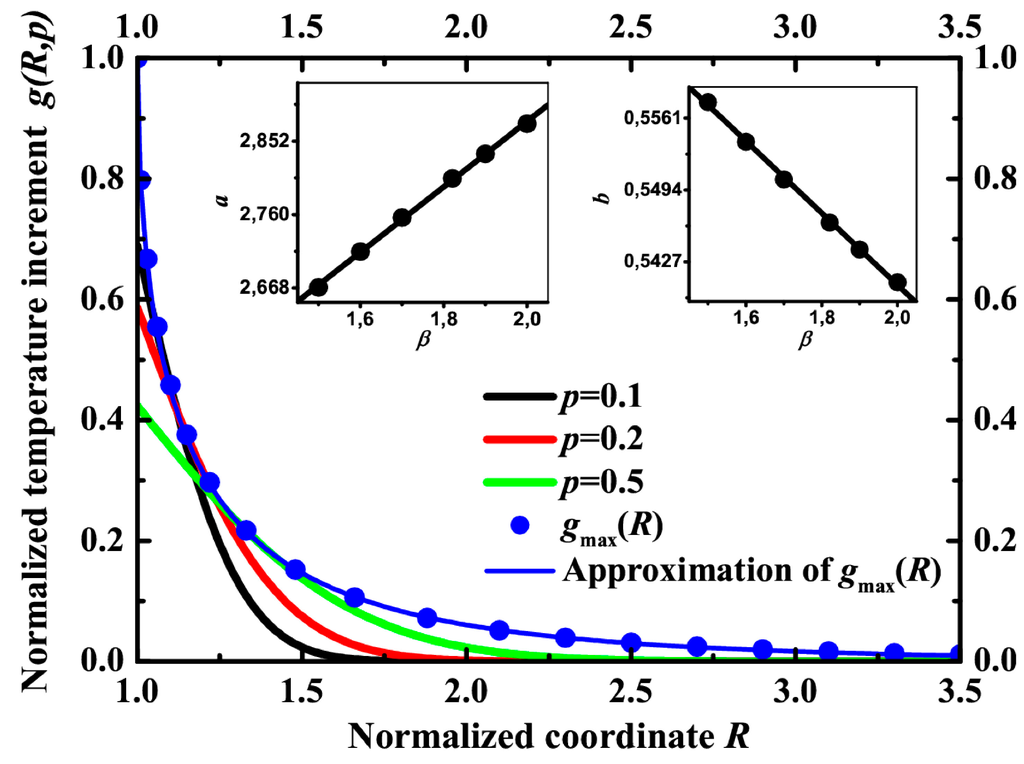

Figure 8. The distribution of normalized temperature g vs. normalized coordinate R at different moments of time: p = 0.1 (black line), p = 0.2 (red line), p = 0.5 (green line). Blue dots demonstrate the spatial distribution of the maximum temperature. The blue line is its approximation by gmax(R) = exp(−a(R − 1)b). Inset: parameters a and b vs. coefficient β and their linear approximation by a = 2.06 + 0.41β and b = 0.61 − 0.034β.
Figure 8. The distribution of normalized temperature g vs. normalized coordinate R at different moments of time: p = 0.1 (black line), p = 0.2 (red line), p = 0.5 (green line). Blue dots demonstrate the spatial distribution of the maximum temperature. The blue line is its approximation by gmax(R) = exp(−a(R − 1)b). Inset: parameters a and b vs. coefficient β and their linear approximation by a = 2.06 + 0.41β and b = 0.61 − 0.034β.
Micromachines 05 01202 g008

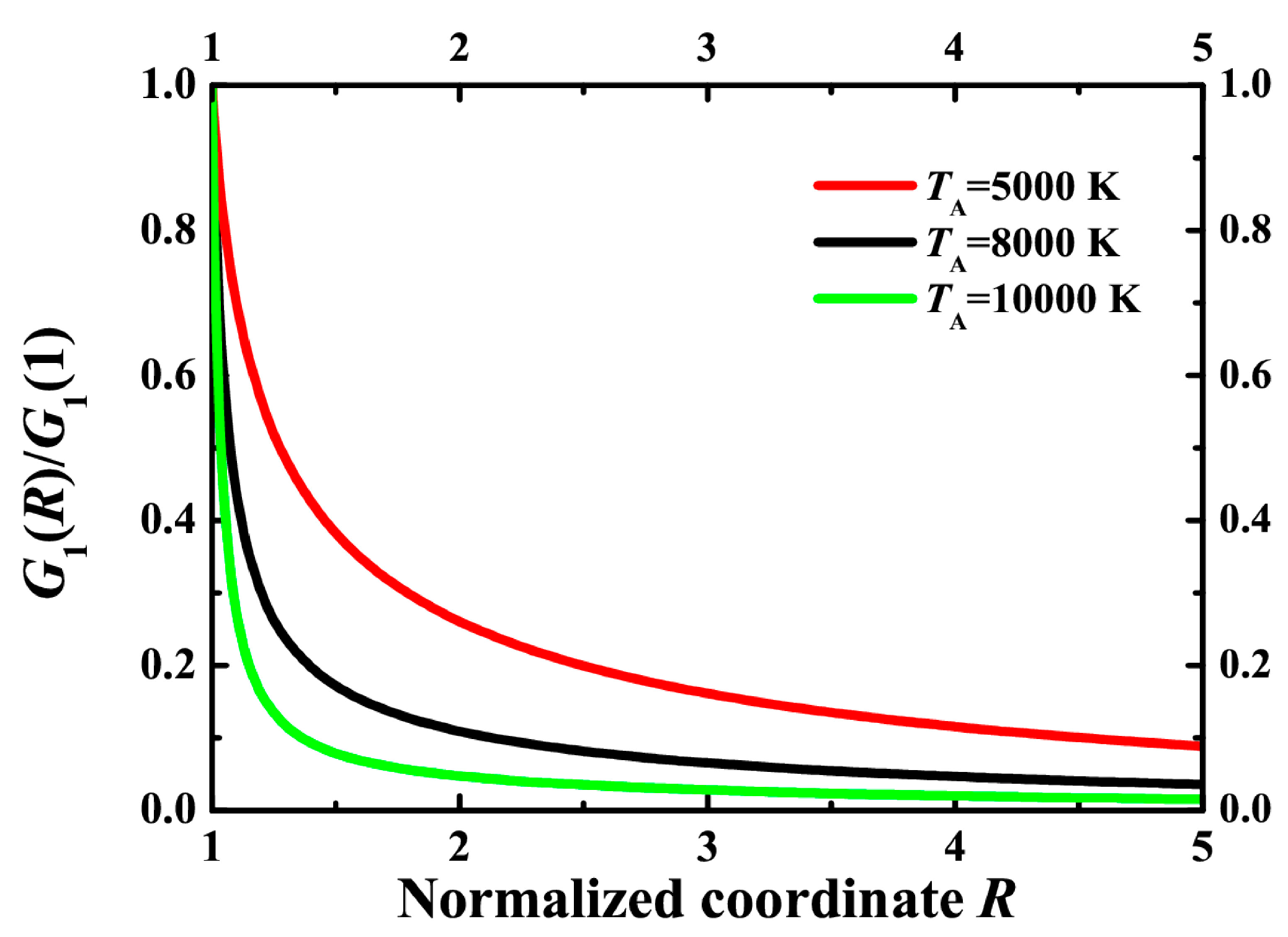

Figure 9. Normalized number of reacted molecules G1(R)/G1 (R = 1) according to Equation (21) for ΔTp = 100 K, Tr = 300 K, TA = 10,000 K (green line), TA = 8000 K (black line) and TA = 5000 K (red line).
Figure 9. Normalized number of reacted molecules G1(R)/G1 (R = 1) according to Equation (21) for ΔTp = 100 K, Tr = 300 K, TA = 10,000 K (green line), TA = 8000 K (black line) and TA = 5000 K (red line).
Micromachines 05 01202 g009

4. Conclusions

We consider the opportunities provided by plasmonic nanoparticles inserted into the bulk of transparent media to modify the material by means of the laser light irradiation.
This is of particular importance for photo-induced nanocomposites. Here, the plasmonic nanoparticles are formed due to laser irradiation of the initially homogeneous material containing precursor molecules by a self-organization process. This process significantly changes the optical property of the medium. The further micro-modification of the material employing previously-formed plasmonic nanoparticles can be considered as the next-step laser alteration of the material properties.
As an example, we discuss a photochemical reaction in the vicinity of the plasmonic nanoparticle initiated by the laser radiation in the near-field domain due to nonlinear absorption. We show that the spatial distribution of the products of such a reaction changes the symmetry of the material, resulting in the appearance of anisotropy in the initially isotropic material or even in the loss of the center of symmetry.
The latter is important for the optical nonlinearity. Photo-induced nanocomposites are highly optically nonlinear (see, e.g., [10]). First of all, this is true for the cubic nonlinearity described by the third-order susceptibility [19]. The second-order susceptibility responsible for the second harmonic generation is zero in the center-symmetric media. The loss of the center of symmetry of the composites due to a photochemical reaction in the near-field of the plasmonic nanoparticles permits one to observe optical nonlinear phenomena of the second order in such materials [25]. Such a modification can be performed using reasonable irradiation regimes with an intensity of about 109 W/cm2 and materials with a not outstanding two-photon sensitivity. This allows for possible applications of commercially available materials and lasers for a single-step modification of large volumes of about 1 cm3.
It is shown that it is possible to significantly heat small plasmonic nanoparticles by an ultrashort laser pulse without causing optical breakdown in the near field. In this case, the direct material heating by the nonlinear absorption in the vicinity of the particle can be neglected as compared with the heating of the particle itself.
We considered a thermally-activated reaction of the first order initiated in the medium by the femtosecond pulse heating of a plasmonic particle. We analyzed a spherically symmetric solution of the corresponding heat diffusion equation and determined the fraction of reacted molecules (conversion) at the surface of a metal sphere and within the domain surrounding the nanoparticle. We present an analytical formula for the conversion at the very surface and a numerical solution for the conversion distribution within the material bulk. Our estimation shows that a conversion of about unity can be obtained by defocused femtosecond pulses of the mJ energy level for a reasonable number of pulses if the activation energy of the thermally-activated reaction is close to 1 eV or smaller.
It should be noted that the thermoactivated reaction could mean either the thermodestruction of the matrix or the transformation (destruction) of the inserted dopants. An activation energy of about 1 eV is typical of the precursor molecules. Thus, this reaction could start the processes of further complicated changes in the material localized near the plasmonic particles.

Acknowledgments

The authors thank Prof. Dr. Boris Luk’yanchuk for the near-field Mie code and Russian Scientific Foundation (Grant No. 14-19-01702) for financial support.

Author Contributions

Anton A. Smirnov, Alexander Pikulin, and Natalia Sapogova made the calculations; Anton A. Smirnov wrote Section 3 and Appendix A1; Alexander Pikulin wrote Section 2; Nikita Bityurin wrote Introduction and Conclusions; Nikita Bityurin is responsible for the problem formulation, estimations, and overall supervision.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A1. List of Notations

r
Radius vector
r
Radial coordinate
x, y, z
Cartesian coordinates
t
Time
rp
Radius of the particle
Vp
Volume of the particle
λ
Wavelength
Planck constant
ω
Angular frequency
τpulse
Pulse length
τe–ph
Electron-phonon coupling time
τdiffus
Temperature diffusion time
τadiab
Time period after the pulse, during which the heat transfer from the particle to the matrix can be neglected
T
Temperature
ΔTp
Temperature rise of the particle after a single laser pulse
Δ T m ( r )
Temperature rise in the matrix after a single laser pulse due to the multiphoton absorption
TA
Activation temperature
Tr
Thermostat temperature
Cp, Cm
Heat capacities of the particle and the matrix
ρp, ρm
Densities of the particle and the matrix
χp, χm
Heat diffusion coefficients of the particle and the matrix
np, np', np"
Complex refractive index of the particle, its real part (refraction index) and imaginary part (absorption index)
nm
Refractive index of the matrix
ε, ε', ε"
Ratio of dielectric permittivities of the particle and the matrix, its real and imaginary parts
NX
Number density of species X
NX0
Initial number density of species X
ν
Conversion
σX(2)
Two-photon absorption cross section of X
η
Quantum yield of two-photon photochemical destruction of species X
Nm
Number density of chromophores that are involved in heating by two-photon absorption
σm(2)
Two-photon absorption cross section of chromophores
ηT
Quantum yield of two-photon heating
I ( r , t )
laser field intensity
Iinc(t), I0, f(t)
Incident field intensity, its amplitude, and normalized temporal shape function
Npulse
Number of laser pulses
F0
Incident fluence
E M i e / E 0
Electric field magnification according to the solution of Mie problem for plane monochromatic wave
w ( r , t )
Heat power density
w 2 p h ( r , t )
Heat power density due to the two-photon absorption in the matrix
Qm, Qp
Amount of heat transferred to the matrix and to the particle due to the laser pulse
β
Dimensionless parameter, β = (3Cmρm)/(Cpρp)
p
Dimensionless time
R
Dimensionless coordinate
g(R, p)
Normalized temperature rise in the matrix due to the laser pulse
A
Reaction constant
G(R), G1(R)
Fraction of destroyed species in a pulse
a, b
Approximation parameters for the maximum temperature
B
Retardation integral
l
Distance at which the filamentation development starts
n2
Nonlinear refractive index

References

  1. Govorov, A.O.; Zhang, H.; Demir, H.V.; Gun’ko, Y.K. Photogeneration of hot plasmonic electrons with metal nanocrystals: Quantum description and potential applications. Nano Today 2014, 9, 85–101. [Google Scholar] [CrossRef][Green Version]
  2. Boulais, E.; Lachaine, R.; Hatef, A.; Meunier, M. Plasmonics for pulsed-laser cell nanosurgery: Fundamentals and applications. J. Photochem. Photobiol. C Photochem. Rev. 2013, 17, 26–49. [Google Scholar]
  3. Tribelsky, M.I.; Luk’yanchuk, B.S. Light scattering by small particles and their light heating: New aspects of the old problems. In Fundamentals of Laser—Assisted Micro- and Nanotechnologies; Veiko, V.P., Konov, V.I., Eds.; Springer International Publishing: Cham, Switzerland, 2014; pp. 125–149. [Google Scholar]
  4. Liu, X.; Chen, Y.; Li, H.; Huang, N.; Jin, Q.; Ren, K.; Ji, J. Enhanced retention and cellular uptake of nanoparticles in tumors by controlling their aggregation behavior. ACS Nano 2013, 7, 6244–6257. [Google Scholar] [PubMed]
  5. Govorov, A.O.; Zhang, W.; Skeini, T.; Richardson, H.; Lee, J.; Kotov, N.A. Gold nanoparticle ensembles as heaters and actuators: Melting and collective plasmon resonances. Nanoscale Res. Lett. 2006, 1, 84–90. [Google Scholar] [CrossRef]
  6. Adleman, J.R.; Boyd, D.A.; Goodwin, D.G.; Psaltis, D. Heterogenous catalysis mediated by plasmon heating. Nano Lett. 2009, 9, 4417–4423. [Google Scholar] [CrossRef] [PubMed]
  7. Xiao, M.; Jiang, R.; Wang, F.; Fang, C.; Wang, J.; Yu, J.C. Plasmon-enhanced chemical reactions. J. Mater. Chem. A 2013, 1, 5790–5805. [Google Scholar] [CrossRef]
  8. Alexandrov, A.; Smirnova, L.; Yakimovich, N.; Sapogova, N.; Soustov, L.; Kirsanov, A.; Bityurin, N. UV initiated growth of gold nanoparticles in PMMA matrix. Appl. Surf. Sci. 2005, 248, 181–184. [Google Scholar] [CrossRef]
  9. Athanassiou, A.; Cingolani, R.; Tsiranidou, E.; Fotakis, C.; Laera, A.M.; Piscopiello, E.; Tapfer, L. Photon-induced formation of CdS nanocrystals in selected areas of polymer matrices. Appl. Phys. Lett. 2007, 91, 153108. [Google Scholar] [CrossRef]
  10. Bityurin, N.; Alexandrov, A.; Afanasiev, A.; Agareva, N.; Pikulin, A.; Sapogova, N.; Soustov, L.; Salomatina, E.; Gorshkova, E.; Tsverova, N.; Smirnova, L. Photoinduced nanocomposites—Creation, modification, linear and nonlinear optical properties. Appl. Phys. A 2013, 112, 135–138. [Google Scholar] [CrossRef]
  11. Sapogova, N.; Bityurin, N. Model for UV induced formation of gold nanoparticles in solid polymeric matrices. Appl. Surf. Sci. 2009, 255, 9613–9616. [Google Scholar] [CrossRef]
  12. Hubert, C.; Rumyantseva, A.; Lerondel, G.; Grand, J.; Kostcheev, S.; Billot, L.; Vial, A.; Bachelot, R.; Royer, P.; Chang, S.; Gray, S.K.; Wiederrecht, G.P.; Schatz, G.C. Near-Field photochemical imaging of noble metal nanostructures. Nano Lett. 2005, 5, 615–619. [Google Scholar] [CrossRef] [PubMed]
  13. Born, M.; Wolf, E. Principles of Optics, 7th ed.; Cambridge University Press: Cambridge, UK, 1999; pp. 759–789. [Google Scholar]
  14. Mie Type Codes. Available online: http://www.scattport.org/index.php/light-scattering-software/mie-type-codes (accessed on 13 October 2014).
  15. Johnson, P.B.; Christy, R.W. Optical constants of the noble metals. Phys. Rev. B 1972, 6, 4370–4379. [Google Scholar] [CrossRef]
  16. Kasarova, S.N.; Sultanova, N.G.; Ivanov, C.D.; Nikolov, I.D. Analysis of the dispersion of optical plastic materials. Opt. Mater. 2007, 29, 1481–1490. [Google Scholar] [CrossRef]
  17. Tribelsky, M.I.; Miroshnichenko, A.E.; Kivshar, Y.S.; Luk’yanchuk, B.S.; Khokhlov, A.R. Laser pulse heating of spherical metal particles. Phys. Rev. X 2011, 1, 021024. [Google Scholar]
  18. Paterson, S. Conduction of heat from local sources in a medium generating or absorbing heat. Proc. Glasgow Math. Assoc. 1953, 1, 164–169. [Google Scholar] [CrossRef]
  19. Afanas’ev, A.V.; Mochalova, A.E.; Smirnova, L.A.; Aleksandrov, A.P.; Agareva, N.A.; Sapogova, N.V.; Bityurin, N.M. Ultraviolet-induced variation of the optical properties of dielectrics in the infrared region. J. Opt. Technol. 2011, 78, 537–543. [Google Scholar] [CrossRef]
  20. Yang, H.; Hu, Y.; Zhang, X.; Qiu, G. Mechanochemical synthesis of cobalt oxide nanoparticles. Mater. Lett. 2004, 58, 387–389. [Google Scholar] [CrossRef]
  21. Tada, K.; Sakata, K.; Kitagawa, Y.; Kawakami, T.; Yamanaka, S.; Okumura, M. DFT calculations for chlorine elimination from chlorine-adsorbed gold clusters by hydrogen. Chem. Phys. Lett. 2013, 579, 94–99. [Google Scholar] [CrossRef]
  22. Basavaraja, C.; Kim, J.K.; Huh, D.S. Characterization and temperature-dependent conductivity of polyaniline nanocomposites encapsulating gold nanoparticles on the surface of carboxymethyl cellulose. Mater. Sci. Eng. B 2013, 178, 167–173. [Google Scholar] [CrossRef]
  23. Nair, P.S.; Scholes, G.D. Thermal decomposition of single source precursors and the shape evolution of CdS and CdSe nanocrystals. J. Mater. Chem. 2006, 16, 467–473. [Google Scholar] [CrossRef]
  24. Baffou, G.; Rigneault, H. Femtosecond-pulsed optical heating of gold nanoparticles. Phys. Rev. B 2011, 84, 035415. [Google Scholar] [CrossRef]
  25. Zeng, Y.; Hoyer, W.; Liu, J.; Koch, S.W.; Moloney, J.V. Classical theory for second-harmonic generation from metallic nanoparticles. Phys. Rev. B. 2009, 79, 235109. [Google Scholar] [CrossRef]

Share and Cite

MDPI and ACS Style

Smirnov, A.A.; Pikulin, A.; Sapogova, N.; Bityurin, N. Femtosecond Laser Irradiation of Plasmonic Nanoparticles in Polymer Matrix: Implications for Photothermal and Photochemical Material Alteration. Micromachines 2014, 5, 1202-1218. https://doi.org/10.3390/mi5041202

AMA Style

Smirnov AA, Pikulin A, Sapogova N, Bityurin N. Femtosecond Laser Irradiation of Plasmonic Nanoparticles in Polymer Matrix: Implications for Photothermal and Photochemical Material Alteration. Micromachines. 2014; 5(4):1202-1218. https://doi.org/10.3390/mi5041202

Chicago/Turabian Style

Smirnov, Anton A., Alexander Pikulin, Natalia Sapogova, and Nikita Bityurin. 2014. "Femtosecond Laser Irradiation of Plasmonic Nanoparticles in Polymer Matrix: Implications for Photothermal and Photochemical Material Alteration" Micromachines 5, no. 4: 1202-1218. https://doi.org/10.3390/mi5041202

Article Metrics

Back to TopTop
