Single and Repetitive Surge Reliability of 1200 V Asymmetric Trench SiC MOSFETs Under Various Gate Biases

Abstract

The parameter degradation and failure mechanisms of 1200 V asymmetric trench-type (AT) silicon carbide (SiC) metal oxide semiconductor field-effect transistors (MOSFETs) under various single and repetitive surge currents, with various gate bias voltages (V_GS) of 0 V, −5 V, and −10 V, are systematically investigated in this work. It is indicated that V_GS has no impact on the single surge reliability, with the same maximum single surge current (SSC_max) under different V_GS. However, during repetitive surge stress (90% and 60% SSC_max), the maximum surge cycles have increased as V_GS increases from −10 V to 0 V. It may be caused by the enhancement of channel-assisted leakage conduction, allowing more surge current to flow through the channel. It is concluded from gate capacitance (Cg-Vg) and low-frequency noise (LFN) characterizations that lower V_GS increases SiC/SiO₂ interface defect density, accelerating parameter degradation during single and repetitive surge stress. Both chip and package failures are observed for single and repetitive surge stress. For single surge stress, the device failure has resulted from the melted source Al as the metal erodes and penetrates through the interlayer dielectric and the ohmic contact layer between the source metal and the SiC-doped region, respectively, leading to a three-terminal short circuit. For repetitive surge stress, the device failure has been caused by the penetration of Al metal into the interlayer dielectric, leading to a gate-source short circuit. This comprehensive research provides valuable guidance for enhancing the surge reliability of SiC MOSFETs.

1. Introduction

Power devices play a pivotal role in power electronics technology, performing critical functions such as electric energy conversion, power control, and system protection. With the rapid development of new energy technologies such as electric vehicles and other related fields, the performance and reliability of power devices directly influence the advancement and application scope of power electronics technology. In recent years, silicon carbide (SiC) metal oxide semiconductor field-effect transistors (MOSFETs) are increasingly replacing traditional silicon-based devices due to their advantages of high-frequency operation, high voltage capability, superior thermal stability, fast switching, and low power losses, and they have become the preferred choice for high power applications such as new energy vehicles, photovoltaic inverters, and industrial drives [1,2].

Commercially available SiC MOSFETs are currently categorized into three dominant architectures: planar-gate structure, symmetric double-trench structure, and asymmetric-trench (AT) structure [3]. Compared with planar and symmetric trench structures, AT SiC MOSFETs have attracted more and more attention with their advantages of simultaneous optimization of conduction performance and gate oxide reliability. The device utilizes the (11$\overline{2}$0) crystal plane for its conductive channel, which exhibits an extremely low interface state density and oxide trap concentration at the SiC/SiO₂ interface. This significantly enhances channel electron mobility, thereby substantially reducing the device’s specific on-state resistance (R_DS(on)). Concurrently, a deep p+ shielding region has been introduced on one side, and it effectively suppresses electric field crowding at the trench corners, preventing premature breakdown of the gate oxide layer [4].

As power density and switching frequency continue to increase, surge reliability has become a critical reliability concern, limiting the large-scale application of SiC MOSFETs [5]. Under actual operating conditions such as motor startup, lightning strikes, and so on, the devices endure surge stresses that far exceed their rated current [6]. Although the deep p+ well optimizes the electric-field distribution for AT SiC MOSFETs, a distorted current distribution readily occurs during freewheeling of the intrinsic body diode, which directly induces gate oxide degradation and a thermal concentration effect, drastically deteriorating the device’s surge ruggedness [7].

Currently, the surge reliability of SiC MOSFETs are the focus of research [8,9,10,11,12,13,14,15,16,17,18]. However, relevant studies have mainly focused on conventional planar-gate structures and symmetrical double-trench structures [8,9,10,11,12,13,14,15,16,17], with relatively limited investigations into asymmetric trench structures. Meanwhile, most existing literature has only studied either single or repetitive surge reliability for SiC MOSFETs [9,10,11,12,13,14,15,16,17,18], and there is still a lack of systematic investigation on the parameter degradation and failure mechanism under both single and repetitive stresses. Furthermore, although the impact of gate-source voltage (V_GS) amplitude on single-surge reliability has been studied in the literature [11,12,13,14,15,16,17,18], research on the effect of V_GS on the repetitive surge reliability of SiC MOSFETs is relatively scarce, especially for AT SiC MOSFETs. In addition, the effect of varying repetitive surge current amplitudes on SiC MOSFET reliability has rarely been studied.

Thus, the parameter degradation and failure mechanisms of 1200 V AT SiC MOSFETs under single and repetitive surge stress with varying V_GS and surge current amplitudes are systematically investigated in this work. Three samples are tested for each condition during the surge experiments to ensure the reliability of the results. During the surge test, the degradation behaviors of key parameters, including three-terminal resistance, threshold voltage (V_TH), on-state resistance, body diode voltage drop (V_SD), drain-source leakage current (I_DSS), gate-source leakage current (I_GSS), subthreshold swing (S.S.), gate capacitance (Cg-Vg), and low-frequency noise (LFN) characteristics, are summarized. Meanwhile, failure modes and mechanisms of the devices are clarified through multiple characterization techniques, such as X-ray inspection, scanning acoustic microscopy (SAM), and post decapsulation scanning electron microscopy (SEM).

2. Experiment Introduction

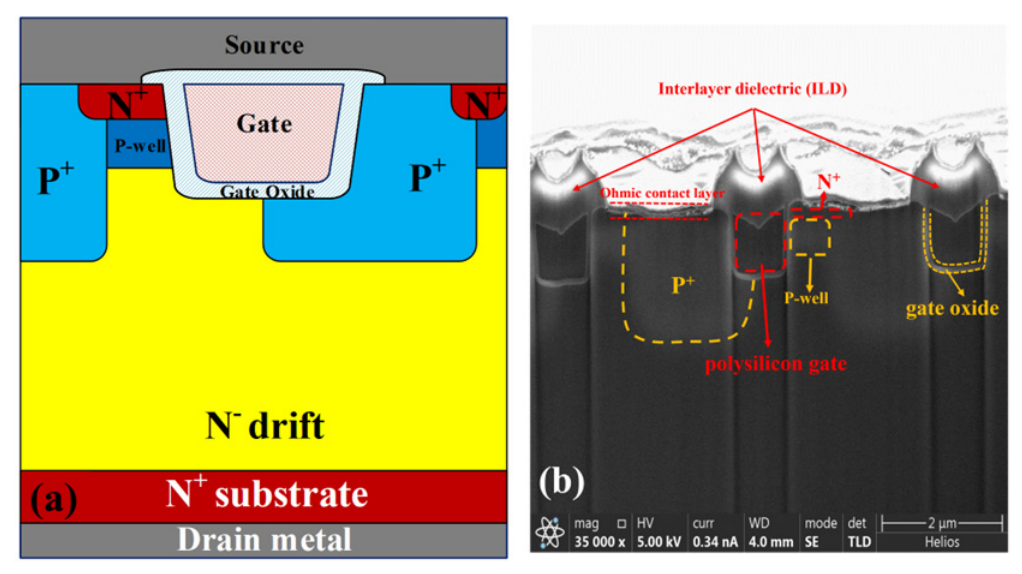

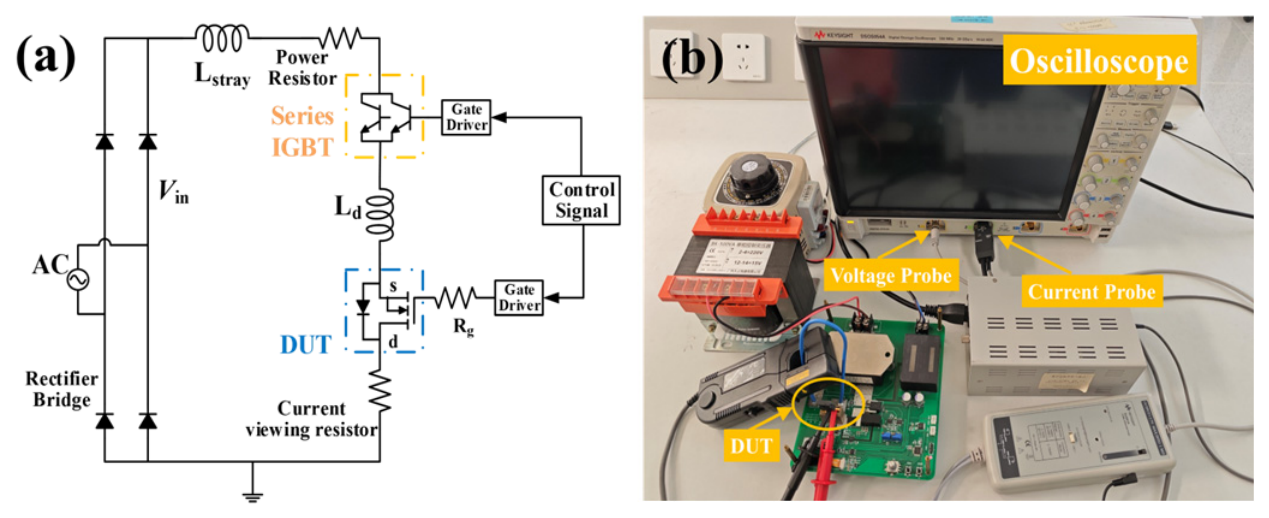

The devices under test (DUTs) are commercially available 1200 V AT SiC MOSFETs with a rated current of 36 A. Figure 1 illustrates the device structure and cross-sectional view. During the surge pulse test, half-wave sinusoidal currents of a 10 ms duration are injected through the DUTs. The simplified test circuit and surge test platform are shown in Figure 2a,b, and this circuit is employed to assess the single and repetitive surge pulse current withstanding capabilities and parameter degradation behavior of the SiC MOSFETs. Figure 3a presents the third-quadrant I–V characteristic curves. When V_GS is less than or equal to −9 V, the curves remain essentially unchanged, indicating that the current conduction is dominated by the body diode with a negligible contribution of the channel-assisted leakage conduction, resulting in an identical I_SD at the same V_SD. As V_GS increases from −9 V to 0 V, the I_SD increases under the same V_SD. At this stage, the MOS channel is partially turned on, providing an additional current path. The surge current path is shown in Figure 3b, where the current flows from the source to the N⁻ drift region through both the body diode and the MOS channel in parallel before reaching the drain [18,19]. Equation (1) defines the proportion of channel current (I_CH) to the source-drain current I_SD [20]:

$${\displaystyle \frac{{\mathrm{I}}_{\mathrm{C}\mathrm{H}}}{{\mathrm{I}}_{\mathrm{S}\mathrm{D}1}}}={\displaystyle \frac{{\mathrm{I}}_{\mathrm{S}\mathrm{D}1}-{\mathrm{I}}_{\mathrm{S}\mathrm{D}2}}{{\mathrm{I}}_{\mathrm{S}\mathrm{D}1}}}.$$

(1)

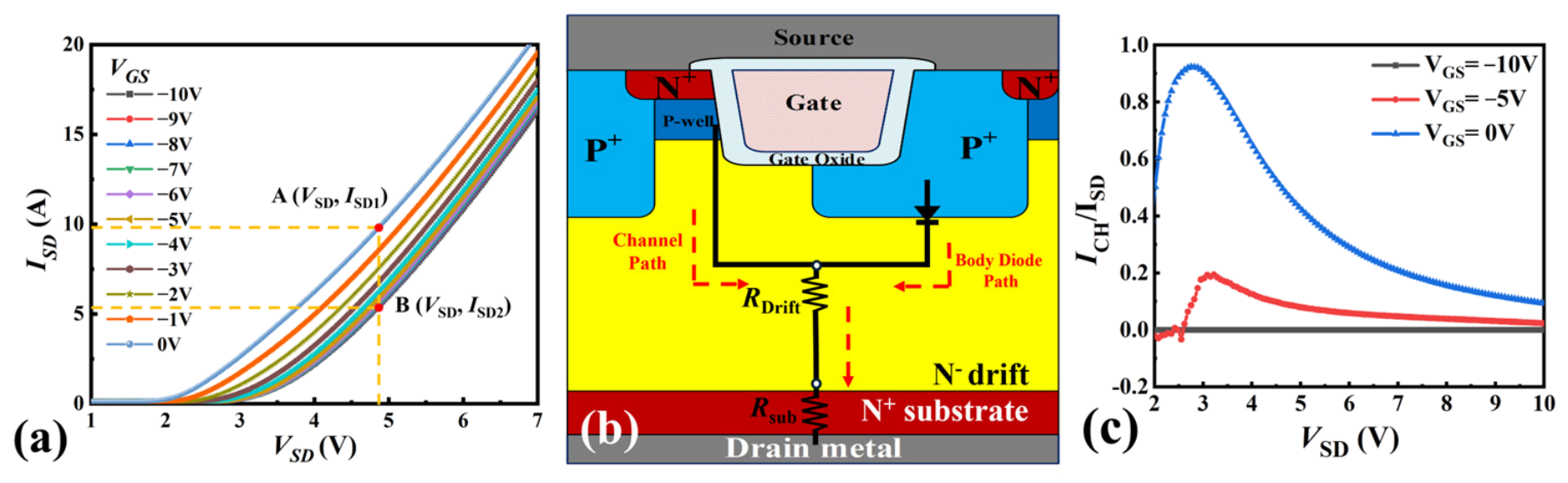

Point A (V_SD, I_SD1) is selected on the curve at V_GS = 0 V and point B (V_SD, I_SD2) is selected at V_GS = −10 V, sharing the same voltage coordinate (V_SD) as point A. The difference between the two points arises from the current at point A (I_SD1), which includes both the current flowing through the channel (I_CH) and the body diode, whereas the current at point B (I_SD2) only contains the current flowing through the body diode. As is visually evident from Figure 3c, with the increase in V_SD, the proportion of I_CH at V_GS = 0 V and V_GS = −5 V shows a downward trend. In the main range of V_SD, the body-diode current dominates for a larger fraction, indicating that the surge current continues to be dominated by body diode conduction.

Based on these observations, surge current tests are conducted under three V_GS: V_GS = 0 V, –5 V, and –10 V, corresponding to different channel states, respectively (

Table 1. Rated parameters and test conditions of the DUTs.

Vrated (V)	Irated (A)	VGS (V)	Surge Modes
			Single-Pulse	Repetitive (90% SSCmax)	Repetitive (60% SSCmax)
1200	36	0	AT1	AT4	AT7
		−5	AT2	AT5	AT8
		−10	AT3	AT6	AT9

). V_TH is measured in accordance with the JEDEC standard JEP 183A using the constant current method [21]. To suppress the hysteresis effect in the extracted V_TH, a positive gate preconditioning pulse V_GS(MAX) is applied before the down-sweep phase, and V_TH is extracted during the down-sweep at V_GS = V_DS and I_DS = 5 mA.

3. Results and Discussion

3.1. Single-Pulse Surge Test

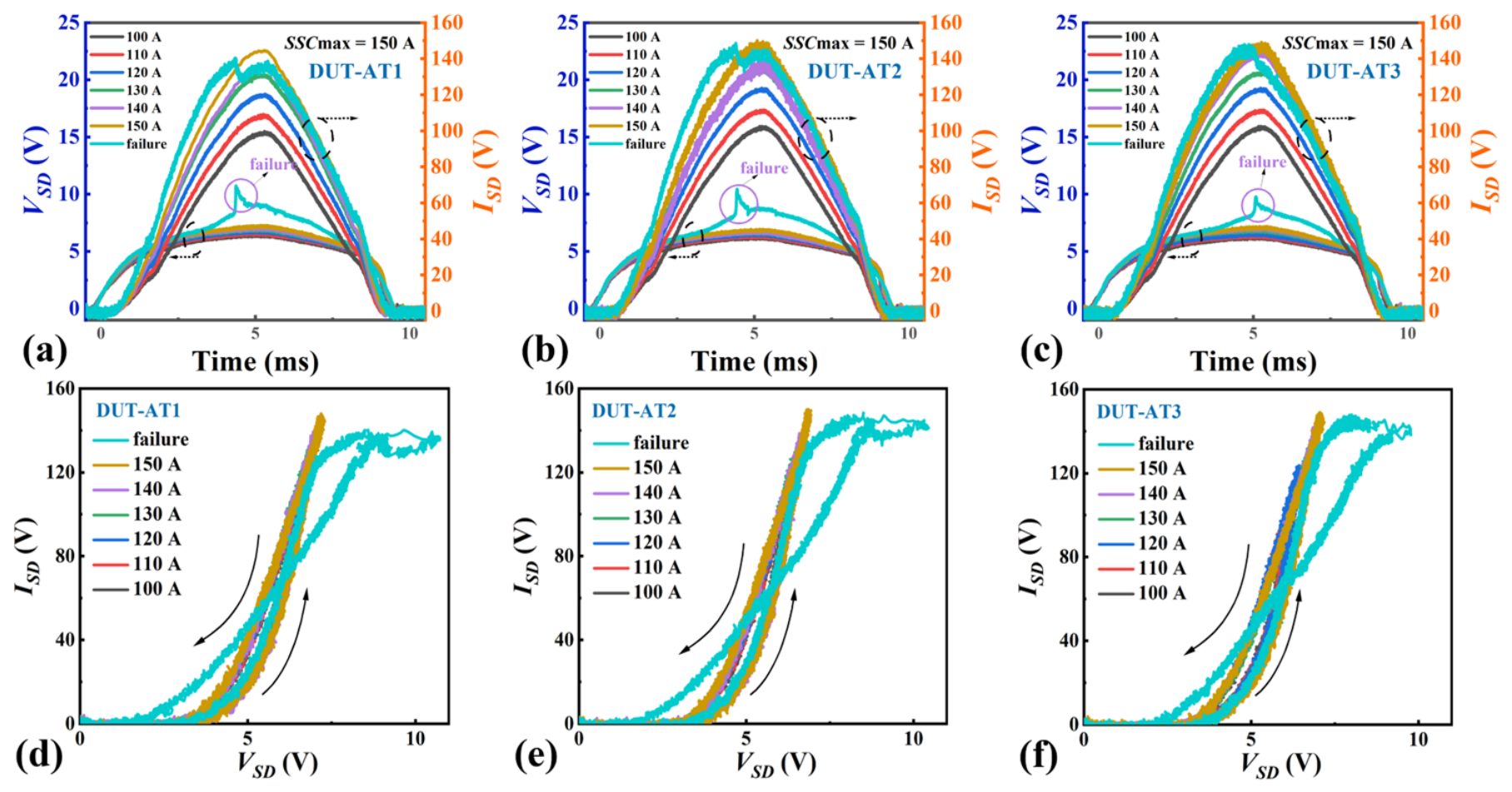

Firstly, a single-pulse surge test is conducted on the AT SiC MOSFETs under various V_GS. The surge current starts at 100 A and is increased in steps of 10 A until device failure occurs. A 10-min interval is maintained between the successive pulses to ensure adequate cooling and prevent thermal accumulation. The surge current waveforms and corresponding current trajectories are shown in Figure 4, where the V_GS for DUT-AT1, DUT-AT2, and DUT-AT3 is set at 0 V, −5 V, and −10 V, respectively. A voltage spike is observed in V_SD at the moments of device failure. Under the maximum single surge current stress (SSC_max), the waveforms of V_SD and I_SD remain consistent. The SSC_max for all devices is uniformly 150 A. The surge trajectories of the DUTs exhibit a counterclockwise direction, indicating that the body diode conduction mechanism is dominant under these conditions [22].

Subsequently, a first-order estimation of the junction temperature under surge stress is conducted using the transient thermal impedance method (Foster thermal equivalent circuit) [23]. The instantaneous power dissipation is calculated from the measured voltage and current waveforms as P(t) = V(t)I(t). The single-pulse dissipated energy is calculated as follows:

$$E_{pluse}={\int }_0^{t_p}{V}_{SD}\left(t\right)I_{SD}\left(t\right)dt.$$

(2)

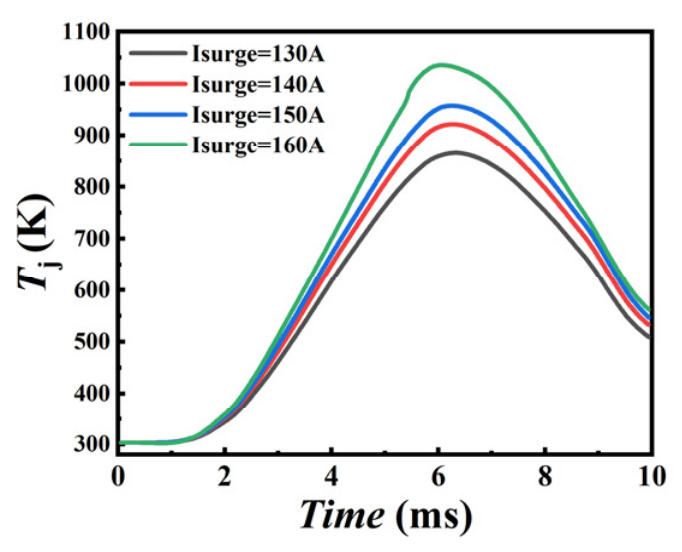

The junction temperature rise is then estimated by convolving the power waveform with the transient thermal impedance (Z_thjc(t)) obtained from the device datasheet. The device junction temperature is calculated as follows:

$$T_j\left(t\right)={\mathrm{T}}_{\mathrm{c}}+∆T_{jc}\left(t\right)={\mathrm{T}}_{\mathrm{c}}+P\left(t\right)\ast Z_{thjc}\left(t\right),$$

(3)

where T_c = 303 K is defined as the case temperature. Although this method does not provide spatial temperature distribution as finite-element thermal simulation does, it provides a conservative first-order correlation between the surge current stress and junction temperature rise. The relevant parameters for various V_GS biases are listed in

Table 2. Estimated parameters under different V_GS bias conditions.

VGS (V)	Measured SSCmax (A)	VSD at Same ISD (V)	Epluse (J)	Estimated Tj (K)
−10	150	7.14	4.75	949.7
−5		6.98	4.66	933.3
0		7.24	4.81	959.2

. Although V_GS slightly changes the voltage drop and pulse energy, the measured SSC_max remains unchanged within the experimental current-step resolution. This indicates that the single surge failure threshold is not sufficiently sensitive to the small V_GS-induced difference in single-pulse energy. Conversely, repetitive degradation is significantly affected by the V_GS-induced difference, as detailed in Section 3.2 and Section 3.3.

In this work, the DUTs’ surge capability is defined as:

$$\mathrm{S}\mathrm{u}\mathrm{r}\mathrm{g}\mathrm{e} \mathrm{c}\mathrm{a}\mathrm{p}\mathrm{a}\mathrm{b}\mathrm{i}\mathrm{l}\mathrm{i}\mathrm{t}\mathrm{y}={\displaystyle \frac{{\mathrm{I}}_{\mathrm{F}\mathrm{S}\mathrm{M}}}{{\mathrm{I}}_{\mathrm{r}\mathrm{a}\mathrm{t}\mathrm{e}\mathrm{d}}}},$$

(4)

where I_FSM is the DUTs’ surge current at the moments of failure and I_rated represents the rated current of the DUTs at 298 K, which is 36 A [19]. After each surge pulse, the resistances between the three terminals of the devices (R_GS, R_SG, R_DS, R_SD, R_GD, and R_DG) are measured for preliminary evaluation. The values are recorded when the devices fail, and these are summarized in

Table 3. Surge capability and three-terminal resistances when the DUTs fail.

DUTs	IFSM (A)	Surge Capability	RGS (Ω)	RSG (Ω)	RDG (Ω)	RGD (Ω)	RDS (Ω)	RSD (Ω)
AT1	160	4.44	25	24	0.2	0.2	25.4	25.4
AT2			23.2	23.2	1.2 k	1.1 k	1.1 k	1.2 k
AT3			19	19	10	10	20	20

. The relatively low resistances observed across all three terminals under the different V_GS indicate that short circuit occurs among the terminals of the DUTs, along with internal structural damage.

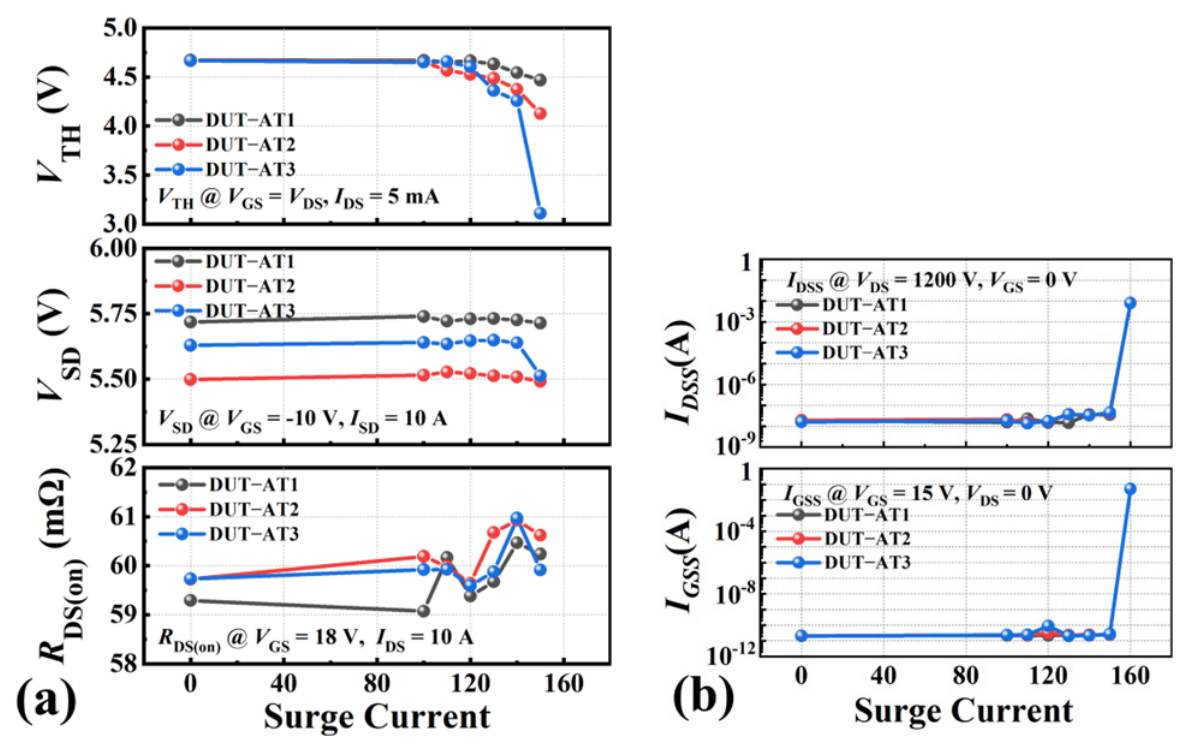

Figure 5 illustrates the degradation of the electrical parameters after each surge pulse. V_TH, V_SD, and R_DS(on) become unmeasurable when device failure occurs. V_GS significantly influences parameter degradation prior to total failure. DUT-AT1, AT2, and AT3 exhibit negative V_TH shifts under varying V_GS. DUT-AT3 shows the most severe degradation, with a 33.34% reduction in V_TH, while DUT-AT1 and AT2 show decreases of 4.36% and 11.61%, respectively. The more pronounced V_TH negative shift at a more negative V_GS is attributed to the stronger electric field at the gate–oxide interface of the DUTs (from the substrate to the gate electrode), which elevates the impact ionization rate along the sloped trench sidewalls and ultimately facilitates the injection of holes into the gate oxide layer [24]. Simultaneously, R_DS(on) shows a slight upward trend following the increasing surge current. The ∆V_SD remains below 1% for DUT-AT1 and AT2, yet AT3 exhibits the largest V_SD change, with a reduction of approximately 2.1%. Drain-source leakage current (I_DSS) and gate leakage current (I_GSS) remain nearly identical under different V_GS until device failure, where both currents sharply increase to the milliampere (mA) level, indicating the loss of gate control over the channel and voltage blocking capability between the drain and source.

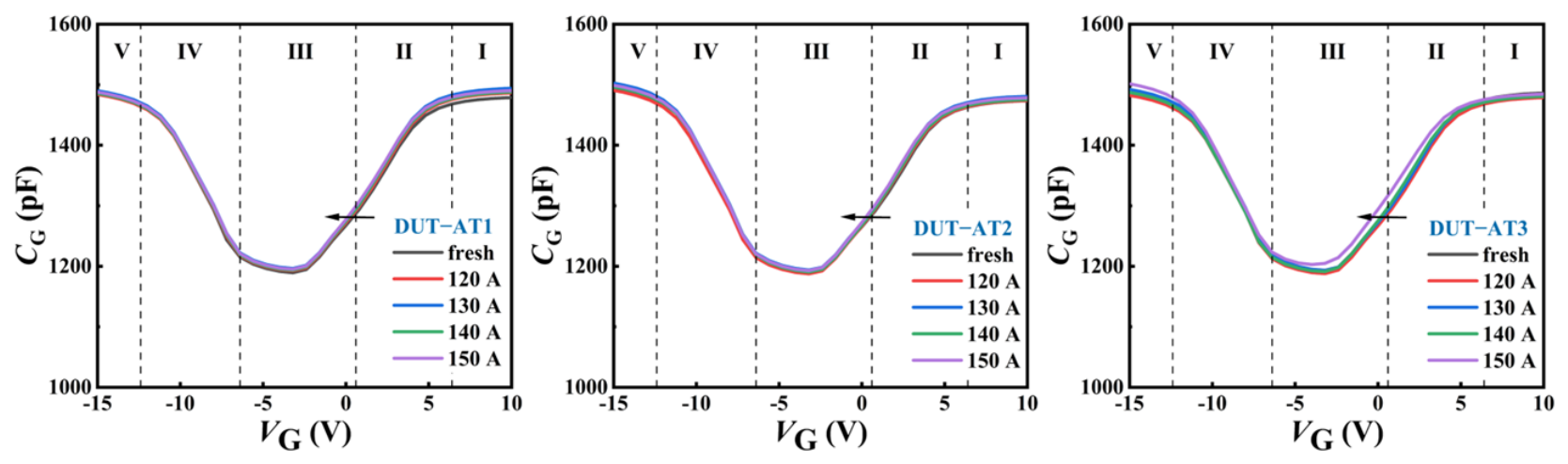

The changes in the Cg-Vg characteristics of the DUTs are presented in Figure 6. The waveform changes primarily occur in Region II and Region III, indicating that the degradation is concentrated at the edge of the gate oxide layer or the trench sidewall of the devices [25,26]. As gate-bias voltage stress decreases from 0 V to −10 V, the Cg-Vg curves shift further to the left, consistent with the V_TH degradation trend. It is indicated that the increased density of the interface traps caused by more negative V_GS intensifies gate-oxide deterioration and correspondingly lowers V_TH under single-pulse surge current stress, consistent with the literature [27].

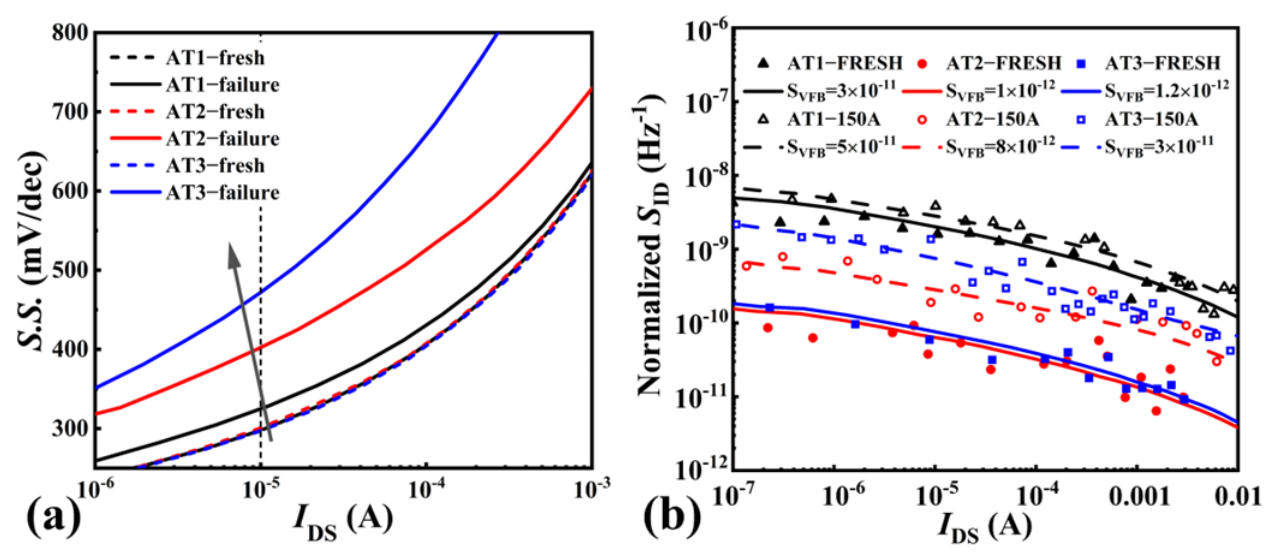

Figure 7a shows the variation in S.S. under different V_GS. S.S. increases significantly after surge stress, indicating degradation of the gate oxide layer. Under the effect of surge stress, additional electron traps are generated at the SiC/SiO₂ interface, with higher trap density observed at lower V_GS. Figure 7b illustrates the relationship between the normalized noise power spectral density measured at 10 Hz and I_DS before and after the single surge current stress. The low-frequency noise power spectral density of DUT-AT1, AT2, and AT3 increase by 0.67, 7, and 10.83 times, respectively, after single surge stress compared to their initial values, which is consistent with Cg-Vg and V_TH variations. This may be attributed to the higher localized electric field stress caused by the more negative V_GS, which amplifies the generation of interface traps and oxide traps under surge stress. These traps facilitate the carrier trapping and release processes [28,29].

3.2. Repetitive Surge Test at 90% SSC_max

For the repetitive surge test, the time interval between each surge pulse is set to 10 s to avoid heat accumulation within the devices. The values of 90% and 60% of SSC_max are selected for the repetitive surge current stress. Here, 90% SSC_max serves as the extreme condition for assessing thermomechanical failure margins, while 60% SSC_max acts as the moderate condition for reflecting gradual degradation. These stress levels effectively accelerate the degradation process while avoiding sudden the catastrophic failures caused by a single-pulse surge, consistent with existing studies where surge amplitudes typically fall within 60–90% of SSC_max [8,9,10,30].

V_GS for DUT-AT4, AT5, and AT6 are set at 0 V, −5 V, and −10 V, respectively, with a repetitive surge current amplitude of 135 A, corresponding to 90% of the maximum single surge current. The maximum surge cycles to failure and the three-terminal resistances at the point of failure are summarized in

Table 4. The maximum surge cycles and three-terminal resistances when the devices fail (90% SSC_max).

DUTs	Isurge (A)	Cycles	RGS (Ω)	RSG (Ω)	RDG (Ω)	RGD (Ω)	RDS (Ω)	RSD (Ω)
AT4	135	40	47.3	47.2	0.6 M	1.5 M	1.5 M	0.6 M
AT5		30	108.9	108.9	14.5 M	-	-	15.1 M
AT6		20	1.1 k	1.1 k	-	-	-	-

. It is indicated that the number of surge current cycles the device can withstand decreases as V_GS becomes more negative. This may be caused by a weaker contribution of channel-assisted leakage conduction, which leads to more current flowing through the body diode during repetitive surge current stress. Meanwhile, DUT-AT4, AT5, and AT6 exhibit a significant reduction in gate-source resistance when the devices fail, indicating that gate-source short circuit occurs.

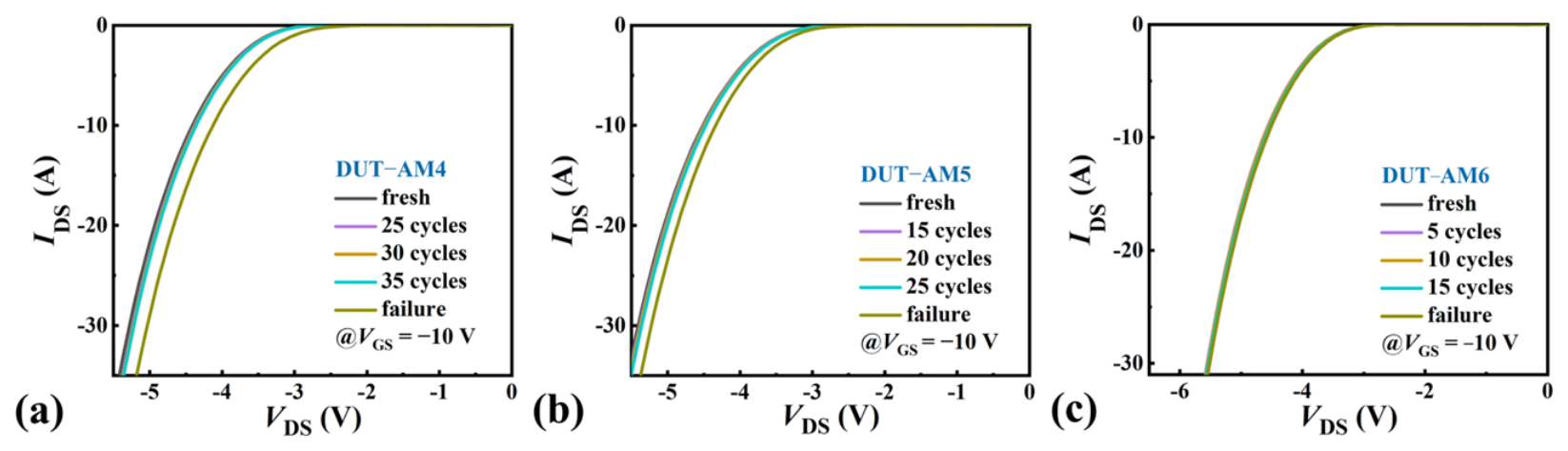

Figure 8 shows the changes in the third-quadrant characteristics of DUT-AT4, AT5, and AT6 under repetitive surge stress. When the devices fail, the knee voltage and forward drop of the body diode in DUT-AT4 decrease from 2.9 V and 4.3 V to 2.3 V and 4.1 V, respectively, indicating a gate-source short circuit and reduction in the body diode conduction barrier. However, for DUT-AT5, the knee voltage and forward voltage drop of the body diode show smaller changes compared to DUT-AT4. For DUT-AT6, the V_SD near 2.9 V remains unchanged from its initial value, indicating that the device maintains reliable blocking capability.

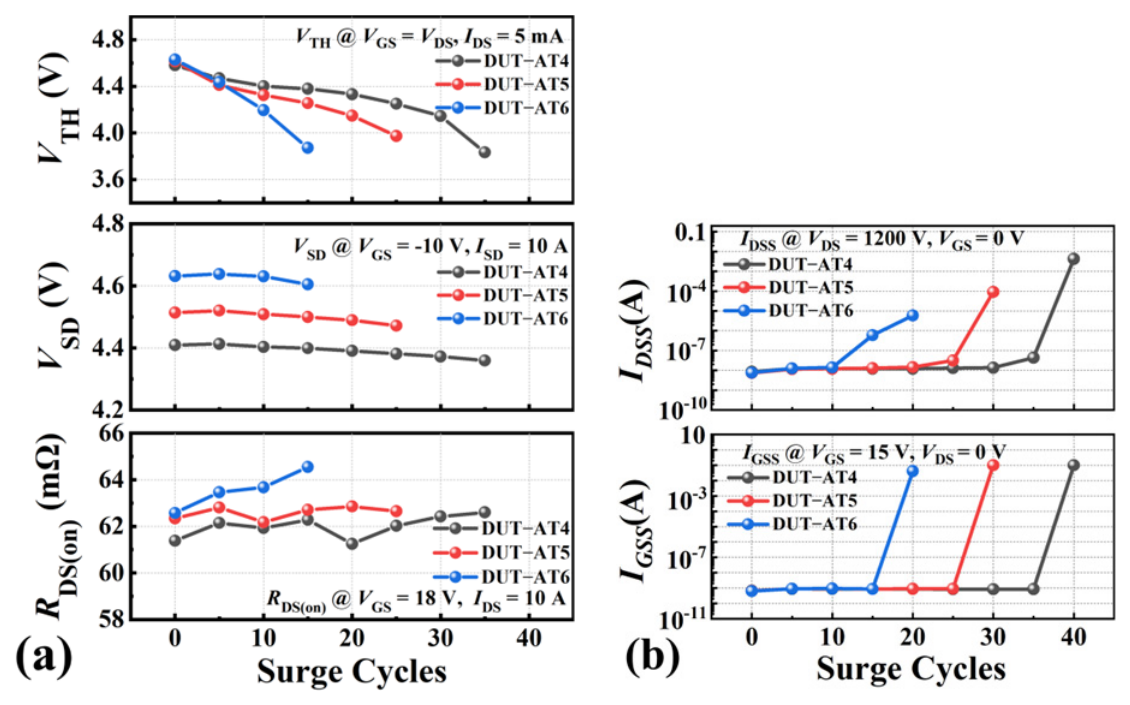

The degradation trends of the electrical parameters with the surge cycles are shown in Figure 9. Prior to complete failure, DUT-AT4, AT5, and AT6 exhibit significant degradation in V_TH as the surge cycles increase, where the degradation is fastest at V_GS = −10 V, consistent with the single surge stress result. R_DS(on) increases by 1.9%, 0.5%, and 5.16% for AT4, AT5, and AT6, respectively, while the changes in V_SD remain below 1%. I_GSS of DUT-AT4, AT5, and AT6 escalates to the mA range when the devices fail, confirming the inevitable damage to the gate oxide layer. However, only DUT-AT4’s I_DSS reaches the mA level, losing its blocking capability.

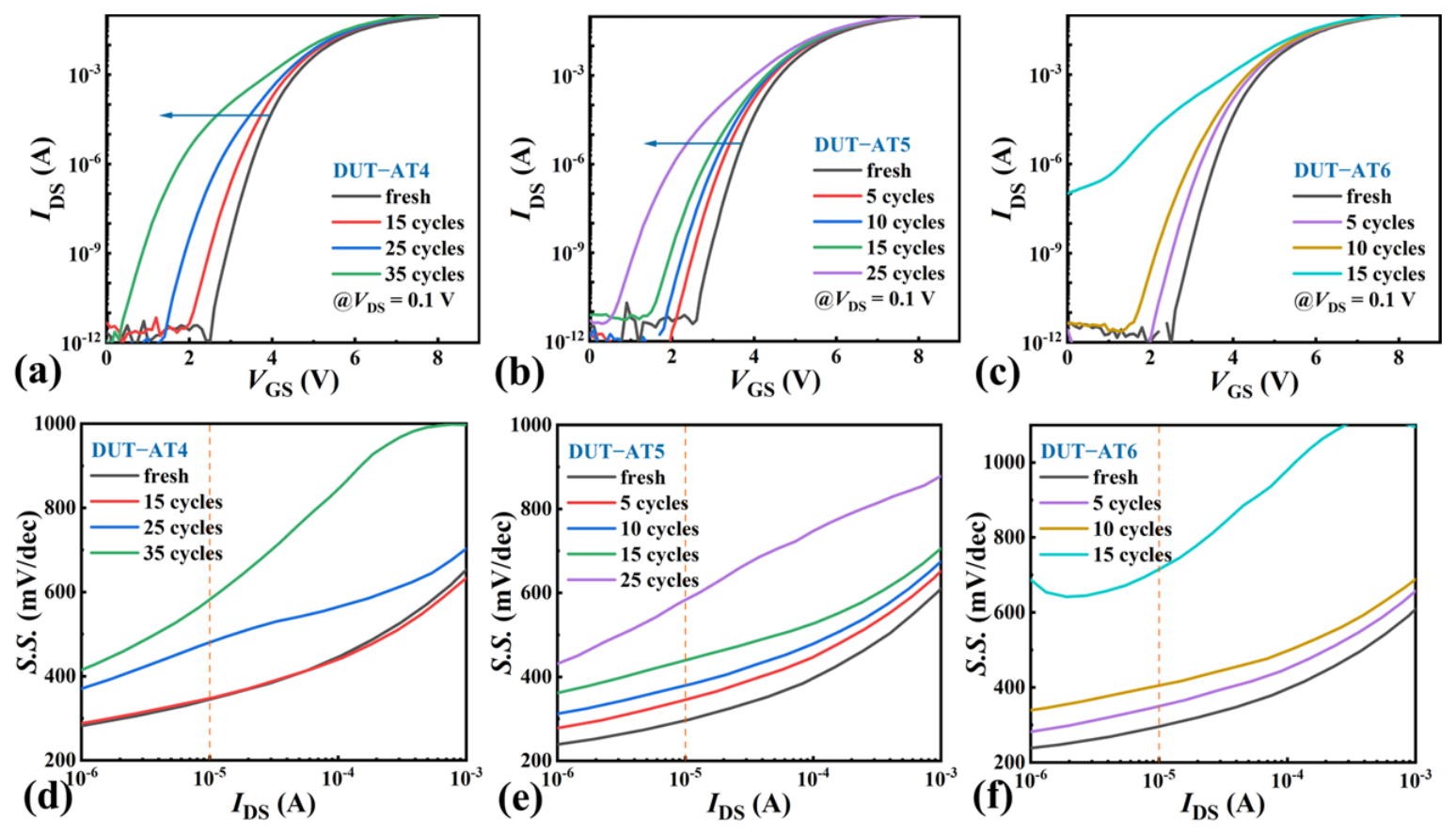

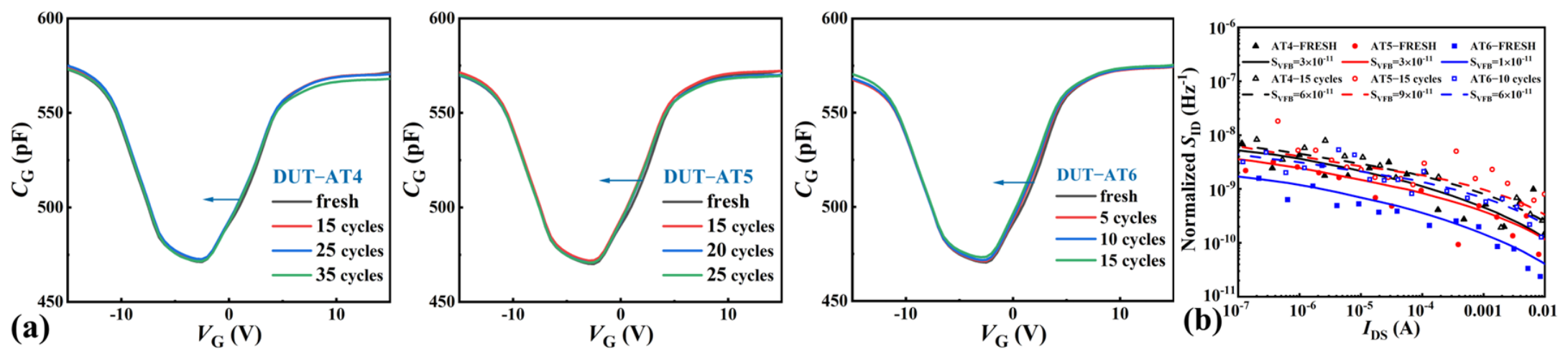

In Figure 10, the transfer characteristics of the DUTs shift to the left with the increasing surge stress cycles; meanwhile, the S.S. increases as the surge cycles increase. The degradation trend of DUT-AT6 is the most pronounced, demonstrating that V_GS significantly influences the stability of the gate–oxide interface. Figure 11a illustrates the degradation trends of the Cg-Vg characteristics of the DUTs. As the applied V_GS becomes more negative, the negative shift in the Cg-Vg curves within the 0 V to 5 V range of Vg intensifies, indicating more trap generation in the gate oxide layer, consistent with the results of V_TH. Figure 11b reveals that the low-frequency noise power spectral density of DUT-AT4, AT5, and AT6 after surge stress is 2, 3, and 6 times greater than the initial values, respectively, consistent with the Cg-Vg results. It is shown that the larger negative bias may amplify the generation of defects, consistent with the results for the single surge test.

3.3. Repetitive Surge Test at 60% SSC_max

V_GS for DUT-AT7, AT8, and AT9 are set at 0 V, −5 V, and −10 V, respectively, with a repetitive surge current of 90 A, corresponding to 60% of the maximum single surge current. The maximum surge cycles to failure and three-terminal resistances when the DUTs fail are presented in

Table 5. The maximum surge cycles and three-terminal resistances when the devices fail (60% SSC_max).

DUTs	Isurge (A)	Cycles	RGS (Ω)	RSG (Ω)	RDG (Ω)	RGD (Ω)	RDS (Ω)	RSD (Ω)
AT7	90	7500	3.1 k	3.1 k	20.9 M	-	-	21.1 M
AT8		6000	1.1 k	1.1 k	-	-	-	-
AT9		5500	0.7 k	0.7 k	-	-	-	-

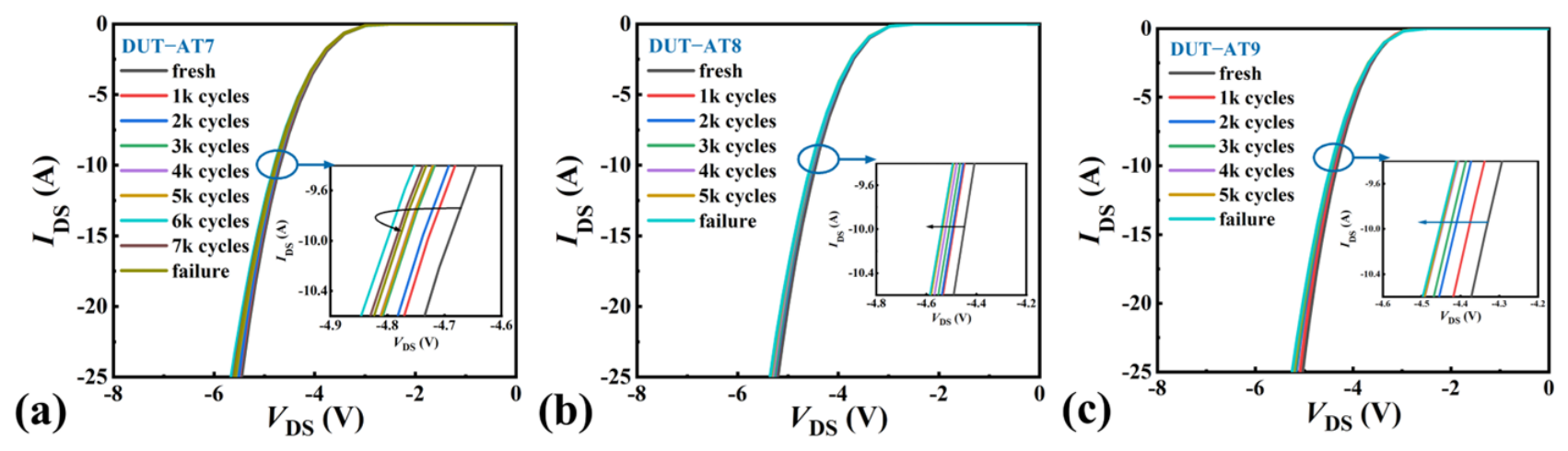

. The surge endurance of DUT-AT7, AT8, and AT9 is in the range of thousands of cycles, which is hundreds of times that for 90% SSC_max. This may be caused by the decrease in the surge current amplitude. The resistances between the gate and source terminals of the devices decrease to the kilohm (kΩ) range, indicating the presence of a leakage path between the gate and source, which is consistent with the 90% SSC_max test results. For DUT-AT7, the resistances between the drain-gate and source-drain terminals decrease to the tens of megohms (MΩ) range, yet the device still retains its blocking capability. Unlike the case of the large surge current stress, the variation trends of the third-quadrant characteristics under small surge current stress show no significant dependence on V_GS, as shown in Figure 12. The knee voltage and forward voltage drop of the body diode exhibit a gradually degrading trend.

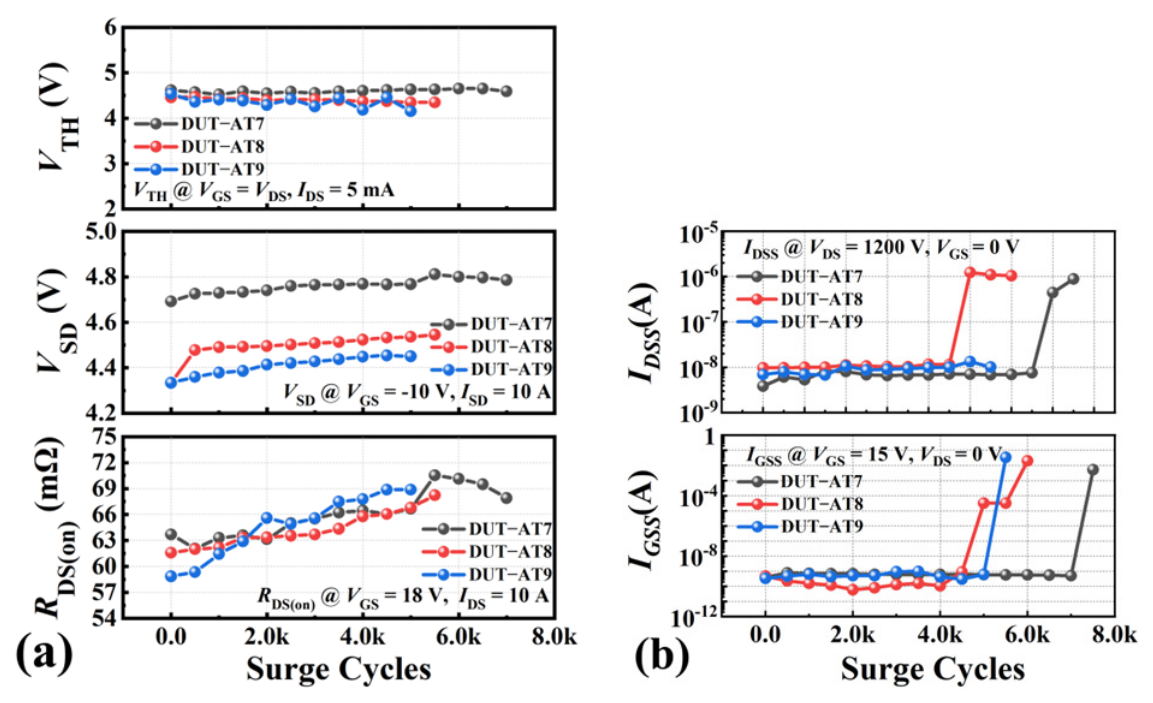

As shown in Figure 13, after the devices withstand small surge current stress, DUT-AT7, AT8, and AT9 have failed after 7000, 5500, and 5000 surge cycles, respectively. The degradation in V_TH is relatively slow, while the changes in R_DS(on) and V_SD are more pronounced compared with those for 90% SSC_max. The I_GSS of DUT-AT7 and AT8 increase to the mA range, and I_DSS increases to the microampere (µA) range when failure occurs. However, DUT-AT9’s I_DSS remains unchanged.

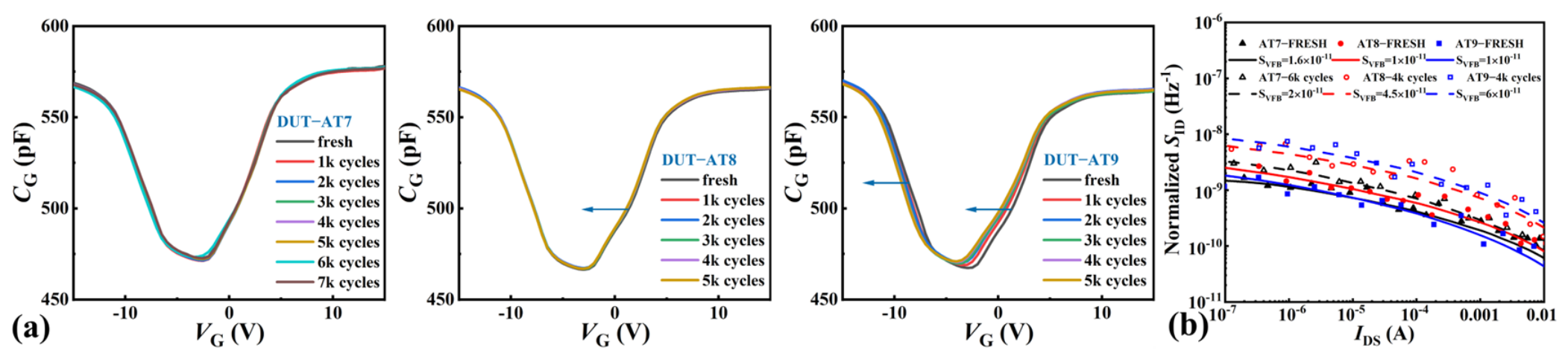

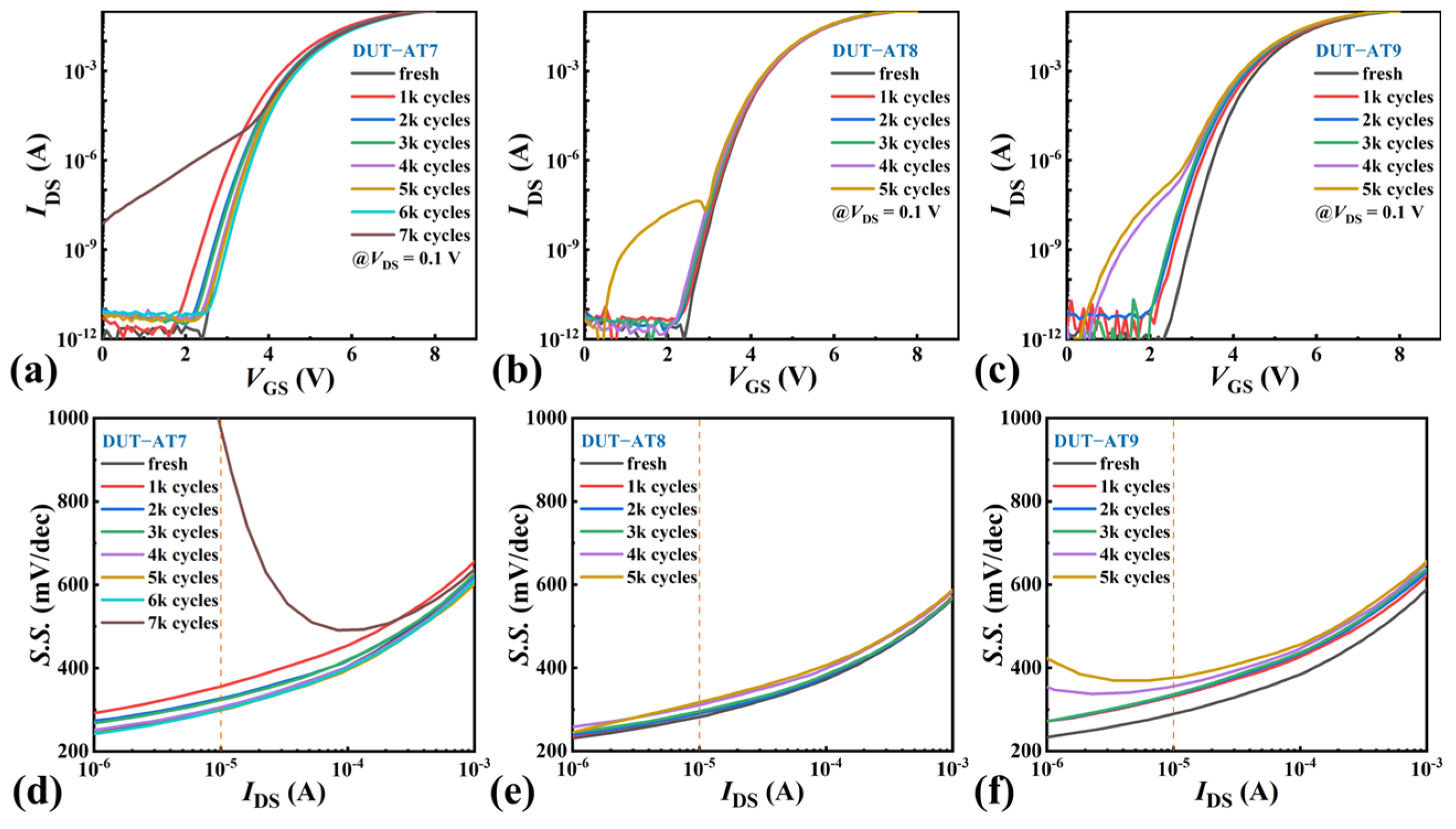

In agreement with the degradation trend under large current repetitive surge stress, the V_TH degradation (Figure 13), transfer characteristics and S.S. (Figure 14), Cg-Vg characteristics, and LFN characteristics (Figure 15a,b) of the tested devices all exhibit a consistent trend. This indicates that more negative V_GS leads to more defect generation in the gate oxide layer, which results in more obvious V_TH degradation during the repetitive surge test at 60% SSC_max.

4. Failure Mechanism Analysis

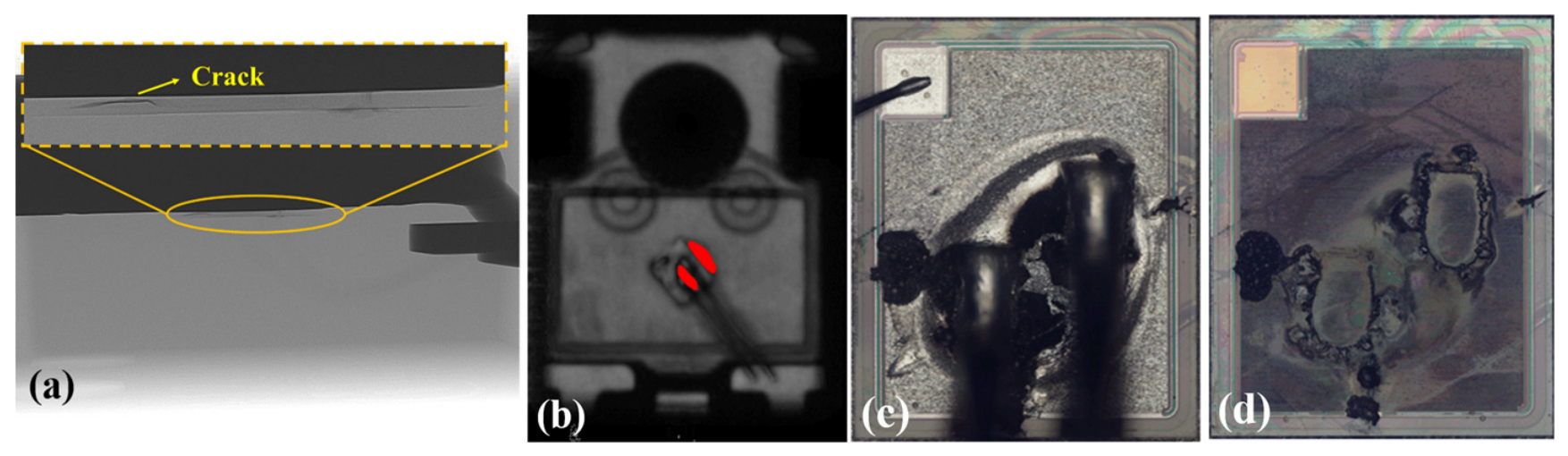

To study the failure mechanisms of AT SiC MOSFETs for single and repetitive surge current stress, failure analyses for DUT-AT3, AT6, and AT9 have been conducted, respectively. The X-ray inspection results for DUT-AT3 are shown in Figure 16a, where cracks are observed on the chip layer. Figure 16b displays the front-side SAM results, indicating delamination between the chip layer and the surrounding molding compound of DUT-AT3 after single surge stress. This is caused by the device temperature rising rapidly under single surge current stress, generating thermomechanical stress that causes structural changes in the overheated packaging material, corroborating the proposed failure physics in prior studies [31]. After decapsulation of the device, significant burn marks and cracks are observed near the source metal and around the gate bar, as shown in Figure 16c,d. The estimated junction temperatures are shown in Figure 17. For DUT-AT3, the localized junction temperature spiking is caused by the surge current of 160 A exceeding the melting point of Al (933 K), and the temperature rise accelerates the dielectric/interface degradation and leakage current increase. The abrupt increase in I_DSS and I_GSS near failure may then further enhance local power dissipation, forming positive electro-thermal feedback, consistent with the literature [15]. In contrast, when the surge current is below 140 A, the device junction temperature remains below the melting point of Al, which provides further evidence that repetitive surges induce cumulative degradation.

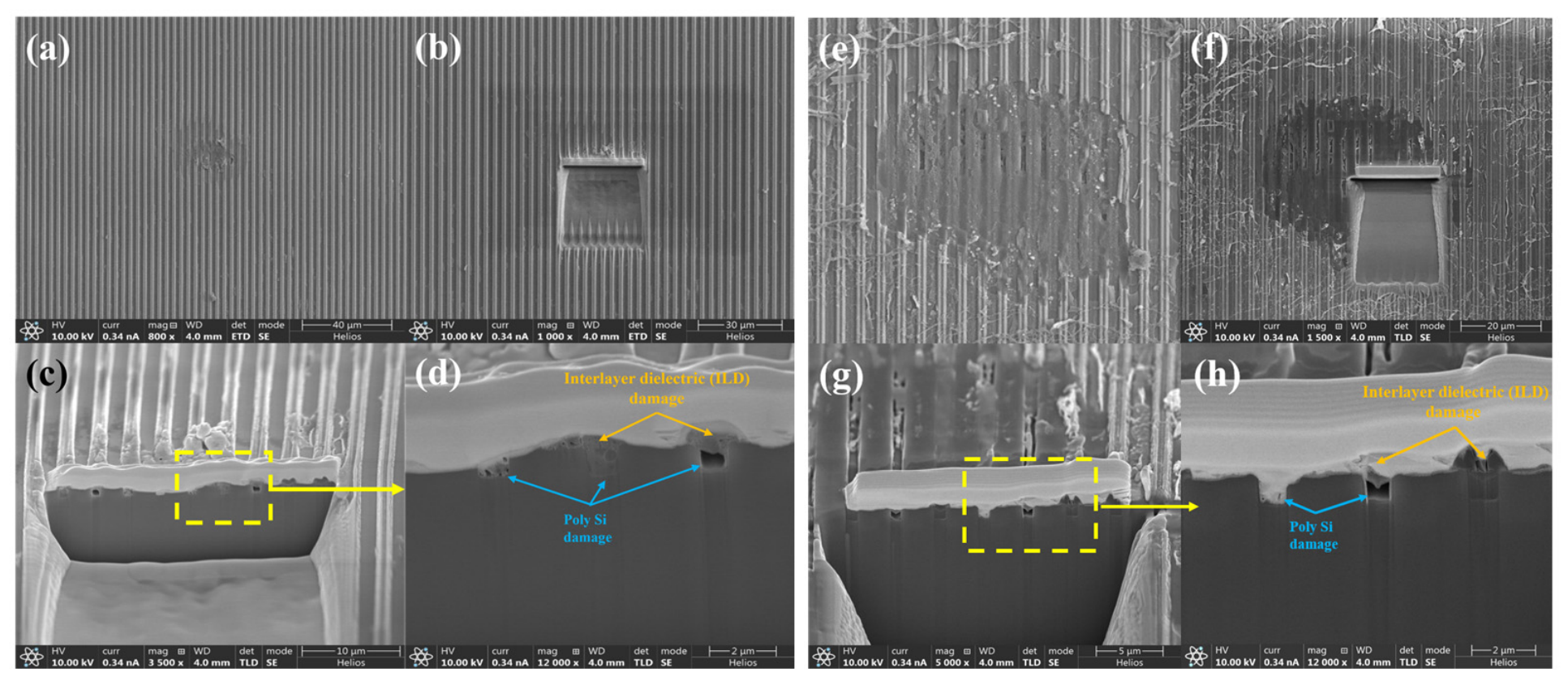

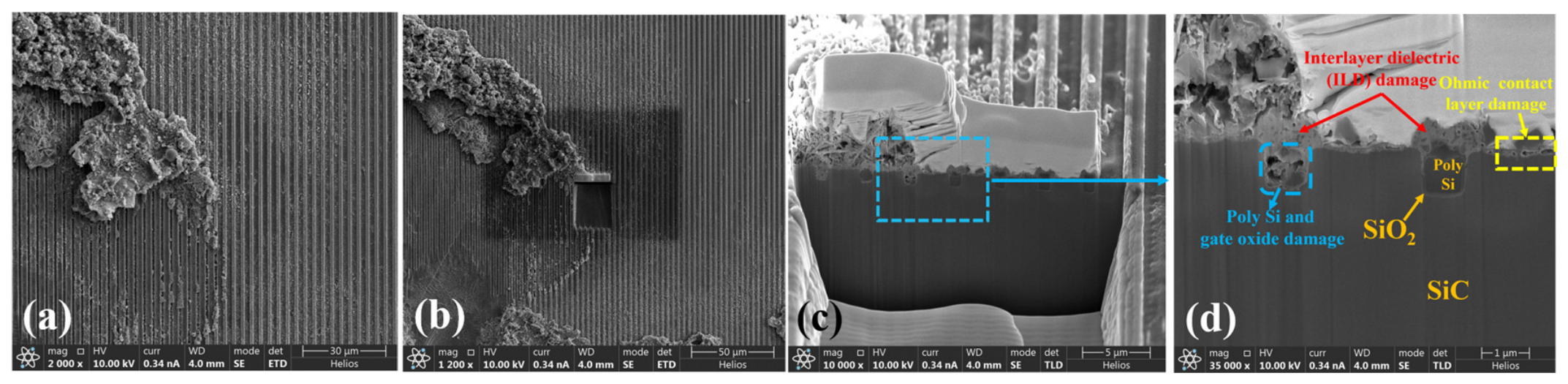

To further investigate the failure mechanism, focused ion beam (FIB) milling is performed on the area near the source metal burnout for DUT-AT3. As shown in Figure 18d, the melted source Al metal erodes and penetrates through the interlayer dielectric (ILD), which leads to the short circuit between the gate and the source. Meanwhile, the melted Al fills and breaks through the ohmic contact layer between the source metal and SiC doped region, which results in the degradation of the blocking capability. Both aforementioned factors ultimately lead to a three-terminal short circuit, which is consistent with the published literature [32,33].

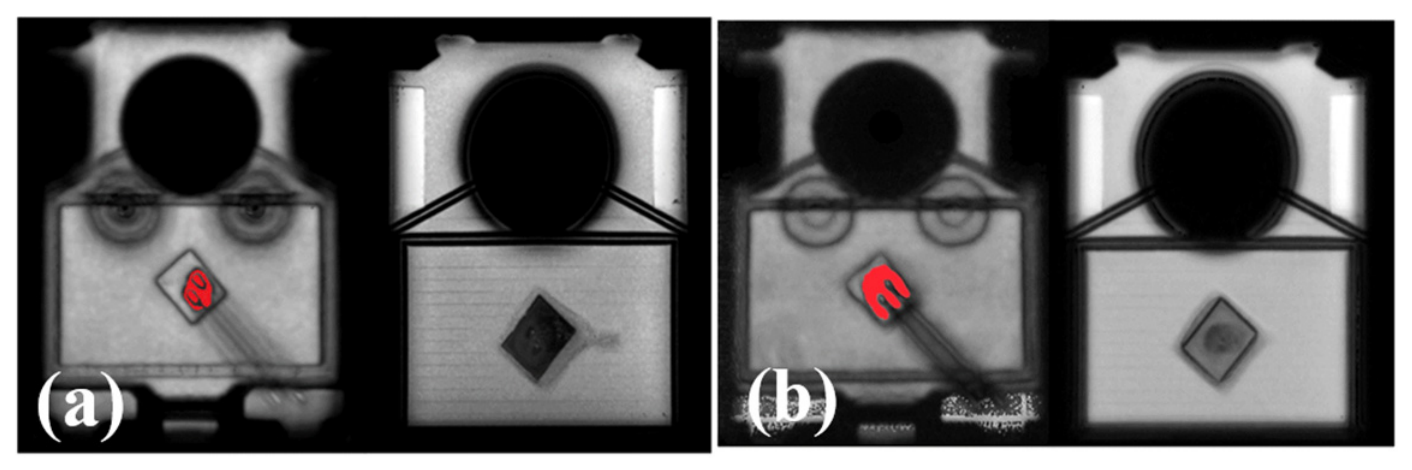

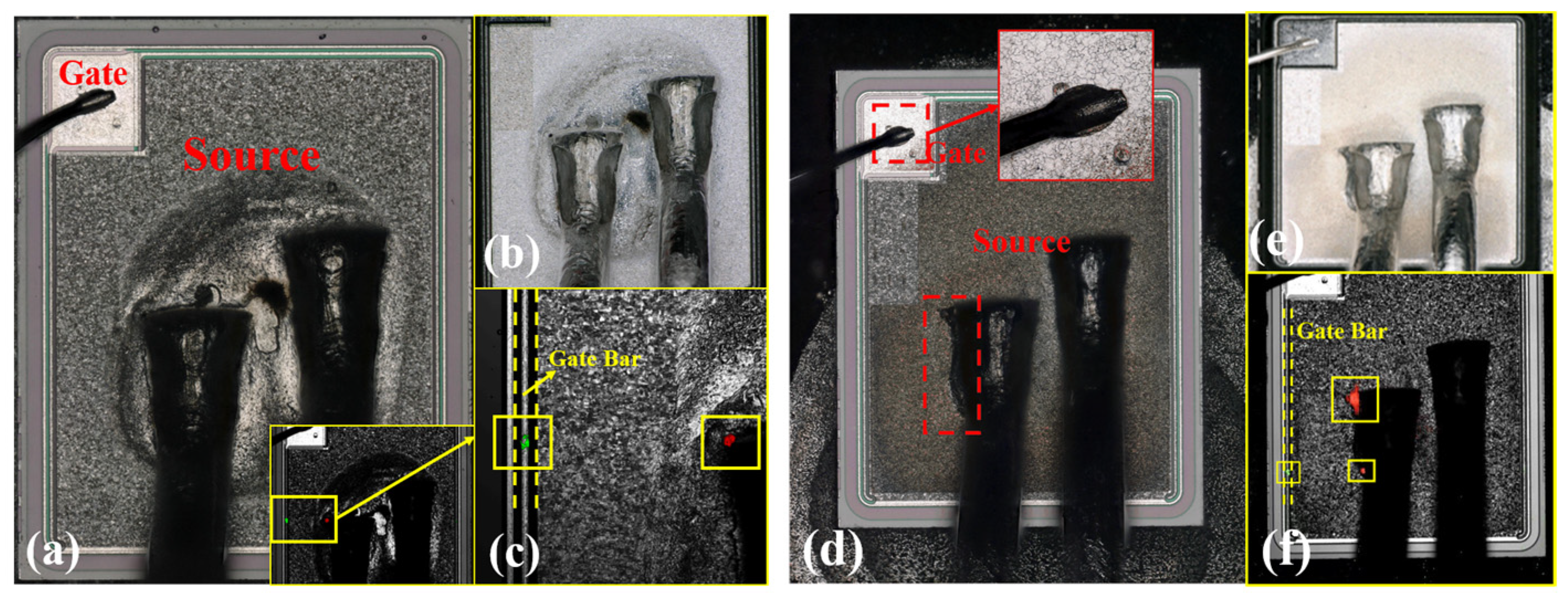

As shown in Figure 19, the SAM inspection results for DUT-AT6 and AT9 identify damage near the source bonding wires, accompanied by delamination of the encapsulant material (the red region). After the decapsulation of the devices, chip surface damage is observed by using a metallurgical microscope, as shown in Figure 19. Blackened carbonized marks are observed near the source bonding wires for DUT-AT6 and AT9, while no cracks are found on the chip surface. The severity of the burns for both DUT-AT6 and AT9 is lower than that of DUT-AT3, with the fewest burn marks for DUT-AT9. Further, leakage defect localization is performed by using the OBIRCH mode of emission microscopy (EMMI), as illustrated in Figure 20c,f. The red light indicates leakage locations, while the green light highlights impedance anomaly points. The green spot is located at the gate bar of the chip edge, while the red spot is located near the active region of the bond wires, and further FIB milling is conducted near the active region bond wire, followed by SEM scanning. As shown in Figure 21d,h, similar failure mechanisms have been observed for DUT-AT6 and AT9. The melted Al metal penetrates through the ILD and eventually leads to the short circuit between the gate and the source after repetitive surge current stress. Different from that of single surge current stress, the ohmic contact layer remains intact without obvious damage.

The device’s lifetime and failure mechanisms are intrinsically linked to its structural characteristics during the surge stress test. During third-quadrant surge operation, the current is shared by the intrinsic body diode and the MOS-channel-assisted conduction path. The asymmetric trench layout and the deep p+ shielding region are beneficial for reducing the on-state resistance and protecting the trench-bottom oxide under normal operation. However, during high surge current stress, these structural features also affect the internal current distribution. Since the body-diode path dominates (as shown in Figure 3c), the surge current mainly flows through deep p+ shielding region/n-drift junction system. Due to the asymmetric cell geometry, current crowding may occur near the trench sidewall in the deep p+ shielding corner [34]. Such nonuniform current distribution can result in localized Joule heating and enhanced electrothermal stress near the SiC/SiO₂ interface, thereby accelerating interface-state generation, oxide-related degradation, and leakage current increase under repetitive surge stress.

Increasing the channel current contribution reduces the body-diode current component, lowers the effective V_SD, and decreases the surge energy dissipated in the bipolar diode path. Therefore, the localized heating and carrier-injection-induced degradation around the body diode and deep p+ shielding region can be mitigated. This means a larger channel current contribution at V_GS = 0 V is beneficial for improving repetitive surge reliability.

5. Conclusions

The reliability of asymmetric trench-gate SiC MOSFETs under single and repetitive surge current stresses (90% SSC_max and 60% SSC_max) at different gate bias voltages (V_GS = 0 V, −5 V, and −10 V) has been systematically investigated.

When the device undergoes single surge current stress, it is indicated that V_GS does not affect the surge capability of the DUTs, with the same maximum surge current of 150 A. However, V_GS has influenced the degradation of key parameters. As V_GS becomes more negative, the degradation of V_TH becomes more obvious, with a decrease of up to 33.34% for AT3. This may be the result of a more negative V_GS leading to the increase in SiC/SiO₂ interface defect density, intensifying gate-oxide deterioration, which is verified by the results of the transfer characteristics, S.S., Cg-Vg characteristics, and LFN characteristics. It is indicated from the microscopic analysis that the failure mode involves both chip failure and package failure. This is attributed to thermal runaway caused by a large single surge current, which leads to the melted source Al metal penetrating through the interlayer dielectric and the ohmic contact layer between the source metal and the SiC-doped region, respectively. It results in not only the short circuit between the gate and the source but also degradation in the blocking capability, ultimately leading to a three-terminal short circuit.

Different from a single surge current, it is indicated that V_GS has a significant impact on surge capability from the results of the large current (90% SSC_max) repetitive surge stress. When V_GS = 0 V, the devices can withstand the maximum number of surge cycles with the least parameter degradation. The number of surge cycles the devices can withstand decreases as V_GS becomes more negative. This may be caused by a weaker contribution of the channel-assisted leakage conduction during repetitive current stress. As with the single surge stress, both chip and package failure occur for the large current (90% SSC_max) repetitive surge stress. The device failure is caused by the melted Al metal penetrating through the interlayer dielectric and eventually leading to the short circuit between the gate and the source after repetitive surge current stress. Different from that of single surge current stress, the ohmic contact layer remains intact without obvious damage.

Compared with large surge current stress, the device can withstand several hundred times more surge cycles under small current (60% SSC_max) repetitive surge stress. The maximum cycles are still observed at V_GS = 0 V, with a downward trend as V_GS becomes more negative. The failure mode and mechanism remain consistent with the large surge current repetitive tests.

To enhance the surge reliability of asymmetric trench-type SiC MOSFETs, it is recommended to increase the proportion of channel current in the total surge current, which reduces conduction losses and mitigates thermal runaway risks. Therefore, it is advised to operate such devices at V_GS = 0 V in the third quadrant.
