# Route to Intelligent Imaging Reconstruction via Terahertz Nonlinear Ghost Imaging

*ic*) Laboratory, Department of Physics and Astronomy, University of Sussex, Brighton BN1 9QH, UK

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Time-Resolved Nonlinear Ghost Imaging: A Conceptual Overview

## 3. Compressed and Adaptive Sensing Applications

## 4. Performance of Field-Based Ghost-Imaging Detection in the Fourier Plane

## 5. A Route towards Thinner THz Emitters: Surface Emission from Quasi-2D Semiconductor Structures

^{2}), InAs is probably considered the benchmark surface emitter. In this case, the generation is driven by the very large difference in mobility between holes and electrons via the photo-Dember effect (Figure 5c,d): when a high density of photogenerated pairs is induced in the proximity of the surface, electrons quickly diffuse away from the surface, leaving uncompensated carriers of the opposite sign. Such a charge unbalance creates a fast stretching dipole, or equivalently, a local current transient that is the source of the terahertz emission [46].

^{2}), this phenomenon becomes critically saturated due to the electromagnetic screening role of dense carrier densities. Conversely, the optical surface rectification (SOR) dominates the emission [43]. The optical surface rectification is a quadratic phenomenon induced by the contribution of a local static field at the surface, which is induced by surface states within the bulk cubic nonlinear response (Figure 5a,b). The DC field effectively plays the role of a field contribution in a four-wave mixing process in a mechanism commonly referred to as a field-induced quadratic response [45,47] and is described using:

## 6. Discussions and Conclusions

## Supplementary Materials

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Tikan, A.; Bielawski, S.; Szwaj, C.; Randoux, S.; Suret, P. Single-shot measurement of phase and amplitude by using a heterodyne time-lens system and ultrafast digital time-holography. Nat. Photonics
**2018**, 12, 228. [Google Scholar] [CrossRef] - Shechtman, Y.; Eldar, Y.C.; Cohen, O.; Chapman, H.N.; Miao, J.; Segev, M. Phase Retrieval with Application to Optical Imaging: A contemporary overview. IEEE Signal Process. Mag.
**2015**, 32, 87–109. [Google Scholar] [CrossRef] [Green Version] - Rivenson, Y.; Zhang, Y.; Günaydın, H.; Teng, D.; Ozcan, A. Phase recovery and holographic image reconstruction using deep learning in neural networks. Light Sci. Appl.
**2018**, 7, 17141. [Google Scholar] [CrossRef] [PubMed] - Hack, E.; Zolliker, P. Terahertz holography for imaging amplitude and phase objects. Opt. Express
**2014**, 22, 16079–16086. [Google Scholar] [CrossRef] - Song, H.-J.; Nagatsuma, T. Handbook of Terahertz Technologies: Devices and Applications; CRC Press: New York, NY, USA, 2015. [Google Scholar]
- Kampfrath, T.; Tanaka, K.; Nelson, K.A. Resonant and nonresonant control over matter and light by intense terahertz transients. Nat. Photonics
**2013**, 7, 680–690. [Google Scholar] [CrossRef] - Frühling, U.; Wieland, M.; Gensch, M.; Gebert, T.; Schütte, B.; Krikunova, M.; Kalms, R.; Budzyn, F.; Grimm, O.; Rossbach, J.; et al. Single-shot terahertz-field-driven X-ray streak camera. Nat. Photonics
**2009**, 3, 523–528. [Google Scholar] [CrossRef] - Yu, L.; Hao, L.; Meiqiong, T.; Jiaoqi, H.; Wei, L.; Jinying, D.; Xueping, C.; Weiling, F.; Yang, Z. The medical application of terahertz technology in non-invasive detection of cells and tissues: Opportunities and challenges. RSC Adv.
**2019**, 9, 9354–9363. [Google Scholar] [CrossRef] [Green Version] - Yang, X.; Zhao, X.; Yang, K.; Liu, Y.; Liu, Y.; Fu, W.; Luo, Y. Biomedical Applications of Terahertz Spectroscopy and Imaging. Trends Biotechnol.
**2016**, 34, 810–824. [Google Scholar] [CrossRef] - Mittleman, D.M. Twenty years of terahertz imaging [Invited]. Opt. ExpressOe
**2018**, 26, 9417–9431. [Google Scholar] [CrossRef] - Sengupta, K.; Nagatsuma, T.; Mittleman, D.M. Terahertz integrated electronic and hybrid electronic–photonic systems. Nat. Electron.
**2018**, 1, 622–635. [Google Scholar] [CrossRef] - Lee, A.W.; Hu, Q. Real-time, continuous-wave terahertz imaging by use of a microbolometer focal-plane array. Opt. Lett.
**2005**, 30, 2563–2565. [Google Scholar] [CrossRef] [PubMed] - Abraham, E.; Cahyadi, H.; Brossard, M.; Degert, J.; Freysz, E.; Yasui, T. Development of a wavefront sensor for terahertz pulses. Opt. Express
**2016**, 24, 5203. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Moreau, P.-A.; Toninelli, E.; Gregory, T.; Padgett, M.J. Ghost Imaging Using Optical Correlations. Laser Photonics Rev.
**2018**, 12, 1700143. [Google Scholar] [CrossRef] [Green Version] - Padgett, M.J.; Boyd, R.W. An introduction to ghost imaging: Quantum and classical. Phsical Eng. Sci.
**2017**, 375, 20160233. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Shapiro, J.H.; Boyd, R.W. The physics of ghost imaging. Quantum Inf Process
**2012**, 11, 949–993. [Google Scholar] [CrossRef] - Erkmen, B.I.; Shapiro, J.H. Ghost imaging: From quantum to classical to computational. Adv. Opt. Photon. Aop
**2010**, 2, 405–450. [Google Scholar] [CrossRef] - Chan, W.L.; Charan, K.; Takhar, D.; Kelly, K.F.; Baraniuk, R.G.; Mittleman, D.M. A single-pixel terahertz imaging system based on compressed sensing. Appl. Phys. Lett.
**2008**, 93, 121105. [Google Scholar] [CrossRef] [Green Version] - Watts, C.M.; Shrekenhamer, D.; Montoya, J.; Lipworth, G.; Hunt, J.; Sleasman, T.; Krishna, S.; Smith, D.R.; Padilla, W.J. Terahertz compressive imaging with metamaterial spatial light modulators. Nat. Photonics
**2014**, 8, 605–609. [Google Scholar] [CrossRef] - Stantchev, R.I.; Sun, B.; Hornett, S.M.; Hobson, P.A.; Gibson, G.M.; Padgett, M.J.; Hendry, E. Noninvasive, near-field terahertz imaging of hidden objects using a single-pixel detector. Sci. Adv.
**2016**, 2, e1600190. [Google Scholar] [CrossRef] [Green Version] - Stantchev, R.I.; Phillips, D.B.; Hobson, P.; Hornett, S.M.; Padgett, M.J.; Hendry, E. Compressed sensing with near-field THz radiation. Optica
**2017**, 4, 989. [Google Scholar] [CrossRef] [Green Version] - Zhao, J.; Yiwen, E.; Williams, K.; Zhang, X.-C.; Boyd, R.W. Spatial sampling of terahertz fields with sub-wavelength accuracy via probe-beam encoding. Light Sci. Appl.
**2019**, 8, 55. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Chen, S.-C.; Du, L.-H.; Meng, K.; Li, J.; Zhai, Z.-H.; Shi, Q.-W.; Li, Z.-R.; Zhu, L.-G. Terahertz wave near-field compressive imaging with a spatial resolution of over λ/100. Opt. Lett.
**2019**, 44, 21. [Google Scholar] [CrossRef] [PubMed] - Olivieri, L.; Totero Gongora, J.S.; Pasquazi, A.; Peccianti, M. Time-Resolved Nonlinear Ghost Imaging. ACS Photonics
**2018**, 5, 3379–3388. [Google Scholar] [CrossRef] [Green Version] - Olivieri, L.; Gongora, J.S.T.; Peters, L.; Cecconi, V.; Cutrona, A.; Tunesi, J.; Tucker, R.; Pasquazi, A.; Peccianti, M. Hyperspectral terahertz microscopy via nonlinear ghost imaging. Optica
**2019**, 7, 186. [Google Scholar] [CrossRef] [Green Version] - Olivieri, L.; Totero Gongora, J.S.; Pasquazi, A.; Peccianti, M. Time-resolved nonlinear ghost imaging: Route to hyperspectral single-pixel reconstruction of complex samples at THz frequencies. In Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series, Proceedings of the Nonlinear Frequency Generation and Conversion: Materials and Devices XVIII, San Francisco, CA, USA, 5–9 Feberuary 2019; Schunemann, P.G., Schepler, K.L., Eds.; SPIE: San Francisco, CA, USA, 2019; p. 44. [Google Scholar]
- Shapiro, J.H. Computational ghost imaging. Phys. Rev. A At. Mol. Opt. Phys.
**2008**, 78, 061802. [Google Scholar] [CrossRef] - Peccianti, M.; Clerici, M.; Pasquazi, A.; Caspani, L.; Ho, S.P.; Buccheri, F.; Ali, J.; Busacca, A.; Ozaki, T.; Morandotti, R. Exact Reconstruction of THz Sub-λSource Features in Knife-Edge Measurements. IEEE J. Sel. Top. Quantum Electron.
**2013**, 19, 8401211. [Google Scholar] [CrossRef] [Green Version] - Khare, K. Fourier Optics and Computational Imaging; Wiley, John Wiley & Sons Ltd.: Chichester, West Sussex, 2016; ISBN 978-1-118-90034-5. [Google Scholar]
- Harwit, M. Hadamard Transform Optics; Elsevier: New York, NY, USA, 2012; ISBN 978-0-323-15864-0. [Google Scholar]
- Davis, D.S. Multiplexed imaging by means of optically generated Kronecker products: 1. The basic concept. Appl. Opt.
**1995**, 34, 1170–1176. [Google Scholar] [CrossRef] - Streeter, L.; Burling-Claridge, G.R.; Cree, M.J.; Künnemeyer, R. Optical full Hadamard matrix multiplexing and noise effects. Appl. Opt.
**2009**, 48, 2078–2085. [Google Scholar] [CrossRef] [Green Version] - Eldar, Y.C.; Kutyniok, G. Compressed Sensing: Theory and Applications; Cambridge University Press: Cambridge, UK, 2012; ISBN 978-1-107-00558-7. [Google Scholar]
- Dongfeng, S.; Jian, H.; Wenwen, M.; Kaixin, Y.; Baoqing, S.; Yingjian, W.; Kee, Y.; Chenbo, X.; Dong, L.; Wenyue, Z. Radon single-pixel imaging with projective sampling. Opt. ExpressOe
**2019**, 27, 14594–14609. [Google Scholar] [CrossRef] - Wenwen, M.; Wenwen, M.; Dongfeng, S.; Dongfeng, S.; Jian, H.; Jian, H.; Kee, Y.; Kee, Y.; Kee, Y.; Yingjian, W.; et al. Sparse Fourier single-pixel imaging. Opt. ExpressOe
**2019**, 27, 31490–31503. [Google Scholar] [CrossRef] - Hedayat, A.; Wallis, W.D. Hadamard Matrices and Their Applications. Ann. Stat.
**1978**, 6, 1184–1238. [Google Scholar] [CrossRef] - Wang, L.; Zhao, S. Fast reconstructed and high-quality ghost imaging with fast Walsh–Hadamard transform. Photonics Res.
**2016**, 4, 240. [Google Scholar] [CrossRef] - Sun, M.-J.; Meng, L.-T.; Edgar, M.P.; Padgett, M.J.; Radwell, N. A Russian Dolls ordering of the Hadamard basis for compressive single-pixel imaging. Sci. Rep.
**2017**, 7. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Rousset, F.; Ducros, N.; Farina, A.; Valentini, G.; D’Andrea, C.; Peyrin, F. Adaptive Basis Scan by Wavelet Prediction for Single-Pixel Imaging. IEEE Trans. Comput. Imaging
**2017**, 3, 36–46. [Google Scholar] [CrossRef] [Green Version] - Kravets, V.; Kondrashov, P.; Stern, A. Compressive ultraspectral imaging using multiscale structured illumination. Appl. Opt. AO
**2019**, 58, F32–F39. [Google Scholar] [CrossRef] [PubMed] - Born, M.; Wolf, E. Principles of Optics: Electromagnetic Theory of Propagation, Interference and Diffraction of Light, 7th expanded; Cambridge University Press: Cambridge, NY, USA, 1999; ISBN 978-0-521-64222-4. [Google Scholar]
- Seifert, T.; Jaiswal, S.; Martens, U.; Hannegan, J.; Braun, L.; Maldonado, P.; Freimuth, F.; Kronenberg, A.; Henrizi, J.; Radu, I.; et al. Efficient metallic spintronic emitters of ultrabroadband terahertz radiation. Nat. Photonics
**2016**, 10, 483–488. [Google Scholar] [CrossRef] - Reid, M.; Fedosejevs, R. Terahertz emission from (100) InAs surfaces at high excitation fluences. Appl. Phys. Lett.
**2005**, 86, 011906. [Google Scholar] [CrossRef] [Green Version] - Reid, M.; Cravetchi, I.V.; Fedosejevs, R. Terahertz radiation and second-harmonic generation from InAs: Bulk versus surface electric-field-induced contributions. Phys. Rev. B
**2005**, 72, 035201. [Google Scholar] [CrossRef] [Green Version] - Peters, L.; Tunesi, J.; Pasquazi, A.; Peccianti, M. High-energy terahertz surface optical rectification. Nano Energy
**2018**, 46, 128–132. [Google Scholar] [CrossRef] - Apostolopoulos, V.; Barnes, M.E. THz emitters based on the photo-Dember effect. J. Phys. D Appl. Phys.
**2014**, 47, 374002. [Google Scholar] [CrossRef] - Cazzanelli, M.; Schilling, J. Second order optical nonlinearity in silicon by symmetry breaking. Appl. Phys. Rev.
**2016**, 3, 011104. [Google Scholar] [CrossRef] - Peters, L.; Tunesi, J.; Pasquazi, A.; Peccianti, M. Optical Pump Rectification Emission: Route to Terahertz Free-Standing Surface Potential Diagnostics. Sci. Rep.
**2017**, 7. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Dai, H.; Gu, G.; He, W.; Liao, F.; Zhuang, J.; Liu, X.; Chen, Q. Adaptive compressed sampling based on extended wavelet trees. Appl. Opt.
**2014**, 53, 6619. [Google Scholar] [CrossRef] [PubMed] - Dai, H.; Gu, G.; He, W.; Ye, L.; Mao, T.; Chen, Q. Adaptive compressed photon counting 3D imaging based on wavelet trees and depth map sparse representation. Opt. Express
**2016**, 24, 26080. [Google Scholar] [CrossRef] - Barbastathis, G.; Ozcan, A.; Situ, G. On the use of deep learning for computational imaging. Opt. Opt.
**2019**, 6, 921–943. [Google Scholar] [CrossRef]

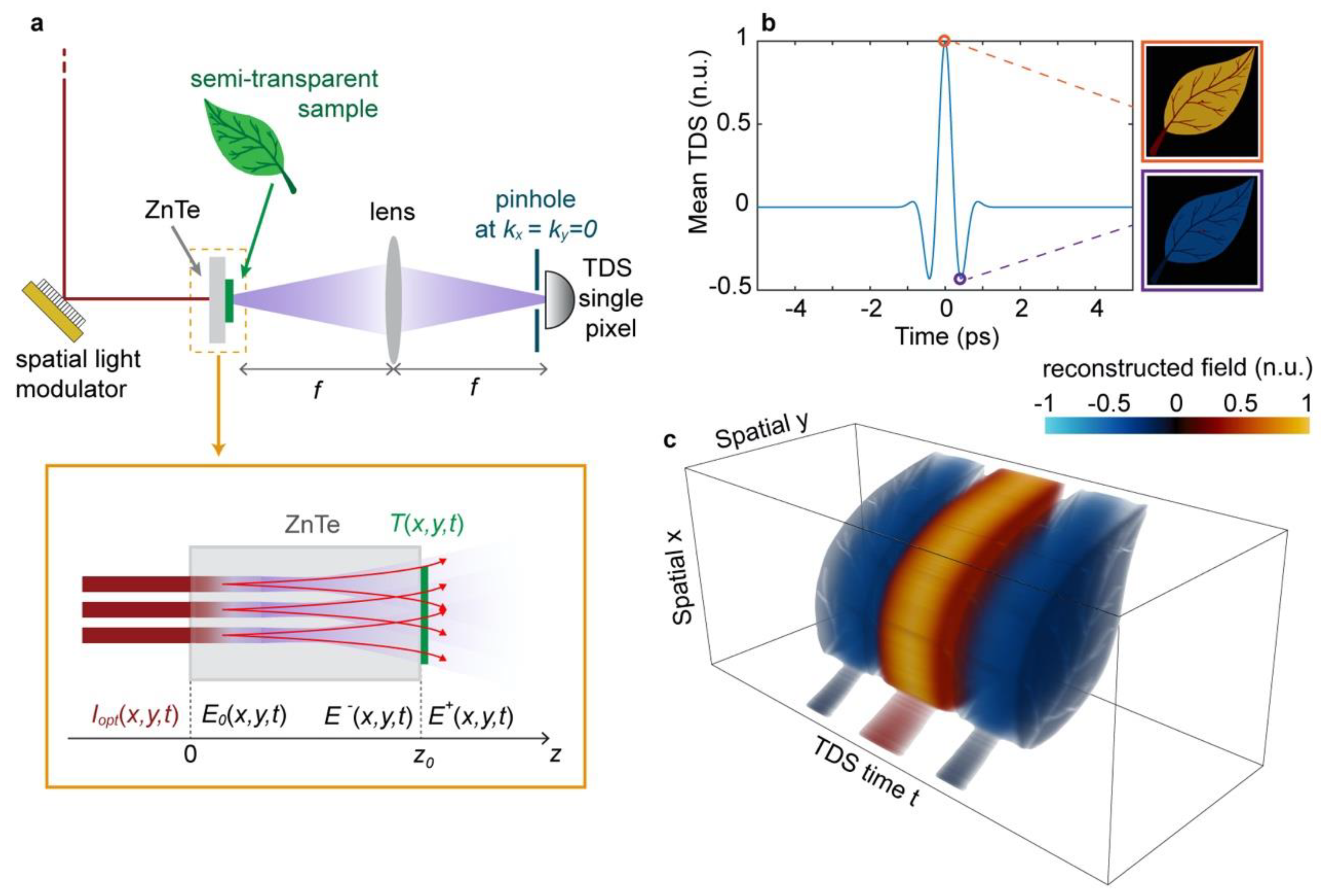

**Figure 1.**Conceptual description of time-resolved nonlinear ghost imaging (TIMING). (

**a**) Schematic of the experimental setup. (

**b**,

**c**) Simulation of the TIMING reconstruction of a semi-transparent sample, including the average field transmission (panel b) and the full spatiotemporal image of the sample (panel c). The simulated object size was 10.24 cm × 10.24 cm, sampled with a spatial resolution of 512 × 512 pixels (Δx = 200 µm) and a temporal resolution of Δt = 19.5 fs. The nonlinear crystal thickness was ${z}_{0}$= 10 μm. n.u.: normalised units, TDS: Time-domain spectroscopy.

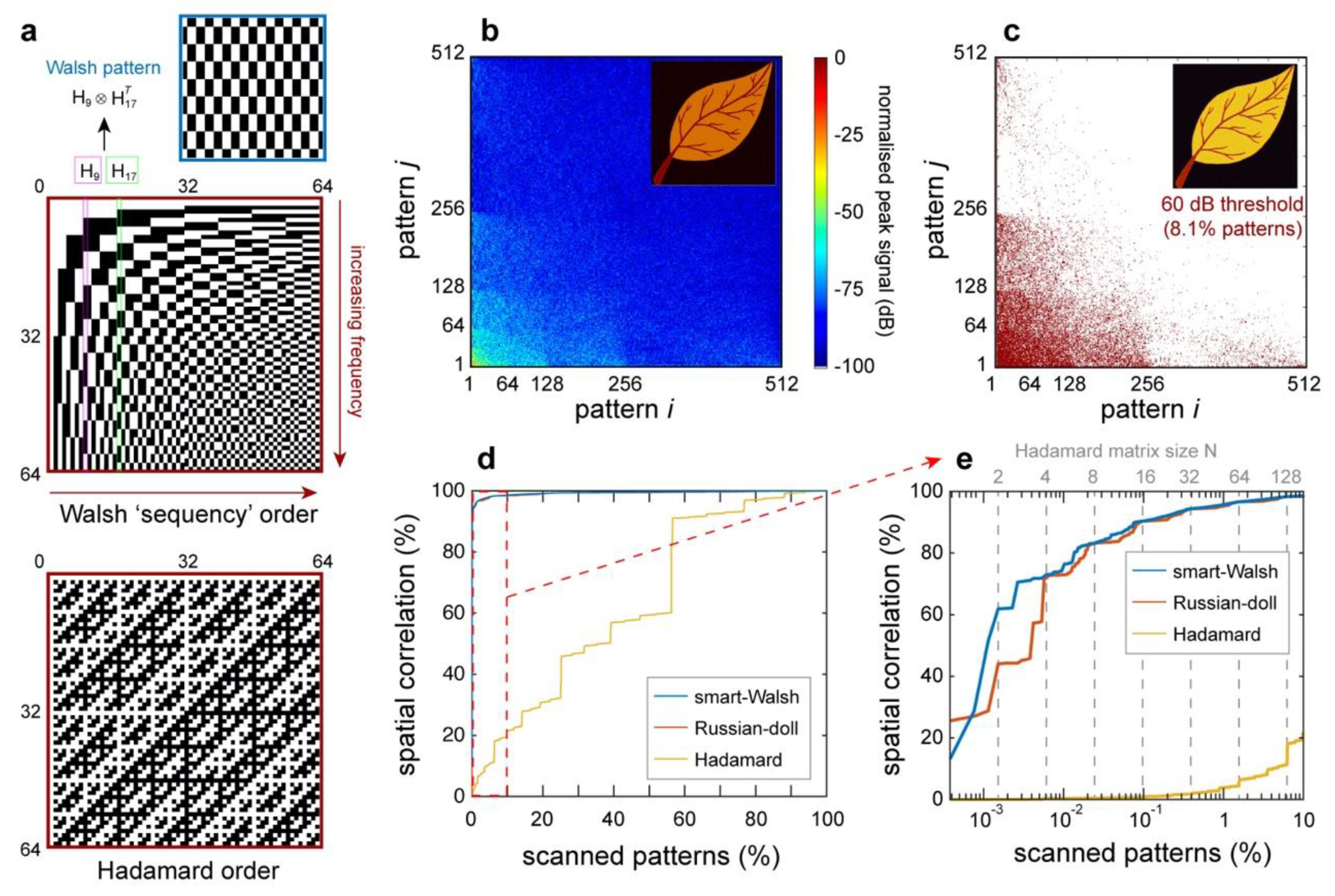

**Figure 2.**Walsh–Hadamard image reconstruction. (

**a**) Generation of incident patterns from the Walsh–Hadamard matrix. Each pattern is defined as the tensor product between two columns of the generating matrix. The patterns can be generated from different configurations of a Hadamard matrix: we show the Walsh, or “sequency”, order (top, used in TIMING) and the standard Hadamard, or “natural”, order (bottom). (

**b**,

**c**) Reconstructed Walsh spectrum of the peak-field object transmission. Interestingly, only a fraction of the patterns (8.1%) were associated with a spectral amplitude exceeding the −60 dB threshold (with 0 dB being the energy correlation of the fittest pattern—panel c). Nevertheless, these patterns were sufficient to provide a high-fidelity reconstruction of the image (insets). (

**d**,

**e**) Pearson correlation coefficients between reconstructed and original images as a function of the number of patterns employed in the reconstruction. The results refer to the entire scan (panel d) and the initial 10% of patterns (panel e).

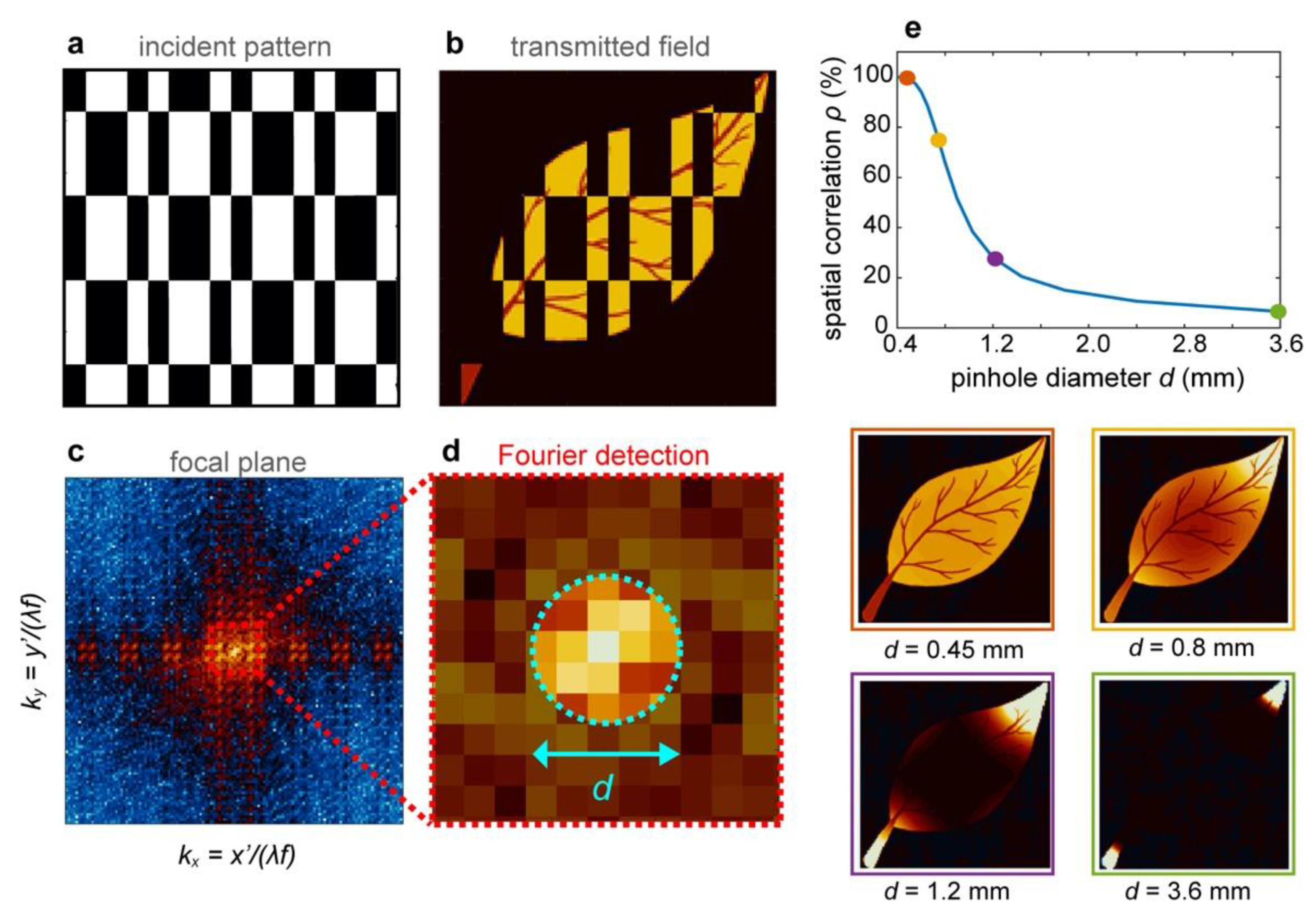

**Figure 3.**Influence of the pinhole size on the Fourier detection of TIMING reconstruction coefficients.

**(a**–

**d**) The spatial average of the transmitted field (

**b**) associated with each incident pattern (

**a**) could be measured by performing a point-like detection in the centre of the Fourier plane (

**c**,

**d**). In realistic implementations, the centre of the Fourier plane is sampled using a sampling function PH of finite diameter d. (

**e**) Spatial correlation between the reconstructed and original image as a function of the sampling function diameter. A departure from the point-like approximation led to a significant corruption of the reconstructed image (insets). Interestingly, the typical image degradation did not necessarily involve the total disappearance of highly resolved details.

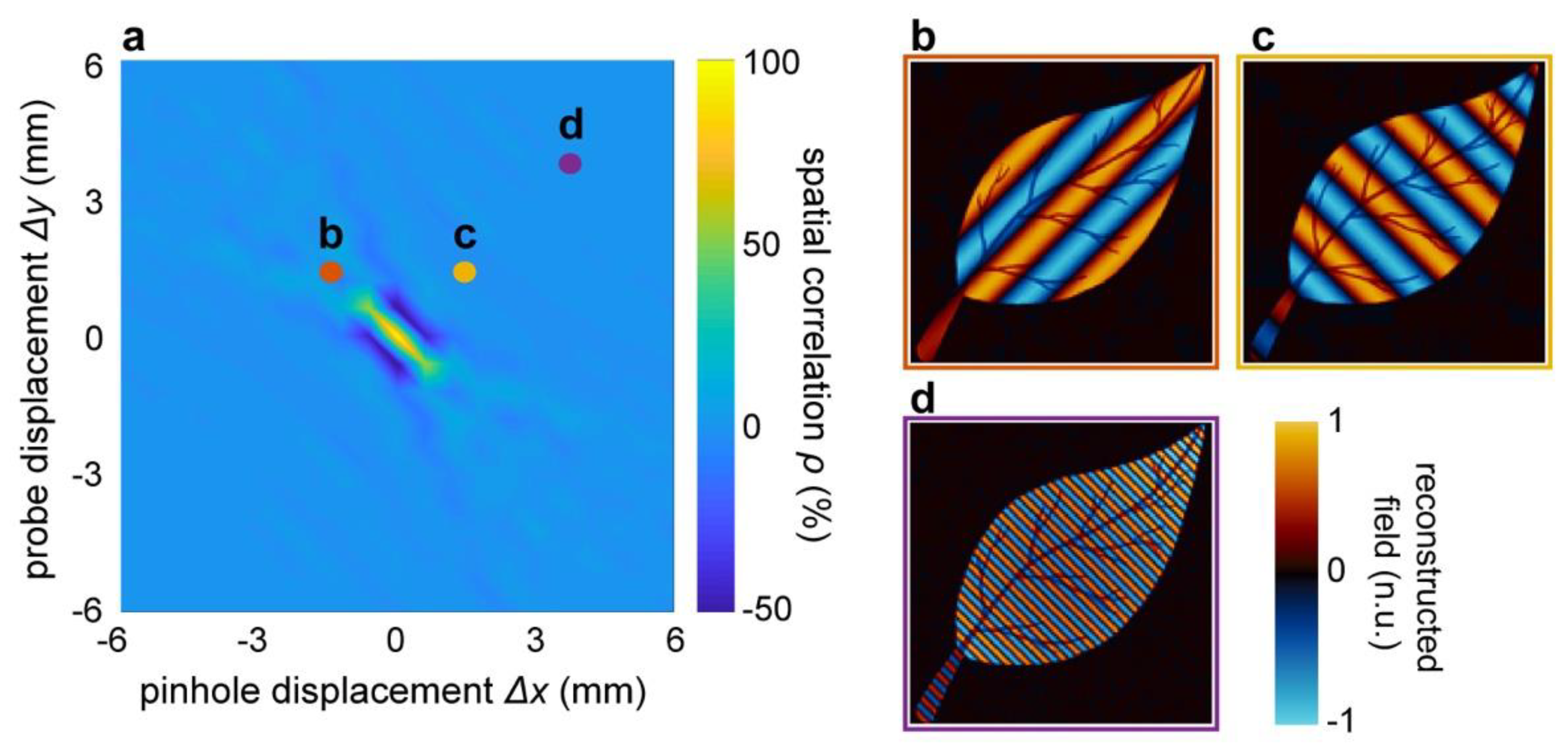

**Figure 4.**Influence of the pinhole displacement on the Fourier detection of TIMING reconstruction coefficients. (

**a**) Spatial correlation between the reconstructed and original image as a function of the sampling function position in the focal plane. The displacement (Δx, Δy) was measured with respect to the lens axis and the sampling function diameter was set to d = 0.36 mm, corresponding to a spatial correlation of 100% at the centre of the Fourier plane (cf. Figure 3e). (

**b**–

**d**) Examples of image reconstruction with off-axis detection, illustrating the appearance of spurious spatial frequencies. Interestingly, the object morphology was still noticeable, even at a relatively large distance from the optical axis.

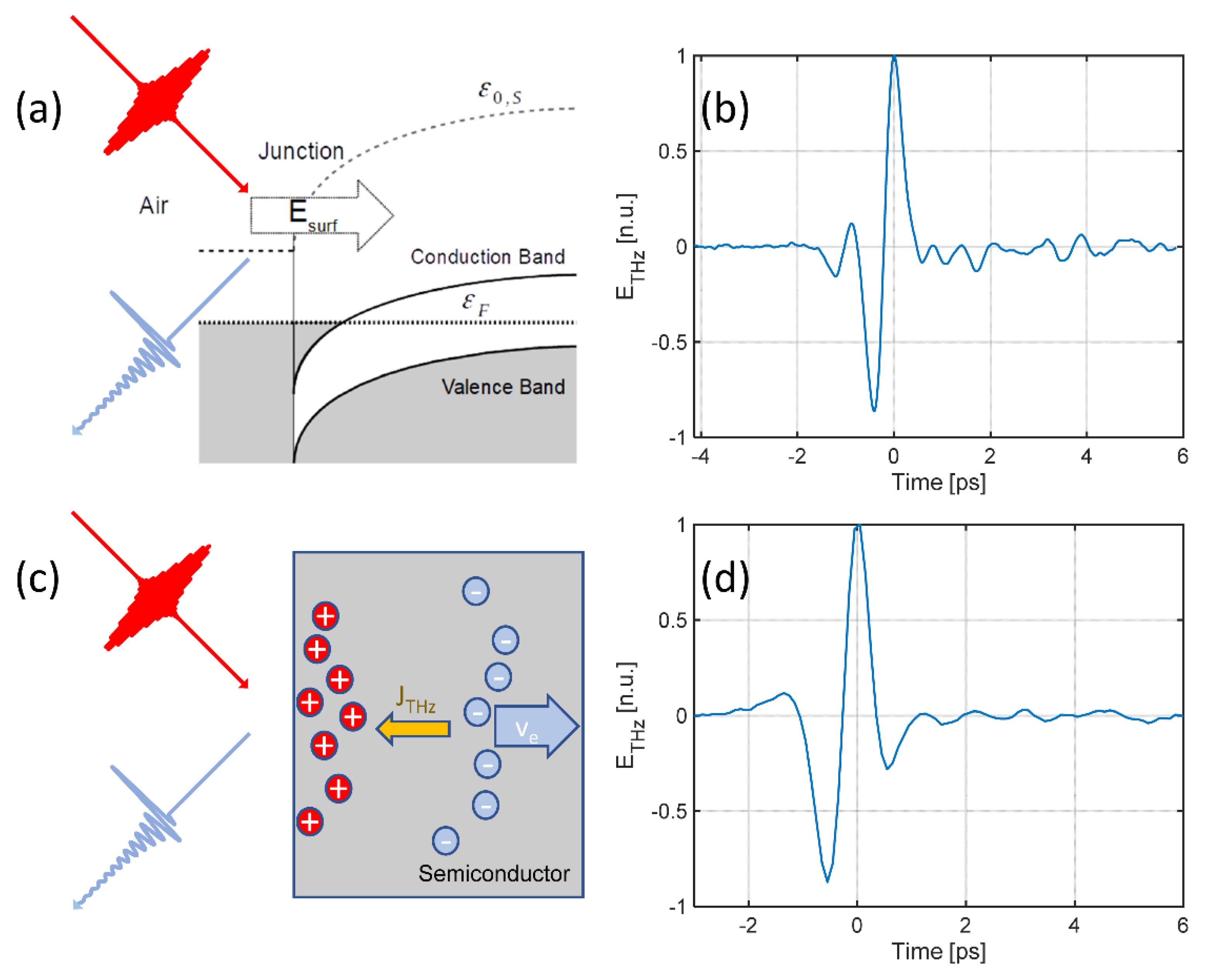

**Figure 5.**Surface emission driving mechanisms. (
