Microparticle Acoustophoresis in Aluminum-Based Acoustofluidic Devices with PDMS Covers

1
Department of Physics, Technical University of Denmark, DTU Physics Building 309, DK-2800 Kongens Lyngby, Denmark
2
Department of Biomedical Engineering, Lund University, 221 00 Lund, Sweden
*
Authors to whom correspondence should be addressed.
Micromachines 2020, 11(3), 292; https://doi.org/10.3390/mi11030292
Received: 19 February 2020 / Revised: 6 March 2020 / Accepted: 7 March 2020 / Published: 11 March 2020
(This article belongs to the Special Issue Acoustofluidics)

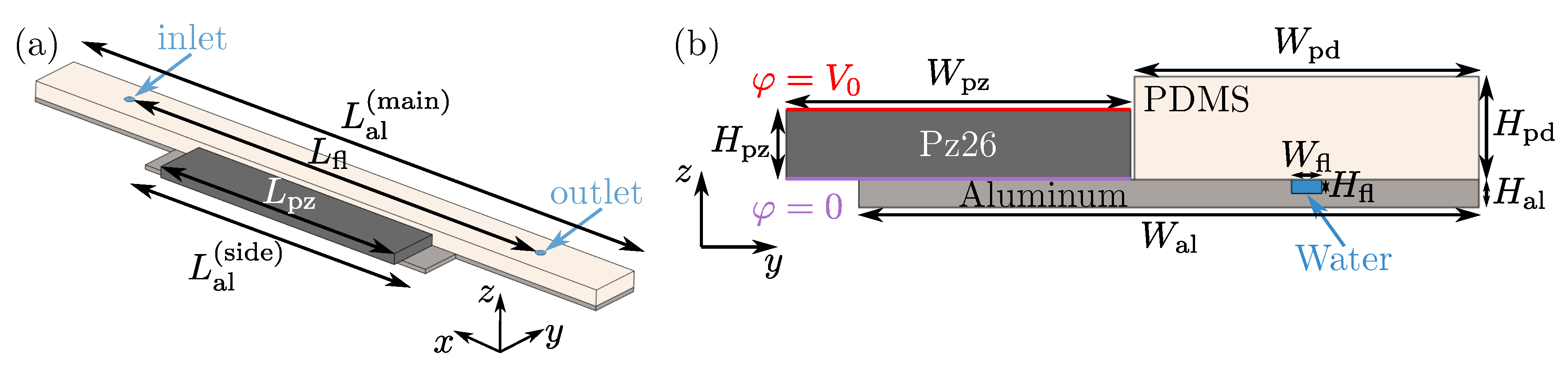

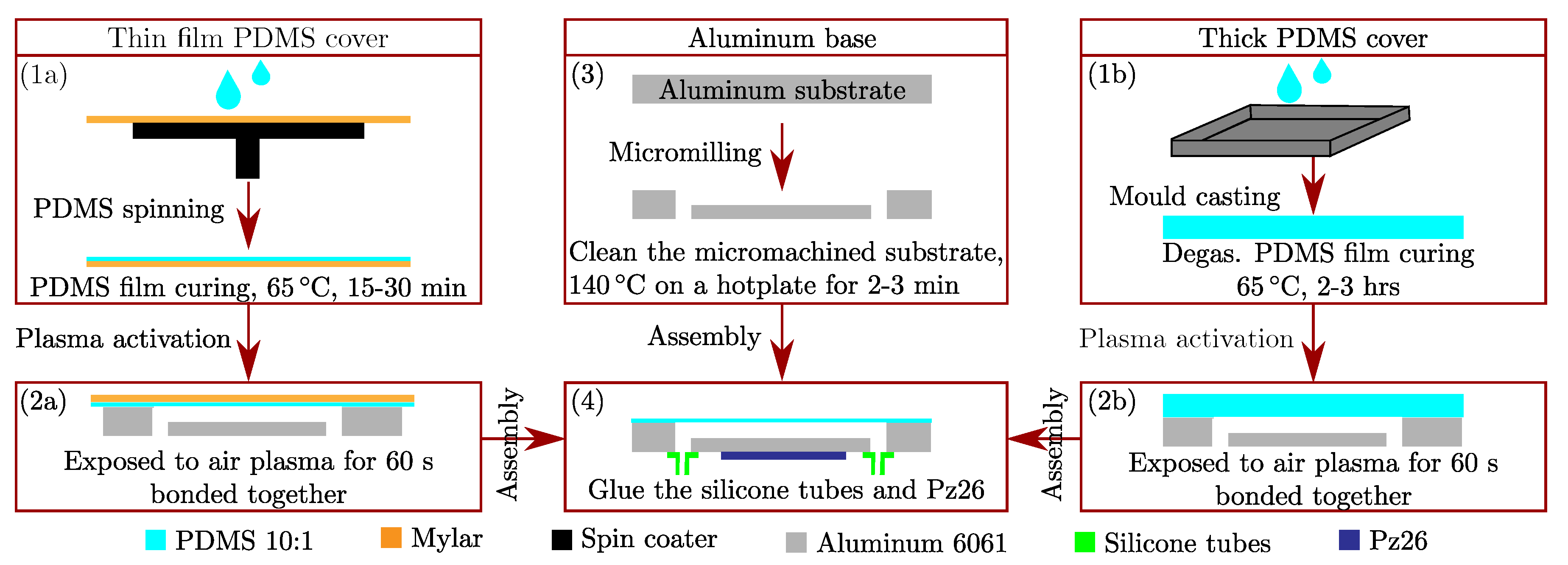

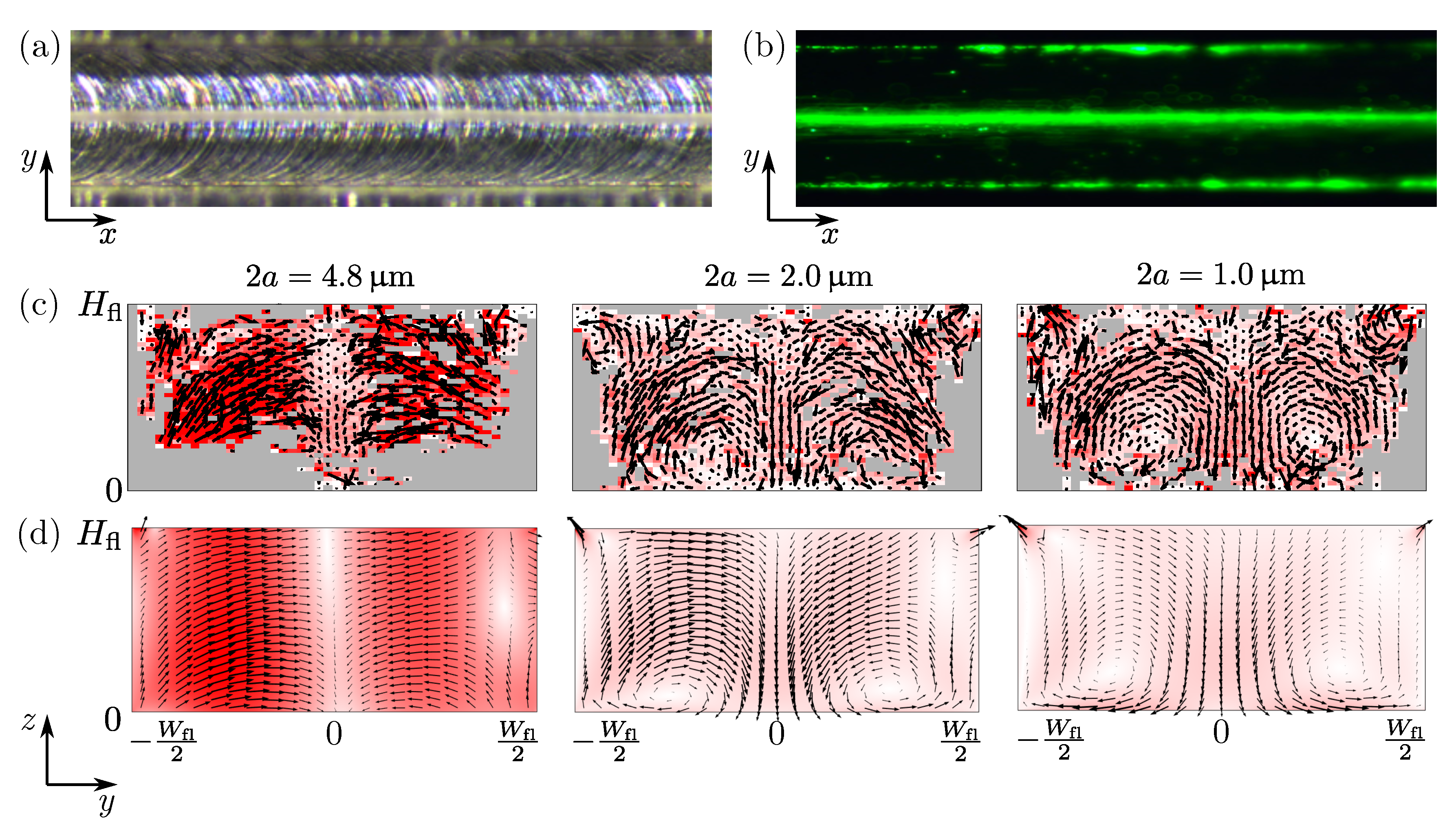

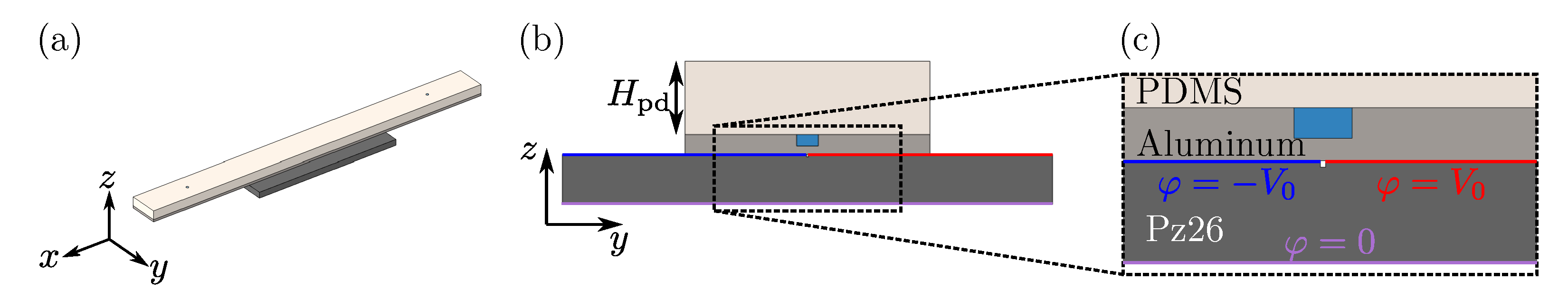

We present a numerical model for the recently introduced simple and inexpensive micromachined aluminum devices with a polydimethylsiloxane (PDMS) cover for microparticle acoustophoresis. We validate the model experimentally for a basic design, where a microchannel is milled into the surface of an aluminum substrate, sealed with a PDMS cover, and driven at MHz frequencies by a piezoelectric lead-zirconate-titanate (PZT) transducer. Both experimentally and numerically we find that the soft PDMS cover suppresses the Rayleigh streaming rolls in the bulk. However, due to the low transverse speed of sound in PDMS, such devices are prone to exhibit acoustic streaming vortices in the corners with a relatively large velocity. We predict numerically that in devices, where the microchannel is milled all the way through the aluminum substrate and sealed with a PDMS cover on both the top and bottom, the Rayleigh streaming is suppressed in the bulk thus enabling focusing of sub-micrometer-sized particles. View Full-Text
Keywords: acoustofluidics; microparticle acoustophoresis; numerical modeling; aluminum microdevices; polydimethylsiloxane (PDMS) covers acoustofluidics; microparticle acoustophoresis; numerical modeling; aluminum microdevices; polydimethylsiloxane (PDMS) covers
Show Figures

Figure 1

MDPI and ACS Style

Bodé, W.N.; Jiang, L.; Laurell, T.; Bruus, H. Microparticle Acoustophoresis in Aluminum-Based Acoustofluidic Devices with PDMS Covers. Micromachines 2020, 11, 292.
