Full-Color InGaN/AlGaN Nanowire Micro Light-Emitting Diodes Grown by Molecular Beam Epitaxy: A Promising Candidate for Next Generation Micro Displays
1
Department of Electrical and Computer Engineering, New Jersey Institute of Technology, Newark, NJ 07102, USA
2
Department of Biomedical Physics, Pham Ngoc Thach University of Medicine, Ho Chi Minh City 700000, Vietnam
3
Institute of Chemical Technology, Vietnam Academy of Science and Technology, 1 Mac Dinh Chi Street, District 1, Ho Chi Minh City 700000, Vietnam
4
Department of Electronics & Communication Engineering, National Institute of Technology Silchar, Assam 788010, India
*
Authors to whom correspondence should be addressed.
Received: 5 July 2019 / Accepted: 22 July 2019 / Published: 24 July 2019

Abstract

:
We have demonstrated full-color and white-color micro light-emitting diodes (μLEDs) using InGaN/AlGaN core-shell nanowire heterostructures, grown on silicon substrate by molecular beam epitaxy. InGaN/AlGaN core-shell nanowire μLED arrays were fabricated with their wavelengths tunable from blue to red by controlling the indium composition in the device active regions. Moreover, our fabricated phosphor-free white-color μLEDs demonstrate strong and highly stable white-light emission with high color rendering index of ~ 94. The μLEDs are in circular shapes with the diameter varying from 30 to 100 μm. Such high-performance μLEDs are perfectly suitable for the next generation of high-resolution micro-display applications.
Keywords:
μLED displays; μLEDs; GaN nanowires; core-shell structure

1. Introduction

A display based on inorganic micro light-emitting diodes (μLEDs) has recently been intensively investigated due to its great potential for tech gadgets such as Apple watches, smartphone screens, television screens, billboards, Google glass, and virtual reality devices. Considerable efforts have been poured into this field to bring the novel standard displays to the market [1,2,3,4,5]. The increasing demand for μLED displays in tech screens has received much attention from academia and industry since early last decade. In order to achieve μLEDs displays, it requires several critical stages [6] consisting of making μLEDs, transferring them to a backplane, and precisely controlling each individual LED [7,8,9]. The first essential step is to have the right type of red, green, and blue (RGB) μLEDs satisfactory for the displays. The μLEDs need a long lifespan, superior brightness, high efficiency, and durability. Besides, different approaches for making RGB and white color μLEDs to form a full-color micro-pixel in the μLED displays [10,11,12,13], the monolithic display based on III-nitride nanowire heterostructure μLEDs is promising since it allows more direct control of emission wavelengths of the light-emitting diodes (LEDs). The emission wavelength of nanowire LEDs can be controlled by changing the composition of indium in the InGaN active region. This can be done by adjusting the epitaxial growth conditions including growth temperature and/or In/Ga flux ratios [14,15,16,17]. The energy bandgap of InGaN compounds can be varied from 3.4 eV (GaN) to 0.65 eV (InN) [18], covering the full visible region for display applications. Therefore, GaN based μLEDs are a potential candidate for developing novel micro-LED displays [4].
Conventional planar GaN based LEDs have been used in everyday lighting and automotive headlights. However, their poor operating efficiency and efficiency degradation in the green to red spectrums have limited their potential achievements. The presence of polarization fields [19,20], Auger recombination [21,22], poor hole transport [23], defects/dislocations [24,25], and electron leakage and electron overflow [26,27,28] are the main causes of these above drawbacks. In this regard, nanowire heterostructures have been intensively studied as an alternative candidate for high efficiency light-emitters. Unlike conventional planar structures, nanowires exhibit several distinct advantages, including dramatically reduced strain-induced polarization fields and dislocation densities due to the effective lateral stress relaxation. Moreover, the micron-size nanowire-based LEDs can be much more efficient in heat dissipation due to the reduced current spreading resistance and thereby resulting in increased injection current levels [29,30,31]. Thus, the performance of the nanowire LED is expected to be better than their thin-film counterparts. As compared to organic and inorganic thin-film devices, the brightness, reliability, energy efficiency and moisture resistance of the nanowire LEDs are predicted to be far superior [32]. Therefore, nanowire μLEDs have emerged as a promising candidate for general lighting and display applications. In this context, InGaN/AlGaN nanowire µLEDs in different sizes have been fabricated and characterized. Such nanowire µLEDs exhibit strong and stable emissions from blue to red wavelengths. Moreover, phosphor-free white-color µLEDs have also been demonstrated with highly stable emission.

2. Experiment

Vertically aligned InGaN/AlGaN core-shell nanowire μLEDs were grown by Veeco Gen II plasma-assisted molecular beam epitaxy (PAMBE) system. Silicon and magnesium dopants were used to grow n-GaN and p-GaN, respectively. During the epitaxial growth process, the nitrogen flow was kept at 1 sccm and the plasma power was controlled at 350 W. GaN segments were grown at 750 °C, while InGaN in the active region was grown at lower temperatures, in the range of 580–650 °C to enhance the indium incorporation. Figure 1a presents the schematic structure of a single InGaN/AlGaN nanowire on a Si substrate. The nanowire μLEDs consist of GaN:Si grown on a silicon substrate and the GaN:Mg on the top. The ten couples of quantum wells are inserted in the active region. Each quantum well includes a 3 nm InGaN dot and 3 nm AlGaN barrier. During growth of the AlGaN barrier, the AlGaN shell is spontaneously formed, enabling unique core-shell layers [33,34]. The emission color of the μLEDs can be controlled by adjusting the Ga/In flux ratios and the substrate temperature during the MBE growth. For instance, the peak emission wavelength can be shifted from red to blue by gradually increasing the growth temperature of the InGaN active region from 580 °C to 650 °C with ramping rate of 10 °C/min. The nanowire length is controlled by the growth duration. Further information of the core-shell nanowire structures and MBE growth can be found elsewhere [34,35,36,37,38].
Figure 1b shows a scanning electron microscope (SEM) image of InGaN/AlGaN nanowire LEDs taken under a 45° tilted angle. It shows that the nanowires are relatively uniform across the substrate. Figure 1c illustrates the microscopic image of the fabricated μLEDs. The μLED’s emissive window has 50 μm in diameter, which is connected with a square electrode pad. The μLEDs were fabricated using standard photolithography, dry etching and contact metallization techniques, which are described elsewhere [17,37,39,40,41]. During the fabrication process, μLEDs with 30 μm to 100 μm in diameter were defined by standard photolithography. In this paper, the μLEDs with a diameter of 50 μm were chosen for characterization.

3. Results and Discussion

Figure 2 shows the normalized photoluminescence (PL) spectra of the InGaN/AlGaN core-shell nanowires. The measurement was performed at room temperature with a 405 nm laser excitation source. It clearly shows that strong red, green, and blue emissions were recorded at 645 nm, 550 nm, and 475 nm, respectively. The current-voltage characteristics of RGB μLEDs were characterized. The turn-on voltages increase with the decreasing indium composition in the active region of the nanowires. The less indium composition, the higher energy bandgap, makes the light emissions shift toward the blue region. The higher energy bandgap makes turn-on voltages increase [42], as clearly shown in Figure 3. The turn-on voltages of the red, green and blue μLEDs are approximately 1.6 V, 3.5 V, and 4.6 V, respectively. The I-V characteristics also indicate that the devices with a low resistance and good fabrication processes have been achieved.
The electroluminescence (EL) spectra of these μLEDs are presented in Figure 4. The measurements were conducted at room temperature using pulse biasing conditions from 50 mA to 350 mA to reduce the heating effect. Strong red, green, and blue emissions were recorded at 475 nm, 550 nm, and 645 nm for blue, green and red μLEDs, respectively. Illustrated in Figure 4a, highly stable emissions with negligible shift in peak wavelengths were measured for blue μLED with an injection current from 50 mA to 350 mA, attributed to the greatly reduced quantum-confined Stark effect (QCSE) [43] by using nanowire structures. Shown in Figure 4b,c, the blue-shifts of about 1.5 nm were measured for the green and 3 nm for the red μLEDs. These values are significantly smaller than those of planar quantum well LEDs operating in the same spectral regime. Summary of peak wavelength variations of the RGB μLEDs are shown in Figure 5.
III-nitride based planar LEDs operating in the green or longer wavelengths are prone to a blue shift with high driving currents due to QCSE [43]. However, using the nanowire structure, the RGB μLEDs have stable peak wavelengths at 645 nm in red, 550 nm in green, and 475 nm in blue due to the negligible QCSE, meaning that the lattice mismatch induced strain and efficiency droop are negligible [44].
We have also demonstrated white-color μLEDs with strong emission by engineering the emission wavelength of the core-shell nanowire structure. The white light emission covers a long range of the visible spectrum, which is from 450 nm to 750 nm. Moreover, the white-color μLED exhibits a stable emission with a small blue-shift of ~4 nm for injection current from 50 mA to 350 mA. The stable emission characteristics of the phosphor-free white-color μLEDs are further illustrated in the 1931 Commission International l’Eclairage chromaticity diagram in Figure 6. The x and y values are derived to be in the ranges of ~0.351‒0.362 and 0.391‒0.398, respectively. The phosphor-free white-color μLEDs exhibit nearly a neutral white light emission, with correlated color temperature of ~ 4850 K. Additionally, a relatively high color rendering index (CRI) of ~ 94 was measured for this phosphor-free white-color μLED, which is extremely difficult to achieve using planar LED structures. Currently, phosphor-based white LEDs have CRI values in the range of 80–86 [45,46,47,48]. With some special design of phosphor converters, the CRI of these types of white LEDs can be increased up to 90–97 [49,50,51,52,53]. However, the fabrication process of these white LEDs is complex and the device reliability is a major concern. To the best of our knowledge, up to this moment, the CRI value for white-color μLEDs have not yet been reported, possibly due to the complexity of the device fabrication for such μLED devices. In this regard, our phosphor-free full-color and white-color μLEDs are highly desirable for the next generation μLED display technology.

4. Conclusions

We have successfully demonstrated μLEDs using InGaN/AlGaN core-shell nanowire heterostructures grown on silicon substrates by MBE. Strong and stable emission from full-color and white-color were recorded from these μLEDs. The color properties of the μLEDs can be optimized by controlling the spectral distribution of the μLEDs. Using nanowire structures, we have achieved phosphor-free white light with unprecedentedly high CRI of ~ 94. The high performance and stable operation of the red, green and blue μLEDs show promise in monolithic μLED displays. Generally, the high cost of current displays is a bottleneck and slows down the market growth. Due to the progressive demand for electronic devices, it is expected to provide lucrative growth opportunities for the micro-display market. In this regard, using the selective area growth approach, RGB subpixel μLEDs can be integrated on the same chip, eliminating the current pick-and-place process, which requires precisely controlling procedures. Therefore, high efficiency, high color rendering properties, and low power consumption μLEDs using GaN nanowire heterostructures are perfectly suitable as an alternative replacement of current display technologies.

Author Contributions

H.P.T.N. and H.-D.N. designed the experiment. H.Q.T.B. and H.P.T.N. contributed to the MBE growth and device fabrication. H.P.T.N. and H.Q.T.B. performed the IV, EL, and PL measurements. R.T.V. and B.J. contributed to the device design and simulations. H.Q.T.B. and H.P.T.N. wrote the manuscript with contributions from R.T.V., B.J., O.H.A., H.-D.N., and T.R.L.

Funding

This research is supported by New Jersey Institute of Technology, the National Science Foundation (grant numbers EEC-1560131 and EEC-1852375) and funded by Vietnam National Foundation for Science and Technology Development (NAFOSTED) under grant number 103.03-2017.312. Acknowledgment also goes to Visvesvaraya Young Faculty Research Fellowship by MeitY, Govt. of India to T.R. Lenka for his visit to NJIT, US.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Virey, E. Are microLEDs really the next display revolution? SID 2018, 3, 22–27. [Google Scholar] [CrossRef]
  2. Choi, M.K.; Yang, J.; Hyeon, T.; Kim, D.H. Flexible quantum dot light-emitting diodes for next-generation displays. NPJ Flex. Electron. 2018, 2, 1–10. [Google Scholar] [CrossRef]
  3. Sun, Y.; Jiang, Y.; Sun, X.W.; Zhang, S.; Chen, S. Beyond OLED: Efficient Quantum Dot Light-Emitting Diodes for Display and Lighting Application. Chem. Rec. 2019, 19, 1–25. [Google Scholar] [CrossRef] [PubMed]
  4. Zhang, X.; Li, P.; Zou, X.; Jiang, J.; Yuen, S.H.; Tang, C.W.; Lau, K.M. Active Matrix Monolithic LED Micro-Display Using GaN-on-Si Epilayers. IEEE Photonics Technol. Lett. 2019, 31, 865–868. [Google Scholar] [CrossRef]
  5. Liu, Z.J.; Chong, W.C.; Wong, K.M.; Lau, K.M. 360 PPI Flip-Chip Mounted Active Matrix Addressable Light Emitting Diode on Silicon (LEDoS) Micro-Displays. J. Disp. Technol. 2013, 9, 678–682. [Google Scholar] [CrossRef]
  6. Ding, K.; Avrutin, V.; Izyumskaya, N.; Özgür, Ü.; Morkoç, H. Micro-LEDs, a Manufacturability Perspective. Appl. Sci. 2019, 9, 1206. [Google Scholar] [CrossRef]
  7. Zhang, L.; Ou, F.; Chong, W.C.; Chen, Y.; Li, Q. Wafer-scale monolithic hybrid integration of Si-based IC and III-V epi-layers-A mass manufacturable approach for active matrix μLED micro-displays. J. Soc. Inf. Disp. 2018, 26, 137–145. [Google Scholar] [CrossRef]
  8. Cok, R.S.; Meitl, M.; Rotzoll, R.; Melnik, G.; Fecioru, A.; Trindade, A.J.; Raymond, B.; Bonafede, S.; Gomez, D.; Moore, T. Inorganic light-emitting diode displays using micro-transfer printing. J. Soc. Inf. Disp. 2017, 25, 589–609. [Google Scholar] [CrossRef]
  9. Corbett, B.; Loi, R.; Zhou, W.; Liu, D.; Ma, Z. Transfer print techniques for heterogeneous integration of photonic components. Prog. Quantum Electron. 2017, 52, 1–17. [Google Scholar] [CrossRef]
  10. Chen, K.J.; Chen, H.C.; Tsai, K.A.; Lin, C.C.; Tsai, H.H.; Chien, S.H.; Cheng, B.S.; Hsu, Y.J.; Shih, M.H.; Tsai, C.H. Resonant-Enhanced Full-Color Emission of Quantum-Dot-Based Display Technology Using a Pulsed Spray Method. Adv. Funct. Mater. 2012, 22, 5138–5143. [Google Scholar] [CrossRef]
  11. Chen, S.W.H.; Shen, C.C.; Wu, T.; Liao, Z.Y.; Chen, L.F.; Zhou, J.R.; Lee, C.F.; Lin, C.H.; Lin, C.C.; Sher, C.W. Full-color monolithic hybrid quantum dot nanoring micro light-emitting diodes with improved efficiency using atomic layer deposition and nonradiative resonant energy transfer. Photonics Res. 2019, 7, 416–422. [Google Scholar] [CrossRef]
  12. Teng, C.H.; Zhang, L.; Deng, H.; Ku, P.C. Strain-induced red-green-blue wavelength tuning in InGaN quantum wells. Appl. Phys. Lett. 2016, 108, 071104. [Google Scholar] [CrossRef]
  13. Chung, K.; Sui, J.; Demory, B.; Ku, P.C. Color mixing from monolithically integrated InGaN-based light-emitting diodes by local strain engineering. Appl. Phys. Lett. 2017, 111, 041101. [Google Scholar] [CrossRef]
  14. Wang, R.; Nguyen, H.P.; Connie, A.T.; Lee, J.; Shih, I.; Mi, Z. Color-tunable, phosphor-free InGaN nanowire light-emitting diode arrays monolithically integrated on silicon. Opt. Express 2014, 22, A1768–A1775. [Google Scholar] [CrossRef] [PubMed]
  15. Sekiguchi, H.; Kishino, K.; Kikuchi, A. Emission color control from blue to red with nanocolumn diameter of InGaN/GaN nanocolumn arrays grown on same substrate. Appl. Phys. Lett. 2010, 96, 231104. [Google Scholar] [CrossRef]
  16. Ra, Y.H.; Wang, R.; Woo, S.Y.; Djavid, M.; Sadaf, S.M.; Lee, J.; Botton, G.A.; Mi, Z. Full-Color Single Nanowire Pixels for Projection Displays. Nano Lett. 2016, 16, 4608–4615. [Google Scholar] [CrossRef] [PubMed]
  17. Philip, M.R.; Choudhary, D.D.; Djavid, M.; Bhuyian, M.N.; Piao, J.; Pham, T.T.; Misra, D.; Nguyen, H.P.T. Controlling color emission of InGaN/AlGaN nanowire light-emitting diodes grown by molecular beam epitaxy. J. Vac. Sci. Technol. B 2017, 35, 02B108. [Google Scholar] [CrossRef]
  18. Arnaudov, B.; Paskova, T.; Paskov, P.P.; Magnusson, B.; Valcheva, E.; Monemar, B.; Lu, H.; Schaff, W.J.; Amano, H.; Akasaki, I. Energy position of near-band-edge emission spectra of InN epitaxial layers with different doping levels. Phys. Rev. B 2004, 69, 115216. [Google Scholar] [CrossRef]
  19. Kim, M.H.; Schubert, M.F.; Dai, Q.; Kim, J.K.; Schubert, E.F.; Piprek, J.; Park, Y. Origin of efficiency droop in GaN-based light-emitting diodes. Appl. Phys. Lett. 2007, 91, 183507. [Google Scholar] [CrossRef]
  20. Schubert, M.F.; Xu, J.; Kim, J.K.; Schubert, E.F.; Kim, M.H.; Yoon, S.; Lee, S.M.; Sone, C.; Sakong, T.; Park, Y. Polarization-matched GaInN/AlGaInN multi-quantum-well light-emitting diodes with reduced efficiency droop. Appl. Phys. Lett. 2008, 93, 041102. [Google Scholar] [CrossRef]
  21. Shen, Y.C.; Mueller, G.O.; Watanabe, S.; Gardner, N.F.; Munkholm, A.; Krames, M.R. Auger recombination in InGaN measured by photoluminescence. Appl. Phys. Lett. 2007, 91, 141101. [Google Scholar] [CrossRef]
  22. Zhang, M.; Bhattacharya, P.; Singh, J.; Hinckley, J. Direct measurement of auger recombination in In0.1Ga0.9N/GaN quantum wells and its impact on the efficiency of In0.1Ga0.9N/GaN multiple quantum well light emitting diodes. Appl. Phys. Lett. 2009, 95, 201108. [Google Scholar] [CrossRef]
  23. Xie, J.Q.; Ni, X.F.; Fan, Q.; Shimada, R.; Ozgur, U.; Morkoc, H. On the efficiency droop in InGaN multiple quantum well blue light emitting diodes and its reduction with p-doped quantum well barriers. Appl. Phys. Lett. 2008, 93, 121107. [Google Scholar] [CrossRef]
  24. Monemar, B.; Sernelius, B.E. Defect related issues in the “current roll-off” in InGaN based light emitting diodes. Appl. Phys. Lett. 2007, 91, 181103. [Google Scholar] [CrossRef]
  25. Yang, Y.; Cao, X.A.; Yan, C.H. Investigation of the nonthermal mechanism of efficiency rolloff in InGaN light-emitting diodes. IEEE Trans. Electron Devices 2008, 55, 1771–1775. [Google Scholar] [CrossRef]
  26. Ozgur, U.; Ni, X.; Li, X.; Lee, J.; Liu, S.; Okur, S.; Avrutin, V.; Matulionis, A.; Morkoc, H. Ballistic transport in InGaN-based LEDs: Impact on efficiency. Semicond. Sci. Tech. 2011, 26, 014022. [Google Scholar] [CrossRef]
  27. Ni, X.; Li, X.; Lee, J.; Liu, S.; Avrutin, V.; Ozgur, U.; Morkoc, H.; Matulionis, A.; Paskova, T.; Mulholland, G. InGaN staircase electron injector for reduction of electron overflow in InGaN light emitting diodes. Appl. Phys. Lett. 2010, 97, 031110. [Google Scholar] [CrossRef]
  28. Vampola, K.J.; Iza, M.; Keller, S.; DenBaars, S.P.; Nakamura, S. Measurement of electron overflow in 450 nm InGaN light-emitting diode structures. Appl. Phys. Lett. 2009, 94, 061116. [Google Scholar] [CrossRef]
  29. Gong, Z.; Jin, S.; Chen, Y.; McKendry, J.; Massoubre, D.; Watson, I.M.; Gu, E.; Dawson, M.D. Size-dependent light output, spectral shift, and self-heating of 400 nm InGaN light-emitting diodes. J. Appl. Phys. 2010, 107, 013103. [Google Scholar] [CrossRef]
  30. Kim, T.; Jung, Y.H.; Song, J.; Kim, D.; Li, Y.; Kim, H.S.; Song, I.S.; Wierer, J.J.; Pao, H.A.; Huang, Y. High-Efficiency, Microscale GaN Light-Emitting Diodes and Their Thermal Properties on Unusual Substrates. Small 2012, 8, 1643–1649. [Google Scholar] [CrossRef]
  31. Meyaard, D.S.; Shan, Q.; Cho, J.; Schubert, E.F.; Han, S.H.; Kim, M.H.; Sone, C.; Oh, S.J.; Kim, J.K. Temperature dependent efficiency droop in GaInN light-emitting diodes with different current densities. Appl. Phys. Lett. 2012, 100, 081106. [Google Scholar] [CrossRef]
  32. Zhao, C.; Ng, T.K.; ElAfandy, R.T.; Prabaswara, A.; Consiglio, G.B.; Ajia, I.A.; Roqan, I.S.; Janjua, B.; Shen, C.; Eid, J.; et al. Droop-Free, Reliable, and High-Power InGaN/GaN Nanowire Light-Emitting Diodes for Monolithic Metal-Optoelectronics. Nano Lett. 2016, 16, 4616–4623. [Google Scholar] [CrossRef] [PubMed]
  33. Nguyen, H.P.T.; Djavid, M.; Woo, S.Y.; Liu, X.; Connie, A.T.; Sadaf, S.; Wang, Q.; Botton, G.A.; Shih, I.; Mi, Z. Engineering the Carrier Dynamics of InGaN Nanowire White Light-Emitting Diodes by Distributed p-AlGaN Electron Blocking Layers. Sci. Rep. 2015, 5, 7744. [Google Scholar] [CrossRef] [PubMed]
  34. Tchernycheva, M.; Neplokh, V.; Zhang, H.; Lavenus, P.; Rigutti, L.; Bayle, F.; Julien, F.H.; Babichev, A.; Jacopin, G.; Largeau, L. Core-shell InGaN/GaN nanowire light emitting diodes analyzed by electron beam induced current microscopy and cathodoluminescence mapping. Nanoscale 2015, 7, 11692–11701. [Google Scholar] [CrossRef] [PubMed]
  35. Nguyen, H.P.T.; Djavid, M.; Woo, S.Y.; Liu, X.; Wang, Q.; Botton, G.A.; Mi, Z. High-power phosphor-free InGaN/AlGaN dot-in-a-wire core-shell white light-emitting diodes. In Proceedings of the SPIE Light-Emitting Diodes: Materials, Devices, and Applications for Solid State Lighting XIX, San Francisco, CA, USA, 9 March 2015. [Google Scholar]
  36. Mi, Z.; Nguyen, H.; Djavid, M.; Zhang, S.; Connie, A.; Sadaf, S.; Wang, Q.; Zhao, S.; Shih, I. High Power phosphor-free InGaNGaNAlGaN core-shell nanowire white light emitting diodes on Si substrates. ECS Trans. 2014, 61, 9–15. [Google Scholar] [CrossRef]
  37. Philip, M.R.; Choudhary, D.D.; Djavid, M.; Le, K.Q.; Piao, J.; Nguyen, H.P.T. High efficiency green/yellow and red InGaN/AlGaN nanowire light-emitting diodes grown by molecular beam epitaxy. J. Sci. Adv. Mater. Devices 2017, 2, 150–155. [Google Scholar] [CrossRef]
  38. Philip, M.R.; Bui, T.H.Q.; Djavid, D.D.C.M.; Phuoc, V.; Pham, T.T.; Nguyen, H.P.T. Molecular Beam Epitaxial Growth and Device Characterization of AlGaN UV-B Nanowire Light-Emitting Diodes. J. Adv. Opt. Photonics 2018, 1, 3–11. [Google Scholar]
  39. Nguyen, H.P.T.; Cui, K.; Zhang, S.; Djavid, M.; Korinek, A.; Botton, G.A.; Mi, Z. Controlling Electron Overflow in Phosphor-Free InGaN/GaN Nanowire White Light-Emitting Diodes. Nano Lett. 2012, 12, 1317–1323. [Google Scholar] [CrossRef] [PubMed]
  40. Nguyen, H.P.T.; Djavid, M.; Mi, Z. Nonradiative Recombination Mechanism in Phosphor-Free GaN-Based Nanowire White Light Emitting Diodes and the effect of Ammonium Sulfide Surface Passivation. ECS Trans. 2013, 53, 93–100. [Google Scholar] [CrossRef]
  41. Nguyen, H.P.T.; Zhang, S.; Connie, A.T.; Kibria, M.G.; Wang, Q.; Shih, I.; Mi, Z. Breaking the Carrier Injection Bottleneck of Phosphor-Free Nanowire White Light-Emitting Diodes. Nano Lett. 2013, 13, 5437–5442. [Google Scholar] [CrossRef] [PubMed]
  42. Schubert, E.F. Light-Emitting Diodes, 2nd ed.; Cambridge University Press: New York, NY, USA, 2006; pp. 61–63. [Google Scholar]
  43. Hwang, J.I.; Hashimoto, R.; Saito, S.; Nunoue, S. Development of InGaN-based red LED grown on (0001) polar surface. Appl. Phys. Express 2014, 7, 071003. [Google Scholar] [CrossRef]
  44. Piprek, J. Efficiency droop in nitride-based light-emitting diodes. Phys. Status Solidi 2010, 207, 2217–2225. [Google Scholar] [CrossRef]
  45. Wang, X.F.; Yang, Q.; Wang, G.G.; Wang, X.Z.; Han, J.C. A new single-component KCaY(PO4)2: Dy3+, Eu3+ nanosized phosphor with high color-rendering index and excellent thermal resistance for warm-white NUV-LED. RSC Adv. 2016, 6, 96263–96274. [Google Scholar] [CrossRef]
  46. Kuo, T.W.; Liu, W.R.; Chen, T.M. High color rendering white light-emitting-diode illuminator using the red-emitting Eu2+-activated CaZnOS phosphors excited by blue LED. Opt. Express 2010, 18, 8187–8192. [Google Scholar] [CrossRef] [PubMed]
  47. Quoc Anh, N.D.; Lee, H.Y.; Thanh Phuong, T.; Khanh Nhan, N.H.; Quang Minh, T.H.; Huu Ly, T. Y2O3:Eu3+ phosphor: A novel solution for an increase in color rendering index of multi-chip white LED packages. J. Chin. Inst. Eng. 2017, 40, 228–234. [Google Scholar] [CrossRef]
  48. Nizamoglu, Z.; Demir, G. Color-converting combinations of nanocrystal emitters for warm-white light generation with high color rendering index. Appl. Phys. Lett. 2008, 92, 031102. [Google Scholar] [CrossRef]
  49. Chen, L.Y.; Chang, J.K.; Cheng, W.C.; Huang, J.C.; Huang, Y.C.; Cheng, W.H. Chromaticity tailorable glass-based phosphor-converted white light-emitting diodes with high color rendering index. Opt. Express 2015, 23, A1024–A1029. [Google Scholar] [CrossRef]
  50. Huang, C.H.; Chen, T.M. Novel yellow-emitting Sr8MgLn(PO4)7: Eu2+ (Ln = Y, La) phosphors for applications in white LEDs with excellent color rendering index. Inorg. Chem. 2011, 50, 5725–5730. [Google Scholar] [CrossRef]
  51. Alvi, N.H.; Ali, S.U.; Hussain, S.; Nur, O.; Willander, M. Fabrication and comparative optical characterization of n-ZnO nanostructures (nanowalls, nanorods, nanoflowers and nanotubes)/p-GaN white-light-emitting diodes. Scr. Mater. 2011, 64, 697–700. [Google Scholar] [CrossRef]
  52. Fang, M.H.; Ni, C.; Zhang, X.; Tsai, Y.T.; Mahlik, S.; Lazarowska, A.; Grinberg, M.; Sheu, H.S.; Lee, J.F.; Cheng, B.M.; et al. Enhance Color Rendering Index via Full Spectrum Employing the Important Key of Cyan Phosphor. ACS Appl. Mater. Interfaces 2016, 8, 30677–30682. [Google Scholar] [CrossRef]
  53. Wang, Z.; Yuan, F.; Li, X.; Li, Y.; Zhong, H.; Fan, L.; Yang, S. 53% Efficient Red Emissive Carbon Quantum Dots for High Color Rendering and Stable Warm White-Light-Emitting Diodes. Adv. Mater. 2017, 29, 1702910. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Schematic structure of a nanowire micro light-emitting diodes (μLED) with ten InGaN/AlGaN quantum well heterostructures (a); the 45° tilted SEM image of InGaN/AlGaN nanowires on Si substrate (b); and optical image of μLEDs and the electrode pads (c).
Figure 1. Schematic structure of a nanowire micro light-emitting diodes (μLED) with ten InGaN/AlGaN quantum well heterostructures (a); the 45° tilted SEM image of InGaN/AlGaN nanowires on Si substrate (b); and optical image of μLEDs and the electrode pads (c).
Micromachines 10 00492 g001
Figure 2. Photoluminescence spectra of the red, green, and blue (RGB) InGaN/AlGaN nanowire µLEDs measured at room temperature.
Figure 2. Photoluminescence spectra of the red, green, and blue (RGB) InGaN/AlGaN nanowire µLEDs measured at room temperature.
Micromachines 10 00492 g002

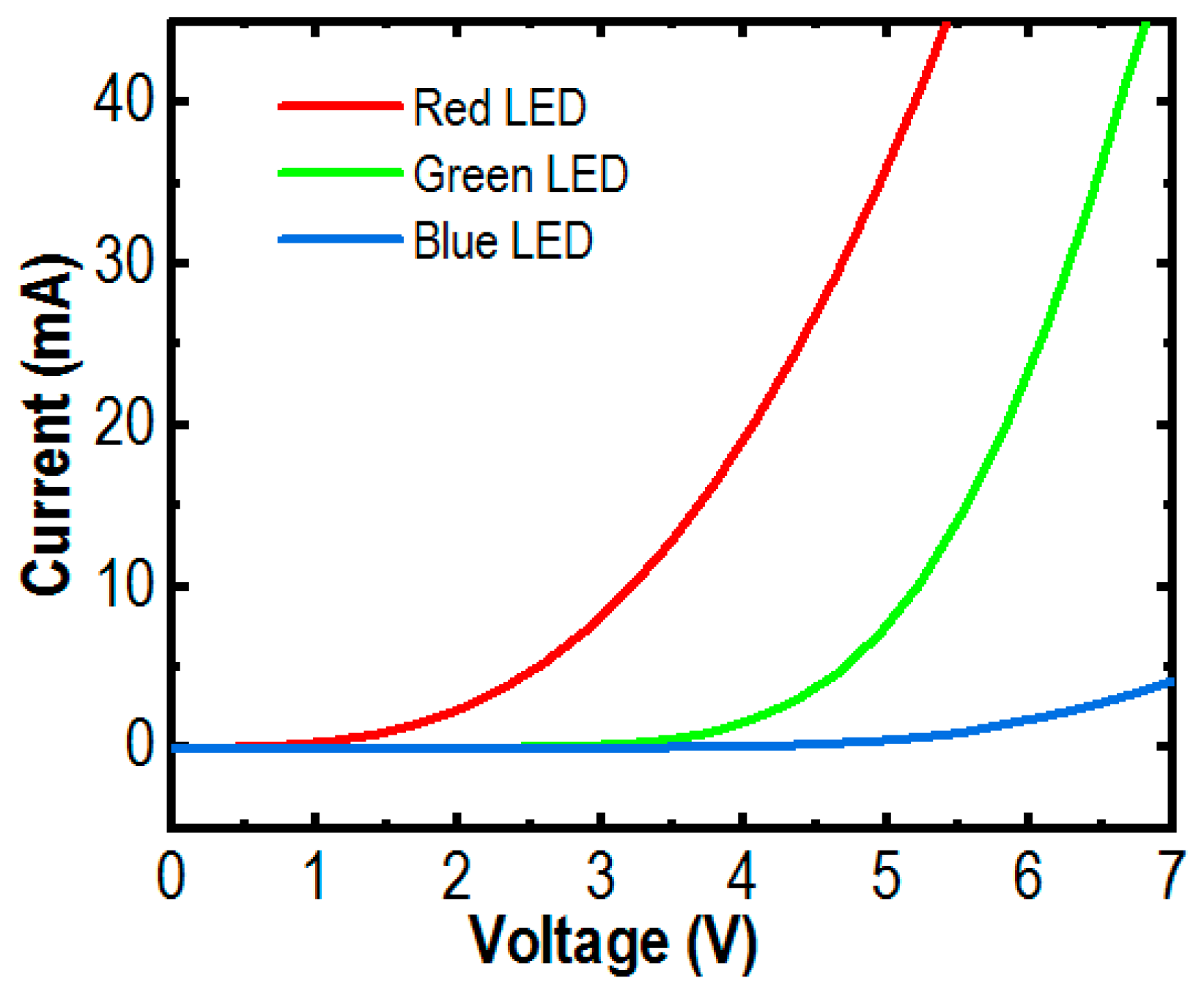

Figure 3. I-V characteristics of the RGB μLEDs are illustrated.
Figure 3. I-V characteristics of the RGB μLEDs are illustrated.
Micromachines 10 00492 g003

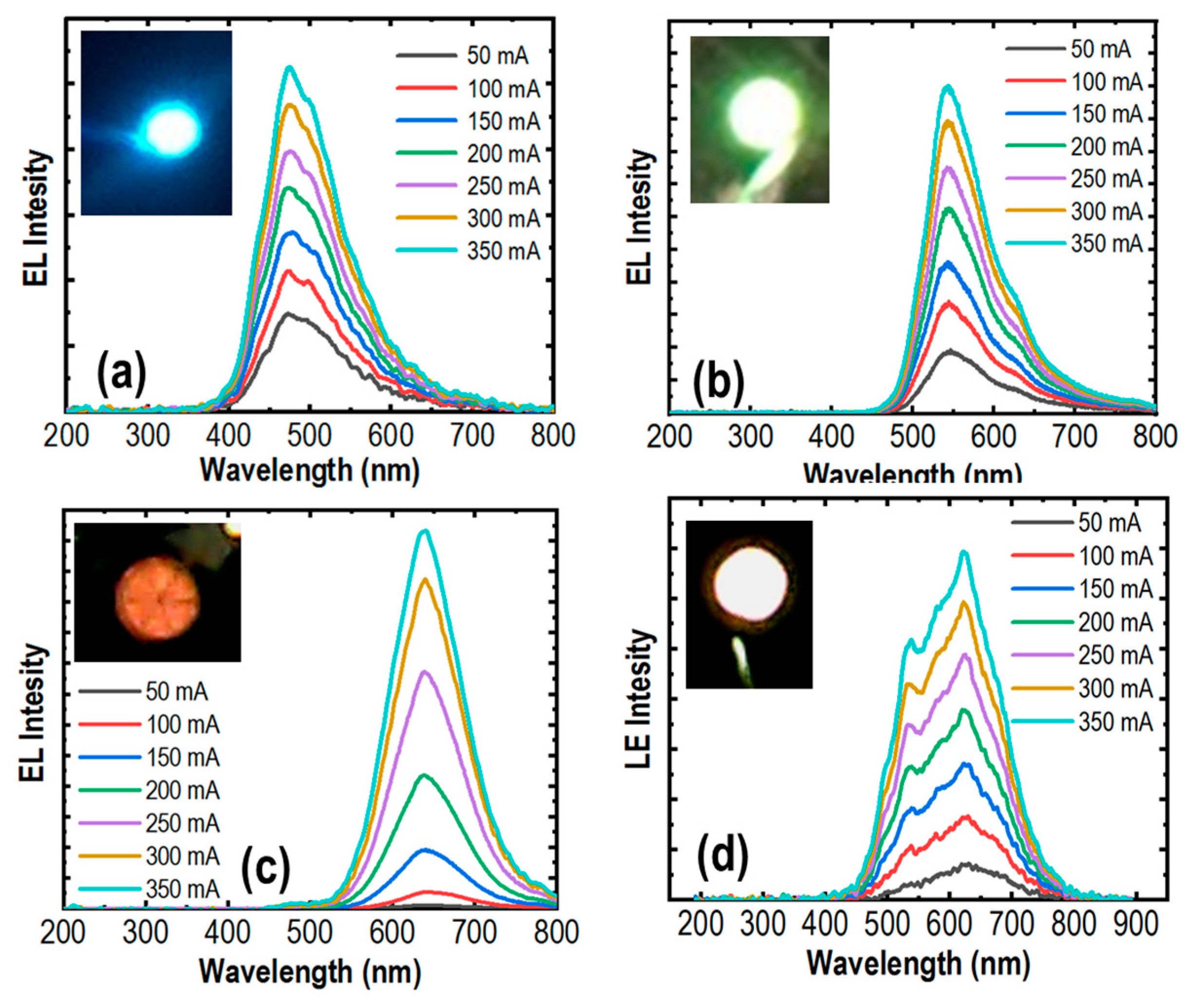

Figure 4. The electroluminescence characteristics of the fabricated blue μLED (a), green μLED (b), red μLED (c), and the white μLED (d). The corresponding optical images of these μLEDs are presented in the insets.
Figure 4. The electroluminescence characteristics of the fabricated blue μLED (a), green μLED (b), red μLED (c), and the white μLED (d). The corresponding optical images of these μLEDs are presented in the insets.
Micromachines 10 00492 g004

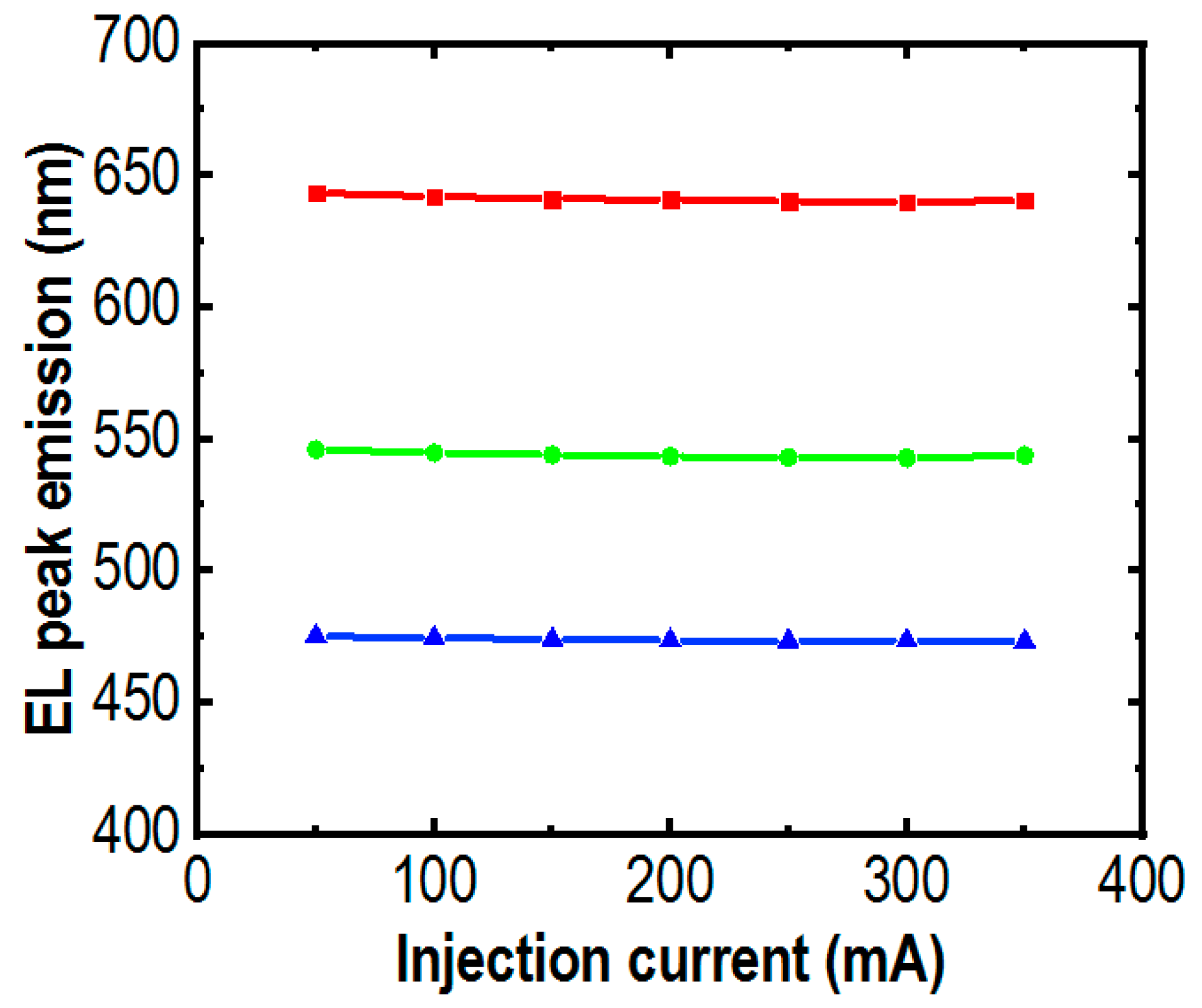

Figure 5. The peak emissions of red, green and blue μLEDs measured under different injection currents from 50 mA to 350 mA.
Figure 5. The peak emissions of red, green and blue μLEDs measured under different injection currents from 50 mA to 350 mA.
Micromachines 10 00492 g005

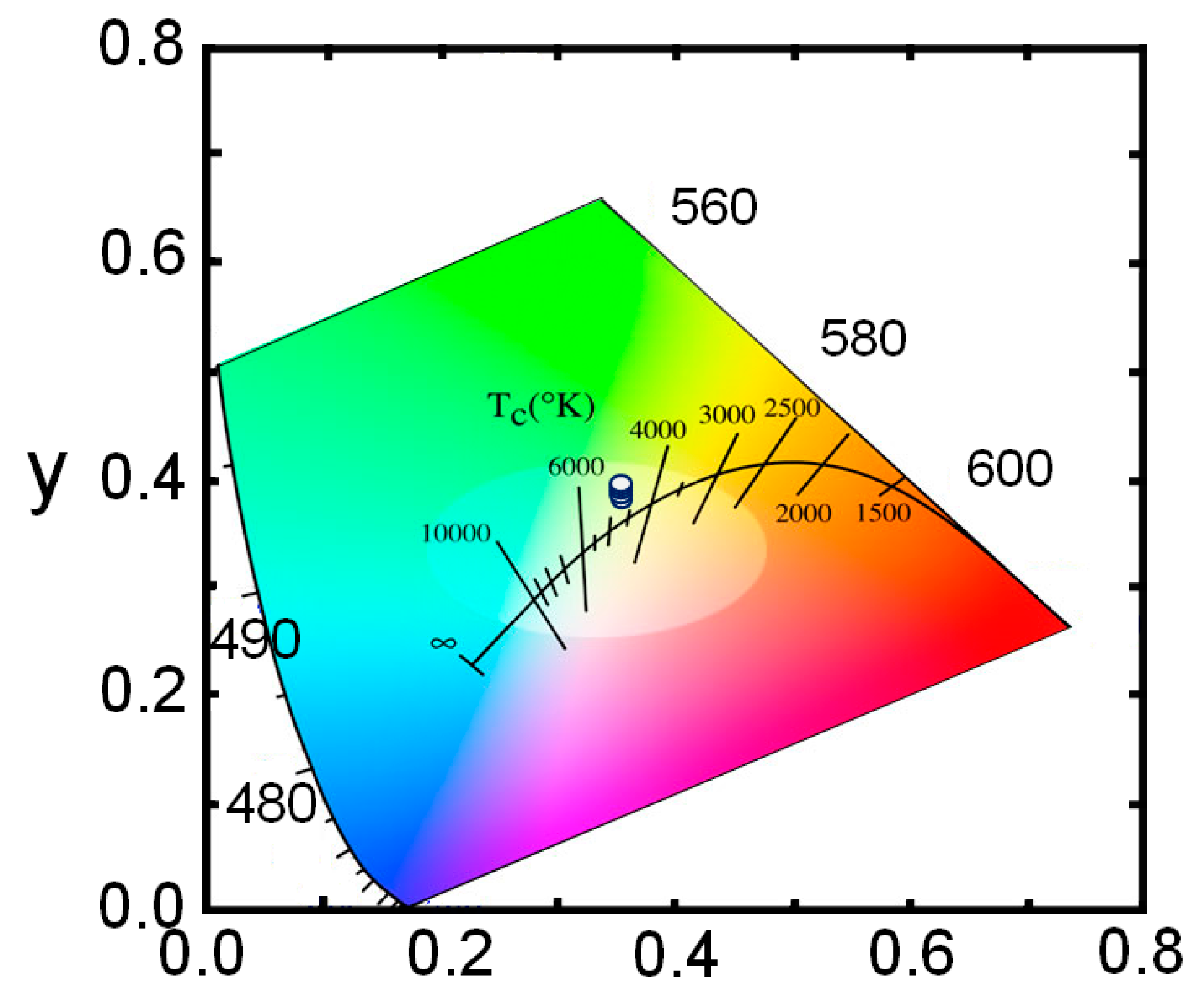

Figure 6. The 1931 Commission International l’Eclairage chromaticity diagram presents stable white light emission characteristics of the phosphor-free white-color InGaN/AlGaN nanowire μLED.
