Next Article in Journal
Graphene Oxide Decorated Nanometal-Poly(Anilino-Dodecylbenzene Sulfonic Acid) for Application in High Performance Supercapacitors
Next Article in Special Issue
Editorial for the Special Issue on Small-Scale Deformation using Advanced Nanoindentation Techniques
Previous Article in Journal
Self-Healing Flexible Conductive Film by Repairing Defects via Flowable Liquid Metal Droplets
Previous Article in Special Issue
In Situ Mechanical Characterization of the Mixed-Mode Fracture Strength of the Cu/Si Interface for TSV Structures
Article Menu
Issue 2 (February) cover image

Export Article

Open AccessCommunication

The Impact of Hydrogen on Mechanical Properties; A New In Situ Nanoindentation Testing Method

Department of Materials Science and Methods, Saarland University, Bldg. D2.2, 66123 Saarbrücken, Germany
Mines Saint-Etienne, Univ Lyon, CNRS, UMR 5307LGF, Centre SMS, F-42023 Saint-Etienne France
Author to whom correspondence should be addressed.
Micromachines 2019, 10(2), 114;
Received: 13 January 2019 / Revised: 4 February 2019 / Accepted: 6 February 2019 / Published: 11 February 2019
(This article belongs to the Special Issue Small Scale Deformation using Advanced Nanoindentation Techniques)
PDF [1304 KB, uploaded 23 February 2019]

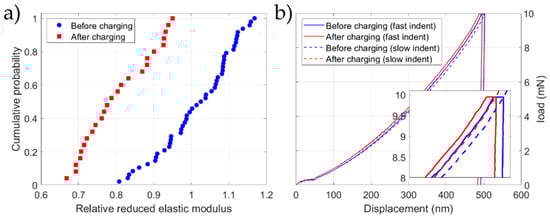

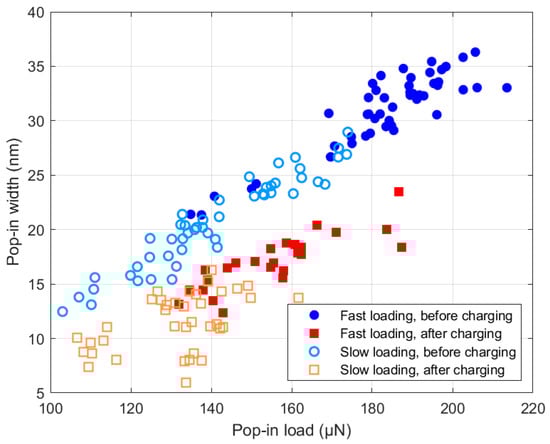

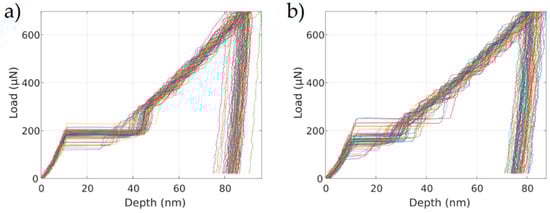

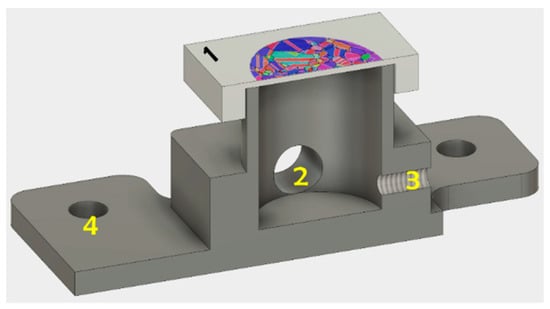

We have designed a new method for electrochemical hydrogen charging which allows us to charge very thin coarse-grained specimens from the bottom and perform nanomechanical testing on the top. As the average grain diameter is larger than the thickness of the sample, this setup allows us to efficiently evaluate the mechanical properties of multiple single crystals with similar electrochemical conditions. Another important advantage is that the top surface is not affected by corrosion by the electrolyte. The nanoindentation results show that hydrogen reduces the activation energy for homogenous dislocation nucleation by approximately 15–20% in a (001) grain. The elastic modulus also was observed to be reduced by the same amount. The hardness increased by approximately 4%, as determined by load-displacement curves and residual imprint analysis. View Full-Text
Keywords: nickel; nanoindentation; hardness; brittleness and ductility; hydrogen embrittlement nickel; nanoindentation; hardness; brittleness and ductility; hydrogen embrittlement

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
Printed Edition Available!
A printed edition of this Special Issue is available here.

Share & Cite This Article

MDPI and ACS Style

Müller, C.; Zamanzade, M.; Motz, C. The Impact of Hydrogen on Mechanical Properties; A New In Situ Nanoindentation Testing Method. Micromachines 2019, 10, 114.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Micromachines EISSN 2072-666X Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
