Experimental Study on Three-Dimensional Microstructure Copper Electroforming Based on 3D Printing Technology

1
School of Mechanical Engineering, Nantong University, Nantong 226019, China
2
Shazhou Professional Institute of Technology, Zhangjiagang 215600, China
*
Author to whom correspondence should be addressed.
Micromachines 2019, 10(12), 887; https://doi.org/10.3390/mi10120887
Received: 23 October 2019 / Revised: 11 December 2019 / Accepted: 16 December 2019 / Published: 17 December 2019
(This article belongs to the Section D:Materials and Processing)

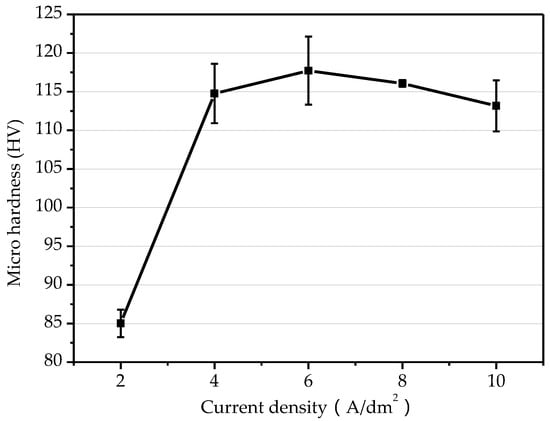

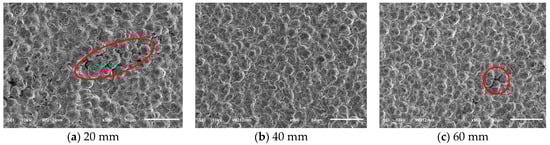

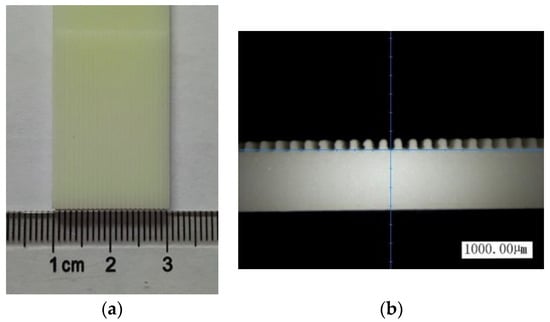

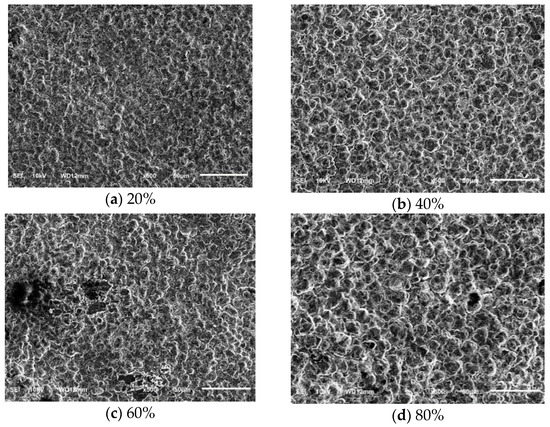

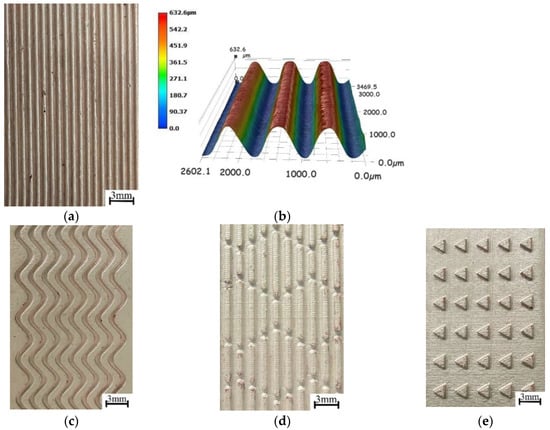

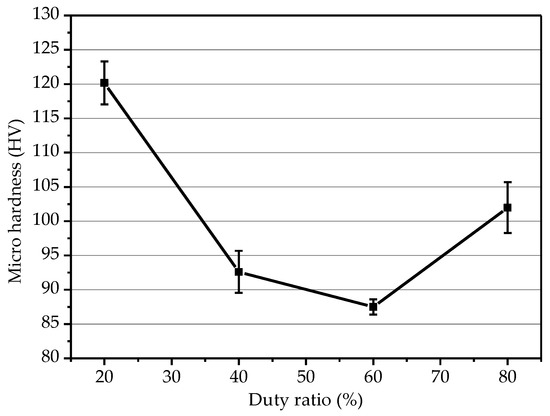

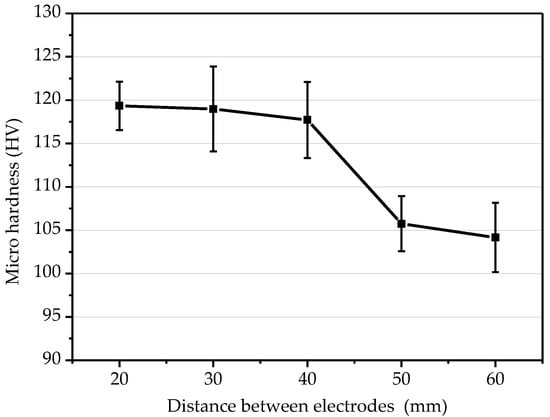

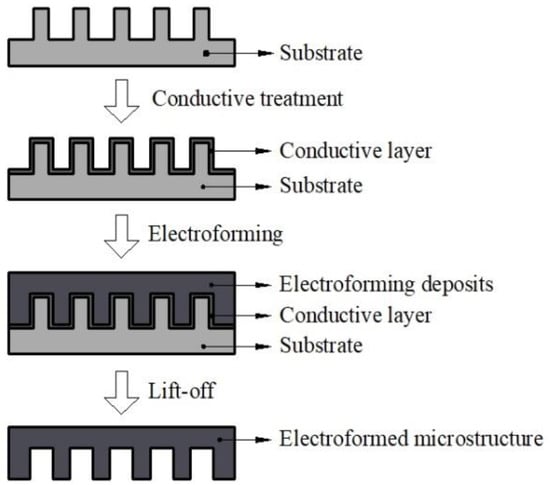

In order to fabricate three-dimensional metal microstructures, a combined machining process based on 3D printing technology and electroforming technology is proposed. Firstly, a substrate with microstructures is fabricated by 3D printing technology, and then the microstructures were fabricated by electroforming technology. The influence of process parameters such as current density, distance between electrodes and pulse current duty cycle on the electroformed layer were studied and analyzed. It was determined that the peak current density 6A/dm2, the void ratio 20%, and the distance between electrodes 40 mm were the optimum process conditions of electroforming experiment. The electroforming experiments of different microstructures were carried out with the optimum process parameters. View Full-Text
Keywords: three-dimensional microstructure; electroforming; 3D printing; process parameters three-dimensional microstructure; electroforming; 3D printing; process parameters
Show Figures

Figure 1

MDPI and ACS Style

Wu, Y.; Qian, S.; Zhang, H.; Zhang, Y.; Cao, H.; Huang, M. Experimental Study on Three-Dimensional Microstructure Copper Electroforming Based on 3D Printing Technology. Micromachines 2019, 10, 887.
