Micromachines 2019, 10(1), 59; https://doi.org/10.3390/mi10010059

A Compact Broadband Antenna with Dual-Resonance for Implantable Devices

College of Electronic Engineering, Chengdu University of Information Technology, Chengdu 610225, China
*
Author to whom correspondence should be addressed.
Received: 12 November 2018 / Revised: 13 January 2019 / Accepted: 14 January 2019 / Published: 16 January 2019
(This article belongs to the Special Issue Implantable Microdevices)
Full-Text   |   PDF [2831 KB, uploaded 16 January 2019]   |

Abstract

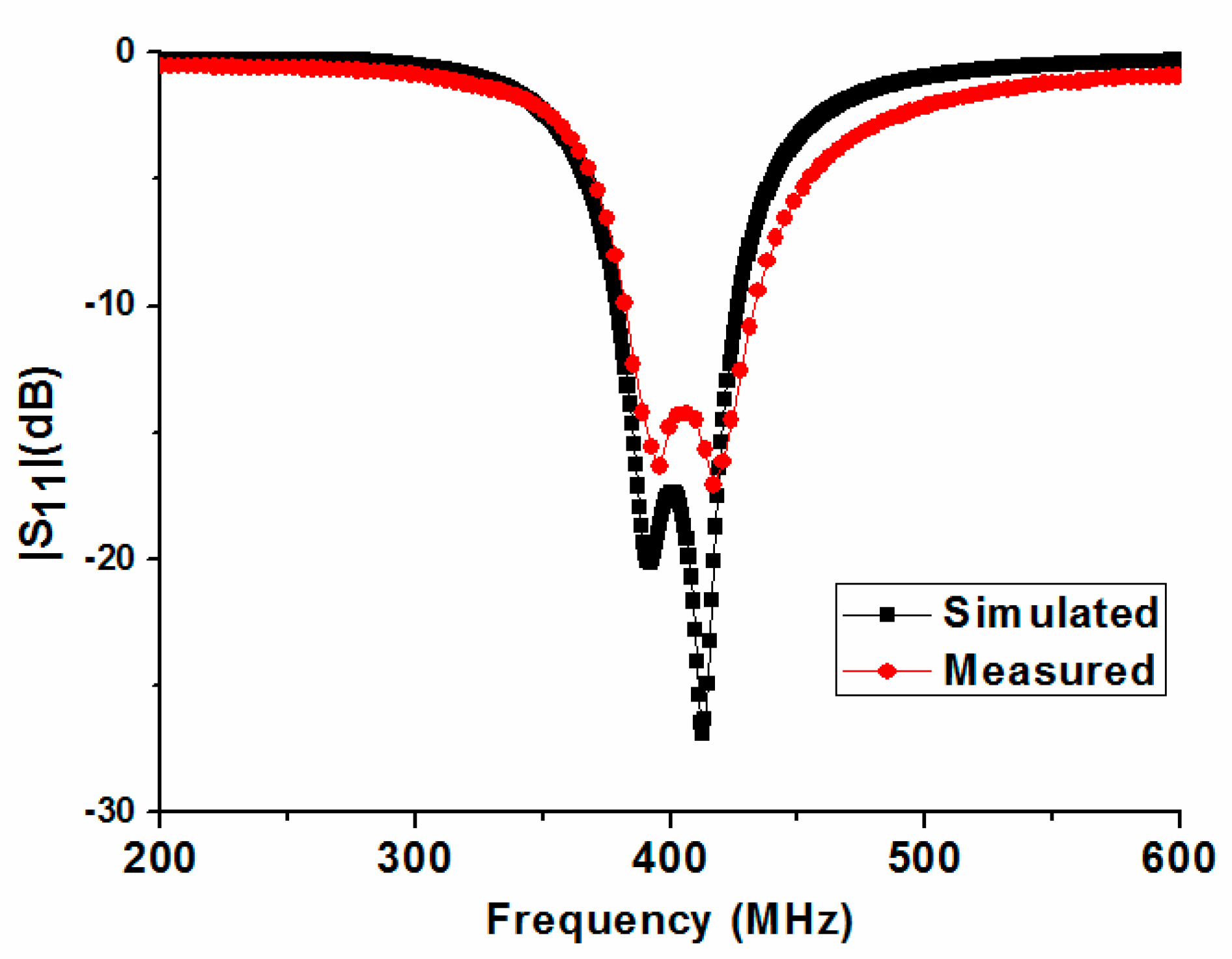

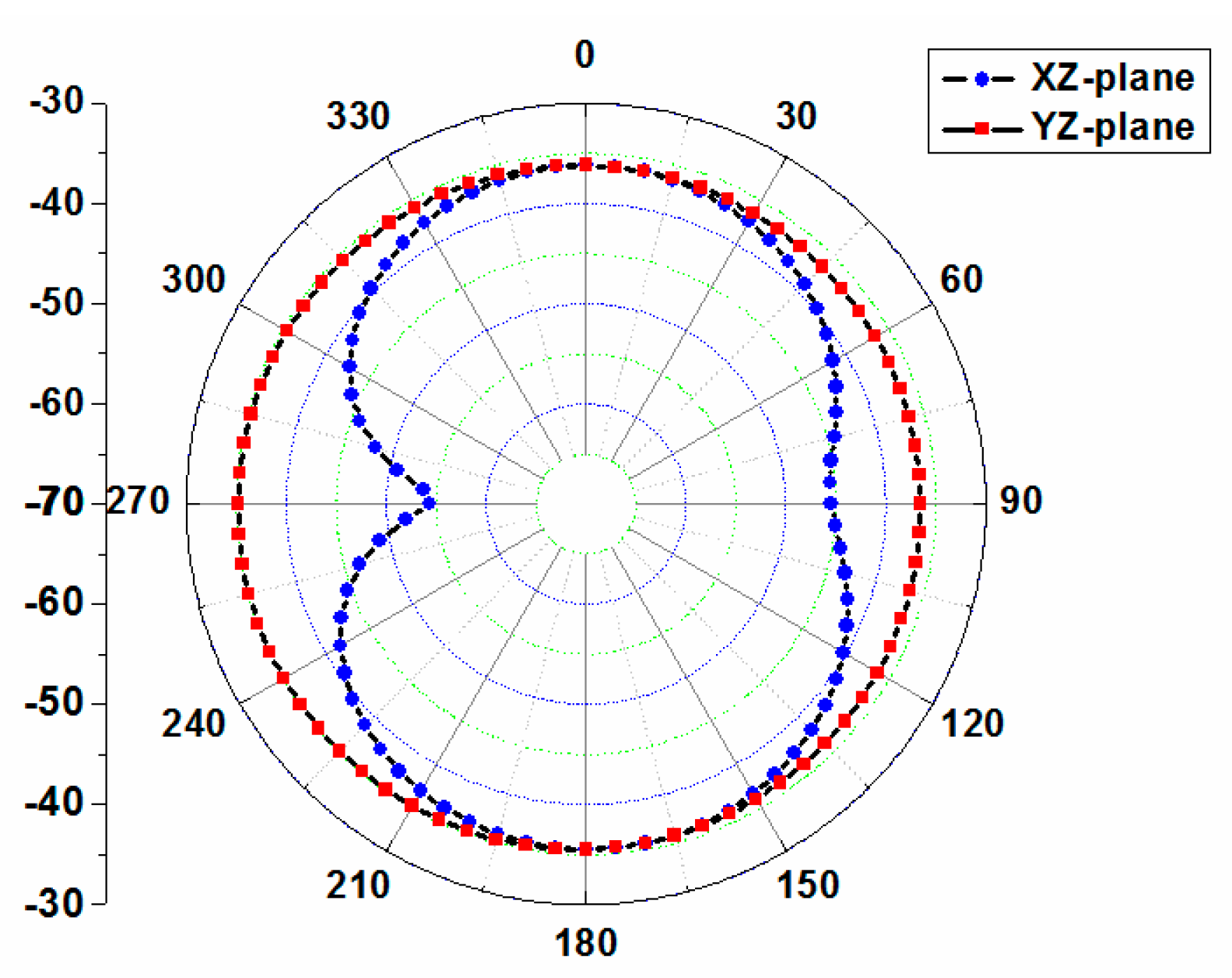

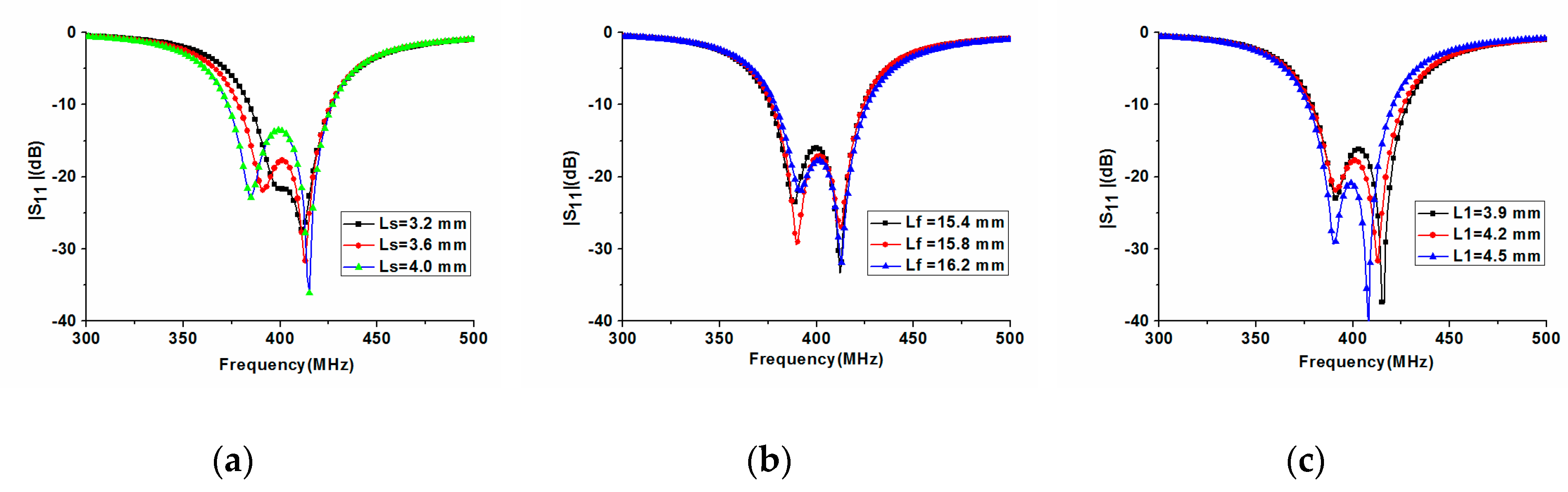

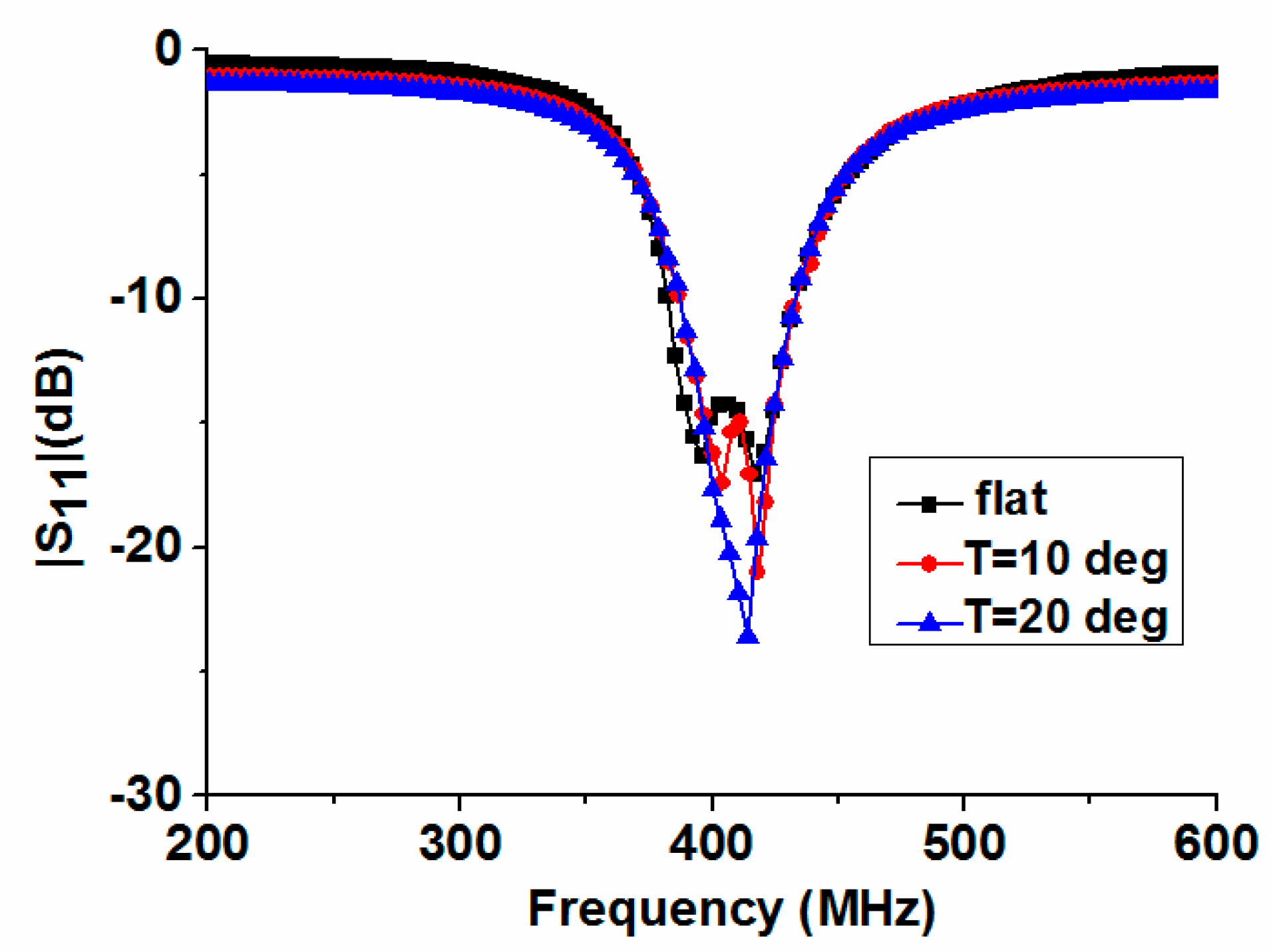

A compact broadband implantable patch antenna is designed for the field of biotelemetry and experimentally demonstrated using the Medical Device Radiocommunications Service (MedRadio) band (401–406 MHz). The proposed antenna can obtain a broad impedance bandwidth by exciting dual-resonant frequencies, and has a compact structure using bent metal radiating strips and a short strategy. The total volume of the proposed antenna, including substrate and superstrate, is about 479 mm3 (23 × 16.4 × 1.27 mm3). The measured bandwidth is 52 MHz (382–434 MHz) at a return loss of −10 dB. The resonance, radiation and specific absorption rate (SAR) performance of the antenna are examined and characterized. View Full-Text
Keywords: implantable antenna; patch antenna; biotelemetry; specific absorption rate (SAR); Medical Device Radiocommunications Service (MedRadio) band implantable antenna; patch antenna; biotelemetry; specific absorption rate (SAR); Medical Device Radiocommunications Service (MedRadio) band
Figures

Figure 1
