Toxins 2019, 11(3), 179; https://doi.org/10.3390/toxins11030179

Article
The Development of a qPCR Assay to Measure Aspergillus flavus Biomass in Maize and the Use of a Biocontrol Strategy to Limit Aflatoxin Production
1
Plant Stress Laboratory 204/207, Department of Molecular and Cell Biology, MCB Building, Upper Campus, University of Cape Town, Private bag X3, Rondebosch, Cape Town 7701, South Africa
2
Department of Botany, School of Biological Sciences, University of Nairobi, P.O. Box 30197, Nairobi 00100, Kenya
*
Authors to whom correspondence should be addressed.
Received: 9 February 2019 / Accepted: 18 March 2019 / Published: 25 March 2019

Abstract

:
Aspergillus flavus colonisation of maize can produce mycotoxins that are detrimental to both human and animal health. Screening of maize lines, resistant to A. flavus infection, together with a biocontrol strategy, could help minimize subsequent aflatoxin contamination. We developed a qPCR assay to measure A. flavus biomass and showed that two African maize lines, GAF4 and KDV1, had different fungal loads for the aflatoxigenic isolate (KSM014), fourteen days after infection. The qPCR assay revealed no significant variation in A. flavus biomass between diseased and non-diseased maize tissues for GAF4, while KDV1 had a significantly higher A. flavus biomass (p < 0.05) in infected shoots and roots compared to the control. The biocontrol strategy using an atoxigenic isolate (KSM012) against the toxigenic isolate (KSM014), showed aflatoxin production inhibition at the co-infection ratio, 50:50 for both maize lines (KDV1 > 99.7% and GAF ≥ 69.4%), as confirmed by bioanalytical techniques. As far as we are aware, this is the first report in Kenya where the biomass of A. flavus from maize tissue was detected and quantified using a qPCR assay. Our results suggest that maize lines, which have adequate resistance to A. flavus, together with the appropriate biocontrol strategy, could limit outbreaks of aflatoxicoses.
Keywords:
Aspergillus flavus; aflatoxins; Pathogenesis; qPCR assay; maize lines; fungal biomass
Key Contribution: A qPCR assay revealed no significant variation in A. flavus biomass between diseased and non-diseased maize plant tissues for the resistant GAF4 maize line. The atoxigenic A. flavus isolate KSM012 was successfully used in a biocontrol strategy against the aflatoxigenic isolate; KSM014 where aflatoxin production was inhibited at the co-infection ratio of 50:50 for both maize lines (KDV1 > 99.7% and GAF ≥ 69.4%).

1. Introduction

Aflatoxins are categorised as an important class of mycotoxins that negatively affect human and animal health [1]. They are synthesised by several Aspergillus species; saprophytic fungi, that occurs widely, and grows on living and non-living substrates [2]. As an opportunistic fungal pathogen, Aspergillus flavus is able to infect many food crops, including cereals [3]. In developing countries, human exposure to aflatoxins is difficult to avoid during the various stages of processing and storage along the food chain [4]. Aflatoxin poisoning has also been reported in many parts of the world, in domestic and non-domestic animals, and other non-human primates [5]. Aflatoxins have been particularly problematic in eastern and central parts of Kenya, where there have been multiple outbreaks of aflatoxin poisoning among subsistence maize farmers [6]. Several cases of aflatoxicoses have been reported annually since 1981–2010, following consumption of maize contaminated with A. flavus and aflatoxins [6,7,8,9]. This problem has been particularly acute in Makueni county and the neighbouring region, which reported the highest number of cases and deaths in 2004, 2006, and 2010, due to aflatoxicoses [7,10,11].
The quantification of fungal biomass is critical in understanding the interactions between host plant susceptibility or resistance to a fungal pathogen, as well as identifying the competition between individual fungal species during disease progression [12]. Real time quantitative polymerase chain reaction (RT-qPCR) has been used to detect and quantify the fungal biomass in various plant host tissues [12,13,14]. Sanzani et al. [14] demonstrated that, the high level of sensitivity of qPCR enables the measurement of very low infection titres, which could correspond to the amount of pathogen present at the time of infection or during latent, non-symptomatic infections. Additionally, Miderosetal [15]. Developed and validated two RT-qPCR assays to estimate A flavus biomass in maize tissues using Af2, Zmt3, INCW2-97 and α-tubulin marker genes, and studied the relationship between fungal biomass and aflatoxin accumulation. Mylroie et al. [16] moreover, developed a set of primers, and used RT-qPCR, to identify and quantify toxigenic, and non-toxigenic A. flavus strain’s fungal biomass on contaminated maize.
Biocontrol of toxigenic A. flavus, using atoxigenic strains, is already established with registered atoxigenic strains for the reduction of aflatoxin contamination on cultivated crops available to farmers [17,18,19,20,21]. The atoxigenic A. flavus (AF36) and Afla-Guard successfully suppressed aflatoxin producers on cottonseed in USA [21]. AflasafeTM NG, has been provisionally registered for commercial use on maize in Nigeria [20]. Each atoxigenic strain is in a distinct vegetative compatibility group (VCG) to prevent hyphal anastomosis between the strains and affects aflatoxin levels by competitively excluding aflatoxin producers [17].
The use of atoxigenic A. flavus strains for biocontrol, is directly connected with methods for detecting aflatoxins, as it confirms that the biocontrol agent reduces aflatoxin contamination. The levels of aflatoxin in foods and feeds are strictly regulated [22,23]. This requires rapid, sensitive, quantitative, and relatively easy techniques for aflatoxin detection at various stages in the food chain [24]. Molecular techniques, based on PCR or culture-based methods, are used primarily to differentiate between aflatoxigenic and atoxigenic Aspergillus strains [25,26,27,28]. It must be noted that qPCR has been incorporated into protocols of the European Plant Protection Organization for the production, certification, and assessment of healthy plant materials [29,30]. With respect to bio-analytical techniques for aflatoxin detection, chromatographic methods such as high-pressure liquid chromatography (HPLC) is widely used in aflatoxin detection and is considered the gold standard for aflatoxin detection [24]. Aflatoxins are also detected by a thin layer chromatography (TLC), since most of the compounds fluoresce strongly under long-wavelength UV light [31,32,33]. HPLC, coupled with tandem mass spectrometry (HPLC-MS/MS), has become the method of choice, due to its high sensitivity and selectivity, which allows the determination of multiple mycotoxins in one sample [32,34].
This study investigated whether the respective maize lines KDV1, and GAF4, grown in different regions of Kenya, contribute to increasing or limiting the biomass of KSM014, an aflatoxigenic strain. In this regard we developed and tested a qPCR assay to quantify the amount of A. flavus biomass in infected maize tissues. Furthermore we tested if the atoxigenic A. flavus strain KSM012, (NCBI_accession MG385137) could serve as a biocontrol agent to minimise aflatoxin contamination of maize kernels colonised by the toxigenic A. flavus strain KSM014, (NCBI_accession MG385138). As far as we are aware, this is the first fungal qPCR biomass study on Kenyan A. flavus isolates from infected maize tissue. This approach could be used to discriminate between inbred maize lines, that are sensitive or resistant to specific A. flavus strains, and help understand the mechanism of maize defence response to A. flavus infection.

2. Results

2.1. Colonisation of Plant Yissues by A. flavus

The respective infection of maize lines KDV1 and GAF4 by A. flavus KSM014 resulted in changes in the maize plant phenotype. The infected kernels for both maize lines displayed stunted growth compared to the control kernels 14 days post infection (Figure 1 and Figure 4, Table 1). However, the KDV1 maize line had more severe symptoms when compared to the GAF4 line in terms of stunting of shoot and root growth (Table 1).
We wanted to confirm and support these phenotypic results for the two maize lines, by developing a RT-qPCR assay to detect and quantify A. flavus biomass load, in infected and control plants.

2.2. Gene Specificity and RT-qPCR Assays

The RT-qPCR primers designed for fungal and maize genes exhibited specificity as confirmed in control and infected tissues respectively (Figure 2). The MEP gene (203 bp), specific for maize, amplified in the control and infected plants for both maize lines (Figure 2). The MEP gene was also observed to be plant specific by the absence of cross-reaction with fungal gDNA. Similarly, both Ef1a (102 bp) and β-Tub (118 bp) were specific for A. flavus but the amplification of Ef1a appeared less sensitive in comparison to β-Tub (Figure 2).
The A. flavus β-Tubulin (β-Tub) and maize membrane protein (MEP) primers were used to develop a RT-qPCR SYBR® green assay to detect and quantify A. flavus gDNA in maize tissues. The β-Tub and MEP markers were found to have qPCR sensitivity, efficiency and linearity across a wide range of DNA concentrations of R2 = 0.9997 for β-Tub and R2 = 0.9988 for MEP respectively (Figure 3).
The extracted fungal gDNA from co-infected shoots showed varied concentrations of fungal DNA compared to the roots according to 1-way ANOVA analysis and TMCT test (p < 0.05) (see Supplementary Tables S1 and S2).
The qPCR assay was performed 14 days post infection for both shoot and root tissue. No significant difference was seen in fungal biomass between the control and infected plant tissues for the GAF4 maize line (Figure 4a). In contrast, significant differences (p < 0.05) in fungal biomass for the KDV1 maize line was observed upon infection for both the root and shoot tissue (Figure 4b). The amount of fungal DNA was lower in the infected tissue of GAF4 maize line when compared to the KDV1 line.

2.3. In-Vitro Viocontrol Strategies in Aflatoxin Management and Aspergillus Flavus

We wanted to determine whether the atoxigenic A. flavus strain KSM012 (NCBI accession MG385137) could act as a biocontrol agent against the aflatoxigenic KSM014 strain, upon infection of maize kernels from two different lines. The atoxigenic and aflatoxigenic isolates were co-infected into KDV1, and GAF4 maize kernels, respectively followed by detection of aflatoxin production, using bio-analytical analyses.
The co-infected maize lines KDV1 and GAF4 had different rates of fungal colonisation following co-inoculation with A. flavus KSM012 and KSM014 (Figure 5). The maize kernels of the resistant (GAF4) and sensitive (KDV1) lines were co-infected with atoxigenic, and aflatoxigenic strains at different ratios (0:100; 25:75; 50:50; 75:25; 100:0), respectively. As expected, control plants inoculated with sterile water had no fungal growth, which indicated that there was no contamination by fungal spores during the experimental procedure (Figure 5f, controls). The KDV1 maize kernels had higher levels of colonisation by A. flavus compared to GAF4 maize kernels at a co-infection ratio of 50:50 (Figure 5c).

2.4. Aflatoxin Analyses after Biocontrol Strategy

We wanted to determine whether the biocontrol strategy had any impact in reducing detectable aflatoxins, using TLC plate and HPLC techniques. The TLC plates examined and showed significant reductions in the aflatoxin levels from plants inoculated with a 50:50 ratio of atoxigenic to aflatoxigenic strains of A. flavus (Figure 6, lane 5). At 365 nm, visible spots with blue and green fluorescence for aflatoxins matching with the corresponding aflatoxin standards were observed (Figure 6, red and blue arrows).
At 254 nm, there was no observable blue or green fluorescence (data not shown). Thus, the presence or absence of aflatoxins and their derivatives could be visualised and identified at 365 nm. Staining with p-anisaldehyde, vanillin in phosphoric acid or iodine vapour did not yield any results (data not shown). HPLC chromatograms generated for the individual isolates had retention times for aflatoxins: AFG1-11.39-11.68; AFB1-12.72-12.84; AFG2-17.71-17.80; and AFB2-18.73-18.91 as observed in our previous work Mitema et al. [33].
As expected, the non-toxin producing strain (isolate KSM012) had neither an HPLC peak nor blue fluorescence on TLC plates (Figure 6, lane 4). Isolate KSM014 had peaks and fluorescence corresponding to AFB1 and AFB2, confirming that this isolate was aflatoxigenic as previously described by Mitema et al. [33]. Isolate KSM015, produced AFB1, AFB2, AFG1 and AFG2 confirming its previous identification as an SBG morphotype [33]. The detection limits and sensitivity, including linearity, showed that the method developed was acceptable for mycotoxin determination from cultures of A. flavus. The limit of detection (LOD) and limit of quantification (LOQ) ranged from 0.01–6.8 µg/mL and 0.02–35.81 µg/mL, respectively [33].
An analysis of the metabolites extracted from the co-infected cultures in the biocontrol strategy identified the HPLC peaks associated with aflatoxins (Figure 7A,B). The amount of AFB1 and AFG2 was significantly higher (p < 0.05) in GAF4 maize line (Figure 7A) than in the KDV1 at the co-infection ratio of 50:50. In the KDV1 maize line, aflatoxin contamination was reduced significantly when the plants were co-inoculated with the atoxigenic to aflatoxigenic isolate at ratios of 50:50 and 75:25 respectively (Figure 7B). GAF4 maize appeared less susceptible to A. flavus colonisation compared to KDV1 when looking at the concentration of the aflatoxins measured after co-infection (Figure 7).

3. Discussion

GAF4 is a Striga spp. resistant maize line cultivated in Kisumu, Kibos, Homa Bay, and some parts of Nandi, while KDV1 is an open pollinated maize variety cultivated in Makueni and the neighbouring counties. KDV1′s increased susceptibility to A. flavus KSM014 infection could be a contributing factor to the previously reported frequent aflatoxicosis outbreaks and high levels of aflatoxin contamination for Makueni and the neighbouring regions [6,9,21,35]. These results are also consistent with our previous study, which showed that the majority of A. flavus isolates from Makueni produced high amounts of aflatoxin AFB1, AFB2 [33].
The phenotypic observations (Figure 1; Table 1) suggest that KDV1 maize line, grown in the Makueni county, is more susceptible to the A. flavus infection, whereas the GAF4 maize line grown in Kisumu and Homa bay counties appeared more resistant to the infection. The lower level of fungal DNA observed in the infected tissue of GAF4 maize line, compared to the KDV1 line, suggests that GAF4 was more resistant to A. flavus KSM014 infection (Figure 4; Table S1) and this supports the previous phenotypic observation.
We developed a qPCR assay with the A. flavus β-tub gene and demonstrated that it can be used to quantify A. flavus biomass in both shoot and root tissue of different maize lines. The current study indicated that the β-Tub gene was a more suitable marker for the detection of A. flavus in maize tissues compared to Ef1αand was therefore used in fungal biomass determination. The respective marker genes chosen for A. flavus and maize were found to have qPCR sensitivity, efficiency and linearity across a wide range of DNA concentrations (Figure 2 and Figure 3). A critique of this approach is that fungal quantification using genomic DNA does not allow discrimination between viable and non-viable fungal biomass and quantification using qPCR assay [15,16].
We measured fungal biomass fourteen days after infection when symptoms of the infection were phenotypically visible. However, others have found that fungal biomass could be detected even before symptom development. Debode et al. [36] detected the presence of Colletotrichum acutatum by qPCR in strawberry leaves two hours post-inoculation even though the first disease symptoms appeared only after 96 h. Similarly, Divon & Razzaghian [37], could measure Fusarium langsethiae DNA in oats independent of the disease symptoms. Both findings demonstrated that fungal presence can be detected earlier, enabling the selection of resistant plants even when samples are indistinguishable based on visual assessment.
The detection limits and sensitivity, including linearity of our results were similar and compared favourably to those of Gallo et al. [38] and Malachová et al. [32], who obtained LOD range of 0.6–1.9 µg/kg and a LOQ range of 0.02–0.05 mg/kg for aflatoxins extracted from highly contaminated animal feedstuff.
Our biocontrol strategy showed that aflatoxin production by the aflatoxigenic strain, KSM014, was inhibited by the atoxigenic strain, KSM012 at specific ratios. These observations suggest that upon colonisation of kernels by the aflatoxigenic isolate, the atoxigenic strain has the potential to limit colonisation of the aflatoxigenic isolate leading to inhibition or reduced aflatoxin levels. The reduction of aflatoxins could occur by the atoxigenic competitively excluding or displacing aflatoxigenic strains as suggested in other biocontrol studies [17,18,19,20,39,40]. Competitive exclusion by atoxigenic isolates results in reduced amount of aflatoxin during co-infection [41], a process aided by primary host contact. Huang et al. [42] showed that both the down-regulation of aflatoxin biosynthesis and variance in ability among fungal isolates to utilize nutrient resources could limit the amount of aflatoxin produced [43].
Biocontrol of aflatoxins by atoxigenic isolates is a cost-effective method for managing aflatoxins and could provide a long-term solution to aflatoxin contamination in developing countries, including sub-Sahara Africa [20]. The implementation of biocontrol strategies showed a reduction in aflatoxin contamination of peanuts and cereals by approximately 74.3% to 99.9% when coated with atoxigenic A. flavus strains [19,20]. These observations were similar to our results where aflatoxins were not detected or reduced [33,44]. Our results suggest that maize lines that have adequate resistance to A. flavus together with the appropriate biocontrol strategy may limit the possibility of aflatoxicoses outbreaks.
For biocontrol and biosafety applications of atoxigenic A. flavus isolates in the field, the atoxigenic A. flavus isolates should ideally be indigenous, genetically stable and belong to a VCG that contains no aflatoxigenic members [17,18,45]. Atehnkeng et al. [19] identified atoxigenic isolates (La3279, Og0222, Og0437 and Ka16127) as potential candidates for biocontrol in maize fields in Nigeria. Based on our study, KSM012 might be a candidate as part of a consortium of atoxigenic isolates for aflatoxin and A. flavus mitigation in Kenya and thus further study on this strain is warranted.
Medina et al. [46]; Lima et al. [47] and Stevenson et al. [47] all found that under laboratory conditions, the abiotic stress-related factors such as temperature, humidity, water activity and solutes can impact growth and aflatoxin production by Aspergillus. It is therefore important to first determine the impact of these environmental factors on aflatoxin production by A. flavus KSM102 under laboratory and field conditions to ensure its safe use and efficacy of as a biocontrol agent.

4. Conclusions

We found KDV1 maize line, which is cultivated in Makueni region and its environs to be more susceptible to A. flavus infection than GAF4 maize line grown in other regions of Kenya. This, susceptibility may be one of the possible reasons for the frequent cases of aflatoxicosis in Makueni than in Nandi, Kisumu and Homa Bay.
The β-tub gene is a potential marker for quantification of the A. flavus biomass load in maize plants compared to the Ef1αgene and both were specific for A. flavus. The MEP primers were specific for maize and had no cross contamination with A. flavus DNA. The specificity of the qPCR assay for A. flavus biomass quantification makes it potentially useful tool for screening of A. flavus maize lines for resistance to A. flavus and associated breeding strategies, identifying potential asymptomatic infections and help understand the mechanism of maize defence response to A. flavus infection.
We showed that a biocontrol strategy using the atoxigenic A. flavus isolate KSM012, was able to inhibit aflatoxin production by the aflatoxigenic A. flavus isolate KSM014 after co-infection of maize kernels at a 50:50 ratio. These findings are promising and might be suitable for future development of a biocontrol system, including more atoxigenic A. flavus isolates, appropriate for aflatoxin mitigation against aflatoxigenic A. flavus isolates in Kenya.

5. Materials and Methods

5.1. Cultures of Fungi

The aflatoxigenic A. flavus KSM014 isolate and other cultures were cultivated and maintained as described previously [33]. Two A. flavus isolates: KSM012 (atoxigenic strains) and KSM014 (aflatoxigenic strain) were grown on both aflatoxin inducing and non-inducing medium: Yeast Extract Sucrose (YES) and Yeast Extract Peptone (YEP) respectively and incubated in the dark for seven days at 30 °C. Conidia were harvested with cotton swabs and suspended in aqueous Tween 20 (0.2%). The working concentration was adjusted to spore suspension 1 × 106 conidia/mL measured using a haemocytometer. The inoculum was stored at 4 °C and used within 1 week or stored as described earlier [33].

5.2. Maize Cultivars

Kenya Dry land Varieties KDV1 and GAF4 were purchased from Kenya Agricultural and Livestock Research Organisation (KALRO), Nairobi, Kenya. The varieties were selected based on the agroecological region in which they were cultivated and their drought tolerance. KDV1 is an open-pollinated variety that is recommended for low to medium altitude. It matures early, is drought tolerant and flowers between 45–52 days after germination. It is commonly grown in Makueni and Homa Bay (http://drylandseed.com). GAF4 is a Striga tolerant variety developed by the Kenya Agricultural Research Institute in Kibos, Kisumu county. It is grown in parts of western Kenya: Kisumu, Homa Bay and Busia [48].

5.3. Reagents and Media Preparation

Murashige and Skoog medium (MS), phytagel, glycine, nicotinic acid, thiamine hydrochloride, pyridoxine hydrochloride, myo-inositol, potassium hydroxide were purchased from Sigma-Aldrich (USA). MS vitamins; 250 mg nicotinic acid, 5 g myo-inositol, 500 mg pyridoxine-HCl, 100 mg glycine, and 500 mg thiamine-HCl was prepared in sterile water, filter sterilised and stored at −20 °C until used. The MS media was prepared by dissolving 2.15 g MS salts in sterile water, then 10 mL of MS vitamin stock was added and adjusted to the pH 5.7 with 1 M KOH, and the volume adjusted to 1 L with sterile water. Five grams of phytagel was added to MS media prepared and microwaved to dissolve the salts. Media (50 mL) was dispensed into tissue culture vessels, autoclaved, and allowed to cool in a biosafety cabinet (BSC) level 2 (Contained Air Solutions (CAS) BioMAT2, Pocklington York, UK) for approximately one hour before being inoculated. Potato dextrose agar, yeast extract, sodium chloride, ammonium acetate, tryptone, mycological peptone, malt extract agar, agar, chloroform, acetone, ethanol, methanol, dichloromethane, acetonitrile, formic acid (>98%) and trifluoracetic acid (99.8%) were from Sigma-Aldrich. Mycotoxin reference standards of aflatoxin B + G mixture dry concentrate containing 5.8 µg AFB1, AFG1 and 1.7 µg AFB2, AFG2/mL were from Sigma Aldrich (Darmstadt, Germany). Pure and ultrapure grade water was processed by Milli Q water purification system (Millipore LTD, Bedford, MA, USA).

5.4. Seed Sterilisation and Aspergillus flavus Infection−

Twenty seeds were sterilised (in triplicates) by soaking in 20 mL of 95–100% ethanol for 1 min with brief shaking for 15 s. The ethanol was discarded and replaced with 20 mL of 2.5% sodium hypochlorite. The seeds were left to stand for 15 min, then shaken for 30 s and the liquid discarded. Seeds were washed 5 × with sterile water (20 mL) with intermittent shaking between each wash. A volume of 50 mL of sterile water was added and left to stand for 1 h at room temperature (RT). The water was replaced with 20 mL of 2% Tween 20, and shaken for 30 s. The seeds were inoculated (in triplicates) with 20 mL conidia suspensions (1 × 106 conidia ml−1). The tubes containing seeds were sealed, para filmed and kept at 30 °C for 30 min in a shaking incubator. Control seeds were treated with 20 mL sterile water instead of a spore suspension and incubated under the same conditions. Inoculated seeds were left to dry in Petri dishes overlaid with Whatman No.1 filter paper overnight in a hood. Subsequently, the seeds were inoculated onto tissue culture media (MS) and germinated at 28 °C in a plant growth chamber, Conviron (Winnipeg, Manitoba, Canada). Growth was monitored for 14 days, then plant tissue (shoots and roots) were harvested and stored at −80 °C after being flash frozen in liquid nitrogen for DNA/RNA extraction.

5.5. DNA Extraction from Aspergillus flavus and Maize Tissues

DNA was extracted from 100 mg of each of the following samples: A. flavus KSM014 mycelia, infected and control healthy maize tissues following the method of [49] with modifications. Briefly, 2% SDS, 100 mM Tris pH 8.0, modified TES buffer, 10 mM EDTA, and 2% (w/v) polyvinylpyrrolidone (PVP) was prepared. Four hundred and fifty microliters of TES buffer and 5 µL RNase (10 mg/mL) was added to a 2 mL microtube containing the tissues and homogenised with a microtube pestle or vortex for 15 min. 20 µL Proteinase K (1 µg/µL) was added, vortexed for 1 min, and then incubated at 60 °C for 1 h. 160 µL of 5 M NaCl (0.3 vol.), 70 µL 10% CTAB (0.1 vol.) was then added and subsequently incubated for 10 min at 65 °C. Chloroform/isoamyl-alcohol (24:1) (750 µL) was added, vortexed for 5 min and again incubated for 30 min on ice and then centrifuged for 10 min at 14,000 rpm. The aqueous phase was transferred to a new 2 mL microtube, 300–350 µL isopropanol (0.55 vol.) added and then mixed gently for 30 s and left to stand at room temperature (RT) for 30 min. The mixture was centrifuged at 14,000× g rpm for 10 min. The supernatant was discarded, the pellets rinsed twice with chilled 70% ethanol (700 µL), gently mixed without and centrifuged again for 2 min at 14,000× g rpm. Ethanol was discarded, pellets air dried and then dissolved in 40 µL TE buffer (10 mM Tris-Cl pH 8, 1 mM EDTA pH 8.0) or nuclease free water. DNA integrity was assessed on a 1% agarose/EtBr gel and the concentration quantified on a Nano-DropTM 1000 spectrophotometer (NanoDrop Technologies, Silverside Rd, Wilmington, USA). DNA was diluted to 10 ng/µL for further analysis. The chemicals used were purchased from (Sigma-Aldrich, Spruce St., St Louis, USA).

5.6. Primer Design

Three sets of primers (Table 2); β-tubulin, Elongation factor 1 alpha (Ef1α) and Membrane protein (MEP) were used in this study. β-tubulin was designed in Primer3 ver. 4.0 programme [50], whereas, Ef1α and MEP were obtained from Dr. Shane Murray, MCB lab. 227 (pers. Comm). Potential secondary structure formation was assessed in DNAMAN software ver. 6.03 (Lynnon LLC., San Ramon, CA, USA, 2015) and further verified in OligoAnalyzer Tool (Integrated DNA Technologies). The PCR and melt curve analysis were used to identify both specific and non-specific amplification.

5.7. PCR Amplification

Conventional PCR amplification was performed in a volume of 25 µL and consisted of 10× reaction buffer, with MgCl2, 0.5 µL of 10 μM dNTPs (Bioline), 1 µL of 10 μM reverse and forward primers, 1 µL of 10 ng DNA template, 0.2 µL Kapa Taq and sterile water. Cycling conditions were performed according to the following protocol: 1 cycle at 94 °C for 5 min followed by 35× (at 94 °C for 30 s, at 60 °C for 45 s, at 72 °C for 90 s). A final elongation step was for 7 min at 72 °C and the reaction mixture was held at 4 °C until analysed. The PCR products were assessed on a 2% agarose/EtBr gel in 1 X TAE buffer (Tris–acetate 40 mM and EDTA 1.0 mM). Fermentas 100 bp DNA ladder was used as a molecular size marker.

5.8. Aflatoxin Standards, Standard Curves and Fungal Quantification

The mycotoxin reference standards; aflatoxin B + G mixture dry concentrate was prepared and stored in a freezer at −20 °C according to manufactures recommendations (Sigma Aldrich, Germany). A working stock solution for bioanalytical analysis was prepared in a one-fold dilution containing 200 µg L−1 AFB1, 50 µg L−1 AFB2, 200 µg L−1 AFG1 and 50 µg L−1 AFG2 and intermediate solutions stored in amber bottles at −20 °C for three months and/or −80 °C for longer storage.
A ten-fold serial dilution of pooled 10 ng genomic DNA extracts from control plants and A. flavus were used to generate standard curves. For each dilution, the threshold cycle (Ct) values were plotted against the logarithm of the starting quantity of the template. Efficiencies of amplification were generated from the slopes of the standard curves slopes [53,54]. Linear regression curves were drawn, and the qPCR efficiency calculated as:
E = 10 ( 1 S l o p e ) .
The amount of target DNA in an unknown sample was extrapolated from the respective standard curves.
Isolated DNA (10 ng) from healthy and infected maize shoots and roots were used to test the specificity of the primers. To exclude false negative results, the template DNA samples from fungi were tested for PCR amplification with primer pairs β-tub and EF1α. DNA from control plant tissues and pure fungal cultures (A. flavus) were pooled together, diluted to 10 ng/µL and used to estimate the amount of fungal DNA template in the infected plant tissue. The final fungal DNA template concentrations were 1, 5 × 10−1, 2.5 × 10−1, 1.25 × 10−1, 6.25 × 10−2, 3.125 × 10−2 ng/µL. These dilutions were used to determine the detection limits of the β-tub and EF1α primer pair in the infected plant tissues. A serial dilution of DNA extracted from healthy maize tissue also was prepared to measure the detection limits of the MEP. To normalise the gene quantification between different samples, the amount of fungal DNA as calculated by the Ct value for β-tub and/or EF1α was divided by the amount of maize DNA as calculated by the Ct values for MEP. Rotor Gene 6000 2 plex HRM (Corbett Life Science Research, Mortlake, Australia) was used to evaluate the gene expression profiles. Master mix, Kapa SYBR Fast Kit (Kapa BioSystems, Cape Town, South Africa), containing DNA polymerase, dNTPs, reaction buffers and 3 mM MgCl2 were used for each PCR reaction. Final concentrations of 1× Kapa SYBR green, 10 μM gene specific primers (0.2 µL forward and 0.4 µL reverse), and 1 µL of DNA template were prepared to a total volume of 20 µL, using nuclease-free water. Primer sets of specific genes (Table 2) were used in separate reactions which were performed in triplicate.
For assessing the integrity and quality of the isolated DNA, samples from control and infected tissues of the plant, and saprophytic fungi were subjected to PCR analysis with the reference genes under the following amplification conditions: 95 °C for 10 min; 35 cycles of 95 °C for 3 s, 64 °C for 20 s, 72 °C for 1 s for MEP and at Ta 62 °C for both β-tub and Ef1α.

5.9. Metabolite Extraction

Fungal metabolites were extracted from A. flavus strains using different solvents. Briefly, fresh mycelia (200–400 mg) was scraped off the culture plate and placed into a screw capped disposable vials containing, and/or not approximately four glass beads of 4 mm in diameter (Merck KGaA, Darmstadt, Germany). Aflatoxins and other metabolites were extracted ultrasonically for 15 min by using, 2–10 mL of extraction solvent consisting of methanol dichloromethane, ethyl acetate (MeOH:DCM:EtOAc (1:2:3)) in 1% formic acid. Extracts were centrifuged at 14,000× g rpm for 15 min at 4 °C and 500 µL transferred to sterile 2 mL tubes. The samples were dried with a Savant SpeedVac Plus SC210A Concentrator (Thermo Scientific, Ramsey, MN, USA) for 12 h. The residue was reconstituted in 400 µL methanol with 0.6% (v/v) FA, 0.02% (v/v) HCl and 2.5% (v/v) water. The reconstitution was carried out in an ultrasonic bath sonicator for 10 min at RT. Samples were centrifuged at 14,000× g rpm for 15 min at 4 °C and 250 µL transferred to glass vials for TLC and HPLC analysis.

5.10. Thin Layer Chromatography

Thin Layer Chromatography (TLC) was carried out on a TLC silica gel 60 plate 20 × 20 cm (Merck, KGaA, Darmstadt, Germany). Acetonitrile/methanol/formic acid (9:1:0.2 v/v) was used as the mobile phase. Ten microliters of the aflatoxin standard mix containing 5.86 µg/mL of AFB1 and AFG1, and 1.70 µg/mL of AFB2 and AFG2 and 20 µL of test samples were spotted on TLC plates and run for 70–90 min in a TLC tank at RT. The plates were left to air dry in the fume hood at RT for approximately 30 min. Dried plates were either observed under UV light (wavelength 254 and 366 nm), or sprayed with p-anisaldehyde solution, vanillin solution or exposed to an iodine vapour. The intensity of the sample spots against the standard aflatoxins were compared and aflatoxins concentrations calculated based on the equation:
E = S C V W Z
where;
  • E = aflatoxins (µg/kg)
  • S = µL of aflatoxin standard equal in fluorescence to sample spot
  • C = aflatoxin standard concentration in µg/mL
  • V = final dilution of the sample extract (µL)
  • Z = sample matching the standards (µL)
  • W = sample extract weight (mg)

5.11. High Performance Liquid Chromatography and Optimisation

Optimisation and chromatographic separations were achieved on an Agilent HPLC 1200 system, comprised of a binary pump equipped with micro vacuum degasser, thermostatic auto sampler, column compartment, and Diode Array Detector (Agilent Technologies, Waldbronn, Germany). Fluorescence detection was performed at excitation and emission wavelengths from 200 to 410 nm. Separations were performed on Agilent Zorbax Eclipse XDB-C18 column, 4.6 × 150 mm I.D., particle size 5 µm (Agilent Technologies, Waldbronn, Germany), maintained at 40 °C operating at a flow rate of 1.0 mL min−1. Water and acetonitrile, both containing 0.005% trifluoro acetic acid (TFA) were used as mobile phases. A gradient starting from 85% water and 15% acetonitrile used to 100% acetonitrile for 20 min maintained at 100% acetonitrile for 23 min and final 15% acetonitrile for 27 min. Sample injection volume was 15 µL. All chemicals used were HPLC grade. UV wavelength signals were set at 200, 210, 230, 270, 280, 320, 350, and 410 nm. Aflatoxins in the sample solution were identified by comparison of their retention times and peak height/area with corresponding standards in the standard solution.

5.12. In Vitro Co-Infection of Maize Lines and Biocontrol Strategy

Undamaged kernels from KDV1 and GAF4 maize lines were surface sterilised in hot water for 45 s at 80 °C, as previously described [55]. Briefly, maize moisture content was quantified with a HB43 Halogen Moisture Analyzer (Mettler Toledo, Columbus, OH, USA), and adjusted to 25% by soaking the kernels in sterile water for 30–60 min, as described by [56]. Approximately 30 sterilized grains were seeded with aliquots of spore suspensions of 1000 µL (1 × 106 conidia/mL) in a level 2 biosafety cabinet with respective fungal isolates (atoxigenic and aflatoxigenic) at different ratios (0:100, 25:75, 50:50, 75:25, 100:0) in sterile vials. The controls were inoculated with 1000 µL sterile water instead of fungal spore suspension. Both infected and control vial contents were shaken for 30 s in a vortex mixer (SciQuip Ltd., Shropshire SY4 5NU, UK) to ensure complete and uniform coating of kernels with inoculum. Vial lids were loosened briefly, to enable gas exchange and incubated at 30 °C for 14 days in the dark. At the end of the incubation period, fungal activity was discontinued by addition of 50 mL, 80% methanol or halted by oven drying at 45 °C for one day and the contents then prepared for aflatoxin extraction and further analysis. Three biological replicas of the experiments were performed twice. The efficiency of surface sterilization, and the ability of kernels to germinate, were monitored by plating five randomly selected kernels from each vial onto a selective YES and YEP media, followed by incubation at 30 °C in the dark for 14 days. Approximately, 99% of the kernels germinated and no fungal contaminants were observed at the end of the incubation period.

5.13. Statistical Analysis

The statistical analysis was performed as previously described [33]. Aflatoxin concentration and percentage reduction were log transformed prior to analyses using GraphPad Prism, One-way analysis of variance (ANOVA), Tukey’s Multiple Comparison Test (TMCT) and post-test for linear trend analysis. Mean differences in aflatoxin levels (percent difference between inoculated maize and control maize treatments) were calculated as:
1 T A C M   c o i n o c u l t e d   w i t h   b o t h   a t o x   a n d   a f l a t o x   i s o l a t e s   o f   A .     f l a v u s   T A C M   i n o c u l a t e d   w i t h   t h e   a f l a t o x i g e n i c   i s o l a t e   a l o n e × 100
where: TACM is total aflatoxin content in maize; atox: atoxigenic and aflatox: aflatoxigenic.
Standard deviations of mean differences in aflatoxin levels were calculated as a measure of variability in efficacy. The efficiency (E) of each isolate was calculated as:
E = R A A + T
where R is the percentage of aflatoxin reduction and the denominator is the percentage of the total A. flavus inoculum made up by the atoxigenic isolate (A). ‘A’ is the quantity of atoxigenic strain and ‘T’ is the quantity of aflatoxin-producer. All analyses and calculations were performed in GraphPad Prism software ver. 5.0.2.

Supplementary Materials

The following are available online at https://www.mdpi.com/2072-6651/11/3/179/s1, Table S1: Extracted fungal DNA (log10) from healthy and infected maize tissues (KDVI and GAF maize lines, Table S2: Comparison of extracted fungal DNA concentrations from control and infected maize tissues for GAF4 and KDV1.

Author Contributions

A.M. and S.M.R., conceived, designed the experiments; A.M., generated and analysed the data, and wrote the manuscript; S.O. and S.M.R., both supervised, edited, and reviewed the entire manuscript.

Funding

This research was funded by University Science, Humanities, and Engineering Partnerships in Africa (USHEPiA) and the University of Cape Town (Access & Visibility, UCT Libraries) in South Africa.

Acknowledgments

The authors acknowledge the Kenya Agricultural and Livestock Research Organisation (KALRO) for providing the maize lines.

Conflicts of Interest

The authors declare no conflict of interest. The authors are responsible for the content and writing of the paper alone.

References

  1. Bandyopadhyay, R.; Kiewnick, S.; Atehnkeng, J.; Matthias, D.; Cottyc, P.J.; Kerstin, H. Biological control of aflatoxin contamination in maize in Africa. In Proceedings of the Conference on International Agricultural Research for Development, Stuttgart, Germany, 11–13 October 2005; pp. 1–8. [Google Scholar]
  2. Frisvad, J.C.; Larsen, T.O.; De Vries, R.; Meijer, M.; Houbraken, J.; Cabañes, F.J.; Ehrlich, K.; Samson, R.A. Secondary metabolite profiling, growth profiles and other tools for species recognition and important Aspergillus mycotoxins. Stud. Mycol. 2007, 59, 31–37. [Google Scholar] [CrossRef][Green Version]
  3. Leger, R.J.S.T.; Screen, S.E.; Shams-pirzadeh, B.; Rica, C. Lack of Host Specialization in Aspergillus flavus. Appl. Environ. Microbiol. 2000, 66, 320–324. [Google Scholar] [CrossRef]
  4. Pitt, J.I.; Taniwaki, M.H.; Cole, M.B. Mycotoxin production in major crops as influenced by growing, harvesting, storage and processing, with emphasis on the achievement of Food Safety Objectives. Food Control 2013, 32, 205–215. [Google Scholar] [CrossRef]
  5. Reddy, K.R.N.; Reddy, C.S.; Muralidharan, K. Potential of botanicals and biocontrol agents on growth and aflatoxin production by Aspergillus flavus infecting rice grains. Food Control 2009, 20, 173–178. [Google Scholar] [CrossRef]
  6. Ngindu, A.; Kenya, P.; Ocheng, D.; Omondi, T.; Ngare, W.; Gatei, D.; Johnson, B.; Ngira, J.; Nandwa, H.; Jansen, A.; et al. Outbreak of acute hepatitis caused by aflatoxin poisoning in Kenya. Lancet 1982, 319, 1346–1348. Available online: http://www.sciencedirect.com/science/article/pii/S0140673682924114 (accessed on 27 September 2015). [Google Scholar] [CrossRef]
  7. Gieseker, K.E. Outbreak of aflatoxin poisoning-Estern and Central Provinces, Kenya, January–July 2004. Public Health Fac. Publ. 2004, 53, 790–793. [Google Scholar]
  8. Cotty, P.J.; Antilla, L.; Wakelyn, P.J. Competitive exclusion of aflatoxin producers: Farmer-driven research and development. In Biological Control: A Global Perspective; CABI: Oxfordshire, UK, 2007; pp. 241–253. [Google Scholar]
  9. Probst, C.; Callicott, K.A.; Cotty, P.J. Deadly strains of Kenyan Aspergillus are distinct from other aflatoxin producers. Eur. J. Plant Pathol. 2012, 132, 419–429. [Google Scholar] [CrossRef]
  10. Lewis, L.; Onsongo, M.; Njapau, H.; Schurz-Rogers, H.; Luber, G.; Kieszak, S.; Nyamongo, J.; Backer, L.; Dahiye, A.M.; Misore, A.; et al. Aflatoxin Contamination of Commercial Maize Products during an Outbreak of Acute Aflatoxicosis in Eastern and Central Kenya. Environ. Health Perspect. 2005, 113, 1763–1767. Available online: http://www.ehponline.org/ambra-doi-resolver/10.1289/ehp.7998 (accessed on 15 May 2018). [Google Scholar] [CrossRef] [PubMed][Green Version]
  11. Probst, C.; Schulthess, F.; Cotty, P.J. Impact of Aspergillus section Flavi community structure on the development of lethal levels of aflatoxins in Kenyan maize (Zea mays). J. Appl. Microbiol. 2010, 108, 600–610. Available online: http://www.ncbi.nlm.nih.gov/pubmed/19674186 (accessed on 15 May 2018). [Google Scholar] [CrossRef] [PubMed]
  12. De Coninck, B.M.A.; Amand, O.; Delauré, S.L.; Lucas, S.; Hias, N.; Weyens, G.; Mathys, J.; De Bruyne, E.; Cammue, B.P.A. The use of digital image analysis and real-time PCR fine-tunes bioassays for quantification of Cercospora leaf spot disease in sugar beet breeding. Plant Pathol. 2012, 61, 76–84. [Google Scholar] [CrossRef]
  13. Mackay, I.M. Real-Time PCR in Microbiology From Diagnosis to Characterization; Horizon Scientific Press: Poole, UK, 2007. [Google Scholar]
  14. Sanzani, S.M.; Li Destri Nicosia, M.G.; Faedda, R.; Cacciola, S.O.; Schena, L. Use of quantitative PCR detection methods to study biocontrol agents and phytopathogenic fungi and oomycetes in environmental samples. J. Phytopathol. 2014, 162, 1–13. [Google Scholar] [CrossRef]
  15. Mideros, S.X.; Windham, G.L.; Williams, W.P.; Nelson, R.J. Aspergillus flavus Biomass in Maize Estimated by Quantitative Real-Time Polymerase Chain Reaction Is Strongly Correlated with Aflatoxin Concentration. Plant Dis. 2009, 93, 1163–1170. [Google Scholar] [CrossRef]
  16. Mylroie, J.E.; Ozkan, S.; Shivaji, R.; LWindham, G.; Alpe, M.N.; PaulWilliams, W. Identification and Quantification of a Toxigenic and Non-Toxigenic Aspergillus flavus Strain in Contaminated Maize Using Quantitative Real-Time PCR. Toxins 2016, 8, 15. [Google Scholar] [CrossRef] [PubMed]
  17. Cotty, P.J. Biocompetitive exclusion of toxigenic fungi. In the Mycotoxin Factbook; Wageningen Academic Publishers: Wageningen, The Netherlands, 2006; pp. 179–197. [Google Scholar]
  18. Mehl, H.L.; Cotty, P.J. Variability in competitive ability among Aspergillus flavus vegetative compatibility groups during maize infection. Phytopathology 2008, 98, S103. [Google Scholar]
  19. Atehnkeng, J.; Donner, M.; Ojiambo, P.S.; Ikotun, B.; Augusto, J.; Cotty, P.J.; Bandyopadhyay, R. Environmental distribution and genetic diversity of vegetative compatibility groups determine biocontrol strategies to mitigate aflatoxin contamination of maize by Aspergillus flavus. Microb. Biotechnol. 2016, 9, 75–88. [Google Scholar] [CrossRef]
  20. Bandyopadhyay, R.; Ortega-Beltran, A.; Akande, A.; Mutegi, C.; Atehnkeng, J.; Kaptoge, L.; Senghor, A.L.; Adhikari, B.N.; Cotty, P.J. Biological control of aflatoxins in Africa: Current status and potential challenges in the face of climate change. World Mycotoxin J. 2016, 9, 771–789. [Google Scholar] [CrossRef]
  21. Cotty, P.J.; Jaime-Garcia, R. Influences of climate on aflatoxin producing fungi and aflatoxin contamination. Int. J. Food Microbiol. 2007, 119, 109–115. Available online: http://www.sciencedirect.com/science/article/pii/S0168160507003959 (accessed on 17 April 2016). [Google Scholar] [CrossRef] [PubMed]
  22. Payne, G.A.; Yu, J. Ecology, development and gene regulation in Aspergillus flavus. In Molecular Biology and Genomics; Caister Academic Press: Poole, UK, 2010. [Google Scholar]
  23. Wu, F.; Khlangwiset, P. Health economic impacts and cost-effectiveness of aflatoxin reduction strategies in Africa: Case studies in biocontrol and postharvest interventions. Food Addit. Contam. Part A 2010, 27, 496–509. [Google Scholar] [CrossRef] [PubMed][Green Version]
  24. Wacoo, A.P.; Wendiro, D.; Vuzi, P.C.; Hawumba, J.F. Methods for Detection of Aflatoxins in Agricultural Food Crops. J. Appl. Chem. 2014, 1–15. Available online: http://www.hindawi.com/journals/jac/2014/706291/ (accessed on 18 May 2018). [Google Scholar] [CrossRef]
  25. Sulyok, M.; Krska, R.; Schuhmacher, R.; Sulyok, M.; Krska, R.; Schuhmacher, R. Application of a liquid chromatography—Tandem mass spectrometric method to multi-mycotoxin determination in raw cereals and evaluation of matrix effects. Food Addit. Contam. 2007, 10, 1184–1195. [Google Scholar] [CrossRef]
  26. Hayat, A.; Paniel, N.; Rhouati, A.; Marty, J.L.; Barthelmebs, L. Recent advances in ochratoxin A-producing fungi detection based on PCR methods and ochratoxin A analysis in food matrices. Food Control 2012, 26, 401–415. [Google Scholar] [CrossRef]
  27. Wei, D.; Zhou, L.; Selvaraj, J.N.; Zhang, C.; Xing, F.; Zhao, Y.; Wang, Y.; Liu, Y. Molecular characterization of atoxigenic Aspergillus flavus isolates collected in China. J. Microbiol. 2014, 52, 559–565. Available online: http://link.springer.com/10.1007/s12275-014-3629-8 (accessed on 18 May 2018). [Google Scholar] [CrossRef]
  28. Okoth, S.; De Boevre, M.; Vidal, A.; Diana Di Mavungu, J.; Landschoot, S.; Kyallo, M.; Njuguna, J.; Harvey, J.; De Saeger, S. Genetic and Toxigenic Variability within Aspergillus flavus Population Isolated from Maize in Two Diverse Environments in Kenya. Front. Microbiol. 2018, 9, 1–14. Available online: http://journal.frontiersin.org/article/10.3389/fmicb.2018.00057/full (accessed on 18 May 2018). [Google Scholar] [CrossRef] [PubMed]
  29. Blanco-meneses, M.; Ristaino, J.B.; Pathology, P.; Carolina, N.; Rica, C.; Carolina, N. Detection and Quantification of Peronospora tabacina Using a Real-Time Polymerase Chain Reaction Assay. Plant Dis. 2011, 95, 673–682. [Google Scholar] [CrossRef]
  30. Boutigny, A.L.; Beukes, I.; Small, I.; Zühlke, S.; Spiteller, M.; Van Rensburg, B.J.; Flett, B.; Viljoen, A. Quantitative detection of Fusarium pathogens and their mycotoxins in South African maize. Plant Pathol. 2012, 61, 522–531. [Google Scholar] [CrossRef]
  31. Songsermsakul, P.E.R.-F. A Review of Recent Trends in Applications of Liquid Chromatography-Mass Spectrometry for Determination of Mycotoxins Liquid Chromatography-Mass Spectrometry for determination of mycotoxins. J. Liq. Chromatogr. Relat. Technol. 2008, 6076, 1641–1686. [Google Scholar] [CrossRef]
  32. Malachová, A.; Sulyok, M.; Beltrán, E.; Berthiller, F.; Krska, R. Optimization and validation of a quantitative liquid chromatography-tandem mass spectrometric method covering 295 bacterial and fungal metabolites including all regulated mycotoxins in four model food matrices. J. Chromatogr. A 2014, 1362, 145–156. [Google Scholar] [CrossRef]
  33. Mitema, A.; Okoth, S.; Rafudeen, M.S. Vegetative compatibility and phenotypic characterization as a means of determining genetic diversity of Aspergillus fl avus isolates. Fungal Biol. 2018, 122, 203–213. [Google Scholar] [CrossRef]
  34. Zöllner, P.; Mayer-Helm, B. Trace mycotoxin analysis in complex biological and food matrices by liquid chromatography-atmospheric pressure ionisation mass spectrometry. J. Chromatogr. A 2006, 1136, 123–169. [Google Scholar] [CrossRef]
  35. Azziz-baumgartner, E.; Lindblade, K.; Gieseker, K.; Rogers, H.S.; Kieszak, S.; Njapau, H.; Schleicher, R.; McCoy, L.F.; Misore, A.; DeCock, K.; et al. Case—Control Study of an Acute Aflatoxicosis Outbreak, Kenya, 2004. Environ Health Perspect. 2005, 113, 1779–1783. [Google Scholar] [CrossRef]
  36. Debode, J.; Van Hemelrijck, W.; Baeyen, S.; Creemers, P.; Heungens, K.; Maes, M. Quantitative detection and monitoring of Colletotrichum acutatum in strawberry leaves using real-time PCR. Plant Pathol. 2009, 58, 504–514. [Google Scholar] [CrossRef]
  37. Divon, H.H.; Razzaghian, J. Fusarium langsethiae (Torp and Nirenberg), investigation of alternative infection routes in oats. Eur. J. Plant Pathol. 2012, 132, 147–161. [Google Scholar] [CrossRef]
  38. Gallo, A.; Masoero, F.; Bertuzzi, T.; Piva, G.; Pietri, A. Effect of the inclusion of adsorbents on aflatoxin B-1 quantification in animal feedstuffs. Food Addit. Contam. Part A Chem. Anal. Control Expo. Risk Assess. 2010, 27, 54–63. [Google Scholar] [CrossRef] [PubMed]
  39. Horn, B.W.; Greene, R.L. Vegetative compatibility within populations of Aspergillus flavus, A. parasiticus, and A. tamarii from a peanut field. Mycologia 1995, 87, 324–332. [Google Scholar] [CrossRef]
  40. Dorner, J.W. Biological Control of Aflatoxin Contamination of Crops. Toxin Rev. 2004, 23, 425–450. [Google Scholar] [CrossRef]
  41. Hruska, Z.; Rajasekaran, K.; Yao, H.; Kinkaid, R.; Darlington, D.; Brown, R.L.; Bhatnagar, D.; Cleveland, T.E. Co-inoculation of aflatoxigenic and non-aflatoxigenic strains of Aspergillus flavus to study fungal invasion, colonization, and competition in maize kernels. Front. Microbiol. 2014, 5, 122. Available online: http://www.scopus.com/inward/record.url?eid=2-s2.0-84897941698&partnerID=tZOtx3y1 (accessed on 18 May 2018). [Google Scholar] [CrossRef] [PubMed]
  42. Huang, C.; Jha, A.; Sweany, R.; DeRobertis, C.; Damann, K.E. Intraspecific aflatoxin inhibition in Aspergillus flavus is thigmoregulated, independent of vegetative compatibility group and is strain dependent. PLoS ONE 2011, 6, e23470. Available online: http://www.pubmedcentral.nih.gov/articlerender.fcgi?artid=3158758&tool=pmcentrez&rendertype=abstract (accessed on 18 May 2018). [Google Scholar] [CrossRef] [PubMed]
  43. Mehl, H.L.; Cotty, P.J. Influence of plant host species on intraspecific competition during infection by Aspergillus flavus. Plant Pathol. 2013, 62, 1310–1318. [Google Scholar] [CrossRef]
  44. Mitema, A.O. Molecular and Bio-Analytical Characterisation as a Means to Understand Genetic Diversity within Kenyan Aspergillus flavus Strains. Doctoral Dissertation, University of Cape Town, Cape Town, South Africa, 2018. [Google Scholar]
  45. Mehl, H.L.; Jaime, R.; Callicott, K.A.; Probst, C.; Garber, N.P.; Ortega-Beltran, A.; Grubisha, L.C.; Cotty, P.J. Aspergillus flavus diversity on crops and in the environment can be exploited to reduce aflatoxin exposure and improve health. Ann. N. Y. Acad. Sci. 2012, 1273, 7–17. [Google Scholar] [CrossRef]
  46. Medina, A.; Schmidt-Heydt, M.; Rodriguez, A.; Parra, R.; Geisen, R.; Magan, N. Impacts of environmental stress on growth, secondary metabolite biosynthetic gene clusters and metabolite production of xerotolerant/xerophilic fungi. Curr. Genet. 2015, 61, 325–334. [Google Scholar] [CrossRef]
  47. De Lima Alves, F.; Stevenson, A.; Baxter, E.; Gillion, J.L.; Hejazi, F.; Hayes, S.; Morrison, I.E.; Prior, B.A.; McGenity, T.J.; Rangel, D.E.; et al. Concomitant osmotic and chaotropicity—Induced stresses in Aspergillus wentii: Compatible solutes determine the biotic window. Curr. Genet. 2015, 61, 457–477. [Google Scholar] [CrossRef] [PubMed]
  48. Sunda, W.; Ochuodho, J.; Ngode, L.; Okalebo, J.R.; Othieno, C.O.; Nekesa, A.O.; Kipkoech, A.K. Development of integrated Striga management package to improve maize production in Western Kenya. In Proceedings of the Third RUFORUM Biennial Meeting, Entebbe, Uganda, 24–28 September 2012; pp. 375–381. [Google Scholar]
  49. Möller, E.M.; Bahnweg, G.; Sandermann, H.; Geiger, H.H. A simple and efficient protocol for isolation of high molecular weight DNA from filamentous fungi, fruit bodies, and infected plant tissues. Nucleic Acids Res. 1992, 20, 6115–6116. [Google Scholar] [CrossRef] [PubMed][Green Version]
  50. Untergasser, A.; Cutcutache, I.; Koressaar, T.; Ye, J.; Faircloth, B.C.; Remm, M.; Rozen, S.G. Primer3-new capabilities and interfaces. Nucleic Acids Res. 2012, 40, 1–12. [Google Scholar] [CrossRef] [PubMed]
  51. Manoli, A.; Sturaro, A.; Trevisan, S.; Quaggiotti, S.; Nonis, A. Evaluation of candidate reference genes for qPCR in maize. J. Plant Physiol. 2012, 169, 807–815. [Google Scholar] [CrossRef] [PubMed]
  52. Nicolaisen, M.; Kærgaard, L.; Lazzaro, I.; Henrik, N.; Fejer, A. Real-time PCR for quanti fi cation of eleven individual Fusarium species in cereals. J. Microbiol. Methods 2009, 76, 234–240. [Google Scholar] [CrossRef] [PubMed]
  53. Kubista, M.; Andrade, J.M.; Bengtsson, M.; Forootan, A.; Jonák, J.; Lind, K.; Sindelka, R.; Sjöback, R.; Sjögreen, B.; Strömbom, L.; et al. The real-time polymerase chain reaction. Mol. Asp. Med. 2006, 27, 95–125. [Google Scholar] [CrossRef] [PubMed]
  54. Sardiñas, N.; Vázquez, C.; Gil-serna, J.; González-jaén, M.T.; Patiño, B. International Journal of Food Microbiology Speci fi c detection and quanti fi cation of Aspergillus fl avus and Aspergillus parasiticus in wheat fl our by SYBR® Green quantitative PCR. Int. J. Food Microbiol. 2011, 145, 121–125. [Google Scholar] [CrossRef]
  55. Mehl, H.L.; Cotty, P.J. Variation in Competitive Ability Among Isolates of Aspergillus flavus from Different Vegetative Compatibility Groups During Maize Infection. Mycology 2010, 100, 151. [Google Scholar]
  56. Abbas, H.K.; Zablotowicz, R.M.; Bruns, H.A.; Abel, C.A. Biocontrol of aflatoxin in corn by inoculation with non-aflatoxigenic Aspergillus flavus isolates. Biocontrol Sci. Technol. 2006, 16, 437–449. Available online: http://www.tandfonline.com/doi/abs/10.1080/09583150500532477 (accessed on 18 May 2018). [Google Scholar] [CrossRef]
Figure 1. The respective GAF4 (A) and KDV1 (B) maize lines with and without Aspergillus flavus KSM014 infection. The uninfected maize control plants (I & III) and the infected plants (II) are shown 14 days after germination.
Figure 1. The respective GAF4 (A) and KDV1 (B) maize lines with and without Aspergillus flavus KSM014 infection. The uninfected maize control plants (I & III) and the infected plants (II) are shown 14 days after germination.
Toxins 11 00179 g001
Figure 2. Gel electrophoresis of qPCR amplicons for Aspergillus flavus maker genes (β-tub, Ef1α) and maize marker gene (MEP) assessed on 2% agarose/EtBr gel run at 80 volts for 45 min. M. 100 bp ladder; 1. NTC; 2. Pooled samples (Pure fungal gDNA and maize gDNA); 3. GAF4 (control roots); 4. GAF4 (infected roots) 5. GAF4 (control shoots); 6. GAF4 (infected shoots); 7. KDV1 (control shoots); 8. KDV1 (infected shoots); 9. KDV1 (control roots); 10. KDV1 (infected roots); 11. KSM014 (Positive A. flavus control).
Figure 2. Gel electrophoresis of qPCR amplicons for Aspergillus flavus maker genes (β-tub, Ef1α) and maize marker gene (MEP) assessed on 2% agarose/EtBr gel run at 80 volts for 45 min. M. 100 bp ladder; 1. NTC; 2. Pooled samples (Pure fungal gDNA and maize gDNA); 3. GAF4 (control roots); 4. GAF4 (infected roots) 5. GAF4 (control shoots); 6. GAF4 (infected shoots); 7. KDV1 (control shoots); 8. KDV1 (infected shoots); 9. KDV1 (control roots); 10. KDV1 (infected roots); 11. KSM014 (Positive A. flavus control).
Toxins 11 00179 g002
Figure 3. Standard curves used for Real time quantitative polymerase chain reaction (RT-qPCR) SYBR green assay to quantify A. flavus in maize plant tissues. The curves illustrate the linear regression, efficiency and sensitivity of qPCR for early fungal detection employing marker genes, β-Tub and MEP to a total of 10 ng genomic DNA. (A) standard curve for β-Tub amplification using A. flavus DNA diluted in maize carrier DNA (B). standard curve for MEP amplification from using serial dilutions of maize genomic DNA. (Error bars shows the standard deviations of the mean triplicate gDNA concentrations).
Figure 3. Standard curves used for Real time quantitative polymerase chain reaction (RT-qPCR) SYBR green assay to quantify A. flavus in maize plant tissues. The curves illustrate the linear regression, efficiency and sensitivity of qPCR for early fungal detection employing marker genes, β-Tub and MEP to a total of 10 ng genomic DNA. (A) standard curve for β-Tub amplification using A. flavus DNA diluted in maize carrier DNA (B). standard curve for MEP amplification from using serial dilutions of maize genomic DNA. (Error bars shows the standard deviations of the mean triplicate gDNA concentrations).
Toxins 11 00179 g003

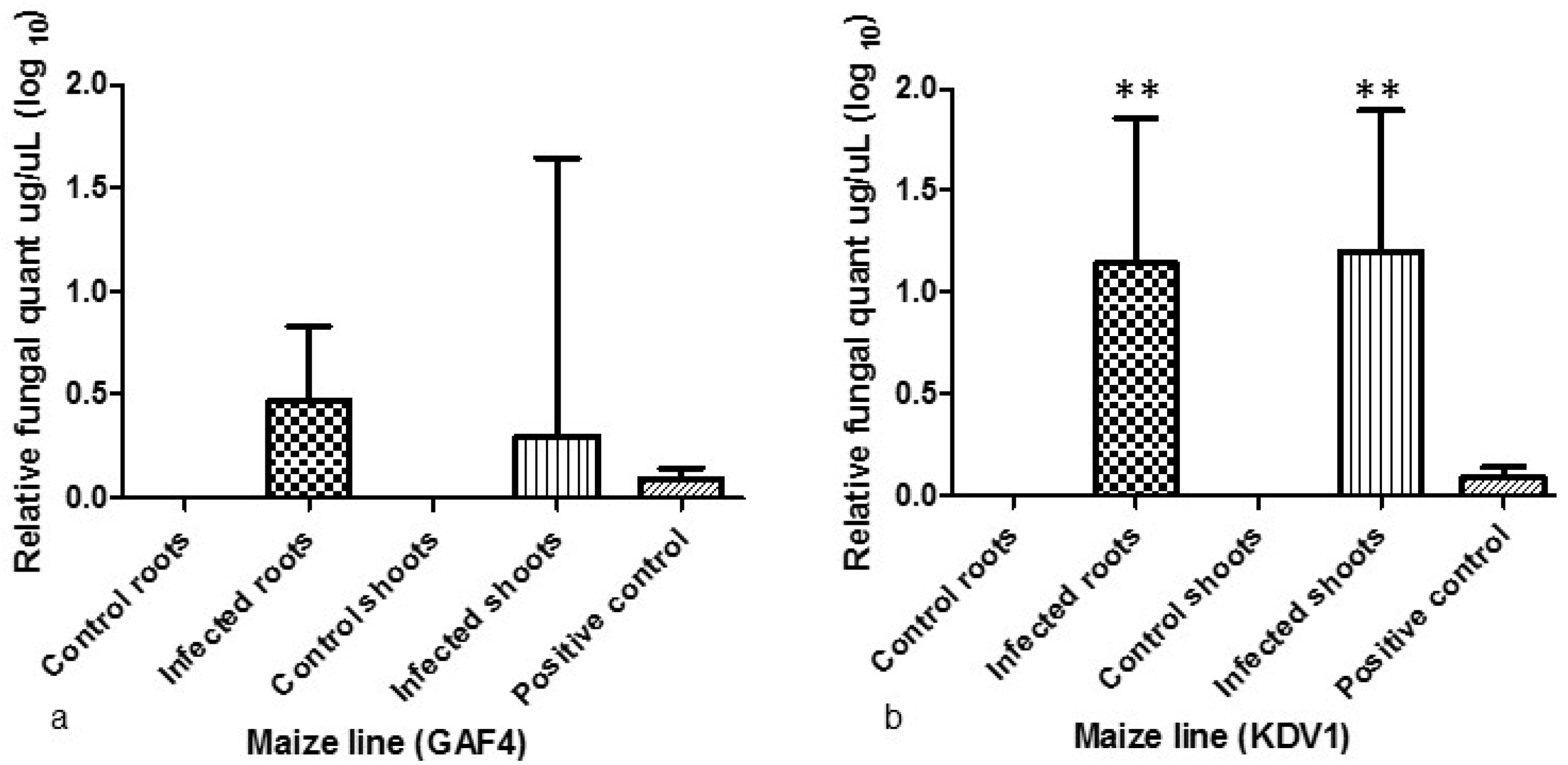

Figure 4. qPCR analysis showing fungal load of A. flavus KSM014 in the root and shoot tissue of GAF4 and KDV1 maize lines respectively. Fungal biomass was measured in infected and non-infected (control) GAF4 (a) and KDV1 (b) maize lines within 14 days where the A. flavus β-tub gene was used for fungal quantification against the maize MEP gene. A one-way ANOVA and Tukey’s Multiple Comparison Test revealed (p < 0.05). Asterisks indicate significance and the error bars shows standard mean deviation (n = 3).
Figure 4. qPCR analysis showing fungal load of A. flavus KSM014 in the root and shoot tissue of GAF4 and KDV1 maize lines respectively. Fungal biomass was measured in infected and non-infected (control) GAF4 (a) and KDV1 (b) maize lines within 14 days where the A. flavus β-tub gene was used for fungal quantification against the maize MEP gene. A one-way ANOVA and Tukey’s Multiple Comparison Test revealed (p < 0.05). Asterisks indicate significance and the error bars shows standard mean deviation (n = 3).
Toxins 11 00179 g004
Figure 5. Biocontrol approach with atoxigenic KSM012 and aflatoxigenic KSM014 strains of Aspergillus flavus to mitigate aflatoxin production. The kernels for sensitive (A; KDV1) and resistant (B; GAF4) maize lines were co-infected at different ratios (0:100; 25:75; 50:50; 75:25; 100:0) with atoxigenic and aflatoxigenic strains.
Figure 5. Biocontrol approach with atoxigenic KSM012 and aflatoxigenic KSM014 strains of Aspergillus flavus to mitigate aflatoxin production. The kernels for sensitive (A; KDV1) and resistant (B; GAF4) maize lines were co-infected at different ratios (0:100; 25:75; 50:50; 75:25; 100:0) with atoxigenic and aflatoxigenic strains.
Toxins 11 00179 g005
Figure 6. Thin layer chromatography plates showing the presence or absence of mycotoxins from the isolates in comparison with the aflatoxin standards at long wavelength, 365 nm. Lanes: (1) Blank; (2) Standard; atoxigenic KSM012 and aflatoxigenic KSM014 ratios for the GAF4 line (G) were (3) G100/0; (4) G75/25; (5) G50/50; (6) G25/75; (7) G0/100; and (8) K100/0; (9) K75/25; (10) K50/50; (11) K25/75; (12) K0/100 for the KDV1 line (K). (B1: aflatoxin AFB1; B2: aflatoxin AFB2; G1: aflatoxin AFG1; G2: aflatoxin AFG2).
Figure 6. Thin layer chromatography plates showing the presence or absence of mycotoxins from the isolates in comparison with the aflatoxin standards at long wavelength, 365 nm. Lanes: (1) Blank; (2) Standard; atoxigenic KSM012 and aflatoxigenic KSM014 ratios for the GAF4 line (G) were (3) G100/0; (4) G75/25; (5) G50/50; (6) G25/75; (7) G0/100; and (8) K100/0; (9) K75/25; (10) K50/50; (11) K25/75; (12) K0/100 for the KDV1 line (K). (B1: aflatoxin AFB1; B2: aflatoxin AFB2; G1: aflatoxin AFG1; G2: aflatoxin AFG2).
Toxins 11 00179 g006
Figure 7. High Performance Liquid Chromatography analysis highlighting biocontrol of aflatoxigenic (KSM014) by atoxigenic (KSM012) Aspergillus flavus when co-infected at different ratios in maize lines GAF4 (A) and KDV1 (B) respectively. (AFB1: aflatoxin B1; AFB2: aflatoxin B2; AFG1: aflatoxin G1; AFG2: aflatoxin G2). A Tukey’s multiple comparison test revealed that AFG2 versus AFG1 and AFG2 versus AFB2 for the GAF 4 maize line were significant (p < 0.05).
Figure 7. High Performance Liquid Chromatography analysis highlighting biocontrol of aflatoxigenic (KSM014) by atoxigenic (KSM012) Aspergillus flavus when co-infected at different ratios in maize lines GAF4 (A) and KDV1 (B) respectively. (AFB1: aflatoxin B1; AFB2: aflatoxin B2; AFG1: aflatoxin G1; AFG2: aflatoxin G2). A Tukey’s multiple comparison test revealed that AFG2 versus AFG1 and AFG2 versus AFB2 for the GAF 4 maize line were significant (p < 0.05).
Toxins 11 00179 g007
Table 1. Phenotypic characteristic measurements of control and infected (GAF and KDV1) maize lines with Aspergillus flavus isolate KSM014 (n = 3) taken after 14 days of growth. Massive variation was observed in roots and shoots of both maize lines, with KDV1 exhibiting more severe symptoms of stunted growth.
Table 1. Phenotypic characteristic measurements of control and infected (GAF and KDV1) maize lines with Aspergillus flavus isolate KSM014 (n = 3) taken after 14 days of growth. Massive variation was observed in roots and shoots of both maize lines, with KDV1 exhibiting more severe symptoms of stunted growth.
Phenotypic Characteristic
Maize LineControl RootsControl ShootsInfected RootsInfected Shoots
Exp 1Exp 2Exp 3Average (mm)Exp 1Exp 2Exp 3Average (mm)Exp 1Exp 2Exp 3Average (mm)Exp 1Exp 2Exp 3Average (mm)
GAF4285260278274.33352322312328.6713411398115142185111146
KDV1272252232252344300323322.3378838481.6782879186.67
Table 2. Specific primers used for total fungal and strain quantification.
Table 2. Specific primers used for total fungal and strain quantification.
Primer Name Forward Primer (5′-3′)Reverse Primer (5′-3′)Product Size (bp)TaReference
Membrane Protein (MEP)TGTACTCGGCAATGCTCTTGTTTGATGCTCCAGGCTTACC20364 °CManoli et al. [51]
Elongation Factor 1 alpha (EF1α)CGTTTCTGCCCTCTCCCATGCTTGACACGTGACGATGA10262 °CNicolaisen et al. [52]
β-TubulinMTCTTCATGGTTGGCTTCGCTCTTGGGTCGAACATCTGCT11862 °CMitema et al. [33]
*Ta: annealing temperature * bp: base pair

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Toxins EISSN 2072-6651 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
