A New Convective Initiation Definition and Its Characteristics in Central and Eastern China Based on Fengyun-4A Satellite Cloud Imagery

Highlights

What are the main findings?

• To ensure authenticity, satellite-derived Convective Initiation (CI) labels were rigorously validated through: (1) cross-validation with independent radar and precipitation observations, and (2) manual verification by experienced weather forecasters.
• By comparing the differences between real CI events and false CI events, the key characteristics of CI are identified, and a clear CI definition is established based on satellite cloud imagery.

What are the implications of the main findings?

• Proposed a satellite observation-based convective initiation definition, breaking through the traditional reliance on radar observations for CI definition.
• This satellite-based CI definition is transferable across regions and seasons through regional and seasonal threshold calibration.

Abstract

With the upgrading of geostationary meteorological satellites, their capabilities in Convective Initiation (CI) identification have been enhanced. To improve the applicability of the ARGI-based CI algorithm in central and eastern China, this study uses Fengyun-4A data, integrates radar and precipitation data to construct a True_CI dataset, and defines False_CI events (satellite-identified events without radar or precipitation signals) for comparative analysis. The results show that True_CI events tend to have longer durations, larger cloud cluster areas, and lower central cloud-top brightness temperature (BT) during development. They exhibit distinct features such as reduced differences between water vapor and infrared channels, increased cloud optical thickness, and ice-phase transformation 30 min before CI occurrence—features absent in most False_CI events. Based on these comparative findings, a new satellite-based CI definition is proposed with a set of reference thresholds, which should be adjusted for different latitudes and seasons. The evaluation of the Defined_CI events (defined using the CI definition) via True_CI events indicates that the CI definition on satellite cloud imagery proposed in this study is reliable, and suggests that further research on the pre-CI environmental conditions of weak convection is needed. Supported by hyperspectral data or numerical model products, such research will help clarify which cloud clusters are prone to developing into convective weather.

1. Introduction

Severe convective weather is the primary manifestation of sudden and disastrous weather events, encompassing hail, thunderstorm winds, tornadoes, and short-duration heavy precipitation [1,2,3,4,5,6]. Its occurrence often results in significant loss of life and property, and even has tremendous social impacts. In the process of severe convective weather warning and prediction, the identification and forecasting of convective initiation (CI) play a crucial role [7,8].

CI refers to a specific state in the early stages of severe convective weather, marking the onset of convective activity [9]. The traditional definition of CI is the moment when a Doppler weather radar first detects pixels with reflectivity factors ≥ 35 dBZ generated by convective clouds [10,11,12,13]. However, weather radar measures precipitation by detecting the scattering effect of precipitation particles on electromagnetic waves. This means that when radar detects echoes above 35 dBZ, precipitation may have already started on the ground, indicating that convection has developed beyond the initial formation stage. In contrast, the core technique for CI identification using satellites lies in monitoring cloud-top properties and development using geostationary meteorological satellites [14]. Unlike radar, which detects precipitation particles, satellites observe clouds at earlier developmental stages before precipitation becomes significant. This enables satellites to monitor the onset of convection earlier than radars, thereby more accurately identifying the convective initiation phase. Recent studies have validated this advantage: Yang et al. [15,16] demonstrated that new-generation geostationary satellite data can effectively detect and track convective cloud evolution from early developmental stages over South China, while Sun et al. [17] achieved CI nowcasting lead times exceeding 30 min over China using satellite-based algorithms. These capabilities have been enabled by significant improvements in satellite technology [18,19,20,21]. New-generation geostationary satellites (e.g., Himawari-8 [22], Fengyun-4A [17] now provide frequent observations (5–10 min intervals) and enhanced spatial resolution (0.5–1 km in visible channels) compared to previous generations, enabling detailed monitoring of convective cloud development from early stages [10,18,19,20,21,23].

Maddox [24] was the first to propose using a threshold of brightness temperature (BT) to detect CI. Setvák and Doswell [25] further linked infrared channel temperature difference thresholds to cloud-top phase states and physical characteristics, while Strabala et al. [26] demonstrated methods for inferring cloud properties from 8–12 μm infrared data. However, these infrared BT threshold-based approaches, though computationally efficient, often suffer from limited detection accuracy. Usually, setting the threshold too low or too high can cause missed judgments or false alarms. To improve the effectiveness of the threshold method, more thresholds have been introduced for convective cloud monitoring. Mecikalski and Bedka [18] proposed the cloud object-based Satellite Convection Analysis and Tracking (SATCAST) algorithm based on data from the Geostationary Operational Environmental Satellite (GOES), and further conducted extended research thereafter [16]. The SATCAST algorithm includes eight indicators such as infrared cloud-top BT, the temporal trend of infrared cloud-top BT, differences in infrared cloud-top brightness temperatures, and others. The SATCAST algorithm currently only utilizes the spectral channels of the current GOES series satellites. While it can detect 90% of CI, it also has a relatively high false alarm rate [13,23,27]. A typical example is its frequent misclassification of pixels adjacent to mature convective systems as new CI clusters during actual forecasting operations. This limitation stems from its single-pixel-based object tracking and verification approach, where the continuous development or rapid movement of anvil regions in mature convective systems leads to erroneous identification of edge pixels [23,28].

Sieglaff et al. [21] developed the UWCI algorithm based on the concept of box-averaged. The algorithm utilizes the average brightness temperature difference between two consecutive time blocks to roughly identify convective cloud clusters. It then employs seven criteria to eliminate non-convective pixels and identifies pixels that meet the cloud-top cooling rate as CI. This algorithm is simple, rapid, and efficient. However, it is prone to misjudgment in cases with horizontal cloud movement and complex multi-layer clouds.

Zhuge and Zou [23] utilized five different channels and their combinations from the Himawari-8 satellite to form eight indicators for determining the occurrence of convection, which showed good early warning effects in the Fujian region of China. Many studies have shown that the threshold for satellite detection of CI is not fixed and can be influenced by factors such as the season and geographical characteristics of the region [29].

In recent years, artificial intelligence (AI) and machine learning approaches have also been explored for CI detection [22,30]. While these methods show promise in improving detection accuracy and reducing false alarms, they typically require extensive training datasets and substantial computational resources, and their physical interpretability remains limited.

Notably, beyond the challenges of establishing unified threshold standards and the limitations of data-driven approaches, there remains no consensus on a CI definition specifically tailored to satellite data. This gap hinders the accuracy of satellite-based CI identification, especially when distinguishing events that will develop into impactful weather. Against this backdrop, the present study is grounded in the understanding that the core of CI identification resides in the physical signals of convective motion—specifically deepening cloud thickness, sharp declines in cloud-top temperature, and changes in cloud-top phase state—all of which can be captured through multi-spectral comprehensive analysis techniques [14].

This study differs from existing work by prioritizing the differentiation between “True CI” and “False CI”: True CI refers to events that will eventually develop into strong convective precipitation, while false CI denotes misidentified cases. To ensure the authenticity of our target CI, we integrate radar-identified CI events and precipitation data for cross-validation, a step that addresses the limitation of previous studies which relied solely on satellite data. Specifically, this study aims to analyze the characteristic differences between genuine convective initiation cloud clusters and commonly misidentified ones across various satellite channel parameters; it also seeks to evaluate how effectively satellite channels characterize the cloud-top properties of developing cumulus clouds, and ultimately to establish a new CI definition for identifying CI with a focus on genuine CI that progresses to strong convection.

This paper is organized as follows. Section 2 provides a brief description of the data and method employed in this paper. Section 3 presents the characteristics of CI events and the evolution of satellite channel parameters prior to CI onset. Definitive criteria for CI in satellite cloud imagery are presented in Section 4, the main conclusions are drawn in Section 5.

2. Materials and Methods

2.1. Data Description

This study utilizes data from the Advanced Geosynchronous Radiation Imager (ARGI) aboard the Fengyun-4A satellite to identify and analyze CI features. Launched on 11 December 2016, Fengyun-4A is China’s geostationary meteorological satellite dedicated to comprehensive atmospheric observations. Since March 2018, these data have been available for download from the Fengyun Satellite Remote Sensing Data Service Network (https://satellite.nsmc.org.cn/DataPortal/cn/home/index.html, accessed on 10 August 2023). Fengyun satellite datasets have been widely employed in meteorological research, with their quality gaining universal recognition [17,29,31].

Specifically, this study uses infrared BT data from Fengyun-4A, which were acquired by ARGI, the primary optical payload onboard the satellite. ARGI is equipped with 3 visible channels and 11 infrared channels, among which the infrared absorption and window channels were utilized in this research (

Table 1. Channel number, wavelengths and description of the channels used in the CI identification algorithm.

Channel Name	Spectral Range (μm)	Description of Main Uses
9	5.8–6.7	High-level water vapor
10	6.9–7.3	Middle-layer water vapor
11	8.0–9.0	total water vapor, clouds
12	10.3–11.3	Clouds, surface temperature, etc.
13	11.5–12.5	Clouds, total water vapor volume, surface temperature
14	13.2–13.8	Clouds, water vapor

). The data have a spatial resolution of 4 km at the satellite’s nadir point, with temporal resolutions of 15 min for full-disk observations and 5 min for the China region.

Additionally, this study incorporates radar reflectivity measurements from China’s S-band New Generation Doppler Weather Radars (INRAD). These radars are deployed over land areas in central and eastern China, with observational records covering April to September 2018. The radar data have a temporal resolution of 6 min and spatial resolution of 1 km, providing high-frequency observations of precipitation development. As shown in Figure 1, the study region spans latitudes 20.5° N to 40° N and longitudes 105° E to 124° E. Notably, composite reflectivity in this context refers to the maximum reflectivity value across all elevation angles.

2.2. Algorithm Description for Identifying CI

Building on the traditional satellite-based CI identification method, this study developed a single-channel algorithm for the rapid identification and tracking of CI by referring to Li Shanshan’s approach [31]. Additionally, we obtained satellite-derived CI labeled data from Fengyun-4A satellite data. The method consists of three parts: First, pixels with BT below 273 K at the 10.7-μm band are identified, and contiguous pixels are grouped into convective cloud clusters. Then, a dynamic threshold-based area overlap method is employed, where the variable threshold rate of overlapping is determined based on statistical rate of overlapping values for each cloud cluster group to assess whether cloud clusters between consecutive time intervals are matched. Finally, CI is determined based on the 15-min cooling rates over a continuous 30-min period.

Although this method has made efforts to minimize the false alarm rate and improve the CI detection rate using satellite data, it still cannot guarantee that all satellite-identified CI labels correspond to genuine CI events. We cross-referenced the satellite-identified CI label data with radar observations and ground-based precipitation measurements to differentiate genuine CI events from satellite misidentifications (false positives). The steps are described below.

Firstly, the satellite-derived CI events are matched with radar-identified CI events within a spatio-temporal window of ±30 min and a spatial radius of 20 km to eliminate false alarms and generate satellite-radar matched CI events. The temporal window accounts for the time lag between satellite cloud-top observation and radar-detected precipitation during rapid CI development, while the spatial window accounts for satellite-radar parallax effects, horizontal displacement during early convective development, and spatial resolution differences. The radar-identified CI events were tracked and identified using the area overlap method and sliding cross-validation method based on the criterion of eight contiguous grid points with echo intensities ≥35 dBZ.

Secondly within a spatial-temporal window of 60 min after the satellite CI trigger and extending 2 km outside the CI cloud clusters movement zone, the satellite-derived CI events are also matched with precipitation data to generate satellite-precipitation matched CI events.

Lastly, the two matching results are combined to form a comprehensive identification of CI events. Furthermore, using a calibration system and a back-to-back verification method by forecasters, the CI annotation results are revised, resulting in a high-resolution and reliable CI annotation dataset. In total, 5888 CI events were identified using the above-described CI identification method over the central and eastern regions of China from April to September of 2018. We hereby define these as True Convective Initiation (True_CI) events. Concurrently, we have defined 3585 events that were identified as CI by satellite but were neither radar-identified CI nor matched with ground precipitation as False Convective Initiation (False_CI) events.

3. Statistical Characteristics of CI

3.1. Lifetime, Areas, BT

Through tracking all samples, it was found that the duration of True_CI events, from identification to dissipation or merger, primarily ranged from 1 to 2 h for 33% of the samples. The second most common duration was less than 1 h, while a significant portion (approximately 38%) lasted between 2 and 6 h. This indicates that True_CI events can sustain development and last for hours. In comparison, False_CI events had a shorter lifespan, with most lasting no more than 1 h, representing convective cloud clusters that failed to develop.

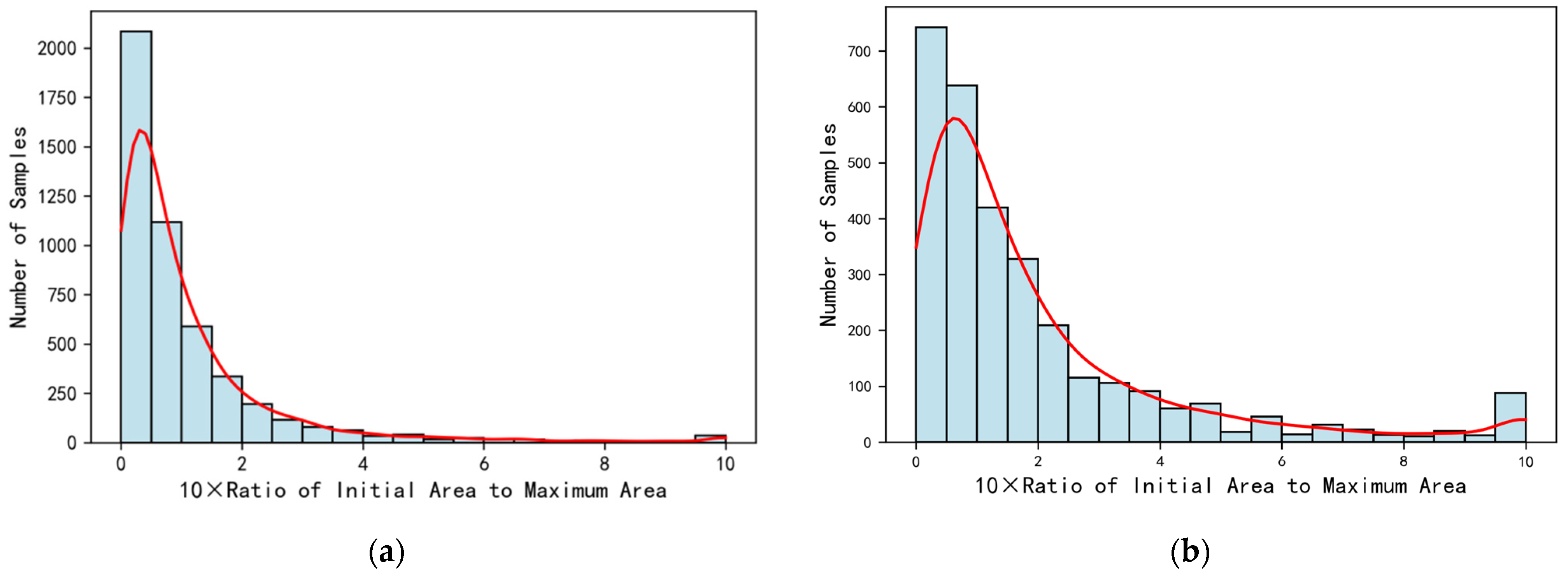

The ratio of initial area to maximum area also corroborated this observation. We calculated the ratio of the initial area of convective cloud clusters for CI events to their maximum area during development, multiplied it by 10, and examined the distribution of this “10 × Ratio” for True_CI events and False_CI events (Figure 2). In Figure 2a, the histogram reveals that most samples cluster in the “10 × Ratio” range of 0–2, with a sharp decline thereafter, and the kernel density curve peaks sharply in this interval, signifying a strong concentration. This means the initial area of convective cloud clusters for True_CI events is consistently far smaller than their maximum area. In contrast, for False_CI events, the histogram of the initial-to-maximum area ratio shows a wider distribution of “10 × Ratio”, with samples spread from 0 to around 10, and the kernel density curve has a lower, smoother peak, reflecting greater data dispersion. This suggests that convective cloud clusters associated with True_CI events tend to undergo more substantial development and expansion compared to those linked to False_CI events.

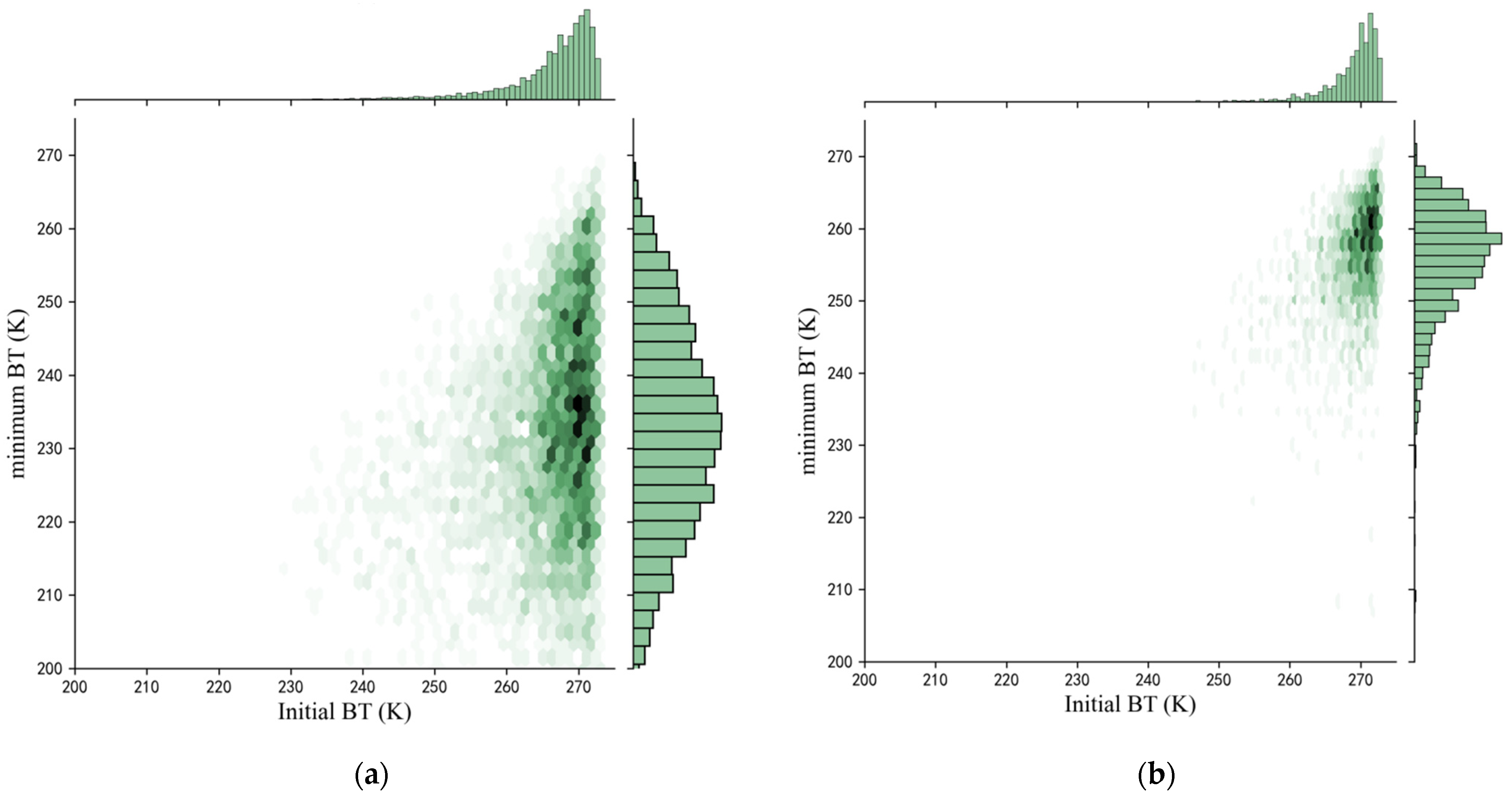

This study used BT ≤ 273 K at the 10.7-μm band as the thresholds to identify a convective object. Therefore, initial minimum BT for both types of events clustered around 260–270 K (Figure 3). However, during their development, only those convective cloud clusters associated with True_CI events will continue to cool, often reaching a point where the minimum BT drops below 221 K, a threshold used to identify severe convective objects [24,25]. This pronounced cooling indicates that True_CI-related convective systems possess stronger development potential and can evolve into more intense convective forms. In contrast, the minimum BT of False_CI events is typically around 260 K and rarely drops below 241 K, a threshold used by several authors to identify and extract convective objects [24]. Such a characteristic suggests that False_CI events tend to be less vigorous in their development, with convective activity that is relatively weak and short-lived compared to True_CI events.

There are also some individual cases where they exhibit similar duration, maximum areas, and minimum BT throughout the tracking process, but are identified as entirely opposite types (True_CI or False_CI) due to their different performance on radar or precipitation.

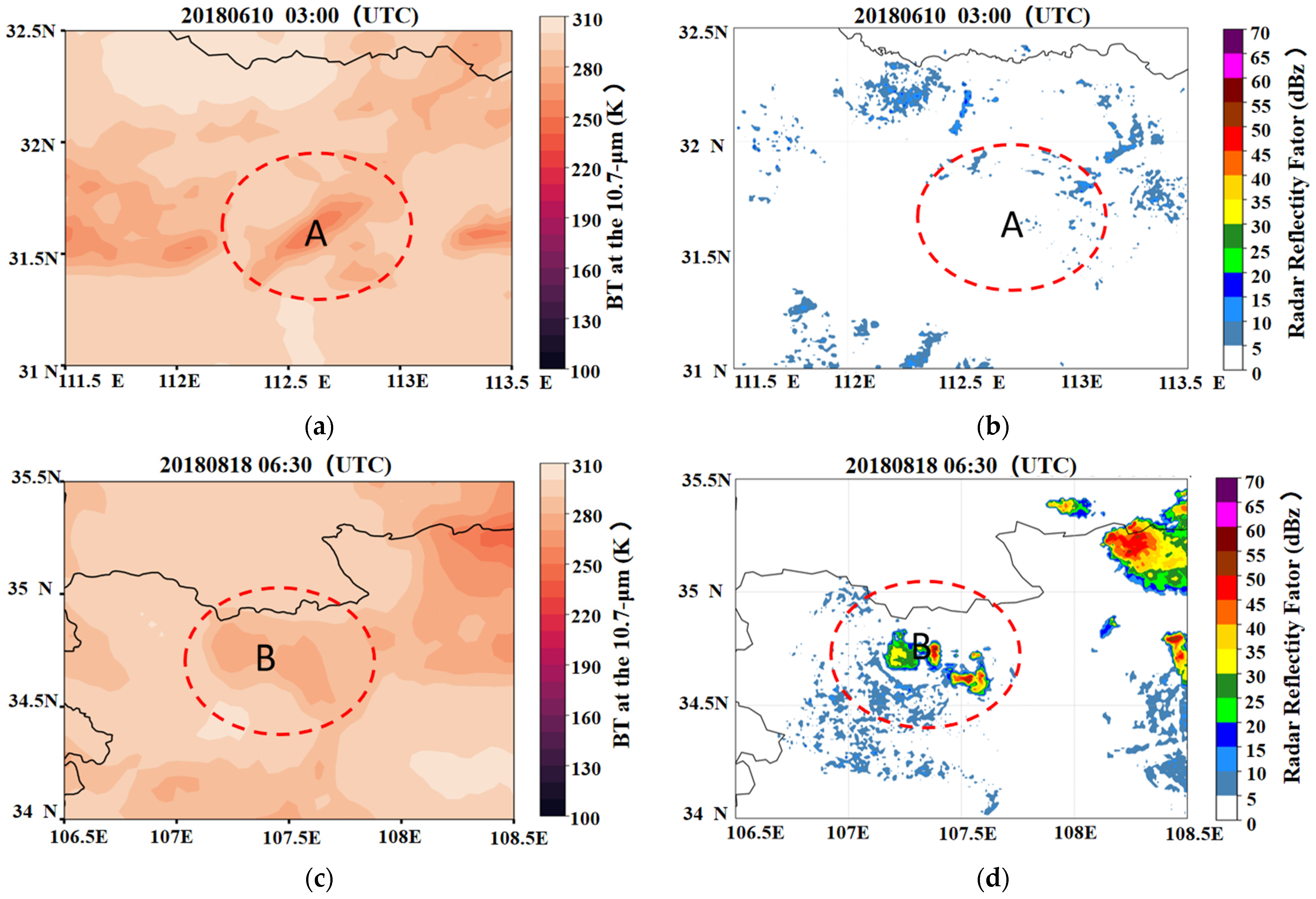

Figure 4 presents two tracked cloud objects with similar characteristics: one observed in Hubei, China, on 10 June 2018, and the other in Shanxi on 18 August 2018. To help understand, the convective cloud cluster tracked on 10 June is labeled as CI event “A”, while that on 18 August is “B”. Event A developed from a 2-pixel cloud cluster, reached a maximum area of 41 pixels before merging with other clouds, and lasted for 60 min. The minimum BT at its core decreased from 270 K initially to 248 K, meeting our satellite-based CI identification criteria. However, only some scattered radar composite reflectivity echoes of less than 20 dBZ were detected, and no surface precipitation occurred within an hour. By contrast, Event B exhibited a similar development pattern. Its cloud cluster expanded from 2 pixels to 39 pixels, with the core minimum BT decreasing from 272 K to a minimum of 261 K, and the convective cloud cluster persisted for 83 min. But its radar and precipitation observations were markedly different. Although there were visual inconsistencies between radar and satellite observations, distinct echoes exceeding 35 dBZ were still detected at the location of Event B via radar composite reflectivity. During the subsequent 1-h cloud tracking period, 2.4 mm of precipitation was recorded at the surface.

Such a contrast reveals the essential difference in observational perspectives between radar and satellite—a difference that thus further highlights the limitations of the single-channel threshold method. Radar uses a bottom-up penetrative detection mode, focusing on the “essential attributes” of cloud interiors, e.g., the concentration and size of precipitation particles in the middle and lower layers. Satellites, by contrast, primarily capture macro-scale cloud-top features (e.g., BT, cloud cluster area, duration) from a top-down perspective. This top-down view prevents observation of key internal cloud factors, e.g., whether sustained updrafts exist in the middle and lower layers to support particle growth, or if there is sufficient water vapor to form large-sized precipitation particles.

We therefore need to conduct further analysis to identify other distinguishing satellite-based characteristics that support cloud cluster continuous development and trigger convective weather events.

3.2. Channel Characteristics of CI

To address the above-mentioned analysis need, and specifically to help understand the evolution of CI events prior to their occurrence, this study conducted an analysis of channels 9–14 and their dual- or triple-channel combinations for both True_CI and False_CI samples. Although theoretically, a large number of interest fields can be constructed through dual- or triple-channel combinations, numerous studies [13,32,33] have shown that many of these fields possess overlapping physical attributes. Through comparative analysis of the two sample classes across channels 9–14 and their various combinations, we identified four interest fields (listed in

Table 2. List of interest fields, along with their definitions and physical relationships to convective clouds.

Infrared Interest Fields	Definition	Physical Implications
Tb,10.7	BT at the 10.7-μm band	Cloud-top height
Tb,7.1−Tb,10.7	BT difference between the 7.1-μm band and 10.7-μm band	Cloud-top height relative to lower-troposphere
Tb,12.0−Tb,10.7	BT difference between the 10.7-μm band and 12.0-μm band	Cloud optical thickness
Tb,8.5 + Tb,12.0−2Tb,10.7	Tri-channel difference of 8.5-μm band, 12.0-μm band and 10.7-μm band	Cloud-top phase

) that demonstrate significant differences between True_CI and False_CI events: the single-channel BT at 10.7-μm (which we utilize for extracting CI events) and three multi-channel combinations. In this paper, we delve into these four infrared interest fields to gain a comprehensive understanding of the development characteristics of convective cloud clusters prior to the occurrence of CI from a satellite perspective. To avoid the blurring of the spectral signals, the magnitudes of the 4 interest fields are estimated using an average of the 25% of pixels with the coldest values of T_b,10.7 within the convective cloud clusters associated with CI events. The variations in these fields provide us with a clearer understanding of cloud-top height, phase changes within clouds, and other aspects [23], thereby providing a detailed description of atmospheric states and cloud-top properties.

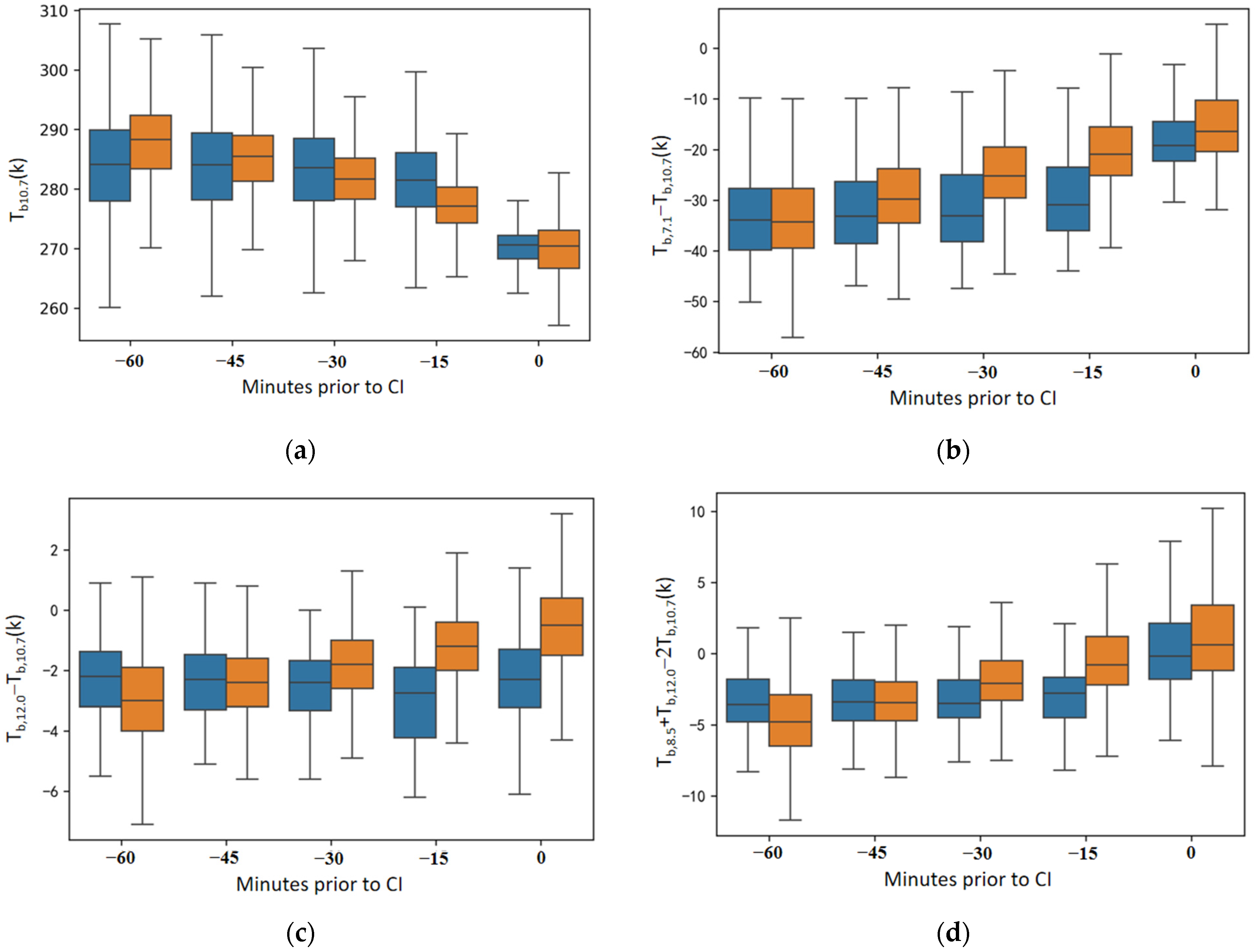

The following (Figure 5) displays the distribution of the 4 interest fields at 15-min intervals, ranging from 60 min prior to the event up until the moment of its occurrence. The decrease in BT at the 10.7-μm band for both True_CI events and False_CI events indicates that their cloud-top heights are both rising. BT variations in the 10.7-μm band (Figure 5a) are relatively consistent and show no significant differences between True_CI events and False_CI events before CI onset (t = 0 min, p = 0.101, Mann-Whitney U test), primarily because we rely on the cooling rate of this channel for satellite-based CI identification. However, in scenarios where a lower tropospheric inversion layer exists and cumulus clouds undergo rapid development to the point of breaking through this inversion layer, the cooling rate of cloud-top temperature detected by the 10.7-μm band tends to be abnormally elevated. Such an anomaly may lead to the misclassification of non-convective systems as CI events, which also explains why the utilization of single-channel satellite data results in a high false alarm rate in CI identification.

This limitation is addressed by the T_b,7.1−T_b,10.7 indicator (Figure 5b), which reflects cloud-top height relative to the lower troposphere. As cloud tops rise, reduced water vapor above the cloud causes the 7.1-μm BT to increase and approach the 10.7-μm BT, transitioning T_b,7.1−T_b,10.7 from negative to near-zero values. For shallow cumulus breaking through inversion layers, although the cooling rate may be high, the cloud top remains in the lower-to-middle troposphere with substantial water vapor above, maintaining negative T_b,7.1−T_b,10.7 values. In contrast, genuine deep convection reaches the upper troposphere with near-zero T_b,7.1−T_b,10.7 values. As illustrated in Figure 5b, a distinct disparity in T_b,7.1−T_b,10.7 is evident between True_CI events and False_CI events, with highly significant statistical differences throughout the entire pre-CI period (p < 0.001 at all time steps from −60 to 0 min, Mann-Whitney U test). For True_CI events, the T_b,7.1−T_b,10.7 values begin to increase 45 min prior to the CI event, followed by a rapid ascent starting 30 min beforehand. In contrast, False_CI events exhibit an increase in T_b,7.1−T_b,10.7 only 15 min prior to the perceived CI event, with the magnitude of this increase being smaller than that observed in True_CI events. Consequently, the integration of 10.7-μm band data and the T_b,7.1−T_b,10.7 difference can effectively mitigate false CI identifications caused by the rapid growth of cumulus clouds.

The BT difference between the 12.0-μm and 10.7-μm channels (T_b,12.0−T_b,10.7), known as the split-window channel technique, is commonly employed to characterize cloud optical thickness. For thin clouds, T_b,12.0−T_b,10.7 values exhibit significantly negative magnitudes, with these values increasing as cloud thickness increases [22]. For the majority of True_CI events, T_b,12.0−T_b,10.7 values increased rapidly 30 min prior to CI and reached peak values at the moment of CI occurrence, indicating progressive cloud thickening (Figure 5c). In contrast, False_CI events showed no significant increases in T_b,12.0−T_b,10.7 values. This finding suggests that cumulus clouds with rapidly ascending cloud tops, such as the misidentified False_CI events, do not necessarily exhibit corresponding increases in optical thickness. Consequently, T_b,12.0−T_b,10.7 can serve as a reliable indicator for distinguishing between False_CI events and True_CI events.

The tri-channel BT difference involving the 8.5-μm, 12.0-μm, and 10.7-μm bands (i.e., T_b,8.5 + T_b,12.0−2T_b,10.7) is utilized to infer the cloud-top phase [33,34]. Ice clouds typically exhibit larger magnitudes in the T_b,8.5−T_b,10.7 difference compared to the T_b,12.0−T_b,10.7 difference, whereas water clouds generally display the opposite pattern, with smaller T_b,8.5−T_b,10.7 differences relative to T_b,12.0−T_b,10.7 differences. Specifically, at the cloud top, the tri-channel difference yields positive values for ice-phase clouds and negative values for water-phase clouds.

The statistical results (Figure 5d) indicate that for True_CI events, the tri-channel difference (i.e., T_b,8.5 + T_b,12.0−2T_b,10.7) begins to exhibit a significant increasing trend 30 min prior to CI occurrence. For some True_CI events, this difference has already become positive by the time CI occurs, indicating a gradual ice-phase transformation at the cloud top. In contrast, False_CI events only show an increase in this difference at the moment of their misclassification as CI events, with peak values lower than those observed for True_CI events. This suggests that no significant ice-phase transformation has occurred within these cumulus clouds. Therefore, incorporating the tri-channel difference into satellite-based CI identification algorithms will effectively improve the accuracy of such assessments.

4. Definitive Criteria for CI in Satellite Imagery

True_CI events not only exhibit pronounced cloud-top cooling rates but also demonstrate increased optical thickness relative to the lower troposphere and undergo ice-phase microphysical transitions, characteristics absent in False_CI events.

Operationally, this study defines Convective Initiation in satellite cloud imagery as the initial detection of well-developed moist convective pixels that exhibit significant feature differentiation from the surrounding cloud field. We integrate previously established satellite-based CI identification criteria with the 25th percentile thresholds (i.e., thresholds exceeded or met by 75% of samples) derived from True_CI events captured 15 min prior to CI. This timing ensures that all four spectral indicators display highly significant discrimination between True_CI and False_CI groups (p < 0.001, Mann-Whitney U test; Figure 5), while providing practical nowcasting lead time. Collectively, these integrated criteria form the reference thresholds for identifying True CI (hereafter referred to as the CI definition criteria):

• Initial number of pixels ≥ 2, initial area cloud cluster ≥ 64 km² (the area of 2 pixels at a 4 km spatial resolution of Fengyun-4A Satellite);
• BT at the 10.7 µm band ≤ 273 K, with sustained cooling at rates ≥ 4 K (15min)⁻¹ over two consecutive 15-min intervals;
• BT difference between the 7.1-μm band and 10.7-μm band (BTD_7.1−10.7) > −28 K;
• BT difference between the 10.7-μm band and 12.0-μm band (BTD_12.0−10.7) > −2 K;
• Tri-channel difference of 8.5-μm band, 12.0-μm band and 10.7-μm band (BTD_{8.5+12.0−2×10.7}) > −3.5 K.

Through the statistical analysis of the differences between the actual values of BTD_7.1−10.7, BTD_12.0−10.7, and BTD_{8.5+12.0−2×10.7} for True_CI events at 15 min prior to CI and the corresponding thresholds specified in the CI definition criteria, it is observed that most True_CI events satisfy the threshold requirements. However, there are notable differences in these discrepancies across latitudes and months. This explains why different studies employ varying threshold ranges when using satellites to identify CI, as their samples are derived from different research regions and periods.

First, examining the distribution of BTD_7.1−10.7 differences, from May to August (the period with the highest CI event frequency), the differences are mostly positive (Figure 6a), indicating that True_CI events during this time generally meet the threshold conditions. Events failing to meet the thresholds mostly occur at higher latitudes (>34° N) or lower latitudes (<22° N), which may be related to the influence of latitude on tropopause height. In April and September, cases that do not meet the thresholds are more widespread, such as in the 25–27° N region in April and the 24–29° N region in September (where differences show prominent blue tones, indicating values below the standard threshold). Therefore, when using BTD_7.3−10.7 to identify convective initiation (CI) in these regions, adjusting the threshold to −30 K (1–2 K lower than the summer value) can reduce missed detections of CI events. This adjustment takes into account lower background moisture during transitional months, ensuring accurate CI identification while minimizing false alarms from developing cumulus clouds.

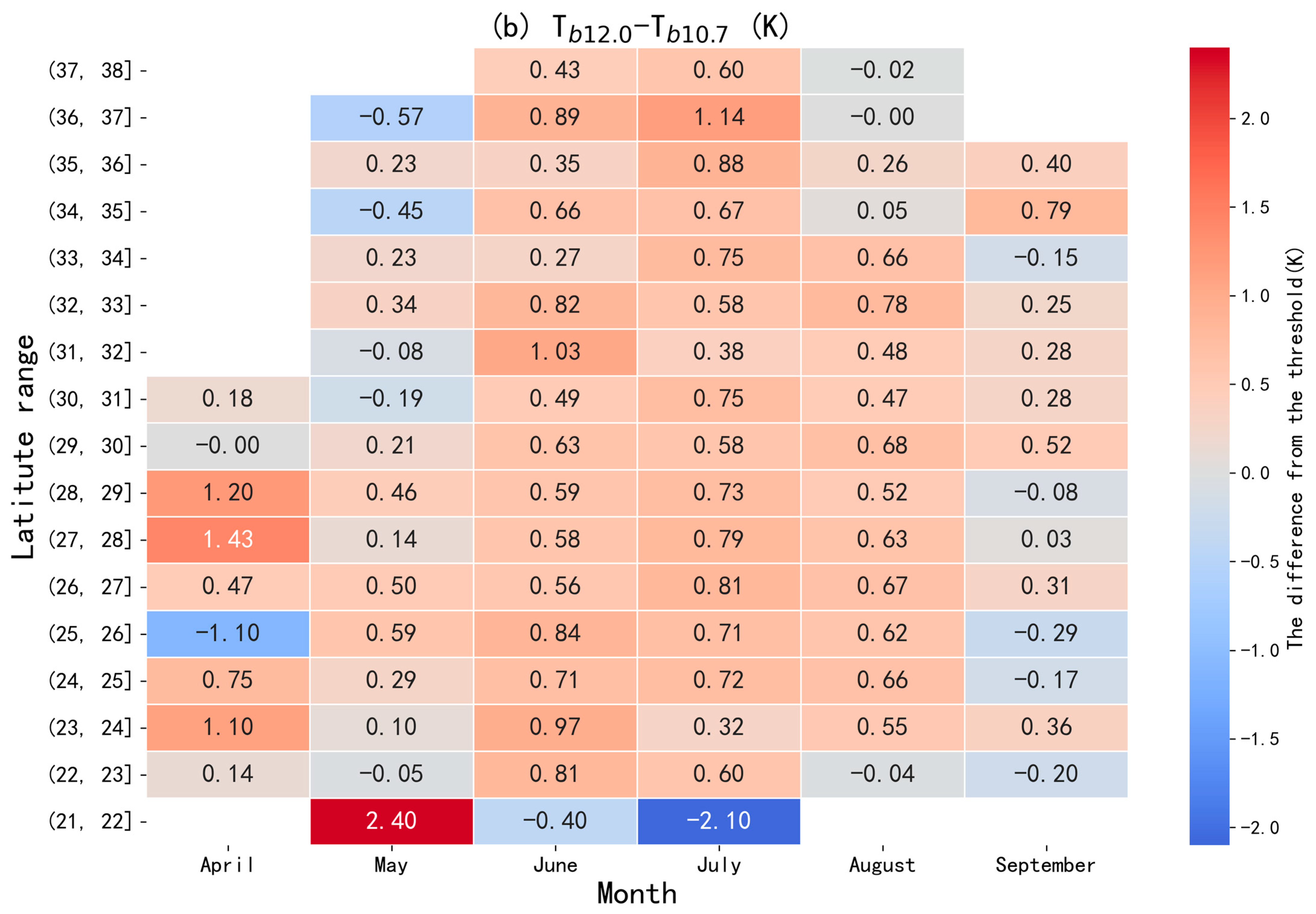

From the latitudinal and monthly variations in BTD_12.0−10.7 differences (Figure 6b), it is evident that the vast majority of True_CI samples satisfy this threshold condition. Although some samples in higher or lower latitude regions or during the less active CI periods (April and September) do not thoroughly meet the criteria, their BTD_12.0−10.7 values are very close to the threshold, making the differences almost negligible. This suggests that the threshold is applicable across different months and regions.

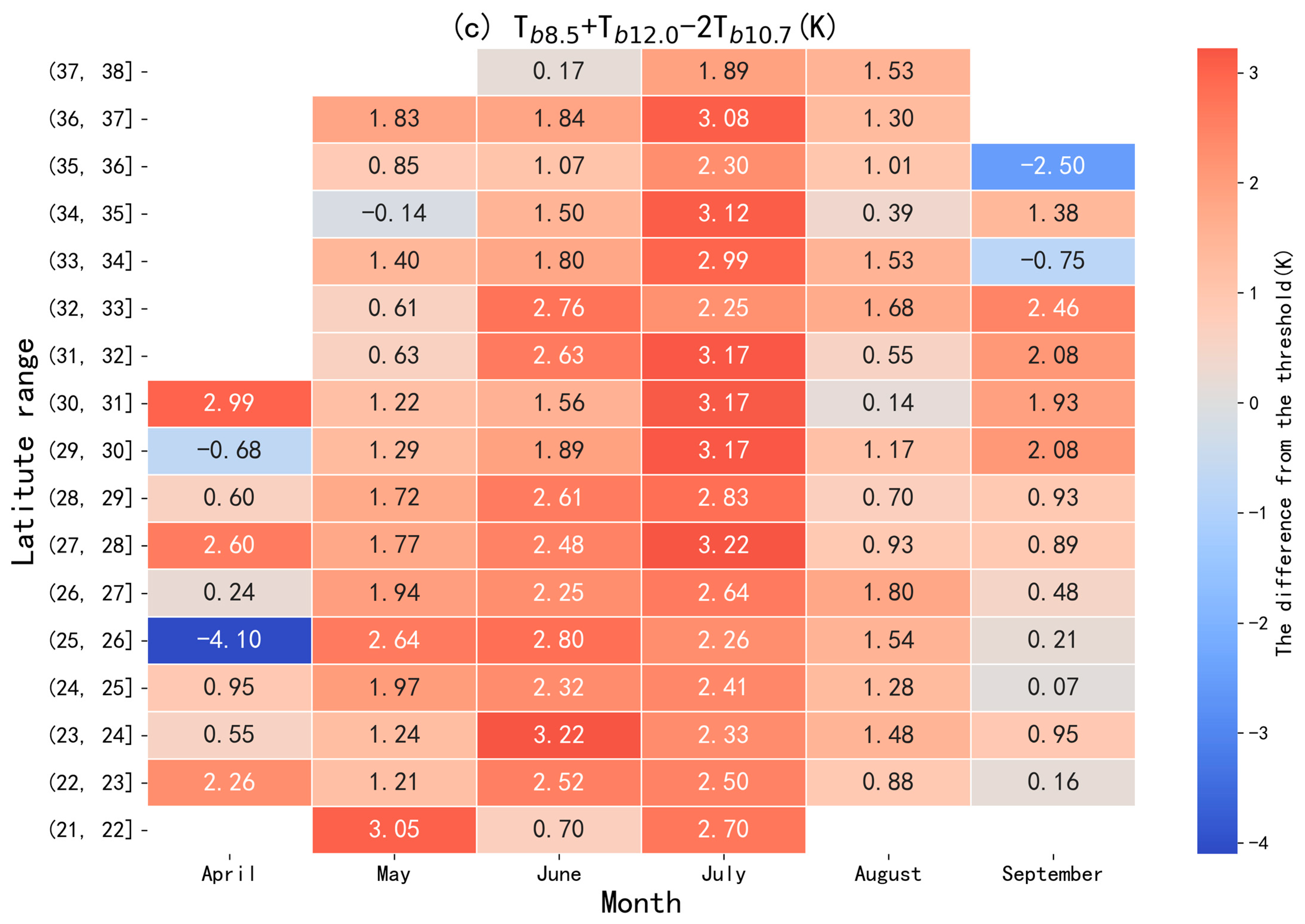

For True_CI events occurring at various latitudes from May to August, the differences for BTD_{8.5+12.0−2×10.7} mostly fall within the red-toned range of the color bar (Figure 6c), which indicates that their values align with or meet the reference thresholds of the CI definition criteria. When using this threshold to detect CI events in different regions during May–August, no adjustment is necessary. However, in the 25–26° N region in April and the 35–36° N region in September, the threshold may be appropriately lowered to account for the observed negative deviations from the reference threshold.

Overall, the thresholds of the CI definition criteria are applicable to central and eastern China from April to September, with a stronger applicability to the May-August period. Due to regional and seasonal influences, the characteristics of CI-initiation clouds in satellite channels may vary, so minor threshold adjustments may be needed for specific regions or months. In particular, April and September require more samples to refine the threshold adjustments tailored to different regions and months.

To further validate the reliability of the reference thresholds for CI identification, this study applied these threshold criteria to observations from the Fengyun-4A satellite over central and eastern China during May–August 2018. This spatial domain is consistent with the one used in the previous section for satellite-based screening of True_CI and False_CI events. Ultimately, a total of 5826 CI events were identified, which this study defines as Defined_CI to distinguish them from True_CI matched via multi-source data. When compared with True_CI events, the highest consistency was found to occur during May–August—a finding that aligns with our earlier analysis on the seasonal applicability of the threshold conditions.

With True_CI as the ground truth, we calculated the hits, misses, and false alarms for Defined_CI, and employed three metrics to quantitatively evaluate the accuracy of Defined_CI: False Alarm Rate (FAR), Missing Alarm Rate (MAR), and Probability of Detection (POD). FAR represents the ratio of non-convective events misclassified as CI to the total number of Defined_CI events which are identified by the CI definition criteria. MAR indicates the percentage of True_CI events that failed to be detected by the CI identification criteria. POD measures the fraction of True_CI events that were successfully identified by the CI definition criteria. For an optimal CI identification criterion, both FAR and MAR should approach 0%, while the POD should approach 100%. They are computed by using the following formula:

FAR = False alarms/(False alarms + Hits)

MAR = Misses/(Misses + Hits)

POD = Hits/(Misses + Hits).

The quantitative evaluation results for each month from May to August 2018 are provided in

Table 3. Results identified by the definition method from May to August 2018.

Month	POD (%)	MAR (%)	FAR (%)
May	79	21	18
June	81	19	0
July	82	18	0
August	84	16	22

. During May to August when convection occurs frequently, the CI definition criteria yield relatively good identification results. Specifically, POD maintains a consistently high level, ranging from 79% (May) to 84% (August), aligning with the overall range of around 80%. Correspondingly, the MAR remains stably low across the four months: it ranges from 16% (August) to 21% (May). While ensuring a certain hit rate, it is generally challenging for satellite-based CI identification to achieve a FAR lower than 20% [21,28,35], which highlights the significant improvement brought by Defined_CI in this regard. For instance, in terms of the FAR, June and July achieve the optimal performance with a FAR of 0% (meaning no false alarms were recorded in these two months), while the FARs in May and August are 18% and 22%, respectively, results that are either well below or close to the typical 20% threshold that is hard to reach for conventional satellite-based CI identification. These results, of course, represent regional averages. It is believed that even better identification performance can be achieved by appropriately adjusting the thresholds for different regions with reference to Figure 6.

To assess the robustness and generalizability of the proposed CI definition criteria, we conducted independent validation using CI events from May to August of 2019, which were not used in the threshold determination process. The ground truth for the 2019 validation was obtained using the same radar-precipitation matching method described in Section 2.2.

The validation results (

Table 4. Evaluation results using independent validation dataset (May–August 2019).

Month	POD	MAR	FAR
May	72	28	24
June	73	27	22
July	75	25	18
August	78	22	22

) show slightly lower but acceptable performance on the independent dataset compared to the 2018 training data, indicating that the CI definition criteria have good generalizability and are not overfitted to the training data. This confirms the reliability and applicability of our proposed CI definition for operational detection across different years.

Here, one false alarm case and one missed case are selected, respectively, to analyze in detail. First is a missed case that occurred in eastern Anhui, China on July 1, 2018. From the time variation in the four indicators one hour before CI occurrence (

Table 5. Time variations in four indications 1 h before CI occurrence.

Time Prior to CI Occurrence (min)	Tb10.7μm (K)		Tb7.1μm−Tb10.7μm (K)		Tb,12.0−Tb,10.7 (K)		T8.5+12.0−2×10.7 (K)
	Missed Case	False Alarm Case	Missed Case	False Alarm Case	Missed Case	False Alarm Case	Missed Case	False Alarm Case
−60	277.7	281.9	−26.2	−26.6	−1.9	−1	−2	−1.4
−45	280.5	282.1	−30.4	−27.4	−2.5	−1.9	−2.8	−2.6
−30	279.7	278.4	−31.4	−23.5	−1.7	−1.1	−1.3	−3.7
−15	278.3	273.3	−26.2	−18.7	−3.1	−0.8	−0.5	−1.9
0	268.4	269.7	−21.6	−15.5	−5.1	1.1	−0.5	0.8

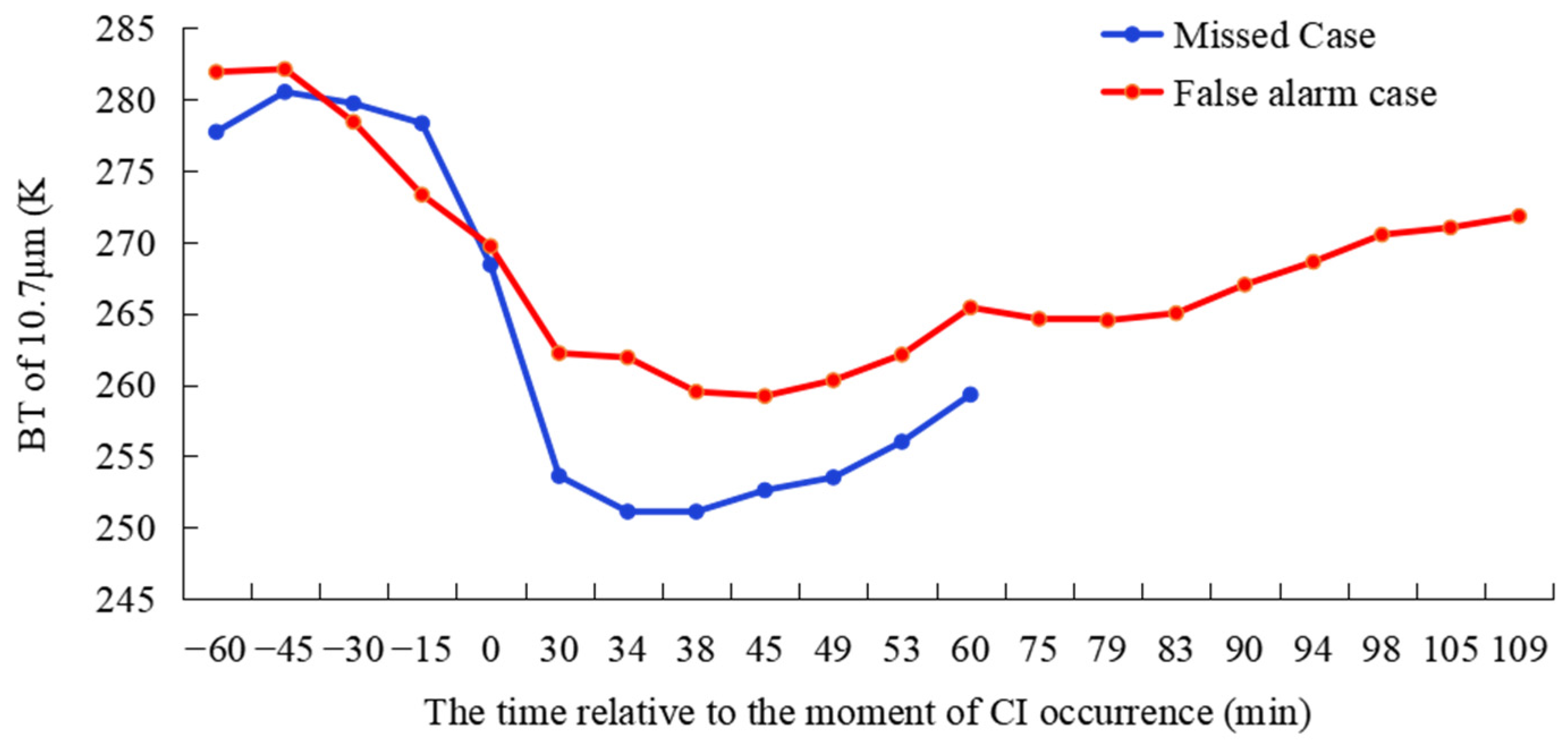

), the BT_10.7 began to drop 45 min before CI, decreasing from 280.5 K at −45 min to 268.4 K at CI occurrence (0 min), with a total cooling of 12.1 K over 45 min. The values of BTD_7.1−10.7 and BTD_{8.5+12.0−2×10.7} started to rise 30 min before CI and reached the threshold 15 min before CI. However, the value of BTD_12.0−10.7 did not continue to rise as expected, instead, it decreased. For the cirrus structures at the edge of cumuliform clouds, although the BT of cloud top is very low, the cloud optical thickness is small, which is insufficient to block the upward radiation from the cloud base. This results in BTD_12.0−10.7 typically being negative. In areas with stronger convective development, the thicker the cloud layer (i.e., the greater the optical thickness) and the lower the cloud top BT, the smaller BT difference between the two channels. The value of BTD_12.0−10.7 will change from a significantly negative value to a less negative one or even a positive value. However, in this case, the value of BTD_12.0−10.7 was negative and the gap did not gradually narrow, indicating that the cloud optical thickness did not increase, and this area was likely not a region with vigorous convective development.

To confirm the actual situation of this issue, we continuously tracked the convective cloud cluster. From the variation in BT at 10.7-μm, it can be seen that the BT of the cloud cluster dropped rapidly 15 min before CI occurrence, with the cloud top developing rapidly (Figure 7). It reached the minimum BT of 251 K during the process 34 min after being identified as CI, and then stopped developing. its entire lifecycle lasted approximately 1 h, classifying it as a weakly developing CI event that is difficult to detect via CI definition criteria.

Compared with the radar composite reflectivity at the corresponding time, radar echoes greater than 35 dBZ appeared near the convective cloud cluster, which conforms to the traditional radar-based CI definitions and is an important basis for us to confirm it as a True_CI sample from The satellite-derived CI events. However, the echo area was small, and the maximum intensity did not exceed 40 dBZ. From the analysis of surface precipitation data, the maximum rainfall intensity generated during the development of the cloud cluster was 0.15 mm/h. All these characteristics indicate that this convective cloud cluster is a weak convective system with relatively shallow cloud layers. It fails to meet the CI definition criteria and is therefore excluded.

Some studies have demonstrated the important role of hyperspectral resolution sounders in obtaining pre-CI environmental conditions to assess CI potential. For the identification of such weak convective systems, when using the CI definition criteria, consideration can be given to combining pre-CI environmental information provided by hyperspectral resolution sounders or numerical simulation products to improve the hit rate, but more research is needed to support this.

The second one is a false alarm case that occurred in southeastern Gansu, China on 1 August 2018. Data presented in Table 4 shows that all four indicators reached the reference thresholds 15 min before the CI occurrence. The values of BTD_12.0−10.7 and BTD_{8.5+12.0−2×10.7} switched from negative to positive at the moment of CI occurrence, indicating a significant increase in cloud optical thickness and the presence of ice crystals within the cloud, which fully meets the CI definition criteria provided earlier. However, a comparison with the BT_10.7μm of the missed case reveals that although this case lasted for 109 min, the minimum BT during the process was only 259.2 K, and it failed to develop into a mature convective cloud. Radar composite reflectivity shows that there was a small-scale echo > 35 dBZ below this convective cloud cluster. Nevertheless, since it did not meet the previously established radar-identified CI standards and no precipitation was detected within the temporal and spatial range of the cloud cluster, it was not marked as True_CI. This case exemplifies shallow or weakly developed convection that shows promising satellite spectral signatures but lacks the sustained vertical development and organization characteristic of genuine convective initiation. Such cases highlight both the current limitations of spectral-based CI detection and the potential value of incorporating environmental parameters to further improve discrimination capability.

Environmental analysis using ERA5 reanalysis data reveals important differences between the two cases. The missed case (1 July 2018) exhibited favorable conditions including deep moisture layer, strong low-level convergence extending to mid-troposphere, and low convective inhibition (CIN), supporting sustained deep convection. In contrast, the false alarm case (1 August 2018) showed shallow convergence confined below 900 hPa and high CIN preventing vertical development despite some CAPE present, explaining the failed convective development.

These environmental contrasts demonstrate that for cloud clusters exhibiting convective initiation characteristics in multiple satellite channels but failing to develop properly, further analysis is necessary to identify characteristic differences at the initiation stage, including both satellite spectral signatures and environmental conditions (e.g., CIN, moisture depth, convergence structure), compared with cloud clusters that develop into severe convective systems. Integrating such environmental analysis with the satellite-based CI definition criteria developed in this study could further enhance the capability for early warning of convective initiation.

5. Discussions

Single-channel BT_10.7 approaches, though simple and effective, are prone to false alarms, such as misidentifying rapidly developing cumulus as CI events. The satellite-based CI definition proposed here demonstrates robust performance, effectively addressing this limitation. However, the effectiveness of the threshold varies spatially and temporally, likely reflecting regional and seasonal variations in the atmospheric thermal structure and tropopause height. Therefore, applying it to different regions or seasons requires appropriate threshold adjustments. Notably, the relatively limited performance during transitional months (April and September) suggests that larger sample sizes during these periods may be beneficial to better characterize convective variability and support threshold optimization.

Despite these advances, satellite-based CI detection has inherent limitations. First, the current definition solely relies on cloud-top features and lacks a systematic integration of environmental fields. Second, this study employs a fixed brightness temperature threshold (BT ≤ 273 K), which may miss some warm-season shallow convection with warmer cloud-top temperatures.

Whether CI develops into significant convection depends not only on cloud characteristics, such as cloud-top temperature, optical thickness, and cluster compactness, but critically on atmospheric conditions. CAPE, CIN, vertical wind shear, and moisture transport directly determine the energy and material supply for convective development [36,37,38,39]. False alarm analysis highlights this limitation: some events exhibit appropriate satellite signatures but fail to develop into significant convection due to unfavorable environmental conditions, such as insufficient CAPE, strong CIN, or inadequate moisture.

To address these limitations, several complementary research directions should be pursued in future work. First, integrating hyperspectral satellite data (e.g., atmospheric temperature and moisture profiles from infrared sounders) and high-resolution numerical model products (e.g., CAPE, CIN, vertical wind shear, lifting indices) would enable a comprehensive assessment of both cloud-top characteristics and environmental conditions. This integration would help distinguish convective clouds with true development potential from those in unfavorable environments, thereby reducing false alarms. Second, building upon the current two-type classification (True_CI vs. False_CI), an objective analysis of these two sample groups by synoptic weather patterns should be conducted to enable more targeted threshold optimization for specific meteorological scenarios. Third, the definition’s applicability and limitations across different weather systems should be investigated, including frontal systems and typhoon peripheral regions, where distinct forcing mechanisms and atmospheric structures may require threshold adjustments. Finally, analyzing environmental characteristics during key CI development stages (e.g., early cloud cluster formation, pre-deepening phase) would identify critical precursors and provide a more scientific basis for accurately identifying CI events prone to severe convection development.

6. Summary

Advances in geostationary satellite technology have enhanced CI monitoring capabilities, yet current CI definitions remain radar dependent, lacking satellite-specific criteria. To address this gap, we developed a True_CI dataset by integrating Fengyun-4A satellite observations with radar-confirmed convective activity and precipitation verification. This dataset serves two key purposes: it not only provides authentic training samples for intelligent CI prediction models but also facilitates a precise understanding of CI characteristics in satellite cloud imagery, while supporting the formulation of satellite-specific CI definitions.

Comparative analysis between True_CI and False_CI events (satellite-detected clouds without radar echoes or precipitation) reveals that True_CI events exhibit longer duration, larger cloud cluster areas, and lower cloud-top BT. Critically, True_CI events show distinctive multi-channel signatures in the hour before CI occurrence: notably smaller water vapor-infrared BT differences, increased optical thickness, and ice-phase transformation in the final 30 min—features that are much less pronounced in False_CI events. These findings demonstrate that initial convective clouds with true development potential differ fundamentally from non-developing cumulus in cloud optical and microphysical properties, not just cloud-top height.

Based on these characteristic differences, we propose a satellite-specific CI definition: the initial detection of well-developed moist convective pixels significantly differentiated from ambient cloud fields. Reference thresholds targeting CI’s core features (cloud-top cooling, optical thickening, ice-phase transitions) were established using BT_10.7 cooling rate, and three BT difference indices (BTD_7.1−10.7, BTD_12.0−10.7, BTD_{8.5+12.0−2×10.7}). Most True_CI events met these thresholds, with BTD_12.0−10.7 and BTD_{8.5+12.0−2×10.7} showing high stability. However, spatial and seasonal variations necessitate regional adjustments, such as the underperformance of BTD_7.1−10.7 at high and low latitudes and during April and September.

Validation against independent True_CI samples demonstrated robust performance: POD approaching 80% with FAR maintained at 20% or lower, confirming the definition’s validity for operational satellite-based CI detection.
