Article

Filtering Airborne LiDAR Data in Forested Environments Based on Multi-Directional Narrow Window and Cloth Simulation

1
State Key Laboratory of Information Engineering in Surveying, Mapping and Remote Sensing, Wuhan University, Wuhan 430079, China
2
Key Laboratory of Mine Environmental Monitoring and Improving around Poyang Lake of Ministry of Natural Resources, East China University of Technology, Nanchang 330013, China
3
Wuhan Botanical Garden, Chinese Academy of Sciences, Wuhan 430074, China
4
Sino-Africa Joint Research Center, Chinese Academy of Sciences, Wuhan 430074, China
5
Department of Public Administration, Law School, Shantou University, Shantou 515063, China
6
Institute of Local Government Development, Shantou University, Shantou 515063, China
*
Author to whom correspondence should be addressed.
Remote Sens. 2023, 15(5), 1400; https://doi.org/10.3390/rs15051400
Submission received: 21 January 2023 / Revised: 23 February 2023 / Accepted: 28 February 2023 / Published: 2 March 2023

Abstract

:
Ground filtering is one of the essential steps for processing airborne light detection and ranging data in forestry applications. However, the performance of existing methods is still limited in forested areas due to the complex terrain and dense vegetation. To overcome this limitation, we proposed an improved surface-based filter based on multi-directional narrow window and cloth simulation. The innovations mainly involve two aspects as follows: (1) sufficient and uniformly distributed ground seeds are identified by merging the lowest points and line segments from the point clouds within a multi-directional narrow window; (2) complete and accurate ground points are extracted using a cyclic scheme that includes incorrect ground point elimination using the internal force adjustment of cloth simulation, terrain reconstruction with moving least-squares plane fitting, and ground point extraction based on progressively refined terrain. The proposed method was tested in five forested sites with various terrain characteristics and vegetation distributions. Experimental results showed that the proposed method could accurately separate ground points from non-ground points in different forested environments, with the average kappa coefficient of 88.51% and total error of 4.22%. Moreover, the comparative experiments proved that the proposed method performed better than the classical methods involving the slope-based, mathematical morphology-based and surface-based methods.

1. Introduction

Forests are the largest terrestrial ecosystem and play a pivotal role in balancing water–energy–carbon cycles and containing biodiversity [1]. With rising concerns about global climate change during the past decades, the ability of forests to absorb carbon dioxide and release oxygen through photosynthesis has received increasing attention [2]. Many existing investigations have shown that forests are important carbon sinks and strongly beneficial to control warming [3].
The potential of forests to absorb carbon dioxide and promote carbon neutralization is highly related to their quantity, quality and dynamics [4]. Accurate forest investigation is of great significance for understanding such information. As an important technology in forest ecosystem investigations, airborne light detection and ranging (LiDAR) has been widely applied to forest inventory and management due to its capability in providing precise and detailed three-dimensional (3D) information on forest structures [5]. Researchers in this field mainly focus on individual tree segmentation [6,7], tree species classification [8,9,10], tree height measurement [11,12,13], canopy cover estimation [14,15] and others [16,17,18]. In view of these existing publications, ground filtering (i.e., distinguishing ground points and non-ground points) has been recognized as one of the most fundamental but essential steps in processing raw LiDAR data.
In the past few decades, many ground filtering methods have been developed, which can be divided into three categories containing the slope-based [19,20,21,22,23,24,25], mathematical morphology-based [26,27,28,29,30,31,32,33,34,35] and surface-based [36,37,38,39,40,41,42,43,44,45] methods. The slope-based methods classify ground and non-ground points according to the common assumption that the slopes between a ground point and its neighbor ground points are smaller than the ground point and its neighbor non-ground points. Thereby, the initial ground points (i.e., ground seeds) and slope thresholds are the key factors affecting filtering accuracy [22,42]. The mathematical morphology-based methods detect the ground points by comparing the height differences of the morphological surfaces before and after open operations [27,28]. An optimal window size setting is crucial for such methods, i.e., the oversize (or undersize) windows may ignore the microscopic (or macroscopic) features of the terrain (or non-ground objects) [46]. The surface-based methods iteratively identify ground points based on the updated terrain surfaces [47,48]. Accuracy of terrain surfaces are pivotal factors affecting filtering results.
The existing filtering methods have performed good availability and feasibility in distinguishing ground points and non-ground points from raw LiDAR data, and especially work well in forested environments with relatively flat terrain and sparse vegetation [47,49,50,51]. However, the filtering in complex forested environments, such as terrain discontinuities, highly rugged terrain, steep slopes, ridges and dense vegetation, is still facing great challenges [35,47,52,53]. One vital limitation is the quality of ground seeds. Sufficient and evenly distributed ground seeds can provide a reliable reference for ground point extraction on various terrain details. Researchers have adopted multiple methods to improve the quality of ground seeds, e.g., identifying ground seeds based on segmentation [54,55,56], multi-scale mathematical morphology [47,48,57,58] and cloth simulation methods [42,59], etc. Although the filtering accuracy has increased by applying such methods, the filtering errors are still inevitable due to insufficient ground seeds identified on some terrain details, e.g., steep slopes and ridges. Another limitation is the extraction of ground points. In the process of detecting ground points precisely, researchers have tried to improve terrain surface accuracy through various interpolators such as the triangular irregular network [36], least-squares polynomial fitting [40] and thin plate spline [39]. Although the improved terrain surfaces provide a more accurate reference for ground point extraction, inaccurate input data (i.e., ground points extracted in each iteration) may also limit the accuracy of terrain surfaces, even causing cumulative errors in subsequent iterations [47]. In view of the previous studies, we found that this issue is rarely considered.
Against the aforementioned research backgrounds, we aimed to develop an improved surface-based filter for accurately extracting ground points in forested environments with complex terrain and dense vegetation. Compared with the existing ground filtering methods, the main contributions of the proposed method are as follows:
(1)
Sufficient and evenly distributed ground seeds are identified. In this step, we propose a ground seed identification method based on the multi-directional narrow rectangle window. The method can identify ground seeds in more positions and directions, obtaining more complete ground seeds on various terrain details than the common square window. Moreover, a line-segmentation-based ground seed enhancement method is developed to increase ground seeds on raised terrain. High-quality ground seeds provide a detailed basis for ground point extraction and therefore improve ground filtering accuracy in various forested environments.
(2)
Complete and accurate ground points are extracted. In this step, the ground points are extracted iteratively based on the updated terrain by executing three key procedures, i.e., incorrect ground point elimination, terrain reconstruction and ground point selection. The incorrect points among the extracted ground points can be eliminated by the internal force adjustment of cloth simulation, improving the accuracy of the terrain surface. The terrain surface is reconstructed through the moving least-squares plane fitting, which enhances the reliability of terrain due to it being terrain-adaptive. The two improvements provide guarantees for accurately extracting ground points in each iteration. Finally, ground points are extracted iteratively based on the progressively refined terrain, which ensures the extraction of complete ground points.
This proposed method is expected to efficiently filter out vegetation points while maintaining terrain details. Moreover, this method can perform stronger adaptability to various forested environments. The applicability and practicality of the proposed method is validated by comparing it with other widely used filtering methods. The paper is organized as follows: Section 2 presents the methodology, Section 3 introduces the experiments and results, Section 4 discusses the experimental results, and Section 5 summarizes the conclusions.

2. Methods

This study aimed to develop an improved surface-based filter suitable for complex forested environments with diverse terrain and various vegetation conditions. We focused on the two major steps of ground filtering, i.e., the ground seed identification and ground point extraction, and tried to increase their effectiveness for performing ground filtering separately. The details are given as follows.

2.1. Ground Seed Identification

Sufficient numbers and uniform distribution of ground seeds are the prerequisites for accurate ground filtering [47]. According to the prior knowledge that ground points are generally the local lowest in height, ground seeds are often identified by selecting the lowest points within each window, whose size should be larger than the largest non-ground objects in landscapes to prevent ground seeds from being selected in non-ground objects [39]. In the existing research, the window shape has generally been set to square. However, such a window shape fails to identify enough ground seeds on irregular terrain [45]. To address this problem, we developed a multi-directional narrow window-based method, which can identify ground seeds from more positions and directions. The multi-directional narrow window can accurately select ground seeds in multiple sub-regions corresponding to a square window, increasing the number of ground seeds. Figure 1 shows the conceptual diagrams of ground seed identification by using a traditional square window and a multi-directional narrow rectangle window. By searching the lowest points within each window, the square window identifies ground seeds at only one position (Figure 1a). However, when replacing the square window by three narrow rectangle windows in east–west (Figure 1b) or north–south (Figure 1c) directions, ground seeds at three positions are identified. Further, combining the narrow rectangle windows in both directions increases the number of ground seeds (Figure 1d). Based on the example, we speculate that the narrow rectangle window with infinite directions can identify more ground seeds. Nevertheless, this will inevitably increase the time cost. Therefore, to balance the number of ground seeds identified and the time cost in implementation, we constructed a multi-directional narrow rectangle window that includes east–west, north–south, southeast–northwest and northeast–southwest directions.
In addition to the window shape and direction, we also considered the influence of local terrain. Within each multi-directional narrow rectangle window, the raised terrain is generally the local highest [60]. Thereby, ground points with lower heights may be identified as the ground seeds, while those in the raised terrain are mostly omitted (Figure 2a). To solve this problem, we adopted the random sample consensus (RANSAC) line segmentation method (Figure 2b). The RANSAC method has the advantage of being resistant to noise (i.e., non-ground points), and therefore lines are likely to be detected on ground. Ground seeds are identified by selecting the line primitives (Figure 3) [61].

2.2. Ground Point Extraction

Ground points were extracted iteratively based on three major procedures, i.e., incorrect ground point elimination, terrain reconstruction and ground point selection.
We eliminated the incorrect ground points using the internal force adjustment of cloth simulation, which simulates the process of cloth reshaping and smooths out areas with large gradients caused by non-ground points [42]. As shown in Figure 4, the k-nearest neighbors of a point are selected among the extracted ground points to construct a cloth model, which consists of cloth particles (i.e., ground points) and springs (Figure 4a). We compared the height difference between the two particles that form each spring one by one, and moved the two particles by the same distance in the opposite direction (Figure 4b). The height differences of points before and after internal force operations were calculated, and the points with height differences larger than a threshold were removed. The retained ground points were used to update the terrain, and new ground points continued to be extracted based on the updated terrain.
Terrain reconstruction was performed by using the moving least-squares plane fitting method, which is a terrain-adaptive reconstruction method. Different from the horizontal buffers of ground seeds, which cannot characterize steep slopes [48], the moving least-squares plane fitting method can generate adaptive terrain that is characterized by locally fitted planes [44]. As shown in Figure 5a, only points inside the horizontal buffers are recognized as ground points, and other points on steep slopes are ignored due to lying outside the horizontal buffers (red rectangles). By adopting the moving least-squares plane fitting method, the locally fitted planes are closer to the reality, thereby the ground points on steep slopes are correctly labeled (points inside the ellipses).

2.3. Implementation

Figure 6 shows the workflow of the proposed method for filtering airborne LiDAR data in forested environments. There are three major steps, including data preprocessing, ground seed identification and ground point extraction. The detailed description of each step are as follows.
Step 1: Data preprocessing
Data denoising: the LiDAR point clouds include outliers due to LiDAR system errors and multipath reflex [62]. These outliers may be misidentified as ground seeds because they may also have low height. They negatively affect ground point extraction and thus reduce filtering accuracy. We removed outliers using a statistics-based method. A height frequency histogram of the point cloud was constructed, and then points in the tails of the histogram distribution were eliminated [43]. Finally, non-removed and falsely removed outliers generated by the automatic method were manually corrected.
Data gridding: the LiDAR point cloud is massive and has no adjacency relationship, which limits the efficiency of subsequent ground seed identification because it involves the selection of neighboring points. To solve the problem, the point cloud was organized into the grid composed of cells. Only the lowest point remained in each cell, since the point was more likely to be ground seeds than other points [28]. The adjacency relationship between cells was determined according to their indexes ( i d ) using Equation (1):
c = int x     x min cs r = int y     y min cs id = r   ×   c total + c
where int is the operation keeping only integer bits of a number; x min and y min are the minimum x and y coordinates of the point cloud, respectively; ( x ,   y )   and ( r ,   c ) are the x and y coordinates, and the row and column coordinates of a point from the point cloud, respectively; cs is cell size; and c total is number of columns.
Step 2: Ground seed identification
Window cell extraction: a window was slid over the grid to identify ground seeds cell by cell. The cells within the window in four directions were extracted using Equation (2):
Id east west = r   ×   c total + ( c + i ) Id   north south   = ( r + i )   ×   c total + c Id   southeast northwest = ( r + i )   ×   c total + ( c     i ) Id   northeast southwest = ( r + i )   ×   c total + ( c + i )
where Id   north south , Id   southeast northwest , Id   southeast northwest and Id   northeast southwest represent the indexes of cells within the window in east–west, north–south, southeast–northwest and northeast–southwest directions, respectively; and i is the number of offset cells.
Lowest point calculation and line segmentation: the points corresponding to all cells within the window in each direction were extracted. Based on the extracted points, lowest point calculation and RANSAC line segmentation were performed, and lowest points and line segments were regarded as ground seeds. The ground seeds and other points were labeled as ground and unclassified points for the point cloud, respectively.
Step 3: Ground point extraction
Incorrect ground point elimination: the cloth models were constructed based on ground points, and the height of each ground point was adjusted by internal force operations. The height differences before and after internal force adjustment were calculated for each ground point. The attributes of the ground points were modified as unclassified points if their height differences were greater than a threshold.
Terrain reconstruction: the local terrain corresponding to each unclassified point was reconstructed by the moving least-squares plane fitting method based on the k-nearest ground points.
Ground point selection: we calculated the height of each unclassified point to the local terrain. The unclassified points were marked as ground points if their heights were less than a threshold.
Incorrect ground point elimination, terrain reconstruction and ground point selection were repeated until no ground points were found any more.

3. Experiments and Results

3.1. Experimental Setup

The details of the experiments, including data description, accuracy metrics, comparative methods and parameter settings are given in this section. The experiments were carried out on a laptop computer with 40 GB RAM and an AMD Ryzen 7 5800H with Radeon Graphics @ 3.20 GHz.

3.1.1. Data Description

Airborne LiDAR data in five 300 × 300 m forested sites were used to test the performance of the proposed method. The data in each site were collected using different sensors and settings, as listed in Table 1. The point density of these sites varies from 1.63 to 25.45 points/m2. The terrain and vegetation conditions of each site are summarized in Table 2. Various terrain features are included such as gentle slopes, steep slopes, ridges, valleys and break lines. The average terrain slope changes from 18.3 to 33.14°. Moreover, vegetation status varies greatly. The average canopy cover ranges between 8.74 and 84.45%, and average canopy height changes from 11.5 to 23.61 m. The different point densities, terrains and vegetation conditions make the five forested sites ideal study areas to evaluate the adaptability and applicability of the proposed method comprehensively. Additionally, the reference data were acquired through human interaction. As shown in Figure 7, reference ground and non-ground points were rendered in brown and green, respectively.

3.1.2. Accuracy Metrics

We applied four metrics to assess the accuracy of the proposed method quantitatively, i.e., type I, type II, total errors and kappa coefficient [63,64]. A type I error indicates the proportion of ground points being misclassified into non-ground points (Equation (3)). A type II error represents the proportion of the opposite condition (Equation (4)). Total error is the proportion of all misclassified points (Equation (5)). The kappa coefficient is an alternative measure of the overall classification accuracy that subtracts the effect of chance agreement and quantifies how much better a particular classification is, as compared with a random classification (Equation (6)) [39]. The four metrics were calculated based on the cross-matrix of filtering results, as shown in Table 3.
Type   I   error = b a + b
Type   II   error = c c + d
Total   error = b + c c + d
Kappa   coefficient = p o   p c 1     p c
where e = a + b + c + d, p o = (a + d)/e and p c = ((a + b) × (a + c) + (c + d) × (b + d))/ e 2 .

3.1.3. Existing Methods Applied to Do Comparison

Three well-known ground filtering methods, namely maximum slope filter (MSF) [22], progressive morphology filter (PMF) [27] and cloth simulation filter (CSF) [42], were selected to do a comparison with the proposed method. MSF is a typical slope-based ground filtering method, which extracts ground points by calculating the slope differences between the points and their neighbors. We implemented MSF using C++ language. PMF is a modified morphology-based method. This method removes non-ground points using the open operations with multi-scale windows. It was implemented through C++ language and point cloud library (https://pointclouds.org/ (accessed on 15 November 2022)). CSF is a famous surface-based filtering method developed in recent years, which identifies ground points by simulating the physical process of cloth touching terrain. CSF was executed in CloudCompare software (https://www.danielgm.net/cc/ (accessed on 15 November 2022, v2.11.3)).

3.1.4. Parameter Settings

The proposed method has four key user-defined parameters, namely, cell size (cs), window size (ws), ground point identification height ( h gi ) and incorrect ground point elimination height difference ( h gr ). All parameters use the same settings in all sites, which can demonstrated the generalizability of the proposed method. Parameter cs controls the level of detail of the initial terrain. The smaller the cs, the higher the level of detail of the initial terrain, but it leads to higher time cost and invalid selection of ground seeds. We set the parameter as 1 m, considering that the terrain change within each square meter is not significant. Parameter ws is the extent for identifying ground seeds, which should be larger than the largest non-ground object in a landscape to prevent the ground seeds from being located in the non-ground objects. It was set to 10 m, which can accurately identify ground seeds in each site. Parameter h gi determines the ground point extraction. This parameter was set to 0.5 m empirically, considering that non-ground objects are usually higher than 0.5 m relative to terrain. Parameter h gr controls the removal of incorrectly extracted ground points. This parameter was set to 0.8 m empirically.

3.2. Results

3.2.1. Results of the Proposed Method

Figure 8 shows the digital terrain models (DTMs) and the 3D transects of the proposed method. Details of the comparison illustrated that various terrain features were completely preserved, such as the gentle slopes in Site 1 (Figure 8a), valleys in Site 2 (Figure 8b), ridges in Site 3 (Figure 8c), break lines in Site 4 (Figure 8d) and steep slopes in Site 5 (Figure 8e). Meanwhile, vegetation with different cover and height values was effectively filtered out. However, the proposed method tended to misclassify the ground points on highly steep slopes as non-ground points, as denoted by the blue ellipses in Figure 8b,d.
Table 4 shows the type I, type II, total errors and kappa coefficients of the proposed method in five selected forested sites. The proposed method achieved low type I errors in all sites, indicating that most ground points could be correctly extracted and thus the terrain was fully preserved. The type II errors of the proposed method were large (>10%) for Sites 4 and 5. This was not due to a limitation of the proposed method, but because the number of non-ground points was small, and misclassification of only a few non-ground points produced a large type II error. The average kappa coefficient and total error of the proposed method were 88.51% and 4.22%, respectively, with standard deviations of 6.74% and 2.25%, respectively. It indicated a good applicability and availability in diverse terrain and vegetation conditions.

3.2.2. Comparisons between the Proposed Method and Existing Methods

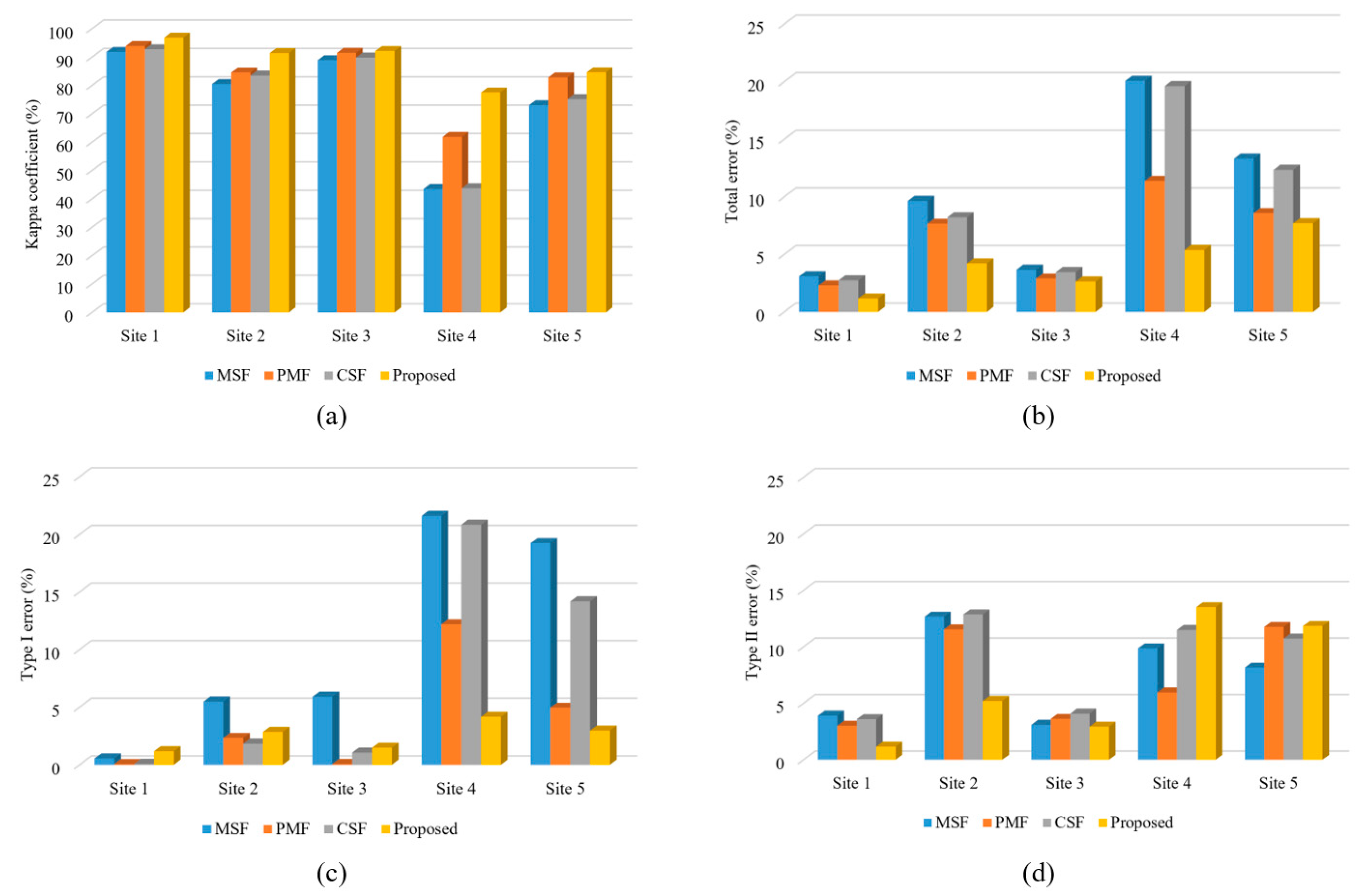

The performance of the proposed method was further evaluated by comparing it with three well-known filtering methods, i.e., MSF, PMF and CSF. Figure 9 shows the ground filtering results of MSF, PMF, CSF and the proposed method compared with benchmark points in Site 4, where various complex terrain features were included, such as break lines, steep slopes and ridges. The visual assessment revealed that the proposed method was robust compared with MSF, CSF and PMF in terms of preserving break lines, steep slopes and ridges, although the ground points on highly steep slopes were still not extracted accurately by the proposed method, as shown with blue ellipses in Figure 9b–f.
On average, the proposed method had the highest kappa coefficient of 88.51% and the smallest total error of 4.22% across all sites (Figure 10a,b). This illustrated that, under various forested environments and point densities, the proposed method had higher effectiveness and robustness than other existing methods. The type I errors of the proposed method were all below 5% in each site (Figure 10c). This meant that the proposed method could protect terrain better than the comparative methods. The proposed method obtained the optimal type II errors in three sites, and the results of the proposed method in the remaining sites were comparable to PMF and CSF (Figure 10d). This indicated that the performance of the proposed method was superior in terms of removing non-ground points.
For the purpose of comparing the time consuming of the proposed method and the other three methods, we recorded their runtime in the five forested sites. Table 5 gives the runtime of different ground filtering methods in each site. MSF, PMF, PMF and the proposed method resulted in the average runtimes of 21.93 s, 61.41 s, 16.6 s and 19.26 s, respectively. The results indicated that the efficiency of the proposed method was acceptable due to the runtime being comparable to the fastest ground filtering method.

4. Discussion

Given the limitations of existing methods for ground filtering in forested environments with complex terrain and dense vegetation, we proposed an improved surface-based filter based on a multi-directional narrow window and cloth simulation in this study. The proposed method has two main contributions, as discussed in the Introduction. Experimental results in five selected forested sites proved that the proposed method could accurately separate ground points from non-ground points in different forested environments. Meanwhile, the proposed method performed better than the classical methods involving the slope-based, mathematical morphology-based and surface-based methods. Accordingly, we want to discuss three questions as follows.
(1)
Is the proposed method effective for performing ground filtering?
Based on the analysis in Section 3.2, the effectiveness of the proposed method has been proven by evaluating its filtering results in five forested sites and doing comparisons with three classical filtering methods. However, the accuracy metrics were calculated based on the final filtering results. Here, we aim to discuss whether each contribution helped to improve the effectiveness for performing ground filtering in forested environments.
The first contribution of the proposed method was the improvement of ground seed identification via the synergistic application of a multi-directional narrow window and RANSAC line segmentation method. Figure 11 shows the ground seeds identified by performing different procedures. Figure 11a displays the benchmark ground points of Site 4. By searching the local lowest points within square windows, we just identified limited ground seeds. Thereby, the characterized terrain was relatively coarse and omitted many details (Figure 11b). The application of multi-directional narrow windows increased the number of identifying ground seeds, based on which, more terrain details were characterized (Figure 11c). By further adopting the line segmentation method, the completeness of ground seeds on raised terrain was further enhanced, as denoted by the ellipse in Figure 11d. The quantitative assessment indicated that the kappa coefficients reached 74.1%, 76.43% and 77.53% when using a square window, a multi-directional window and adopting the line segmentation method, respectively. This indicated that the improvement of ground seed identification was helpful for performing ground filtering.
The second contribution of the proposed method was the improvement of ground point extraction, which iteratively eliminated incorrect ground points and adaptively reconstructed terrain. Figure 12 shows the filtering results of performing different procedures. Figure 12a,b shows the 3D transect position in Site 4 and the benchmark filtering results, respectively. The incorrect ground points were significantly reduced, as denoted by the red ellipses in Figure 12b,c,e. Besides, the ground and non-ground points on steep slopes were distinguished more accurately due to adaptive terrain reconstruction improvement, as denoted by the blue ellipses in Figure 12b,d,e. The kappa coefficients of the three tests were 71.83%, 75.84% and 77.53%, respectively. The qualitative and quantitative results demonstrated that the improvement of ground point extraction was effective for performing ground filtering.
(2)
Why is the proposed method effective for performing ground filtering?

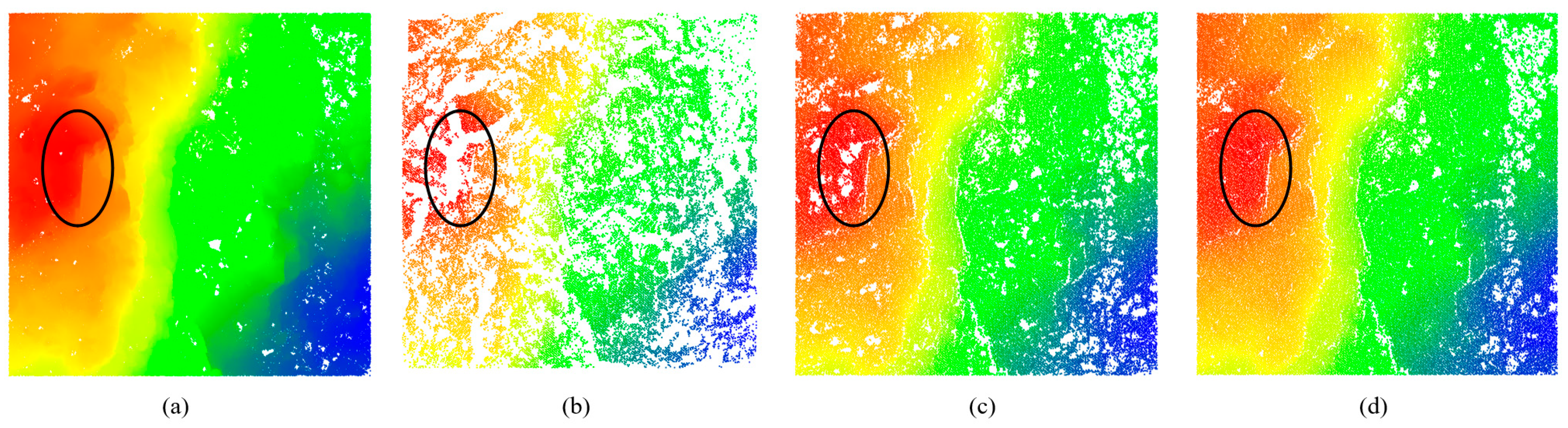

In this study, we evaluated the effectiveness and robustness of the proposed method by comparing it with three well-known filtering methods, i.e., MSF, PMF and CSF. The three methods separately belong to the slope-based, morphology-based and surface-based ground filtering methods. The comparative results were illustrated in Section 3.2.2. Here, we aim to answer this question by discussing how they worked differently.
Specifically, MSF identified ground seeds using square windows, and then extracted ground points based on the slope differences between the points and the terrain, which consisted of local horizontal planes. Different from MSF, the proposed method obtained higher quality ground seeds due to the application of a multi-directional narrow window, line segmentation and internal force adjustment of cloth simulation, as described in Section 2. In addition, the adaptive terrain for ground point extraction could be reconstructed by the moving least-squares plane fitting method. Thereby, the improvements made our method achieve better results (Figure 9 and Figure 10). PMF tended to misclassify raised terrain as non-ground objects (Figure 9). Inaccurate referencing in ground point extraction led to poor filtering results on raised terrain. Compared with PMF, the proposed method provided a more accurate reference on raised terrain, where ground seeds were adequately identified by the line segmentation method (Figure 11d). Our method worked significantly better on raised terrain (Figure 9). CSF may have obtained inaccurate filtering results (Figure 9 and Figure 10), due to the following two reasons. The cloth with fixed hardness may be not have been applicable for identifying ground seeds accurately in different areas of the landscape containing multiple terrain features. In addition, CSF extracted ground points based on the terrain composed of local horizontal planes. The proposed method could identify ground seeds as completely as possible on multiple terrain features, and the reconstructed terrain was terrain-adaptive, thus more accurate ground filtering results were obtained (Figure 9 and Figure 10). Overall, these contributions made the proposed method more accurate and robust to various terrain and vegetation features.
(3)
What improvements are needed in the proposed method?
The proposed method can accurately filter out vegetation points with different canopy coverage and height, and completely preserve various terrain features (such as gentle slopes, steep slopes, ridges and break lines). However, the method still has room for improvement in reducing the errors of ground points being misclassified as non-ground points on highly steep slopes (Figure 8b,d). The terrain had a slope close to 90°, exhibiting a similar appearance to non-ground objects (such as building facades). This resulted in the ground seeds on the terrain not being adequately identified based on the assumption that ground seeds were the local minimum. The reference terrain constructed based on insufficient ground seeds was coarse, causing ground points to be misclassified as non-ground points. In the future, we will focus on the identification of highly steep slopes, and design a special method to identify ground seeds on the terrain to improve the filtering accuracy.

5. Conclusions

Ground filtering in forested environments with complex terrain and dense vegetation has been a challenge. To overcome this challenge, we proposed an improved surface-based filter for airborne LiDAR point clouds. The improved filter used a multi-directional narrow window to select ground seeds, which could be identified in more locations and directions than the common square window. Moreover, the ground seeds included not only the lowest points but also line segments within the windows, enhancing the integrity of the ground seeds on raised terrain. The two improvements in the ground seed identification step ensured that the ground seeds were identified as completely as possible on various terrain details, which provided a detailed basis for ground point extraction. The internal force adjustment of cloth simulation was applied to eliminate incorrectly extracted ground points, ensuring the accuracy of the terrain being determined in each iteration. In addition, the moving least-squares plane fitting method was adopted to reconstruct terrain, which could enhance the terrain adaptability. Finally, ground points were extracted iteratively based on the continuously refined terrain, assuring the completeness of ground points. These improvements in the ground point extraction step ensured that ground points were extracted accurately and completely.
We compared the proposed method with three types of classical ground-filtering methods (including slope-based, mathematical morphology-based and surface-based ground filtering methods) in five forested sites containing various terrain and vegetation conditions. The comparison results showed that the proposed method not only preserved terrain details more completely, but also filtered out vegetation points more accurately. Additionally, the proposed method obtained the lowest average total error and standard deviation across all sites, which demonstrated the effectiveness and robustness of the proposed method. Therefore, the proposed method can provide an important reference in airborne LiDAR data processing for forestry applications.

Author Contributions

Conceptualization, S.C. and S.Y.; methodology, S.C.; software, S.C.; validation, S.Y.; formal analysis, S.Y.; investigation, S.C.; resources, S.C. and S.Y.; data curation, S.C.; writing—original draft preparation, S.C.; writing—review and editing, S.Y.; visualization, S.C.; supervision, S.C.; project administration, S.C. and S.Y.; funding acquisition, S.C. and S.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Open Fund of Key Laboratory of Mine Environmental Monitoring and Improving around Poyang Lake, Ministry of Natural Resources (Grant number MEMI-2021-2022-03), International Science and Technology Cooperation Program of Hubei Province (Grant No. 2022EHB048), Open Fund of Key Research Base of Philosophy and Social Science of Higher Education in Guangdong Province—Local Government Development Research Institute of Shantou University (Grant No. 07422002) and National Key R&D Program of China (2022YFB3903800).

Data Availability Statement

The data that support this study are available from authors, upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Saarela, S.; Grafström, A.; Ståhl, G.; Kangas, A.; Holopainen, M.; Tuominen, S.; Nordkvist, K.; Hyyppä, J. Model-Assisted Estimation of Growing Stock Volume Using Different Combinations of LiDAR and Landsat Data as Auxiliary Information. Remote Sens. Environ. 2015, 158, 431–440. [Google Scholar] [CrossRef]
  2. Drake, J.B.; Dubayah, R.O.; Clark, D.B.; Knox, R.G.; Blair, J.B.; Hofton, M.A.; Chazdon, R.L.; Weishampel, J.F.; Prince, S. Estimation of Tropical Forest Structural Characteristics Using Large-Footprint Lidar. Remote Sens. Environ. 2002, 79, 305–319. [Google Scholar] [CrossRef]
  3. Jackson, R.B.; Randerson, J.T.; Canadell, J.G.; Anderson, R.G.; Avissar, R.; Baldocchi, D.D.; Bonan, G.B.; Caldeira, K.; Diffenbaugh, N.S.; Field, C.B.; et al. Protecting Climate with Forests. Environ. Res. Lett. 2008, 3, 044006. [Google Scholar] [CrossRef]
  4. Luyssaert, S.; Schulze, E.-D.; Börner, A.; Knohl, A.; Hessenmöller, D.; Law, B.E.; Ciais, P.; Grace, J. Old-Growth Forests as Global Carbon Sinks. Nature 2008, 455, 213–215. [Google Scholar] [CrossRef] [PubMed]
  5. Wulder, M.A.; White, J.C.; Nelson, R.F.; Næsset, E.; Ørka, H.O.; Coops, N.C.; Hilker, T.; Bater, C.W.; Gobakken, T. Lidar Sampling for Large-Area Forest Characterization: A Review. Remote Sens. Environ. 2012, 121, 196–209. [Google Scholar] [CrossRef] [Green Version]
  6. Ferraz, A.; Bretar, F.; Jacquemoud, S.; Gonçalves, G.; Pereira, L.; Tomé, M.; Soares, P. 3-D Mapping of a Multi-Layered Mediterranean Forest Using ALS Data. Remote Sens. Environ. 2012, 121, 210–223. [Google Scholar] [CrossRef]
  7. Li, W.; Guo, Q.; Jakubowski, M.K.; Kelly, M. A New Method for Segmenting Individual Trees from the Lidar Point Cloud. Photogramm. Eng. Remote Sens. 2012, 78, 75–84. [Google Scholar] [CrossRef] [Green Version]
  8. Shi, Y.; Wang, T.; Skidmore, A.K.; Heurich, M. Important LiDAR Metrics for Discriminating Forest Tree Species in Central Europe. ISPRS J. Photogramm. Remote Sens. 2018, 137, 163–174. [Google Scholar] [CrossRef]
  9. Brandtberg, T. Classifying Individual Tree Species under Leaf-off and Leaf-on Conditions Using Airborne Lidar. ISPRS J. Photogramm. Remote. Sens. 2007, 61, 325–340. [Google Scholar] [CrossRef]
  10. Hartling, S.; Sagan, V.; Sidike, P.; Maimaitijiang, M.; Carron, J. Urban Tree Species Classification Using a WorldView-2/3 and LiDAR Data Fusion Approach and Deep Learning. Sensors 2019, 19, 1284. [Google Scholar] [CrossRef] [Green Version]
  11. Kwak, D.-A.; Lee, W.-K.; Lee, J.-H.; Biging, G.S.; Gong, P. Detection of Individual Trees and Estimation of Tree Height Using LiDAR Data. J. For. Res. 2007, 12, 425–434. [Google Scholar] [CrossRef]
  12. Clark, M.L.; Clark, D.B.; Roberts, D.A. Small-Footprint Lidar Estimation of Sub-Canopy Elevation and Tree Height in a Tropical Rain Forest Landscape. Remote Sens. Environ. 2004, 91, 68–89. [Google Scholar] [CrossRef]
  13. Mielcarek, M.; Stereńczak, K.; Khosravipour, A. Testing and Evaluating Different LiDAR-Derived Canopy Height Model Generation Methods for Tree Height Estimation. Int. J. Appl. Earth Obs. Geoinf. 2018, 71, 132–143. [Google Scholar] [CrossRef]
  14. Dai, W.; Guan, Q.; Cai, S.; Liu, R.; Chen, R.; Liu, Q.; Chen, C.; Dong, Z. A Comparison of the Performances of Unmanned-Aerial-Vehicle (UAV) and Terrestrial Laser Scanning for Forest Plot Canopy Cover Estimation in Pinus Massoniana Forests. Remote Sens. 2022, 14, 1188. [Google Scholar] [CrossRef]
  15. Cai, S.; Zhang, W.; Jin, S.; Shao, J.; Li, L.; Yu, S.; Yan, G. Improving the Estimation of Canopy Cover from UAV-LiDAR Data Using a Pit-Free CHM-Based Method. Int. J. Digit. Earth 2021, 14, 1477–1492. [Google Scholar] [CrossRef]
  16. Popescu, S.C. Estimating Biomass of Individual Pine Trees Using Airborne Lidar. Biomass Bioenergy 2007, 31, 646–655. [Google Scholar] [CrossRef]
  17. Hyyppä, J.; Hyyppä, H.; Leckie, D.; Gougeon, F.; Yu, X.; Maltamo, M. Review of Methods of Small-footprint Airborne Laser Scanning for Extracting Forest Inventory Data in Boreal Forests. Int. J. Remote Sens. 2008, 29, 1339–1366. [Google Scholar] [CrossRef]
  18. Shao, J.; Yao, W.; Wan, P.; Luo, L.; Wang, P.; Yang, L.; Lyu, J.; Zhang, W. Efficient Co-Registration of UAV and Ground LiDAR Forest Point Clouds Based on Canopy Shapes. Int. J. Appl. Earth Obs. Geoinf. 2022, 114, 103067. [Google Scholar] [CrossRef]
  19. Shan, J.; Aparajithan, S. Urban DEM Generation from Raw Lidar Data. Photogramm. Eng. Remote Sens. 2005, 71, 217–226. [Google Scholar] [CrossRef] [Green Version]
  20. Meng, X.; Wang, L.; Silván-Cárdenas, J.L.; Currit, N. A Multi-Directional Ground Filtering Algorithm for Airborne LIDAR. ISPRS J. Photogramm. Remote Sens. 2009, 64, 117–124. [Google Scholar] [CrossRef] [Green Version]
  21. Susaki, J. Adaptive Slope Filtering of Airborne LiDAR Data in Urban Areas for Digital Terrain Model (DTM) Generation. Remote Sens. 2012, 4, 1804–1819. [Google Scholar] [CrossRef] [Green Version]
  22. Vosselman, G. Slope based filtering of laser altimetry data. Int. Arch. Photogramm. Remote Sens. 2000, 33, 935–942. [Google Scholar]
  23. Chen, Z.; Gao, B.; Devereux, B. State-of-the-Art: DTM Generation Using Airborne LIDAR Data. Sensors 2017, 17, 150. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Wan, P.; Zhang, W.; Skidmore, A.K.; Qi, J.; Jin, X.; Yan, G.; Wang, T. A Simple Terrain Relief Index for Tuning Slope-Related Parameters of LiDAR Ground Filtering Algorithms. ISPRS J. Photogramm. Remote Sens. 2018, 143, 181–190. [Google Scholar] [CrossRef]
  25. Chen, C.; Guo, J.; Wu, H.; Li, Y.; Shi, B. Performance Comparison of Filtering Algorithms for High-Density Airborne LiDAR Point Clouds over Complex LandScapes. Remote Sens. 2021, 13, 2663. [Google Scholar] [CrossRef]
  26. Kilian, J.; Haala, N.; Englich, M. Capture and evaluation of airborne laser scanner data. Int. Arch. Photogramm. Remote Sens. 1996, 31, 383–388. [Google Scholar]
  27. Zhang, K.; Chen, S.C.; Whitman, D.; Shyu, M.L.; Yan, J.; Zhang, C. A Progressive Morphological Filter for Removing Nonground Measurements from Airborne LIDAR Data. IEEE Trans. Geosci. Remote Sens. 2003, 41, 872–882. [Google Scholar] [CrossRef] [Green Version]
  28. Chen, Q.; Gong, P.; Baldocchi, D.; Xie, G. Filtering Airborne Laser Scanning Data with Morphological Methods. Photogramm. Eng. Remote Sens. 2007, 73, 175–185. [Google Scholar] [CrossRef] [Green Version]
  29. Pingel, T.J.; Clarke, K.C.; McBride, W.A. An Improved Simple Morphological Filter for the Terrain Classification of Airborne LIDAR Data. ISPRS J. Photogramm. Remote Sens. 2013, 77, 21–30. [Google Scholar] [CrossRef]
  30. Li, Y.; Yong, B.; Wu, H.; An, R.; Xu, H. An Improved Top-Hat Filter with Sloped Brim for Extracting Ground Points from Airborne Lidar Point Clouds. Remote Sens. 2014, 6, 12885–12908. [Google Scholar] [CrossRef] [Green Version]
  31. Mongus, D.; Lukač, N.; Žalik, B. Ground and Building Extraction from LiDAR Data Based on Differential Morphological Profiles and Locally Fitted Surfaces. ISPRS J. Photogramm. Remote Sens. 2014, 93, 145–156. [Google Scholar] [CrossRef]
  32. Yang, B.; Huang, R.; Dong, Z.; Zang, Y.; Li, J. Two-Step Adaptive Extraction Method for Ground Points and Breaklines from Lidar Point Clouds. ISPRS J. Photogramm. Remote Sens. 2016, 119, 373–389. [Google Scholar] [CrossRef]
  33. Liu, L.; Lim, S. A Voxel-Based Multiscale Morphological Airborne Lidar Filtering Algorithm for Digital Elevation Models for Forest Regions. Measurement 2018, 123, 135–144. [Google Scholar] [CrossRef]
  34. Tan, Y.; Wang, S.; Xu, B.; Zhang, J. An Improved Progressive Morphological Filter for UAV-Based Photogrammetric Point Clouds in River Bank Monitoring. ISPRS J. Photogramm. Remote Sens. 2018, 146, 421–429. [Google Scholar] [CrossRef]
  35. Hui, Z.; Jin, S.; Xia, Y.; Nie, Y.; Xie, X.; Li, N. A Mean Shift Segmentation Morphological Filter for Airborne LiDAR DTM Extraction under Forest Canopy. Opt. Laser Technol. 2021, 136, 106728. [Google Scholar] [CrossRef]
  36. Axelsson, P. DEM Generation from Laser Scanner Data Using Adaptive TIN Models. Int. Arch. Photogramm. Remote Sens. 2000, 33, 111–118. [Google Scholar]
  37. Evans, J.S.; Hudak, A.T. A Multiscale Curvature Algorithm for Classifying Discrete Return LiDAR in Forested Environments. IEEE Trans. Geosci. Remote Sens. 2007, 45, 1029–1038. [Google Scholar] [CrossRef]
  38. Mongus, D.; Žalik, B. Parameter-Free Ground Filtering of LiDAR Data for Automatic DTM Generation. ISPRS J. Photogramm. Remote Sens. 2012, 67, 1–12. [Google Scholar] [CrossRef]
  39. Chen, C.; Li, Y.; Li, W.; Dai, H. A Multiresolution Hierarchical Classification Algorithm for Filtering Airborne LiDAR Data. ISPRS J. Photogramm. Remote Sens. 2013, 82, 1–9. [Google Scholar] [CrossRef]
  40. Maguya, A.S.; Junttila, V.; Kauranne, T. Adaptive Algorithm for Large Scale Dtm Interpolation from Lidar Data for Forestry Applications in Steep Forested Terrain. ISPRS J. Photogramm. Remote Sens. 2013, 85, 74–83. [Google Scholar] [CrossRef]
  41. Hu, H.; Ding, Y.; Zhu, Q.; Wu, B.; Lin, H.; Du, Z.; Zhang, Y.; Zhang, Y. An Adaptive Surface Filter for Airborne Laser Scanning Point Clouds by Means of Regularization and Bending Energy. ISPRS J. Photogramm. Remote Sens. 2014, 92, 98–111. [Google Scholar] [CrossRef]
  42. Zhang, W.; Qi, J.; Wan, P.; Wang, H.; Xie, D.; Wang, X.; Yan, G. An Easy-to-Use Airborne LiDAR Data Filtering Method Based on Cloth Simulation. Remote Sens. 2016, 8, 501. [Google Scholar] [CrossRef]
  43. Nie, S.; Wang, C.; Dong, P.; Xi, X.; Luo, S.; Qin, H. A Revised Progressive TIN Densification for Filtering Airborne LiDAR Data. Measurement 2017, 104, 70–77. [Google Scholar] [CrossRef]
  44. Yang, A.; Wu, Z.; Yang, F.; Su, D.; Ma, Y.; Zhao, D.; Qi, C. Filtering of Airborne LiDAR Bathymetry Based on Bidirectional Cloth Simulation. ISPRS J. Photogramm. Remote Sens. 2020, 163, 49–61. [Google Scholar] [CrossRef]
  45. Chen, C.; Chang, B.; Li, Y.; Shi, B. Filtering Airborne LiDAR Point Clouds Based on a Scale-Irrelevant and Terrain-Adaptive Approach. Measurement 2021, 171, 108756. [Google Scholar] [CrossRef]
  46. Hui, Z.; Wang, L.; Ziggah, Y.Y.; Cai, S.; Xia, Y. Automatic Morphological Filtering Algorithm for Airborne Lidar Data in Urban Areas. Appl. Opt. 2019, 58, 1164. [Google Scholar] [CrossRef] [PubMed]
  47. Zhao, X.; Guo, Q.; Su, Y.; Xue, B. Improved Progressive TIN Densification Filtering Algorithm for Airborne LiDAR Data in Forested Areas. ISPRS J. Photogramm. Remote Sens. 2016, 117, 79–91. [Google Scholar] [CrossRef] [Green Version]
  48. Chen, C.; Wang, M.; Chang, B.; Li, Y. Multi-Level Interpolation-Based Filter for Airborne LiDAR Point Clouds in Forested Areas. IEEE Access 2020, 8, 41000–41012. [Google Scholar] [CrossRef]
  49. Montealegre, A.L.; Lamelas, M.T.; de la Riva, J. A Comparison of Open-Source LiDAR Filtering Algorithms in a Mediterranean Forest Environment. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2015, 8, 4072–4085. [Google Scholar] [CrossRef] [Green Version]
  50. Zhao, X.; Su, Y.; Li, W.; Hu, T.; Liu, J.; Guo, Q. A Comparison of LiDAR Filtering Algorithms in Vegetated Mountain Areas. Can. J. Remote Sens. 2018, 44, 287–298. [Google Scholar] [CrossRef]
  51. Moudrý, V.; Klápště, P.; Fogl, M.; Gdulová, K.; Barták, V.; Urban, R. Assessment of LiDAR Ground Filtering Algorithms for Determining Ground Surface of Non-Natural Terrain Overgrown with Forest and Steppe Vegetation. Measurement 2020, 150, 107047. [Google Scholar] [CrossRef]
  52. Véga, C.; Durrieu, S.; Morel, J.; Allouis, T. A Sequential Iterative Dual-Filter for Lidar Terrain Modeling Optimized for Complex Forested Environments. Comput. Geosci. 2012, 44, 31–41. [Google Scholar] [CrossRef]
  53. Bigdeli, B.; Amini Amirkolaee, H.; Pahlavani, P. DTM Extraction under Forest Canopy Using LiDAR Data and a Modified Invasive Weed Optimization Algorithm. Remote Sens. Environ. 2018, 216, 289–300. [Google Scholar] [CrossRef]
  54. Zhang, J.; Lin, X. Filtering Airborne LiDAR Data by Embedding Smoothness-Constrained Segmentation in Progressive TIN Densification. ISPRS J. Photogramm. Remote Sens. 2013, 81, 44–59. [Google Scholar] [CrossRef]
  55. Lin, X.; Zhang, J. Segmentation-Based Filtering of Airborne LiDAR Point Clouds by Progressive Densification of Terrain Segments. Remote Sens. 2014, 6, 1294–1326. [Google Scholar] [CrossRef] [Green Version]
  56. Chen, C.; Li, Y.; Yan, C.; Dai, H.; Liu, G.; Guo, J. An Improved Multi-Resolution Hierarchical Classification Method Based on Robust Segmentation for Filtering ALS Point Clouds. Int. J. Remote Sens. 2016, 37, 950–968. [Google Scholar] [CrossRef]
  57. Wei, L.; Yang, B.; Jiang, J.; Cao, G.; Wu, M. Vegetation Filtering Algorithm for UAV-Borne Lidar Point Clouds: A Case Study in the Middle-Lower Yangtze River Riparian Zone. Int. J. Remote Sens. 2017, 38, 2991–3002. [Google Scholar] [CrossRef]
  58. Shi, W.; Ahmed, W.; Wu, K. Morphologically Iterative Triangular Irregular Network for Airborne LiDAR Filtering. J. Appl. Remote Sens. 2020, 14, 034525. [Google Scholar] [CrossRef]
  59. Li, F.; Zhu, H.; Luo, Z.; Shen, H.; Li, L. An Adaptive Surface Interpolation Filter Using Cloth Simulation and Relief Amplitude for Airborne Laser Scanning Data. Remote Sens. 2021, 13, 2938. [Google Scholar] [CrossRef]
  60. Hui, Z.; Hu, Y.; Yevenyo, Y.; Yu, X. An Improved Morphological Algorithm for Filtering Airborne LiDAR Point Cloud Based on Multi-Level Kriging Interpolation. Remote Sens. 2016, 8, 35. [Google Scholar] [CrossRef] [Green Version]
  61. Choi, S.; Kim, T.; Yu, W. Performance Evaluation of RANSAC Family. In Proceedings of the British Machine Vision Conference 2009; British Machine Vision Association: London, UK, 2009; pp. 271–300. [Google Scholar]
  62. Meng, X.; Lin, Y.; Yan, L.; Gao, X.; Yao, Y.; Wang, C.; Luo, S. Airborne LiDAR Point Cloud Filtering by a Multilevel Adaptive Filter Based on Morphological Reconstruction and Thin Plate Spline Interpolation. Electronics 2019, 8, 1153. [Google Scholar] [CrossRef] [Green Version]
  63. Sithole, G.; Vosselman, G. Experimental Comparison of Filter Algorithms for Bare-Earth Extraction from Airborne Laser Scanning Point Clouds. ISPRS J. Photogramm. Remote Sens. 2004, 59, 85–101. [Google Scholar] [CrossRef]
  64. Fareed, N.; Flores, J.P.; Das, A.K. Analysis of UAS-LiDAR Ground Points Classification in Agricultural Fields Using Traditional Algorithms and PointCNN. Remote Sens. 2023, 15, 483. [Google Scholar] [CrossRef]

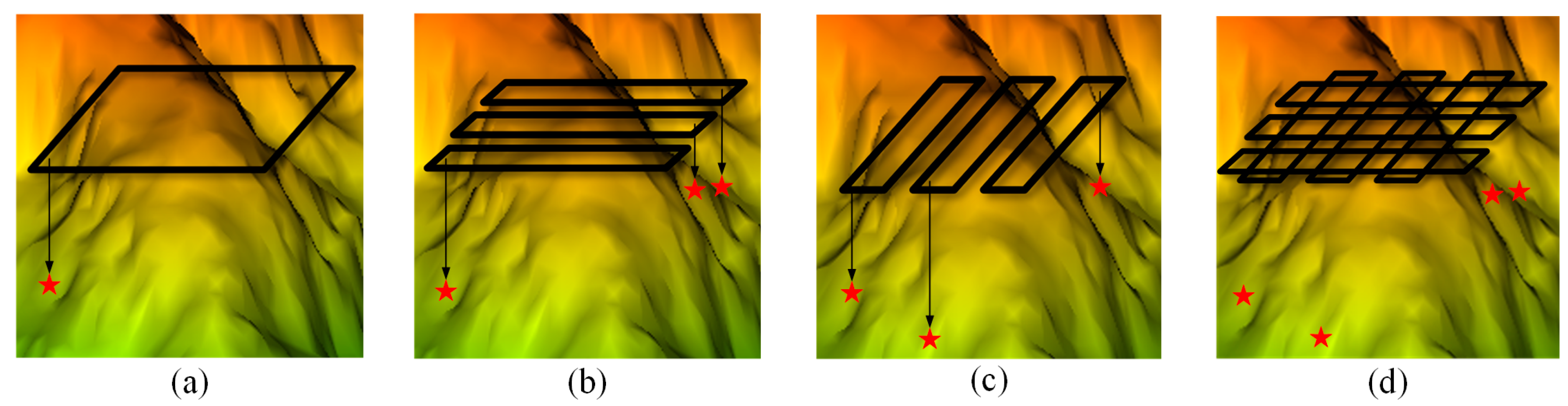

Figure 1. Conceptual diagrams of ground seed identification by using different windows: (a) square window; (b) narrow rectangle window in east–west direction; (c) narrow rectangle window in north–south direction; (d) multi-directional narrow rectangle window. Parallelogram boxes represent windows, and red pentagrams are ground seeds that are identified by selecting the lowest points within the windows.
Figure 1. Conceptual diagrams of ground seed identification by using different windows: (a) square window; (b) narrow rectangle window in east–west direction; (c) narrow rectangle window in north–south direction; (d) multi-directional narrow rectangle window. Parallelogram boxes represent windows, and red pentagrams are ground seeds that are identified by selecting the lowest points within the windows.
Remotesensing 15 01400 g001
Figure 2. Ground seed enhancement with line segmentation. Ground seeds identified only using the method (a) without and (b) with line segmentation. Ground seeds can be supplemented on raised terrain, where it is difficult for ground seeds to be identified by selecting the lowest points within the windows. Black lines and red pentagrams represent line primitives and ground seeds, respectively.
Figure 2. Ground seed enhancement with line segmentation. Ground seeds identified only using the method (a) without and (b) with line segmentation. Ground seeds can be supplemented on raised terrain, where it is difficult for ground seeds to be identified by selecting the lowest points within the windows. Black lines and red pentagrams represent line primitives and ground seeds, respectively.
Remotesensing 15 01400 g002
Figure 3. Ground seed identification on raised terrain by using the RANSAC line segmentation method. Brown points, green points, red points and black lines represent ground points, vegetation points, ground seeds and line primitives, respectively.
Figure 3. Ground seed identification on raised terrain by using the RANSAC line segmentation method. Brown points, green points, red points and black lines represent ground points, vegetation points, ground seeds and line primitives, respectively.
Remotesensing 15 01400 g003

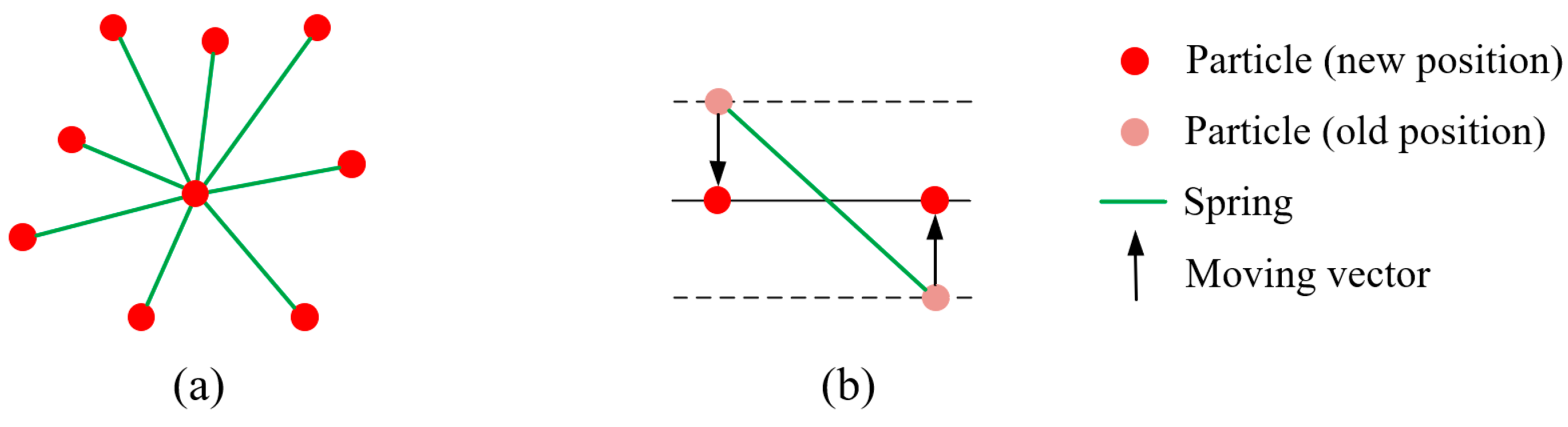

Figure 4. Schematic illustration of (a) cloth model and (b) cloth simulation.
Figure 4. Schematic illustration of (a) cloth model and (b) cloth simulation.
Remotesensing 15 01400 g004
Figure 5. Ground point extraction based on the terrain consists of (a) horizontal and (b) locally fitted planes. The ground points on the steep slope can be correctly recognized based on the locally fitted planes, as shown in the ellipses. Red pentagrams, black points and red rectangles represent ground seeds, ground points and terrain buffers for extracting ground points, respectively.
Figure 5. Ground point extraction based on the terrain consists of (a) horizontal and (b) locally fitted planes. The ground points on the steep slope can be correctly recognized based on the locally fitted planes, as shown in the ellipses. Red pentagrams, black points and red rectangles represent ground seeds, ground points and terrain buffers for extracting ground points, respectively.
Remotesensing 15 01400 g005

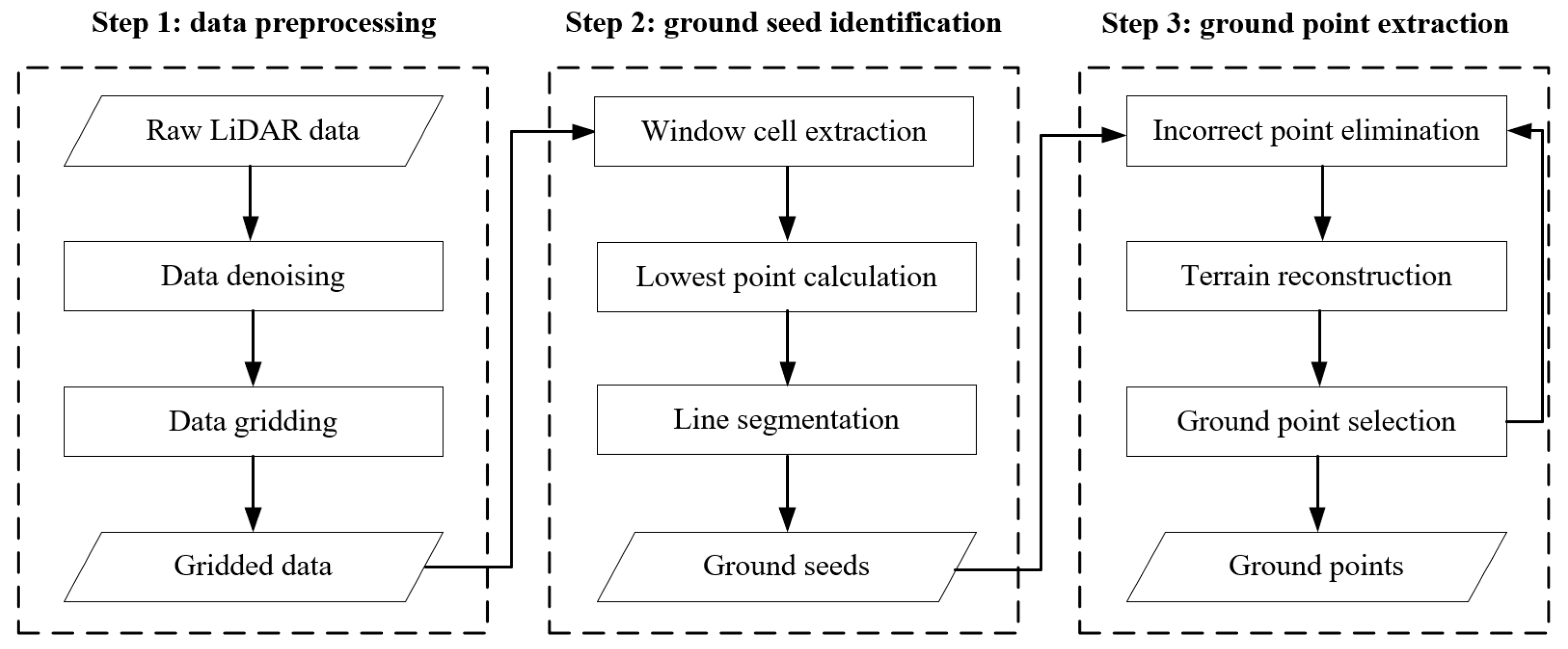

Figure 6. Workflow of the proposed method for filtering airborne LiDAR data in forested environments.
Figure 6. Workflow of the proposed method for filtering airborne LiDAR data in forested environments.
Remotesensing 15 01400 g006

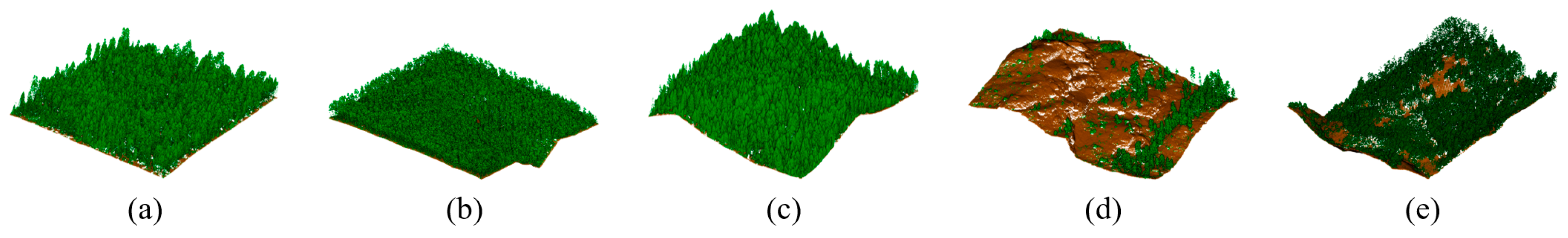

Figure 7. LiDAR point clouds of five forested sites: (a) Site 1, (b) Site 2, (c) Site 3, (d) Site 4 and (e) Site 5. Ground and non-ground points were colored brown and green, respectively.
Figure 7. LiDAR point clouds of five forested sites: (a) Site 1, (b) Site 2, (c) Site 3, (d) Site 4 and (e) Site 5. Ground and non-ground points were colored brown and green, respectively.
Remotesensing 15 01400 g007
Figure 8. DTMs of the proposed method in all sites: (a) Site 1, (b) Site 2, (c) Site 3, (d) Site 4 and (e) Site 5. The red lines indicate the positions of cross sections, and the content inside the blue ellipses is the terrain details ignored by the proposed method.
Figure 8. DTMs of the proposed method in all sites: (a) Site 1, (b) Site 2, (c) Site 3, (d) Site 4 and (e) Site 5. The red lines indicate the positions of cross sections, and the content inside the blue ellipses is the terrain details ignored by the proposed method.
Remotesensing 15 01400 g008
Figure 9. Qualitative comparison of ground filtering results in Site 4. (a) The 3D transect position (white line) in Site 4. The 3D transects of ground filtering results obtained by (b) human interaction, (c) MSF, (d) PMF, (e) CSF and (f) proposed method. Brown and green points represent ground and non-ground points, respectively. The content inside the blue ellipses indicates the terrain details ignored by the proposed method.
Figure 9. Qualitative comparison of ground filtering results in Site 4. (a) The 3D transect position (white line) in Site 4. The 3D transects of ground filtering results obtained by (b) human interaction, (c) MSF, (d) PMF, (e) CSF and (f) proposed method. Brown and green points represent ground and non-ground points, respectively. The content inside the blue ellipses indicates the terrain details ignored by the proposed method.
Remotesensing 15 01400 g009
Figure 10. Accuracy assessment of four filtering methods in five forested sites: (a) kappa coefficient, (b) total error, (c) type I error and (d) type II error.
Figure 10. Accuracy assessment of four filtering methods in five forested sites: (a) kappa coefficient, (b) total error, (c) type I error and (d) type II error.
Remotesensing 15 01400 g010
Figure 11. Validation results for the contribution in the ground seed identification step. (a) Benchmark ground points. The ground seeds identified through selecting the lowest points of the point clouds within (b) square and (c) multi-directional narrow windows. (d) The enhanced ground seeds after line segmentation. Ground seeds were identified more completely by multi-directional narrow windows, and the line segmentation could further improve the completeness of ground seeds on raised terrain. The content inside the ellipses indicates the differences in ground seeds on raised terrain.
Figure 11. Validation results for the contribution in the ground seed identification step. (a) Benchmark ground points. The ground seeds identified through selecting the lowest points of the point clouds within (b) square and (c) multi-directional narrow windows. (d) The enhanced ground seeds after line segmentation. Ground seeds were identified more completely by multi-directional narrow windows, and the line segmentation could further improve the completeness of ground seeds on raised terrain. The content inside the ellipses indicates the differences in ground seeds on raised terrain.
Remotesensing 15 01400 g011
Figure 12. Validation results for the contribution in the ground point extraction step. (a) The 3D transect position (white line) in Site 4. The 3D transects of ground filtering results obtained by (b) human interaction and the methods (c) without incorrect ground point elimination and adaptive terrain reconstruction, (d) with incorrect ground point elimination, and (e) with incorrect ground point elimination and adaptive terrain reconstruction. Ground points were extracted more accurately after incorrect ground point elimination, and the adaptive terrain reconstruction could further improve the accuracy of ground filtering on steep slopes. The content inside the ellipses indicates typical filtering errors.
Figure 12. Validation results for the contribution in the ground point extraction step. (a) The 3D transect position (white line) in Site 4. The 3D transects of ground filtering results obtained by (b) human interaction and the methods (c) without incorrect ground point elimination and adaptive terrain reconstruction, (d) with incorrect ground point elimination, and (e) with incorrect ground point elimination and adaptive terrain reconstruction. Ground points were extracted more accurately after incorrect ground point elimination, and the adaptive terrain reconstruction could further improve the accuracy of ground filtering on steep slopes. The content inside the ellipses indicates typical filtering errors.
Remotesensing 15 01400 g012
Table 1. Data collection summaries of the five forested sites.
Table 1. Data collection summaries of the five forested sites.
SiteLocationCollection DateSystemFlying Height (m)Scan Frequency (Hz)Scan Angle
(°)
Overlap
(%)
Density
(pts/m2)
1Lake Tahoe, Sierra NevadaAugust, 2010Leica ALS50900831410021.74
2North, WasatchJuly, 2008Optech GEMINI
ALTM
7007020507.9
3East, CaliforniaOctober, 2010ALIS-60S LIDAR400--5525.45
4West RenoJuly, 2007Optech GEMINI
ALTM
7004025502.16
5Teton National Forest, WyomingAugust, 2008Optech GEMINI
ALTM
14003620-1.63
Table 2. Descriptions and statistics of the five forested sites.
Table 2. Descriptions and statistics of the five forested sites.
SiteFeatureHeight (m)Slope (°)Canopy Cover (%)Canopy Height (m)
ave 1sd 2avesdavesdavesd
1Density trees on gentle hillside2377.9314.9918.310.3680.0819.1423.6111.19
2Trees on abrupt terrain2456.2915.7419.5810.2668.714.3511.55.4
3Density trees on gentle undulating terrain1561.7225.5625.313.7784.4517.2916.157.86
4Trees on raised and abrupt terrain2472.6640.6525.5511.938.7418.2513.458.21
5Trees on undulating terrain2321.4732.1233.1412.1744.1628.612.677.11
1 “ave” is the average values of height, slope, canopy cover and canopy height, respectively. 2 “sd” is the standard deviation of height, slope, canopy cover and canopy height, respectively.
Table 3. Cross-matrix of filtering results.
Table 3. Cross-matrix of filtering results.
Filtered Results
Ground PointsNon-Ground Points
ReferenceGround pointsab
Non-ground pointscd
Table 4. Errors and kappa coefficients of the proposed method in all sites (%).
Table 4. Errors and kappa coefficients of the proposed method in all sites (%).
SiteType I ErrorType II ErrorTotal ErrorKappa Coefficient
11.181.151.1696.84
22.875.194.2191.41
31.422.892.5992.15
44.1812.965.3177.53
52.9811.747.6684.61
ave 12.536.934.2288.51
sd 21.094.892.256.74
1 “ave” represents the average value of four accuracy metrics, respectively. 2 “sd” represents the standard deviation of the four accuracy metrics, respectively.
Table 5. Runtime of four filtering methods in five forested sites (s).
Table 5. Runtime of four filtering methods in five forested sites (s).
SiteMSFPMFCSFProposed
144.94128.0511.726.96
220.6850.3610.116.04
326.589.2713.830.32
413.3331.6629.213.14
54.27.7218.29.83
ave 121.9361.4116.619.26
1 “ave” represents the average runtimes.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Cai, S.; Yu, S. Filtering Airborne LiDAR Data in Forested Environments Based on Multi-Directional Narrow Window and Cloth Simulation. Remote Sens. 2023, 15, 1400. https://doi.org/10.3390/rs15051400

AMA Style

Cai S, Yu S. Filtering Airborne LiDAR Data in Forested Environments Based on Multi-Directional Narrow Window and Cloth Simulation. Remote Sensing. 2023; 15(5):1400. https://doi.org/10.3390/rs15051400

Chicago/Turabian Style

Cai, Shangshu, and Sisi Yu. 2023. "Filtering Airborne LiDAR Data in Forested Environments Based on Multi-Directional Narrow Window and Cloth Simulation" Remote Sensing 15, no. 5: 1400. https://doi.org/10.3390/rs15051400

APA Style

Cai, S., & Yu, S. (2023). Filtering Airborne LiDAR Data in Forested Environments Based on Multi-Directional Narrow Window and Cloth Simulation. Remote Sensing, 15(5), 1400. https://doi.org/10.3390/rs15051400

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
