Ecological Security Assessment of “Grain-for-Green” Program Typical Areas in Northern China Based on Multi-Source Remote Sensing Data

State Key Laboratory of Remote Sensing Science, Aerospace Information Research Institute, Chinese Academy of Sciences, Beijing 100194, China
University of Chinese Academy of Sciences, Beijing 100049, China
Collaborative Innovation Center on Forecast and Evaluation of Meteorological Disasters (CIC-FEMD), Nanjing University of Information Science & Technology, Nanjing 210044, China
Author to whom correspondence should be addressed.
Remote Sens. 2023, 15(24), 5732;
Submission received: 14 October 2023 / Revised: 7 December 2023 / Accepted: 12 December 2023 / Published: 15 December 2023
(This article belongs to the Special Issue Remote Sensing and Ecosystem Modeling for Nature-Based Solutions)


The Inner Mongolia segment of the Yellow River basin (IMYRB) is a typical area for ecological restoration in China. At the end of the 20th century, influenced by climate and human activities, such as mining, grazing, and farmland abandonment, the ecological security of the IMYRB was under more significant pressure. To alleviate the pressure on natural ecosystems and improve the fragile ecological situation, China implemented the “Grain-for-Green” (GFG) project in 1999. However, the evolutionary characteristics of the ecological security of the IMYRB in the first two decades of the 21st century are still lacking. Quantitative and long-term ecological security information of “Grain-for-Green” is needed. Based on this, this study used the “Pressure (P)-State (S)-Response (R)” method and proposed an ecological security assessment and early warning system based on multi-source remote sensing data. The evaluation results indicated a significant improvement in ecological security in the IMYRB from 2000 to 2020. Compared to 2000, the ecological security of the IMYRB had improved significantly in 2020, with an increase of 11.02% (ES > 0.65) and a decrease of 8.89% (ES < 0.35). For the early warning aspect of ecological security, there was a 26.31% growth in non-warning areas, with a 5% decrease in warning areas. Based on the analysis of ecologically critical factors, we proposed the implications for future ecological management as follows. (1) In ecologically fragile areas such as the IMYRB, continued implementation of the GFG was necessary. (2) Vegetation restoration should be scientific and tailored adaptive. (3) The protection of arable land also showed necessity. (4) The grazing management skills should be upgraded. Our study demonstrated that the ecological benefits derived from the “GFG” project are not immediate but cumulative and persistent. The continuous implementation of “GFG” will likely alleviate the pressure exerted by human activities on the natural environment.

1. Introduction

In the late 20th century, influenced by farmland expansion, unsustainable grazing, and mining, the Inner Mongolia segment of the Yellow River basin (IMYRB) suffered land desertification [1], salinization [2], and biodiversity decline [3]. At the same time, global climate change has led to frequent regional extreme climate disasters [4]. In the 1990s, the IMYRB, as a typical ecologically fragile region, destroyed and degraded its ecological barriers, which were further aggravated by a combination of natural and anthropogenic disturbances [5,6], which posed a severe threat to regional ecological security [7].
In order to curb the deteriorating trend of ecological security and effectively engage in ecological conservation, China has undertaken various ecological governance projects since the 21st century [8]. The “Grain-for-Green” project aims to make the steep farmland that caused high soil erosion and low yields out of cultivation [9,10]. Some studies suggest that the project effectively mitigated soil erosion [11,12], bolstered regional carbon sequestration [13,14,15], and significantly enhanced water retention capacity [16,17,18] and vegetation coverage [19]. However, at the early stage of “GFG”, the survival rate of trees was low due to the inadequacy of relevant regulations and forest management systems [20,21]. In addition, due to accelerated urbanization, many rural workforces moved to cities, leaving trees unattended [22,23]. Therefore, obtaining quantitative and precise information on the evolution of ecological security after implementing the GFG is imperative.
The Pressure–State–Response (P-S-R) model was widely applied in ecological environment safety evaluation assessment [24,25]. The P-S-R comprehensively considers the interaction between humans and ecosystems, which can be tailored to specific area conditions [26]. In P-S-R, “P” indicators refer to pressures on ecosystems, both natural and artificial. “S” reflects the state of the ecosystem, including vitality, resilience, and function [27,28]. The “R” dimension consists of indicators related to human activities, such as measures and policies [29,30].
Based on multi-source remote sensing data, the P-S-R model was built, which makes ecological security conducting high-efficiency [31,32,33]. However, the existing P-S-R does not reflect the “Grain-for-Green” impact on ecological security [34] due to the following reasons: (1) In the IMYRB, the ecological security situation is complex due to the many factors, such as the “GFG”, grazing, mineral exploitation, the growth of urbanization [35], undulating terrain, and uneven precipitation [36]. Most existing assessment systems had not adequately considered these factors. (2) Due to the lack of information on the spatial and temporal distribution of “GFG”, the relationship between “GFG” and ecosystem security cannot be effectively analyzed [37,38].
This study used multi-source remote sensing data to assess the ecological security in the IMYRB. Grazing and mining areas were included in the pressure dimension. We utilized ecosystem elasticity, vitality, and ecosystem service functions to characterize ecological security status. Furthermore, it is worth noting that we included “GFG” information in the response dimension. We established an integrated ecological security remote sensing evaluation and early warning system based on the Pressure–State–Response (P-S-R) framework, coupling human society, economic development, and natural ecosystems. This system assessed the ecological security changes in the IMYRB after “Grain-for-Green”, providing valuable data references for ecological management.

2. Study Area and Data

2.1. Study Area

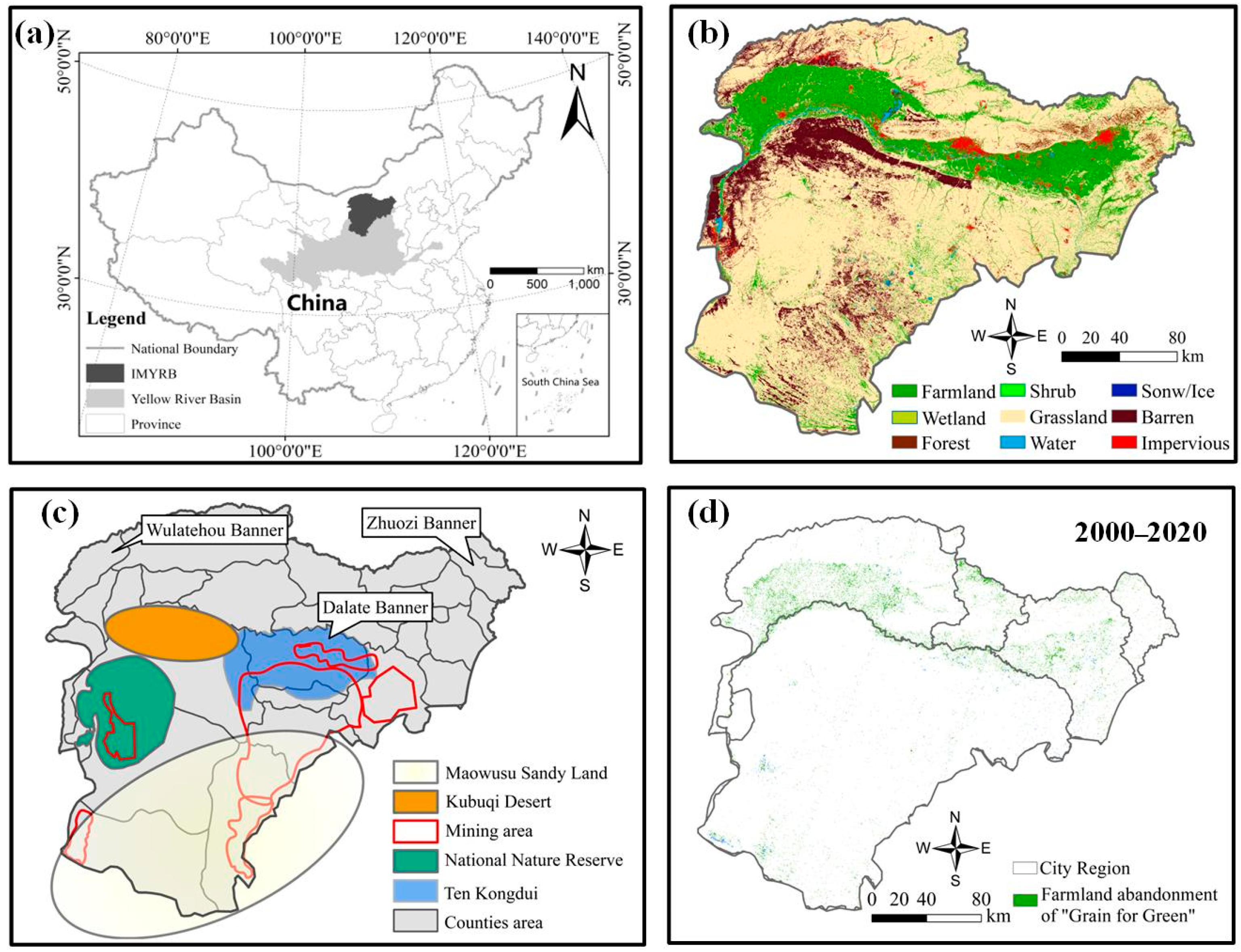

The Inner Mongolia section of the Yellow River Basin (IMYRB) is located in the upper reaches of the Yellow River Basin in the western part of the Inner Mongolia Autonomous Region (38°26′~42°50′N, 106°59′~110°10′E). The altitude lies between 816 and 2393 m. The IMYRB is located in a semi-arid and arid region (Figure 1a) with an average annual precipitation of 297.25 mm [39]. The land cover types are diverse (Figure 1b). The dust storms during the spring are the main reason for wind erosion. And the heavy summer rainfall can be the primary factor leading to water erosion [40]. The IMYRB comprises a variety of functional zones, including the significant sand-producing tributary known as Ten Kongdui (ten major tributaries of the Yellow River, located in Ordos City, with an average annual sand loss of about 27 million tonnes) [41], the West Ordos National Nature Reserve, and the Hetao Irrigation Area (Figure 1c). It also encompasses the Hohhot–Baotou–Ordos urban cluster, which bolsters regional economic development. However, at the end of the 20th century, rapid urban development, mining, and land desertification had put pressure on ecosystems, resulting in heightened ecological vulnerability and a growing prominence of ecological issues. Therefore, to harmonize economic development with ecological conservation, China initiated the “Grain-for-Green (GFG)” project in 1999. After 1999, a significant amount of sloping farmland in the IMYRB had been converted to forest and grassland [9,10] (Figure 1d).

2.2. Data and Pre-Processing

We used diverse remote sensing data, including land cover, climate, vegetation indices, nighttime light, and terrain (Table 1). The WGS84 UTM 48N projection was adopted to maintain the spatial consistency of each index.
Specifically, the China Land Cover Dataset (CLCD, 30 m), released by Professors Jie Yang and Xin Huang from Wuhan University on Zenodo [42], with a high spatial resolution of 30 m, was often used as input data for land use dynamics detection (Figure 1c).
The terrain slope data were derived from SRTM DEM (30 m) elevation data jointly measured by NASA (National Aeronautics and Space Administration) and NIMA (National Imagery and Mapping Agency). The slope data were used as one of the inputs for calculating topographic indices and ecology services [43].
The TerraClimate precipitation dataset was generated using climate-aided interpolation techniques, which combined high spatial resolution climate data from WorldClim with multiple low-resolution datasets, such as CRU and JRA55 [44]. The MOD13Q1 NDVI (16-day, 250 m), MOD16A2 (8-day, 500 m), and MOD17A2H GPP (8-day, 500 m) were sourced from the National Aeronautics and Space Administration (NASA) [45,46,47], which were used to analyze the vegetation recovery after farmland abandonment. MOD16A2 (8-day, 500 m) was a global terrestrial evapotranspiration product that can be used to study regional water energy balances [48]. Based on this, NDVI, GPP, and ET datasets were pre-processed using the MODIS Reprojection Tool (MRT), which included tasks such as mosaicking, projection, format conversion, and resampling.
Nightlight data can represent the human activity intensity effectively. In this study, DMSP/OLS and NPP/VIIRS Nighttime Data were obtained from the National Oceanic and Atmospheric Administration (NOAA) National Centers for Environmental Information. We conducted saturation, consistency, and continuity calibration on the nighttime light data and resampled them to achieve a consistent spatial resolution of 1 km [49,50].
Statistical data were used to analyze the state of ecological security of the IMYRB since 2000. The mining areas and protected zone data were obtained through literature research [51,52]. GDP, year-end population, year-end livestock herds, afforested area, and cultivated area are from the Statistics Bureau of Inner Mongolia ( (accessed on 10 May 2023). Owing to data availability, the number of livestock was obtained only for 2000 and 2010. The World Soil Attributes Database (HWSD), as reliable soil data, was also used for ecology assessment [53].

3. Methods

3.1. Remote Sensing Ecological Security Assessment Indicator System

The Pressure–State–Response (P-S-R) model was introduced by the Organization for Economic Cooperation and Development (OECD) and the United Nations Environment Programme (UNEP) in the 1980s. Due to the combination of natural and anthropogenic impacts on ecosystems, the P-S-R method shows the merits of ecological and environmental security assessment [32,54]. For assessing ecological security on the IMYRB, the Ecological Security Index (ESI) was established [33,34,55].

3.1.1. P-S-R Ecological Security Index Selection

This P-S-R assessment framework comprises three dimensions (Pressure, State, and Response). Given each indicator’s impact on ecological security, these indicators were categorized into positive (+) and negative (−). The content and method of P-S-R were developed and enriched by combining natural and human impacts in Table 2.
  • Ecological system pressure (P) index selection
Ecological system pressure (P) describes the extent to which an ecosystem faces disturbances. Specifically, terrain is variable at spatial scales [54], although the spatial extent of the IMYRB is small. The IMYRB is located in an arid and semi-arid region, where spatial heterogeneity of precipitation can have an impact on ecological status [56]. The IMYRB is a major coal-producing region in China. Mining can put more pressure on the ecological environment [57]. The IMYRB is also a typical agricultural and pastoral zone in northern China, and agriculture and animal husbandry are the main modes of production [58]. In addition, the rapid development of urbanization in the IMYRB since the 21st century has led to the over-occupation of land resources and ecological damage, which has put greater pressure on the ecological environment [59]. To conduct quantitative studies of urbanization, the night light data were used [60]. In this study, three indices were chosen to reflect the pressure on ecosystems under the influence of both natural and human disturbances: Precipitation Indices (PI), Topographic Indices (TI), and the Disturbance Index (DI). Grazing intensity (GI), Mining area index (MI), and the Population Density Index (PDI) were selected to show the disturbance of human activities on the ecosystem of the IMYRB, namely the Disturbance Index (DI).
Ecological System Status (S) Index Selection
Ecosystem status (S) refers to the health and ecological environmental quality of an ecosystem. Four indicators were selected to reflect the state of the ecosystem in the IMYRB. Land use conditions reflect the interaction between human activities and natural conditions [61], while NDVI can capture vegetation information, representing richness and activity [59]. The Landscape Fragmentation Index (LFI), an indicator of human interference, characterizes the degree of fragmentation where the landscape is divided. Mining, grazing, and urban expansion had increased land use fragmentation in the IMYRB [62].
Additionally, the shortage of water resources is a major constraint on the coordinated economic and ecological development of the IMYRB [63]. Wind and water erosion are the main causes of soil erosion [64]. Changes in ecosystem services had a direct impact on ecosystem security [65]. In the IMYRB, ecosystem service is an effective indicator of ecological security [66]. Integrated Valuation of Ecosystem Services and Tradeoffs (InVEST), as an open-source software model, was often used to map ecological services, including carbon, seasonal water yield sediment retention modules, and so on [54,67]. Integrated valuation for ecosystem services and tradeoffs (InVEST) is being applied to decision-making involving more sustainable choices to assess ecosystem services [68,69]. In this study, carbon sequestration, soil erosion, and water resource conservation were calculated using InVEST as indicators of the Ecological Service Index (ESI). Therefore, the Ecological system status (S) index includes the Ecological Resilience Index (ERI), Ecological Vitality Index (EVI), Landscape Fragmentation Index (LFI), and Ecosystem Service Index (ESI), respectively.
Ecological System Response (R) Index Selection
Ecosystem response (R) refers to the ability of an ecosystem to mitigate the effects of a disturbance through its anti-disturbance mechanisms or anthropogenic measures. It is worth mentioning that China’s “GFG” project aims to convert farmland into forest or grassland, resulting in high ecological significance against ecological vulnerability [70]. Implementing “GFG” has proven effective and beneficial in reducing soil erosion, land desertification, and other related issues, thereby enhancing the quality of ecological security [20]. At the same time, in order to protect the redline for arable land, there have been efforts to recultivation [71]. Moreover, the proportion of protected ecological functional areas represents the extent of ecological protection and the potential for enhancing ecological security [72]. In conclusion, we have incorporated the Farmland Abandonment and Recultivation Index (FARI) and the Protected Area Index (PAI) into the ecological security response indicators for the IMYRB.

3.1.2. Establishment of Ecological Security Index System Based on P-S-R

The creation of a grid of reasonable dimensions is necessary. Currently, in order to effectively reflect the spatial heterogeneity of each indicator, most ecological security studies tend to use a grid ranging from 1 km to 5 km [73,74,75,76,77]. As the data we used were of large spatial extent, ranging from 30 m to 4 km, the 3 km × 3 km grid is suitable to make the indicators spatially consistent.
To assess ecosystem services, we employed the InVEST assessment model. The InVEST Carbon Storage and Sequestration model uses maps of land use along with stocks in carbon pools to estimate the amount of carbon currently stored in a landscape or the amount of carbon sequestered over time [78]. In this study, we used the CLCD landcover data and the carbon pools data, which were acquired by (accessed on 15 December 2022). The sediment retention service provided by vegetation is of great interest to water managers and land managers [79]. DEM elevation data, TerraClimate annual precipitation, and soil erodibility data were used to acquire the sediment delivery ratio. We combined this with precipitation data, CLCD land use products, plant-available soil moisture data (from the Chinese Academy of Sciences Nanjing Institute of Soil Science’s 1:100,000 soil dataset), and HWSD to evaluate regional water yield.
Apart from this, We used CLCD land use data from 2000 to 2020 to extract the active farmland area per year by reclassification. On this basis, we carried out change detection. In our view, for a pixel, if the previous year was arable land and the next year was non-arable land, it was considered to be abandoned farmland. If the farmland was abandoned in the previous year but active in the current year, it was considered recultivated farmland.

3.1.3. Determination of Indicator Weights

Indicator weights refer to the relative importance of a specific indicator in relation to the evaluation object or evaluation target within an evaluation system. The Analytic Hierarchy Process (AHP) is a method used to decompose elements related to evaluation objectives into different levels and perform qualitative or quantitative analysis to determine the weights of each indicator [80,81]. In this study, the four-level indicator system was developed by analyzing relevant studies and consulting the Inner Mongolia Autonomous Region Ecological Environment Related Committee experts. Among them, the first level of indicators is ecological safety, and P, S, and R are the second level indicators. The third level indicators were the specific factors of P, S, and R. The last level indicators were the indexes for calculating disturbance index and ecosystem services. Four questionnaires were administered to each of the five academic experts and four governmental experts (Table 2).

3.1.4. Standardization and Calculation of Ecological Security Indicators

Data standardization was used due to the different indicators [82]. We categorized the indicators into two groups: positive and negative. For positive indicators, a larger value indicated better ecological security. In contrast, for negative indicators, the smaller the value, the better the ecological security. The formulas are as follows:
Z m n = X m n min ( X m ) max ( X m ) min ( X m )
Z m n = 1 X m n min ( X m ) max ( X m ) min ( X m )
In the formula, Z m n is the standardized value of the indicator m in the year n; X m n is the original value of the indicator m in the year n; max ( X m ) and min ( X m ) are the maximum and minimum values of the indicator m in the year n, respectively. m represents the number of indicators.
In this study, we utilized the AHP to assign weights to various levels of indicators (refer to Section 3.1.1). Based on this, we calculated the Ecological Security Index by combining the standardized values of indicators with their respective weights. The calculation formula is as follows:
E S I n = i = 1 m Z m n × W m n
In the formula, Z m n represents the standardized value of the indicator m in the year n, W m n is the weight of the indicator m in the year n. m represents the number of indicators.

3.2. Ecological Security Assessment System and Early Warning System Establishment

At present, there is no unified classification standard for ecological security. Related studies [58,73,83] have categorized ESI into different levels. This study used spatial analysis by Arcgis 10.6 and divided ecological security into five intervals (Table 3). Early warning systems for ecosystems are commonly used to determine the trend and rate of ecosystem change [84] and provide a basis for determining the sequence of ecological restoration [85]. In this study, the critical values for different stages of the warning system were determined by calculating ΔESI (changes of ESI) between adjacent time intervals and grading ESI (Table 4).

4. Results

4.1. Ecological Safety Assessment in the IMYRB

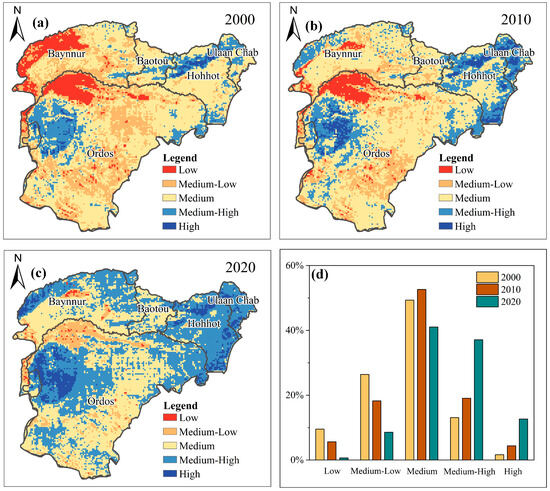

We established a 3 km × 3 km grid network as the assessment unit. Using the Analytic Hierarchy Process (AHP), we assigned weights to different indicators in the P-S-R evaluation system (Table 2). Based on this, we created an ecological security map of the IMYRB and conducted statistics on the proportions of ecological security at different levels (Figure 2).
Ecological security zones (medium-high and high) in the IMYRB are primarily located in the western part of Etuoke Banner, the Western Ordos National Nature Reserve within the territory of Wuhai City, Hohhot City, and Zhuozi County in Ulanqab City (Figure 1c). The ecological security (ES) in the reserve had consistently been high (greater than 0.55), and over the past two decades, the high-value ES zone has radiated outward from this reserve, increasing the total area by 51,849 km2. Compared to 2000, the ecological security of the IMYRB had improved significantly in 2020, with an increase of 11.02% (ES> 0.65) (Figure 2). Ecological critical zones (mid-value and mid-low value) are mainly distributed in the eastern hilly and gully areas of Ordos City, the central Mu Us Sandland, and the Hetao Plain (Figure 1c). Among these, from 2000 to 2020, the mid-value zone showed an overall trend of increase followed by a decrease in 2010 (from 49.3% to 52.65% and then to 41.06%). The area proportion of mid-low value zones notably decreased (from 26.41% to 8.58%) (Figure 2d). Ecological low-value proportion experienced a decrease of 8.89%, from 14,166 km2 to 963 km2. Overall, from 2000 to 2020, with the continuous commencement of “GFG” and afforestation initiatives, the ecological security situation in the IMYRB steadily improved.

4.2. Dynamic Analysis of Ecological Security Early Warning

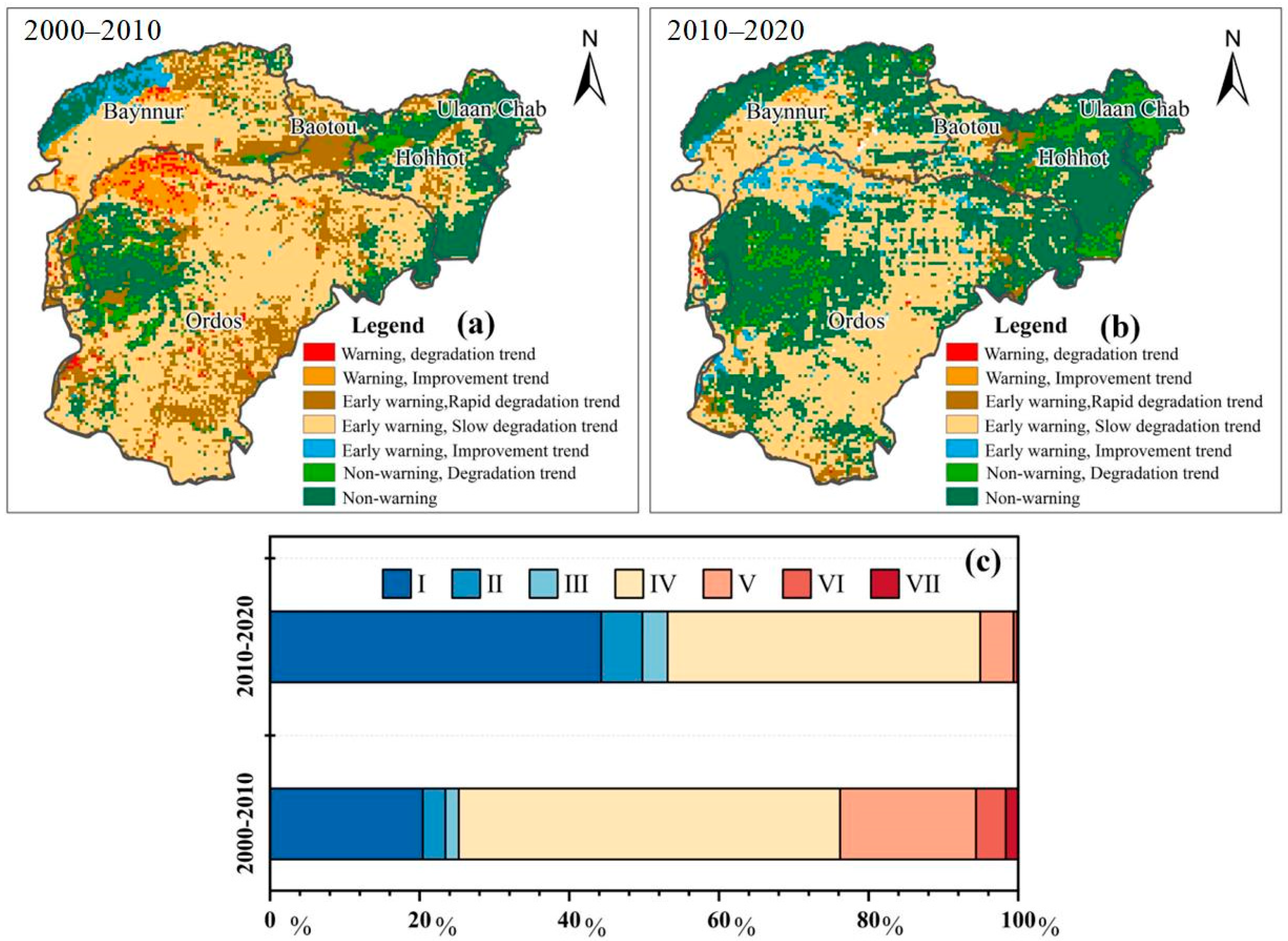

According to the ecological security warning (ESW) system, we categorized the ESW into seven levels (Table 4). We mapped the ESW in 2000–2020 in the IMYRB by using a 3 km × 3 km grid (Figure 3). From 2000 to 2020, the unsafe regions in the IMYRB notably decreased, with the warning-degradation areas and warning-improvement areas reduced by 3.47% and 1.53%, respectively. The critical safety zones decreased by over 20%, while the safe areas significantly increased (>25%) (Figure 3).
Based on the above analysis, the ecological warning status in the IMYRB showed an overall positive trend. The warning conditions gradually improved from the surrounding areas towards the center. In the western part of Ordos City, the ecological security zone radiates outward from the ecological protection area (Figure 1c). In the northwest desert areas (Figure 1c), there had been a significant transition from ecological warning to ecological critical safety. The ecological security of Baynnur had improved. Ulaan Chab and Baotou can also see improvements in their ecological security conditions and were essentially in a non-warning state. These results suggested a positive ecological trend in the IMYRB, with areas gradually transitioning to more secure ecological states, especially in the central and northern regions.

5. Discussion

5.1. Ecological Security Assessment System Rationality and Data Reliability

In this study, we selected ecological security assessment indicators and created a 3 km × 3 km grid to quantitatively assess the ecological security spatiotemporal changes. The impact of climate and human disturbance on ecological security cannot be ignored. This study considered the impact of natural and anthropogenic factors on ecological security. Grazing intensity, “Grain-for-Green” areas, protected areas, and mining areas were included in the evaluation system using spatial analyses. In addition, we used InVEST to capture ecosystem services scientifically. Night light data were used to quantify urban development. To acquire the farmland abandonment dataset, we used CLCD land use data from 2000 to 2020 to extract the cultivated land area per year by reclassification. Based on reliable datasets, we established an ecological security indicator system tailored for the IMYRB in conjunction with the “GFG” policy.

5.2. Possible Mechanism of ES Improvement and Policy Implications

The results of the integrated policy measures and ecological vulnerability assessment indicate that the ecological security of the IMYRB is affected by a variety of factors. The main reasons for the improvement in ecological security include water use and management policies, environmental protection of these changes, and restoration projects [86].

5.2.1. The Implementation of the GFG Can Be Effective in Enhancing Ecological Security

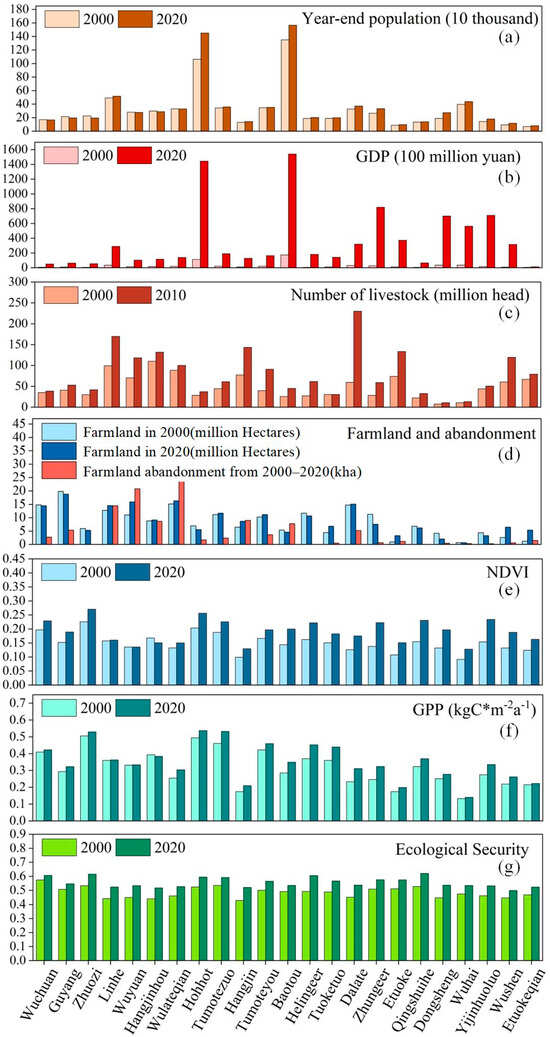

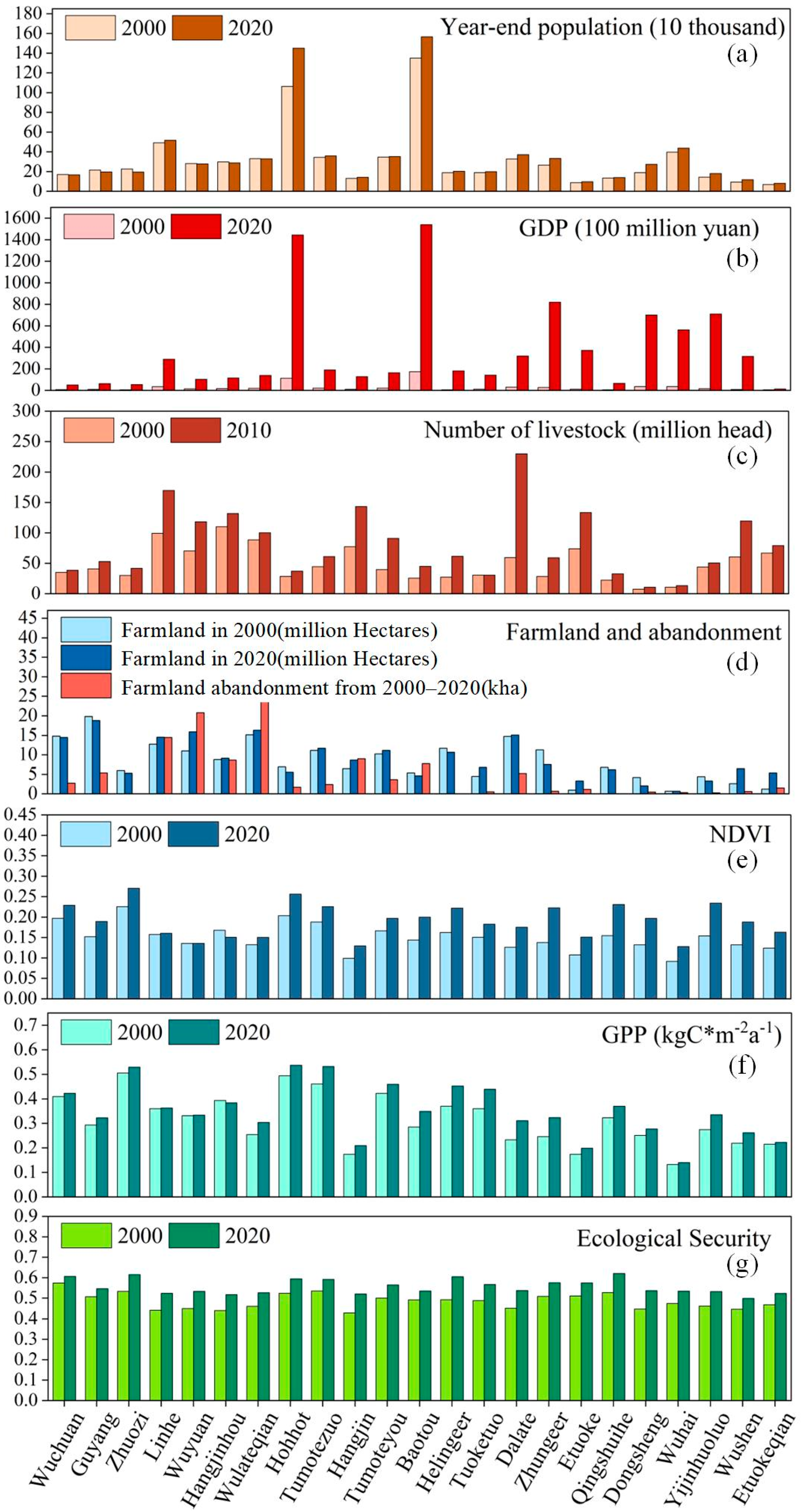

Socio-economic, e.g., GDP, population, and grazing development, had put greater anthropogenic pressure on the ecological security of the IMYRB (Figure 4a–c). In the face of increasing pressure on ecosystems, sustained implementation of ecological conservation policies was necessary. On the other hand, in the first two decades of the 21st century, ecological security has increased significantly (0–20%). This was attributed to China’s emphasis on ecological protection in the process of economic development. It can be seen that from 2000 to 2020, there was a huge increase in NDVI and GPP. NDVI and GPP in typical areas of “GFG”, such as the Zhungeer banner, showed high growth rates of 61.51% and 31.55%, respectively, which implied an increase in ecosystem vitality (Figure 4e,f). Therefore, the effectiveness of the “GFG” implementation can be recognized.
Furthermore, we combined the CLCD (30 m) land use data with SRTM DEM (30 m) data to extract the farmland whose slopes were over 25°. The extraction results showed that there are still 3.234 km2 of sloping farmland with slopes greater than 25° in the IMYRB. Thus, for the areas where farmland was still cultivated in an unjustified way, it was necessary to conduct “GFG” further in the future.

5.2.2. Scientific Vegetation Restoration Is an Effective Way to Improve Ecological Security

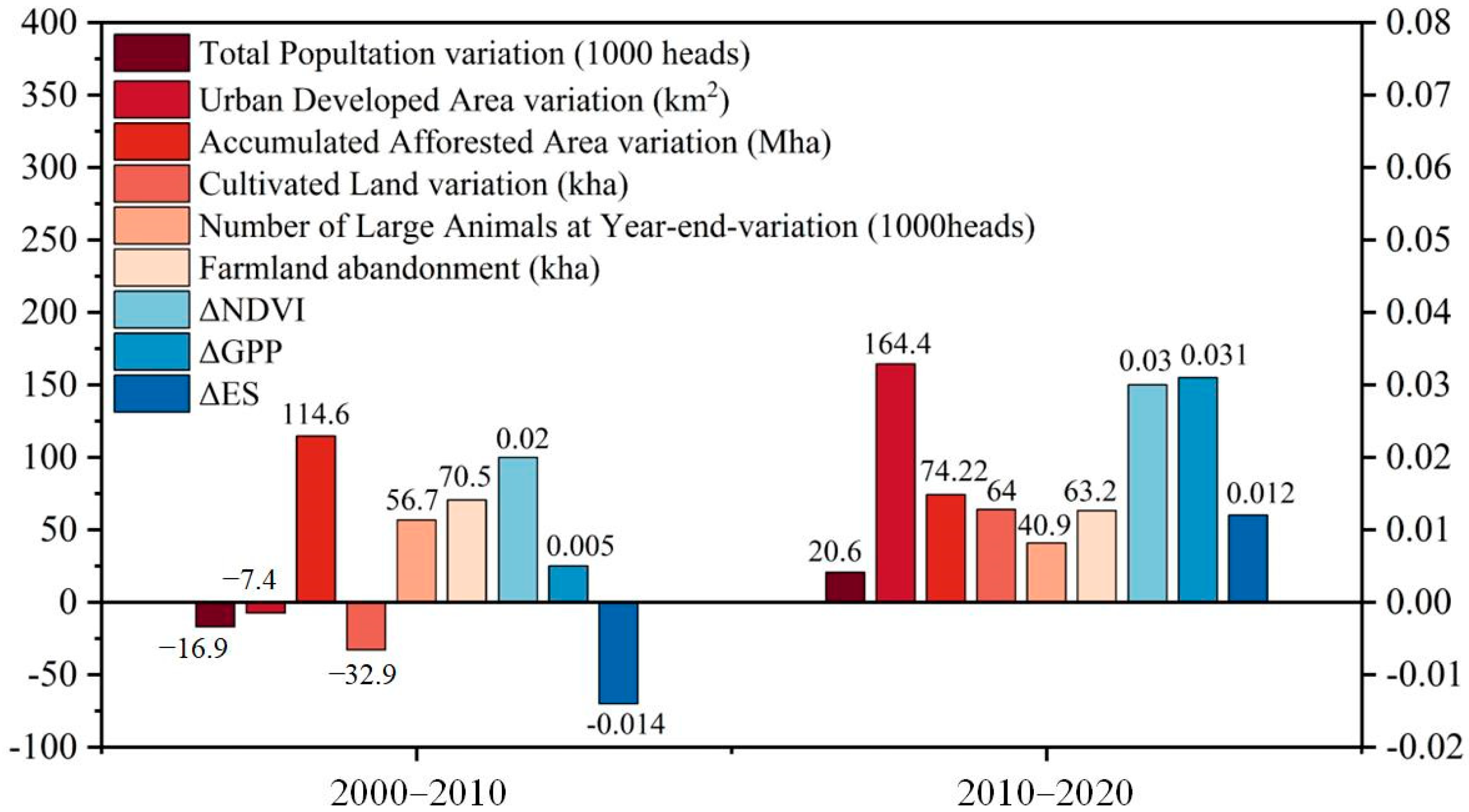

To quantify the impact of the “GFG” on regional ecological security further, we took Ordos City as an example. We collected and analyzed data related to farmland abandonment, reforestation, and human activity pressures.
The improvement in ecological security due to “GFG” was a cumulative process and had a lag in ecological security enhancement. We believe that this may be related to the maturity of afforested trees and their adaptation to the local environment. Young trees planted initially can quickly increase vegetation coverage in the region in the short term. However, their primary productivity was limited, which means their capacity to improve the regional ecological environment is also limited [87]. In some cases, the short-term sharp increase in water consumption by regional vegetation can temporarily increase the water resource pressure on the ecosystem [88], leading to a temporary decline in ecosystem security. It is only when these young trees gradually mature and adapt to the local natural and geographical environment that their contribution to ecosystem security becomes evident.

5.2.3. The “Red Line” of Arable Land Should Be Kept in “Grain-for-Green”

Excessive farmland abandonment posed a challenge to agricultural security and food security. In Erdos, compared to 2000, the amount of abandoned farmland was significantly reduced by 10% (Figure 5). Protection of farmland, which was suitable for cultivation, has shown more importance in recent years. Therefore, protecting the red line of arable land showed a high degree of necessity.

5.2.4. Upgrading Grazing Management Skills Is Essential for Grassland Ecological Security

Livestock populations had generally experienced a trend of increase in 2000–2010 (Figure 4c) followed by a decrease of about 10% (Figure 5).
From the results described above, it is apparent that ecological restoration policies can effectively change the ecological vulnerability pattern. Ecological restoration has achieved remarkable results in the IMYRB. The land use type of the IMYRB was dominated by grasslands. It was undeniable that appropriate grazing can maintain or even increase carbon stocks and protect grasslands by reducing plant diseases. However, when the grazing intensity exceeds the threshold, the ecosystem can be degraded [89]. In recent years, China has introduced several grazing management policies in Inner Mongolia, but grassland management still lacks scientific and technical guidance. Therefore, it is necessary to improve grassland management skills to meet the needs of grazing and protect the ecological stability of grasslands.

5.3. Limitations and Perspectives

In future work, we need to improve the following aspects further: (1) Spatial applicability of the assessment indicator system: This study effectively screened the indicator system applicable to arid and semi-arid fallow forest areas in northern China. However, due to the heterogeneity between northern and southern China, the applicability of this indicator system should be carried out. The ecological security assessment of the “GFG” program in southern China or in a large region needs to be considered. In addition, this study does not include indicators for characterizing vegetation water stress, which is necessary for arid and semi-arid areas to be included in future studies. (2) Applicability of the grid: A 3 km × 3 km grid was selected as the evaluation unit in this study, which can better show the ecological security status of the IMYRB. If the whole Yellow River Basin or a larger scale is evaluated, the evaluation unit needs to be re-established according to the basin condition.

6. Conclusions

The IMYRB is a typical area in northern China that is experiencing the implementation of the “GFG” program. In this study, we used the P-S-R ecological evaluation method, coupled with multi-source remote sensing data, to construct an ecological security assessment system and early warning system applicable to the area of returning farmland to forest.
The research indicated that from 2000 to 2020, there had been a continuous improvement in the ecological security of the IMYRB. The ecological warning areas had decreased significantly, going from over 20% to below 10%. This marked a significant improvement in the quality of the ecological environment. However, from 2000 to 2010, there was not a widespread and substantial improvement in ecological security, with the ecological security zone increasing by only 8% and the unsafe zone decreasing by 12%. By 2020, there had been a noticeable improvement in ecological security both in terms of regional scale and the extent of change. The ecological security zone had increased by 35%, with over 50% of the region covered by ecological security zones. This suggested that the impact of the “GFG” program on ecological security was not immediate. The impact of the “GFG” program on ecological security was characterized by its persistence and cumulative nature.
This research highlighted the significant impact of the “GFG” program on ecological security in the IMYRB. To maintain and enhance the current ecological security status in this region, it is necessary to continue the implementation of the program. It is important to consider the local climatic and hydrological conditions during the process of “GFG”, adopting an approach that combines natural recovery with artificial restoration. Apart from this, regular assessments should also be conducted to ensure the orderly and effective operation of the program.

Author Contributions

X.L. was responsible for the experiment design, data curation, visualization, and manuscript preparation. H.L. contributed to the conceptualization and review of the manuscript. S.W. contributed to the conceptualization, review, and funding acquisition. K.L. contributed to the review. L.L. contributed to partial data curation and manuscript review. D.L. contributed to partial data curation and manuscript editing. All authors have read and agreed to the published version of the manuscript.


This research was supported by the Key Program of the Institute (E2Z211020F), the National Natural Science Foundation of China (NO. 42141007), and the Science and Technology Planning Project of Hohhot (2022-soical-key-4-1-1).

Data Availability Statement

Data are contained within the article.


The authors would like to thank the anonymous reviewers and editors.

Conflicts of Interest

The authors declare no conflict of interest.
