Factors of Subsidence in Katy, Texas, USA

Abstract

Coastal communities are susceptible to the damaging effects of land subsidence caused by both natural and anthropogenic processes. The Greater Houston area, situated along the Gulf Coast of Texas, has experienced some of the highest rates of subsidence in the United States. Previous work has extensively analyzed the role of groundwater levels and oil and gas extraction in land subsidence of the Greater Houston area, but has failed to adequately incorporate other significant contributing factors. In this research, we aim to fill that information gap by analyzing the individual effects of subsidence from multiple different processes including groundwater and hydrocarbon extraction rates with the addition of population growth, total annual precipitation, and total developed area in terms of impervious surfaces. We perform a full resolution InSAR analysis of the Katy area using Sentinel-1 data from 2017 to 2022 and compare contributors of subsidence to vertical displacement rates calculated by GNSS stations through a generalized linear regression analysis. The InSAR results show up to 1.4 cm/yr of subsidence in multiple areas of Katy, and the generalized linear regression results suggest that population growth and total developed area are two of the highest contributors to subsidence in the area.

1. Introduction

Land subsidence is a globally ubiquitous problem for coastal communities, including the Greater Houston area in Texas (Figure 1). Subsidence in the Greater Houston area is caused by a combination of natural and anthropogenic factors. Natural processes include sediment compaction, faulting, and salt migration [1,2]. These processes cause deformation over time at a steady rate due to their interaction with natural processes that offset subsidence, such as sedimentation and production of new soil through organic decay [3]. The main anthropogenic processes that are known to cause subsidence include groundwater withdrawal, oil and gas extraction [1,4], mining activity [5,6,7], and triggered geological processes such as reactivation of dormant faults [8]. As a result, the Greater Houston area has experienced some of the highest rates of subsidence in the United States, with up to 7 cm/yr in the downtown area from 1996–2003 [9] and up to 2 cm/year in the western suburbs of the city in more recent years [2,10]. This has led to significant challenges for the region, including increased flood risk, land loss, and infrastructure damage [11,12,13].

Previous works have focused extensively on the role of groundwater extraction and regional groundwater levels in subsidence of the Houston area [14,15,16,17,18]. There has also been analysis of land subsidence correlating with the extensive flooding caused by Hurricane Harvey in 2017 [19] as well as subsidence risk associated with aquifer storage and recovery [20]. The role of groundwater in land subsidence of the Greater Houston area has been thoroughly studied and established over the years. The relationship between subsidence and reactivation of faults and induced fault motion has also been established in multiple studies [2,21,22,23,24].

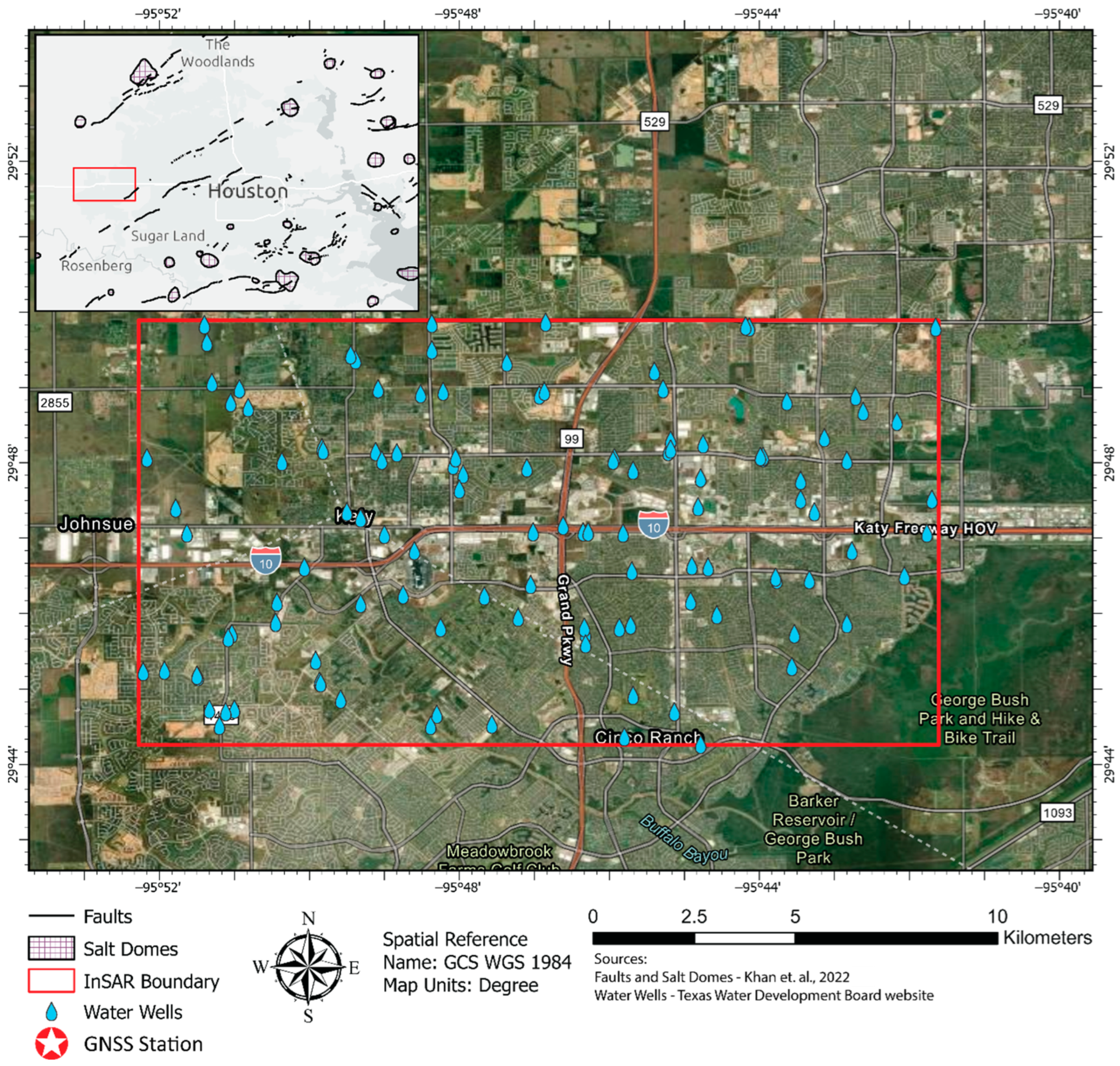

We present the first detailed study focusing on factors of subsidence specifically in the Katy area, a western suburb of Houston where the highest subsidence rate for the region is currently observed. Furthermore, we determine the most influential of the many factors of subsidence, and present a map of areas that are the most susceptible to infrastructure damage.

Recent studies [2,10,25] highlight that the maximum subsidence centers that were located in Spring and the Woodlands have transferred to the Katy area in the west. As such, we focus our analysis on the city of Katy due to the high deformation rate.

We use interferometric synthetic aperture radar (InSAR) to determine the rates and distribution of subsidence in the Katy area. We also combine a variety of datasets such as groundwater pumping rates, population growth, and global navigation satellite systems (GNSS) data to create a generalized linear regression model and determine the influence of various processes on subsidence.

2. Geological Background

Natural processes of subsidence such as faulting and sediment compaction are directly controlled by the underlying geology of the Greater Houston area. About 200 million years ago, the supercontinent Pangea was fractured and split into two new supercontinents, Laurasia and Gondwana. A section of the fracture expanded in Laurasia and created a large depression that became the Gulf of Mexico basin [26]. As new oceanic crust stretched and deepened the Gulf of Mexico basin in the middle Jurassic, between 160 and 140 million years ago, it was intermittently filled with seawater, which led to deposition of a salt unit up to 4 km in thickness [27,28]. These salt deposits were then overlain by an influx of terrigenous sediments carried to the gulf by large rivers such as the Mississippi [29]. Uplift of the Rocky Mountains to the west during the Laramide orogeny, during the Cretaceous about 70 million years ago, greatly increased the volume of sediment transported to the Gulf of Mexico. As a result of these processes, the Greater Houston area is underlain by a series of growth faults that divide the region into structural corridors [30].

Due to these formative processes, the geology of the Greater Houston area is characterized by the presence of Cretaceous sedimentary rocks and unconsolidated sediments. There are also numerous salt domes and extensive faulting, which includes over 300 active faults with a surficial expression [31].

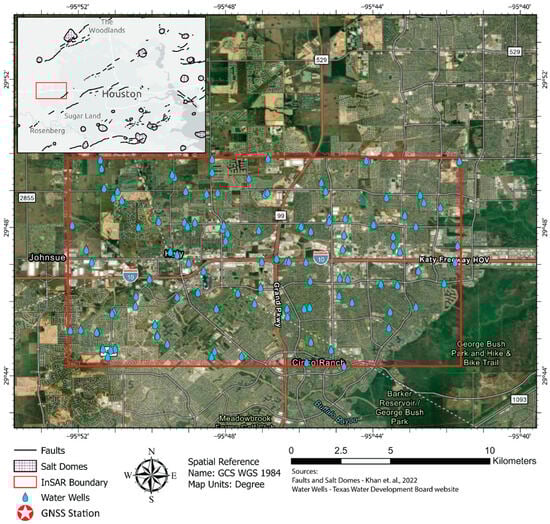

The Katy area is located entirely within the Lissie formation [32] that ranges from Middle Pleistocene to Quaternary in age and is part of a deltaic plain [33]. The formation consists of sand, silt, clay, and small amounts of gravel [33]. The surface of this unit is relatively flat with various shallow depressions and small mounds [33], and dips seaward beneath the Beaumont formation, disconfomably overlying the Pliocene and Early Pleistocene Willis formation [33]. These formations have low cohesion contacts that encourage growth faulting [34].

3. Methods

In order to gain a more comprehensive understanding of the different factors influencing subsidence in the Katy area, we use several different datasets (

Table 1. Data used in this study and sources.

Data	Source	Purpose	Method
Sentinel-1 SLC	Alaska Satellite Facility (ASF) Vertex https://search.asf.alaska.edu/, accessed on 17 May 2022	Surface deformation	InSAR
Copernicus 30 m DEM	European Space Agency (ESA) https://spacedata.copernicus.eu/, accessed on 18 May 2022	Surface deformation	InSAR
GNSS Vertical Displacement Data	Global Navigation Satellite Systems (GNSS) http://geodesy.unr.edu/, accessed on 11 April 2023	Subsidence rate	GLR
Population Records	Texas A & M University Texas Real Estate Research Center https://www.recenter.tamu.edu/, accessed on 20 March 2023	Subsidence contribution	GLR
Groundwater Pumping Records	Texas Water Development Board (TWDB) https://www3.twdb.texas.gov/, accessed on 20 March 2023	Subsidence contribution	GLR
Hydrocarbon Production Records	Railroad Commission of Texas https://www.rrc.texas.gov/, accessed on 23 March 2023	Subsidence contribution	GLR
Precipitation Records	Southern Regional Climate Center (SRCC) https://www.srcc.tamu.edu/, accessed on 22 March 2023	Subsidence contribution	GLR
Landsat 8/9 Level 2 Surface Reflectance Imagery	United States Geological Survey (USGS) Earth Explorer https://earthexplorer.usgs.gov/, accessed on 20 April 2023	Land-use classification	ArcGIS Pro
Landsat Land Cover Classification Deep Learning Model	ESRI https://arcg.is/HLKyf, accessed on 23 March 2023	Land-use classification	ArcGIS Pro
Total Developed Area	Generated using Landsat imagery and ESRI’s pre-trained model	Subsidence contribution	GLR

) and geospatial analysis techniques in this study. These methods include interferometric synthetic aperture radar (InSAR) for surface deformation analysis and ArcGIS Pro deep learning modules to classify and calculate total developed area over time, and to perform generalized linear regression for determining individual contributions of different variables to subsidence.

3.1. InSAR

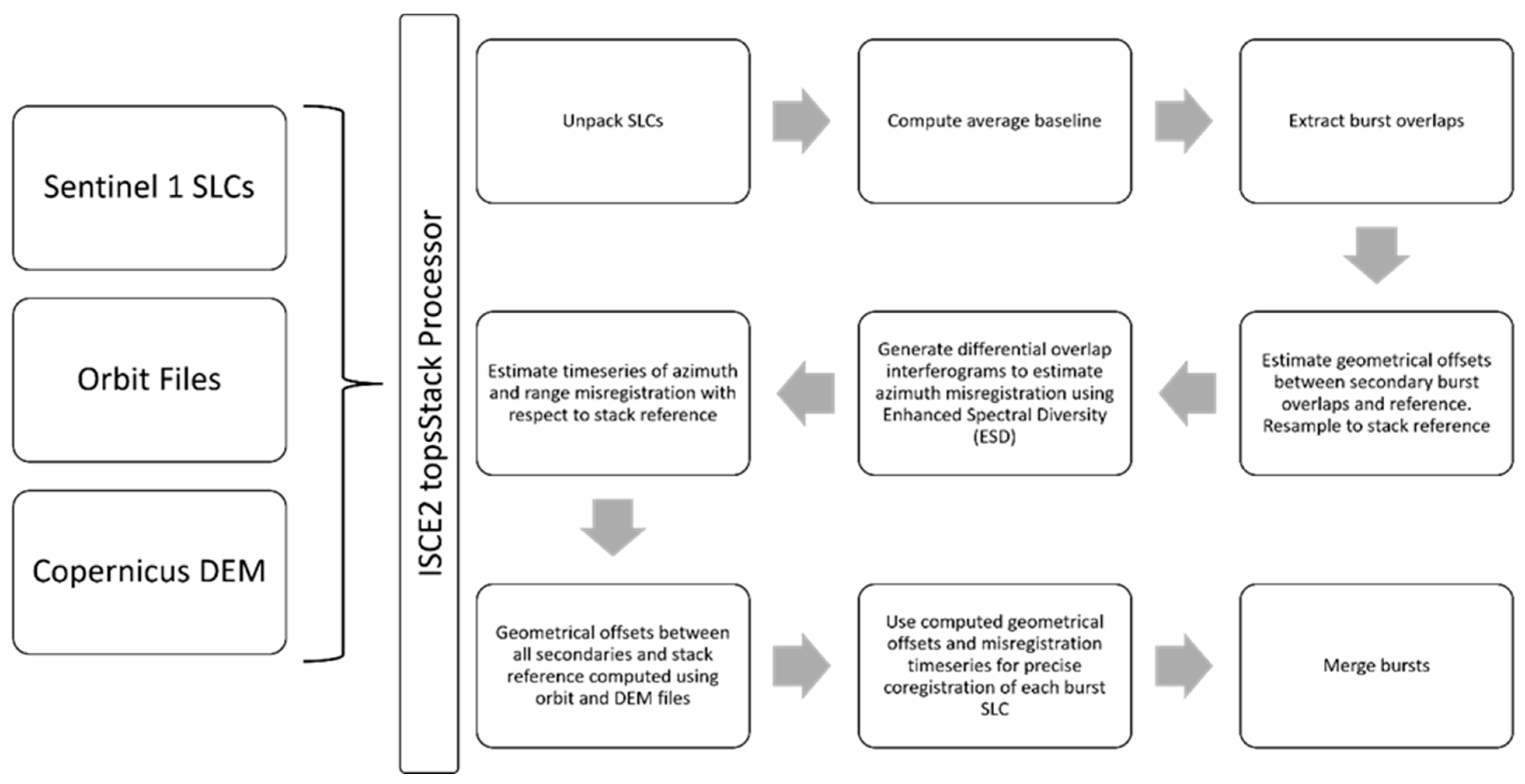

We use the interferometric synthetic aperture radar scientific computing environment (ISCE) developed by NASA’s Jet Propulsion Lab to process 313 descending track and 151 ascending track Sentinel-1 single-look complex (SLC) images acquired between 2017 and 2022 along with a 30 m Copernicus digital elevation model into a stack of co-registered SLCs. We use the Sentinel-1 tops stack processor [35] to co-register the SLCs with 10 nearest neighbor connections (Figure 2).

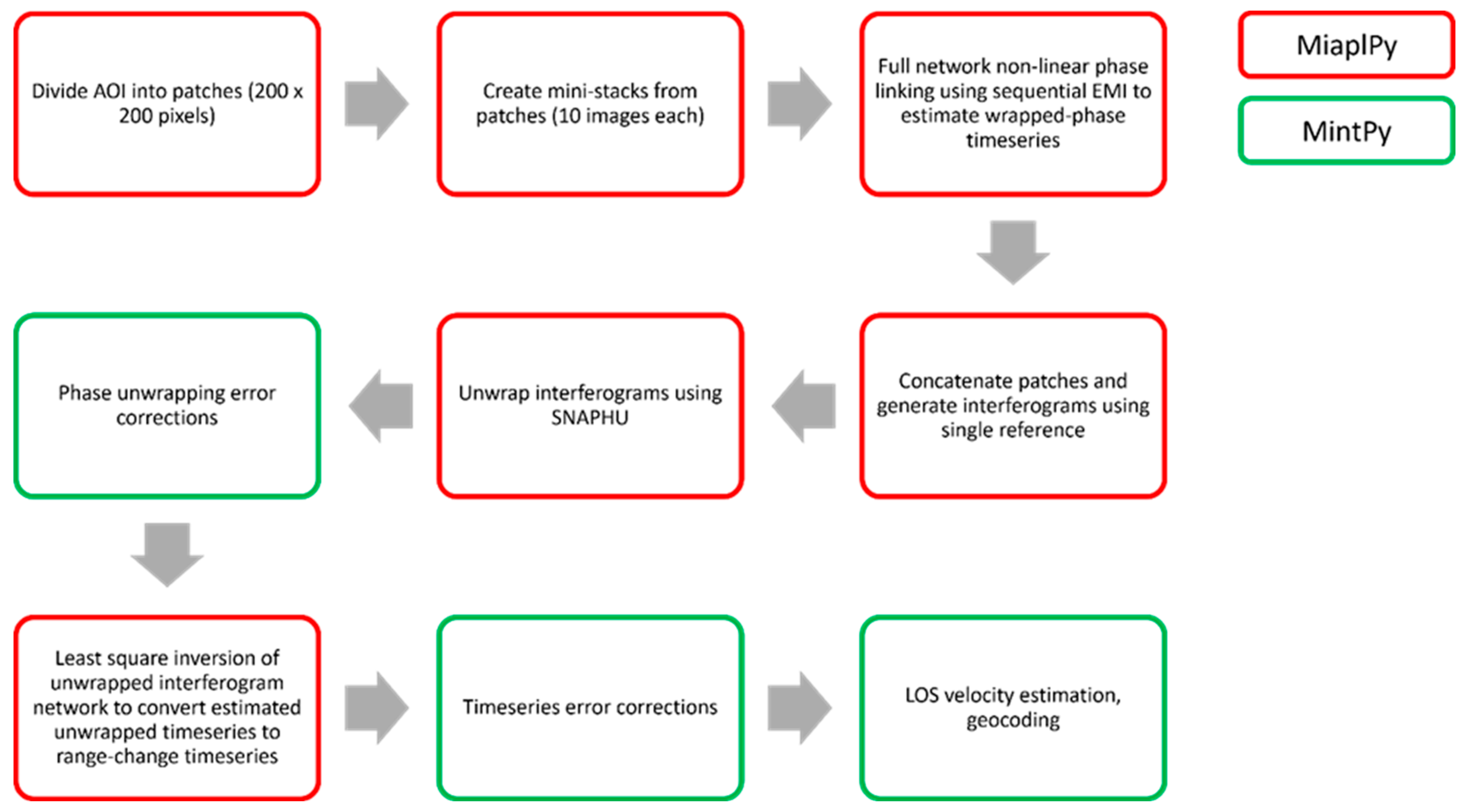

We import the stack of co-registered SLCs into the Miami phase linking in Python (MiaplPy) software to perform full resolution InSAR processing using non-linear phase inversion [36,37,38] (Figure 3). The resulting files are then processed using MintPy [39] for phase unwrapping error corrections and time series analysis. The implemented InSAR methodology reduces the systematic bias known commonly as the fading signal [40] in traditional SBAS processing and integrates both persistent and distributed scatterer methods to improve InSAR accuracy.

The stack of co-registered SLCs and geometry files produced by the Sentinel-1 tops stack processor in ISCE are loaded at full resolution into MiaplPy. To improve processing, the SLC stack is divided into patches of 200 × 200 pixels and processed in parallel on a Beowulf cluster. The patches are arranged into mini-stacks consisting of 10 images each for phase linking. A full network non-linear phase linking is performed by the sequential Eigenvalue decomposition-based maximum likelihood of interferometric phase (EMI) method to estimate the wrapped phase time series [41,42] using the following equation [36,42]:

$$({|\hat{\Gamma }|}^{-1}\circ \hat{\Gamma })\hat{\nu }={\zeta }_{min}\hat{\nu }$$

(1)

where $\hat{\Gamma }$ is the estimated complex coherence matrix and $\circ$ represents the Hadamard product. The desired solution for this equation is the eigenvector $\left(\hat{\nu }\right)$ that corresponds to the minimum eigenvalue ${(\zeta }_{min})$ [36].

Interferograms are generated from the concatenated patches using a single reference and unwrapped using the statistical cost, network flow algorithm for phase unwrapping (SNAPHU) [43].

The resulting stack of unwrapped interferograms is loaded into MintPy and a reference pixel is chosen in the far field of deformation with high temporal coherence (≥0.85 by default). Temporal coherence $\left(\gamma \right)$ is calculated to assess the quality of each pixel in the raw phase time series [39] using the initial phase value $\left({\theta }_n\right)$ and the estimated phase value $\left({\phi }_n\right)$ in the following equation [36,44]:

$$\gamma =\frac{1}{N^2-N}\sum _{n=1}^N\sum _{k\ne n}^N{e}^{i{\theta }_{nk}}{e}^{-i\left({\phi }_n-{\phi }_k\right)}$$

(2)

where $N$ is the number of SAR images in the stack, $i$ represents individual images, and $nk$ is a wrapped phase interferogram generated using images acquired at time $n$ and $k$. Temporal coherence is used as a reliability measure or statistical “goodness of fit” [36,44]. Unwrapping errors are then determined and corrected using the bridging method [39].

We use MiaplPy to perform a least square inversion of the corrected unwrapped interferogram network and convert the estimated unwrapped time series into a range–change time series.

The range–change time series is imported into MintPy for time series error corrections and geocoding. After the data are loaded, we mask out anomalous and unreliable pixels by generating and applying a mask with a temporal coherence threshold of 0.7. Residual tropospheric and ionospheric delays are corrected by estimating and removing a quadratic phase ramp from the reliable pixels in the data [39]. We then correct the data for the topographic residual [39]. To further improve data quality, we calculate the root mean square error on the residual phase and use the results to identify and remove noisy acquisitions through the following equation from [39]:

where $i$ = [1, …, $N$], $\Omega$ represents the reliable pixels chosen from temporal coherence masking, ${\widehat{\phi }}_{resid}^i$ represents the residual phase at time $i$, and $\lambda$ represents the radar wavelength. The median absolute deviation is calculated and SAR acquisitions with an RMS higher than three median absolute deviations are considered noisy and excluded from further processing. Finally, the average velocity is estimated from the time series to determine the rate of deformation using the following equation [39]:

$$RM{S}^i=\sqrt{\frac{1}{N_{\Omega }}{\sum }_{p\in \Omega }{\left({\widehat{\phi }}_{resid}^i\left(p\right)·\frac{\lambda }{-4\pi }\right)}^2}$$

(3)

$$v·t_i+c={\widehat{\phi }}_{disp}^i·\frac{\lambda }{-4\pi }$$

(4)

where $v$ is the velocity, $t_i$ represents the time at the $i^{th}$ acquisition, $c$ is an unknown offset constant, and ${\widehat{\phi }}_{disp}^i$ is the displacement timeseries. We resample and geocode the ascending and descending track velocities and subset them to the same spatial resolution and coverage. We then use the resampled, geocoded velocities to decompose the LOS velocities into horizontal and vertical displacements.

The LOS velocity can be decomposed into three individual directional components of displacement. These are north–south ($v_n$), east–west ($v_e$), and vertical ($v_u$) [45,46]:

$$v_{los}=\left[v_n\sin \alpha -v_e\mathrm{c}\mathrm{o}\mathrm{s}\alpha \right]\sin \theta +v_u\cos \theta +{\delta }_{los}$$

(5)

where $v_{los}$ is the line-of-sight displacement velocity, $\alpha$ is the azimuth angle of the satellite heading, $\theta$ is the radar incidence angle at the ground surface, and ${\delta }_{los}$ is measurement error due to precision errors in satellite orbit geometry, tropospheric delay, topographic phase contribution, etc. This equation can be applied to both ascending track ($v_{los}^{asc}$) and descending track ($v_{los}^{desc}$) results to form an equation with three unknowns for each track:

$$v_{los}^{asc}=(\sin \theta {\sin \alpha )}^{asc}{v}_n-(\sin \theta {cos\alpha )}^{asc}{v}_e+ {\cos \theta }^{asc}{v}_u+{{\delta }_{los}}^{asc}$$

(6)

$$v_{los}^{desc}=(\sin \theta {\sin \alpha )}^{desc}{v}_n-(\sin \theta {cos\alpha )}^{desc}{v}_e+ {\cos \theta }^{desc}{v}_u+{{\delta }_{los}}^{desc}$$

(7)

Assuming negligible contributions from both the measurement error ${\delta }_{los}$ and north–south displacement component $v_n$, Equations (6) and (7) can be used to determine the displacements in the horizontal (east–west) and vertical directions using Equations (8) and (9), respectively [47]:

$$v_e=\frac{{\cos \theta }^{asc}{v}_{los}^{desc}-{\cos \theta }^{desc}{v}_{los}^{asc}}{{\sin \theta }^{asc}{\cos \alpha }^{asc}{\cos \theta }^{desc}-{\cos \theta }^{asc}{\sin \theta }^{desc}{\cos \alpha }^{desc}}$$

(8)

$$v_u=\frac{{\sin \theta }^{desc}{\cos \alpha }^{desc}{v}_{los}^{asc}-{\sin \theta }^{asc}{\cos \alpha }^{asc}{v}_{los}^{desc}}{{{\cos \theta }^{\mathit{asc}}\sin \theta }^{desc}{\cos \alpha }^{desc}-{\sin \theta }^{asc}{\cos \alpha }^{asc}{\cos \theta }^{desc}}$$

(9)

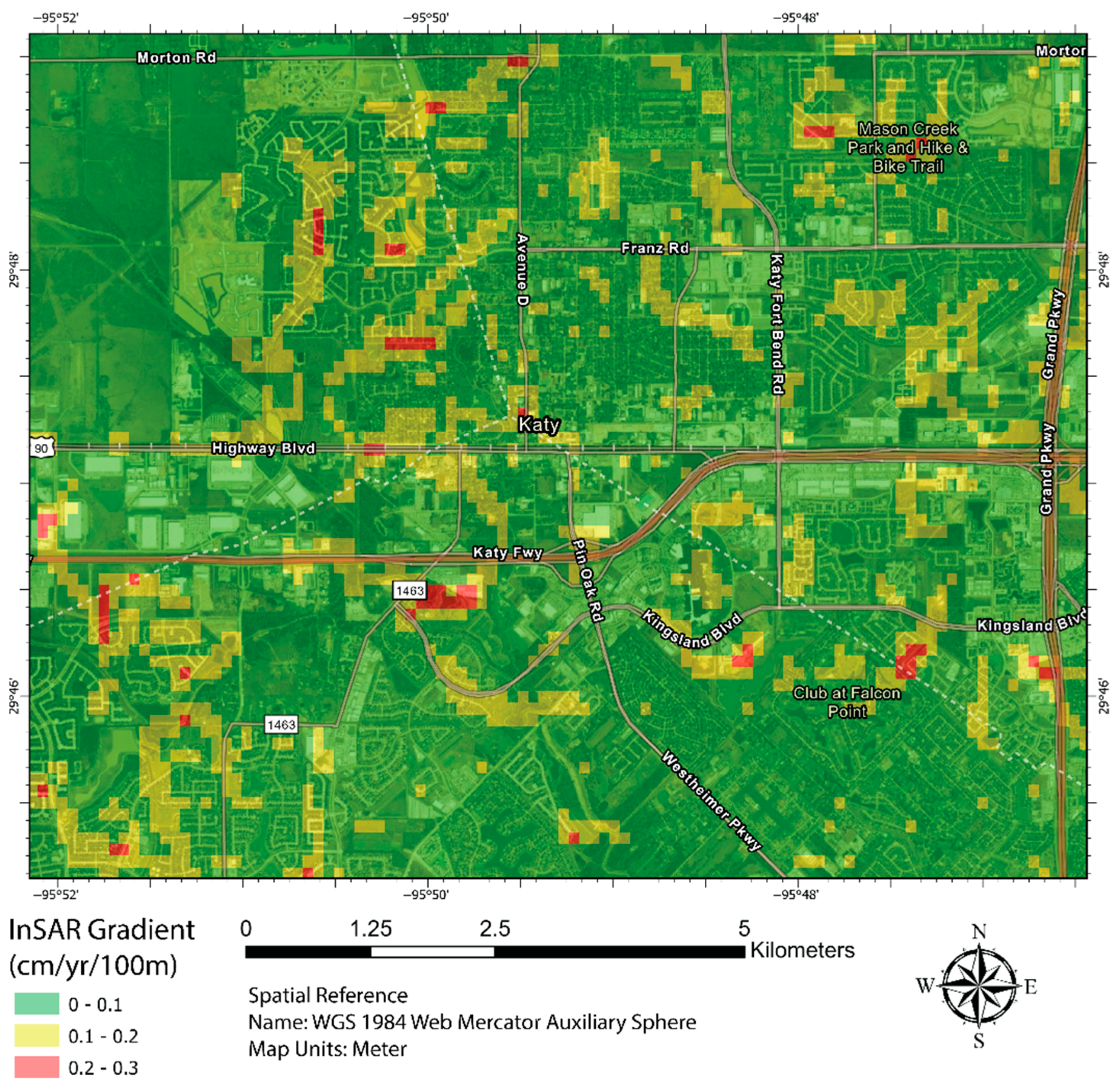

Using the raw decomposed vertical displacement results, we calculate an InSAR deformation gradient to highlight areas most at risk for infrastructure damage. This is achieved by applying an inverse distance weighted interpolation to fill in masked out areas and produce a continuous raster. We apply a Sobel operator on the raster followed by convolution using a 3 × 3 kernel to smooth the data.

3.2. Land Cover Classification

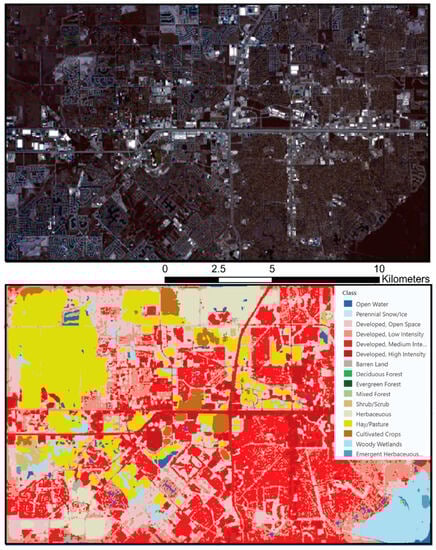

In order to determine the total developed area in the Katy area, we use Landsat 8/9 Collection 2, level 2 surface reflectance data. A single Landsat image for each year is used for classification. We limit our search to images acquired between the end of March and beginning of May with 0–5% scene cloud coverage to avoid classification errors due to the change in spectral response with seasonal variability. The images are loaded into ArcGIS Pro, clipped to our study area, and reprojected to Web Mercator (Auxiliary Sphere) to ensure compatibility with the deep learning model. Each image is processed using ArcGIS Pro’s classify pixels using deep learning tool with ESRI’s pre-trained deep learning model. Once all the images are classified, we run the zonal geometry tool on the classified image for each year to obtain the total area for every land cover class (Figure 4).

These main classes of concern are pasture, herbaceous, and developed areas, defined by the following characteristics:

• Pasture: “areas of grasses, legumes, or grass-legume mixtures planted for livestock grazing or the production of seed or hay crops, typically on a perennial cycle. Pasture/hay vegetation accounts for greater than 20% of total vegetation” [48];
• Herbaceous: “areas dominated by gramanoid or herbaceous vegetation, generally greater than 80% of total vegetation. These areas are not subject to intensive management such as tilling, but can be utilized for grazing” [48].

The developed areas are subdivided into three classes based on the total percentage of impervious surface [48] as follows:

• Developed, open space: impervious surfaces <20% of total cover;
• Developed, low intensity: impervious surfaces 20–49% of total cover;
• Developed, medium intensity: impervious surfaces 50–79% of total cover;
• Developed, high intensity: impervious surfaces 80–100% of total cover.

3.3. Generalized Linear Regression

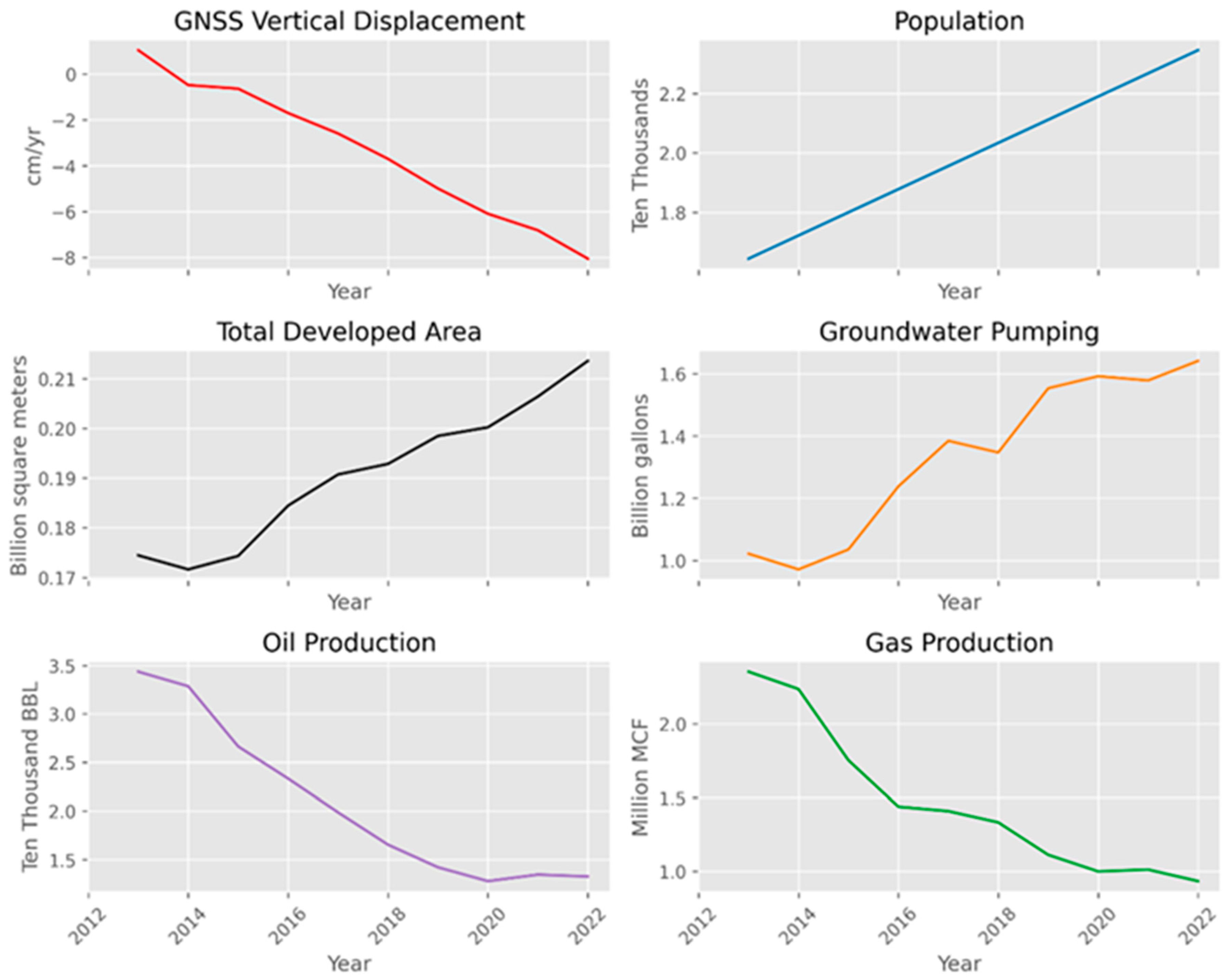

We compile the different datasets into a single table sorted by year. For each year, the table contains a record for population, total groundwater pumped, total precipitation, total developed area, and GNSS-derived subsidence in the form of cumulative annual average. This table is then joined to a polygon of our study area and processed using the generalized linear regression (Spatial Statistics) tool.

We use GLR to model the relationship between each of the independent/explanatory variables (population, groundwater pumping, precipitation, and developed area) and the dependent variable (GNSS-derived subsidence). Each independent variable is accompanied by a regression coefficient that describes the strength of that variable’s relationship with the dependent variable. This relationship can be expressed through the following equation [49]:

$$Y={\beta }_0+{\beta }_1{X}_1+{\beta }_2{X}_2+\dots {\beta }_n{X}_n+\epsilon$$

(10)

where $Y$ represents the dependent variable, ${\beta }_n$ represents the regression coefficients, $X_n$ represents the independent variables, and $\epsilon$ is a term for random error and/or residuals. The regression tool calculates the regression coefficients to determine the strength and type of relationship each explanatory variable has with the independent variable [49].

4. Results

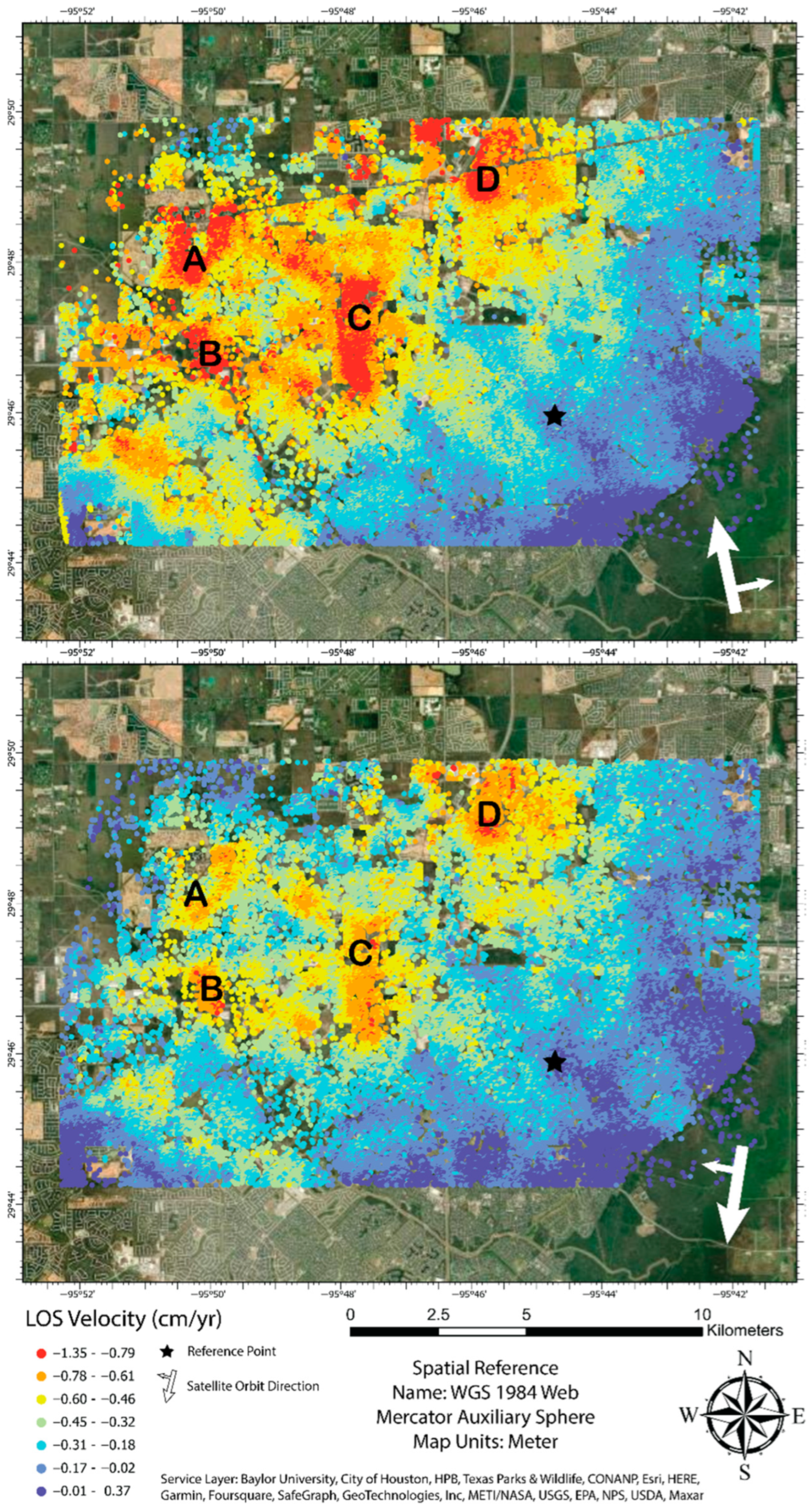

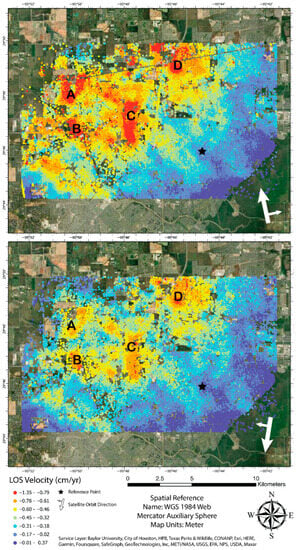

The ascending and descending track line of sight velocity change results can be seen in Figure 5. The descending track results have a more discontinuous distribution of points most likely due to descending track SLC images being captured later in the day when the atmosphere has more pollutants, leading to lack of coherence between images. Low coherence areas are masked out during InSAR processing for reliability.

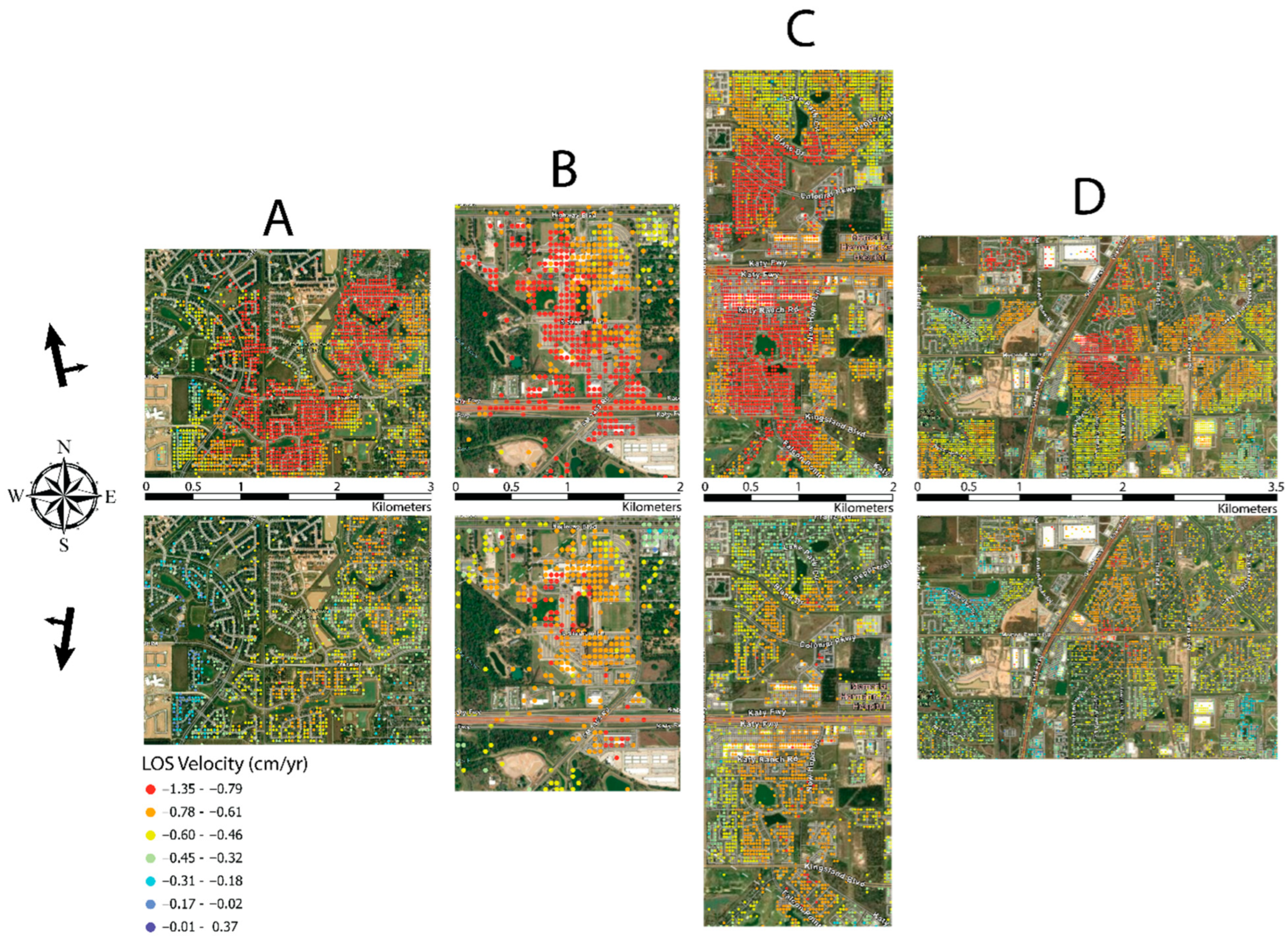

Results from both tracks show movement away from the satellite in the same key areas. While the majority of the Katy area appears to have a displacement rate between −0.4 to −0.8 cm/year, some key areas show deformation rates of up to −1.4 cm/year (Figure 6).

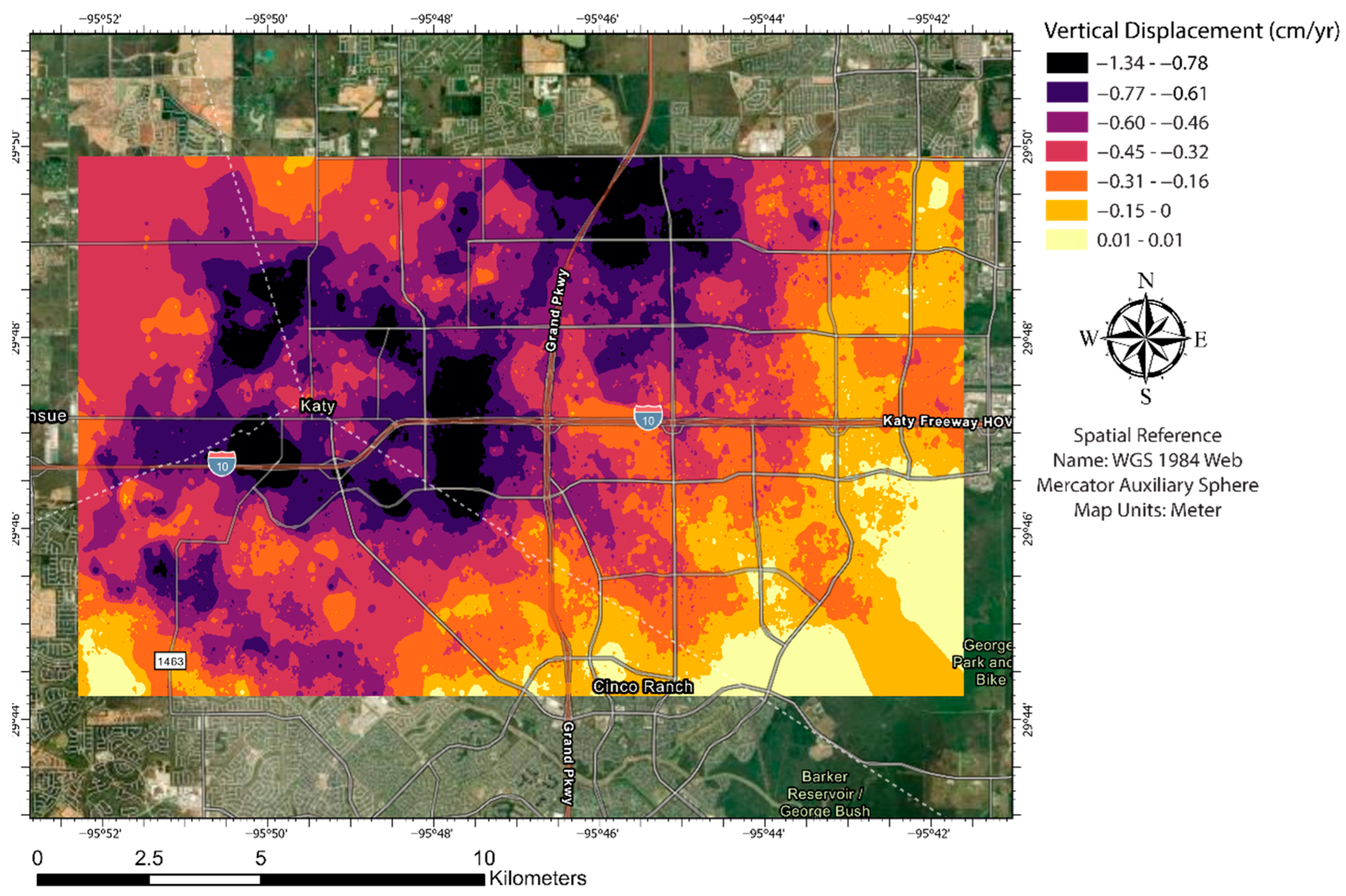

The decomposed InSAR line of sight vertical displacement results (Figure 7) show a distinct circular pattern of downward deformation around the city of Katy, up to 1.4 cm/year in the key areas mentioned above.

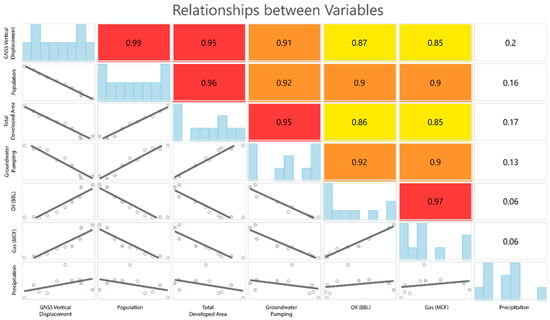

The generalized linear regression results (Figure 8) show the highest correlation between the GNSS-derived vertical displacement rates and population growth, total developed area, and groundwater pumping. The $R^2$ values range from 0 to 1 and can be interpreted simply as the percentage of variation in the dependent variable that can be explained by each individual independent variable.

5. Discussion

5.1. Groundwater Withdrawal

Excessive groundwater extraction from the Gulf Coast Aquifer has been determined to play a leading role in subsidence along the Gulf Coast and the establishment of regulatory agencies in the form of groundwater conservation districts has been an attempt to address the problem. Despite regulation, the amount of groundwater extraction has continued to rise (Figure 9).

Although there is evidence that subsidence in historically critical areas has slowed down or halted [50], and even reversed [10] in some cases, there is still active subsidence in the Gulf Coast region, with new areas becoming critical subsidence centers that need to be addressed. For example, in studies conducted over the past decade, the critical subsidence hotspots in the Houston area were identified in the north and north-east [15,25,51,52]. These areas included Spring, the Woodlands, and Montgomery County. A report [10] published by the Harris–Galveston Subsidence District on subsidence with a project timeline of 2019–2021 suggests that the maximum subsidence rate has now moved from the north and north-east to the Katy area in the west. This trend is consistent with subsidence centers following population growth [2]. There is a direct correlation between population growth and groundwater extraction to meet increased demands, and has been documented in particular for the greater Houston area [53]. This correlation is also evident for the Katy area (Figure 9). The regression analysis results give groundwater extraction an $R^2$ value of 0.91, suggesting that it is still one of the primary contributors to subsidence in the area.

5.2. Hydrocarbon Withdrawal

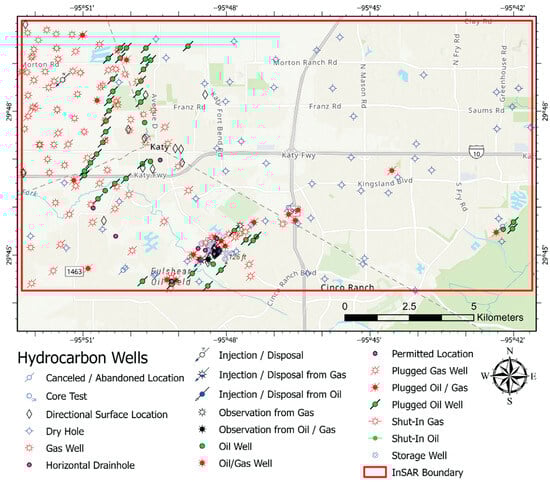

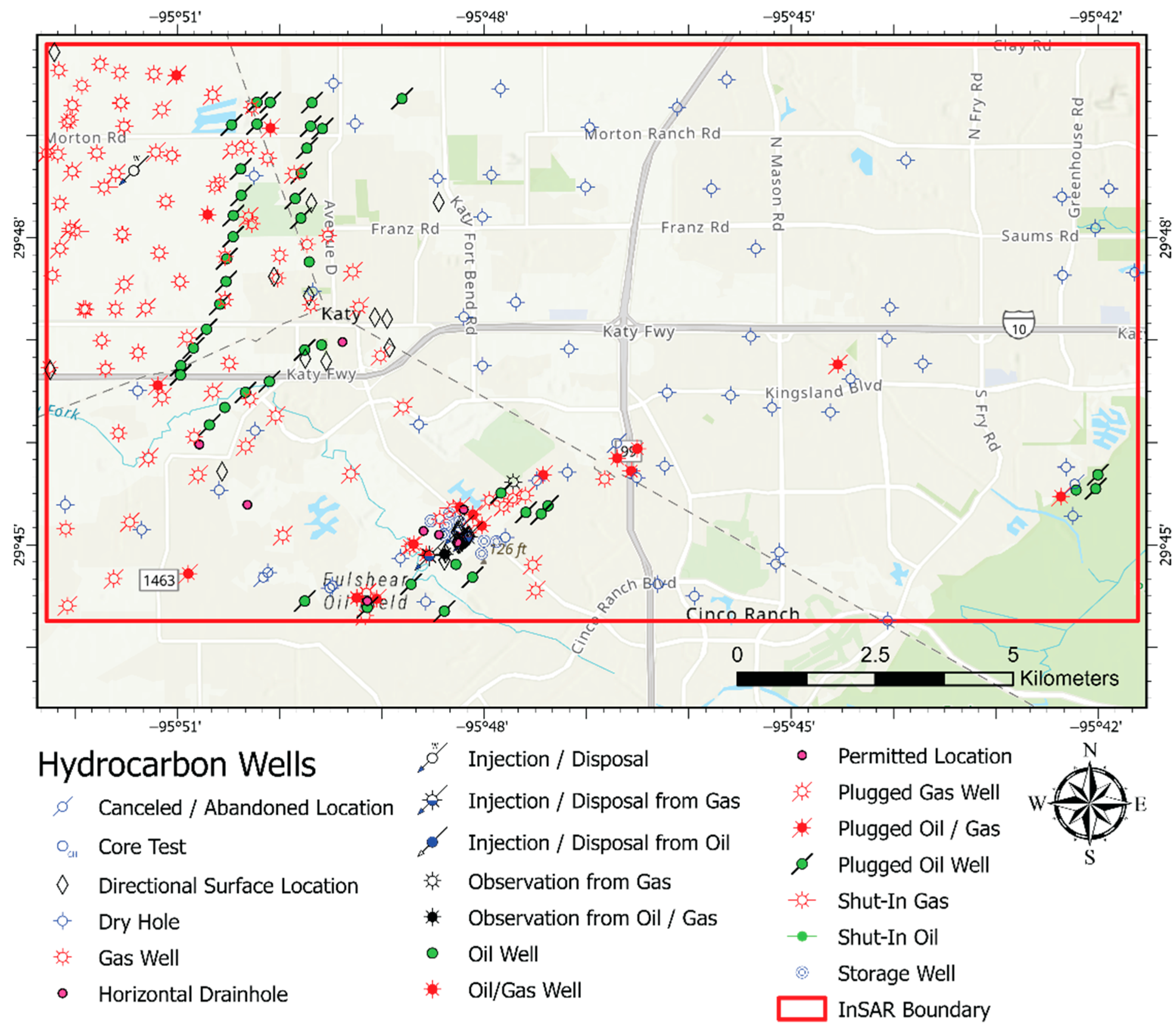

Along with excessive groundwater abstraction, the withdrawal of hydrocarbons in the form of oil and natural gas is considered to be a major contributor to subsidence in the Greater Houston area [54,55,56,57]. The history of subsidence attributed to hydrocarbon extraction in this area dates back to 1918 in the Goose Creek Oil Field, where up to 11 cm/year of subsidence was observed [58]. Annual production data for oil and gas in the Katy area have a high correlation (0.87 and 0.85 $R^2$ values, respectively) with the GNSS vertical displacement. Despite a decline in annual oil and gas production since 2014 (Figure 9), there are numerous oil and gas wells within our study area (Figure 10) that are significant contributors to subsidence in the area.

5.3. Total Developed Area

Developed or urbanized areas are composed of a variety of impervious surfaces that significantly alter or disrupt local hydrological processes. These surfaces, such as concrete pavement, roads, and rooftops, hinder the natural infiltration of water into the soil, resulting in increased surface runoff and reduced groundwater recharge [59,60,61,62,63].

One of the primary effects of impervious surfaces is the alteration of the natural flow patterns of water. The rapid runoff generated from these surfaces can overwhelm drainage systems and natural waterways, leading to increased flood risk, particularly during heavy rainfall events [60,63]. Disruption of the natural ground infiltration process due to impervious surfaces reduces the amount of water that replenishes aquifers and increases surface runoff [61,64,65].

Between 2013 and 2022, the amount of developed area has almost doubled in the Katy area (Figure 9). Furthermore, the majority of this development has replaced pasture and herbaceous land.

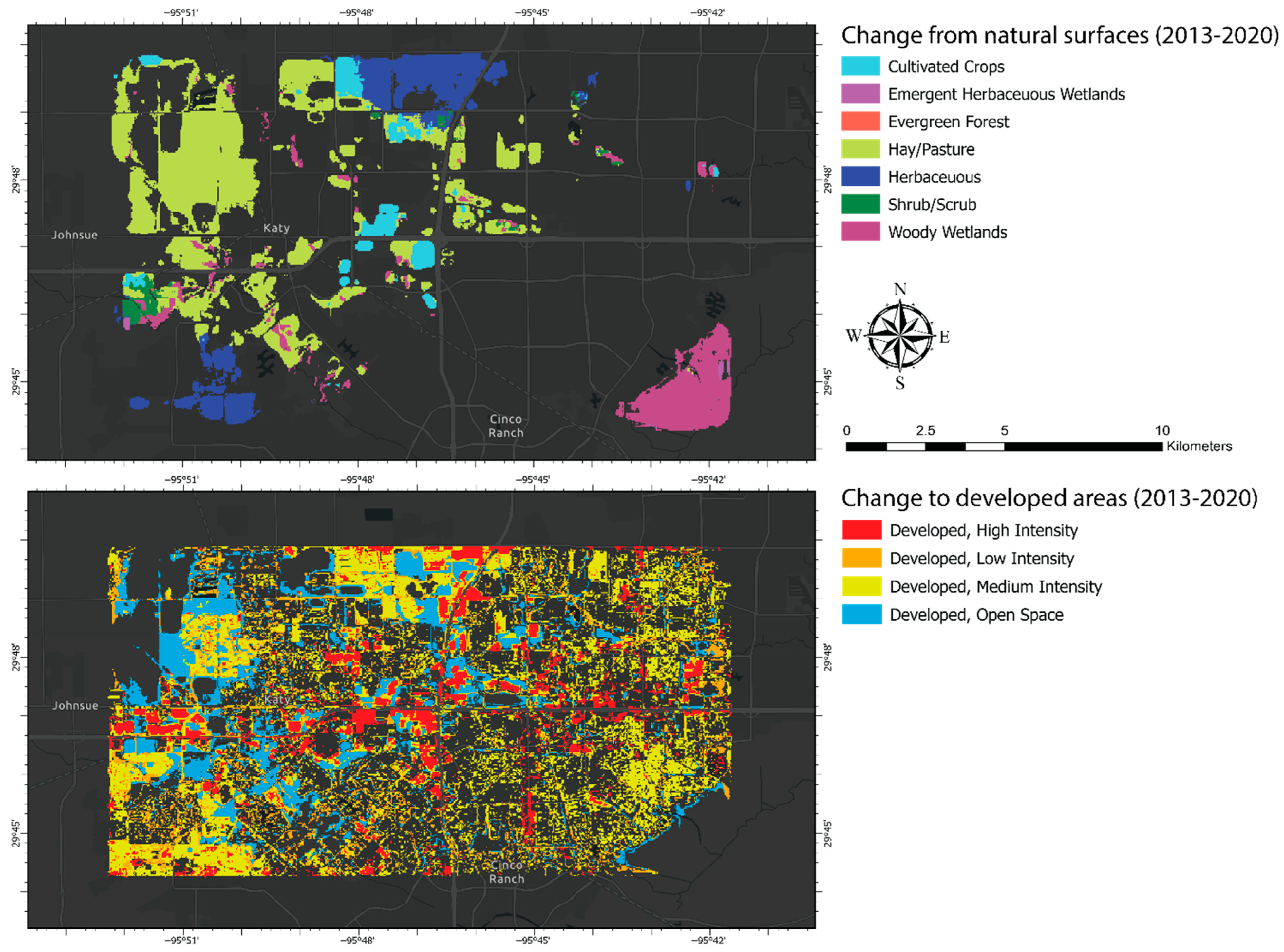

The spatial distribution of these changes is determined using the classified 2013 and 2020 Landsat images with the compute change raster function in ArcGIS Pro (Figure 11).

The $R^2$ value for total developed area in the generalized linear regression analysis is 0.95, making it one of the most influential variables with respect to the GNSS vertical displacement measurements.

Our findings are supported by previous studies that draw a strong correlation of increasing amounts of land subsidence in the presence of impervious surfaces [66,67].

5.4. Population

The highest $R^2$ value in the generalized linear regression analysis is 0.99 assigned to population. A fast population growth rate leads to an increase in factors that directly influence subsidence such as groundwater extraction and land development to meet demand. Furthermore, urbanization leads to other changes in water demand based on economic development and changes in the efficiency of water use [68]. As such, population growth is the biggest driving factor in subsidence based on how strongly it influences other contributors that have a direct physical impact on subsidence.

5.5. Risk to Infrastructure

Infrastructure most susceptible to damage from the effects of subsidence is located in areas where there is a steep gradient in the line of sight velocity. Differential subsidence has been shown to cause surficial fracturing and faulting [69,70]. We calculate an InSAR deformation gradient to determine the areas that are most at risk of infrastructure damage (Figure 12). Previous studies have shown that an InSAR gradient map can be an effective tool in determining the areas that require careful monitoring for infrastructure damage [69,71].

In summary, in this work, for the first time, full resolution InSAR data are analyzed to assess and understand subsidence in Katy, a sprawling suburban area located west of Houston. Population growth, extensive groundwater withdrawal, and land-use changes associated with constructing new structures are the main drivers of subsidence in this region. Hydrocarbon production is an important driver in some parts of Texas, but production of oil and gas is on the decline in the Katy area. Recent studies support the findings of this work. For example, Younas et al. analyzed data for the fifty-six counties along the Gulf Coast of Texas, including Katy. They suggested population growth, groundwater withdrawal, and hydrocarbon extraction as the main drivers [72]. Similarly, our previous work on statistical analysis of InSAR time series data of the greater Houston area from 2016 to 2020 suggested groundwater pumping to be the primary driver of subsidence in the Katy area [2].

6. Conclusions

The Greater Houston area has a long history of subsidence primarily driven by groundwater pumping and hydrocarbon extraction. While groundwater extraction continues to be one of the main drivers of subsidence, we found the growth of population and expansion of developed areas to be the primary contributors to subsidence in the Katy area. Between 2013 and 2022, the developed areas in Katy nearly doubled, predominantly replacing pasture and herbaceous land, which may have significant implications for future subsidence patterns.

It is important to note that although hydrocarbon production has historically influenced subsidence trends in some parts of Texas, the Katy area has experienced a steady decline in production of oil and gas over the past few years. This has led to a lower subsidence contribution from hydrocarbon production activities in the Katy area.

Recent studies found that the main hotspot for subsidence in the Greater Houston area has shifted in recent years from Spring and the Woodlands in the north to Katy in the west, and our research provides further insight into the rates and spatial distribution of this deformation. Our InSAR analysis identifies key hotspots of subsidence within the Katy area with a subsidence rate of up to 1.4 cm/yr from 2017 to 2022. Furthermore, we determined areas most susceptible to infrastructure damage and development of surficial fractures and strongly recommend monitoring of critical infrastructure in these areas.

This study highlights the multifaceted nature of subsidence in this region. It is evident that urban expansion and groundwater extraction demand strategic consideration to mitigate the effects of subsidence. Our findings emphasize the need for proactive planning, sustainable urban development, and comprehensive management strategies to effectively address the complex issue of subsidence within the Katy area.
