Impact of the Detection Channels Added by Fengyun Satellite MWHS-II at 183 GHz on Global Numerical Weather Prediction

by
Yali Ju
1,2,
Jieying He
1,*,
Gang Ma
3,4,5,
Jing Huang
3,4,5,
Yang Guo
6,7,8,
Guiqing Liu
3,4,5,
Minjie Zhang
1,2,
Jiandong Gong
3,4,5 and
Peng Zhang
6,7,8
1
Key Laboratory of Microwave Remote Sensing, National Space Science Center, Chinese Academy of Sciences, Beijing 100190, China
2
University of Chinese Academy of Sciences, Beijing 100049, China
3
Center for Earth System Modeling and Prediction of CMA, Beijing 100081, China
4
Key Laboratory of Earth System Modeling and Prediction, China Meteorological Administration, Beijing 100081, China
5
State Key Laboratory of Severe Weather (LaSW), Chinese Academy of Meteorological Sciences, China Meteorological Administration, Beijing 100081, China
6
National Satellite Meteorological Center, Beijing 100081, China
7
Key Laboratory of Radiometric Calibration and Validation for Environmental Satellites, Beijing 100081, China
8
Innovation Center for Fengyun Meteorological Satellite (FYSIC), China Meteorological Administration, Beijing 100081, China
*
Author to whom correspondence should be addressed.
Remote Sens. 2023, 15(17), 4279; https://doi.org/10.3390/rs15174279
Submission received: 14 July 2023 / Revised: 22 August 2023 / Accepted: 28 August 2023 / Published: 31 August 2023
Browse Figures
Versions Notes

Abstract

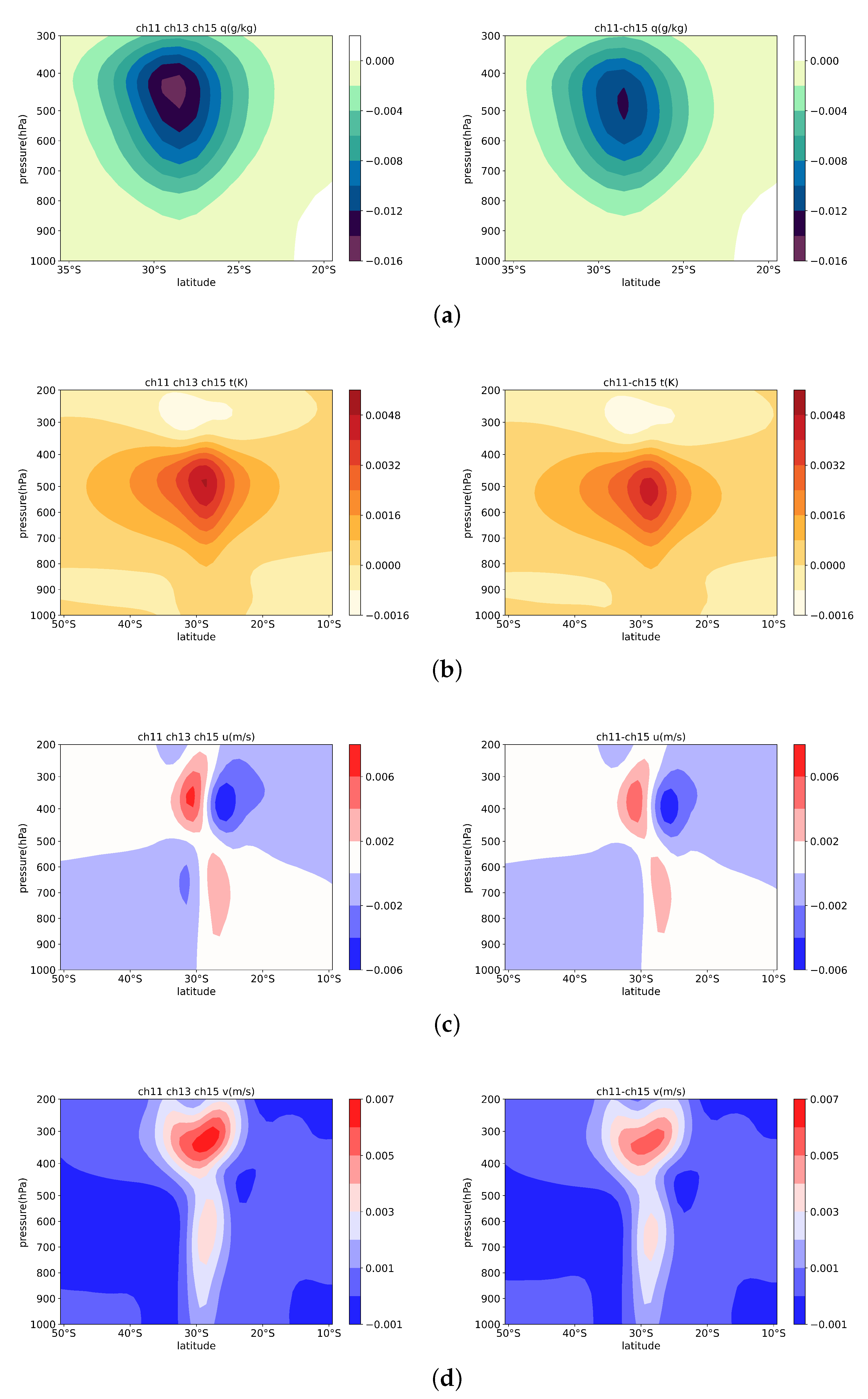

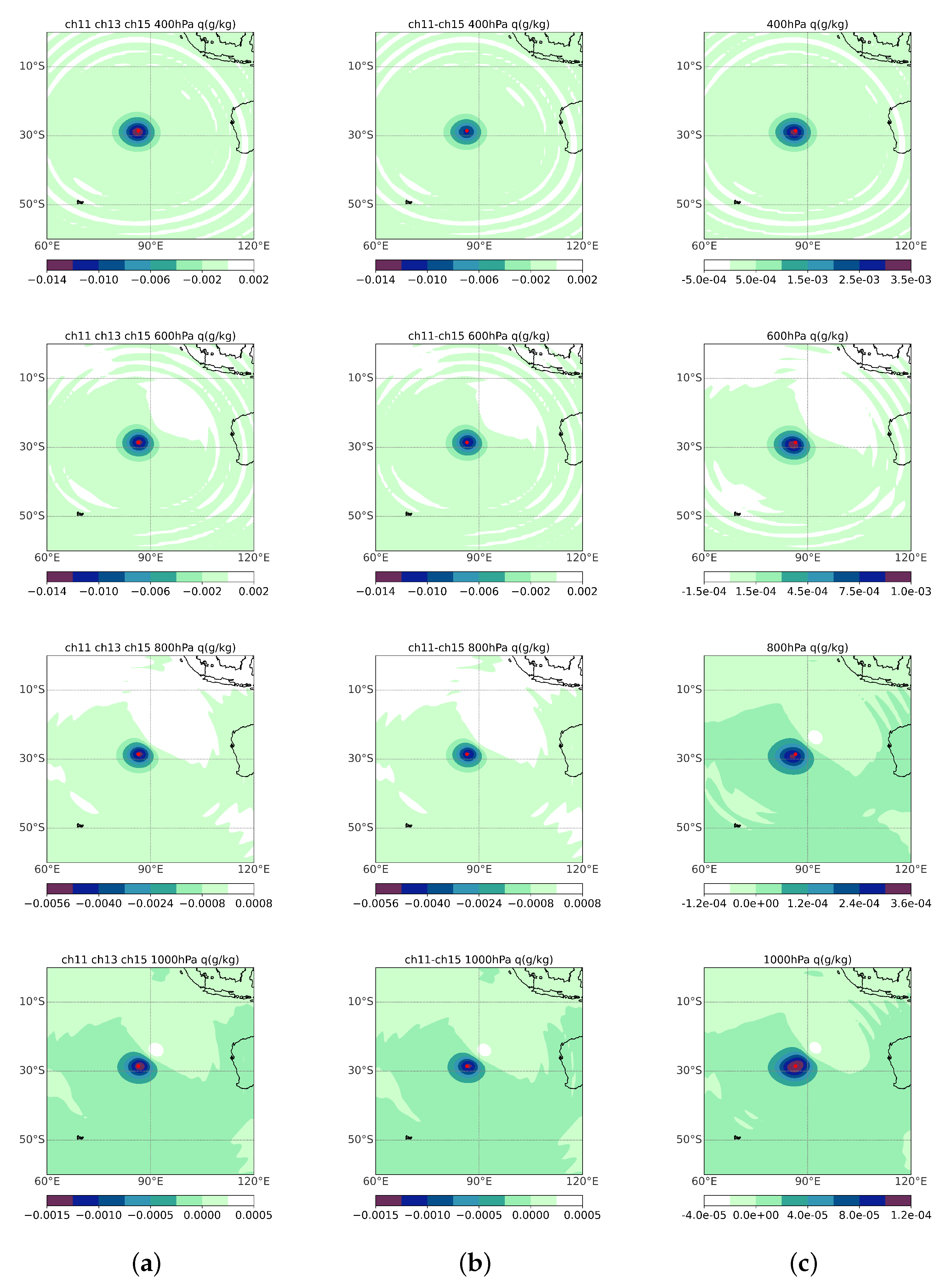

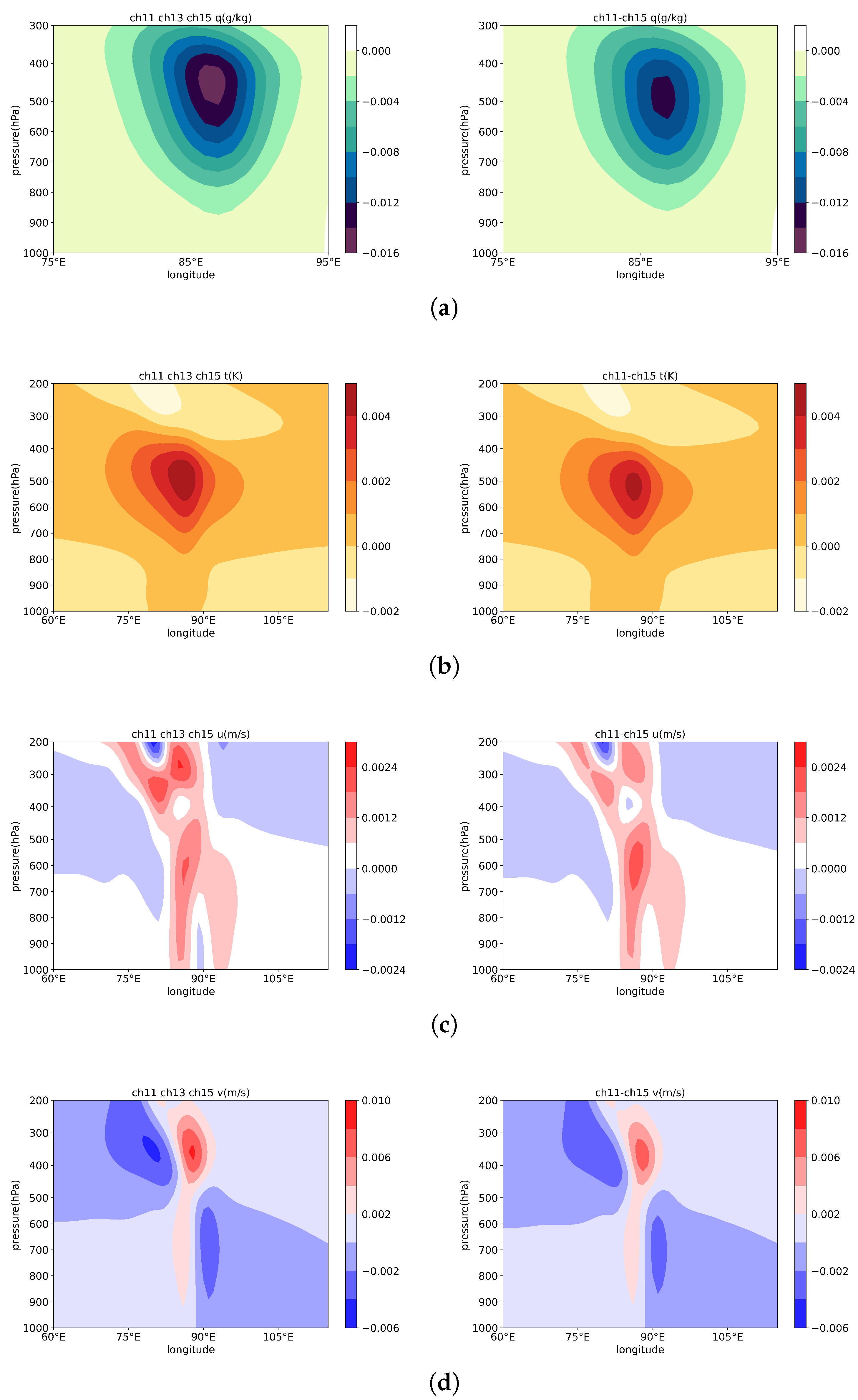

Fine spectral detection can basically solve the problem of low vertical resolution at the 183 GHz water-vapor absorption line, and it is expected to become one of the main methods for next-generation geostationary and polar-orbiting satellites. Here, using data from Microwave Humidity Sounder II (MWHS-II) onboard the Chinese Fengyun 3D (FY-3D) satellite in the Global/Regional Assimilation and Prediction System (GRAPES) Four-Dimensional Variational (4D-Var) system of the China Meteorological Administration (CMA), we explore the assimilation application of the water-vapor absorption line at 183.31 ± 1 GHz, 183.31 ± 3 GHz and 183.31 ± 7 GHz, as well as 183.31 ± 1.8 GHz and 183.31 ± 4.5 GHz, two added channels, to assess the impact of adding the 183.31 ± 1.8 GHz and 183.31 ± 4.5 GHz sampling channels on data assimilation and numerical weather prediction. Our findings reveal a significant increase in the specific-humidity increment, which in the middle–upper troposphere is numerically much larger than in the lower troposphere. Specifically, the assimilation of 183.31 ± 1.8 GHz observations, positioned near the center of the water-vapor absorption line, results in a pronounced adjustment compared with the 183.31 ± 4.5 GHz observations. And under the strong constraint of the numerical model, the Root Mean Square Error (RMSE) of the wind field diminishes more significantly (by an average of 2–4%) after assimilating the water-vapor observations at greater heights.
Keywords: MWHS-II; 183 GHz water-vapor absorption line; data assimilation; numerical prediction MWHS-II; 183 GHz water-vapor absorption line; data assimilation; numerical prediction
