Classification of Geomorphic Units and Their Relevance for Nutrient Retention or Export of a Large Lowland Padma River, Bangladesh: A NDVI Based Approach

by
Md Ataul Gani
1,2,3,*,
Johannes van der Kwast
4,
Michael E. McClain
1,5,
Gretchen Gettel
1 and
Kenneth Irvine
1,2
1
Department of Water Resources and Ecosystems, IHE Delft Institute for Water Education, P.O. Box 3015, 2601 DA Delft, The Netherlands
2
Aquatic Ecology and Water Quality Management Group, Department of Environmental Sciences, Wageningen University and Research, P.O. Box 47, 6700 AA Wageningen, The Netherlands
3
Department of Botany, Jagannath University, Dhaka 1100, Bangladesh
4
Department of Land and Water Management, IHE Delft Institute for Water Education, P.O. Box 3015, 2601 DA Delft, The Netherlands
5
Department of Water Management, Delft University of Technology, P.O. Box 5048, 2600 GA Delft, The Netherlands
*
Author to whom correspondence should be addressed.
Remote Sens. 2022, 14(6), 1481; https://doi.org/10.3390/rs14061481
Submission received: 27 January 2022 / Revised: 15 March 2022 / Accepted: 16 March 2022 / Published: 18 March 2022
(This article belongs to the Special Issue Geomorphological Mapping and Process Monitoring Using Remote Sensing)
Browse Figures
Versions Notes

Abstract

:
Geomorphic classification of large rivers identifies morphological patterns, as a foundation for estimating biogeochemical and ecological processes. In order to support the modelling of in-channel nutrient retention or export, the classification of geomorphic units (GUs) was done in the Padma River, Bangladesh, a large and geomorphically-complex lowland river. GUs were classified using the normalized difference vegetation index (NDVI) four times over a year, so as to cover the seasonal variation of water flows. GUs were categorized as primary and secondary channels (C & S); longitudinal bar (L); transverse bar (T); side bar (SB); unvegetated bank (EK); dry channel (ED); island (VI); and water depression (WD). All types of GUs were observed over the four distinct annual seasons, except ED, which was absent during the high flow, monsoon season. Seasonal variation of the surface area of GUs and discharge showed an inverse relation between discharge and exposed surface areas of VI, L, T, and SB. Nutrients mainly enter the river system through water and sediments, and during monsoon, the maximum portion of emergent GUs were submerged. Based on the assumption that nutrient retention is enhanced in the seasonally inundated portions of GUs, nutrient retention-/export-relevant geomorphic units (NREGUs) were identified. Seasonal variation in the area of NREGUs was similar to that of GUs. The mean NDVI values of the main identified NREGUs were different. The variation of NDVI values among seasons in these NREGUs resulted from changes of vegetation cover and type. The variation also occurred due to alteration of the surface area of GUs in different seasons. The changes of vegetation cover indicated by NDVI values across seasons are likely important drivers for biogeochemical and ecological processes.

1. Introduction

River biodiversity and ecosystem functioning depend on the geomorphology and erosional and depositional processes within geomorphic units [1,2]. Geomorphic units, hereafter GUs, are discrete morphodynamic entities, considered building blocks of the river and defined by their position, morphology, and sediment composition. Generally, GUs are mapped at reach scale, because this scale is important for hydromorphological factors, such as water flow and sediment transport [3]. Different classification schemes have been proposed to delineate and map GUs at the scale of the river reach. Wyrick and Pasternack [4] classified GUs based on hydraulic data (flow velocity and depth), whereas Wheaton et al. [5] classified GUs based on topographic and morphological characteristics (position, attributes of sediment and vegetation). Classification of GUs has been developed to cover a wide range of river types (lowland systems, mountain systems, highly dynamic systems, etc.) and includes different sub-domains (vegetation, bed configuration, sedimentary units) and scales (macro-unit, unit, and sub-unit) [3,6].
Nutrient retention or export is influenced by seasonal discharge [7,8] and biogeochemical processes [9,10,11]. Nutrients in a river channel are both taken up by, and released from, the river bed. Data for large rivers have shown the primary importance of discharge for nutrient flux [12,13]. Morphological changes in large rivers influence nutrient removal processes and loads to the deltas or downstream water bodies. With climate change, the water volume and seasonal flow of some of the world’s biggest rivers are projected to change markedly [14], changing sediment mobility and ecological functioning [13]. The sediment load to large river systems reshapes channel morphology [15], with consequences for biogeochemical processes and in-stream nutrient retention [16]. GUs can be inundated temporally and enriched with nutrients. This is usually observed in floodplain areas and riparian zones. Plant uptake and denitrification are biogeochemical processes that contribute to nitrogen removal from riparian wetlands [17,18]. Vegetation influences these processes, by both taking up nutrients directly and influencing subsurface denitrification in their root zones [19].
A variety of satellite imagery is available for monitoring inland water quality and issues related to nutrient retention, such as water transparency, eutrophication, organic matter, biomass estimation, nutrient, and chlorophyll concentration [20,21,22,23,24,25,26,27]. Recently, satellite-derived estimates of flood and vegetation cover are increasingly used in monitoring [28,29,30,31]. However, this has not gone as far as estimating biogeochemical processes [32] or nutrient retention as a function of vegetation cover [33], although land use and land cover (LULC) maps are frequently generated using satellites [34,35,36,37].
In comparison with the commonly used, and previous, SPOT and Landsat products of satellites, the new generations of freely available satellite imagery provide high-resolution multispectral imaging, with a high revisit frequency for the detection of temporal changes in LULC, including inland waters [38,39]. Sentinel-2, with 13 spectral bands, can be used to derive biogeophysical indices that combine different band reflectances. This allows for calculations of the normalized difference water index (NDWI, [40]), which separates water cover from land surfaces [41], and the enhanced vegetation index (EVI, [42]), which corrects soil background signals and atmospheric influences, to identify forest/canopy cover, enhancing estimates of the well-known normalized difference vegetation index (NDVI, [43]) that is often used for separating soil, water, and vegetation classes [44]. In-channel GUs consist of water, sediment, and vegetation [45,46,47]. Nutrient retention processes in GUs are related to biophysical activities and water availability [48,49,50]. One of the advantages of NDVI is that it can be used to monitor the biophysical conditions related to natural water retention [51,52,53] and that it is sensitive to low vegetation cover [41]. However, there is a debate over EVI, regarding illumination conditions and hydroclimatic factors at decadal scales [54,55]. Nevertheless, characteristic local features need to be considered in the estimation of biophysical indices [56].
NDVI has been used for monitoring the vegetation and ecosystem dynamics of large rivers [57,58,59,60,61]. Relationships between seasonal vegetation and discharge variation of large rivers can be verified by the seasonal correlation between NDVI and discharge [62]. In the Parana River of South America, NDVI was used to assess fluvial dynamics, describe ecological patterns [57], and establish a relation between vegetation and GUs [59]. The latter has brought an opportunity to utilize NDVI to classify GUs in large lowland rivers.
Different classification schemes of GUs have been presented, but none focus on the seasonal variation of GUs, except Marchetti et al. [59], who used NDVI to show only the dynamics of floodplain vegetation GUs. In this paper, we set out to develop an NDVI-based geomorphic classification scheme for a large lowland river that reflects its relevance for nutrient retention and export. Therefore, the objectives of the present study are to (i) classify GUs considering the seasonal variation of a large lowland river based on remote sensing data, (ii) map areas of GUs assumed to be important for nutrient retention or export, (iii) show the seasonal dynamics of GUs, focusing on nutrient retention and export and, (iv) demonstrate the effectiveness of NDVI and shape indexes for the present classification.

2. Materials and Methods

2.1. Study Area

The study area is a part of the Padma River, downstream of the confluence of the Ganges and Brahmaputra rivers (Figure 1). The morphology of the Padma River is highly variable, ranging from straight, to meandering and braided channels [63]. The erosion and deposition patterns of the river reshape the islands and bars (locally called chars) [64], which range from 1 to 36 years in age. Some are occupied by human settlements [65]. Naturally, islands are a vegetated portion of the study area, but the edges are bare land that is inundated seasonally.
The study reach is about 50 km in length, demarcated as from Baruria, Manikganj to Mawa, Munsiganj, just before the Padma bridge (Figure 1). Before Mawa, an outflow called Arial Khan diverges from the main channel, but no tributaries enter the reach. The selected area is highly dynamic, with a diversified landform, ranging in width from less than 2 km to 12 km. The maximum discharge is about 75,000 m3/s during the monsoon, and the minimum is about 5000 m3/s during the dry/winter season [66]. Mean annual rainfall is about 2000 mm and mostly occurs during the monsoon [67]. After the monsoon, in-channel emergent sediment units appear, which are used for the cultivation of a variety of crops.

2.2. Geomorphic Classification of GUs

Geomorphic classification of GUs followed the approach of Rinaldi et al. [3]. The spatial setting for the GU analysis was bankfull channel width, which comprises (i) ‘submerged’ channel units (main and secondary); (ii) ‘emergent’ sediment units (bars, islands, inactive channels); and (iii) in-channel vegetation units. All of these are called macro-units. Macro-units are further divided into units and sub-units. GU names and classified codes were adopted from Rinaldi et al. [3], except water depression (WD) and sub-units (Table 1).

2.3. Seasonal Breakdown and Image Selection

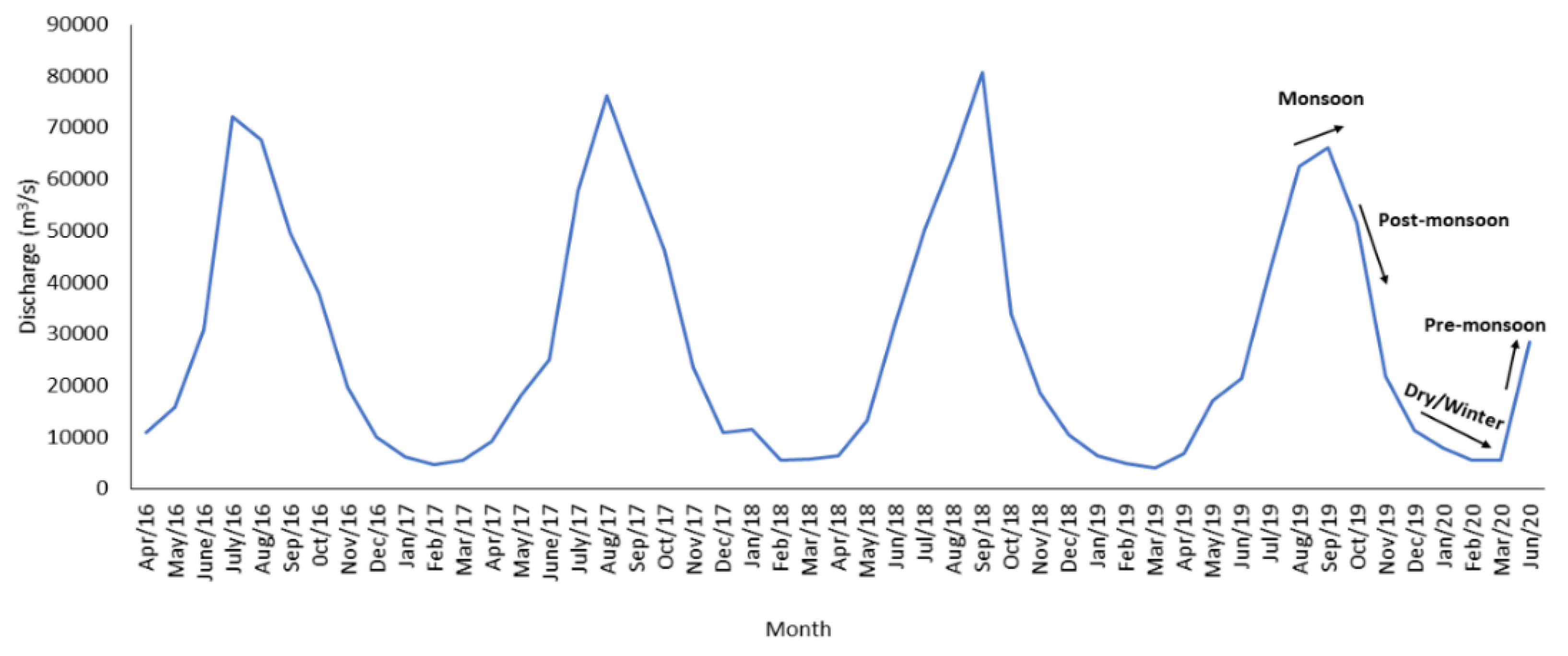

Data for 2016–2020 river discharge were collected from the Bangladesh Water Development Board (BWDB) (Figure 2). Based on these, four seasons of monsoon, post-monsoon, dry/winter, and pre-monsoon were identified. These were considered relevant temporal periods, for which satellite images could be used for the analysis. Additional criteria of image selection were (i) coverage of the study area, (ii) sensing date (considering seasons), (iii) mission type (Sentinel 2A/2B), (iv) product type (level 1C), and (v) percentage of cloud cover. Remotely sensed, multi-spectral satellite data (Sentinel 2) of consecutive years (2019–2020) were collected from the Copernicus Open Access Hub (https://scihub.copernicus.eu/dhus/#/home, accessed on 25 January 2022). Details of the satellite images are summarized in Table 2.

2.4. Image Processing and Analysis

The Sentinel-2 Level-1C image products provide geocoded top-of-atmosphere (TOA) reflectance after computation of cloud (opaque/cirrus) and land/water masks, based on spectral criteria [38]. Image processing and analysis were performed in QGIS, following the steps shown in Figure 3.
(a)
After collection, an atmospheric correction (Dark Object Subtraction, DOS1 [68]) was applied to all the images, using the semi-automatic classification plugin (SCP) tool for QGIS [69]. Mosaics of image pairs were created to cover the study area and, consequently, subsetted to the area of interest using the bands needed to calculate NDVI (Band 4—Red and Band 8—Near-Infrared). After subsetting, the study area was devoid of cloud cover except pre-monsoon 2020. Therefore, for pre-monsoon 2020, four images were used. The first images of May 2020 were used for obtaining cloud-free areas, and after subsetting, the study area was subject to about 5% cloud cover. Using a cloud mask, two images of April 2020 were used to replace the cloud pixels (Figure 3, i–v).
(b)
NDVI values range from −1 to 1. Generally, the value approaching −1 represents water; the value varying from −0.1 to 0.1 corresponds to barren areas of sand, and a value greater than 0.1 corresponds to vegetated areas [44,70]. Using visible red (Band 4) and near-infrared (Band 8) bands of Sentinel-2 data, NDVI was calculated and used to classify and analyze images. Based on the NDVI value, GUs were reclassified as land (emergent) and water (submerged). During the conversion from raster to vector, a 10% sieve analysis was performed to remove small polygons of 10 square meters in size from the result (Figure 3, vi–viii).
(c)
The study area was delineated based on the image of the dry/winter season (February 2020). Next, all the GUs were classified into units and sub-units based on position and shape, i.e., location of GUs in the main channel or secondary channel and orientation of GUs towards the flow direction. After applying zonal statistics, the end product of the analysis was classified as geomorphic units with counted pixels, mean NDVI value, surface area, perimeter, and maximum distance between two vertices of each polygon (Figure 3, ix–xii).
(d)
Inundated GUs or portions of GUs in high flow seasons that emerged during other seasons were termed nutrient retention- or export-relevant geomorphic units (NREGUs). Thus, classified GUs of the monsoon season (high flow) were overlapped with other seasons, to determine the nutrient retention-relevant terrestrial geomorphic units or emergent sediment units. The extraction of NREGUs was based on assumptions that (i) in large rivers, discharge is the main factor regulating nutrient retention or export [8,12,13]; (ii) changes in discharge are responsible for the alteration of water residence time; (iii) the surface area of the channel and water depth are considered determining factors for nutrient retention/export [71,72,73,74,75]; (iv) like the riparian zone, GUs can be flooded annually and enriched with nutrients; and (v) nutrients enter into the system through runoff and sediment supply (Figure 3, xiii–xiv).
(e)
The delineation and classification of GUs were first performed for the image of the dry/winter season. Therefore, to keep the exact identification of GUs in the other images, the attributes of the GUs layer were joined by their location, resulting in corresponding GUs in other seasons. Manual cross-checking was done for each GU, other than the dry/winter seasons. Further analysis of GUs was done using zonal statistics, which provided the number of counted pixels, mean, sum, variance, maximum, and minimum value of NDVI in each GU type (emergent and submerged). The polygon shape index from SAGA [76] was used, resulting in different shape index values for each NREGU. The empirical formula of the polygon shape index is:
Polygon Shape Index = Perimeter/[2 × Square Root (Π × Area)]
The surface area, perimeter, and polygon shape index of different NREGUs were compared among images of different seasons, to determine the seasonal dynamics (Figure 3, xv–xvi).
(f)
Geometric errors resulting from vectorizing raster data were corrected using the fix geometrics (FG) tool.

2.5. Field Observation and Morphometric Analysis of NREGUs

A field validation study was conducted during the dry/winter season. During the field visit, spot identification of GUs was recorded with a smartphone, using the Input app (https://inputapp.io, accessed on 25 January 2022). This app is linked with a repository of geodata (Mergin cloud service, https://public.cloudmergin.com, accessed on 25 January 2022) and can be synchronized within QGIS, avoiding further manual processing. NREGUs of the study reach of the previous year were developed prior to the field survey. The mean NDVI value of each NREGU was used to observe a seasonal variation. Besides NDVI, polygon shape index, surface area, perimeter area ratio (P/A), and maximum distance of NREGUs were used for the morphometric analysis of NREGUs. Regression analysis was performed, to determine the primary determinant of polygon shape index, which can show the suitability of the shape index to differentiate the sub-units longitudinal (L) and transverse bar (T). The analysis was performed in R v4.1.2 [77].

3. Results

3.1. Identification of GUs and Seasonal Dynamics

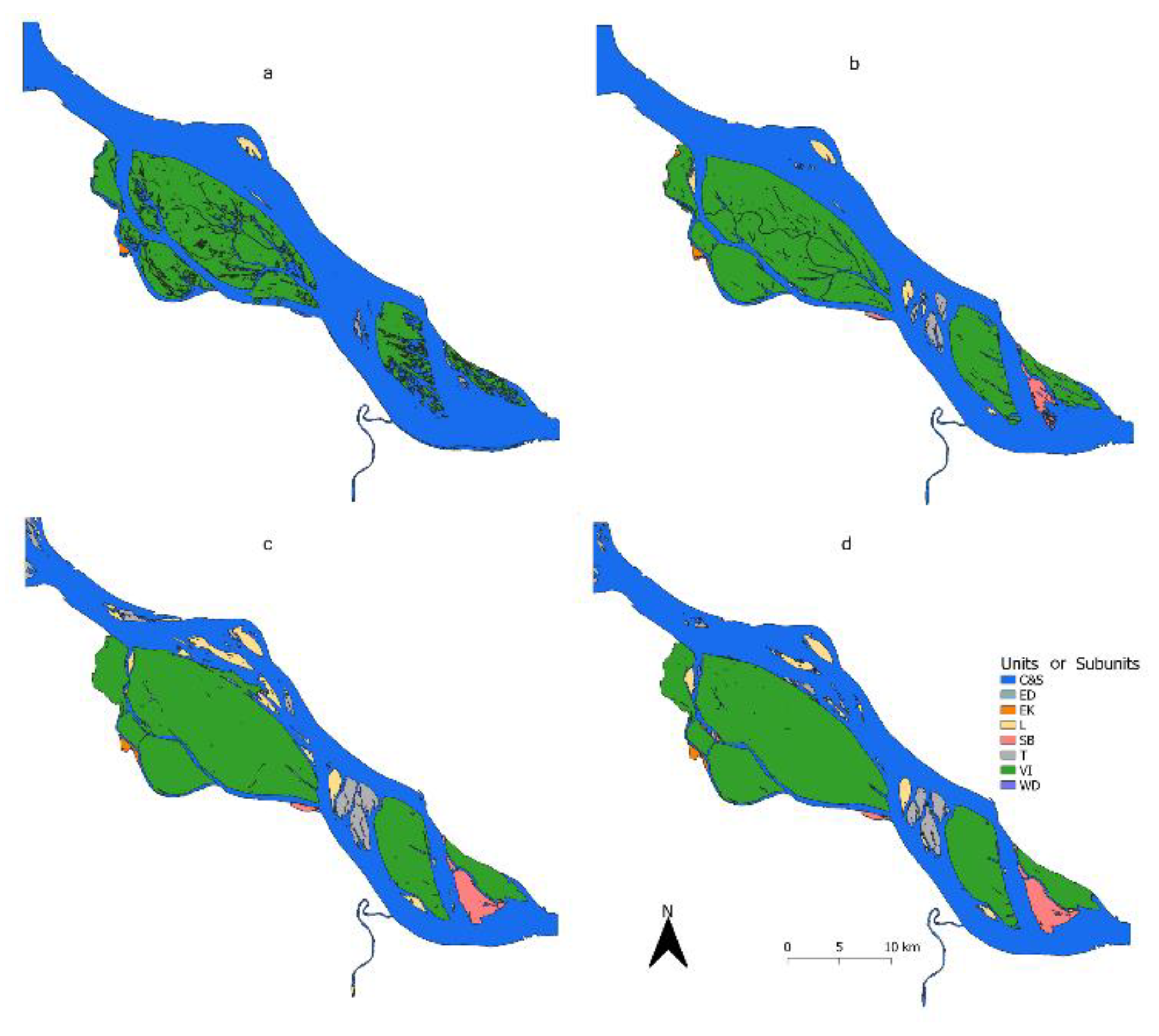

The geomorphic mapping showed that the study area consisted of three macro-units and seven sub-units. The macro-units are baseflow or submerged units (C/S), emergent sediment units (E), and in-channel vegetation (V). The units were categorized as primary and secondary channels (C & S), mid-channel bar (EC), bank-attached bar (EA), unvegetated bank (EK), dry channel (ED), island (VI), and water depression (WD). Further EC were classified into the sub-units, longitudinal bar (L) and transverse bar (T), and EA into the side bar (SB).

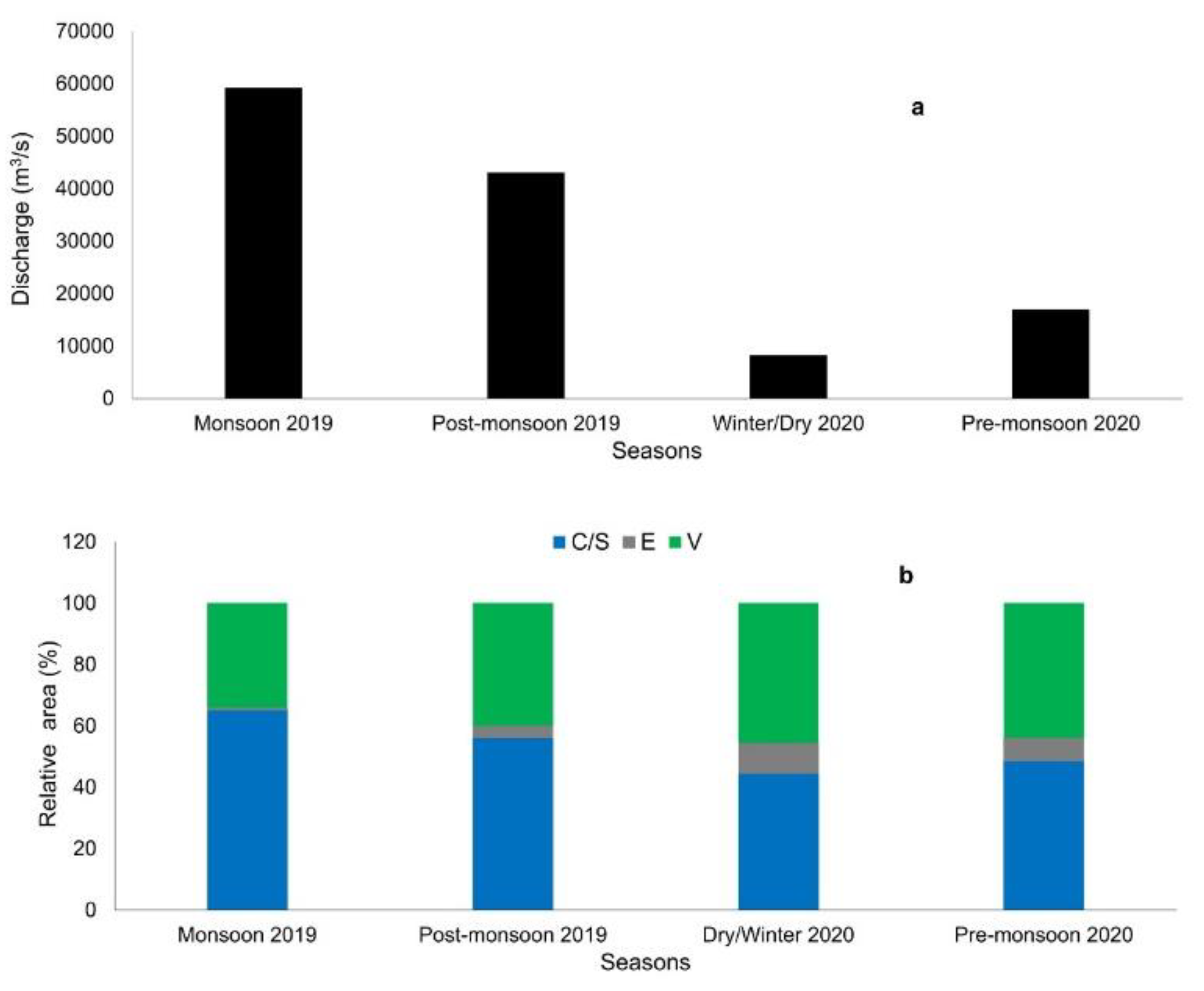

The identified types of GUs were observed in all four seasons, except ED in the monsoon. The surface area of C/S was maximum during monsoon and minimum during the dry/winter season (Figure 4). However, the numbers of E and V were highest during pre-monsoon. An inverse relationship between discharge (m3/s) and surface area of E and V was observed throughout the study year. The number of GUs varied with discharge. When water level increased, inundation split the bars (E) and islands (V), increasing the number, but reducing the surface area. This phenomenon was primarily observed pre-monsoon. During the dry/winter season, the surface area of E and V increased, with concomitant reductions in their number (Figure 5).

3.2. Seasonal Variation of NREGUs

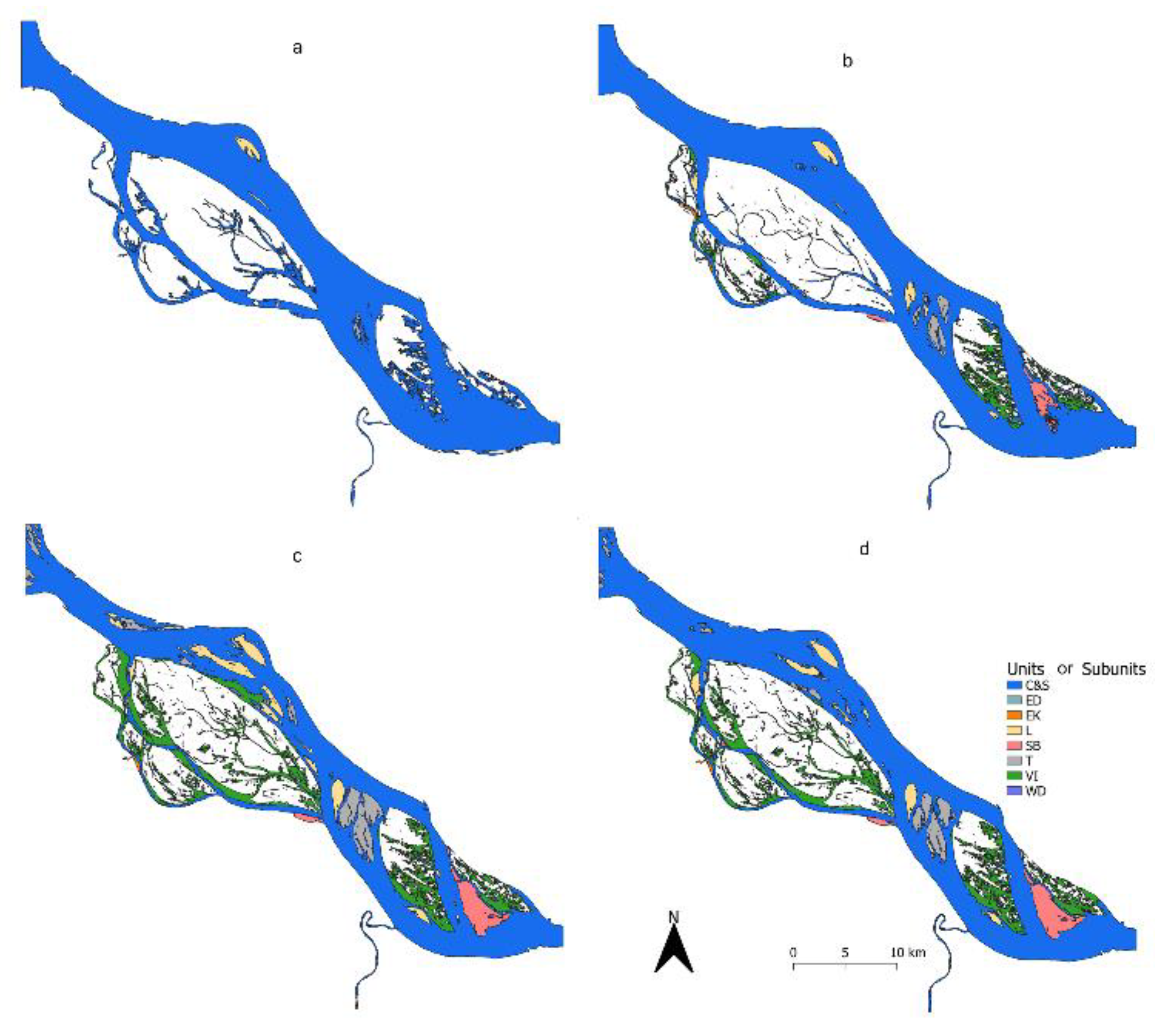

Mapping of estimated nutrient retention or export-related GUs (NREGUs) showed that the remaining bars accounted for only 0.96% of surface area during the monsoon, and all of this was in EC. The maximum surface area of C & S was observed during the monsoon season (92.6%), followed by the post-monsoon season (87.5%), and the minimum was observed during the dry/winter season (63.5%). Among the emergent units, the surface area of VI was the maximum, followed by EC, EA, EK, and ED. The maximum surface areas of VI and EC were observed during the dry/winter season (VI = 21.9% and EC = 10.49%), and the minimum during the monsoon season (VI = 3.79% and EC = 0.96%). The surface areas of ED and EK were higher in the post-monsoon season than in the dry/winter season (Figure 6 and Table 3). Such a result was found because, in the dry/winter season, some of the ED and EK portions merged as islands. As with GUs, the seasonal prevalence of NREGUs was related to discharge.

3.3. Use of NDVI and Shape Indexes for Morphometric Analysis

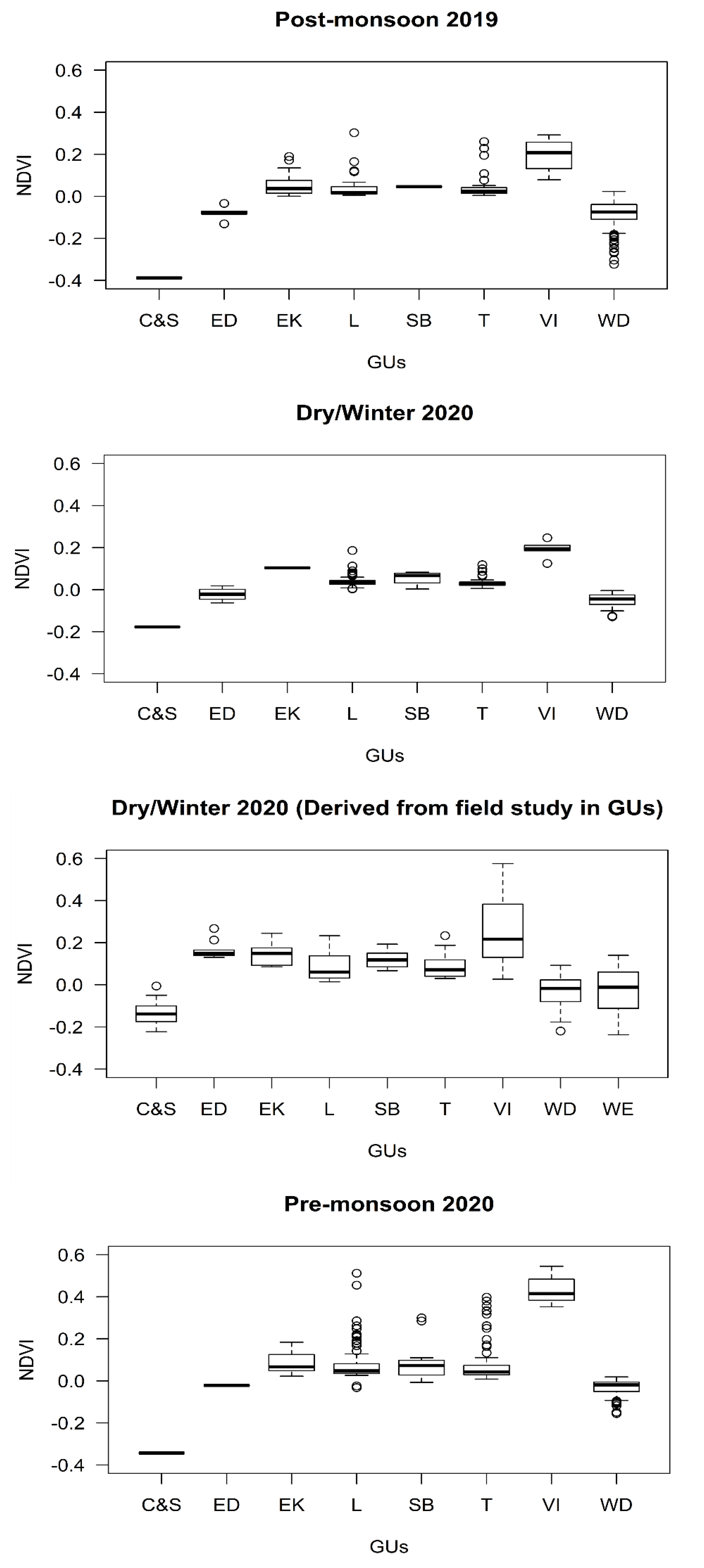

The identification of GUs and NREGUs was mainly based on NDVI. The mean NDVI value of each NREGU showed that it explicitly differentiated channels (C & S), bars (SB, T and L), and islands (VI), and that these NREGUs represent a high proportion of the study area. The NDVI value of C & S was always less than 0, but varied across seasons. This finding demonstrated the effectiveness of the use of NDVI in the seasonal classification of NREGUs. NDVI values showed the expected results in the case of bars (0.1 < median NDVI < 0.2) and islands (median NDVI > 0.2). The bars were primarily sandy units with or without vegetation, whereas islands are the main vegetated units, showing higher NDVI than bars. The NDVI value of WD was around 0, because these were the shallow water portions inside islands or bars, represented by a relatively small surface area. The identification of NREGUs was validated by field observations during the dry/winter season. NDVI values from the field identified C & S, bars, and VI corresponding to the derived values of satellite identified NREGUs (Figure 7).

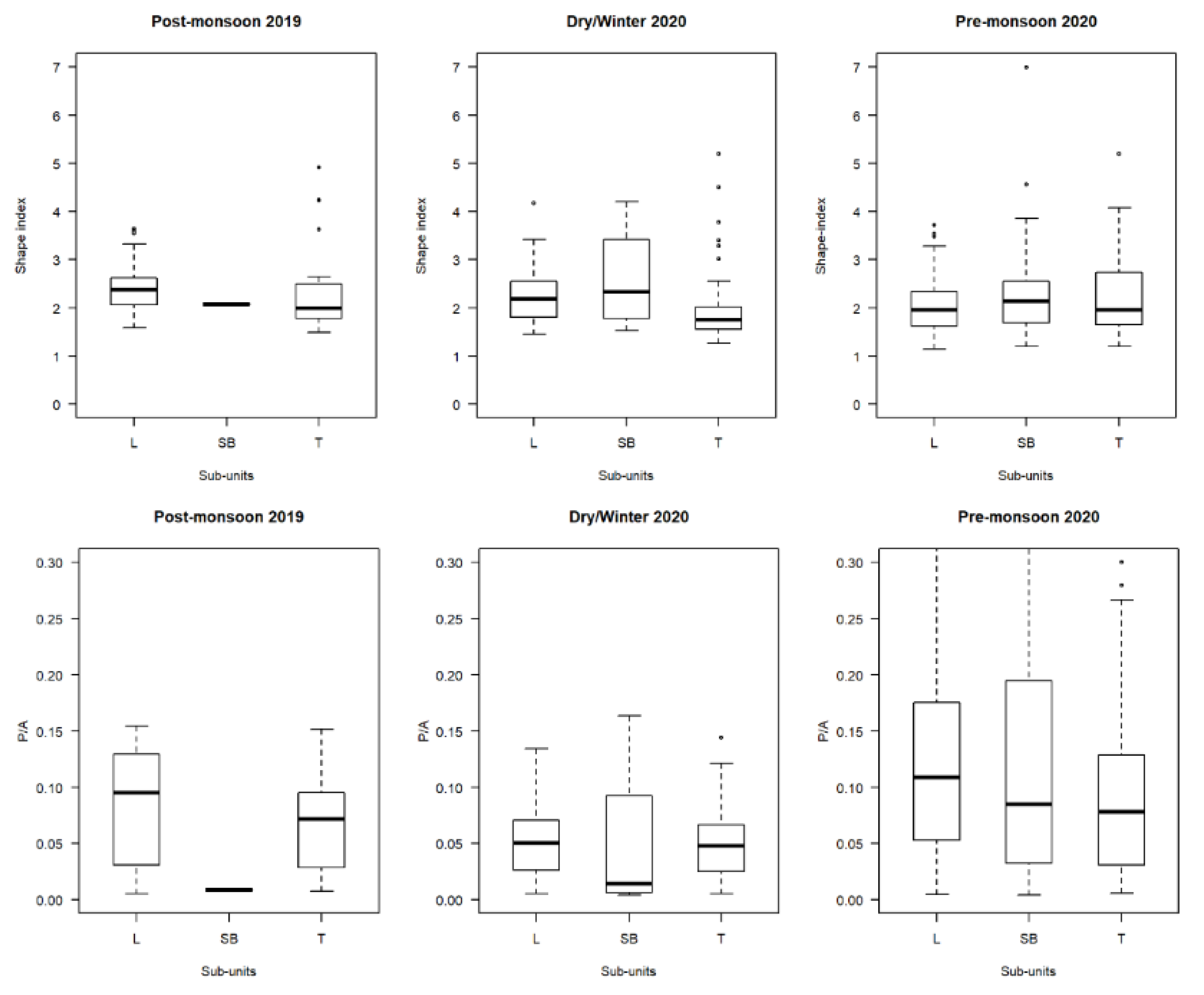

Shape characterization shows the variation of spatial data. During the present study, the NDVI value was not useful to differentiate among the bar subtypes, but the polygon shape index and perimeter/area were useful. The polygon shape index distinguished longitudinal bar (L) and transverse bar (T) during post-monsoon and dry/winter, where the median value of L was greater than 2 and T was less than 2. However, during pre-monsoon, the polygon shape index did not show satisfactory results when the median value of the polygon shape index was near 2. This happened due to the divergent nature of the bars; i.e., splitting of the bars occurred due to an increase of water volume. The perimeter area ratio (P/A) differentiated L and T during pre-monsoon, when the median values of L and T were above and below 0.1, respectively (Figure 8).

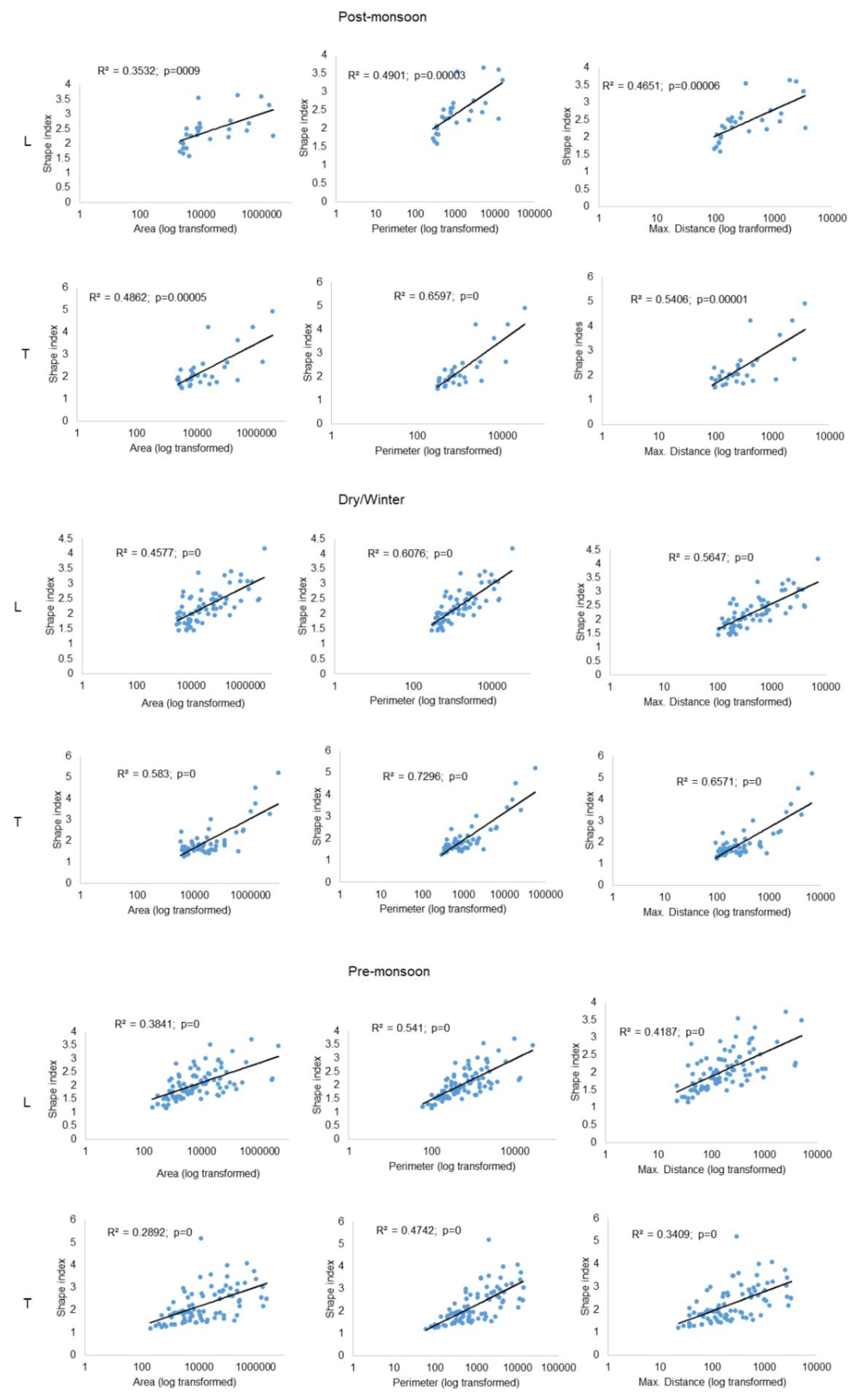

The regression analysis between polygon shape index and different parameters (area, perimeter, and maximum distance) of the longitudinal bar (L) and transverse bar (T) in three seasons showed that the R2 value was higher in the case of perimeter, followed by maximum distance and area (Figure 9). As such, the perimeter was the important parameter that most impacted the value of the polygon shape index. This finding mainly validated the categorization of bars. The finding even supported the results during post-monsoon and dry/winter seasons, when the shape index differentiated L and T. Thus, polygon shape index was essential for classifying the subtypes of the bar. Comparatively lower R2 values (L = 0.541; T = 0.4742) during pre-monsoon for perimeter compared with shape index were evidence that the polygon shape index did not help differentiate between L and T, but perimeter area ratio (P/A) was effective in that case (Figure 8 and Figure 9).

4. Discussion

River hydromorphology plays a role in ecological processes, habitat structure, and water quality [78,79]. Classification of GUs in rivers aids the assessment of seasonal or long-term hydromorphological alterations [6]. Previously, GUs of the upper part of the Padma River were identified and categorized as active channel, mid channel bar, lateral bar deposit, new bar deposit, old bar deposit, abandoned channel deposit, and flood plain deposit, to assess its morphological pattern over the decade using sinuosity ratio, braided index, and percentage of islands [80]. The present classification scheme incorporates an NDVI-based seasonal approach, which can be used to establish links between hydromorphology and biogeochemical processes of the river reach.
It has been observed that erosion and deposition at GUs in large lowland rivers are related to the seasonal discharges [81] that drive hydrological and sediment dynamics [67,82]. The present study illustrates the importance of seasonal discharge for the surface area and number of GUs, and how this affects NREGUs and, hence, nutrient flux in large rivers [13,83]. In the Padma River, the area of bars (E) and islands (VI) have increased over the years [67,84,85]. This has implications for the nutrient dynamics in the river, changing flow velocity, and water residence time. The maximum exposed surface area of E and VI of the study reach was observed during the dry/winter season. Low water flows were prevalent during the winter/dry season, associated with a comparatively large portion of emergent sediment units. Nawfee et al. [84] observed the characteristics of the river over a period from 1973 to 2014, where the erosion–deposition process of the bars was stable during the low flooding season (dry/winter season) and can be described as a geomorphologically dynamic equilibrium state [86,87,88]. Some of the geomorphically complex large rivers consist of a significant portion of vegetated islands, due to the stable state [80,89,90,91]. Some portions of bars are used for cultivation and can present various LULC patterns in different seasons.
The finer resolution of Sentinel-2 was found to be useful, as it identified WD in different seasons. This also showed the applicability of NDVI over NDWI. The WD might be potentially important for nutrient retention, due to its capacity for retaining water for a longer period than other GUs, making the environment favorable for biogeochemical processes. Several studies have shown high denitrification rates in wetlands, related to temporal water retention [92,93,94]. Unlike other studies [95,96,97], the mean NDVI values of the VI in NREGUs in our study were below 0.6 in all seasons, because the study area consisted of only low growing vegetation, without trees or shrubs. Therefore, over saturation of NDVI due to dense vegetation might not be considered a hindrance for the present research and provides the effectiveness of NDVI over EVI. However, the latter is considered more suitable than NDVI in some remote sensing studies [98,99,100].
NDVI can be used to classify land cover to some degree [101] and estimate nutrient retention [102,103]. Classification of NREGUs based on NDVI provides the potential to categorize vegetation nutrient retention. Studies on the Parana River in Argentina showed that vegetation is closely linked with geomorphic units [59]. Recently NDVI has been implemented for crop classification and irrigation water monitoring [43,52,104]; both might be favorable for the present study, due to inundation and human-induced LULC types. In the GUs of the Padma River, both natural and human-induced vegetation were observed. Especially in the islands (VI) and bars (E), the vegetation cover and types were different. There is strong evidence that biogeochemical processes such as plant uptake and denitrification can vary according to vegetation cover and type [105,106,107]. Thus, NDVI-based LULC mapping might be useful to predict the spatial and temporal variation of nutrient retention processes of the study reach and other similar river systems.
Shape characterization is important for mapping and delineating in-channel GUs and describing spatiotemporal changes of GUs [5,108]. The position and geometry of the bars change over time in the Padma River [80]. A significant association was observed during the present study between polygon shape index and perimeter from post-monsoon to dry/winter seasons, when water depth and discharge decreased. This finding could be associated with other seasonal measurements of nutrient retention processes, to determine the impact of the shape of the bars. Alternatively, the spatial variation of nutrient retention of a geomorphically complex river can be linked, by determining the geometry of the bars, i.e., shape characterization, because discharge plays a vital role in both cases.

5. Conclusions

The NDVI based GU classification scheme provides a new approach for assessing GUs in large geomorphically complex lowland rivers. The use of NDVI brings the opportunity to incorporate vegetation and LULC. Thus, LULC types in GUs can be considered patches that might be useful to link with the biogeochemical and ecological processes of river systems. Mean NDVI distinguished, not only primary and secondary channels (C & S), islands (VI), and bars (EC), but also changes across seasons. This finding indicates the effectiveness of NDVI-based classification. The study confirmed that seasonal discharge could significantly change the surface area of water and sediment portions of the river channel. The present study also showed that morphometric parameters, i.e., polygon shape index, help categorize the types of bar, such as longitudinal (L) and transverse (T), where NDVI was ineffective. The perimeter of the bars (L and T) is the primary determiner of the polygon shape index. This provides the potential for using shape index to estimate the spatiotemporal variation of nutrient retention processes among in-channel emergent sediment units, which can be further tested with field research. The approach we presented here should also be tested with complementary direct and indirect techniques using other satellite data.

Author Contributions

Conceptualization, M.A.G., M.E.M. and K.I.; methodology, M.A.G. and J.v.d.K.; software, M.A.G. and J.v.d.K.; validation, M.A.G., J.v.d.K. and G.G.; formal analysis, M.A.G.; investigation, M.A.G., J.v.d.K. and G.G.; resources M.A.G. and J.v.d.K.; data curation, M.A.G., J.v.d.K. and G.G.; writing—original draft preparation, M.A.G. and J.v.d.K.; writing—review and editing, M.A.G., J.v.d.K., M.E.M., G.G. and K.I.; visualization, M.A.G. and J.v.d.K.; supervision, M.E.M. and K.I.; project administration, M.E.M. and K.I.; funding acquisition, M.A.G. All authors have read and agreed to the published version of the manuscript.

Funding

The financial support was provided by the Bangabandhu Science and Technology Fellowship Trust, Ministry of Science and Technology, The Government People’s Republic of Bangladesh. The APC was funded by IHE Delft Institute for Water Education, Delft, The Netherlands.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Requests for materials used in the present research should be addressed to M.A.G.

Conflicts of Interest

The authors declare no conflict of interest.
