Variation Characteristics of Multi-Channel Differential Code Biases from New BDS-3 Signal Observations

Abstract

A multi-frequency Global Navigation Satellite System (GNSS) provides greater opportunities for positioning and navigation applications, particularly the BeiDou Global Navigation Satellite System (BDS-3) satellites. However, multi-frequency signals import more pseudorange channels, which introduce more multi-channel Differential Code Biases (DCBs). The satellite and receiver DCBs from the new BDS-3 signals are not clear. In this study, 9 DCB types of the new BDS-3 signals from 30-days Multi-GNSS Experiment (MGEX) observations are estimated and investigated. Compared with the DCB values provided by the Chinese Academy of Science (CAS) products, the mean bias and root mean squares (RMS) error of new BDS-3 satellite DCBs are within ±0.20 and 0.30 ns, respectively. The satellite DCBs are mostly within ±0.40 ns with respect to the product of the Deutsches Zentrum für Luft- und Raumfahrt (DLR). The four sets of constructed closure errors and their mean values are within ±0.30 ns and ±0.15 ns, respectively. The mean standard deviation (STD) of the estimated satellite DCBs is less than 0.10 ns. In particular, our estimated satellite DCBs are more stable than DCB products provided by CAS and DLR. Unlike satellite DCBs, the receiver DCBs have poor compliance and show an obvious relationship with the geographic latitude when compared to the CAS products. The STDs of our estimated receiver DCBs are less than 1.00 ns. According to different types of receiver DCBs, the distribution of STDs indicates that the coefficient of the ionospheric correction has an influence on the stability of the receiver DCBs under the ionosphere with the same accuracy level. In addition, the type of receiver shows no regular effects on the stability of receiver DCBs.

1. Introduction

The Global Navigation Satellite System (GNSS) has been widely used in geosciences and life [1,2]. In particular, China’s BeiDou Global Navigation Satellite System (BDS-3) was officially operated for global users on July 31, 2020 [3]. As the first hybrid constellation of navigation satellite systems in the world, BDS-3 has been developing rapidly and providing global services, and can provide positioning, navigation, and timing (PNT) services [4]. BDS-3 transmits other new signals of multiple frequency bands, which is compatible with signals of B1 and B3 provided by the BeiDou regional navigation satellite system (BDS-2). Multi-frequency signals provide plentiful observations for satellite applications but also introduce new errors in the positioning process [5,6]. For example, the difference of hardware delay between the signals of double-frequency bands is designated as the differential code bias (DCB), which affects the accuracies of the ionospheric modeling and GNSS precise positioning [7,8]. There are multiple channels for BDS observations on the same frequency, which are summarized in

Table 1. The pseudorange channels of BDS multi-frequency signals.

System	Freq. Band	Frequency/MHz	Channel Codes of Pseudorange
BDS-2	B2	1207.140	C7I C7Q C7X
BDS-2/3	B1	1561.098	C2I C2Q C2X
	B3	1268.52	C6I C6Q C6X
BDS-3	B1C	1575.42	C1D C1P C1X
	B2a	1176.45	C5D C5P C5X
	B2b	1207.140	C7D C7P C7Z
	B2(a+b)	1191.795	C8D C8P C8X

from the Receiver Independent Exchange (RINEX) format (https://files.igs.org/pub/data/format/rinex305.pdf). Therefore, the multiple DCBs caused by multi-channel signals of BDS-3 should be estimated and analyzed accurately.

Generally, the ionospheric total electron content (TEC) and DCB need to be considered simultaneously during the estimation process. Carrier-to-code leveling (CCL) is a common estimation method to extract ionospheric TEC and DCB. It exhibits suitable accuracy and simple implementation with the dual-frequency geometry-free (GF) observation combination [9,10]. Moreover, the method of undifferenced and uncombined precise point positioning (PPP) shows higher estimation accuracy when compared with the CCL [11]. However, the PPP approach introduces external constraints on the receiver coordinates, orbits, and clock errors [12,13]. The above-mentioned methods are only used to extract the ionospheric observations, while DCB estimation should be further considered. Ionospheric correction generally includes two components: external ionospheric models and simultaneous estimation [14]. The empirical ionospheric models and the global ionospheric map (GIM) can be used as external ionospheric models to correct the ionosphere. The empirical ionospheric models mainly include the Klobuchar model, NeQuick model, and BeiDou Global Ionospheric delay correction Model (BDGIM) [15,16,17]. Since the Ionosphere Working Group (IWG) was created by IGS in 1998, many Ionosphere Associate Analysis Centers (IAACs) continue to generate GIMs with high-precision for GNSS users [18]. To achieve simultaneous estimation, the ionospheric modeling is performed, including the global spherical harmonics (SH) and regional generalized trigonometric series function (GTSF) [19,20]. The Multi-GNSS Experiment (MGEX) network of the International GNSS Service (IGS) has been developed [21] so that more and more stations can track multi-frequency new BDS-3 signals. However, the number of these stations is insufficient for global ionospheric modeling and DCB estimation of BDS-3 signals.

Recently, the ionosphere and DCB of BDS-2/3 have been analyzed and discussed. Xue et al. [22] analyzed the stability of BDS-2 B1I-B2I and B1I-B3I DCBs by using multi-GNSS observations. Zhu et al. [23] verified and analyzed satellite and receiver DCB by employing the BDGIM. MGEX observations are utilized to analyze the stability and systematic bias of BDS-2 and BDS-3 DCBs [24,25]. Deng et al. [26] also estimated multiple satellite DCBs of BDS-3 and compared with the Chinese Academy of Sciences (CAS) and the Deutsches Zentrum für Luft- und Raumfahrt (DLR) products. However, most studies have focused on the DCBs estimation and analysis of BDS B1 and B3 frequency, or between B1/B3 and other frequencies. It has a lack of variation characteristics of satellite and receiver DCBs from new BDS-3 signal observations.

This paper aims to estimate and analyze the satellite and receiver DCBs of the new BDS-3 signals (B1C/B2a/B2b/B2(a+b)). The method of DCB estimation and data are introduced in Section 2. Results are presented in Section 3. Nine DCB types from the MGEX network are estimated and compared with DCB products provided by the CAS/DLR. Besides, four sets of closure errors of satellite DCBs are analyzed in detail, including the distribution and the mean values of closure errors. The accuracy and stability of the BDS-3 receiver DCBs are analyzed. Finally, some discussion and conclusions are given in Section 4 and Section 5.

2. Methods and Data

2.1. Ionospheric Estimation Equation

Observations obtained from the files of RINEX format generally include pseudorange and carrier-phase observations. Considering multiple errors, the general observation equations can be expressed as follows [27]:

$$\{\begin{array}{ll}{P}_{i,j}^s={\rho }_i^s+d{t}_i-d{t}^s+d_{tro,i}^s+{\mu }_j\cdot d_{ion,i,1}^s+d_{i,j}-d_{,j}^s+{\epsilon }_P\hfill & \hfill \\ {\mathrm{\Phi }}_{i,j}^s={\rho }_i^s+d{t}_i-d{t}^s+d_{tro,i}^s-{\mu }_j\cdot d_{ion,i,1}^s+b_{i,j}-b_{,j}^s+N_{i,j}^s+{\epsilon }_{\mathrm{\Phi }}\hfill & \hfill \\ {\mu }_j=f_1^2/f_j^2\hfill & \hfill \end{array}$$

(1)

where $P$ and $\mathrm{\Phi }$ are the pseudorange and carrier-phase observations, respectively; $i$ and $j$ refer to the receiver and the frequency index, respectively; $s$ denotes the BDS satellite; $\rho$ is the geometric range between the receiver and satellite; $d{t}_i$ and $d{t}^s$ are the receiver and satellite clock offsets, respectively; $d_{tro}$ and $d_{ion}$ are the slant tropospheric and ionospheric delays, respectively; ${\mu }_j$ denotes the frequency-dependent multiplier factor; $d_{i,j}$ and $d_{,j}^s$ are the receiver and satellite pseudorange instrumental delays at $f_j$ frequency, respectively; $b_{i,j}$ and $b_{,j}^s$ are the receiver and satellite the carrier-phase hardware delays at $f_j$ frequency, respectively; $N$ denotes the integer ambiguity; and ${\epsilon }_P$ and ${\epsilon }_{\mathrm{\Phi }}$ are the noises of pseudorange and carrier-phase observations, including multipath, respectively.

For any dual-frequency observations of BDS-3, ionospheric observable can be obtained from GF combined observations, which can be expressed as [28]:

$$\{\begin{array}{ll}{P}_4=P_{i,1}^s-P_{i,2}^s\hfill & =\left({\mu }_1\cdot d_{ion,i,1}-{\mu }_2\cdot d_{ion,i,1}\right)+\left(d_{i,1}-d_{i,2}\right)-\left(d_{,1}^s-d_{,2}^s\right)+{\epsilon }_{P,4}\hfill \\ & =\left({\mu }_1\cdot d_{ion,i,1}-{\mu }_2\cdot d_{ion,i,1}\right)+DC{B}_i-DC{B}^s+{\epsilon }_{P,4}\hfill \\ {\mathrm{\Phi }}_4={\mathrm{\Phi }}_{i,1}^s-{\mathrm{\Phi }}_{i,2}^s=\hfill & -\left({\mu }_1\cdot d_{ion,i,1}-{\mu }_2\cdot d_{ion,i,1}\right)+\left(b_{i,1}-b_{i,2}\right)-\left(b_{,1}^s-b_{,2}^s\right)+\left(N_{i,1}^s-N_{i,2}^s\right)+{\epsilon }_{\mathrm{\Phi },4}\end{array}$$

(2)

where $P_4$ and ${\mathrm{\Phi }}_4$ are the GF pseudorange and carrier-phase observations, respectively; $DC{B}_i$ and $DC{B}^s$ are the corresponding receiver and satellite DCB, respectively; and ${\epsilon }_{P,4}$ and ${\epsilon }_{\mathrm{\Phi },4}$ are the noises of GF pseudorange and carrier-phase observations, respectively.

To eliminate the large noise of pseudorange observations $P_4$ [29], the CCL approach is adopted during one observation arc with no cycle slips. The pseudorange instrumental delay and integer ambiguity remain the same constant in such arcs, so the ionospheric observables after smoothing can be expressed as [14]:

$$P_s={\mathrm{\Phi }}_4\left(t_i\right)-\frac{1}{n}{\displaystyle \sum _{n=t_1}^{t_n}\left[P_4\left(t_i\right)+{\mathrm{\Phi }}_4\left(t_i\right)\right]}=-\left({\mu }_1-{\mu }_2\right)\cdot d_{ion,i,1}^s-{DCB}_i+{DCB}^s$$

(3)

where $n$ refers to the number of measurements during one observation arc.

2.2. Ionospheric Correction Based on GIM

Due to the insufficient distribution of BDS-3 stations, the external ionospheric correction is introduced from GIM provided by the Center for Orbit Determination in Europe (CODE). Then, the single-layer mapping function is used for converting slant TEC (STEC) to VTEC. It can be expressed as follows [30]:

$$\{\begin{array}{l}{d}_{ion,i,1}^s=\frac{40.30}{f_1^2}{\mathrm{STEC}}_i^s\hfill \\ {\mathrm{STEC}}_i^s=\mathrm{MF}\cdot {\mathrm{VTEC}}_i^s\hfill \\ \mathrm{MF}=\frac{1}{\cos \left[\arcsin \left(\frac{R}{R+H}\sin \left(\alpha \cdot \mathrm{E}\right)\right)\right]}\hfill \end{array}$$

(4)

where $\mathrm{MF}$ denotes the mapping function, $R$ is the average radius (6371 km) of the Earth, $H$ is the assumed height (450 km) of the single layer ionosphere, $\alpha$ refers to the model coefficient (0.9782), and $\mathrm{E}$ is the satellite elevation angle. $\mathrm{VTEC}$ can be obtained by linear interpolation based on GIM, involving interpolations of two-dimensional space and time series [31].

2.3. DCB Separation and Estimation

After correcting the ionosphere, Equation (3) contains only satellite and receiver DCB. For one-day observation, the DCBs of each satellite and receiver are estimated as one constant, respectively. To solve the singular problem of the equation, the zero-mean condition is adopted to separate the DCBs of satellites and receivers. Namely the sum of the DCBs of all satellites is zero on one day, so Equation (3) can reach full rank [32]. Under this constraint condition, the DCB variations are not affected [33]. The zero-mean condition for BDS-3 satellites can be expressed as:

$${\displaystyle \sum _{s=1}^{N}D}C{B}^s=0$$

(5)

where $N$ denotes to the total number of BDS-3 satellites observed per day. When the satellites observed are different per day, the zero-mean condition will be inconsistent. In that case, the conversion method needs to be implemented for unified zero-mean condition [25].

Based on Equations (3)–(5), the DCB estimation by employing CODE’s GIM can be rewritten as:

$$\{\begin{array}{ll}{P}_s-\frac{40.30\left(f_1^2-f_2^2\right)}{f_1^2{f}_2^2}\cdot \mathrm{MF}\cdot {\mathrm{VTEC}}_i^s=-DC{B}_i+DC{B}^s\hfill & \hfill \\ {\displaystyle \sum _{s=1}^{N}D}C{B}^s=0\hfill & \hfill \end{array}$$

(6)

Finally, the cut-off elevation angle is set to 15° to reduce the impact of multipath noise and mapping function errors [10]. To get an arc without cycle slips, the MW (Melbourne–Wübbena combination) and ionospheric residual observations are used to process the sequence of GF observations [28].

2.4. Experimental Data

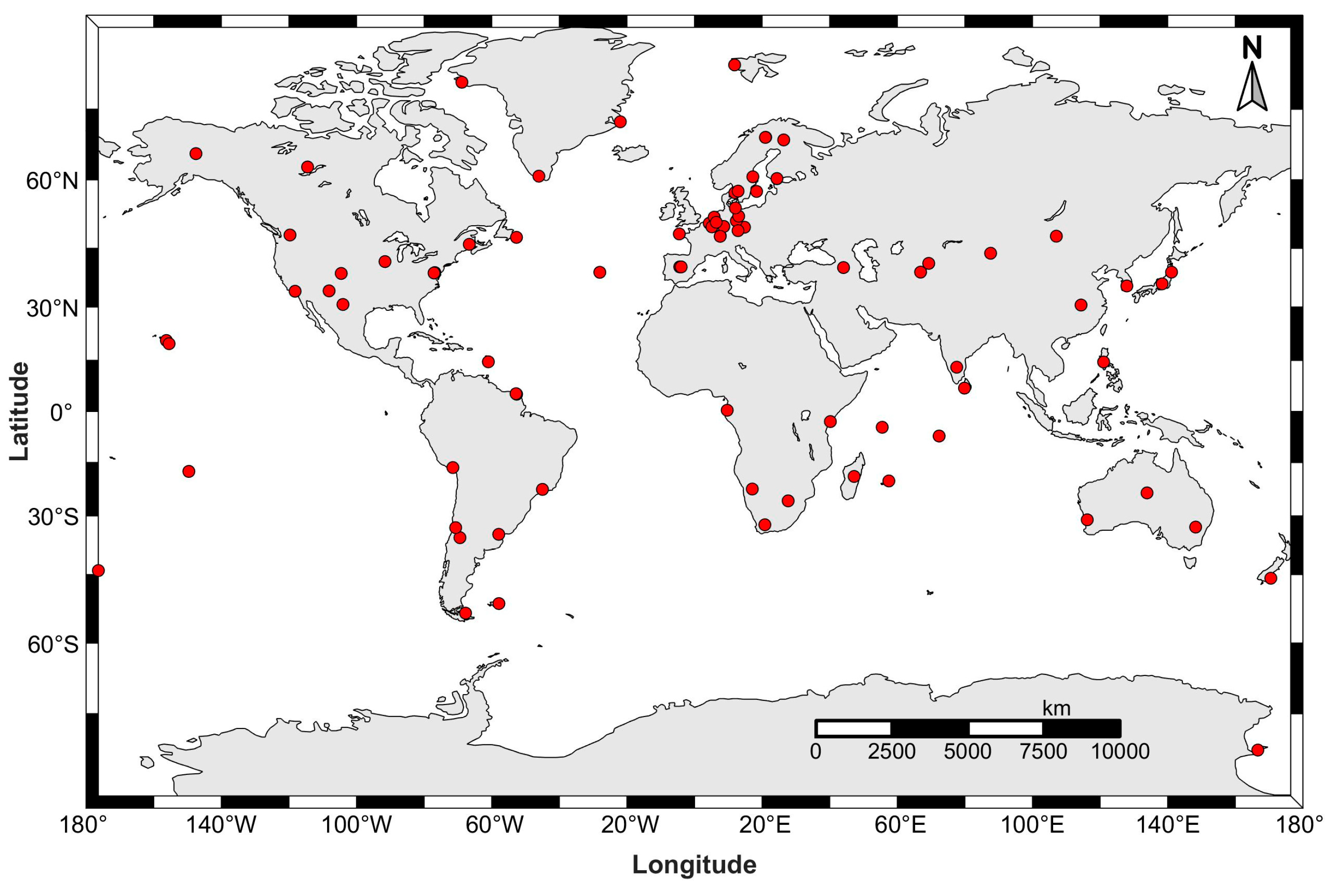

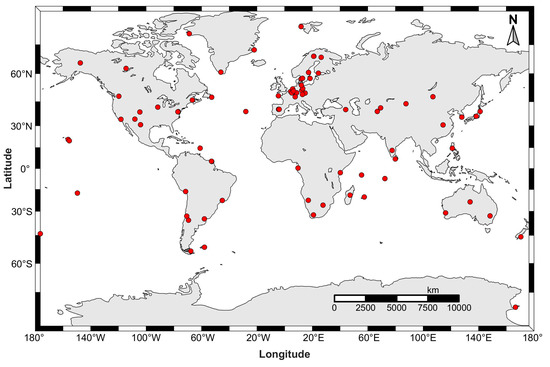

With the development and updating of MGEX stations, increasingly more stations can track the BDS-3 new signals. Eighty-eight stations of the MGEX network collected from a period of 30 days, corresponding to the day of year (DOY) 060-089 in 2021, were processed to estimate DCBs of BDS-3. Figure 1 shows the distribution of the MGEX stations with tracking the BDS-3. It can be seen from Figure 1 that the distribution of the stations tracking the BDS-3 new signals is inadequate and uneven, so a single BDS-3 system cannot implement the global ionospheric modeling yet. According to the multi-channel type of BDS-3 in the observation file, we estimate 9 DCB types of BDS-3 new signals. The channel type depends on the type of station receiver.

Table 2. Nine types in the DCB estimation of BDS-3.

Freq. Band	Pseudorange Observation Channels
	Combination 1	Stations Number	Combination 2	Stations Number
B1C-B2a	C1P-C5P	60	C1X-C5X	28
B1C-B2b	C1P-C7D	43	C1X-C7Z	23
B2a-B2b	C5P-C7D	42	C5X-C7Z	23
B1C-B2(a + b)			C1X-C8X	21
B2a-B2(a + b)			C5X-C8X	23
B2b-B2(a + b)			C7Z-C8X	19

shows pseudorange observation channels and corresponding frequency bands used to estimate 9 DCB types in our study. As we can see from Table 2, the number of stations with receiving new BDS-3 signals is still less than GPS stations in the hundreds. In particular, the C7Z-C8X combination has only 19 stations that can be used for DCB estimation.

3. Results and Analysis

3.1. Quality Analysis of New BDS-3 Signal

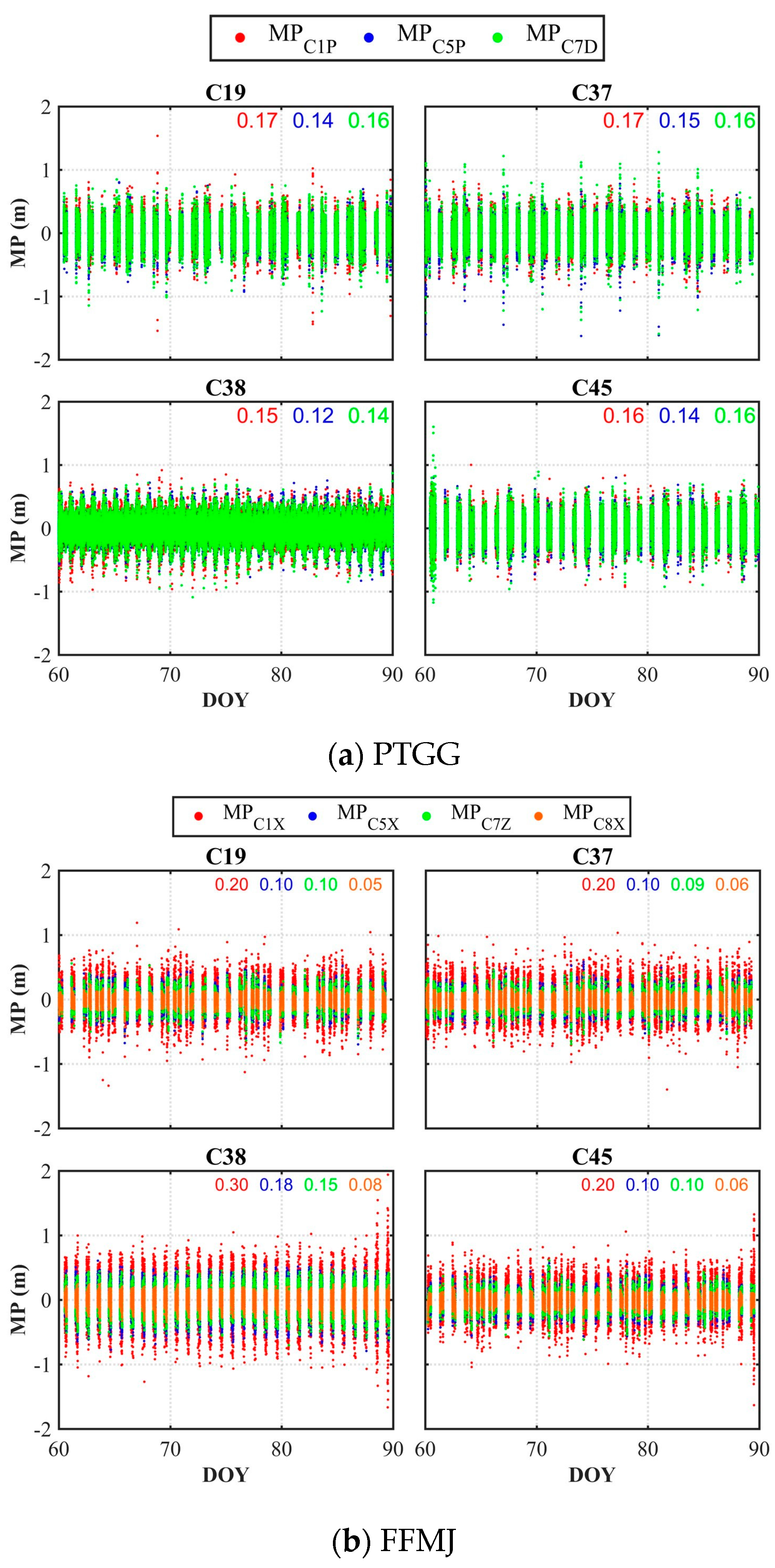

To assess the quality of the new BDS-3 signals, we analyze the multipath (MP) combination of multi-channel signals. Figure 2 shows MP values of BDS-3 C19, C37, C38, and C45 satellites during the DOY 60–89, 2021, which are observed at stations PTGG and FFMJ. The digits represent the root mean squares (RMS) of MP. As shown, the MP values vary within ±2 m. The signal quality of C1P/C5P/C7D channels is not significantly different. The RMS of C1X(B1C) MP is significantly larger than the other three channels. Nevertheless, MP of the C8X (B2) channel has satisfying signal performance. Thus, it can be seen the signal quality of B1C frequency is the worst and that of B2(a+b) frequency is the best.

3.2. Validation of Satellite DCBs

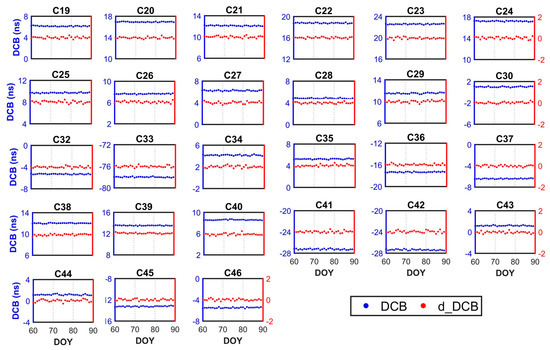

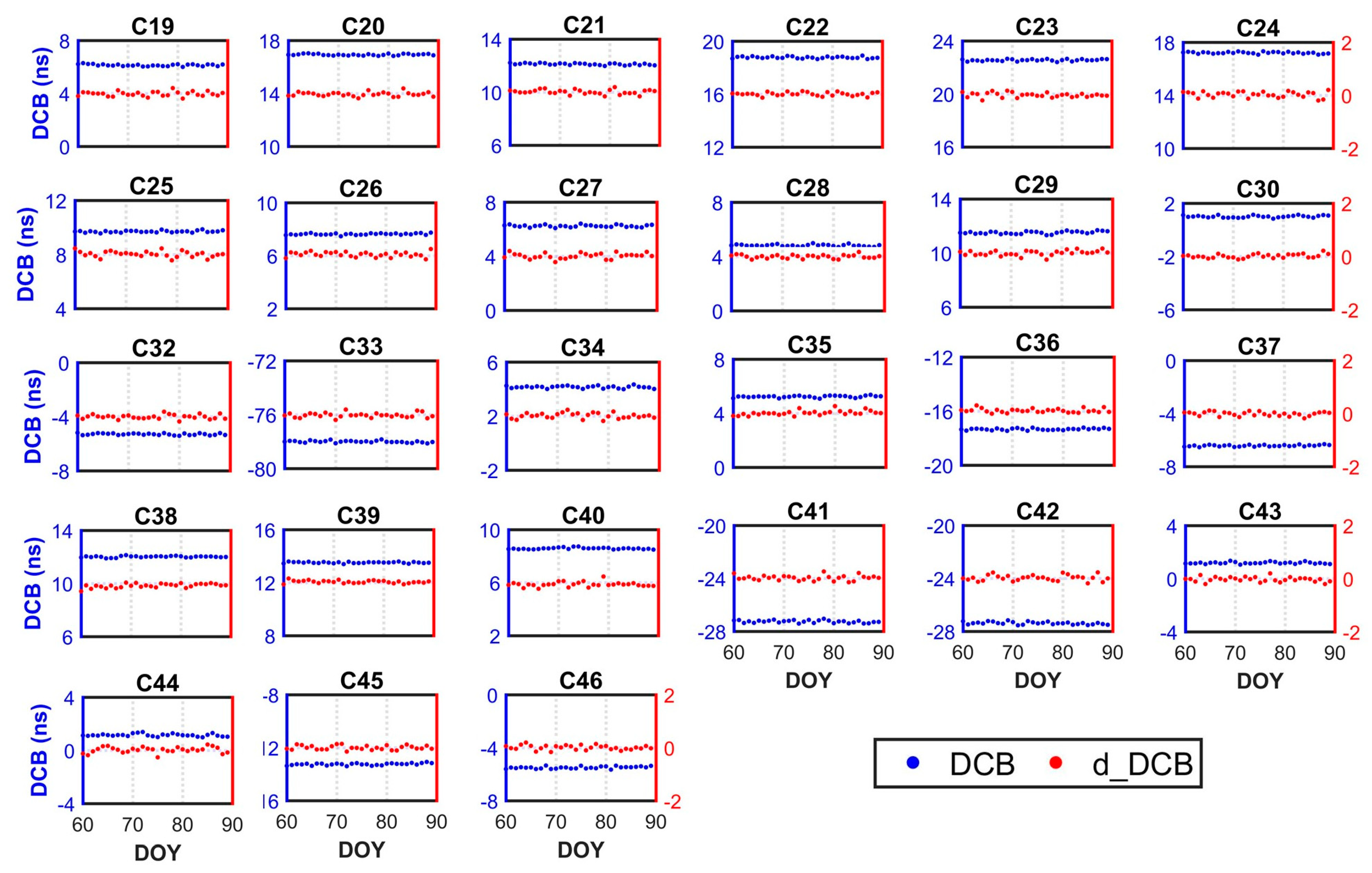

CAS and DLR analysis centers (ACs) provide DCB products for BDS-3 signals but do not include all DCB types. To validate the accuracy of DCBs within the 30 days estimated in this paper, we analyzed statistics of the DCBs, including mean bias and RMS, with CAS and DLR products. Figure 3 depicts the statistical results of 4 DCB types with the direct value provided by CAS products. The mean bias and RMS of satellite DCBs vary within ±0.20 ns and 0.30 ns, respectively. The results show our estimated DCBs have better consistency with the direct DCB value provided by CAS products. Owing to the DLR only provides DCB types between C2I and other channels, we calculated the conversion value of DCBs between the channels of BDS-3 new signal by using DLR products. The mean bias and RMS of 6 satellite DCB types are shown in Figure 4. The results of comparison with DLR products are inferior to the previous result with CAS and are mostly within ±0.40 ns. According to the error propagation principle, the cumulative error of the converted value can lead to a larger deviation of the result. In particular, C45 and C46 are obviously difference. Compared with CAS products and our estimated results, it is found that the values of DLR products deviate. This may be related to corresponding satellite stability and observation quality. Finally, the time series of C1P-C5P of DCB and the differences with respect to CAS products are shown in Figure 5. The estimated DCB of C1P-C5P varies between the −79.00 and 23.00 ns, and the differences vary within ±0.30 ns. It can be seen that the time series DCB of C1P-C5P are stable and consistent with the DCB provided by CAS products.

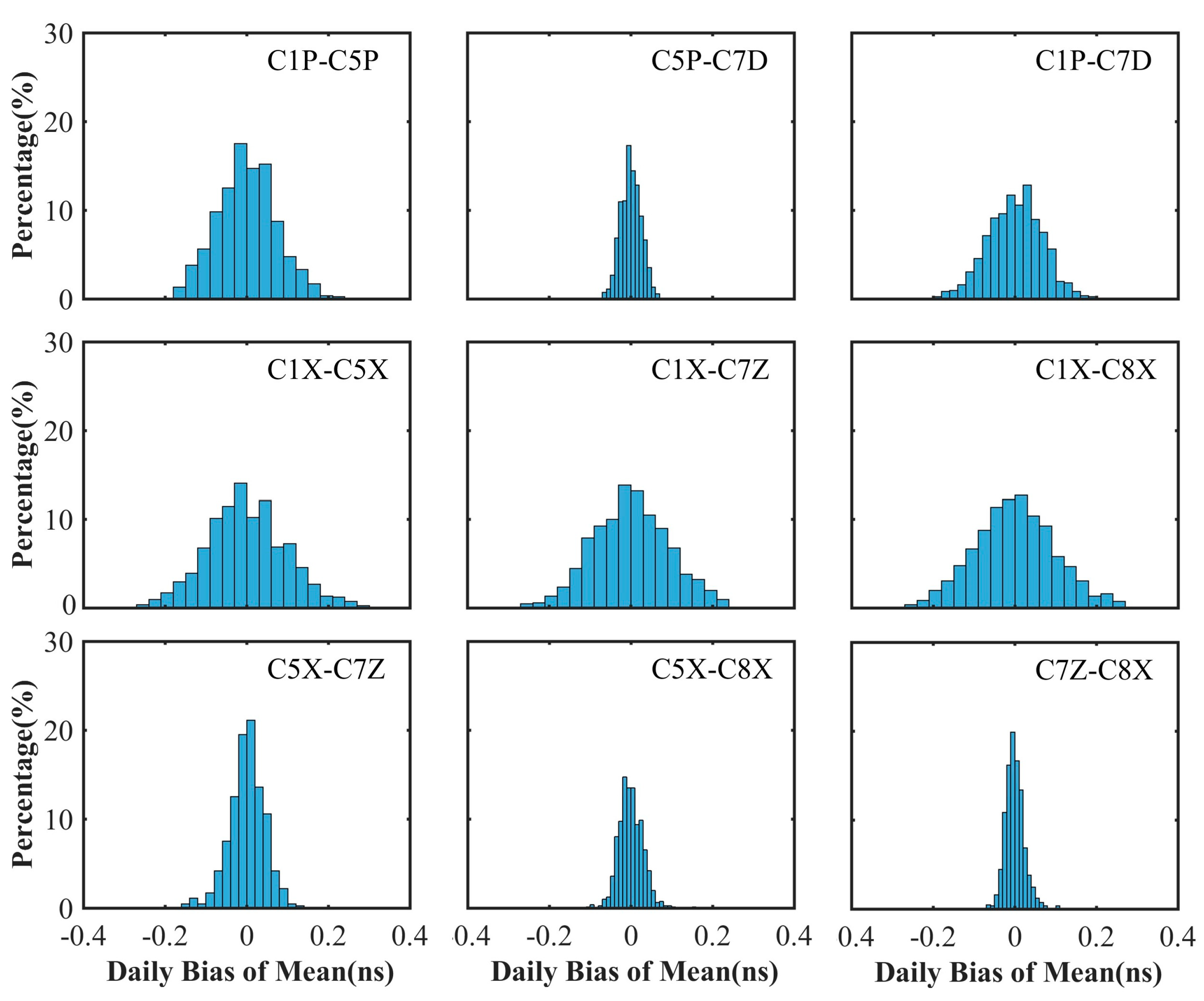

The stability of satellites during long time series is an important index to evaluate the accuracy of DCBs. Figure 6 shows the distribution of deviation between 9 DCB types of BDS-3 satellites and the corresponding mean values. The deviations of 9 DCB types vary within ±0.30 ns for the whole distribution. The optimal deviation is less than 0.10 ns, particularly for the C5P-C7D and C7Z-C8X.

Table 3. Mean STD of BDS-3 DCBs of DLR, CAS, and our results, showing the corresponding satellite psuedo random noise (PRN); the bold types are the direct values provided by CAS products.

Type	CAS			DLR			Our Results
	Max	Min	Mean	Max	Min	Mean	Max	Min	Mean
C1P-C5P	0.115 (C42)	0.040 (C39)	0.076				0.100 (C42)	0.049 (C39)	0.072
C1P-C7D							0.087 (C34)	0.045 (C38)	0.066
C5P-C7D							0.036 (C43)	0.013 (C26)	0.025
C1X-C5X	0.128 (C30)	0.050 (C40)	0.087	0.470 (C45)	0.065 (C40)	0.125	0.195 (C37)	0.050 (C27)	0.092
C1X-C7Z	0.118 (C36)	0.056 (C40)	0.092	0.465 (C45)	0.079 (C44)	0.130	0.168 (C37)	0.049 (C30)	0.091
C5X-C7Z	0.120 (C36)	0.035 (C40)	0.075	0.215 (C39)	0.073 (C36)	0.111	0.075 (C37)	0.023 (C27)	0.042
C1X-C8X	0.131 (C46)	0.066 (C40)	0.097	0.490 (C45)	0.080 (C35)	0.129	0.191 (C37)	0.043 (C27)	0.095
C5X-C8X	0.117 (C44)	0.039 (C40)	0.071	0.213 (C39)	0.065 (C36)	0.104	0.052 (C22)	0.016 (C23)	0.029
C7Z-C8X	0.085 (C22)	0.021 (C40)	0.055	0.093 (C43)	0.040 (C24)	0.060	0.051 (C29)	0.011 (C40)	0.022

summarizes the mean values of the standard deviation (STD) of BDS-3 DCBs of DLR, CAS, and our results. Our results are consistent with the stability of DCBs provided by CAS products. The conversion values of DCB provided by CAS and DLR products are less stable than our estimated DCBs. DCBs provided by DLR products related to C1X and C5X channels exhibit instability in C45 and C37 satellites. Our estimated DCBs of C37 satellites show instability in the C1X channel. This indicates that the stability levels of our estimated DCB and CAS are the same, but the conversion values of DCB provided by DLR products are slightly less stable.

3.3. Internal Coincidence of Satellite DCB

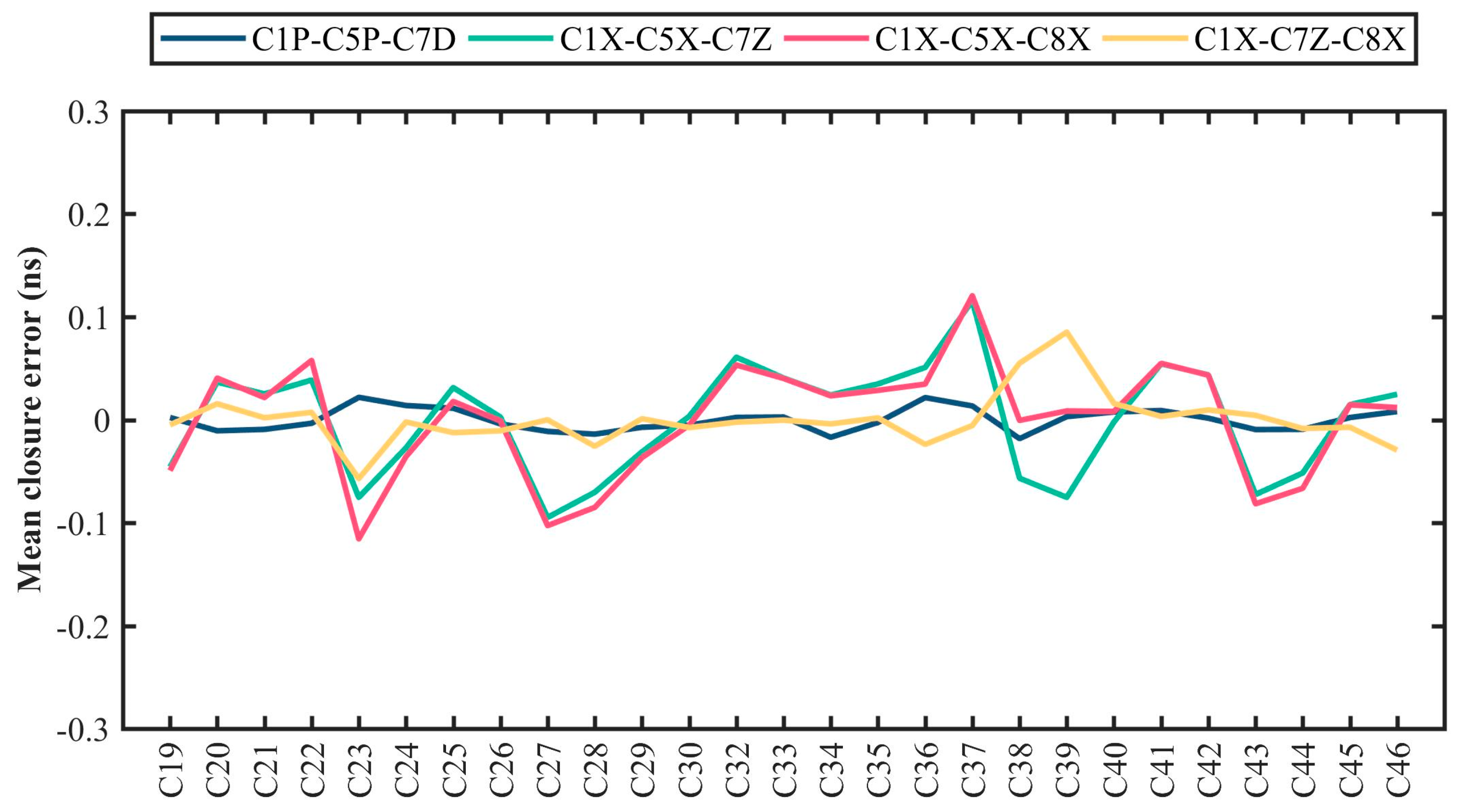

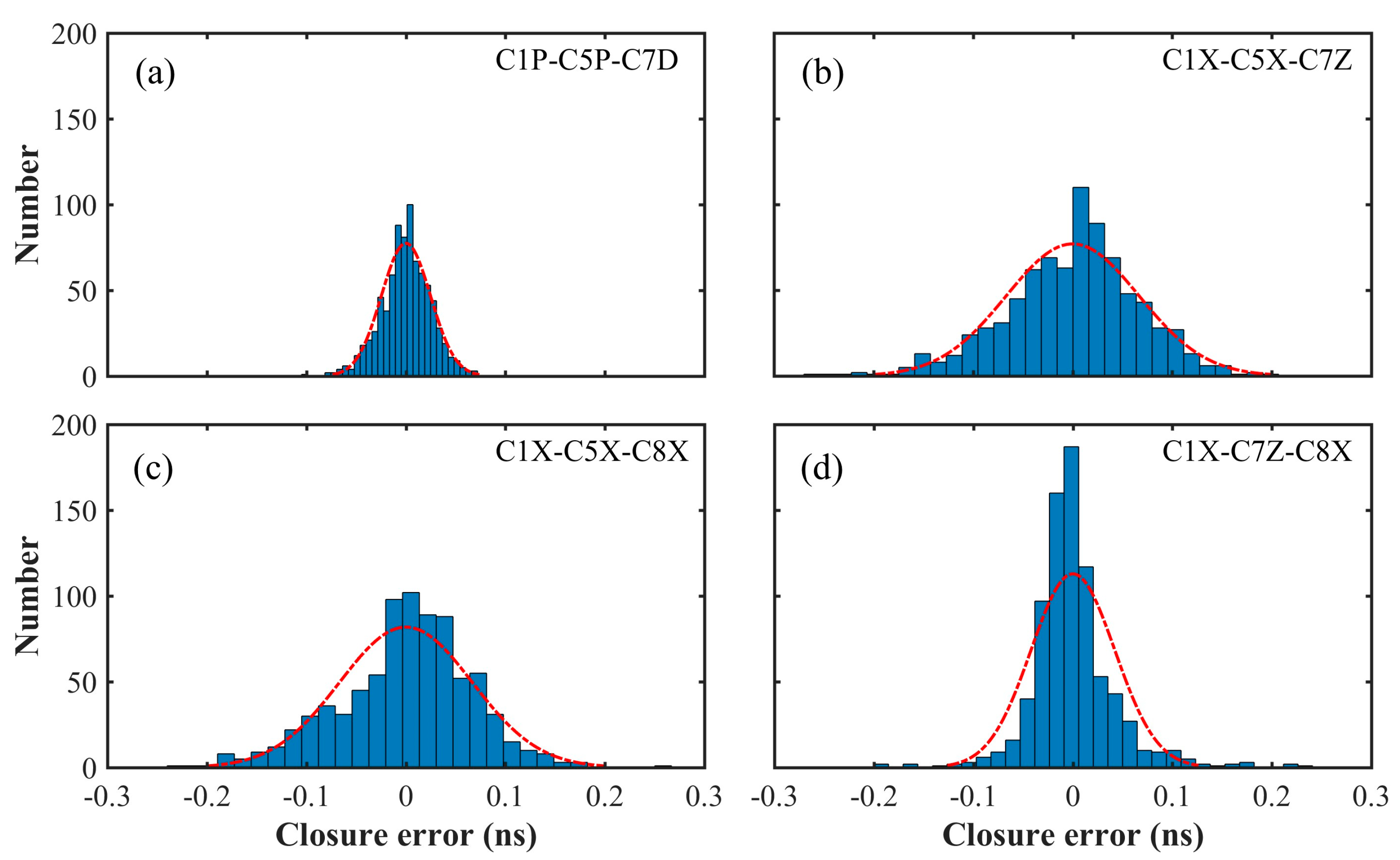

According to the nine estimated DCB types, four sets of closure errors can be constructed, including C1P-C5P-C7D, C1X-C5X-C7Z, C1X-C5X-C8X, and C1X-C7Z-C8X. Figure 7 shows the distribution of four sets of closure errors for all BDS-3 satellites. The fluctuation in closure error is within ±0.30 ns. The closure errors of C1P-C5P-C7D are less than 0.10 ns by using more stations. From the normal distribution curve, the distribution of BDS-3 satellites closure error conforms to the condition under the influence of random noise. Moreover, the corresponding mean closure error is also depicted in Figure 8. The mean closure errors of all DCB types are less than 0.15 ns. Echoing the conclusion above, the C1P-C5P-C7D set has the smallest closure error, which relates to the use of more stations. The closure errors of the C37 satellite related to the C1X channel are larger, indicating its poor stability.

3.4. Validation and Variation of Receiver DCBs

To evaluate variation characteristics of receiver DCBs, we classify experimental stations in terms of receiver types, which are summarized in

Table 4. Station and receiver information for BDS-3 DCB estimation.

Observation Channels	Receiver Type	Station
C1P/C5P/C7D	SEPT POLARX5TR	AMC4	BREW	BRUX	CEBR	GAMG	GODE
		HARB	KOUG	MGUE	NLIB	NNOR	ONSA
		PARK	SPT0	STJ3	THTG	USN7	YEL2
	SEPT POLARX5	ABPO	ALIC	AREG	ARUC	CHPI	DGAR
		FAA1	FALK	GOP6	HAL1	IISC	JPLM
		KIR0	KIRU	KITG	KOUR	MAL2	MAO0
		MAR6	MDO1	METG	MIZU	MKEA	NKLG
		NYA2	OUS2	PTGG	QAQ1	REDU	SANT
		SCOR	SEYG	SUTH	THU2	USUD	VACS
		VILL	VIS0
	SEPT POLARX5E	KOS1
	SEPT ASTERX4	KIT3	RIO2	TASH
C1X/C5X/C7Z/C8X	TRIMBLE ALLOY	BRST	CHPG	LMMF	OWMG	UNB3
	JAVAD TRE_3 DELTA	ARHT	BRMG	FFMJ	GCGO	GODN	GODS
		HUEG	LEIJ	MET3	PIE1	SOD3	TIT2
		WARN	WTZZ
	JAVAD TRE_3	ENAO	LPGS	POTS	SGOC	SUTM	ULAB
		URUM	WIND	WUH2

. According to the receiver tracking the channel types of BDS-3 new signals, the observation channels consist of two sets, i.e., C1P/C5P/C7D and C1X/C5X/C7Z/C8X. The former receiver types belong to Septentrio (SEPT), and the latter receiver types belong to TRIMBLE and JAVAD (https://files.igs.org/pub/station/general/IGSNetwork.csv) [21]. The corresponding station names are also given. As a matter of common knowledge, the stability of receiver DCBs is not as good as satellite DCBs, and it is susceptible to receiver hardware and changes in the external environment. Besides, receiver DCBs provided by CAS tracking BDS-3 new signals are not continuous for 30 days. Thus, we only compare our estimated receiver DCBs with their corresponding values provided by CAS products during 30 days.

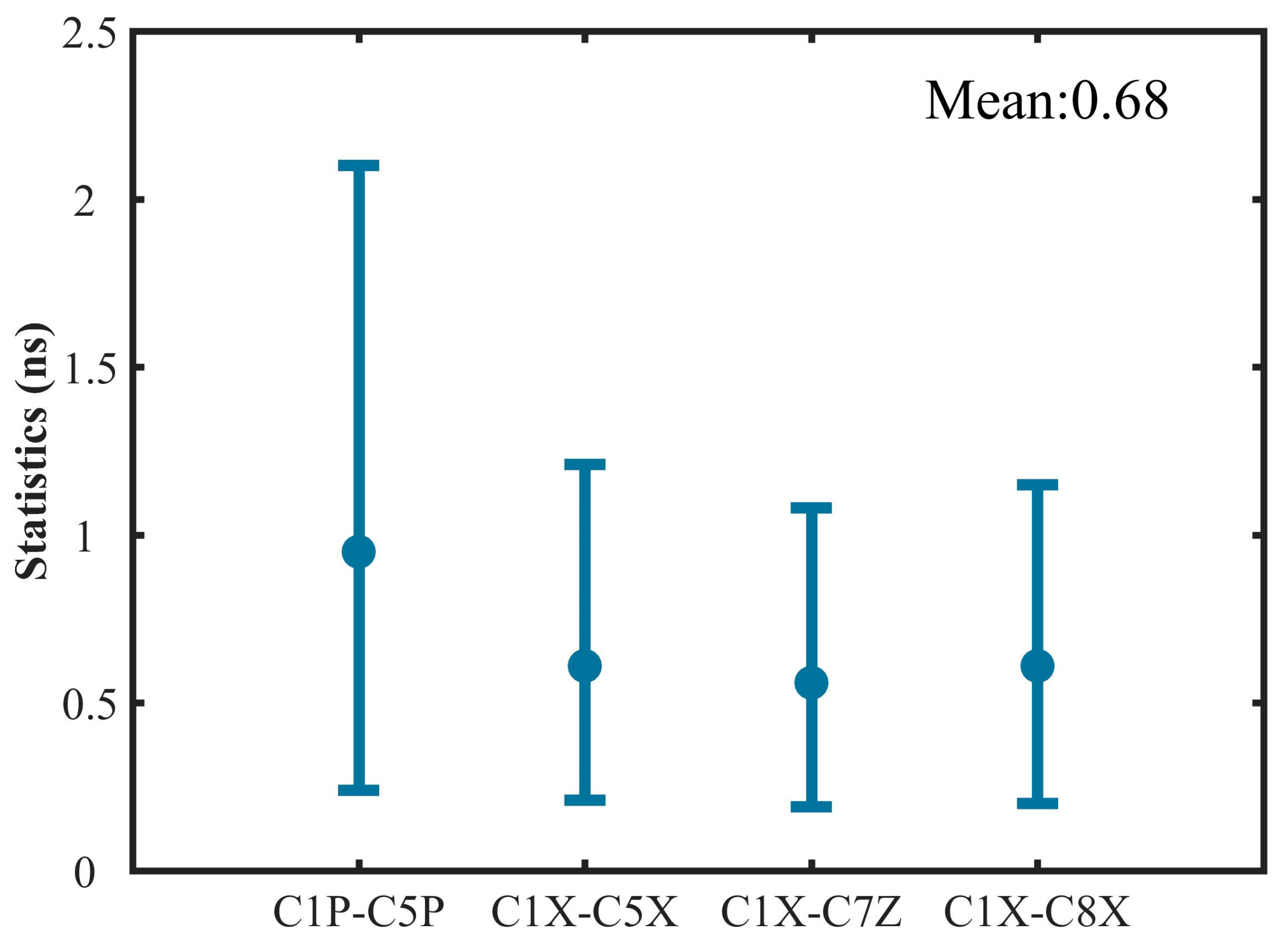

When the estimated results of satellite DCBs are relatively stable, the estimation of receiver DCBs is also directly subject to ionospheric delay estimation or correction. The accuracy of the ionospheric modeling is also closely related to geographic latitude. Hence, the geographic latitude is taken as the horizontal axis to analyze receiver DCBs. Figure 9 shows the RMS of four receiver DCB types, including C1P-C5P, C1X-C5X, C1X-C7Z, and C1X-C8X, which are dotted in different colors. Overall, the RMS of receiver DCBs vary within 2.50 ns. The RMS show an obvious relationship with the geographic latitude. The RMS mostly exceed 1.00 ns at low latitudes between −30° and 30°. However, higher consistency exists between our estimated receiver DCBs and CAS products in middle and high latitudes. Statistics for RMS of four receiver DCB types are depicted in Figure 10, including the maximum, minimum, and mean for each DCB type. The RMS of our estimated receiver DCBs is mostly less than 1.50 ns with respect to CAS. There is an equivalent accuracy among C1X-C5X, C1X-C7Z, and C1X-C8X DCBs. Because there are more low-latitude stations used to estimate C1P-C5P, the RMS values are relatively large. Finally, we calculate the mean value for RMS of our estimated receiver DCBs, which is about 0.68 ns. Considering the previous satellite DCB analysis, this phenomenon is caused by higher ionospheric activity at lower latitudes and the different ionospheric modeling strategies from CODE and CAS.

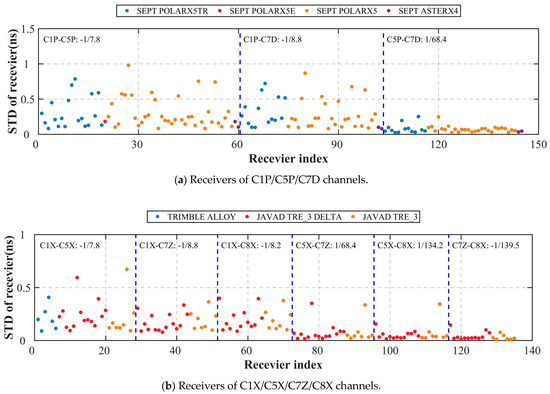

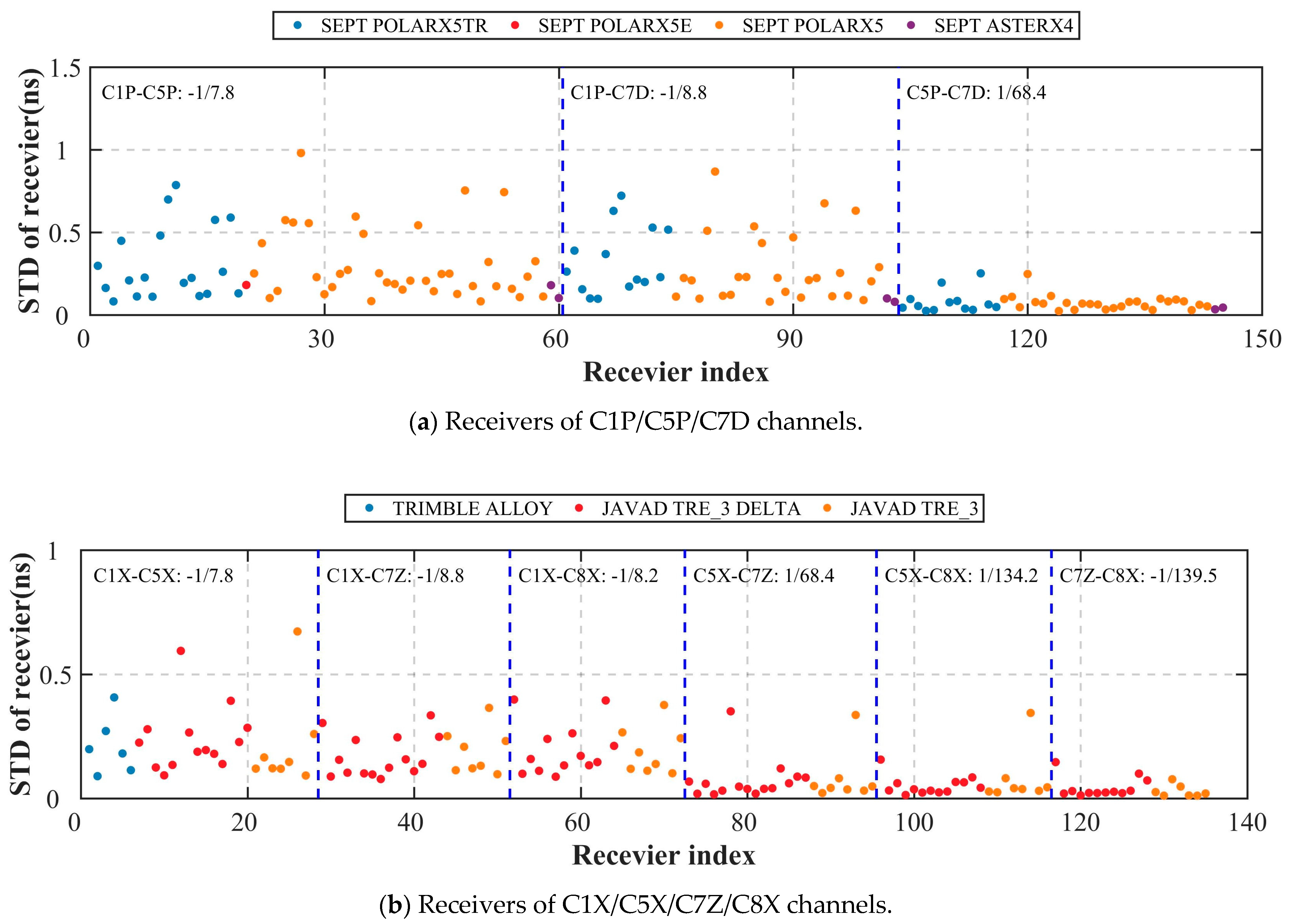

Figure 11 shows the STDs for all BDS-3 receiver DCB types in our study. Most STD values are less than 0.50 ns, and all of them are less than 1.00 ns. This indicates the receiver DCBs have poor stability compared with satellite DCBs. In addition, it can be seen that the receiver DCB types associated with the B1C(C1P/C1X) frequency are less stable than other types. As shown by the digitals in this figure, the absolute values of coefficient for ionospheric correction term increase due to the use of the dual-frequency observation with a larger frequency difference. The accuracy of ionospheric products provided by CODE is 2-8 TEC Unit (TECU) [34]. Coefficients with large absolute values can amplify the ionospheric errors under the ionospheric corrections with the same accuracy level, thus leading to the unstable estimated receiver DCBs. In terms of different colored dots, there is not a significant regularity. Thus, it can be explained that the type of receiver has no critical determinant for its stability.

4. Discussion

The satellite and receiver DCBs of new BDS-3 signals are estimated and analyzed in this paper. The MP values of BDS-3 new signals show that the B1C signal quality is slightly worse at the highest frequency, which is significantly affected by MP and other noises. Comparing our estimated results with CAS and DLR products, the DCB values with respect to the C45 and C46 satellites in DLR products have a deviation. When fewer available stations are used to estimate DCB products, the quantity and quality of observables have a large impact on the stability of satellite DCB estimates. Satellite DCB estimates are susceptible to poor quality observations and thus result in systematical bias and instability.

The receiver DCBs of the new BDS-3 signals exhibit an obvious relationship with the geographic latitude. The latitudinal dependence of receiver DCB estimates is consistent with Li et al. [24] and Wang et al [25]. Different ionospheric coefficients have a significant influence on the stability of receiver DCBs. Under the ionospheric corrections with the same accuracy level, the ionospheric coefficient with a larger absolute value will amplify the errors in the process of error propagation. Although the STDs of receiver DCBs show no obvious relationship between the type of receiver and its stability, this relationship also needs to be further analyzed and validated for latitude, temperature, and other influencing factors [22,35].

Because there are only a few MGEX stations with tracking such channel codes of observation, the DCB estimation does not cover all the channel codes, such as C1X-C7D and C5X-C7D. The DCB types can be further estimated and analyzed when more stations are established by tracking the relevant channel codes of observation in the future.

5. Conclusions

As the main error source of multi-frequency BDS signal applications, the DCBs of new BDS-3 signals (B1C/B2a/B2b/B2(a+b)) are estimated and analyzed systematically in this paper. The nine sets of DCB types are constructed using the 88 stations from the MGEX network for 30 days. The main conclusions are summarized as follows:

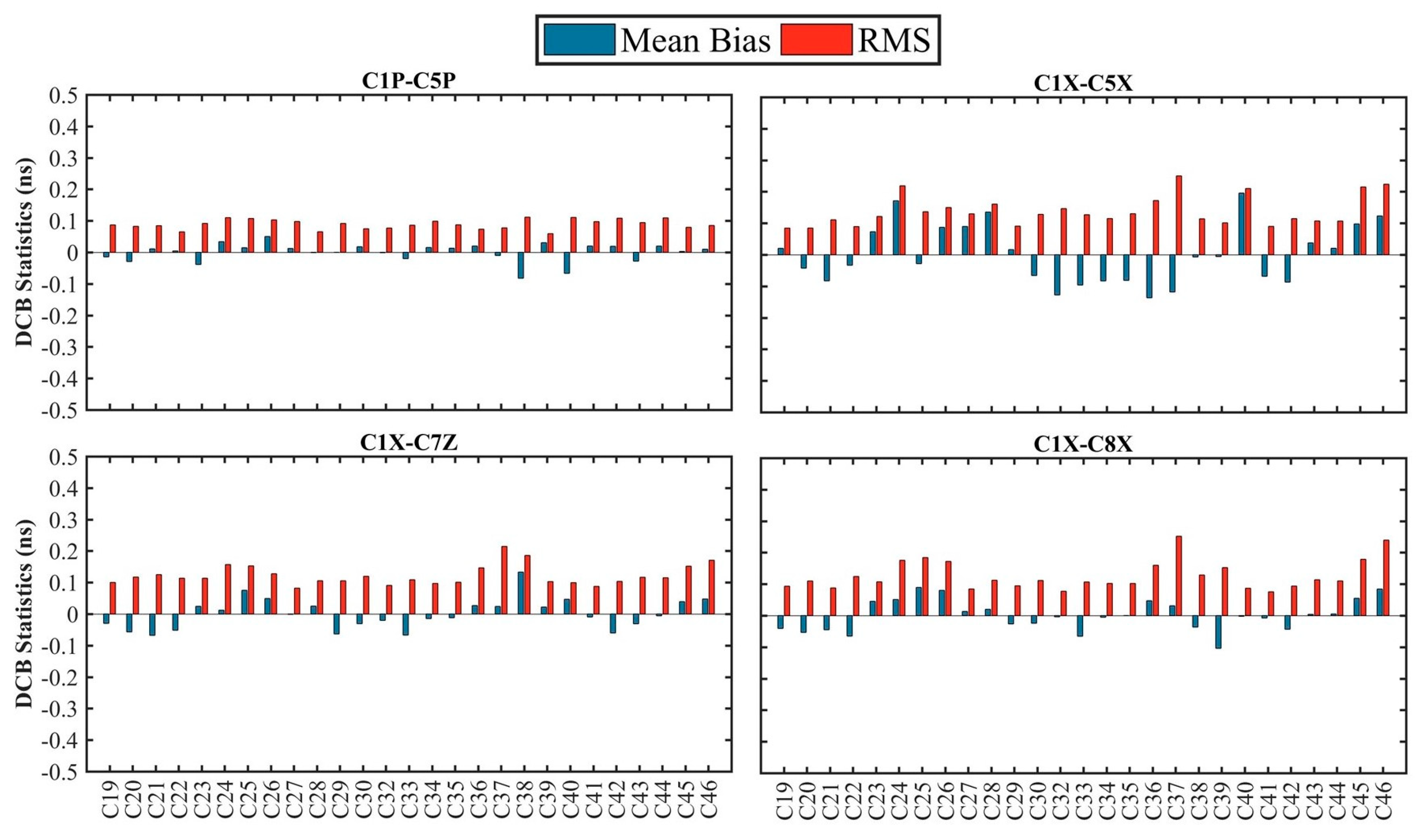

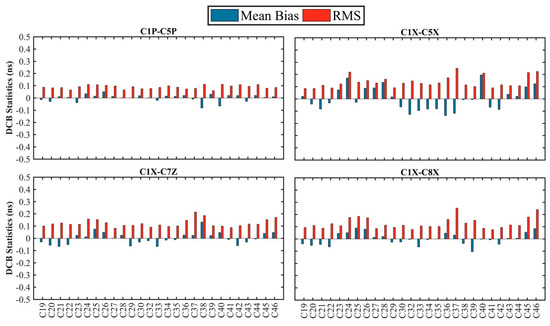

• Compared to the direct DCB values provided by CAS products, the mean bias and RMS of satellite DCBs are within ±0.20 and 0.30 ns, respectively, while the results are mostly within ±0.40 ns when compared with the DLR products.
• By analyzing STD values for each DCB type, our estimated DCBs are more stable than CAS and DLR products. In particular, DCBs of DLR products related to the C1X channel of the C45 satellite have poor stability, leading to a deviation from our estimation and CAS product.
• Four sets of constructed closure errors are within 0.30 ns, and their mean values are less than 0.15 ns, indicating that our estimated satellite DCBs of BDS-3 have high precision.
• The RMS of receiver DCBs is mostly less than 1.50 ns with respect to CAS products. An obvious relationship is found between RMS values and the geographic latitude, e.g., the RMS of C1P-C5P DCB with more than 1.00 ns for stations in low latitude areas. Almost all the receivers of C1X/C5X/C7Z/C8X channels are located at middle and high latitudes, so the receiver DCBs are better consistent with CAS products.
• The STDs of BDS-3 receiver DCBs are within 1.00 ns, which are not as stable as satellite DCBs. The STDs of different receiver types show no significant differences. However, the coefficients of ionospheric correction obtained by different frequencies differ significantly.

Although the BDS-2/3 system has been fully built, the number of stations with tracking new BDS-3 signals is far less than GPS. To promote precise applications of multi-frequency BDS-3, more stations with tracking full frequencies of BDS-3 signals need to be established, which will contribute to ionospheric modeling and DCBs estimation.
