Article

Smallholder Crop Type Mapping and Rotation Monitoring in Mountainous Areas with Sentinel-1/2 Imagery

by
Tingting Ren
1,2,
Hongtao Xu
2,
Xiumin Cai
1,
Shengnan Yu
1 and
Jiaguo Qi
1,3,*
1
Asia Hub, Nanjing Agricultural University, Nanjing 210095, China
2
Inner Mongolia Academy of Agricultural and Animal Husbandry Sciences, Hohhot 010031, China
3
Center for Global Change & Earth Observations, Michigan State University, East Lansing, MI 48823, USA
*
Author to whom correspondence should be addressed.
Remote Sens. 2022, 14(3), 566; https://doi.org/10.3390/rs14030566
Submission received: 16 December 2021 / Revised: 20 January 2022 / Accepted: 21 January 2022 / Published: 25 January 2022
Browse Figures
Review Reports Versions Notes

Abstract

:
Accurate and timely crop type mapping and rotation monitoring play a critical role in crop yield estimation, soil management, and food supplies. To date, to our knowledge, accurate mapping of crop types remains challenging due to the intra-class variability of crops and labyrinthine natural conditions. The challenge is further complicated for smallholder farming systems in mountainous areas where field sizes are small and crop types are very diverse. This bottleneck issue makes it difficult and sometimes impossible to use remote sensing in monitoring crop rotation, a desired and required farm management policy in parts of China. This study integrated Sentinel-1 and Sentinel-2 images for crop type mapping and rotation monitoring in Inner Mongolia, China, with an extensive field-based survey dataset. We accomplished this work on the Google Earth Engine (GEE) platform. The results indicated that most crop types were mapped fairly accurately with an F1-score around 0.9 and a clear separation of crop types from one another. Sentinel-1 polarization achieved a better performance in wheat and rapeseed classification among different feature combinations, and Sentinel-2 spectral bands exhibited superiority in soybean and corn identification. Using the accurate crop type classification results, we identified crop fields, changed or unchanged, from 2017 to 2018. These findings suggest that the combination of Sentinel-1 and Sentinel-2 proved effective in crop type mapping and crop rotation monitoring of smallholder farms in labyrinthine mountain areas, allowing practical monitoring of crop rotations.

1. Introduction

Since the advent of satellite remote sensing, land cover classification has been an essential and active topic in land use science and agriculture [1,2]. With the increasing earth observation capabilities, many regional or global land cover products have been produced, such as GLC2000 [3], GlobeLand30 [4], and FROM-GLC10/30 [1,5]. These products contain cropland class but lack specific information on crop types [6,7]. In agricultural applications, accurate and timely crop type classification is vital for global food security, farming policy-making, and international food trading [8]. It is also a prerequisite for crop rotation, an emerging farming policy in China to prevent long-term land degradation [9].
Accurate crop type mapping is challenging due to spectral similarities and intra-class variability induced by crop diversity, environmental conditions, and farm practices [9,10,11]. Numerous satellites with various temporal and spatial resolutions have been launched in the past decades, such as Landsat, Sentinel, and Moderate Resolution Imaging Spectroradiometer (MODIS). These satellite images could be categorized into low, medium, high, and very high spatial resolutions according to their pixel sizes in the range of large than 100 m, 10–100 m, 1–10 m, and less than 1 m, respectively [12,13].
In the early 21st century, most crop type mapping mainly relied on low spatial resolution data, such as MODIS and AVHRR [14]. However, small and fragmented crop fields with an area smaller than 2.56 hectares are widely distributed globally, and they appear on satellite imagery as mixed pixels of different crop types [15,16]. After 2008, the freely available Landsat imagery was widely used in crop type mapping with 30 m spatial resolution [9,17]. The launch of 10 m Sentinel-2 satellite with high temporal resolution resulted in further improvements in crop type mapping [18,19] and crop field boundary delineation [20]. Mazarire et al. [21] demonstrated the potential of Sentinel-2 imagery with machine learning algorithms for mapping crop types in a heterogeneous agriculture landscape. Ibrahim et al. [22] performed crop type mapping and cropping system mapping with phenology and spectral-temporal metrics derived from Sentinel-2 imagery. Because optical imagery is limited due to weather conditions, Sentinel-1 imagery was considered a substitution for crop type mapping [23,24]. Although the combination of Sentinel-1 and Sentinel-2 has been applied for crop type classification, their potential for mapping smallholder farming systems, particularly in mountainous areas, has not been thoroughly tested [25]. The inability to accurately map crop types in small farm fields hinders subsequent crop rotation assessment.
With abundant satellite image resources, a number of classification algorithms have been developed to map crop types, including phenology-based [26], decision tree (DT) [27], support vector machine (SVM) [28,29], random forest (RF) [24,30], convolutional neural network (CNN) [8,31], and other methods. These algorithms can be categorized into supervised and unsupervised methods according to the dependency on training data [32]. The phenology-based approaches rely on time series data and can be considered a particular case in mapping crops such as winter wheat [26] or paddy rice [7,10]. Although unsupervised algorithms do not require ground-truthing training data, they are rarely used for crop type mapping due to the low accuracy [33,34]. At present, supervised algorithms are still the mainstream for crop type mapping, even though they rely extensively on ground truth data [25]. Among supervised classification algorithms, the random forest was recognized as one of the most efficient, accurate, and robust methods for crop type mapping, according to previous studies [35,36,37,38,39].
In addition to classification algorithm development in the past decades, effort was also made to enhance classification efficiency for timely mapping crop types. The advent of cloud-based platforms such as Google Earth Engine (GEE) enables efficient crop type mapping at large spatial scales [40]. For example, GEE has been successfully applied to cropland extraction [6,41,42,43], crop intensity mapping [44,45], crop type classification [23,46,47], and other land use or land cover change analyses [48,49]. However, few studies focused on crop type mapping for smallholder farmlands with this powerful platform and subsequent crop rotation analyses. For example, Liu et al. [50] only focused on small farmland parcels but did not further discriminate crop types. Although Jin et al. [23] performed smallholder maize mapping in Kenya and Tanzania, crop area changes or rotations across years were not explored.
The smalllholder farms, particularly in mountainous areas, often have complex cropping patterns, varying from year to year due to various reasons such as economic shocks and land use policies changes [50,51]. In addition to the crop pattern complexity, weather conditions present another problem in crop type mapping with optical satellite images, particularly in mountainous areas where clouds often persist for an extended time period, especially in the growing season [52]. It is thus essential to develop alternatives to map crop types reliably and efficiently for complex smallholder farmlands.
Although efforts on land cover classification have made significant progress over the past half a century, it remains challenging for accurate and timely mapping of crop types. Most existing crop-type products have a 30 m resolution, such as the cropland data layer (CDL) [53] and the Agriculture and Agri-Food Canada Annual Crop Inventory (AAFC/ACI) [54], and thus are not suitable for crop rotation assessments in smallholder areas. Machine learning algorithms have been widely used for crop type mapping, but the input features are still uncertain and vary greatly depending on geographic regions, crop types and climate conditions [8,23,46].Because of these challenges in mapping crop types in complex smallholder farmlands, crop type rotations these areas are rarely reported, especially over large areas [55].
This study presented an approach for crop type mapping and subsequent rotation monitoring in the northeast of China by integrating Sentinel-1 and Sentinel-2 images in 2017 and 2018. The objectives of this study were to: (a) compare crop mapping algorithms, with different spectral features and vegetation indices from Sentinel-2 images, and polarizations from Sentinel-1 images to determine optimal feature combinations; (b) map primary crop types (soybean, corn, wheat, and rapeseed) of smallholder farmlands; and (c) describe the crop type dynamics and assess crop rotation between 2017 and 2018.

2. Data and Methods

2.1. Study Area

The study area is within the Hulunbuir city and Hinggan League (115°31′–126°04′E, 44°14′–53°20′N) in the Inner Mongolia Autonomous Region of China (Figure 1), covering a total area around 310,000 km2. This mountainous area is composed of primarily smallholder farmlands. Given the regional differences in natural conditions (e.g., temperature and precipitation) and agricultural practices (e.g., crop types and planting dates), the study area was divided into two agro-ecological zones (AEZs) to facilitate the classification (Figure 1c).
The elevation of the study area ranges from 150 to 1800 m along with the Greater Khingan Range (Figure 1c), and the average elevation in AEZ A is significantly higher than that in AEZ B, with the descending trend from the center. Most crops are distributed at the elevation of ~600 m in AEZ A and ~300 m in AEZ B, but their slopes are the same (<15°). The study area is characterized by long cold winter and short-cool summer. The annual average temperature is below 0℃, and the yearly cumulative temperature in AEZ A is about 500 ℃ and little more in AEZ B. Impacted by the terrain, the precipitation in the two zones is also different: about 300–400 mm in AEZ A and more than 500 mm in AEZ B. According to the field boundary dataset from the local agricultural department, the crop fields of less than 16 ha account for approximately 90% of the total. In addition, more than 50% of the crop fields in the study area are smaller than 2.56 ha, which is the threshold of small farmland defined by Lesiv et al. [56] in their global field size studies.
The main crop types in the study area include wheat, rapeseed, soybean, and corn [57,58,59]. Based on multiple-year field surveys (Figure 4) and historical studies [58,59], we found that wheat and rapeseed are mainly distributed in AEZ A, while soybean and corn are mostly in AEZ B. Limited rice fields could also be found in AEZ B. Therefore, in AEZ A, we focused on wheat and rapeseed crops, and in AZE B we focused on soybean, corn, and rice. From a management perspective, the local government has installed a crop rotation policy to improve crop production and land degradation prevention, which requires farmers to plant different crops each year [60]. Some farmers comply with the policy, but some do not because of various management and economic reasons [61].

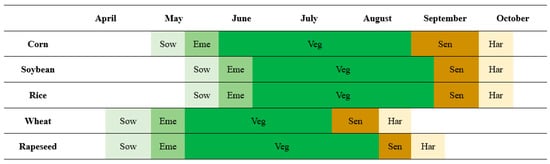

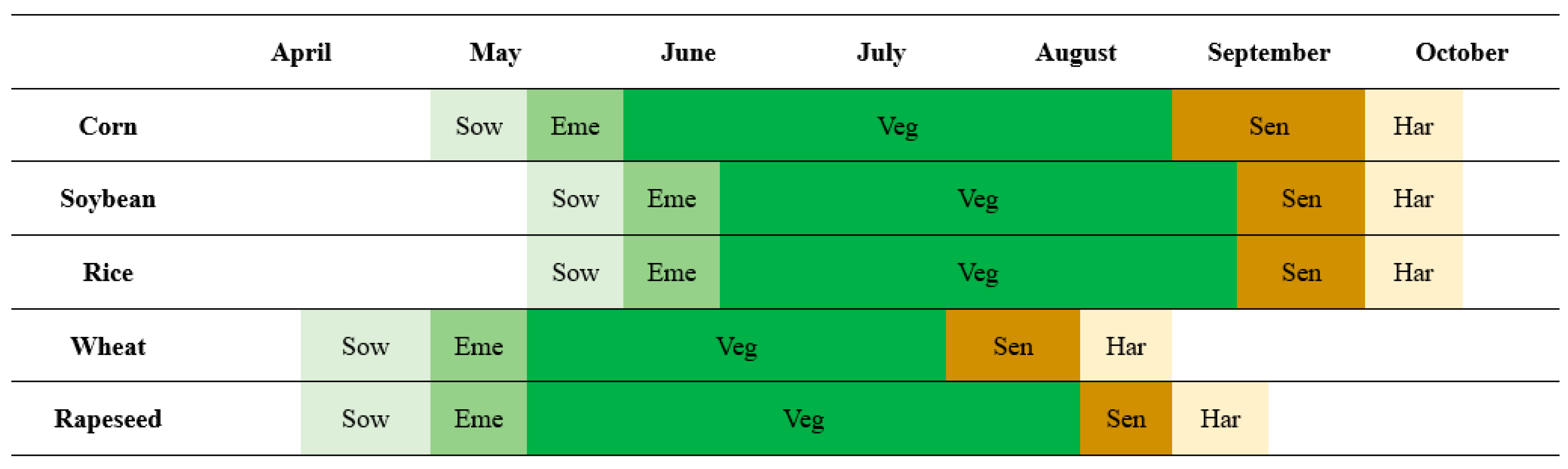

The crop phenologies of crops vary across the study area (Figure 2). Wheat and rapeseed are sown simultaneously (about April 15), but wheat’s ripening and harvest stages are about two weeks earlier (August 15 for wheat and September 1 for rapeseed). Although corn, soybean, and rice are harvested in early October, corn is sown two weeks before soybean and rice (around May 5 for corn, May 20 for soybean and rice) [58,59]. In addition, wheat and rapeseed are grown a month earlier than are soybean and rice.

2.2. Data and Processing

2.2.1. Sentinel-1 Imagery and Preprocessing

Sentinel-1 is a satellite with a C-band synthetic aperture radar (SAR)that provided a frequent coverage over the study area (Figure 3 and Table 1). The Ground Range Detected (GRD) product was used in this study, with 10 m spatial resolution and Interferometric Wide Swath (IW) mode with two polarizations, vertical transmit/vertical receive (VV) and vertical transmit/horizontal receive (VH) in GEE (“COPERNICUS/S1_GRD”). Preprocessing algorithms were applied to the Sentinel-1 imagery available within GEE, including orbital file correction, GRD border noise removal, thermal noise removal, radiometric calibration, and terrain correction (https://developers.google.com/earth-engine/guides/sentinel1, accessed on: 16 December 2021). A total of 407 Sentinel-1 images in 2017 and 398 in 2018 (Figure 3a,b, Table 1) were acquired during crop growing seasons (April 15 to August 15 for AEZ A and May 20 to October 1 for AEZ B). Each year, a median composite algorithm was applied to all Sentinel-1 imagery to create a single mosaic image for the crop type classification [62] for the entire study area.

2.2.2. Sentinel-2 Imagery and Preprocessing

Sentinel-2 is an optical satellite with two complementary satellite systems (Sentinel-2A and Sentinel-2B). The opposite orbit of Setintel-2A and Sentinel-2B improved the revisit frequency from 10 days to 5 days. Both the Sentinel-2A and Sentinel-2B carry a Multi-Spectral Instrument (MSI), which can acquire images in 13 spectral bands of variable resolution (10 m: B2, B3, B4, and B8; 20 m: B5, B6, B7, B8A, B11, and B12; 60 m: B1, B9, and B10). In GEE, level-1C (Top of Atmospheric, TOA) and level-2 (Surface Reflectance, SR) products of Sentinel-2 are freely available. However, Sentinel-2 SR product was unavailable before 2019 in China [24,63]. As many studies have demonstrated that the SR products are dispensable for crop type classification [23,64], we used the Sentinel-2 TOA product (“COPERNICUS/S2”) for crop type mapping in this study (Table 1).
Corresponding to the time window of Sentinel-1 images collected, we acquired the Sentinel-2 images in the GEE environment (Figure 3c,d). To obtain Sentinel-2 cloud-free imagery, we only chose images with less than 20% cloud cover. Then, the quality assessment band (QA60) containing the opaque and cirrus clouds information was applied to remove contaminated pixels [62]. The median function could eliminate the noise and abnormal pixels, so we generated a single high-quality Sentinel-2 imagery with a median composite algorithm. In addition to the original spectral bands, some vegetation indices were calculated to increase the variability of different crop types according to previous studies [24,57] (Table 2).

2.2.3. Cropland Layer Mask

In the study area, the proportion of cropland is much less than that of the forest, grassland, and other land cover types. To avoid the interference of non-cropland cover types, we first masked out the non-cropland cover types before implementing crop type classification. The cropland extent product (https://search.earthdata.nasa.gov/, accessed on: 16 December 2021), Global Food Security-support Analysis Data at 30 m (GFSAD30), developed by Teluguntla et al. [41], was used to mask out croplands. The product obtained more than 94% overall accuracy over China with an independent ground truth data validation. Although it was produced by the Landsat-7/8 imagery around 2015, it could also be used for cropland masks in 2017 and 2018 as the change of cropland is negligible within several years [44,45] in the study area.

2.3. Crop Type Reference Data

We collected ground truth data during the crop growing seasons in 2017 and 2018. The location of each crop field was recorded with a geographic positioning system (GPS), and the corresponding field information was recorded manually. The field samples collected were mainly crops. Other land cover types such as forests, built-up, and water bodies were not gathered as they were not the focus of this study. We acquired a total of 2412 sample points in 2017 (soybean: 666, corn: 703, rice: 45, wheat: 534, rapeseed: 167, others: 297) and 2487 sample points in 2018 (soybean: 396, corn: 755, rice: 38, wheat: 368, rapeseed: 434, others: 496). The spatial distribution of sample points is shown in Figure 4.
As field surveys in large areas are time-consuming and labor-intensive, not all samples collected are high-quality. Their quality was affected by two factors: (a) some of these samples were on the crop field edges rather than the interior of crop fields; (b) the spatial distribution of these samples was not well-proportioned. The uneven distribution in geographic space would cause potential errors in spatial representation and ultimately affect the classification accuracy [70]. To overcome these issues, we re-generated regions of interest (ROIs) by superimposing the collected field samples onto the high-resolution imagery (HRI) (e.g., Google Earth, Planet, or RapidEye) [46]. The high spatial resolution imagery was used to determine the extent, and field samples were used to label the ROIs as new ground-truthing data. The number of selected ROIs for each crop type is illustrated in Table 3. Although the number of ROIs was fewer than that of field samples, many more pixels were included in ROIs and thus provided sufficient and representative training data for crop type mapping. In the classification, 70% of the reference data were used for model training, and the remaining 30% was used for accuracy assessment.

2.4. Crop Type Classification

We chose the random forest (RF) classifier for crop type mapping. In the RF algorithm, the number of trees (n_tree) and the number of selected variables (n_var) are the two adjustable parameters that affect the performance of crop type mapping. However, many studies found that the classification performance was insensitive to these parameters. In this study, we first tested different parameters’ classification performances (50, 100, 200, …). Although parameters vary, they demonstrated subtle differences in classification performance. Following the previous research [2,42], the n_tree was set to 100, and n_var was assigned to the square root of the number of variables, avoiding menial tasks to improve the classification efficiency.
To explore the most optimal features for crop type classification, we categorized the features derived from Sentinel-1 and Sentinel-2 into three groups (Table 4). We assessed the classification performance of each group and the combination of different groups.
The RF classifier combined with Sentinel-1/2 images and training data was applied to the crop growing seasons of 2017 and 2018, respectively. If there was a crop type change from 2017 to 2018, we consider that crop rotation occurred. In general, crop rotation occurs if the crop type differs from one year to another.

2.5. Accuracy Assessment

As mentioned earlier, 30% of reference data was used to evaluate the classification accuracy of crop types. The four metrics, overall accuracy (OA), user’s accuracy (UA), producer’s accuracy (PA), and F1-score (Equation (1)), derived from the confusion matrix were applied.
F 1 − score i = 2 × PA i × UA i PA i + UA i
where F 1 − score i represents the F1-Score of class i . PA i and UA i represent the PA and UA of class i .

3. Results

3.1. Sentinel Features in Crop Classification

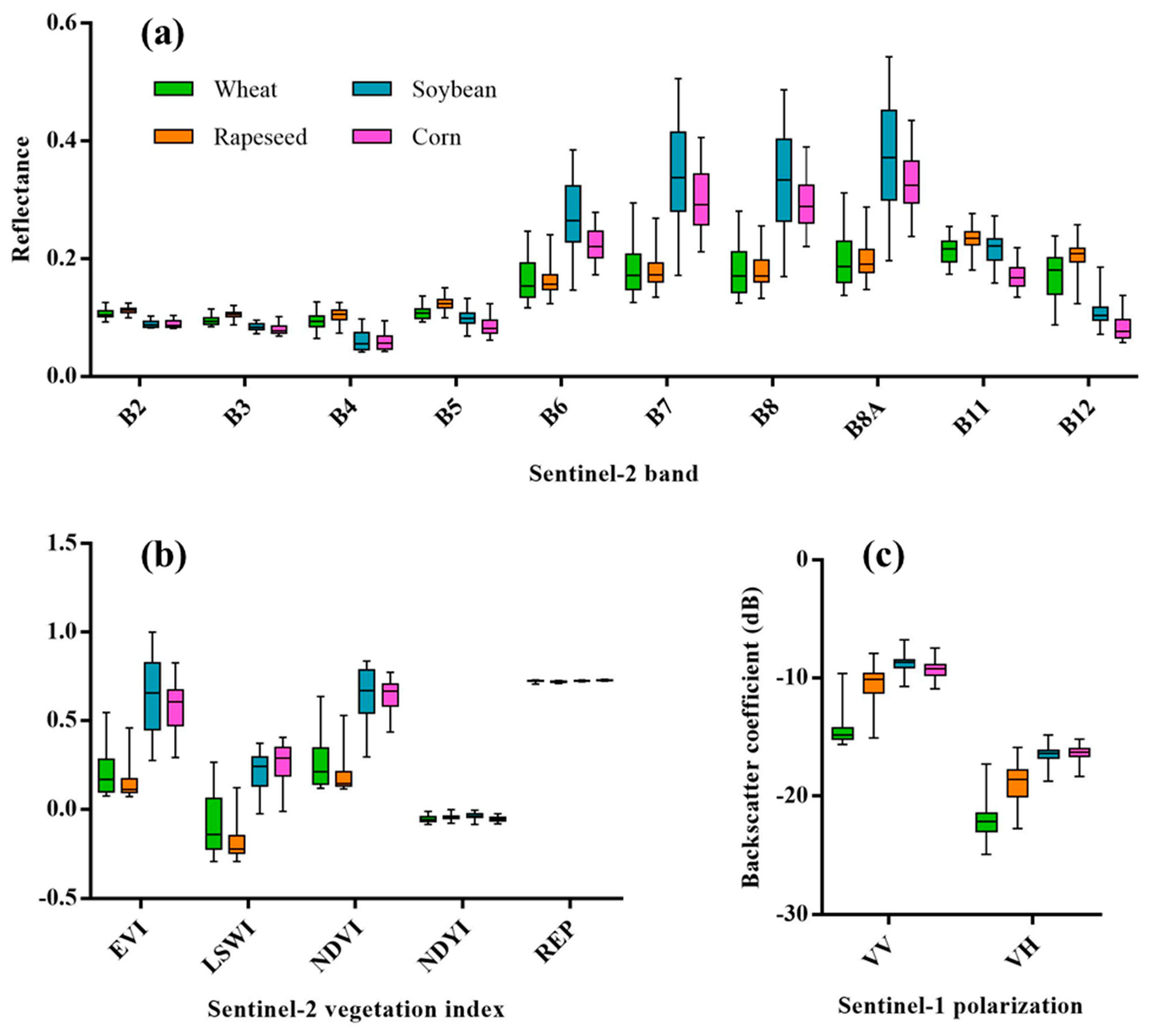

Figure 5 demonstrates the differences among Sentinel-2 spectral bands, vegetation indices, and Sentinel-1 polarizations in crop type classification. As shown in Figure 5a, there are no significant differences in visible and NIR bands between wheat and rapeseed, but the reflectance of wheat is less than that of rapeseed in the SWIR band. In addition, the intra-class variability of wheat is larger than that of rapeseed in both NIR and SWIR bands. In contrast, wheat and rapeseed exhibit noticeable differences in VV and VH polarizations (Figure 5c), demonstrating an excellent potential for wheat and rapeseed mapping with Sentinel-1 satellite imagery.
Compared with wheat and rapeseed, soybean and corn were shown to have an opposite performance in feature discrimination. While soybean has higher NIR and SWIR values, there were no noticeable differences in VIs and Sentinel-1 polarizations. Soybean and corn have higher values than wheat and rapeseed in all features except visible and SWIR bands. There was no significant difference in vegetation indices between wheat and rapeseed, and between soybean and corn (Figure 5b). It seems then that optical imagery has better performance in soybean and corn discrimination, and SAR features have better potential in wheat and rapeseed identification.

3.2. Classification Accuracy Assessment

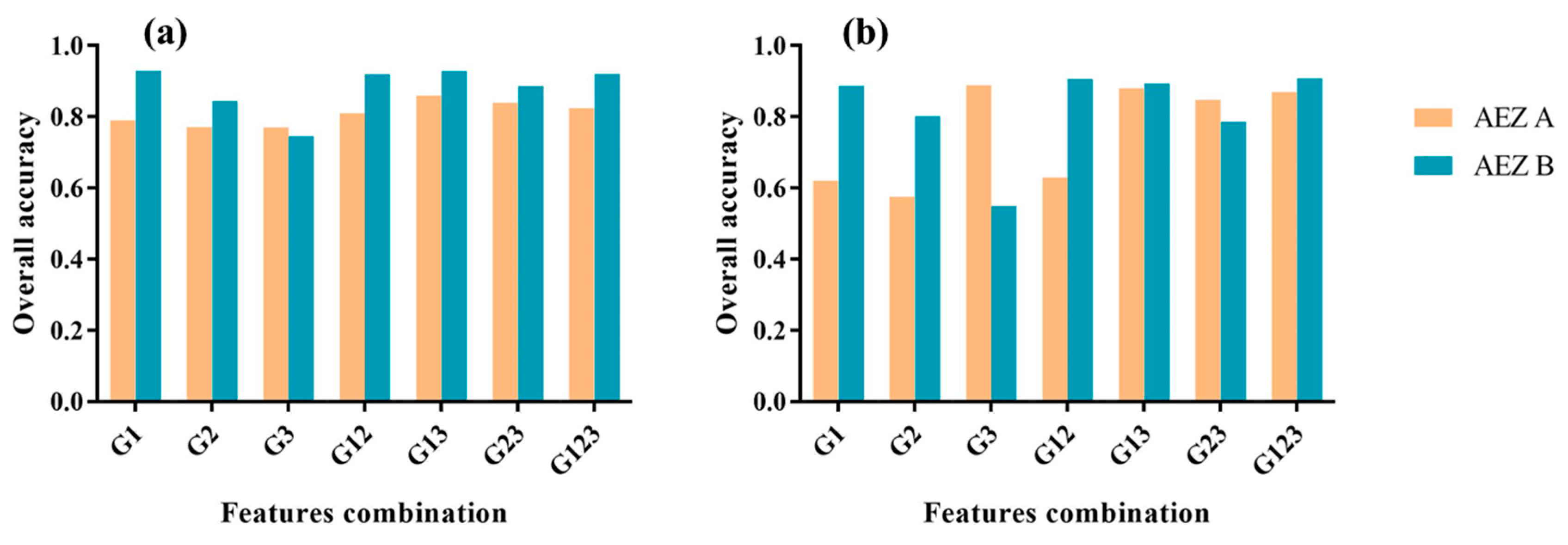

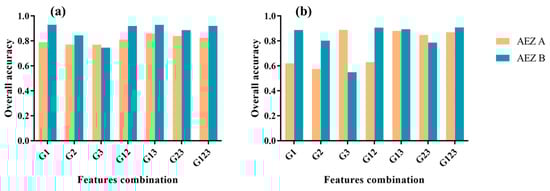

Figure 6 illustrates the classification performance with different feature combinations in 2017 and 2018 over the two AEZs. In AEZ A, among three individual feature combinations (Sentinel-2 spectral bands, vegetation indices, and Sentinel-1 polarizations), Sentinel-1 polarizations exhibited good stability across different years (about 0.8 of OA). Sentinel-2 spectral bands alone also achieved an OA of ~80% in 2017, but it only had an OA of about 60% in 2018, which suggests uncertainty of Sentinel-2 bands in wheat and rapeseed classification. The performance of vegetation indices in wheat and rapeseed classification was the same as Sentinel-2 bands, but its OA was low.
Combining all features can achieve a high OA (82.43% in 2017, 86.98% in 2018), but the combination of Sentinel-2 spectral and Sentinel-1 polarizations makes a better performance for both years (85.97% and 88.07%). This combination also achieved a high OA (92.91% and 89.36%) in AEZ B. The high accuracy (92.99% and 88.71%) obtained by the Sentinel-2 bands alone suggests spectral bands derived from optical satellites play an essential role in soybean and rapeseed (crops distributed in AEZ A) mapping. The mapping of soybean and corn (crops distributed in AEZ B) was more accurate than the wheat and rapeseed due to the higher classification accuracy demonstrated in AEZ B.
The overall classification accuracies of different crop types (Figure 7) were derived from optimal feature combinations illustrated in Figure 6. For example, classification of wheat and rapeseed in 2017 was based on the combination of Sentinel-2 spectral bands and Sentinel-1 polarizations. Among all the crop types in 2017, corn achieved highest F1-score (96.15%) with the user’s accuracy (UA) of 97.03% and producer’s accuracy (PA) of 95.29%, following by wheat (F1-score = 93.52%, UA = 97.13% and PA = 90.17%), rice (F1-score = 92.23%, UA = 95.70% and PA = 89.00%) and soybean (F1-score = 90.55%, UA = 87.47% and PA = 93.86%). The accuracy of rapeseed was not as good as other crop types based on the F1-score (76.90%) due to the low UA (64.65%), but its performance was improved in 2018 with a F1-score of 87.27% (UA = 86.25% and PA = 88.31%). Slightly different from those in 2017, wheat achieved the highest accuracy in 2018 (F1 = 97.41%, UA = 96.19 and PA = 98.67%), followed by corn (F1-score = 92.89%, UA = 89.19% and PA = 96.91%), rice (F1-score = 91.43%, UA = 84.21% and PA = 100.00%), and soybean (F1-score = 89.66%, UA = 94.35% and PA = 85.41%).

3.3. Crop Type Distribution and Rotation

The 10 m crop type maps and spatial details produced with the Sentinel-1 and Sentinel-2 imagery in the study areas in 2017 and 2018 are illustrated in Figure 8, and areas of crop types are demonstrated in Figure 9 Although the crop planting areas in the study area are small and scattered, numerous crop fields are concentrated on the right side of the study area. Further, some crop fields are distributed in the flanks of the ridge. Consistent with the distribution of field survey samples (Figure 4), the wheat and rapeseed were mainly distributed in AEZ A in both 2017 and 2018. Soybean, corn, and rice were distributed primarily in AEZ B (Figure 8a,d), suggesting the necessity and reasonability of zonal classification (Figure 1c). From close-up views benefiting from the high spatial resolution of Sentinel-1/2 imagery, the classification results exhibit the precise boundaries of crop fields (Figure 8b,c,e,f). Although a pixel-based approach was applied in this study, the classification results were similar to those from the object-based method. Each crop demonstrated a clear boundary with other crops. In addition, salt-and-pepper noise of non-crop types, which often seriously affects the classification performance in pixel-based methods, is minor in this study with the operation of non-cropland layer mask and reliable classification approaches.
These classification results showed that the crop types were not always consistent in the same crop field across different years, suggesting that crop rotation is exercised in the study area. The crop type rotation areas and spatial details are shown in Figure 10 and Figure 11. While the rice planting areas are consistent between 2017 and 2018 (Figure 8c,f), the rotation pattern mainly exists in wheat–rapeseed (Figure 8b,e and Figure 10e) and soybean–corn (Figure 8c,f and Figure 10f). Furthermore, except for a few crop fields that remain unchanged across years, the crop rotation exhibited in Figure 10 was widespread in both AEZ A and B (Figure 11).

4. Discussion

This study demonstrated that the accuracy of crop type mapping was mainly affected by the frequency and quality of remotely sensed imagery, number and representativeness of training data and classification features [71,72,73]. As shown in previous research, this study demonstrated that multi-sensor compositing enhanced data availability and improved crop type classification accuracy [57,74]. The combination of Sentinel-1 and Sentinel-2 images provided more observations (Figure 3) and, more importantly, distinguishable features for the classes with similar spectral properties (Figure 5). Although compositing Landsat (Landsat-liked) and Sentinel-2 could also improve data availability, the 30 m spatial resolution is inadequate in most developing countries with smallholder farming systems [22,23]. LiDAR data or high spatial resolution images were also recommended to improve crop type mapping in smallholder regions [75,76], but the data scarcity limited its developments. In addition, this study has revealed that the freely available images of Sentinel-1 and Sentinel-2 could achieve high accuracy for smallholder crop type mapping over mountainous areas.
Sentinel-1 polarizations had better performance than Sentinel-2 bands in wheat and rapeseed classification, which may result from the flowering stage of rapeseed. The flowering stage was frequently used for crop type classification as apparent differences in spectral reflectance exist over this growth period for many crops [77,78]. Wheat and rapeseed have distinctive spectral features during the flowering stage. While the rapeseed flowers are yellow, wheat is inconspicuous [63], and the differences could also be found in the green and red bands. Compared with Sentinel-2 bands, the differences exhibited in Sentinel-1 polarizations are more prominent. Using these features, Dong et al. (2021) directly levered a robust threshold of Sentinel-1 VH polarization to distinguish rapeseed from wheat in winter wheat mapping across entire China [30]. Mercier et al. (2020) applied the Sentinel-1 polarizations to predict wheat and rapeseed phenological stages [79].
The canopy structures and biophysical properties of soybean and corn are utterly different. Since previous studies have demonstrated the sensitivity of SAR image to crop canopy structures and biophysical parameters [80,81], we assumed that Sentinel-1 polarizations have better performance than Sentinel-2 spectral bands in soybean and corn discrimination. However, the differences between soybean and corn in VV and VH polarizations were not significant, similar to the finding by other studies [24] in the same regions of China. A similar feature for VV and VH polarizations existed for the growing season. It may be because the study area is in mountainous areas, and differences in topography dwarf the differences in crop height. Among Sentinel-2 features, visible bands also exhibited a similar performance because visible bands had notably strong scattering by the atmosphere [82]. Compared with visible bands of Sentinel-2, SWIR bands demonstrated a better distinction between soybean and corn [8,83]. The effect of red-edge bands in crop classification has been shown in many crop type classification research [25,57].
The consistent classification of crop type in 2017 and 2018 revealed the significant inter-annual changes in crop distribution (Figure 10). It is essential for developing countries like China to balance environmental sustainability, agriculture, and food security with limited cropland resources and large populations. To this end, the crop planting area and structural adjustment policies were conducted in northeast China in recent years. The policy incentivized frequent crop rotations of different crops [57,60,61]. It was the main reason we could observe the widespread rotations in corn–soybean or wheat–rapeseed over the study area. Limited by field surveys, only two years of crop type were mapped, but the consistent observations have the potential for multiple-year crop rotation assessments [19,60].
Although the approach used in this study achieved high accuracies for crop classification, some uncertainties still exist. First, to avoid non-crop interference, we used the 30 m cropland product to mask out the non-crop areas. The classification errors in this product may have impacts on the accuracy of the resultant crop type maps [44]. In addition, mixed pixels derived from the 30m spatial resolution product could also cause errors in crop type classification and rotation monitoring with 10 m Sentinel-1/2 images [84]. The narrow lines seen on the crop rotation map (Figure 10) were resulted from the spatial resolution differences between Sentinel imagery and the GFSAD30 product. If 10 m cropland products are available, more accurate classification and rotation results will be generated. Second, we applied Sentinel-2 TOA products in this study as the SR data was unavailable in the GEE platform during the study period. Although poor observations and contaminated pixels, including snow/ice, opaque, and cirrus, were processed based on the quality assessment band, the abnormal values also generated uncertainties in classification [7]. Finally, the uneven image numbers across different years (Table 1) may result in inconsistent observations between 2017 and 2018.
While the salt and pepper noises in classification results were minimal, the object-based classification approaches might also be appropriate in mapping crop types, according to previous studies [62,85,86]. Vegetation indices derived from Sentinel-2 imagery showed little difference in crop type classification. More vegetation indices should be explored in future studies to improve classification accuracy. Limited by the ground truth data availability, only two years of crop type classification and rotation monitoring were assessed in this study. We expected that long-term field surveys or new techniques for training data collections would be available in the future so that crop type rotation monitoring in multiple years is feasible.

5. Conclusions

Sentinel-1/2 images, combined with random forest classifier and Google Earth Engine platform, were used to map crop types and assess crop rotation patterns in a typical smallholder system located in mountainous areas. We combined different approaches to explore the optimal features for crop type classification in smallholder farms. The results demonstrated that the Sentinel-1 polarizations have better performance for wheat and rapeseed discrimination, and the Sentinel-2 bands exhibit obvious advantages in soybean and corn classification. With the optimal features identified (Sentinel-1 VV and VH bands for wheat and rapeseed; Sentinel-2 red edge and SWIR bands for soybean and corn), we achieved a high overall accuracy of ~90% for most crops in the study area and showed clear separations from other crop types even in a complicated crop cultivation, smallholder farming system. Sentinel-1 is recommended for wheat and rapeseed classification and Sentinel-2 for soybean and rapeseed classification, particularly in mountainous areas. The crop rotations were monitored based on the reliable and high spatial resolution crop type maps. This study demonstrated the potential of combining Sentinel-1 and Sentinel-2 in crop type classification and provided a reference for future crop rotation monitoring.

Author Contributions

Conceptualization, J.Q. and T.R.; methodology, T.R. and H.X.; software, T.R.; validation, T.R., X.C. and S.Y.; formal analysis, T.R.; investigation, H.X. and T.R.; resources, X.C. and J.Q.; data curation, T.R.; writing—original draft preparation, T.R.; writing—review and editing, J.Q.; visualization, X.C.; supervision, J.Q.; project administration, X.C.; funding acquisition, J.Q. and X.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the joint scientific research project of the Sino-foreign cooperative education platform (192-800005), Innovation Fund Project for Young Scholars of Inner Mongolia Academy of Agricultural and Animal Husbandry Sciences (2020QNJJNO13), Special Fund for Key Program of Science and Technology of Inner Mongolia Autonomous Region (2020ZD0005), The Natural Science Foundation of Inner Mongolia Autonomous Region (2016MS(LH)0301), Science and Technology Plan Project of Inner Mongolia Autonomous Region (Grant No. 201602056), and the Asia Hub initiative fund at Nanjing Agricultural University, China.

Data Availability Statement

Data used in this study included freely available satellite images available on GEE. Field survey data are available upon requests to the corresponding author ([email protected]).

Acknowledgments

We would like to thank the editor and the two reviewers for their valuable comments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gong, P.; Wang, J.; Yu, L.; Zhao, Y.; Zhao, Y.; Liang, L.; Niu, Z.; Huang, X.; Fu, H.; Liu, S.; et al. Finer resolution observation and monitoring of global land cover: First mapping results with Landsat TM and ETM+ data. Int. J. Remote Sens. 2013, 34, 2607–2654. [Google Scholar] [CrossRef] [Green Version]
  2. Zhang, X.; Liu, L.; Chen, X.; Gao, Y.; Xie, S.; Mi, J. GLC_FCS30: Global land-cover product with fine classification system at 30 m using time-series Landsat imagery. Earth Syst. Sci. Data Discuss. 2020, 12, 1625–1648. [Google Scholar] [CrossRef]
  3. Bartholomé, E.; Belward, A.S. GLC2000: A new approach to global land cover mapping from Earth observation data. Int. J. Remote Sens. 2005, 26, 1959–1977. [Google Scholar] [CrossRef]
  4. Chen, J.; Chen, J.; Liao, A.; Cao, X.; Chen, L.; Chen, X.; He, C.; Han, G.; Peng, S.; Lu, M.; et al. Global land cover mapping at 30 m resolution: A POK-based operational approach. ISPRS J. Photogramm. Remote Sens. 2015, 103, 7–27. [Google Scholar] [CrossRef] [Green Version]
  5. Gong, P.; Liu, H.; Zhang, M.; Li, C.; Wang, J.; Huang, H.; Clinton, N.; Ji, L.; Li, W.; Bai, Y.; et al. Stable classification with limited sample: Transferring a 30-m resolution sample set collected in 2015 to mapping 10-m resolution global land cover in 2017. Sci. Bull. 2019, 64, 370–373. [Google Scholar] [CrossRef] [Green Version]
  6. Xiong, J.; Thenkabail, P.S.; Gumma, M.K.; Teluguntla, P.; Poehnelt, J.; Congalton, R.G.; Yadav, K.; Thau, D. Automated cropland mapping of continental Africa using Google Earth Engine cloud computing. ISPRS J. Photogramm. Remote Sens. 2017, 126, 225–244. [Google Scholar] [CrossRef] [Green Version]
  7. Dong, J.; Xiao, X.; Menarguez, M.A.; Zhang, G.; Qin, Y.; Thau, D.; Biradar, C.; Moore, B., III. Mapping paddy rice planting area in northeastern Asia with Landsat 8 images, phenology-based algorithm and Google Earth Engine. Remote Sens. Environ. 2016, 185, 142–154. [Google Scholar] [CrossRef] [Green Version]
  8. Cai, Y.; Guan, K.; Peng, J.; Wang, S.; Seifert, C.; Wardlow, B.; Li, Z. A high-performance and in-season classification system of field-level crop types using time-series Landsat data and a machine learning approach. Remote Sens. Environ. 2018, 210, 35–47. [Google Scholar] [CrossRef]
  9. Zhong, L.; Gong, P.; Biging, G.S. Efficient corn and soybean mapping with temporal extendability: A multi-year experiment using Landsat imagery. Remote Sens. Environ. 2014, 140, 1–13. [Google Scholar] [CrossRef]
  10. Qiu, B.; Li, W.; Tang, Z.; Chen, C.; Qi, W. Mapping paddy rice areas based on vegetation phenology and surface moisture conditions. Ecol. Indic. 2015, 56, 79–86. [Google Scholar] [CrossRef]
  11. Wardlow, B.D.; Egbert, S.L.; Kastens, J.H. Analysis of time-series MODIS 250 m vegetation index data for crop classification in the US Central Great Plains. Remote Sens. Environ. 2007, 108, 290–310. [Google Scholar] [CrossRef] [Green Version]
  12. Aksoy, S.; Yalniz, I.Z.; Tasdemir, K. Automatic Detection and Segmentation of Orchards Using Very High Resolution Imagery. IEEE Trans. Geosci. Remote Sens. 2012, 50, 3117–3131. [Google Scholar] [CrossRef]
  13. Jia, K.; Liang, S.; Zhang, N.; Wei, X.; Gu, X.; Zhao, X.; Yao, Y.; Xie, X. Land cover classification of finer resolution remote sensing data integrating temporal features from time series coarser resolution data. ISPRS J. Photogramm. Remote Sens. 2014, 93, 49–55. [Google Scholar] [CrossRef]
  14. Wardlow, B.D.; Egbert, S.L. Large-area crop mapping using time-series MODIS 250 m NDVI data: An assessment for the U.S. Central Great Plains. Remote Sens. Environ. 2008, 112, 1096–1116. [Google Scholar] [CrossRef]
  15. Fritz, S.; See, L.; McCallum, I.; You, L.; Bun, A.; Moltchanova, E.; Duerauer, M.; Albrecht, F.; Schill, C.; Perger, C.; et al. Mapping global cropland and field size. Glob. Chang. Biol. 2015, 21, 1980–1992. [Google Scholar] [CrossRef]
  16. Lobell, D.B.; Asner, G.P. Cropland distributions from temporal unmixing of MODIS data. Remote Sens. Environ. 2004, 93, 412–422. [Google Scholar] [CrossRef]
  17. Foerster, S.; Kaden, K.; Foerster, M.; Itzerott, S. Crop type mapping using spectral–temporal profiles and phenological information. Comput. Electron. Agric. 2012, 89, 30–40. [Google Scholar] [CrossRef] [Green Version]
  18. Zhang, H.; Du, H.; Zhang, C.; Zhang, L. An automated early-season method to map winter wheat using time-series Sentinel-2 data: A case study of Shandong, China. Comput. Electron. Agric. 2021, 182, 105962. [Google Scholar] [CrossRef]
  19. Dong, Q.; Chen, X.; Chen, J.; Zhang, C.; Liu, L.; Cao, X.; Zang, Y.; Zhu, X.; Cui, X. Mapping Winter Wheat in North China Using Sentinel 2A/B Data: A Method Based on Phenology-Time Weighted Dynamic Time Warping. Remote Sens. 2020, 12, 1274. [Google Scholar] [CrossRef] [Green Version]
  20. Waldner, F.; Diakogiannis, F.I. Deep learning on edge: Extracting field boundaries from satellite images with a convolutional neural network. Remote Sens. Environ. 2020, 245, 111741. [Google Scholar] [CrossRef]
  21. Mazarire, T.T.; Ratshiedana, P.E.; Nyamugama, A.; Adam, E.; Chirima, G. Exploring machine learning algorithms for mapping crop types in a heterogeneous agriculture landscape using Sentinel-2 data. A case study of Free State Province, South Africa. S. Afr. J. Geomat. 2020, 9, 333–347. [Google Scholar]
  22. Ibrahim, E.S.; Rufin, P.; Nill, L.; Kamali, B.; Nendel, C.; Hostert, P. Mapping Crop Types and Cropping Systems in Nigeria with Sentinel-2 Imagery. Remote Sens. 2021, 13, 3523. [Google Scholar] [CrossRef]
  23. Jin, Z.; Azzari, G.; You, C.; Di Tommaso, S.; Aston, S.; Burke, M.; Lobell, D.B. Smallholder maize area and yield mapping at national scales with Google Earth Engine. Remote Sens. Environ. 2019, 228, 115–128. [Google Scholar] [CrossRef]
  24. You, N.; Dong, J. Examining earliest identifiable timing of crops using all available Sentinel 1/2 imagery and Google Earth Engine. ISPRS J. Photogramm. Remote Sens. 2020, 161, 109–123. [Google Scholar] [CrossRef]
  25. Pott, L.P.; Amado, T.J.C.; Schwalbert, R.A.; Corassa, G.M.; Ciampitti, I.A. Satellite-based data fusion crop type classification and mapping in Rio Grande do Sul, Brazil. ISPRS J. Photogramm. Remote Sens. 2021, 176, 196–210. [Google Scholar] [CrossRef]
  26. Qiu, B.; Luo, Y.; Tang, Z.; Chen, C.; Lu, D.; Huang, H.; Chen, Y.; Chen, N.; Xu, W. Winter wheat mapping combining variations before and after estimated heading dates. ISPRS J. Photogramm. Remote Sens. 2017, 123, 35–46. [Google Scholar] [CrossRef]
  27. Tian, H.; Huang, N.; Niu, Z.; Qin, Y.; Pei, J.; Wang, J. Mapping Winter Crops in China with Multi-Source Satellite Imagery and Phenology-Based Algorithm. Remote Sens. 2019, 11, 820. [Google Scholar] [CrossRef] [Green Version]
  28. Xu, X.; Ji, X.; Jiang, J.; Yao, X.; Tian, Y.; Zhu, Y.; Cao, W.; Cao, Q.; Yang, H.; Shi, Z.; et al. Evaluation of One-Class Support Vector Classification for Mapping the Paddy Rice Planting Area in Jiangsu Province of China from Landsat 8 OLI Imagery. Remote Sens. 2018, 10, 546. [Google Scholar] [CrossRef] [Green Version]
  29. Zhang, X.; Yang, G.; Xu, X.; Yao, X.; Zheng, H.; Zhu, Y.; Cao, W.; Cheng, T. An assessment of Planet satellite imagery for county-wide mapping of rice planting areas in Jiangsu Province, China with one-class classification approaches. Int. J. Remote Sens. 2021, 42, 7610–7635. [Google Scholar] [CrossRef]
  30. Dong, J.; Fu, Y.; Wang, J.; Tian, H.; Fu, S.; Niu, Z.; Han, W.; Zheng, Y.; Huang, J.; Yuan, W. Early-season mapping of winter wheat in China based on Landsat and Sentinel images. Earth Syst. Sci. Data 2020, 12, 3081–3095. [Google Scholar] [CrossRef]
  31. Zhong, L.; Hu, L.; Zhou, H. Deep learning based multi-temporal crop classification. Remote Sens. Environ. 2019, 221, 430–443. [Google Scholar] [CrossRef]
  32. Egorov, A.V.; Hansen, M.C.; Roy, D.P.; Kommareddy, A.; Potapov, P.V. Image interpretation-guided supervised classification using nested segmentation. Remote Sens. Environ. 2015, 165, 135–147. [Google Scholar] [CrossRef] [Green Version]
  33. Sharma, R.; Ghosh, A.; Joshi, P.K. Decision tree approach for classification of remotely sensed satellite data using open source support. J. Earth Syst. Sci. 2013, 122, 1237–1247. [Google Scholar] [CrossRef] [Green Version]
  34. Waldner, F.; Canto, G.S.; Defourny, P. Automated annual cropland mapping using knowledge-based temporal features. ISPRS J. Photogramm. Remote Sens. 2015, 110, 1–13. [Google Scholar] [CrossRef]
  35. Kluger, D.M.; Wang, S.; Lobell, D.B. Two shifts for crop mapping: Leveraging aggregate crop statistics to improve satellite-based maps in new regions. Remote Sens. Environ. 2021, 262, 112488. [Google Scholar] [CrossRef]
  36. Song, Q.; Hu, Q.; Zhou, Q.; Hovis, C.; Xiang, M.; Tang, H.; Wu, W. In-Season Crop Mapping with GF-1/WFV Data by Combining Object-Based Image Analysis and Random Forest. Remote Sens. 2017, 9, 1184. [Google Scholar] [CrossRef] [Green Version]
  37. He, Y.; Wang, C.; Chen, F.; Jia, H.; Liang, D.; Yang, A. Feature Comparison and Optimization for 30-M Winter Wheat Mapping Based on Landsat-8 and Sentinel-2 Data Using Random Forest Algorithm. Remote Sens. 2019, 11, 535. [Google Scholar] [CrossRef] [Green Version]
  38. Kpienbaareh, D.; Sun, X.; Wang, J.; Luginaah, I.; Bezner Kerr, R.; Lupafya, E.; Dakishoni, L. Crop Type and Land Cover Mapping in Northern Malawi Using the Integration of Sentinel-1, Sentinel-2, and PlanetScope Satellite Data. Remote Sens. 2021, 13, 700. [Google Scholar] [CrossRef]
  39. Palchowdhuri, Y.; Valcarce-Diñeiro, R.; King, P.; Sanabria-Soto, M. Classification of multi-temporal spectral indices for crop type mapping: A case study in Coalville, UK. J. Agric. Sci. 2018, 156, 24–36. [Google Scholar] [CrossRef]
  40. Gorelick, N.; Hancher, M.; Dixon, M.; Ilyushchenko, S.; Thau, D.; Moore, R. Google Earth Engine: Planetary-scale geospatial analysis for everyone. Remote Sens. Environ. 2017, 202, 18–27. [Google Scholar] [CrossRef]
  41. Teluguntla, P.; Thenkabail, P.S.; Oliphant, A.; Xiong, J.; Gumma, M.K.; Congalton, R.G.; Yadav, K.; Huete, A. A 30-m landsat-derived cropland extent product of Australia and China using random forest machine learning algorithm on Google Earth Engine cloud computing platform. ISPRS J. Photogramm. Remote Sens. 2018, 144, 325–340. [Google Scholar] [CrossRef]
  42. Phalke, A.R.; Özdoğan, M.; Thenkabail, P.S.; Erickson, T.; Gorelick, N.; Yadav, K.; Congalton, R.G. Mapping croplands of Europe, Middle East, Russia, and Central Asia using Landsat, Random Forest, and Google Earth Engine. ISPRS J. Photogramm. Remote Sens. 2020, 167, 104–122. [Google Scholar] [CrossRef]
  43. Oliphant, A.J.; Thenkabail, P.S.; Teluguntla, P.; Xiong, J.; Gumma, M.K.; Congalton, R.G.; Yadav, K. Mapping cropland extent of Southeast and Northeast Asia using multi-year time-series Landsat 30-m data using a random forest classifier on the Google Earth Engine Cloud. Int. J. Appl. Earth Obs. Geoinf. 2019, 81, 110–124. [Google Scholar] [CrossRef]
  44. Liu, L.; Xiao, X.; Qin, Y.; Wang, J.; Xu, X.; Hu, Y.; Qiao, Z. Mapping cropping intensity in China using time series Landsat and Sentinel-2 images and Google Earth Engine. Remote Sens. Environ. 2020, 239, 111624. [Google Scholar] [CrossRef]
  45. Zhang, M.; Wu, B.; Zeng, H.; He, G.; Liu, C.; Tao, S.; Zhang, Q.; Nabil, M.; Tian, F.; Bofana, J.; et al. GCI30: A global dataset of 30-m cropping intensity using multisource remote sensing imagery. Earth Syst. Sci. Data Discuss. 2021, 13, 4799–4817. [Google Scholar] [CrossRef]
  46. Ni, R.; Tian, J.; Li, X.; Yin, D.; Li, J.; Gong, H.; Zhang, J.; Zhu, L.; Wu, D. An enhanced pixel-based phenological feature for accurate paddy rice mapping with Sentinel-2 imagery in Google Earth Engine. ISPRS J. Photogramm. Remote Sens. 2021, 178, 282–296. [Google Scholar] [CrossRef]
  47. Ge, S.; Zhang, J.; Pan, Y.; Yang, Z.; Zhu, S. Transferable deep learning model based on the phenological matching principle for mapping crop extent. Int. J. Appl. Earth Obs. Geoinf. 2021, 102, 102451. [Google Scholar] [CrossRef]
  48. Duan, Q.; Tan, M.; Guo, Y.; Wang, X.; Xin, L. Understanding the Spatial Distribution of Urban Forests in China Using Sentinel-2 Images with Google Earth Engine. Forests 2019, 10, 729. [Google Scholar] [CrossRef] [Green Version]
  49. Jia, M.; Wang, Z.; Mao, D.; Ren, C.; Wang, C.; Wang, Y. Rapid, robust, and automated mapping of tidal flats in China using time series Sentinel-2 images and Google Earth Engine. Remote Sens. Environ. 2021, 255, 112285. [Google Scholar] [CrossRef]
  50. Liu, W.; Wang, J.; Luo, J.; Wu, Z.; Chen, J.; Zhou, Y.; Sun, Y.; Shen, Z.; Xu, N.; Yang, Y. Farmland Parcel Mapping in Mountain Areas Using Time-Series SAR Data and VHR Optical Images. Remote Sens. 2020, 12, 3733. [Google Scholar] [CrossRef]
  51. Burke, M.; Lobell, D.B. Satellite-based assessment of yield variation and its determinants in smallholder African systems. Proc. Natl. Acad. Sci. USA 2017, 114, 2189–2194. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Wang, Y.-C.; Feng, C.-C.; Vu Duc, H. Integrating Multi-Sensor Remote Sensing Data for Land Use/Cover Mapping in a Tropical Mountainous Area in Northern Thailand. Geogr. Res. 2012, 50, 320–331. [Google Scholar] [CrossRef]
  53. Boryan, C.; Yang, Z.; Mueller, R.; Craig, M. Monitoring US agriculture: The US Department of Agriculture, National Agricultural Statistics Service, Cropland Data Layer Program. Geocarto Int. 2011, 26, 341–358. [Google Scholar] [CrossRef]
  54. Fisette, T.; Davidson, A.; Daneshfar, B.; Rollin, P.; Aly, Z.; Campbell, L. Annual Space-Based Crop Inventory for Canada: 2009–2014. In Proceedings of the IEEE Geoscience and Remote Sensing Symposium, Quebec, QC, Canada, 13–18 July 2014; pp. 5095–5098. [Google Scholar]
  55. Conrad, C.; Lamers, J.P.A.; Ibragimov, N.; Löw, F.; Martius, C. Analysing irrigated crop rotation patterns in arid Uzbekistan by the means of remote sensing: A case study on post-Soviet agricultural land use. J. Arid Environ. 2016, 124, 150–159. [Google Scholar] [CrossRef]
  56. Lesiv, M.; Laso Bayas, J.C.; See, L.; Duerauer, M.; Dahlia, D.; Durando, N.; Hazarika, R.; Kumar Sahariah, P.; Vakolyuk, M.; Blyshchyk, V.; et al. Estimating the global distribution of field size using crowdsourcing. Glob. Chang. Biol. 2018, 25, 174–186. [Google Scholar] [CrossRef]
  57. You, N.; Dong, J.; Huang, J.; Du, G.; Zhang, G.; He, Y.; Yang, T.; Di, Y.; Xiao, X. The 10-m crop type maps in Northeast China during 2017–2019. Sci. Data 2021, 8, 41. [Google Scholar] [CrossRef]
  58. Yu, L.; Wulantuya; Li, J.; Yu, W.; Dun, H. Multi-source remote sensing data feature optimization for different crop extraction in Daxing’Anling along the foothills. J. North Agric. 2020, 48, 119–128, (In Chinese with English Abstract). [Google Scholar]
  59. Yu, L.; Wulantuya; Wulan; Bao, J. Study on the main crop identification method based on SAR-C in the west of Great Khingan Mountains. J. North. Agric. 2017, 45, 108–113, (In Chinese with English Abstract). [Google Scholar]
  60. Yang, L.; Wang, L.; Huang, J.; Mansaray, L.R.; Mijiti, R. Monitoring policy-driven crop area adjustments in northeast China using Landsat-8 imagery. Int. J. Appl. Earth Obs. Geoinf. 2019, 82, 101892. [Google Scholar] [CrossRef]
  61. Liu, S.; Zhang, P.; Liu, W.; He, X. Key Factors Affecting Farmers’ Choice of Corn Reduction under the China’s New Agriculture Policy in the ‘Liandaowan’ Areas, Northeast China. Chin. Geogr. Sci. 2019, 29, 1039–1051. [Google Scholar] [CrossRef] [Green Version]
  62. Ghorbanian, A.; Kakooei, M.; Amani, M.; Mahdavi, S.; Mohammadzadeh, A.; Hasanlou, M. Improved land cover map of Iran using Sentinel imagery within Google Earth Engine and a novel automatic workflow for land cover classification using migrated training samples. ISPRS J. Photogramm. Remote Sens. 2020, 167, 276–288. [Google Scholar] [CrossRef]
  63. Yang, G.; Yu, W.; Yao, X.; Zheng, H.; Cao, Q.; Zhu, Y.; Cao, W.; Cheng, T. AGTOC: A novel approach to winter wheat mapping by automatic generation of training samples and one-class classification on Google Earth Engine. Int. J. Appl. Earth Obs. Geoinf. 2021, 102, 102446. [Google Scholar] [CrossRef]
  64. Song, C.; Woodcock, C.E.; Seto, K.C.; Lenney, M.P.; Macomber, S.A. Classification and change detection using Landsat TM data: When and how to correct atmospheric effects? Remote Sens. Environ. 2001, 75, 230–244. [Google Scholar] [CrossRef]
  65. Huete, A.; Didan, K.; Miura, T.; Rodriguez, E.P.; Gao, X.; Ferreira, L.G. Overview of the radiometric and biophysical performance of the MODIS vegetation indices. Remote Sens. Environ. 2002, 83, 195–213. [Google Scholar] [CrossRef]
  66. Bocai, G. NDWI—A normalized difference water index for remote sensing of vegetation liquid water from space. Remote Sens. Environ. 1996, 58, 257–266. [Google Scholar]
  67. Rouse, J.; Haas, R.; Schell, J.; Deering, D. Monitoring Vegetation Systems in the Great Plains with ERTS. NASA Spec. Publ. 1974, 351, 309. [Google Scholar]
  68. Sulik, J.J.; Long, D.S. Spectral considerations for modeling yield of canola. Remote Sens. Environ. 2016, 184, 161–174. [Google Scholar] [CrossRef] [Green Version]
  69. Guyot, G.; Frederic, B.; Jacquemoud, S. Imaging spectroscopy for vegetation studies. Imaging Spectrosc. 1992, 2, 145–165. [Google Scholar]
  70. Friedl, M.A.; Brodley, C.E.; Strahler, A.H. Maximizing land cover classification accuracies produced by decision trees at continental to global scales. IEEE Trans. Geosci. Remote Sens. 1999, 37, 969–977. [Google Scholar] [CrossRef]
  71. Huang, H.; Wang, J.; Liu, C.; Liang, L.; Li, C.; Gong, P. The migration of training samples towards dynamic global land cover mapping. ISPRS J. Photogramm. Remote Sens. 2020, 161, 27–36. [Google Scholar] [CrossRef]
  72. Zhong, L.; Hu, L.; Yu, L.; Gong, P.; Biging, G.S. Automated mapping of soybean and corn using phenology. ISPRS J. Photogramm. Remote Sens. 2016, 119, 151–164. [Google Scholar] [CrossRef] [Green Version]
  73. Hao, P.; Di, L.; Zhang, C.; Guo, L. Transfer Learning for Crop classification with Cropland Data Layer data (CDL) as training samples. Sci. Total Environ. 2020, 733, 138869. [Google Scholar] [CrossRef] [PubMed]
  74. Maskell, G.; Chemura, A.; Nguyen, H.; Gornott, C.; Mondal, P. Integration of Sentinel optical and radar data for mapping smallholder coffee production systems in Vietnam. Remote Sens. Environ. 2021, 266, 112709. [Google Scholar] [CrossRef]
  75. Prins, A.J.; Van Niekerk, A. Crop type mapping using LiDAR, Sentinel-2 and aerial imagery with machine learning algorithms. Geo-Spat. Inf. Sci. 2021, 24, 215–227. [Google Scholar] [CrossRef]
  76. Delrue, J.; Bydekerke, L.; Eerens, H.; Gilliams, S.; Piccard, I.; Swinnen, E. Crop mapping in countries with small-scale farming: A case study for West Shewa, Ethiopia. Int. J. Remote Sens. 2012, 34, 2566–2582. [Google Scholar] [CrossRef]
  77. Chen, B.; Jin, Y.; Brown, P. An enhanced bloom index for quantifying floral phenology using multi-scale remote sensing observations. ISPRS J. Photogramm. Remote Sens. 2019, 156, 108–120. [Google Scholar] [CrossRef]
  78. D’Andrimont, R.; Taymans, M.; Lemoine, G.; Ceglar, A.; Yordanov, M.; van der Velde, M. Detecting flowering phenology in oil seed rape parcels with Sentinel-1 and -2 time series. Remote Sens. Environ. 2020, 239, 111660. [Google Scholar] [CrossRef]
  79. Mercier, A.; Betbeder, J.; Baudry, J.; Le Roux, V.; Spicher, F.; Lacoux, J.; Roger, D.; Hubert-Moy, L. Evaluation of Sentinel-1 & 2 time series for predicting wheat and rapeseed phenological stages. ISPRS J. Photogramm. Remote Sens. 2020, 163, 231–256. [Google Scholar]
  80. Inoue, Y.; Sakaiya, E.; Wang, C.Z. Capability of C-band backscattering coefficients from high-resolution satellite SAR sensors to assess biophysical variables in paddy rice. Remote Sens. Environ. 2014, 140, 257–266. [Google Scholar] [CrossRef]
  81. Mattia, F.; Le Toan, T.; Picard, G.; Posa, F.I.; D’Alessio, A.; Notarnicola, C.; Gatti, A.M.; Rinaldi, M.; Satalino, G.; Pasquariello, G. Multitemporal C-band radar measurements on wheat fields. IEEE Trans. Geosci. Remote Sens. 2003, 41, 1551–1560. [Google Scholar] [CrossRef]
  82. Song, X.-P.; Potapov, P.V.; Krylov, A.; King, L.; Di Bella, C.M.; Hudson, A.; Khan, A.; Adusei, B.; Stehman, S.V.; Hansen, M.C. National-scale soybean mapping and area estimation in the United States using medium resolution satellite imagery and field survey. Remote Sens. Environ. 2017, 190, 383–395. [Google Scholar] [CrossRef]
  83. Defourny, P.; Bontemps, S.; Bellemans, N.; Cara, C.; Dedieu, G.; Guzzonato, E.; Hagolle, O.; Inglada, J.; Nicola, L.; Rabaute, T.; et al. Near real-time agriculture monitoring at national scale at parcel resolution: Performance assessment of the Sen2-Agri automated system in various cropping systems around the world. Remote Sens. Environ. 2019, 221, 551–568. [Google Scholar] [CrossRef]
  84. Ozdogan, M.; Woodcock, C.E. Resolution dependent errors in remote sensing of cultivated areas. Remote Sens. Environ. 2006, 103, 203–217. [Google Scholar] [CrossRef]
  85. Su, T.; Zhang, S. Object-based crop classification in Hetao plain using random forest. Earth Sci. Inf. 2021, 14, 119–131. [Google Scholar] [CrossRef]
  86. Tang, Z.; Wang, H.; Li, X.; Li, X.; Cai, W.; Han, C. An Object-Based Approach for Mapping Crop Coverage Using Multiscale Weighted and Machine Learning Methods. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2020, 13, 1700–1713. [Google Scholar] [CrossRef]
Remotesensing 14 00566 g001 550

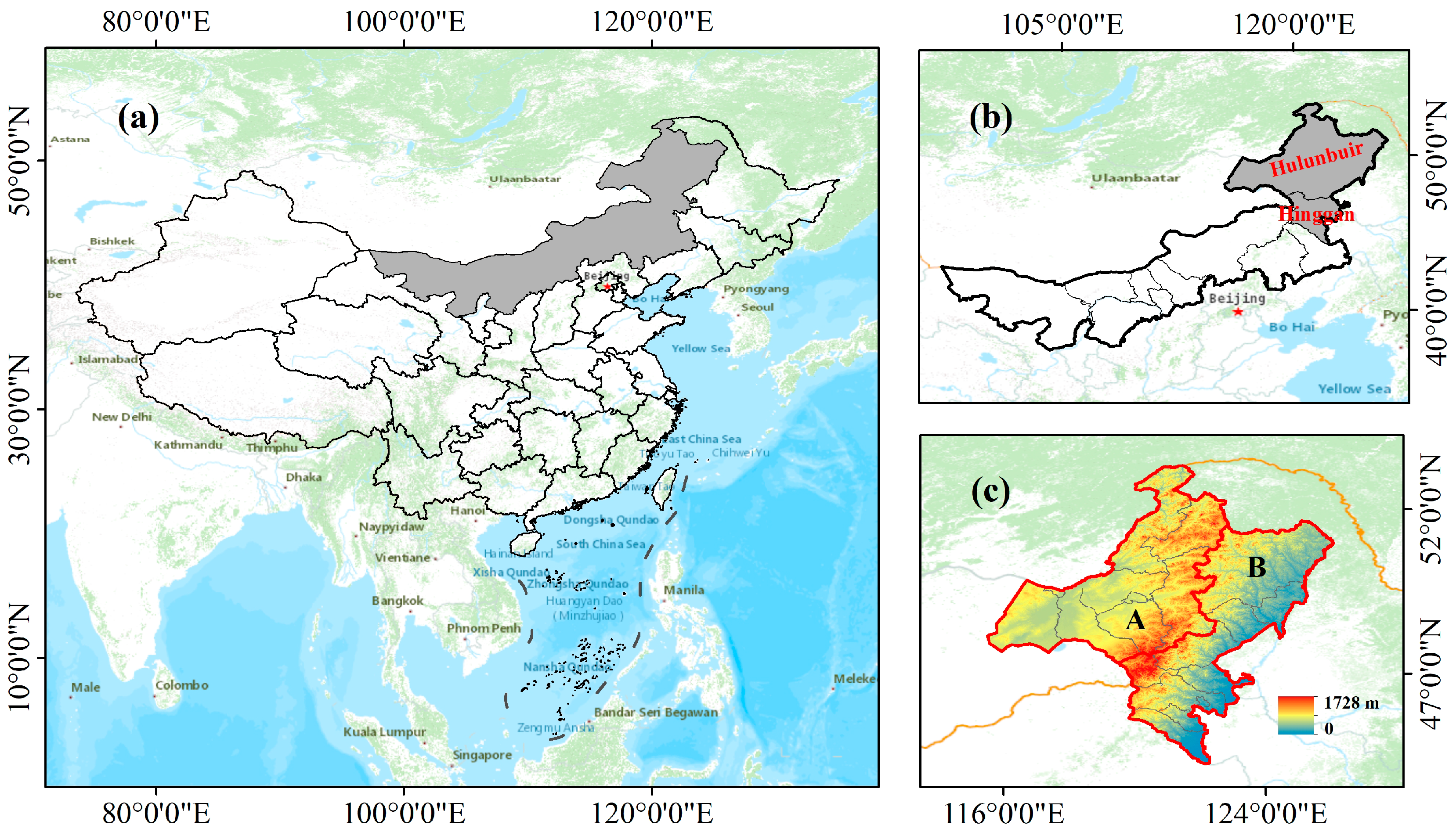

Figure 1. The location of (a) Inner Mongolia Autonomous Region (shaded area) of China, (b) the study area in Inner Mongolia with (c) two agro-ecological zones (AEZ A and AEZ B).
Figure 1. The location of (a) Inner Mongolia Autonomous Region (shaded area) of China, (b) the study area in Inner Mongolia with (c) two agro-ecological zones (AEZ A and AEZ B).
Remotesensing 14 00566 g001
Remotesensing 14 00566 g002 550
Figure 2. Phenological stages of main crop types in the study area. The background colors are indicative of field colors at different stages. (Note: Sow = Sowing stage, Eme = Emergence stage, Veg = Vegetative period, Sen = Senescence stage, Har = Harvesting stage.).
Figure 2. Phenological stages of main crop types in the study area. The background colors are indicative of field colors at different stages. (Note: Sow = Sowing stage, Eme = Emergence stage, Veg = Vegetative period, Sen = Senescence stage, Har = Harvesting stage.).
Remotesensing 14 00566 g002
Remotesensing 14 00566 g003 550

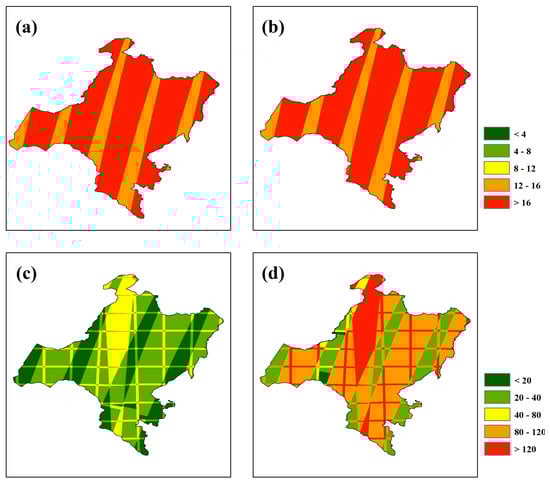

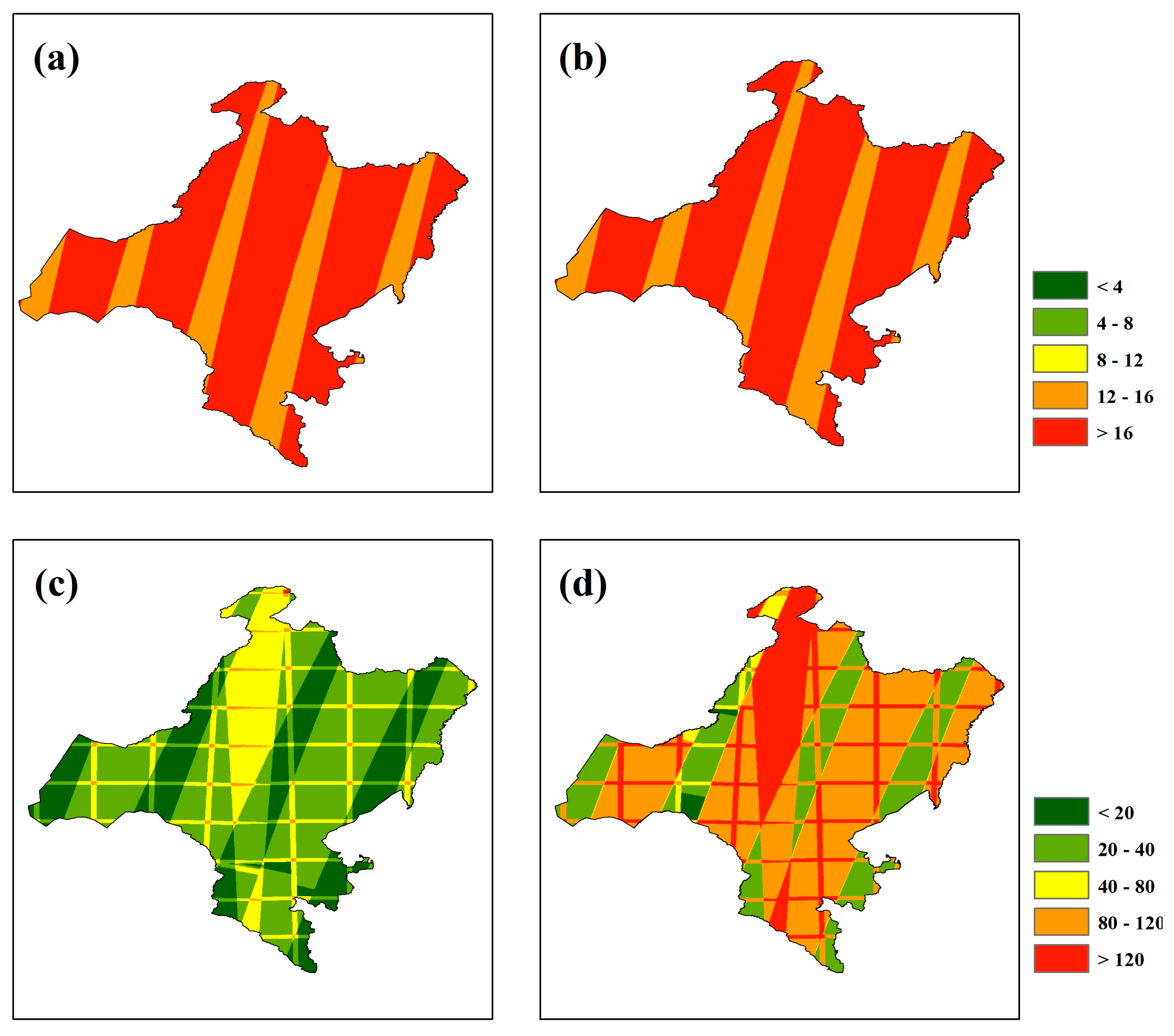

Figure 3. The Sentinel-1 frequency over study area from April to October in (a) 2017 and (b) 2018, the Sentinel-2 frequency in the same season of (c) 2017 and (d) 2018.
Figure 3. The Sentinel-1 frequency over study area from April to October in (a) 2017 and (b) 2018, the Sentinel-2 frequency in the same season of (c) 2017 and (d) 2018.
Remotesensing 14 00566 g003
Remotesensing 14 00566 g004 550

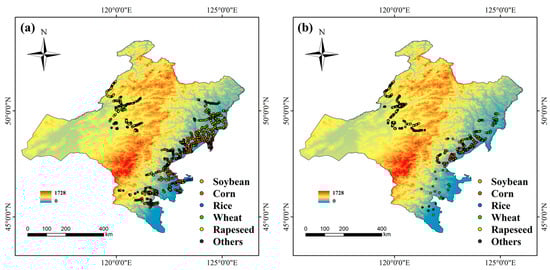

Figure 4. The distribution of field survey samples in (a) 2017 and (b) 2018. (The base map is a digital elevation model, SRTM90, derived from GEE.).
Figure 4. The distribution of field survey samples in (a) 2017 and (b) 2018. (The base map is a digital elevation model, SRTM90, derived from GEE.).
Remotesensing 14 00566 g004
Remotesensing 14 00566 g005 550
Figure 5. The differences among input features (a) Sentinel-2 spectral bands, (b) Sentinel-2 vegetation indices, and (c) Sentinel-1 polarization bands in crop type mapping. (The REP values in this figure were divided by 1000).
Figure 5. The differences among input features (a) Sentinel-2 spectral bands, (b) Sentinel-2 vegetation indices, and (c) Sentinel-1 polarization bands in crop type mapping. (The REP values in this figure were divided by 1000).
Remotesensing 14 00566 g005
Remotesensing 14 00566 g006 550
Figure 6. The overall accuracy of different feature combinations in (a) 2017 and (b) 2018.
Figure 6. The overall accuracy of different feature combinations in (a) 2017 and (b) 2018.
Remotesensing 14 00566 g006
Remotesensing 14 00566 g007 550

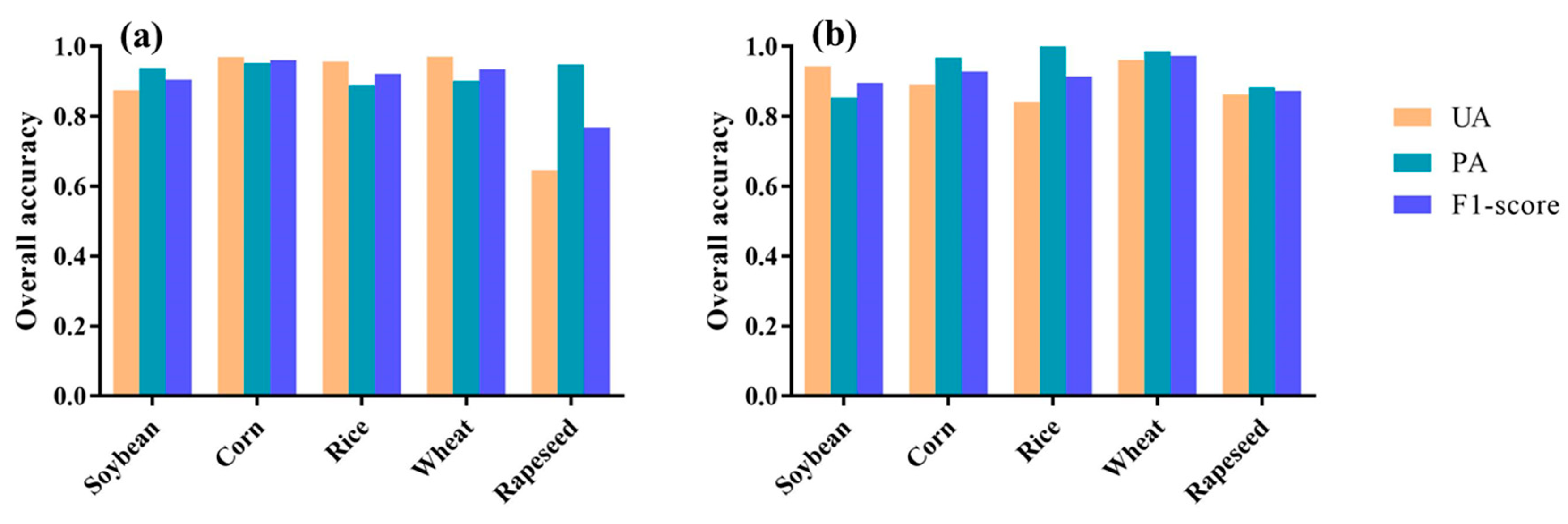

Figure 7. The classification accuracy of different crop types in (a) 2017 and (b) 2018.
Figure 7. The classification accuracy of different crop types in (a) 2017 and (b) 2018.
Remotesensing 14 00566 g007
Remotesensing 14 00566 g008 550

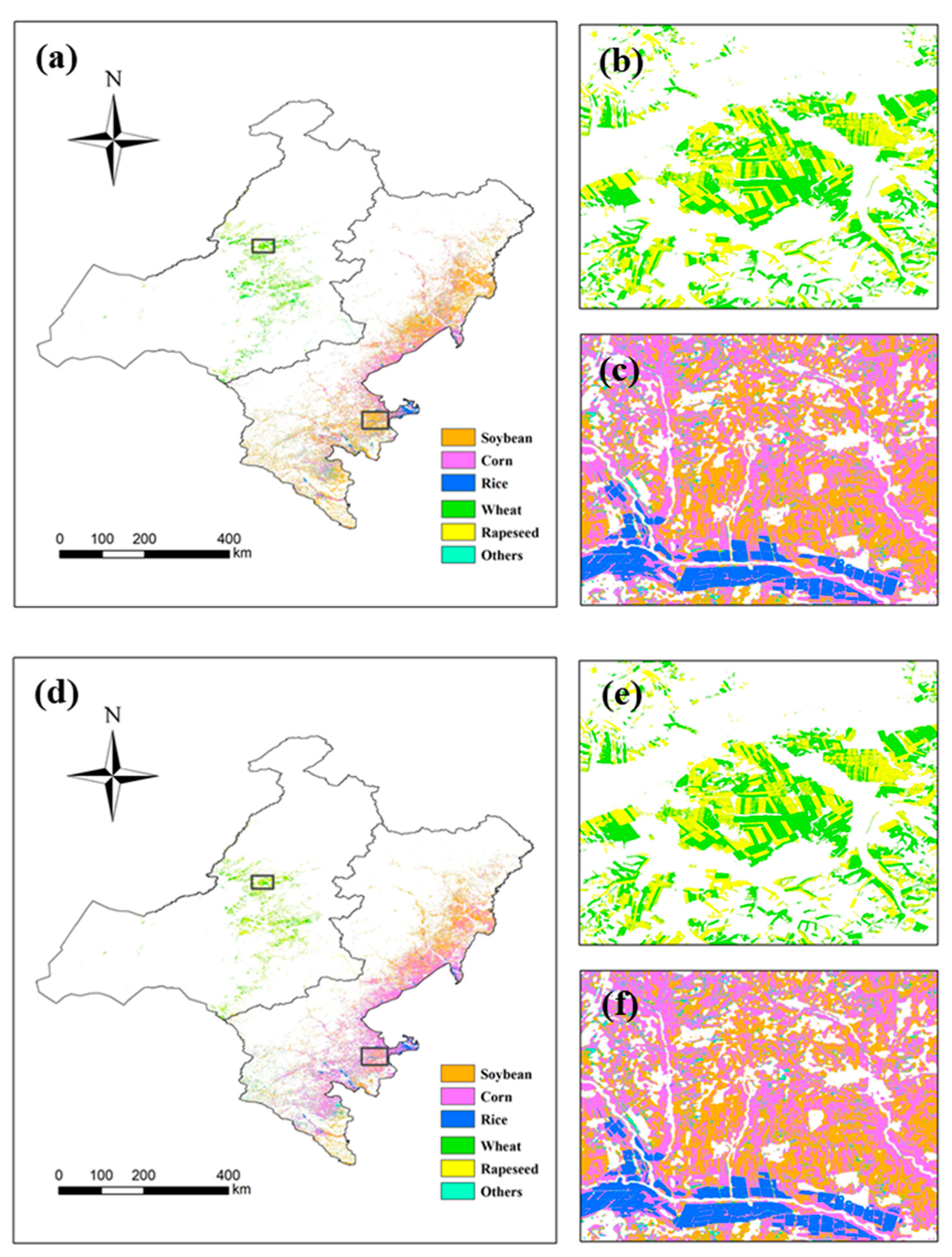

Figure 8. The crop type distributions of (a) 2017 and (d) 2018 over the study area; (b,c) are the close-up views of (a) for the AEZ A and B; (e,f) are the close-up views of (d) in the same regions of (b,c).
Figure 8. The crop type distributions of (a) 2017 and (d) 2018 over the study area; (b,c) are the close-up views of (a) for the AEZ A and B; (e,f) are the close-up views of (d) in the same regions of (b,c).
Remotesensing 14 00566 g008
Remotesensing 14 00566 g009 550

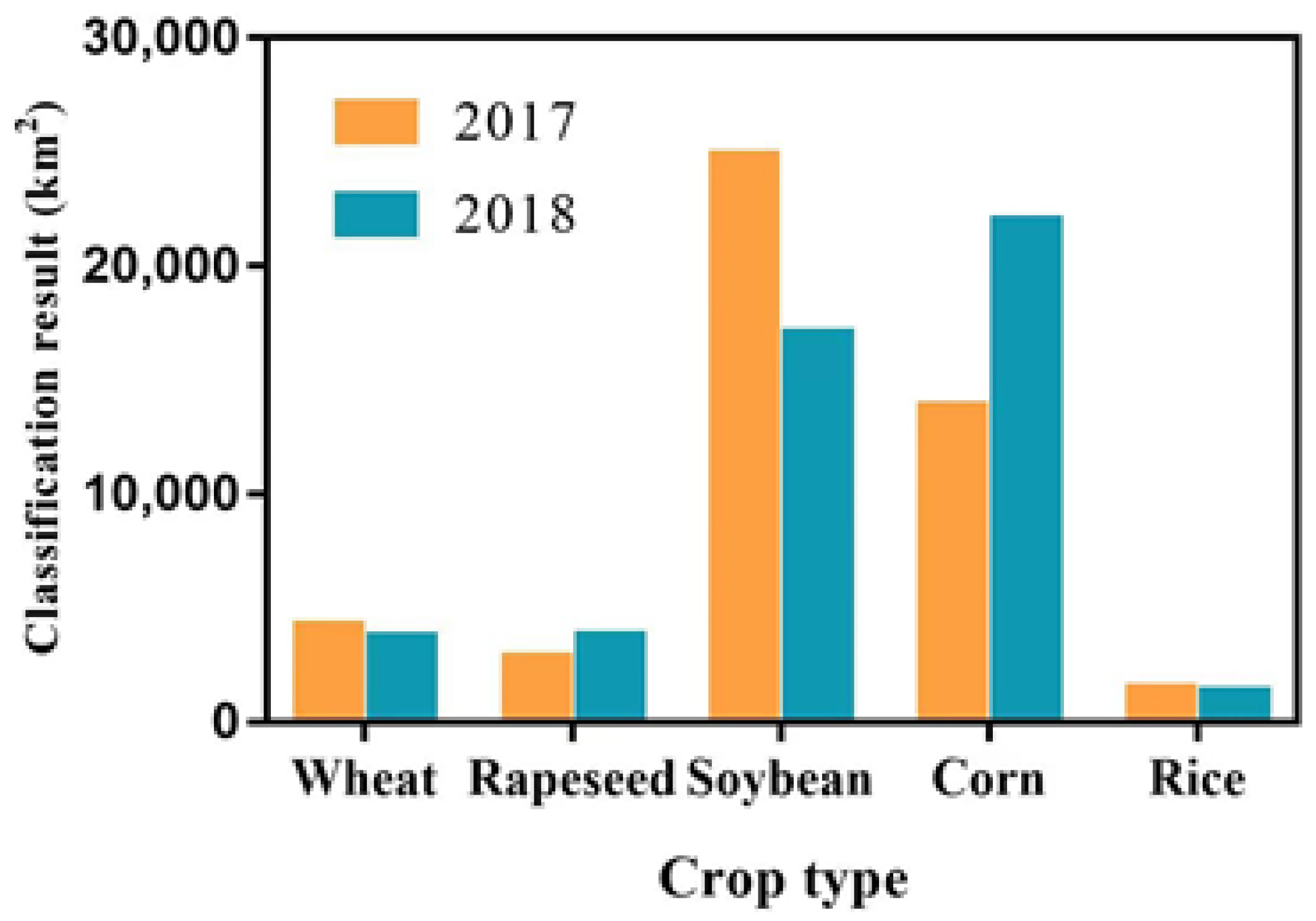

Figure 9. Total areas of different crop types in 2017 and 2018, based on the classification results.
Figure 9. Total areas of different crop types in 2017 and 2018, based on the classification results.
Remotesensing 14 00566 g009
Remotesensing 14 00566 g010 550

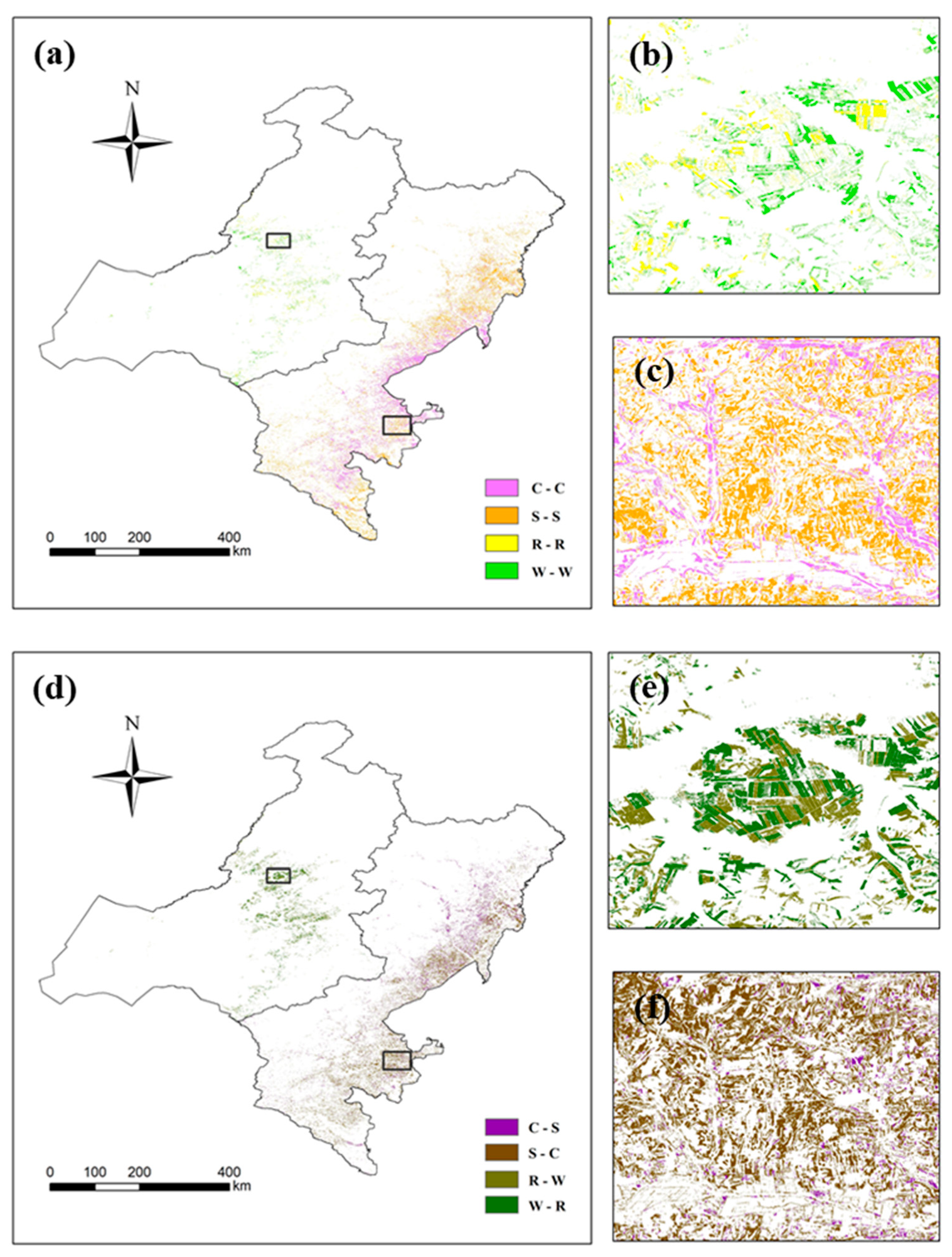

Figure 10. The distribution of crop (a) rotation and (d) non-rotation areas in the study area. (b,c) are the close-up views of (a); (e,f) are the close-up views of (d). (Note: W: Wheat, R: Rapeseed, S: Soybean, C: Corn).
Figure 10. The distribution of crop (a) rotation and (d) non-rotation areas in the study area. (b,c) are the close-up views of (a); (e,f) are the close-up views of (d). (Note: W: Wheat, R: Rapeseed, S: Soybean, C: Corn).
Remotesensing 14 00566 g010
Remotesensing 14 00566 g011 550

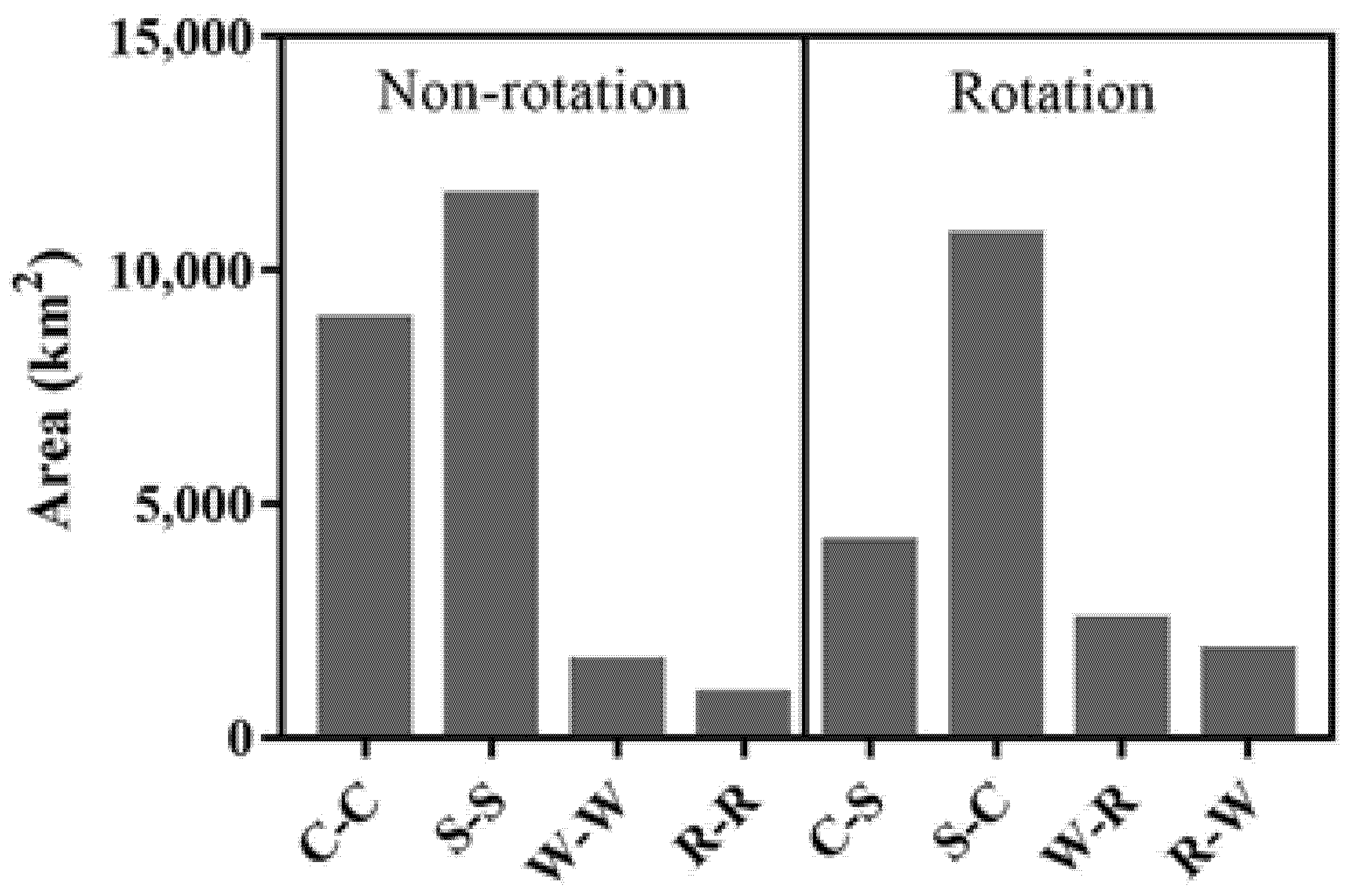

Figure 11. Rotation and non-rotation areas of different crop types from 2017 to 2018. (Note: W: Wheat, R: Rapeseed, S: Soybean, C: Corn).
Figure 11. Rotation and non-rotation areas of different crop types from 2017 to 2018. (Note: W: Wheat, R: Rapeseed, S: Soybean, C: Corn).
Remotesensing 14 00566 g011
Table
Table 1. Number of Sentinel-1 and Sentinel-2 imagery used in this study.
Table 1. Number of Sentinel-1 and Sentinel-2 imagery used in this study.
Total Observation of S1Total Observation of S2Good Observation of S2
20174071492505
201839837771476
Table
Table 2. The vegetation indices used in this study and the corresponding formula.
Table 2. The vegetation indices used in this study and the corresponding formula.
VIsFull NameFormulaReference
EVIEnhanced Vegetation Index2.5 × (NIR − Red)/(NIR + 6 × Red − 7.5 × Blue + 1)[65]
LSWILand Surface Water Index(NIR − SWIR1)/(NIR + SWIR1)[66]
NDVINormalized Difference Vegetation Index(NIR − Red)/(NIR + Red)[67]
NDYINormalized Difference Yellow Index(Green − Blue)/(Green + Blue)[68]
REPRed Edge Position705 + 35 × (0.5 × (RE3 + Red) − RE1)/(RE2 − RE1)[69]
Note: SWIR1, NIR, RE3, RE2, RE1, Red, Green, and Blue are TOA reflectance of B11, B8, B7, B6, B5, B4, B3, B2 in Table 2. MSI sensor, respectively.
Table
Table 3. The number of selected regions of interest (ROI) in 2017 and 2018.
Table 3. The number of selected regions of interest (ROI) in 2017 and 2018.
Crop Type20172018
Soybean6057
Corn6363
Rice3129
Wheat5555
Rapeseed5260
Others2725
Total288289
Table
Table 4. The group of different features.
Table 4. The group of different features.
GroupFeatures
G1B2, B3, B4, B5, B6, B7, B8, B8A, B11, B12
G2EVI, LSWI, NDVI, NDYI, REP
G3VV, VH
G12G1 + G2
G13G1 + G3
G23G2 + G3
G123G1 + G2 + G3
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ren, T.; Xu, H.; Cai, X.; Yu, S.; Qi, J. Smallholder Crop Type Mapping and Rotation Monitoring in Mountainous Areas with Sentinel-1/2 Imagery. Remote Sens. 2022, 14, 566. https://doi.org/10.3390/rs14030566

AMA Style

Ren T, Xu H, Cai X, Yu S, Qi J. Smallholder Crop Type Mapping and Rotation Monitoring in Mountainous Areas with Sentinel-1/2 Imagery. Remote Sensing. 2022; 14(3):566. https://doi.org/10.3390/rs14030566

Chicago/Turabian Style

Ren, Tingting, Hongtao Xu, Xiumin Cai, Shengnan Yu, and Jiaguo Qi. 2022. "Smallholder Crop Type Mapping and Rotation Monitoring in Mountainous Areas with Sentinel-1/2 Imagery" Remote Sensing 14, no. 3: 566. https://doi.org/10.3390/rs14030566

APA Style

Ren, T., Xu, H., Cai, X., Yu, S., & Qi, J. (2022). Smallholder Crop Type Mapping and Rotation Monitoring in Mountainous Areas with Sentinel-1/2 Imagery. Remote Sensing, 14(3), 566. https://doi.org/10.3390/rs14030566

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
