Article

Comparison of Physical-Based Models to Measure Forest Resilience to Fire as a Function of Burn Severity

1
Department of Biodiversity and Environmental Management, Faculty of Biological and Environmental Sciences, University of León, 24071 León, Spain
2
Centro de Investigação e de Tecnologias Agroambientais e Biológicas, Universidade de Trás-os-Montes e Alto Douro, 5000-801 Vila Real, Portugal
3
Department of Organisms and Systems Biology (Ecology Unit), University of Oviedo, 33007 Oviedo, Spain
4
Research Institute of Biodiversity (IMIB, UO-CSIC-PA), University of Oviedo, 33600 Mieres, Spain
5
Electronic Technology Department, School of Industrial Engineering, University of Valladolid, 47011 Valladolid, Spain
6
Sustainable Forest Management Research Institute, University of Valladolid-Spanish National Institute for Agriculture and Food Research and Technology (INIA), 34004 Palencia, Spain
7
Agrarian Science and Engineering Department, School of Agricultural and Forestry Engineering, University of León, 24400 Ponferrada, Spain
*
Author to whom correspondence should be addressed.
Remote Sens. 2022, 14(20), 5138; https://doi.org/10.3390/rs14205138
Received: 16 September 2022 / Revised: 11 October 2022 / Accepted: 12 October 2022 / Published: 14 October 2022

Abstract

:
We aimed to compare the potential of physical-based models (radiative transfer and pixel unmixing models) for evaluating the short-term resilience to fire of several shrubland communities as a function of their regenerative strategy and burn severity. The study site was located within the perimeter of a wildfire that occurred in summer 2017 in the northwestern Iberian Peninsula. A pre- and post-fire time series of Sentinel-2 satellite imagery was acquired to estimate fractional vegetation cover (FVC) from the (i) PROSAIL-D radiative transfer model inversion using the random forest algorithm, and (ii) multiple endmember spectral mixture analysis (MESMA). The FVC retrieval was validated throughout the time series by means of field data stratified by plant community type (i.e., regenerative strategy). The inversion of PROSAIL-D featured the highest overall fit for the entire time series (R2 > 0.75), followed by MESMA (R2 > 0.64). We estimated the resilience of shrubland communities in terms of FVC recovery using an impact-normalized resilience index and a linear model. High burn severity negatively influenced the short-term resilience of shrublands dominated by facultative seeder species. In contrast, shrublands dominated by resprouters reached pre-fire FVC values regardless of burn severity.

1. Introduction

The observed and projected increase in the severity of wildfires in the western Mediterranean Basin may hinder the resilience of plant communities to fire disturbance [1]. Wildfire severity, defined as the fire impact on the ecosystem, and operationally estimated from the amount of above- and belowground plant biomass consumed [2], is one of the key determinants of plant communities’ recovery in the first post-fire periods [3]. Although field sampling methods are reliable and accurate for assessing plant community resilience to fire, its wide-scale application is limited in large-scale assessments due to its high time and economic cost [4]. In this sense, synoptic observation of the land surface using remote sensing-based techniques offers an effective way to achieve this objective.
Passive optical sensors of moderate spatial resolution, such as those onboard Landsat or Sentinel-2 satellite missions, offer the potential to accurately detect land cover changes and associated processes over extended time series [5,6]. The Landsat and Sentinel-2 multispectral imagery archive is potentially useful for assessing spatial patterns of land cover change such as post-fire forest dynamics due to the nominal 30 m/20 m spatial resolution, a consistent scale with that of most landscape-scale land cover changes [7]. In addition, their revisit period provides great coverage for multitemporal studies, especially in areas with frequent cloud cover that can deplete the availability of usable imagery [8].
To date, most studies on ecological resilience to fire have been based on the evaluation of plant community greenness recovery through spectral vegetation indices [9,10], among others. However, this product does not represent physical quantities [11], is affected by the background signal of burned areas [12], and suffers from reflectance saturation at high canopy cover in unburned areas [13]. Conversely, physical-based remote sensing techniques, such as pixel unmixing models and radiative transfer models (RTM), can be used to retrieve vegetation biophysical variables (e.g., fractional vegetation cover (FVC)) as fire resilience indicators [14].
Pixel unmixing models are based on the underlying premise that imagery pixels are constituted by several ground features that contribute to the surface reflectance captured by the optical sensor [15], being the pixel FVC, the physical fraction of vegetation cover in that pixel [16]. In this approach, FVC is directly retrieved from remote sensing data using spectral libraries or image endmembers, without initial field data needs [17]. However, endmember collection can be time-consuming in large, heterogeneous burned landscapes [11]. Among these techniques, multiple endmember spectral mixture analysis (MESMA; [18]) is an advanced method that allows the spectra of several endmembers to characterize each pixel ground component (e.g., the vegetation fraction; [19]). Remarkably, each pixel can be resolved independently with a differing number of endmembers to account for the associated terrain variability [17], for instance different vegetation species within the community. This contrasts with more conventional spectral mixture models, such as linear spectral mixture analysis, in which only one spectrum can be incorporated in each endmember [15].
RTM-based approaches simulate the physical relationships between vegetation biophysical variables, such as the FVC, and the plant community reflectance [20]. These models can be inverted using observed surface reflectance data captured by passive optical sensors for retrieving the FVC, to be implemented as a resilience indicator to fire. RTMs do not need to be parameterized with field data specific to the area of interest, which are only needed for validation of the retrieved biophysical variable [11]. Remarkably, RTM physical relationships are not site-specific, and vegetation recovery can then be monitored in burned landscapes that encompass several communities [21]. RTM inversion is usually performed using machine learning techniques, also known as hybrid inversion [22].
Although physical-based models have been used to monitor post-fire vegetation communities [11,23], to date there are no studies in the literature comparing their effectiveness to assess vegetation resilience to fire in plant communities affected by different severity levels. Therefore, the objective of this work was to compare the potentiality of two physical-based approaches (pixel unmixing and radiative transfer models) applied to passive optical data for evaluating vegetation resilience as a function of burn severity in shrubland communities with different regenerative traits. FVC was used as a resilience indicator retrieved from a time series of Sentinel-2 imagery, using hybrid RTM inversion and MESMA models.

2. Materials and Methods

2.1. Study Site Description

The study site lies within the perimeter of a wildfire that burned 9940 ha of shrub and forest plant communities in the summer of 2017 within Sierra de Cabrera (NW Spain; Figure 1). The site has a rugged topography, with prominent crests and steep slopes, and its altitude ranges from 836–1938 m. The climate is temperate Mediterranean, with a mean annual temperature of 9 °C and mean annual precipitation of 850 mm. The wildfire affected, among others, three types of shrub plant communities: shrub communities dominated by facultative seeder species (Genista hystrix Lange (gorse) and Genista florida L. (broom)) and resprouter species (Erica australis L. (heath)). The shrub plant communities of the site exhibit high spatial variability due to small-scale differences in post-fire recovery patterns and accumulation of burned debris as a consequence of the fire regime variability. Other plant communities affected by the fire include Pyrenean oak forests dominated by Quercus pyrenaica Willd, and Scots pine forests dominated by Pinus sylvestris L., as well as grasslands in the valley bottoms. The main land use in the site before the wildfire involved extensive livestock farming.
Facultative seeder shrub species are able to resprout from belowground organs and to germinate during post-fire conditions; however, in our study site, their resprouting success and vigor is lower than that of obligate resprouters. The latter species rely on resprouting strategy to regenerate after wildfire because they lack a fire-resistant aerial or soil seed bank.

2.2. Sentinel-2 Imagery, Processing and Burn Severity Calculation

Sentinel-2 multispectral mission comprises two satellites (Sentinel-2A and Sentinel-2B) as part of the Copernicus program. Sentinel-2 provides thirteen bands at different spatial resolutions in the visible, near infrared and short-wave infrared regions: four bands at 10 m, six bands at 20 m and three bands at 60 m [24]. Sentinel-2 bands at a spatial resolution of 10 m were resampled to 20 m using the nearest neighbor interpolation. The bands at 60 m were discarded, as they are used for atmospheric correction and cloud detection processes and are strongly affected by atmospheric effects [20]. Two Sentinel-2 MSI Level 1C scenes were calibrated to surface reflectance (level 2A) with the Atmospheric/Topographic Correction for Satellite Imagery algorithm version 3 (ATCOR-3; [25]) by correcting for topographic and atmospheric effects. Meteorological data from the State Meteorology Agency of Spain (AEMET), the MODIS water vapor product (MOD05), and a digital terrain model (DTM) were used to set appropriate ATCOR-3 input parameters. The scenes were acquired for immediate pre-fire (13 August 2017) and post-fire (2 September 2017) scenarios to estimate burn severity through the differenced Normalized Burn Ratio (dNBR) index [26]. In this study, we selected the dNBR because it was the spectral index most related to field-based burn severity in internal testing compared to relativized indices, as well as in previous research on the site [27]. In addition, the dNBR is the primary spectral index within the European Forest Fire Information System (EFFIS) and a reference approach for initial burn severity assessment [28], which may improve the comparability of the results of our study. The dNBR was validated through the composite burn index (CBI; [29]), measured in 72 field plots of 20 m × 20 m one month after wildfire (initial burn severity assessment). Burn severity was rated in the field between 0 (unburned) and 3 (high severity). Three field burn severity categories were established based on CBI values of each plot: low (CBI < 1.25), moderate (1.25 ≤ CBI ≤ 2.25) and high (CBI > 2.25). These widely accepted CBI thresholds in the literature correspond to those proposed by [30]. These CBI thresholds were used to define three burn severity categories based on a dNBR thresholding approach using a linear regression model: low (dNBR < 384), moderate (384 ≤ dNBR ≤ 659) and high (dNBR > 659) (Figure 1). The R2 of the linear model was equal to 0.84.

2.3. Physical-Based Models

Pixel unmixing and radiative transfer models were used to retrieve the FVC from three Sentinel-2 MSI Level 2A scenes (processed from level 1C following the methodology described in Section 2.2) acquired during the biomass peak of the study site between 2017 and 2020: (i) 1-week pre-fire (13 August 2017 (equivalent to pre-fire dNBR calculation)), (ii) 2-weeks post-fire (2 September 2017 (equivalent to post-fire dNBR calculation)), and (iii) 3-years post-fire (18 July 2020).

2.3.1. Multiple Endmember Spectral Mixture Analysis (MESMA)

Candidate endmember spectra for MESMA models were extracted from Sentinel-2 scenes (image endmembers) rather than using spectral libraries (reference endmembers) because image endmembers are acquired at the same resolution of the imagery and are influenced by the same atmospheric imagery corrections [19,31]. The first post-fire Sentinel-2 image (2-weeks post-fire) was used to collect endmembers to ensure the presence of enough non-photosynthetic material corresponding to burned vegetation. We used 500 training polygons consisting of uniform ground patches encompassing a single vegetation, soil or charred material type. Polygon size was set to encompass at least four Sentinel-2 pixels. We ensured a separation between polygons of 100 m and a uniform distribution among plant community types [32]. Training areas for soil, green vegetation (Genista hystrix, Genista florida and Erica australis) and non-photosynthetic vegetation (charred debris) were delineated using very high spatial resolution orthophotographs at a spatial resolution of 0.5 m. The Iterative endmember selection (IES) algorithm [33] was used in this study to select optimal endmembers from the candidate set and improve MESMA computational efficiency and accuracy [19]. We clustered the selected endmembers by the IES algorithm into photosynthetic vegetation (PV), non-photosynthetic vegetation (NPV), and soil spectral libraries. Next, Sentinel-2 pre- and post-fire scenes were unmixed into PV, NPV, soil, and shade fraction images. The performance of all candidate MESMA models was evaluated using the following requirements for each pixel: (i) the range between minimum and maximum fraction image value was constrained between 0 and 1; (ii) shade fraction values lower than 0.8; and (iii) maximum allowable RMSE equal to 0.025 [23,34]. The constraint in fraction images was selected on the basis of the values physically attainable in the field [32], whereas the shade constraint was chosen to maintain a reasonably high fraction value for the other endmembers [34]. For its part, the RMSE constraint is a standard in the literature [18]. Finally, fraction images were shade-normalized, being the GV shade-normalized fraction of the FVC.
IES, MESMA and shade normalization were implemented in VIPER Tools 2.0, developed by the VIPER Lab at UC Santa Barbara [35].

2.3.2. Hybrid Radiative Transfer Model (RTM) Inversion

The PROSAIL-D RTM, resulting from the coupled PROSPECT-D leaf model [36] and the 4SAIL canopy reflectance model [37], was used to simulate shrubland plant canopy reflectance. PROSPECT-D simulates leaves hemispheric reflectance and transmittance from 400–2500 nm as a function of a number of physiological and biochemical variables at the leaf level. For its part, 4SAIL simulates plant canopy reflectance based on PROSPECT-D simulations, as well as a series of variables related to canopy structure, lighting and viewing conditions [38]. The values of PROSPECT-D and 4SAIL input variables (Table 1) were obtained from satellite imagery metadata, in-depth literature review and field knowledge, considering the variability of the biophysical conditions of the shrubland communities in the study site. Then, PROSAIL-D simulations were executed in direct mode to obtain a dataset of simulated shrubland canopy reflectance and its corresponding FVC, calculated from the viewing conditions, leaf area index and leaf angle of each simulation [11]. The dataset was spectrally resampled to the Sentinel-2 band configuration using its spectral bandwidth and response function. We updated the dataset with 10% of bare soil and non-photosynthetic vegetation spectra with respect to the total simulations [39]. This amount may be representative in relation to the high variability of the vegetation biophysical conditions in highly heterogeneous plant communities [11].
The Random Forest (RF; [40]) regression algorithm was used to model the relationship between the simulated Sentinel-2 reflectance at the shrubland canopy level and the corresponding FVC for the dataset generated by PROSAIL-D. In this study, the ntree parameter was set to 500 and the mtry parameter to one third of the number of Sentinel-2 bands, which are the default values. The calibrated RF model was then applied to the reflectance observed in the Sentinel-2 imagery for obtaining spatially explicit FVC predictions for each of the pixels in the pre- and post-fire time series imagery.
PROSAIL-D parameterization and execution in direct mode, as well as FVC retrieval through RF algorithm were performed in ARTMO [41].

2.4. FVC Retrieval Validation

In September 2017, we established 60 field plots of 20 m × 20 m in burned areas to evaluate the post-fire FVC retrieval performance through MESMA and PROSAIL-D along the post-fire time series. Likewise, 20 control plots of 20 m × 20 m were established in unburned areas to evaluate pre-fire FVC retrieval. This number of field plots has been shown to be representative of the plant communities’ variability in the study site [11]. Plots were stratified by reproductive vegetation strategy (resprouters and facultative seeders). The center of each plot was georeferenced using a sub-meter accuracy GPS receiver in post-processing mode. Both control and burned plots were sampled in September 2017, with burned plots also being surveyed in July 2020. FVC was estimated in each plot as the area of the vertical projection occupied by each community stratum (i.e., herbaceous and shrub strata) in the shrubland communities, using a visual estimation method [42]. The coefficient of determination (R2) was calculated to evaluate the retrieval performance of the FVC through MESMA and PROSAIL-D over the time series.

2.5. Data Analyses

From the spatially explicit FVC prediction maps for the time series with higher overall accuracy (i.e., PROSAIL-D RTM or MESMA pixel unmixing model), we performed a stratified random sampling of 1000 points, using reproductive vegetation strategy and burn severity categories as strata. A minimum distance of 100 m between points was ensured. For each point, the FVC value was extracted for the considered time series. We computed an impact-normalized resilience index (Rin) [43] that represents the recovery of the system property, in this case the FVC, with respect to the impact of the disturbance on that property:
R i n = P t x P t i / C 0 P t i
where Ptx is the value of the system property at the time point when the resilience is evaluated after the disturbance, Pti is the value of the property immediately after the disturbance, and C0 is its control value. A value of the Rin index equal to 1 denotes a full recovery of the property at the considered time point. A linear regression model and subsequent Tukey’s HSD test were used to evaluate the effect of regenerative vegetation strategy and burn severity (independent variables), as well as their interaction, on vegetation resilience as measured by the Rin index (dependent variable). All statistical analyses were performed in R.4.0.5 [44].

3. Results

The overall accuracy of the RF algorithm trained with PROSAIL-D model simulations for retrieving FVC from Sentinel-2 imagery (R2 = 0.75–0.79) was substantially higher than that achieved from MESMA models (R2 = 0.64–0.73), both in the immediate pre- and post-fire scenarios, as well as three years after the wildfire (Figure 2). The accuracy of the FVC retrieval for both PROSAIL-D and MESMA models was higher in the pre-fire and long-term post-fire scenarios (R2 > 0.69) than in the immediate post-fire situation (R2 > 0.64). The FVC estimation for the two shrubland communities considered, dominated by facultative seeder species and by resprouter species, showed no significant under- or overestimation effects over the entire range of field-measured FVC, although the estimates for the resprouters were closer tailored to the 1:1 line (Figure 2).
From the PROSAIL-D spatially explicit FVC estimates, we evidenced a significant effect of vegetation reproductive strategy (p-value < 0.05) and burn severity (p-value < 0.001), as well as their interaction (p-value < 0.05), on the resilience of shrubland communities in the study site (Figure 3). High burn severity hindered the short-term resilience of shrubland communities dominated by facultative seeder species, with no FVC recovery to a pre-disturbance state being observed 3 years after wildfire (Figure 3). In contrast, communities dominated by shrub resprouter species reached pre-fire FVC values 3 years after the fire disturbance, regardless of the burn severity scenario (Figure 3). In this sense, resprouter shrubland communities featured a faster recovery rate in high burn severity scenarios than those communities dominated by facultative seeders.

4. Discussion

The assessment of post-fire recovery trajectories through remote sensing-based techniques is essential for (i) understanding current fire regimes in fire-prone ecosystems of the western Mediterranean Basin [3,45], (ii) providing new insights on the resilience of plant communities at several spatial scales [23,46], and (iii) supporting adaptive management strategies aimed at maintaining ecosystem functions and services endangered by changing fire regimes [47,48,49].
The present study demonstrated the potentiality of physical-based remote sensing approaches (i.e., radiative transfer and pixel unmixing models) for estimating FVC as an indicator of resilience to fire in several pre- and postfire scenarios of shrubland communities with different vegetation responses. Considerably accurate FVC estimates were achieved with the PROSAIL-D RTM and MESMA approaches considering (i) the complexity of biophysical parameters retrieval in shrubland communities because of the high background signal of non-photosynthetic material and bare soil exposed to the remote sensor, and (ii) the complex mixture of shrub species [11,50].
In any case, we found that hybrid inversion of the PROSAIL-D RTM using the RF algorithm outperformed MESMA models when retrieving FVC in heterogeneous shrubland plant communities. Although both approaches have a solid physical basis and feature an adequate capability to generalize the biophysical parameter retrievals [4], the delineation of spectrally pure endmembers with moderate spatial resolution imagery in pixel unmixing models can be challenging [51], especially in heterogeneous burned landscapes with fine-grained arrangement of vegetation and burned legacies. In addition, spatiotemporal changes in the vegetation’s biophysical properties and background features when dealing with time series analysis may not be properly captured when delineating image endmembers in extensive burned landscapes [11]. In contrast, the PROSAIL-D model is parametrized with well-known ranges of model input variables for the plant communities under consideration, providing a strong characterization of the physical relationships between the simulated reflectance and site biophysical variability [11]. However, the use of site-specific field information to parametrize the RTM could provide higher accuracy in the retrieval of the biophysical variable of interest [52].
The higher accuracy of FVC retrieval for both PROSAIL-D and MESMA models in the pre-fire and long-term post-fire scenarios, with stronger vegetation responses than in the immediate post-fire situation, could be related to the increased influence of woody debris and bare soil on the surface reflectance at the first post-fire stages with limited canopy cover [50]. This behavior may also be related to FVC estimates closer to the 1:1 line in the case of shrublands dominated by resprouter species, which feature higher vegetation cover [53] and structural complexity [14] than the communities dominated by seeder species in the study site. In addition, a complex mixture of regenerating grass species, seedling recruitment and resprouting responses in early post-fire stages could be encompassed in a decametric Sentinel-2 pixel, increasing retrieval uncertainty [11]. Also, the non-photosynthetic material and bare soil spectra profile from expected pure pixels may not be accurately collected from decametric satellite imagery [22].
Shrubland communities dominated by both facultative seeder and resprouter species featured a high post-fire recovery ability, especially in low and moderate burn severity scenarios, in line with the results of previous field-based research [42,53,54,55]. However, under high burn severity scenarios, faster recovery rates were evidenced in shrubland communities dominated by resprouter species compared to those dominated by facultative seeders. In general, surviving resprouting structures confer a rapid recovery of plant biomass and a quick recolonization of the physical space occupied by the vegetation prior to the wildfire [54]. Likewise, the aerial and soil seed bank of shrub seeder species suffers considerable damage at high burn severity [56]. This behavior enabled shrubland communities dominated by resprouter species to achieve resilience in the short term after wildfire, in contrast to communities dominated by facultative seeders [57].
Our results are therefore in agreement with those obtained in previous research based exclusively on field data, which demonstrates the potential of physical-based remote sensing techniques, particularly the hybrid inversion of RTMs, to assess the resilience to fire of shrubland communities in the short term. However, both physical-based approaches (i.e., PROSAIL-D RTM and MESMA) featured several FVC retrieval uncertainties in heterogeneous fire-prone shrubland communities. First, PROSAIL-D is a turbid medium RTM, and, consequently, higher accuracies in the model inversion can be attained by using a geometric RTM to simulate canopy reflectance and transmittance in heterogeneous shrubland communities [21], but at the expense of a more complex model parameterization [58], usually with field data not available short-term after fire. Second, RTM approaches exhibit improved performance from retrieval using passive optical data at high spatial resolution, avoiding the land cover aggregation effect of mixed pixels [11]. This shortcoming would be partially solved by MESMA models, which better capture the ground spectra variability of mixed pixels. Nevertheless, non-linear mixing in sparse canopies, such as shrubland communities in the early post-fire periods, violates MESMA assumptions and has an impact on its performance [59]. However, the main limitation of PROSAIL-D RTM and MESMA lies in the impossibility to determine the post-fire recovery trajectories of specific vegetation types or growth forms within the community [31], both in terms of their composition and structure. In this sense, the fusion of remote sensing data from optical sensors processed through physical-based techniques, with that of active sensors such as synthetic aperture radar (SAR) or light detection and ranging (LiDAR), could provide valuable insights on the recovery trajectories of biophysical properties at the species level or by height strata [14,60,61].

5. Conclusions

The assessment of how shrubland communities recover from fire disturbance in fire-prone ecosystems is essential to providing new insights about the resilience of plant communities under changing fire regimes in the Mediterranean Basin. This study novelty compared the potential of radiative transfer and pixel unmixing models for evaluating the short-term resilience to fire of several shrubland communities. We found that the hybrid inversion of the PROSAIL-D RTM outperformed MESMA pixel unmixing models to retrieve FVC in heterogeneous shrubland communities. Adaptations to fire allowed shrub communities dominated by resprouter species to achieve resilience in the short-term period after wildfire, which is consistent with previous studies based exclusively on field data, and thus demonstrates the potential of physical-based remote sensing approaches in fire ecology research.

Author Contributions

Conceptualization, J.M.F.-G., S.S.-S., A.F.-M., and L.C.; formal analysis, J.M.F.-G., and C.Q.; funding acquisition, S.S.-S. and L.C.; investigation, L.C.; methodology, J.M.F.-G., C.Q., and A.F.-M.; writing—original draft, J.M.F.-G.; writing—review & editing, S.S.-S., C.Q., A.F.-M., and L.C. All authors have read and agreed to the published version of the manuscript.

Funding

This study was financially supported by the Spanish Ministry of Economy and Competitiveness and the European Regional Development Fund (ERDF), in the framework of the FIRESEVES (AGL2017-86075-C2-1-R) project; by the Regional Government of Castilla and León in the framework of the WUIFIRECYL (LE005P20) project; and by the British Ecological Society in the framework of the SR22-100154 project, where José Manuel Fernández-Guisuraga is the Principal Investigator. José Manuel Fernández-Guisuraga was supported by a Ramón Areces Foundation postdoctoral fellowship.

Data Availability Statement

The datasets analyzed for this study are available from the corresponding author on reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Doblas-Miranda, E.; Alonso, R.; Arnan, X.; Bermejo, V.; Brotons, L.; de las Heras, J.; Estiarte, M.; Hódar, J.A.; Llorens, P.; Lloret, F.; et al. A review of the combination among global change factors in forests, shrublands and pastures of the Mediterranean Region: Beyond drought effects. Glob. Planet. Change 2017, 148, 42–54. [Google Scholar] [CrossRef]
  2. Keeley, J.E. Fire intensity, fire severity and burn severity: A brief review and suggested usage. Int. J. Wildland Fire 2009, 18, 116–126. [Google Scholar] [CrossRef]
  3. González-De Vega, S.; De las Heras, J.; Moya, D. Resilience of Mediterranean terrestrial ecosystems and fire severity in semiarid areas: Responses of Aleppo pine forests in the short, mid and long term. Sci. Total Environ. 2016, 573, 1171–1177. [Google Scholar] [CrossRef] [PubMed]
  4. Fernández-Guisuraga, J.M.; Calvo, L.; Suárez-Seoane, S. Comparison of pixel unmixing models in the evaluation of post-fire forest resilience based on temporal series of satellite imagery at moderate and very high spatial resolution. ISPRS J. Photogramm. Remote Sens. 2020, 164, 217–228. [Google Scholar] [CrossRef]
  5. Eva, H.D.; Carboni, S.; Achard, F.; Stach, N.; Durieux, L.; Faure, J.F.; Mollicone, D. Monitoring forest areas from continental to territorial levels using a sample of medium spatial resolution satellite imagery. ISPRS Int. J. Photogramm. Remote Sens. 2010, 65, 191–197. [Google Scholar] [CrossRef]
  6. Nagendra, H.; Lucas, R.; Honrado, J.P.; Jongman, R.H.G.; Tarantino, C.; Adamo, M.; Mairota, P. Remote sensing for conservation monitoring: Assessing protected areas, habitat extent, habitat condition, species diversity, and threats. Ecol. Indic. 2013, 33, 45–59. [Google Scholar] [CrossRef]
  7. Storey, E.A.; Stow, D.A.; O’Leary, J.F. Assessing postfire recovery of chamise chaparral using multi-temporal spectral vegetation index trajectories derived from Landsat imagery. Remote Sens. Environ. 2016, 183, 53–64. [Google Scholar] [CrossRef]
  8. Stillinger, T.; Roberts, D.A.; Collar, N.M.; Dozier, J. Cloud masking for Landsat 8 and MODIS Terra over snow-covered terrain: Error analysis and spectral similarity between snow and cloud. Water Resour. Res. 2019, 55, 6169–6184. [Google Scholar] [CrossRef]
  9. Viedma, O.; Melia, J.; Segarra, D.; Garcia-Haro, J. Modeling rates of ecosystem recovery after fires by using Landsat TM data. Remote Sens. Environ. 1997, 61, 383–398. [Google Scholar] [CrossRef]
  10. Ireland, G.; Petropoulos, G.P. Exploring the relationships between post-fire vegetation regeneration dynamics, topography and burn severity: A case study from the Montane Cordillera Ecozones of Western Canada. Appl. Geogr. 2015, 56, 232–248. [Google Scholar] [CrossRef]
  11. Fernández-Guisuraga, J.M.; Verrelst, J.; Calvo, L.; Suárez-Seoane, S. Hybrid inversion of radiative transfer models based on high spatial resolution satellite reflectance data improves fractional vegetation cover retrieval in heterogeneous ecological systems after fire. Remote Sens. Environ. 2021, 255, 112304. [Google Scholar] [CrossRef]
  12. Vila, G.; Barbosa, P. Post-fire vegetation regrowth detection in the Deiva Marina region (Liguria-Italy) using Landsat TM and ETM+ data. Ecol. Model. 2010, 221, 75–84. [Google Scholar] [CrossRef]
  13. Lu, D.; Chen, Q.; Wang, G.; Liu, L.; Li, G.; Moran, E. A survey of remote sensing-based aboveground biomass estimation methods in forest ecosystems. Int. J. Digit. Earth 2016, 9, 63–105. [Google Scholar] [CrossRef]
  14. Fernández-Guisuraga, J.M.; Suárez-Seoane, S.; Calvo, L. Radar and multispectral remote sensing data accurately estimate vegetation vertical structure diversity as a fire resilience indicator. Remote Sens. Ecol. Conserv. 2022, in press. [Google Scholar] [CrossRef]
  15. Somers, B.; Asner, G.P.; Tits, L.; Coppin, P. Endmember variability in Spectral Mixture Analysis: A review. Remote Sens. Environ. 2011, 115, 1603–1616. [Google Scholar] [CrossRef]
  16. Wang, X.; Jia, K.; Liang, S.; Li, Q.; Wei, X.; Yao, Y.; Zhang, X.; Tu, Y. Estimating Fractional Vegetation Cover from Landsat-7 ETM+ Reflectance Data Based on a Coupled Radiative Transfer and Crop Growth Model. IEEE Trans. Geosci. Remote Sens. 2017, 55, 5539–5546. [Google Scholar] [CrossRef]
  17. Veraverbeke, S.; Somers, B.; Gitas, I.; Katagis, T.; Polychronaki, A.; Goossens, R. Spectral mixture analysis to assess post-fire vegetation regeneration using Landsat Thematic Mapper imagery: Accounting for soil brightness variation. Int. J. Appl. Earth Obs. Geoinf. 2012, 14, 1–11. [Google Scholar] [CrossRef]
  18. Roberts, D.A.; Gardner, M.; Church, R.; Ustin, S.; Scheer, G.; Green, R.O. Mapping Chaparral in the Santa Monica Mountains Using Multiple Endmember Spectral Mixture Models. Remote Sens. Environ. 1998, 65, 267–279. [Google Scholar] [CrossRef]
  19. Quintano, C.; Fernandez-Manso, A.; Roberts, D.A. Burn severity mapping from Landsat MESMA fraction images and Land Surface Temperature. Remote Sens. Environ. 2017, 190, 83–95. [Google Scholar] [CrossRef]
  20. Jia, K.; Liang, S.; Gu, X.; Baret, F.; Wei, X.; Wang, X.; Yao, Y.; Yang, L.; Li, Y. Fractional vegetation cover estimation algorithm for Chinese GF-1 wide field view data. Remote Sens. Environ. 2016, 177, 184–191. [Google Scholar] [CrossRef]
  21. Yebra, M.; Chuvieco, E.; Riaño, D. Estimation of live fuel moisture content from MODIS images for fire risk assessment. Agric. For. Meteorol. 2008, 148, 523–536. [Google Scholar] [CrossRef]
  22. Verrelst, J.; Rivera, J.P.; Veroustraete, F.; Muñoz-Marí, J.; Clevers, J.G.P.W.; Camps-Valls, G.; Moreno, J. Experimental Sentinel-2 LAI estimation using parametric, non-parametric and physical retrieval methods—A comparison. ISPRS J. Photogramm. Remote Sens. 2015, 108, 260–272. [Google Scholar] [CrossRef]
  23. Fernandez-Manso, A.; Quintano, C.; Roberts, D.A. Burn severity influence on post-fire vegetation cover resilience from Landsat MESMA fraction images time series in Mediterranean forest ecosystems. Remote Sens. Environ. 2016, 184, 112–123. [Google Scholar] [CrossRef]
  24. ESA. Sentinel-2 MSI User Guide. 2022. Available online: https://sentinel.esa.int/web/sentinel/user-guides/sentinel-2-msi (accessed on 25 August 2022).
  25. Richter, R.; Schläpfer, D. Atmospheric/Topographic Correction for Satellite Imagery; DLR Report DLR-IB 565-01/2018; ReSe Applications Schläpfer: Wessling, Germany, 2018. [Google Scholar]
  26. Key, C.H. Ecological and sampling constraints on defining landscape fire severity. Fire Ecol. 2006, 2, 34–59. [Google Scholar] [CrossRef]
  27. García-Llamas, P.; Suárez-Seoane, S.; Fernández-Manso, A.; Quintano, C.; Calvo, L. Evaluation of fire severity in fire prone-ecosystems of Spain under two different environmental conditions. J. Environ. Manag. 2020, 271, 110706. [Google Scholar] [CrossRef]
  28. Soverel, N.O.; Perrakis, D.D.B.; Coops, N.C. Estimating burn severity from Landsat dNBR and RdNBR indices across western Canada. Remote Sens. Environ. 2010, 114, 1896–1909. [Google Scholar] [CrossRef]
  29. Key, C.H.; Benson, N.C. Landscape Assessment (LA). In FIREMON: Fire Effects Monitoring and Inventory System; General Technical Report RMRS-GTR-164-CD; Lutes, D.C., Keane, R.E., Caratti, J.F., Key, C.H., Benson, N.C., Sutherland, S., Gangi, L.J., Eds.; Department of Agriculture, Forest Service, Rocky Mountain Research Station: Fort Collins, CO, USA, 2006; pp. 1–55. [Google Scholar]
  30. Miller, J.D.; Thode, A.E. Quantifying burn severity in a heterogeneous landscape with a relative version of the delta normalized burn ratio (dNBR). Remote Sens. Environ. 2007, 109, 66–80. [Google Scholar] [CrossRef]
  31. Meng, R.; Dennison, P.E.; Huang, C.; Moritz, M.A.; D’Antonio, C. Effects of fire severity and post-fire climate on short-term vegetation recovery of mixed-conifer and red fir forests in the Sierra Nevada Mountains of California. Remote Sens. Environ. 2015, 171, 311–325. [Google Scholar] [CrossRef]
  32. Fernández-García, V.; Marcos, E.; Fernández-Guisuraga, J.M.; Fernández-Manso, A.; Quintano, C.; Suárez-Seoane, S.; Calvo, L. Multiple Endmember Spectral Mixture Analysis (MESMA) Applied to the Study of Habitat Diversity in the Fine-Grained Landscapes of the Cantabrian Mountains. Remote Sens. 2021, 13, 979. [Google Scholar] [CrossRef]
  33. Roth, K.L.; Dennison, P.E.; Roberts, D.A. Comparing endmember selection techniques for accurate mapping of plant species and land cover using imaging spectrometer data. Remote Sens. Environ. 2012, 127, 139–152. [Google Scholar] [CrossRef]
  34. Roberts, D.A.; Dennison, P.E.; Gardner, M.; Hetzel, Y.; Ustin, S.L.; Lee, C. Evaluation of the potential of hyperion for fire danger assessment by comparison to the airborne visible/infrared imaging spectrometer. IEEE Trans. Geosci. Remote Sens. 2003, 41, 1297–1310. [Google Scholar] [CrossRef]
  35. Roberts, D.A.; Halligan, K.; Dennison, P.; Dudley, K.; Somers, B.; Crabbe, A. Viper Tools User Manual; Version 2.1; Creative Commons: San Francisco, CA, USA, 2019; p. 92. [Google Scholar]
  36. Féret, J.B.; Gitelson, A.A.; Noble, S.D.; Jacquemoud, S. PROSPECT-D: Towards modeling leaf optical properties through a complete lifecycle. Remote Sens. Environ. 2017, 193, 204–215. [Google Scholar] [CrossRef]
  37. Verhoef, W.; Xiao, Q.; Jia, L.; Su, Z. Unified optical-thermal four-stream radiative transfer theory for homogeneous vegetation canopies. IEEE Trans. Geosci. Remote Sens. 2007, 45, 1808–1822. [Google Scholar] [CrossRef]
  38. Baret, F.; Hagolle, O.; Geiger, B.; Bicheron, P.; Miras, B.; Huc, M.; Berthelot, B.; Niño, F.; Weiss, M.; Samain, O.; et al. LAI, fAPAR and fCover CYCLOPES global products derived from VEGETATION: Part 1: Principles of the algorithm. Remote Sens. Environ. 2007, 110, 275–286. [Google Scholar] [CrossRef]
  39. García-Haro, F.J.; Campos-Taberner, M.; Muñoz-Marí, J.; Laparra, V.; Camacho, F.; Sánchez-Zapero, J.; Camps-Valls, G. Derivation of global vegetation biophysical parameters from EUMETSAT Polar System. ISPRS J. Photogramm. Remote Sens. 2018, 139, 57–74. [Google Scholar] [CrossRef]
  40. Breiman, L. Random forests. Mach. Learn. 2001, 45, 5–32. [Google Scholar] [CrossRef]
  41. Verrelst, J.; Romijn, E.; Kooistra, L. Mapping vegetation structure in a heterogeneous river floodplain ecosystem using pointable CHRIS/PROBA data. Remote Sens. 2012, 4, 2866–2889. [Google Scholar] [CrossRef]
  42. Calvo, L.; Santalla, S.; Valbuena, L.; Marcos, E.; Tárrega, R.; Luis-Calabuig, E. Post-fire natural regeneration of a Pinus pinaster forest in NW Spain. Plant Ecol. 2008, 197, 81–90. [Google Scholar] [CrossRef]
  43. Ingrisch, J.; Bahn, M. Towards a Comparable Quantification of Resilience. Trends Ecol. Evol 2018, 33, 251–259. [Google Scholar] [CrossRef]
  44. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2021. [Google Scholar]
  45. Fernández-Guisuraga, J.M.; Suárez-Seoane, S.; Calvo, L. Modeling Pinus pinaster forest structure after a large wildfire using remote sensing data at high spatial resolution. For. Ecol. Manag. 2019, 446, 257–271. [Google Scholar]
  46. Díaz-Delgado, R.; Lloret, F.; Pons, X.; Terradas, J. Satellite evidence of decreasing resilience in Mediterranean plant communities after recurrent wildfires. Ecology 2002, 83, 2293–2303. [Google Scholar] [CrossRef]
  47. Scheffer, M.; Carpenter, S.R.; Dakos, V.; van Nes, E.H. Generic Indicators of Ecological Resilience: Inferring the Chance of a Critical Transition. Annu. Rev. Ecol. Evol. Syst. 2015, 46, 145–167. [Google Scholar] [CrossRef]
  48. Chergui, B.; Fahd, S.; Santos, X. Quercus suber forest and Pinus plantations show different post-fire resilience in Mediterranean north-western Africa. Ann. For. Sci. 2018, 75, 64. [Google Scholar] [CrossRef]
  49. Fernández-García, V.; Quintano, C.; Taboada, A.; Marcos, E.; Calvo, L.; Fernández-Manso, A. Remote Sensing Applied to the Study of Fire Regime Attributes and Their Influence on Post-Fire Greenness Recovery in Pine Ecosystems. Remote Sens. 2018, 10, 733. [Google Scholar] [CrossRef]
  50. Casas, A.; Riaño, D.; Ustin, S.L.; Dennison, P.; Salas, J. Estimation of water-related biochemical and biophysical vegetation properties using multitemporal airborne hyperspectral data and its comparison to MODIS spectral response. Remote Sens. Environ. 2014, 148, 28–41. [Google Scholar] [CrossRef]
  51. Melville, B.; Fisher, A.; Lucieer, A. Ultra-high spatial resolution fractional vegetation cover from unmanned aerial multispectral imagery. Int. J. Appl. Earth Obs. Geoinf. 2019, 78, 14–24. [Google Scholar] [CrossRef]
  52. Yebra, M.; Chuvieco, E. Linking ecological information and radiative transfer models to estimate fuel moisture content in the Mediterranean region of Spain: Solving the ill-posed inverse problem. Remote Sens. Environ. 2009, 113, 2403–2411. [Google Scholar] [CrossRef]
  53. Huerta, S.; Fernández-García, V.; Marcos, E.; Suárez-Seoane, S.; Calvo, L. Physiological and Regenerative Plant Traits Explain Vegetation Regeneration under Different Severity Levels in Mediterranean Fire-Prone Ecosystems. Forests 2021, 12, 149. [Google Scholar] [CrossRef]
  54. Calvo, L.; Santalla, S.; Marcos, E.; Valbuena, L.; Tárrega, R.; Luis, E. Regeneration after wildfire in one community dominated by obligate seeder Pinus pinaster and in another dominated by a typical resprouter Quercus pyrenaica. For. Ecol. Manag. 2003, 184, 209–223. [Google Scholar] [CrossRef]
  55. Heath, J.T.; Chafer, C.J.; Bishop, T.F.A.; Ogtrop, F.F.V. Post-Fire Recovery of Eucalypt-Dominated Vegetation Communities in the Sydney Basin, Australia. Fire Ecol. 2016, 12, 53–79. [Google Scholar] [CrossRef]
  56. Mamede, M.D.; de Araujo, F.S. Effects of slash and burn practices on a soil seed bank of Caatinga vegetation in Northestern Brazil. J. Arid. Environ. 2008, 72, 458–470. [Google Scholar] [CrossRef]
  57. Valdecantos, A.; Baeza, M.J.; Vallejo, V.R. Vegetation Management for Promoting Ecosystem Resilience in Fire-Prone Mediterranean Shrublands. Restor. Ecol. 2009, 17, 414–421. [Google Scholar] [CrossRef]
  58. Darvishzadeh, R.; Skidmore, A.; Schlerf, M.; Atzberger, C. Inversion of a radiative transfer model for estimating vegetation LAI and chlorophyll in a heterogeneous grassland. Remote Sens. Environ. 2008, 112, 2592–2604. [Google Scholar] [CrossRef]
  59. Somers, B.; Cools, K.; Delalieux, S.; Stuckens, J.; Van der Zande, D.; Verstraeten, W.W.; Coppin, P. Nonlinear Hyperspectral Mixture Analysis for tree cover estimates in orchards. Remote Sens. Environ. 2009, 113, 1183–1193. [Google Scholar] [CrossRef]
  60. Bergen, K.M.; Goetz, S.J.; Dubayah, R.O.; Henebry, G.M.; Hunsaker, C.T.; Imhoff, M.L.; Nelson, R.F.; Parker, G.G.; Radeloff, V.C. Remote sensing of vegetation 3-D structure for biodiversity and habitat: Review and implications for lidar and radar spaceborne missions. J. Geophys. Res. 2009, 114, G00E06. [Google Scholar] [CrossRef]
  61. McCarley, T.R.; Kolden, C.A.; Vaillant, N.M.; Hudak, A.T.; Smith, A.M.S.; Wing, B.M.; Kellogg, B.S.; Kreitler, J. Multi-temporal LiDAR and Landsat quantification of fire-induced changes to forest structure. Remote Sens. Environ. 2017, 191, 419–432. [Google Scholar] [CrossRef]
Figure 1. Wildfire perimeter and burn severity estimation from the differenced Normalized Burn Ratio (dNBR) thresholds.
Figure 1. Wildfire perimeter and burn severity estimation from the differenced Normalized Burn Ratio (dNBR) thresholds.
Remotesensing 14 05138 g001

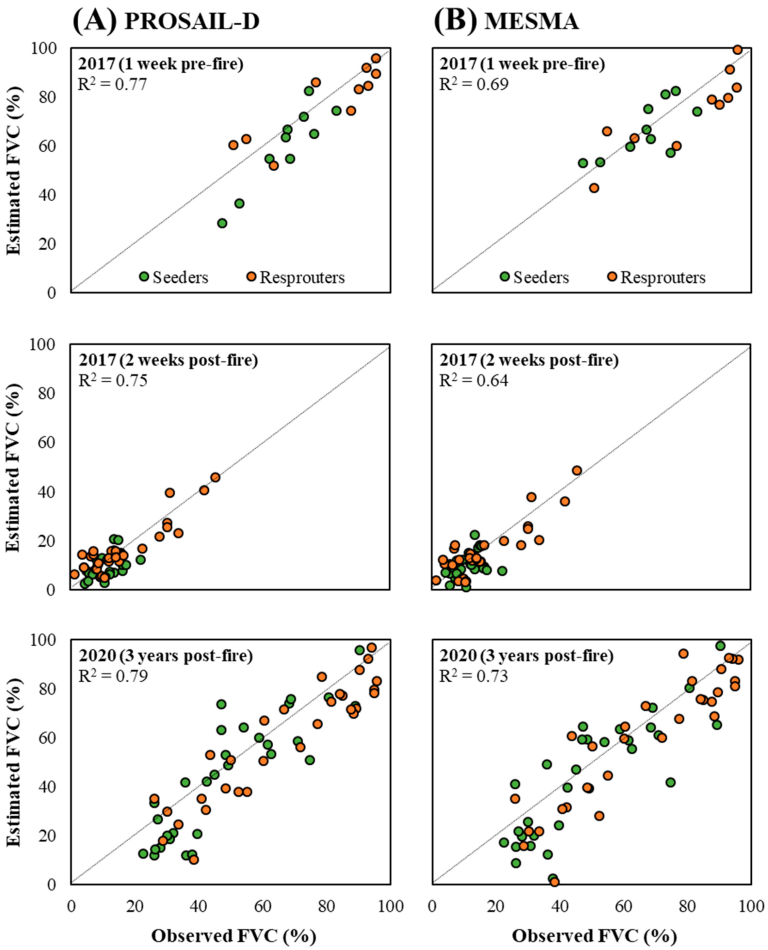

Figure 2. Relationship between the FVC measured in the field and that retrieved from Sentinel-2 imagery for the time series using PROSAIL-D (A) and MESMA (B) models.
Figure 2. Relationship between the FVC measured in the field and that retrieved from Sentinel-2 imagery for the time series using PROSAIL-D (A) and MESMA (B) models.
Remotesensing 14 05138 g002

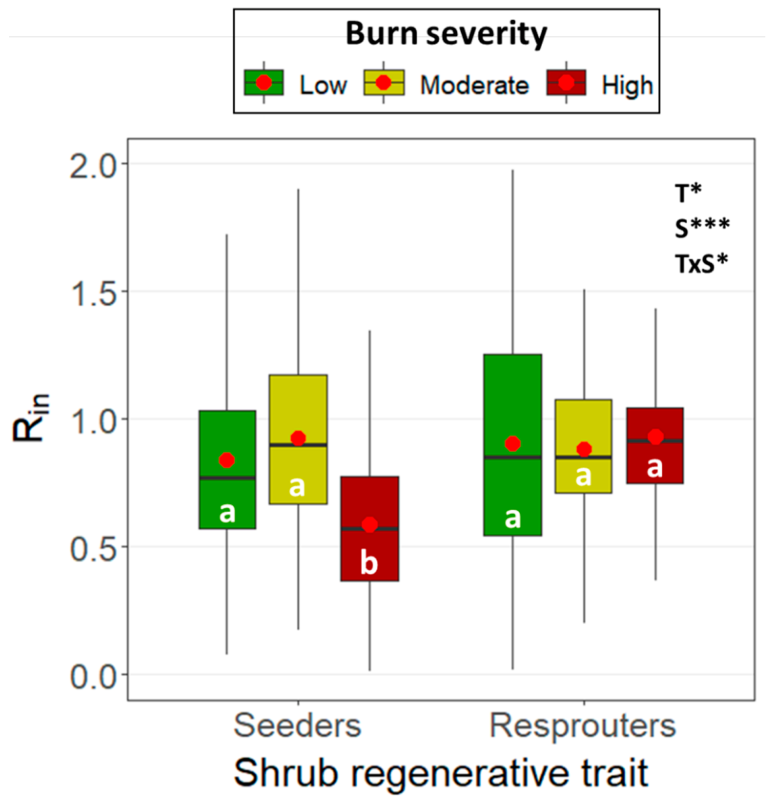

Figure 3. Boxplot showing the relationship between the impact-normalized resilience index (Rin) and burn severity in shrubland plant communities dominated by facultative seeders species and resprouter species. Significance of Rin predictors (regenerative trait: T; burn severity: S; T × S interaction) is represented as * (p-value < 0.05), ** (p-value < 0.01), and *** (p-value < 0.001). Lowercase letters denote significant differences in Rin at the 0.05 level between burn severity levels within each plant community.
Figure 3. Boxplot showing the relationship between the impact-normalized resilience index (Rin) and burn severity in shrubland plant communities dominated by facultative seeders species and resprouter species. Significance of Rin predictors (regenerative trait: T; burn severity: S; T × S interaction) is represented as * (p-value < 0.05), ** (p-value < 0.01), and *** (p-value < 0.001). Lowercase letters denote significant differences in Rin at the 0.05 level between burn severity levels within each plant community.
Remotesensing 14 05138 g003
Table 1. Value or range of input variables for PROSPECT-D and 4SAIL models.
Table 1. Value or range of input variables for PROSPECT-D and 4SAIL models.
Leaf Model (PROSPECT-D)UnitValue or Range
Structure indexunitless1.5–2.5
Chlorophyll contentµg cm−210–70
Dry matter contentg cm−20.005–0.015
Water contentg cm−20.005–0.015
Carotenoid contentµg cm−25–40
Anthocyanin contentµg cm−20–60
Brown pigment fractionunitless0–1
Canopy model (4SAIL)UnitValue or range
Leaf area indexm2 m−20.1–3
Average leaf angledegrees20–90
Diffuse/direct radiationunitless0.1
Hot spot effectunitless0.001–1
Soil brightness factorunitless0–1
Fraction of vegetation coverunitless0–1
Solar zenith angledegreesImagery metadata
Observation zenith angledegreesImagery metadata
Sun-sensor azimuth angledegreesImagery metadata
