# Analysis of Change in Maize Plantation Distribution and Its Driving Factors in Heilongjiang Province, China

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Study Area and Data

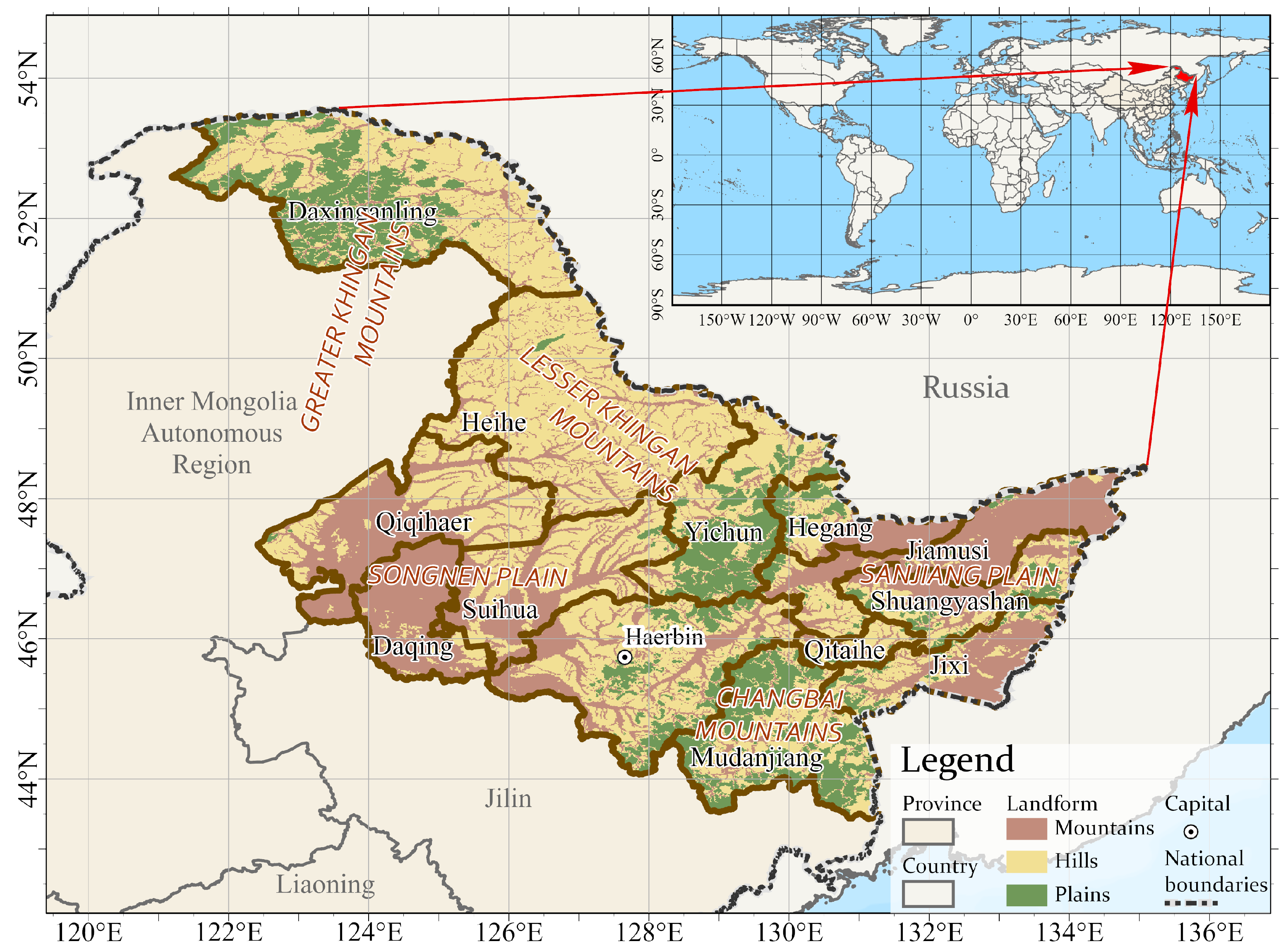

#### 2.1. Study Area

#### 2.2. Data

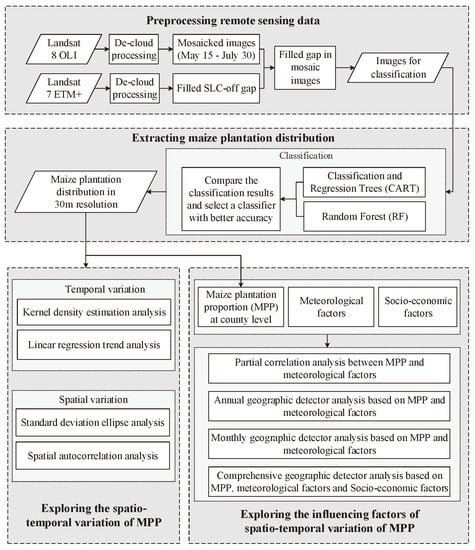

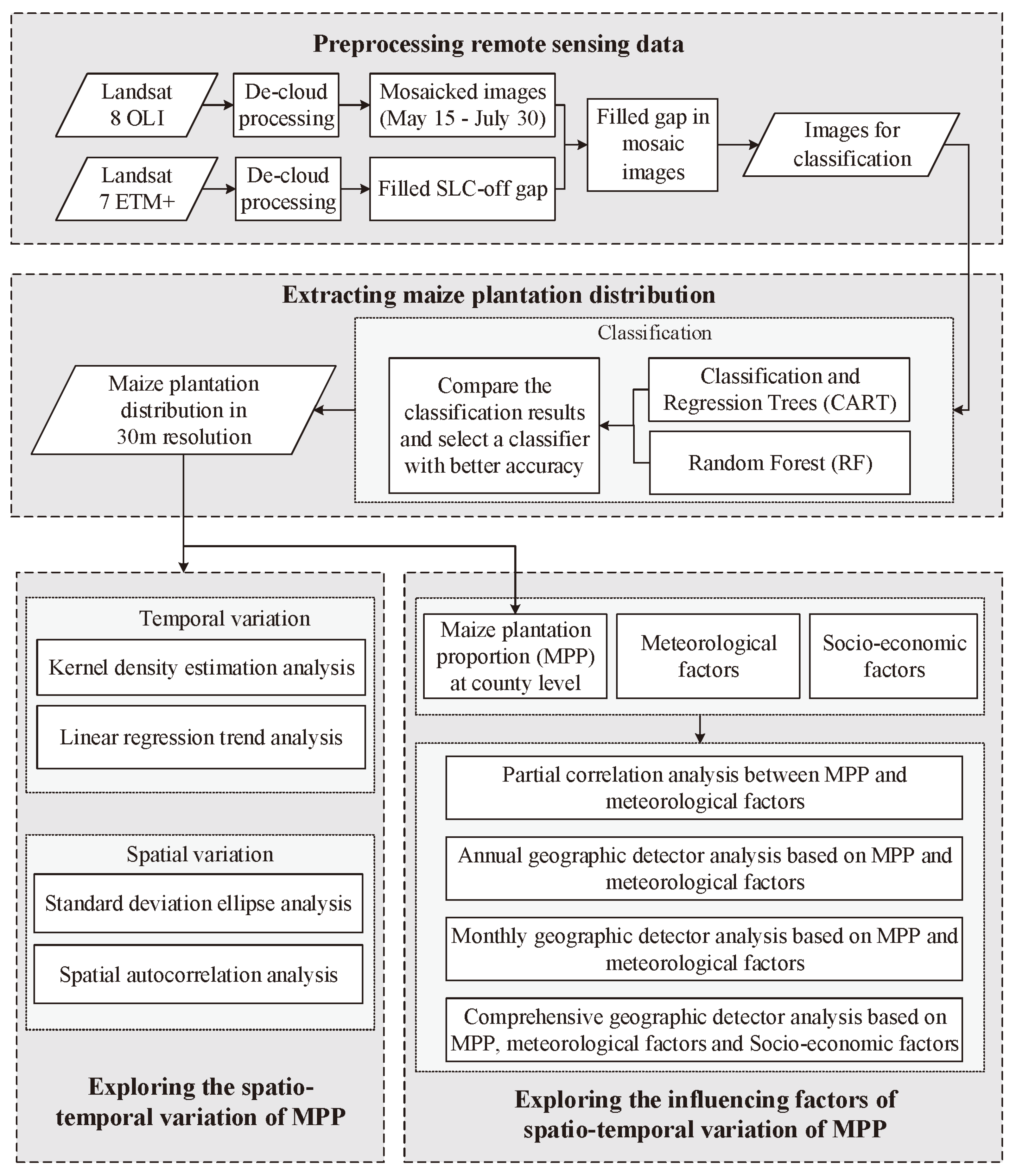

## 3. Methodology

#### 3.1. Preprocessing Remote Sensing Data

#### 3.2. Extracting the Maize Planting Distribution

#### 3.3. Exploring the Spatio-Temporal Variation in Maize Plantation Distribution

#### 3.4. Exploring the Influencing Factors of Maize Plantation Distribution Spatio-Temporal Variation

- Calculate the q statistic values of two factors ${X}_{1}$ and ${X}_{2}$: $q\left({X}_{1}\right)$ and $q\left({X}_{2}\right)$.
- Overlay the two layers ${X}_{1}$ and ${X}_{2}$ to obtain the composite layer ${X}_{1}\cap {X}_{2}$.
- Calculate the q statistic values of composite layer ${X}_{1}\cap {X}_{2}$: $q\left({X}_{1}\cap {X}_{2}\right)$
- Compare $q\left({X}_{1}\right)$, $q\left({X}_{2}\right)$ and $q\left({X}_{1}\cap {X}_{2}\right)$

## 4. Results

#### 4.1. Maize Plantation Distribution

#### 4.2. Spatio-Temporal Variation in Maize Plantation Distribution

#### 4.2.1. Temporal Variation of Maize Plantation

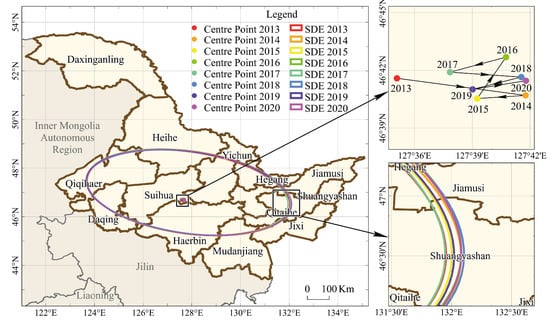

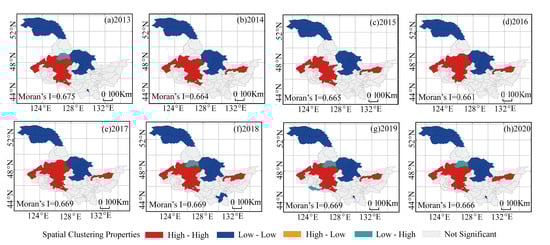

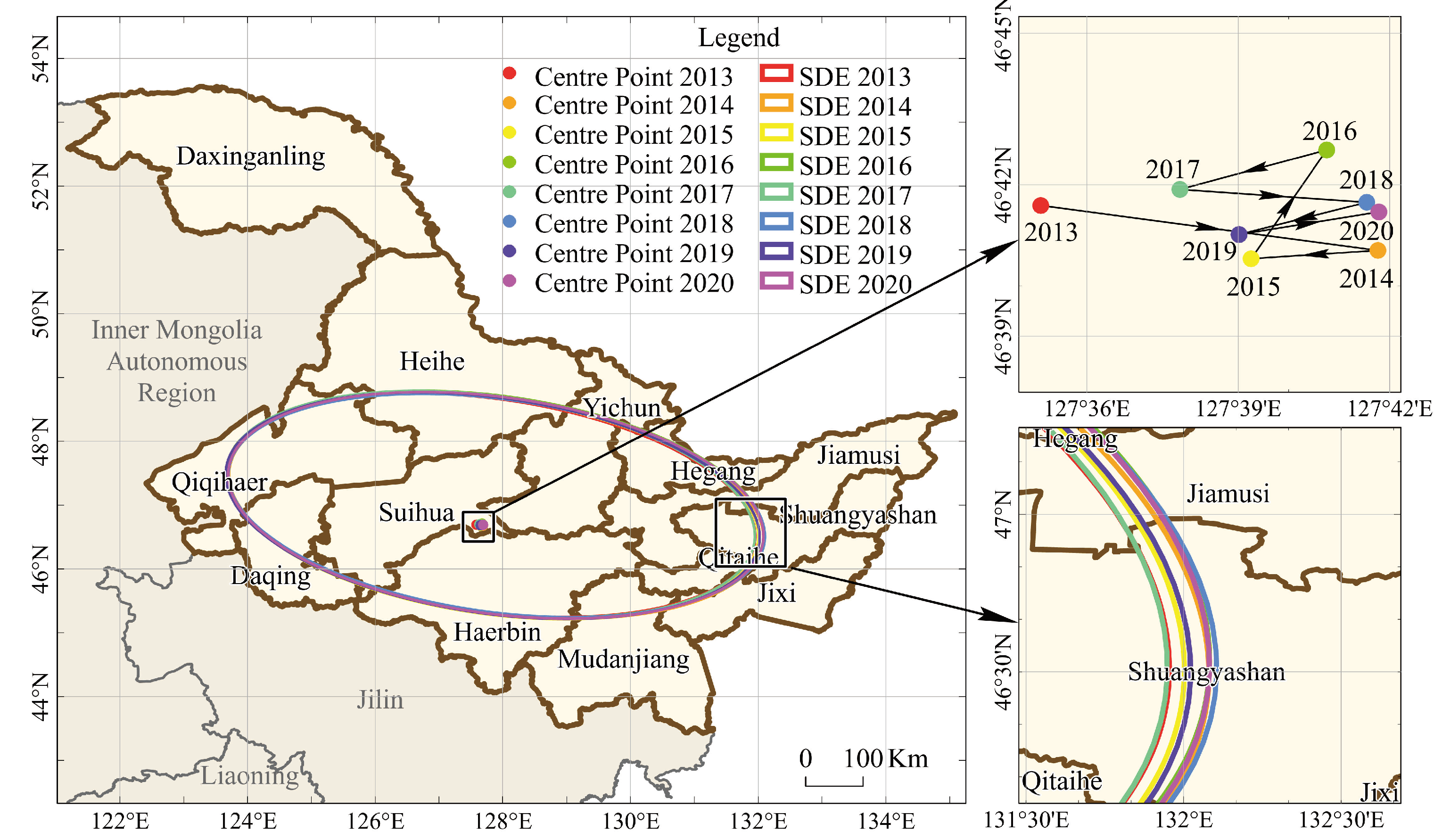

#### 4.2.2. Spatial Distribution Characteristics and Changes in Maize Plantation

#### 4.3. Spatio-Temporal Variation in Influencing Factors of Maize Plantation Distribution

#### 4.3.1. Results of the Partial Correlation Analysis

#### 4.3.2. Results of Geographic Detector Analysis

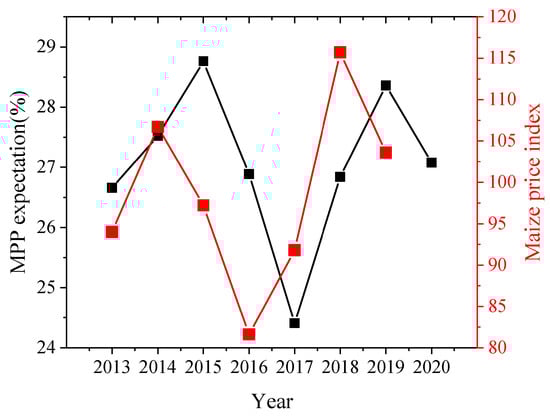

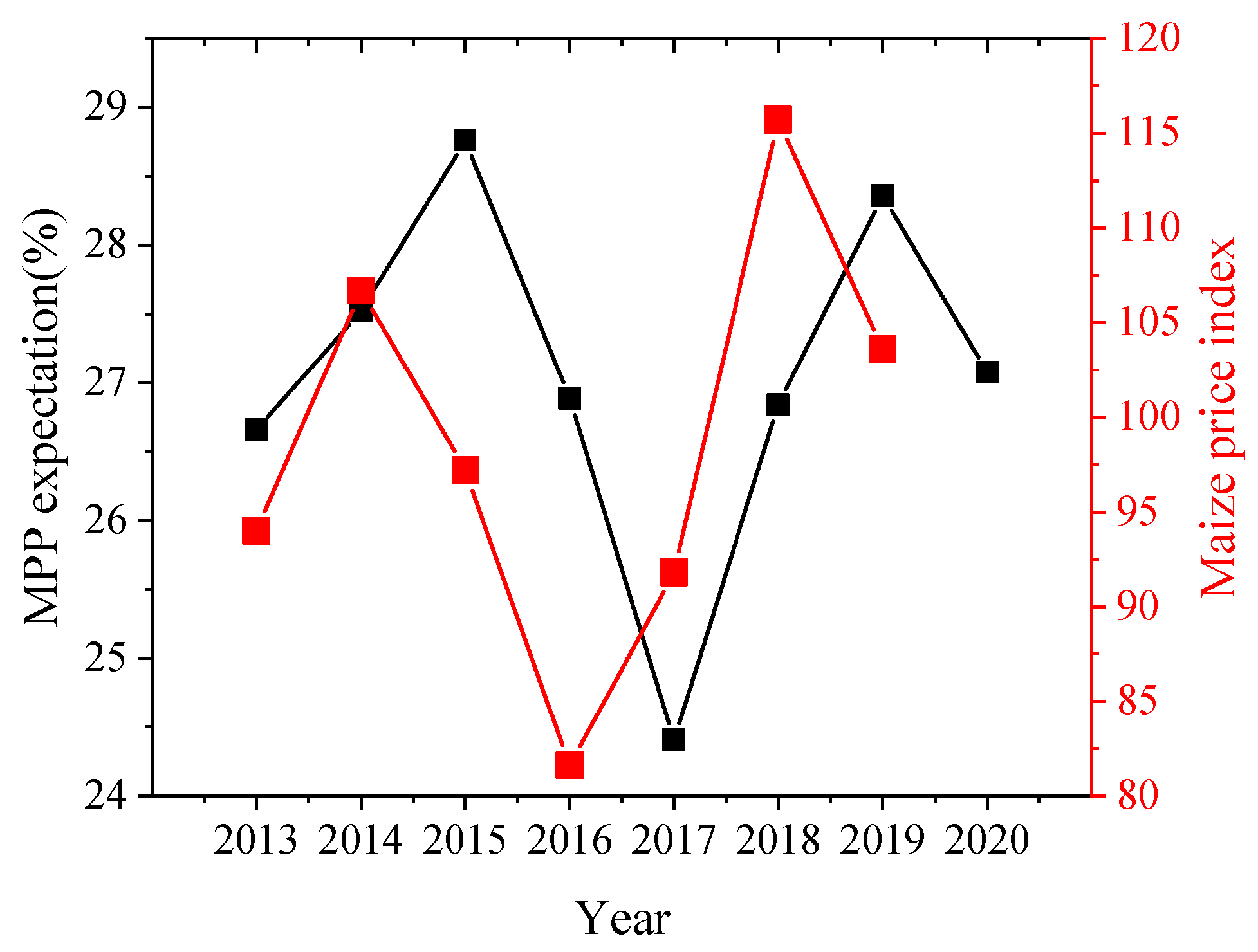

## 5. Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## Abbreviations

AE | Agriculture Employees |

AGP | Agriculture Gross Product |

CART | Classification And Regression Tree |

CCF | Consumption of Chemical Fertilizers |

CFMASK | C Function of Mask |

CNLULC | Chinese Land Use And Land Cover |

EC | Electricity Consumed in rural areas |

IA | Irrigated Area |

GDP | Gross Regional Product |

GEE | Google Earth Engine |

KDE | Kernel Density Estimation |

LUT | Land Cover Transformation |

MPP | Maize Plantation Proportion |

NRH | Number of Rural Households |

NRL | Number of Rural Laborers |

PAF | Percentage of Area with Flood prevention measures |

Probability Density Function | |

PRE | Precipitation |

PRS | Atmospheric Pressure |

QA | Quality Assessment |

RF | Random Forest |

RHU | Relative Humidity |

SDE | Standard Ellipse analysis |

SH | Spatial Heterogeneity |

SR | Surface Reflectance |

SSD | Sunshine Duration |

TEM | Temperature |

WIN | Wind Speed |

## Appendix A

Year | smileCart | smileRandomForest | ||
---|---|---|---|---|

Overall Accuracy | Kappa | Overall Accuracy | Kappa | |

2013 | 0.9724 | 0.9436 | 0.9628 | 0.9107 |

2014 | 0.9444 | 0.8849 | 0.9328 | 0.9045 |

2015 | 0.9882 | 0.9761 | 0.9784 | 0.9478 |

2016 | 0.9592 | 0.9183 | 0.9652 | 0.9246 |

2017 | 0.9870 | 0.9739 | 0.9723 | 0.9548 |

2018 | 0.9783 | 0.9563 | 0.9457 | 0.9369 |

2019 | 0.9643 | 0.9245 | 0.9367 | 0.8974 |

2020 | 0.9800 | 0.9584 | 0.9124 | 0.8753 |

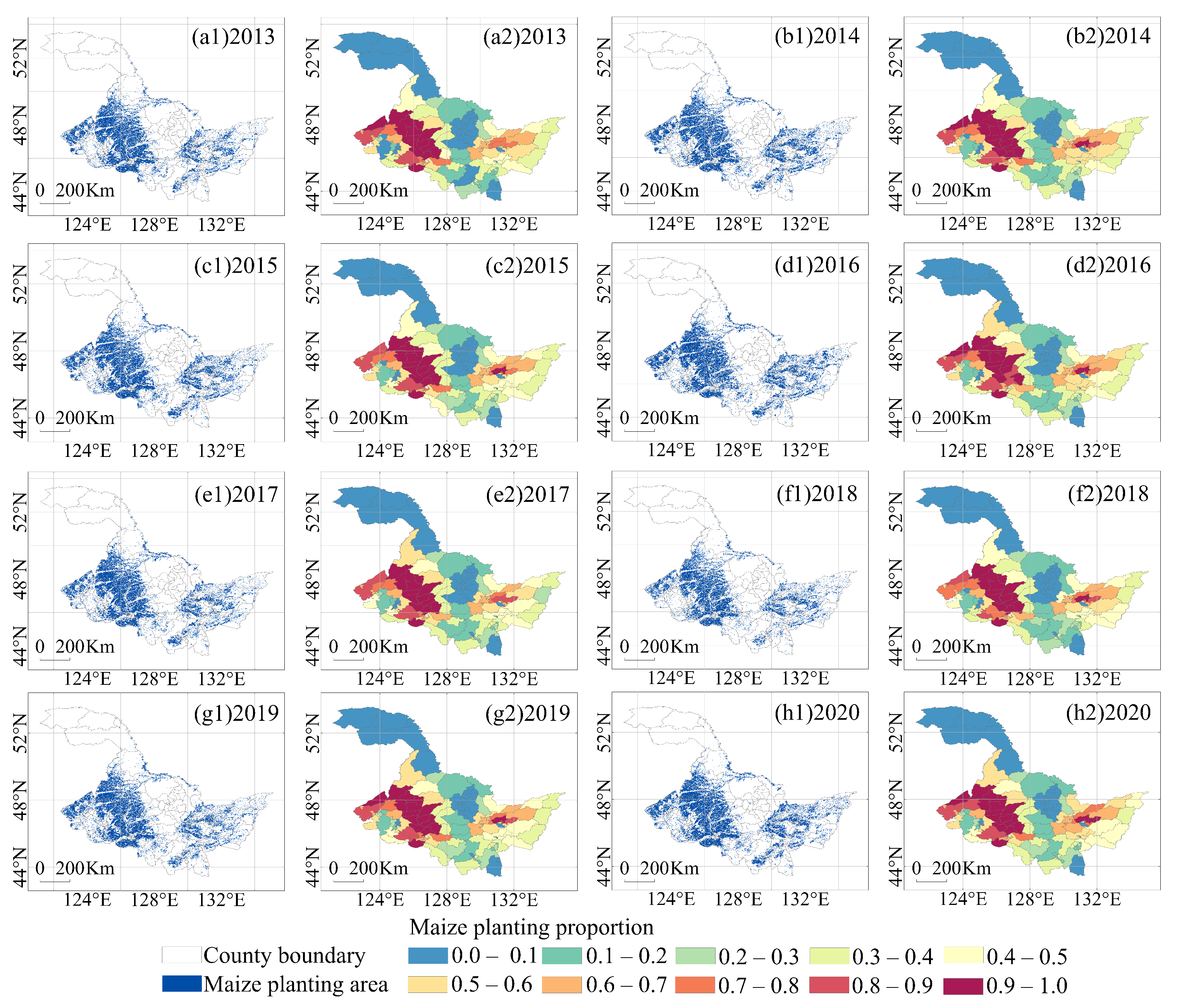

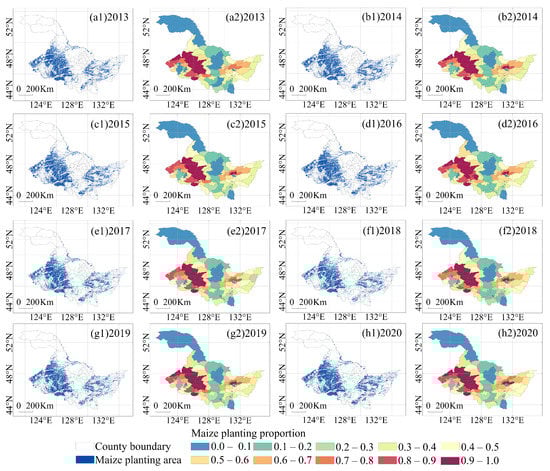

**Figure A1.**The maize plantation distribution from 2013 to 2020 (

**a1**–

**h1**) and the maize plantation proportion at the county level from 2013 to 2020 (

**a2**–

**h2**).

## References

- Li, Z.; Yang, P.; Wu, W.; Li, Z.; You, L. Spatio-temporal changes in Chinese crop patterns over the past three decades. Acta Geogr. Sin.
**2016**, 71, 840–851. [Google Scholar] [CrossRef] - Verburg, P.H.; Chen, Y.; Veldkamp, T.A. Spatial explorations of land use change and grain production in China. Agric. Ecosyst. Environ.
**2000**, 82, 333–354. [Google Scholar] [CrossRef] - Hatfield, J.L.; Boote, K.J.; Kimball, B.A.; Ziska, L.H.; Izaurralde, R.C.; Ort, D.; Thomson, A.M.; Wolfe, D. Climate Impacts on Agriculture: Implications for Crop Production. Agron. J.
**2011**, 103, 351–370. [Google Scholar] [CrossRef][Green Version] - Ray, D.K.; Gerber, J.S.; MacDonald, G.K.; West, P.C. Climate variation explains a third of global crop yield variability. Nat. Commun.
**2015**, 6, 5989. [Google Scholar] [CrossRef] [PubMed][Green Version] - Godfray, H.C.J.; Beddington, J.R.; Crute, I.R.; Haddad, L.; Lawrence, D.; Muir, J.F.; Pretty, J.; Robinson, S.; Thomas, S.M.; Toulmin, C. Food Security: The Challenge of Feeding 9 Billion People. Science
**2010**, 327, 812–818. [Google Scholar] [CrossRef][Green Version] - You, L.; Wood, S.; Wood-Sichra, U. Generating plausible crop distribution maps for Sub-Saharan Africa using a spatially disaggregated data fusion and optimization approach. Agric. Syst.
**2009**, 99, 126–140. [Google Scholar] [CrossRef] - You, L.; Wood, S. Assessing the spatial distribution of crop areas using a cross-entropy method. Int. J. Appl. Earth Obs. Geoinf.
**2005**, 7, 310–323. [Google Scholar] [CrossRef] - Xiao, G.; Zhu, X.; Hou, C.; Liu, Y.; Xu, K. A Spatialization Method for Grain Yield Statistical Data: A Study on Winter Wheat of Shandong Province, China. Agron. J.
**2019**, 111, 1892–1903. [Google Scholar] [CrossRef] - Zhu, X.; Xiao, G.; Wen, P.; Zhang, J.; Hou, C. Mapping Tobacco Fields Using UAV RGB Images. Sensors
**2019**, 19, 1791. [Google Scholar] [CrossRef][Green Version] - Zhang, L.; Liu, Z.; Ren, T.; Liu, D.; Ma, Z.; Tong, L.; Zhang, C.; Zhou, T.; Zhang, X.; Li, S. Identification of Seed Maize Fields With High Spatial Resolution and Multiple Spectral Remote Sensing Using Random Forest Classifier. Remote Sens.
**2020**, 12, 362. [Google Scholar] [CrossRef][Green Version] - Hao, P.; Di, L.; Zhang, C.; Guo, L. Transfer Learning for Crop classification with Cropland Data Layer data (CDL) as training samples. Sci. Total Environ.
**2020**, 733, 138869. [Google Scholar] [CrossRef] [PubMed] - Izquierdo-Verdiguier, E.; Zurita-Milla, R. An evaluation of Guided Regularized Random Forest for classification and regression tasks in remote sensing. Int. J. Appl. Earth Obs. Geoinf.
**2020**, 88, 102051. [Google Scholar] [CrossRef] - Teluguntla, P.; Thenkabail, P.S.; Oliphant, A.; Xiong, J.; Gumma, M.K.; Congalton, R.G.; Yadav, K.; Huete, A. A 30-m landsat-derived cropland extent product of Australia and China using random forest machine learning algorithm on Google Earth Engine cloud computing platform. ISPRS J. Photogramm. Remote Sens.
**2018**, 144, 325–340. [Google Scholar] [CrossRef] - Xiong, J.; Thenkabail, P.S.; Gumma, M.K.; Teluguntla, P.; Poehnelt, J.; Congalton, R.G.; Yadav, K.; Thau, D. Automated cropland mapping of continental Africa using Google Earth Engine cloud computing. ISPRS J. Photogramm. Remote Sens.
**2017**, 126, 225–244. [Google Scholar] [CrossRef][Green Version] - Liu, L.; Xiao, X.; Qin, Y.; Wang, J.; Xu, X.; Hu, Y.; Qiao, Z. Mapping cropping intensity in China using time series Landsat and Sentinel-2 images and Google Earth Engine. Remote Sens. Environ.
**2020**, 239, 111624. [Google Scholar] [CrossRef] - Ye, Q.; Yang, X.; Dai, S.; Chen, G.; Li, Y.; Zhang, C. Effects of climate change on suitable rice cropping areas, cropping systems and crop water requirements in southern China. Agric. Water Manag.
**2015**, 159, 35–44. [Google Scholar] [CrossRef] - Liu, Z.; Yang, X.; Chen, F.; Wang, E. The effects of past climate change on the northern limits of maize planting in Northeast China. Clim. Chang.
**2013**, 117, 891–902. [Google Scholar] [CrossRef] - Fischer, G.; Shah, M.; Tubiello, F.N.; van Velhuizen, H. Socio-economic and climate change impacts on agriculture: An integrated assessment, 1990–2080. Philos. Trans. R. Soc. Biol. Sci.
**2005**, 360, 2067–2083. [Google Scholar] [CrossRef] - Fanfani, R.; Brasili, C. Regional differences in Chinese agriculture: Results from the 1997 First National Agricultural Census. J. Peasant. Stud.
**2003**, 30, 18–44. [Google Scholar] [CrossRef] - IPCC. Climate Change 2021: The Physical Science Basis. Contribution of Working Group I to the Sixth Assessment Report of the Intergovernmental Panel on Climate Change; Cambridge University Press: Cambridge, UK, 2021. [Google Scholar]
- Meng, Q.; Hou, P.; Lobell, D.B.; Wang, H.; Cui, Z.; Zhang, F.; Chen, X. The benefits of recent warming for maize production in high latitude China. Clim. Chang.
**2014**, 122, 341–349. [Google Scholar] [CrossRef] - Liu, Y.; Xie, R.; Hou, P.; Li, S.; Zhang, H.; Ming, B.; Long, H.; Liang, S. Phenological responses of maize to changes in environment when grown at different latitudes in China. Field Crop. Res.
**2013**, 144, 192–199. [Google Scholar] [CrossRef] - Ge, G.; Chaoying, H. Climate Change and Its Impact on Water Resources in North China. Adv. Atmos. Sci.
**2001**, 18, 718–732. [Google Scholar] [CrossRef] - Foga, S.; Scaramuzza, P.L.; Guo, S.; Zhu, Z.; Dilley, R.D.; Beckmann, T.; Schmidt, G.L.; Dwyer, J.L.; Hughes, M.J.; Laue, B. Cloud detection algorithm comparison and validation for operational Landsat data products. Remote Sens. Environ.
**2017**, 194, 379–390. [Google Scholar] [CrossRef][Green Version] - Smith, P. Bilinear interpolation of digital images. Ultramicroscopy
**1981**, 6, 201–204. [Google Scholar] [CrossRef] - Scaramuzza, P.; Micijevic, E.; Chander, G. SLC-Off Gap-Filled Products Gap-Fill Algorithm Methodology Phase 2 Gap-Fill Algorithm; US Geological Survey Earth Resources Observation and Science (EROS) Center: Sioux Falls, SD, USA, 2004. [Google Scholar]
- Chen, J.; Zhu, X.; Vogelmann, J.E.; Gao, F.; Jin, S. A simple and effective method for filling gaps in Landsat ETM+ SLC-off images. Remote Sens. Environ.
**2011**, 115, 1053–1064. [Google Scholar] [CrossRef] - Breiman, L.; Friedman, J.H.; Olshen, R.A.; Stone, C.J. Classification and Regression Trees; Wadsworth and Brooks: Belmont, CA, USA, 1984. [Google Scholar]
- Ho, T.K. Random decision forests. In Proceedings of the 3rd International Conference on Document Analysis and Recognition, Montreal, QC, Canada, 14–16 August 1995; Volume 1, pp. 278–282. [Google Scholar] [CrossRef]
- Breiman, L. Random Forests. Mach. Learn.
**2001**, 45, 5–32. [Google Scholar] [CrossRef][Green Version] - Rosenblatt, M. Remarks on Some Nonparametric Estimates of a Density Function. Ann. Math. Stat.
**1956**, 27, 832–837. [Google Scholar] [CrossRef] - Parzen, E. On Estimation of a Probability Density Function and Mode. Ann. Math. Stat.
**1962**, 33, 1065–1076. [Google Scholar] [CrossRef] - Bianchi, M.; Boyle, M.; Hollingsworth, D. A comparison of methods for trend estimation. Appl. Econ. Lett.
**1999**, 6, 103–109. [Google Scholar] [CrossRef] - Lefever, D.W. Measuring Geographic Concentration by Means of the Standard Deviational Ellipse. Am. J. Sociol.
**1926**, 32, 88–94. [Google Scholar] [CrossRef] - Yuill, R.S. The Standard Deviational Ellipse; An Updated Tool for Spatial Description. Geogr. Ann. Ser. Hum. Geogr.
**1971**, 53, 28–39. [Google Scholar] [CrossRef] - Wang, J.; Xu, C. Geodetector: Principle and prospective. Acta Geogr. Sin.
**2017**, 72, 116–134. [Google Scholar] [CrossRef] - Li, Q.; Zhou, Y.; Wang, L.; Zuo, Q.; Yi, S.; Liu, J.; Su, X.; Xu, T.; Jiang, Y. The Link between Landscape Characteristics and Soil Losses Rates over a Range of Spatiotemporal Scales: Hubei Province, China. Int. J. Environ. Res. Public Health
**2021**, 18, 11044. [Google Scholar] [CrossRef] [PubMed] - Su, Y.; Li, T.; Cheng, S.; Wang, X. Spatial distribution exploration and driving factor identification for soil salinisation based on geodetector models in coastal area. Ecol. Eng.
**2020**, 156, 105961. [Google Scholar] [CrossRef] - Yang, X.; Liu, Z.; Chen, F. The Possible Effect of Climate Warming on Northern Limits of Cropping System and Crop Yield in China. Agric. Sci. China
**2011**, 10, 585–594. [Google Scholar] [CrossRef] - Lesk, C.; Coffel, E.; Winter, J.; Ray, D.; Zscheischler, J.; Seneviratne, S.I.; Horton, R. Stronger temperature–moisture couplings exacerbate the impact of climate warming on global crop yields. Nat. Food
**2021**, 2, 683–691. [Google Scholar] [CrossRef] - Rosenzweig, C.; Elliott, J.; Deryng, D.; Ruane, A.C.; Müller, C.; Arneth, A.; Boote, K.J.; Folberth, C.; Glotter, M.; Khabarov, N.; et al. Assessing agricultural risks of climate change in the 21st century in a global gridded crop model intercomparison. Proc. Natl. Acad. Sci. USA
**2014**, 111, 3268–3273. [Google Scholar] [CrossRef][Green Version] - Pan, T.; Du, G.; Dong, J.; Kuang, W.; Maeyer, P.D.; Kurban, A. Divergent changes in cropping patterns and their effects on grain production under different agro-ecosystems over high latitudes in China. Sci. Total Environ.
**2019**, 659, 314–325. [Google Scholar] [CrossRef] - Baloch, N.; Liu, W.; Hou, P.; Ming, B.; Xie, R.; Wang, K.; Liu, Y.; Li, S. Effect of latitude on maize kernel weight and grain yield across China. Agron. J.
**2021**, 113, 1172–1182. [Google Scholar] [CrossRef] - Ouyang, W.; Gao, X.; Hao, Z.; Liu, H.; Shi, Y.; Hao, F. Farmland shift due to climate warming and impacts on temporal-spatial distributions of water resources in a middle-high latitude agricultural watershed. J. Hydrol.
**2017**, 547, 156–167. [Google Scholar] [CrossRef] - Qi, P.; Xia, Z.; Zhang, G.; Zhang, W.; Chang, Z. Effects of climate change on agricultural water resource carrying capacity in a high-latitude basin. J. Hydrol.
**2021**, 597, 126328. [Google Scholar] [CrossRef] - Wang, N.; Wang, E.; Wang, J.; Zhang, J.; Zheng, B.; Huang, Y.; Tan, M. Modelling maize phenology, biomass growth and yield under contrasting temperature conditions. Agric. For. Meteorol.
**2018**, 250–251, 319–329. [Google Scholar] [CrossRef] - Kim, S.; Gitz, D.C.; Sicher, R.C.; Baker, J.T. Temperature dependence of growth, development, and photosynthesis in maize under elevated CO
_{2}. Environ. Exp. Bot.**2007**, 61, 224–236. [Google Scholar] [CrossRef] - Yang, J.; Qiu, H.; Huang, J.; Rozelle, S. Fighting global food price rises in the developing world: The response of China and its effect on domestic and world markets. Agric. Econ.
**2008**, 39, 453–464. [Google Scholar] [CrossRef] - Mose, L.O.; Burger, K.; Kuvyenhoven, A. Aggregate supply response to price incentives: The case of smallholder maize production in Kenya. Afr. Crop. Sci. Conf. Proc.
**2007**, 8, 1271–1275. [Google Scholar] - Lardy, N.R. Prospects and Some Policy Problems of Agricultural Development in China. Am. J. Agric. Econ.
**1986**, 68, 451–457. [Google Scholar] [CrossRef] - Zhou, Y.; Li, X.; Liu, Y. Rural land system reforms in China: History, issues, measures and prospects. Land Use Policy
**2020**, 91, 104330. [Google Scholar] [CrossRef]

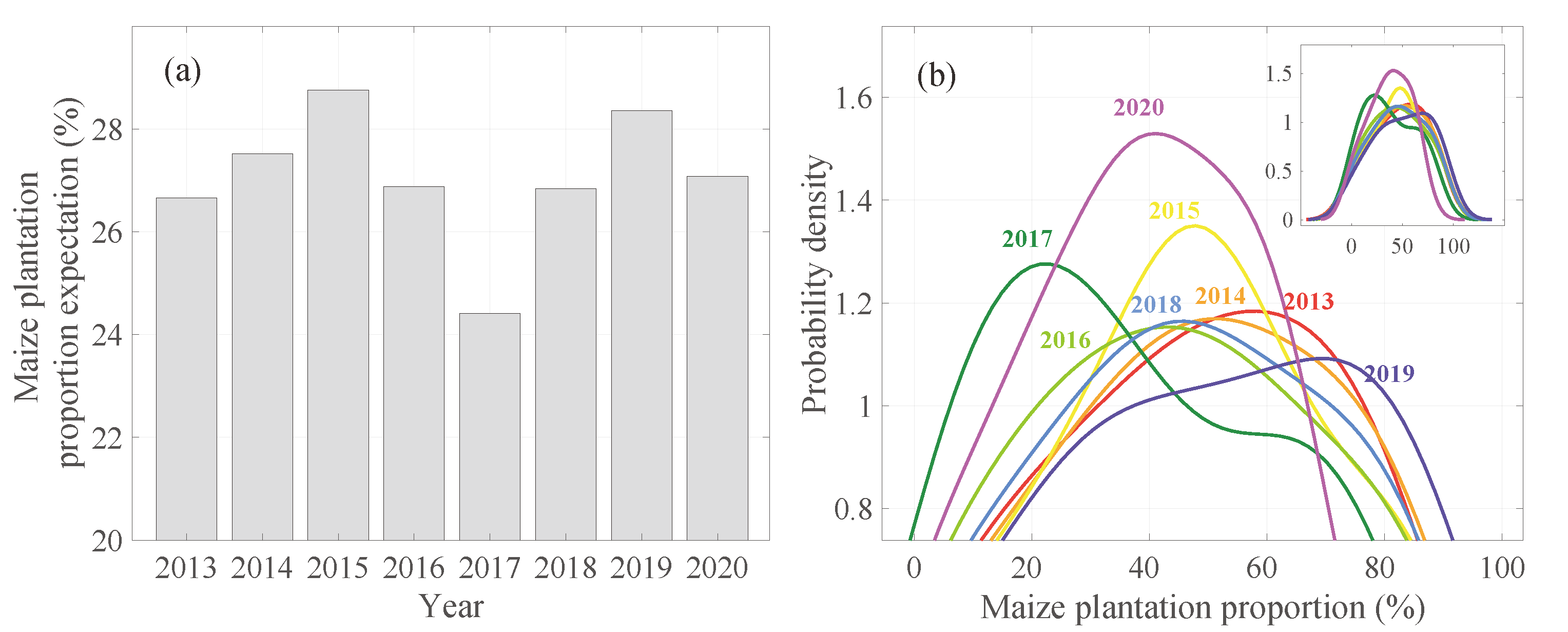

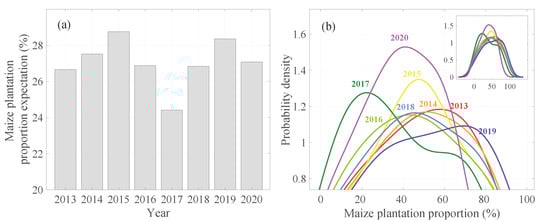

**Figure 3.**The expectations of the kernel density estimation function from 2013 to 2020 (

**a**) and the kernel density estimation function from 2013 to 2020 (

**b**).

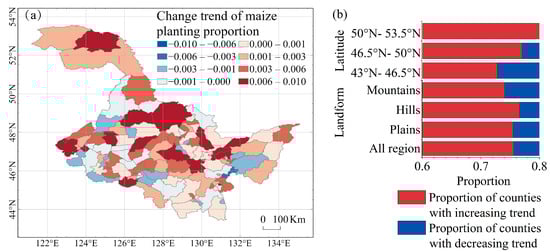

**Figure 4.**Linear regression trend of MPP at the county level (

**a**) and the proportion of counties with increasing or decreasing trend across different latitudes and landform regions (

**b**).

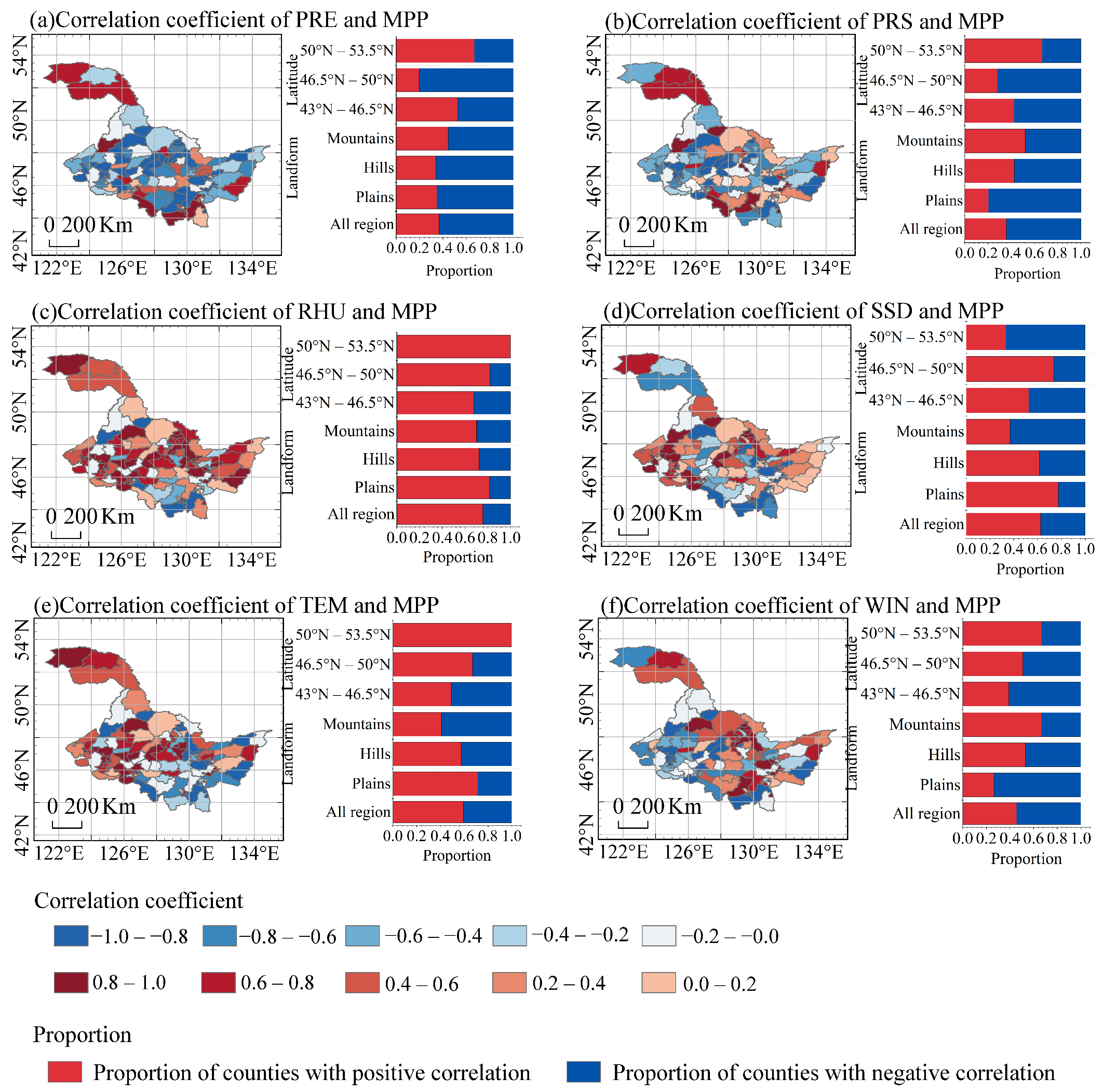

**Figure 7.**Correlation coefficient between maize plantation proportion (MPP) and meteorological factors including precipitation ((

**a**) PRE), atmospheric pressure ((

**b**) PRS), relative humidity ((

**c**) RHU), sunshine duration ((

**d**) SSD), temperature ((

**e**) TEM), wind speed ((

**f**) WIN) and the proportion of counties with positive or negative correlation across different latitudes and landform regions.

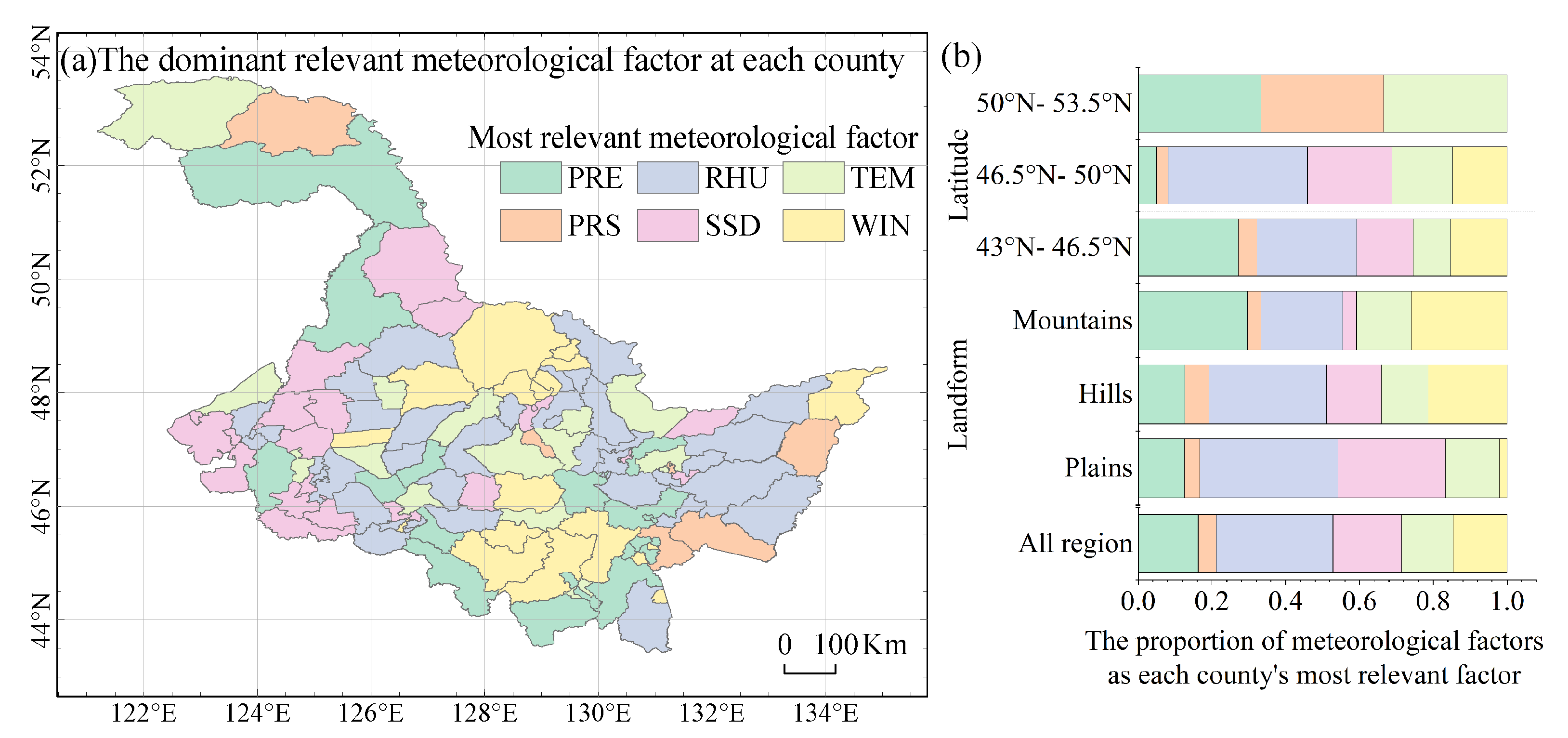

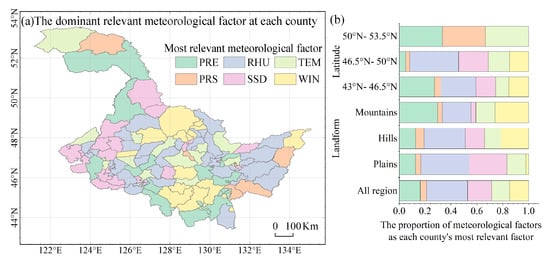

**Figure 8.**Dominant relevant meteorological factors (

**a**) and the proportion of meteorological factors as each county’s most relevant factor across different latitudes and landform regions (

**b**).

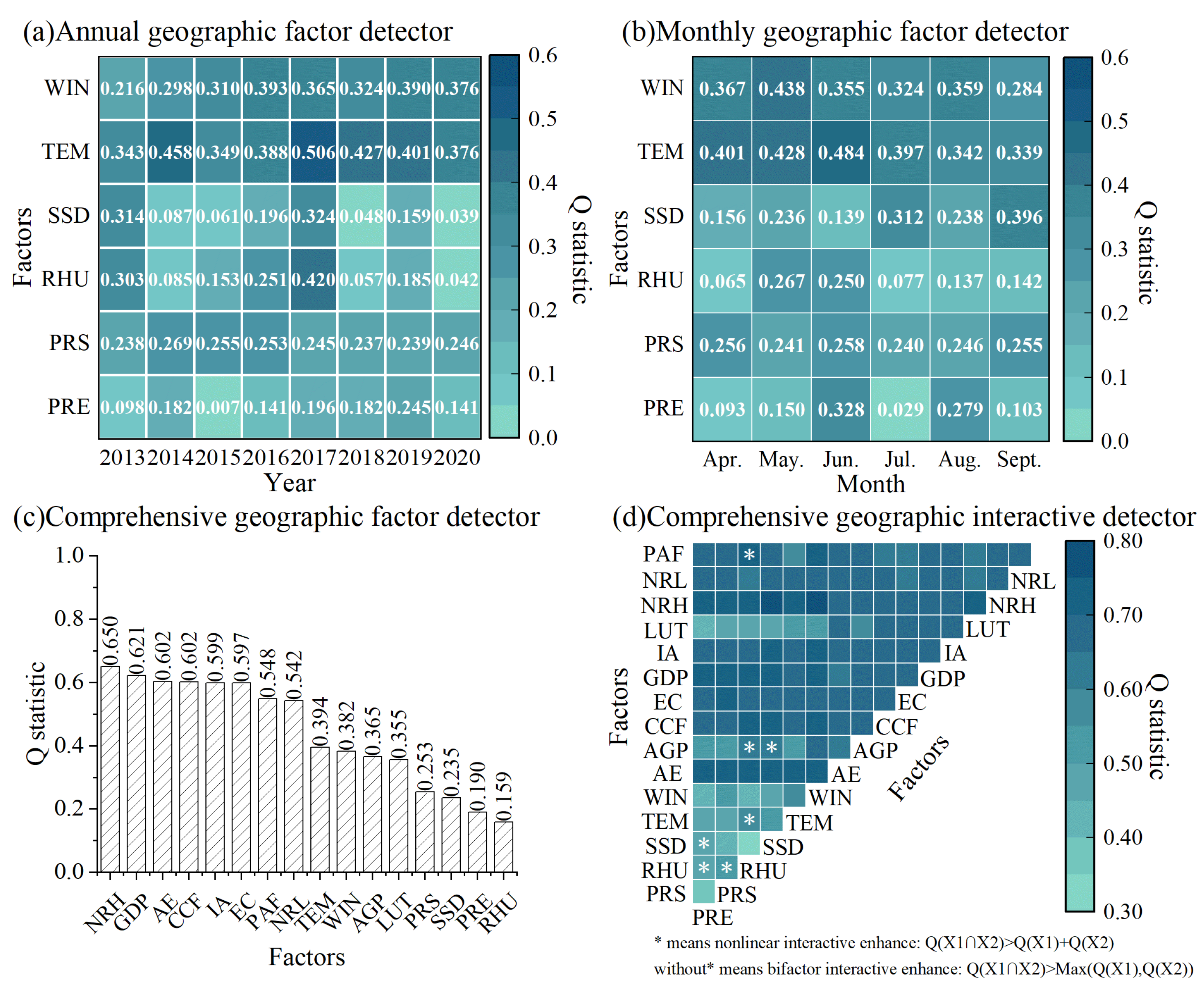

**Figure 9.**Annual (
