Diurnal Variation of the Diffuse Attenuation Coefficient for Downwelling Irradiance at 490 nm in Coastal East China Sea
Abstract
:1. Introduction
2. Materials and Methods

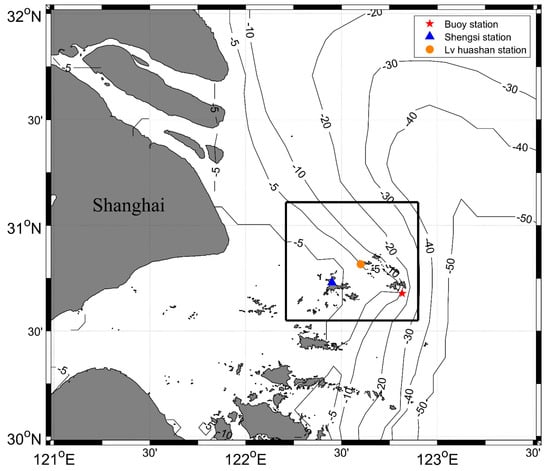

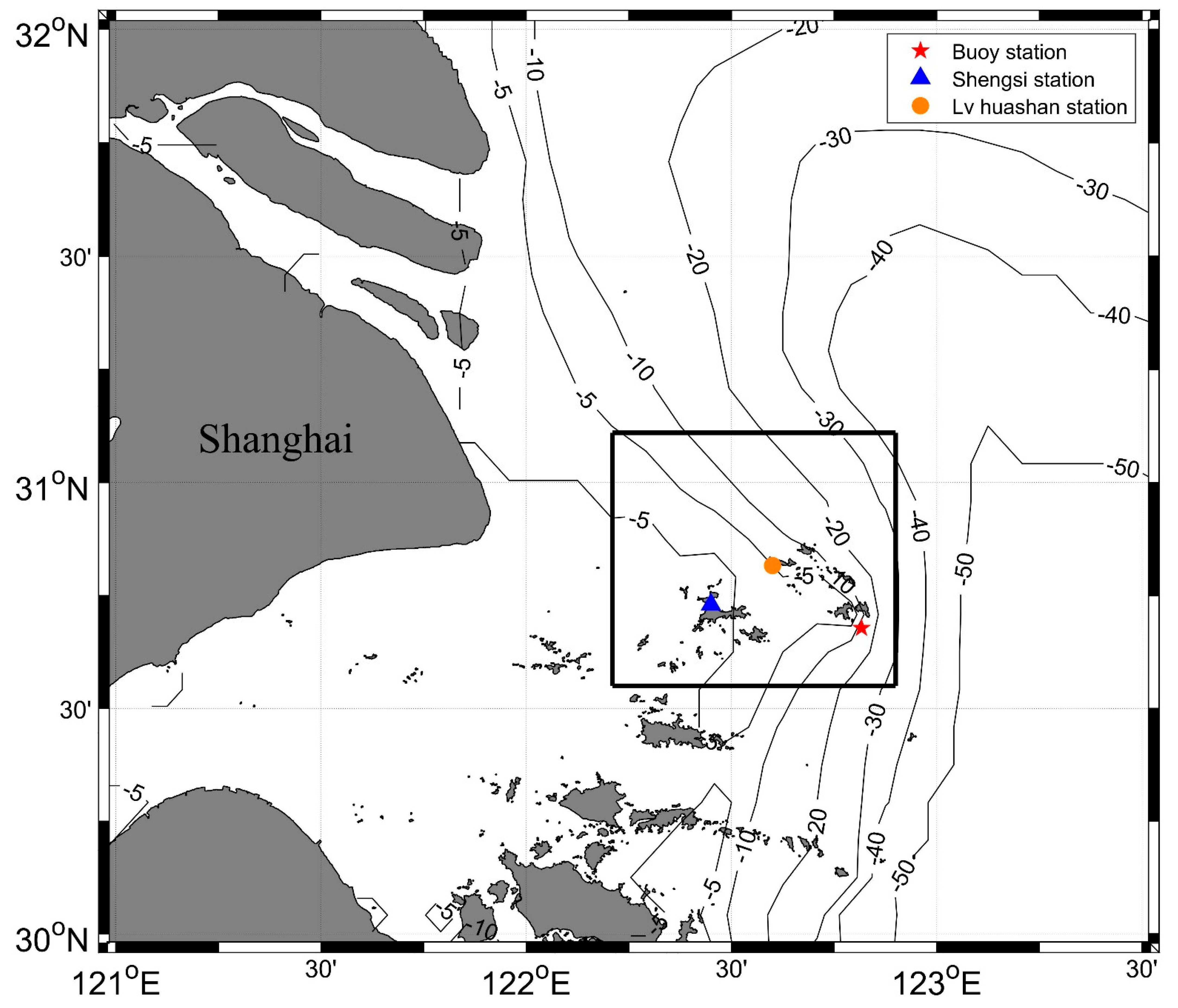

2.1. Study Area

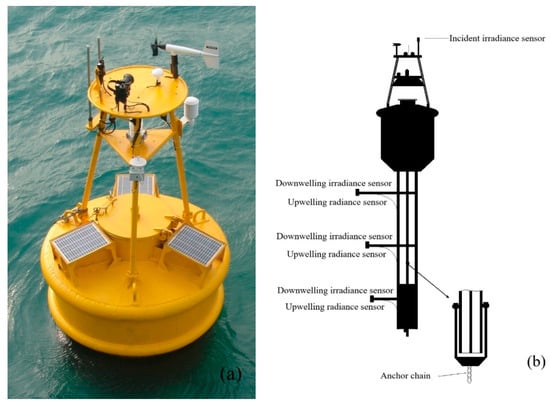

2.2. Structure and Measurements of the Optical Buoy
2.3. Optical Buoy Data Processing
2.4. Satellite Data Processing
2.5. Ancillary Data Acquisition
2.6. Performance Assessment
3. Results

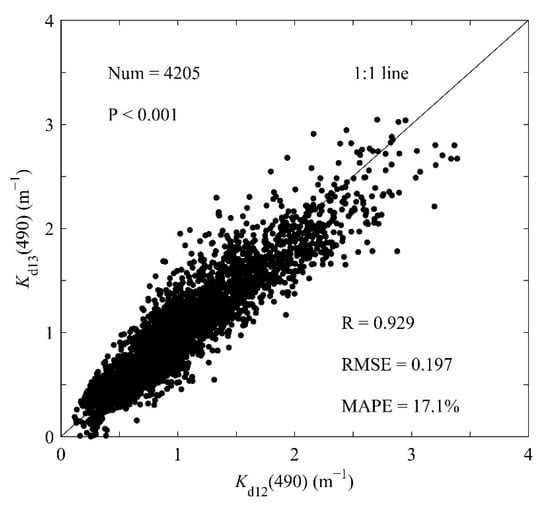

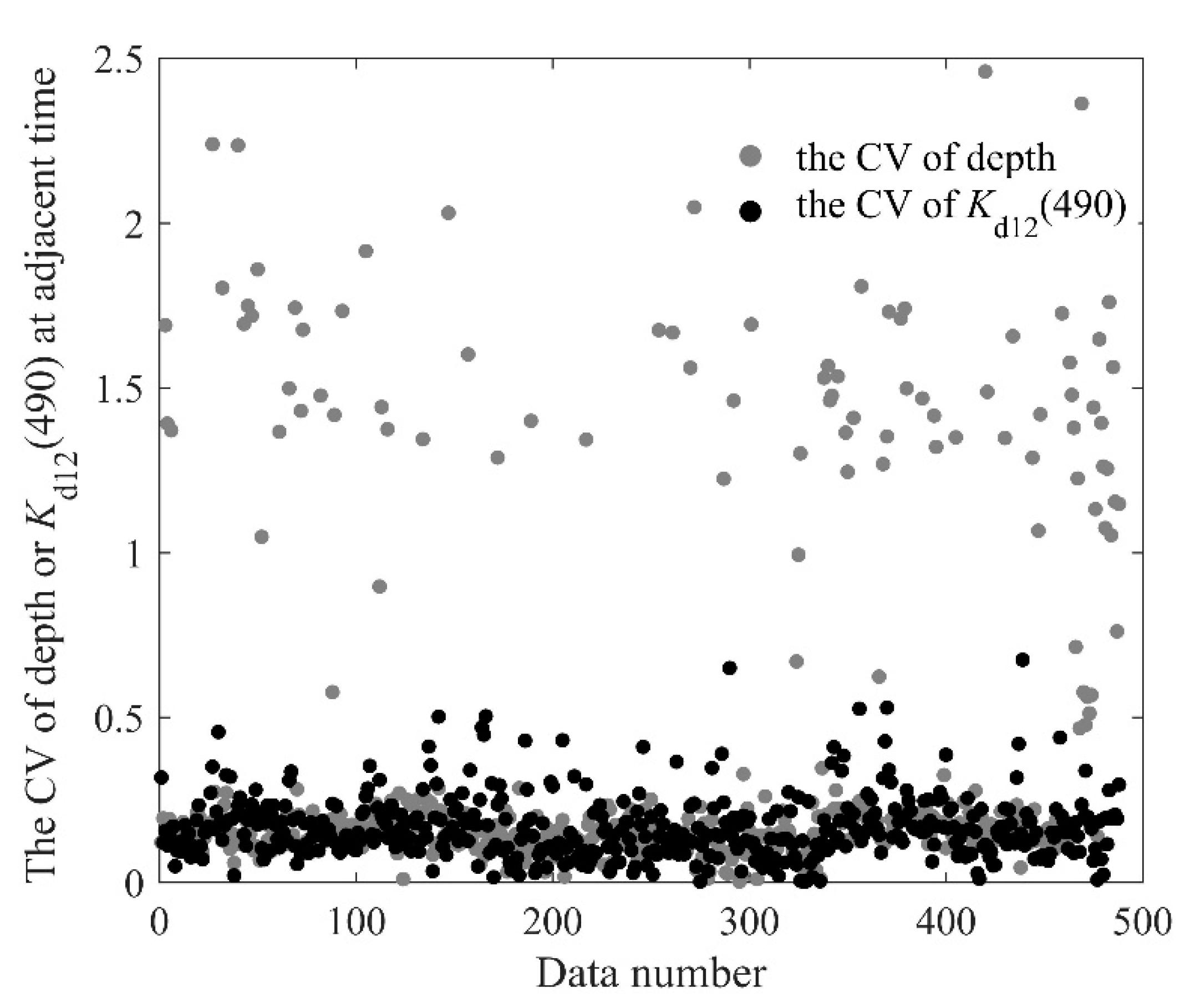

3.1. Reliability and Uncertainty of the Optical Buoy Data

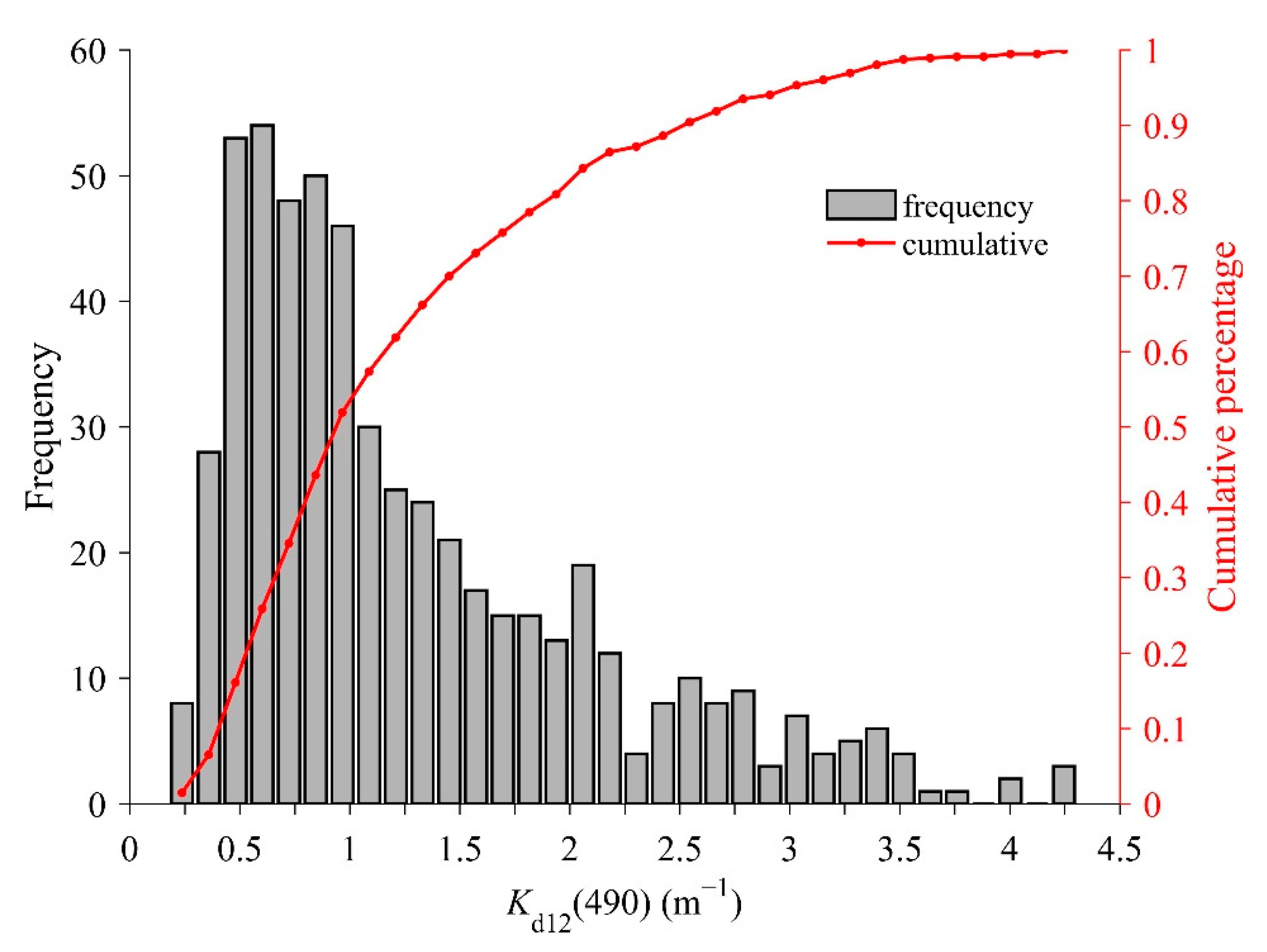

3.2. Overview of In Situ Buoy Measurement
3.3. Evaluation and Correction of the Official GOCI L2 ${K}_{\mathrm{d}}\left(490\right)$

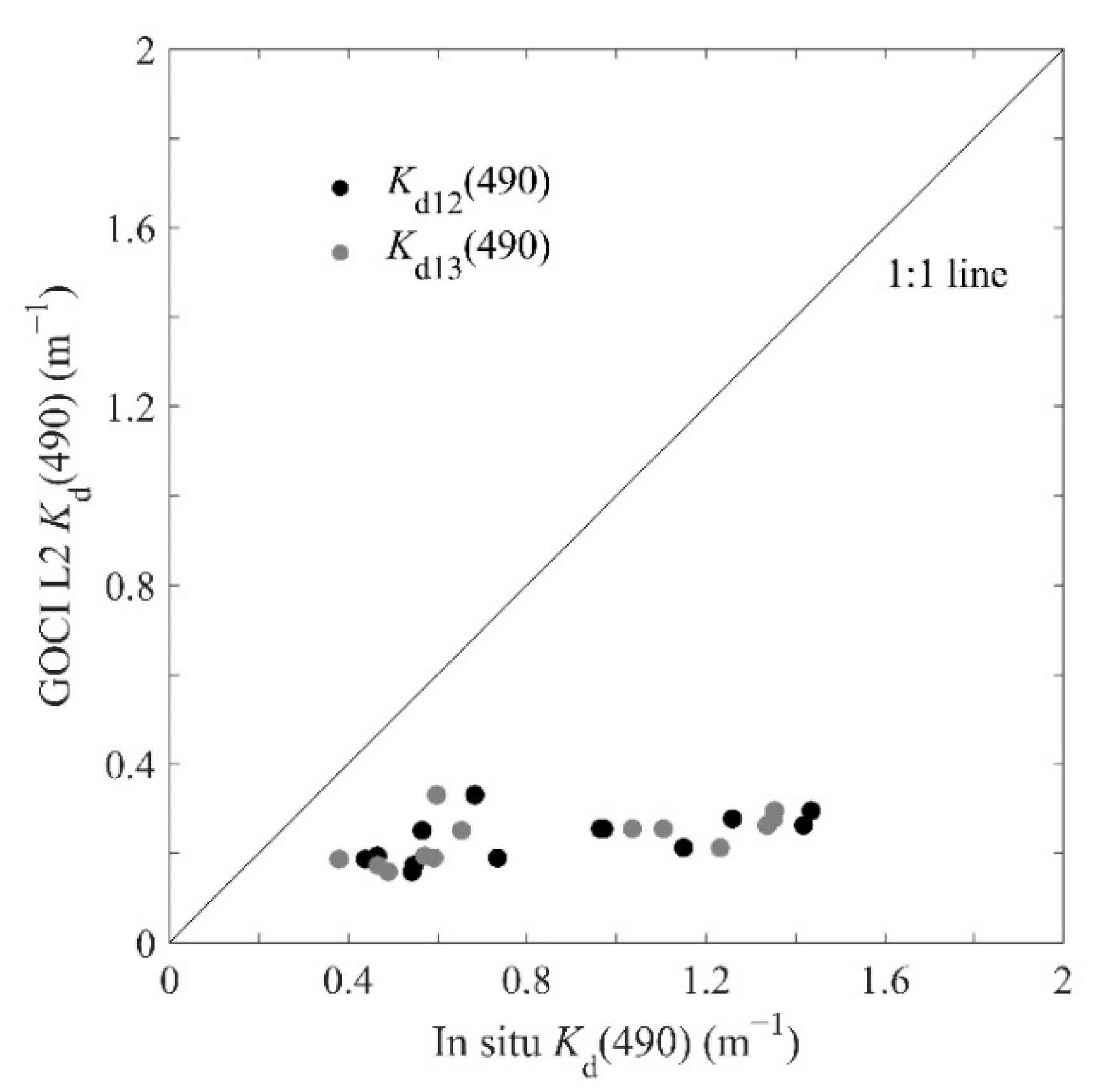

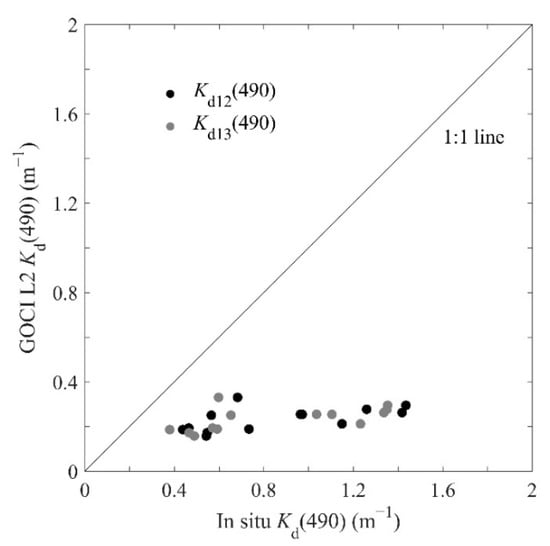

3.3.1. Error of the GOCI L2 ${K}_{\mathrm{d}}\left(490\right)$

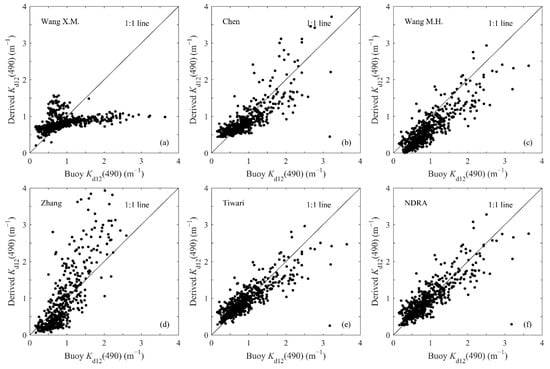

3.3.2. Evaluation of Six Empirical ${K}_{\mathrm{d}}\left(490\right)$ Algorithms

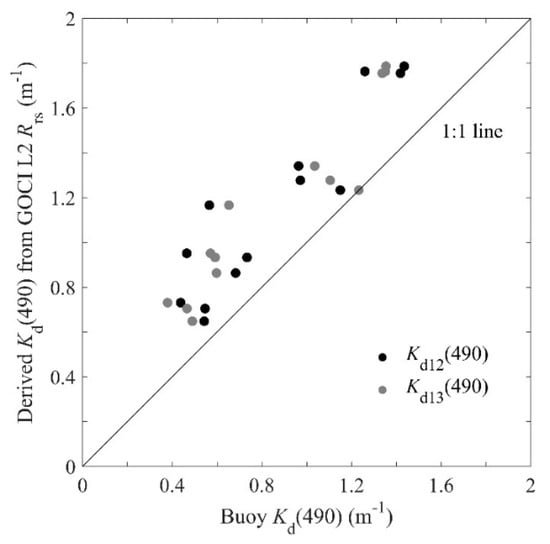

3.3.3. Improvement of GOCI L2 ${K}_{\mathrm{d}}\left(490\right)$
3.4. Diurnal Variations of ${K}_{\mathrm{d}}\left(490\right)$ Obtained by Buoy
3.4.1. Statistics of Diurnal Variations

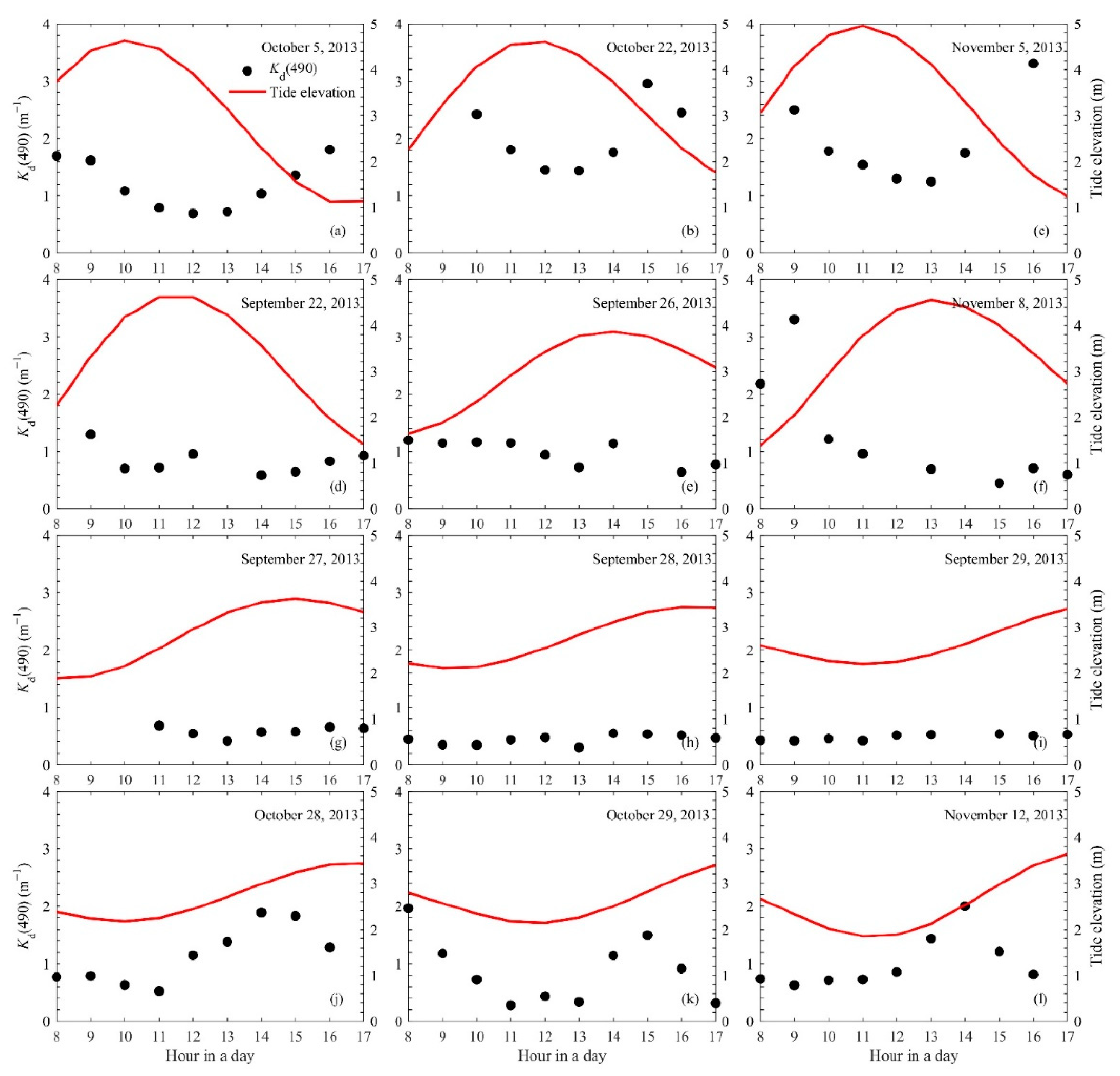

3.4.2. Four Kinds of Diurnal Variation

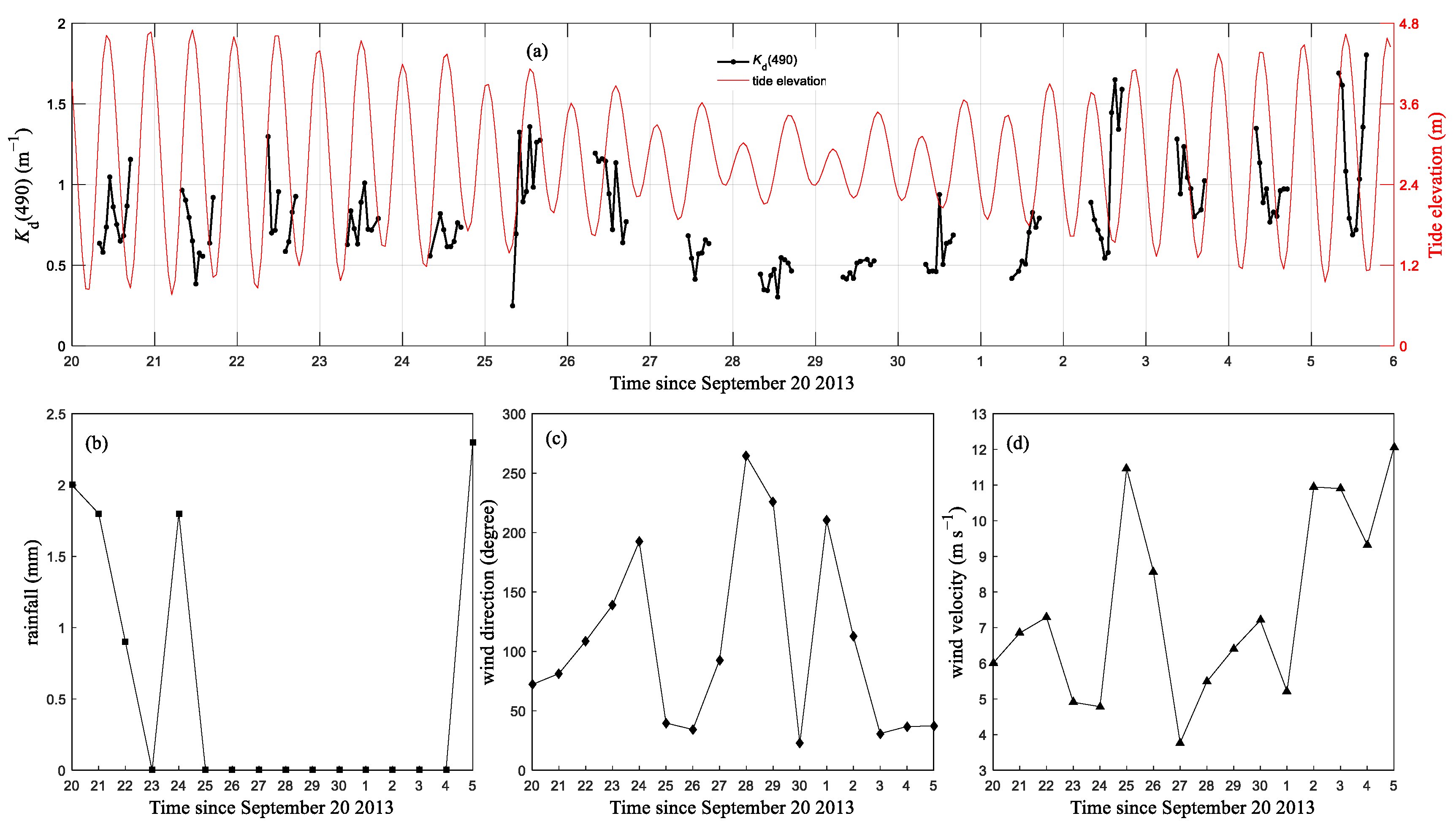

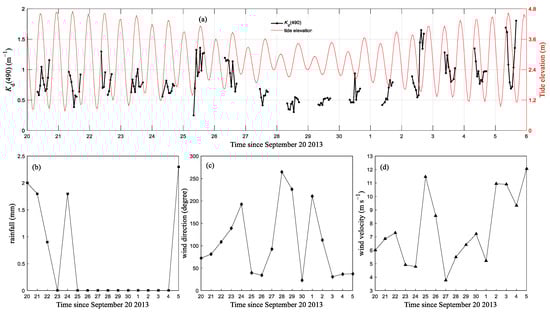

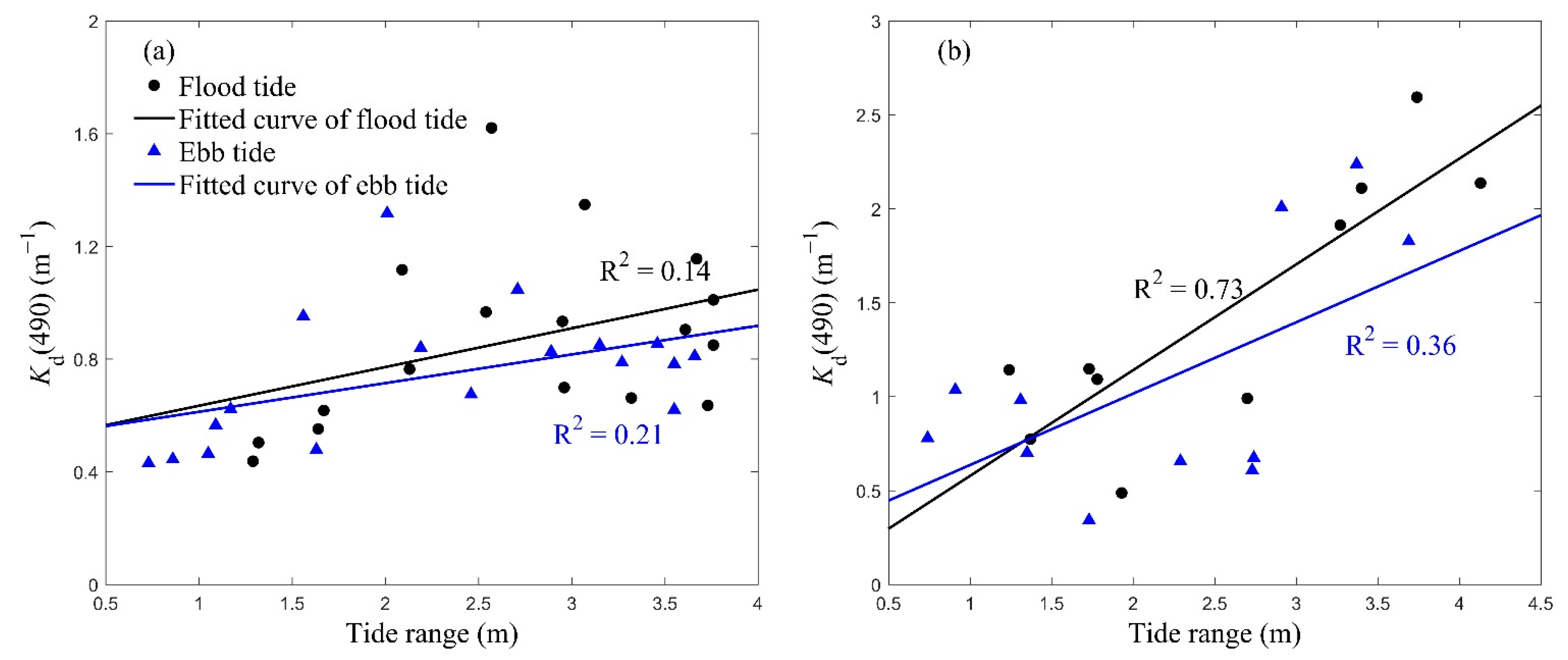

3.4.3. Diurnal Variations of ${K}_{\mathrm{d}}\left(490\right)$ in a Spring–Neap Tide Cycle
4. Discussion
4.1. Sources of Uncertainty in Official GOCI L2 ${K}_{\mathrm{d}}\left(490\right)$

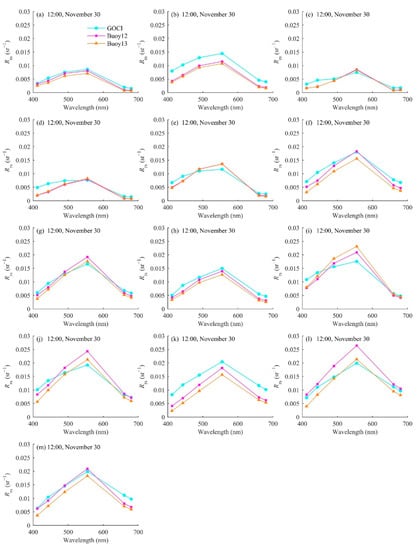

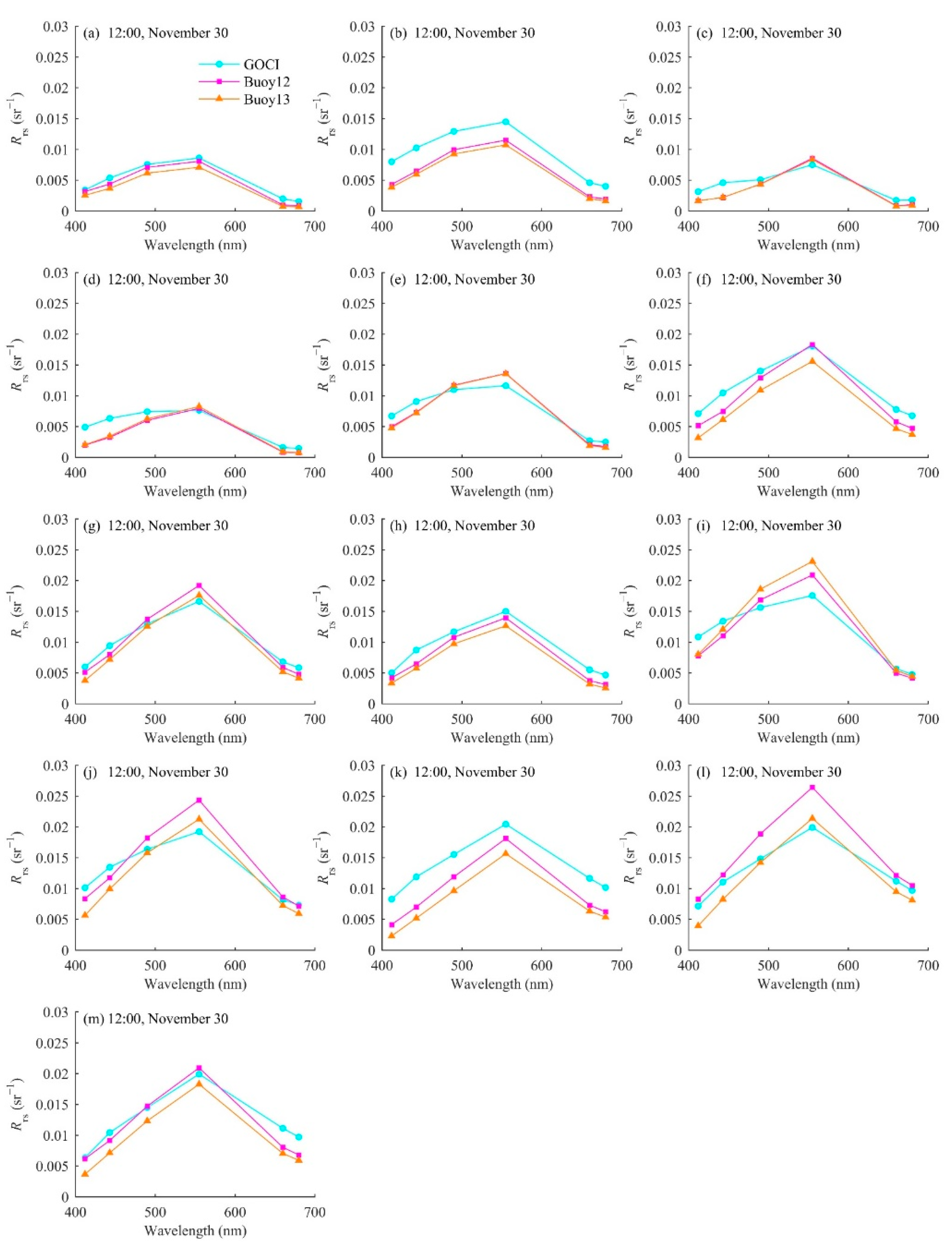

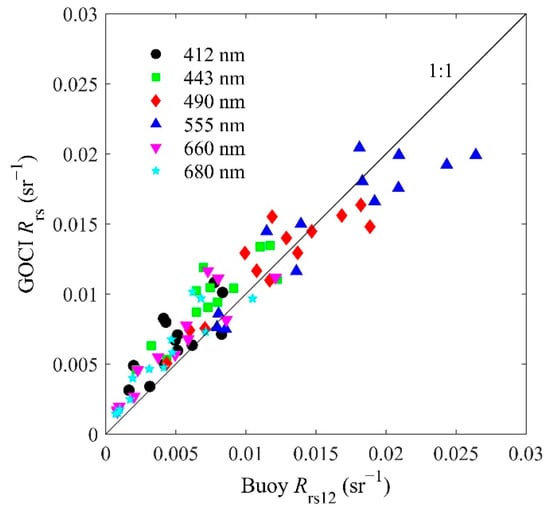

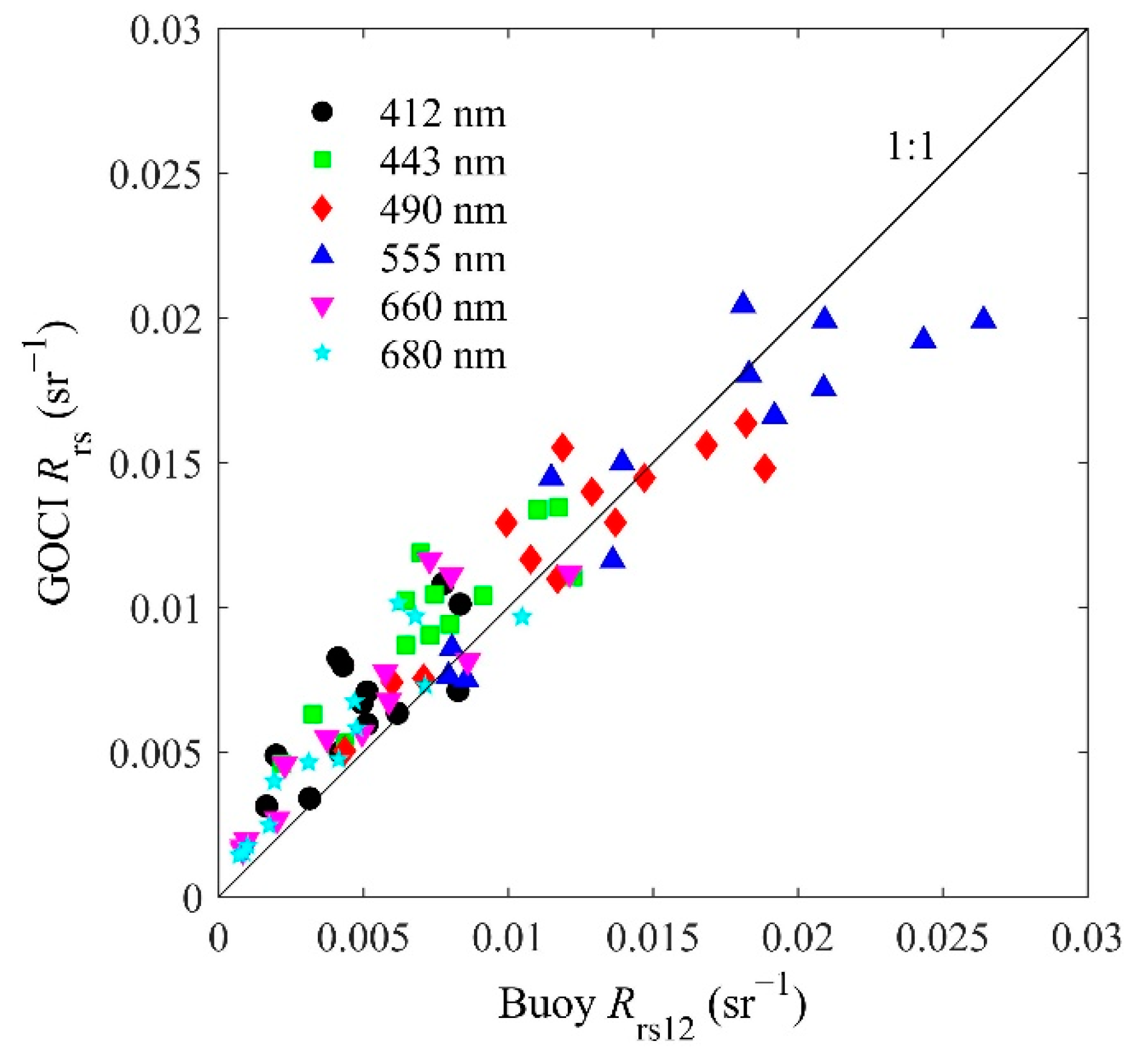

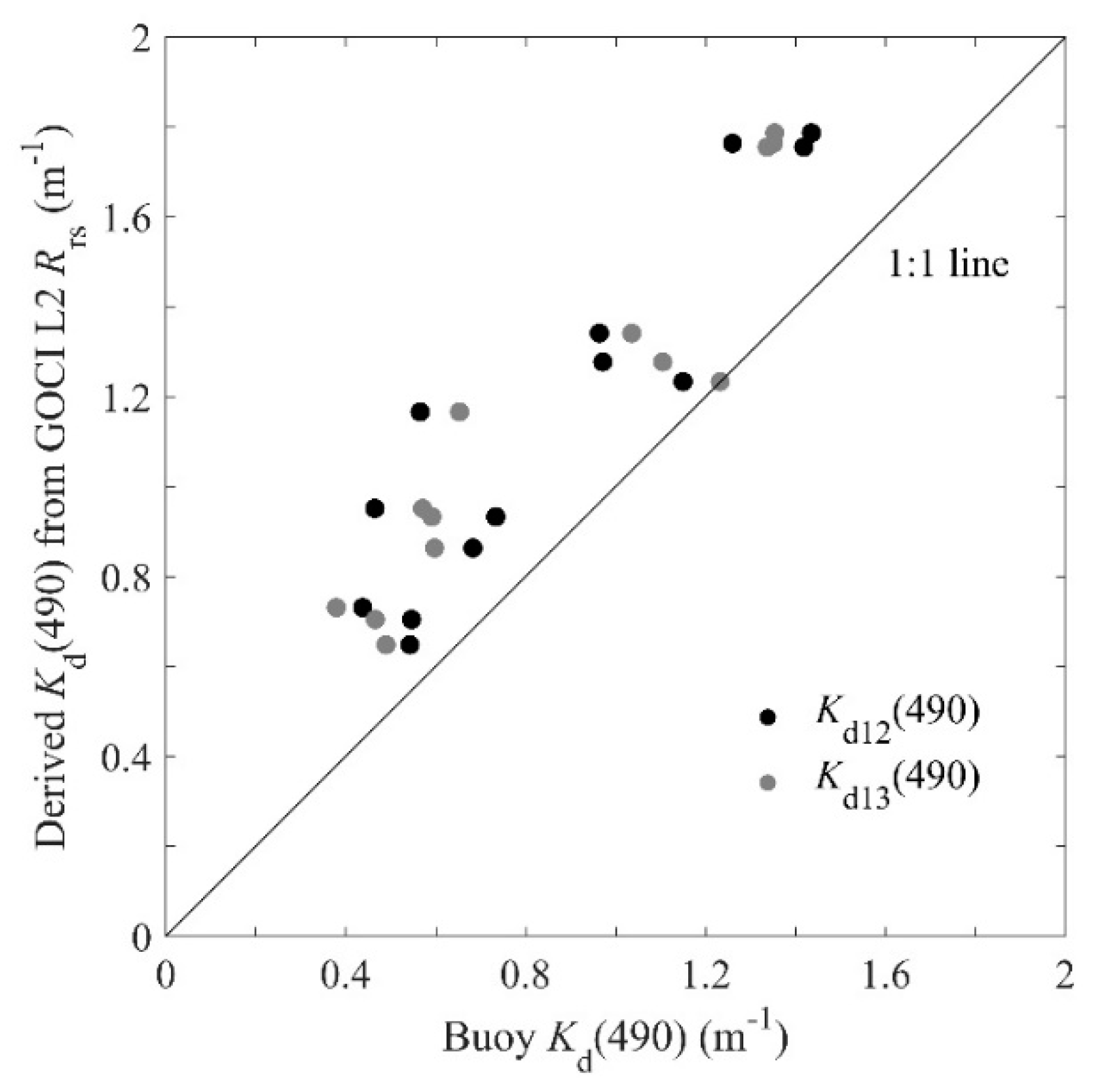

4.1.1. Uncertainty of GOCI L2 ${R}_{\mathrm{rs}}$
4.1.2. Uncertainty from the ${K}_{\mathrm{d}}\left(490\right)$ Algorithm

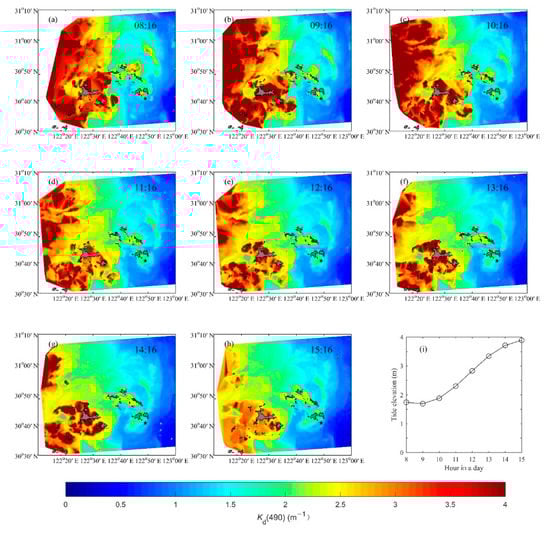

4.2. Application of NDRA to GICI Imagery

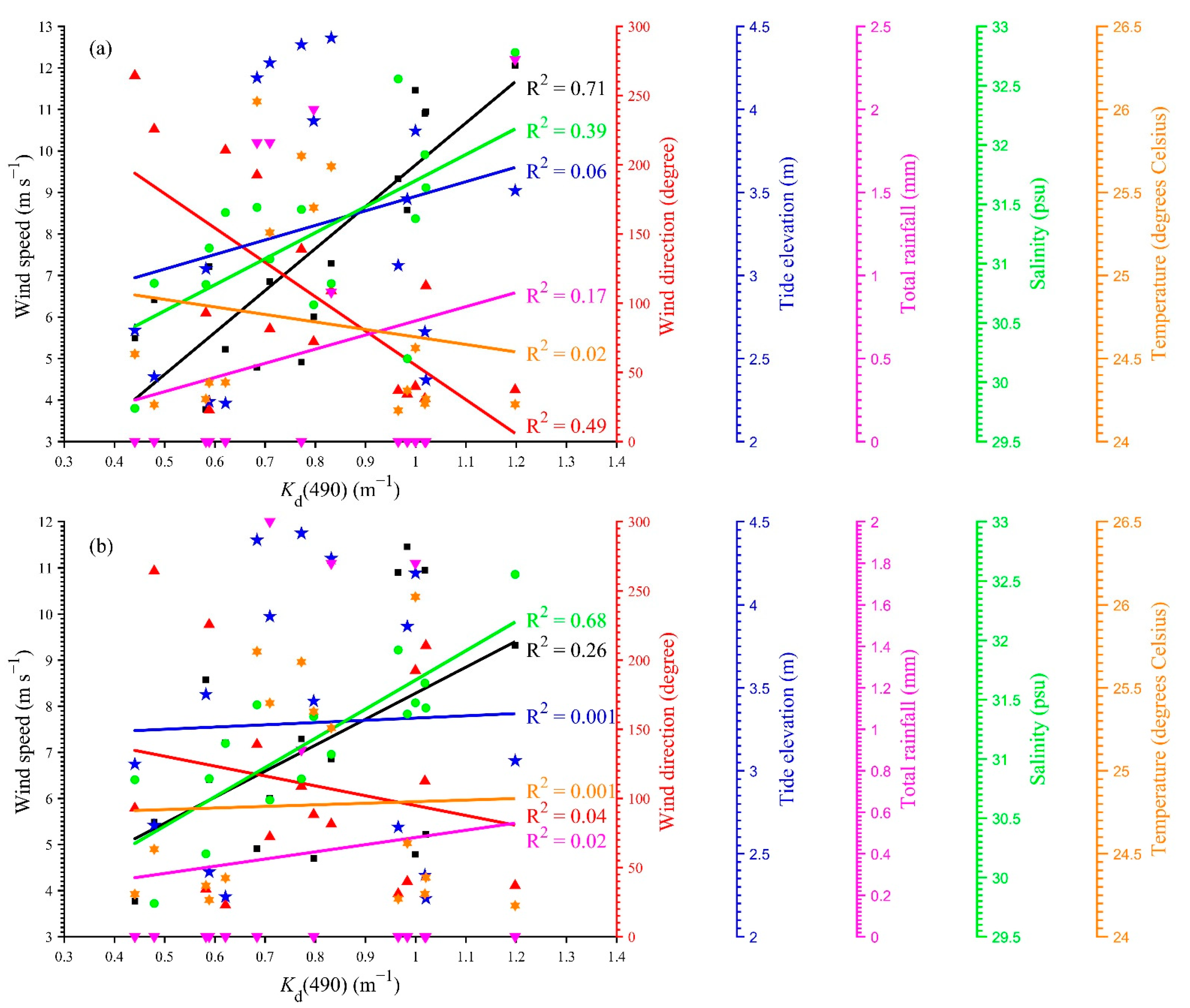

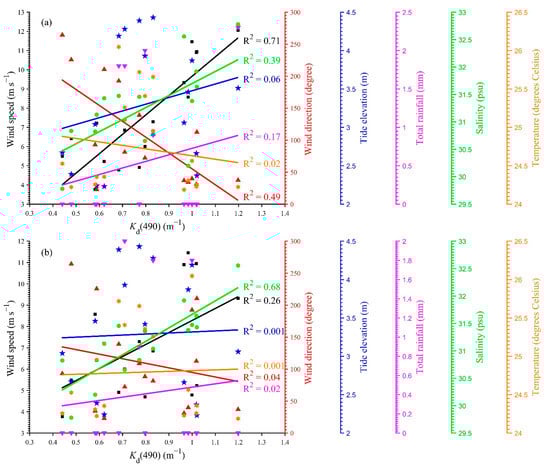

4.3. Dynamic Factors Affecting ${K}_{\mathrm{d}}\left(490\right)$ Diurnal Variations
4.3.1. Hourly Variations
4.3.2. Daily Variation
5. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
 Cahoon, L.B.; Beretich, G.R.; Thomas, C.J.; McDonald, A.M. Benthic microalgal production at Stellwagen Bank, Massachusetts Bay, USA. Mar. Ecol. Prog. Ser. 1993, 102, 179–185. [Google Scholar] [CrossRef]
 IOCCG. Remote Sensing of Ocean Colour in Coastal, and Other OpticallyComplex, Waters; IOCCG: Dartmouth, NS, Canada, 2000. [Google Scholar]
 Lee, Z.; Weidemann, A.; Kindle, J.; Arnone, R.; Carder, K.L.; Davis, C. Euphotic zone depth: Its derivation and implication to oceancolor remote sensing. J. Geophys. Res. Ocean. 2007, 112, 11. [Google Scholar] [CrossRef] [Green Version]
 Li, G.; Ping, G.; Fang, W.; Qiang, L. Estimation of ocean primary productivity and its spatiotemporal variation mechanism for East China Sea based on VGPM model. J. Geogr. Sci. 2004, 14, 32–40. [Google Scholar] [CrossRef]
 Majozi, N.P.; Salama, M.S.; Bernard, S.; Harper, D.M.; Habte, M.G. Remote sensing of euphotic depth in shallow tropical inland waters of Lake Naivasha using MERIS data. Remote Sens. Environ. 2014, 148, 178–189. [Google Scholar] [CrossRef]
 Jerlov, N.G. CLASSIFICATION OF SEAWATER IN TERMS OF QUANTA IRRADIANCE. J. Mar. Sci. 1977, 37, 281–287. [Google Scholar] [CrossRef]
 Saulquin, B.; Hamdi, A.; Gohin, F.; Populus, J.; Mangin, A.; d’Andon, O.F. Estimation of the diffuse attenuation coefficient KdPAR using MERIS and application to seabed habitat mapping. Remote Sens. Environ. 2013, 128, 224–233. [Google Scholar] [CrossRef] [Green Version]
 Son, S.; Wang, M.H. Water properties in Chesapeake Bay from MODISAqua measurements. Remote Sens. Environ. 2012, 123, 163–174. [Google Scholar] [CrossRef] [Green Version]
 Shi, W.S.; Wang, M.H. Satellite observations of the seasonal sediment plume in central East China Sea. J. Mar. Syst. 2010, 82, 280–285. [Google Scholar] [CrossRef]
 Shi, W.; Wang, M.H.; Jiang, L.D. Springneap tidal effects on satellite ocean color observations in the Bohai Sea, Yellow Sea, and East China Sea. J. Geophys. Res. Ocean. 2011, 116, 13. [Google Scholar] [CrossRef]
 Liu, X.M.; Wang, M.H. Analysis of ocean diurnal variations from the Korean Geostationary Ocean Color Imager measurements using the DINEOF method. Estuar. Coast. Shelf Sci. 2016, 180, 230–241. [Google Scholar] [CrossRef]
 Wang, M.H.; Ahn, J.H.; Jiang, L.D.; Shi, W.; Son, S.; Park, Y.J.; Ryu, J.H. Ocean color products from the Korean Geostationary Ocean Color Imager (GOCI). Opt. Express 2013, 21, 3835–3849. [Google Scholar] [CrossRef] [PubMed]
 Yu, X.L.; Salama, M.S.; Shen, F.; Verhoef, W. Retrieval of the diffuse attenuation coefficient from GOCI images using the 2SeaColor model: A case study in the Yangtze Estuary. Remote Sens. Environ. 2016, 175, 109–119. [Google Scholar] [CrossRef] [Green Version]
 Tiwari, S.P.; Shanmugam, P. A Robust Algorithm to Determine Diffuse Attenuation Coefficient of Downwelling Irradiance From Satellite Data in Coastal Oceanic Waters. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2014, 7, 1616–1622. [Google Scholar] [CrossRef]
 Wang, J.H.; Wu, J.Y. Occurrence and potential risks of harmful algal blooms in the East China Sea. Sci. Total Environ. 2009, 407, 4012–4021. [Google Scholar] [CrossRef] [PubMed]
 Zhang, T.; Fell, F. An empirical algorithm for determining the diffuse attenuation coefficient Kd in clear and turbid waters from spectral remote sensing reflectance. Limnol. Oceanogr. Methods 2007, 5, 457–462. [Google Scholar] [CrossRef]
 Cui, T.; Cao, W.; Jie, Z.; Hao, Y.; Yu, Y.; Zu, T.; Wang, D. Diurnal variability of ocean optical properties during a coastal algal bloom: Implications for ocean colour remote sensing. Int. J. Remote Sens. 2013, 34, 8301–8318. [Google Scholar] [CrossRef]
 Zhao, J.; Cao, W.X.; Xu, Z.T.; Ai, B.; Yang, Y.Z.; Jin, G.Z.; Wang, G.F.; Zhou, W.; Chen, Y.; Chen, H.Y.; et al. Estimating CDOM Concentration in Highly Turbid Estuarine Coastal Waters. J. Geophys. Res. Oceans 2018, 123, 5856–5873. [Google Scholar] [CrossRef]
 Zhao, J.; Cao, W.X.; Xu, Z.T.; Ye, H.B.; Yang, Y.Z.; Wang, G.F.; Zhou, W.; Sun, Z.H. Estimation of suspended particulate matter in turbid coastal waters: Application to hyperspectral satellite imagery. Opt. Express 2018, 26, 10476–10493. [Google Scholar] [CrossRef] [PubMed]
 Mao, Z.H.; Chen, J.Y.; Pan, D.L.; Tao, B.Y.; Zhu, Q.K. A regional remote sensing algorithm for total suspended matter in the East China Sea. Remote Sens. Environ. 2012, 124, 819–831. [Google Scholar] [CrossRef]
 Shi, J.Z. Tidal resuspension and transport processes of fine sediment within the river plume in the partiallymixed Changjiang River estuary, China: A personal perspective. Geomorphology 2010, 121, 133–151. [Google Scholar] [CrossRef]
 Zhou, M.J.; Shen, Z.L.; Yu, R.C. Responses of a coastal phytoplankton community to increased nutrient input from the Changjiang (Yangtze) River. Cont. Shelf Res. 2008, 28, 1483–1489. [Google Scholar] [CrossRef]
 Lu, M.; Zhu, Y. Whether and Cliamate characteristics of the Coastal Gale in Zhejiang. J. Hangzhou Norm. Univ. Nat. Sci. Ed. 2011, 10, 474–480. [Google Scholar]
 Liu, J.P.; Li, A.C.; Xu, K.H.; Veiozzi, D.M.; Yang, Z.S.; Milliman, J.D.; DeMaster, D. Sedimentary features of the Yangtze Riverderived alongshelf clinoform deposit in the East China Sea. Cont. Shelf Res. 2006, 26, 2141–2156. [Google Scholar] [CrossRef]
 Shang, D.H.; Xu, H.P. Qualitative Dynamics of Suspended Particulate Matter in the Changjiang Estuary from Geostationary Ocean Color Images: An Empirical, Regional Modeling Approach. Sensors 2018, 18, 4186. [Google Scholar] [CrossRef] [Green Version]
 Bai, X.; Yang, Y.; Zhou, L.; Ren, S.; Liu, D.; Liu, Z.; Wang, Z. Variations in Shell Frame Characteristic among Three Species of Mytilus in Shengsi Waters of the East China Sea. Oceanol. Limnol. Sin. 2014, 45, 1078–1084. [Google Scholar]
 Austin, R.W. The Remote Sensing of Spectral Radiance from Below the Ocean Surface; Optical Aspects of Oceanography; Academic Press: London, UK; New York, NY, USA, 1974; Volume 14. [Google Scholar]
 Huang, X.C.; Zhu, J.H.; Han, B.; Jamet, C.; Tian, Z.; Zhao, Y.L.; Li, J.; Li, T.J. Evaluation of Four Atmospheric Correction Algorithms for GOCI Images over the Yellow Sea. Remote Sens. 2019, 11, 27. [Google Scholar] [CrossRef] [Green Version]
 Bailey, S.W.; Werdell, P.J. A multisensor approach for the onorbit validation of ocean color satellite data products. Remote Sens. Environ. 2006, 102, 12–23. [Google Scholar] [CrossRef]
 Choi, J.K.; Park, Y.J.; Ahn, J.H.; Lim, H.S.; Eom, J.; Ryu, J.H. GOCI, the world’s first geostationary ocean color observation satellite, for the monitoring of temporal variability in coastal water turbidity. J. Geophys. Res. Ocean. 2012, 117, 10. [Google Scholar] [CrossRef]
 Moon, J.E.; Park, Y.J.; Ryu, J.H.; Choi, J.K.; Ahn, J.H.; Min, J.E.; Son, Y.B.; Lee, S.J.; Han, H.J.; Ahn, Y.H. Initial Validation of GOCI Water Products against in situ Data Collected around Korean Peninsula for 2010–2011. Ocean Sci. J. 2012, 47, 261–277. [Google Scholar] [CrossRef]
 Ruddick, K.G.; Voss, K.; Boss, E.; Castagna, A.; Frouin, R.; Gilerson, A.; Hieronymi, M.; Johnson, B.C.; Kuusk, J.; Lee, Z.; et al. A Review of Protocols for Fiducial Reference Measurements of WaterLeaving Radiance for Validation of Satellite RemoteSensing Data over Water. Remote Sens. 2019, 11, 38. [Google Scholar]
 Zaneveld, J.R.V.; Boss, E.; Barnard, A. Influence of Surface Waves on Measured and Modeled Irradiance Profiles. Appl. Opt. 2001, 40, 1442–1449. [Google Scholar] [CrossRef] [PubMed]
 Cao, W.; Yang, Y.; Zhang, J.; Ke, T.; Lu, G.; Li, C.; Guo, C.; Sun, Z. Design and test of moored optical buoy. J. Trop. Oceanogr. 2010, 29, 1–6. [Google Scholar]
 Yang, Y.; Cao, W.; Sun, Z.; Wang, G.F. Development of RealTime Hyperspectral Radiation SeaObservation System. Acta Opt. Sin. 2009, 29, 102–107. [Google Scholar] [CrossRef]
 Yang, Y.; Sun, Z.; Cao, W.X.; Li, C.; Zhao, J.; Zhou, W.; Lu, G.; Ke, T.; Guo, C. Design and Experimentation of Marine Optical Buoy. Spectrosc. Spectr. Anal. 2009, 29, 565–569. [Google Scholar]
 Zhang, Y.; Wang, G.; Xu, Z.; Yang, Y.; Zhou, W.; Zheng, W.; Zeng, K.; Deng, L. Retrieval of diffuse attenuation coefficient in high frequency red tide area of the East China Sea based on buoy observation. J. Trop. Oceanogr. 2020, 39, 71–83. [Google Scholar]
 Voss, K.J.; Flora, S. Spectral Dependence of the SeawaterAir Radiance Transmission Coefficient. J. Atmos. Ocean. Technol. 2017, 34, 1203–1205. [Google Scholar] [CrossRef]
 Wang, X.M.; Tang, J.W.; Ding, J.; Ma, C.F.; Li, T.J.; Wang, X.Y.; Bi, D.Y. The retrieval algorithms of diffuse attenuation and transparency for the caseII waters of the Huanghai Sea and the East China Sea. Acta Oceanol. Sin. 2005, 27, 5. [Google Scholar]
 Chen, Y.; Shen, F. Diffuse attenuation coefficient of remote sensing inversion in Yangtze River Estuary’s adjacent sea area in winter. Trans. Oceanol. Limnol. 2014, 4, 27–34. [Google Scholar]
 Wang, M.H.; Son, S.; Harding, L.W. Retrieval of diffuse attenuation coefficient in the Chesapeake Bay and turbid ocean regions for satellite ocean color applications. J. Geophys. Res. Ocean. 2009, 114. [Google Scholar] [CrossRef]
 Kim, W.; Moon, J.E.; Park, Y.J.; Ishizaka, J. Evaluation of chlorophyll retrievals from Geostationary Ocean Color Imager (GOCI) for the NorthEast Asian region. Remote Sens. Environ. 2016, 184, 482–495. [Google Scholar] [CrossRef]
 Zhao, J.; Barnes, B.; Melo, N.; English, D.; Lapointe, B.; MullerKarger, F.; Schaeffer, B.; Hu, C.M. Assessment of satellitederived diffuse attenuation coefficients and euphotic depths in south Florida coastal waters. Remote Sens. Environ. 2013, 131, 38–50. [Google Scholar] [CrossRef]
 Melin, F.; Zibordi, G.; Berthon, J.F. Assessment of satellite ocean color products at a coastal site. Remote Sens. Environ. 2007, 110, 192–215. [Google Scholar] [CrossRef]
 Concha, J.; Mannino, A.; Franz, B.; Kim, W. Uncertainties in the Geostationary Ocean Color Imager (GOCI) Remote Sensing Reflectance for Assessing Diurnal Variability of Biogeochemical Processes. Remote Sens. 2019, 11, 295. [Google Scholar] [CrossRef] [Green Version]
 Chen, S. Seasonal, neapspring variation of sediment concentration in the joint area between Yangtze Estuary and Hangzhou Bay. Sci. China 2001, 44, 57–62. [Google Scholar] [CrossRef]
 Zuo, S.H.; Zhang, N.C.; Bei, L.I.; Chen, S.L. A study of suspended sediment concentration in Yangshan deepwater port in Shanghai, China. Int. J. Sediment Res. 2012, 27, 50–60. [Google Scholar] [CrossRef]
 Cao, P.; Yan, S. Suspended Sediments front and its Impacts on the Materials Transport of the Changjiang Estuary. J. East. China Norm. Univ. Nat. Sci. 1996, 1, 85–94. [Google Scholar]
ID  Algorithm

Wang X.M. [39]
$${K}_{\mathrm{d}}\left(490\right){=10}^{\{0.581\frac{{R}_{\mathrm{rs}}\left(490\right)}{{R}_{\mathrm{rs}}\left(555\right)}+1.3916{[R}_{\mathrm{rs}}\left(660\right){+R}_{\mathrm{rs}}\left(555\right)]+0.299\}}$$

Chen [40]
$${K}_{\mathrm{d}}\left(490\right){=10}^{[0.0357\frac{{R}_{\mathrm{rs}}\left(555\right)}{{R}_{\mathrm{rs}}\left(490\right)}+0.8218\frac{{R}_{\mathrm{rs}}\left(660\right)}{{R}_{\mathrm{rs}}\left(490\right)}0.3495]}$$

Wang M.H. [41]
$${K}_{\mathrm{d}}\left(490\right)=\frac{1.146{\times 10}^{5}}{{R}_{\mathrm{rs}}\left(490\right)}+2.0638\frac{{R}_{\mathrm{rs}}\left(660\right)}{{R}_{\mathrm{rs}}\left(490\right)}+1.1078[0.3113{R}_{\mathrm{rs}}\left(660\right)0.1474]{[15e}^{\frac{10}{{R}_{\mathrm{rs}}\left(490\right)}\frac{{R}_{\mathrm{rs}}\left(660\right)}{{R}_{\mathrm{rs}}\left(490\right)}}]$$

Zhang [16]
$$\frac{{R}_{\mathrm{rs}}\left(490\right)}{{R}_{\mathrm{rs}}\left(555\right)}\ge 0.85{,K}_{\mathrm{d}}\left(490\right){=10}^{\{49.26[\frac{{R}_{\mathrm{rs}}\left(490\right)}{{R}_{\mathrm{rs}}\left(555\right)}{]}^{3}11.03[\frac{{R}_{\mathrm{rs}}\left(490\right)}{{R}_{\mathrm{rs}}\left(555\right)}{]}^{2}2.359[\frac{{R}_{\mathrm{rs}}\left(490\right)}{{R}_{\mathrm{rs}}\left(555\right)}]0.7932\}+0.016}$$
$$\frac{{R}_{\mathrm{rs}}\left(490\right)}{{R}_{\mathrm{rs}}\left(555\right)}\ge 0.85{,K}_{\mathrm{d}}\left(490\right){=10}^{\{1.33[\frac{{R}_{\mathrm{rs}}\left(490\right)}{{R}_{\mathrm{rs}}\left(660\right)}{]}^{3}1.668[\frac{{R}_{\mathrm{rs}}\left(490\right)}{{R}_{\mathrm{rs}}\left(660\right)}{]}^{2}1.349[\frac{{R}_{\mathrm{rs}}\left(490\right)}{{R}_{\mathrm{rs}}\left(660\right)}]+0.6629\}+0.016}$$

Tiwari [14]
$${K}_{\mathrm{d}}\left(490\right)=1.8034\frac{{R}_{\mathrm{rs}}\left(660\right)}{{R}_{\mathrm{rs}}\left(490\right)}+0.2534$$

NneDRA [37]
$${K}_{\mathrm{d}}\left(490\right)=2.1252\frac{{R}_{\mathrm{rs}}\left(660\right)}{{R}_{\mathrm{rs}}\left(490\right)}0.0999\frac{{R}_{\mathrm{rs}}\left(555\right)}{{R}_{\mathrm{rs}}\left(490\right)}+0.2916$$

Algorithm
$$\mathbf{RMSE}\left({\mathbf{m}}^{1}\right)$$
 MAPE (%)  Slope  Intercept  R^{2}  N

Wang X.M. [39]  0.50  43.89  0.15  0.69  0.15  568
Chen [40]  0.40  28.87  0.86  0.12  0.60  568
Wang M.H. [41]  0.40  43.65  0.79  −0.11  0.76  568
Zhang [16]  0.78  49.91  1.88  −0.68  0.74  568
Tiwari [14]  0.30  28.15  0.66  0.32  0.71  568
NDRA [37]  0.29  27.31  0.76  0.24  0.72  568
$$\mathsf{\lambda}\left(mn\right)$$
 Mean Ratio  MAPE (%)
$$\mathbf{RMSE}\left({\mathbf{sr}}^{1}\right)$$

$${\mathbf{R}}^{2}$$
 Slope  Intercept  N

412  1.45  47.29  0.0022  0.60  0.82  0.0026  13
443  1.40  41.01  0.0026  0.77  0.80  0.0037  13
490  1.05  13.51  0.0019  0.81  0.71  0.0036  13
555  0.95  12.70  0.0029  0.80  0.70  0.0037  13
660  1.48  50.25  0.0019  0.85  0.96  0.0015  13
680  1.49  49.73  0.0017  0.85  0.98  0.0013  13
