Monitoring Rainfed Alfalfa Growth in Semiarid Agrosystems Using Sentinel-2 Imagery

Abstract

The aim of this study was to assess the utility of Sentinel-2 images in the monitoring of the fractional vegetation cover (FVC) of rainfed alfalfa in semiarid areas such as that of Bardenas Reales in Spain. FVC was sampled in situ using 1 m² surfaces at 172 points inside 18 alfalfa fields from late spring to early summer in 2017 and 2018. Different vegetation indices derived from a series of Sentinel-2 images were calculated and were then correlated with the FVC measurements at the pixel and parcel levels using different types of equations. The results indicate that the normalized difference vegetation index (NDVI) and FVC were highly correlated at the parcel level (R² = 0.712), whereas the correlation at the pixel level remained moderate across each of the years studied. Based on the findings, another 29 alfalfa plots (28 rainfed; 1 irrigated) were remotely monitored operationally for 3 years (2017–2019), revealing that location and weather conditions were strong determinants of alfalfa growth in Bardenas Reales. The results of this study indicate that Sentinel-2 imagery is a suitable tool for monitoring rainfed alfalfa pastures in semiarid areas, thus increasing the potential success of pasture management.

1. Introduction

Grain forage legumes are present in approximately 15% of the world’s cultivated land, and are one of the most important protein sources both in the human diet (33%) and animal feed [1]. Legumes in symbiosis with soil Rhizobium bacteria fix nitrogen, which naturally minimizes the use of mineral fertilizers, making legumes environmentally sustainable crops [2]. Among grain forage legumes, the perennial species, alfalfa (Medicago sativa), which is cultivated in more than 80 countries, accounting for 35 million hectares, is considered one of the most important foraged crops [3]. Compared with grain legumes, alfalfa is considered a drought-tolerant species [4]. As a temperate legume that usually grows in arid and semiarid regions, alfalfa can reach deep soils to obtain water through its well-developed root system [5,6]. In this context, Medicago species, such as alfalfa, have been promoted in countries, such as the United States, Canada, Australia, and New Zealand, in order to improve and reduce the feeding of herds in rainfed areas [7]. In Spain, several initiatives have been successfully conducted which extend alfalfa cultivation to large areas of arid and semiarid land for grazing use [8]. In 2016, the Governing Board of Bardenas Reales, a semiarid area (41.818 ha) in the north of Spain, aimed to explore the ecological utility of an alfalfa–wheat cropping system and the nutritional value of rainfed alfalfa as a perennial forage crop for seasonal sheep grazing. Thus, 28 plots (~48 ha extension) of this crop were sown in this territory.

The global crop yield is estimated to decrease by approximately 70% due to the fact of environmental stresses, with drought as the main environmental stress in agriculture [9]. Alfalfa can adapt to water-limited regions, but a water deficit negatively affects the productivity of this crop [10]. Hence, rainfed alfalfa monitoring at different times of its annual cycle is important for evaluating the possibilities of this crop in the Bardenas Reales area.

Fractional vegetation cover (FVC) is a useful indicator of crop growth status, representing the ratio of the vertical projected area of vegetation to the total surface area, and it is widely used to indirectly determine crop photosynthesis, transpiration, and water-use efficiency.

Traditionally, in situ field inspections are the method used to estimate the FVC of a crop and to analyze its growth [11], which are time consuming and expensive [12]. Remote sensing has proven to be an effective tool for monitoring the growth of crops both spatially and temporally (or for monitoring the growth of crops during cultivation campaigns) [12]. Over the last few years, the availability of high spatial and temporal resolution satellite images has increased, which makes it possible to periodically monitor crop growth [13,14,15,16]. The Sentinel-2A and Sentinel-2B satellites, included in the Europe’s Monitoring for Environment and Security (GMES) program [17], were launched on the 23rd of June 2015 and 7th of March 2017, respectively. The Sentinel-2 satellites provide global coverage every 5 days in several spectral bands in the visible, red-edge, NIR, and SWIR regions, with resolutions from 10 to 60 m. Several authors have explored the potential of Sentinel-2 imagery for the monitoring of different crops such as alfalfa [3], maize [15,18], potato [14,18], and sisal [19]. Thus, sorghum, pearl millet, and cowpea production have been temporally monitored using Sentinel-2 data [20]. Veloso et al. (2017) analyzed the evolution of different winter and summer crops (wheat, rapeseed, maize, soybean, and sunflower) using Sentinel-2 imagery [21].

The observation of vegetation has traditionally been carried out through the use of vegetation indices (VIs) derived from multispectral images. These indices relate to a few spectral bands with biophysical properties of vegetation, such as greenness, photosynthetic activity, and water content, while minimizing the soil and atmospheric effects [18,19,20,22,23].

The normalized difference vegetation index (NDVI) has been widely used to identify and monitor areas covered with vegetation [24,25]. This index exploits the fact that green, healthy vegetation displays contrast-reflecting behavior between the red and near-infrared spectral bands, providing a good indication of the vegetation “greenness” [26]. Different authors have shown the correlation of NDVI with FVC [27,28] and with leaf area index (LAI) [16,22,29,30,31,32]. Although the phenological development, yield, LAI, and height of alfalfa have also been monitored using remote sensing techniques [3,33,34,35,36,37,38], there is a lack of information on the FVC assessment of alfalfa using satellite images; more specifically, there is a lack of this information on semiarid agrosystems.

Soil background conditions exert considerable influence on partial canopy spectra when using NDVI [39], and to minimize this factor, other VIs, such as soil adjusted VI (SAVI) and perpendicular VI (PVI), have been proposed [39,40]. The green normalized difference VI (GNDVI) presents band variations to NDVI and uses green reflectance instead of red reflectance, reporting high efficiency in crop monitoring [41]. The normalized difference water index (NDWI) and the specific leaf area VI (SLAVI), which use SWIR regions and are directly related to leaf water content, are highly recommended for semiarid areas [42,43]. Recently, concerns have increasingly been raised regarding the red-edge region, which was introduced to increase the sensitivity of biomass estimation, leading to the development of several VIs: Sentinel-2 LAIgreen (SeLI) [44], NDVI705 [45], MERIS terrestrial chlorophyll index (MTCI) [46], and the modified chlorophyll absorption in ratio index (MCARI) [47]. For VIs that use the red-edge region, there has been reported a significant improvement in indices using the saturated bands in the red [44]. Recently, a new kernel-based NDVI (kNDVI) has been shown to improve accuracy in monitoring key vegetation parameters such as LAI or gross primary productivity [48].

The aim of this study was to assess Sentinel-2 images for their suitability in the monitoring of the FVC of rainfed alfalfa in semiarid areas. Together with some cereal crops, rainfed alfalfa participates in the rotation system used for cattle grazing in this type of environment.

The natural reserve of Bardenas Reales, Spain, is a typical semiarid environment used for cattle grazing, and it was selected as the study area. The relationships established between FVC field measurements and several vegetation indices derived from Sentinel-2 data were used to produce time series over the cultivation period in twenty-eight experimental rainfed alfalfa fields throughout the study area.

2. Material and Methods

2.1. Study Area

Bardenas Reales comprises 41,845 ha located in the Ebro Basin (NE Spain, SW Navarra) (Figure 1). The climate is Mediterranean with an average annual precipitation of 427.5 mm. This area is characterized by a 3 month dry season from June to August (74.4 mm) with a mean annual temperature of 13.3 °C and sharp contrasts between winter (5.7 °C) and summer (21.5 °C) [49].

The main land use is for sheep grazing, and approximately half of the area is cultivated by dryland farming [50]. Dry grasslands, garrigues, and scrub are among the natural habitats in this area [51]. Bardenas Reales is a fragile, unique area that is quite sensitive to environmental changes due to the fact of its erodible materials and water stress conditions [52]. Therefore, it has been an MAB Biosphere Reserve since 2000.

In the first experiment (E1), eight rainfed alfalfa plots were selected in the area of Bardenas Reales (195, 199, 221, 257, 11, 63, 59, and 347). These plots reported differences in slope and orientation. In the second experiment (E2), 28 rainfed alfalfa plots and 1 irrigated alfalfa plot were monitored (

Table 1. Bardenas Reales rainfed alfalfa plots included in the study from July 2016 to April 2019. A quality label was assigned depending on the soil characteristics of the different plots and following the ranking established by Bardenas Reales. Area (ha), altitude (m), and slope (degrees). The orientations of 0, 90, 180, and 270 represent north-, east-, south-, and west-facing, respectively. The altitude was defined by the centroid of the polygon. The column E (experiments) indicates the plots employed for Experiment 1 and/or Experiment 2 as explained in Section 2. The records in bold represent the parcels that were used in both Experiments 1 and 2.

ID	Quality	Area (ha)	Altitude (m)	Orientation	Slope (Degrees)	E
195	High	1.06	301.08	98	10.15	1–2
199	High	1.42	302.67	99	8.01	1–2
221	Regular	1.34	424.42	147	3.05	1–2
257	Regular	2.60	419.36	165	4.19	1–2
11	Regular	2.67	417.46	191	3.66	1–2
63	Good	3.13	546.48	173	2.32	1–2
59	Good	1.98	544.63	155	2.48	1–2
347	Good	4.19	538.86	182	2.54	1–2
126	High	1.40	430.71	206	8.84	2
129	High	1.18	433.64	202	3.70	2
8	Regular	0.29	416.49	178	3.93	2
188	Regular	1.28	418.50	284	8.53	2
193	Regular	1.22	407.48	176	7.84	2
228	Regular	0.94	421.24	257	8.87	2
231	Regular	1.03	421.43	122	6.78	2
232	Regular	0.26	427.56	162	3.51	2
313	Regular	3.01	421.71	168	4.95	2
355	Good	0.74	405.13	72	9.58	2
30	Regular	2.41	440.09	171	3.64	2
66	Regular	1.04	425.55	157	3.35	2
67	Regular	0.27	427.95	147	3.69	2
71	Regular	3.33	428.91	151	3.05	2
157	Regular	2.56	431.06	175	5.23	2
187	Regular	5.15	379.18	231	9.22	2
494	Regular	0.86	376.18	185	3.83	2
253	Regular	0.27	475.8	72	6.02	2
58	Good	0.97	563.19	194	2.84	2
74	Good	1.34	534.07	171	2.77	2

).

2.2. In Situ FVC Measurement

To estimate the on-field FVC of the experimental parcels, an average of 3–4 sampling points in each parcel, representative of the plot average vegetation density, were visually selected in each. In the most heterogeneous plots, 4–5 sampling points were visually selected, while in the most homogeneous plots, 2–3 points were selected in each. In total, 172 measurements were made inside the eight selected plots in Experiment 1.

The FVC of each sampling point was measured over a square meter quadrant, using nadiral images acquired with a 13 megapixel mobile camera from a height of 1 m above the ground. The fieldwork was carried out on three different days in 2017 and three days in 2018, coinciding with different rainfed alfalfa phenological cycle stages. After the data were acquired, the images were cropped at the edge of the sampling plot using the PhotoscapeX imaging software.

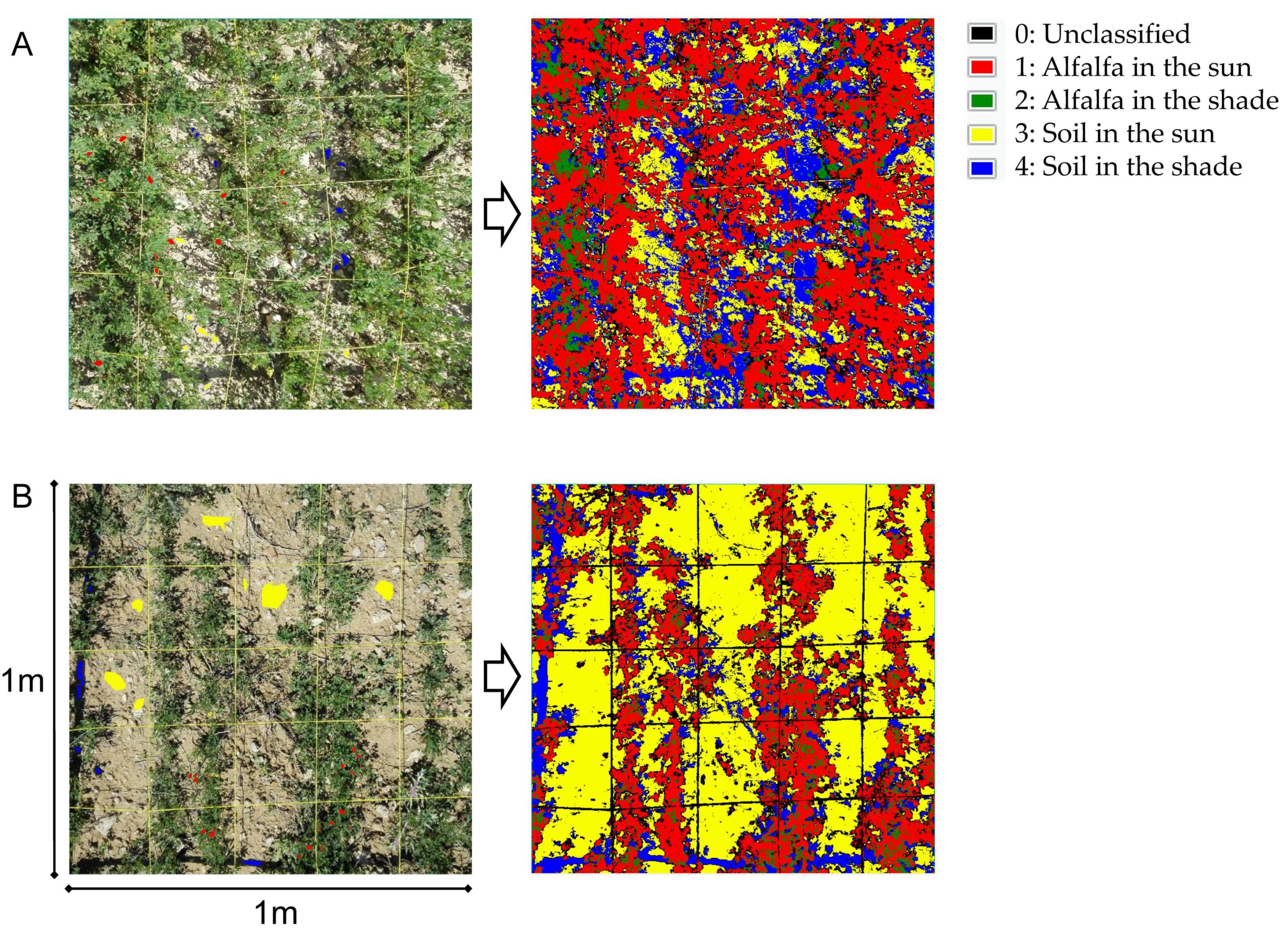

A supervised image classification procedure was applied to measure the area covered by alfalfa in the nadiral image taken at each sampling point. Taking into account that the spectral separability between the green vegetation and the background soil was high in these images, a simple maximum likelihood algorithm was selected to carry out this classification. This algorithm was trained using several aleatory defined training areas in each image by photointerpretation, which corresponded to the different categories, for classification: alfalfa in the sun, alfalfa in the shade, soil in the sun, soil in the shade, and unclassified. Training areas represented between 3% and 5% of the total area and were defined specifically for each image (Figure 2).

The classified accuracy assessment was carried out using validation areas, defined by photointerpretation and representing between 1% and 2% of the total area of each image. The overall accuracy was between 95.9% and 99.47% for all plots, and the kappa coefficient was above 0.94.

FVC represents the total area of alfalfa, which is the result of the total alfalfa in the shade and alfalfa in the sun in each of the 1 m² sampling points, expressed in percentage. Parcel FVC was assessed by the mean of the different individual FVCs inside each parcel.

2.3. Sentinel-2 Data

Sentinel-2 provides high-resolution imagery that is available from the European Space Agency (ESA) for free. With a 290 km field of view, its MultiSpectral Instrument (MSI) carries 13 spectral bands ranging from the visible and near-infrared to short-wave infrared (

Table 2. Sentinel-2 bands’ setting.

Band Number	Function	Central Wavelength (nm)	Spatial Resolution (m)
1	Coastal aerosol	443	60
2	Blue	490	10
3	Green	560	10
4	Red	665	10
5	Red edge	705	20
6	Red edge	740	20
7	Red edge	783	20
8	NIR	842	10
8a	Red edge	865	20
9	Water vapor	945	60
10	SWIR	1380	60
11	SWIR	1610	20
12	SWIR	2190	20

). Depending on the spectral band, the spatial resolution ranges from 10 to 60 m. This unique combination of high spatial resolution, wide field of view, and broad spectral coverage, together with their free availability as ready-to-use products in an atmospherically corrected reflectance mode, has opened up a new window in operational ecosystem monitoring [53,54].

Table 3. Overview of the Sentinel-2 images available for the study site during the 2016–2019 seasons: Experiment 1 (E1; marked in black) analyzed the images corresponding to 3–4 days in the spring of 2018 and 2017, respectively. Experiment 2 (E2) analyzed the images for all of the dates from July 2016 to May 2019.

Date	E1	E2	Date	E1	E2	Date	E1	E2	Date	E1	E2
14/05/2019		X	03/07/2018		X	26/10/2017		X	10/03/2017		X
29/04/2019		X	28/06/2018		X	16/10/2017		X	19/01/2017		X
30/03/2019		X	23/06/2018	X	X	06/10/2017		X	10/11/2016		X
05/03/2019		X	19/05/2018	X	X	17/08/2017	X	X	21/10/2016		X
13/02/2019		X	04/05/2018		X	28/07/2017	X	X	01/10/2016		X
30/11/2018		X	24/04/2018		X	18/07/2017	X	X	11/09/2016		X
16/10/2018		X	19/04/2018		X	18/06/2017	X	X	22/08/2016		X
01/09/2018		X	29/01/2018		X	19/04/2017		X	12/08/2016		X
02/08/2018		X	04/01/2018		X	09/04/2017		X	02/08/2016		X
28/07/2018	X	X	30/12/2017		X	30/03/2017		X	03/07/2016		X
23/07/2018		X	05/12/2017		X	20/03/2017		X

provides an overview of the Sentinel-2 images available for the study site during 2016–2019.

Surface spectral reflectance data were used to calculate twelve vegetation indices: NDVI [55]; SAVI [39]; RVI [56]; PVI [40]; GNDVI [41], kNDVI [48]; NDWI [42]; SLAVI [43]; MCARI [47]; MTCI [46]; SeLI [44]; NDVI705 [45]. The VIs were computed in SNAP ESA’s software using the equations shown in

Table 4. Equations described for the different vegetation indices evaluated in the present study. ρ represents reflectance values; l represents the leaf area index defined as 0.5; a represents the angle between the soil line and the NIR axis in degrees and is established in 49°.

Vegetation Index	Equation	Reference
Normalized difference VI	$NDVI=\frac{{\rho }_{8-}{\rho }_4}{{\rho }_{8+}{\rho }_4}$	Rouse et al. (1974)
Soil adjusted VI	$SAVI=\frac{\left({\rho }_{8-}{\rho }_4\right)}{\left({\rho }_{8+}{\rho }_4+l\right)}\ast \left(1+l\right)$	Huete (1988)
Ratio VI	$RVI=\frac{{\rho }_8}{{\rho }_4}$	Birth and McVey (1968)
Perpendicular VI	$PVI=\sin a\ast {\rho }_8-\cos a\ast {\rho }_4$	Richardson and Wiegand (1977)
Green normalized difference VI	$GNDVI=\frac{{\rho }_{8-}{\rho }_3}{{\rho }_{8+}{\rho }_3}$	Gitelson et al. (1996)
Kernel-based NDVI	$kNDVI=tanH \left(NDV{I}^2\right)$	Camps-Valls et al. (2021)
Normalized difference water index	$NDWI=\frac{{\rho }_{8-}{\rho }_{12}}{{\rho }_{8+}{\rho }_{12}}$	Cibula et al. (1992)
Specific leaf area vegetation index	$SLAVI=\frac{{\rho }_8}{{\rho }_{12+}{\rho }_4}$	Lymburner et al. (2000)
Modified chlorophyll absorption in ratio index	$MCARI=\left[\left({\rho }_{5-}{\rho }_4\right)-0.2\left({\rho }_{5-}{\rho }_3\right)\right]({\rho }_{5-}{\rho }_4)$	Daughtry et al. (2000)
MERIS terrestrial chlorophyll Index	$MTCI=\frac{{\rho }_{6-}{\rho }_5}{{\rho }_{5-}{\rho }_4}$	Dash et al. (2010)
NDVI705	$NDV{I}_{705}=\frac{{\rho }_{7-}{\rho }_5}{{\rho }_{7+}{\rho }_5}$	Sims (2002)
Sentinel-2 LAI index	$SeLI=\frac{{\rho }_{8-}{\rho }_5}{{\rho }_{8+}{\rho }_5}$	Pasqualotto et al. (2019)

. Prior to the study, squared plots were selected to obtain representative VI values in each plot, especially in small plots. Furthermore, a 5 m buffer was applied, reducing its variability and eliminating the border effect.

2.4. Data Analysis

The FVC values at the pixel or parcel level were calculated as described in Section 2.2. The VI values at the pixel or parcel level were calculated from Sentinel-2 images as described in Section 2.3.

In the first experiment (E1), FVC values from the 1 m² sampling points were compared with the VI values derived from Sentinel-2 images at the parcel level. Eight plots (195, 199, 221, 11, 257, 59, 63, and 347) were used to check the correlation obtained between the in situ FVC measurements and VI values (

Table 5. Statistics obtained with a linear, polynomial of second order, and exponential order fitting for each index. Thirty-eight sample points were used for the FVC calculation in this experiment. The best fitting is represented in bold.

Index	Linear Fitting	Polynomial Fitting, Second Order	Exponential Fitting
NDVI	0.713	0.727	0.463
PVI	0.700	0.705	0.437
kNDVI	0.659	0.705	0.400
SAVI	0.695	0.700	0.431
RVI	0.606	0.686	0.350
SeLI	0.680	0.680	0.570
NDVI705	0.678	0.680	0.600
MCARI	0.653	0.670	0.437
GNDVI	0.658	0.658	0.497
SLAVI	0.614	0.652	0.345
NDWI	0.628	0.628	0.468
MTCI	0.506	0.510	0.518

; Figure 3A). At the pixel level, the correlation between FVC and NDVI data derived from the Sentinel-2 satellite multispectral images was calculated considering the data for each year (i.e., 2017 and 2018) separately and both years together (Figure 3B). The accuracy of each index was specifically analyzed with linear (f(x) = ax + b), polynomial of second order (f(x) = ax2 + bx + c), and exponential fitting (f(x) = a × exp(bx)). At both the parcel and pixel levels, the coefficient of determination (R²) was selected as the indicator of the accuracy of the statistical estimation models. The main steps of the procedure for the assessment and in situ analysis of remote sensing vegetation indices are provided in Supplementary Materials Figure S1.

During the second experiment (E2), the temporal evolution of the average NDVI values was assessed between July 2016 and April 2019 for the three different areas (I, II, and III) (Figure 4A) and from January 2017 to May 2019 for the 29 alfalfa plots (28 rainfed; 1 irrigated) in the Bardenas Reales area (Figure 4B).

3. Results and Discussion

3.1. FVC–NDVI Correlation

The examination of the correlations between the FVC and the different spectral indices used in this study indicated that polynomial fitting reported the best correlations followed by linear fitting correlation values, while exponential fitting correlations showed lower values for all indexes. Furthermore, NDVI resulted in the highest correlation values among all the indices, both for polynomial and for lineal fitting (Table 5). Similar results have been reported in previous studies [11,14,15,57].

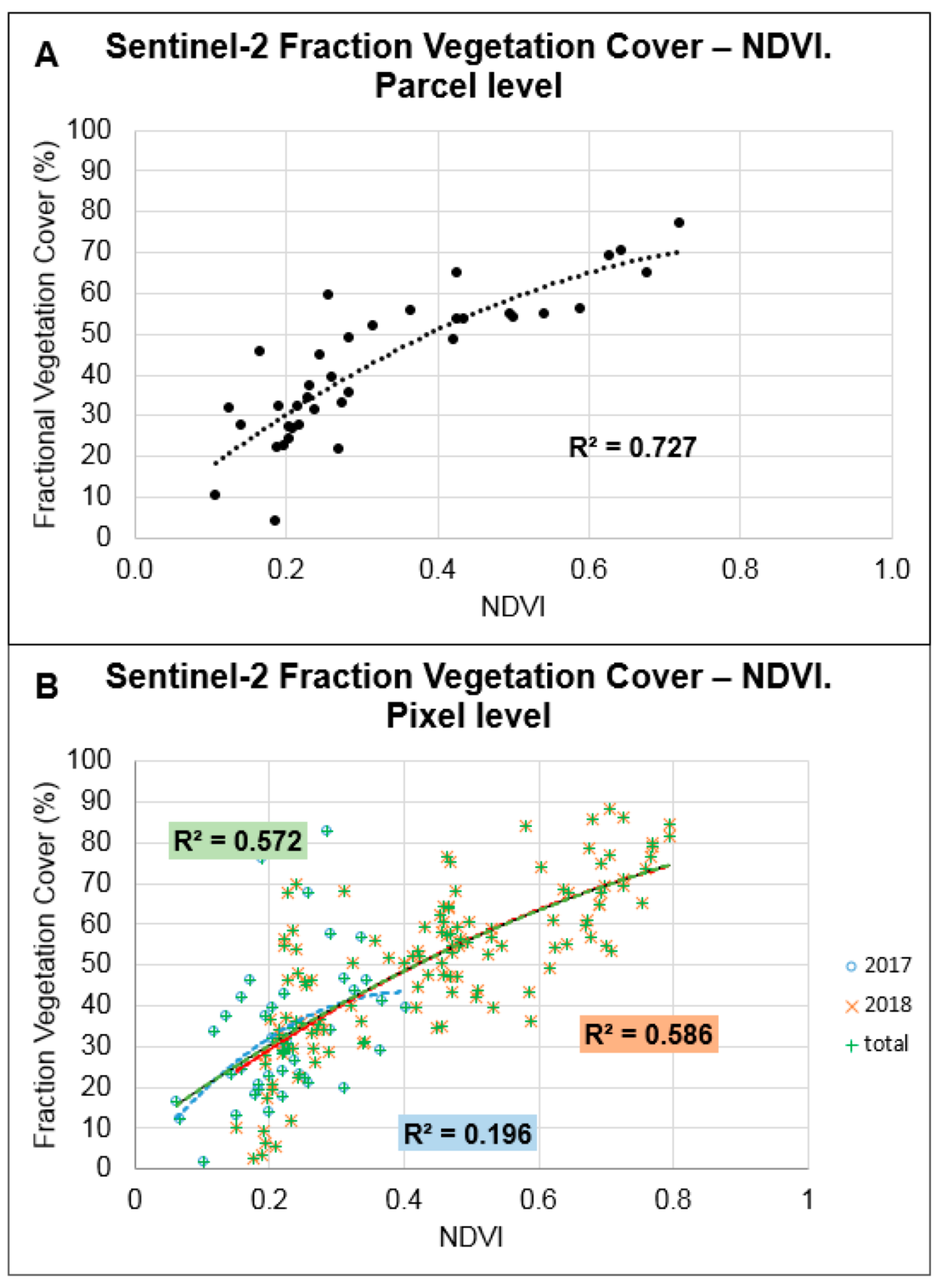

Figure 3A,B show the correlation between the in situ FVC values and NDVI values derived from Sentinel-2 images at the parcel and pixel levels, respectively. At the parcel level, R² = 0.727 (Figure 3A; Table 5), while at the pixel level, the correlation was higher in 2018 (R² = 0.586) than in 2017 (R² = 0.196) (Figure 3B).

Plots where alfalfa was not sufficiently developed may influence the correlations between in situ FVC measurements and NDVI values from Sentinel-2A images, as Figure 3A shows a higher dispersion in these areas, where FVC seemed underestimated. High spatial resolution images are essential when working with yield or FVC values. Thus, the 10 m spatial resolution Sentinel-2 images in red, green, blue, and NIR wavelengths, defined in bands 2, 3, 4, and 8, respectively, are interesting when working with small plots as in the present study.

Another key advantage of the Sentinel-2 satellite is the 5 day revisit period, which is especially relevant for temporal monitoring studies in cloudy areas [58]. In addition, ESA free-access imagery represents an advantage in economic terms when working with remote sensing satellite data in contrast to SPOT or Quickbird-2 on-demand remote sensing data.

3.2. Temporal Analysis

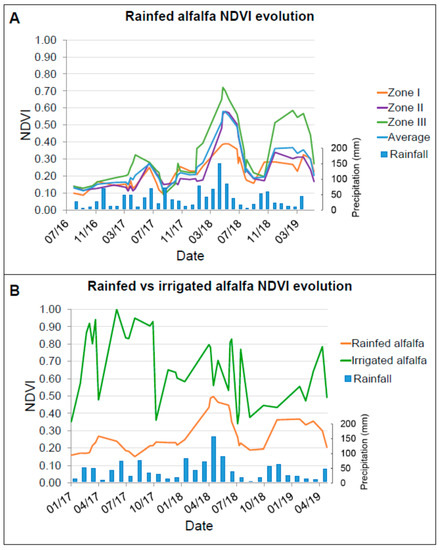

Regarding the rainfed alfalfa temporal development, Figure 4A shows the NDVI average value evolution in three different zones of Bardenas Reales, characterized as (I) high, (II) regular, and (III) good quality (Figure 1), and the average values for a total of 28 rainfed alfalfa plots analyzed between July 2016 and April 2019. The rainfed alfalfa crops in the Bardenas Reales were sown in May 2016. During the first year, we checked the in situ crop establishment in plots 195, 199, 221, 257, 11, 59, 63, and 347. We also checked the NDVI values from Sentinel-2, which showed a basal development of the crop (approximately 0.15 in July 2016). The alfalfa crop implantation improved progressively over the following years and, thus, in the 2017 season, the NDVI values reached approximately 0.25–0.35 in the three zones. In the 2018 season, NDVI reached its maximum values of 0.30 for zone I, 0.55 for zone II, and over 0.70 in zone III.

Overall, it should be remarked that an important variation in FVC was observed over the different years (Figure 4A). While 2019 was the third year of the alfalfa crop plantation, which is important for better establishing the crop, rain during the spring season was very limited; thus, crop growth remained quite slow (358, 375, 598, and 188 L per m² in the 2016, 2017, 2018, and 2019 seasons, respectively). As can be observed, the NDVI values strongly increased in all zones from May to June in 2018, while in the same period of 2019, the NDVI showed an overall decrease due to the drought period in the Bardenas Reales area. It can also be inferred that the alfalfa crops in zone III developed earlier than those in zone II and zone I for all years studied. Thus, for example, in May 2018, the NDVI values were 0.72, 0.58, and 0.40 for zones III, II, and I, respectively. The advanced development in zone III may be related to the higher altitude of the plots in this zone compared to those in zone II and zone I (Table 1), which would contribute to the better establishment of the crop year by year.

To evaluate the differences in development between the rainfed plots, the irrigated alfalfa NDVI average values of one irrigated plot (UTMX: 614734; UTMY: 4678413), adjacent to the area of Bardenas Reales, was assessed between January 2017 and May 2019. The NDVI value for the irrigated plot was compared to the average value of the 28 rainfed plots spread along Bardenas Reales (Figure 4B). The NDVI values of the irrigated alfalfa plot were much higher than those observed in the rainfed alfalfa plots as previously expected. It should be remarked that the irrigated alfalfa reached maximum development between February and June. The different NDVI minimum peaks observed in the irrigated alfalfa plots may be the consequence of consecutive harvests during the year (Figure 4B). Conversely, the stability of the rainfed alfalfa NDVI values indicated that there was no harvesting activity in these plots. Contrary to the use of forage production associated with the irrigated alfalfa plots, the rainfed alfalfa plots are intended for in situ sheep feeding. Thus, the use of remote sensing data for detecting mowing or grazing practices [59,60,61,62] represents a great opportunity for crop management compared to cattle feeding, especially in scenarios where it is difficult to access the plots, which is the case in some areas of Bardenas Reales.

4. Conclusions

In this work, we explored the suitability of Sentinel-2 imagery for the monitoring of rainfed alfalfa crop establishment in the semiarid Bardenas Reales area. For this purpose, 172 in situ FVC samples were compared with different VI values derived from Sentinel-2 imagery. In situ images of an area of one square meter were processed using a maximum likelihood supervised algorithm in order to calculate the FVC of each sample. The non-destructive methodology of this study represents an advantage compared to other studies that used a destructive methodology, where estimations were only possible during the harvesting period [14,57]. Furthermore, FVC estimation using multitemporal Sentinel-2 images makes it possible to monitor crop growth, assisting farmers in making well-informed management decisions [13].

Sentinel-2 imagery is useful for assessing the rainfed alfalfa establishment in Bardenas Reales. The NDVI showed the best correlation (R² = 0.727) between FVC and VI at the parcel level.

We detected that the parcels in zone III, located to the south at a higher altitude (540 m), exhibited the best altitude for the optimum development of alfalfa crop compared to the plots in the north and middle zone of Bardenas Reales. Therefore, we conclude that NDVI values derived from Sentinel-2 images are suitable for monitoring rainfed alfalfa plots in a semiarid area, such as Bardenas Reales, and allows for good decisions to be made in traditional practices such as crop and cattle feeding management.

The improvements in Sentinel-2 imagery in terms of accessibility (i.e., free), spectral range, and spatial and temporal resolution make it a very interesting option for crop monitoring, especially over high-extension areas. Sentinel-2 effectivity estimated alfalfa FVC in Bardenas Reales at the parcel level, reporting a good accuracy, and may help farmers monitor rainfed alfalfa growth in semiarid areas. Accurate observation of alfalfa crop yields will enhance decision making on agricultural management and ecosystem services for transhumant cattle feeding management in the semiarid agrosystem of Bardenas Reales.
