A Dual-Frequency Cloud Radar for Observations of Precipitation and Cloud in Tibet: Description and Preliminary Measurements

Abstract

A new dual-frequency Doppler polarimetric cloud radar (DDCR), working at 35-GHz (Ka-band radar, wavelength: 8.6 mm) and 94-GHz (W-band radar, wavelength: 3.2 mm) frequencies, has been in operation at Yangbajing Observatory on the Tibetan Plateau (China) for more than a year at the time of writing. Calculations and field observations show that the DDCR has a high detection sensitivity of −39.2 dBZ at 10 km and −33 dBZ at 10 km for the 94-GHz radar and 35-GHz radar, respectively. The radar reflectivity measured by the two radars illustrates different characteristics for different types of cloud: for precipitation, the attenuation caused by liquid cloud droplets is obviously more serious for the 94-GHz radar than the 35-GHz radar (the difference reaches 40 dB in some cases), and the 94-GHz radar lost signals due to serious attenuation by heavy rainfall; while for clouds dominated by ice crystals where the attenuation significantly weakens, the 94-GHz radar shows better detection ability than the 35-GHz radar. Observations in the Tibetan region show that the 35-GHz radar is prone to missing cloud near the edge, such as the cloud-top portion, resulting in underestimation of the cloud-top height (CTH). Statistical analysis based on one year of observations shows that the mean CTH measured by the 94-GHz radar in the Tibetan region is approximately 600 m higher than that measured by the 35-GHz radar. The analysis in this paper shows that the DDCR, with its dual-frequency design, provides more valuable information than simpler configurations, and will therefore play an important role in improving our understanding of clouds and precipitation in the Tibetan region.

1. Introduction

Water on the Earth’s surface receives solar radiation, and evaporates to water vapor that is then brought to higher levels by vertical movements such as convection, turbulence, orographic uplift, and so on. Cloud droplets form when the saturation condition is satisfied, and then grow into graupel, hail, drizzle, rain, or snow, etc., before finally falling back to the surface. Clouds cover more than half of the globe. They are an important link in the Earth’s hydrological cycle and have a profound impact on the Earth’s climate. Moreover, most of the Earth’s weather, such as rainfall, hail, snow, thunderstorms, typhoons, etc., is closely related to clouds [1,2].

Observations of clouds are carried out by a diverse range of instruments with different principles and techniques, such as multi-wavelength radiometers, visible or infrared imagers, ground-based Lidars and radars, and airborne or satellite platforms [3,4,5,6,7]. Passive remote sensing measures the characteristics of the cloud as a whole, and it is difficult with this method to obtain the cloud’s interior microphysical properties. In contrast, radars are powerful instruments for observing the physical structure of clouds [8,9]. Compared with the widely used centimeter-wavelength radars (such as X-, C-, and S-band radars) in the meteorological community, millimeter-wavelength radars have shorter wavelengths, and are possibly highly sensitive in their detection of turbulent fluctuations and non-precipitating clouds [10,11,12]. A large fraction of clouds are composed of high concentrations of small hydrometeors, such as ice particles and cloud droplets with radii ranging from a few to tens of micrometers. Millimeter-wavelength radars have the potential to offer a better ability in detecting nonprecipitating clouds.

Millimeter waves have a wavelength of between 1 and 10 mm, and the frequency ranges from 30 to 300 GHz. The wavelength used for millimeter-wavelength radar should be selected in the atmospheric window region where the absorption of gases is relatively small. Previous analysis has shown that there are four ideal center frequencies: 220 GHz, 140 GHz, 94 GHz, and 35 GHz [13]. The development of millimeter-wavelength radar began in the 1950s [13]. Since then, along with theoretical and technological developments, the capabilities of radar have gradually improved; plus, the polarimetric function and Doppler technique have been added. To date, it is 94-GHz and 35-GHz radars that have been most widely applied, due to their technological maturity. Studies relating to millimeter-wavelength radars in the field of meteorology have mostly been reported by scientists in the United States [14,15,16,17,18]. For instance, the Atmospheric Radiation Measurement Program (ARM), supported by the U.S. Department of Energy, has used multiple-frequency radars, including millimeter-wavelength radars, to carry out observations of cloud and precipitation at many ARM sites [19]. In April 2006, the CloudSat satellite and CALIPSO satellite led by NASA were successfully launched [20,21]. These two satellites were equipped with a 94-GHz radar and a Lidar, respectively. In February 2014, the core observation platform, GPMCO (GPM Core Observatory), of the global precipitation measurement plan, GPM (Global Precipitation Measurement), was launched, equipped with the world’s first dual-frequency satellite radar (Ku-13.6 GHz, Ka-35.5 GHz), in order to replace the TRMM (Tropical Rainfall Measuring Mission) satellite that had been in service for an extended period of time to detect the structure of cloud precipitation on a global scale (https://gpm.nasa.gov/, accessed on 17 November 2021). Cloud radars have also been operated at different sites in Europe, i.e., in a joint activity that started with the CloudNet project, to observe and derive cloud parameters for model evaluations [22,23,24,25]. An increasing number of multi-frequency Doppler radars with frequencies ranging from the X to W band are being developed and run at research sites, and are routinely running in vertically pointing mode [25,26]. In China, the first Ka-band radar was developed in 1979, and the first W-band radar was developed in 2013 [27]. The dual-frequency millimeter-wavelength radar introduced in this paper is the first dual-frequency millimeter-wavelength radar developed in China for long-term observation of clouds and precipitation over the Tibetan Plateau.

The natural geographical environment of the Tibetan Plateau (altitude above 3000 m) is unique, and plays key roles in regional and global climate. Due to this special geographical location and environment, the characteristics of clouds and precipitation in the region have distinct characteristics from those over the plain areas. However, ground-based meteorological observations of clouds and precipitation, especially radar observations, are very poor. In August 2019, we set up a dual-frequency Doppler polarimetric cloud radar (DDCR) at Yangbajing Observatory (4300 m altitude), approximately 91.8 km northwest of Lhasa City, Tibet, in order to make long-term observations 24 h a day. This paper introduces the DDCR and an initial evaluation of its performance. Moreover, the detection capabilities of the Ka-band radar and W-band radar are compared and analyzed.

The structure of the paper is as follows: Section 2 introduces the design of DDCR in detail. Section 3 compares and analyzes the detection capabilities of Ka-band radar and W-band radar, and their differences through several observational cases. In addition, using one year of observational data, the cloud-top height (CTH) and cloud-base height (CBH) observed by the Ka-band radar and W-band radar are studied and compared. Section 4 and Section 5 provide some further discussion and a summary of the study, respectively.

2. Dual-Frequency Doppler Polarimetric Cloud Radar

2.1. Radar Design and Hardware

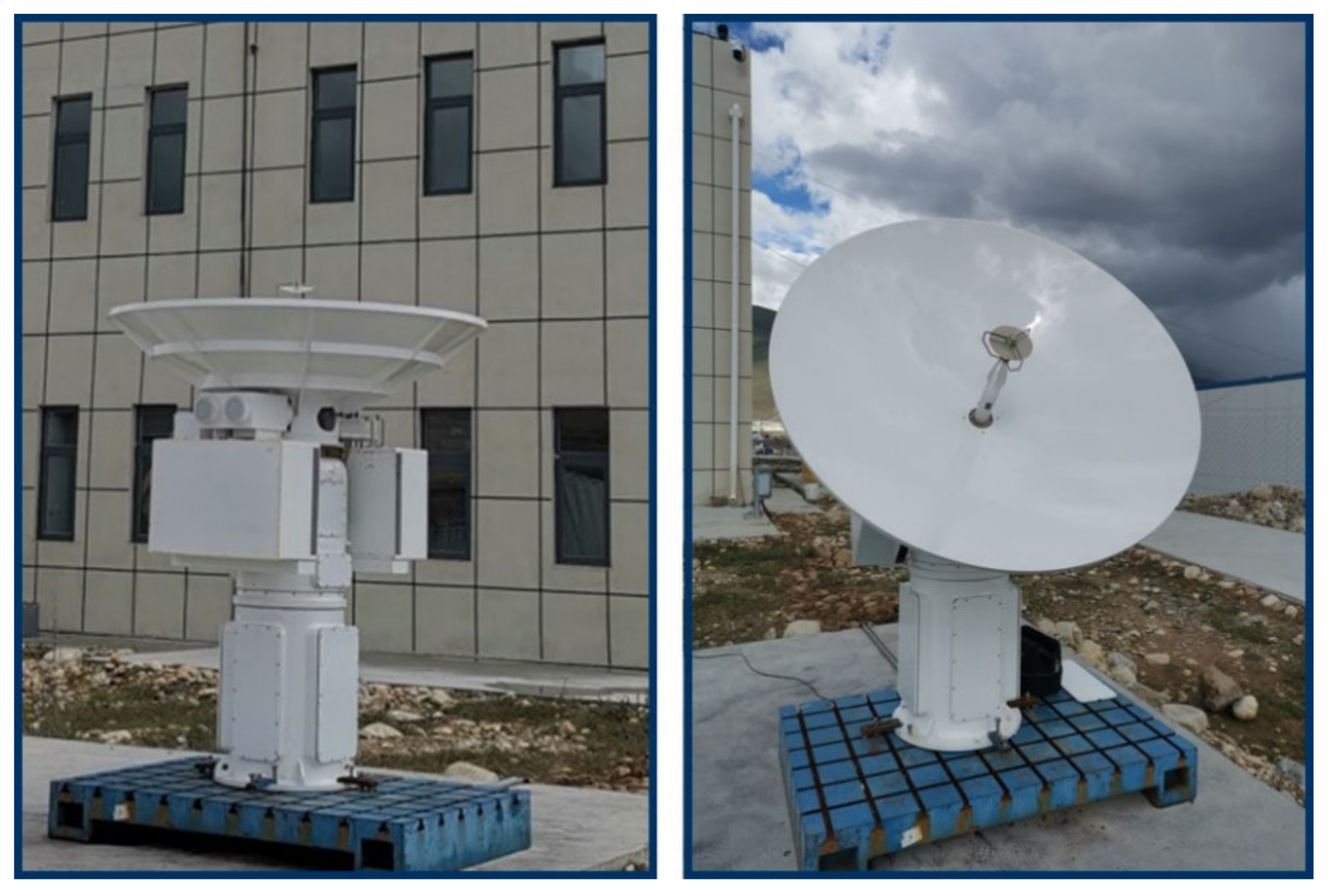

The DDCR was developed by the Chinese company Sun Create Electronics Co., Ltd. (Hefei, China) In August 2019, it was set up at Yangbajing Observatory in Tibet (Figure 1, 30.1°N, 90.5°E). DDCR works at two frequencies: 35 GHz (Ka-band radar; wavelength: 8.6 mm) and 94 GHz (W-band radar; wavelength: 3.2 mm), and has multiple scanning modes. The daily observation mode is the vertically pointing mode. It provides the reflectivity (Z_m), Doppler velocity (V), Doppler spectrum width (W), and the linear depolarization ratio (LDR). Negative V means downward and positive V means upward.

Table 1. Technical specifications of DDCR.

Symbol	Parameter	Unit	94 GHz	35 GHz
D	Diameter of antenna	m	1.5	1.5
λ	Wavelength	cm	0.317	0.8569
Pt	Peak power of transmitter	kW	1.5	3
τ	Pulse width of transmitter	us	0.5	0.5
	Range resolution	m	75	75
Φ	Horizontal beam width	(°)	0.16	0.39
θ	Vertical beam width	(°)	0.16	0.42
G	Antenna gain	dB	59.11	52.89
L∑	Two-way losses of waveguides	dB	3.8	3
B	Bandwidth of receiver	M	2	2
Fn	Noise figure of receiver	dB	6.8	4.7
C0	Radar constant	dB	64.7	66.42
Prmin	Sensitivity of receiver	dBm	−104.19	−106.29

shows the main technical parameters of the DDCR.

The DDCR has a 1.5-m-diameter Cassegrain coplanar antenna to ensure the signal transmitted to or received from is the same target. The traditional low-pressure casting technique used for making the antenna was replaced with a vacuum low-pressure casting technique to improve the surface porosity factor. A milling process is applied to keep the surface precision σ_RMS < 0.064 mm within 1500 mm. The antenna gains of the Ka-band and W-band are 52.89 dB and 59.91 dB, respectively.

The feeds of the DDCR are an integrated system. The Ka-band radar adopts a large-angle corrugated horn structure, and the W-band radar adopts a multi-mode horn structure. The first side lobe of the Ka-band radar is ≤−23 dB, and that of the W-band radar is ≤−22 dB. The cross-polarization isolation of the DDCR is 35 dB. The W-band receiver is installed just under the antenna to minimize the waveguide length and reduce its loss. The two-way losses of waveguides for the Ka-band radar and the W-band radar are 2.6 dB and 3.5 dB, respectively. The peak transmit power of the Ka-band radar and W-band radar is 3 kW and 1.5 kW, respectively. The noise figures of the Ka-band and W-band receivers are 4.7 dB and 6.8 dB, respectively.

In order to maintain the coherence of the signals from the Ka-band radar and W-band band radar, a crystal oscillator clock (120 M) is used and shared, which generates the local oscillator signal required by the receiver, transmitter, the sampling unit, monitoring clock, etc. The pulse width of the two radars is 0.5 μs, and the range resolution is 75 m. The pulse repetition frequency is 5000 Hz, and the pulse accumulation number is 256. The pulse pair processing technique is used to calculate the Doppler radial velocity. The beam widths of the Ka-band radar and W-band radar are different, resulting in the detection range of the W-band radar only accounting for 40% of the Ka-band radar. However, the discrepancy in reflectivity caused by the beam width can be ignored because a high repetition rate is used to ensure a relatively steady target after it has been converted into a standard unit. In addition, a known power will be injected routinely into the two polarimetric channels of the two radar receivers, and then the difference in the two channels will be automatically detected according to their actual output, so as to perform the automatic calibration of the linear depolarization.

2.2. Radar Sensitivity

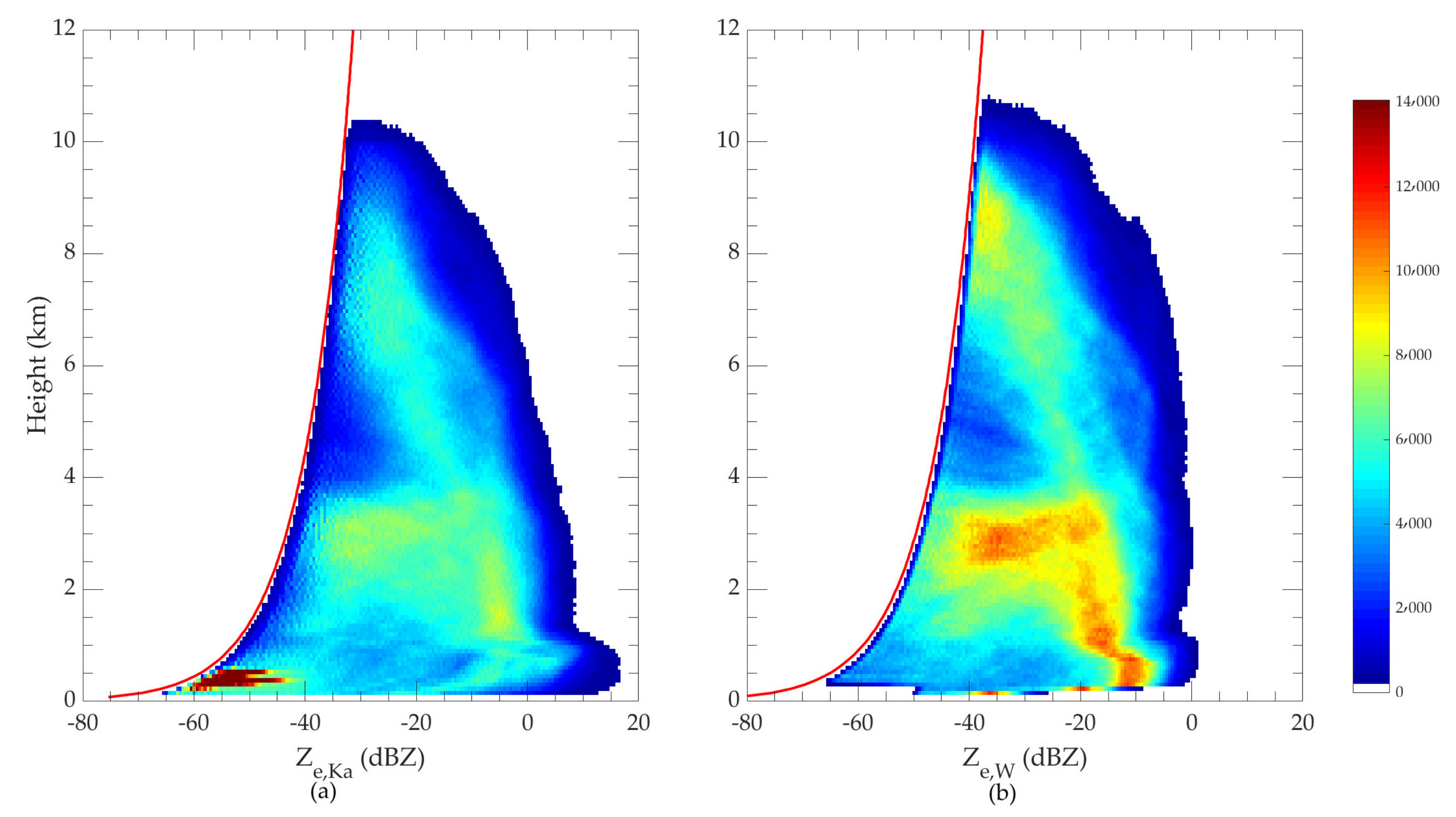

The sensitivity in this context denotes the ability of the radar to detect targets with weak reflectivity, and high sensitivity means high levels of detection. With the assumption of Rayleigh scattering and spherical particles, the radar meteorological equation of cloud can be expressed in the following form:

$$Z_m=\frac{2^7{\mathsf{\lambda }}^2{r}^2{P}_r{l}_{\mathsf{\Sigma }}{l}_{MF}}{{\pi }^2{P}_t{G}^{2}c\tau {\left|K\right|}^{2}I},$$

(1)

$$\mathrm{I}={{\displaystyle \int }}_0^{\pi }{{\displaystyle \int }}_0^{2\pi }{f}^4\left(\theta ,\phi \right)\sin \left(\theta \right)d\theta d\phi ,$$

(2)

$$\mathrm{K}=\frac{m^2-1}{m^2+2},$$

(3)

where P_t is the transmission power; G is the antenna gain; c is the speed of light; τ is the pulse width; r is the range between the antenna and the target; K is a constant defined as a function of m by Equation (3); m is the complex index of refraction of the droplet material (water) at ambient temperature and the radar frequency; λ is the wavelength; P_r is the received power, l_∑ is the two-way waveguide loss; l_MF is the matched filter loss; f (θ, φ) is the normalized beam pattern; θ is the off-axis angle; and φ is the azimuth.

According to Equation (1) and the radar constants, the minimum reflectivity Z_m-min of a radar for a certain distance can be calculated. Z_m-min is the radar sensitivity. The red curve in Figure 2 shows the sensitivity calculated by Equation (1). Additionally shown in Figure 2 is a statistical distribution of all the reflectivity of cloud observed by the DDCR during the period from 7 August 2019 to 4 September 2019. The color indicates the count calculated every 30-m height and 0.5-dBZ reflectivity of cloud bins from all cases. It can be seen that the measured reflectivity is closely located next to the red calculation line, indicating that the reflectivity measured by the DDCR can reach the theoretical value. The DDCR has demonstrated the detection level it could and should have. Figure 2 shows that the sensitivity of the W-band radar is −45 dBZ at 5 km, and −39.2 dBZ at 10 km; while the sensitivity of the Ka-band radar is −39 dBZ at 5 km and −33 dBZ at 10 km. In contrast, the sensitivity of the W-SACR (a W-band cloud radar) is −17 dBZ at 5 km, and that of the Ka-SACR (a Ka-band cloud radar) is −20.9 dBZ used by the ARM [28]. The 35-GHz polarimetric Doppler radar located at Lindenberge, Germany, is −55 dBZ at 5 km [22].

2.3. Gaseous Attenuation Correction

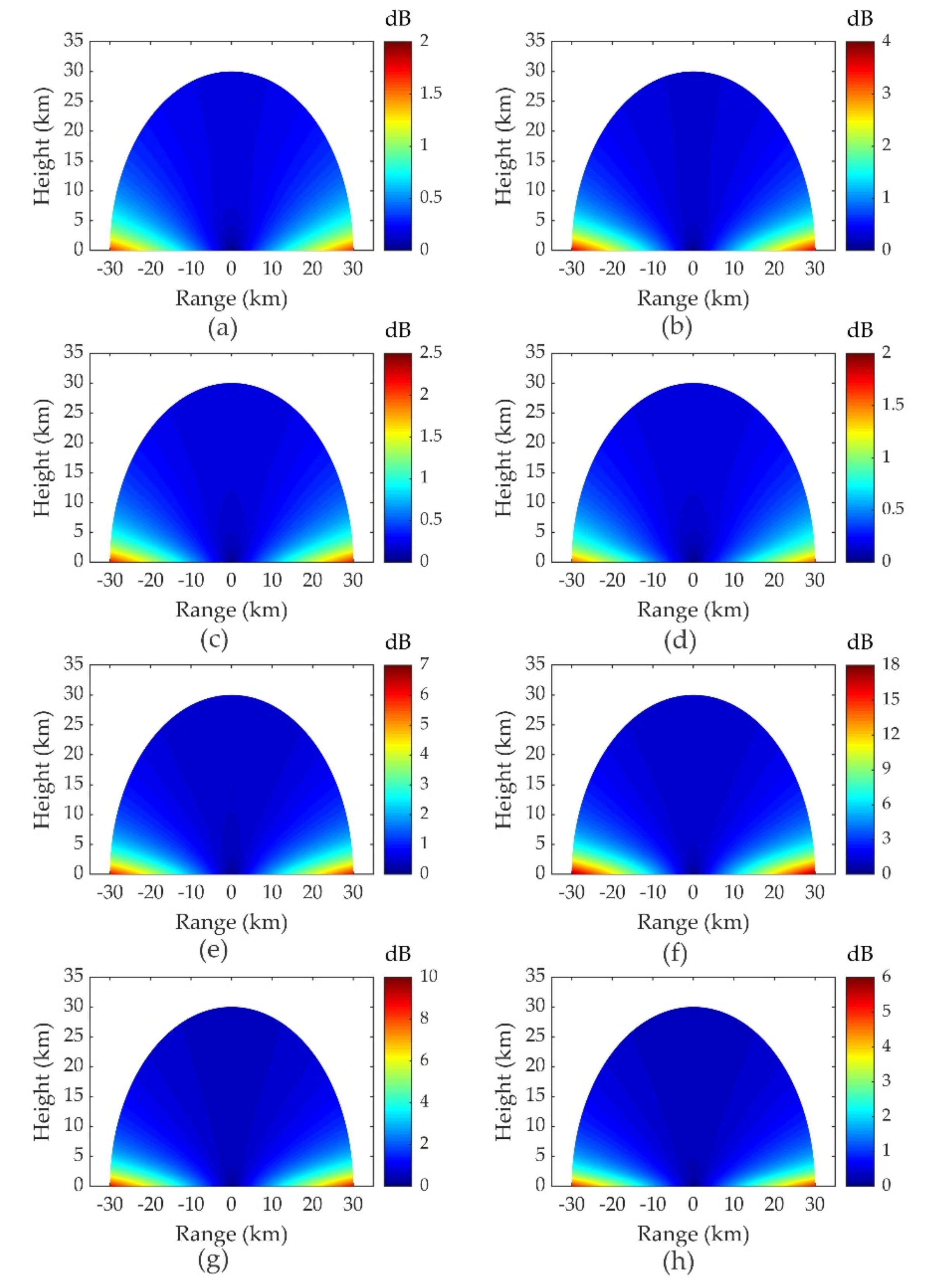

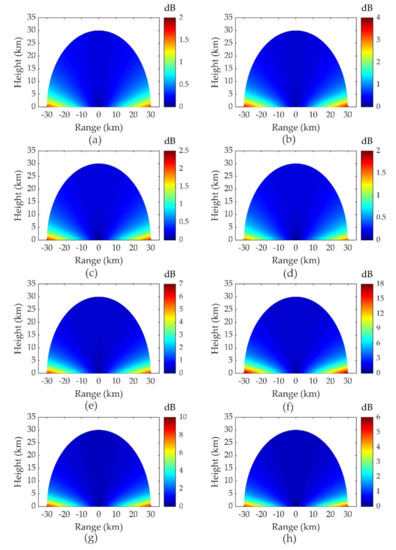

Absorption and scattering by atmospheric gases (mainly by water vapor and oxygen) and hydrometeors limits the detection performance and range of millimeter-wavelength radars, especially during precipitation and humid conditions [13,15]. According to the atmospheric temperature, pressure, humidity, and radar wavelength, the gaseous absorption coefficient on the transmission path can be calculated [29].

We used the average profile of pressure, temperature and water vapor from the European Centre for Medium-Range Weather Forecasts (ECMWF) ERA5 datasets (https://www.ecmwf.int/en/forecasts/datasets/reanalysis-datasets/era5, accessed on 17 November 2021) in four seasons from 2018 to 2020, and calculated the two-way cumulative atmospheric attenuation of the Ka- and W-band radars at Yangbajing at an elevation angle of 0–180° within 30 km (Figure 3). Summer has more attenuation than other seasons, owing to the higher humidity at that time of the year. Using the calculated absorption coefficient, the gaseous attenuation can be corrected.

3. Case Study

The radar Equation (1) shows that the reflectivity measured is determined by the radar constant and the properties of the target—namely, the cloud and precipitation. Here, we selected several cases to study the advantages and disadvantages of the Ka-band radar and W-band radar in detecting cloud and precipitation. After gaseous attenuation corrections, the attenuation-corrected reflectivity (effective reflectivity factor, Z_e) has the following relationship with the observed reflectivity (Z_m):

Z_m(r) = A(r) · Z_e(r),

(4)

where A(r) is the attenuation factor calculated in Section 2.3. The reflectivity Z_e(r) is corrected only for gaseous attenuation at present. Attenuation due to cloud droplets or ice crystals is not corrected, as it requires information on their phase, size, morphology, and water content amount, etc. To compare the observed values by the Ka-band radar and W-band radar, we define the difference in Z_e between the two radars as:

$$D_{ze}=Z_{e,Ka}-Z_{e,W},$$

(5)

where Z_e,Ka is the Z_e from the Ka-band radar and Z_e,W is that from the W-band radar. Correspondingly, the difference in the mean Doppler velocity (V) and in the Doppler spectrum width (W) are also defined in a similar way and referred to as D_v and D_w.

3.1. Precipitation Case

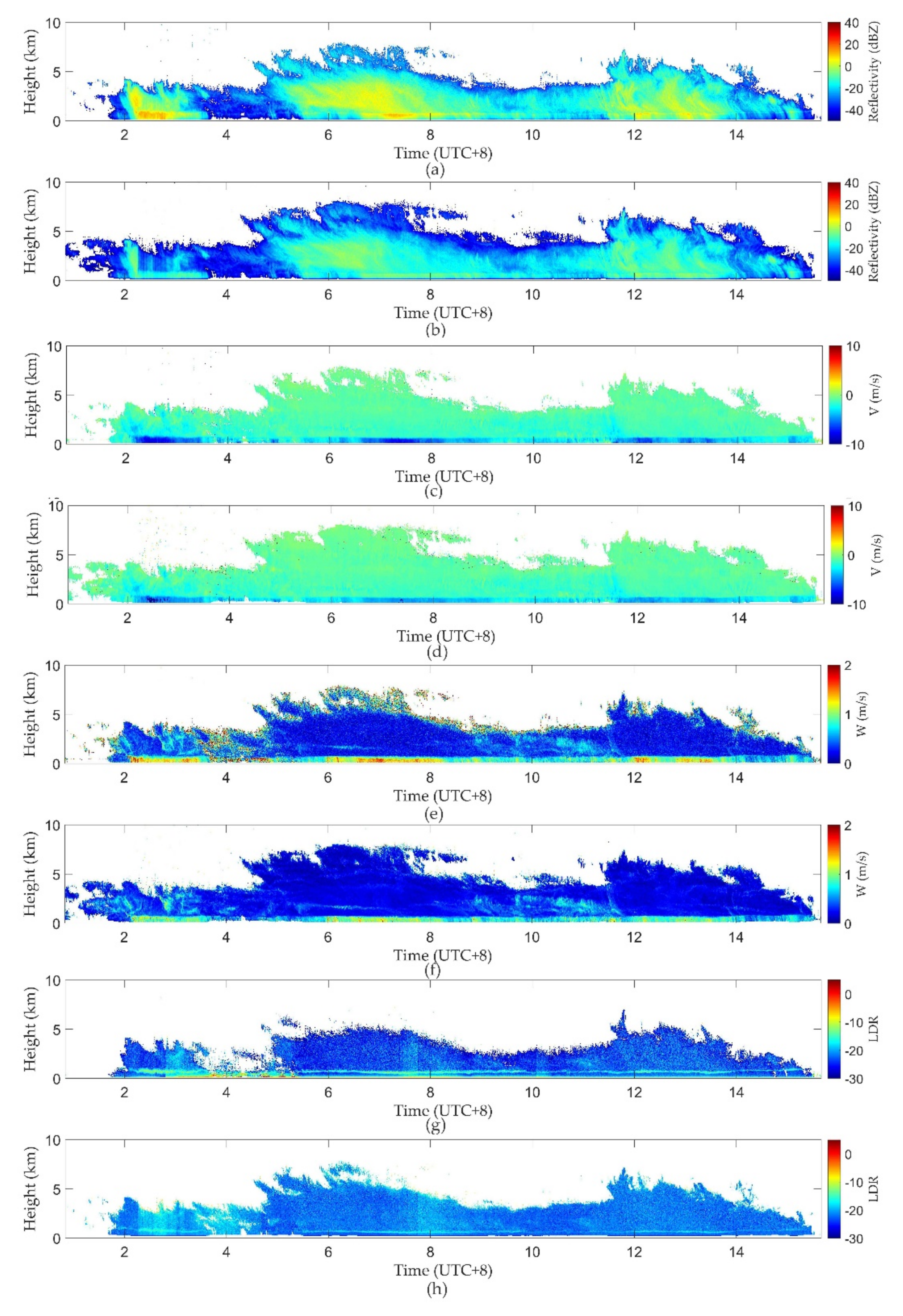

Figure 4 shows a precipitation case observed by the DDCR that occurred from 0200 to 1400 (UTC + 8; hereinafter, the time is UTC + 8) on 11 August 2019 at Yangbajing. The maximum CTH reached 8 km. It should be noted that the height in this paper is the height above the radar but not the altitude. It can be seen from each panel of Figure 4, especially the LDR panel, that there is a “bright band” near the height of 1.5 km. On or below this layer, the Z_e, V and W increased significantly.

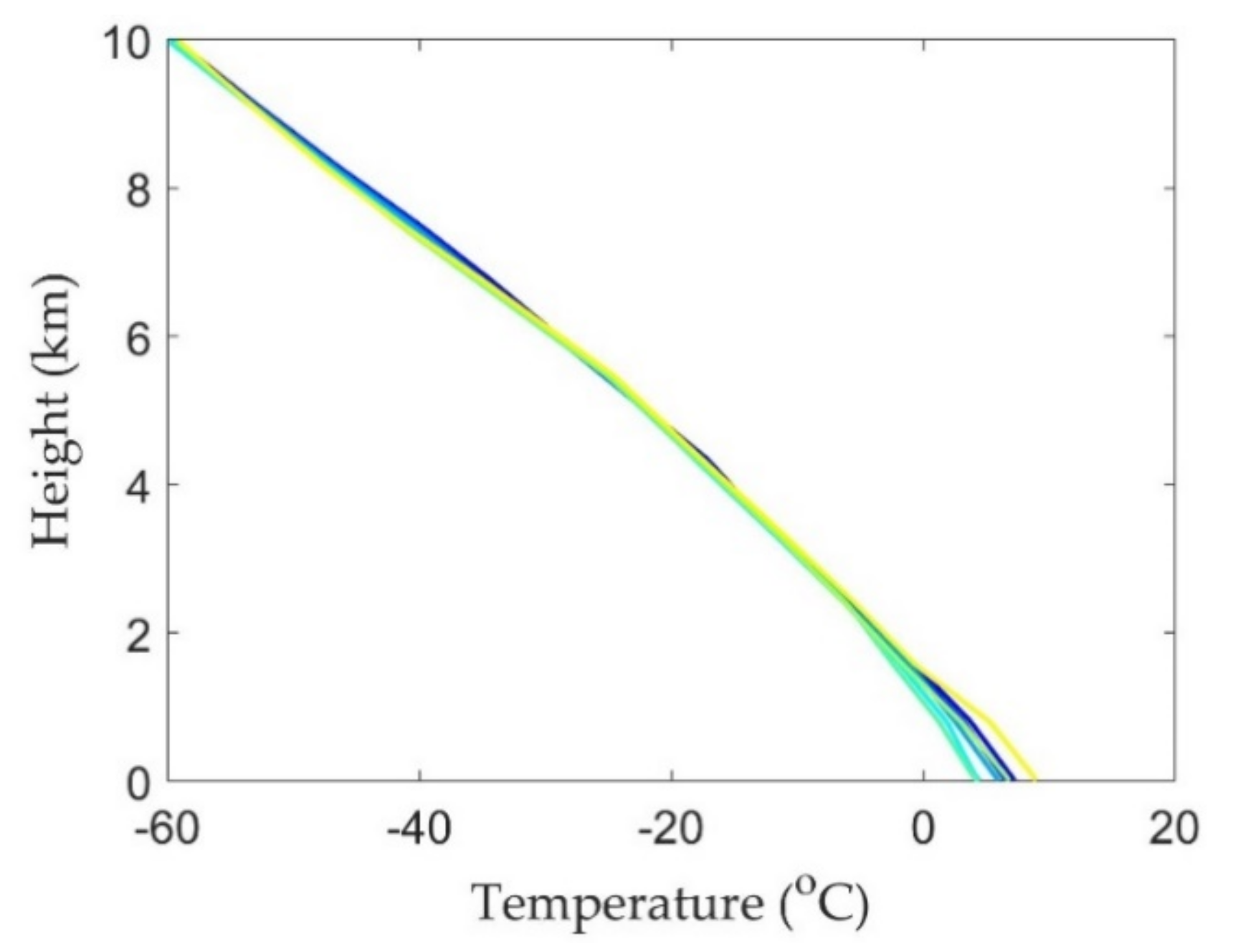

The change in temperature with the time during this event was not significant (see Figure 5). The temperature gradually decreased with the increase in height, and it decreased to 0 °C at the height of approximately 1.5 km. The “bright band” displayed in Figure 4 is just near this height level. The “bright band” is the melting layer. The obvious increase in the reflectivity, velocity, and spectrum width in the melting layer is because the ice crystals from the upper layer melt (or partially) into liquid water when falling into the melting layer. Most of them are covered by water. The backscattering cross section of water is larger than that of ice particles, resulting in the increase in radar reflectivity. With the increase in falling speed and particle collisions, the combined effect of cloud droplets and raindrops causes a significant increase in the spectrum width. The melting layer in the W and V maps (Figure 4c–f) is presented throughout the whole process, while it sometimes disappeared on the Z_e map. Although there are no in-situ observational data, it can be inferred from the physical properties measured by the two radars and the temperature profiles that the cloud with height below 1.5 km (temperature greater than 0 °C) is liquid, the 1.5–7 km height is the mixed-phase cloud (the temperature is between 0 °C and −38 °C), and above 7 km (less than −38 °C) is ice-crystal dominated.

Above the melting layer, the highest reflectivity appears in the middle of the cloud (2.5–4 km), reaching approximately 10 dBZ (Figure 4a). There is some change in the Doppler velocity and spectrum width. From 0900 to 1100, the downward V and W increased above the melting layer when compared to other adjacent periods. It might be inferred from this that more hydrometeors from the upper level fell down, resulting in stronger disturbance and larger W. After that point, the reflectivity increased from 1200 to 1400. It appears that the stronger disturbance helps to break the balance of the cloud system, enhances the possibility of collisions of hydrometeors, and results in large droplets. This precipitation event actually included two precipitation processes with two rainfall peaks, rather than a single process of developing to enhancing and finally decaying. The dual-frequency radar recorded the two precipitation processes, especially the transition process with increasing movement in the upper layer between them.

During the transition process, cloud (rain) droplets entered the area above the melting layer with the airflow, resulting in an evident increase in the spectrum width (see Figure 4). Theoretically, for a radar bin with uniform particle size distribution, its Doppler spectrum is usually a single-peak distribution, and the spectrum width is relatively low. However, for a radar bin with a diverse and complex particle size distribution, its Doppler spectrum will be a dual or multi-peak distribution, and the Doppler spectrum width will increase. The process from 0900 to 1100 also shows that the spectrum width value is a signal to indicate super-cooled water, which needs further research in the future.

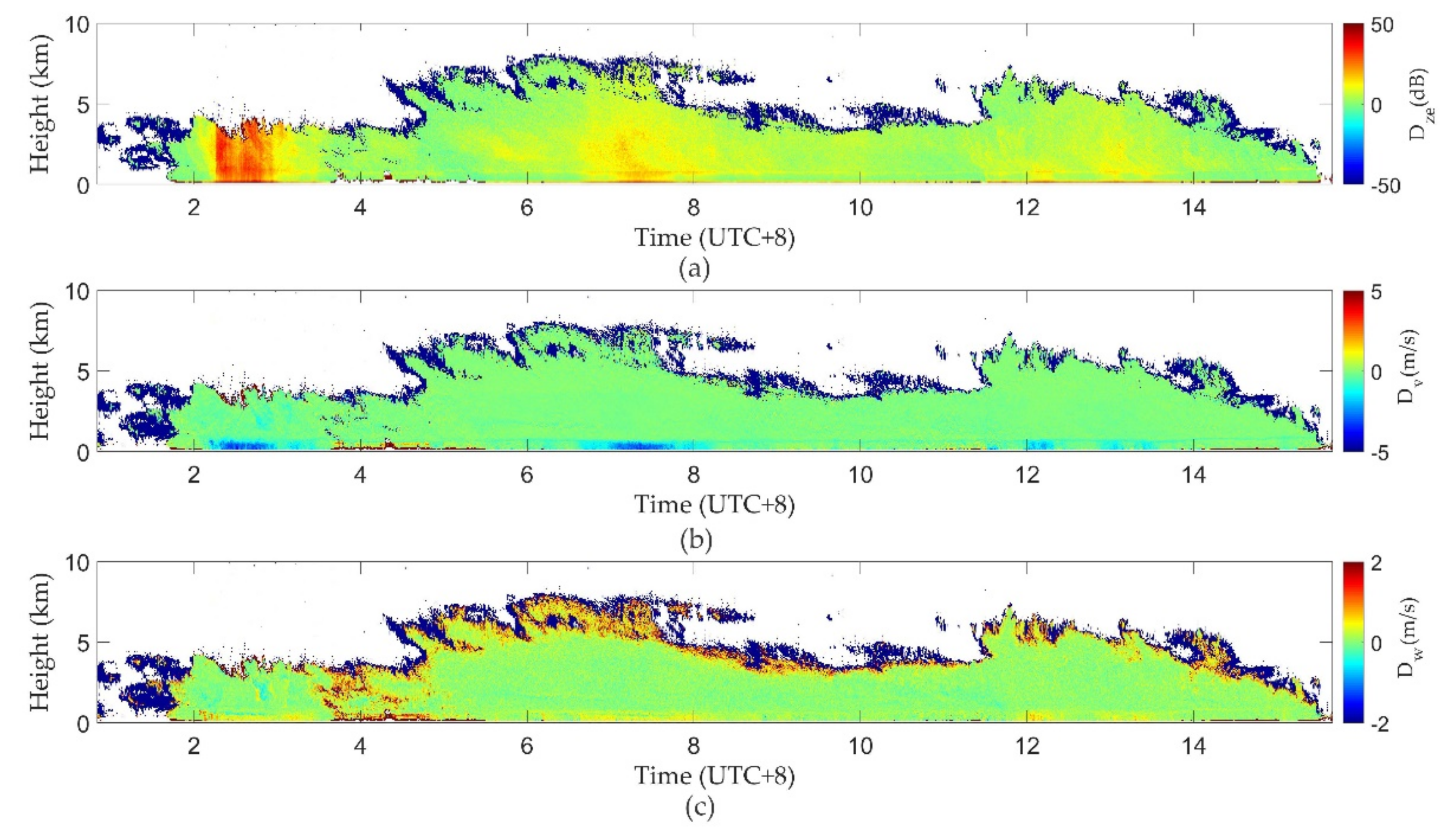

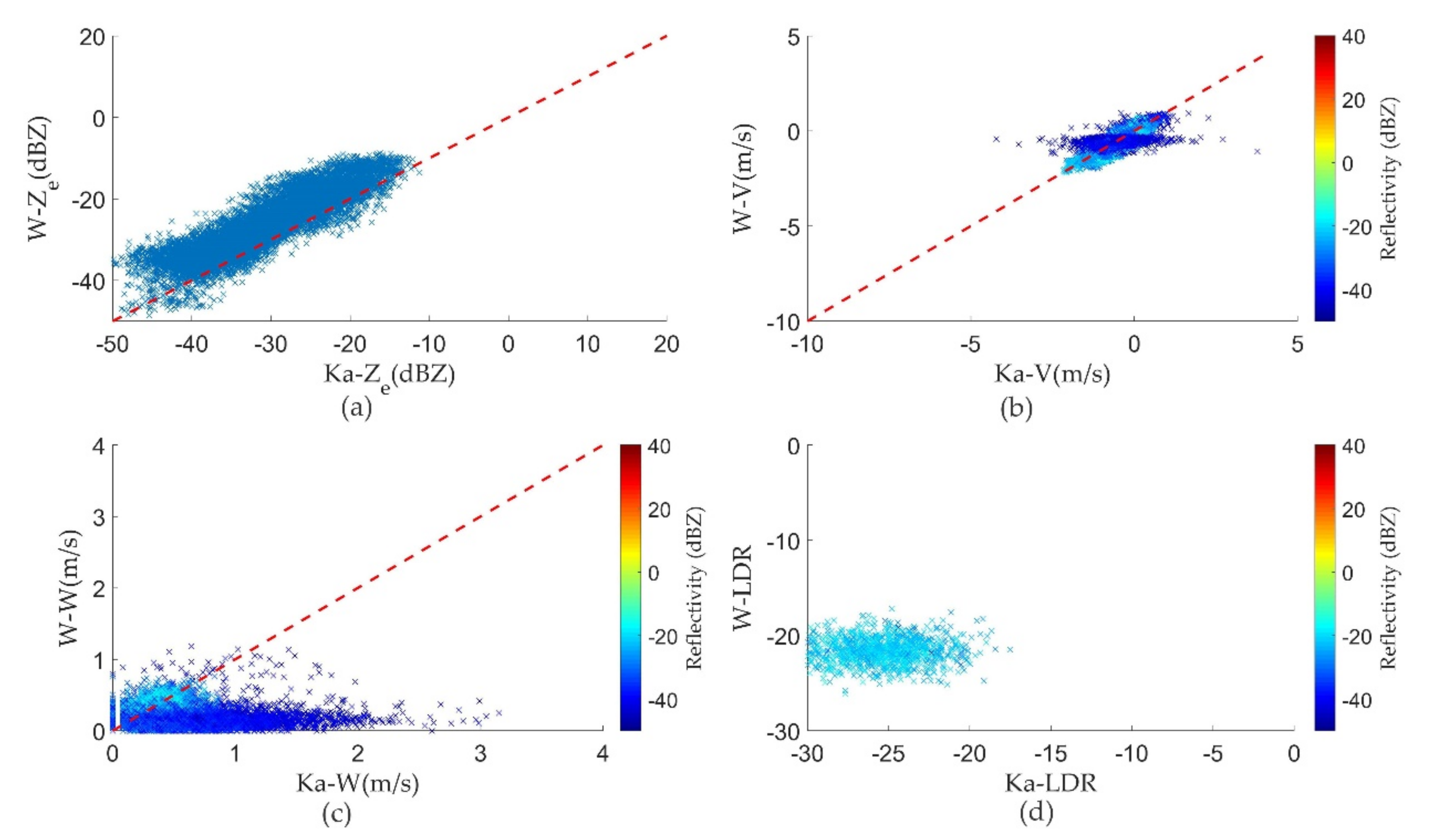

The reflectivity, V, W, and LDR differences between the 35- and 94-GHz radar during this event are analyzed (see Figure 6). There are some dots where the W-band radar has obtained the reflectivity, but the Ka-band radar has not. We use dark blue to mark these dots (the same color has a similar meaning in the following “difference” figures). In the three panels in Figure 6, dark blue dots mostly appear near the top of the cloud, where the W-band radar reflectivity is lower than that of other interior area. The top of the cloud typically has a lower particle concentration and smaller sizes, resulting in overly weak reflectivity being captured by the Ka-band radar. In this case, the portion of the Ka-band radar that did not obtain the reflectivity was very small and, mostly, both the Ka-band radar and the W-band radar obtained the reflectivity from the cloud. The measurements of the four parameters from the two radars are compared in Figure 7.

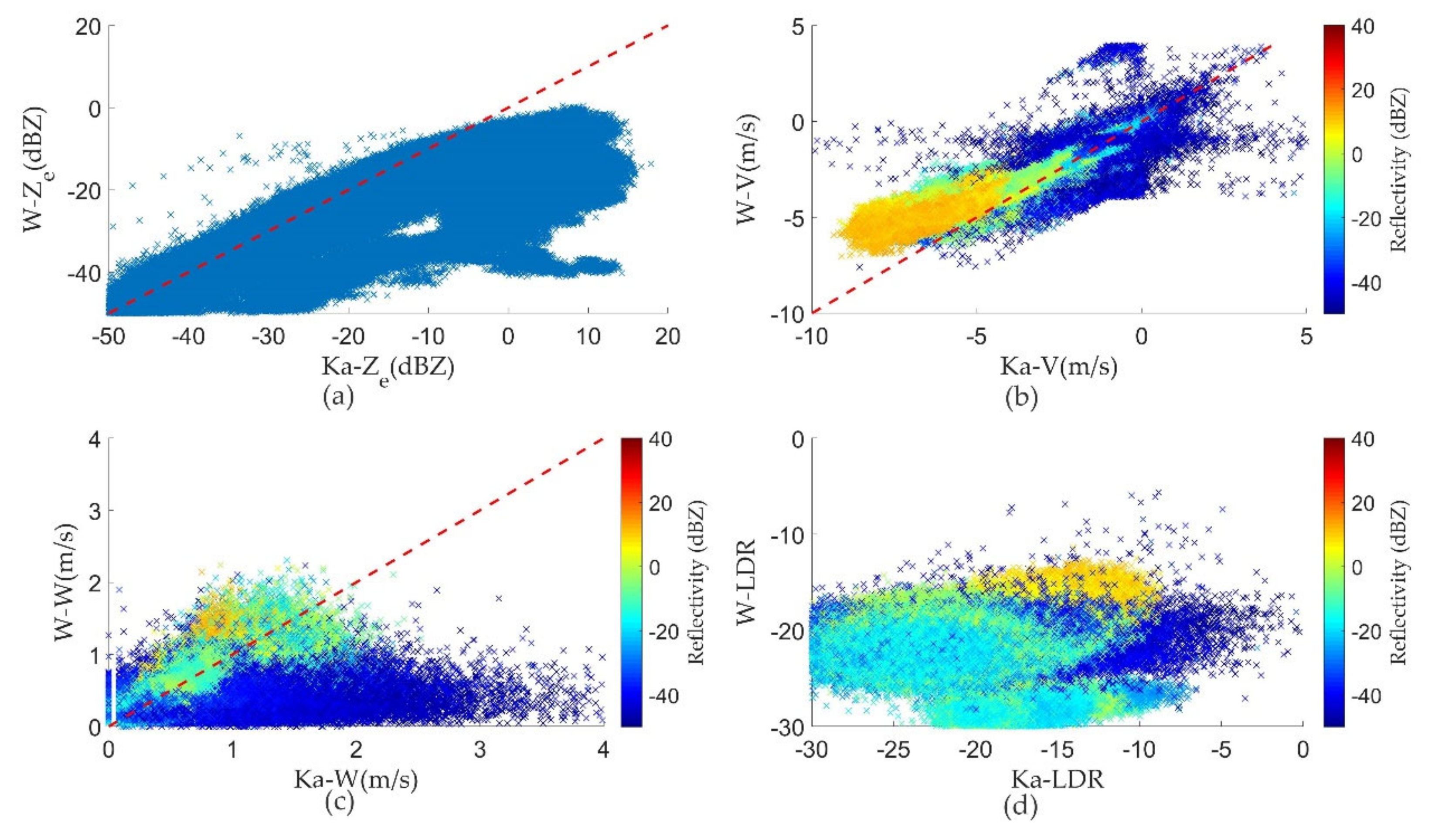

Most of the Z_e values measured by the Ka-band radar are higher than those of the W-band radar (see Figure 7a). In particular during the time from 0200 to 0300 (see Figure 6a), all of the reflectivity of the cloud from the Ka-band radar is significantly higher than that of the W-band radar, and the maximum Ka-band radar reflectivity reaches 15 dBZ. High reflectivity below the melting layer is accompanied by severe attenuation due to the liquid droplets, especially for shorter wavelengths. Thus, the D_ze increased significantly during this period (reaching 40 dB). Therefore, high D_ze is normally accompanied by high Ka-band radar reflectivity. It can be inferred that layers where the D_ze is high might be dominated by liquid hydrometeors owing to the larger attenuation for shorter-wavelength radar.

The Ka-band radar is more sensitive to larger cloud particles when compared with the W-band radar. In this case, the difference in V between the two radars is small when the reflectivity is small (i.e., less than −10 dBZ; Figure 7b). It can be inferred that the velocity of these particles might be the velocity of the airflow, but not their falling speeds. For particles with large reflectivity (i.e., >0 dBZ, raindrops), the downward V from the W-band radar is less than the Ka-band radar. The measured V reflects the falling speed of particles. This case shows that the two radars demonstrate good capability in detecting the velocity. For large reflectivity, the spectrum widths of the Ka-band radar and W-band radar are close. However, for small reflectivity (i.e., less than −40 dBZ), the spectrum widths from the Ka-band radar is more extensive than that from the W-band radar (Figure 7c). This might be caused by the large uncertainty of the Ka-band radar in detecting the spectrum width for very small particles due to its lower sensitivity. The difference in LDR between two radars is also significant. LDR is the ratio of the power backscattered at vertical polarization (Z_vh) to the power backscattered at horizontal polarization (Z_hh) for the DDCR’s horizontally polarized field, which is strongly dependent on the particle reflectivity and the radar sensitivity. Thus, the uncertainty of LDR is greater than that of radar reflectivity. The complex and chaotic feature in Figure 7d might be related to the high uncertainty of LDR.

3.2. Cloud Case

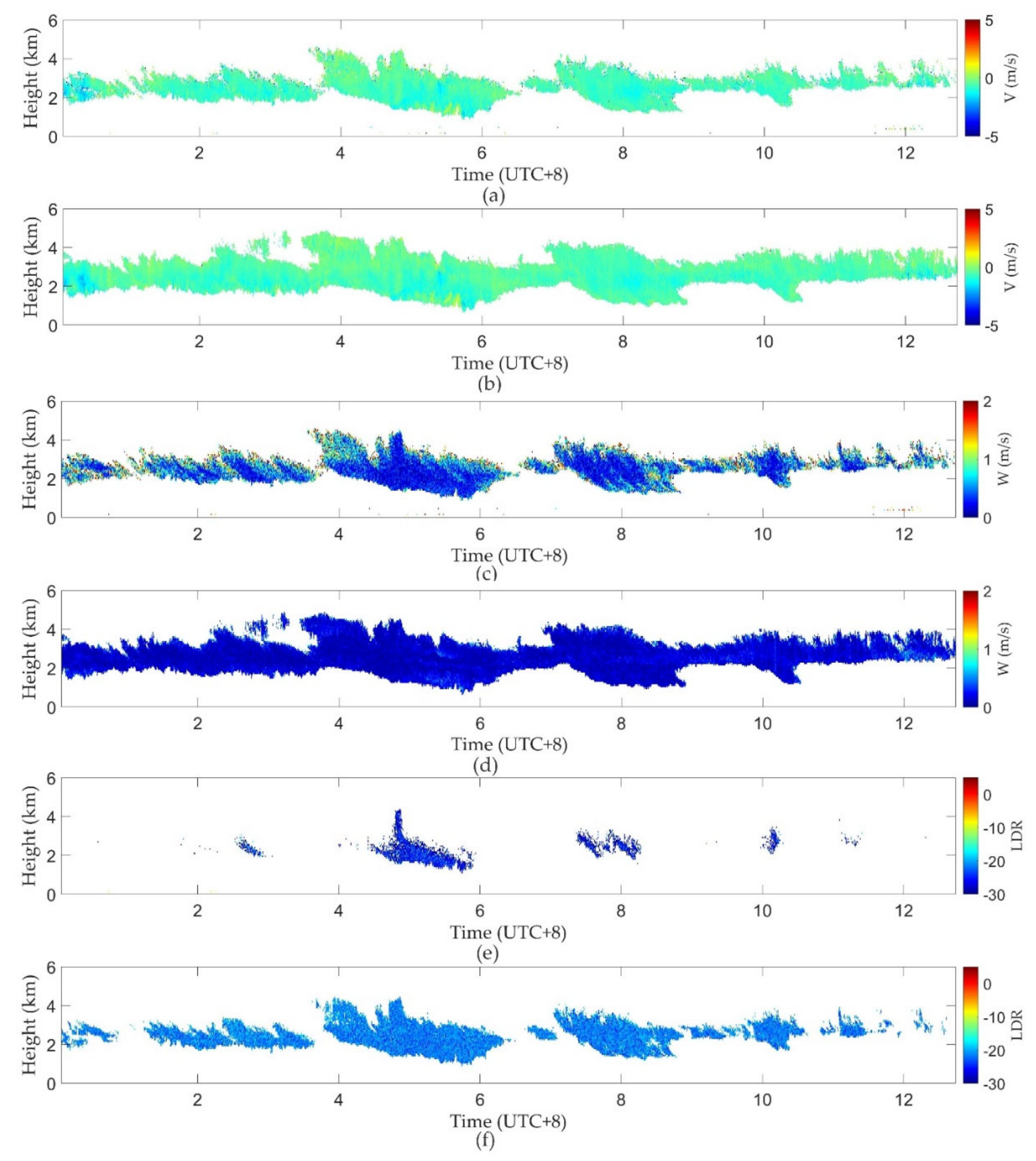

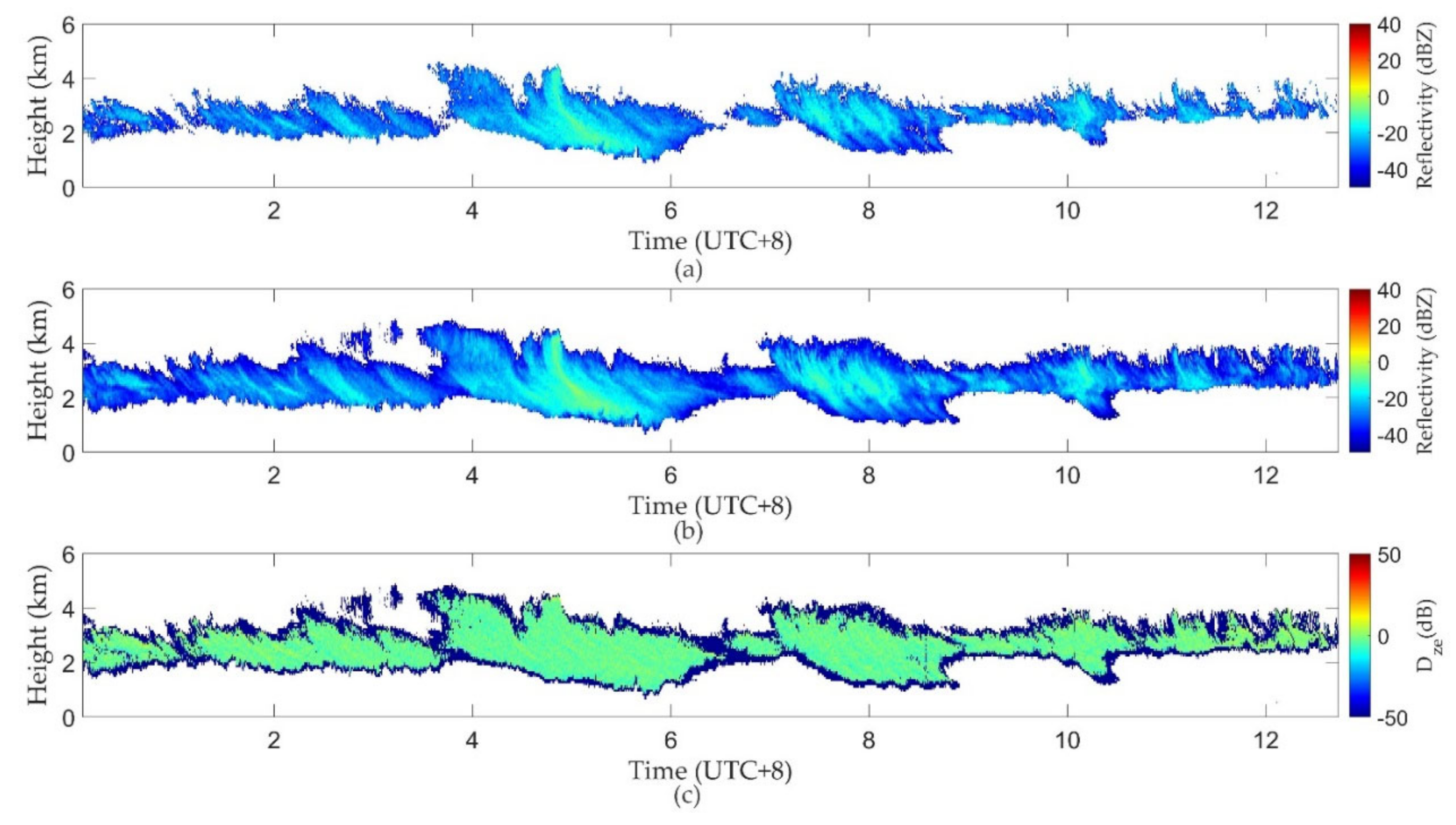

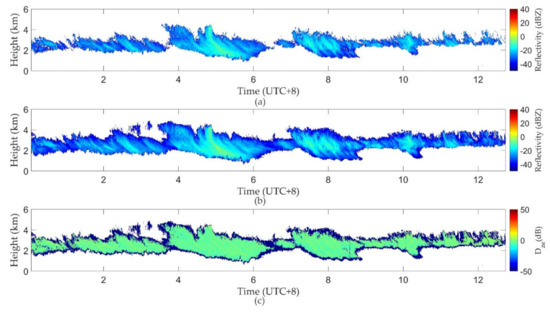

The case presented in Figure 8 occurred between 0000 and 1300 on 3 March 2020. The average CBH was approximately 2 km, and the average cloud depth was approximately 2 km, with a maximum of 3-km depth. The reflectivity measured by the radar in this case is mostly less than −10 dBZ, which is obviously lower than the case in Section 3.1.

There is no melting layer in Figure 8. During the time period 0400 to 0600, the cloud thickness and radar reflectivity are relatively larger when compared with other periods. As shown in Figure 8c, the Ka-band radar also lost some measurements at the edge of the cloud, such as the top of the cloud and the bottom of the cloud, when compared to the W-band radar.

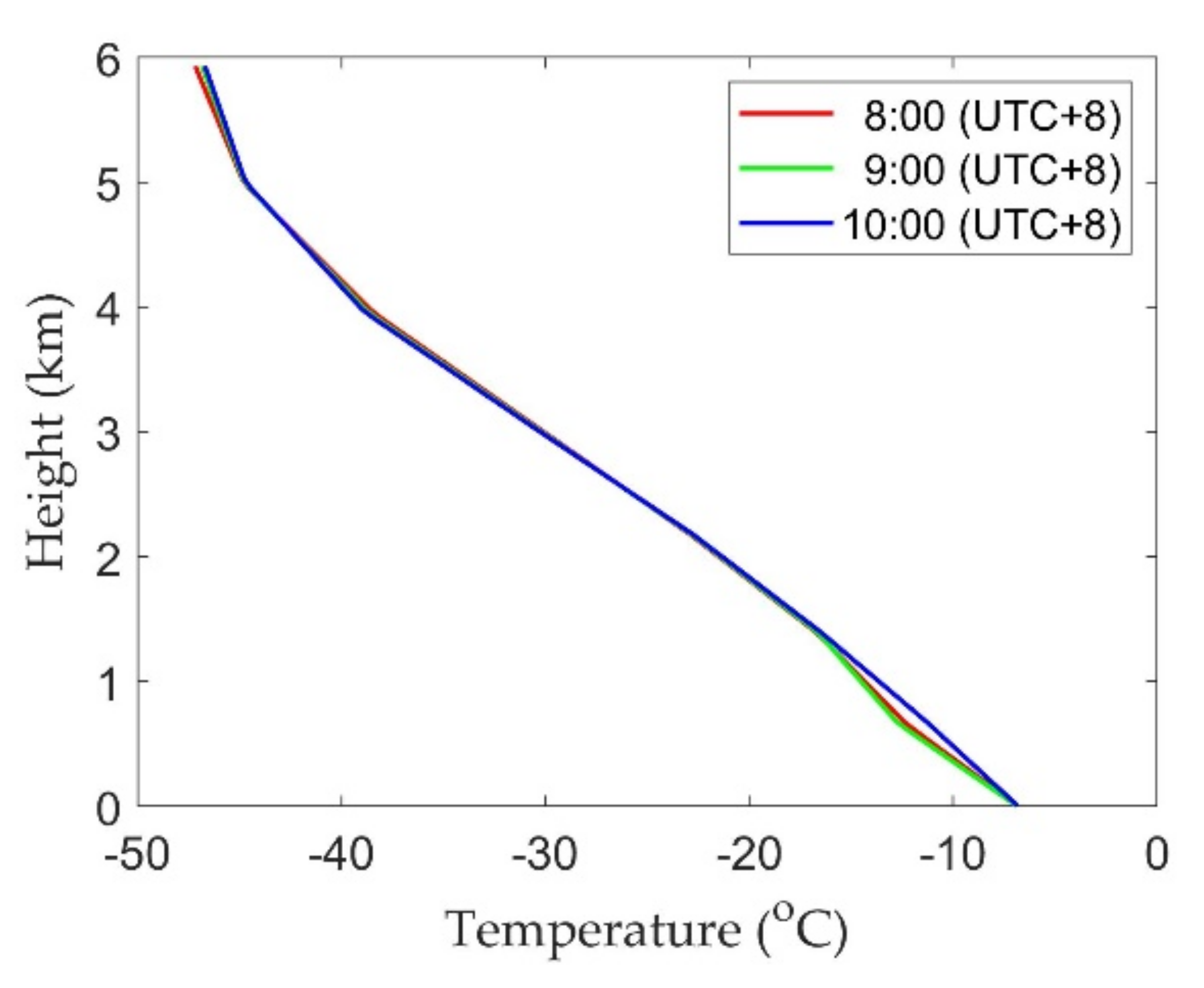

Figure 9 shows the temperature profile from 0800 to 1000 on 3 March 2020. In the height range between 2 km and 4 km, the temperature dropped from approximately −20 °C to approximately −40 °C, and the cloud top temperature was lower than −40 °C. The Z_e, V, W and LDR are shown in Figure 10. In Figure 10a,c for the Ka-band radar, there are many more pepper-like signals near the cloud-top area. However, the W-band radar does not feature such pepper-like phenomena. The lower signal-to-noise ratio of the Ka-band radar for these signals caused obvious uncertainties in detecting the V and W. Moreover, due to the very weak signal, the Ka-band radar obtained the LDR values of a very small portion of the whole cloud. In this case, the W-band radar performs better than the Ka-band radar.

According to the temperature profile and the distribution characteristics of the radar reflectivity, for example, there is no melting layer, and D_ze changes little with height (see Figure 8c), from which it can be concluded that ice crystals dominated in the cloud and the droplet size was small. In order to further understand the performance of the DDCR, we also compared the four parameters (Z_e, V, W, and LDR) measured by the two radars for this case (see Figure 11). For the measurements both radars obtained, the reflectivity measured by the W-band radar is generally higher than the Ka-band radar, and most Z_e values are less than −10 dBZ. The statistical results show that the average value of D_ze in this case is −2.9 dBZ, and the minimum D_ze reaches −15 dBZ. The velocities measured by the two radars are close. Most of the spectrum width is less than 0.4 m/s, indicating a uniform particle distribution function.

In terms of Rayleigh scattering, the backscattering cross section σ of a small spherical particle can be expressed as:

$$\mathsf{\sigma }=\frac{64{\pi }^5{r}^6}{{\lambda }^4}{\left|K\right|}^2.$$

(6)

According to the radar Equation (1), the effective reflectivity factor Z_e will be:

$$Z_e={{\displaystyle \int }}_0^{\infty }n\left(D\right)D^{6}dD.$$

(7)

As seen from Equation (7), the Z_e only depends on the cloud particle size distribution, and ideally should not be linked with the wavelength. In this case, and the case in Section 3.1, the reflectivity measured by the Ka-band radar and W-band radar demonstrates an obvious discrepancy. The attenuation by cloud and gas is one cause, since it has different impacts for different wavelengths. In addition, the Rayleigh scattering assumption for Equation (6) might be inapplicable at times for the two wavelengths. Here, in this case, the average reflectivity is relatively low and the reflectivity measured by the W-band radar is mostly higher than that of the Ka-band radar. Besides the causes generated by the Rayleigh scattering assumption, there are four other possible reasons:

(1)

As presented in the radar Equation (1), the different uncertainty of the radar constant between the Ka-band radar and W-band radar will cause a difference in Z_e;

(2)

The value of K in Equation (3) is fixed. The K value of liquid particles increases with the increase in wavelength, while the K value of ice particles is small and changes less with wavelength. When an actual cloud particle is ice rather than liquid, the K should be adjusted according to the wavelength and particle phase. When such an adjustment is absent, the Z_e value measured by the W-band radar is destined to be higher than the Z_e measured by the Ka-band radar;

(3)

The Z_e obtained by the radar is the echo from a scatter volume. The larger particles in the volume contribute much more reflectivity than small particles. The Ka-band radar and W-band radar have different sensitivities to different sizes of particles, resulting in different Z_e when the integral scattering of large particles and small particles is different;

(4)

The Ka-band radar has a wider beam-width than the W-band radar. In fact, the volume they detected was not quite the same.

The difference caused by reason (1) can be minimized by the calibration experiment. The differences caused by the other three reasons are linked with the physical properties of the particles themselves. Thus, the difference of reflectivity, velocity, etc., between the Ka-band and W-band radar data imply the microphysical properties of cloud (i.e., size, phase), and presents ultra-information that can be used to retrieve microphysical characteristics of the particles in the cloud.

3.3. Ice Cloud Case

Ice crystals account for the absolute majority of ice clouds. The previous studies of Ka-band or W-band attenuation in ice clouds and water clouds indicate that the attenuation by ice is far smaller than by liquid hydrometeors must be considered [10,29,30].

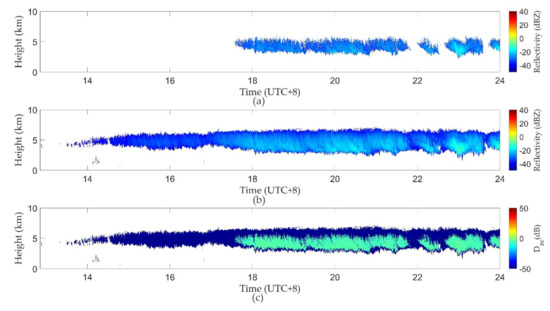

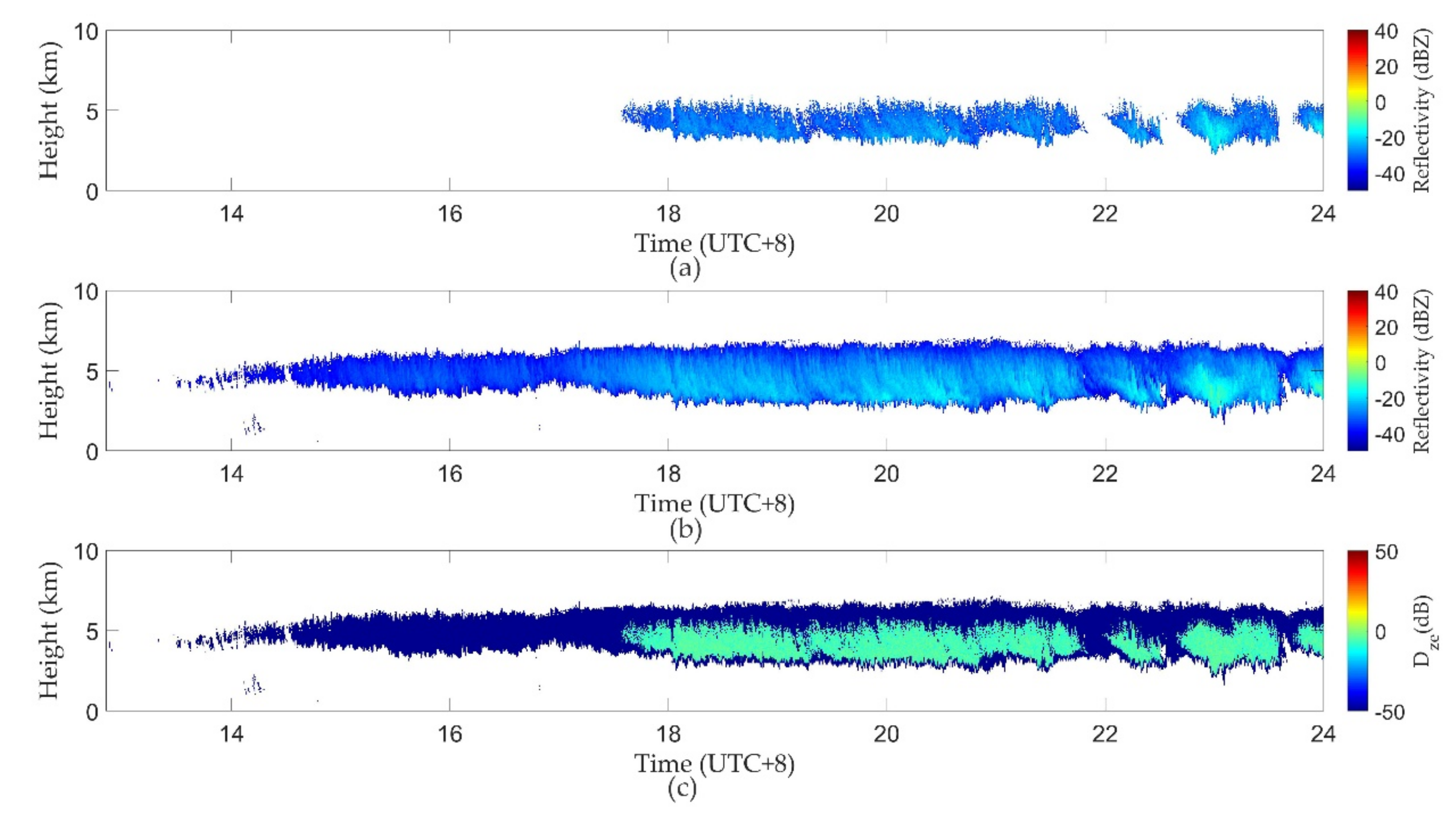

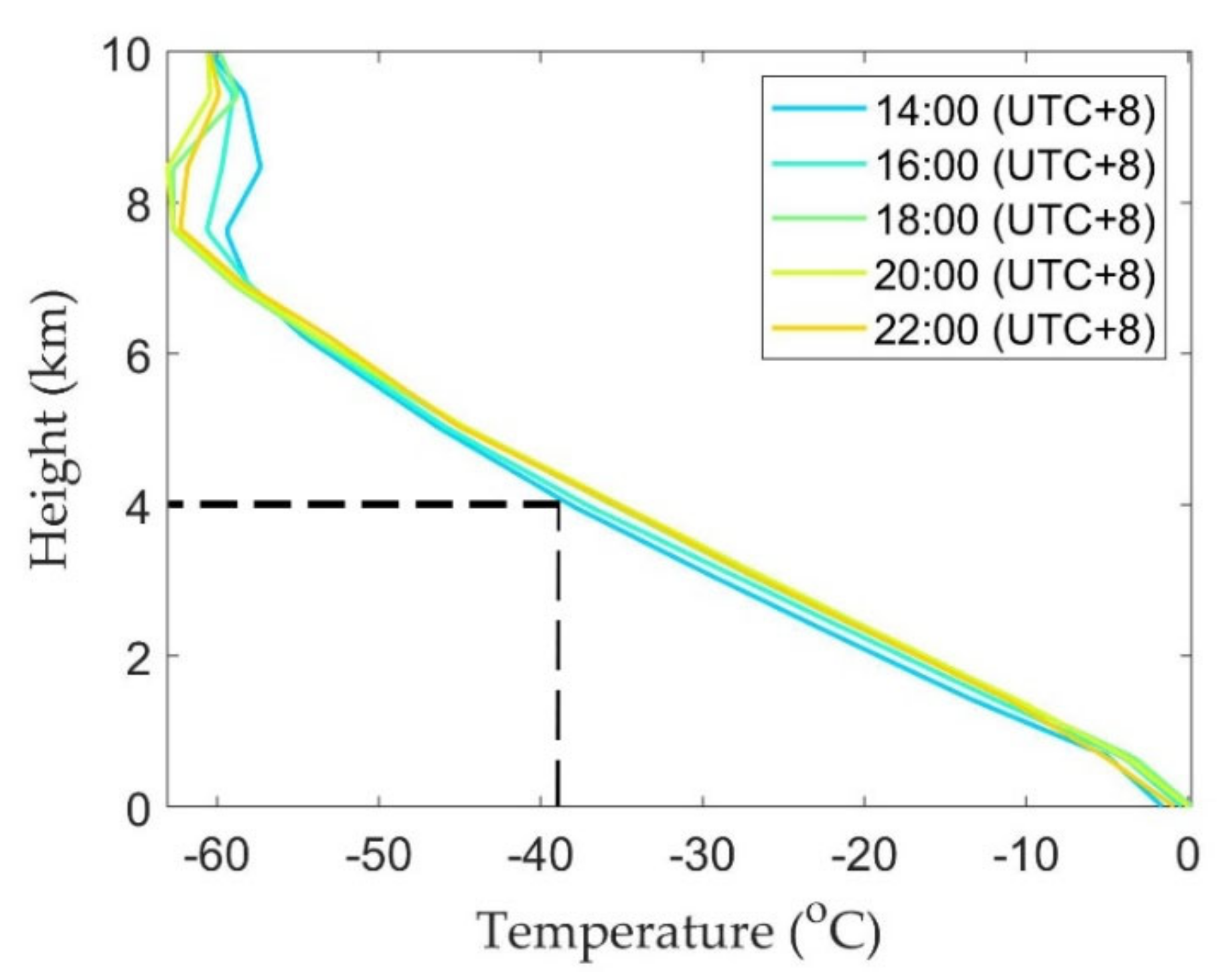

Figure 12 shows the measurements of DDCR on 19 February 2020. The temperature profile of the day (1400–2200, with an interval of 2 h) is shown in Figure 13. The temperature at 1400 at the height of 4 km reached −38 °C. From 1400 to 1700, the CBH detected by the W-band radar was approximately 4 km. It can be concluded that it was ice cloud during this period.

The observations of the W-band radar (see Figure 12b) show that there were continuous clouds between the heights of 3 km and 7 km from 1400 to 2400. However, the Ka-band radar (see Figure 12a) did not obtain the cloud returning until 1800. Moreover, the cloud it measured was a portion of the cloud measured by the W-band radar, and the upper-layer cloud was missed by the Ka-band radar. The CTH measured by the Ka-band radar was almost 1 km lower than that of the W-band radar. According to the temperature profile and the radar reflectivity value, mixed-phase cloud began to appear after 1800, the cloud thickened, and some of the backscattering cross section increased. When cloud particles are ice crystals, the particle sizes and number concentration are small, and their backscattering cross-section is small. When the reflectivity is lower than the radar sensitivity, these particles will be lost by the radar. In this case, the Ka-band radar did not detect the cloud from 1400 to 1700, as well as some upper-layer cloud owing to their weak return.

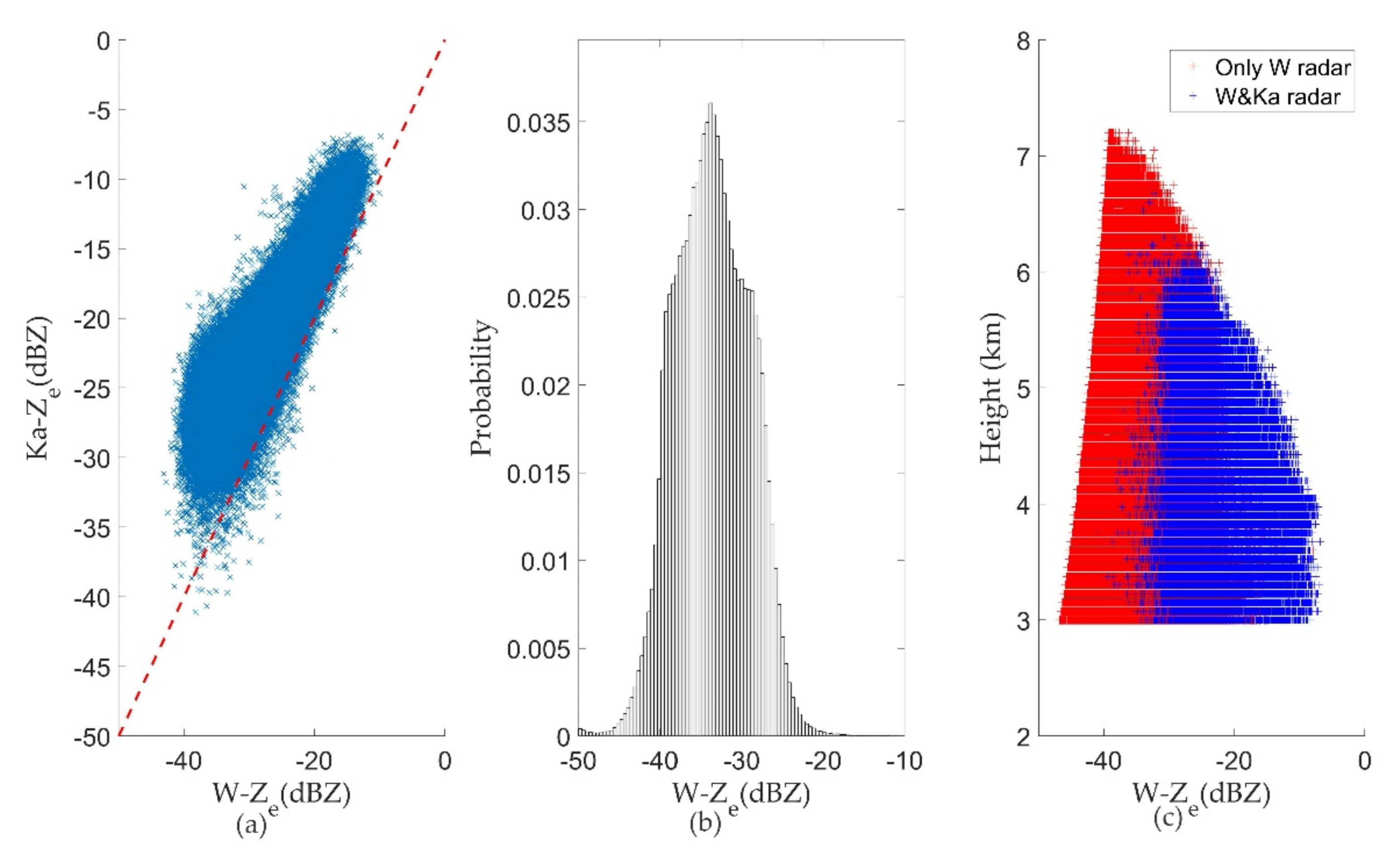

All of the reflectivity that both the Ka-band radar and W-band radar obtained is presented and compared in Figure 14a. The maximum Z_e in this case was approximately −10 dBZ. Most of the reflectivity measured by the Ka-band radar was lower than that of the W-band radar. The average D_ze was −5.1 dBZ. Figure 14b shows a histogram of the W-band radar Z_e for the cloud that the Ka-band radar did not detect. As seen from Figure 14b, the W-band radar Z_e was generally lower than −20 dBZ and the average reflectivity was −33.5 dBZ. We divided the cloud above 3 km into two categories: the cloud only the W-band radar detected, and the cloud that both the W-band and Ka-band radar detected. Figure 14c shows the W-band radar reflectivity and the height for the two cloud categories. Through comparison, it can be seen that the Ka-band radar lost some cloud, mainly due to its low sensitivity. Interestingly, the reflectivity of the two categories is not completely separated, but partly overlapped (i.e., between −30 dBZ and −25 dBZ); that is, the Ka-band radar can sometimes receive echoes, but sometimes cannot when the W-band radar reflectivity is between −30 dBZ and −25 dBZ. The possible reason for this might be the difference in the filling coefficient and the particle distribution function. However, more observations by other instruments are needed to gain a deeper understanding.

3.4. Cloud-Top Height and Cloud-Base Height

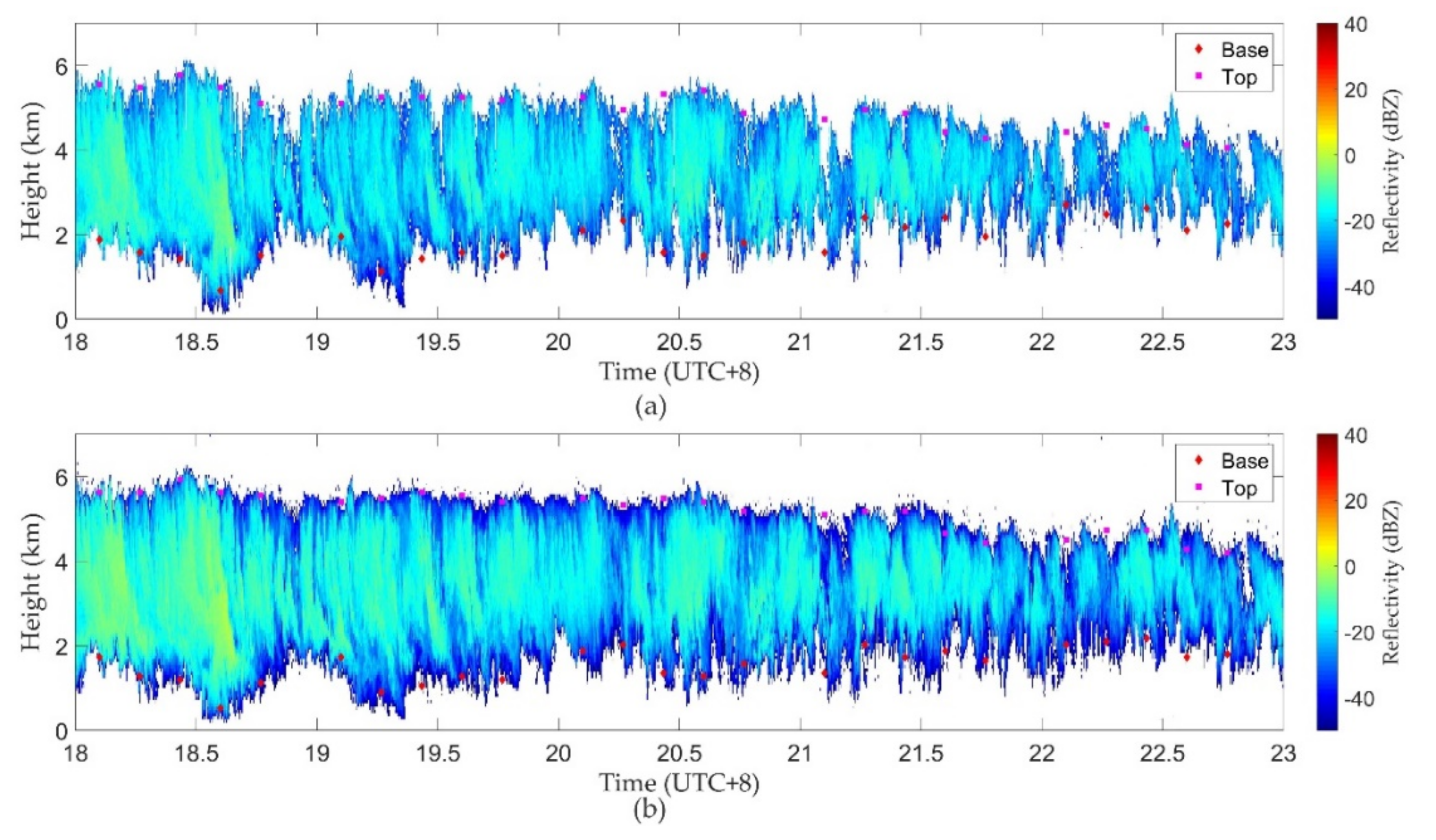

We selected one year of non-precipitating cloud data from August 2019 to August 2020 and compared the CTH and CBH observed by the W-band radar and Ka-band radar. For each cloud profile, the highest height and lowest height were recorded. The median CTH and CBH of all profiles within 10 min were then calculated. Figure 15 shows the CTH and CBH of a cloud case calculated every ten minutes on 15 December 2019.

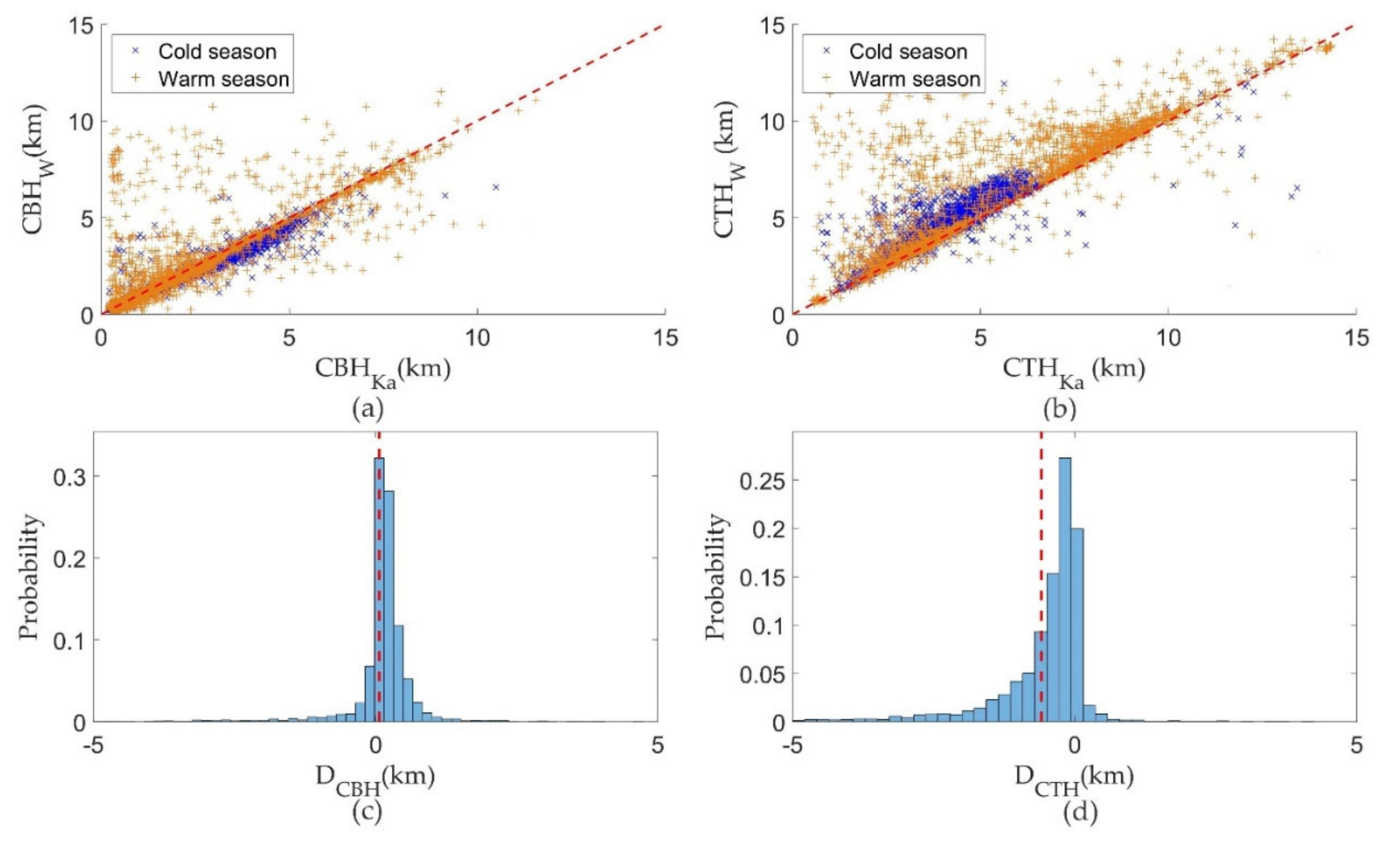

Figure 16a shows the CBHs measured by the Ka-band and W-band radars when both radars observed the CBH. The year’s data were divided into two parts: the warm season (orange, May to October), and the cold season (blue). It can be seen that the CBHs from the Ka-band radar and W-band radar are mostly concentrated around the 1:1 line. The distribution in the cold season is relatively tighter than in the warm season. There are several cases in the warm season, in which the CBH measured by the W-band radar is far from that of the Ka-band radar. The statistical results (see Figure 16c) show that the average difference in CBH (D_CBH) between the two radars is very small, at approximately 0.06 km.

Figure 16b shows the contrast in the CTH. In both the warm and cold seasons, it can be seen that more points are located above the 1:1 line, indicating that most of the CTHs measured by the W-band radar are higher than the values measured by the Ka-band radar. The average difference is −0.6 km (see Figure 16d), which means that the CTH measured by the W-band radar is on average 600 m higher than that measured by the Ka-band radar. It should be noted that the statistical results here are based on all non-precipitating clouds, since there is large uncertainty in the CBH of precipitation. The concentration and size of cloud particles near the top is generally relatively low and small compared with the middle cloud, and the temperature at Yangbajing is relatively low, especially in the cold season. Therefore, the upper cloud is more likely to be dominated by ice crystals. These factors challenge the detection capability of the Ka-band radar, which has lower sensitivity. The case analyses show that, in general, the W-band radar performs better than the Ka-band radar in the detection of non-precipitating clouds at the Yangbajing study site.

4. Discussion

Radar transmits the wave with beam-width, and the reflectivity radar measures is the integral of all cloud particles in a volume. The Ka-band radar uses a wavelength of 8 mm, which is almost 2–3 times that of the W-band radar (3 mm); thus, essentially, they should have different sensitivities to different cloud particles. Therefore, even if the calibration, data quality control, attenuation correction, etc., are perfectly solved, the measurements for the same volume made by the Ka-band radar and W-band radar should perform differently, since the volume contains particles with various physical characteristics (such as size, phase, shape, etc.). The advantages and disadvantages of the DDCR have been revealed in this paper, not from theory, but through investigation different clouds observed in a field campaign. The comparisons made in this paper are preliminary; however, the results provide a reference for subsequent data processing and applications of the two radars. For example, the differences in reflectivity between the two radars demonstrate the particle phase and size properties, which helps to improve the inversion accuracy of microphysical characteristics of cloud and precipitation. Therefore, simultaneous and synergetic measurements of dual-frequency radars provide more information on cloud and precipitation. In the future, it is hoped that some new knowledge regarding clouds and precipitation can be obtained or revealed through further research and analysis.

We can “see” other parts of the cloud that the Ka-band radar fails to capture by the W-band radar. But does this mean that the current W-band radar has been able to detect the entire cloud? If not, what percentage does it miss? The technique of radar has always been, and continues to be, complex and challenging. However, radar is a powerful instrument to explore the interior of clouds and their changes, thus providing an opportunity for a comprehensive understanding of clouds—one of the most important aspects of nature. It is therefore certainly worth carrying out more research of this type in the future.

5. Conclusions

This paper introduces China’s newly developed DDCR (dual-frequency Doppler millimeter-wavelength cloud radar), which has been in operation at Yangbajing Observatory in Tibet (at an altitude of 4300 m) for more than a year at the time of writing. The DDCR has two independent transmitters and receivers, which share a 1.5-m-diameter antenna. It is equipped with advanced hardware and data processing technologies to improve the signal-to-noise ratio and system stability. Successful long-term and continuous observations in high-altitude areas have proven its stability and reliability. This paper constitutes a preliminary investigation into the performance of the DDCR, and the differences between the Ka-band radar and W-band radar through several precipitation and cloud cases with different physical characteristics. The results can be summarized as follows:

(1)

Measurements and theoretical calculations show that the DDCR has a high technical capability, high detection sensitivity, and good detection performance. Calculations show that the sensitivity of the W-band radar and Ka-band radar at 10 km reaches −39 dBZ and −33 dBZ, respectively.

(2)

The W-band radar does suffer more serious attenuation than the Ka-band radar when precipitation occurs. Reflectivity from the Ka-band radar is normally higher than the W-band radar for the cloud with more liquid particles.

(3)

The attenuation by ice crystals is much lower than that of liquid particles. For clouds in which ice crystals dominate or the particles are small, the W-band radar shows better capability than the Ka-band radar. Therefore, the W-band radar will detect more clouds than the Ka-band radar, such as more cloud-top areas. The analysis of a case showed that the reflectivity measured by the W-band radar is 15 dBZ higher than that of the Ka-band radar.

(4)

It was found that the difference in velocity between the Ka-band radar and W-band radar is very small when the reflectivity is less than −10 dBZ, since the velocity they measure denotes the movement of airflow.

(5)

Based on one year of observations of non-precipitating clouds, it was found that the CTH measured by the Ka-band radar is on average 600 m lower than that of the W-band radar, and the average CBH between the Ka-band radar and the W-band radar is close. For non-precipitating clouds in Tibet, the W-band radar has better detection capability than the Ka-band radar.
