Article

Optimizing Top Dressing Nitrogen Fertilization Using VENμS and Sentinel-2 L1 Data

1
Department of Vegetable and Field Crop Research, Agricultural Research Organization, Gilat Research Center, Gilat 8531100, Israel
2
Department of Geography and Environment, Bar-Ilan University, Ramat-Gan 5290002, Israel
*
Author to whom correspondence should be addressed.
Remote Sens. 2021, 13(19), 3934; https://doi.org/10.3390/rs13193934
Received: 3 August 2021 / Revised: 10 September 2021 / Accepted: 24 September 2021 / Published: 30 September 2021
(This article belongs to the Special Issue VENµS Image Processing Techniques and Applications)

Abstract

:
Environmental and economic constraints are forcing farmers to be more precise in the rates and timing of nitrogen (N) fertilizer application to wheat. In practice, N is frequently applied without knowledge of the precise amount needed or the likelihood of significant protein enhancement. The objective of this study was to help farmers optimize top dress N application by adopting the use of within-field reference N strips. We developed an assisting app on the Google Earth Engine (GEE) platform to map the spatial variability of four different vegetation indices (VIs) in each field by calculating the mean VI, masking extreme values (three standard deviations, 3σ) of each field, and presenting the anomaly as a deviation of ±σ and ±2σ or deviation of percentage. VIs based on red-edge bands (REIP, NDRE, ICCI) were very useful for the detection of wheat above ground N uptake and in-field anomalies. VENµS high temporal and spatial resolutions provide advantages over Sentinel-2 in monitoring agricultural fields during the growing season, representing the within-field variations and for decision making, but the spatial coverage and accessibility of Sentinel-2 data are much better. Sentinel-2 data is already available on the GEE platform and was found to be of much help for the farmers in optimizing topdressing N application to wheat, applying it only where it will increase grain yield and/or grain quality. Therefore, the GEE anomaly app can be used for top-N dressing application decisions. Nevertheless, there are some issues that must be tested, and more research is required. To conclude, satellite images can be used in the GEE platform for anomaly detection, rendering results within a few seconds. The ability to use L1 VENµS or Sentinel-2 data without atmospheric correction through GEE opens the opportunity to use these data for several applications by farmers and others.

1. Introduction

Wheat is one of the key cereal crops grown worldwide, providing the primary caloric and nutritional source for millions of people. The climatic conditions of the Israeli fields, typical of Mediterranean regions, are highly variable. These conditions cause substantial variability in wheat (Triticum aestivum L.) grain production and quality, a matter of great concern for both producers and bakers. Hard spring wheat (HSW) is the most important crop in Israel. HSW has a high protein concentration (>11.5%), which is also associated with greater gluten content thus making HSW superior for milling and bread-making purposes. In Mediterranean rain-fed conditions, the amount of rainfall and its distribution during the growing season have a marked influence on wheat yield and quality [1,2,3,4,5,6]. Drought restricts yields and test weight but can increase grain protein, a result of shriveled kernels. In years with good moisture, wheat yields are less restricted, but this can lead to low grain protein. In conditions of abundant moisture, low grain quality has been attributed to a dilution of grain protein by larger grain biomass [1,7]. Temperature, rainfall, moisture stress before anthesis, solar radiation during grain filling, soil nitrogen (N), and rate and timing of supplemental N application can influence wheat protein composition through sink/source effects on N during early growth stages [1,5,7,8,9,10].
Efficient use of N fertilizer is important for economical wheat production. Environmental and economic constraints are forcing farmers to be precise in the rates and timing of N fertilizer applications to wheat. Insufficient N reduces wheat yield and profit, while excessive N results in wheat that is susceptible to water deficiency, disease, and lodging, with consequently reduced quantity and quality of yield. N fertilizer is typically applied in Israel in one of the following options: (i) All N fertilizer is applied in the fall before sowing; (ii) the same process but followed by possible N topdressing application according to growing conditions; (iii) Some N fertilizer is applied in the fall, followed by a mid-winter or early spring top dressing. Although pre-sowing N fertilizer applications decrease the potential for N deficiencies in the early stages of growth, the presence of plant-available residual soil N from the previous season is at risk of being exported to the environment (leaching or denitrification) and/or the creation of growth problems. Excessive pre-sowing applications of N encourage vegetative growth and, therefore, the crop can utilize too much soil water during that growth stage [11], leaving insufficient water during the grain filling stage [2,12]. Late-season N applications, combined with a better temporal distribution of N during the wheat cycle, significantly improved grain protein over yield and enhanced the bread-making quality of the flour [7,8,13,14]. In contrast, late-season moisture stress is essential for increasing protein up to acceptable levels, as moisture stress was found to increase protein content and reduce grain weight [9,15,16,17,18].
Acquiring information about crops from remote platforms, such as unmanned aerial vehicles, aircraft, or satellites, has great potential for decision-making facilitation in season fertilizer management practices [19]. At present, most application algorithms use within-field reference N strips, regardless of the sensor [20,21,22,23,24]. Bonfil [25] showed that the use of a proximal-sensing technique allows for rapid and accurate crop monitoring and yield estimation but limits future use of remote sensing techniques as well. Agricultural monitoring is conducted typically with vegetation indices (VIs) [26,27,28,29]. Remote and proximal sensing were previously used to forecast crop grain yield and protein content [30,31,32,33,34,35,36]. Spatial resolution is an important factor determining the accuracy of crop yield and quality assessments, with satellites having sensors that range from high to coarse spatial resolutions.
Google Earth Engine (GEE) is a planetary-scale geospatial analysis cloud-based platform that processes a large number of freely available scientific datasets such as Sentinel-2 (L1 and L2). GEE leverages its cloud computing service for analysis capabilities of time series data, which are otherwise heavy consumers of time and computation resources, and it provides predefined processes and functions in two APIs (JavaScript and Python). GEE also helps researchers to easily disseminate their products to other users and researchers, which enabled us to provide code and a web application, for the benefit of farmers and the science community. GEE apps are designed to provide non-expert stakeholders (farmers) with different tools, e.g., for optimizing crop management [37,38]. These may be used for different agricultural purposes. For example, while the coarse-resolution advanced very high-resolution radiometer (AVHRR; ~1 km) enables a stable and accurate yield estimation at the county-to-regional levels [39], high spatial resolution data from sensors on satellites such as IKONOS, VENµS, and Sentinel-2 (~4–10 m) may be used for precision farming applications [40,41,42,43,44]. Even though wheat is the main field crop sown globally, there is still a lack of knowledge regarding the optimal practice that should be exerted to properly manage this crop. VENµS and Sentinel-2 satellites with their special features (high resolutions: spatial, super-spectral, and temporal) will hopefully create new abilities in detecting within-field reference N strips and improve wheat crop management through continuous monitoring (in terms of time and space) of wheat fields.
The objectives of this study are (i) to develop algorithms for within-field variation calculation (SD or percentage) on the GEE platform using Sentinel-2 and VENµS data; (ii) display the variations with respect to the reference strips by GEE apps; (iii) to evaluate the outcomes of farmers practice in using these algorithms. In the following, we describe the wheat fields, reference strips (Section 2.1), ground observations (i.e, biophysical properties of crop, Section 2.2), Sentinel-2- and VENµS-based Vegetation Indices (Section 2.3), and the GEE platform (Section 2.4). In the Results Section, we explore the correlations between VIs and biophysical properties of crops (Section 3.1) and use them to interpret the relationship between the VI anomaly maps (presented in the GEE app, Section 3.2), and the grain yield and quality maps (presented in Section 3.3). Finally, we discuss the potential, limitations, and existing knowledge gaps in Section 4.

2. Materials and Methods

2.1. Wheat Fields and Reference Strips

The data for this study were collected during three growing seasons 2018–2020 at individual producers’ fields across Israel, one or more fields in each farm (Figure 1). Farmers (with their extension advisers) established reference strips in many ways in the first season. At the second and third seasons, farmers were asked to perform the following tasks: (1) keeping a minimum strip size of 30 × 30 m (to include few pure VENµS pixels), preferably 60 × 60 m or larger; (2) keeping a buffer of at least 10 m from the field edge (to avoid edge problems, e.g., double stand, weeds, roads) if the strip does not cross the whole field; (3) applying higher and/or lower amount (±50 kg N ha−1) base and/or top N vs. the commercial (standard) application; (4) maintaining a north–south or west–east positioning, which are preferred, as the satellite data are disseminated in UTM grid; (5) marking clearly the strip edges (to ease identification).

2.2. Ground Observations

Ground observations including extensive field observations of crop progress were conducted along the growing season. Samples of biomass, N uptake, and leaf area index (LAI) were collected from commercial and experimental fields along the main development stages of active vegetative growth, spanning from two leaves (Zadoks 12) up to heading (Zadoks 59), reflecting large differences in canopy height and vegetation cover. Four subsamples (0.3 m2) were taken from an area of 10 × 10 m in each sampled location (treatment*field*day). A total of 121 mean values of biophysical variables (biomass, N content) were calculated based on 960 subsamples, and 53 mean LAI were calculated based on 229 records. The samples were dried for 48 h at 70 °C and weighted (dry weight, DW), and the above-ground plant was ground and mixed. N concentration was obtained using NIRS (FOSS 6500) following the micro-Kjeldahl method [45]. N content was calculated by multiplying the DW by N concentration. These data were used to assess the relationship between VIs (see Section 2.2) and biophysical properties of crops in Section 3.1.
Yield samples were collected from fields that were not harvested for hay or silage production. In total, 685 yield samples were collected from Gilat experiments and 187 from commercial fields. Yield maps were available for most fields, and data were cleaned up prior to analysis. Saad fields were harvested by a combine equipped with a grain protein sensor (CropScan 3300H, Next Instruments, Condell Park, NSW, Australia). More than 300 samples (each season) from few fields were manually sampled during harvest to test the accuracy of the grain protein sensor.

2.3. Sentinel-2- and VENµS-Based Vegetation Indices

Sentinel-2 (A and B) level 1C and VENµS level 1 (L1) top-of-atmosphere (TOA) reflectance were processed to assess variation in wheat biomass, grain yield, and grain quality. No atmospheric correction was used, enabling to run the algorithm as an application in the GEE platform. VENµS Super Spectral Camera and Sentinel-2 MultiSpectral Instrument have many overlapping spectral bands with small differences [46]. Overall, 42 VIs (Supplementary Materials) were computed, as a potential tool for monitoring the crop’s nutritional contents by quantitatively retrieving the nutrient content in the crop. The bands that were used for the four selected VIs (NDVI, REIP, NDRE, ICCI) and the equations are listed in Table 1 and Table 2. The spatial resolution for all VENµS VIs is 5 m, while for the Sentinel-2 Vis, it is 20 m except for NDVI, which is 10 m. The temporal resolution of VENµS (revisit interval of two days) is also better than that of Sentinel-2 (five days). The tradeoff is the global coverage of Sentinel-2 vs. local coverage of VENµS. The higher temporal resolution of VENµS is translated into much more data along the season, and (more important) more “clear sky” images. Figure 2 shows the NDVI phenology of one field, emphasizing less high cloud mask conditions by VENµS (red circles).

2.4. Google Earth Engine (GEE)

The present study provides a GEE web app that enables optimization of yield by providing the farmer with the ability to monitor the spatial heterogeneity of VIs anomaly (with respect to the mean) while using a reference strip with known N application to interpret the retrieved anomaly and apply N based on this information. VENµS images and selected polygons of wheat fields in Israel were uploaded to the GEE platform. Figure 3 describes in orange the users’ inputs before calculating the anomalies and, in green, the anomaly calculations performed (in the background) on each polygon (field). Figure 4 presents the results (i.e., the NDVI anomaly) for 15 Jan 2019, displayed in a browser as a deviation of ±σ and ±2σ (or percentage) from the mean using predefined symbology. Five wheat fields in Saad and references strips polygons are displayed, while 3σ extreme values are masked.

3. Results

3.1. Correlation between VIs and Biophysical Properties of Crop

Non-linear equations provided higher correlations (r) between the wheat parameters and VIs (Figure 5). Wheat biophysical variables (biomass, nitrogen content, and LAI) were regressed against the best three VIs (REIP, NDRE, ICCI) and NDVI from the pixel of the sampling location (samples cannot represent spatial distribution) (Table 3).
The correlations for the averaged (per field*day) samples were higher than those for the individual sampling points for both VENµS and Sentinel-2. REIP, ICCI, and NDRE exhibit a high correlation with the biophysical variables. For these parameters, the VENµS higher resolution (5 m pixel) does not exhibit significant improvement over Sentinel-2. The correlations with canopy N concentration were low for most indices. The correlations were much higher for canopy N content, similar to those for biomass, as was also observed over rice [50]. The correlations were highest for REIP, r = 0.81 (VENµS) and 0.87 (Sentinel-2), and steady along the three growing seasons (Figure 5). VENµS VI’s values were in high correlation with Sentinel-2 VI’s (Figure 6), although several sampling fields/dates can be considered outliers probably because of abnormal atmospheric conditions.

3.2. GEE Anomaly App

Figure 7 shows VENµS and Sentinel-2 NDVI and REIP anomalies for five fields in Saad on 15 January 2019, as seen in the GEE anomaly app. The NDVI within field patterns for VENµS and Sentinel-2 were similar. VENµS-based REIP exhibited much more variation than Sentinel-2, probably due to the coarser spatial resolution of Sentinel-2.

3.3. Evaluation of Grain Yield and Quality

Reference strips should be used for topdressing nitrogen application (i.e., if a significant difference is identified between the reference strip and the whole field, a topdressing is recommended such as that performed with proximal sensing) and evaluated with respect to the grain quantity and quality. Figure 8 shows row data of grain yield and grain protein from the five fields that are presented in Figure 7. In field 101N, herbicide drift from the nearby field (west to east) decreased grain yield and increased grain protein; this effect is shown nicely by the NDVI-based anomaly app from 3 weeks after herbicide application. In field 105S, the anomaly app (Figure 7) shows a significant difference between the west and east parts regarding soil management (previous crop), which is reflected in the yield map (Figure 8a). Field 105N exhibits a higher yield in the west south area, similar to the NDVI-based anomaly app (Figure 7). Yield reduction is seen at two small areas, in the east and in the south of field 106S (probably weeds and water, respectively). Yield production is more uniform than grain protein in field 106N (Figure 8a). The variation shown by the anomaly app (Figure 7) for this field can be attributed to the lower grain protein content in the south of field 106N with respect to the north of that field (Figure 8b, control and reference, respectively), which is negatively correlated to yield and NDVI.
Farmers and extension advisors used the first version of the GEE app during the 2020 season. Time series (along the growing season) of red-edge-based VIs were very useful for the detection of infield anomalies. Figure 9 shows time series from one field in Beit Guvrin (Field 109) to demonstrate the anomaly detection by the reference strips. N treatments (base and top) are described in Table 4. On average, during tillering, the values of the high-reference strip (refH) were similar to the commercial (comm) management but were higher than the neighboring area. The values of the VIs in the lower-reference strip (refL) were significantly lower, starting about 30 days after emergence, thus forcing the farmer to decide whether to apply topdressed nitrogen. In this example, the eastern part of the field received the topdressed fertilization (topN), while the areas near the reference strips (and the strips) were left without this topN application (comm). The topdressed N indeed had a positive effect on the crop, reaching higher values of VIs (since application) and grain yield (Figure 9 and Figure 10, Table 4). More important, grain quality was improved by the topN application, showing an increase in protein and gluten content, reaching the quality standard (protein >11% and wet gluten > 25%, Table 4). Split nitrogen application (commercial + topN) yielded the same grain quantity as the base application (refH) but with higher quality, emphasizing the importance of splitting nitrogen application in this growing region (Table 4). This advantage of the split application is significantly shown by all VIs, both VENµS, and Sentinel-2.
Figure 11 shows that the refH (triangles) and refL (circles) values are only slightly higher/lower (up to 5%) than the control (except ICCI—yellow), whereas topN (squares) shows a much higher difference by all VIs. Since refL did not receive the topN (after 16 January), all VIs exhibit the deficiency (circles are always lowest). ICCI showed the highest difference between managements (for both VENµS and Sentinel-2).

4. Discussion and Conclusions

Manivasagam et al. [46] developed transformation coefficients from VENµS to Sentinel-2 surface reflectance for their overlapping spectral bands (i.e., visible, red edge, and near infrared), enabling the images from Sentinel-2 and VENµS to be combined into one time series that facilitates continuous, temporally dense vegetation monitoring. However, the VI values per se are not important for anomaly detection and/or the difference in the reference strip identification. Although retrieving absolute values is preferable, the high correlation between the sensors-based VIs (Figure 6) enabled using an algorithm that is based on VIs regardless of the sensor and detecting anomalies even without atmospheric corrections. The correlations with NDVI were lower than all red-edge-based VIs, for biomass canopy N content (Table 3). The main advantage of using NDVI is the higher spatial resolution in many satellites’ sensors (including Sentinel-2).
The potential to retrieve biophysical parameters using VENµS and Sentinel-2 L1 images was demonstrated. Although the correlations between satellite-based VIs and wheat parameters were lower than those from proximal-sensing-based (multi- and hyperspectral) VIs [49,51,52,53,54,55], only a small reduction is shown for VI correlations with nitrogen uptake. Moreover, crop phenology (growth stage) affects these correlations [51,54,56], lowering the correlations where samples cover many growth stages in different environments, as was the case in this study. REIP exhibited the highest correlations with the biophysical variables. WDRVI) [53] reached high correlations but lower than REIP (data not shown). The fits based on proximal sensing [25] were better than those based on satellites data (Table 3). This can be attributed to timing, as proximal sensing was taken at the same time as the samples, while satellite remote sensing data were retrieved mostly not at the same sampling day, even with a long period between them (Figure 6).
VENµS spatial, spectral, and temporal resolutions are higher than other available satellites. The combination of 5 m pixels for the red-edge bands, and the two days revisit time, provides an advantage over Sentinel-2 data. The tradeoff is the specific small regions that are covered by VENµS versus the global coverage of Sentinel-2. The ability to use L1 VENµS or Sentinel-2 data through GEE opens the opportunity to use these data for several applications by farmers and others. An obvious opportunity is to use satellite images through GEE for anomaly detection. Nowadays, most farmers have a polygon layer containing the borders of all their fields. After uploading this layer to the GEE platform, the farmer can look for anomalies within each field along the growing season. The only limitation is a clear sky that enables acquiring a good image. An anomaly can be a result of many abiotic or biotic factors such as water leakage/blockage from/in an irrigation system, fertilization level, soil compaction, weed/disease/insect infestation/infection, fallow, salinity, etc. Anomaly identification does not point to the cause of the anomaly, but it can assist farmers to monitor the problematic points in the field.
We based the GEE algorithm on NDVI since it is sensitive to almost every biotic and abiotic (significant) anomaly [36] and is provided at the highest spatial resolution. Although Sentinel-2 red-edge VI (REIP) is provided at a lower resolution (20 m), it was included in the GEE anomaly app, as it is sensitive to wheat crop conditions even in 24 m wide reference strips (Figure 10). These traits emphasize the possibility to use the GEE anomaly app in the “real world” immediately.
Reference fertilization strips are based on a lower or higher level of base/to- applied nitrogen. Where the lower N level has a significant effect, the N deficiency symptom should be shown by a decrease in biomass production and/or reduce N content in wheat dry matter. Conversely, significant superfluous N levels should be shown by an increase in biomass production and/or increase N content in wheat dry matter. In both cases, wheat above ground N uptake (biomass multiplied by N concentration) represent the real situation and can be best estimated by REIP (Figure 5). Therefore, the REIP GEE algorithm is suggested for N reference strip estimations. The satellite-based correlations were in some cases lower than proximal sensing data. Nevertheless, Figure 5 shows that the correlations of the N uptake estimations are high enough to be used (with the S2 L1 REIP) for making decisions based on reference strips. This is in agreement with the use of red-edge-based VIs for reference strip or nitrogen uptake in wheat, rice, and corn [22,51,57,58].
Several algorithms have been developed for fertilization and yield estimation based on proximal sensing sensors such as RapidScan, GreenSeaker, Yara, and other similar sensors based on NDVI and/or NDRE. When proximal and remote sensing occur within 4 days difference, high correlations exist between RapidScan NDVI and NDRE, and L1 VENµS and Sentinel-2 VIs (NDVI 0.62 and 0.7, NDRE 0.83 and 0.77 for VE and S2, respectively). Hence, algorithms that have been developed for topdressing nitrogen application based on proximal sensing should work well also with remote sensing data. There are two main limitations: (1) image availability: the revisit time of Sentinel-2 is 5 days; hence, real applications could face limiting cloudy conditions. In some cases, it can continue for 2–3 or more image dates. Therefore, reducing the revisit time, such as the two days VENµS revisit resolution, is very important; (2) reference strip: Since the reference strip should be identified by the sensor, it should include pure pixels. Sentinel-2 NDVI and REIP/NDRE/ICCI spatial resolution is 10 and 20 m, requiring larger reference strips. VENµS spatial resolution is 5 m for both VIs, enabling the use of smaller reference strips. Hence, the high temporal and spatial resolution of VENµS enables monitoring agricultural fields during the growing season better than the lower resolution Sentinel-2.
It is important to stress that, in many cases, yield and or yield quality did not vary between the reference area and the whole field. In some cases, other biotic/abiotic stress canceled the effect of the reference nitrogen strip. For example, in field 101N (Figure 8), the reference strip “effect” was canceled by herbicide drift from a nearby field that affected grain yield and quality. In some cases, excessive N base application in the reference strip encouraged vegetative growth, which was shown by the Anomaly Explorer app but the crop utilized too much soil water during that growth stage, leaving insufficient water during the grain filling stage and even causing grain yield reduction. Hence, many fields exhibited lower correlations than field #109 (Figure 9, Figure 10 and Figure 11). Therefore, the GEE anomaly app can be used for decision making as regards topdressing N application, but there are some major issues that must be addressed, and more research is required. the most important points among them are highlighted as follows:
  • Anomaly: Which calculation will best support decision making—deviation of variance/STD or deviation of percentage from the mean?
  • Threshold: What kind of threshold will best support a decision to apply topdressed N?Is it a fixed threshold or should it be affected by parameter(s), such as the VI used, phenology stage, cultivar, fallow, precipitation?
  • Reference strip: It is obvious that more pure pixels would enable better identification, but the minimum strip size should be determined, as well as its shape (square/rectangle), distance from the field edge, and orientation (facing north/ignore direction).
  • Cloud/Shade: Clear sky provides optimal conditions, while complete cloud cover prevents using the image. However, in many images, part cloudy condition prevails, causing complications such as areas covered by clouds that cannot be used, and areas shaded by clouds (or semitransparent clouds) that are questionable to be used for reference strip decisions. There are some confusing preliminary data showing that anomalies can or cannot be detected under these problematic conditions, which requires further studies to determine the limits.
To conclude, satellite images can be used in the GEE platform for anomaly detection, rendering results within a few seconds. The ability to use VENµS or Sentinel-2 data through GEE opens the opportunity to use these data for several applications by farmers and others.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/rs13193934/s1, Table S1: Vegetation Indices and Pigments and Canpoy Water Content Indices.

Author Contributions

Conceptualization, D.J.B.; data curation, methodology, and visualization, all authors; software, Y.M. and S.S.; validation, D.J.B.; writing—original draft preparation, D.J.B.; writing—review and editing, I.M.L. and D.J.B.; supervision, project administration, and funding acquisition, D.J.B. and I.M.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Israeli Ministry of Science, Technology, and Space, Grant Number 3-14675.

Data Availability Statement

The code for the GEE Anomaly Explorer app can be found in https://github.com/yaron-michael/anomaly-explorer- (accessed on 1 September 2021). An example of the GEE Anomaly Explorer app: https://djbonfil.users.earthengine.app/view/ndvis2centerper (accessed on 1 September 2021).

Acknowledgments

The authors would like to acknowledge all Israeli extension advisors and farmers for their significant contribution to this study.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. López-Bellido, L.; Fuentes, M.; Castillo, J.E.; López-Garrido, F.J. Effects of tillage, crop rotation and nitrogen fertilization on wheat-grain quality grown under rainfed Mediterranean conditions. Field Crop. Res. 1998, 57, 265–276. [Google Scholar] [CrossRef]
  2. Bonfil, D.J.; Mufradi, I.; Klitman, S.; Asido, S. Wheat grain yield and soil profile water distribution in a no-till arid environment. Agron. J. 1999, 91, 368–373. [Google Scholar] [CrossRef]
  3. Har-Gil, D.; Bonfil, D.J.; Svoray, T. Multi scale analysis of the factors influencing wheat quality as determined by Gluten Index. Field Crop. Res. 2011, 123, 1–9. [Google Scholar]
  4. Kafkafi, U.; Bonfil, D.J. Integrated Nutrient Management—Experience and concepts from the Middle East. In Integrated Nutrient Management for Sustainable Crop Production and Environmental Safety; Milkha, S.A., Grant, C.A., Eds.; The Haworth Press, Inc.: Binghamton, NY, USA, 2008; pp. 523–565. [Google Scholar]
  5. Bonfil, D.J.; Abbo, S.; Svoray, T. Sowing Date and Wheat Quality as Determined by Gluten Index. Crop Sci. 2015, 55, 2294–2306. [Google Scholar] [CrossRef]
  6. Turner, N.C. Further Progress in Crop Water Relations. In Advances in Agronomy; Donald, L.S., Ed.; Academic Press: San Diego, CA, USA, 1996; Volume 58, pp. 293–338. [Google Scholar]
  7. Gooding, M.; Davies, W. Wheat Production and Utilization: Systems, Quality and the Environment; CAB International: Wallingford, UK, 1997. [Google Scholar]
  8. Wuest, S.B.; Cassman, K.G. Fertilizer-Nitrogen Use Efficiency of Irrigated Wheat: I. Uptake Efficiency of Preplant versus Late-Season Application. Agron. J. 1992, 84, 682–688. [Google Scholar] [CrossRef]
  9. Rharrabti, Y.; Villegas, D.; Royo, C.; Martos-Núñez, V.; García del Moral, L.F. Durum wheat quality in Mediterranean environments: II. Influence of climatic variables and relationships between quality parameters. Field Crop. Res. 2003, 80, 133–140. [Google Scholar] [CrossRef]
  10. Triboi, E.; Martre, P.; Girousse, C.; Ravel, C.; Triboi-Blondel, A.-M. Unravelling environmental and genetic relationships between grain yield and nitrogen concentration for wheat. Eur. J. Agron. 2006, 25, 108–118. [Google Scholar] [CrossRef]
  11. Moore, G.; Tyndale-Biscoe, J.P. Estimation of the Importance of Spatially Variable Nitrogen Application and Soil Moisture Holding Capacity to Wheat Production. Precis. Agric. 1999, 1, 27–38. [Google Scholar] [CrossRef]
  12. Palta, J.A.; Kobata, T.; Turner, N.C.; Fillery, I.R. Remobilization of Carbon and Nitrogen in Wheat as Influenced by Postanthesis Water Deficits. Crop Sci. 1994, 34, 118–124. [Google Scholar] [CrossRef]
  13. Borghi, B.; Corbellini, M.; Minoia, C.; Palumbo, M.; Di Fonzo, N.; Perenzin, M. Effects of Mediterranean climate on wheat bread-making quality. Eur. J. Agron. 1997, 6, 145–154. [Google Scholar] [CrossRef]
  14. Bonfil, D.J.; Mufradi, I.; Asido, S.; Long, D.S. Precision nitrogen management based on nitrogen removal in rainfed wheat. In Proceedings of the 9th International Conference on Precision Agriculture, Denver, CO, USA, 20–23 July 2008; p. 156. [Google Scholar]
  15. Palta, J.; Fillery, I. N application increases pre-anthesis contribution of dry matter to grain yield in wheat grown on a duplex soil. Aust. J. Agric. Res. 1995, 46, 507–518. [Google Scholar] [CrossRef]
  16. Palta, J.; Fillery, I. N application enhances remobilization and reduces losses of pre-anthesis N in wheat grown on a duplex soil. Aust. J. Agric. Res. 1995, 46, 519–531. [Google Scholar] [CrossRef]
  17. Rharrabti, Y.; Royo, C.; Villegas, D.; Aparicio, N.; García del Moral, L.F. Durum wheat quality in Mediterranean environments: I. Quality expression under different zones, latitudes and water regimes across Spain. Field Crop. Res. 2003, 80, 123–131. [Google Scholar] [CrossRef]
  18. Bonfil, D.J.; Karnieli, A.; Raz, M.; Mufradi, I.; Asido, S.; Egozi, H.; Hoffman, A.; Schmilovitch, Z. Decision support system for improving wheat grain quality in the Mediterranean area of Israel. Field Crop. Res. 2004, 89, 153–163. [Google Scholar] [CrossRef]
  19. Shanahan, J.F.; Schepers, J.S.; Francis, D.D.; Varvel, G.E.; Wilhelm, W.W.; Tringe, J.M.; Schlemmer, M.R.; Major, D.J. Use of remote sensing imagery to estimate corn yield. Agron. J. 2001, 93, 583–589. [Google Scholar] [CrossRef][Green Version]
  20. Samborski, S.M.; Tremblay, N.; Fallon, E. Strategies to make use of plant sensors-based diagnostic information for nitrogen recommendations. Agron. J. 2009, 101, 800–816. [Google Scholar] [CrossRef]
  21. Amaral, L.R.; Molin, J.P.; Portz, G.; Finazzi, F.B.; Cortinove, L. Comparison of crop canopy reflectance sensors used to identify sugarcane biomass and nitrogen status. Precis. Agric. 2015, 16, 15–28. [Google Scholar] [CrossRef]
  22. Thompson, L.J.; Puntel, L.A. Transforming Unmanned Aerial Vehicle (UAV) and Multispectral Sensor into a Practical Decision Support System for Precision Nitrogen Management in Corn. Remote Sens. 2020, 12, 1597. [Google Scholar] [CrossRef]
  23. Bijay, S.; Ali, M.A. Using Hand-Held Chlorophyll Meters and Canopy Reflectance Sensors for Fertilizer Nitrogen Management in Cereals in Small Farms in Developing Countries. Sensors 2020, 20, 1127. [Google Scholar] [CrossRef] [PubMed][Green Version]
  24. Vizzari, M.; Santaga, F.; Benincasa, P. Sentinel 2-Based Nitrogen VRT Fertilization in Wheat: Comparison between Traditional and Simple Precision Practices. Agronomy 2019, 9, 278. [Google Scholar] [CrossRef][Green Version]
  25. Bonfil, D.J. Monitoring wheat fields by RapidScan: Accuracy and limitations. Adv. Anim. Biosci. 2017, 8, 333–337. [Google Scholar] [CrossRef]
  26. Hatfield, J.L.; Gitelson, A.A.; Schepers, J.S.; Walthall, C.L. Application of Spectral Remote Sensing for Agronomic Decisions. Agron. J. 2008, 100, S-117–S-131. [Google Scholar] [CrossRef][Green Version]
  27. Thenkabail, P.S.; Enclona, E.A.; Ashton, M.S.; Van Der Meer, B. Accuracy assessments of hyperspectral waveband performance for vegetation analysis applications. Remote Sens. Environ. 2004, 91, 354–376. [Google Scholar] [CrossRef]
  28. Peng, Y.; Gitelson, A.A. Application of chlorophyll-related vegetation indices for remote estimation of maize productivity. Agric. For. Meteorol. 2011, 151, 1267–1276. [Google Scholar] [CrossRef]
  29. Gitelson, A.A.; Gritz, Y.; Merzlyak, M.N. Relationships between leaf chlorophyll content and spectral reflectance and algorithms for non-destructive chlorophyll assessment in higher plant leaves. J. Plant Physiol. 2003, 160, 271–282. [Google Scholar] [CrossRef] [PubMed]
  30. Yang, C.; Everitt, J.; Bradford, J. Evaluating high resolution SPOT 5 satellite imagery to estimate crop yield. Precis. Agric. 2009, 10, 292–303. [Google Scholar] [CrossRef]
  31. Wang, Z.J.; Wang, J.H.; Liu, L.Y.; Huang, W.J.; Zhao, C.J.; Wang, C.Z. Prediction of grain protein content in winter wheat (Triticum aestivum L.) using plant pigment ratio (PPR). Field Crop. Res. 2004, 90, 311–321. [Google Scholar] [CrossRef]
  32. Zhao, C.; Liu, L.; Wang, J.; Huang, W.; Song, X.; Li, C. Predicting grain protein content of winter wheat using remote sensing data based on nitrogen status and water stress. Int. J. Appl. Earth Obs. Geoinf. 2005, 7, 1–9. [Google Scholar] [CrossRef]
  33. Becker-Reshef, I.; Vermote, E.; Lindeman, M.; Justice, C. A generalized regression-based model for forecasting winter wheat yields in Kansas and Ukraine using MODIS data. Remote Sens. Environ. 2010, 114, 1312–1323. [Google Scholar] [CrossRef]
  34. Ren, J.; Chen, Z.; Zhou, Q.; Tang, H. Regional yield estimation for winter wheat with MODIS-NDVI data in Shandong, China. Int. J. Appl. Earth Obs. Geoinf. 2008, 10, 403–413. [Google Scholar] [CrossRef]
  35. Li, C.-J.; Wang, J.-H.; Wang, Q.; Wang, D.-C.; Song, X.-Y.; Wang, Y.; Huang, W.-J. Estimating wheat grain protein content using multi-temporal remote sensing data based on partial least squares regression. J. Integr. Agric. 2012, 11, 1445–1452. [Google Scholar] [CrossRef]
  36. Bonfil, D.J. Wheat phenomics in the field by RapidScan: NDVI vs. NDRE. Isr. J. Plant Sci. 2017, 64, 51–54. [Google Scholar] [CrossRef]
  37. Gorelick, N.; Hancher, M.; Dixon, M.; Ilyushchenko, S.; Thau, D.; Moore, R. Google Earth Engine: Planetary-scale geospatial analysis for everyone. Remote Sens. Environ. 2017, 202, 18–27. [Google Scholar] [CrossRef]
  38. Shiff, S.; Lensky, I.M.; Bonfil, D.J. Using Satellite Data to Optimize Wheat Yield and Quality under Climate Change. Remote Sens. 2021, 13, 2049. [Google Scholar] [CrossRef]
  39. Ferencz, C.; Bognár, P.; Lichtenberger, J.; Hamar, D.; Tarcsai, G.; Timár, G.; Molnár, G.; Pásztor, S.Z.; Steinbach, P.; Székely, B.; et al. Crop yield estimation by satellite remote sensing. Int. J. Remote Sens. 2004, 25, 4113–4149. [Google Scholar] [CrossRef]
  40. Enclona, E.A.; Thenkabail, P.S.; Celis, D.; Diekmann, J. Within-field wheat yield prediction from IKONOS data: A new matrix approach. Int. J. Remote Sens. 2004, 25, 377–388. [Google Scholar] [CrossRef]
  41. French, A.N.; Hunsaker, D.J.; Sanchez, C.A.; Saber, M.; Gonzalez, J.R.; Anderson, R. Satellite-based NDVI crop coefficients and evapotranspiration with eddy covariance validation for multiple durum wheat fields in the US Southwest. Agric. Water Manag. 2020, 239, 106266. [Google Scholar] [CrossRef]
  42. Gao, F.; Anderson, M.; Daughtry, C.; Karnieli, A.; Hively, D.; Kustas, W. A within-season approach for detecting early growth stages in corn and soybean using high temporal and spatial resolution imagery. Remote Sens. Environ. 2020, 242, 111752. [Google Scholar] [CrossRef]
  43. Lin, Y.; Zhu, Z.; Guo, W.; Sun, Y.; Yang, X.; Kovalskyy, V. Continuous Monitoring of Cotton Stem Water Potential using Sentinel-2 Imagery. Remote Sens. 2020, 12, 1176. [Google Scholar] [CrossRef][Green Version]
  44. Upreti, D.; Pignatti, S.; Pascucci, S.; Tolomio, M.; Huang, W.; Casa, R. Bayesian Calibration of the Aquacrop-OS Model for Durum Wheat by Assimilation of Canopy Cover Retrieved from VENµS Satellite Data. Remote Sens. 2020, 12, 2666. [Google Scholar] [CrossRef]
  45. Bonfil, D.J.; Karnieli, A.; Raz, M.; Mufradi, I.; Asido, S.; Egozi, H.; Hoffman, A.; Schmilovitch, Z. Rapid assessing water and nitrogen status in wheat flag leaves. J. Food Agric. Environ. 2005, 3, 207–212. [Google Scholar]
  46. Manivasagam, V.S.; Kaplan, G.; Rozenstein, O. Developing Transformation Functions for VENμS and Sentinel-2 Surface Reflectance over Israel. Remote Sens. 2019, 11, 1710. [Google Scholar] [CrossRef][Green Version]
  47. Rouse, J.W.; Haas, R.H.; Schell, J.A.; Deering, D.W. Monitoring vegetation systems in the Great Plains with ERTS. NASA Special Publ. 1974, 351, 309. [Google Scholar]
  48. Gitelson, A.; Merzlyak, M.N. Spectral Reflectance Changes Associated with Autumn Senescence of Aesculus hippocastanum L. and Acer platanoides L. Leaves. Spectral Features and Relation to Chlorophyll Estimation. J. Plant Physiol. 1994, 143, 286–292. [Google Scholar] [CrossRef]
  49. Herrmann, I.; Pimstein, A.; Karnieli, A.; Cohen, Y.; Alchanatis, V.; Bonfil, D.J. LAI assessment of wheat and potato crops by VENμS and Sentinel-2 bands. Remote Sens. Environ. 2011, 115, 2141–2151. [Google Scholar] [CrossRef]
  50. Cao, Q.; Miao, Y.; Wang, H.; Huang, S.; Cheng, S.; Khosla, R.; Jiang, R. Non-destructive estimation of rice plant nitrogen status with Crop Circle multispectral active canopy sensor. Field Crop. Res. 2013, 154, 133–144. [Google Scholar] [CrossRef]
  51. Walsh, O.S.; Shafian, S.; Marshall, J.M.; Jackson, C.; McClintick-Chess, J.R.; Blanscet, S.M.; Swoboda, K.; Thompson, C.; Belmont, K.M.; Walsh, W.L. Assessment of UAV Based Vegetation Indices for Nitrogen Concentration Estimation in Spring Wheat. Adv. Remote Sens. 2018, 7, 71–90. [Google Scholar] [CrossRef][Green Version]
  52. Bonfil, D.J.; Gitelson, A.A. RapidScan and CropCircle radiometers: Opportunities and limitation in assessing wheat biomass and nitrogen. In Proceedings of the 12th International Conference on Precision Agriculture, Sacramento, CA, USA, 20–23 July 2014; p. 1369. [Google Scholar]
  53. Nguy-Robertson, A.L.; Peng, Y.; Gitelson, A.A.; Arkebauer, T.J.; Pimstein, A.; Herrmann, I.; Karnieli, A.; Rundquist, D.C.; Bonfil, D.J. Estimating green LAI in four crops: Potential of determining optimal spectral bands for a universal algorithm. Agric. For. Meteorol. 2014, 192–193, 140–148. [Google Scholar] [CrossRef]
  54. Jiang, J.; Wang, C.; Wang, Y.; Tian, Y.; Zhu, Y.; Cao, Q.; Liu, X.-J. Using an Active Sensor to Develop New Critical Nitrogen Dilution Curve for Winter Wheat. Sensors 2020, 20, 1577. [Google Scholar] [CrossRef] [PubMed][Green Version]
  55. Söderström, M.; Piikki, K.; Stenberg, M.; Stadig, H.; Martinsson, J. Producing nitrogen (N) uptake maps in winter wheat by combining proximal crop measurements with Sentinel-2 and DMC satellite images in a decision support system for farmers. Acta Agric. Scand. Sect. B Soil Plant Sci. 2017, 63, 637–650. [Google Scholar] [CrossRef]
  56. Fu, Z.; Jiang, J.; Gao, Y.; Krienke, B.; Wang, M.; Zhong, K.; Tian, Y.; Zhu, Y.; Cao, Q.; Liu, X.-J. Wheat Growth Monitoring and Yield Estimation based on Multi-Rotor Unmanned Aerial Vehicle. Remote Sens. 2020, 12, 508. [Google Scholar] [CrossRef][Green Version]
  57. Brinkhoff, J.; Dunn, B.; Robson, A.; Dunn, T.; Dehaan, R. Modeling Mid-Season Rice Nitrogen Uptake Using Multispectral Satellite Data. Remote Sens. 2019, 11, 1837. [Google Scholar] [CrossRef][Green Version]
  58. Zhao, H.; Song, X.; Yang, G.; Li, Z.; Zhang, D.; Feng, H. Monitoring of Nitrogen and Grain Protein Content in Winter Wheat Based on Sentinel-2A Data. Remote Sens. 2019, 11, 1724. [Google Scholar] [CrossRef][Green Version]
Figure 1. Location of fields that were included in this study (blue) and those that are mentioned in the manuscript (red).
Figure 1. Location of fields that were included in this study (blue) and those that are mentioned in the manuscript (red).
Remotesensing 13 03934 g001

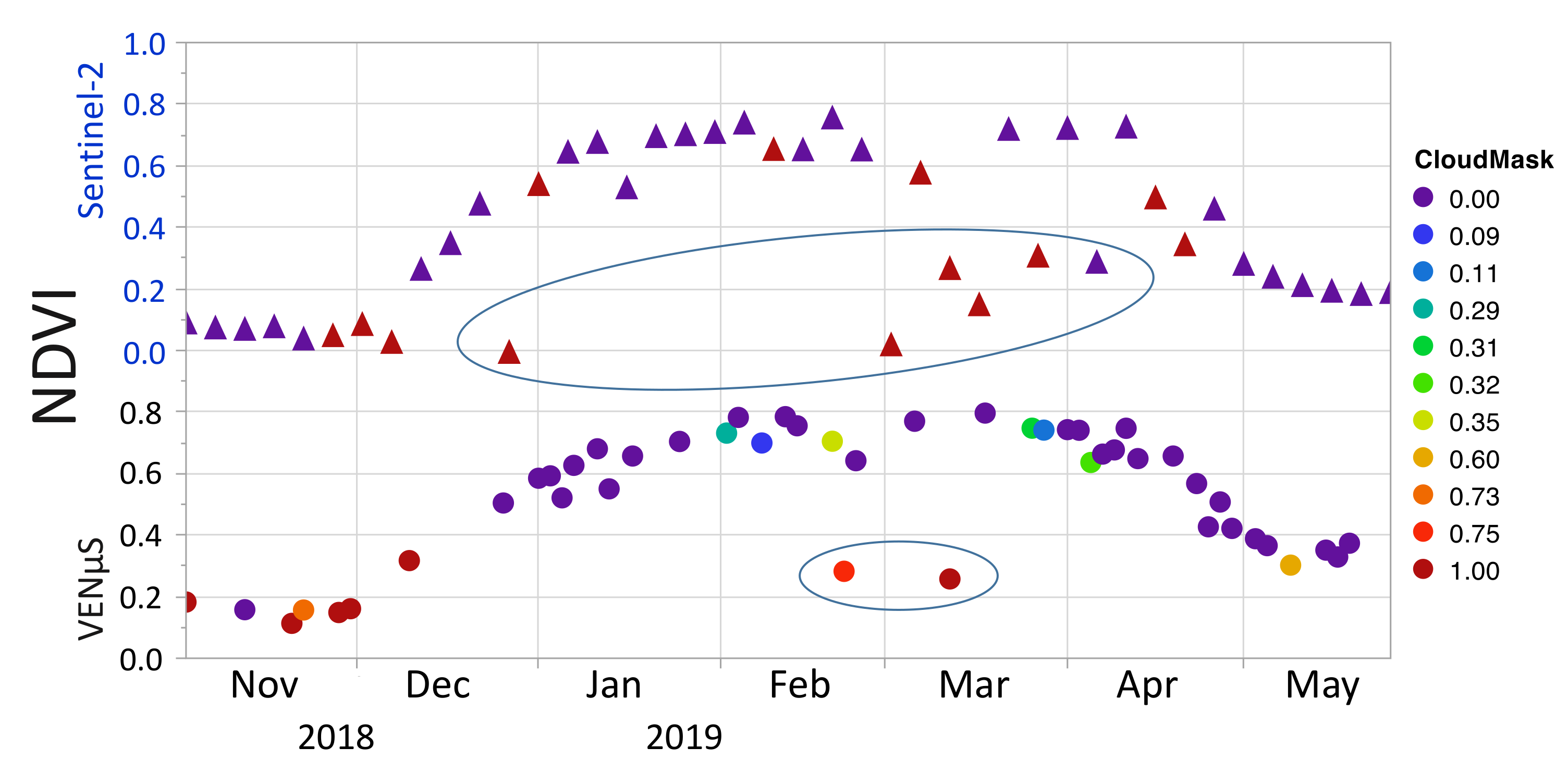

Figure 2. NDVI phenology of a field, as retrieved by VENµS and Sentinel-2. CloudMask data are for the whole tile.
Figure 2. NDVI phenology of a field, as retrieved by VENµS and Sentinel-2. CloudMask data are for the whole tile.
Remotesensing 13 03934 g002

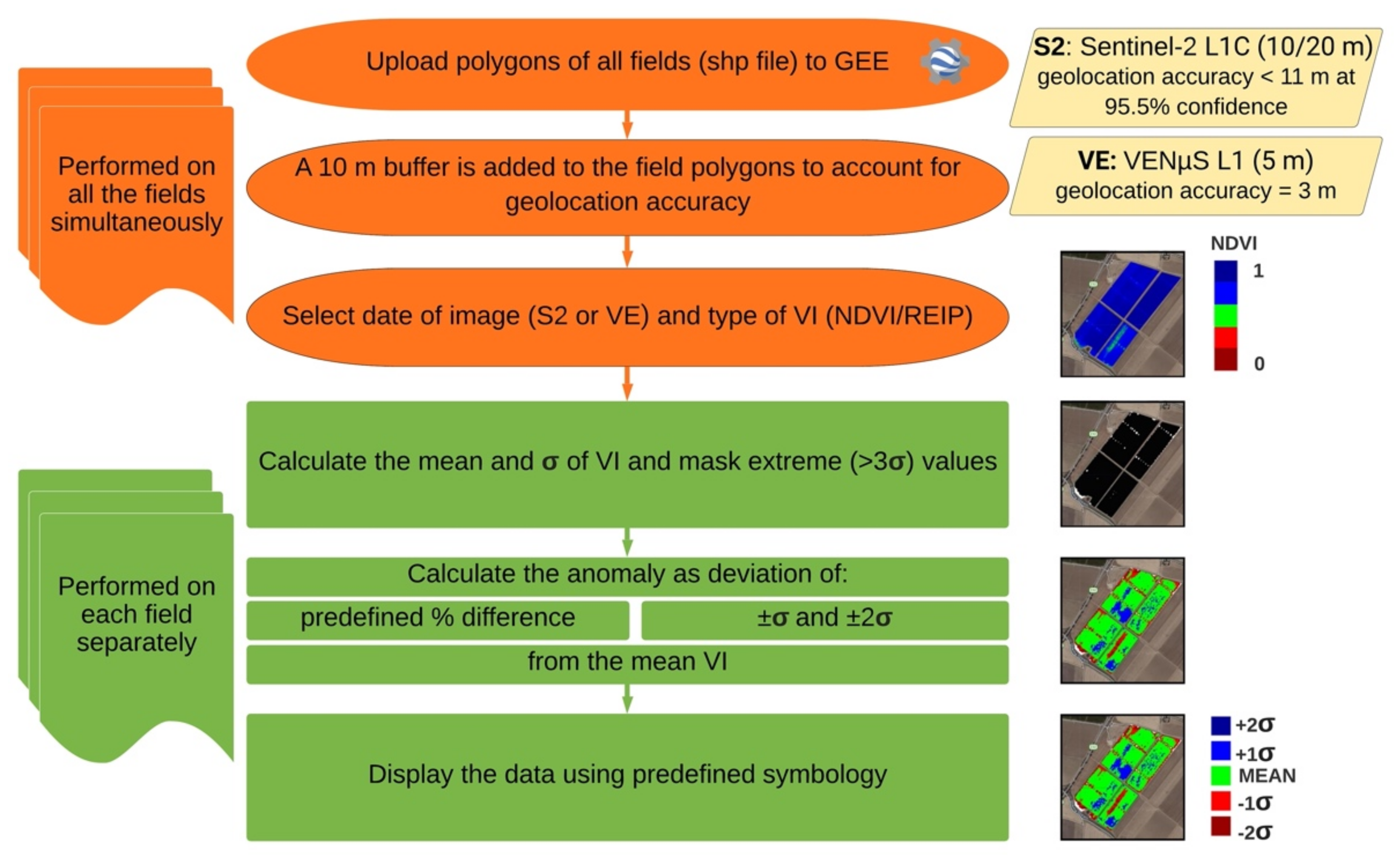

Figure 3. Anomaly Explorer app algorithm.
Figure 3. Anomaly Explorer app algorithm.
Remotesensing 13 03934 g003

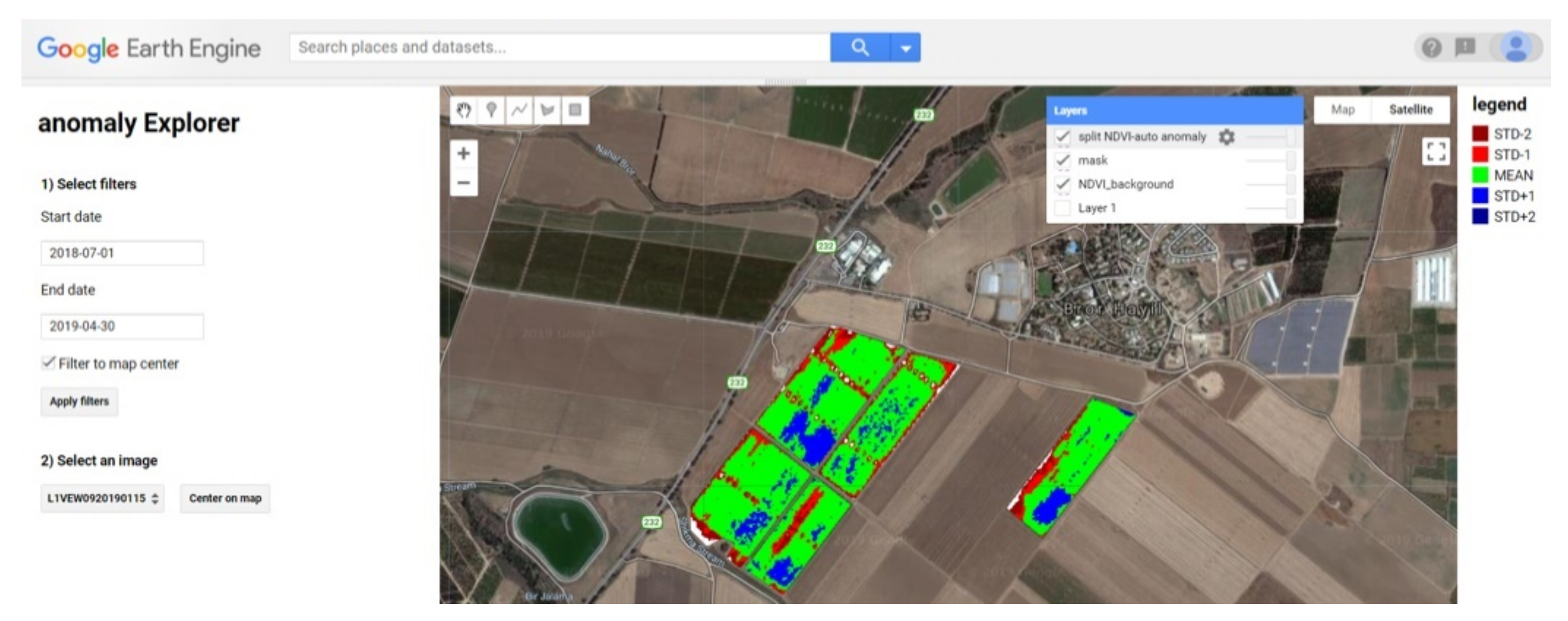

Figure 4. Anomaly Explorer app running in chrome browser with Sentinel-2 data presenting NDVI anomalies in five wheat fields in Saad on 15 January 2019.
Figure 4. Anomaly Explorer app running in chrome browser with Sentinel-2 data presenting NDVI anomalies in five wheat fields in Saad on 15 January 2019.
Remotesensing 13 03934 g004

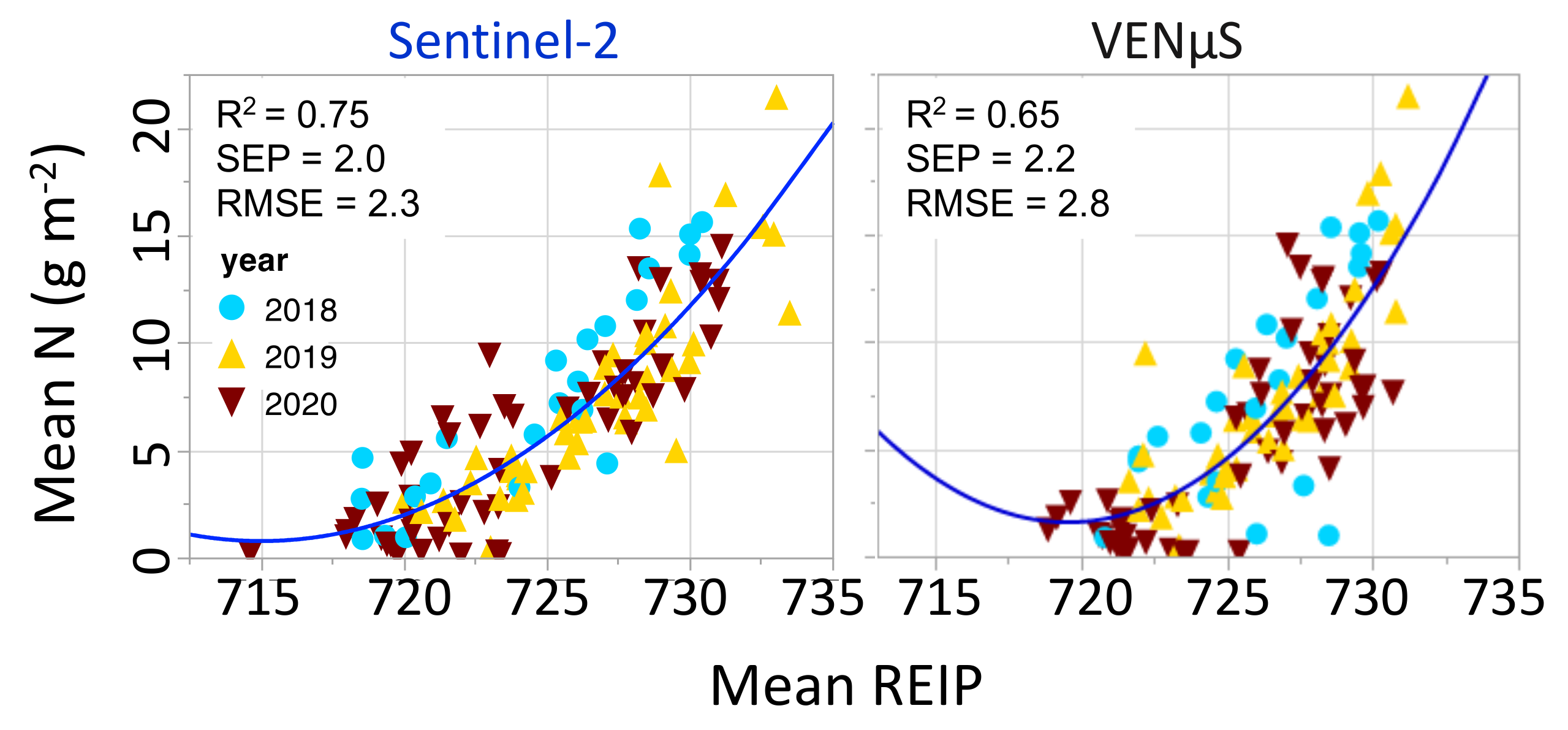

Figure 5. Correlation between wheat above ground N uptake and REIP, retrieved by VENµS and Sentinel-2 (L1), based on sampling average (per field*day).
Figure 5. Correlation between wheat above ground N uptake and REIP, retrieved by VENµS and Sentinel-2 (L1), based on sampling average (per field*day).
Remotesensing 13 03934 g005

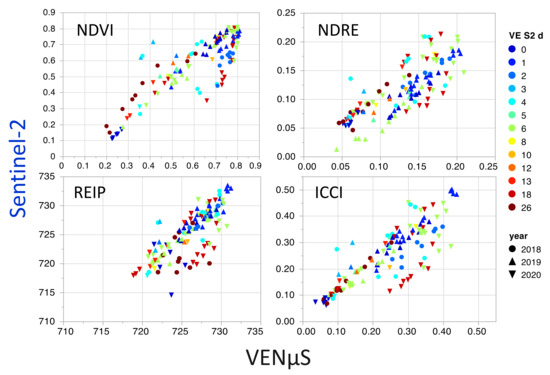

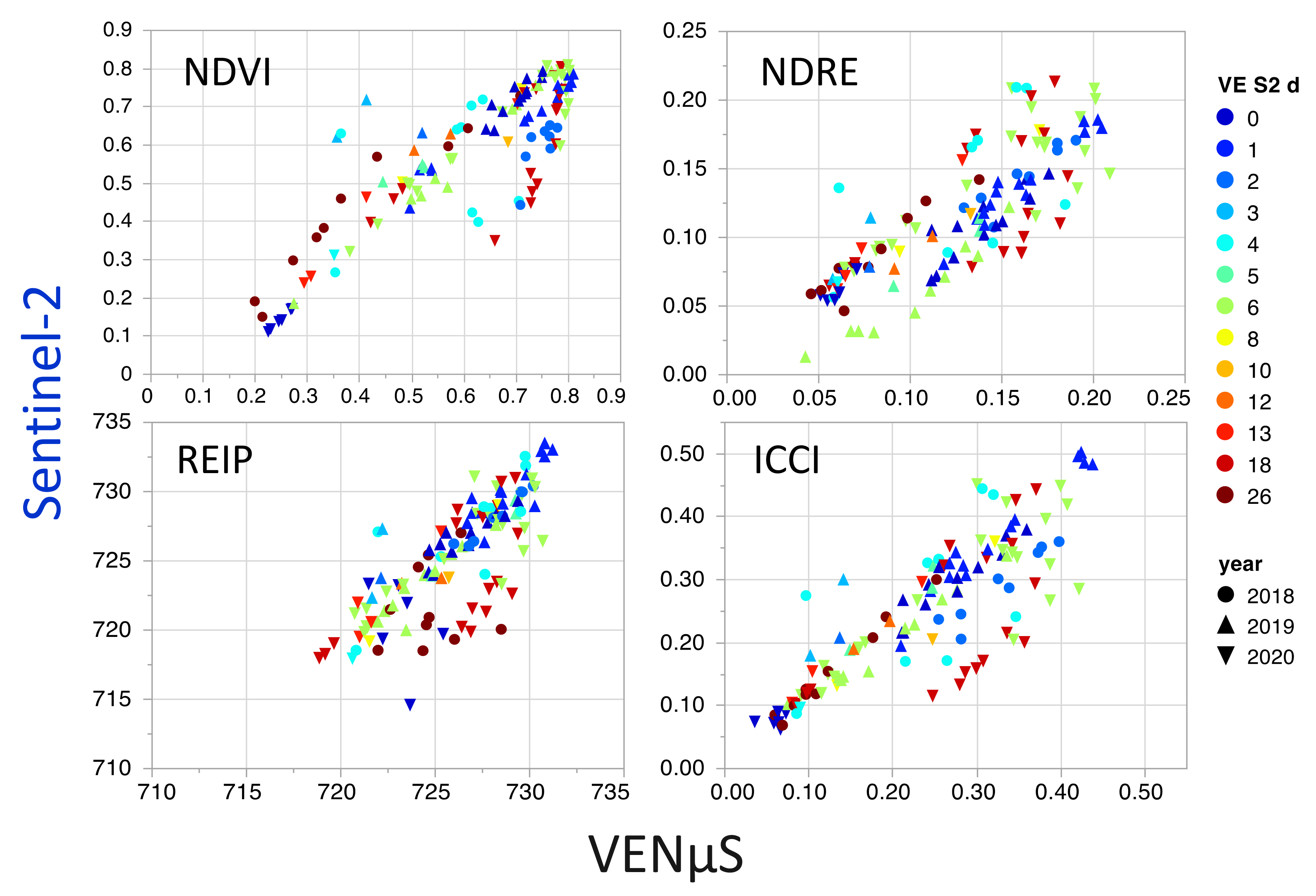

Figure 6. Correlation between VENµS and Sentinel-2 vegetation indices, as retrieved from wheat fields during 2018–2020. Symbols represent season and colors represent the difference in the number of days between VENµS and Sentinel-2 images.
Figure 6. Correlation between VENµS and Sentinel-2 vegetation indices, as retrieved from wheat fields during 2018–2020. Symbols represent season and colors represent the difference in the number of days between VENµS and Sentinel-2 images.
Remotesensing 13 03934 g006

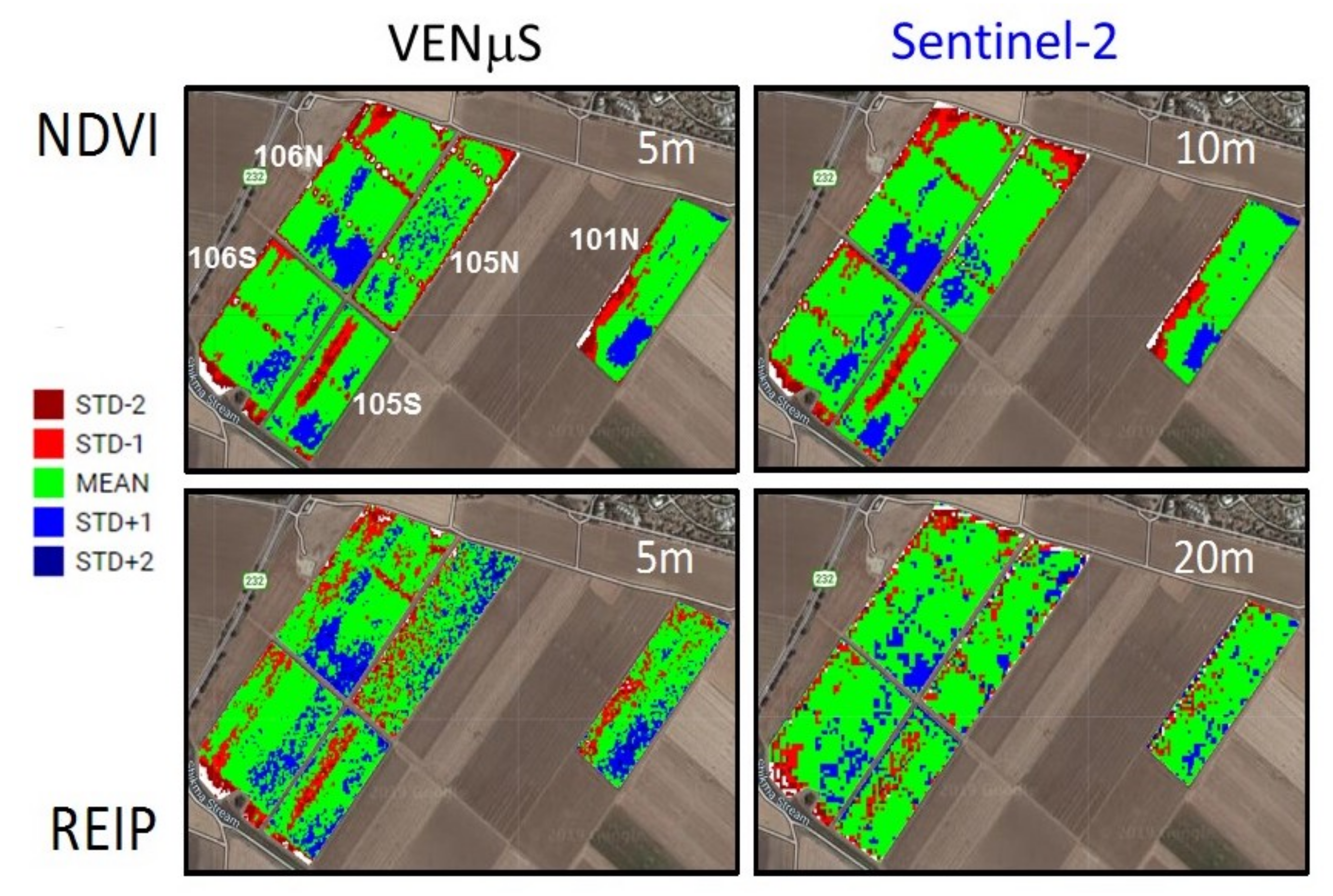

Figure 7. Anomaly Explorer app using a standard deviation of NDVI and REIP calculated from L1 VENµS (15/1/2019) and Sentinel-2 (16/1/2019) data in five wheat fields in Saad. Spatial resolution: VENµS 5 m; Sentinel-2 10 m (NDVI) and 20 m (REIP).
Figure 7. Anomaly Explorer app using a standard deviation of NDVI and REIP calculated from L1 VENµS (15/1/2019) and Sentinel-2 (16/1/2019) data in five wheat fields in Saad. Spatial resolution: VENµS 5 m; Sentinel-2 10 m (NDVI) and 20 m (REIP).
Remotesensing 13 03934 g007

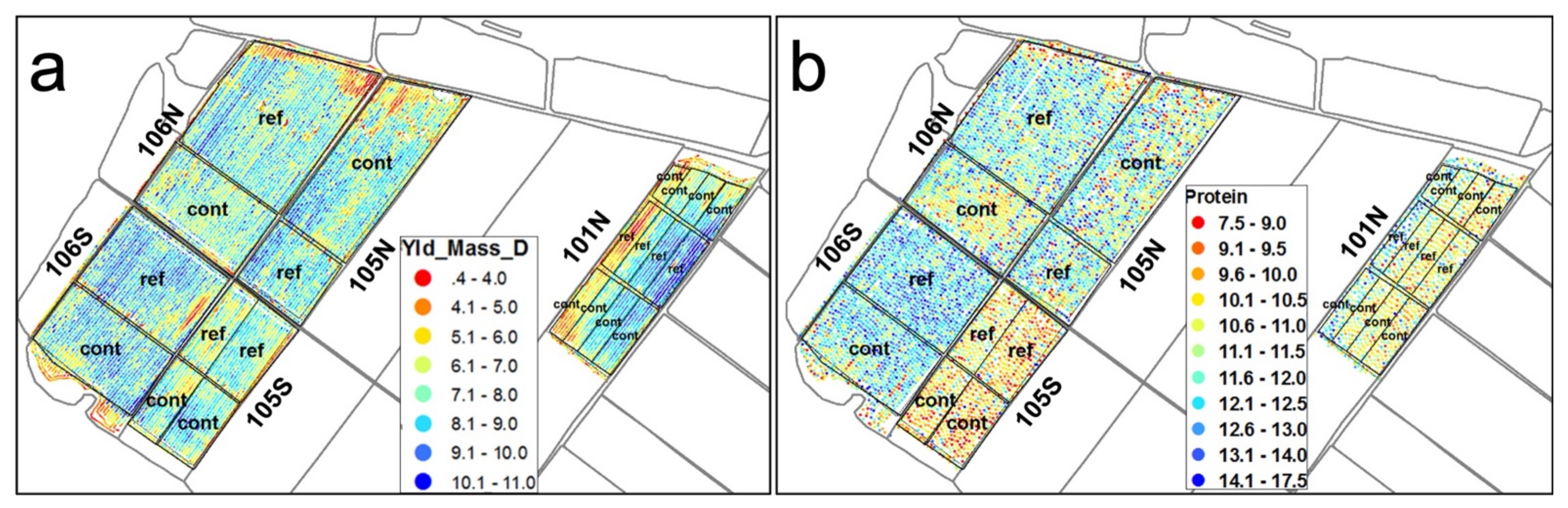

Figure 8. (a) Wheat grain yield (t ha−1) and (b) grain protein content (%) maps of five fields in Saad (in Figure 7) for the 2019 season.
Figure 8. (a) Wheat grain yield (t ha−1) and (b) grain protein content (%) maps of five fields in Saad (in Figure 7) for the 2019 season.
Remotesensing 13 03934 g008

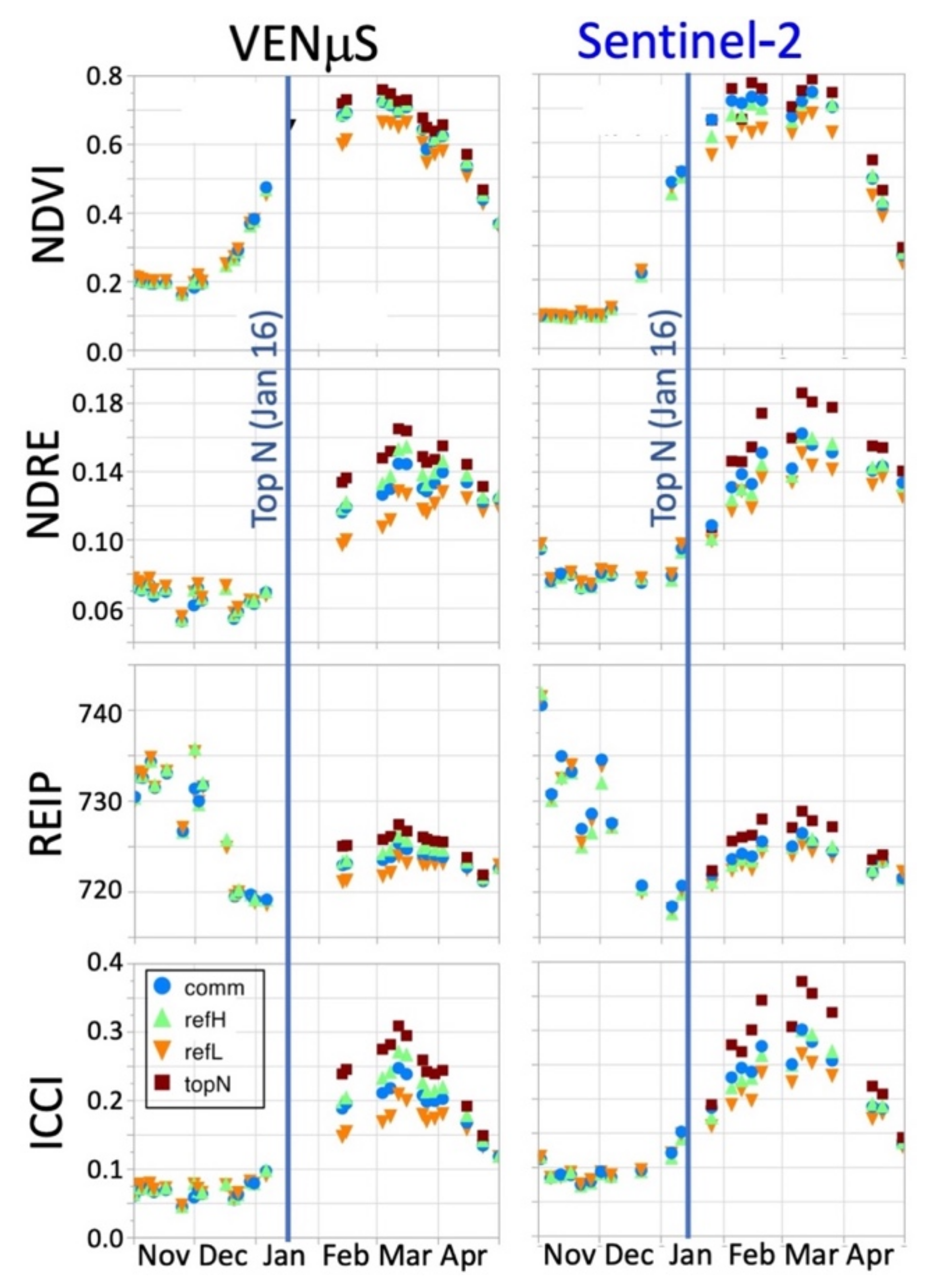

Figure 9. VENµS and Sentinel-2 based NDVI, NDRE, REIP, and ICCI along the growing season November 2019–April 2020 in Beit Guvrin (Field 109, Figure 10). Average VI values are plotted for commercial (comm), reference strips (refH, refL), and topdressed N (topN) managements. VENμS operation caused missing period January–February data.
Figure 9. VENµS and Sentinel-2 based NDVI, NDRE, REIP, and ICCI along the growing season November 2019–April 2020 in Beit Guvrin (Field 109, Figure 10). Average VI values are plotted for commercial (comm), reference strips (refH, refL), and topdressed N (topN) managements. VENμS operation caused missing period January–February data.
Remotesensing 13 03934 g009

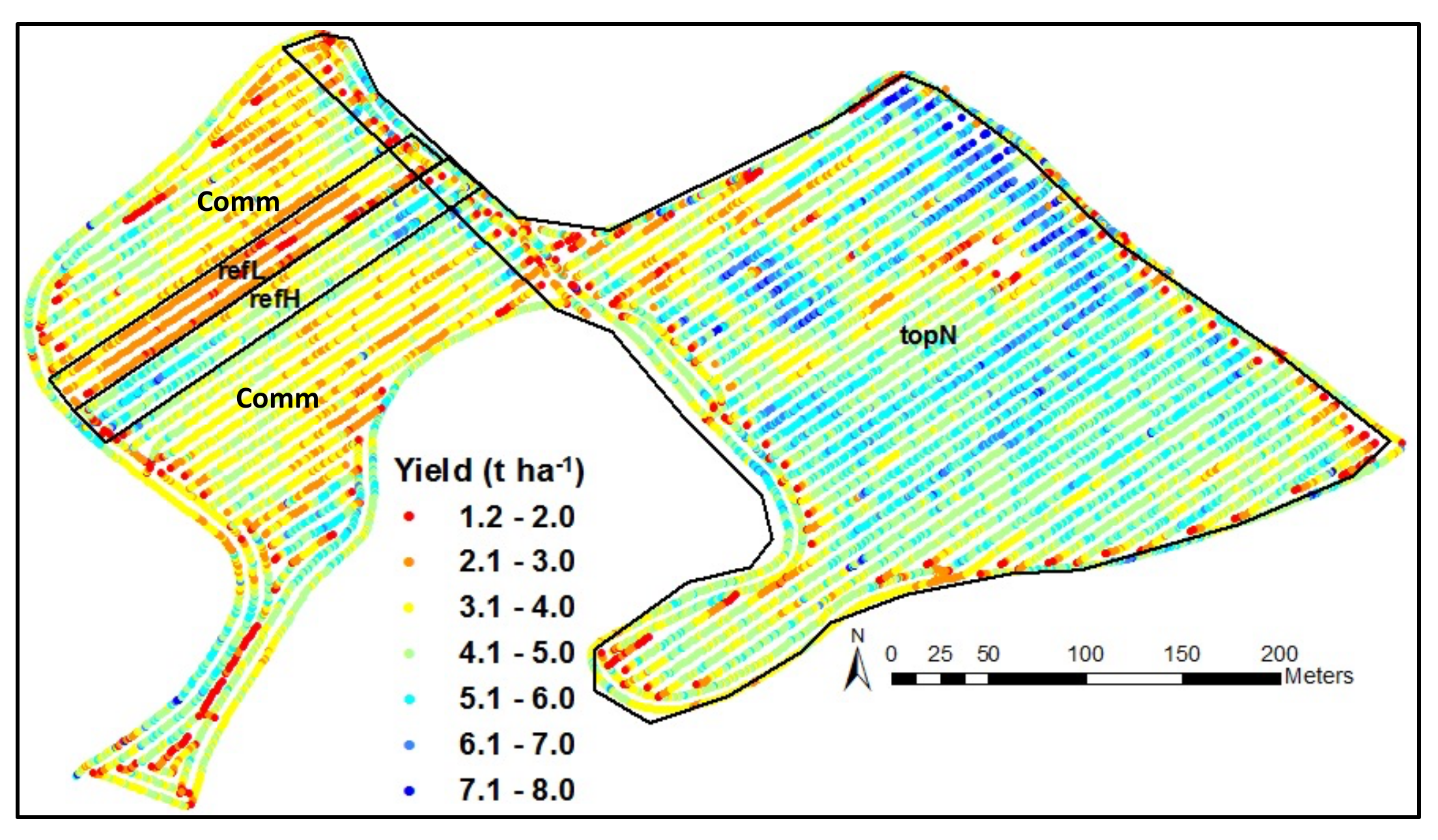

Figure 10. Wheat grain yield (raw data, t ha−1) map of Beit Guvrin, field 109, 2020 season. N management is described in Table 4.
Figure 10. Wheat grain yield (raw data, t ha−1) map of Beit Guvrin, field 109, 2020 season. N management is described in Table 4.
Remotesensing 13 03934 g010

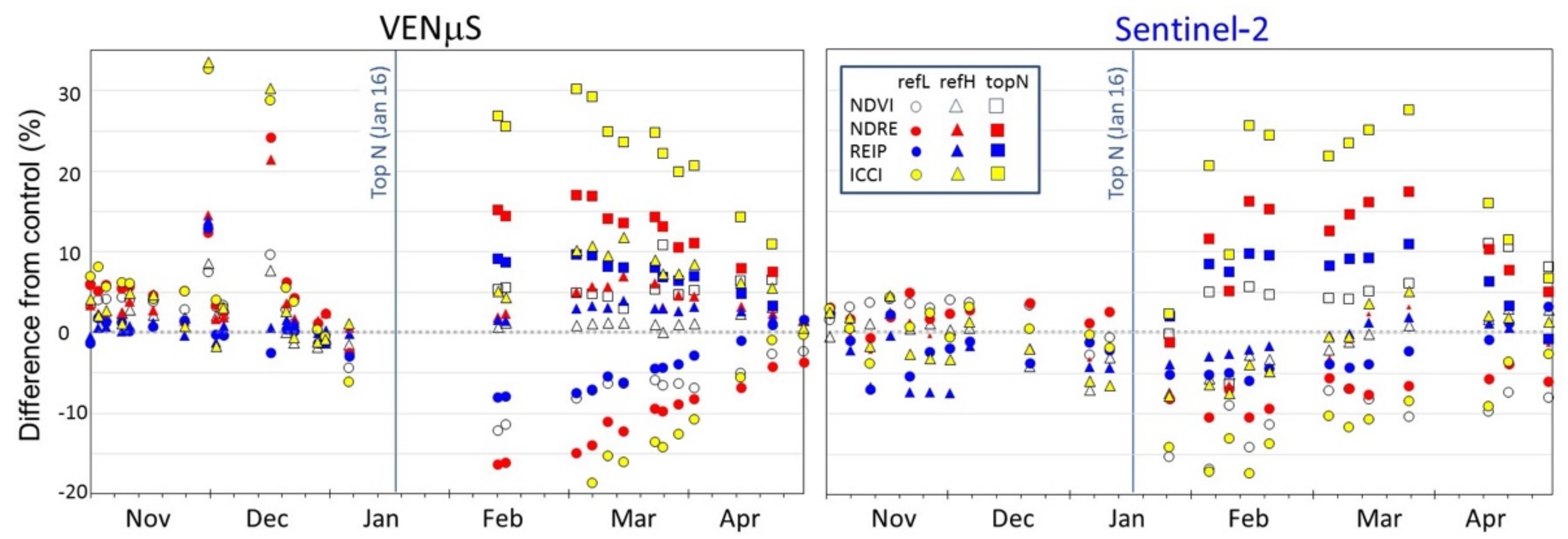

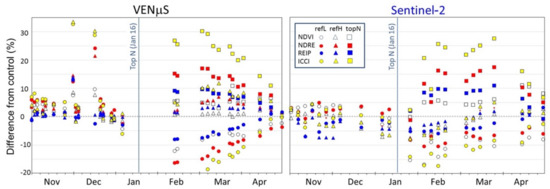

Figure 11. Reference strip or topdressed N managements: VENµS- and Sentinel-2-based NDVI, NDRE, REIP, and ICCI difference from the commercial management along the growing season. Beit Guvrin 2020 (Field 109). REIP difference was calculated based on REIP-700. VENμS operation caused missing period January–February data.
Figure 11. Reference strip or topdressed N managements: VENµS- and Sentinel-2-based NDVI, NDRE, REIP, and ICCI difference from the commercial management along the growing season. Beit Guvrin 2020 (Field 109). REIP difference was calculated based on REIP-700. VENμS operation caused missing period January–February data.
Remotesensing 13 03934 g011
Table 1. Vegetation indices used in the study: normalized difference vegetation index (NDVI), Normalized difference red-edge (NDRE), red-edge inflection point (REIP), and red-edge canopy chlorophyll index (ICCI). Band numbers are indicated in Table 2.
Table 1. Vegetation indices used in the study: normalized difference vegetation index (NDVI), Normalized difference red-edge (NDRE), red-edge inflection point (REIP), and red-edge canopy chlorophyll index (ICCI). Band numbers are indicated in Table 2.
Vegetation IndicesEquationReference
NDVI N I R R e d / ( N I R + R e d ) [47]
NDRE N I R R E 2 / ( N I R + R E 2 ) [48]
REIP 702 + 40 · R e d + R E 3 / 2 R E 1 R E 2 R E 1 [49]
ICCI ( R E 3 / R E 2 ) 1 [29]
Table 2. VENµS and Sentinel-2 bands (used in the equations in Table 1): band number (Band), central wavelength (WL, nm), and spatial resolution (Resolution, m).
Table 2. VENµS and Sentinel-2 bands (used in the equations in Table 1): band number (Band), central wavelength (WL, nm), and spatial resolution (Resolution, m).
VENµSSentinel-2
BandWLResolutionBandWLResolution
RedB76675B4664.610
RE1B87025B5704.120
RE2B97425B6740.520
RE3B107825B7782.820
NIRB118655B8/B8A833/86510/20
Table 3. Correlation between Sentinel-2- (blue) and VENµS-based vegetation indices (VI) and wheat biomass (dry weight, DW), N content, N concentration, and LAI based on sampling average (per field*day).
Table 3. Correlation between Sentinel-2- (blue) and VENµS-based vegetation indices (VI) and wheat biomass (dry weight, DW), N content, N concentration, and LAI based on sampling average (per field*day).
DW (g m−2)N (g m−2)N (%)LAI
VIrRMSErRMSErRMSErRMSE
NDVI0.5191550.6323.610.2710.820.4951.54
0.5861480.6943.370.4220.770.4891.55
NDRE0.7021290.7942.830.4640.750.8201.01
0.7301250.7962.830.5380.710.8131.03
ICCI0.7491200.8262.620.3910.780.8051.05
0.7291250.8072.760.4990.730.7831.10
REIP0.8211030.8692.310.4210.770.8290.99
0.7971100.8072.760.5060.730.8310.99
Table 4. N management: Grain yield and grain-quality parameters as affected by N treatment, in Beit Guvrin, field #109, 2020 season.
Table 4. N management: Grain yield and grain-quality parameters as affected by N treatment, in Beit Guvrin, field #109, 2020 season.
N Treatment (Base + Top)YieldTest WeightProteinWet Gluten
kg N ha−1t ha−1kg 100 L−1%%
Reference low (0 + 0)2.6982.910.322.5
Commercial (50 + 0)3.8582.310.323.5
Reference high (100 + 0)4.4982.110.924.0
Commercial + topN (50 + 50)4.4680.611.426.0
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Bonfil, D.J.; Michael, Y.; Shiff, S.; Lensky, I.M. Optimizing Top Dressing Nitrogen Fertilization Using VENμS and Sentinel-2 L1 Data. Remote Sens. 2021, 13, 3934. https://doi.org/10.3390/rs13193934

AMA Style

Bonfil DJ, Michael Y, Shiff S, Lensky IM. Optimizing Top Dressing Nitrogen Fertilization Using VENμS and Sentinel-2 L1 Data. Remote Sensing. 2021; 13(19):3934. https://doi.org/10.3390/rs13193934

Chicago/Turabian Style

Bonfil, David J., Yaron Michael, Shilo Shiff, and Itamar M. Lensky. 2021. "Optimizing Top Dressing Nitrogen Fertilization Using VENμS and Sentinel-2 L1 Data" Remote Sensing 13, no. 19: 3934. https://doi.org/10.3390/rs13193934

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
