Unmanned Aerial Vehicle (UAV)-Based Mapping of Acacia saligna Invasion in the Mediterranean Coast

Flavio Marzialetti
Ludovico Frate
Walter De Simone
Anna Rita Frattaroli
Alicia Teresa Rosario Acosta
3 and
Maria Laura Carranza
Envix-Lab, Departement of Biosciences and Territory, Molise University, Contrada Fonte Lappone, 86090 Pesche, Italy
Department of Life, Health and Environmental Sciences, University of L’Aquila, Piazzale Salvatore Tommasi, 67100 L’Aquila, Italy
Department of Sciences, University of Roma Tre, Viale G. Marconi 446, 00146 Rome, Italy
Author to whom correspondence should be addressed.
Joint first authorship.
Remote Sens. 2021, 13(17), 3361;
Submission received: 29 July 2021 / Revised: 20 August 2021 / Accepted: 21 August 2021 / Published: 25 August 2021
(This article belongs to the Special Issue Drones for Ecology and Conservation)


Remote Sensing (RS) is a useful tool for detecting and mapping Invasive Alien Plants (IAPs). IAPs mapping on dynamic and heterogeneous landscapes, using satellite RS data, is not always feasible. Unmanned aerial vehicles (UAV) with ultra-high spatial resolution data represent a promising tool for IAPs detection and mapping. This work develops an operational workflow for detecting and mapping Acacia saligna invasion along Mediterranean coastal dunes. In particular, it explores and tests the potential of RGB (Red, Green, Blue) and multispectral (Green, Red, Red Edge, Near Infra—Red) UAV images collected in pre-flowering and flowering phenological stages for detecting and mapping A. saligna. After ortho—mosaics generation, we derived from RGB images the DSM (Digital Surface Model) and HIS (Hue, Intensity, Saturation) variables, and we calculated the NDVI (Normalized Difference Vegetation Index). For classifying images of the two phenological stages we built a set of raster stacks which include different combination of variables. For image classification, we used the Geographic Object-Based Image Analysis techniques (GEOBIA) in combination with Random Forest (RF) classifier. All classifications derived from RS information (collected on pre-flowering and flowering stages and using different combinations of variables) produced A. saligna maps with acceptable accuracy values, with higher performances on classification derived from flowering period images, especially using DSM + HIS combination. The adopted approach resulted an efficient method for mapping and early detection of IAPs, also in complex environments offering a sound support to the prioritization of conservation and management actions claimed by the EU IAS Regulation 1143/2014.

Graphical Abstract

1. Introduction

Invasive alien plants (IAPs) are non–native species introduced by humans into a natural system outside of their native range and have become a global conservation concern, representing one of the major threats to biodiversity and demanding costly monitoring and control programs [1,2,3,4]. IAPs cause considerable changes in native ecosystems [5,6] by altering taxonomic biodiversity (e.g., species richness and abundance) [7,8] as well as phylogenetic and functional diversity [9,10]. IAPs invasions degrade habitat quality also by interfering with biogeochemical processes and nutrient cycling [11,12]. Furthermore, biological invasions severely impinge ecosystem services and human health [6,13,14], also causing great economic loss [15].
In this context, the European Commission promulgated the Regulation on invasive alien species (the (EU 1143/2014 IAS Regulation) providing a normative frame to prevent, minimize and mitigate the negative impacts of IAS introduction and spread on biodiversity and related ecosystem services. According to the IAS Regulation, Member States are committed to implement specific actions of monitoring and surveillance aimed at detecting invasive species into non-native regions. The Regulation provides a list of IAS (both animals and plants) that must be carefully monitored through a dedicated surveillance system and subjected to management actions aimed at eradicating, containing or controlling their populations [16].
Early detection and mapping of IAPs is one of the most effective tools to deal with biological invasions [17,18]. Remote Sensing (RS), offering the possibility of repetitive and standard surveys, has a great potential for understanding invasion patterns, process and impacts [19], simplifying IAPs detection and mapping [20,21,22]. RS can integrate and improve IAPs monitoring methods traditionally based on field sampling and photointerpretation of aerial ortho—photographs, which often present excessive costs, require time—consuming procedures, and could overlook IAPs presence on remote or interdicted areas [23,24]. RS, providing reproducible data covering wide areas with high spatial, spectral and temporal resolutions, could represent a sound support for IAPs detection and accurate mapping [22,25,26].
New methodologies for IAPs detection and monitoring based on satellite and airborne remote sensing data have been proposed supported by the growing availability of imagery acquired by both, public and private satellites (e.g., Sentinel, Landsat, ASTER, PlanetScope, Pleiades, WorldView, GeoEye, AVIRIS, CASI, HyMap, etc.) [22,26,27]. Still, the identification and mapping of invasive plants on complex and dynamic environments using satellite and airborne remote sensing products could be difficult because of limits on spectral [19] or spatial resolution [26] and due to the high cost of remote sensing equipment required for improving such resolutions (i.e., airplanes equipped with hyperspectral sensor) [19].
Over the last years, the decreasing cost of Unnamed Aerial Vehicle (UAV) technology, has favored its use in many remote sensing applications, including IAPs mapping [28,29,30]. UAVs provide a flexible data acquisition of ultra—high spatial and temporal resolution data at low costs [31]. UAVs allow the operator to choose among different types of sensors (i.e., RGB, multispectral, etc.), to select the best flight conditions (illumination, wind speed, etc.) and to repeat the flights over the invaded area in different time periods. In particular, the selection of the optimal period for collecting remote sensed data could be crucial for detecting those IAPs characterized by a different phenology (e.g., flowering bloom, vegetative period, fruits production, etc.) compared to that of natural vegetation [32].
A. saligna (Labill.) H. Wendl. is a fast—growing evergreen small tree, native from the Western Australia [33] and introduced on South Africa, North Africa and Mediterranean coasts [34] as fodder [35,36], for dune stabilization and windbreak [37,38] and for ornamental purposes [39]. A. saligna is one of the most dangerous IAPs threatening coastal dune ecosystems [18,40,41], and has been recently included in the list of invasive alien species of European concern (IAS Regulation 1143/2014).
In invaded landscapes, A. saligna forms dense monospecific evergreen parches [42] characterized by a huge spring blooming [43,44]. It produces seeds in large numbers which can remain dormant in the soil for a long time [45,46]. Its inflorescences are relatively precocious, producing round, bright yellow flowers at times even in the first year after germination [47,48].
Recent research aimed at detecting and mapping A. saligna has been done using multispectral and hyperspectral images captured by satellite and airborne systems with high spatial resolution, ranging from 10 to 2 m [49,50]. Previous work evidenced the usefulness of RGB and/or multispectral UAV images for mapping other species of the genus Acacia on savannas ecosystems [51], sclerophillous forests in south America [24,52], and on Atlantic coastal dunes [43], obtaining highly accurate results. Yet, the potential of UAV images collected during the blooming period for mapping A saligna on Mediterranean coastal dunes needs to be further explored.
In consideration of the above, the overall objective of the present work is to develop an operational workflow to detect and map the invasive alien species A. saligna using UAV data, in order to propose a general and reproducible methodological framework to support the monitoring, conservation and management actions as defined by the EU IAS regulation. In particular, this work aims to explore and test the potential of RGB (Red, Green, and Blue) and multispectral (Green, Red, Red Edge, Near Infra-Red) UAV images collected in pre-flowering and flowering phenological stages for detecting and mapping A. saligna invasion on a complex and dynamic mosaic as coastal dunes. To summarize, the specific objectives are: (i) to determine the suitability of RGB and multispectral images to map A. saligna, (ii) to identify the optimal combination of bands, indices and derived variables and (iii) to assess if the accuracy of the classification increases when images acquired during the flowering period were used.
Accurate detection and mapping of IAPs should offer a new support to the prioritization of conservation and management actions claimed by the EU IAS regulation.

2. Materials and Methods

2.1. Study Area and Target Species

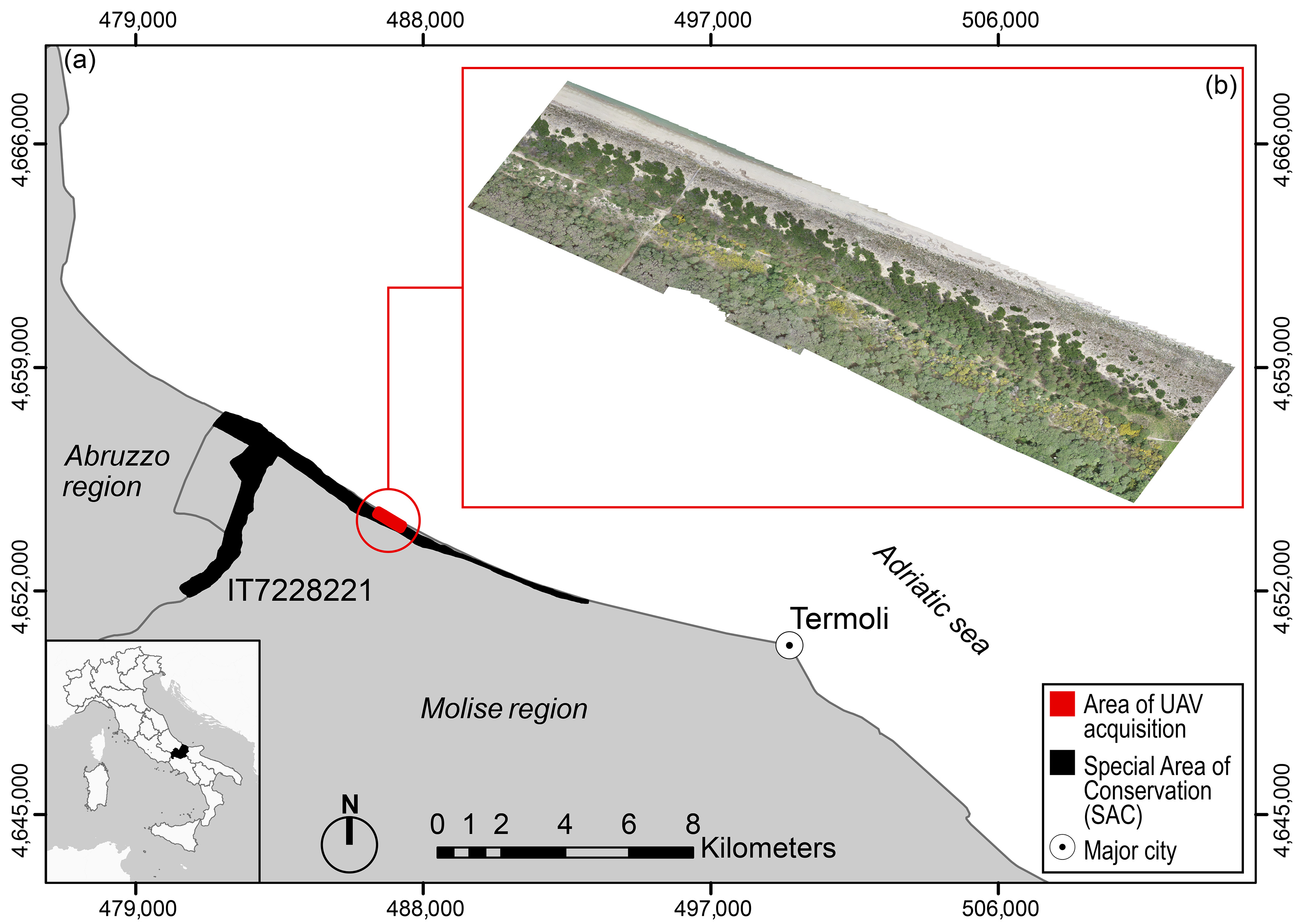

The study area includes a tract of Mediterranean coastal dunes located on the Adriatic coast of Central Italy (Molise region; Figure 1). It consists of approximately 11 ha of recent coastal dunes (Holocene) occupying a narrow strip parallel to the seashore [53,54] and is included in a Special Area of Conservation (SAC, Habitat Directive 92/43/EEC; Foce Trigno–Marina di Petacciato IT7228221) and it is part of a Long—Term Ecological Research site [55,56]. The presence within the study area of a Long—Term Ecological Research site (LTER, (accessed on 21 August 2021)), gathering a valuable amount of long—term ecological data represents an excellent training ground to develop methodologies able to evaluate invasion processes at present and over time [57].
It hosts the typical sea–to–inland vegetation zonation ranging from pioneer annual communities on the seashore, followed by perennial herbaceous vegetation on mobile dunes, small chamaephytes communities intermingled with therophytic grasslands on embryonic dunes, evergreen shrubs and small sclerophyllous trees on fixed dunes and forests in foredunes [56,58,59]. The analyzed area is dominated by natural and semi–natural vegetation being artificial areas and cropland absent (Figure 1). In this area, A. saligna was planted during the 50s along a narrow strip between wooded dunes and fixed dunes, for sand stabilization and for sheltering foredune forests and agricultural areas from winds and salt spray [40,42,60].

2.2. Data Collection and Analysis

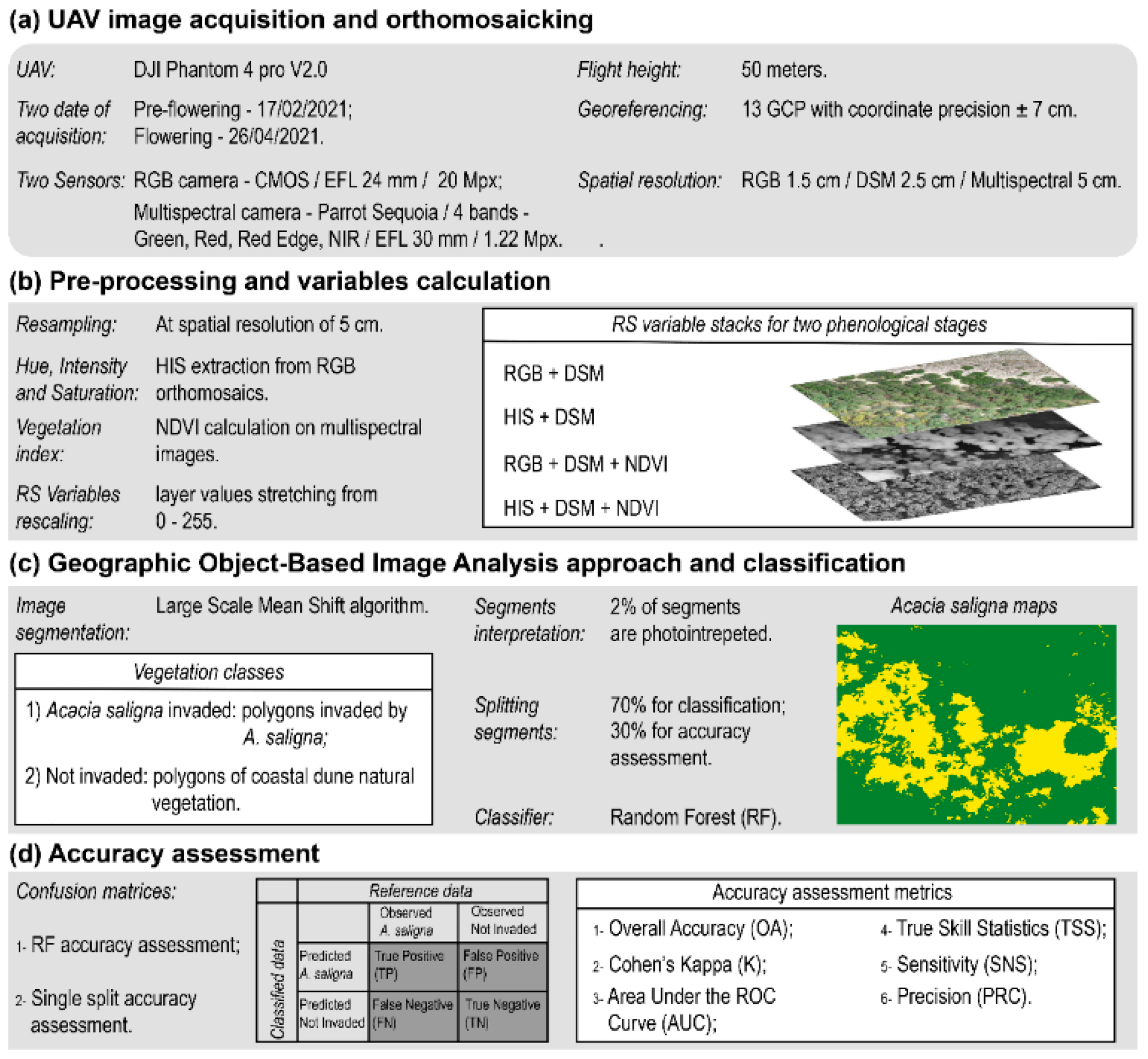

Data collection and analysis were performed according to the following steps: (a) UAV image acquisition and orthomosaicking, (b) image pre—processing and variables calculation, (c) Object—Based Image Analysis and classification, and (d) accuracy assessment (Figure 2). The procedure was implemented separately for remote sensed data collected in pre-flowering and in flowering periods.

2.2.1. UAV Image Acquisition and Orthomosaicking

A multirotor quadcopter DJI Phantom 4 Pro V2.0 was used to collect the aerial images during A. saligna pre-flowering (17 February 2021) and flowering periods (26 April 2021, Figure 2). This UAV is equipped with the CMOS (Complementary Metal Oxide Semiconductor) sensor, a Red–Green–Blue (RGB) camera with 20 Mpx and 24 mm of Equivalent Focal Lengt (EFL), and in addition, we equipped the UAV with the Parrot Sequoia multispectral camera with four bands, each with 1.2 Mpx and EFL of 30 mm: Green (G, bandwidth: 550 nm ± 40 nm); Red (R, bandwidth: 660 nm ± 40 nm), Red Edge (RE, bandwidth: 735 nm ± 10 nm), and Near Infrared (NIR, bandwidth: 790 nm ± 40 nm).
The freeware mobile application Pix4Dcapture (version 4.11.0 for Android, (accessed on 21 August 2021)) was used for flight planning. To obtain standardized data, we used the same settings for all flights performed. The flights’ altitude was set at 50 m relatively to the take-off point, at a 5 m/s speed; all the flights were made between 10:00 a.m. and 12:00 a.m.. Finally, the images overlap was set to 80% for both forward and side overlaps. For the setting of the Parrot Sequoia camera, we used the dedicated HTML interface, accessible by connecting the camera to the smartphone via Wi–Fi. We have entered the same flight altitude and image overlap values as previously described (for Pix4Dcapture application) within the HTML interface. The two sensors captured images simultaneously during the flights; the CMOS sensor is trigged by Pix4Dcapture, while Parrot Sequoia camera by HTML interface.
Before the flights, we positioned 12 Ground Control Point (GCPs) target of 50 cm2 over the flight area. GCPs coordinates (longitude, latitude, and altitude) were measured using a high accuracy GNSS receiver (Trimble R2) connected to the HxGN SmartNet GNSS positioning services for RTK (nearest) correction with nominal and estimated horizontal accuracies of 1 and 7 cm respectively.
All aerial images were processed using a Structure for Motion approach (SfM) by Agisoft Metashape Professional (version 1.6.2, (accessed on 21 August 2021)). We produced, for each flight, the RGB orthomosaic and Digital Surface Model (DSM) using the aerial images derived by RGB sensor, and the orthomosaics of G, R, RE, and NIR bands by aerial images of multispectral sensor. We georeferenced these data by the coordinates of GCPs [61,62]. The spatial resolutions of the pre-flowering and flowering periods were of 1.5 cm in the RGB orthomosaics, of 2.5 cm in DSMs, and of 5 cm in the four multispectral bands.

2.2.2. Pre-Processing and Variables Extraction

First, we resampled the RGB orthomosaic and the DSM to the coarser spatial resolution of multispectral images (5 cm) using a bilinear resampling algorithm [63]. In order to improve the spectral resolution of the RGB images we considered Hue, Intensity and Saturation metrics (HIS) [64,65,66] using the i.rgb.his tool implemented in GRASS GIS 7.8 [67]. As hue refers to the dominant wavelength of light inside the pixel, intensity refers to the total brightness of a colour measured as the relative degree of black or white, and saturation refers to the purity of the colour defined as the absence of mixture in a completely saturated pixel with no other frequencies [68,69,70].
Then, we derived from the multispectral orthomosaic the Normalized Difference Vegetation index (NDVI) as follows Equation (1) [71]:
NDVI = N I R R N I R + R
This vegetation index is widely considered as a proxy of photosynthetic biomass and productivity and it has been successfully used for IAPs mapping [19]. Since the remote sensed variables have different units of measurement and thus would potentially affect the classification results, we standardised the bands values from 0 to 255 [72,73]. Lastly, we created for image classification a set of stacks including the following combinations of variables: (i) DSM + RGB (ii) DSM + HIS; (iii) DSM + RGB + NDVI and (iv) DSM + HIS + NDVI. The pre—processing procedures were applied to the images acquired in the pre-flowering and flowering periods separately, building four raster stacks in pre-flowering period and four raster stacks in the flowering period (eight raster stacks) for classification.

2.2.3. Geographic Object—Based Image Analysis and Classification

To detect and map A. saligna invaded areas and natural vegetation along the analysed coastal landscape we adopted a Geographic Object—Based Image Analysis approach (GEOBIA) [74,75,76], followed by Random Forest classification procedure that was repeated for each of the 8 RS variables stacks built in the previous step. GEOBIA consists of image segmentation based on the raster stack information. These segments are the basic units for classification, and they consist in homogeneous regions [75,77,78].
Image segmentation was performed using the Large Scale Mean Shift (LSMS) algorithm implemented in the open–source software Orfeo Toolbox [79,80]. The LSMS is a non–parametric and iterative clustering algorithm grouping image regions by spatial and spectral closeness into homogenous segments [78,81]. For implementing LSMS we fixed three parameters: Spatial Radius (sr) defined the maximum spatial Euclidean distance between pixels to cluster in the same polygon; Range Radius (rr), the maximum Euclidean spectral distance between pixels to cluster in the same polygon; Minimum Segment Size (ms) the minimum number of pixels per segment to define a polygon. We adopted different combinations of these parameters by tuning them at 5 steps intervals and after an accurate visual inspection we chose the following combination: sr = 5 m., rr = 5 m. and ms = 100 pixels.
Then, for each segmented image we selected 2915 random segments (which correspond to the ~2% of the total segments) and we classified them by visual interpretation of RGB orthomosaics in A. saligna invaded class (305 polygons) and not invaded vegetation class (2610 polygons). We used a threshold rule of 50% cover for the determination of classes. The random selection of segments ensures a representative sample of classes occurring in the landscape [82]. These segments (invaded and not invaded) were split in two datasets (including the 70% and the 30% of segments) following a random stratified sampling approach and used for training and for testing procedures (accuracy assessment) [83,84,85].
Classification and mapping of A. saligna (using the pre-flowering or flowering images) were performed using random forest (RF) which is an ensemble machine learning algorithm that operates by constructing a large number of decision trees to generate classifications and spatial predictions [86,87,88] and that is particularly effective for RS supervised classification [89,90,91]. RF classification parameters were selected by running on the training data 10-fold cross validation series using the “caret” R package (function train) [92]. In particular for each segmented image we tune up different parameters and selected their best combination based on cross—validation procedures [93]. RF required two parameters: the number of uncorrelated decision trees (Ntree) and the number of variables randomly selected at each node of decision trees (Mtry) [94]. Specifically, to optimize RF parameters we set a high number of uncorrelated decision trees (Ntree = 1000), while we tested different combinations of Mtry parameter, with values ranging from 2 to the total number of variables, and split rules, then we chose the combination that yielded the highest accuracy value [24,59].
Finally, we estimated the relative importance of variables on classification using two indices the Mean Decrease Accuracy (MDA) and Mean Decrease Gini (MDG) [95]. The MDA index quantifies the importance of a variable repeating the classification after its random exclusion. Greater the difference between results in percentage, greater the importance of variable. The MDG is a measure of how each variable contributes to the homogeneity of the nodes in the resulting of RF [96,97]. Thus, higher the values of MDA and MDG, higher the importance of the variables in the classification.

2.2.4. Accuracy Assessment

We calculated the accuracy of the obtained maps by two types of confusion matrices, the first derived from the internal 10-fold cross validation of RF (RF accuracy assessment) [82,87] and the second based on the photointerpretation of test polygons (30% of the polygons, single split accuracy assessment) [98,99]. We computed the following performance metrics: the Overall Accuracy (OA), the Cohen’s Kappa (K), the Area Under the ROC Curve (AUC), True Skill Statistics (TSS), and Sensitivity (SNS) and Precision (PRC, Table 1) also known as producer’s and user’s accuracy, respectively [100]. The OA is a measure of overall effectiveness of a classification, its values range from 0%, total absence of accuracy in classification to 100%, a perfect classification. OA values greater than 85% are considered as acceptable results [101]. The Cohen’s Kappa metrics measures the agreement between predicted and observed polygons and it reveals the degree of reliability of classification [101]. K values range from 0 (no predictive ability) to 1 (perfect predictive ability), and Landis & Koch [102] suggest the following ranges: K ≥ 0.80 almost perfect reliability, 0.60 ≤ K < 0.80 substantial reliability, 0.40 ≤ K < 0.60 moderate reliability, 0.20 ≤ K < 0.40 fair reliability, and K ≤ 0.20 slight or poor reliability. An alternative measure is the Area Under the ROC Curve (AUC) defining the ability of classification to separate A. saligna polygons from the Not Invaded polygons. The AUC is the probability that a randomly selected A. saligna polygon will outscore a randomly drawn Not Invaded plot, and classification with AUC values equal or higher 0.7 are considered with good capacity of separability, while AUC ≥0.90 identified classification with excellent capacity of separability [103,104]. The TSS is another accuracy metric comparing the number of correct forecasts, minus those attributable to random guessing, to that of a hypothetical set of perfect forecasts [105]. The TSS range varies from −1 to 1, where 1 indicates perfect agreement and values equal or lesser of 0 indicate random classification [105]. The SNS estimates the effectiveness of classification to identify the A. saligna polygons, its values range from 0%, no effectiveness to identify A. saligna, to 100%, perfect effectiveness to identify A. saligna [106]. The PRC evaluates the correctness of classification and it represents the probability of A. saligna polygons observed are predicted by classification. PRC ranges from 0%, the A. saligna polygons observed are not predicted, to 100% perfect correctness of classification [107]. It is important to note that most of these metrics has some limitations that should be considered for their accurate interpretation. For example, both OA and AUC are highly sensitive to imbalanced data [108], whereas SNS, PRC, TSS and K are less sensitive [109].
Accuracy metrics were used to compare the performance of the classification derived from pre-flowering and flowering images and the potential of the different combinations of RS variables (eight classifications: four combinations of variables for classifying images acquired in the two time periods).

3. Results

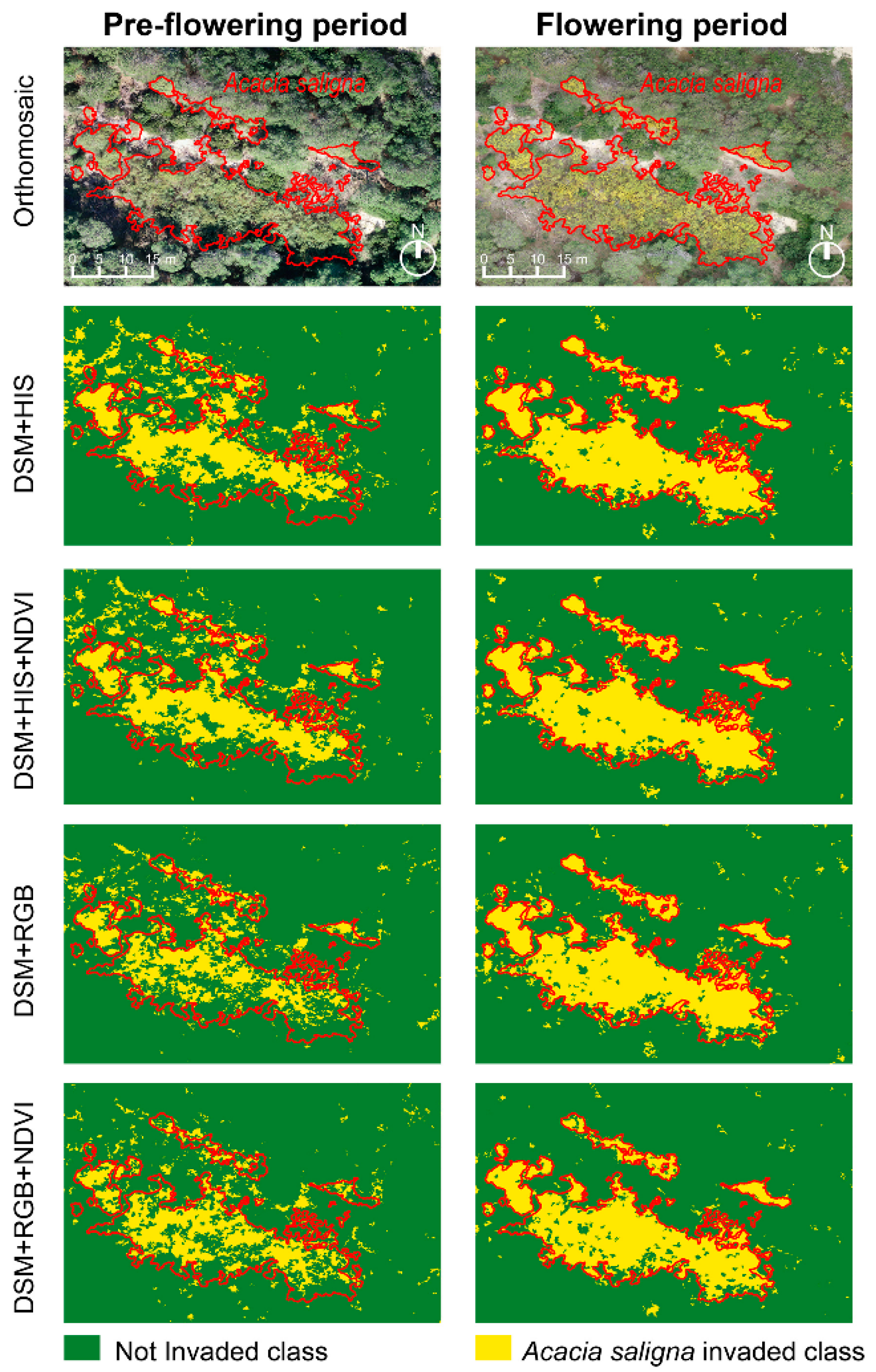

All the performed classifications mapped the A. saligna with acceptable accuracy values with OA and AUC values always higher than 90% and 0.77 respectively (Figure 3, Table 2). However, only in the flowering period the polygons of A. saligna are very well identified as evinced by the increase of K, TSS, PRC and SNS values compared by pre-flowering period (Figure 3, Table 2).
Considering the Pre—Flowering period, the RF accuracy assessment indicated the DSM + HIS as the best combination of variables (Table 2), with high values of overall accuracy (OA: 93.37 ± 0.67%) and capacity of separability (AUC: 0.90 ± 0.02), a moderate reliability (K: 0.57 ± 0.06), an intermediate agreement (TSS: 0.48 ± 0.09) and a significant correctness of classification to identify A. saligna (PRC: 76.55 ± 6.64%) with a sensitivity of classification (SNS: 52.49 ± 8.82%). According with the single split accuracy assessment, the best combination of variables for classifying of pre-flowering images are DSM + RGB assessed with OA and PRC procedures, and DSM + RGB + NDVI considering K, AUC, TSS and SNS (Table 2).
A. saligna classification obtained from the flowering period images presented excellent accuracy values using DSM + HIS + NDVI and DSM + HIS with highest values for single split accuracy assessment (Table 2). In the RF accuracy assessment, these two classifications diverged slightly by K, TSS, Precision and Sensitivity with higher values obtained by the DSM + HIS + NDVI classification. However, the DSM + RGB + NDVI evidenced the best effectiveness in correctness of classification reaching PRC around 90% according the internal accuracy of RF (Table 2). In the single split accuracy assessment, the DSM + HIS classification showed slight divergences with highest values in all accuracy assessment metrics except for PRC compared to DSM + HIS + NDVI (equal value) and DSM + RGB (higher value, Table 2).

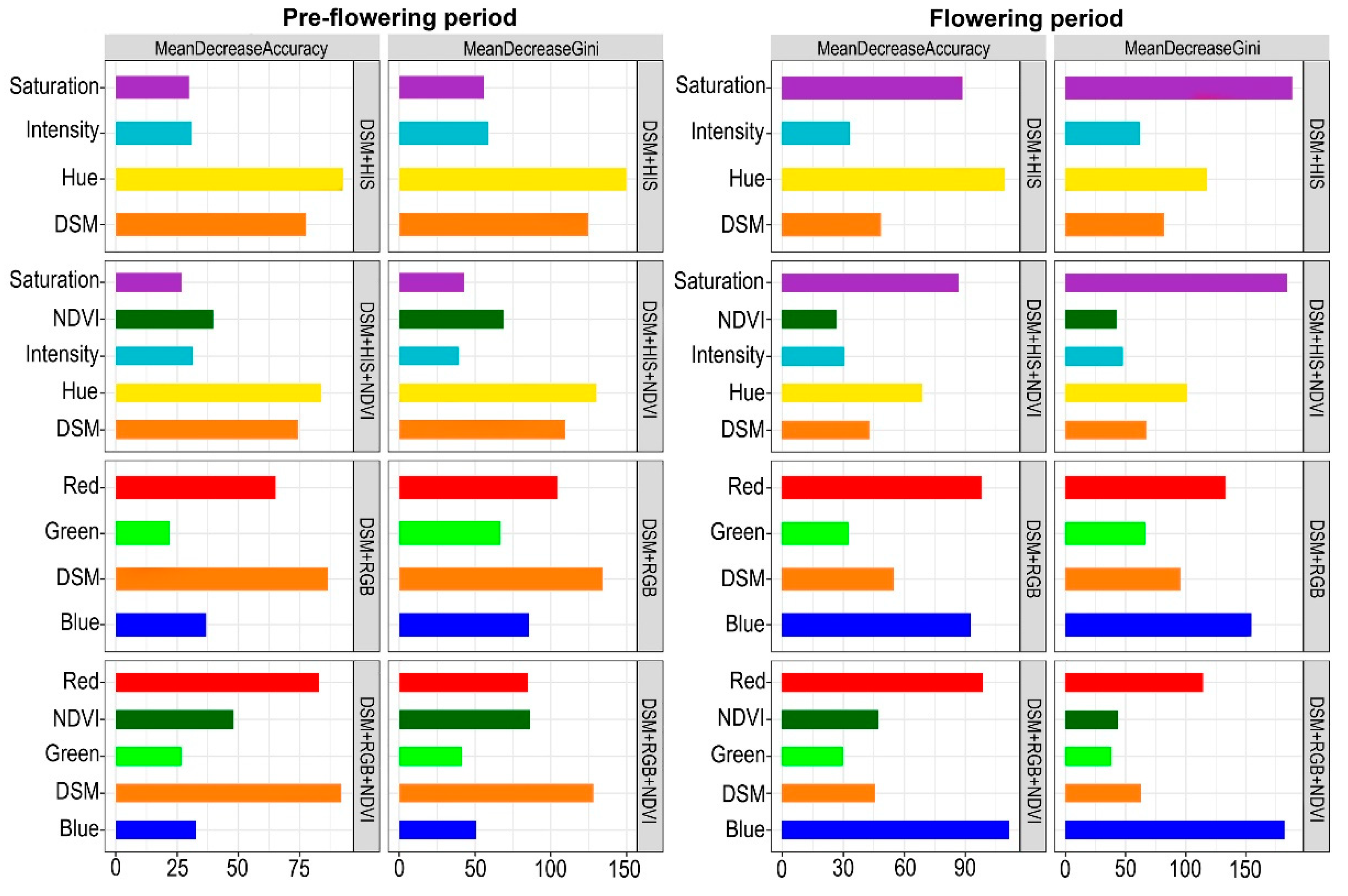

The contribution of RS variables for A saligna mapping included in the different stacks, widely varied among the pre-flowering or flowering UAV images classifications, with the exception of Hue and Red which resulted always important (Figure 4, Supplementary Materials Figure S1). DSM is relevant on classifications based on pre–flowering images and assumes a secondary role on flowering images (Figure 4, Supplementary Materials Figure S1). Saturation values of A. saligna patches and Not Invaded areas during the flowering period are significantly different, assuming an important role for image classification (Figure 4). Also, Blue variable resulted important in flowering image classification, still it assumes comparable values on the mapped classes (Figure 4).
Concerning A saligna maps based on pre-flowering UAV images, Hue resulted the most important variable on classifications using HIS (e.g., DSM + HIS and DSM + HIS + NDVI stacks; Figure 4), followed by the DSM (e.g., high MDA and MDG values). The inclusion of NDVI variable had a limited effect and low importance on the obtained classification (e.g., NDVI assumed similar values on both classes; Supplementary Materials Figure S1). In the classifications supported by RS stacks including RGB (e.g., DSM + RGB and DSM + RGB + NDVI; Table 2), the DSM resulted the most important variable, followed by the Red band with NDVI assuming a less important role (Figure 4).
On A. saligna maps based on UAV images registered during the flowering period, the most important variables were Saturation and the Hue, followed by DSM being the NDVI the less important variable. In maps using RGB (e.g., DSM + RGB and DSM + RGB + NDVI; Table 2), the most important variables are the Red assuming significant different values on the mapped classes and the Blue bands, which instead assumes similar values (Figure 4, Supplementary Materials Figure S1).

4. Discussion

In this paper, we tested the potential of fine-scale UAV data collected during pre-flowering and flowering periods to detect and map A. saligna on Mediterranean coastal dunes.
UAV images, derived by RGB and multispectral sensors allowed to produce very accurate maps of A. saligna distribution growing on coastal dunes. UAV image classification resulted an efficient method for mapping of IAPs, also in complex environments offering a sound support to the prioritization of conservation and management actions claimed by the EU IAS Regulation 1143/2014. Notice that the obtained classification effectively identified and mapped almost all the invaded areas even those occurring on very small patches hardly detectable using coarser RS data as airborne or satellite images [29,110]. Such results confirmed the importance of UAVs for detection and mapping of IAPs [32,111]. A. saligna resulted very effectively mapped by UAV images captured on flowering periods, with map accuracy reaching very high values. Specifically, the classification derived by HIS variables (DSM + HIS, DSM + HIS + NDVI) resulted particularly appropriate for mapping A. saligna, supporting excellent accuracy values, and assuring the detection of almost all the A. saligna patches. The accuracy of A. saligna maps derived from pre-flowering images resulted acceptable but with lower values compared with classifications based on flowering UAV images.
We observed a slight difference in the overall effectiveness and the ability of classification expressed by OA and AUC, on maps derived from pre-flowering and flowering images which is likely influenced by the not invaded class which spectral characteristics remain similar between the two periods. In addition, it has been demonstrated that overall accuracy and AUC should not be considered as the only metrics to assess the goodness of map classification since it does not reflect error distribution among categories and its value is greatly influenced by the dominant category, category as in the case of imbalanced data [112,113], which in our case is the Not Invaded class. On the contrary, K, TSS, SNS and PRC provide more robust results in the case of imbalanced data [109].
As observed for other Acacia species [43,49,114], also in our case, the huge number of yellow flowers allowed to effectively distinguish the IAP from the native vegetation background and soil features (e.g., very high values of K and TSS overall accuracy and high SNS and PRC for A. saligna class). As can be seen in Figure 3, the results of the classifications during the flowering period shows a similar extent of invasion of A. saligna, with large and compact patches. On the contrary, the classifications in the pre-flowering period resulted in less compact and fragmentated patches (low values of K, TSS and SNS).
This distinctive phenological characteristic is well captured by the HIS variables and in particular by Hue and Saturation, whereas the maps based on RGB variables showed moderate values of SNS (<60%), demonstrating their lower effectiveness for A. saligna classification (Figure 5). The yellow color of A. saligna flowers assume very high values of Saturation or purity of color and very low values of Hue or dominant color (Figure 5, Supplementary Materials Figure S1). During the blooming peak, Acacia flowers assume an almost pure yellow color, which make them distinguishable from the background (Figure 5) [115,116].
Notice that on costal dunes also some native herbaceous species have yellow flowers (e.g., Medicago marina, Lotus cytisoides, Ononis variegata) in a similar blooming period. Still, unlike the analyzed IAP, these native species present low cover and occur on the herbaceous layer, characteristic easily detected by DSM [110,117]. Furthermore, DSM assumed a considerable importance on the classification of pre-flowering images, depicting the differences in height and canopy of A. saligna and dune natural vegetation [118]. However, all classifications slightly distinguished the A. saligna polygons in the pre-flowering period, as evinced by low values of K, TSS, PRC and in particular of SNS. These low values could be due either to large variability of coloration in the leaves of A. saligna and/or RGB values similar to native coastal dune vegetation in particular woody and scrubs vegetation.
The inclusion of NDVI in the variables stack for classification of pre-flowering and flowering images does not improve map accuracy. As observed for other invasion processes (e.g., Phragmites australis, Fallopia japonica) NDVI plays a secondary role on A. saligna mapping which is even weaker on classifications based on blooming UAV images [110,119].
Such results are particularly important as using a simple RGB sensor mounted on an UAV reduces costs and computational efforts [24,120,121] allowing to optimize time and economic commitment necessary for detecting and mapping invasive species in complex environments as coastal dunes. In the light of our findings, we can affirm that UAV images taken with a RGB sensor and converts with HIS variables during the blooming period could represent a sound support for IAPs detection and mapping also in complex and dynamic environments, supporting the prioritization of the concrete actions claimed by the EU IAS Regulation 1143/2014 [43,122].
Data collection and classification approach adopted in this study are easily repeatable and can be extended to map invaded coastal areas by A. saligna on other regions and environmental conditions. In this context, UAV images are good candidates for becoming a fundamental instrument for IAPs detection as well as for monitoring their invasion status over time [29,30,122,123].
Notice that the multirotor quadcopter used in this study limited the spatial extension of the obtained multispectral images. On the other hand, the higher autonomy of fixed wing UAV acquiring RGB images allowed to cover wider areas [110,122,124] which in addition to the great effectiveness of DSM and HIS variables support this sensor as the best candidate for A. saligna mapping and monitoring on coastal areas.

5. Conclusions

In this work, we used an approach based on UAV data to detect and map A saligna invasion on a dynamic and heterogeneous coastal dunes landscape. Actually, mapping IAPs on these ecosystems can be a major challenge and cannot rely only on satellite images due to some limitations (e.g., course spatial resolution, high cost, errors in georeferencing). For example, the existing freely available RS data (e.g., Landsat, Sentinel, or Planet Scope) have high—medium spatial resolution which are not often suitable for depicting the fine—grain of coastal landscape mosaic, while higher spectral resolution data can attain higher costs (e.g., World View, Quick Bird, IKONOS, Pléiades, or LiDAR). In addition, the accurate detection of invasive species requires data with very high temporal resolution to capture the different phenological phases that would help to distinguish such species from the natural vegetation. In our work, we have demonstrated that the timing of data collection is crucial for mapping A. saligna since the inflorescence, which remain yellow only for few weeks, effectively helped to classify the species.
The proposed UAV approach is cost–effective and suited for providing high spatial and temporal resolution data for IAPs detection and mapping on coastal landscapes; however, due to technical constraints of the UAV technology (i.e., capability of batteries, surveying restrictions) it is eligible only for mapping relatively small areas. Further efforts should be devoted to harmonizing UAV ultra-high spatial resolution data covering small extents with RS medium—high spatial resolution data but covering wider areas. An effort on identifying adequate upscaling procedures able to extrapolate similar information from local to regional and national scales are needed. The proposed GEOBIA approach for IAPs detection and mapping on coastal dunes could help to define improved protocol for IAPs monitoring and for prioritizing conservation actions in these dynamic and highly vulnerable landscapes.
Our results evidenced the great potential of UAV images and in particular the transformation of RGB images to the HIS model, for producing accurate maps of A. saligna also in complex and dynamic coastal dunes landscapes, offering a sound support to the prioritization of conservation and management actions claimed by the EU IAS Regulation 1143/2014. The utilization of innovative RS data on LTER sites offers further insights for improving monitoring efforts, thus optimizing the resources and time devoted to managing IAPs. The extension of the proposed approach to the wider LTER observation network could be a good opportunity to provide a monitoring tool in these areas with low spatial extensions but with high conservation value.

Supplementary Materials

The following are available online at, Figure S1: Boxplot representing the values of RS variables (DSM, Red, Green, Blue, NDVI, Hue, Intensity, Saturation) extracted from the training dataset for the Acacia saligna invaded and Not Invaded classes during the pre-flowering (a) and flowering (b) periods. Asterisk indicate significant differences according to the Wilcoxon Signed Rank test (significance levels * < 0.05, ** < 0.01, *** < 0.001, **** < 0.0001).

Author Contributions

All authors contributed substantially to the work: F.M., L.F. and M.L.C. conceived and designed the study; F.M., L.F. and W.D.S. collected the data; F.M., L.F. and M.L.C. analyzed the data; F.M., L.F. and M.L.C. led the writing of the manuscript; A.T.R.A., A.R.F. and M.L.C. supervised the research. All authors contributed critically to the drafts and gave final approval for publication. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.


This study was carried out with a support of the bilateral program Italy–Israel DERESEMII (Developing state–of–the–art remote sensing tools for monitoring the impact of invasive plant), and the Interreg Italia—Croazia CASCADE (CoAStal and marine waters integrated monitoring systems for ecosystems proteCtion AnD management—Project ID 10255941). The Grant of Excellence Departments, MIUR—Italy (ARTICOLO 1, COMMI 314-337 LEGGE 232/2016) is also gratefully acknowledged. We are grateful at the Long—Term Ecological Research (LTER) and LTER—Italia. We are grateful for ArcheDigital s.r.l. in particular Simone Gianolio for cooperation and consultation during the UAV flights. Furthermore, the authors acknowledge Silvia Cascone and Francesco Pio Tozzi, for the help given during the acquisition of UAV images.

Conflicts of Interest

The authors declare no conflict of interest.
