# Impact of GPS/BDS Satellite Attitude Quaternions on Precise Point Positioning with Ambiguity Resolution

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. PPP Model at Network and User Ends

## 3. Data Processing

## 4. Impact on Integer Clock Products

## 5. Daily Kinematic Solutions of PPP-AR

## 6. Discussion

## 7. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Zumberge, J.F.; Heflin, M.B.; Jefferson, D.C.; Watkins, M.M.; Webb, F.H. Precise point positioning for the efficient and robust analysis of GPS data from large networks. J. Geophys. Res. Solid Earth
**1997**, 102, 5005–5017. [Google Scholar] [CrossRef] [Green Version] - Bisnath, S.; Gao, Y. Current state of precise point positioning and future prospects and limitations. In Observing Our Changing Earth; Springer: Berlin/Heidelberg, Germany, 2009; pp. 615–623. [Google Scholar]
- Cai, C.; Gao, Y.; Pan, L.; Zhu, J. Precise point positioning with quad-constellations: GPS, BeiDou, GLONASS and Galileo. Adv. Space Res.
**2015**, 56, 133–143. [Google Scholar] [CrossRef] - Liu, T.; Chen, H.; Chen, Q.; Jiang, W.; Laurichesse, D.; An, X.; Geng, T. Characteristics of phase bias from CNES and its application in multi-frequency and multi-GNSS precise point positioning with ambiguity resolution. GPS Solut.
**2021**, 25, 58. [Google Scholar] [CrossRef] - Guo, F.; Li, X.; Zhang, X.; Wang, J. The contribution of Multi-GNSS Experiment (MGEX) to precise point positioning. Adv. Space Res.
**2017**, 59, 2714–2725. [Google Scholar] [CrossRef] - Gabor, M.J.; Nerem, R.S. GPS carrier phase ambiguity resolution using satellite-satellite single differences. In Proceedings of the 12th International Technical Meeting of the Satellite Division of the Institute of Navigation (ION GPS 1999), Nashville, TN, USA, 14–17 September 1999; pp. 1569–1578. [Google Scholar]
- Geng, J.; Teferle, F.N.; Shi, C.; Meng, X.; Dodson, A.H.; Liu, J. Ambiguity resolution in precise point positioning with hourly data. GPS Solut.
**2009**, 13, 263–270. [Google Scholar] [CrossRef] [Green Version] - Ge, M.; Gendt, G.; Rothacher, M.; Shi, C.; Liu, J. Resolution of GPS carrier-phase ambiguities in Precise Point Positioning (PPP) with daily observations. J. Geod.
**2008**, 82, 389–399. [Google Scholar] [CrossRef] - Collins, P.; Bisnath, S.; Lahaye, F.; Héroux, P. Undifferenced GPS ambiguity resolution using the decoupled clock model and ambiguity datum fixing. Navigation
**2010**, 57, 123–135. [Google Scholar] [CrossRef] [Green Version] - Laurichesse, D.; Mercier, F.; Berthias, J.P.; Broca, P.; Cerri, L. Integer ambiguity resolution on undifferenced GPS phase measurements and its application to PPP and satellite precise orbit determination. Navigation
**2009**, 56, 135–149. [Google Scholar] [CrossRef] - Hatch, R. The synergism of GPS code and carrier measurements. In Proceedings of the Third Geodetic Symposium on Satellite Doppler Positioning, Las Cruces, NM, USA, 8–12 February 1982; pp. 1213–1231. [Google Scholar]
- Melbourne, W.G. The case for ranging in GPS based geodetic systems. In Proceedings of the 1st International Symposium on Precise Positioning with the Global Positioning System, Rockville, MD, USA, 15–19 April 1985; pp. 373–386. [Google Scholar]
- Wübbena, G. Software developments for geodetic positioning with GPS using TI 4100 code and carrier measurements. In Proceedings of the 1st International Symposium on Precise Positioning with the Global Positioning System, Rockville, MD, USA, 15–19 April 1985; pp. 403–412. [Google Scholar]
- Loyer, S.; Banville, S.; Geng, J.; Strasser, S. Exchanging satellite attitude quaternions for improved GNSS data processing consistency. Adv. Space Res.
**2021**, 68, 2441–2452. [Google Scholar] [CrossRef] - Montenbruck, O.; Schmid, R.; Mercier, F.; Steigenberger, P.; Noll, C.; Fatkulin, R.; Kogure, S.; Ganeshan, A.S. GNSS satellite geometry and attitude models. Adv. Space Res.
**2015**, 56, 1015–1029. [Google Scholar] [CrossRef] [Green Version] - Bar-Sever, Y. Improvement to the GPS Attitude Control Subsystem Enables Predictable Attitude During Eclipse Seasons; IGS Central Bureau, Jet Propulsion Laboratory: Pasadena, CA, USA, 1994; IGSMAIL-0591. [Google Scholar]
- Bar-Sever, Y. Performance Evaluation of the GPS Yaw Bias Implementation. In Proceedings of the 8th International Technical Meetings of the Satellite Division of the Institute of Navigation, Palm Springs, CA, USA, 12–15 September 1995; pp. 599–611. [Google Scholar]
- Bar-Sever, Y.; Information Regarding Block IIR Modeling. IGSMAIL-1653. 1997. Available online: http://igscb.jpl.nasa.gov/mail/igsmail/1997/msg00151.html (accessed on 24 June 2021).
- Dilssner, F. GPS IIF-1 satellite, antenna phase center and attitude modeling. Inside GNSS
**2010**, 5, 59–64. [Google Scholar] - Dilssner, F.; Springer, T.; Enderle, W. GPS IIF yaw attitude control during eclipse season. In Proceedings of the AGU Fall Meeting, San Francisco, CA, USA, 5–9 December 2011; Available online: http://acc.igs.org/orbits/yaw-IIF_ESOC_agu11.pdf (accessed on 24 June 2021).
- Steigenberger, P.; Thoelert, S.; Montenbruck, O. GPS III Vespucci: Results of half a year in orbit. Adv. Space Res.
**2020**, 66, 2773–2785. [Google Scholar] [CrossRef] - Lou, Y.; Liu, Y.; Shi, C.; Yao, X.; Zheng, F. Precise orbit determination of BeiDou constellation based on BETS and MGEX network. Sci. Rep.
**2014**, 4, 4692. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Dai, X.; Ge, M.; Lou, Y.; Shi, C.; Schuh, H. Estimating the yaw-attitude of BDS IGSO and MEO satellites. J. Geod.
**2015**, 89, 1005–1018. [Google Scholar] [CrossRef] - Xia, F.; Ye, S.; Chen, D.; Jiang, N. Observation of BDS-2 IGSO/MEOs yaw-attitude behavior during eclipse seasons. GPS Solut.
**2019**, 23, 3. [Google Scholar] [CrossRef] - Lin, X.; Lin, B.; Liu, Y.; Xiong, S.; Bai, T. Satellite Geometry and Attitude Mode of BeiDou-3 MEO satellites Developed by SECM. In Proceedings of the 31th International Technical Meeting of the Satellite Division of the Institute of Navigation (ION GNSS+ 2018), Miami, FL, USA, 24–28 September 2018; pp. 1268–1289. [Google Scholar]
- Wang, C.; Guo, J.; Zhao, Q.; Liu, J. Yaw attitude modeling for BeiDou I06 and BeiDou-3 satellites. GPS Solut.
**2018**, 22, 117. [Google Scholar] [CrossRef] - GSA. Galileo Satellite Metadata. 2021. Available online: https//www.gsc-europa.eu/support-to-developers/galileo-satellite-metadata (accessed on 24 June 2021).
- Banville, S.; Geng, J.; Loyer, S.; Schaer, S.; Springer, T.; Strasser, S. On the interoperability of IGS products for precise point positioning with ambiguity resolution. J. Geod.
**2020**, 94, 10. [Google Scholar] [CrossRef] - Loyer, S.; Banville, S.; Perosanz, F.; Mercier, F. Disseminating GNSS satellite attitude for improved clock correction consistency. In Proceedings of the 2017 IGS Workshop, Paris, France, 3–7 July 2017; Available online: https://www.researchgate.net/publication/318542441_Disseminating_GNSS_attitude_for_improved_clock_correction_consistency (accessed on 24 June 2021).
- Geng, J.; Yang, S.; Guo, J. Assessing IGS GPS/Galileo/BDS-2/BDS-3 phase bias products with PRIDE PPP-AR. Satell. Navig.
**2021**, 2, 17. [Google Scholar] [CrossRef] - Kouba, J.; Héroux, P. Precise point positioning using IGS orbit and clock products. GPS Solut.
**2001**, 5, 12–28. [Google Scholar] [CrossRef] - Johnston, G.; Riddell, A.; Hausler, G. The International GNSS Service. In Springer Handbook of Global Navigation Satellite Systems; Springer International Publishing: Berlin/Heidelberg, Germany, 2017; pp. 967–982. [Google Scholar]
- Dong, D.; Bock, Y. Global positioning system network analysis with phase ambiguity resolution applied to crustal deformation studies in California. J. Geophys. Res. Solid Earth
**1989**, 94, 3949–3966. [Google Scholar] [CrossRef] - Petit, G.; Luzum, B. IERS Conventions 2010; IERS Tech. Note 36; Verlag des Bundesamts für Kartographie und Geodäsie: Frankfurt am Main, Germany, 2010; Available online: https://www.iers.org/IERS/EN/Publications/TechnicalNotes/tn36.html (accessed on 24 June 2021).
- Wanninger, L.; Beer, S. BeiDou satellite-induced code pseudorange variations: Diagnosis and therapy. GPS Solut.
**2014**, 19, 639–648. [Google Scholar] [CrossRef] [Green Version] - Wu, J.T.; Wu, S.C.; Hajj, G.A.; Bertiger, W.I.; Lichten, S.M. Effects of antenna orientation on GPS carrier phase. Manuscr. Geod.
**1993**, 18, 91–98. [Google Scholar]

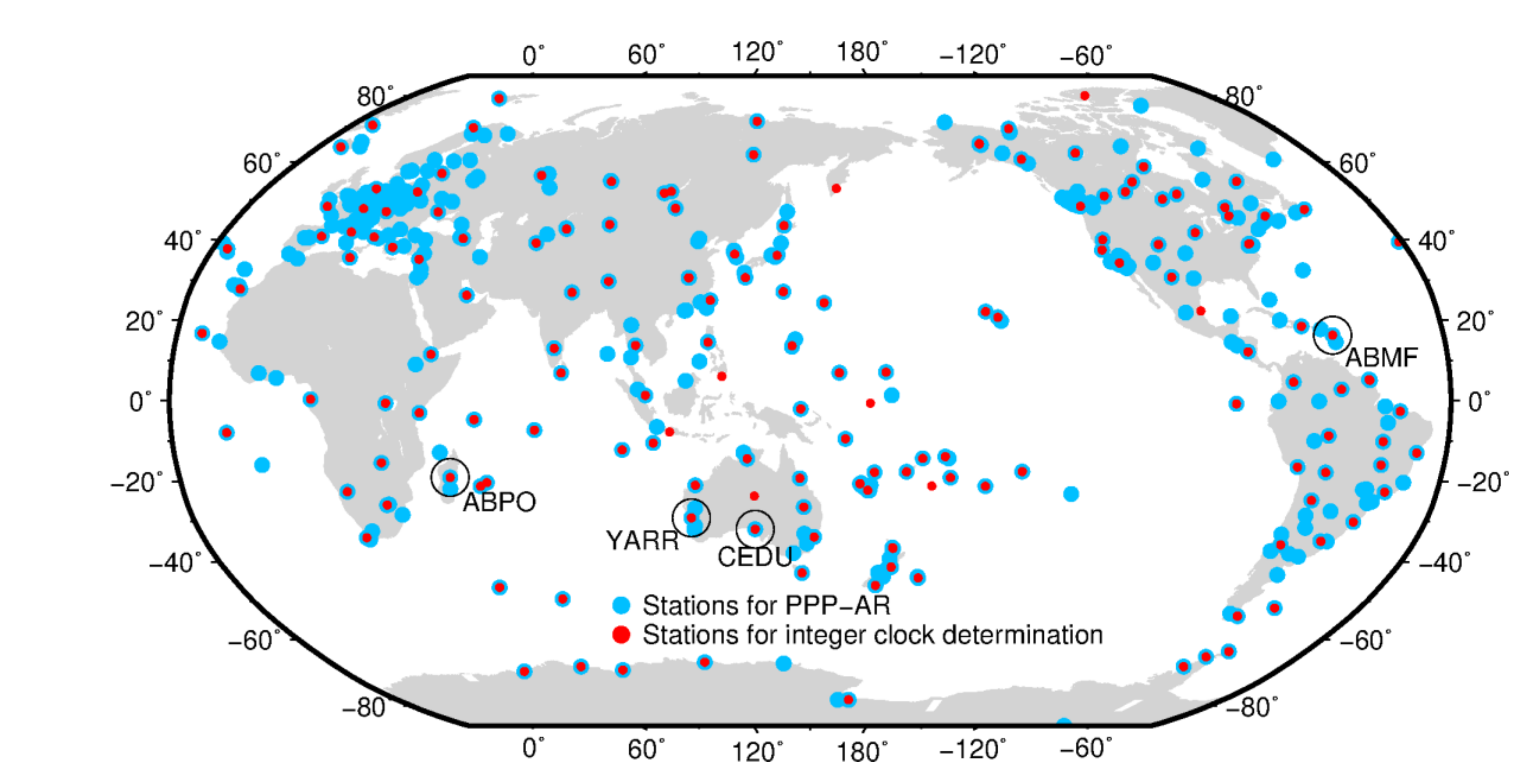

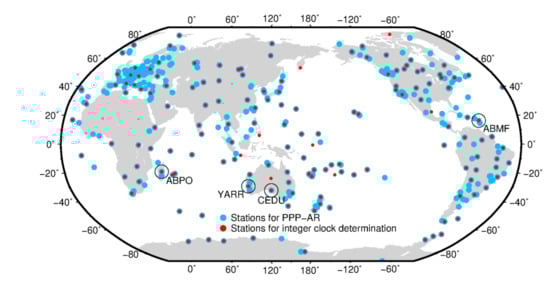

**Figure 1.**Distribution of used IGS stations. 184 stations (red dots) are used for integer clock products computation and 490 stations (blue dots) are used for PPP-AR experiments.

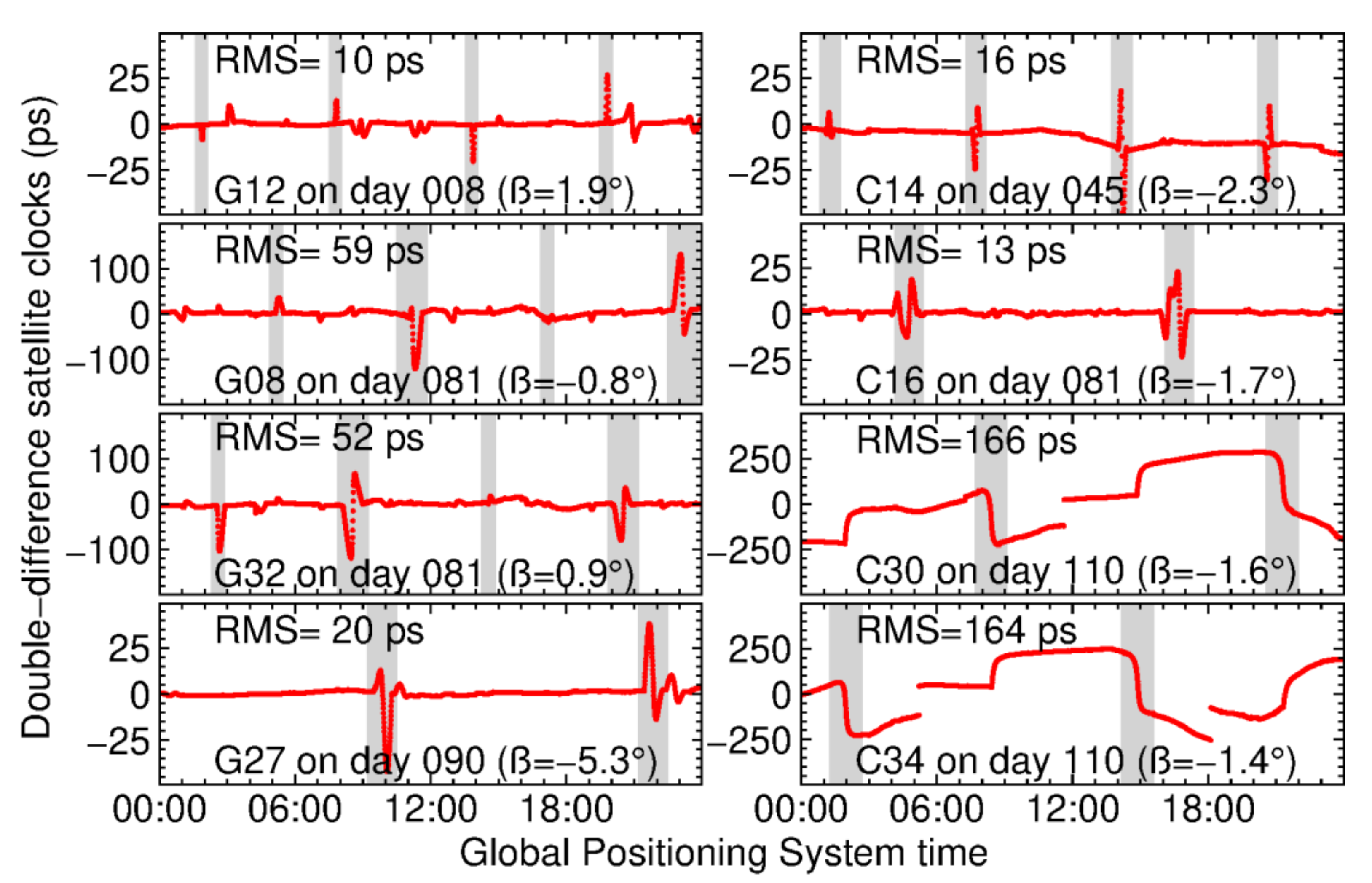

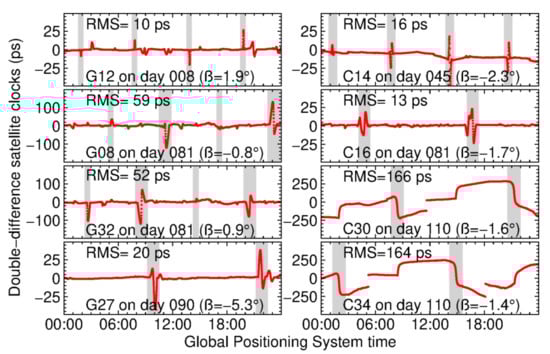

**Figure 2.**Time series of double-difference satellite clocks for satellites G08, G12, G27, G32, C14, C16, C30 and C34 in 2020. The reference satellites are G01 and C06 for GPS and BDS satellites, respectively. The red dots are the double-difference satellite clocks computed using the clocks based on nominal attitudes and attitude quaternions. The gray zones denote the eclipsing periods of corresponding satellites. The RMS error at the top part of a panel is for the eclipsing period. The average sun elevation angle for corresponding day is shown at the bottom part of a panel. Note that the different panels of the figure have different scales.

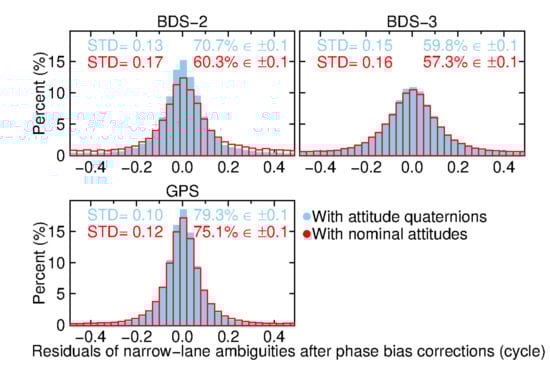

**Figure 3.**Distribution of GPS, BDS-2 and BDS-3 narrow-lane ambiguity residuals after correcting integer clock products from days 081 to 110 of 2020. The standard deviations of all residuals and the percentages of all within ±0.1 cycles are plotted at the top left and top right corners of each panel, respectively. The blue bar graphs are residuals after correcting integer clock products including the influence of the attitude quaternions; while the red bar graphs are those without the influence of the attitude quaternions or with the influence of nominal attitude.

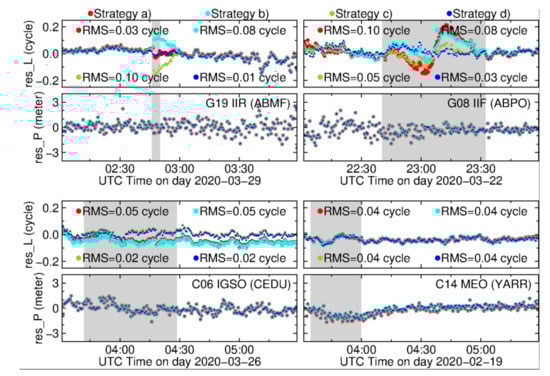

**Figure 4.**Carrier-phase and pseudorange residuals for different satellite types. Red, cyan, green and blue dots denote the residuals based on strategies (a), (b), (c) and (d), respectively. The gray zones denote the eclipsing periods of corresponding satellites.

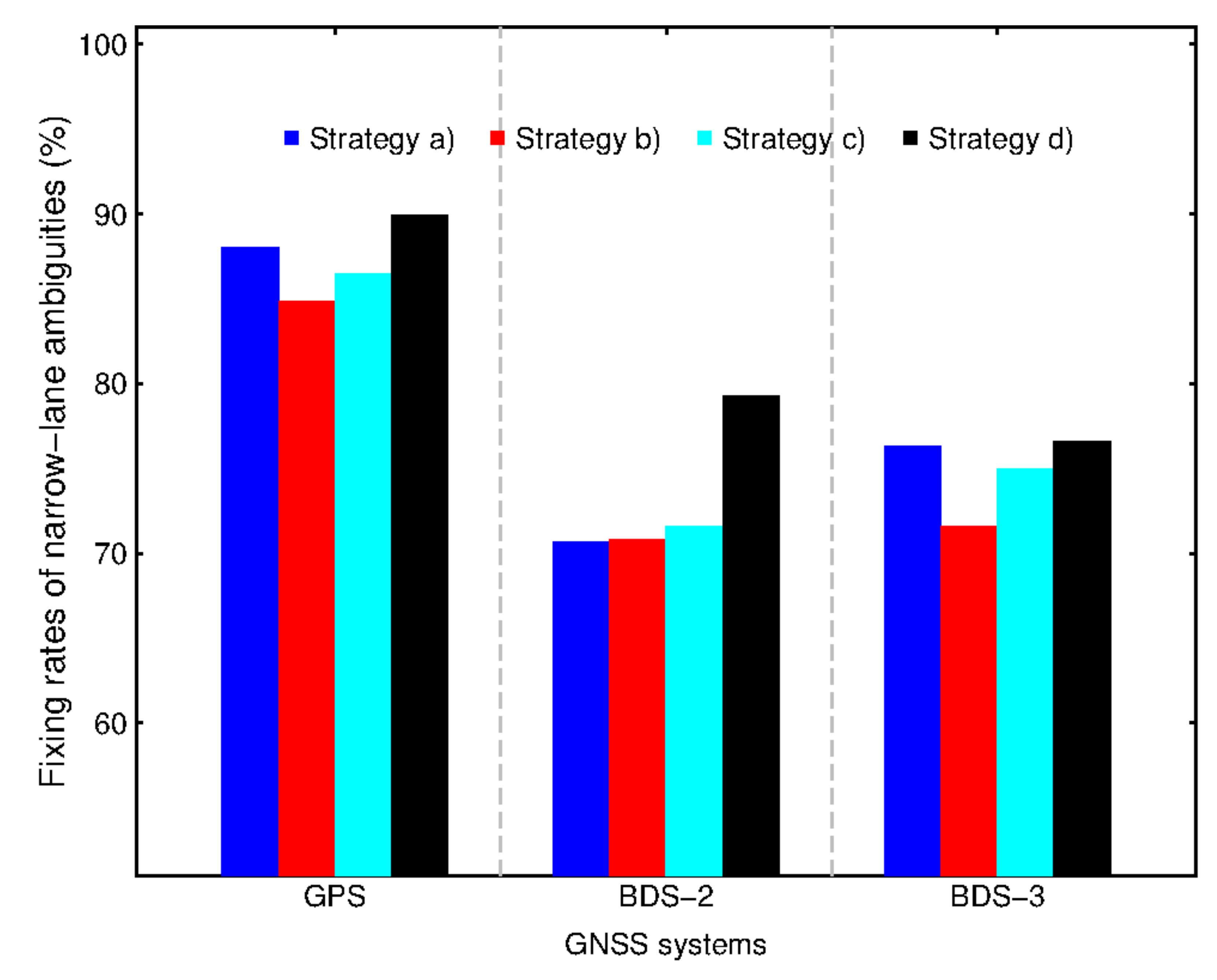

**Figure 5.**Narrow-lane ambiguity fixing rates (%) for daily kinematic solutions corresponding to four strategies on day 081 to 110, 2020.

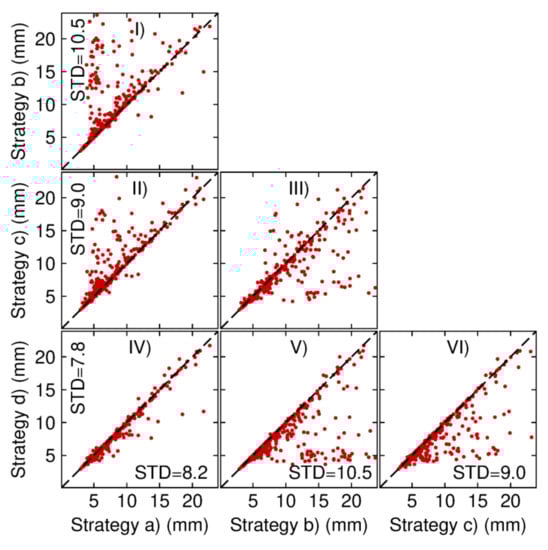

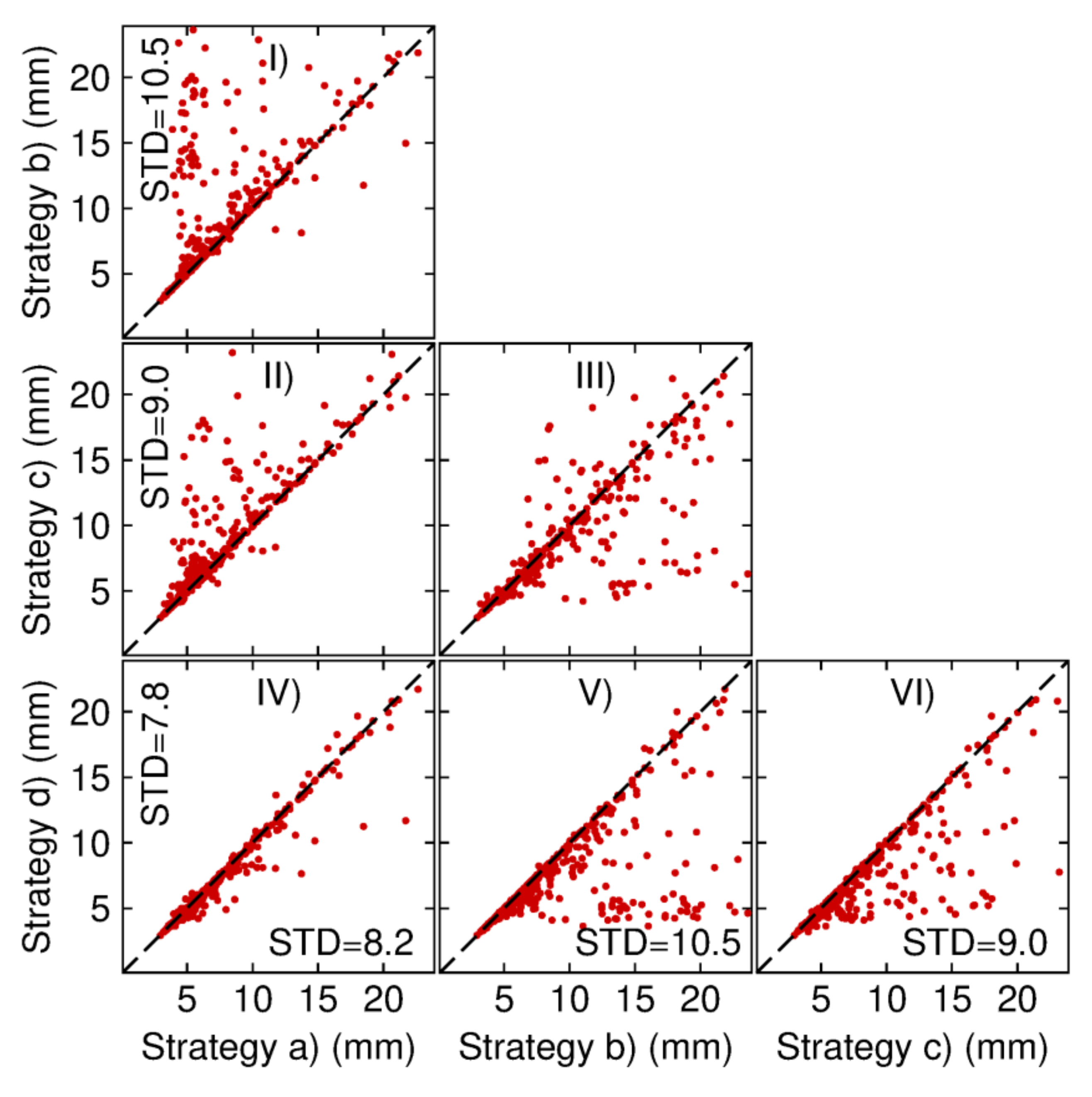

**Figure 6.**Ambiguity-fixed mean standard deviations of position errors comparison in the east direction between the daily kinematic PPP-AR solutions based on strategies (a), (b), (c) and (d). For I-VI panels, each panel denotes the comparison of two strategies. Each red dot denotes a station. The standard deviations along the horizontal and vertical axes are the mean values of all stations.

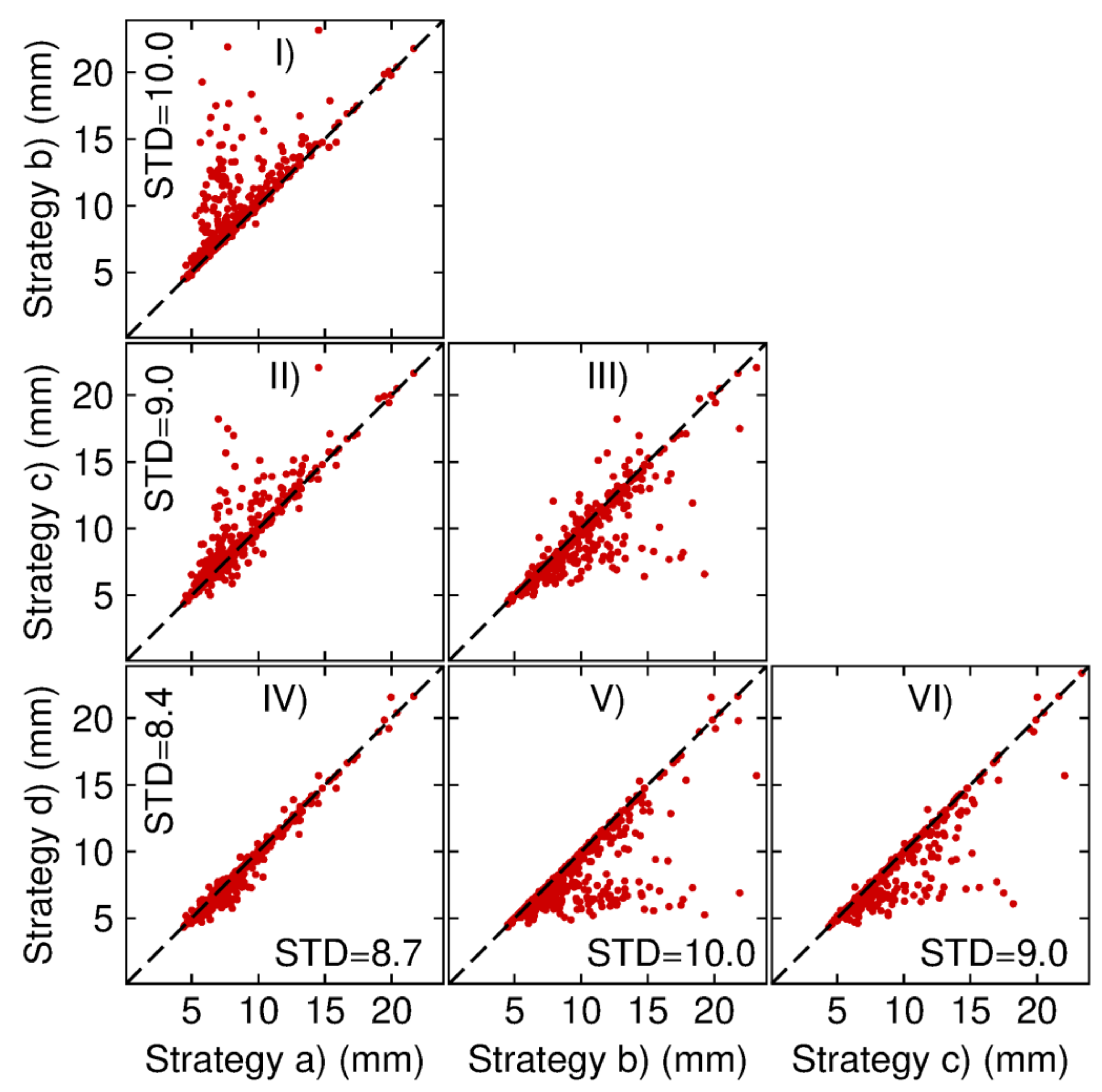

**Figure 7.**Ambiguity-fixed mean standard deviations of position errors comparison in the north direction between the daily kinematic PPP-AR solutions based on strategies (a), (b), (c) and (d). For I-VI panels, each panel denotes the comparison of two strategies.

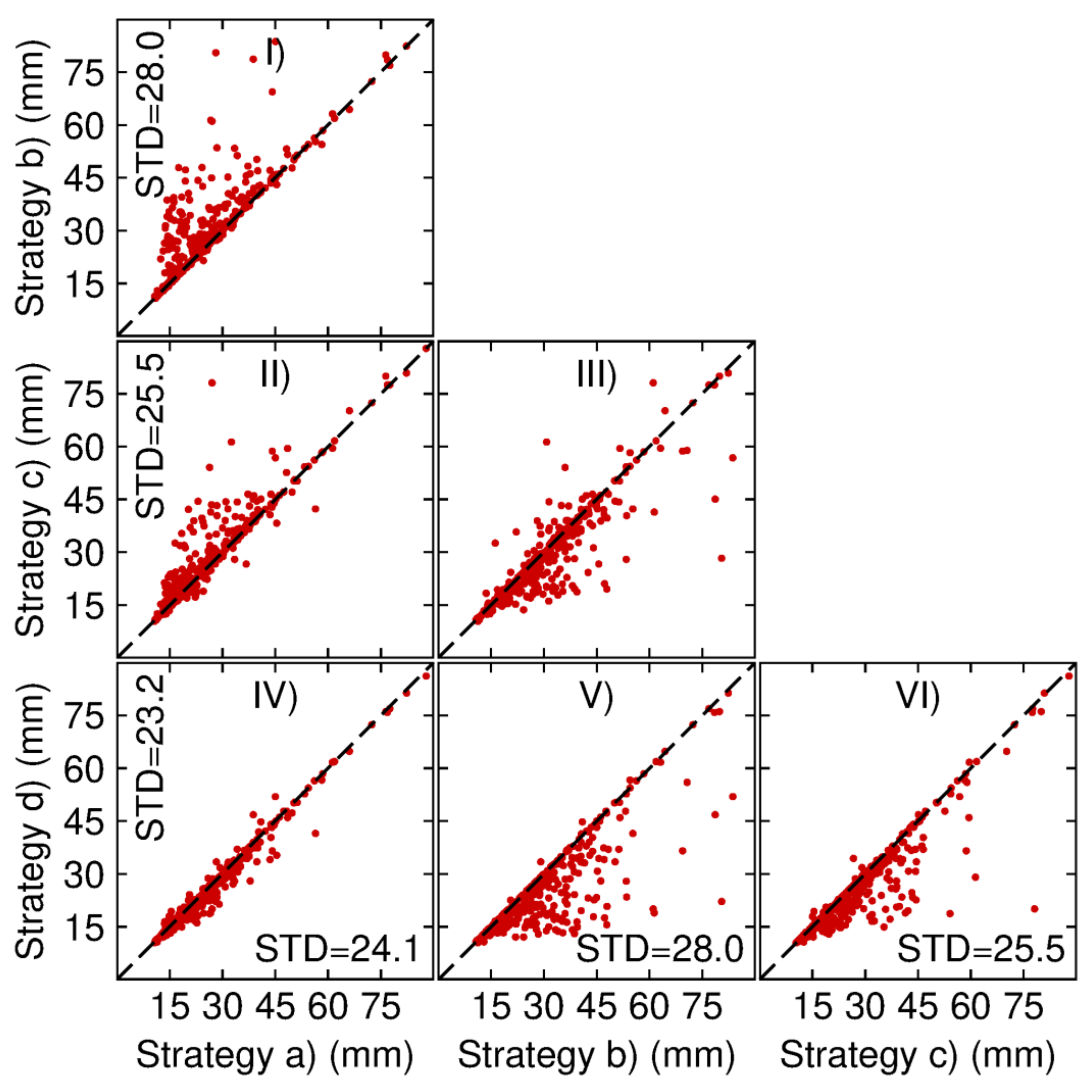

**Figure 8.**Ambiguity-fixed mean standard deviations of position errors comparison in the up direction between the daily kinematic PPP-AR solutions based on strategies (a), (b), (c) and (d). For I-VI panels, each panel denotes the comparison of two strategies.

Items | Strategies |
---|---|

Observables | Ionosphere-free combination |

Cut-off elevation | 7° |

Sampling rate | 30 s |

Weighting | Elevation-dependent for satellites;Equally weighted for GNSS |

Solid Earth tide, ocean tidal loading, pole tide | IERS conventions 2010 [34] |

Nadir-dependent pseudorange biases of BDS-2 | Corrected [35] |

Phase center offsets/variations | igs14.atx |

Phase wind-up | Corrected [36] |

Satellite attitude | Nominal attitude: Corrected by nominal attitude modelAttitude quaternions: WUM rapid products |

Earth rotation parameters | WUM rapid products |

Precise satellite orbits | WUM rapid products |

Precise satellite clocks | WUM rapid products |

Position coordinates | estimated as white-noise like parameter at each epoch |

Receiver clocks | estimated as white-noise like parameter per epoch for each GNSS system |

Zenith tropospheric delays | Piece-wise constants per hour |

Horizontal tropospheric gradients | Piece-wise constants per 12 h |

Ambiguities | Real-valued constants for each continuous arc |

Network End | User End | |
---|---|---|

Strategy (a) | Using nominal attitude | Using nominal attitude |

Strategy (b) | Using attitude quaternions | Using nominal attitude |

Strategy (c) | Using nominal attitude | Using attitude quaternions |

Strategy (d) | Using attitude quaternions | Using attitude quaternions |

**Table 3.**Mean standard deviations (mm) of position errors for kinematic solutions on day 081 to 110, 2020.

Strategy Names | Float Solutions in Different Directions (mm) | Fixed (mm) | Improvement (%) |
---|---|---|---|

E/N/U | E/N/U | E/N/U | |

Strategy (a) | 11.0/9.7/25.9 | 8.2/8.7/24.1 | 25.5/10.3/6.9 |

Strategy (b) | 13.4/11.1/29.4 | 10.5/10.0/28.0 | 21.6/9.9/4.8 |

Strategy (c) | 12.2/10.2/27.3 | 9.0/9.0/25.5 | 26.2/11.8/6.6 |

Strategy (d) | 10.3/9.3/24.6 | 7.8/8.4/23.2 | 24.3/9.7/5.7 |
