Modified Linear Scaling and Quantile Mapping Mean Bias Correction of MODIS Land Surface Temperature for Surface Air Temperature Estimation for the Lowland Areas of Peninsular Malaysia

Abstract

MODIS land surface temperature data (MODIS T_s) products are quantified from the earth surface’s reflected thermal infrared signal via sensors onboard the Terra and Aqua satellites. MODIS T_s products are a great value to many environmental applications but often subject to discrepancies when compared to the air temperature (T_a) data that represent the temperature measured at 2 m above the ground surface. Although they are different in their nature, the relationship between T_s and T_a has been established by many researchers. Further validation and correction on the relationship between these two has enabled the estimation of T_a from MODIS T_s products in order to overcome the limitation of T_a that can only provide data in a point form with a very limited area coverage. Therefore, this study was conducted with the objective to assess the accuracy of MODIS T_s products, i.e., MOD11A1, MOD11A2, MYD11A1, and MYD11A2 against T_a and to identify the performance of a modified Linear Scaling using a constant and monthly correction factor (LS-MBC), and Quantile Mapping Mean Bias Correction (QM-MBC) methods for lowland area of Peninsular Malaysia. Furthermore, the correction factor (CF) values for each MBC were adjusted according to the condition set depending on the different bias levels. Then, the performance of the pre- and post-MBC correction for by stations and regions analysis were evaluated through root mean square error (RMSE), percentage bias (PBIAS), mean absolute error (MAE), and correlation coefficient (r). The region dataset is obtained by stacking the air temperature (T_{a_r}) and surface temperature (T_{s_r}) data corresponding to the number of stations within the identified regions. The assessment of pre-MBC data for both 36 stations and 5 regions demonstrated poor correspondence with high average errors and percentage biases, i.e., RMSE = 3.33–5.42 °C, PBIAS = 1.36–12.07%, MAE = 2.88–4.89 °C, and r = 0.16–0.29. The application of the MBCs has successfully reduced the errors and bias percentages, and slightly increased the r values for all MODIS T_s products. All post-MBC depicted good average accuracies (RMSE and MAE < 3 °C and PBIAS between ±5%) and r between 0.18 and 0.31. In detail, for the station analysis, the LS-MBC using monthly CF recorded better performance than the LS-MBC using constant CF or the QM-MBC. For the regional study, the QM-MBC outperformed the others. This study illustrated that the proposed LS-MBC, in spite of its simplicity, managed to perform well in reducing the error and bias terms of MODIS T_s as much as the performance of the more complex QM-MBC method.

1. Introduction

Air temperature (T_a) is one of the parameters measured at meteorological station. By a standard, T_a is measured 2 m above the ground surface to represent the surrounding air temperature. T_a has been widely used in various fields of study such as monitoring of temperature trend [1], global warming [2], crop yield modelling [3], and urban planning [4]. Although T_a measured at meteorological station is highly accurate and has high temporal frequency, the data provided are dedicated for a point location of the meteorological stations. Hence, T_a can only portray the temperature at a local scale and is unable to describe heterogeneous temperature over a large area. This is worsened by the sparse distribution of meteorological stations due to limitations such as topography and operational cost. Since temperature studies for vast and continuous areas are important for many climatic-related applications, numerous studies have been carried out in attempts to solve this limitation, mainly via interpolation of the air temperature data from different localities. However, given the inconsistent distance between weather stations and poorly distributed locations between each retrieval station, the accuracy of the interpolated T_a is often compromised [5].

The limitation imposed by the weather stations could be overcome with remotely sensed land surface temperature (LST) data that comes in spatially wide coverages with high temporal resolution. LST measures the skin temperature that is based on the radiations reflected from the earth surface and detected by satellite sensors. The radiation observed are largely controlled by the type of land surface and atmospheric condition such as air temperature, solar radiation, and cloud condition [6,7]. The launch of Moderate Resolution Imaging Spectroradiometer (MODIS) sensors on board of Terra and Aqua satellite has enabled remotely sensed day and night-time skin temperature data to be retrieved daily and every 8-days at 1 km resolution. The Terra satellite provides skin temperature data known as MOD11A1 (daily) and MOD11A2 (every 8-days) at acquisition times approximately 10:30 a.m. and 10:30 p.m. local time, while the Aqua satellite measures skin temperature data known as MYD11A1 (daily) and MYD11A2 (every 8-days) at acquisition times approximately 1:30 a.m. and 1:30 p.m. local time. These skin temperature data are calculated from band 31 (10.78–11.28 µm) and 32 (11.77–12.27 µm), which are designated for skin temperature.

Since these MODIS LST (T_s) products can provide temperature data for mixed elements of targeted earth’s land surface [8], they have been a great input in many environmental applications such as hydrology [9], agriculture [10], ecology [11], drought [12], evapotranspiration [13], and soil moisture estimation [14]. Although T_s can provide high spatial and temporal temperature data, it suffers from data uncertainty and should be assessed for accuracy; the quality of the day T_s is highly dependent on the radiant temperature of the land surface elements, seasonality [15], and the atmospheric condition of particular days [16]. Day T_s is more complex than the night T_s because the former is acquired from a mix 1 km² targeted earth surface that are much affected by solar radiation and other factors [17,18]. Additionally, Zhang et al. [19] revealed that presence of clouds or mixed clouds-earth surface tended to distort minimum and maximum T_a estimations.

Prior to utilization of T_s to estimate T_a values, researchers such as Jin and Dickinson [6], Simó et al. [20], and Sobrino et al. [21] suggested that the complex relationship between both temperatures need to be understood. The vital difference between the T_s and T_a is that both are measured at certain different heights from the earth surface. While T_a is recorded at 2 m above an open cleared land, day T_s is acquired from a mix 1 km² targeted earth surface, and prone to wind and solar radiation interference. Furthermore, estimation of T_a from T_s data is also affected by the changes in elevation. Phan et al. [22] revealed that with every increase in elevation by 1000 m, T_s value would drop by 3.8 to 6.1 °C for night T_s and 1.5 to 5.8 °C for day T_s.

Many studies had indicated the performance of MODIS T_s to estimate T_a in various regions of the world. For instance, Lu et al. [23] conducted a comparison between day-time daily T_s with in-situ data for arid area in Northwest China. The finding disclosed that the relationship between both data varied accordingly to seasonality and weather conditions with RMSE between 2.39 and 3.05 °C. Furthermore, Marques da Silva et al. [24] evaluated the performance of accumulated monthly MODIS-derived T_s against the accumulated monthly T_a, in continental and near sea regions of Portugal. It was discovered that both data were highly linearly related to each other with R² > 0.98. In addition, Zhang et al. [25] reported that the MAE between MODIS-derived T_s to maximum T_a was between 2.8 and 4.1 °C, whereby these values were highly affected given the presence of partial cloud covered pixels. Moreover, El Kenawy et al. [15] in a study to compare day T_s against maximum and minimum T_a in Egypt reported an overestimation with an average of 5 °C according to different seasons. The difference was the highest during the summer and lowest during the winter, while comparison between the night T_s against the min T_a demonstrated low over-/underestimations with an average lower than 1.5 °C according to different seasons.

Apart from evaluating the T_s products accuracy, many researchers have dedicated their efforts into applying various T_s to T_a correction methods. Benali et al. [26] applied statistical models and MODIS T_s to accurately estimate maximum, minimum, and average T_a data of 106 meteorological stations in Portugal for 10 years (2000–2009) period. The study revealed that T_a could be accurately estimated from MODIS T_s with RMSE between 1.83 and 1.74 °C. Furthermore, Huang et al. [10] estimated and mapped daily mean T_a of 23 meteorological stations from T_s using a linear calibration method for data range from 2003 to 2011. The proposed model was able to estimate T_a with RMSE and MAE of 2.41 and 1.84 °C, respectively. In another study, Zhu et al. [27] incorporated the temperature-vegetation index method into the estimation of T_a from day T_s over Xiangride river basin at north Tibetan Plateau. The method was able to improve the estimation of maximum T_a from day T_s with RMSE and MAE of 3.79 and 3.03 °C from 7.45 and 6.21 °C, respectively. Williamson et al. [28] developed an interpolated curve mean daily surface temperature (ICM) method that interpolates MOD11A1 data values by utilizing ground air temperature curves in southwest Yukon, Canada. Validation for the ICM method recorded R² and RMSE between 0.72–0.85 and 4.09–4.90 °C, respectively. Further south, Meyer et al. [29] conducted a study to map daily air temperature from spatial MODIS LST data using linear regression and machine learning approaches for Antarctica. The air temperatures from 32 weather stations and the MODIS products, i.e., MOD11A1 and MYD11A1 were used as the absolute and simulated data, respectively. The machine learning method (R² = 0.71 and RMSE = 10.51 °C) slightly outperformed the simple linear regression (R² = 0.64 and RMSE = 11.02 °C).

The T_s to T_a correction methods for regional study were also actively carried out by a number of researchers. The analysis at a regional scale has enabled a validated map of estimated T_a to be produced. Recently, Hereher and El Kenawy [30] made use of MYD11A2 to produce regional daytime, monthly, and annual surface air temperature map for Egypt using regression correlation and statistical significance analysis. Agreement between both daytime and monthly daytime LST data to air temperature data are R² = 0.87–0.95 and 0.77, respectively. It is reported that the produced gridded map with spatial resolution of 1 km (MODIS LST) can act as an effective tool to delineate a temperature variation throughout a region. Meanwhile, Rhee and Im [31] proposed a diurnal air temperature change model for air temperature estimation in South Korea regions with limited ground data. The model considered the sunrise, sunset, and solar noon times as the input parameters. Ground air temperature data retrieved from 60 weather stations and two MODIS LST data were used (MYD11A1 and MYD11A2) as the absolute and the simulated data, respectively. The model produced a monthly corrected air temperature estimation with MAE values between 1.73 and 1.86 °C.

Despite all the mentioned T_s to T_a correction methods above, mean bias correction method is one of the promising methods that has been widely used to correct Regional Climate Models’ (RCMs) simulated temperature data but are still not widely explored for MODIS LST application. Recently, Luo et al. [32] applied five bias correction methods, i.e., linear scaling (LS), daily translation (DT), variance scaling (VARI), distribution mapping (DM), and empirical quantile mapping (EQM) onto the Regional Climate Models’ (RCMs) simulated temperature and rainfall data with a reference to the ground meteorological data (1965–2005) for Kaidu River Basin in Xinjiang, China. The findings indicated that all the bias correction methods performed well and improved the RCMs data with MAE values = 0.76–0.89 °C, PBIAS = 0.20–0.00%, and R² = 0.99. A similar research was conducted by Fang et al. [33] in an arid area in northwestern China. Three bias correction methods were applied using daily data from 1975 to 2005 for RCM-simulated temperature data, i.e., LS, VARI, and DM. The monthly scaled bias correction approach for LS, VARI and DM were able to gain PBIAS between 3.04% and 4.78%, R² between 0.88 and 0.95, and MAE between 2.35 and 2.52 °C. Another similar research was done by Teutschbein and Seibert [34] in order to remove the bias from RCM-simulated temperature data using four bias correction method, i.e., LS, VARI, DM, and delta change. The evaluation was carried out for five catchments in Sweden using RCM temperature data from 1961 to 1990. All the bias correction method excepts the delta change resulted in MAE between 0.13 and 1.36 °C.

While many researchers have demonstrated the potential of day T_s to estimate T_a, most of the studies were conducted in temperate, non-equatorial regions. In light of this, we attempted to (1) evaluate the performance of four types of MODIS T_s products, namely, MOD11A1, MOD11A2, MYD11A1, and MYD11A2 for lowland area along east and west coast of Peninsular Malaysia. Our study is the first to conduct such a test for equatorial regions, which extend from 0° to 10° in the North as well as the South, and whose climate is characterized by hot and humid weather with moderate temperature range between 24 and 35 °C, high humidity (>80%), high rainfall distribution depending on the monsoonal seasons and high cloud cover throughout the year. Additionally, (2) we comparatively assessed the performance of two mean bias corrections (MBC) approaches, i.e., linear scaling (LS) and quantile mapping (QM), in improving the estimation of T_a from the four T_s products.

2. Materials and Methods

2.1. Study Area

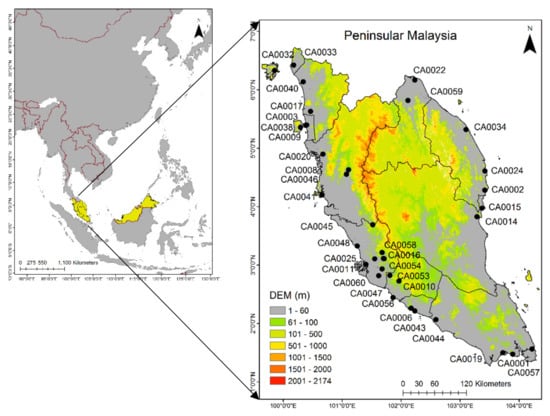

Peninsular Malaysia or also known as West Malaysia is located at the south end of Asia continental plate (Figure 1). It is geographically located between 1° N and 7° N and 99° E to 105° E. It is characterized by hot and humid tropics with temperature ranging between 23 and 35 °C, daily humidity levels exceeding 80%, and high rainfall and cloud cover throughout the year [35]. The weather characteristic is dependent on two monsoonal wind seasons, i.e., Southwest and Northeast monsoons and elevation. The Southwest monsoon outsets from June to September while the Northeast outsets from November to March, with the latter brings higher rainfall density than the former [35]. The coastal region is characterized by lowland regions, and there is an increase in elevation towards the center of peninsular, where mountain ranges such as the Titiwangsa, Benom and Tahan mountain ranges act as the backbone and separates between the eastern and western part. This geographic condition results in lower temperature towards the center of the peninsular compared to the coastal areas.

2.2. Data Collection

2.2.1. Ground Measurement

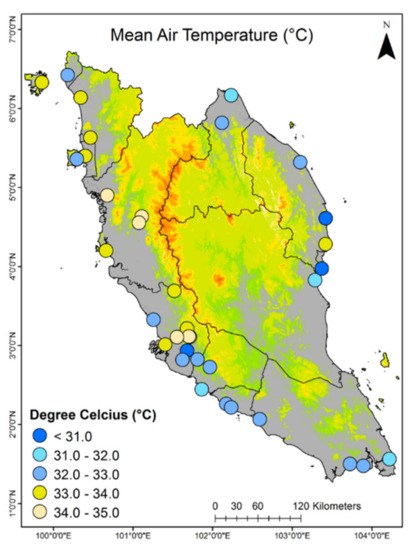

The ground measurements of air temperature (T_a) were collected from 36 automatic weather stations (AWS) belonging to Department of Environment (DOE) for year 2003 until 2016. The AWS provided three type of daily T_a, known as maximum, minimum, and average T_a. The maximum T_a is the maximum temperature and highly associated with the highest solar radiation during the day approximately at 11:00 a.m. until 2:00 p.m. [36] while the minimum T_a is the minimum temperature during the night of a particular day and the average T_a is the average temperature for the whole particular day. Nonetheless, for this study, only maximum T_a were utilized for further analysis due to its compatibility with day T_s which are acquired at approximately 10:30 a.m. and 1:30 p.m. local time. The AWSs are measured 2 m above open cleared ground and commonly located at the government facilities such as hospitals, government offices, and schools. Additionally, the AWSs location are located away from human activities on the land, i.e., agricultural activity, that may change the earth’s surface in order to ensure there are no drastic changes in the T_a readings. Figure 1 illustrate the location of AWSs in Peninsular Malaysia, while

Table 1. The AWS location and details.

No.	Station ID	Location	Latitude	Longitude	Altitude (m)
1	CA0001	Johor Bahru, Johor	N01° 28.225	E103° 53.637	22
2	CA0002	Kemaman, Terengganu	N04° 16.260	E103° 25.826	17
3	CA0003	Perai, Pulau Pinang	N05° 23.470	E100° 23.213	8
4	CA0006	Bukit Rambai, Melaka	N02° 15.510	E102° 10.364	18
5	CA0008	Ipoh, Perak	N04° 37.781	E101° 06.964	57
6	CA0009	Seberang Jaya, Pulau Pinang	N05° 23.890	E100° 24.194	8
7	CA0010	Nilai, Negeri Sembilan	N02° 49.246	E101° 48.877	49
8	CA0011	Klang, Selangor	N03° 00.620	E101° 24.484	0
9	CA0014	Indera Mahkota, Pahang	N03° 49.138	E103° 17.817	20
10	CA0015	Kuantan, Pahang	N03° 57.726	E103° 22.955	8
11	CA0016	Petaling Jaya, Selangor	N03° 06.612	E101° 42.274	38
12	CA0017	Sungai Petani, Kedah	N05° 37.886	E100° 28.189	12
13	CA0019	Larkin, Johor	N01° 29.815	E103° 43.617	49
14	CA0020	Taiping, Perak	N04° 53.940	E100° 40.782	7
15	CA0022	Kota Bahru, Kelantan	N06° 09.520	E102° 15.059	14
16	CA0024	Paka-Kerteh, Terengganu	N04° 35.880	E103° 26.096	12
17	CA0025	Shah Alam, Selangor	N03° 06.287	E101° 33.368	9
18	CA0032	Pulau Langkawi, Kedah	N06° 19.903	E099° 51.517	14
19	CA0033	Kangar, Perlis	N06° 25.424	E100° 11.046	6
20	CA0034	Kuala Terengganu, Terengganu	N05° 18.455	E103° 07.213	7
21	CA0038	USM, Pulau Pinang	N05° 21.528	E100° 17.864	14
22	CA0040	Alor Setar, Kedah	N06° 08.218	E100° 20.880	5
23	CA0041	Seri Manjung, Perak	N04° 12.038	E100° 39.841	7
24	CA0043	Bandaraya Melaka, Melaka	N02° 12.789	E102° 14.055	8
25	CA0044	Muar, Johor	N02° 03.715	E102° 35.587	9
26	CA0045	Tanjung Malim, Perak	N03° 41.267	E101° 31.466	49
27	CA0046	Ipoh, Perak	N04° 33.155	E101° 04.856	38
28	CA0047	Seremban, Negeri Sembilan	N02° 43.418	E101° 58.105	56
29	CA0048	Kuala Selangor, Selangor	N03° 19.592	E101° 15.532	0
30	CA0053	Presint 8, Putrajaya	N02° 55.915	E101° 40.909	28
31	CA0054	Cheras, Kuala Lumpur	N03° 06.376	E101° 43.072	42
32	CA0056	Port Dickson, Negeri Sembilan	N02° 26.458	E101° 51.956	25
33	CA0057	Kota Tinggi, Johor	N01° 33.50	E104° 13.31	15
34	CA0058	Batu Muda, Kuala Lumpur	N03° 12.748	E101° 40.929	45
35	CA0059	Tanah Merah, Kelantan	N05° 48.671	E102° 08.000	25
36	CA0060	Bukit Changgang, Selangor	N02° 49.001	E101° 37.381	7

tabulates the information in greater details. The AWSs are mainly distributed around the east and west coastal region of the peninsular, while the digital elevation model (DEM) highlights that the AWS are located at lowland region with elevation below than 60 m.

2.2.2. MODIS LST Product

Four MODIS LST products were used in this study: MOD11A1, MOD11A2, MYD11A1, and MYD11A2 with 1 km spatial resolution in a 1200 by 1200 km grid that were obtained from https://search.earthdata.nasa.gov/search (accessed on 2 January 2020). A total of 2 tiles data was used to cover Peninsular Malaysia with horizontal line 27 to 28 and vertical line 08 (H27V08 and H28V08). The data were downloaded from January 2003 until December 2016. The MOD11A1 and MOD11A2 were retrieved from the MODIS sensors onboard Terra satellite with the acquisition day-time at approximately 10:30 a.m. and night-time 10:30 p.m. for daily and 8-days composite data, respectively. Additionally, the MYD11A and MYD11A2 were retrieved from the MODIS sensors onboard Aqua satellite with the acquisition day-time at approximately 1:30 a.m. and 1:30 p.m. for daily and 8-days composite data, respectively.

2.3. Data Processing

2.3.1. Pre-Processing of T_a

The AWSs data were first pre-processed for outlier identification and removal using the boxplot outlier analysis [37], following Equations (1) and (2).

$$lowe{r}_{boundary}=Q1-1.5\left(Q3-Q1\right)$$

(1)

$$uppe{r}_{boundary}=Q3+1.5\left(Q3-Q1\right),$$

(2)

where $Q1$ and $Q3$ is the first and third quartile of the data. The extreme values exceeding these quartiles were masked out. Then, the 8-days average T_a data were calculated by averaging each 8-days of T_a data from 2003 until 2016. A total of 5113 daily T_a and 630 8-days T_a rows data were prepared for pairing with daily T_s and 8-days T_s, respectively. Figure 2 illustrates the mean T_a distribution from 2003 to 2016. The east coast region possessed lower mean T_a values than the west coast region, of which the center to northern part showed higher mean T_a than its southern counterpart.

2.3.2. Pre-Processing of T_s

The downloaded tiles were projected to WGS 1984 UTM Zone 47N and 48N. The original temperature in Kelvin (K) were then converted to degree Celsius (°C) according to Equation (3) [38].

$$T_s=0.02 T-273.15,$$

(3)

where $0.02$ is the scale factor, $T$ is the absolute temperature in Kelvin and $T_s$ is the land surface temperature in °C. Cloud-contaminated pixels were identified using boxplot outlier analysis as in Equations (1) and (2). On the average, high numbers of the cloud-contaminated pixels showed unreasonably low temperature value that was less than 15 and 10 °C for lowland and highland region, respectively. The pixels with extreme values were removed and consequently, resulted in the missing data values. Further, the T_s at the same location with the AWSs was extracted and the available pixels of T_s and T_a of the same locality were paired.

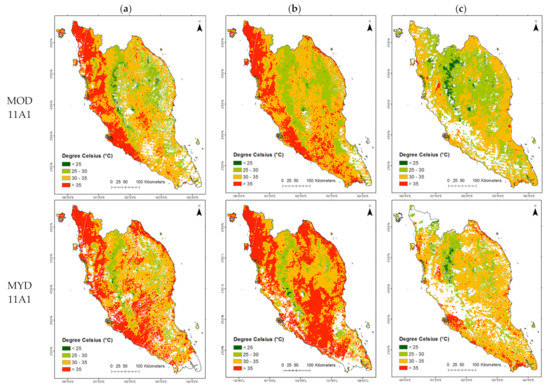

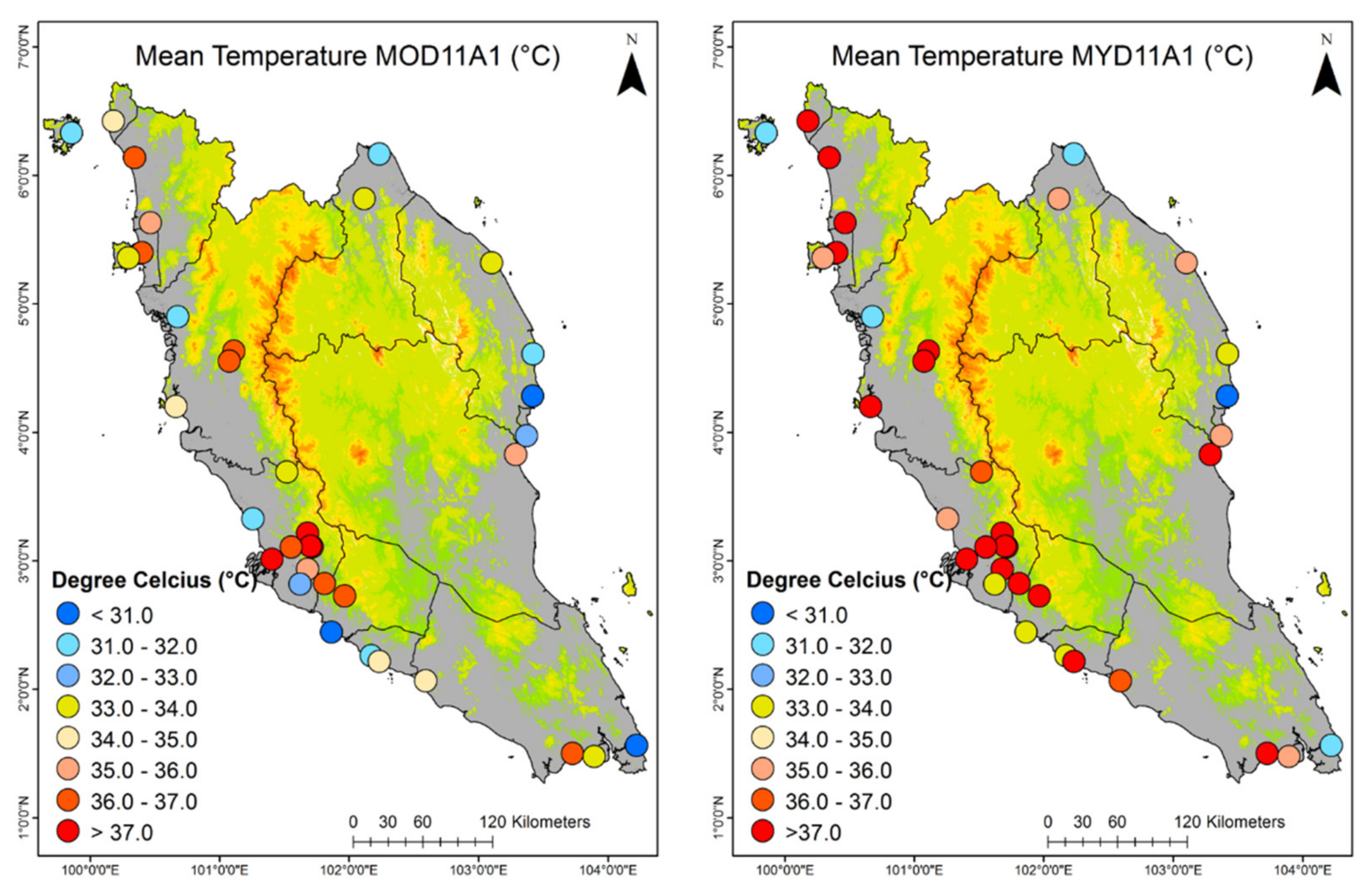

Figure 3 illustrates the map of T_s distribution in Peninsular Malaysia for clear days on 30 March 2016, 9 March 2014, and 14 June 2012 whereby the T_s were able to depict the heterogeneity of surface temperature for the Peninsular Malaysia, despite presence of white patches indicating the missing data; mostly because of cloud cover. The images reflect that T_s are highly associated with elevation: towards the center region of Peninsular Malaysia where the mountain ranges are located at, and the temperatures are lower compared to the coastal region. Besides, the east coast region reflects lower temperatures range than the west coast, because of the Northeast monsoon that outsets from November until March each year bringing heavy rains on the east coast region and results in lower surface temperature. In general, the MOD11A1 product depicts a lower temperatures range than the MYD11A1 due to the acquisition time of MODIS sensors onboard of Terra and Aqua.

2.4. Region Delineation

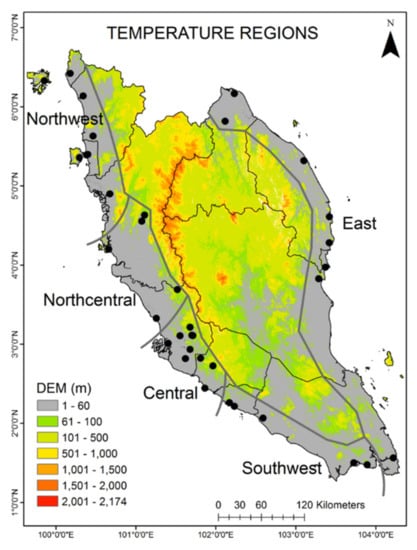

To portray the heterogenous nature of T_a, the estimation of T_a from T_s at a regional scale is necessary. Besides the analysis for each station, the analysis is also carried out for specific climatic regions outlined following Suhaila and Yusop [39]. The determination of the boundary for each region is based from the temperature and rainfall trends and the geographic condition of Peninsular Malaysia. The west and east regions depict different temperature trends as the east regions revealed lower mean temperature values than the west region for both T_a and T_s (Figure 2, Figure 3 and Figure 4). The Titiwangsa Range that runs through the central Peninsula acts as a barrier to hinder the heavy rainfall and cooler weather from reaching the west region during the Northeast Monsoon [39]. In addition, for this study, the west region [39] is further divided into central and northcentral. This is because the Klang Valley areas (Kuala Lumpur, Putrajaya, and Central of Selangor) revealed higher mean temperature values than the northcentral region (North of Selangor) [40]. Besides, the central region is associated with urban and industrial area and exhibits the effect of urban heat island (UHI) [1,39,40]. Figure 5 illustrates the lowland areas along east and west coast of Peninsular Malaysia (DEM = 1–60 m) that are applicable for T_s to T_a estimation and the outline for the five regions, i.e., northwest, northcentral, central, southwest, and east regions.

Preparing Regional Data

The pre-processed T_a and T_s from 36 stations were stack as regional data according to the information in Figure 5 and

Table 2. Region information.

Region	No. of Stations	Stations
Central	10	CA0058, CA0025, CA0011, CA0016, CA0054, CA0054, CA0053, CA0060, CA0010, CA0047, CA0056
East	8	CA0022, CA0059, CA0034, CA0024, CA0002, CA0015, CA0014, CA0057
Northcentral	5	CA0008, CA0046, CA0041, CA0045, CA0048
Northwest	8	CA0033, CA0032, CA0040, CA0017, CA0009, CA0003, CA0038, CA0020
Southwest	5	CA0006, CA0043, CA0044, CA0001, CA0019

. There were 5 sets of regional datasets, and the T_a and T_s were labelled as T_{a_r} and T_{s_r}, respectively.

2.5. Data Analysis

2.5.1. Evaluation Metrics

Four sets of T_s/T_{s_r} data from MOD/MYD11A1 and MOD/MYD11A2 with the same locality as the AWSs were paired with their daily and 8-days T_a/T_{s_r}. Then, the evaluation was carried out in leave-two-years-out cross validation manner for both by station and by region analysis [41]. The leave-two-years-out validation indicates that for each station/region, 2 years data from the collocated data were excluded from the training set and was used as the validation set. The evaluation was repeated for 13 times with different sets of leave-two-years-out data, and the results were averaged to gain the final values for the evaluation metrics.

The assessment of the T_s/T_{s_r} against T_a/T_{a_r} was carried out for both pre- and post-bias corrected data using four evaluation metrics: root mean square error (RMSE), percentage bias (PBIAS), mean absolute error (MAE), and correlation coefficient (r) [10,26]. The equation for RMSE, PBIAS, MAE, and r as shown as Equations (4)–(7), respectively.

$$\mathrm{RMSE}=\sqrt{\frac{1}{N}{\displaystyle \sum }_{i=1}^N{\left(T_{si}-T_{ai}\right)}^2},$$

(4)

where $T_{si}$ = land surface temperature data, $T_{ai}$ = air temperature data, and $N$ = sample size. Root mean square error (RMSE) is a measure to determine error between two variables comparing between simulated and observed value. A low RMSE indicates a good fit between two variables.

$$\mathrm{PBIAS}=100\times \frac{{{\displaystyle \sum }}_{i=1}^N\left(T_{si}-T_{ai}\right)}{{{\displaystyle \sum }}_{i=1}^N{T}_{ai}}.$$

(5)

Percentage bias (PBIAS) is a measurement of the average tendency of the simulated values to be larger or smaller than the observed one. PBIAS of 0.0 indicates optimal value while positive values indicate overestimation and negative values indicate underestimation bias.

$$\mathrm{MAE}=\frac{1}{N}{\displaystyle \sum }_{i=1}^N\left|T_{si}-T_{ai}\right|.$$

(6)

Mean absolute error (MAE) determines the average absolute difference between two variables. Likewise, RMSE, a low MAE indicates a good fit between two variables.

$$r=\frac{{{\displaystyle \sum }}_{i=1}^N\left(T_{si}-\overline{T_s}\right)\left(T_{ai}-\overline{T_a}\right)}{\sqrt{{{\displaystyle \sum }}_{i=1}^N{\left(T_{si}-\overline{T_s}\right)}^2{{\displaystyle \sum }}_{i=1}^N{\left(T_{ai}-\overline{T_a}\right)}^2}},$$

(7)

where $\overline{T_s}$ is the average land surface temperature data and $\overline{T_a}$ is the average air temperature data. Correlation coefficient, r, measures strength and direction of relationship between both variables. The r value of 1 indicates a very strong positive correlation, 0 indicates no correlation, and −1 indicates strong negative correlation.

2.5.2. Mean Bias Correction (MBC)

There are many types of MBC method that are commonly used in climate study to reduce the error value in estimated data; they vary from the simple methods such as linear scaling, daily translation, and variance scaling to the more complicated approaches such as distribution mapping and empirical quantile mapping [32]. In this study, linear scaling (LS-MBC) and quantile mapping (QM-MBC) techniques are used for the estimation of T_a from T_s. Both techniques can yield high bias correction and suitable for climate study in region with less extreme temperature range [32]. Moreover, in our study, the LS technique is modified by manipulating the CF values according to a number of set conditions in the equation.

The LS-MBC technique utilizes a single correction factor retrieved from the subtraction result between the mean observation and simulated data over a period of time [32]. For temperature, the simulated data are corrected by an additive function of CF. The LS-MBC can perform the correction either using monthly or daily mean value throughout the year [34]. Nonetheless, the former is more suitable for extreme weather region with extreme daily temperature throughout the year such as in region with four seasons, while the latter is appropriate for region with moderate temperature range such as Peninsular Malaysia. Despite that, this study will examine the correction factor value from both monthly and constant daily average. The LS-MBC are shown in Equation (8):

$$T_{sc,d}=T_{s,d}+\left(\mu T_a-\mu T_s\right),$$

(8)

where $T_{sc,d}$ is known as the corrected $T_{s,d}$ for the particular $d$ day that has undergone additional term from subtraction of $\mu T_a$ = mean $T_a$ to $\mu T_s$ = mean $T_s$. The mean values are the average obtained from the whole tested days and the average monthly data throughout 2003 until 2016. For the correction, each AWS station will have one constant daily CF and 12 monthly CF values as in Equation (9) and the calculation can be simplified to Equation (10),

$$CF=\left(\mu T_a-\mu T_s\right)$$

(9)

$$T_{sc,d}=T_{s,d}+CF.$$

(10)

Since each station will undergo an addition of CF values as written in the LS-MBC formulation, Equation (10) will result in an over correction of bias values especially for the $T_{s,d}$ that already approximate the T_a range. Therefore, a modification of the LS-MBC formula is needed to change the bias correction method into a more robust formula. This problem could be overcome by identifying the product of $T_{s,d}-\mu T_a$ and further manipulation of the CF range value depending on the product of $T_{s,d}-\mu T_a$.

The CF values are manipulated into 6 conditions, based on the positive or negative value of the particular CF. A larger $\mu T_a$ than the $\mu T_s$ will result in positive CF. When the CF is positive, the calculation will be as follows (Equation (11)):

$$T_{sc,d}=\left\{\begin{array}{c}{T}_{s,d}-CF, if \left(T_{s,d}-\mu T_a\right)>CF)\\ T_{s,d}-\frac{3}{4}CF, if(T_{s,d}-\mu T_a>\frac{1}{2}CF)\\ T_{s,d}-\frac{1}{4}CF, if(T_{s,d}-\mu T_a>0)\\ T_{s,d}+CF, if\left(T_{s,d}-\mu T_a<\left(-CF\right)\right)\\ T_{s,d}+\frac{3}{4}CF, if\left(T_{s,d}-\mu T_a<\left(-\frac{1}{2}CF\right)\right)\\ T_{s,d}+\frac{1}{4}CF, Otherwise\left(T_{s,d}-\mu T_a<0\right)\end{array}\right..$$

(11)

The followings are the calculation for the modified MBC, when the $\mu T_a$ is smaller than the $\mu T_s$ and results in negative CF values (Equation (12)):

$$T_{sc,d}=\left\{\begin{array}{c}{T}_{s,d}+CF, if \left(T_{s,d}-\mu T_a\right)>\left|CF\right|\\ T_{s,d}+\frac{3}{4}CF, if( T_{s,d}-\mu T_a>\left|\frac{1}{2}CF\right|)\\ T_{s,d}+\frac{1}{4}CF, if( T_{s,d}-\mu T_a>0)\\ T_{s,d}-CF, if\left(T_{s,d}-\mu T_a<CF\right)\\ T_{s,d}-\frac{3}{4}CF, if\left(T_{s,d}-\mu T_a<\frac{1}{2}CF\right)\\ T_{s,d}-\frac{1}{4}CF, Otherwise \left(T_{s,d}-\mu T_a<0\right)\end{array}\right..$$

(12)

Depending on the subtraction result from $T_{s,d}-\mu T_a$ as the condition, an adjustment of CF values will take place. Each $T_{s,d}-\mu T_a$ will only satisfy one condition.

Meanwhile, quantile mapping mean bias correction (QM-MBC) works by identifying the empirical cumulative density functions (ecdf) of T_a as the absolute data and T_s as the simulated data. The generated correction function depends on the quantile values between 0% and 100%. Simultaneously, the correction function is applied to unbiasedness the T_s data according to the temperature pattern distribution [42]. The calculation can be expressed as Equation (13) [32]:

$$T_{sc,d}=ecd{f}_{T_a}^{-1 }(ecd{f}_{T_s,d}^{ } \left(T_{s,d}\right)),$$

(13)

where $ecd{f}^{-1}$ denotes the inverse $ecdf$.

3. Results

3.1. Evaluation Metrics for Pre- and Post-MBC against T_a by Station

3.1.1. RMSE

Table 3. RMSE, MAE, PBIAS, and r for pre-MBC (T_s), post-MBC linear scaling using constant daily CF (T_scd), post-MBC linear scaling using monthly CF (T_scm), and post-MBC quantile mapping (T_scq) against T_a according to the leave-two-years-out evaluation for 36 AWS station.

		Pre-MBC Ts			Post-MBC LS (Daily CF) Tscd			Post-MBC LS (Monthly CF) Tscm			Post-MBC QM Tscq
Metrics		Av.	Max	Min	Av.	Max	Min	Av.	Max	Min	Av.	Max	Min
RMSE (°C)	MOD11A1	3.42	5.83	1.85	2.39	3.56	1.48	2.35	3.54	1.48	2.74	4.37	1.87
	MOD11A2	3.48	5.12	2.15	2.11	3.04	1.57	2.06	3.00	1.45	2.12	3.66	1.28
	MYD11A1	5.13	7.34	2.37	2.37	3.86	1.43	2.34	3.71	1.43	2.67	4.34	1.77
	MYD11A2	5.09	8.28	2.47	2.32	3.07	1.65	2.31	3.20	1.69	2.07	3.57	1.24
PBIAS (%)	MOD11A1	1.36	9.90	−14.27	−1.85	2.43	−6.33	−1.47	2.10	−5.63	−3.20	−0.62	−6.11
	MOD11A2	4.40	14.22	−11.70	0.97	3.76	−3.55	1.20	3.82	−2.85	−0.37	1.20	−2.11
	MYD11A1	8.88	22.02	−11.77	−0.17	3.35	−6.34	0.21	3.15	−5.51	−3.26	−1.07	−5.51
	MYD11A2	10.74	25.56	−6.74	2.46	4.78	−3.37	2.55	4.73	−2.71	−0.42	1.02	−1.65
MAE (°C)	MOD11A1	2.88	5.20	1.46	1.94	3.15	1.19	1.90	3.17	1.21	2.23	3.71	1.46
	MOD11A2	3.01	4.65	1.71	1.73	2.54	1.23	1.68	2.62	1.12	1.74	3.11	1.00
	MYD11A1	4.56	7.09	1.86	1.92	3.10	1.23	1.90	3.07	1.18	2.16	3.64	1.38
	MYD11A2	4.57	7.97	1.97	1.90	2.62	1.41	1.87	2.66	1.39	1.69	3.07	0.97
r	MOD11A1	0.24	0.47	0.04	0.23	0.48	0.01	0.30	0.54	0.08	0.24	0.48	0.04
	MOD11A2	0.20	0.43	0.01	0.18	0.42	0.00	0.29	0.52	−0.04	0.20	0.44	0.01
	MYD11A1	0.28	0.48	0.08	0.27	0.49	0.06	0.31	0.62	−0.02	0.29	0.49	0.08
	MYD11A2	0.20	0.42	−0.04	0.20	0.42	−0.08	0.27	0.56	−0.06	0.21	0.43	−0.05

tabulates the maximum, minimum, and average value of RMSE, MAE, PBIAS, and r for pre-MBC (T_s), post-MBC linear scaling using constant daily CF (T_scd), post-MBC linear scaling using monthly CF (T_scm) and post-MBC quantile mapping (T_scq) against T_a according to the leave-two-years-out evaluation for 36 AWS station. For the pre-MBC (T_s), the average RMSE values were much higher for the MYD products (MYD11A1/11A2), i.e., 5.13 and 5.09 °C compared to the MOD products (MOD11A1/MOD11A2), i.e., 3.42 and 3.48 °C. The error value for MYD products was approximately 1.5 times higher than the MOD products. Generally, the same pattern was observed for the maximum and minimum RMSE values.

On the contrary, the average RMSE values of all post-MBC products (T_scd, T_scm, and T_scq) depicted lower error range compared to the pre-MBC products (T_s), ranging from 2.11 to 2.39 °C, 2.06 to 2.35 °C, and 2.07 to 2.74 °C for T_scd, T_scm, and T_scq, respectively. For all post-MBC products, the 8-days MOD/MYD11A2 showed lower average RMSE values (T_scd = 2.11 °C/2.32 °C, T_scm = 2.06 °C/2.31 °C, and T_scq = 2.12 °C/2.07 °C) than the daily MOD/MYD11A1 (T_scd = 2.39 °C/2.37 °C, T_scm = 2.35 °C/2.34 °C, and T_scq = 2.74 °C/2.67 °C). Moreover, the same pattern was shown for the maximum RMSE values. The maximum RMSE values for the 8-days MOD/MYD11A2 were recorded lower, i.e., 3.04 °C/3.07 °C, 3.00 °C/3.20 °C, and 3.66 °C/3.57 °C compared to the daily MOD/MYD11A2, i.e., 3.56 °C/3.86 °C, 3.54 °C/3.71 °C, and 4.37 °C/4.34 °C for T_scd, T_scm, and T_scq, respectively.

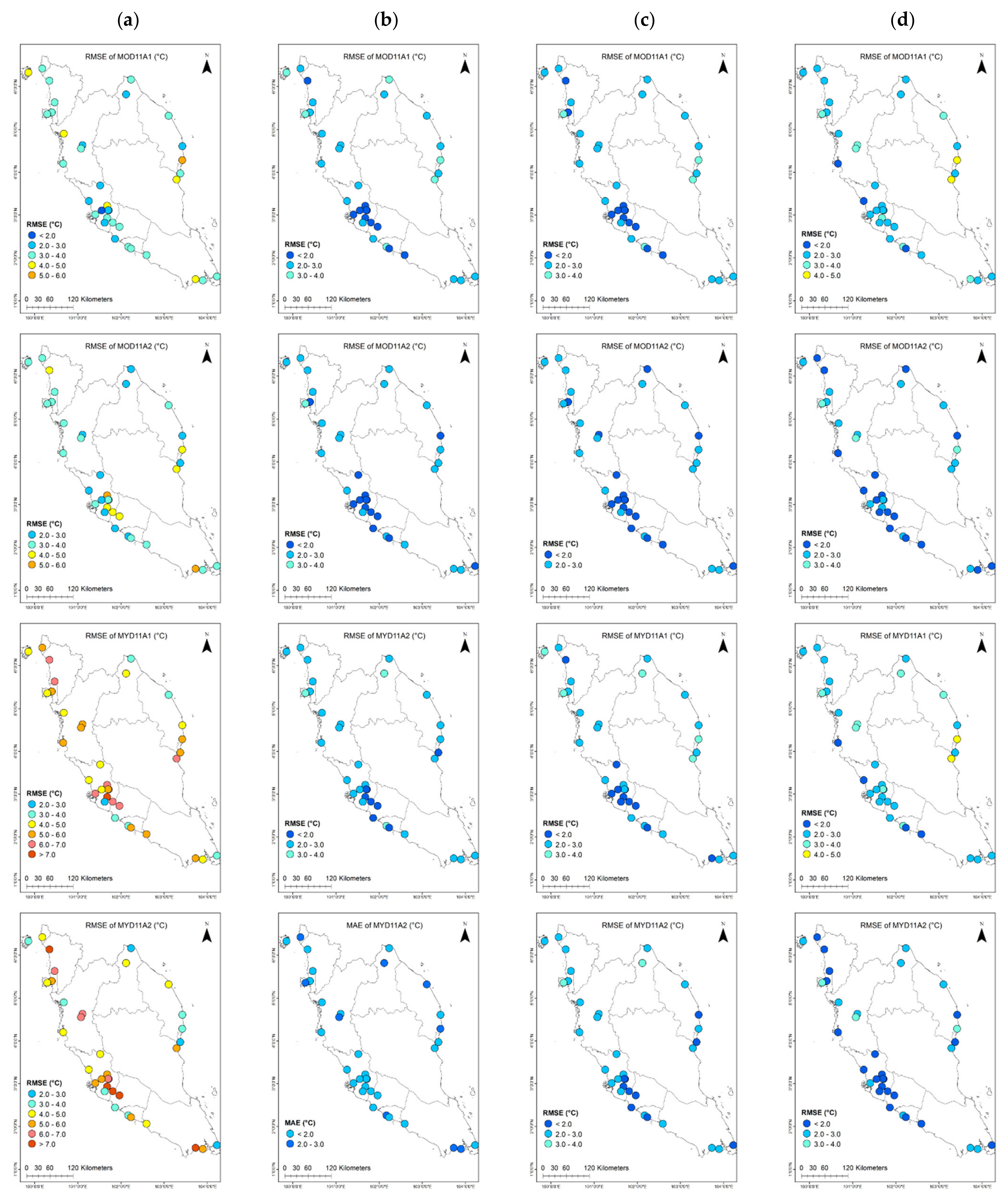

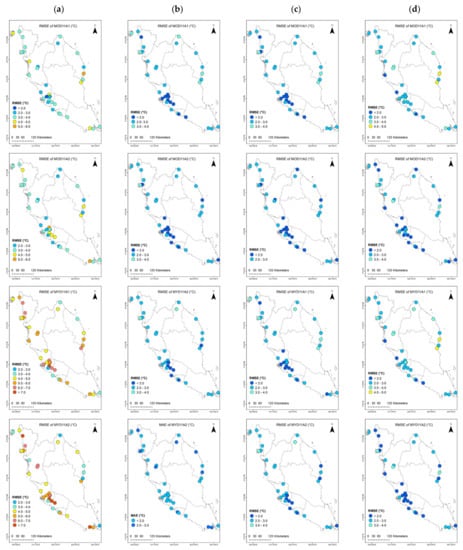

A greater detail as illustrated in Figure 6 revealed that for pre-MBC (T_s), MOD11A1/11A2 had lower RMSE values ranging from 1.85 to 5.83 °C with only three of the stations showing RMSE > 5 °C: CA0002 for MOD11A1 and CA0019 and CA0058 for MOD11A2. Meanwhile, MYD11A1/11A2 depicted higher RMSE values ranging from 2.37 to 8.28 °C with 54.67% of the stations showing RMSE > 5 °C. MYD11A1/MYD11A2 data exhibited 21 and 18 stations with RMSE > 5 °C. Generally, the distribution of stations with higher RMSE values was mainly in the west coast region rather than the east coast region.

Nonetheless, the RMSE distributions for post-MBC products (T_scd, T_scm, and T_scq) showed that the majority of the RMSE values were between 1 and 3 °C. Specifically, for T_scd and T_scm, only 9.72%/12.50% and 6.94%/9.72 stations showed RMSE value > 3 °C for MOD11A1/11A2 and MYD11A1/11A2, respectively. Meanwhile, for T_scq, 16.67% stations showed RMSE values > 3 °C for both MOD11A1/2 and MYD11A1/2. Lower numbers of stations with RMSE values > 3 °C were recorded for the 8-days MOD/MYD11A2 (T_scd = 1 and 3 stations, T_scm = 1 and 2 stations, and T_scq = 3 stations for both) than the daily MOD/MYD11A1 (T_scd = 6 stations for both, T_scm = 4 and 5 stations, and T_scq = 9 stations for both).

3.1.2. PBIAS

Assessing the average PBIAS values in Table 3, the pre-MBC T_s products tended to overestimate the T_a. The average PBIAS of MOD11A1 and MOD11A2 depicted lower values (1.36% and 4.40%) than the MYD11A1 and MYD11A2 (8.88% and 10.74%). The same trend was observed for the maximum PBIAS values as MYD11A1 and MYD11A2 manifested high maximum PBIAS of 22.02% and 25.56%, respectively, while MOD11A1 and MOD11A2 showed low maximum PBIAS of 9.90% and 14.22%, respectively. In contrast, for the minimum PBIAS values, MOD11A1 and MOD11A2 recorded −14.27% and −11.70%, suggesting higher magnitudes of underestimation in comparison to the MYD11A1 and MYD11A2 that had −11.77% and −6.74%. It can be noted that MOD11A1 demonstrated the highest minimum and lowest maximum and average PBIAS, while MYD11A2 depicted the lowest minimum and highest maximum and average PBIAS.

Meanwhile, the average PBIAS values for the post-MBC (T_scd, T_scm, and T_scq) exhibited reduced over-/underestimations with average PBIAS values between −1.85% and 2.46%, −1.47% and 2.55%, and −3.26% and −0.37%, respectively. In particular, the daily MOD11A1 depicted negative average PBIAS values (T_scd = −1.85%, T_scm = −1.47%, and T_scq = −3.20%). Moreover, all post-MBC T_scq products demonstrated negative average PBIAS values with daily MOD/MYD11A1 having higher magnitude of negative bias values (−3.20% and −3.26%) than the 8-days MOD/MYD11A2 (−0.37% and −0.42%), respectively. Meanwhile, the maximum PBIAS values for T_scd and T_scm exhibited lower magnitudes of positive PBIAS values for the daily MOD/MYD11A1 (T_scd = 2.43% and 3.35% and T_scm = 2.10% and 3.15%) than the 8-days MOD/MYD11A2 (T_scd = 3.76% and 4.78% and T_scm = 3.82% and 4.73%). The maximum PBIAS values for T_scq were low negative for daily MOD/MYD11A1 (−0.62% and −1.07%) and low positive for 8-days MOD/MYD11A2 (1.20% and 1.02%). Moreover, it is noted that the minimum PBIAS values for post-MBC (T_scd, T_scm, and T_scq) for the daily MOD/MYD11A1 depicted higher magnitude of negative PBIAS values (T_scd = −6.33% and −6.34%, T_scm = −5.63% and −5.51%, and T_scq = −6.11% and −5.51%) than the 8-days MOD/MYD11A2 (T_scd = −3.55% and −3.37%, T_scm = −2.85% and −2.71%, and T_scq = −2.11% and −1.65%)

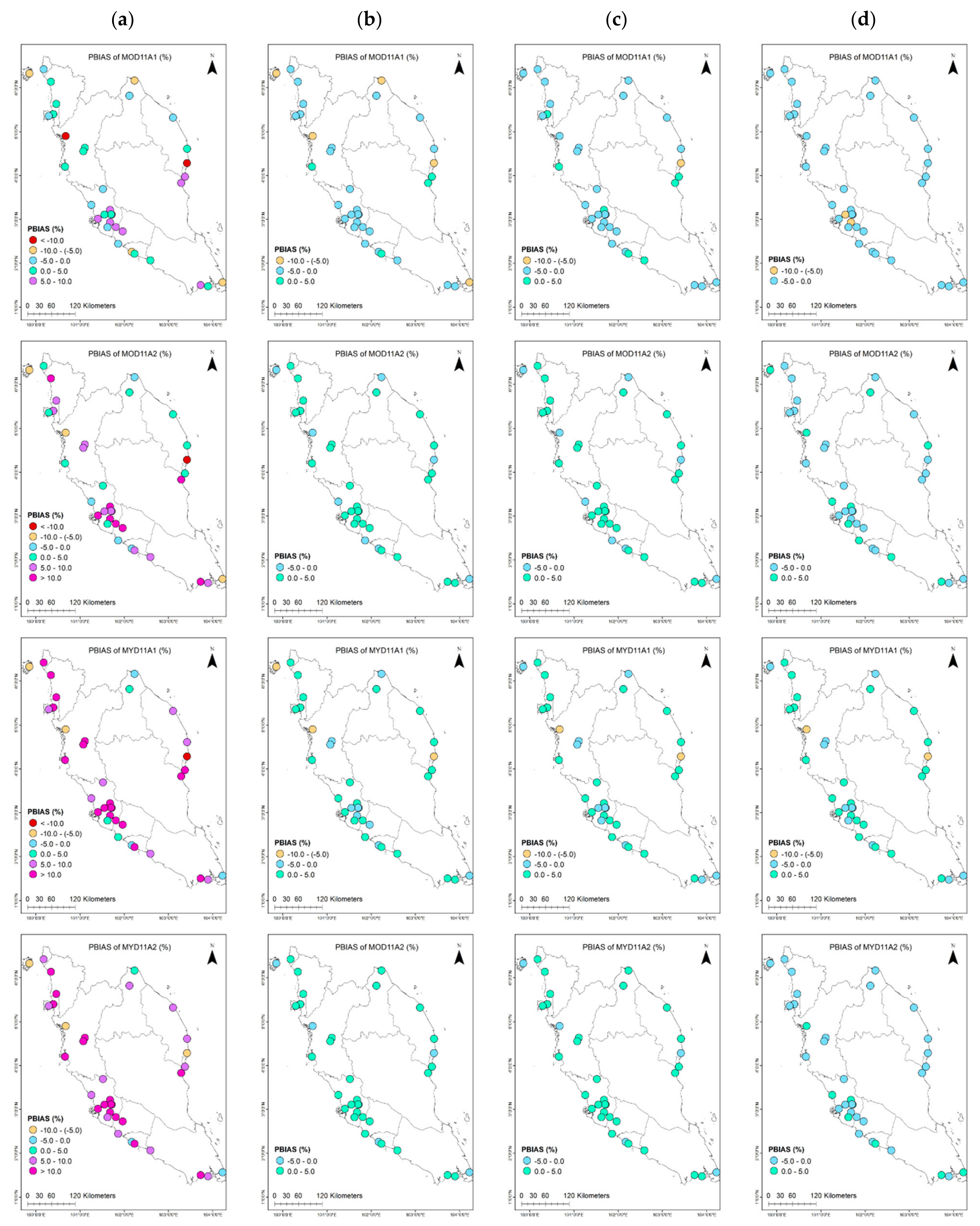

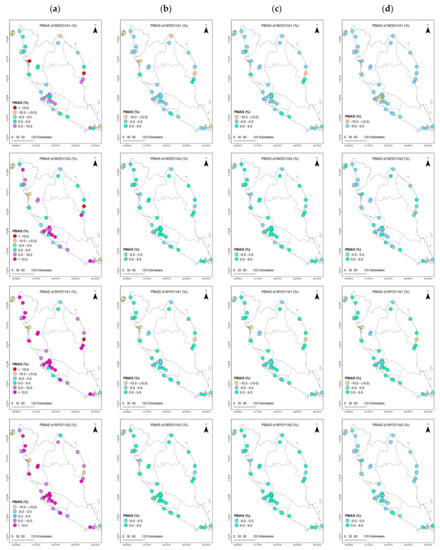

As illustrated in Figure 7, the pre-MBC T_s demonstrated that overestimation of T_a was more frequent than the underestimation, with 69.44% stations demonstrating overestimations for MOD11A1/11A2 and 86.11% stations for MYD11A1/11A2. Regardless of the LST products, there were 5 stations that showed consistent negative PBIAS: CA0002 in Kemaman, Terengganu (−14.27 to −5.80%), CA0006 in Bukit Rambai, Melaka (−5.32 to −0.87%), CA0020 in Taiping, Perak (−12.17 to −6.74%), CA0032 in Pulau Langkawi, Kedah (−8.13 to −5.51%), and CA0057 in Kota Tinggi, Johor (−8.98 to −1.41%).

Assessing from Figure 7, for post-MBC (T_scd, T_scm, and T_scq), the daily MOD/MYD11A1 tended to result in more frequent negative PBIAS (T_scd = 31 (86.11%) and 13 (36.11%) stations, T_scm = 28 (77.78%) and 13 (36.11%) stations, and T_scq = 36 (100%) for both products), while the 8-days MOD/MYD11A2 exhibited less frequent negative PBIAS (T_scd = 8 (22.22%) and 5 (13.89%) stations, T_scm = 7 (19.44%) and 5 (13.88%) stations, and T_scq = 25 (69.44%) and 28 (77.78%) stations). Nevertheless, for post-MBC, the majority of the stations exhibited a low range of PBIAS close to zero, between −5% and +5% for the daily MOD/MYD11A1 (T_scd = 31 (86.11%) and 33 (91.67%) stations, T_scm = 35 (97.22%) and 34 (94.44%) stations, and T_scq = 34 (94.44%) and 33 (91.67%) stations) and the 8-days MOD/MYD11A2 with all stations demonstrated 100% PBIAS ranging between −5% and 5%.

3.1.3. MAE

The average MAE for pre-MBC T_s revealed a similar pattern to the RMSE but with lower error values range between approximately 0 and 1 °C (Table 3). The average MAE values for MYD11A1/11A2 products (4.56 and 4.57 °C) were 1.5 times more than MOD11A1/11A2 (2.88 and 3.01 °C). Moreover, the same trend was observed for the maximum and minimum MAE values. Meanwhile, the post-MBC (T_scd, T_scm, and T_scq) resulted in overall low MAE values. The 8 days MOD/MYD11A2 products (T_scd = 1.73 °C/1.90 °C, T_scm = 1.68 °C/1.87 °C, and T_scq = 1.74 °C/1.69 °C) exhibited lower average, maximum, and minimum error values than the daily MOD/MYD11A1 ((T_scd = 1.94 °C/1.92 °C, T_scm = 1.90 °C/1.90 °C, and T_scq = 2.23 °C/2.16 °C). In addition, the maximum and minimum MAE values revealed the same pattern as the average MAE values.

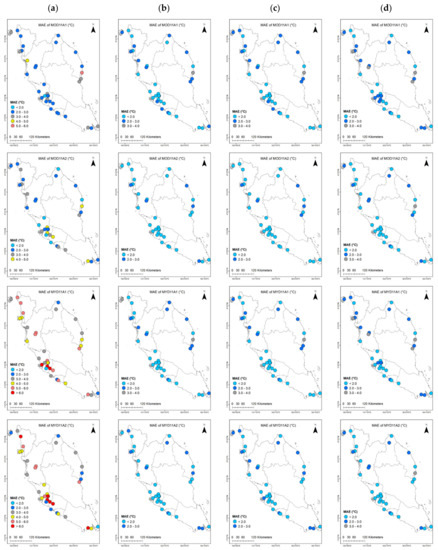

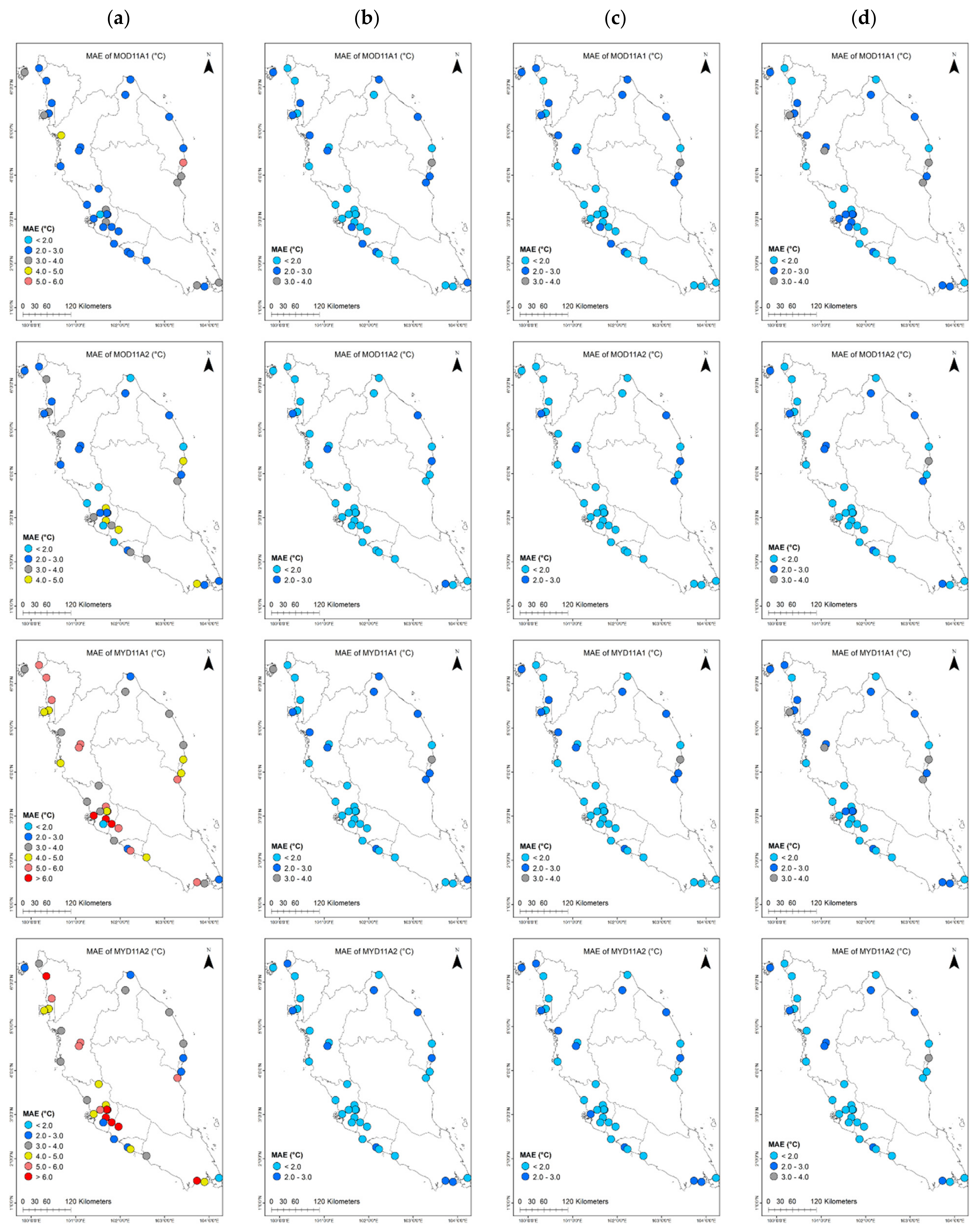

Figure 8 illustrates the spatial MAE distributions, similar to those of the RMSE (Figure 6) values for both pre- and post-MBC. The MAE depicted slightly lower error ranges than the RMSE by 0–1 °C. In particular, for the pre-MBC T_s, MOD11A1/11A2 portrayed low MAE values ranging from 1.46 to 5.20 °C with only 11.11% of the stations showing MAE > 4 °C, while MYD11A1/11A2 revealed slightly higher MAE values ranging from 1.86 to 7.97 °C with 58.33% showing MAE > 4 °C. For MOD11A1, 2 stations exhibited high MAE values > 4 °C, compared to 6 stations for MOD11A2. Meanwhile, MYD11A1 and MYD11A2 data depicted high MAE values > 4 °C with 22 and 20 stations, respectively. Besides, MYD11A1/11A2 showed higher MAE values (>6 °C) for stations located in the west coast (northwest, northcentral, central, and southwest) region, especially the ones that are located in the central region, than those in the east coast.

In contrast, the MAE distribution for post-MBC (T_scd, T_scm, and T_scq), as illustrated in Figure 8, revealed consistent low MAE values for all products, i.e., T_scd = 1.19 to 3.15 °C, T_scm = 1.12 to 3.17 °C, and T_scq = 0.97 to 3.71 °C. The majority of the stations for all post-MBC products showed MAE < 3 °C with only a number of stations recording > 3 °C (T_scd = 3 stations, T_scm = 2 stations, and T_scq = 10 stations).

3.1.4. Correlation Coefficient (r)

Table 3 tabulates very low average r values for all pre-MBC T_s products, of which the daily MOD/MYD11A1 depicted a slightly higher average r value than the 8-days MOD/MYD11A2 with 0.24–0.28 and 0.20, respectively. A similar pattern was observed for the maximum r values whereby the daily MOD/MYD11A1 and 8-days MOD/MYD11A2 showed a maximum r of 0.47 and 0.48 for MOD11A1 and MYD11A1, while a maximum r value for MOD11A2 and MYD11A2 was 0.43 and 0.42, respectively. Moreover, the minimum r values were observed to be very close to zero for both 8-days MOD and MYD (0.01 and −0.04) and daily MOD and MYD (0.04 and 0.08). Moreover, the r values for the post-MBC products (T_scd, T_scm, and T_scq) revealed the same scenarios, as the average r values for daily MOD/MYD11A1 (T_scd = 0.23/0.27, T_scm = 0.30/0.31, and T_scq = 0.24/0.29) were slightly higher than the 8-days MOD/MYD11A2(T_scd =0.18/0.20, T_scm = 0.29/0.27, and T_scq = 0.20/0.21). The maximum r values demonstrated a moderate r range from 0.42 to 0.49, 0.52 to 0.62, and 0.43 to 0.48 for T_scd, T_scm, and T_scq, respectively, while the minimum r values demonstrated very near to zero r values ranging from −0.08 to 0.06, −0.06 to 0.08, and −0.05 to 0.08 for T_scd, T_scm, and T_scq, respectively.

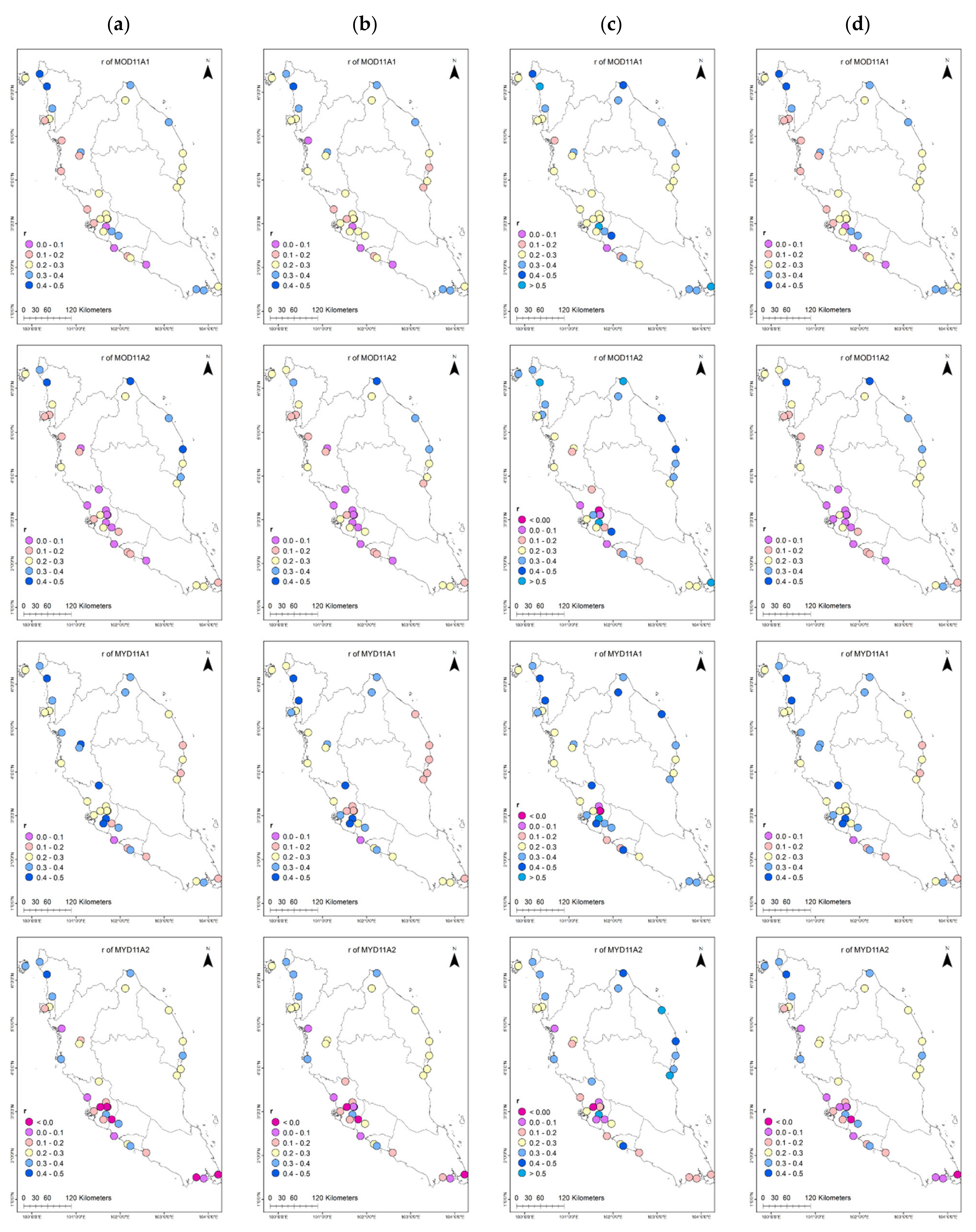

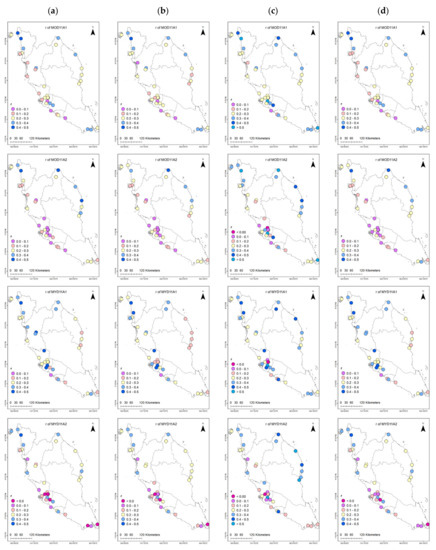

For pre-MBC T_s products, moderate r values (>0.3) were more frequent in the daily MOD and MYD than the 8-days MOD and MYD products (Figure 9). The moderate r values (>0.3) were recorded at 10 and 14 stations for each daily MOD and MYD and at 6 and 10 stations for 8-days MOD and MYD, respectively. Meanwhile, for post-MBC products, T_scm resulted in highest total numbers of stations (MOD/MYD11A1 and MOD/MYD11A2) with moderate r values >0.3, followed by T_scq and T_scd with 66, 39, and 32 stations, respectively. Furthermore, the stations with moderate r values (>0.5) were only observed in the T_scm products (MOD11A1/11A2 = 7 stations and MYD11A1/11A2 = 5 stations) with r value ranging between 0.51 and 0.62.

3.2. Evaluation Metrics for Pre- and Post-MBC against T_a by Region

3.2.1. RMSE

Table 4. RMSE, MAE, PBIAS, and r from by region comparison for pre-MBC (T_{s_r}), post-MBC linear scaling using constant daily CF (T_{scd_r}), post-MBC linear scaling using monthly CF (T_{scm_r}), and post-MBC quantile mapping (T_{scq_r}) against T_{a_r} according to the leave-two-years-out evaluation.

		Pre-MBC Ts_r			Post-MBC LS (Daily CF) Tscd_r			Post-MBC LS (Monthly CF) Tscm_r			Post-MBC QM Tscq_r
Metrics		Av.	Max	Min	Av.	Max	Min	Av.	Max	Min	Av.	Max	Min
RMSE (°C)	MOD11A1	3.33	3.87	2.90	2.70	3.71	1.96	2.71	3.51	1.95	2.55	3.05	2.19
	MOD11A2	3.55	3.74	2.85	2.54	3.14	2.01	2.52	3.03	2.00	2.26	2.76	1.88
	MYD11A1	5.23	5.63	4.94	2.60	3.37	2.07	2.64	3.44	2.10	2.66	3.61	2.05
	MYD11A2	5.42	6.14	5.20	2.70	3.18	2.31	2.69	3.21	2.32	2.26	2.79	1.92
PBIAS (%)	MOD11A1	2.42	5.22	0.29	−0.75	0.39	−1.91	−0.62	0.30	−1.93	−2.31	−1.81	−2.73
	MOD11A2	5.75	9.06	3.40	2.06	3.48	−0.22	2.09	3.31	−0.16	−0.04	0.37	−0.91
	MYD11A1	10.19	14.21	7.63	1.61	2.33	0.78	1.78	2.75	1.20	−1.89	−0.61	−3.18
	MYD11A2	12.07	16.53	9.20	4.30	5.27	3.18	4.26	5.15	3.22	0.37	1.16	−0.74
MAE (°C)	MOD11A1	2.79	3.27	2.36	2.21	3.10	1.60	2.21	2.90	1.61	1.99	2.46	1.74
	MOD11A2	3.09	3.36	2.37	2.12	2.64	1.66	2.10	2.58	1.67	1.79	2.13	1.50
	MYD11A1	4.68	5.22	4.36	2.15	2.79	1.71	2.18	2.84	1.73	2.08	2.76	1.63
	MYD11A2	4.89	5.75	4.60	2.27	2.73	1.92	2.27	2.76	1.93	1.78	2.16	1.51
r	MOD11A1	0.23	0.25	0.19	0.23	0.26	0.19	0.25	0.27	0.21	0.29	0.45	0.17
	MOD11A2	0.16	0.24	0.11	0.19	0.31	0.11	0.24	0.33	0.17	0.26	0.40	0.13
	MYD11A1	0.29	0.32	0.27	0.26	0.31	0.19	0.29	0.33	0.25	0.29	0.52	0.06
	MYD11A2	0.17	0.26	0.12	0.19	0.25	0.14	0.25	0.39	0.15	0.25	0.46	0.12

tabulates the maximum, minimum, and average value of RMSE, MAE, PBIAS, and r from pre-MBC (T_{s_r}), post-MBC linear scaling using constant daily CF (T_{scd_r}), post-MBC linear scaling using monthly CF (T_{scm_r}), and post-MBC quantile mapping (T_{scq_r}) against T_{a_r} according to the leave-two-years-out evaluation for 5 regions. The tabulated data indicated that the average RMSE values for the pre-MBC T_{s_r} of the by region comparison reflect same pattern as the by station comparison. The MYD products (5.23 and 5.42 °C) indicate 1.5 times higher error than the MOD (3.33 and 3.55 °C). The same pattern is shown by maximum and minimum RMSE values. Meanwhile, the post-MBC products showed an overall low average RMSE < 3 °C. Specifically, the RMSE range values were recorded between 1.96 and 3.71 °C, 1.95 and 3.51 °C, and 1.88 and 3.61 °C for T_{scd_r}, T_{scm_r}, and T_{scq_r}, respectively. Figure 10 illustrates the RMSE for pre- and post-MBC products. It can be observed that the error values were well reduced for all regions and products.

3.2.2. PBIAS

The average PBIAS values for pre-MBC T_{s_r} was lower for MOD products than those for the MYD products by 2.42%/5.75% and 10.19%/12.07%, respectively (Table 4). The same was observed for maximum and minimum values. The maximum values were recorded at 5.22%/9.06% and 14.21%/16.53% for MOD11A1/11A2 and MYD11A1/11A2 products, respectively, while the minimum values were at 0.29%/3.40% and 7.63%/9.20% for MOD11A1/11A2 and MYD11A1/11A2 products, respectively. The post-MBC products (T_{scd_r}, T_{scm_r}, and T_{scq_r}) tabulated an overall average PBIAS values < 5% with average PBIAS range between −0.75% and 4.30%, −0.62% and 4.26%, and −2.31% and 0.37% for T_{scd_r}, T_{scm_r}, and T_{scm_r}, respectively. Spatially, post-MBC product of MOD11A1 illustrated negative PBIAS values for almost all region (T_{scd_r} = −1.91% to 0.39%, T_{scm_r} = −1.93% to 0.30%, and T_{scq_r} = −2.73% to −1.81%) (Figure 10). Besides, for MYD11A1, the T_{scq_r} tended to result in negative PBIAS values for all regions with range between −3.18% and −0.61%. Overall, the post-MBC products showed a well reduced bias for MOD11A2, MYD11A1, and MYD11A2.

3.2.3. MAE

A similar pattern was observed between pre-MBC T_{s_r} MAE and RMSE values as the MYD products result in 1.5 times higher error values than the MOD (Table 4). The average values were recorded at 2.79/3.09 °C and 4.68/4.89 °C for MOD11A1/11A2 and MYD11A1/11A2 products, respectively. The maximum and minimum MAE values revealed two different range of error values between the MOD and MYD products, i.e., 2.36 to 5.75 °C and 4.36 to 5.75 °C, respectively. The post-MBC products depicted an overall low average MAE value < 2.5 °C (T_{scd_r} = 2.12 to 2.27 °C, T_{scm_r} = 2.10 to 2.27 °C, and T_{scq_r} = 1.78 to 2.08 °C). Figure 10 showed an apparent reduction in MAE values between the pre- and post-MBC products except for MOD11A1.

3.2.4. Correlation Coefficient (r)

The r values observed from Table 4 illustrated low r values for all pre-MBC products with average r between 0.16 and 0.29. In detail, the daily products tabulated slightly higher r range between 0.23 and 0.29 than the 8-days products with r range between 0.16 and 0.17. The post-MBC products showed a slight improvement in the r values with T_{scq_r} revealing the highest r range for average and maximum values (average = 0.25 to 0.29 and maximum = 0.40 to 0.52), followed by T_{scm_r} (average = 0.24 to 0.29 and maximum = 0.27 to 0.39) and T_{scd_r} (average = 0.19 to 0.26 and maximum = 0.25 to 0.31).

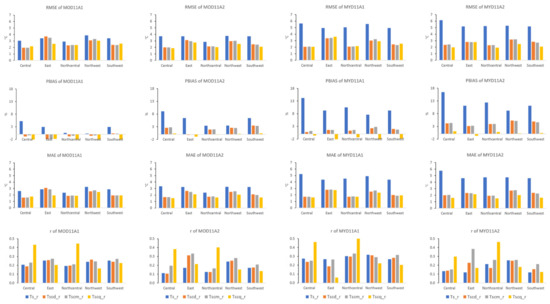

Figure 10 shows that the performance of post-MBC varies according to the region. Notably, the T_{scq_r} performed best for central and northcentral region. Other than that, an overall slightly improved r values can be observed throughout the MBC products.

4. Discussion

4.1. By Station Performance

The assessment of MODIS T_s against T_a (pre-MBC) indicated high variabilities in the relationship between both data. For instance, MOD11A1 was found to have the closest relationship to T_a data with the lowest average RMSE of 3.42 °C and PBIAS of 1.36%, followed by MOD11A2 with RMSE of 3.48 °C and PBIAS of 4.40%, MYD11A1 with RMSE of 5.13 °C and PBIAS of 8.88% and finally, MYD11A2 with average RMSE of 5.09 °C and highest PBIAS of 10.74%. These metrics suggested that MOD11A1/11A2 was better at estimating the T_a than MYD11A1/11A2. This could be attributed to the time of data acquisition. The former is acquired at 10:30 a.m. local time, while the latter is acquired at 1:30 p.m. local time whereby later in the noon, solar activity for the tropical region such as Peninsular Malaysia is the highest. Consequently, the MOD data are a better proxy for maximum daily T_a given that the MYD T_s tended to overestimate the T_a.

Additionally, the daily T_s, i.e., MOD/MYD11A1 and 8-days T_s, i.e., MOD/MYD11A2 depicted different characteristics of performance as the former illustrated lower errors and lower under-/overestimations than the latter. Daily data are known to be better at estimating T_a than 8-days data due to the inconsistency of the numbers of days used to count the 8-days T_s [38]. Although the 8-days T_a are averaged from the daily T_a for a complete duration of 8-days, 8-days T_s are subject to missing data resulted from cloud coverage and hence, could be averaged from daily data as low as from 2 to 8 days. This inconsistency is believed to contribute to low accuracies in estimation between both datasets.

Furthermore, although researchers such as El Kenawy et al. [15] recommended that corrections of T_s against T_a were needed if only the score of PBIAS > ± 5%, the usage of MOD11A1 (average PBIAS = 1.36%) for lowland area in Peninsular Malaysia region without any correction to represent the T_a can still be considered inappropriate given its average error (3.42 °C) is too large to be considered for many applications [43].

Post-MBC (T_scd, T_scm, and T_scq) data assessment against T_a depicted better estimations with three of the evaluation metric’s parameters showing significant improvements in the error and bias values, while the correlation coefficient (r) showing a moderate improvement in the r values. All post-MBC products demonstrated average low RMSEs range (T_scd = 2.11 to 2.39 °C, T_scm = 2.06 to 2.35 °C, and T_scq = 2.07 to 2.74 °C), average low PBIAS range (T_scd = −1.85 to 2.46%, T_scm = −1.47 to 2.55%, and T_scq = −3.26 to −0.37%), and low average MAE range (T_scd = 1.73 to 1.94 °C, T_scm = 1.68 to 1.90 °C, and T_scq = 1.69 to 2.23 °C). Meanwhile, the r scores demonstrated a slight improvement in the r values from the average range for pre-MBC (0.20–0.28) to average range for post-MBC (T_scm = 0.27–0.31 and T_scq = 0.20–0.29), except for T_scd with r average range between 0.18 and 0.27. According to Yan et al. [43], estimated products at RMSE approximately < 3 °C are considered acceptable, and most of the recent studies for T_a estimation reported RMSE values < 3 °C.

Although the modified MBC demonstrated a good performance at reducing PBIAS over-/underestimation range, the underestimation in the MOD11A1 data was significantly high in post-MBC, i.e., T_scd = 86.11%, T_scm = 77.78%, and T_scq = 100% versus pre-MBC, i.e., 61.11%. A possible explanation for this is because for pre-MBC, the MOD11A1 T_s and T_a temperature range were already close to each other and hence, the application of the MBC tended to overcorrect the MOD11A1 T_s and result in higher magnitude of underestimation. Contrarily, the MBC only contributed a slight change for the post-MBC r values. This is because the application of the MBC technique could only adjust the range of the T_s values by shifting the T_s values towards the T_a according to the CF values that satisfy the condition given (for LS-MBC) or according to the respective quantile calculation (for QM-MBC) without changing the original temporal pattern of the T_s data. While these techniques have resulted in a significant improvement of error and bias terms for the T_scd, T_scm, and T_scq against T_a, the relationship between both datasets showed a moderate to no improvement.

Additionally, the assessment on post-MBC (T_scd, T_scm, and T_scq) showed that ranges for error and bias values were not as high as in the pre-MBC data. All post-MBC T_scd, T_scm, and T_scq products depicted low and similar ranges of average bias and errors (average RMSE and MAE < 3 °C and average PBIAS between −5% and 5%), while the pre-MBC demonstrated that the MYD11A1/11A2 T_s had higher error (average RMSE and MAE = 4.56 to 5.13 °C) and bias (PBIAS = 8.88 to 10.74%) range than the MOD11A1/11A2 (average RMSE and MAE = 2.88 to 3.48 °C, PBIAS = 1.36 to 4.40%). This suggested that both MBC approaches (LS-MBC and QM-MBC) were suitable for all types of MODIS T_s tested in this study.

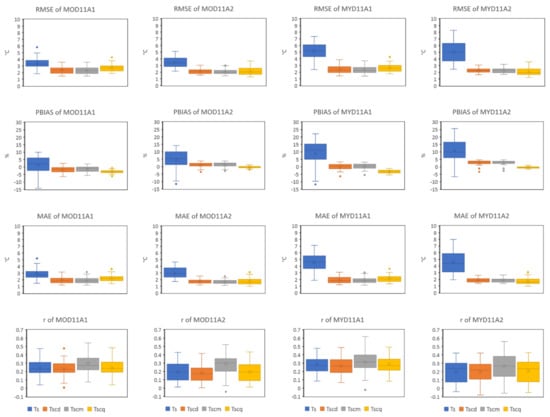

For comparison, Figure 11 displays the boxplot presentation for the average temperature values between pre (T_s) and post-MBC (T_scd, T_scm, and T_scq) against T_a from 36 AWS. Significant improvements could be observed in the post-MBC values as the range of T_s has decreased tremendously approaching the range of T_a with T_scq depicting the most approximate temperature range to the T_a. This indicates that the QM-MBC method can capture well the distribution of T_a by removing the biases by quantile [44] rather than the LS-MBC technique that removes the biases using CF values from overall constant daily and monthly values.

Figure 12 illustrates the boxplot presentation of evaluations metrics score between T_s, T_scd, T_scm, and T_scq against T_a for 36 AWSs. The bias correction method consistently reduced the RMSE and MAE to 2–5 °C and 1–4 °C, respectively. The PBIAS also showed a reasonable reduction in the over-/underestimation to range of bias between −6.34% and 4.78%. In comparison, T_scd, T_scm, and T_scq demonstrated a small- range of error and bias, but not for r. T_scm showed highest improvement in r values than the T_scd and T_scq. This indicates that although these post-MBC products produced an acceptable result for T_a approximation, the application of LS-MBC technique using the monthly CF was better than the constant daily CF (T_scd) and quantile mapping technique (T_scq). This is because application of monthly CF is calculated from a more detail calculation (by month) than the daily CF that is calculated using single CF for the whole 13 years. Application of monthly CF enable changes in temperature according to the changes in the monsoon season, if present, to be applied.

4.2. By Region Performance

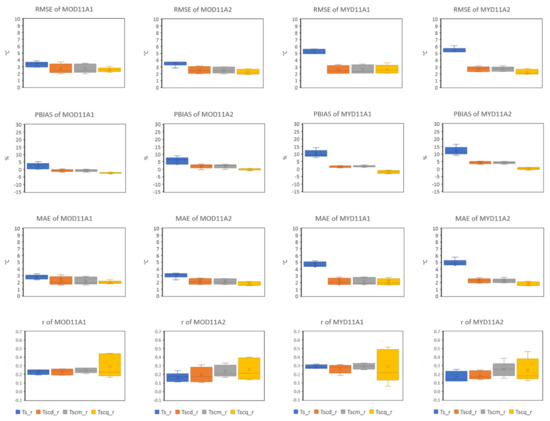

Figure 13 displays the comparison between evaluation metrics between T_{s_r}, T_{scd_r}, T_{scm_r}, and T_{scq_r} against T_{a_r} for 5 regions. The LS and QM-MBC has tremendously reduced the bias and error values as the boxplot for post-MBC (T_{scd_r}, T_{scm_r}, and T_{scq_r}) were located nearer to zero value than the pre-MBC (T_{s_r}). Meanwhile, the r values depicted modest improvement with the r maximum values pre-MBC (T_{s_r} = 0.24–0.32) slightly increased (T_{scd_r} = 0.25–0.31, T_{scm_r} = 0.27–0.39, and T_{scq_r} = 0.40–0.52).

Moreover, the T_{scq_r} depicted the most improved values of RMSE, MAE, and PBIAS. This indicates that QM-MBC can perform better when more data are stack together (regional data). With more collocated pixels, the temperature distribution can be better defined, resulting in better quantile calculation [32,33]. The same pattern was observed for r as T_{scq_r} showed the highest improvement of r for MOD11A1, MOD11A2, and MYD11A2.

The low correlation coefficient (r) for both pre- and post-MBC data compared to T_a, despite the low RMSE obtained for post-MBC are possible and acceptable. In this study, the reason for low r values could be because of the low temperature range for between 10 and 15 °C and less variation in the temperature pattern [16]. In the tropic region, there are only two distinct seasons, the hot and dry and cold and wet season driven by the two monsoonal wind seasons, i.e., the Southwest and Northeast monsoons. Besides, El Kenawy [15] expresses low correlation values for summer compared to other seasons. This indicates that solar radiation duration may affect the correlation between T_a and T_s.

The information obtained from each station (total of 36 stations) and region (total of 5 regions) including (1) the validated range of T_s/T_{s_r} and T_a/T_{a_r}, (2) constant daily and monthly CF values (LS-MBC), (3) constant daily and monthly mean T_s/T_{s_r} and T_a/T_{a_r} (LS-MBC), and (4) quantile values for T_s/T_{s_r} and T_a/T_{a_r} (QM-MBC) can be used for future T_a estimation from MODIS T_s (MOD11A1, MOD11A2, MYD11A1, and MYD11A2) by following the MBC equation. The similar pattern of result between the regional (T_{s_r} and T_{a_r}) and the by station (T_s and T_a) analysis, proved that the information obtained from this study are applicable for the lowland areas according to their identified regions. Overall, the developed technique by modifying the CF application for LS-MBC is rather a simple one but managed to gain a good accuracy of T_a retrievals, whereas the QM-MBC worked best for regional study.

4.3. Limitations and Future Works

First, we acknowledge that the findings of this study are only limited to lowland areas in Peninsular Malaysia at altitude less than 60 m above sea level. In the future, a study should be conducted for highland area given that the T_s is known to be affected by the increase in elevation [22]. Second, the missing data resulted from cloud cover (T_s), partial cloud cover (T_s), and outlier’s analysis (T_s and T_a) in this study were treated as not available (NA). To overcome the gaps in T_s data, interpolation [45], similar pixel method [46], data fusion [47], or machine learning [48] have been applied in other works but not in our study that only used original datasets. Finally, we acknowledge the limitation in delivering the correction factor values given unknown gaps in the constant daily and monthly T_s, as opposed to Yoo et al. [49] who performed linear interpolation. Addressing further, the second and third gaps can possibly avoid distorted CF values and thus give better results.

5. Conclusions

This study found that (1) the error values for pre-MBC T_s in comparison to the T_a were high especially for the MYD11A1/11A2 than the MOD11A1/11A2; chiefly due to different acquisition times that is influenced by solar activity. (2) The high bias and error values for the pre-MBC T_s suggested that the application of correction is necessary. (3) The MBC for station analysis (T_scd, T_scm, and T_scq) has successfully reduced the errors and biases in pre-MBC (T_s), i.e., average RMSE values from 3.42–5.13 to 2.06–2.74 °C, average PBIAS values from 1.36–10.74% to −3.26–2.55%, and average MAE values from 2.88–4.57 °C to 1.68–2.23 °C. While, the average r values depicted slight improvement from 0.20–0.28 to 0.18–0.31. (4) The pattern is the same for by region analysis (T_{scd_r}, T_{scm_r}, and T_{scq_r}), i.e., average RMSE values from 3.33–5.42 to 2.26–2.71 °C, average PBIAS values from 2.42–12.07% to −2.31–4.30%, average MAE values from 2.79–4.89 to 1.78–2.27 °C, and average r value from 0.16–0.29 to 0.19–0.29. (5). Both MBC methods (LS-MBC and QM MBC) resulted in an acceptable range of correction but by a comparison, the MBC using monthly CF depicted a slightly better correction than the MBC using daily constant CF, while QM-MBC worked best for regional study. This study also illustrated that although the proposed LS-MBC technique in this study is rather a simple mathematical equation than the more sophisticated QM-MBC technique, it was adequate for improving the estimation T_a from MODIS T_s for a tropical region.
