# One-Step Three-Dimensional Phase Unwrapping Approach Based on Small Baseline Subset Interferograms

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. General Aspects and Motivation

#### 1.2. Scientific Context

#### 1.3. Outline

## 2. State-of-the-Art Extended Minimum Cost Flow Approach

#### 2.1. Problem Formulation

#### 2.2. Temporal Phase Unwrapping

**M**.

#### 2.3. Spatial Phase Unwrapping

## 3. Modified Extended Minimum Cost Flow Approach

#### 3.1. Estimation of the Motion Model Parameters

**M**from Equation (3) which depends on the parameters ${v}_{\Delta {x}_{kl}}$ and $\Delta {h}_{\Delta {x}_{kl}}$. The EPC function is continuous with values between zero and one, see the exemplary shown EPC function for one simulated phase gradient in Figure 2. A value of zero means that model and observation do not fit and a value of one corresponds to an optimal fit. It can be seen that the function shows a clear maximum. The idea is to find this maximum of the EPC function and to use the corresponding parameters as optimal motion model parameters to calculate the modified observations, equal to [3]. Especially with noisy data, where the global maximum is not as pronounced, a modified algorithm that combines simulated annealing and the local Nelder–Mead search algorithm is the best way to find the maximum [22]. If the maximum found by simulated annealing falls below a certain threshold, it is assumed that the motion model cannot be estimated reliably enough. Instead of using a possibly too extreme motion model, which is very unreliable and may lead to phase unwrapping errors, the maximum around an appropriate approximate value is locally searched using Nelder–Mead. In contrast to the conventional iterative approach, this alternative approach has the advantage that the motion model can be estimated independently of the temporal phase unwrapping. Consequently, the temporal phase unwrapping only needs to be solved once for each phase gradient. This offers an improved run time. Furthermore, it is no longer necessary to define a discrete search space for the parameters. More information on the analysis and comparison of the alternative and conventional methods can be found in [22].

#### 3.2. Choice of the Weights

## 4. One-Step Three-Dimensional Phase Unwrapping Approach

#### 4.1. Problem Formulation

#### 4.2. Temporal Inconsistency

#### 4.3. Application to Simulated Data

#### 4.3.1. Simulation Scenario

#### 4.3.2. Results of Closed Loop Simulation

## 5. Application to Real Data

#### 5.1. Data Basis

#### 5.2. Temporal Consistency

#### 5.3. Smoothness in Space

#### 5.4. Single Pixel Evaluation

## 6. Conclusions and Outlook

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Ferretti, A.; Prati, C.; Rocca, F. Permanent Scatterers in SAR Interferometry. IEEE Trans. Geosci. Remote Sens.
**2001**, 39, 8–20. [Google Scholar] [CrossRef] - Berardino, P.; Fornaro, G.; Lanari, R.; Sansosti, E. A New Algorithm for Surface Deformation Monitoring Based on Small Baseline Differential SAR Interferograms. IEEE Trans. Geosci. Remote Sens.
**2002**, 40, 2375–2383. [Google Scholar] [CrossRef][Green Version] - Ferretti, A.; Fumagalli, A.; Novali, F.; Prati, C.; Rocca, F.; Rucci, A. A New Algorithm for Processing Interferometric Data-Stacks: SqueeSAR. IEEE Trans. Geosci. Remote Sens.
**2011**, 49, 3460–3470. [Google Scholar] [CrossRef] - Hooper, A.; Zebker, H.A.; Segall, P.; Kampes, B. A New Method for Measuring Deformation on Volcanoes and Other Natural Terrains Using InSAR Persistent Scatterers. Geophys. Res. Lett.
**2004**, 31, 1–5. [Google Scholar] [CrossRef] - Hooper, A.; Segall, P.; Zebker, H. Persistent Scatterer InSAR for Crustal Deformation Analysis, with Application to Volcán Alcedo, Galápagos. J. Geophys. Res.
**2007**, 112, 1–21. [Google Scholar] [CrossRef][Green Version] - Boje, R.; Gstirner, W.; Schuler, D.; Spata, M. Leitnivellements in Bodenbewegungsgebieten des Bergbaus - Eine Langjährige Kernaufgabe der Landesvermessung in Nordrhein-Westfalen. NÖV NRW
**2008**, 3, 33–42. [Google Scholar] - Pepe, A.; Lanari, R. On the Extension of the Minimum Cost Flow Algorithm for Phase Unwrapping of Multitemporal Differential SAR Interferograms. IEEE Trans. Geosci. Remote Sens.
**2006**, 44, 2374–2383. [Google Scholar] [CrossRef] - Hanssen, R.F. Radar Interferometry: Data Interpretation and Error Analysis; Remote Sensing and Digital Image Processing; Springer: Dordrecht, The Netherlands, 2001. [Google Scholar]
- Tribolet, J. A New Phase Unwrapping Algorithm. IEEE Trans. Acoust. Speech Signal Process.
**1977**, 25, 170–177. [Google Scholar] [CrossRef] - Huntley, J.M. Three-Dimensional Noise-Immune Phase Unwrapping Algorithm. Appl. Opt.
**2001**, 40, 3901–3908. [Google Scholar] [CrossRef] - Su, X.; Zhang, Q. Dynamic 3-D Shape Measurement Method: A Review. Opt. Lasers Eng.
**2010**, 48, 191–204. [Google Scholar] [CrossRef] - Cusack, R.; Papdakis, N.; Martin, K.; Brett, M. A New Robust 3d Phase-Unwrapping Algorithm Applied to fMRI Field Maps for the Undistortion of EPIs. Neuroimage
**2001**, 13, 103. [Google Scholar] [CrossRef] - Salfity, M.F.; Ruiz, P.D.; Huntley, J.M.; Graves, M.J.; Cusack, R.; Beauregard, D.A. Branch Cut Surface Placement for Unwrapping of Undersampled Three-Dimensional Phase Data: Application to Magnetic Resonance Imaging Arterial Flow Mapping. Appl. Opt.
**2006**, 45, 2711–2722. [Google Scholar] [CrossRef] [PubMed] - Hooper, A.; Zebker, H.A. Phase unwrapping in three dimensions with application to INSAR time series. J. Opt. Soc. Am. A
**2007**, 24, 2737–2747. [Google Scholar] [CrossRef] [PubMed][Green Version] - Shanker, A.P.; Zebker, H. Edgelist Phase Unwrapping Algorithm for Time Series InSAR Analysis. J. Opt. Soc. Am. A
**2010**, 27, 605–612. [Google Scholar] [CrossRef] - Costantini, M.; Malvarosa, F.; Minati, F. A General Formulation for Redundant Integration of Finite Differences and Phase Unwrapping on a Sparse Multidimensional Domain. IEEE Trans. Geosci. Remote Sens.
**2012**, 50, 758–768. [Google Scholar] [CrossRef] - Pepe, A.; Yang, Y.; Manzo, M.; Lanari, R. Improved EMCF-SBAS Processing Chain Based on Advanced Techniques for the Noise-Filtering and Selection of Small Baseline Multi-Look DInSAR Interferograms. IEEE Trans. Geosci. Remote Sens.
**2015**, 53, 4394–4417. [Google Scholar] [CrossRef] - Costantini, M. A Phase Unwrapping Method Based on Network Programming. In ERS SAR Interferometry; European Space Agency (ESA): Zurich, Switzerland, 1997; Volume 406, pp. 261–272. [Google Scholar]
- Fornaro, G.; Pauciullo, A.; Reale, D. A Null-Space Method for the Phase Unwrapping of Multitemporal SAR Interferometric Stacks. IEEE Trans. Geosci. Remote Sens.
**2011**, 49, 2323–2334. [Google Scholar] [CrossRef] - Pepe, A. Theory and statistical description of the enhanced multi-temporal insar (e-mtinsar) noise-filtering algorithm. Remote Sens.
**2019**, 11, 363. [Google Scholar] [CrossRef][Green Version] - Schrijver, A. Theory of Linear and Integer Programming; John Wiley & Sons, Inc.: New York, NY, USA, 1986. [Google Scholar]
- Esch, C.; Köhler, J.; Gutjahr, K.; Schuh, W.D. On the Analysis of the Phase Unwrapping Process in a D-InSAR Stack with Special Focus on the Estimation of a Motion Model. Remote Sens.
**2019**, 11, 2295. [Google Scholar] [CrossRef][Green Version] - Zhang, K.; Li, Z.; Meng, G.; Dai, Y. A Very Fast Phase Inversion Approach for Small Baseline Style Interferogram Stacks. ISPRS J. Photogramm. Remote Sens.
**2014**, 97, 1–8. [Google Scholar] [CrossRef] - Costantini, M. A Novel Phase Unwrapping Method Based on Network Programming. IEEE Trans. Geosci. Remote Sens.
**1998**, 36, 813–821. [Google Scholar] [CrossRef] - Schwaebisch, M. Die SAR-Interferometrie Zur Erzeugung Digitaler Geländemodelle; Technical Report 95-25; DLR, Abtl. Operative Planung: Köln, Germany, 1995. [Google Scholar]
- Just, D.; Bamler, R. Phase Statistics of Interferograms with Applications to Synthetic Aperture Radar. Appl. Opt.
**1994**, 33, 4361–4368. [Google Scholar] [CrossRef] [PubMed] - Lee, J.S.; Hoppel, K.W.; Mango, S.A.; Miller, A.R. Intensity and Phase Statistics of Multilook Polarimetric and Interferometric SAR Imagery. IEEE Trans. Geosci. Remote Sens.
**1994**, 32, 1017–1028. [Google Scholar] [CrossRef] - Halsig, S.; Ernst, A.; Schuh, W.D. Ausgleichung von Höhennetzen aus mehreren Epochen unter Berücksichtigung von Bodenbewegungen. Z. Geod. Geoinf. Landmanag.
**2013**, 4, 288–296. [Google Scholar] - Esch, C.; Köhler, J.; Gutjahr, K.; Schuh, W.D. 25 Jahre Bodenbewegungen in der Niederrheinischen Bucht—Ein kombinierter Ansatz aus D-InSAR und amtlichen Leitnivellements. Z. Geod. Geoinf. Landmanag.
**2019**, 3, 173–186. [Google Scholar] - Breuer, T.; Bussieck, M.; Cao, K.-K.; Cebulla, F.; Fiand, F.; Gils, H.C.; Gleixner, A.; Khabi, D.; Koch, T.; Rehfeldt, D.; et al. Optimizing large-scale linear energy system problems with block diagonal structure by using parallel interior-point methods. In Operations Research Proceedings; Kliewer, N., Ehmke, J.F., Borndörfer, R., Eds.; Springer International Publishing: Cham, Switzerland, 2018; pp. 641–647. ISBN 978-3-319-89920-6. [Google Scholar]
- Yang, A.; Pepe, A.; Manzo, M.; Casu, F.; Lanari, R. A region-growing technique to improve multi-temporal dinsar interferogram phase unwrapping performance. Remote Sens. Lett.
**2013**, 4, 10. [Google Scholar] [CrossRef] - Ojha, C.; Manunta, M.; Lanari, R.; Pepe, A. The constrained-network propagation (c-netp) technique to improve sbas-dinsar deformation time series retrieval. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens.
**2015**, 8, 4910–4921. [Google Scholar] [CrossRef] - Carballo, G.F.; Fieguth, P. Hierarchical network flow phase unwrapping. IEEE Trans. Geosci. Remote Sens.
**2002**, 40, 1695–1708. [Google Scholar] [CrossRef] - Chen, C.W.; Zebker, H.A. Phase unwrapping for large sar interferograms: Statistical segmentation and generalized network models. IEEE Trans. Geosci. Remote Sens.
**2002**, 40, 1709–1719. [Google Scholar] [CrossRef][Green Version]

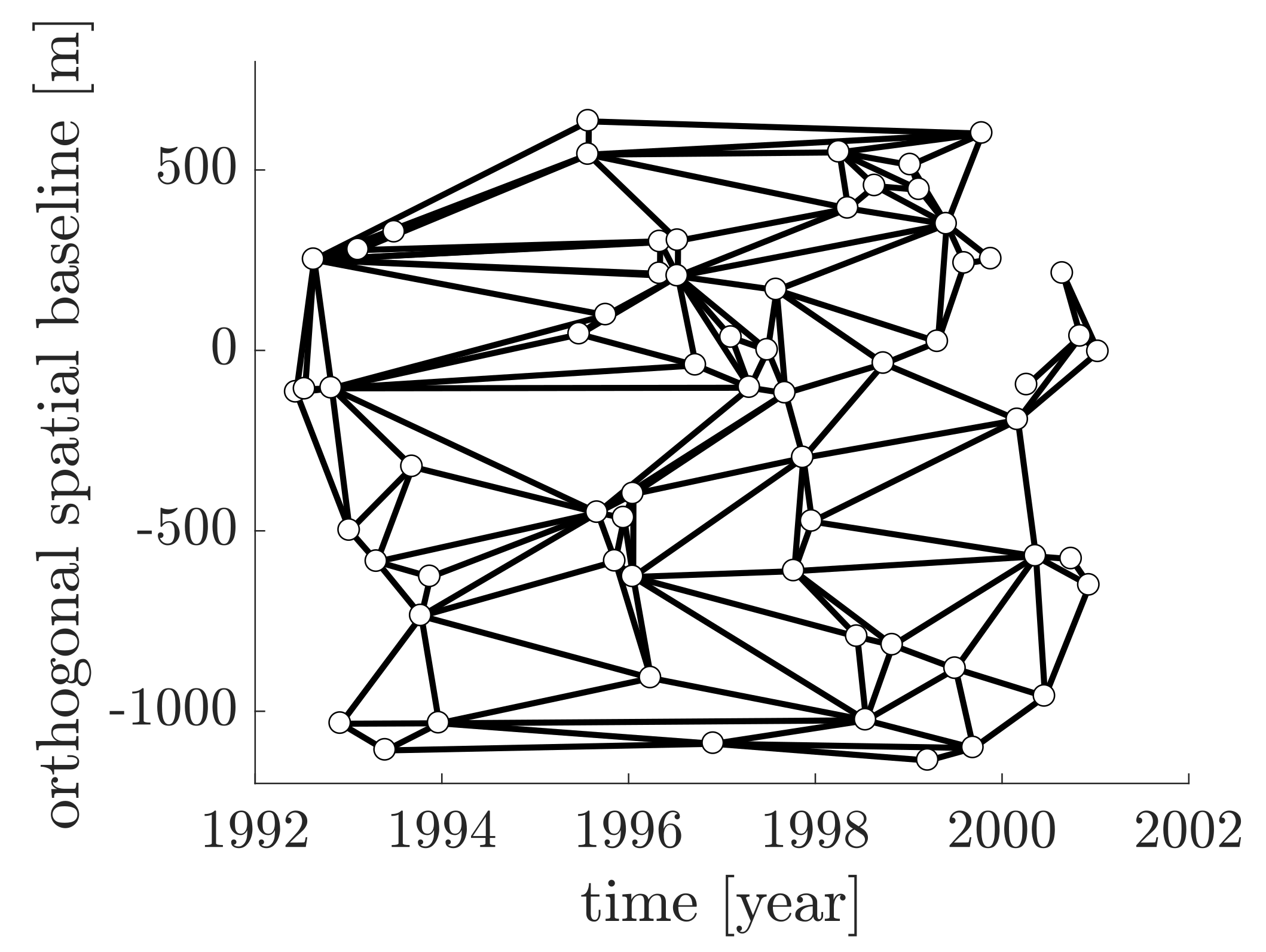

**Figure 1.**Temporal triangulation related to the Small BAseline Subset (SBAS) method with a set ${\mathcal{M}}^{\prime}$ of SAR images and a set ${\mathcal{N}}^{\prime}$ of interferograms. The white dots represent the individual SAR scenes at the individual acquisition times with corresponding orthogonal spatial baseline relating to the master scene. The black lines represent the interferograms. The spatial and temporal baseline information comes from the ERS 1/2 data from May 1992 to December 2000.

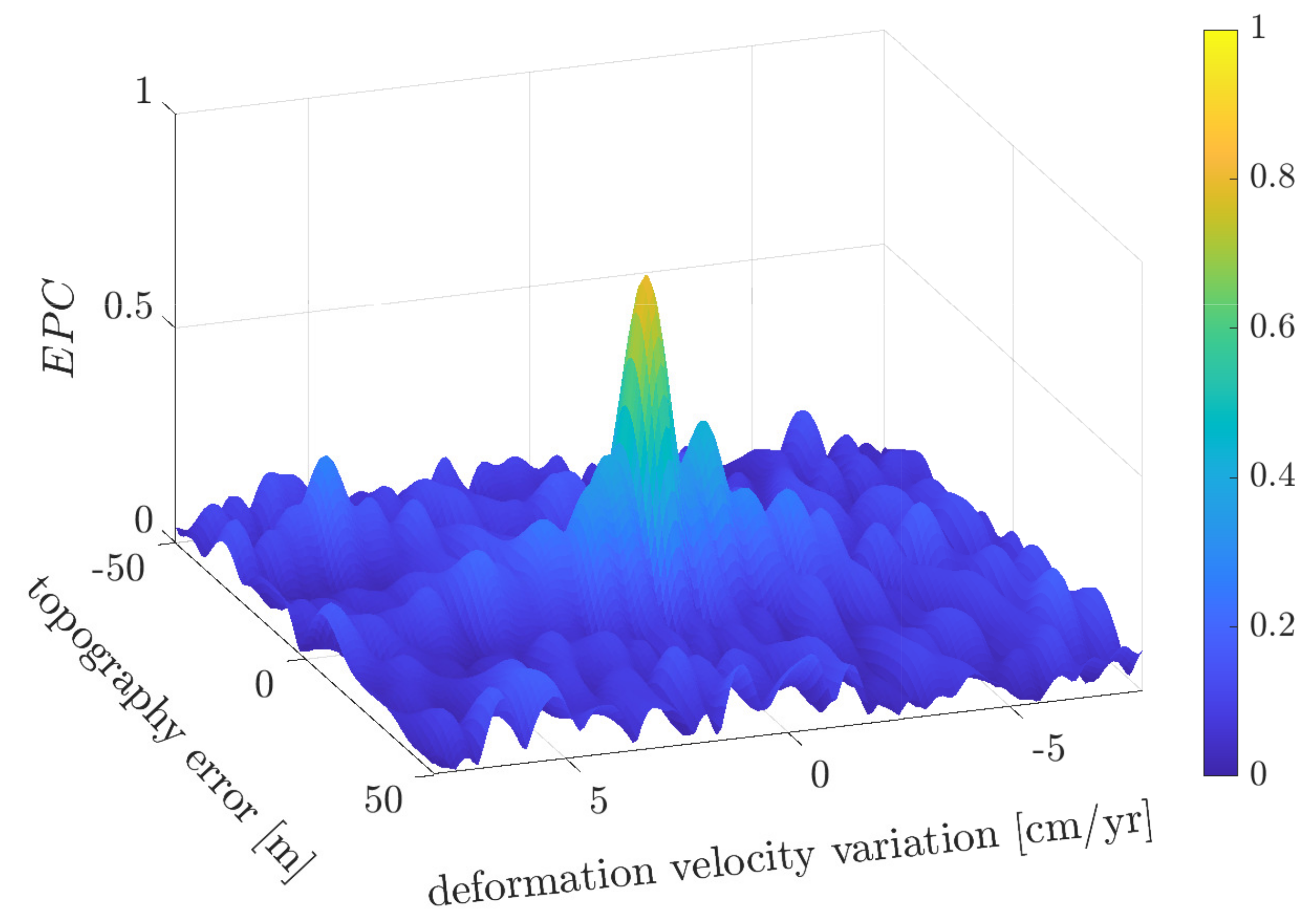

**Figure 2.**EPC function exemplary for one phase gradient depending on the error of the scene topography and the deformation velocity variation.

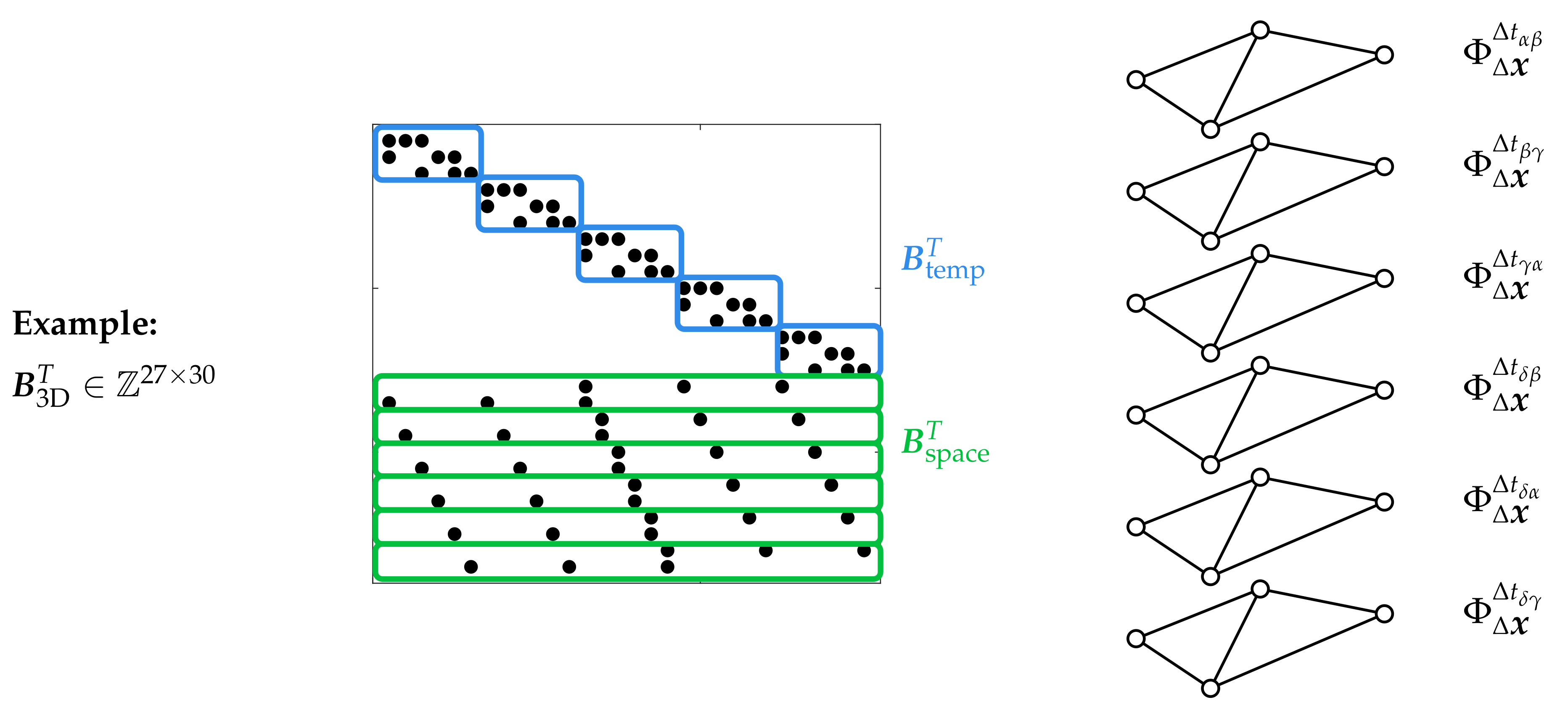

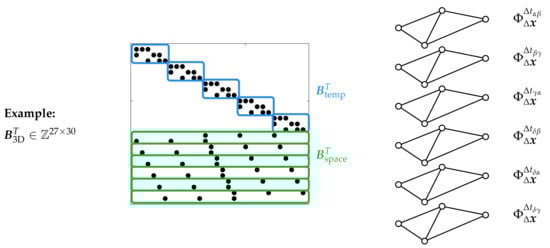

**Figure 3.**Exemplary structure of global constraint matrix for a small D-InSAR stack consisting of six interferograms between which a total of three temporal constraints can be generated and five spatial gradients, between which two spatial constraints must be fulfilled.

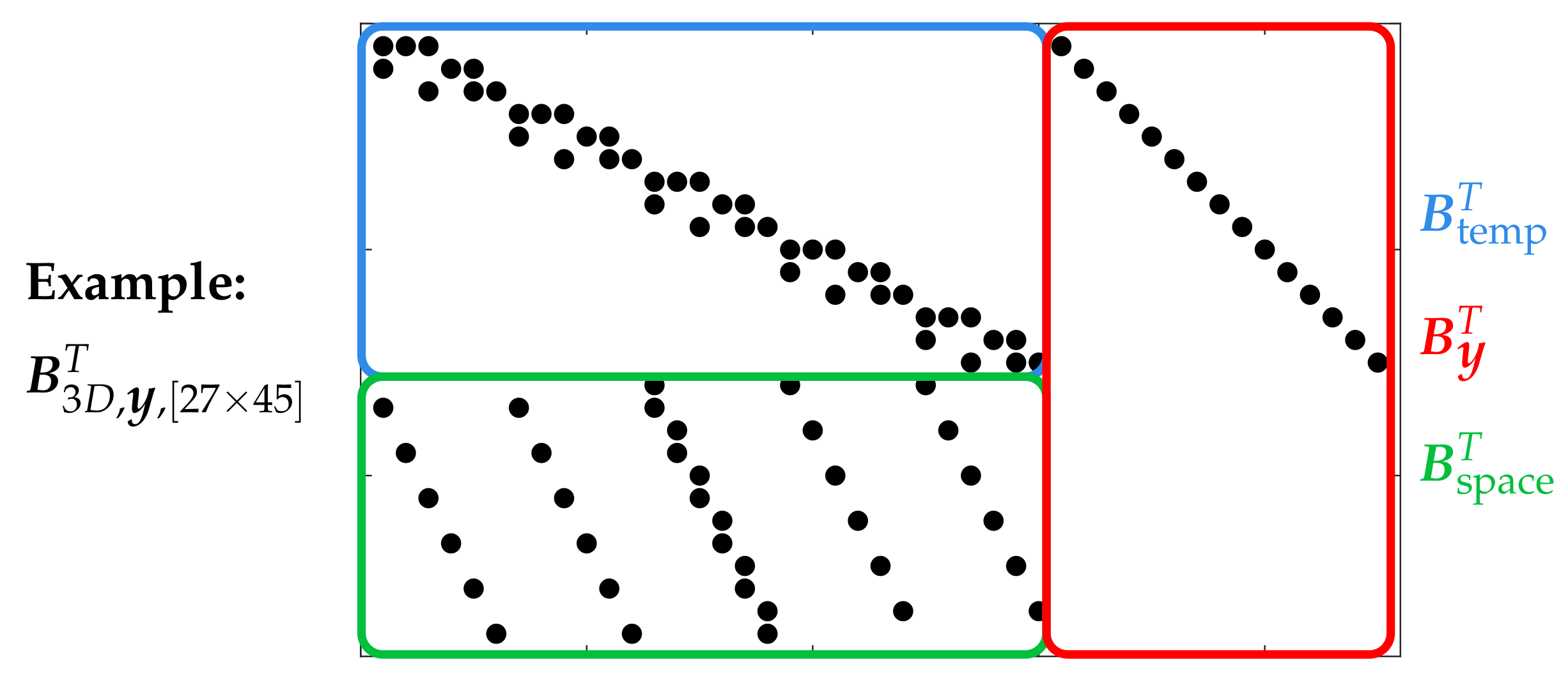

**Figure 4.**Exemplary structure of a global constraint matrix with slack variables for a small D-InSAR stack consisting of six interferograms between which a total of three temporal constraints can be generated and five spatial gradients between which two spatial constraints must be fulfilled.

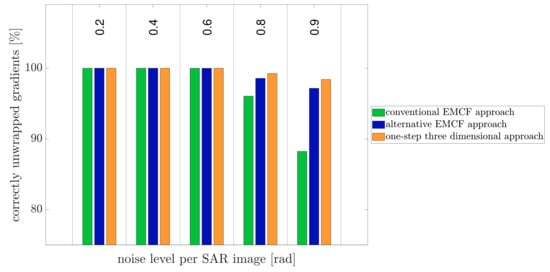

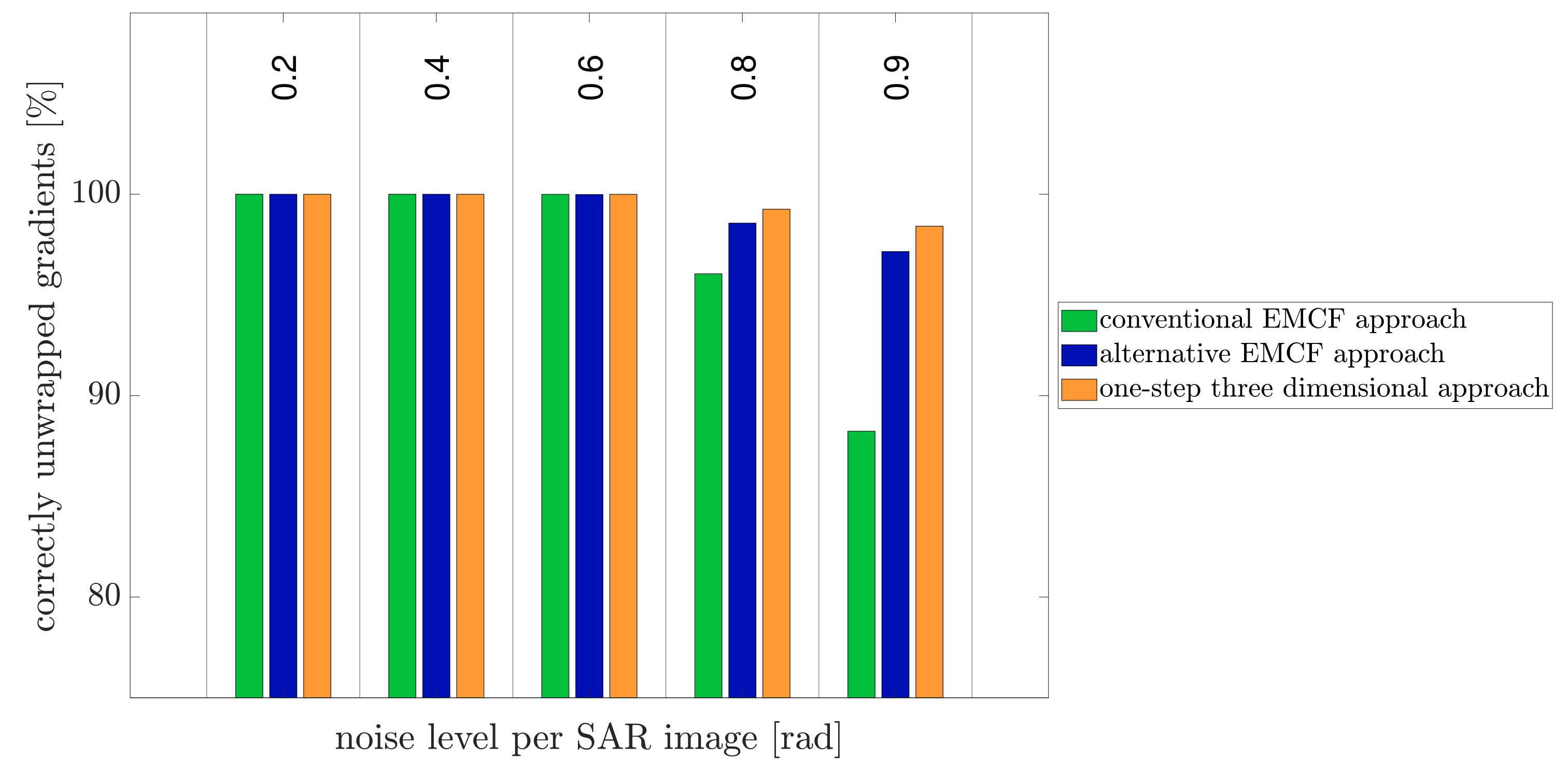

**Figure 5.**Percentage of correctly unwrapped phase gradients depending on the noise level added per SAR image. The green bars show the results of the conventional EMCF approach, the dark blue bars are the results using the alternative EMCF algorithm and the orange bars are the results using the one-step three-dimensional approach.

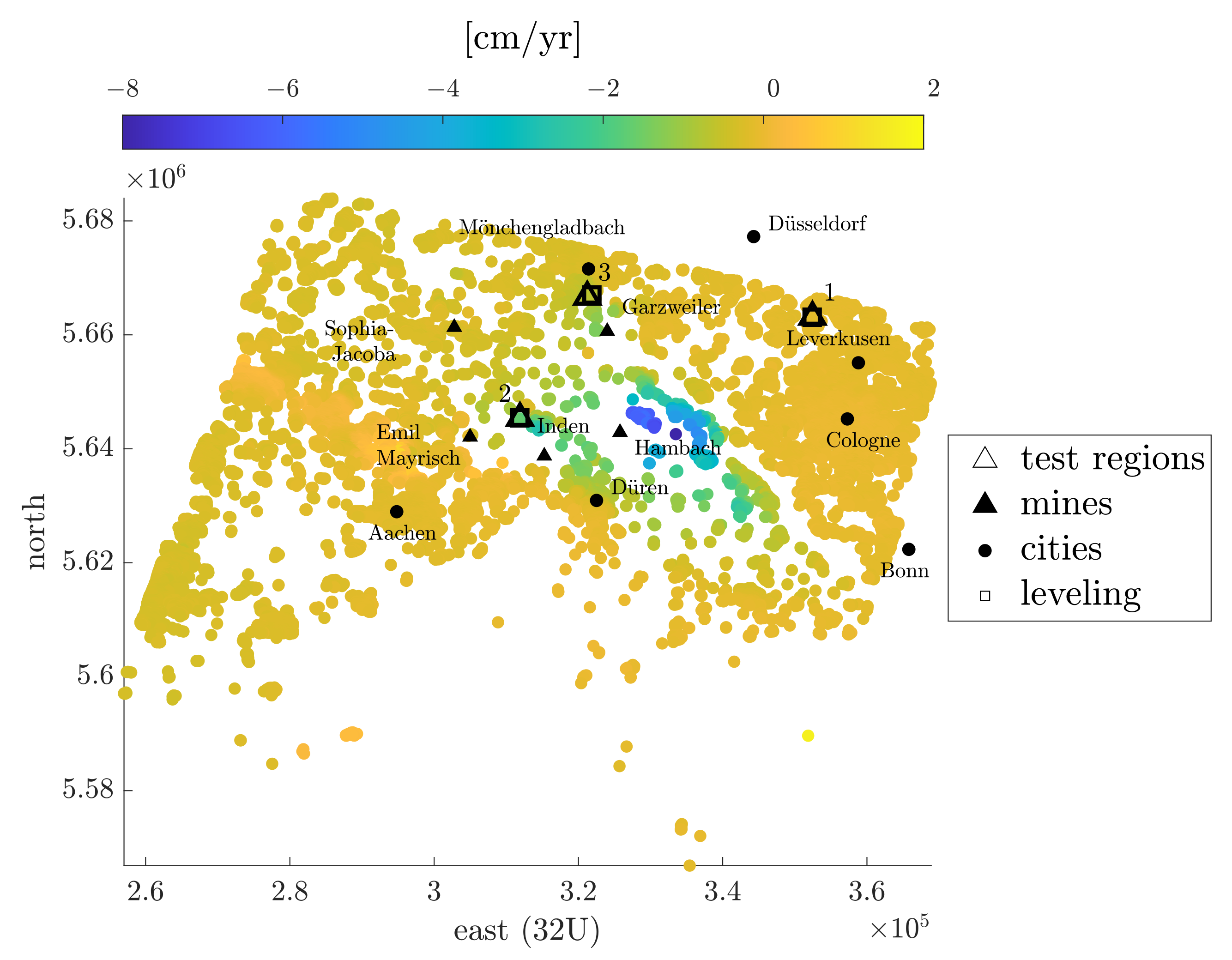

**Figure 6.**Mean deformation velocity map of the Lower-Rhine-Embayment based on ERS 1/2 data from May 1992 to December 2000 for pixels with a coherence value greater 0.7 in at least 95% of interferograms and estimated using the conventional EMCF approach. The highlighted test regions 1 to 3 are examined in more detail as time series in Figure 8.

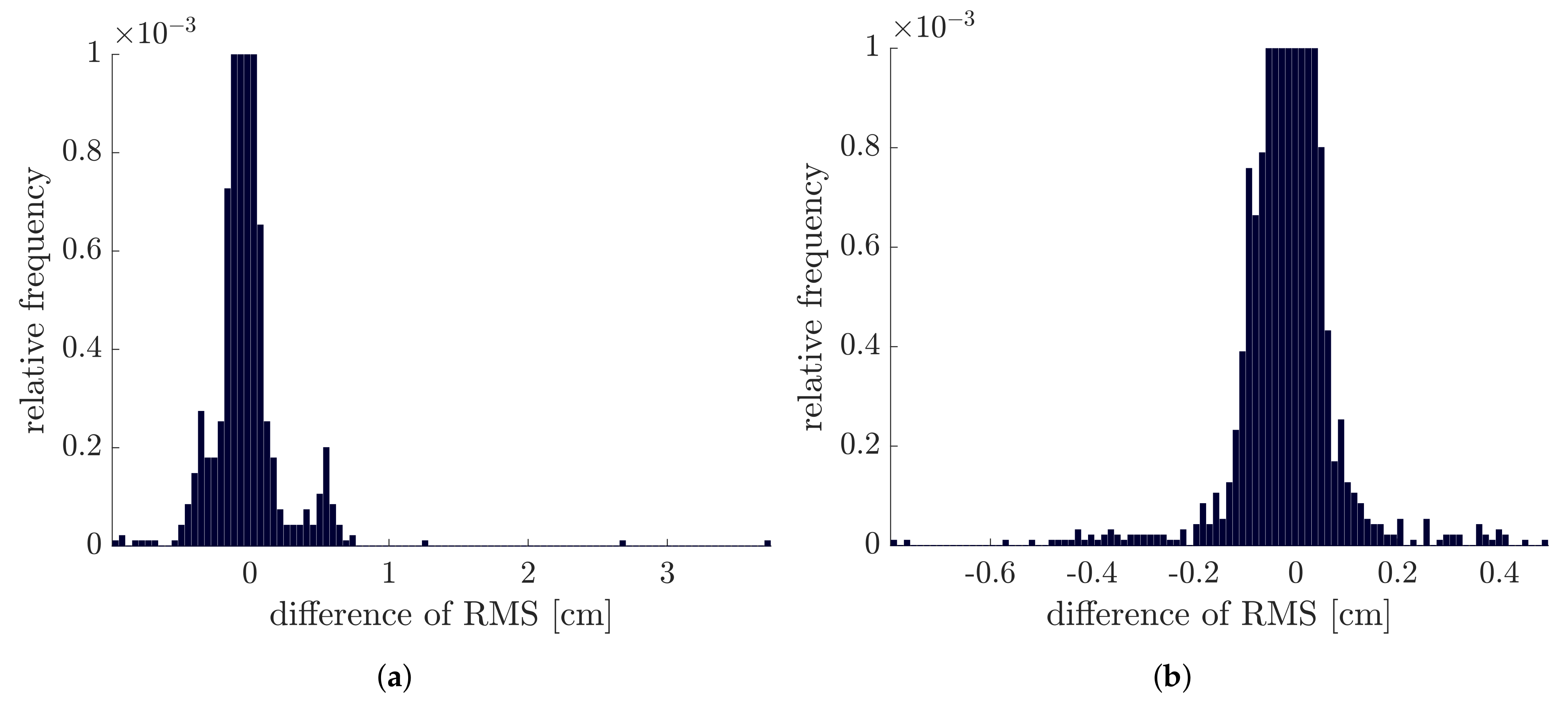

**Figure 7.**Difference of RMS values of the deformation time series estimated with (

**a**) the conventional EMCF approach minus RMS of one-step three-dimensional approach and (

**b**) the alternative EMCF approach minus RMS of one-step three-dimensional approach.

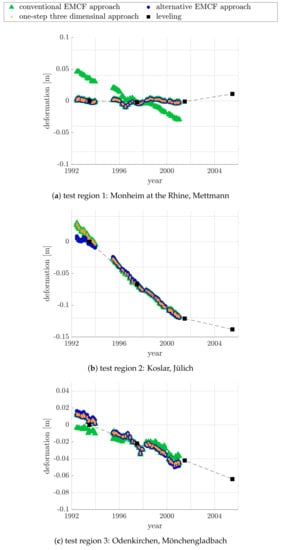

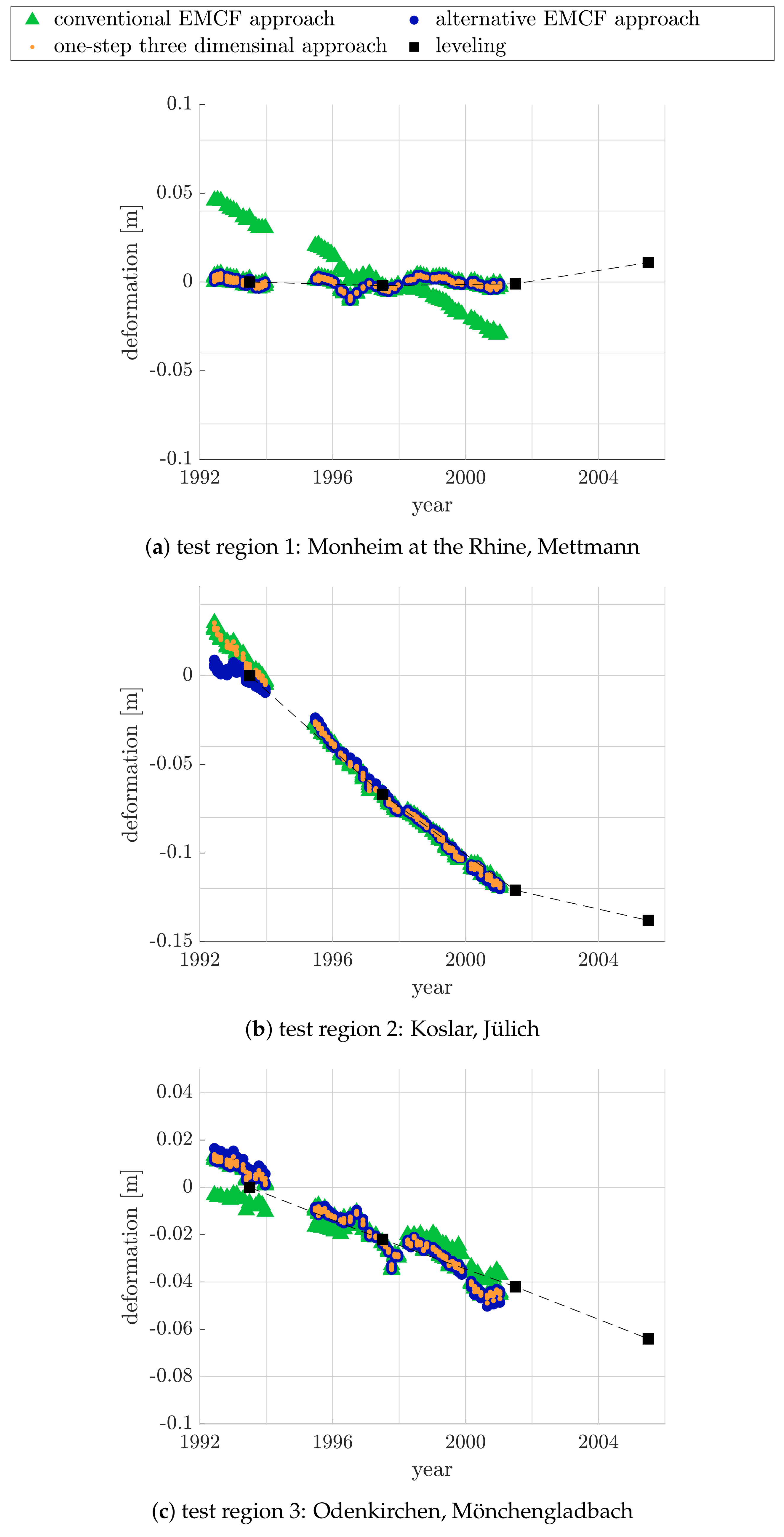

**Figure 8.**Deformation time series of five pixels lying in each of the three highlighted test regions shown in Figure 6. (

**a**) shows the pixels in Mohnheim at the Rhine, (

**b**) in Koslar and (

**c**) in Odenkirchen. The results using the conventional EMCF approach are shown as green triangles, using the alternative EMCF as dark blue points and using the one-step three-dimensional approach as orange points. The black squares indicate the data from the closest leveling point.

**Table 1.**Total number of temporal inconsistencies for different noise levels. In addition to the reference, the number is listed for different phase unwrapping methods.

Method | Total Number of Temporal Inconsistencies for Different Noise Levels [rad] | ||||
---|---|---|---|---|---|

0.2 | 0.4 | 0.6 | 0.8 | 0.9 | |

reference | 59 | 59 | 59 | 59 | 59 |

conventional EMCF approach | 23 | 23 | 46 | 30,705 | 142,090 |

alternative EMCF approach | 33 | 19 | 88 | 28,336 | 65,599 |

one-step three-dimensional approach | 14 | 14 | 14 | 14 | 14 |

**Table 2.**Number of total temporal inconsistencies for ERS 1/2 data. The number is listed for different phase unwrapping methods after the first and the second phase unwrapping step in the SBAS workflow.

Method | Total Number of Temporal Inconsistencies after | |
---|---|---|

1st Phase Unwrapping | 2nd Phase Unwrapping | |

conventional EMCF approach | 16,309 | 2947 |

alternative EMCF approach | 15,711 | 2810 |

one-step three-dimensional approach | 10,491 | 938 |

© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
