This section covers the analysis, in terms of executions times, on the performance and scalability of our proposal (
Section 4.1), as well as a visual and quantitative analysis of the boundary error correction strategy (
Section 4.2) and functional and computational considerations that should be highlighted regarding preprocessing decisions (
Section 4.3) and full point classification (
Section 4.4).

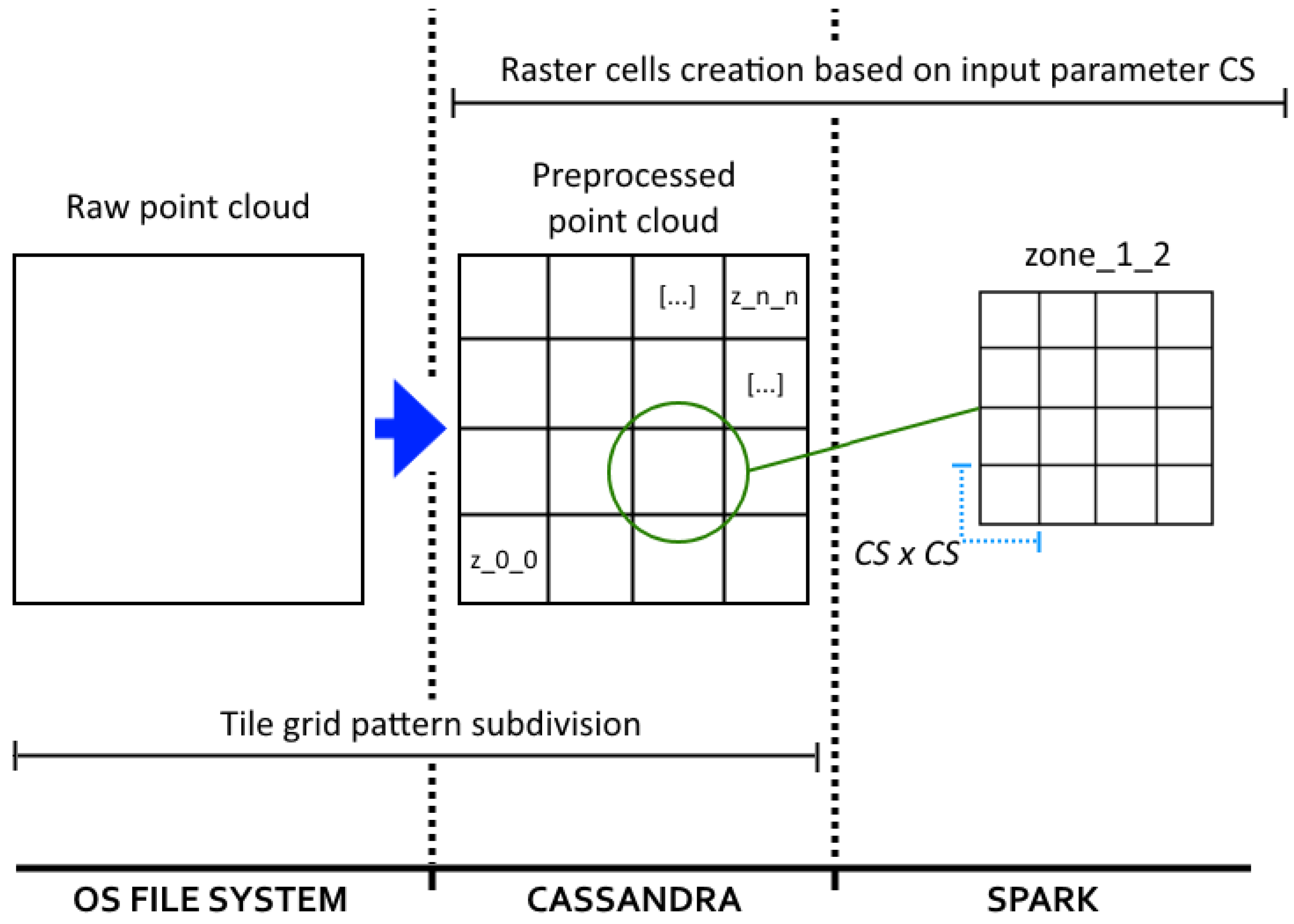

Two massive raw point clouds, whose details are described in
Table 1, were preprocessed to obtain the datasets employed for the analyses of this section. Four different datasets, whose details are described in
Table 2, were obtained out of the two raw point clouds. Datasets D0, D1 and D2 were created from the same point cloud (
PNOA, see

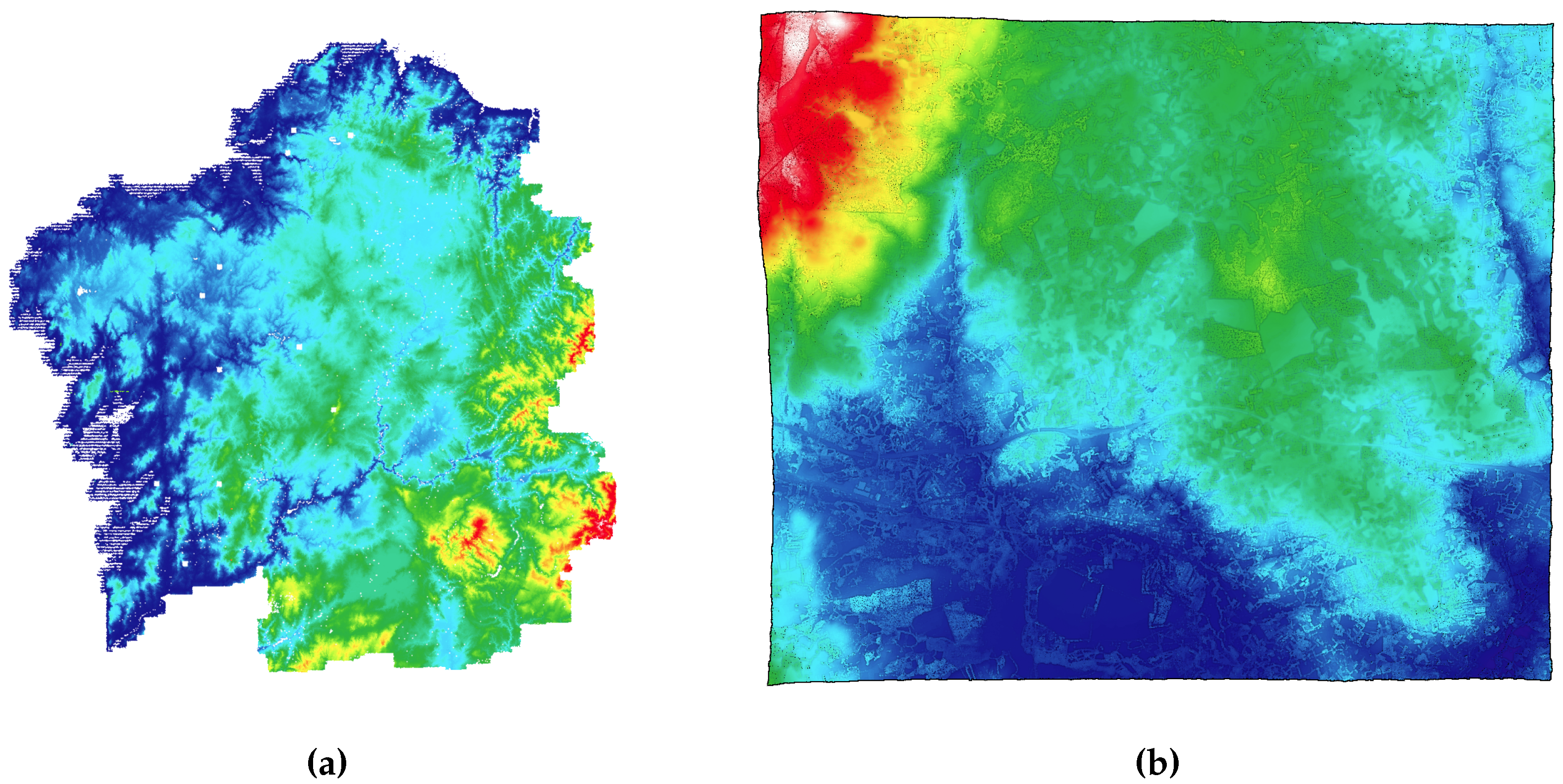

Figure 5a) varying the size of their processing units by using three different zone extents. On the other hand, D3 (created from the point cloud
Guitiriz, see
Figure 5b) was included to analyze system performance under especially unfavorable conditions, forcing the system to handle large processing units (29,690 KB per zone on average). During the preprocessing stage, not only was the subdivision of the point clouds carried out, but also a compression of the resultant files. A compression method, very similar to the one described in [
3], was employed to reduce the size of the data to be handled by the system.
All machines used on the system deployment follow the same specifications: 2×Intel Xeon E5-2660 (16 Cores/32 Threads), 64 GB RAM (DDR3), SATA3 HDD (7.2k), CentOS (6.10) and InfiniBand connection. The Spark master runs along with a Spark worker and a Cassandra node due to the negligible workload on the master. Both Spark and Cassandra offer a large number of configurable settings. To obtain the best performance results, these settings must be configured taking into account the cluster topology and the nature of the algorithms executed as well as the amount and type of data involved. The most relevant settings configured are described in
Appendix A. The filtering algorithm was configured with the input parameters described in
Section 2.1, setting
to 1.5 following recommendations from Recarey et al. [
22].
4.1. Performance in Terms of Execution Times
To analyze the scalability and performance of the system, we measured the time it took to filter each of the four datasets described in
Table 2. We should remember here that the whole filtering process encompasses the creation of the rasters, the classification of the points from the rasters and, if selected, the error correction. Times were taken for two execution scenarios: one using the error correction strategy (EC) and the other one without using it (NO-EC). The analysis was carried out using 4, 8 and 16 computing nodes. As a base comparison, a local non-big-data version of the system was also tested. This local version was specially configured to run in one node, without using Cassandra or Spark, being capable of processing in parallel several zones by sharing the workload among the 16 local nodes.

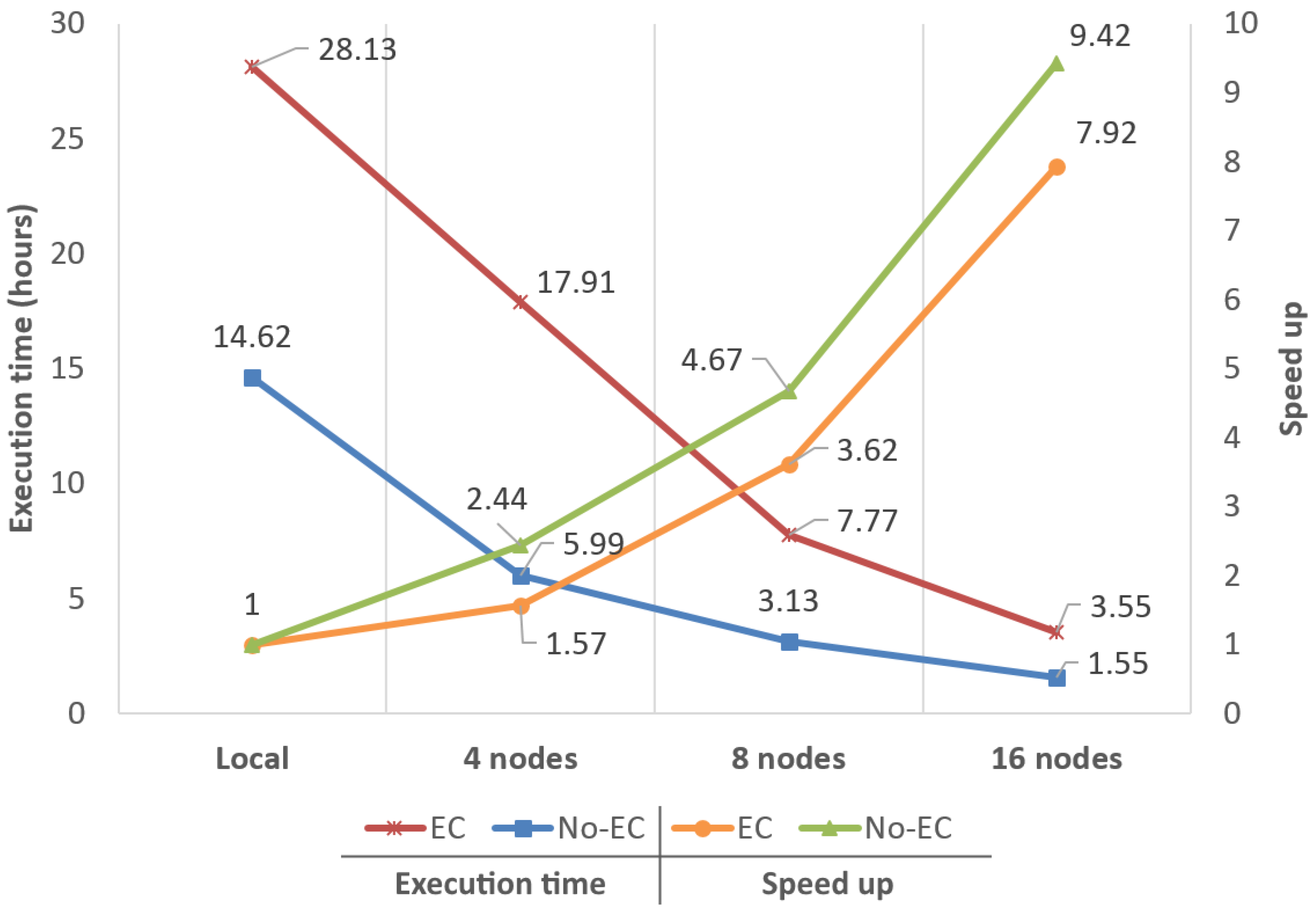

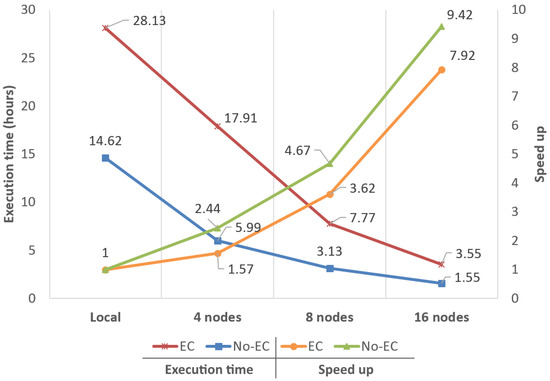

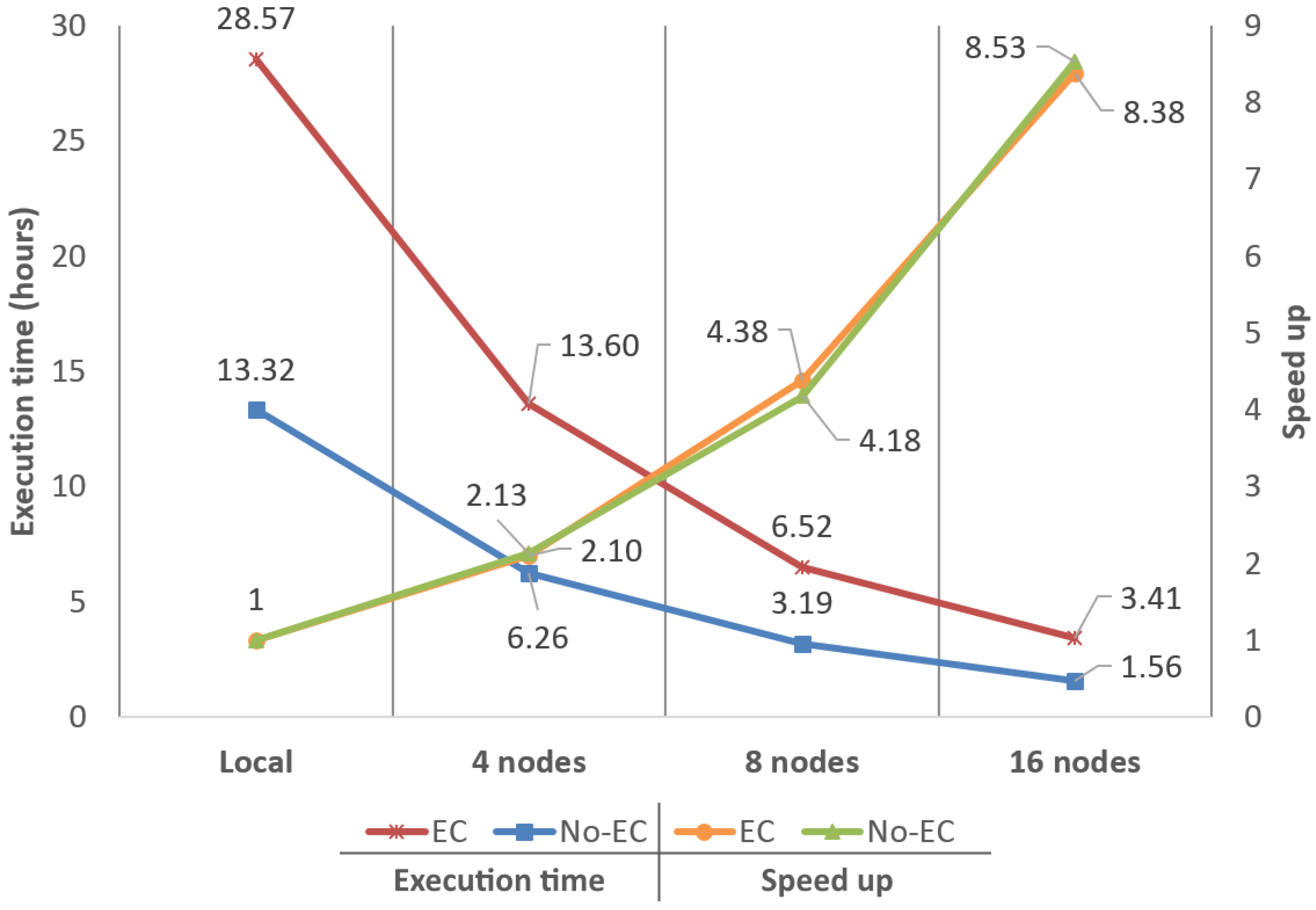

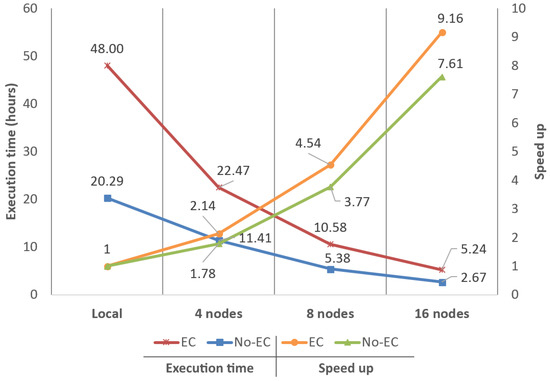

Performance results for D0, D1 and D2 can be observed in
Figure 6,
Figure 7 and
Figure 8, respectively. Figures show execution times (in hours) and speed-ups in comparison to the reference value (the local version of the algorithm).
Regarding speed-ups, results obtained for D0 were , and with EC and , and with NO-EC (using 4, 8 and 16 nodes, respectively). For D1, speed-ups observed were almost the same in both execution scenarios, being around , and . Finally, for D2, speed-ups were , and with EC and , and with NO-EC. Considering these results, it can be asserted that the base speed-up obtained when moving from a local execution to the big data system using four nodes is, on average, . Hence, the big data system shows linear scalability for all node configurations and datasets, both with EC and NO-EC, by doubling the performance when doubling the nodes available.
Regarding execution times, the fastest configuration observed offering the best quality was the 16 nodes configuration with EC and zones of
(D1) achieving 3.41 h. Presumably, execution times observed for D2 should be always better than D1, and times observed for D1 better than D0, since a reduction in the KB per zone would improve the throughput and latency of Cassandra, as demonstrated in [
12]. However, in this comparison, the effects on the reduction in the extent of the zones showed very different results. These differences are explained by the variation on the amount of information that moves between nodes in the two different execution scenarios and the start-up/initialization time penalty of the filtering algorithm. Every time a given processing unit (zone) begins to be filtered, a certain number of data structures must be initialized and some initial computations must be made causing a small start-up/initialization time penalty; hence, the more zones that are filtered, the more start-up/initialization time penalties will occur.
In the first scenario (NO-EC), data movements between nodes are almost non-existent as the Spark–Cassandra connector ensures data locality. Spark workers only apply the filtering algorithm on the zones stored in their own nodes and, as a result, little to no reduction on execution times is obtained by reducing the KB per zone. On the other hand, the start-up penalty of the filtering algorithm increases along with the number of zones to be processed. As a result of the combination of these two performance issues, in this scenario, a reduction in the extent of the zones is very likely to always produce an increment in the execution times.

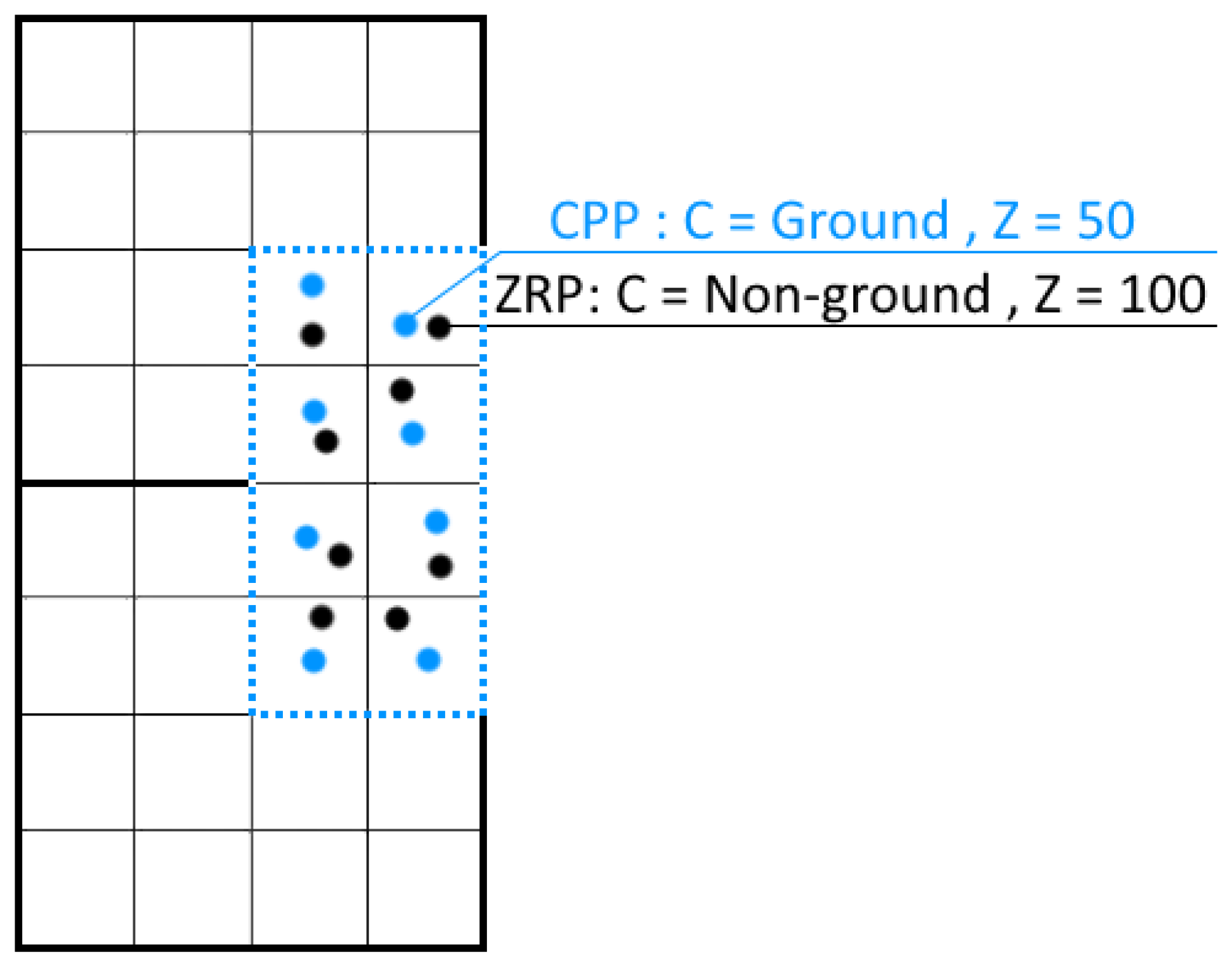

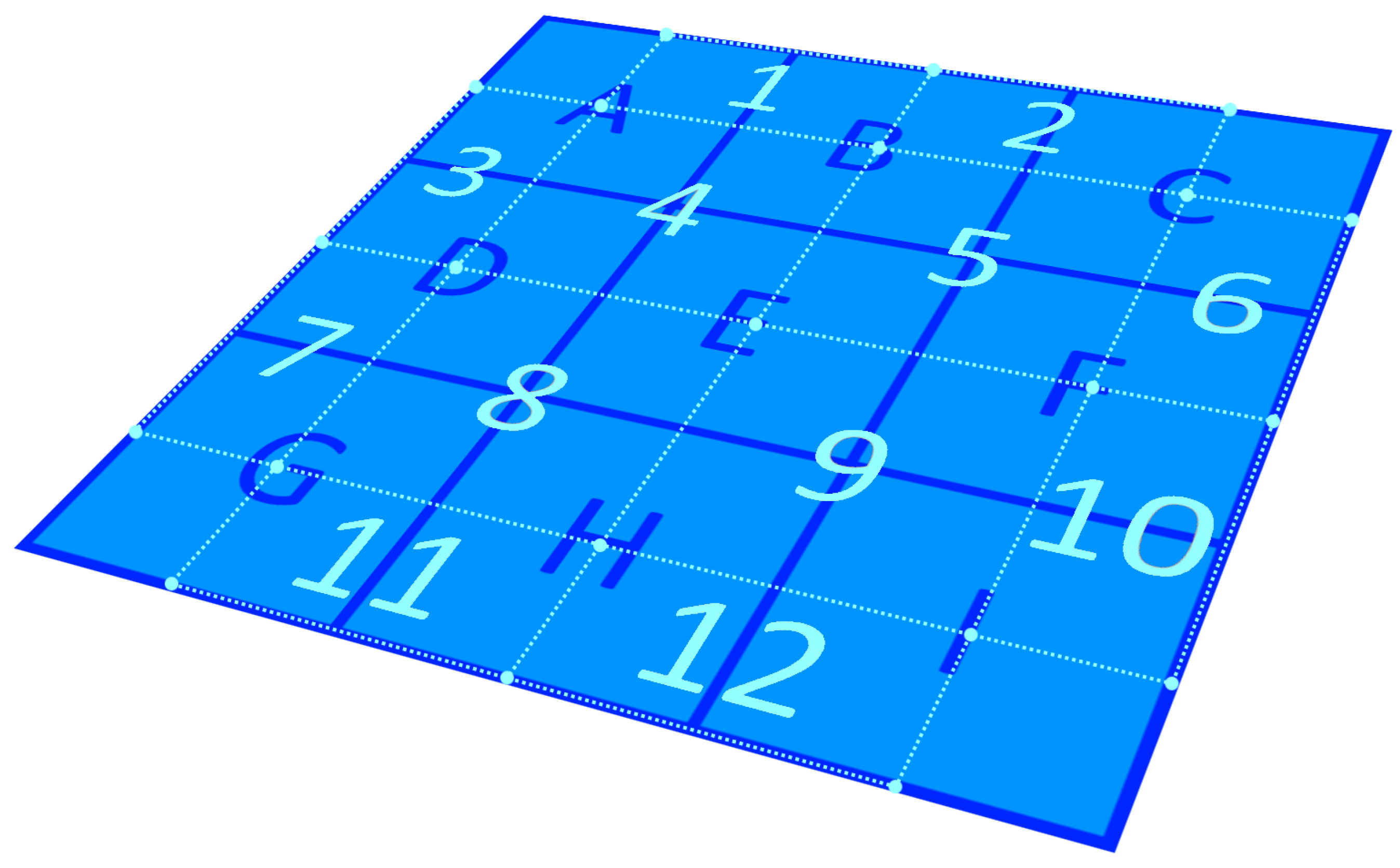

In the second scenario (EC), there are considerably more data movements between nodes; for example, a given correction patch should be moved between nodes for correcting the errors of adjacent zones that were stored in different nodes. Once the number of data movements is significant enough, the potential performance gain related to the reduction of the KB per zone begins to show up. The time reduction related to the movement of the data between nodes may end up compensating the time increment related to the start-up penalties, producing an overall decrement in the execution times.

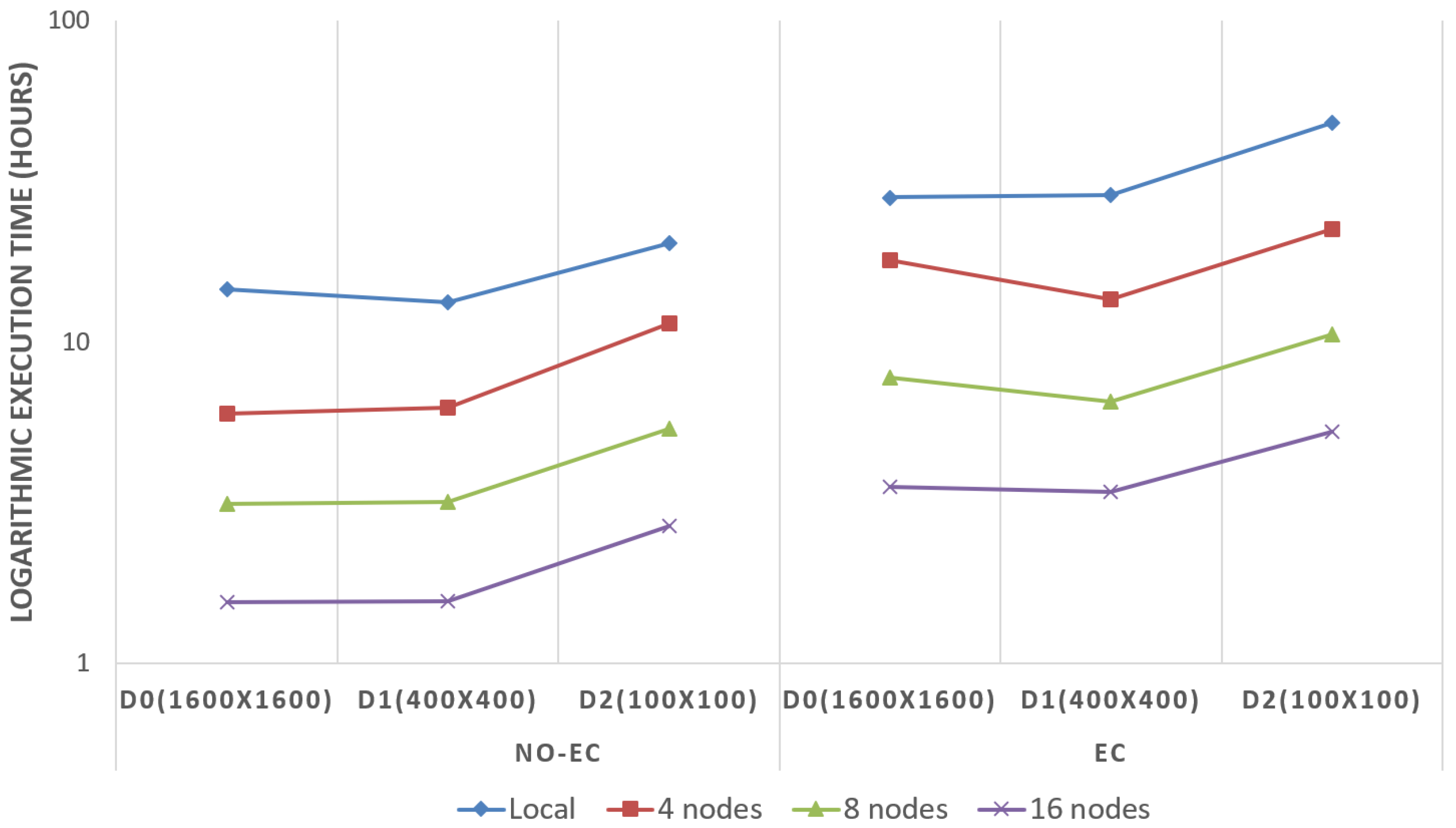

Figure 9 shows (using a logarithmic scale) how the execution times vary when changing the extent of the zones with NO-EC and EC. It can be clearly seen how there is always a reduction in the execution times when increasing the extent of the zones from
to
. The reduction in the number of zones to be filtered causes an important improvement in the execution times observed, which helps to compensate the potential performance decrement produced by the increase in the number of bytes that must be moved throughout the system when the boundary errors are corrected. However, when going from
to
, execution times almost stall. There is no a significant improvement with NO-EC; thereby, when the boundary errors are corrected, the amount of data becomes high enough to cause decrement in the performance of the system, leading to the obtention of worse times with EC.

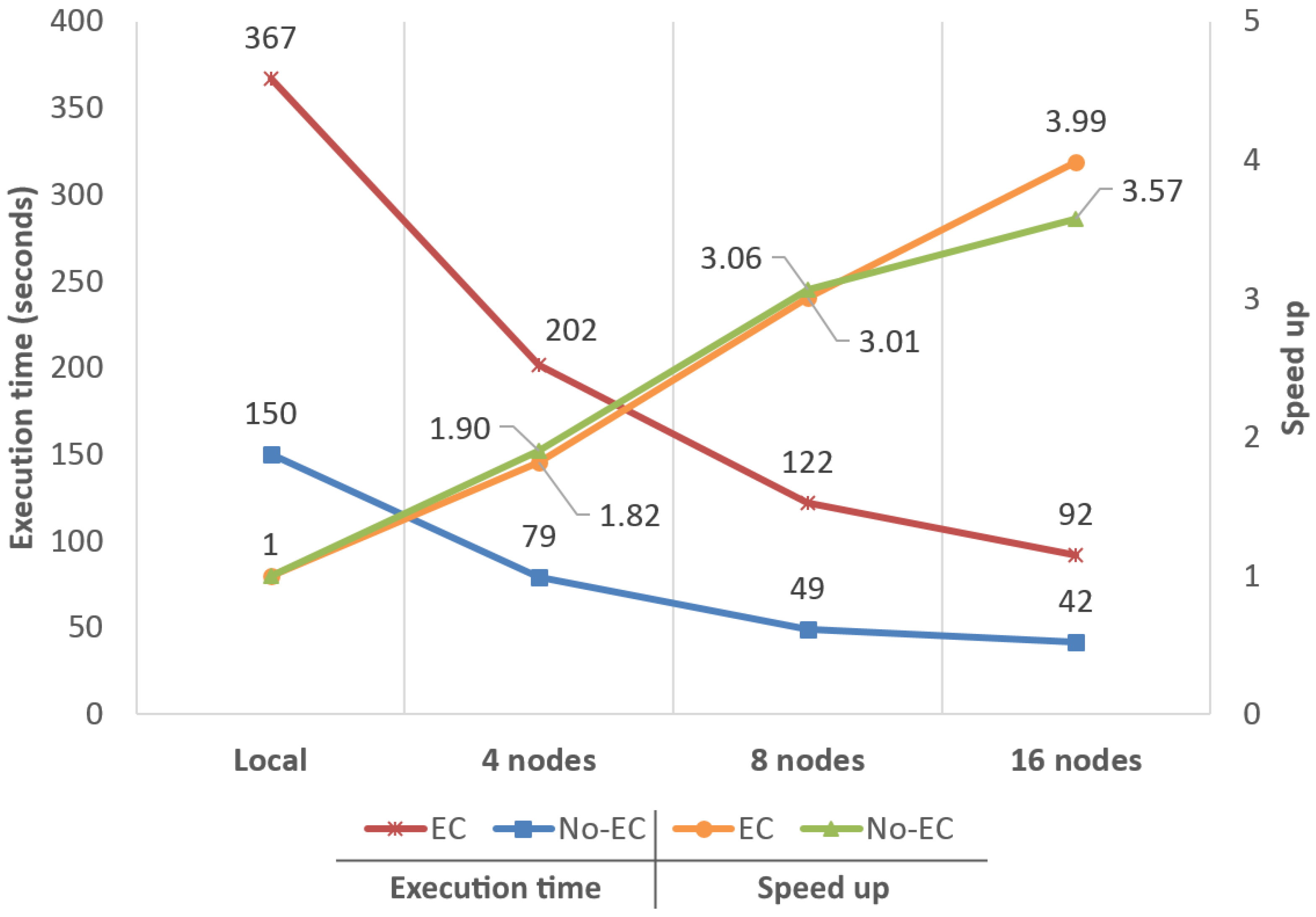

Finally, speed-ups obtained for D3 (
Figure 10) were
,
and
for NO-EC and
,
and
for EC. As can be observed, although the performance boost of the big data approach was notable, in comparison, results were not as good as those obtained with the other datasets, even starting to stall just at
when running on 16 nodes. These results are explained by, not only the small number of zones to process in comparison to the available cores (1.19 zones per core), but also by the very large size of the zones (≈ 30 MBs) that are being processed.
4.2. Boundary Error Correction Quality
With the intention of analyzing our boundary error correction strategy, we employed three separate methods: a visual analysis using the massive dataset D3 and two quantitative analyses using some of the datasets provided by the International Society for Photogrammetry and Remote Sensing (ISPRS) [
32].
Visual comparisons between EC and NO-EC can be observed in
Figure 11 and
Figure 12. Images in

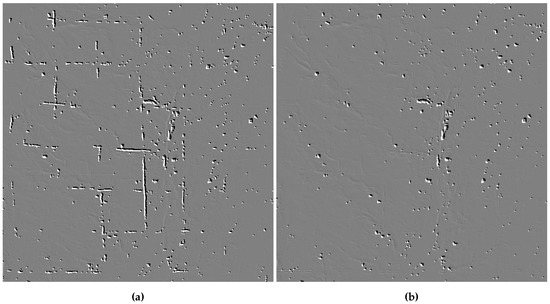

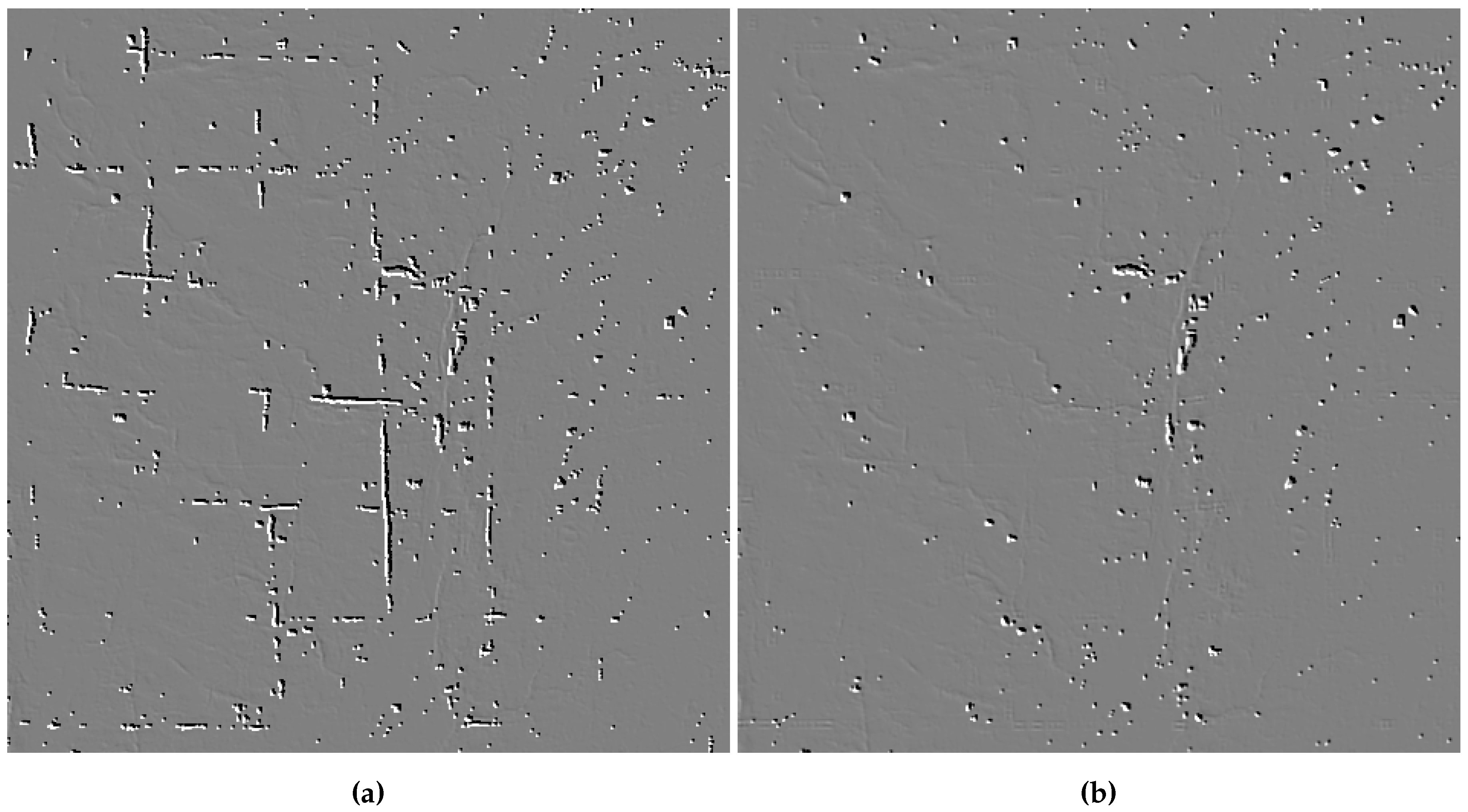

Figure 11 show a close view over two filtered rasters from D3 containing ground points only. The surface shown in
Figure 11a presents noticeable errors with blank zones that are completely removed in
Figure 11b. The only blank zones that can be seen in this image correspond to large zones of forest or small groups of houses. On the other hand,

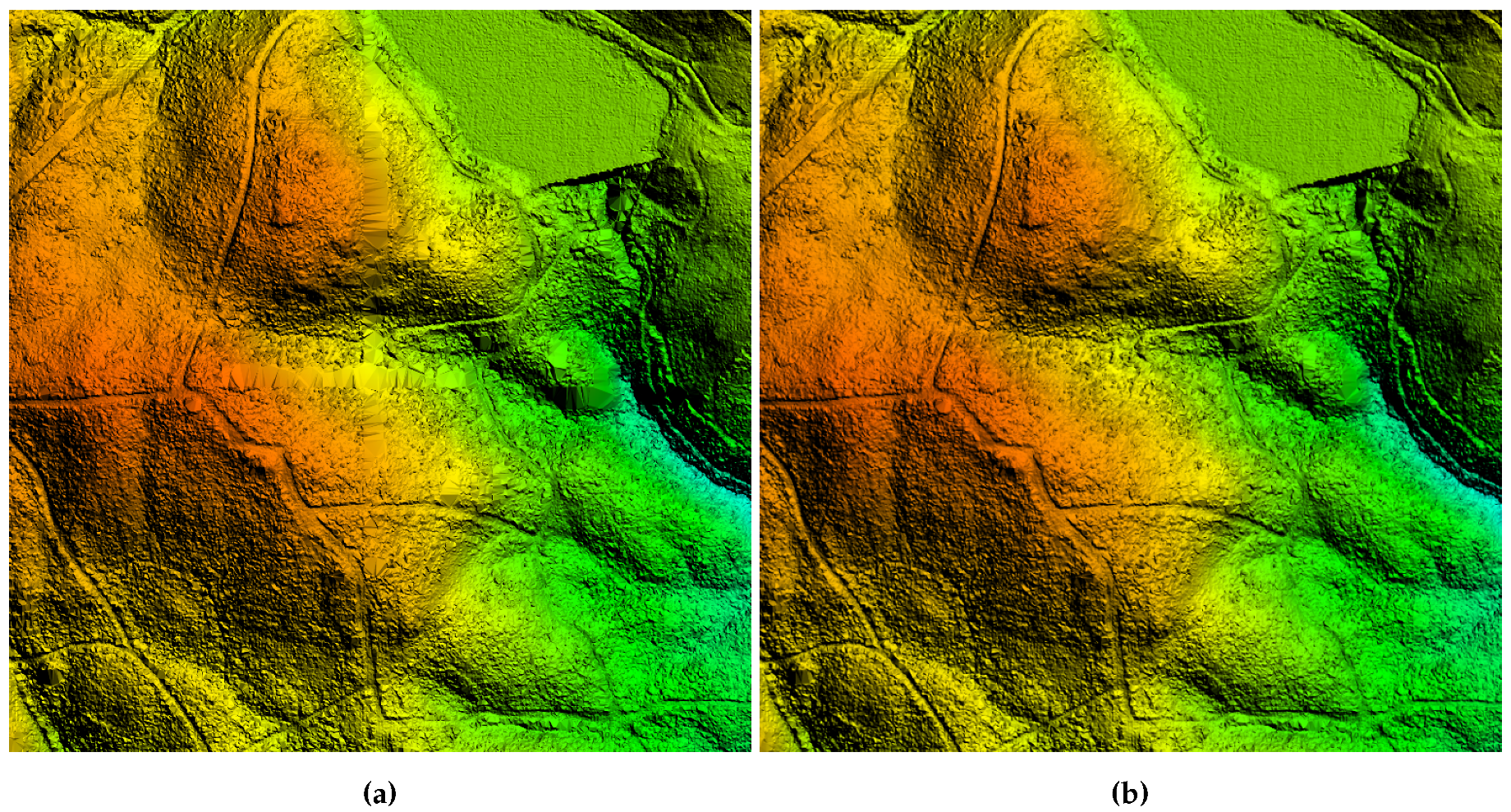

Figure 12 shows an even closer view over two fully triangulated rasters from the previous raster set. Ground points from the rasters were triangulated using the software tool Global Mapper [
33]. As in the previous figure, clear errors can be observed in
Figure 12a along the boundaries of the zones, while they are completely absent in
Figure 12b.
In
Table 3, we present a quantitative comparison between EC and NO-EC using the standard Type I error (rejection of ground points). We should stress here that Type I errors are calculated only with points from the rasters, thus every point from a raw point cloud not included in a raster counts as a classification error, leading to the high percentages shown in the table. The comparison was carried out using several datasets taken from the ISPRS test sites (first column) since they are considered as a standard when it comes to testing classification algorithms. For these tests,

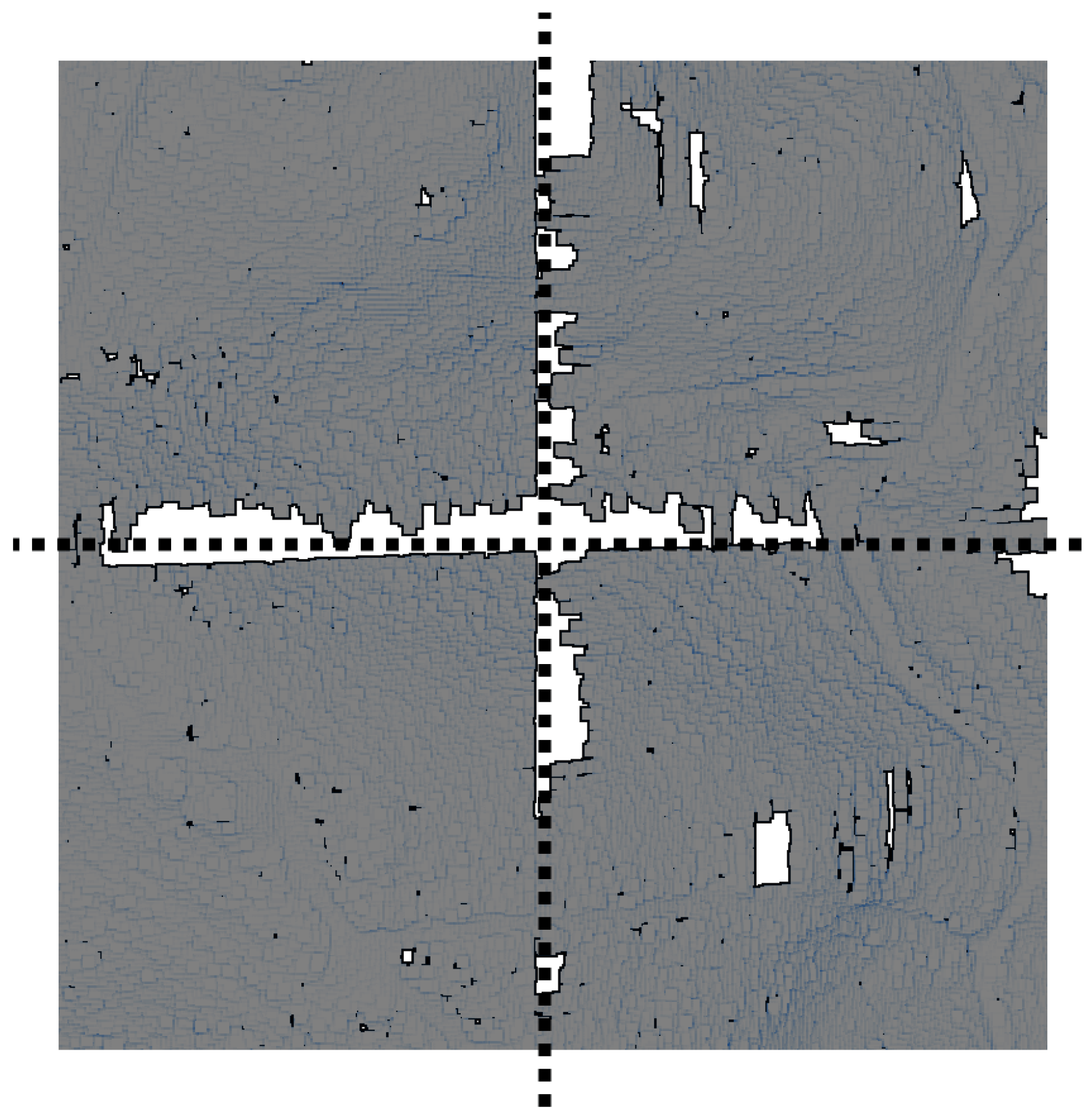

was set to 1 due to the low point density of the datasets. The second column (Undivided) shows the Type I errors obtained for each dataset using as input the entire undivided point clouds. All datasets were also divided into four smaller and equally sized zones (using the same division pattern shown in
Figure 2), and then each zone was processed with NO-EC and EC (third and fourth columns).
By dividing the datasets, boundary errors appear between the four zones, as can be observed by comparing the second and third columns of
Table 3. While comparing the third and fourth columns, the percentage of errors is reduced beyond the level previous to the division of the datasets thanks to the use of our proposal. The percentage of errors observed with EC are slightly inferior to the percentage with the undivided datasets, which can be explained by two main reasons. The first is due to small numbers of extra points that can be contained in the rasters of the divided datasets. For example, considering a raster created from a zone of 9 m × 9 m and using
= 1 m, the resultant raster will contain 81 points distributed in a grid of 9 × 9 cells. After dividing the zone into four smaller areas of 4.5 m × 4.5 m, the four resultant rasters will contain 100 points distributed in four grids of 5 × 5 cells, since those half meters remaining imply the presence of an additional cell on each grid dimension. This extra information helps to improve the quality of the classification reducing and, as a result, the Type I errors. The second reason is due to the surface of the correction patches, which can extend beyond the boundaries of the zones and, therefore, some misclassified points located away from the boundaries could also be corrected during the process.
To measure the misclassification of points due to the divisions on the datasets and the improvement of our automated boundary error correction strategy, a new metric is proposed:
where
stands for the
number of ground points (total) and
for the
number of misclassified ground points.
Table 4 shows the new metric described above using some of the datasets from the ISPRS. The first two columns provide information about the original ISPRS datasets, while the other columns display information about the obtained rasters and the new metric.
As can be clearly seen, after dividing the original datasets for all rasters with NO-EC, since many ground points correctly classified in the undivided rasters, they are no longer presented in the divided ones. With EC, many of the correctly classified ground points lost after the divisions are restored, obtaining . It should be noted here that in most cases due to small numbers of extra points that are included to the raster with our error correction strategy.
4.3. The Importance of an Adequate Point Cloud Preprocessing
All results presented in
Section 4.1 and
Section 4.2 reveal the great importance of the decisions taken during the preprocessing stages of the LiDAR datasets, since how point clouds are divided and stored in Cassandra will largely determine the system performance.
Reducing the byte size of the zones by reducing their extent may improve the overall system performance; nevertheless, once a certain extent is reached, the performance improvement may get stuck or even get worse (as explained in
Figure 9).
With a significant volume of data movements between the nodes, Cassandra will tend to perform better the smaller (in bytes) the zones are. However, this volume of data will be largely determined by the type of geospatial processes running on the system and how they have been programmed to run in Spark. While it may seem obvious at first that the optimal way to proceed during the preprocessing stages is to divide the point clouds into zones as small as possible, with such decision, we could be increasing the workload of Spark, for example, in the use case presented in this work, by having to correct all boundary errors produced by the divisions in the point clouds (as shown in
Table 3).
Owing to this, when deciding how point clouds will be divided and stored, not only the number of data movements between nodes should be considered, but also whether the output quality of the algorithms running in Spark is related to the byte size or extent of the zones and how said features can affect the workload and performance of Spark.
By way of conclusion, it should be stressed how critical it is to find a suitable balance between the number of zones (#Z), the size per zone (ZS) and the output quality of the geospatial process. Developing an automated method to determine the optimal number of zones, or their extent, is beyond the scope of this work, but it would be considered as an interesting part of the future work.
4.4. Full Point Classification
It is intended to expand the type of output of the current filtering algorithm with the goal of offering full point classification. We have developed a naive approach to analyze the potential of this additional feature. To accomplish this task, the current filter output is used as input for a new final stage to classify all the points in the raw point cloud. Based on their X and Y coordinates, each point from the LiDAR zones is placed in a cell from the already filtered rasters. If the height difference between the point located in the raster cell and the point from the zone is less than an customizable parameter, which we have called height threshold (), the new unclassified point is labeled using the same class as the raster point; otherwise, the point is labeled with the opposite class.
Table 5 shows a comparison between this naive approach and LAStools [
34] using the ISPRS Filter Test datasets. The LAStools results were obtained from [
35], as it is one of the latest research articles about ground classification from LiDAR point clouds. The analysis was carried out comparing Total errors (percentage of misclassified points), Type I errors (rejection of ground points) and Type II errors (acceptance of non-ground points as ground points). The
parameter was set to 1, again due to the low point density of the datasets, while the
parameter was set to 30 cm.
The results obtained show how our approach is better, on average, than LAStools when considering the Total errors and the Type I errors, but slightly worse when considering Type II errors, which is an expected result, since the core design of the SC-091-12 algorithm was focused on the obtention of rasters with ground points and not on the identification of non-ground points. Among all the samples provided by ISPRS, Sample 11 is known to be one of the most difficult when it comes to being processed by the different classification algorithms, mainly due to the high degree of slope of the terrain together with the large number of structures covering its entire surface. As mentioned above, in this first approach to the full classification of point clouds, we have implemented a naive method of classification, which, for the specific case of Sample 11, obtains a greater number of Type I errors than those obtained for the rest of the samples; nonetheless, it offers a percentage of error almost identical to that obtained by LAStools. The inclusion of the full point classification has been established as future work, as well as the reduction in the error rates.
