Inter-Comparison of Normalized Difference Vegetation Index Measured from Different Footprint Sizes in Cropland

Abstract

Remote sensing techniques using visible and near-infrared wavelengths are useful for monitoring terrestrial vegetation. The normalized difference vegetation index (NDVI) is a widely used proxy of vegetation conditions, and it has been measured at various footprint sizes using satellite, unmanned aerial vehicle (UAV), and ground-installed sensors. The goal of this study was to analyze the spatial characteristics of NDVI data by comparing the values obtained at different footprint sizes. In particular, the NDVI was evaluated in garlic and onion fields that featured ridges and furrows. The evaluation was performed using data from a leaf spectrometer, field spectrometers, ground-installed spectral reflectance sensors, a multispectral camera onboard a UAV, and Sentinel-2 satellites. The correlation coefficients between NDVIs evaluated from the various sensors (excluding the satellite-mounted sensors) ranged from 0.628 to 0.944. The UAV-based NDVI (NDVI_UAV) exhibited the lowest root mean square error (RMSE = 0.088) when compared with field spectrometer data. On the other hand, the satellite-based NDVI data (NDVI_Sentinel-2) were poorly correlated with those obtained from the other sensors as a result of the footprint mismatch. However, by upscaling the NDVI_UAV data to the pixel size of Sentinel-2, the comparison was improved, and the following statistics were obtained: correlation coefficient: 0.504–0.785; absolute bias: 0.048–0.078; RMSE: 0.063–0.094. According to the aforementioned results, ground-based NDVI data can be used to validate NDVI_UAV data without further processing and NDVI_UAV data can be used to validate NDVI_Sentinel-2 data after upscaling to the Sentinel-2 pixel size. Overall, the results presented in this study may be helpful to understand and integrate NDVI data at different spatial scales.

1. Introduction

The reflection of visible and near-infrared (NIR) wavelengths, captured by means of remote sensing techniques, has been widely used to nondestructively monitor various characteristics and patterns of vegetation [1]. The spectral reflectance of blue and red wavelengths decreases, while that of the NIR wavelengths increases as the biomass of healthy vegetation increases [2]. The spectral reflectance has been used to calculate vegetation indices. Among them, the normalized difference vegetation index (NDVI) has been utilized to detect crop production [3], change in vegetation phenology due to climate change [4], effects of disasters such as forest fires [5], and agricultural drought [6].

In particular, the utilization of satellite data for precision agriculture increased after the launch of the Sentinel-2 satellites, which carries sensors for wavelengths that are useful for producing vegetation indices [7]. Two satellites, Sentinel-2A and Sentinel-2B, were launched in June 2015 and March 2017, respectively. Their combined temporal resolution period was 5 days [8]. Nevertheless, surface information sometimes cannot be acquired because of interference by clouds, aerosols, moisture, or fog. Moreover, monitoring a crop in the booting stage is difficult, and so is identifying vegetation conditions under stress related to a disease or a heatwave [9,10]. Some studies argue that satellite data with higher spatial resolution are required for precision agriculture [9,11].

These limitations can be overcome using unmanned aerial vehicle (UAV)-based remote sensing techniques. Multispectral cameras on UAVs can capture data that are useful for evaluating vegetation conditions [12,13]. A UAV can cover comparatively small areas, but can provide data with a ground sample distance (GSD) of a few centimeters, thereby offering improved spatial resolution compared with that of satellites [14]. Moreover, UAVs offer flexible measurement schedules [11,15].

NDVI values measured from satellite and UAV data were compared to those obtained from ground-installed sensors and field spectrometers (or handheld spectrometers) [16,17]. Ground-based data are normally considered as “true reference sources” owing to the fact that the distance between the sensor and the measurement target is small. Ground-based remote sensing data show minimal atmospheric effects at altitudes lower than 10 m [18]. Given that scans of ground-installed optical devices are frequent [19], these devices can provide information on the crop condition continually. Meanwhile, spectral information obtained at different spatial scales can enable a comprehensive characterization of the vegetation in a target area. Ground-based vegetation data may reflect the spectral characteristics of a crop growing on homogeneous land. However, satellite-based data can provide information on heterogeneous land types. In particular, the presence of ridges and furrows can affect the comparison of data from different sources [15]. Therefore, the spatial characteristics of the data obtained from ground-based, airborne, and spaceborne sensors should be taken into account when making comparisons across data. In previous studies, the spatial characteristics of vegetation indices were only compared under specific spatial scales: comparisons between UAV and satellite data [15,20] or between ground-based data and satellite data [16] were carried out.

The purpose of this study is to compare NDVI values obtained at different spatial scales (from 5.5 mm to 10 m) in garlic and onion cropland to understand their spatial characteristics. The NDVI data used in this study were obtained from ground-based sensors (a leaf spectrometer, field spectrometers, and spectral reflectance sensors (SRSs)), a multispectral camera onboard a UAV, and a multispectral instrument mounted on a satellite. The NDVI values were compared using statistical metrics. Next, the UAV-based NDVI data were upscaled to the pixel size of the satellite-based NDVI data to evaluate how the results of the comparison changed.

2. Materials and Methods

2.1. Study Area and Crops

The study area (34.968°N, 126.4515°E) is a plot of land at the Bioenergy Crop Research Institute in Muan County, South Korea. Garlic and onion were being cultivated in this plot. They are considered representative vegetable crops in South Korea as they are the essential ingredients for almost every delicacy (including Kimchi, a typical Korean food) [21]. The crops were cultivated from October 2017 to June 2018. In particular, the garlic cultivars Hongsan, Namdo, and Daeseo and the onion cultivar Sunpower were used. The ridges and furrows were 1.2 m and 0.6 m long, on average. In the garlic field, the planting distance was 13 cm and nine plants were cultivated in each row. In the onion field, the planting distance was 15 cm and six plants were cultivated in each row. Garlic and onion begin to grow during autumn, then enter a dormant stage in winter in response to the low air temperature, and resume their growth in spring. In the study area, the mean (2001–2019) air temperature was 13.42 °C and the mean cumulative precipitation was 1282.5 mm/year according to data collected at Muan station, an automatic weather station of the Korea Meteorological Administration located approximately 2 km from the study area.

2.2. Ground-Based Remote Sensing Measurements

Ground-based remote sensing measurements were performed using a handheld leaf spectrometer, handheld field spectrometers, and ground-installed SRSs to obtain NDVI data. In particular, the leaf spectrometer (CID CI-710, Bio-Science, Camas, WA, USA) was used to obtain spectral reflectance information on garlic at a leaf spatial scale at three locations (G1, G2, and G3, see Figure 1a). This device can measure the spectral reflectance in the range of 400–950 nm with a sampling interval smaller than 0.215 nm. The diameter of the leaves on which the leaf spectrometer measurements were performed was 5.5 mm. The measurements were repeated three times on each leaf, and 10 leaves were measured at each site to obtain a representative measure of the crop condition.

Two field spectrometers (AvaSpec-UL2048L, Avantes BV, Apeldoorn, The Netherlands) were used to monitor the crops at visible and NIR wavelengths (from 350 to 1050 nm). The sampling interval at 700 nm was 0.576 nm. The field of view (FOV) of the bare fiber-mounted field spectrometer was 23°. One field spectrometer was used to monitor the sunlight reflected by a white reference panel (RS50 White Reflectance Standard, StellarNet Inc., Tampa, FL, USA) that provided > 97% reflectivity of visible and NIR wavelengths. The other field spectrometer was used to monitor the light reflected from the crops at a height of 70 cm from the crop canopy. The measurements were averaged over 10 observations to minimize the observation error; three samples at each position were monitored to obtain representative results of the crop conditions. In particular, measurements were conducted at 13 locations during solar noon. The reflectance was calculated using irradiance and radiance data, which were recorded simultaneously. In addition, cross-calibration values were applied over the entire range of wavelengths monitored by the two spectrometers.

The leaf and field spectrometer measurements were conducted immediately after or before the UAV measurements to ensure correspondence across the data [19]. The NDVI values were calculated from the spectral reflectance converted to 1 nm intervals, as follows: NDVI = (R₈₄₀ − R₆₆₅)/(R₈₄₀ + R₆₆₅), where R₈₄₀ and R₆₆₅ are the spectral reflectance values for 10 nm of bandwidth.

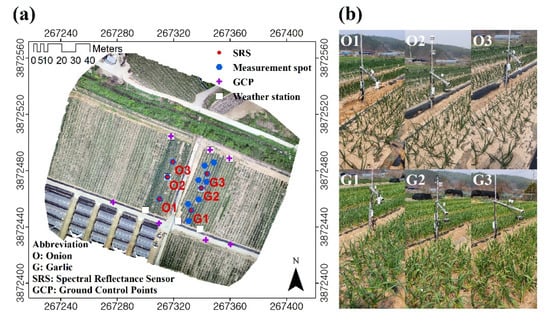

The SRSs (METER Group, Inc., Pullman, WA, USA) were installed near the ground surface to monitor the crop conditions at six locations continually (Figure 1b). The SRSs working at 650 nm and 810 nm (with 10 nm of bandwidth) are based on photodiode sensors and consist of upward- and downward-facing sensors with FOVs of 180° and 36°, respectively. The SRS data were stored in data loggers (EM50, METER Group, Inc., Pullman, USA) every 2 min. The distance between an SRS and the plant canopy was approximately 70 cm and the height of the downward-facing sensor was adjusted to maintain a constant distance by accounting for the plant height. The NDVI was calculated from data measured from 11:00 to 14:00 local time in order to minimize the solar zenith angle for each day. The SRS-based daily mean NDVI (hereafter NDVI_SRS) was obtained after excluding the 15% largest and 15% smallest NDVI values.

2.3. UAV-Based Remote Sensing Measurements

The eight-propeller DJI S1000 UAV (SZ DJI Technology Co., Ltd., Sham Chun, Guangdong Province, China), equipped with a multispectral camera (RedEdge, Micasense, Inc., Seattle, WA, USA), was used in this study [22]. This multispectral camera has blue (center wavelength: 475 nm; bandwidth: 20 nm), green (560 nm; 20 nm), red (668 nm; 10 nm), red edge (717 nm; 10 nm), and NIR (840 nm; 40 nm) bands, which were used to evaluated the NDVI (hereafter UAV_NDVI). The FOV (imager resolution) of the multispectral camera was 47.2° (1280 × 960 pixels).

The UAV-based remote sensing measurements were conducted four times after the dormant stage of garlic and onion (

Table 1. Measurement information for ground-, unmanned aerial vehicle (UAV-), and satellite-based remote sensing techniques.

Number	Measurement Date	Ground	Airborne	Satellite	Time Difference a
		Leaf- and Field-Spectrometer	UAV	Sentinel-2
1	28 Mar. 2019 29 Mar. 2019	O -	O b -	- O	−1 day +1 day
2	16 Apr. 2019 18 Apr. 2019	O -	O c -	- O	−2 days +2 days
3	3 May 2019	O	O d	O	0 day
4	13 May 2019 17 May 2019	- O	- O e	O -	−4 days +4 days

^a Time difference between satellite and ground/airborne measurements. Measurement time (hh:mm) of UAV: b, 12:41–12:50; c, 14:14–14:25; d, 11:52–12:00; e, 12:13–12:22.

). The flight altitude was set to 30 m with a mean GSD of approximately 2.18 cm (multispectral camera), with 80% forward and sideways overlap. The UAV-based raster data were obtained at solar noon. A calibrated reflectance panel (Micasense, Inc.) was utilized to obtain the reflectance data from the multispectral camera. The UAV-based imagery was processed using Pix4D software (version 4.3.31). Information on the seven ground control points (GCPs) was obtained using a GRX2 GNSS Receiver (SOKKIA Corporation, Olathe, KS, USA).

2.4. Satellite-Based Remote Sensing Measurements

High-resolution satellite data are useful for the continuous monitoring of cropland at a regional scale. In this study, data from the multispectral instrument (MSI) onboard Sentinel-2 were compared with the ground- and UAV-based NDVI values obtained for the cropland in the study area.

Sentinel-2 data were downloaded from the Copernicus Hub of the European Space Agency (ESA) [23]. Level-2A data of Sentinel-2/MSI from March 2019 to May 2019 were obtained, on which geometric processing and atmospheric correction were performed. The data covered a target area that included the study area. NDVI values (hereafter NDVI_Sentinel-2) were calculated from the reflectance in band 4 (red; center wavelength: 665 nm; bandwidth: 30 nm) and band 8 (NIR; 842 nm; 115 nm) after excluding cloud pixels through a scene classification map. The spatial resolution of Sentinel-2/MSI is 10 m in the red and NIR bands. Four dates were selected to perform the comparison with the ground- and UAV-based data: 29 March 2019, 18 April 2019, 3 May 2019, and 13 May 2019 (Table 1). The time differences between the UAV and satellite measurements were 1, 2, 0, and 4 days, respectively. These differences were deemed acceptable, as the NDVI values of garlic and onion crops do not change significantly during a few days under non-stress conditions.

2.5. Methods Used to Compare the Values Measured at Different Spatial Scales

To allow for objective comparisons, a set of criteria was adopted. In particular, two approaches were followed. In the first approach, the NDVI values were calculated from the data obtained by the ground-based sensors without further processing. In contrast, the UAV-based remote sensing data were first averaged over the pixels belonging to a region of interest (ROI) using the geospatial data abstraction library. The ROI was set at each ground measurement spot as a diameter (area) of approximately 82.0 cm (0.528 m²) considering the length of a ridge and the geolocation error of the NDVI_UAV data. The Sentinel-2/MSI-based data were extracted using the nearest neighbor method for each spot. The correlation coefficient, absolute bias, and root mean square error (RMSE) were used to evaluate the relationships among the NDVI values measured at different spatial scales. A bias-corrected RMSE was also calculated.

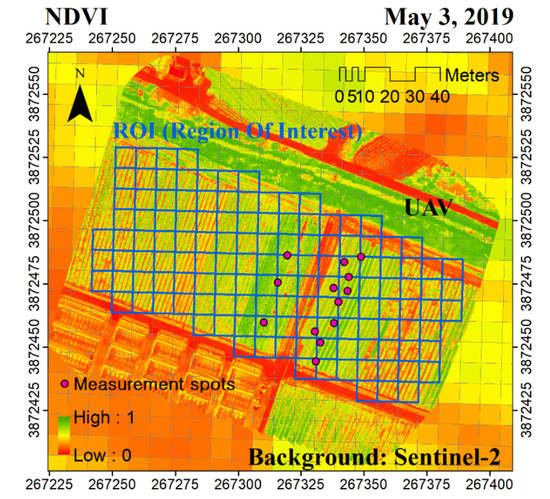

The second approach entailed the upscaling of the UAV data to the scale of the Sentinel-2/MSI data. Figure 2 shows the NDVI map acquired using UAV and satellite data. The background of Figure 2 shows the NDVI_Sentinel-2 and NDVI_UAV data overlapped over the NDVI_Sentinel-2 data. The grey lines indicate the boundaries of the pixels of the NDVI_Sentinel-2 data. The blue grids indicate the selected ROI based on the Sentinel-2 pixels, which represent the cropland. The NDVI_UAV values were averaged over the Sentinel-2 pixels (each blue pixel). This calculation yielded “upscaled NDVI_UAV values” [24]. The relationship between the upscaled NDVI_UAV and the NDVI_Sentinel-2 values was evaluated (in terms of the homogeneity of one pixel) through a coefficient of variation (CV), which was calculated as the standard deviation divided by the mean value. Additionally, the normalized RMSE (NRMSE) was calculated as RMSE/(Y_max. − Y_min.) × 100 to understand the relative difference of the errors in the four measurement dates. Y_max. and Y_min. are the maximum and minimum values, respectively, of the variable on the y-axis.

3. Results

3.1. Comparison of NDVI Data

The NDVI values obtained from the leaf spectrometer (hereafter NDVI_Leaf) ranged from 0.694 to 0.814 from March to May 2019. The field spectrometer-based NDVI (hereafter NDVI_Field) and NDVI_SRS increased after the dormant stage (i.e., during winter) and decreased between mid-April and early May. NDVI_Field and NDVI_SRS values decreased earlier in the garlic field than in the onion field. The growth and lodging of onion in the enlargement stage (i.e., during spring) increased the fraction of vegetation in the measurement area, maintaining a high NDVI value in the onion field. The NDVI_UAV values clearly indicated vegetation and non-vegetation areas (Supplementary Materials Figure S1). The concrete roads and greenhouse areas exhibited low NDVI values (<0.1 and 0.4, respectively). In addition, throughout the measurement period, artificial structures yielded the same range of NDVI values.

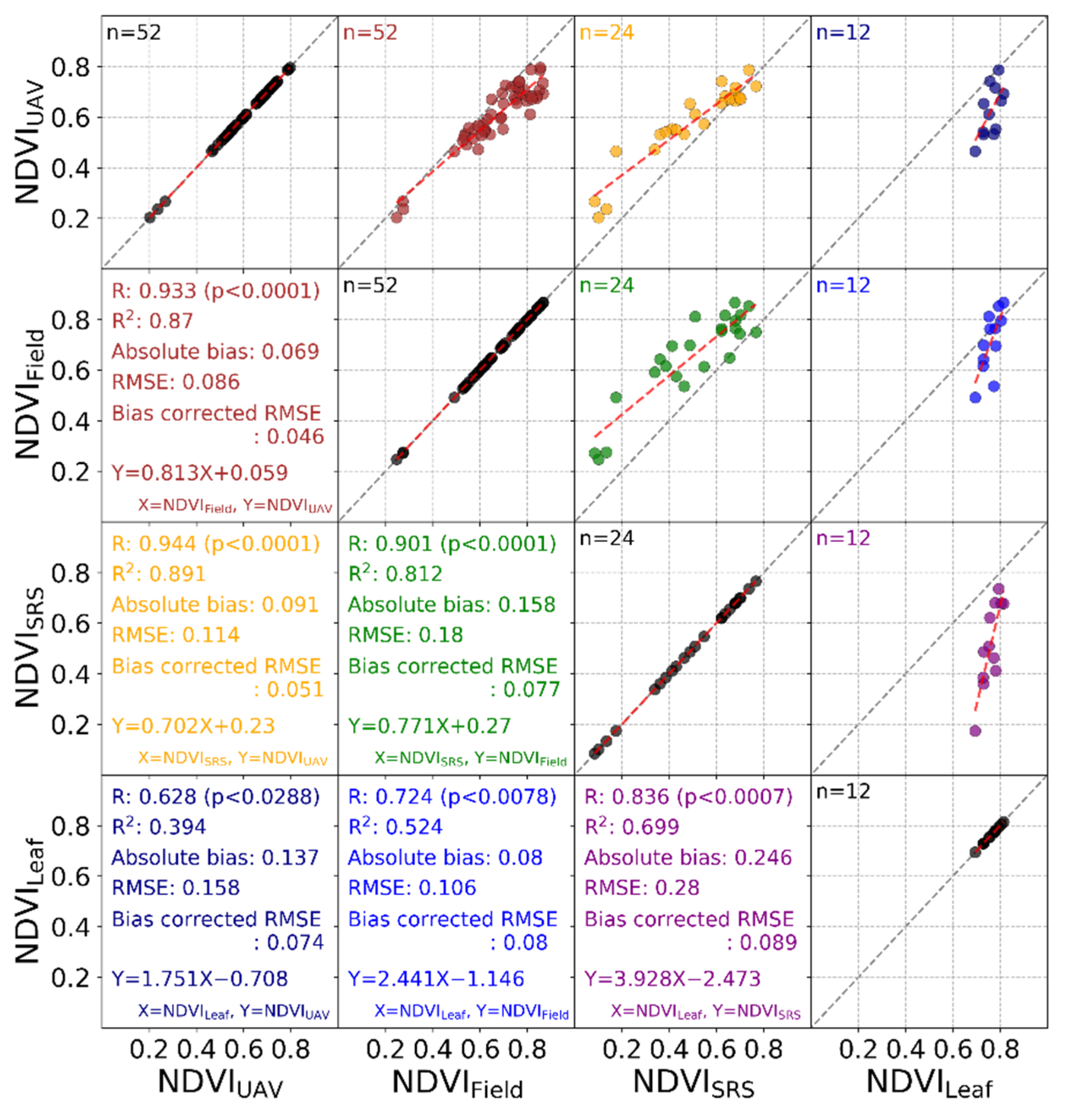

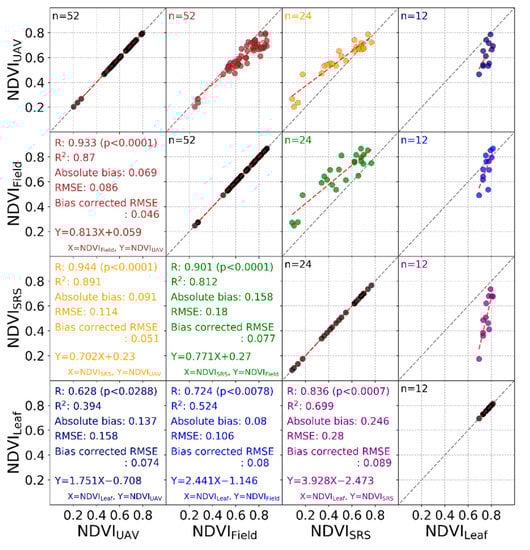

The relationships among the NDVI values evaluated at different spatial scales are shown in Figure 3. NDVI_UAV had correlation coefficients as high as 0.933 (p-value < 0.0001) and 0.944 (p-value < 0.0001) with NDVI_Field and NDVI_SRS, respectively. In particular, the absolute bias between NDVI_UAV and NDVI_Field was just 0.069. In addition, the bias-corrected RMSEs of NDVI_UAV were 0.046 and 0.051 with NDVI_Field and NDVI_SRS, respectively. Although a bias existed between NDVI_Field and NDVI_SRS, a high correlation coefficient was obtained (R = 0.901, p-value < 0.0001). After excluding the bias between NDVI_Field and NDVI_SRS, a bias-corrected RMSE of 0.077 was obtained. NDVI_Leaf had correlation coefficients of 0.628 (p-value < 0.0288), 0.724 (p-value < 0.0078), and 0.836 (p-value < 0.0007) with NDVI_UAV, NDVI_Field, and NDVI_SRS, respectively.

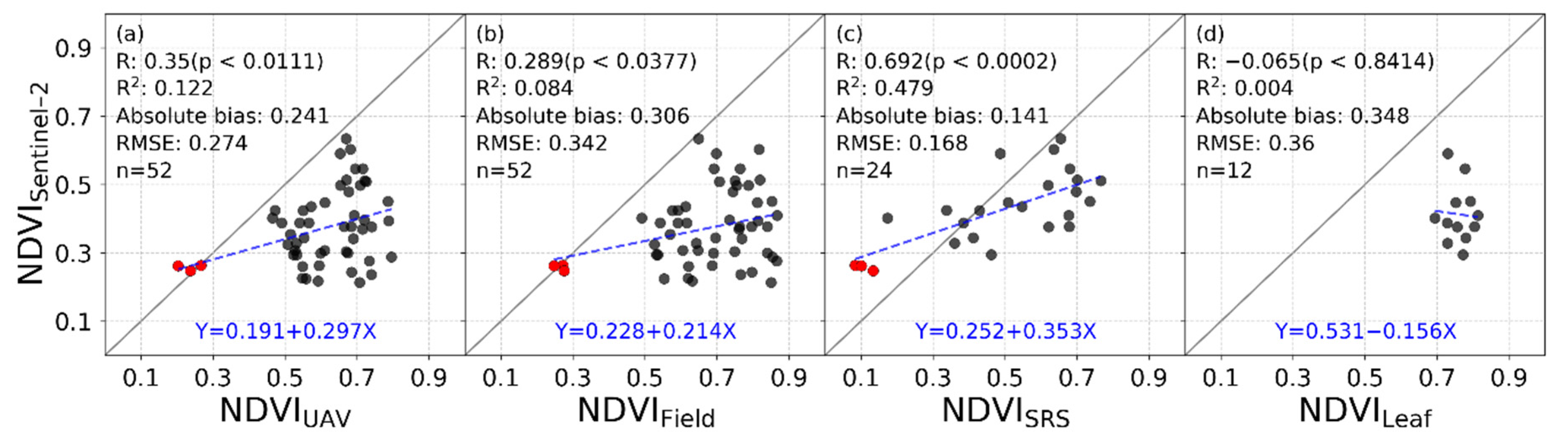

The ground- and UAV-based NDVI values were compared with the satellite-based NDVI values (Figure 4). NDVI_SRS had a relatively high correlation coefficient (0.692, p-value < 0.0002) with NDVI_Sentinel-2. The reason for this was assumed to be that NDVI_SRS was evaluated over a relatively homogeneous area because the SRS was installed in the middle of the cropland even though ridges and furrows were included (Figure 1). Meanwhile, the correlation coefficient between NDVI_Sentinel-2 and the other NDVI values at different spatial scales was low. In particular, there was no statistical significance with NDVI_Leaf (p-value < 0.8414).

The red circles in Figure 4 refer to onion field data from 28 March 2019. At that time, the vegetation fraction was low (Figure S3). If the red circles are excluded, the correlation coefficients of NDVI_UAV, NDVI_Field, and NDVI_SRS with NDVI_Sentinel-2 decrease to 0.239 (p-value < 0.0983), 0.151 (p-value < 0.2992), and 0.467 (p-value < 0.0327), respectively. In particular, the statistical significances of NDVI_UAV and NDVI_Field with NDVI_Sentinel-2 were low except for the red circles on 28 March 2019.

3.2. Comparison of Upscaled NDVI_UAV and NDVI_Sentinel-2 Data

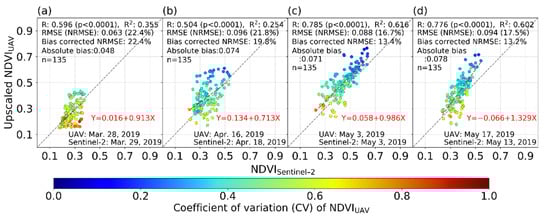

NDVI_UAV data were upscaled to the Sentinel-2 pixel size to evaluate possible improvements in the correlation with NDVI_Sentinel-2. A sample (135 pixels) in the ROI that represented cropland was selected (Figure S2). The correlation coefficients between upscaled NDVI_UAV and NDVI_Sentinel-2 on 28 March, 16 April, 3 May, and 13 May of 2019 were 0.596 (p-value < 0.0001), 0.504 (p-value < 0.0001), 0.785 (p-value < 0.0001), and 0.776 (p-value < 0.0001), respectively (Figure 5). The correlation coefficients increased in the later stage of crop growth. The correlation between these two NDVI data series was relatively low in March and April (Figure 5a,b). However, some pixels exhibited high CV values on 28 March 2019 (Figure 5a), implying that each pixel could contain heterogeneous land types (e.g., cropland and bare soil). The NRMSE and the bias-corrected NRMSE were 22.4%. The correlation coefficient between the two NDVI data series was the lowest on 16 April 2019 (Figure 5b). The NRMSE and the bias-corrected NRMSE were 21.8% and 19.8%, respectively, and these results were similar to the values obtained in March. The best results were obtained on 3 May 2019, when the NRMSE and bias-corrected NRMSE were 16.7% and 13.4%, respectively (Figure 5c).

The NDVI values obtained from UAV and satellite data on 3 May 2019 were the highest during the growth period, implying that the vegetation-covered area was the largest in this period (Figures S3 and S4). The UAV and satellite measurements in this period were recorded on the same day. The correlation coefficient for the last measurement (13 May 2019) was similar to that evaluated on 3 May 2019. The NRMSE and bias-corrected NRMSE were 17.5% and 13.2%, respectively. This implies that, by accounting for the bias between NDVI_UAV and NDVI_Sentinel-2, a reasonably strong correlation between the upscaled NDVI_UAV and NDVI_Sentinel-2 could be obtained when the vegetation-covered area was high. The correlation coefficient, RMSE, and absolute bias on the total measurement were 0.817, 0.086, and 0.068, respectively. Upscaled NDVI_UAV values were generally higher compared with the NDVI_Sentinel-2 values in the cropland that included ridges and furrows.

4. Discussion

The different footprint sizes of the sensors can be deemed attributable for the differences in NDVI values and ranges. The NDVI is a proxy for the structural condition of vegetation. In particular, NDVI_Leaf values refer to areas fully covered by vegetation (i.e., to individual leaves), even though the NDVI includes chlorophyll information from the red band data [25]. Therefore, the range of variation of the NDVI_Leaf values is smaller compared with that of the NDVI values obtained from the other sensors.

All comparisons between couples of NDVI data series from different sensors are statistically significant, with the exception of those involving NDVI_Sentinel-2 data (Figure 3). In particular, NDVI_UAV had a correlation coefficient higher than 0.933 (p-value <0.0001) with NDVI_Field and NDVI_SRS. This implies that the NDVI_UAV values are reliable in clear sky conditions. On the contrary, NDVI_Leaf, NDVI_Field, and NDVI_UAV are not significantly correlated with NDVI_Sentinel-2. It should be noted that the spatial resolution of Sentinel-2 is approximately 10 m, implying that each pixel of a Sentinel-2 image comprises both crop and bare soil areas owing to the presence of ridges and furrows. However, by upscaling the NDVI_UAV data to the pixel size of Sentinel-2, the correlation coefficient with NDVI_Sentinel-2 increased to 0.504–0.785.

In previous studies, NDVI_UAV and NDVI_Sentinel-2 were reported to exhibit correlation coefficients of 0.55–0.72 in a vineyard [15]. Di Gennaro et al. [20] also reported R-square values of 0.57–0.80 between NDVIs evaluated from a UAV-mounted sensor and from Sentinel-2 in a vineyard. In another study, not only Sentinel-2 data, but Landsat-8 data as well were compared with ground and UAV data. NDVI_UAV had an R-square value of 0.93 and 0.86 with NDVIs evaluated from ground and Landsat-8 data (hereafter NDVI_Landsat-8), respectively, in mixed deciduous and coniferous woodland [26]. In particular, the relationship between NDVI_UAV and NDVI_Landsat-8 at the beginning of spring was relatively weak (R-square < 0.5), and the authors noted that this was due to a temporal gap between the Landsat and UAV data [27]. In fact, according to Battude et al. [28], high correlation coefficients between NDVIs using different satellites were evaluated if there was no temporal gap between the measurements. Indeed, in the present study, the bias-corrected NRMSE values were the lowest when data acquired on the same day by different sensors were compared (Figure 5).

Furthermore, NDVI values obtained from MODIS sensor data recorded by the Terra satellite, which has a relatively lower spatial resolution compared with Sentinel-2 and Landsat-8, showed different relationships depending on the land type [29]. In cropland, the R-square between NDVIs evaluated from ground sensor data and MODIS data was 0.55–0.56.

Each relationship between NDVI data series carried a distinct bias due to different measurement intervals, meteorological conditions, and different sensor specifications (FOV, sensor calibration, distance between the target and the sensor) [30,31]. In addition, the wavelength ranges used for calculating the NDVI were different depending on the optical instruments. For the red band, the central wavelength was 650 nm (bandwidth: 10 nm) for the SRS, while it was 665 nm or 668 nm (bandwidth: 10 nm or 30 nm) for the other instruments. It was calculated that this produced an absolute bias in the comparison between NDVI_SRS and NDVI_Field values of as high as 10% (result not shown). It also implies that the influence of other specifications is larger than that of the wavelength range. The FOV of the field spectrometer is narrower than that of the SRS, implying that the field spectrometer data are more focused on the center of the crop. To reduce the bias, a bias correction method should be implemented, corresponding to the reference study. As for the relationship between NDVI_Sentinel-2 and upscaled NDVI_UAV, the error may originate from different georeferencing of the satellite and UAV data. Inherently, mosaicking and georeferencing UAV data in cropland and forests are relatively difficult tasks [19,32]. To alleviate this issue, multiple and accurate GCP target points must be installed.

5. Conclusions

NDVI values obtained at different spatial scales were compared in this work. The statistical analysis of the NDVI values obtained from the multispectral camera, field spectrometers, SRSs, and leaf spectrometer demonstrated that measurements with similar footprint areas are comparable. Moreover, the different footprint areas caused the NDVI_Sentinel-2 values to differ significantly from those evaluated from airborne and ground-based sensors (NDVI_UAV, NDVI_Field, NDVI_SRS, and NDVI_Leaf). Given that the correlation coefficient between NDVI_UAV and NDVI_SRS or NDVI_Field data is higher than 0.933 (p-value < 0.0001), it was concluded that NDVI_SRS and NDVI_Field can be used as a true reference source for homogeneous crop-canopy areas. As for the relationship between NDVI_UAV and NDVI_Sentinel-2, the upscaled NDVI_UAV values (i.e., NDVI_UAV values upscaled to the pixel size of Sentinel-2) exhibited a better correlation with the NDVI_Sentinel-2 values compared with the non-upscaled NDVI_UAV values. This was attributed to the fact that the upscaled NDVI_UAV had the same footprint area as NDVI_Sentinel-2, and suggested that the footprint mismatch is the most critical issue hindering proper data integration from different sensors and across spatial scales. For practical applications in agriculture, resampling the UAV-based data is thus recommended rather than for the ground-based data to obtain comparable NDVI results. However, note that precise crop conditions with low soil contamination errors are better captured by ground-based sensors.

The results presented in this study may help to correctly interpret and compare NDVI maps obtained at different spatial scales. Further, this study also demonstrated that the presence of ridges and furrows must be taken into account when validating the measurement data. In the future, data at various spatial scales will be continually acquired to allow further comparisons of multiple remote-sensing-derived parameters for a variety of crops.
