Autonomous Airborne 3D SAR Imaging System for Subsurface Sensing: UWB-GPR on Board a UAV for Landmine and IED Detection

Area of Signal Theory and Communications, University of Oviedo, 33203 Gijón, Spain
*
Author to whom correspondence should be addressed.
Remote Sens. 2019, 11(20), 2357; https://doi.org/10.3390/rs11202357
Received: 3 September 2019 / Revised: 27 September 2019 / Accepted: 7 October 2019 / Published: 11 October 2019
(This article belongs to the Special Issue Advanced Techniques for Ground Penetrating Radar Imaging)

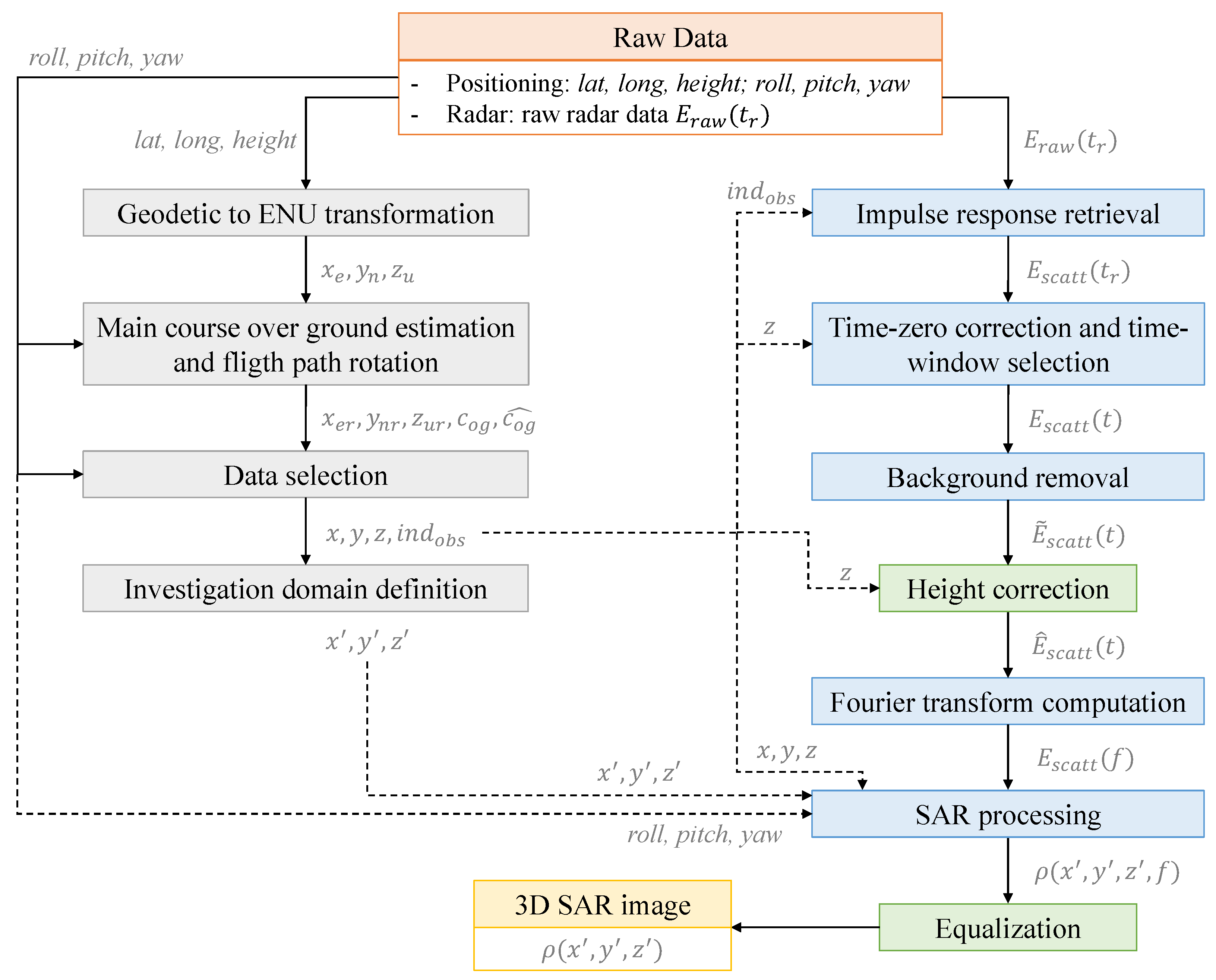

This work presents an enhanced autonomous airborne Synthetic Aperture Radar (SAR) imaging system able to provide full 3D radar images from the subsurface. The proposed prototype and methodology allow the safe detection of both metallic and non-metallic buried targets even in difficult-to-access scenarios without interacting with the ground. Thus, they are particularly suitable for detecting dangerous targets, such as landmines and Improvised Explosive Devices (IEDs). The prototype is mainly composed by an Ultra-Wide-Band (UWB) radar module working from Ultra-High-Frequency (UHF) band and a high accuracy dual-band Real Time Kinematic (RTK) positioning system mounted on board an Unmanned Aerial Vehicle (UAV). The UAV autonomously flies over the region of interest, gathering radar measurements. These measurements are accurately geo-referred so as to enable their coherent combination to obtain a well-focused SAR image. Improvements in the processing chain are also presented in order to deal with some issues associated to UAV-based measurements (such as non-uniform acquisition grids) as well as to enhance the resolution and the signal to clutter ratio of the image. Both the prototype and the methodology were validated with measurements, showing their capability to provide high-resolution 3D SAR images.
View Full-Text
Keywords: Ground Penetrating Radar (GPR); Unmanned Aerial Vehicles (UAVs); Synthetic Aperture Radar (SAR); Real Time Kinematic (RTK); Ultra-Wide-Band (UWB); landmine and IED detection; non-destructive testing Ground Penetrating Radar (GPR); Unmanned Aerial Vehicles (UAVs); Synthetic Aperture Radar (SAR); Real Time Kinematic (RTK); Ultra-Wide-Band (UWB); landmine and IED detection; non-destructive testing
Show Figures

Graphical abstract

MDPI and ACS Style

Garcia-Fernandez, M.; Alvarez-Lopez, Y.; Las Heras, F. Autonomous Airborne 3D SAR Imaging System for Subsurface Sensing: UWB-GPR on Board a UAV for Landmine and IED Detection. Remote Sens. 2019, 11, 2357.
