Detection of Earthquake-Induced Landslides during the 2018 Kumamoto Earthquake Using Multitemporal Airborne Lidar Data

by
Wen Liu
1,*,
Fumio Yamazaki
2 and
Yoshihisa Maruyama
1
1
Graduated School of Engineering, Chiba University, Chiba, Chiba 263-8522, Japan
2
National Research Institute for Earth Science and Disaster Resilience, Tsukuba, Ibaraki 305-0006, Japan
*
Author to whom correspondence should be addressed.
Remote Sens. 2019, 11(19), 2292; https://doi.org/10.3390/rs11192292
Submission received: 29 August 2019 / Revised: 23 September 2019 / Accepted: 27 September 2019 / Published: 1 October 2019
(This article belongs to the Special Issue Remote Sensing for Post-disaster Phase: Damage Assessment, Reconstruction and Monitoring)
Browse Figures
Review Reports Versions Notes

Abstract

:
A series of earthquakes hit Kumamoto Prefecture, Japan, continuously over a period of two days in April 2016. The earthquakes caused many landslides and numerous surface ruptures. In this study, two sets of the pre- and post-event airborne Lidar data were applied to detect landslides along the Futagawa fault. First, the horizontal displacements caused by the crustal displacements were removed by a subpixel registration. Then, the vertical displacements were calculated by averaging the vertical differences in 100-m grids. The erosions and depositions in the corrected vertical differences were extracted using the thresholding method. Slope information was applied to remove the vertical differences caused by collapsed buildings. Then, the linked depositions were identified from the erosions according to the aspect information. Finally, the erosion and its linked deposition were identified as a landslide. The results were verified using truth data from field surveys and image interpretation. Both the pair of digital surface models acquired over a short period and the pair of digital terrain models acquired over a 10-year period showed good potential for detecting 70% of landslides.

1. Introduction

An Mw 6.2 earthquake hit the Kumamoto Prefecture in Kyushu Island, Japan, on 14 April 2016, at 21:26 (JST). The epicenter was located in the Hinagu fault with a shallow depth. Twenty-eight hours later, another Mw 7.0 earthquake occurred in the Futagawa fault on April 16 at 01:25 (JST), close to the Hinagu fault. The first event was called a “foreshock” and the second one the “main shock”. Figure 1a shows the locations of these causative faults and the Japanese national GNSS Earth Observation Network System (GEONET) stations in the source area [1]. 75-cm horizontal movements to the east-northeast were observed at the Kumamoto station, while 97-cm horizontal movements to the southwest were recorded at the Choyo station during the main shock. Strong shaking, level 7 on the Japan Meteorological Agency (JMA) seismic intensity scale was observed in Mashiki Town in both the foreshock and the main shock events. A total of fifty-five people died in the earthquake sequence, mostly due to the collapse of wooden houses in Mashiki town and landslides in Minami-Aso village. 8673 buildings collapsed, and approximately 35,000 buildings were severely damaged [2]. The earthquake also caused the interruption of lifelines, e.g., gas, electric power and water. Road and railway networks were affected by landslides and surface ruptures, making it difficult to access the affected area soon after the earthquake.
Remote sensing technologies have been employed to understand the extent and the degree of various damages after natural disasters [3,4,5,6,7,8,9,10,11]. For the 2016 Kumamoto Earthquake, many studies have been conducted to assess earthquake-induced damage using remote sensing data [12,13,14,15]. The authors calculated the pre- and co-event coherence from three temporal ALOS-2 PALSAR-2 images to classify building damage levels in Mashiki town [16]. One day after the foreshock (15 April 2016), Asia Air Survey Co., Ltd. carried out a Lidar surveying flight from 15:00–17:00 (JST), to record the effects of the earthquake. One week after the main shock, they flew a second mission from 10:00–12:00 (JST) on 23 April. The authors’ group used those two temporal Lidar data to estimate the coseismic crustal displacements and extract debris from the collapsed buildings in Mashiki town [17,18]. Three weeks after the main shock, Geospatial Information Authority of Japan (GSI) also conducted another Lidar surveying flight on 8 May 2016. The third flight covered the largest area from the east of Mt. Aso to the Minami ward of Kumamoto City. The authors attempted to extract collapsed buildings for Mashiki town from this Lidar data and another Lidar data acquired 10 years ago [19].
Remote sensing techniques for mapping landslides can be classified into two types. One method is to extract surface changes using optical images or synthetic aperture radar (SAR) intensity images [20,21,22]. Optical images can provide details of landslides, but they are affected by sun and weather conditions. SAR intensity images can overcome this problem, but their results are influenced by slope orientation. SAR intensity images are usually combined with optical images to extract landslides [23]. The other method is to measure surface movements using InSAR analysis or Lidar data [24,25,26,27]. InSAR analysis can detect landslides by two different processes. The differential InSAR method or stacking InSAR methods (PSI, SBAS) are good at monitoring slow-moving landslides [28,29]. For rapid debris flows, the significant surface changes indicate the decorrelation in the InSAR pairs. A digital elevation model (DEM) generated from InSAR analysis or measured by airborne Lidar can provide a different kind of information about landslides [30,31]. Zhang and Lu [32] reviewed the application of remote sensing to landslides, and Jaboyedoff et al. [33] summarized the use of airborne Lidar and ground Lidar in landslide investigations. A high-resolution DEM obtained by airborne Lidar measurement can detect different types of landslides; however, it is uncommon due to its high cost. The 2016 Kumamoto Earthquake was a rare case when three temporal Lidar flights were carried out within one month. Thus, detecting landslides using those precious data sets is a valuable research.
In this study, the detection of landslides that occurred in Mashiki town and Nishihara village, Kumamoto Prefecture, Japan, were conducted using two sets of Lidar data acquired before and after the 2016 Kumamoto Earthquake. An effective method of landslide detection is proposed. The obtained results were verified by comparing with the results of visual interpretation. The objective of this study is not only to detect landslides but also to compare the performance using two different sets of Lidar data.

2. Landslides Associated to the 2016 Kumamoto Earthquake in the Study Area

In the main shock, upper-6 JMA seismic intensity was observed in the Minami-Aso village. The strong shaking caused many landslides surrounding the Aso volcano and in areas within 10-km from the Futagawa fault. The National Research Institute for Earth Science and Disaster Resilience (NIED) released several versions of a coseismic landslide inventory [34]. In the latest edition on 27 June 2016, 1744 landslides were traced from the 460-km2 interpretation range. GSI identified the location of 82 landslides larger than 0.01 km2 and 661 landslides larger than 0.005 km2 by visual interpretation using the aerial photos taken on 16, 19 and 20 April 2016 [1]. The number of landslides caused by rainfall and aftershocks was updated to 1044, using the aerial photos taken in July 2016.
During our field surveys, many landslides were observed. Two ground photos are shown in Figure 1b. One is the largest landslide that occurred in the Minami-Aso village. This landslide was 200 m in width and 700 m in length. The maximum depth of erosion reached 20 m. The landslide overwhelmed the Bungo highway and destroyed the Aso-Ohashi Bridge. This photo was taken by one of the authors on 9 August 2016. In addition to those at the Aso volcano, many small landslides occurred along the Futagawa fault. The other ground photo shows a landslide in Dozono district, Mashiki town. This photo was taken on 7 June 2016. The trees covering the hill slid down with soils along the steep slope.
Many studies of landslides have been conducted on from the 2018 Kumamoto Earthquake. Doi et al. [35] used geological and geophysical methods to understand the generation mechanism of the landslides that occurred in Minami-Aso village. Tajima et al. [36] conducted landform change analysis of the central cones of the Aso volcano using satellite and aerial images. Tamkuan and Nagi [37] combined Landsat-8 and interferometric ALOS-2 coherence data to classify building damage, liquefaction and landslides. Kim and Kim [38] used object-based classification with the truth color RapidEye images to extract the landslides in Minami-Aso village. Uemoto et al. [39] identified the outliers of the largest landslide based on height and amplitude differences using airborne X-band SAR data. Most of those studies focused on landslides surrounding the Aso volcano. The authors attempted to detect landslides close to the Futagawa fault using the Lidar data acquired on 15 and 23 April 2016 [40,41].
Our study area is located at the boundary of Mashiki town and Nishihara village, along the Futagawa fault. The study area is shown in Figure 2 by three red frames. Their identified IDs are 2KD672, 2KD673 and 2KD762. Each frame covered an area of 2 km × 1.5 km. According to the previous study [17], more than 2-m right-lateral strike-slip and 2-m subsides were detected on the west side of the fault in this area. Due to these large crustal movements, many small landslides and numerous surface ruptures occurred.

3. Lidar Data and Preprocessing Analysis

Two sets of pre- and post-event airborne Lidar data were used in this study. One pair was the Lidar data acquired on 15 April and 23 April 2016, by Asia Air Survey Co., Ltd. [42]. The average point density on 15 April was 1.5–2 points/m2, and that on 23 April was 3–4 points/m2. Both sets of Lidar data were acquired using a Leica ALS50II instrument and the same pilot and airplane. The raw point clouds have been resampled in 50-cm meshes. The common coverage areas are shown in Figure 2 by the dashed line. This data set had been used to estimate the coseismic displacements and detect collapsed buildings [17,18]. The vertical differences between the pre- and post-event data after removing the influence of the crustal displacements is also shown in Figure 2. In our target area along the Futagawa fault, several significant differences can be observed, which are considered to be landslides. The authors attempted to detect landslides in the target area using a simple thresholding value (2 m) [40,41]. However, the results included much noise and did not evaluate well. In the flights, aerial photos were acquired at the same locations as the Lidar data. The aerial photos on 15 April were provided as orthorectified truth color images with 16-cm spacing, whereas the photos on 23 April were provided as orthorectified truth color images with 23-cm spacing.
The other Lidar pair were acquired on 15 May 2006, and 8 May 2016, by GSI. Since the purpose of the pre-event Lidar data was to create a 5-m digital terrain model (DTM), the point density was low (0.72 points/m2). The post-event Lidar was taken to detect damage, with a high density of 5.93 points/m2. The coverage area is shown in Figure 2 with black gridlines. Both the original random point data including ground and surface objects, and the processed DTMs with 2 m spacing were provided. The original random point data were used to detect the collapsed buildings in the center of Mashiki town [19]. Aerial photos were also acquired during the flights. The aerial photos obtained in 2006 were panchromatic images with 30-cm spacing, whereas the photos acquired in 2016 were truth color images with 50-cm spacing.
The timeline of the 2016 Kumamoto earthquake event and the acquisitions of the Lidar data is shown in Figure 3. All the Lidar data were transformed to raster images by ENVI Lidar software. Considering the different point densities, the data acquired by Asia Air Survey Co., Ltd. were resampled with 1-m spacing, whereas the data acquired by GSI were resampled with 2-m spacing (pre-event) and 1-m spacing (post-event). Examples of a pre-event aerial photo, the DSM acquired on 15 April 2016, and the DSM and the DTM acquired on 15 May 2006, are shown in Figure 4, respectively. The figures show the images in grid 2KD673. The elevation of this area ranged from 80 m to 250 m. The southeast side had higher altitude than the northwest side. Comparing the DSMs in 2016 (b) and 2006 (c), several land-use changes could be confirmed during the 10-year period. In the DTM (d), buildings and trees had been removed, and the fine relief could be clearly observed.
Since the main shock caused more than 2-m horizontal displacements and 2-m subsidence in the study area [17], a subpixel-based registration was adopted to remove the horizontal movements. The pre-event images were set as the base. Tie points were generated automatically using the cross-correlation method. The maximum allowable error was set as less than 0.5 pixel. To improve the accuracy of the DTM registration, tie points obtained using the pre- and post-event DSMs were applied to the DTMs. After the registration, the horizontal differences were less than 40 cm. All the post-event images were warped in 1-m spacing. Then, the vertical displacements were estimated by averaging the vertical differences in the 10 × 10 pixel (10 m × 10 m) windows. The obtained vertical displacements using the DSMs and the DTMs are shown in Figure 5. The estimated displacements from the DSMs on 15 and 23 April 2016 (a), and that from the DTMs on 15 May 2006, and 8 May 2016 (c), showed reasonable results. The northwest side of the fault subsided, whereas the southeast side was uplifted. The subsidence became larger as the location moved east. The maximum subsidence was approximately 2 m. The uplift values were approximately 10−20 cm. The estimation using the DSMs in 2006 and 2016 failed, as shown in Figure 5b. Many surface changes occurred during the ten-year period. The increase in tree heights dominated the vertical differences, making the coseismic displacements difficult to separate.
Finally, the corrected vertical differences after removing both the horizontal and vertical coesismic displacements were obtained from the DSMs acquired by Asia Air Survey Co., Ltd. And the DTMs acquired by GSI. They are shown in Figure 6. Several negative regions (blue colors) can be identified along the fault from a, whereas only one significant changed region could be confirmed from b. Many red lines (increased height) were observed parallel to the fault. These lines fit the boundaries of trees at the different altitudes. The height increase may be caused by the different Lidar point locations in the two flights. The blue lines are the locations of felled trees, which were confirmed from the 23 April 2016, aerial photo. In the southeast part of Figure 6b, several changed areas can be observed far from the fault. Comparing the aerial photos taken in 2006 and 2016, those regions were confirmed to be artificial land-cover changes.

4. Methodology

As mentioned in Section 2, we attempted to detect landslides using the DSMs acquired on 15 and 23 April 2016 [40,41]. Using a simple thresholding value of 2 m, the landslides were detected with much noise. Thus, we improved the method by adding the topographic features. The flowchart of the proposed method is shown in Figure 7. First, the significantly increased and decreased regions were extracted by the thresholding method. Then, the maximum slope angle in each decreased region (erosion) was calculated. The regions of decrease on flat ground (collapsed buildings or moving vehicles) were removed. The increased regions (depositions) close to the decrease regions on the slope were identified according to the slope aspect. Finally, a hole-filling step and a closing filter were applied to clean up the results.

4.1. Thresholding Method

Thresholding is the simplest way to extract a region of interest. However, determining the threshold value is the most important and difficult step. There are many methods to find an optimal threshold value [43,44,45]. To simplify the approach and maintain the accuracy, we determined the threshold value manually by comparison with aerial photos. The average of the DSM differences between 15 and 23 April was 2 cm. The standard deviation was 2 m. In the previous study [40,41], ±2 m was used as the threshold value for the DSMs acquired by Asia Air Survey Co., Ltd. As shown in the ground photo of Figure 1b, the landslides occurred on slopes covered by high trees. The felled trees will cause a height reduction larger than 2 m. Thus, the previous results included much noise. In this study, we tried the thresholding values of −3 m, −4 m, −5 m and −6 m for extracting the erosions from the DSMs. According to the study of Simpson et al. [46], the forest conditions affect the accuracy of DTMs. The DTMs used in this study were created from the leaf-on Lidar data (both acquired in May), the vertical error would be approximately 1 m. However, the average of the DTM differences between 2006 and 2016 was 5 cm with the standard deviation 0.6 m, showing good vertical accuracy. There is no influence of trees in the DTMs, therefore the threshold values were set smaller: −2 m, −3 m, and −4 m. The threshold values for the depositions were set as 1 m, 2 m and 3 m for the DSMs, whereas these for the DTMs were 0.5 m, 1.0 m and 1.5 m.
An enlarged area within the black frame in Figure 6 is shown in Figure 8. The extracted regions by the different threshold values are overlapping on the ortho-image on 23 April 2016 (Figure 8a,b). There were two large landslides in this area, which were also identified by both NIED and GSI. Those two landslides could be completely detected from the DSMs, even using the strictest threshold value (−6 m). The threshold value of −3 m extracted several tree changes. Thus, we used −4 m as the best threshold value. In the DTM results, the shapes of the two landslides could not be extracted completely when the threshold value was set as −4 m. Furthermore, the threshold value of −2 m extracted many non-landslide regions. The threshold value was determined to be −3 m for the DTMs. For the depositions, the threshold value of 1 m for the DSMs and 0.5 m for the DTMs extracted much noise. The threshold value of 3 m for the DSMs and 1.5 m for the DTMs could not completely extract the landslides. Thus, the threshold values were determined to be 2 m for the DSMs and 1.0 m for the DTMs. The extracted increased or decreased pixels were grouped into objects. If the size of an object was smaller than 100 m2, it was removed as noise.
The extracted erosions and depositions using the optimal threshold values are shown in Figure 8c,d. From the DSMs, four large erosions were extracted, including two landslides and two felled tree regions. Three small erosions were confirmed as felled trees, whereas two were not shown in the aerial photo. Many depositions were extracted, including two landslides and other changes of tree heights. From the DTMs, four erosions, including two landslides and two other regions were obtained. The two small extracted erosions were close to the locations of the erosions extracted from the DSMs. From the aerial photo, the felled trees could be confirmed at this location; however, the ground changes were difficult to observe as they were obstructed by trees. Since there are no trees in the DTMs, these two small erosions have a high probability of being landslides. Similar to the results from the DSMs, many depositions were extracted.

4.2. Modification Using the Topographic Features

To remove the regions of decrease caused by collapsed buildings or moving vehicles, the slope information was used to discriminate landslides. We calculated the slope angles from the DTMs in 2006 and 2016, respectively. Considering the point density of the Lidar data acquired in 2006, a 15 × 15 pixel (15 m × 15 m) window was used in the calculation. Comparing those two results, some slopes became flat after landslides. Thus, only the pre-event slope information was effective for detection. According to a previous study [47], a landslides’ frequency peak falls between 15° and 40°. The high spatial resolution of the DTMs captured the fine undulations on the boundary of roads and agricultural fields. We investigated the slope angle of the boundary of those flat regions, which were up to 20°. Thus, the threshold value for dividing the sloped and the flat areas was defined as 20°. We calculated the maximum value of the slope angle within each erosion. If the maximum value was less than 20°, it would be removed from the results. One erosion extracted from the DSMs was removed in this step due to its small slope value. It is shown in Figure 8c by the white line. The extracted results from the DTMs were also modified using the same slope information.
As shown in Figure 8c,d, many depositions were extracted. We distinguished the depositions due to the landslides by linking them to the erosions. In this step, the aspect angle was used. The aspect angle was also calculated from the DTM in 2006 using a 15 × 15 pixel window. The aspect angle was 0° at the north direction, increasing clockwise. The average value of the aspect angle for each erosion was estimated. When the average aspect angle was smaller than 45° or larger than 315°, the erosions shifted north to search for the associated depositions. When the angle was between 45° and 135°, the erosions shifted east. When the angle was between 135° and 225°, the erosions shifted south. When the angle was between 225° and 315°, the erosions shifted west. The shift was 1 m for the results from the DSMs, and 2 m for the results from the DTMs, the same as the original spacing of the raster images. If the shifted erosion overlapped on a deposition, that deposition was linked to the erosion. Only the linked depositions were counted as parts of landslides. Then, the erosions and depositions were merged into one object as a landslide. The hole in the extracted object was filled. In addition, a closing filter using a 3 × 3 pixel window was applied to clean up the shapes of the results.
The modified results are shown in Figure 9. From the DSMs, five landslides were extracted. The extracted regions of two landslides were increased by merging the depositions. Four landslides were extracted from the DTMs. The traced landslide regions by NIED are also shown in Figure 9 by the white lines. For the two recognizable landslides, the shapes matched the regions traced by NIED. The confusion matrixes were calculated in this area, using the polygon traced by NIED as the truth data. They are shown in Table 1. The producer accuracy of the DSM results was 87% and the user accuracy was 32%. Since many felled trees were extracted wrongly as landslides, the user accuracy was low. The producer accuracy of the DTM results was 77%, and the user accuracy was 56%. Compared to the DSM results, the commission errors reduced significantly. In both the results, the high producer accuracies showed the potential of the proposed method for detecting landslides. The landslides dominated only 10% of the area, thus, both the overall accuracies were over 90%. The kappa coefficient was 0.44 for the DSM results and 0.63 for the DTM results.

5. Results and Verification

The proposed approach and the defined threshold values were applied to the entire target area in grids 2KD 672, 2KD673 and 2KD762. The obtained results are shown in Figure 10. From the DSMs acquired on April 15 and 23, 2016, 110 regions were detected to be landslides. Most of the extracted results were located close to the Futagawa fault. The total area of the detected landslides was 0.097 km2, including 0.066-km2 erosions and 0.031-km2 depositions. The volume of the results was also calculated. The decreased volume was 8.1 × 105-m3 and the increased volume was 1.7 × 105-m3. The increased volume was 20% of the decreased one. The DSMs measure the heights at the top of trees. When a landslide occurred, the trees on the slope fell and slid with soils to the ground. The decreased volume included the space of the standing tress, whereas the increase volume included the felled trees. Thus, the decreased volume was much larger than the increased volume. A concept image of this phenomenon is shown in Figure 11.
Forty regions were detected as landslides from the DTMs acquired on 15 May 2006, and 8 May 2016. Several regions far from the fault had a high probability of being caused by land-used changes. The total area of the detected landslides was 0.064 km2, including 0.027-km2 of erosions and 0.037-km2 of depositions. The detected depositions were larger than the erosions. However, when they were transformed into volume, the erosion volume was 1.5 × 105 m3 and the deposition volume was 1.6 × 105 m3. The total changed volume was much smaller than the results obtained from DSMs. Since the DTMs represented the ground altitude, only soil changes were detected. Thus, the decreased volume was close to the increased volume.
The locations of landslides investigated by GSI using the aerial photos taken in April 2016, are also shown in Figure 10. In the target area, 13 small landslides (larger than 0.005 km2) and one large landslide (larger than 0.01 km2) were indicated. Comparing with the DSM results, 11 out of 14 landslides were successfully detected. The three omitted locations were landslides that occurred after the foreshock, which was confirmed from the aerial photo. An example of two omitted locations is shown in Figure 12a. In the aerial photo taken on 15 April 2016, these two landslides had occurred. This means our results using the pre- and post- main-shock DSMs detected all the landslides caused by the main shock. Comparing with the DTM results, 10 out of 14 landslides were successfully detected. Three of the omissions showed only height increases on the post-event DTMs. Without a neighboring erosion, the depositions were not identified as landslides. Thus, they could not be detected in our results. One omission showed that the height decreased; however, the area that decreased more than 3-m was less than 100 m2. Those errors may be caused by the low point density of the pre-event Lidar data. The producer accuracy and user accuracy of our results counted by number is summarized in Table 2. The low user accuracy of the DSM results was mainly caused by the felled trees due to surface ruptures or soil movements, which can be partially observed in Figure 9a. Some commission errors in the DTM results were caused by changes in land use during the 10-year period. The low point density of the data in 2006 was also a main cause of commission errors.
The obtained results were compared with the landslides traced by NIED. NIED investigated 21 landslides in the target area, covering a 4.5 × 104 m2 area. Sixteen landslides were identified successfully from the pre- and post-event DSMs, and 12 landslides were identified from the DTMs. Two new omission errors in the DSM results were two small landslides with lower height changes. The nine omissions in the DTM results showed the limited capability on small landslide detection. The problem is mainly due to the low point density of the pre-event data. A comparison of our results and the landslides identified by NIED is summarized in Table 3. Two enlarged comparisons are shown in Figure 12b,c. Five landslides were detected from both the DSMs and DTMs, one landslide was detected only from the DSMs, and one could not be detected by either. The two landslides that could not be detected from the DTMs were smaller than other detected landslides. Comparing their shapes, the regions of piled-up soils were difficult to distinguish from the DSMs. The threshold value of the deposition was set to 2 m for the DSMs, a little high to extract accumulated soils. However, the DSMs were sensitive to the erosions of a small landslide. The threshold value of the deposition from the DSMs was set to 1 m. Thus, most of the piled-up soils were detected. The detected depositions were larger than the visual interpretation carried out by NIED. The confusion matrixes calculated in these two enlarged areas (0.4 km2) are shown in Table 4. The DSMs could detect 53% of the affected regions, whereas the DTMs could detect 67%. The kappa coefficient was 0.56 for the results from the DSMs and 0.55 for the results from the DTMs, showing moderate agreement with the visual interpretation result.
According to those comparison, the two temporal DSMs acquired in a short period are sensitive for detecting landslides. However, the results were affected by trees. Felled trees were difficult to distinguish from landslides without additional information. When the two temporal Lidar data sets were taken over a long period, DTMs are more suitable for landslide detection. In this study, the low point density of the pre-event Lidar caused the low resolution of the DTM. Small landslides could not be detected by our approach. However, the proposed method would work better using high-density Lidar data. Since the Lidar data acquired by Asia Air Survey Co., Ltd. have been resampled into grids, the DTM could not be generated. The influence of time lag on the processing of the DTMs could not revealed.

6. Conclusions

The landslides caused by the 2016 Kumamoto Earthquake in Mashiki town and Nishihara village were detected using two sets of airborne Lidar data. In estimating the coseismic displacements, the DSMs acquired over a 10-year period were found to be unsuitable for detection due to the presence of significant surface changes. Thus, detection was conducted using the DSMs on 15 and 23 April 2016, and the DTMs on 15 May 2006, and 8 May 2016. From comparisons using NIED and GSI image interpretation, the locations of 71% of the landslides could be identified. The DSMs were more sensitive than the DTMs for detecting small landslides. However, the DTM results were more stable compared to the DSM results. When the time lag between the two Lidar data acquisitions is long, DTMs can obtain more promising results than DSMs. The point density is an important consideration for the accuracy of the results. Higher resolution DTMs can improve the detection accuracy. Since GSI conducts Lidar surveys on a regular basis, the proposed method can be applied when post-event Lidar data are available.

Author Contributions

Conceptualization, F.Y. and W.L.; methodology and software, W.L.; validation and investigation, W.L., Y.M. and F.Y.; data curation, F.Y.; writing—original draft preparation, W.L.; writing—review and editing, Y.M.; project administration and funding acquisition, F.Y.

Funding

This research was partially funded by JST CREST Grant Number JPMJCR1411, Japan, and JSPS KAKENHI Grant Number 17H02066, Japan.

Acknowledgments

The Lidar data used for creating the digital surface models were acquired and owned by Asia Air Survey Co., Ltd. The Lidar data in 2006 and 2016 were acquired and owned by Geospatial Information Authority of Japan (GSI).

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviation

A list of the used abbreviations:
DEMdigital elevation model
DSMdigital surface model
DTMdigital terrain model
GEONETthe Japanese national GNSS Earth Observation Network System
GSIGeospatial Information Authority of Japan
JMAthe Japan Meteorological Agency
JSTthe Japan Standard Time
LidarLight Detection and Ranging
NIEDNational Research Institute for Earth Science and Disaster Resilience

References

  1. Geospatial Information Authority of Japan (GSI). (In Japanese). Available online: https://www.gsi.go.jp/BOUSAI/H27-kumamoto-earthquake-index.html (accessed on 21 August 2019).
  2. Cabinet Office of Japan. Summary of Damage Situation in the Kumamoto Earthquake Sequence. 2016; (In Japanese). Available online: http://www.bousai.go.jp/updates/h280414jishin/index.html (accessed on 21 August 2019).
  3. Yamazaki, F.; Matsuoka, M. Remote sensing technologies in post-disaster damage assessment. J. Earthq. Tsunamis 2007, 1, 193–210. [Google Scholar] [CrossRef]
  4. Rathje, E.; Adams, B.J. The role of remote sensing in earthquake science and engineering, opportunities and challenges. Earthq. Spectra 2008, 24, 471–492. [Google Scholar] [CrossRef]
  5. Dell’Acqua, F.; Gamba, P. Remote sensing and earthquake damage assessment: Experiences, limits, and perspectives. Proc. IEEE 2012, 100, 2876–2890. [Google Scholar] [CrossRef]
  6. Nakmuenwai, P.; Yamazaki, F.; Liu, W. Multi-temporal correlation method for damage assessment of buildings from high-resolution SAR images of the 2013 Typhoon Haiyan. J. Disaster Res. 2016, 11, 557–592. [Google Scholar] [CrossRef]
  7. Wieland, M.; Liu, W.; Yamazaki, F. Learning change from Synthetic Aperture Radar images: Performance evaluation of a Support Vector Machine to detect earthquake and tsunami-induced changes. Remote Sens. 2016, 8, 792. [Google Scholar] [CrossRef]
  8. Nakmuenwai, P.; Yamazaki, F.; Liu, W. Automated extraction of inundated areas from multi-temporal dualpolarization RADARSAT-2 images of the 2011 central Thailand flood. Remote Sens. 2017, 9, 78. [Google Scholar] [CrossRef]
  9. Fan, Y.; Wen, Q.; Wang, W.; Wang, P.; Li, L.; Zhang, P. Quantifying disaster physical damage using remote sensing data—A technical work flow and case study of the 2014 Ludian earthquake in China. Int. J. Disaster Risk Sci. 2017, 8, 471–492. [Google Scholar] [CrossRef]
  10. Karimzadeh, S.; Matsuoka, M. Building damage assessment using multisensor dualpolarized synthetic aperture radar data for the 2016 M 6.2 Amatrice earthquake, Italy. Remote Sens. 2017, 9, 330. [Google Scholar] [CrossRef]
  11. Ferrentino, E.; Marino, A.; Nunziata, F.; Migliaccio, M. A dual-polarimetric approach to earthquake damage assessment. Int. J. Remote Sens. 2019, 40, 197–217. [Google Scholar] [CrossRef]
  12. Fujiwara, S.; Yarai, H.; Kobayashi, T.; Morishita, Y.; Nakano, T.; Miyahara, B.; Nakai, H.; Miura, Y.; Ueshiba, H.; Kakiage, Y.; et al. Small-displacement linear surface ruptures of the 2016 Kumamoto earthquake sequence detected by ALOS-2 SAR interferometry. Earth Planets Space 2016, 68, 160. [Google Scholar] [CrossRef] [Green Version]
  13. Ji, Y.; Sumantyo, J.T.S.; Chua, M.Y.; Waqar, M.M. Earthquake/tsunami damage level mapping of urban areas using full polarimetric SAR data. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2018, 11, 2296–2309. [Google Scholar] [CrossRef]
  14. Bai, Y.; Adriano, B.; Mas, E.; Koshimura, S. Machine learning based building damage mapping from the ALOS-2/PALSAR-2 SAR imagery: Case study of 2016 Kumamoto earthquake. J. Disaster Res. 2017, 12, 646–655. [Google Scholar] [CrossRef]
  15. Natsuaki, R.; Nagai, H.; Tomii, N.; Tadono, T. Sensitivity and limitation in damage detection for individual buildings using InSAR coherence—A case study in 2016 Kumamoto earthquakes. Remote Sens. 2018, 10, 245. [Google Scholar] [CrossRef]
  16. Liu, W.; Yamazaki, F. Extraction of collapsed buildings due to the 2016 Kumamoto earthquake based on multi-temporal PALSAR-2 data. J. Disaster Res. 2017, 12, 241–250. [Google Scholar] [CrossRef]
  17. Moya, L.; Yamazaki, F.; Liu, W.; Chiba, T. Calculation of coseismic displacement from lidar data in the 2016 Kumamoto, Japan, earthquake. Nat. Hazards Earth Syst. Sci. 2017, 17, 143–156. [Google Scholar] [CrossRef] [Green Version]
  18. Moya, L.; Yamazaki, F.; Liu, W.; Yamada, M. Detection of collapsed buildings from lidar data due to the 2016 Kumamoto earthquake in Japan. Nat. Hazards Earth Syst. Sci. 2018, 18, 165–178. [Google Scholar] [CrossRef]
  19. Liu, W.; Yamazaki, F. Extraction of collapsed buildings due to the 2016 Kumamoto, Japan, earthquake using two-temporal Lidar data. In Proceedings of the SPIE Asia-Pacific Remote Sensing, Honolulu, HI, USA, 24 October 2018. [Google Scholar] [CrossRef]
  20. Hervás, J.; Barredo, J.; Rosin, P.L.; Pasuto, A.; Mantovani, F.; Silvano, S. Monitoring landslides from optical remotely sensed imagery: The case history of Tessina landslide, Italy. Geomorphology 2003, 54, 63–75. [Google Scholar] [CrossRef]
  21. Huang, Q.; Wang, C.; Meng, Y.; Chen, J.; Yue, A. Landslide monitoring using change detection in multitemporal optical imagery. IEEE Geosci. Remote Sens. Lett. 2019, 1–5. [Google Scholar] [CrossRef]
  22. Mondini, A.C. Measures of spatial autocorrelation changes in multitemporal SAR images for event landslides detection. Remote Sens. 2017, 9, 554. [Google Scholar] [CrossRef]
  23. Hölbling, D.; Friedl, B.; Dittrich, J.; Cigna, F.; Pedersen, G.B.M. Combined interpretation of optical and SAR data for landslide mapping. In Proceedings of the 3th Regional Symposium on Landslides in the Adriatic Balkan Region, Ljubljana, Slovenia, 11–13 October 2017; pp. 7–12. [Google Scholar]
  24. Schlöge, R.; Doubre, G.; Malet, J.-P.; Masson, F. Landslide deformation monitoring with ALOS/PALSAR imagery: A D-InSAR geomorphological interpretation method. Geomorphology 2015, 231, 314–330. [Google Scholar] [CrossRef]
  25. Hu, X.; Lu, Z.; Pierson, T.C.; Kramer, R.; George, D.L. Combining InSAR and GPS to determine transient movement and thickness of a seasonally active low-gradient translational landslide. Geophys. Res. Lett. Banner 2018, 45, 1453–1462. [Google Scholar] [CrossRef]
  26. Chen, R.-F.; Chang, K.-J.; Angelier, J.; Chan, Y.-C.; Deffontaines, B.; Lee, C.-T.; Lin, M.-L. Topographical changes revealed by high-resolution airborne LiDAR data: The 1999 Tsaoling landslide induced by the Chi–Chi earthquake. Eng. Geol. 2016, 88, 160–172. [Google Scholar] [CrossRef]
  27. Chen, R.-F.; Lin, C.-W.; Chen, Y.-H.; He, T.-C.; Fei, L.-Y. Detecting and characterizing active thrust fault and deep-seated landslides in dense forest areas of southern Taiwan using airborne LiDAR DEM. Remote Sens. 2015, 7, 5443. [Google Scholar] [CrossRef]
  28. Bozzano, F.; Mazzanti, P.; Perissin, D.; Rocca, A.; Pari, P.; Discenza, M. Basin scale assessment of Landslides geomorphological setting by advanced InSAR analysis. Remote Sens. 2017, 9, 267. [Google Scholar] [CrossRef]
  29. Liu, X.; Zhao, C.; Zhang, Q.; Peng, J.; Zhu, W.; Lu, Z. Multi-temporal loess landslide inventory mapping with C-, X- and L-band SAR datasets—A case study of Heifangtai Loess Landslides, China. Remote Sens. 2018, 10, 1756. [Google Scholar] [CrossRef]
  30. Du, Y.; Xu, Q.; Zhang, L.; Feng, G.; Li, Z.; Chen, R.-F.; Lin, C.-W. Recent landslide movement in Tsaoling, Taiwan tracked by TerraSAR-X/TanDEM-X DEM time series. Remote Sens. 2017, 9, 353. [Google Scholar] [CrossRef]
  31. Ardizzone, F.; Cardinali, M.; Galli, M.; Guzzetti, F.; Reichenbach, P. Identification and mapping of recent rainfall-induced landslides using elevation data collected by airborne Lidar. Nat. Hazards Earth Syst. Sci. 2007, 7, 637–650. [Google Scholar] [CrossRef] [Green Version]
  32. Zhao, C.; Lu, Z. Remote Sensing of Landslides—A Review. Remote Sens. 2018, 10, 279. [Google Scholar] [CrossRef]
  33. Jaboyedoff, M.; Oppikofer, T.; Abella´n, A.; Derron, M.-H.; Loye, A.; Metzger, R.; Pedrazzini, A. Use of LIDAR in landslide investigations: A review. Nat. Hazards 2012, 61, 5–28. [Google Scholar] [CrossRef]
  34. National Research Institute for Earth Science and Disaster Resilience (NIED). Available online: http://www.bosai.go.jp/mizu/dosha.html (accessed on 21 August 2019).
  35. Doi, I.; Kamai, T.; Azuma, R.; Wang, G. A landslide induced by the 2016 Kumamoto Earthquake adjacent to tectonic displacement- Generation mechanism and long-term monitoring. Eng. Geol. 2019, 248, 80–88. [Google Scholar] [CrossRef]
  36. Tajima, Y.; Hasenaka, T.; Torii, M. Effects of the 2016 Kumamoto earthquakes on the Aso volcanic edifice. Earth Planets Space 2017, 69, 63. [Google Scholar] [CrossRef]
  37. Tamkuan, N.; Nagai, M. Fusion of multi-temporal interferometric coherence and optical image data for the 2016 Kumamoto earthquake damage assessment. ISPRS Int. J. Geo-Inf. 2017, 6, 188. [Google Scholar] [CrossRef]
  38. Kim, J.S.; Kim, K.H. Analysis of 2016 Minamiaso landslides using remote sensing and geographic information system. J. Appl. Remote Sens. 2018, 12, 036001. [Google Scholar] [CrossRef]
  39. Uemoto, J.; Moriyama, T.; Nadai, A.; Kojima, S.; Umehara, T. Landslide detection based on height and amplitude differences using pre- and post-event airborne X-band SAR data. Nat. Hazards 2019, 95, 485–503. [Google Scholar] [CrossRef]
  40. Yamazaki, F.; Sagawa, Y.; Liu, W. Extraction of landslides in the 2016 Kumamoto earthquake using multi-temporal Lidar data. In Proceedings of the Earth Resources and Environmental Remote Sensing/GIS Applications IX, Berlin, Germany, 9 October 2018. [Google Scholar] [CrossRef]
  41. Sagawa, Y.; Yamazaki, F.; Liu, W.; Moya, L. Detection of landslides in the 2016 Kumamoto earthquake using airborne Lidar data. In Proceedings of the 39th Asian Conference on Remote Sensing, Kuala Lumpur, Malaysia, 15–19 October 2018; pp. 1668–1675. [Google Scholar]
  42. Asia Air Survey Co. Ltd. The 2016 Kumamoto Earthquake. Available online: http://www.ajiko.co.jp/article/detail/ID5725UVGCD/ (accessed on 21 August 2019).
  43. Sezgin, M.; Sankur, B. Survey over image thresholding techniques and quantitative performance evaluation. J. Electron. Imaging 2004, 13. [Google Scholar] [CrossRef]
  44. Zhang, Y. Optimal multi-level thresholding based on Maximum Tsallis Entropy via an artificial bee colony approach. Entropy 2011, 13, 841–859. [Google Scholar] [CrossRef]
  45. Lai, Y.K.; Rosin, P.L. Efficient circular thresholding. IEEE Trans. Image Process. 2014, 23, 992–1001. [Google Scholar] [CrossRef]
  46. Simpson, J.E.; Smith, T.E.L.; Wooster, M.J. Assessment of errors caused by forest vegetation structure in airborne Lidar-derived DTMs. Remote Sens. 2017, 9, 1101. [Google Scholar] [CrossRef]
  47. Kritikos, T.; Davies, T. Assessment of rainfall-generated shallow landslide/debris-flow susceptibility and runout using a GIS-based approach: Application to western Southern Alps of New Zealand. Landslides 2014, 12, 1051–1075. [Google Scholar] [CrossRef]
Remotesensing 11 02292 g001 550

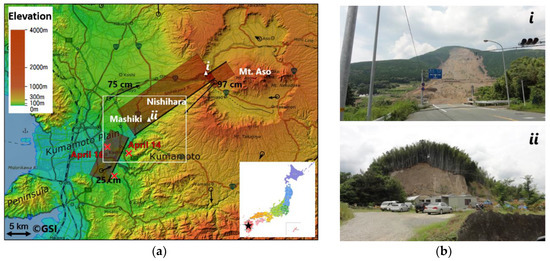

Figure 1. (a) Location of causative faults and GNSS stations in the 2016 Kumamoto Earthquake. The background is an elevation map in the rainbow color. (b) Two ground photos of landslides taken in field surveys by F. Yamazaki. Their locations are shown in (a).
Figure 1. (a) Location of causative faults and GNSS stations in the 2016 Kumamoto Earthquake. The background is an elevation map in the rainbow color. (b) Two ground photos of landslides taken in field surveys by F. Yamazaki. Their locations are shown in (a).
Remotesensing 11 02292 g001
Remotesensing 11 02292 g002 550

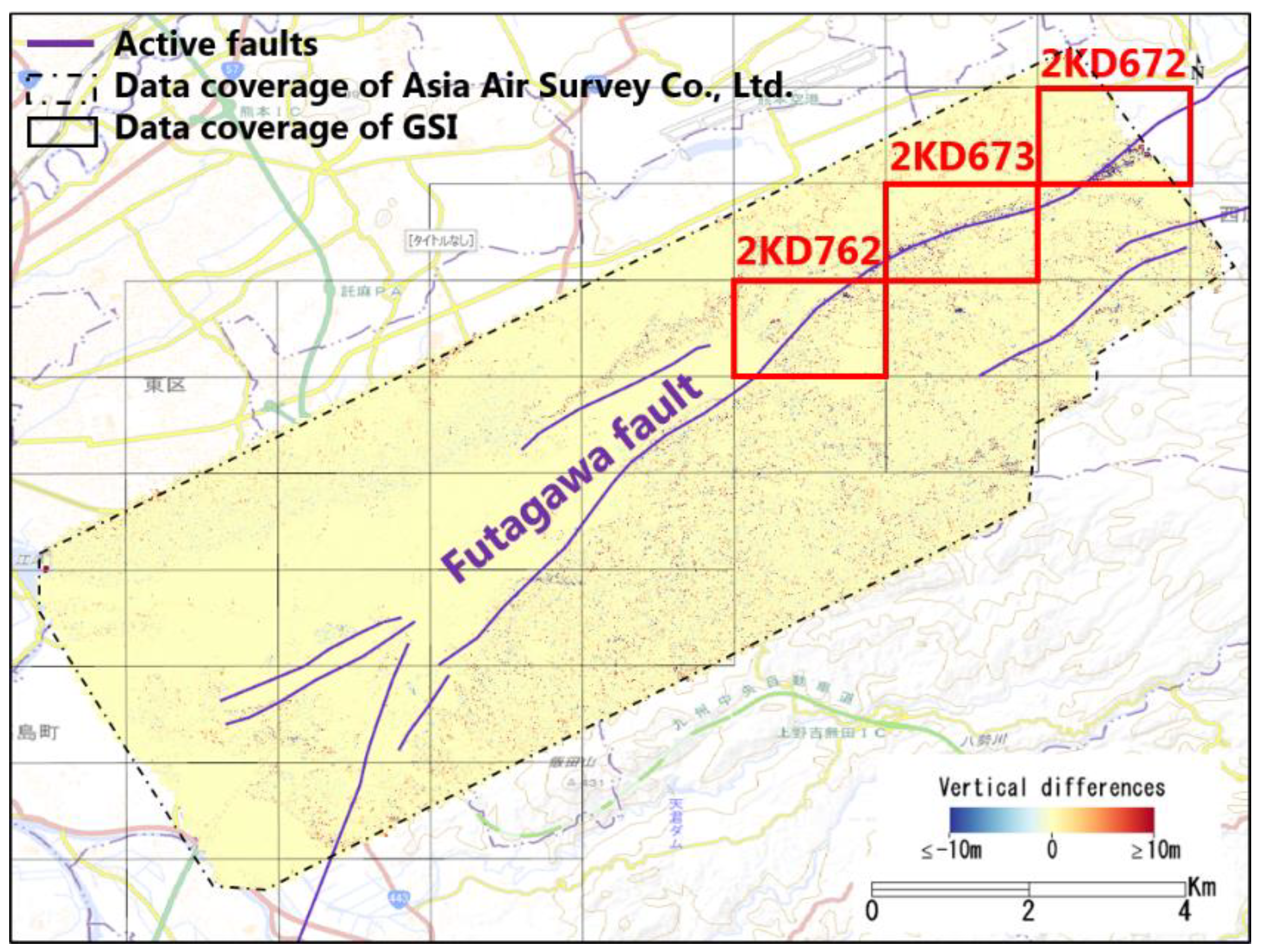

Figure 2. Enlarged area of the white frame in Figure 1a. The coverage of the DSMs acquired by Asia Air Survey Co., Ltd. is enclosed by the dashed line, and the coverage of the DSMs acquired by GSI is shown in the black gridlines. The vertical differences between the pre- and post-event DSMs acquired by Asia Air Survey Co., Ltd., after removing the influence of the crustal displacements, also overlaps the base map. Our target areas are shown with red frames.
Figure 2. Enlarged area of the white frame in Figure 1a. The coverage of the DSMs acquired by Asia Air Survey Co., Ltd. is enclosed by the dashed line, and the coverage of the DSMs acquired by GSI is shown in the black gridlines. The vertical differences between the pre- and post-event DSMs acquired by Asia Air Survey Co., Ltd., after removing the influence of the crustal displacements, also overlaps the base map. Our target areas are shown with red frames.
Remotesensing 11 02292 g002
Remotesensing 11 02292 g003 550

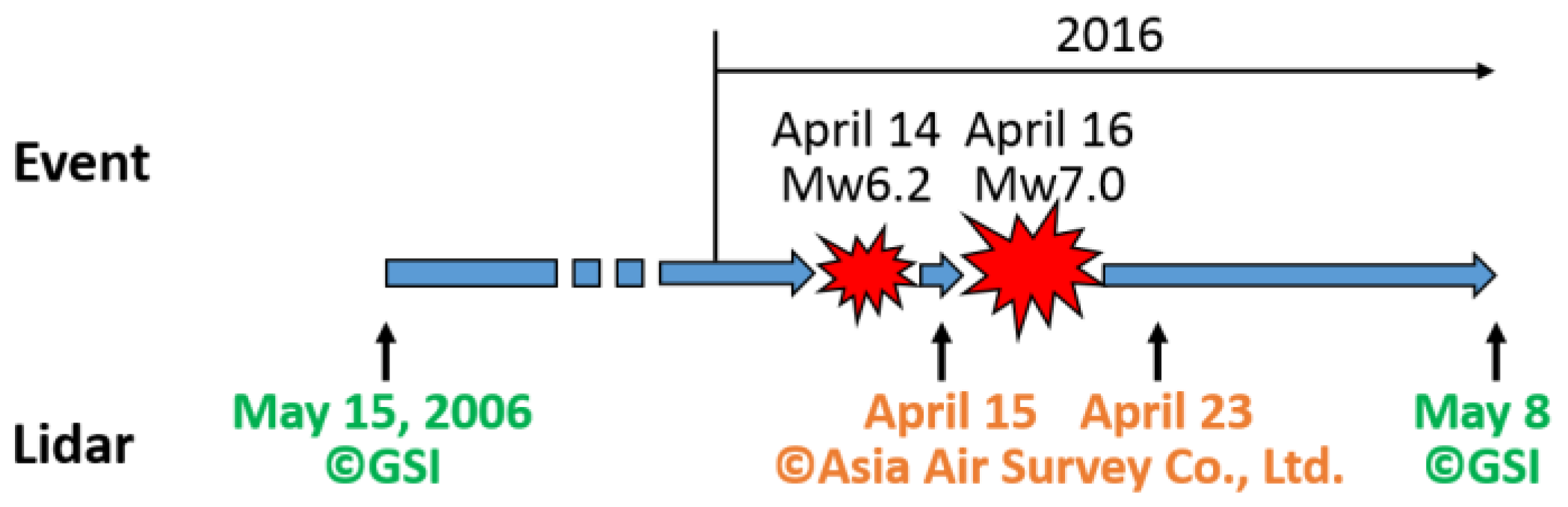

Figure 3. Timeline of the 2016 Kumamoto earthquake event and the used Lidar data.
Figure 3. Timeline of the 2016 Kumamoto earthquake event and the used Lidar data.
Remotesensing 11 02292 g003
Remotesensing 11 02292 g004 550

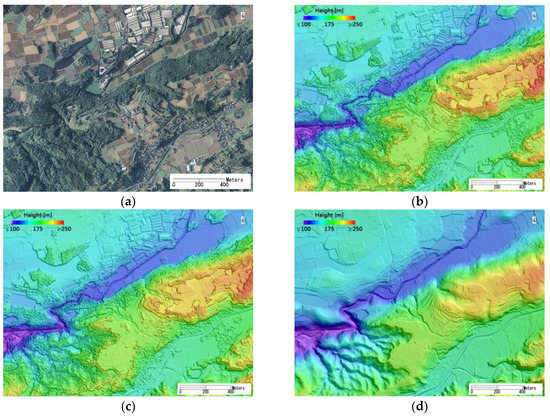

Figure 4. The aerial photo and the transformed raster images of Lidar data in grid 2KD673: (a) The ortho-image on 15 April 2016, with 16-cm spacing; (b) the DSM image with 1-m spacing acquired on 15 April 2016; (c,d) the DSM and processed DTM images with 2-m spacing acquired on 15 May 2006.
Figure 4. The aerial photo and the transformed raster images of Lidar data in grid 2KD673: (a) The ortho-image on 15 April 2016, with 16-cm spacing; (b) the DSM image with 1-m spacing acquired on 15 April 2016; (c,d) the DSM and processed DTM images with 2-m spacing acquired on 15 May 2006.
Remotesensing 11 02292 g004
Remotesensing 11 02292 g005 550

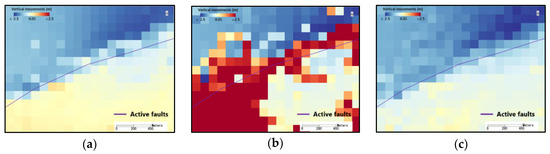

Figure 5. The estimated vertical coseismic displacements using averaged vertical differences in a 100 m2 window: (a) The result of DSMs on 15 and 23 April 2016; (b,c) the result of the DSMs and DTMs acquired on 15 May 2006, and 8 May 2016.
Figure 5. The estimated vertical coseismic displacements using averaged vertical differences in a 100 m2 window: (a) The result of DSMs on 15 and 23 April 2016; (b,c) the result of the DSMs and DTMs acquired on 15 May 2006, and 8 May 2016.
Remotesensing 11 02292 g005
Remotesensing 11 02292 g006 550

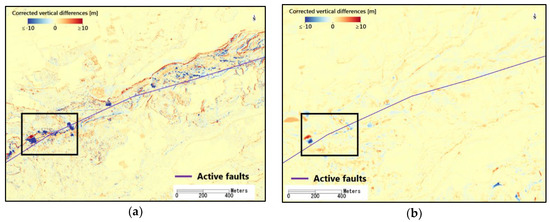

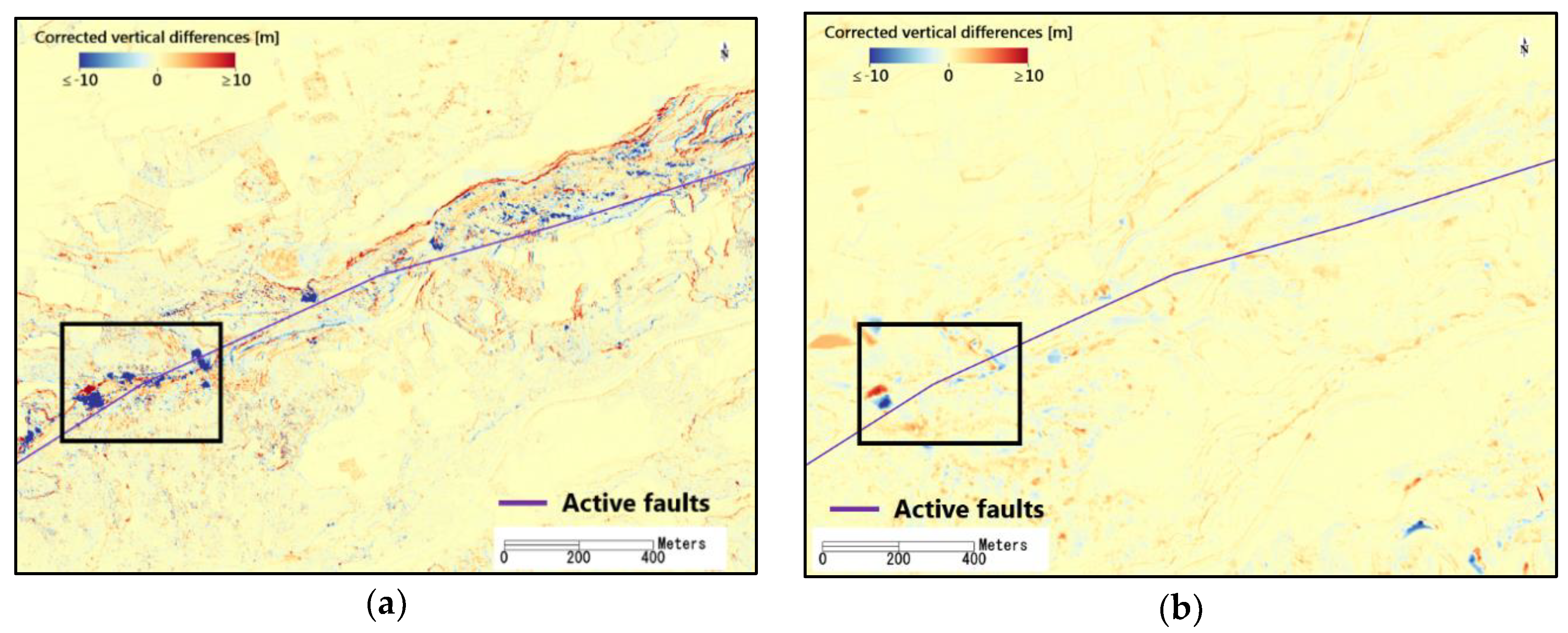

Figure 6. Vertical differences between the pre- and post-event Lidar data after removing the coseismic displacements: (a) Subtracting the DSM on 23 April 2016, from that on 15 April 2016; (b) subtracting the DTM on 8 May 2016, from that on 15 May 2006.
Figure 6. Vertical differences between the pre- and post-event Lidar data after removing the coseismic displacements: (a) Subtracting the DSM on 23 April 2016, from that on 15 April 2016; (b) subtracting the DTM on 8 May 2016, from that on 15 May 2006.
Remotesensing 11 02292 g006
Remotesensing 11 02292 g007 550

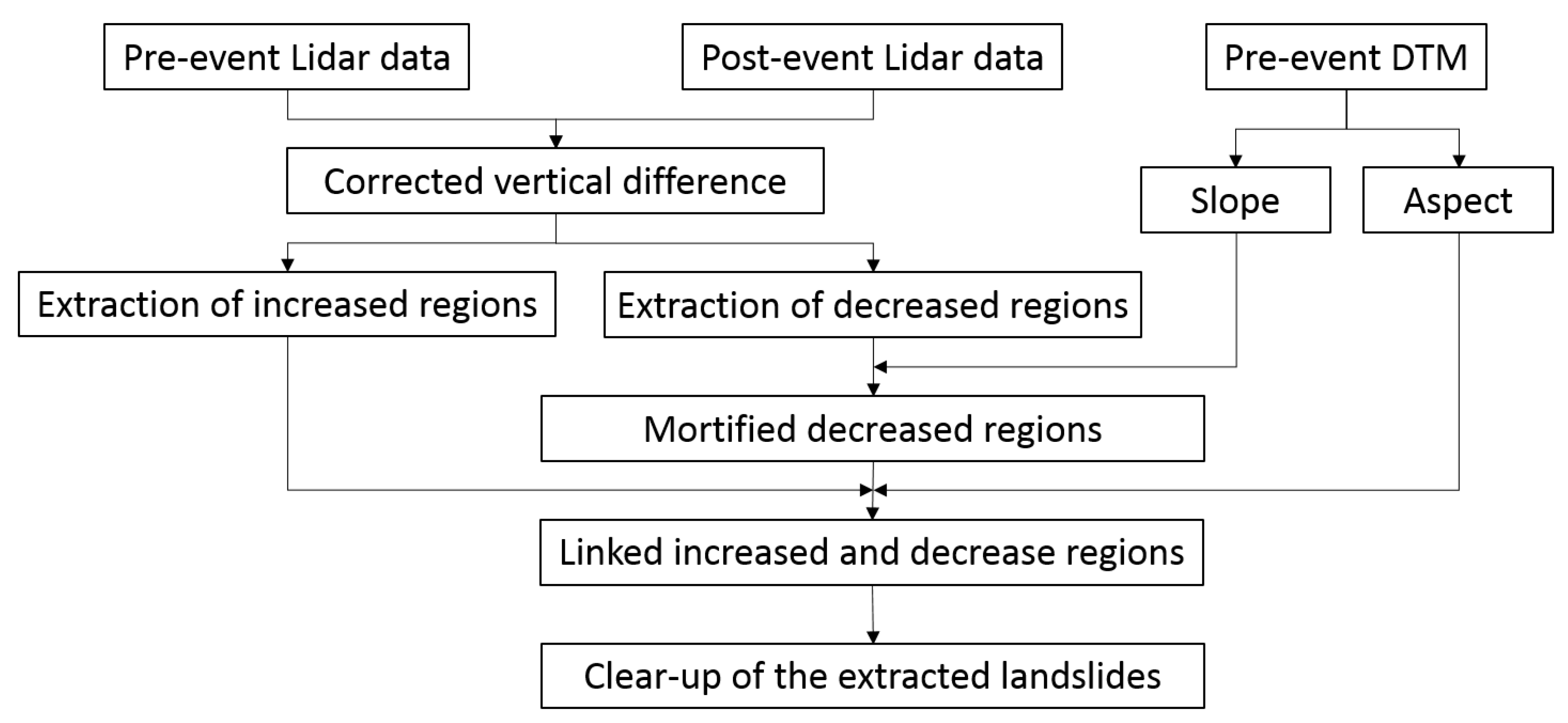

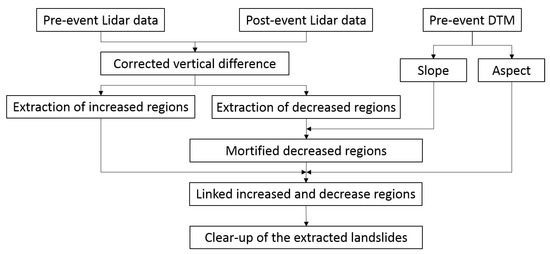

Figure 7. Flowchart of the proposed method to detect landslides using pre- and post-event Lidar data.
Figure 7. Flowchart of the proposed method to detect landslides using pre- and post-event Lidar data.
Remotesensing 11 02292 g007
Remotesensing 11 02292 g008 550

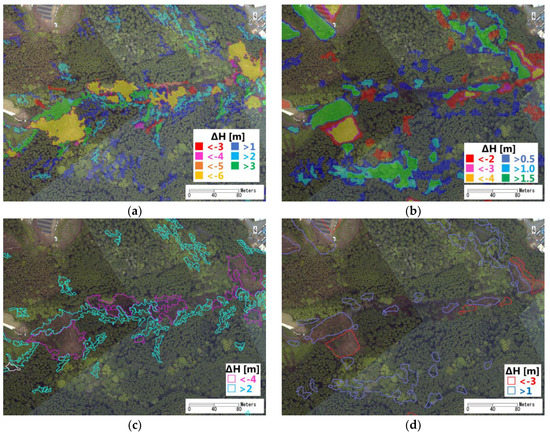

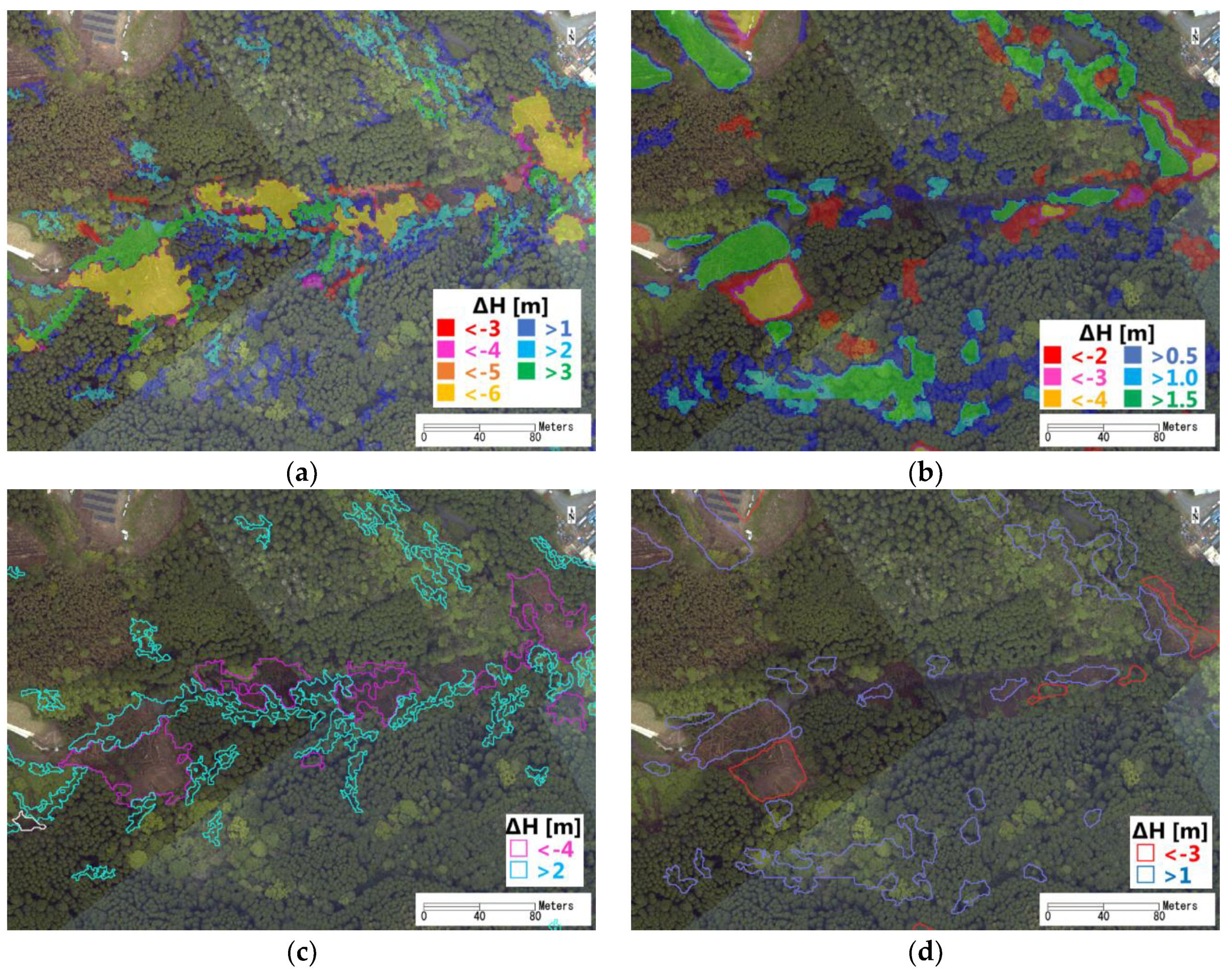

Figure 8. (a,b) Comparison of the different threshold values for extracting the erosions and the depositions from the DSMs and the DTMs. (c,d) The extracted regions using the optimal threshold values from the DSMs and DTMs, respectively. The background image is the ortho-image acquired on 23 April 2016.
Figure 8. (a,b) Comparison of the different threshold values for extracting the erosions and the depositions from the DSMs and the DTMs. (c,d) The extracted regions using the optimal threshold values from the DSMs and DTMs, respectively. The background image is the ortho-image acquired on 23 April 2016.
Remotesensing 11 02292 g008
Remotesensing 11 02292 g009 550

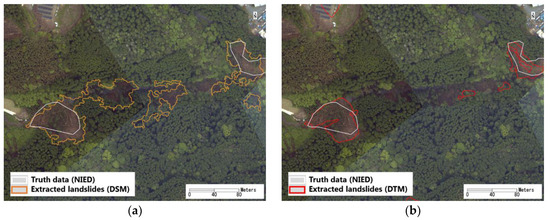

Figure 9. Comparison of the final extracted landslides and the regions traced by NIED in white lines: (a) Five regions extracted from the DSMs; (b) four regions extracted from DTMs.
Figure 9. Comparison of the final extracted landslides and the regions traced by NIED in white lines: (a) Five regions extracted from the DSMs; (b) four regions extracted from DTMs.
Remotesensing 11 02292 g009
Remotesensing 11 02292 g010 550

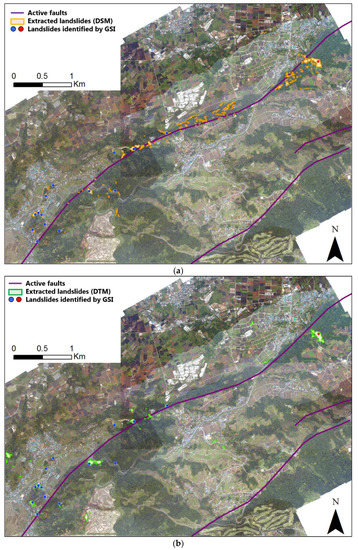

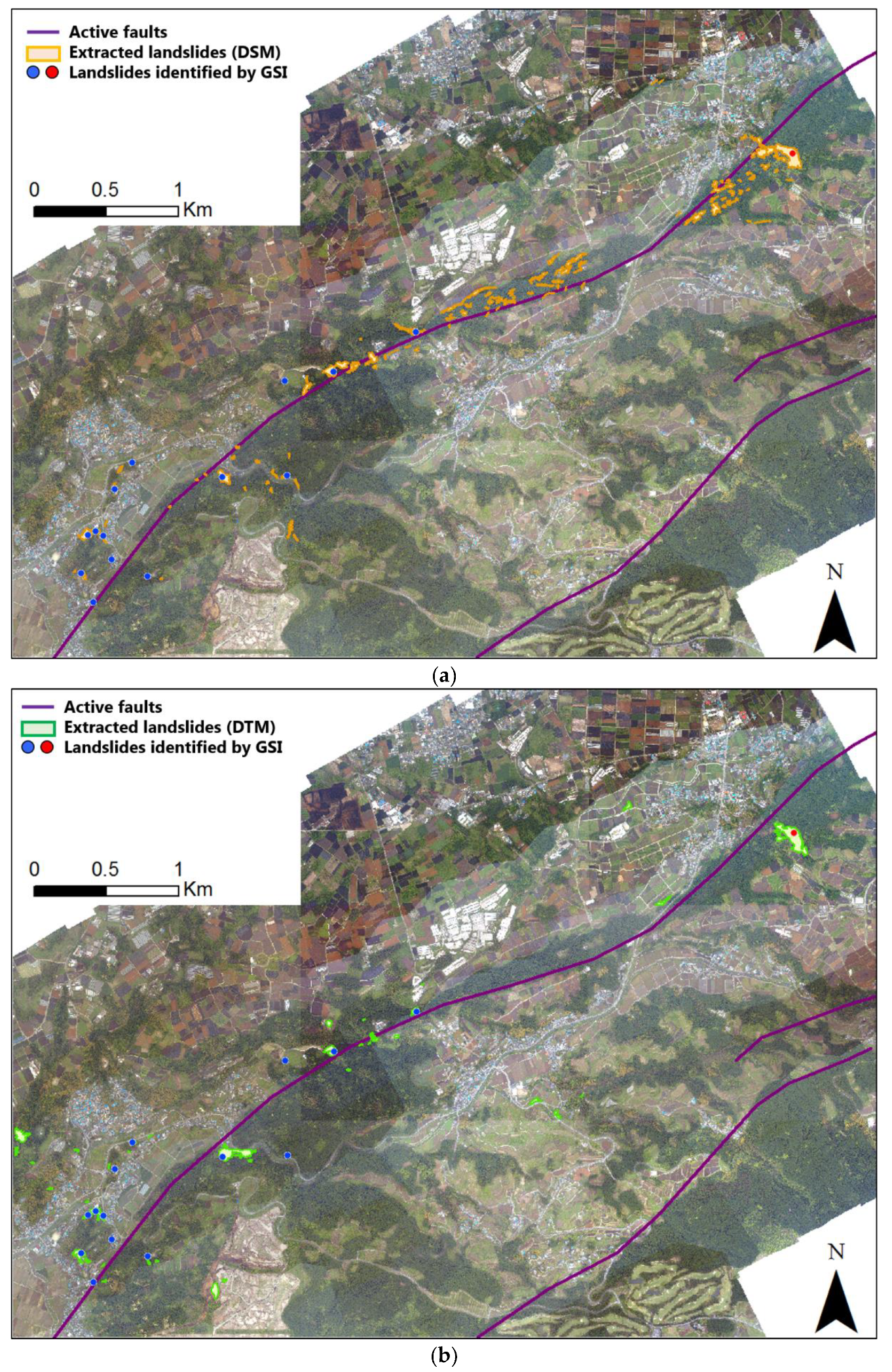

Figure 10. Comparison of the detected landslides from the DSMs (a) and the DTMs (b) with the locations of landslides published by GSI. A red point is a landslide larger than 0.01 km2 and the blue points are landslides larger than 0.005 km2.
Figure 10. Comparison of the detected landslides from the DSMs (a) and the DTMs (b) with the locations of landslides published by GSI. A red point is a landslide larger than 0.01 km2 and the blue points are landslides larger than 0.005 km2.
Remotesensing 11 02292 g010
Remotesensing 11 02292 g011 550

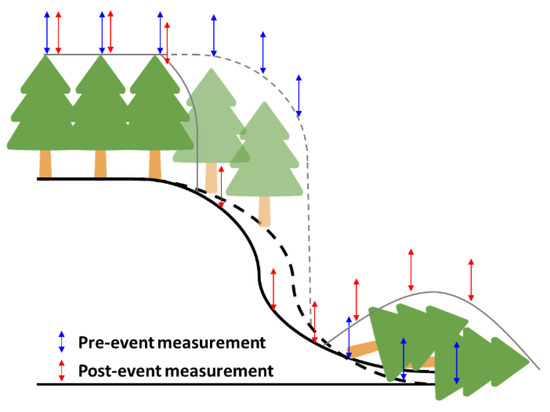

Figure 11. Concept image for the reason the decreased volume of the DSM would be much larger than the increased volume after a landslide.
Figure 11. Concept image for the reason the decreased volume of the DSM would be much larger than the increased volume after a landslide.
Remotesensing 11 02292 g011
Remotesensing 11 02292 g012 550

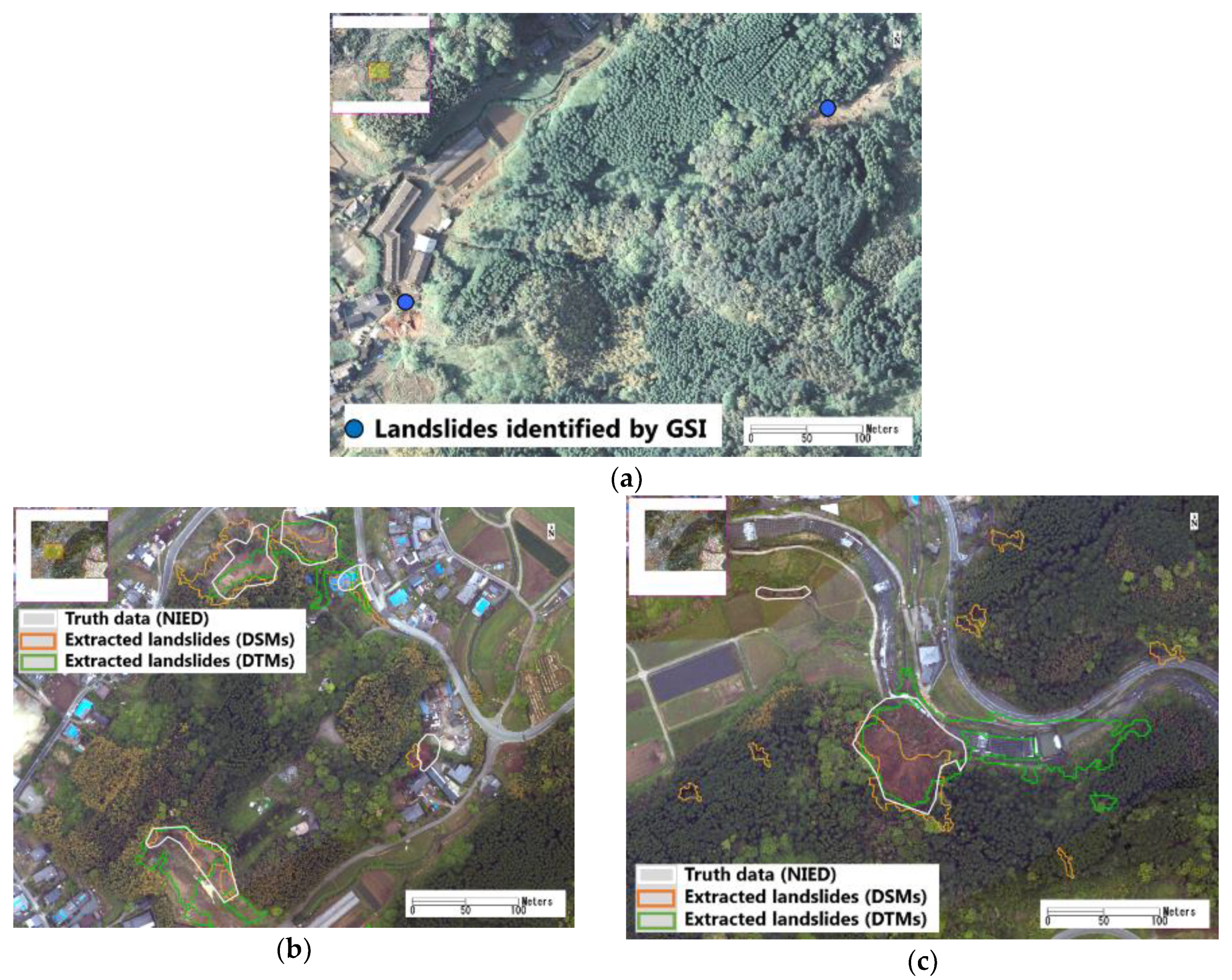

Figure 12. Three enlarged areas for comparisons: (a) The locations of the two landslides that occurred before the main shock, overlapping the 15 April 2016, aerial photo; (b,c) comparisons of the detected landslide regions and the landslides traced by NIED, where the background is the 23 April 2016, aerial photo.
Figure 12. Three enlarged areas for comparisons: (a) The locations of the two landslides that occurred before the main shock, overlapping the 15 April 2016, aerial photo; (b,c) comparisons of the detected landslide regions and the landslides traced by NIED, where the background is the 23 April 2016, aerial photo.
Remotesensing 11 02292 g012
Table
Table 1. Confusion matrix of the results extracted from the DSMs (a) and the DTMs (b).
Table 1. Confusion matrix of the results extracted from the DSMs (a) and the DTMs (b).
(a)NIED
LandslidesOthersTotalUser Accuracy
Results from the DSMsLandslides3829813511,96432%
Others559148,986149,54599%
Total4388157,121161,509
Producer accuracy87%95% 95%
(b)NIED
LandslidesOthersTotalUser Accuracy
Results from the DTMsLandslides33592662602156%
Others1029154,459155,48899%
Total4388157,121161,509
Producer accuracy77%98% 98%
Table
Table 2. Comparison of the detected results with the landslides identified by GSI.
Table 2. Comparison of the detected results with the landslides identified by GSI.
Count (Number)GSI
LandslidesOmissionCommissionProd. acc.User acc.
Results from the DSMs1139978%9%
Results from the DTMs1043071%25%
Table
Table 3. Comparison of the detected results with the landslides identified by NIED.
Table 3. Comparison of the detected results with the landslides identified by NIED.
Count (Number)NIED
LandslidesOmissionCommissionProd. acc.User acc.
Results from the DSMs1659476%15%
Results from the DTMs1292857%30%
Table
Table 4. Comparison of the detected results with the landslides identified by NIED (m2).
Table 4. Comparison of the detected results with the landslides identified by NIED (m2).
(a)NIED
LandslidesOthersTotalUser accuracy
Results from the DSMsLandslides7486444011,92663%
Others6581377,493384,07498%
Total14,067381,933396,000
Producer accuracy53%99% 97%
(b)NIED
LandslidesOthersTotalUser accuracy
Results from the DTMsLandslides9381983619,21749%
Others4686372,09737678399%
Total14,067381,933396,000
Producer accuracy67%97% 96%

Share and Cite

MDPI and ACS Style

Liu, W.; Yamazaki, F.; Maruyama, Y. Detection of Earthquake-Induced Landslides during the 2018 Kumamoto Earthquake Using Multitemporal Airborne Lidar Data. Remote Sens. 2019, 11, 2292. https://doi.org/10.3390/rs11192292

AMA Style

Liu W, Yamazaki F, Maruyama Y. Detection of Earthquake-Induced Landslides during the 2018 Kumamoto Earthquake Using Multitemporal Airborne Lidar Data. Remote Sensing. 2019; 11(19):2292. https://doi.org/10.3390/rs11192292

Chicago/Turabian Style

Liu, Wen, Fumio Yamazaki, and Yoshihisa Maruyama. 2019. "Detection of Earthquake-Induced Landslides during the 2018 Kumamoto Earthquake Using Multitemporal Airborne Lidar Data" Remote Sensing 11, no. 19: 2292. https://doi.org/10.3390/rs11192292

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
