Creating a Lowland and Peatland Landscape Digital Terrain Model (DTM) from Interpolated Partial Coverage LiDAR Data for Central Kalimantan and East Sumatra, Indonesia

Abstract

Coastal lowland areas support much of the world population on only a small part of its terrestrial surface. Yet these areas face rapidly increasing land surface subsidence and flooding, and are most vulnerable to future sea level rise. The accurate and up to date digital terrain models (DTMs) that are required to predict and manage such risks are absent in many of the areas affected, especially in regions where populations are least developed economically and may be least resilient to such changes. Airborne LiDAR is widely seen as the most accurate data type for elevation mapping but can be prohibitively expensive, as are detailed field surveys across a broad geographic scale. We present an economical method that utilizes airborne LiDAR data along parallel flight lines (‘strips’) covering between 10% and 35% of the land depending on terrain characteristics, and manual interpolation. We present results for lowland areas in Central Kalimantan and East Sumatra (Indonesia), for which no accurate DTM currently exists. The study areas are covered with forest, plantations and agricultural land, on mineral soils and peatlands. The method is shown to yield DTM differences within 0.5 m, relative to full coverage LiDAR data, for 87.7–96.4% of the land surface in a range of conditions in 15 validation areas, and within 1.0 m for 99.3% of the area overall. After testing, the method was then applied to the entire eastern coastal zone of Sumatra, yielding a DTM at 100 m spatial resolution covering 7.1 Mha of lowland area from 1.45 Mha of effective LiDAR coverage. The DTM shows that 36.3%, or 2.6 Mha, of this area is below 2 m +MSL and, therefore, at risk of flooding in the near future as sea level rise continues. This DTM product is available for use in flood risk mapping, peatland mapping and other applications.

1. Introduction

Coastal lowland areas including river deltas host much of the world’s population and economic activity on only a small proportion of its terrestrial area [1]. Yet they face rapidly increasing risks of flooding, as well as crop failure due to high water levels and saltwater intrusion in the channels, made worse by land surface subsidence and sea level rise [2,3,4,5,6].

Accurate and up to date digital terrain models (DTMs) are required to predict and manage such water level-related risks, but are absent in most of the areas affected. Instead, elevation models derived from Shuttle Radar Topography Mission (SRTM) data are still often used [1,7,8,9,10], but these can have a vertical error of many meters, especially in vegetated areas. While the bias correction method applied by [11] on the SRTM data increased the fraction of land areas having a vertical accuracy with ± 2 m or better from 39–58% of the world, it remains unsuitable for most applications in lowlands.

Airborne light detection and ranging (LiDAR) is a fast and accurate method for establishing land surface elevation models, especially in vegetated and built-up areas where other methods, such as satellite radar, are not suitable [11]. However, LiDAR is a costly technique, limiting its economical use to large landscapes, e.g., the hundreds of millions of hectares of lowland, globally, that urgently require such data for accurate modelling.

To overcome this financial obstacle and enable the coverage of large areas economically, we have developed an innovative approach that does not require ‘full coverage’ LiDAR data acquisition to generate a reliable DTM. Our approach is to cover approximately 10–35% of the area of interest, depending on scale, thus reducing the time for data acquisition and its cost by 3–10 times. Reducing the data acquisition time is beneficial for urgent applications or in regions where conditions suitable for airborne LiDAR data acquisition occur only during a limited period of the year.

The aim of this study is to test and validate the method in Indonesia, which has over 30 million hectares of coastal lowland [12] for which no accurate elevation models exist at present. Indonesian lowlands may be amongst the worst affected as sea level variability is higher than the global average [13], land surface subsidence is common in many rural [5,14] and urban [15,16,17] areas and more than 60% of the Indonesian population lives in coastal zones [18].

2. Materials and Methods

2.1. LiDAR Data Acquisition

Discrete return small-footprint airborne LiDAR data was acquired in several lowland areas in Indonesia over the period 2011–2017 and was referenced to the national benchmarks installed by the Indonesian Geospatial Information Agency (BIG). In the Province of Central Kalimantan, full coverage data was acquired over 744,000 ha, some 75% of the ‘Ex-Mega Rice Project’ lowland area (Figure 1), between 15 August and 15 October 2011. In Sumatra, LiDAR data and orthophotos were acquired in several different projects from 2014–2017 over the Provinces of Riau, Jambi and South Sumatra (Figure 1), yielding an effective LiDAR coverage area of 1.45 Mha. Flight lines were designed perpendicular to rivers and coastlines to maximize information content and facilitate interpolation. Data was acquired at four different coverage levels, with variable intervals between flight lines depending on land type and accuracy requirements. In tree plantations on peatland that require highly detailed DTMs (both in vertical accuracy as well as higher spatial resolution) for precise water management, flights were designed at 2.5 km intervals plus boundary canals. Over other peatlands LiDAR data were flown mostly at 5 km intervals which suffices for landscape scale DTMs that support land use zoning and general water management design. In mineral soil lowlands, which tend to be flatter than peatlands with less complex morphology, flight lines at 5–15 km intervals were applied with an average of around 10 km.

The total number of actual flight days over East Sumatra was 105, yielding a total LiDAR coverage strip length of 30,138 km (including overlaps and re-flights). Average flight length per day accounting for downtime due to bad weather, mandatory pilot days off, and aircraft maintenance was 189 km. Total effective LiDAR data coverage in East Sumatra was 1.45 Mha, accounting for overlaps and re-flights. The total cost of data acquisition in East Sumatra (including orthophoto processing, mobilization and ground referencing surveys) was 60 USD per flight line km, which is equivalent to approximately 1.5 USD/ha of actual coverage with a swath width of 687 m, is achieved by flying at 850 m elevation with a scan angle of 44 degrees. The accuracy report that accompanied the East Sumatra LiDAR data estimated the total vertical accuracy to be 0.050 m, consisting of a vertical MSL referencing accuracy of 0.009 m RMSE and an average check point survey RMSE of 0.041 m. Mean first return point density of the East Sumatra LiDAR data acquisition was around 7 points m⁻².

2.2. LiDAR Point Cloud Filtering

The progressive morphological filter algorithm [19] was used to separate ground returns (including water) from overlying vegetation returns (Figure 2). Earlier studies have found that this algorithm performs well in lowland areas and performs similar or better compared to other filtering algorithms [20,21]. The filter creates a maximum elevation grid, derived from progressively increasing the allowed elevation per radius from a minimum elevation point in each cell. A comparison of each individual data point with maximum elevation grid determines whether it is classified as ‘terrain’ or ‘above-terrain’. While the ground classification excluded large areas of open water it cannot be excluded that small inundated areas were classified as ground.

After the point cloud classification, a DTM at 1 m resolution was produced by determining the minimum elevation of all ground returns within the 1 m grid. Subsequently, a 100 m DTM was produced by determining the median of the 1 m DTM, to remove site microtopography, with elevation differences exceeding 0.5 m within a few meters being commonly observed in the field to be common in all types of peatland, as has been reported for peat swamp forest [22]. In mineral soil lowlands, which we find to occur below ~3 m +MSL in the East Sumatra study area, microtopography is usually limited to less than 0.25 m.

The steps described above have been coded in the Julia programming language [23] using several open source libraries [24]. The full code is available [25].

2.3. Interpolation Between LiDAR Data Strips

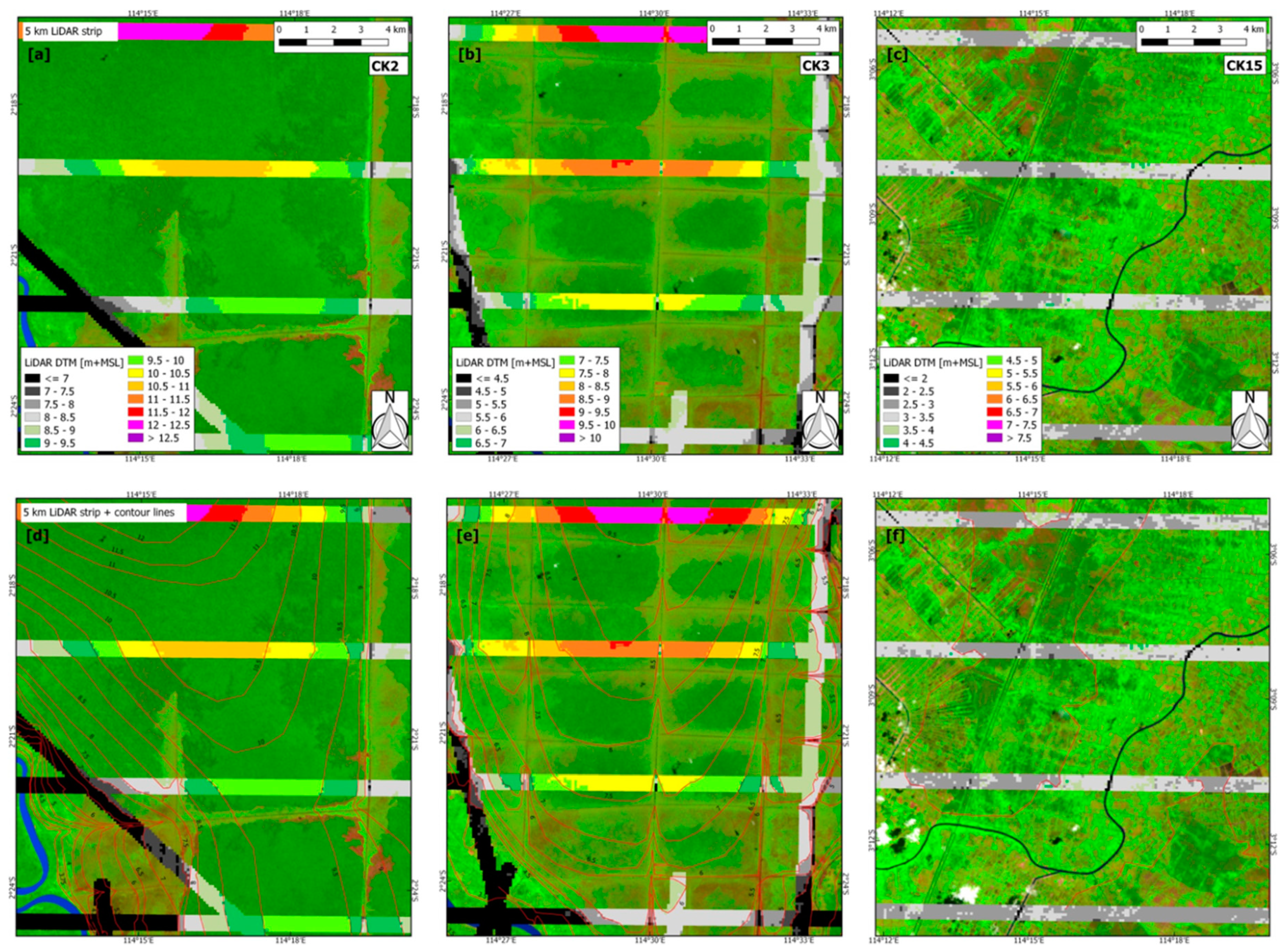

Contour lines were drawn manually between the individual LiDAR strip DTMs, following an agreed protocol, by trained geographers who understood the genesis and morphology of lowland landscapes including such features as peat domes, river levees, backswamps, and also subsidence ridges where part of a peatland had recently dropped due to peat oxidation and compaction after drainage, relative to its surroundings (Figure 3). Recent cloud-free optical satellite imagery (Landsat-8 and Sentinel-2) was used in the background during contour line drawing, to help identify such features. In the most complex areas, especially where drainage induced peatland subsidence was a factor, two geographers drafted contour lines and differences were identified and corrected.

Contours in most landscapes were drawn at 0.5 m intervals, except in some areas of specific interest such as tree plantations and river levees where 0.25 m intervals were applied. The total length of contour lines drawn over East Sumatra for this study was 61,300 km, over 5.7 Mha of land between strips, which took one person year of work at a cost of approximately 50 kUSD (excluding training, trials and supervision) which is a minor fraction of LiDAR data acquisition costs.

A full coverage DTM was then created by Inverse Distance Weighting (IDW) Interpolation between the LiDAR strip DTMs and contour lines. The GDAL rasterize (https://www.gdal.org/gdal_rasterize.html) algorithm was used for rasterizing contour lines at 100 m spatial resolution, after which they were merged with the strip DTM where the latter takes prevalence. The implemented IDW method only takes into account the nearest raster cells that have a value, or contour lines, in all directions. This interpolation method is applicable in areas where landscape features are large-scale and gradual, as is usually the case in lowlands. Local small-scale features with higher slopes will not be represented in the interpolated DTM, for instance along drainage canals where extreme subsidence has occurred over narrow zones, and where no contour lines could be drawn due to lack of geographical information.

2.4. Validation of Interpolated DTM

The accuracy of the DTM created by interpolation between partial LiDAR coverage and contour lines was tested for the full coverage lowland area in Central Kalimantan at 100 m spatial resolution. The 500 m wide ‘LiDAR data strips’ were simulated that would have resulted from partial coverage LiDAR data acquisition along East-West flight lines at intervals of 2.5, 5, or 10 km spacing plus additional flight lines along main rivers (Figure 4). Contour lines were drawn separately for each of these simulated flight intervals.

The full coverage area was divided into 15 smaller areas (17,000–62,000 ha) to represent a variety of different land cover and drainage conditions ranging from relatively undrained peat swamp forest, mixed areas of largely deforested and burnt peatland, and agriculture on mineral lowland soil (Figure 4;

Table 1. LiDAR interpolated DTM at 100 m spatial resolution validation results for the individual 15 test areas in Central Kalimantan (Figure 4) with flight line spacing at 2.5, 5, and 10 km, respectively. Presented are average elevation differences between full coverage and interpolated DTM per test area as well as RMSE and the area percentage differences within ranges 0–0.25 m, 0–0.50 m, and 0–1.0 m. Average accuracy is also presented for 500 m spatial resolution interpolated DTMs, and separately for the result without using manual contour lines in the interpolation at 100 m spatial resolution. General characteristics for each of the 15 areas are provided, where dominant land cover is based on 2011 land cover map [26], peat occurrence is based on [27], simplified as deep (>3 m), and shallow (<3 m) peat, and drainage density is based on visual interpretation of Landsat composite imagery acquired at the time of LiDAR data acquisition.

					2.5 km					5 km					10 km
AreaId	Area [ha]	Dominant Land Cover	Peat	Drainage Density	Avg. Difference [m]	RMSE [m]	0–0.25 m [%]	0–0.50 m [%]	0–1.0 m [%]	Avg. Difference [m]	RMSE [m]	0–0.25 m [%]	0–0.50 m [%]	0–1.0 m [%]	Avg. Difference [m]	RMSE [m]	0–0.25 m [%]	0–0.50 m [%]	0–1.0 m [%]
CK1	45626	peat swamp forest	deep	low	−0.04	0.36	94.7	97.6	98.6	-0.04	0.39	87.7	95.5	98.3	0.00	0.43	69.5	88.3	97.5
CK2	62097	peat swamp forest	deep	moderate	−0.01	0.17	91.6	97.5	99.6	0.00	0.22	86.0	95.8	99.3	0.00	0.33	70.0	88.3	98.3
CK3	36670	swamp shrubland	deep	high	0.02	0.24	87.5	95.6	98.7	0.01	0.27	82.1	94.4	98.5	0.01	0.30	77.2	93.4	98.2
CK4	37239	swamp shrubland	deep	moderate	−0.02	0.15	92.8	98.3	99.9	−0.04	0.22	84.0	96.3	99.3	−0.18	0.45	49.1	74.4	97.1
CK5	19254	swamp shrubland	deep	low	−0.02	0.21	85.6	95.7	99.5	−0.01	0.24	80.3	93.2	99.6	0.01	0.39	64.5	84.1	97.6
CK6	16937	shrubland	shallow pockets	high	0.01	0.19	87.4	96.7	99.7	0.00	0.23	79.1	95.6	99.6	−0.02	0.30	63.0	91.8	99.2
CK7	55205	swamp shrubland	deep	high	0.00	0.18	89.9	97.1	99.5	0.00	0.23	84.7	96.3	99.3	−0.12	0.49	66.5	84.6	93.2
CK8	57697	swamp shrubland	deep	high	0.00	0.22	84.3	95.5	99.4	−0.01	0.29	74.1	91.2	98.9	0.02	0.41	56.5	79.5	97.0
CK9	29455	rice land	shallow pockets	high	−0.02	0.14	93.2	98.5	100.0	0.00	0.18	88.3	97.5	99.9	0.02	0.20	83.8	96.3	99.9
CK10	37751	swamp shrubland	deep+shallow pockets	high	−0.05	0.23	85.3	95.0	99.4	0.04	0.27	76.6	92.0	99.6	0.21	0.45	58.7	79.0	94.8
CK11	39050	rice land	shallow pockets	high	0.00	0.20	85.7	96.1	99.6	−0.05	0.24	77.4	93.9	99.7	−0.09	0.28	70.0	91.2	99.7
CK12	33751	rice land	shallow pockets	high	0.00	0.16	93.3	97.4	99.9	0.00	0.17	91.5	97.1	99.9	0.05	0.19	90.3	96.5	99.8
CK13	61033	rice land	shallow pockets	high	−0.03	0.23	79.8	94.7	99.6	−0.03	0.27	73.1	92.3	99.6	−0.07	0.31	67.1	89.0	99.1
CK14	39294	rice land	no	high	−0.03	0.16	90.3	98.1	99.9	−0.02	0.17	89.1	97.9	99.8	0.03	0.20	83.0	96.7	99.8
CK15	44892	rice land	shallow pockets	high	−0.02	0.25	81.7	93.9	99.1	−0.01	0.30	73.8	91.3	98.6	−0.09	0.32	71.1	89.3	98.1
Avg. (mostly peat, CK1-5, CK7; 100 m)					−0.01	0.23	90.9	97.1	99.3	−0.01	0.27	84.7	95.5	99.0	−0.05	0.41	66.7	85.9	96.8
Avg. (mostly mineral soil, CK6, CK8-15; 100 m)					−0.02	0.21	85.8	95.9	99.6	−0.01	0.25	79.2	93.8	99.4	0.00	0.32	70.4	89.0	98.5
Avg. (all; 100 m)					−0.01	0.22	88.0	96.4	99.5	−0.01	0.26	81.5	94.5	99.3	−0.02	0.36	68.9	87.7	97.8
Avg. (all; 500 m)					−0.02	0.29	79.4	93.5	98.9	−0.01	0.31	74.1	92.0	98.8	−0.02	0.40	63.9	85.7	97.2
Avg. (all; 100 m; automatic interpolation with only LiDAR strip data)					−0.01	0.22	86.6	95.9	99.4	−0.05	0.33	68.7	88.9	98.8	−0.14	0.56	56.2	74.3	90.4

).

The interpolated DTMs at 2.5, 5, and 10 km intervals were then compared with the full coverage DTM, and differences were determined. To evaluate the effect of the contour lines we also compared an interpolated DTM using only the LiDAR data.

3. Results

3.1. Validation of Interpolated DTM Accuracy for Central Kalimantan

Differences between the 100 m Central Kalimantan EMRP full coverage LiDAR DTM (Figure 4), and the interpolated DTMs from simulated flight line ‘data strips’ at 2.5, 5, and 10 km intervals and associated contour lines are, averaged over the 15 test areas, within 0.5 m for 96.4%, 94.5%, and 87.7% of the total area, respectively (Table 1). The differences were slightly smaller for the peat-dominated areas compared to the mineral soil areas, except for the 10 km flight line intervals (Table 1).

DTM differences are shown in Figure 5. Positive differences (interpolated DTM higher than full coverage DTM) are most common and occur mostly along drainage canals where subsidence rates are highest and least predictable.

As shown in Figure 6, differences are slightly skewed towards the negative (i.e., interpolated DTM are lower than full coverage DTM), resulting in an average underestimation error of −0.01, −0.01, and −0.02 m in the validation area and RMSE of 0.22, 0.26, and 0.36 m, for flight line spacing at 2.5, 5, and 10 km intervals, respectively (Table 1). A lower resolution DTM of 500 m increases the RMSE by 0.04 to 0.07 m while the area where elevation differences are within 0.5 m is reduced by 2.0–3.0% compared to the 100 m resolution DTM (Table 1).

The evaluation of the effect of the interpolated DTM with or without the use of contour lines shows that the RMSE is the same at a 2.5 km LiDAR flight line spacing but is 0.07–0.20 m lower in case LiDAR flight line spacing is 5 and 10 km, respectively. At the 2.5, 5, and 10 km flight line spacing, respectively, 96.4%, 94.5%, and 87.7% of the interpolated DTM is within 0.5 m from the full coverage 100 m DTM when manual contour lines are applied, whereas this is 95.9%, 88.9%, and 52.6% without applying contour lines. This result confirms that in case LiDAR is acquired at 5 or 10 km flight line intervals, adding contour lines greatly improves overall DTM accuracy, but the effect is less substantial where 2.5 km intervals are applied.

3.2. Extent of the East Sumatra Lowland DTM

The DTM coverage of 7.1 Mha in the East Sumatra provinces of Riau, Jambi, and South Sumatra (Figure 7) constitutes 80.4% of the lowland area in these provinces, and 63.6% of the lowland area in Sumatra as a whole (11.2 Mha), as determined from the lowland boundary determined by [28]. The DTM covers 4.5 Mha of peatland according to the peat map published by the Indonesian Ministry of Agriculture in 2011 [27], which is 62.7% of the total Sumatra peatland coverage of 6.6 Mha according to the same source.

3.3. Referencing to Mean Sea Level

Benchmark elevations relative to mean sea level (MSL) in SE Asia are known to be sometimes inaccurate, because referencing was done mostly in the 1980s when differential GPS (DGPS) was not yet common and tidal records were mostly short and inaccurate. Moreover, some benchmarks on soft soils are known to have subsided, and recent sea level rise and land surface subsidence has not yet been corrected for. Therefore, referencing of the East Sumatra DTM presented here was validated by determining actual sea water levels measured by LiDAR where flight lines crossed the sea, totaling 197 locations along the coastlines of Riau, Jambi, and South Sumatra (Figure 1). While each individual sea water surface level measurement represents an instantaneous and local tidal level, not MSL, the full dataset represents conditions over a long time period and a large area and may be assumed to represent a measure of the full tidal range. This is also evident from the range of values, roughly between 1.0 and 1.5 m +MSL and 1.0 and 1.5 m –MSL, which corresponds with the known tidal range of around 3.0 to 4.0 m along most of the Sumatra coastline. Therefore, the average over all sea water level measurements by LiDAR would be expected to be close to actual MSL, providing an alternative reference level to benchmarks.

The average sea water surface level as assessed from the LiDAR measurements crossing the coast was –0.08 m (± 0.72 m std) (Figure 8). This difference is considered well within the margin of error of both LiDAR measurements and benchmark referencing to MSL. We, therefore, conclude that the DTM is accurately referenced to MSL.

4. Discussion

4.1. Accuracy of the Interpolated Lowland DTM

We have demonstrated the interpolated DTM for Central Kalimantan at 100 m spatial resolution to be accurate within 0.5 m for 96.5%, 94.7%, and 88.2% of the area for flight lines at 2.5, 5, and 10 km intervals, i.e., for land that is within 0.0–1.0 km, 1.0–2.5 km, and 2.5–5.0 km from LiDAR data strips 500 m wide. In areas where flight lines are more than 10 km apart, accuracy is lower but not quantified. The overall accuracy of the DTM is the sum of the interpolation error (ranging between 0.22 and 0.36 m RMSE; Table 1), the vertical referencing error (0.05 m RMSE; Section 2.1) and the (vegetation) filtering error. The latter was not assessed in this study but is estimated from the literature to be within 0.20 m [29], whereby the error is expected to be highest in peatland areas cleared of forest and covered with dense ferns, followed by peat swamp forest with intact microtopography. Therefore, the overall vertical accuracy of the DTM is estimated to be between 0.25 and 0.61 m.

When interpreting the level of accuracy, it must be noted that in peatlands, the land surface is not flat but very rough and hummocky, with elevation differences over 0.5 m being common within a few meters [22]. Moreover, in managed peatland landscapes this microtopography will continuously change with crop harvesting and growing cycles. The question, therefore, is not only whether accuracy well within 0.5 m is feasible technically, for the full area, but also whether it is necessary for management.

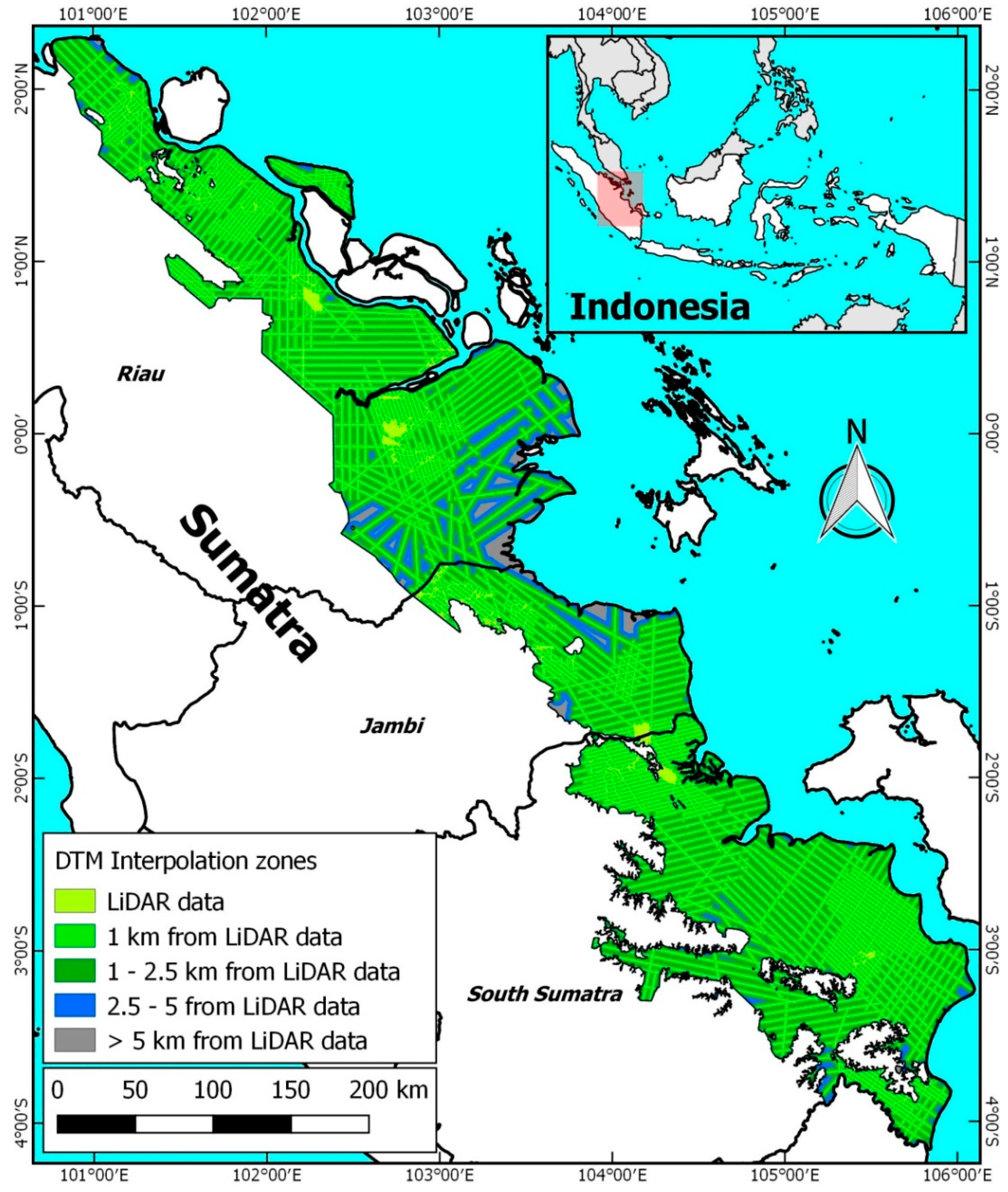

In Figure 9 we show the interpolation distance classes for the East Sumatra DTM with the associated areas within each class presented in

Table 2. Areas of the East Sumatra lowland DTM associated with different interpolation distance classes and their estimated vertical accuracy levels.

	Area		Estimated RMSE
Interpolation Distance Class	[Mha]	[%]	[m]
LiDAR data	1.45	20.4	0.25
1 km from LiDAR data	3.31	46.4	<0.47
1–2.5 km from LiDAR data	1.87	26.2	<0.51
2.5–5 km from LiDAR data	0.37	5.2	<0.61
>5 km from LiDAR data	0.13	1.8	>0.61
Total	7.13	100.0	0.25–0.61

. When applying the DTM in further analyses, the corresponding accuracy levels should be kept in mind. We tested the effect of different geographers drawing manual contour lines in the same area which resulted in a maximum RMSE difference of 0.02 m for individual areas. We recommend that such accuracy tests are applied as part of the training of the geographers new to the method.

The high accuracy of DTM interpolation results (Table 1) is explained by the low surface slopes in these flat lowland areas. Surface slopes in both peatlands and mineral soil areas in the Central Kalimantan lowland test area are generally less than 2 m km⁻¹, or less than 20 cm on average within a 100 m × 100 m grid cell over which DTM elevation is calculated (

Table 3. Relative area distribution of surface slopes (m km⁻¹) in mineral soils and drained and undrained peatlands in Central Kalimantan as determined from the 100 m LiDAR full coverage DTM (Figure 4). For test area codes CK1 to CK15 locations, refer to Figure 4.

	Slope [m km−1]
	0–0.5	0–1	0–2
Lowland Landscape Type	[%]	[%]	[%]
Undrained peatland (CK1-CK2, CK4-CK5)	34.7	72.2	89.4
Drained peatland (CK3, CK6-CK8, CK10)	36.2	65.3	86.4
Mineral soils (CK9, CK11-CK15)	31.1	61.2	85.7

), and below 1.0 m km⁻¹ or 10 cm within a 100 m × 100 m cell over two-thirds of the area. The steeper slopes in peatlands occur almost exclusively in relatively small areas near canals where land surface subsidence due to drainage has been greatest (Figure 10).

4.2. Characteristics of the East Sumatra Lowland DTM

A three-dimensional model of the East Sumatra coastal lowland DTM (Figure 7) is presented here to demonstrate landscape characteristics (Figure 11). The model shows 2.6 Mha of this DTM, or 36.3% of the total area, to be below 2 m, i.e., below the approximate highest high tide level. This suggests that large lowland areas are likely to be increasingly flood-prone in the near future as sea level rises, especially where the land surface subsides; this DTM is now applied in flood risk investigations following the approach demonstrated in [4,5].

The DTM also reveals smooth ‘pillow’ shaped domes in most peatland areas in East Sumatra, a landscape pattern that is very typical for peatlands anywhere in the world and that can be used in visually recognizing and mapping peat domes. The Kampar Peninsula for instance, which is known to consist entirely of very deep peat [5,31], can be seen to consist of one contiguous ridge on the north side with connecting ridges extending to the south (Figure 12) making it probably the largest single dome in SE Asia at ~700,000 ha.

It is evident from the DTM that land surface subsidence has substantially affected surface elevation in many areas of deep peat. Abrupt elevation changes of over 1 m occur over a few hundred metres across plantation boundary canals where one side is deforested and intensely drained and the other is still forested and less drained (Figure 12). Such local anthropogenic land surface subsidence features are the main cause of inaccuracy in the interpolated DTM, with the greatest differences between full coverage and interpolated DTMs occurring up to a few hundred meters away from canals as shown in Figure 5.

5. Conclusions

We have demonstrated that DTMs based on LiDAR data collected along parallel strips at 5 km intervals are accurate within 0.5 m and 1 m over 94.7% and 99.3%, respectively, of the validation area of 616,000 ha (Table 1). This is sufficient for most purposes including flood risk assessments, water management design, land zoning and peat thickness mapping. We, therefore, recommend applying DTMs based on interpolation between partial coverage LiDAR in situations where accuracy requirements exceed the specifications of non-LiDAR data sources, but financial and time resources are insufficient for acquisition of full coverage LiDAR.

The peatland subsidence features identified (Figure 12) confirm that peat is lost to mostly oxidation (over 75%; [14]) and some compaction after drainage, causing carbon emissions and increasing future flood risk. Accurate DTMs can help identify areas most affected by such impacts, and allow analyses of subsidence causes, rates, and mitigation options, especially if DTMs are updated in time as land surface subsidence progresses. In subsiding peatlands, any DTM can only be accurate for a limited amount of time, and it is better to think of DTM generation as monitoring rather than mapping.

As the East Sumatra DTM presented here covers most lowland (63.6%) and peatland (62.7%) in all of Sumatra, it provides a good basis for obtaining full lowland and peatland coverage for Sumatra with relatively limited effort.

The position of 36.3% (2.6 Mha) of the land surface in the East Sumatra DTM below 2.0 m +MSL, and the associated flood risk, are cause for concern, especially with rising sea levels. We recommend the use of accurate DTM data in assessments of current and future flood risk, and associated mitigation and adaptation options.

The DTMs for the coastal lowlands of Central Kalimantan and East Sumatra, at 500 m resolution, are available for download (https://doi.org/10.17632/72r3bvdd3r.1) to be used in further analyses by Indonesian government, the scientific community and other stakeholders.
