Absolute Calibration or Validation of the Altimeters on the Sentinel-3A and the Jason-3 over Lake Issykkul (Kyrgyzstan)
Abstract
:1. Introduction
- Interpretation of information from internal-calibration modes of the sensors;
- Selection of the best algorithm in picking up the range in the radar echoes in various contexts;
- Selection of the best measurement or model to account for the delay in travelling through the atmosphere;
- Validation of the fully corrected estimates of the heights, whether it is sea-level or inland water-level.
2. Methodology for C/V of Radar Altimeters
2.1. Lake Issykkul C/V Site Description
2.2. Instrumental Design of the Field Campaigns
- The weather conditions, including wind driven waves and Seiche effects.
- The computation of the height of the GPS antenna, embarked on the boat.
- The estimate of the distance between this antenna and the water surface during the cruise.
2.3. Ground Estimate of the Water Height
2.4. Satellite Estimate of the Water Height
2.5. Calculation of the Altimeter Bias
3. Results
3.1. Absolute Biases of Sentinel-3A
3.2. Absolute Biases of Jason-3

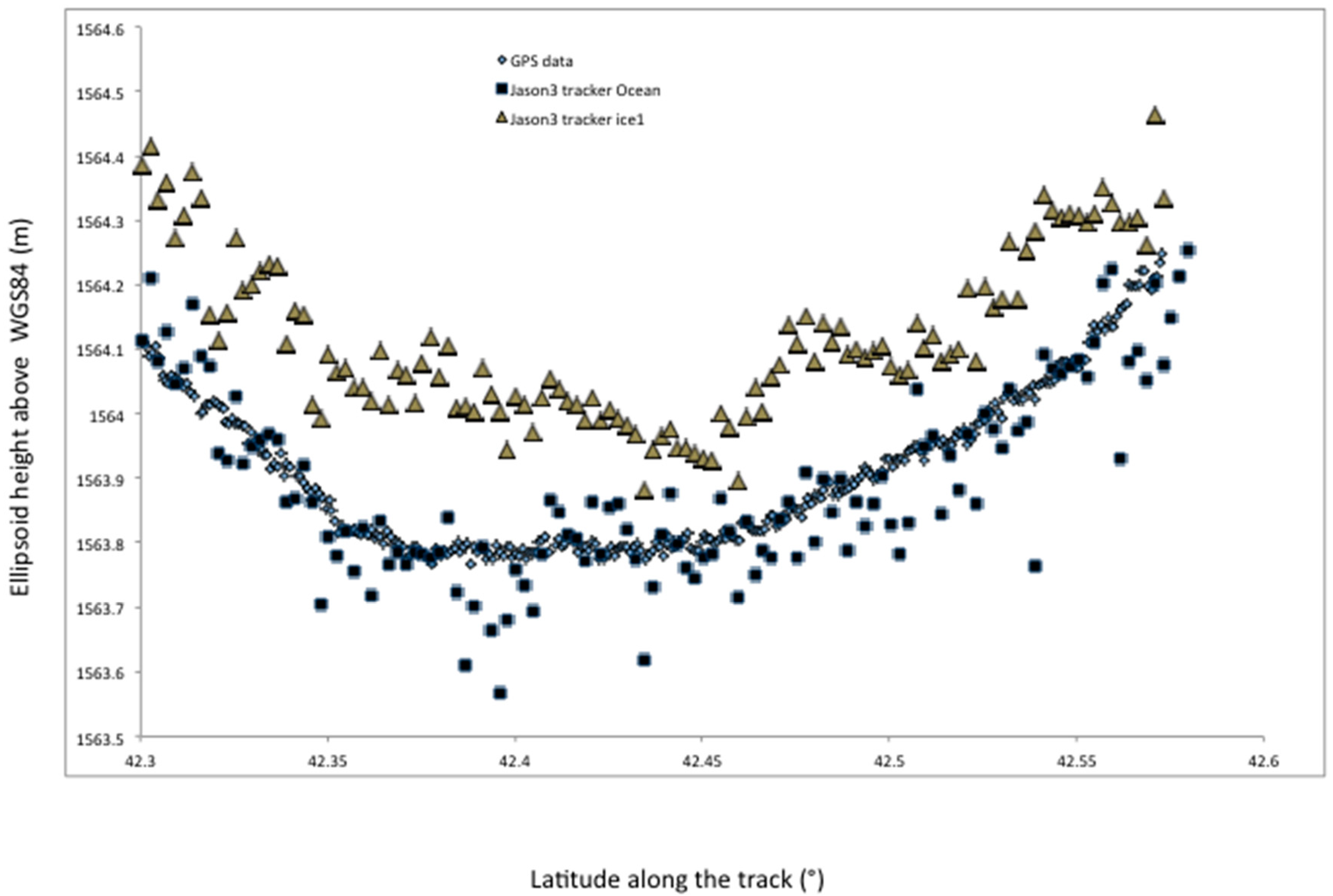

3.3. Relative Retracking Algorithms Offsets

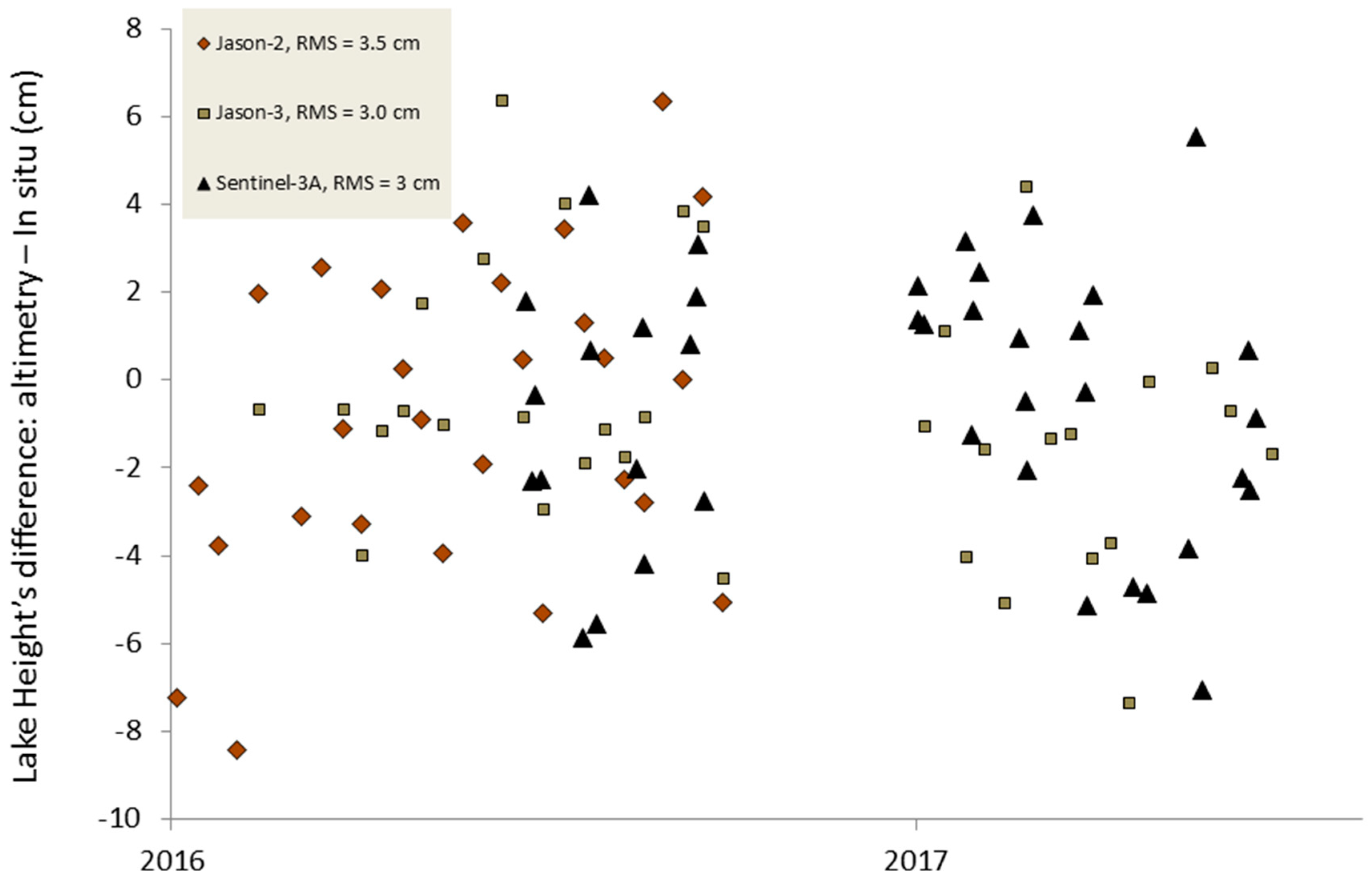

3.4. Quality Assessment: Long Term Comparison with In-Situ Measurements
4. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
