Contamination Analysis of an Old Croatian Industrial Site and Proposals for Its Planned Remediation and Repurposing

Abstract

The location of the decommissioned factory of plastics and chemical products Jugovinil, City of Kaštela, Croatia, has gained significant attention for urban development and the establishment of tourist facilities over the past three decades. Since the site is on the coast of the Adriatic Sea, on the shore of Kaštela Bay, where nautical tourism is already developed, plans for a five-star tourism complex were initiated. Given that the former industrial plant, its coal-powered power plant, and other later industrial activities (small shipyards) caused a certain degree of contamination with NORM (naturally occurring radioactive material) residues and heavy metals, an on-site detailed investigation was conducted into the spatial distribution and concentration evaluation of contaminants within dozens of soil samples, and the distributions of contaminants in the area of interest were shown in the form of maps. This study applies an integrated GIS and geostatistical framework to analyze the spatial distribution of multiple contaminants. Maps highlighting polluted zones are included, along with maps indicating areas with higher cumulative concentrations of contaminants. This paper provides an overview of potential issues related to the detected contaminants, as well as proposals for remediation methods before repurposing the site using retrospective data about sources of residues and contaminants.

1. Introduction

Ex-industrial and other brownfield sites are sometimes “lost forever” since anthropogenic activities occasionally cause irreparable effects or ones that are too costly to remediate. In cases of large amounts of waste mineral material deposited in certain locations, several issues can emerge:

• The quantities are too large to remove from the site;
• There are no potential secondary disposal locations at distances that would justify the costs of moving materials;
• The properties of materials do not allow removal from the site or simple and economically acceptable remediation in situ, such as applying greening, urbanization or other types of sustainable remediation.

Reversing the state of sites affected with legacy waste from old, unsustainable industries often means dealing with locations covered with overwhelming amounts of materials, sometimes containing heavy metals, NORM residues and other hazardous materials which are contaminating certain locations.

Losing space at brownfield sites means exhausting a resource, which has environmental, societal and economic consequences on resource needs that are “compromising the ability of future generations to meet theirs”. Hence, dealing with such old industrial sites with the purpose of remediation and reclamation of the location represents a sustainable practice in both environmental and economic terms. Remediation of brownfield sites containing mineral waste can reverse the state of ecosystems affected by deposited material and remove or mitigate risk to biota caused by contaminants. Such sites are an opportunity to apply sustainability initiatives, such as freeing up space for new industry, urbanization or even revegetation and other types of ecological enhancement. In an economic sense, “lost industrial sites”, such as the one in Kaštela Bay, Croatia, can provide space for responsible economic growth.

The aim of the research presented in this paper, similar to much other research of the same type [1,2,3,4,5,6,7,8,9], is the reclamation and repurposing of an ex-industrial site, that is, the former “factory of plastics and chemical products, Jugovinil”, City of Kaštela, Croatia, located on the coastline of the Croatian part of the Adriatic Sea on the shore of Kaštela Bay (Figure 1).

Tourism in Croatia contributes approximately 20% of its GDP [10], with a total of 21.8 million tourists visiting in 2025 [11], which clearly signifies that it is of national interest to remediate old, decommissioned industrial sites on the coast, as well as other brownfield sites, and convert them into tourist centers or some other economically useful site (e.g., small photovoltaic power stations—solar parks), or redevelop them in a way that they remain in harmony with the environment (greening projects supporting the current policies related to climate changes).

There is a noteworthy number of ex-industrial and other brownfield sites in Croatia that already have undergone or are planned to undergo remediation and repurposing, and some of them are significantly polluted with heavy metals or other contaminants [12]. While several of them have been remediated and repurposed, some are still waiting for on-site screening and research to determine the state of contamination, design remediation project documentation, licensing, or financial means for implementation. However, the case of the former Jugovinil factory is specific and interesting for several reasons:

• It is located on the very coast of the Adriatic Sea, on Kaštela Bay, within an important tourist center of the City of Kaštela (see Figure 1), and surrounded by other important tourist centers: Trogir, Solin (suburb of Split), the City of Split and Čiovo Island.
• On the site is a so-called “old repository of coal ash and slag from other coal-powered thermal power plants in the former Socialist Federative Republic of Yugoslavia (SFRY)”, a landfill of NORM residues built in 1973 and fully regulated.
• The site contains a coal ash and slag tailings repository from the power plant of the former Jugovinil factory, which are identified as NORM (naturally occurring radioactive material) residues.
• Jugovinil was split into two industrial entities, ADRIACHEM d.d. and ADRIAVINIL d.d. (both state-owned companies), during the 1990s after the Republic of Croatia became independent, and at the beginning of the 2000s, the companies were privatized. ADRIAVINIL d.d. has not functioned as a chemical factory since 2004, and the location has become a site with small shipyards and storage facilities. Over the next 15 years, most of the industrial objects were dismantled and the parcel containing coal ash and slag tailings was regulatorily declared as a future “maritime area” owned by the Republic of Croatia. This land parcel is regarded as the county’s “environmental black spot” and is to be remediated.

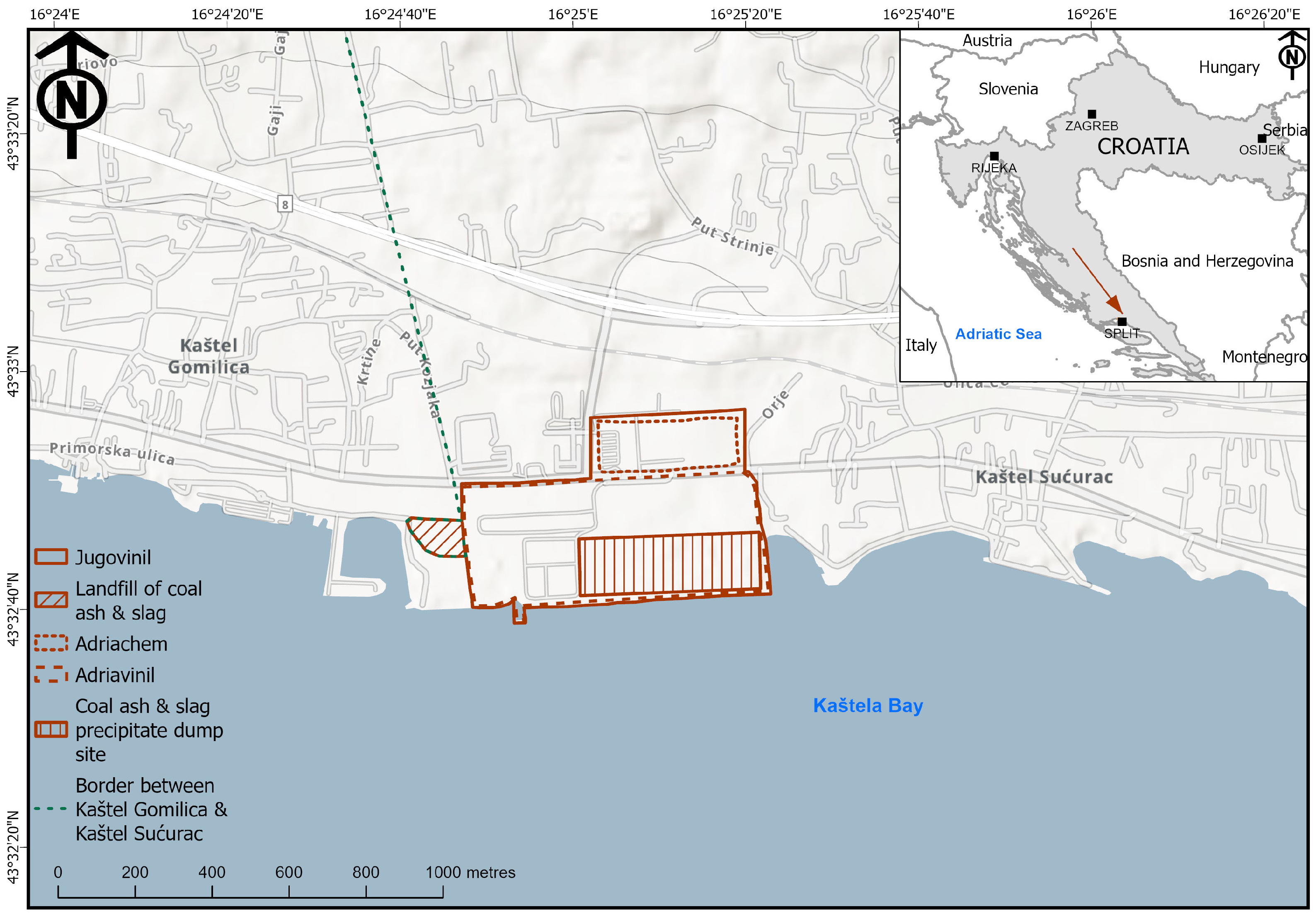

Figure 1 shows four significant zones: the old landfill (regulated disposal site) of coal ash and slag transferred from other coal power plants in the former SFRY, which is closed and under institutional control, the zone where ADRIACHEM d.d. was situated, and the zone where ADRIAVINIL d.d. was situated, which is the main area of interest for this paper because it contains the fourth zone—the coal and ash precipitate disposal site.

According to The Radioactive Waste, Disused Sources and Spent Nuclear Fuel Management Strategy [13] and Decision on National program for implementation of strategy of radioactive waste, disused sources and spent nuclear fuel management (Program till 2025 with glance till 2060) [14], Croatia has three officially recognized locations with NORM residues:

• Coal ash and slag disposal sites of the coal-fired power plants Plomin I and II (underwent reclamation and are under constant institutional control).
• Phosphogypsum disposal site of Petrokemija d. d., Fertilizer Factory, Kutina (soon to undergo a reclamation utilizing reuse technology in the construction industry: phosphogypsum is in the process of reevaluation as a by-product that may be used for construction and agriculture purposes [15,16,17,18,19] and not treated as a waste or NORM residue).
• Coal ash and slag solid precipitate dump site in Kaštela Bay from the power plant of the ex-Jugovinil factory in Kaštela Bay, which is still not fully regulated, remediated, or under proper regulatory oversight.

However, there are many smaller locations in Croatia that are not included in the previous list of officially recognized NORM residue sites and are also not properly regulated [20]:

• Temporary dumpsites for waste (mineral) materials (NORM residues) from oil and gas production;
• Dumpsites for slag and waste from primary iron production;
• Dumpsites for calcific scale and similar materials from underground water filtration plants;
• Other locations where natural radionuclides from various geological materials are industrially concentrated.

Considering the second list, the locations mentioned are not considered as a significant problem due to smaller amounts of contaminants and NORM residues with low activity, except maybe those related to oil and gas production. The official regulatory decision on whether those locations are to be researched in detail, which would help make an official decision on how to deal with those locations and the materials they contain, is still outstanding.

The ash and slag precipitate dump site of the decommissioned power plant in Kaštela Bay was taken into consideration because of the plan to reclaim this location to be urbanized and adjusted for tourist or small green production facility purposes. Detailed research was done on the whole area of the former Jugovinil industrial site [21,22,23,24] to assess the condition of the site, identify contaminants, determine its impact on the environment and potential impact on biota, perform risk assessment followed by remediation protocols and, in the case of repurposing the location, build up the regulatory matrix of construction activities.

The site of interest for this paper is situated partly in Kaštel Sućurac and partly in the neighboring Kaštel Gomilica (municipalities belonging to the City of Kaštela, Figure 1), and it can be divided into several areas of research interest (Figure 2).

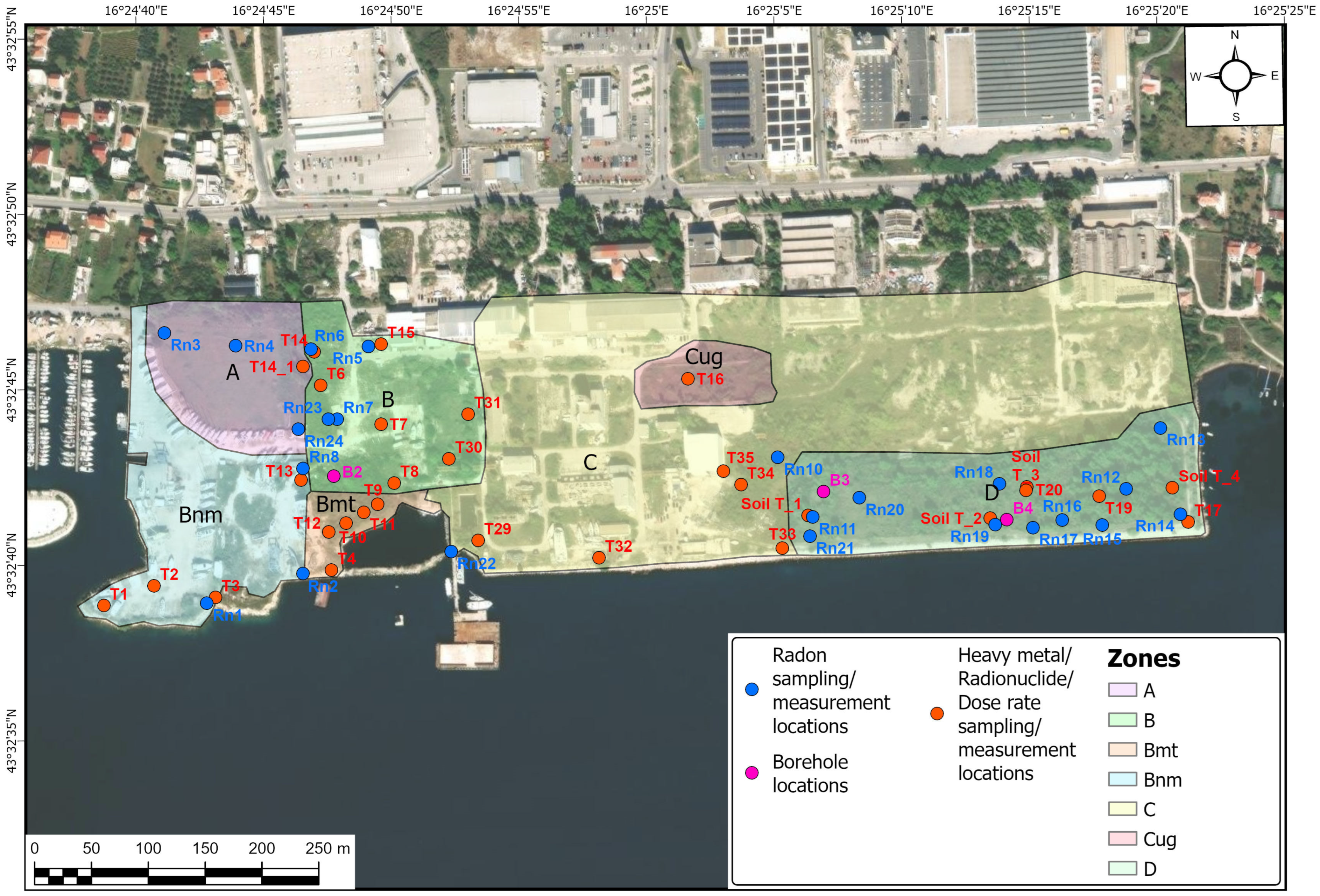

As shown in Figure 2, the site is divided according to type of contaminant and history of contamination as follows:

• Zone “A”—NORM residue disposal site in Kaštel Gomilica, under regulatory oversight, containing 38,000 m³ of coal combustion residuals transported from different coal-fired power plants in the former SFRY. Although the material is in fact NORM residue (coal ash and slug), according to the “Decision of the sanitary inspectorate” [25], it is defined as “uranium ore tailings from coal” due to the high percentage of uranium in certain coals extracted and utilized in the former SFRY. Materials disposed of at this regulated disposal site are “leftovers” from the SFRY’s program for the extraction of uranium from U-238/U-235-rich NORM residues and experimental processing to yellow cake, which ended in 1973 [26], and the disposal site was engineered to specifications and formally decommissioned, preventing further activity in the same year. Most of the area of this zone is under a concession contract entrusted for use to a private enterprise, Marina Kaštela d.o.o., in 2014 for the duration of 30 years, under the condition of being safeguarded and not disturbed in any way. Since the disposal site is closed and under regulatory oversight, this area is not of primary interest to this paper, although part of the carried-out research encompasses it.
• Zone “B”—Originally a natural depression backfilled twice: the first time during the 1970s and 1980s, with coal ash and slag from Jugovinil’s power plant and construction and demolition waste used to prepare the location for the construction of reservoirs for chemicals; the second time during the second half of 2015 to prepare the location for the operating area of the current marina.
• Zone “Bnm”—An area created during the last three decades (since the area was given into concession) by dumping waste rock and soil into the sea (excavated material from other locations: during the building of a commercial center in the city of Split, Croatia, construction of a highway nearby Split, etc.) in order to construct a marina, berth, mooring and dry dock with the supporting facilities.
• Zone “Bmt”—An area partially backfilled with coal combustion residuals mostly from Jugovinil’s power plant and some construction and demolition waste, to relieve space in the precipitate disposal area (Zone “D”).
• Zone “C”—A zone that originally contained coal combustion residuals but was remediated in 1971–1973, and the material was relocated to Zone “A”. Zone “C” was then covered with earthwork material and a certain amount of construction waste to prepare ground for the construction of a new factory installation in 1974.
• Zone “Cug”—An area used to store coal for Jugovinil’s power plant since the beginning of factory production (1947).
• Zone “D”—The coal combustion residual precipitate disposal site (in Kaštel Sućurac) composed of 180,000 m³ of combustion residuals deposited from the ex-Jugovinil factory’s local power plant, utilizing hydro-transport of the material, which precipitated in a specifically designed and protected zone created by the construction of the seawall and filling the consequently gained area with geological material. The outer wall of the disposal site (seawall) now forms the wave attenuator of Kaštela Bay. The disposal site was formed in the 1980s and utilized till the 2000s.
• Unmarked—Several smaller contaminated areas containing combustion residuals form the local power plant (100,000 m³ in total) along the abovementioned zones, created mostly while maintaining the factory in the operational and demolition period.

Most of the abovementioned areas are unused and not frequented by people (apart from the marina). Regarding the general biota in the wider area of this ex-industrial site, the entire precipitate dump site (Zone “D”) is covered with wild vegetation in an advanced stage of growth (Lugistrum vulgaris, Tamaricaceae gallica, Weissia dalmatica, Spartium junceum, Satureja subspicata, Myrto-Pistacietum lentisci, Vitici-Tamaricetum dalmaticae, etc.), and there are many examples of autochthonous fauna [21,22,23,24,27]. Detailed research on the marine biota in this area was done as well [22,24,27], but is not part of this paper.

2. Materials and Methods

Most of the research on the location was done during 2009–2011 [21,22,23,24], although some is more recent [27], and further research is planned for 2026. Earlier research was done thoroughly, and the most recent research is mostly intended to assess the impact of anthropogenic activities and meteorological events that occurred in the last 15 years. In addition, recent data is needed to meet regulatory requirements for the remediation of the area.

Original research included detailed mapping; determination of the basic geological, hydrogeological and seismic properties of the location; sampling of soil and rock material from the surface (composite samples from 1 m² surfaces and 15 cm in depth, which is a standard procedure used for environmental site assessment, as well as for agronomic soil testing—collecting samples from a defined surface area, “quadrat”, at a specific depth that represents the most active biological layer) and seabed along the coastline in the vicinity of the location; cores from exploratory boreholes; and sampling groundwater. Regarding biota, samples of surface organisms (plants) and the sea (benthic samples) were taken, and special research was done related to endemic species found at the precipitate dump site (Zone “D”) [27]. All aforementioned samples were analyzed by measuring heavy metal and radionuclide concentrations. Measurements of the ambient dose rate (H*(10)/t; trace method) were taken on the surface of the location (including local natural background activity) and on the surface of the seabed (special well drilling probe trace method), and VR gamma spectrometry was used to measure radon concentration from the soil. Similar research was done to “measure the levels of radionuclides, contributing to the sustainable management of campus environments” [28] and to establish baseline data on natural radioactivity in Mexican soils “to facilitate comparison with global reference values, and to design informed radiation protection strategies and environmental management decisions” [29].

The research presented in this paper is related to the distribution of heavy metals in soil, dose-rate measurements, activity concentrations of radionuclides measured in situ, laboratory-measured activity concentrations of radionuclides, and laboratory gamma spectrometry measurements of radon exhalation rates from samples. Other measurements and their results, such as forensic research on coals used during the period of power plant operation, determining the U238/U235 ratio, and recent in situ measurements of Rn-222 concentration in coal ash “soil gas”, are planned to be presented and discussed in future publications.

To carry out the research in a proper way, it was necessary to perform a complete geodetic survey of the location, among other things, to precisely determine the waterline and the line of the coast. The data were obtained by surveying the land and measuring the sea depth (determining the depth relief of Kaštela Bay) [23]. This situational plan is the cornerstone for cartographic representations in this study, and it is supported with digital orthophoto imagery.

The underlying purpose for studying the seafloor and marine life was the engineering of a precipitator/tailings pond, where coal combustion residuals were transported by means of hydro-transport from the power plant. Water overflowed into the sea, transporting certain amounts of combustion residuals with it. To adequately explore this location, it was important to determine the types and amounts of materials transported and sedimented in the sea. While correlations between the concentrations of different heavy metals are commonly observed [30,31,32,33,34,35], as well as their correlation with the physicochemical properties of different soils [36,37], it is essential to consider the specific properties of each metal, the complexity of environmental systems, and the context of the study area when interpreting these relationships. Additionally, statistical analyses such as correlation coefficients and multivariate techniques can help quantify and assess the strength and significance of correlations between heavy metal concentrations in environmental datasets [38,39,40,41].

The entire study area is characterized by a uniform geological setting consisting of Eocene flysch (alternating layers of sandstone and marl) deposits, with limestone as bedrock. The combination of Terra Rossa and weathered coal combustion residuals, as well as the chronosequence of humus formation, covers part of the area. Some locations are blanketed by construction/demolition waste and concrete dust due to the demolition of Jugovinil facilities. Samples were collected according to the IAEA sampling protocol [24,42], which considered locations (marked on Figure 2) demonstrating the key features of the location and its surroundings: dumpsites, shipyards, any other industrial activity, etc.

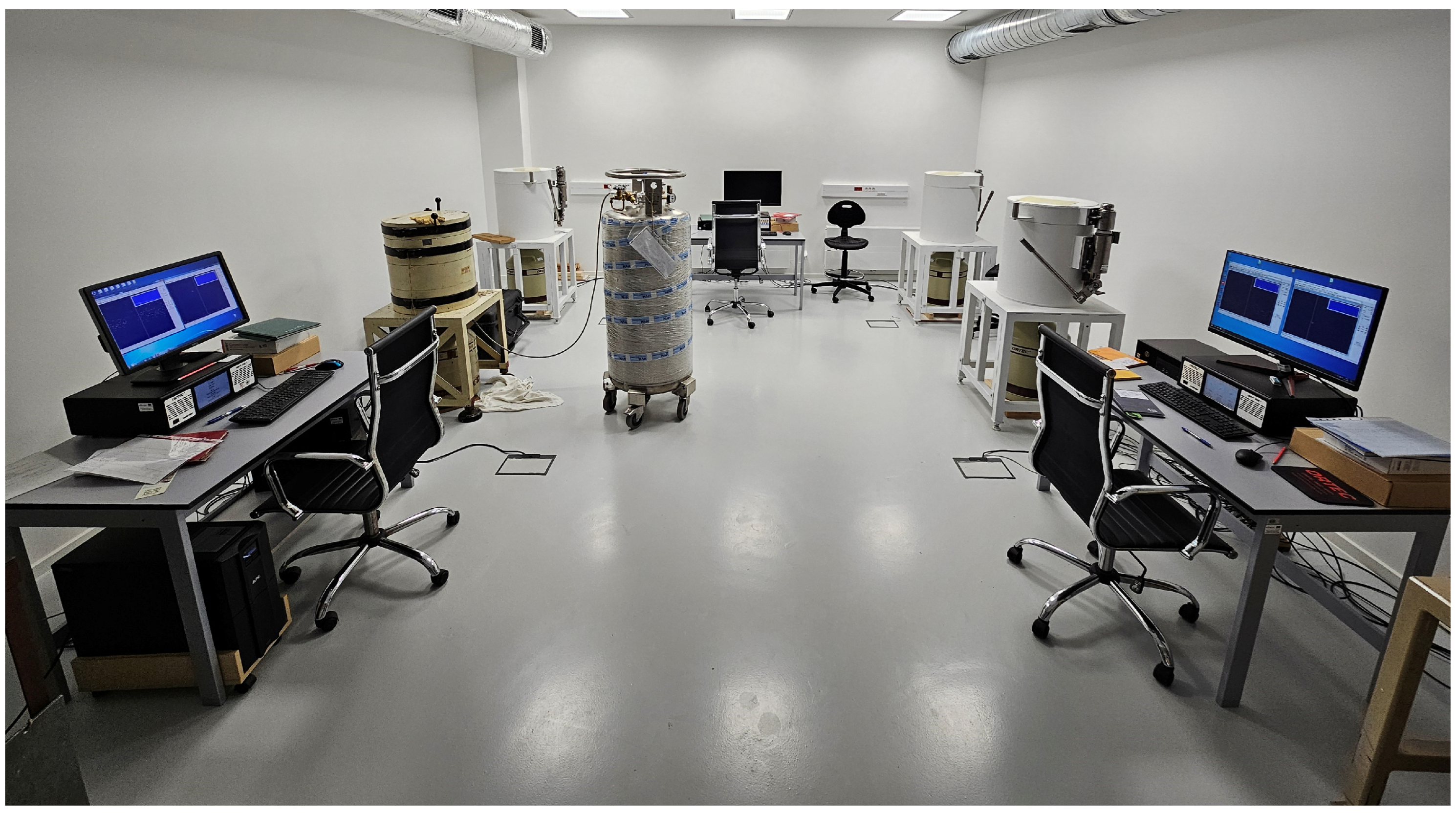

The Institute for Medical Research and Occupational Health (IMROH), Zagreb, Croatia, completed the following laboratory and field research: heavy metal concentrations, measurements of dose rates, in situ gamma spectrometry measurements of radionuclide activity concentrations, laboratory gamma spectrometry measurements of activity concentrations and laboratory gamma spectrometry measurements of radon exhalation rates.

3. Results

3.1. Heavy Metals

From a representative set of 30 samples of soil (defined by balancing known properties of location, desired statistical precision and logistical constraints, e.g., approachability, availability of materials, etc.) acquired on site (

Table 1. Heavy metal concentrations in 30 coal ash samples (μg/g).

Sample Label	Cd	Ni	Co	Cr	Tl	Pb	Mn	Cu	Zn	Fe
T1	3.63 1	30.02	14.86	19.95	30.32	24.10	279.43	14.38	20.64	4159.01
T2	4.00	124.09	23.13	73.68	26.54	307.38	634.53	1270.05	613.77	15,863.25
T3	3.75	71.85	21.31	64.45	24.59	33.87	700.27	35.52	63.57	19,121.83
T4	2.37	368.18	119.41	190.89	11.19	946.08	1899.59	2419.78	7394.02	30,096.27
T6	5.10	99.19	20.82	171.68	21.49	44.24	366.37	52.25	120.22	25,864.60
T7	4.29	46.02	14.52	69.17	20.84	295.20	285.02	29.89	701.83	15,847.46
T8	4.83	64.20	18.45	68.05	24.85	270.79	376.07	37.06	420.57	14,684.76
T9	5.21	111.29	20.30	96.10	22.26	49.79	291.54	69.52	190.62	28,649.34
T10	6.10	79.86	19.40	69.93	25.55	69.05	252.64	61.04	333.95	27,453.54
T11	5.29	103.29	21.51	95.31	22.44	56.85	343.09	72.92	196.94	30,473.50
T12	5.83	180.34	70.73	95.32	25.04	613.86	924.74	1766.61	4147.97	36,568.74
T13	3.76	37.05	9.19	49.72	13.57	26.96	142.38	43.67	135.65	8996.64
T14	6.30	100.63	20.60	156.31	24.18	41.55	361.54	67.54	110.68	27,158.04
T14_1	4.30	94.09	21.26	150.38	19.67	85.05	655.52	48.14	96.40	32,577.50
T15	7.36	67.50	24.28	64.35	21.85	50.49	914.81	39.68	134.70	22,313.01
T16	3.86	63.91	6.69	37.46	10.85	28.14	45.58	26.31	66.39	18,946.04
T17	6.65	52.70	15.43	56.41	23.71	56.05	441.71	24.57	101.03	18,455.18
T19	3.90	120.01	20.74	95.78	23.14	45.77	336.84	69.60	137.49	26,775.34
T20	2.97	113.44	22.67	62.27	19.27	31.66	390.24	61.21	89.91	31,802.97
T29	3.78	59.99	17.20	66.57	27.87	57.64	416.07	56.77	262.40	16,862.21
T30	3.09	71.33	19.67	67.11	24.82	37.80	676.20	48.20	108.15	18,071.54
T31	3.94	63.99	17.55	65.40	27.47	62.10	528.09	35.11	167.76	16,061.62
T32	1.43	395.11	116.48	193.62	9.48	2496.64	2246.98	2450.79	9268.15	65,676.97
T33	5.57	83.90	19.53	110.13	22.72	71.94	434.35	37.38	142.26	20,933.32
T34	4.23	73.09	18.69	72.19	25.46	55.34	479.30	45.29	102.42	17,635.60
T35	4.51	55.01	17.28	74.57	25.75	194.00	376.74	58.24	192.83	28,143.68
Soil T_1	5.16	87.21	17.80	61.88	21.12	31.96	227.25	41.00	76.70	32,217.87
Soil T_2	6.67	100.13	19.56	83.34	19.51	36.18	271.95	44.21	102.33	30,473.89
Soil T_3	5.89	57.78	16.88	54.78	21.84	37.90	350.59	23.70	71.25	22,527.69
Soil T_4	7.29	89.70	20.89	130.59	22.90	57.39	370.68	58.99	230.58	24,220.99

¹ All values are given in (μg/g).

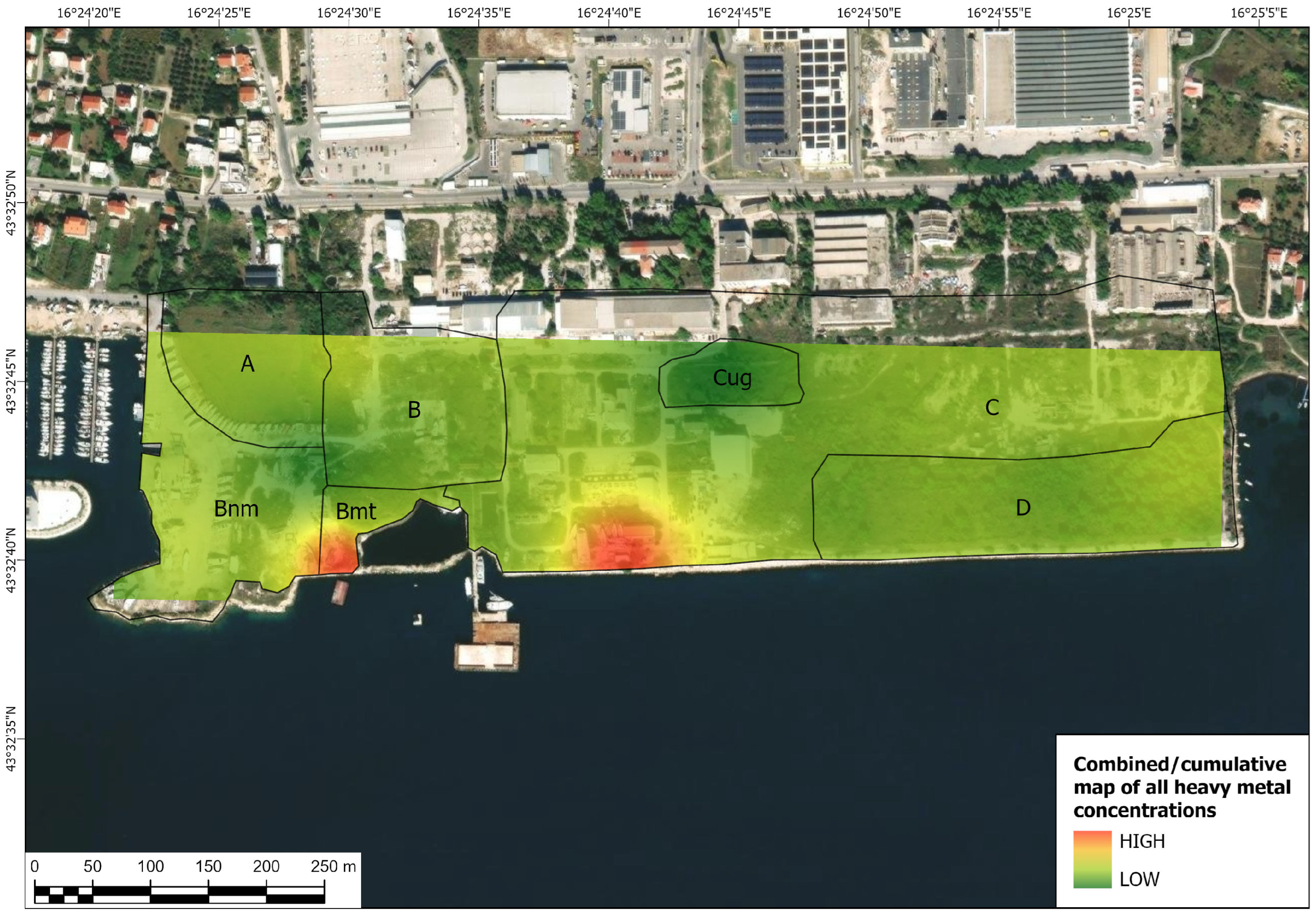

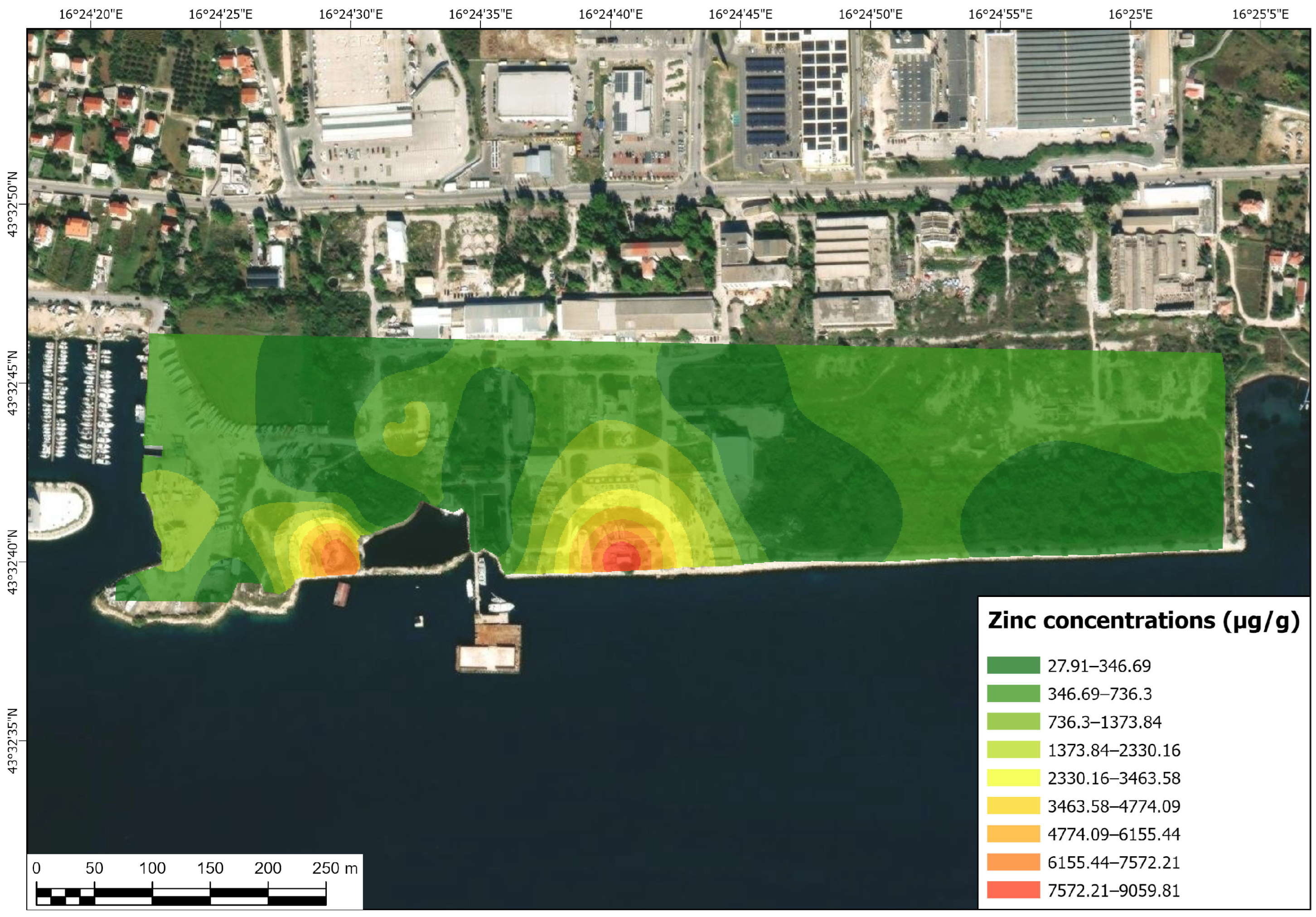

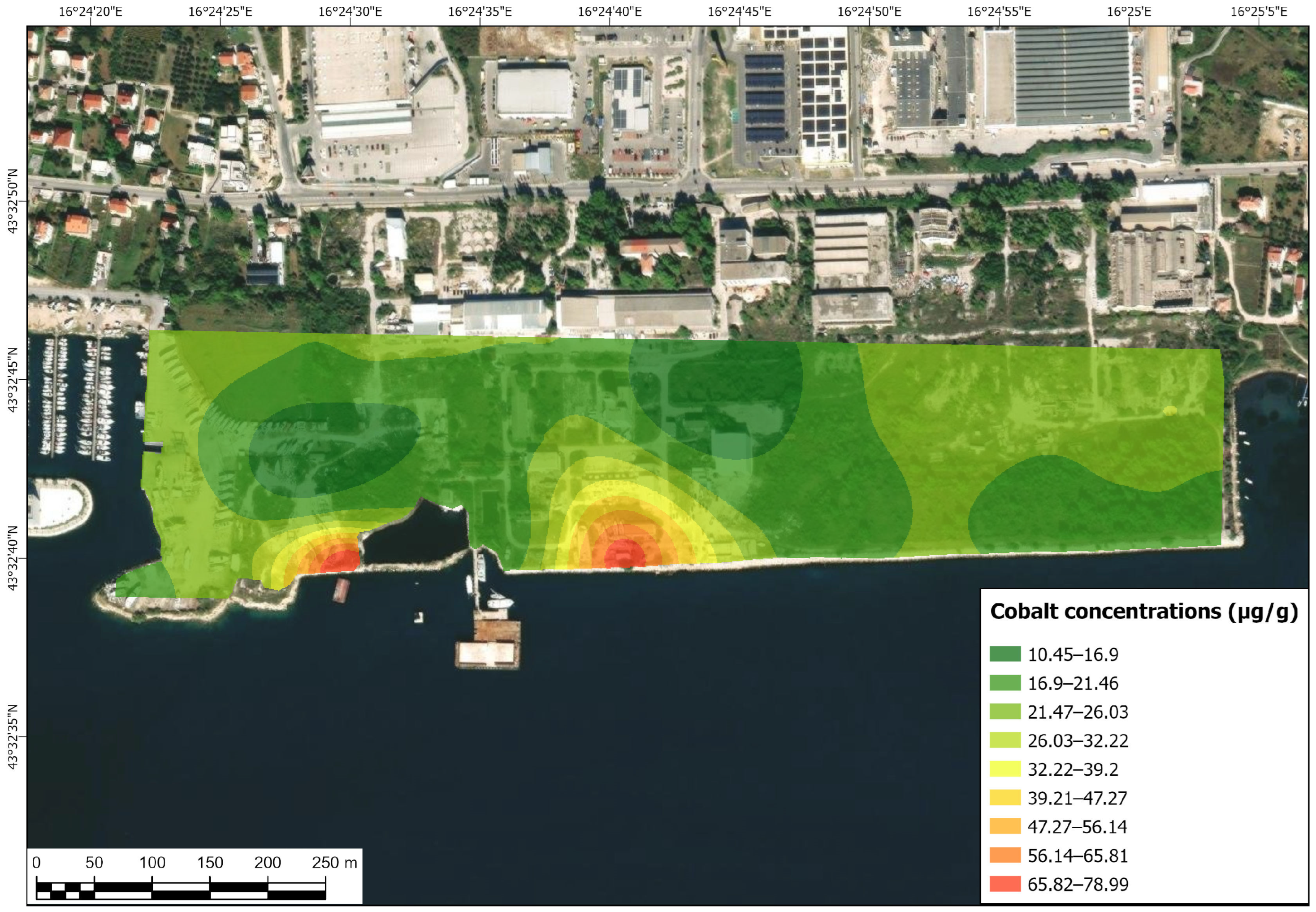

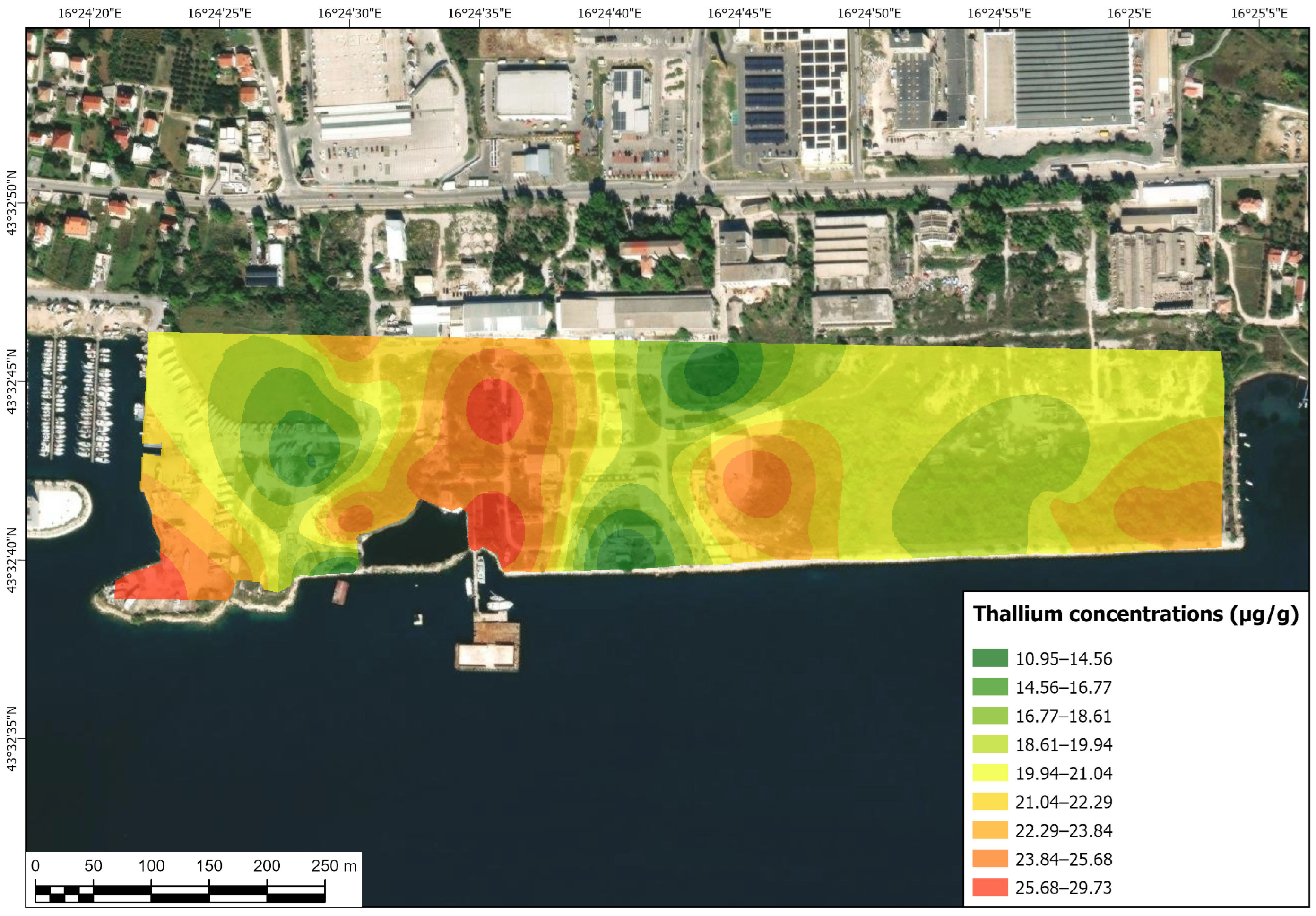

), concentrations of 10 heavy metals were determined at IMROH laboratories, Zagreb, Croatia.

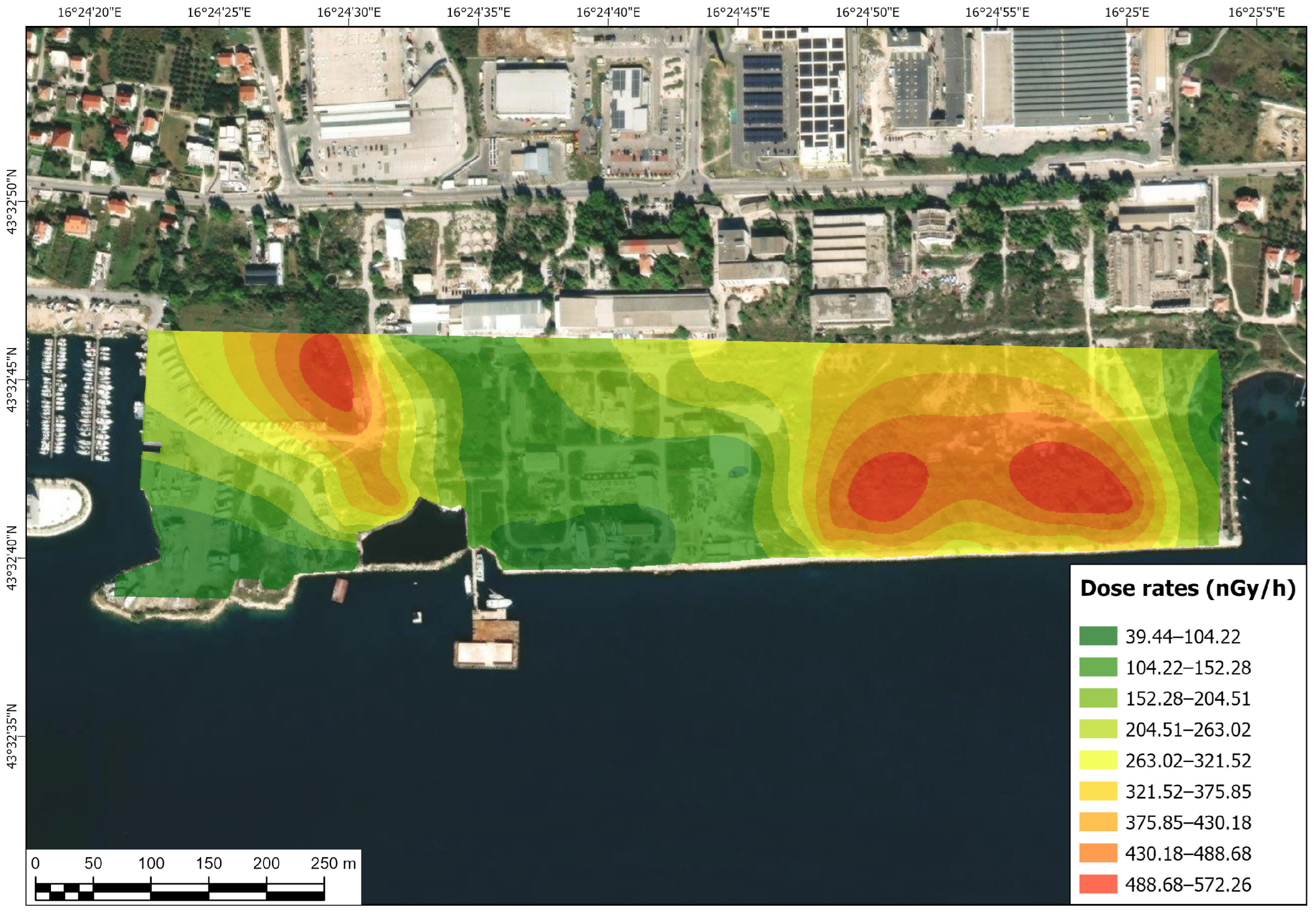

3.2. Dose Rates

Measurements of dose rates were the first step in radionuclide site mapping since dose rates indicate where further research is needed. The location was covered using the “trace” measurement method at 1 m height above ground level and georeferenced by satellite GPS positioning. The method used was IMI-M-AMB-01 [43], which includes x, γ, and bremsstrahlung in the environment or near the radioactive source. The method is developed with the aim of:

• Ensuring safe working conditions for workers professionally exposed to ionizing radiation;
• Assessing the expected exposure of professionally exposed workers and the general population in emergency events when the presence of a source of ionizing radiation in the environment is suspected;
• Confirming, in all other cases when it is necessary, that the test subject does not show an elevated level of radiation.

The device used for trace measurements, as well as measurements at specific given points from which the soil sampling was done, was the FH 40 G-GL Advanced Survey Meter System, Thermo Fisher Scientific, Inc., by Ansar-analitika as a representative, Zagreb, Croatia (calibrated according to ISO/IEC 17025:2017 standard [44]). Dose rates measured on location (nGy/h) at the points of interest, i.e., the sampling locations, are shown in

Table 2. Dose rates measured on location (nGy/h) at the points of interest—sampling locations.

Measurement Point Label	Dose Rate (nGy/h)
T1	40.07
T2	36.42
T3	41.77
T4	34.72
T5	502.52
T6	557.23
T7	326.61
T8	213.70
T9	475.20
T10	306.09
T11	383.65
T12	316.58
T13	210.85
T14	550.69
T15	119.91
T16	291.36
T17	141.07
T18	79.33
T19	557.13
T20	607.70
T21	535.03
T22	597.11
T23	459.41
T24	286.59
T25	278.65
T26	303.57
T29	91.57
T30	126.73
T31	115.83
T32	72.84
T33	160.84
T34	190.91
T35	78.10

. The measurement points (33) are marked in Figure 2, except for those that are out of the zone of interest (used as “out of the zone of interest” measurement points) and therefore not listed in Table 2.

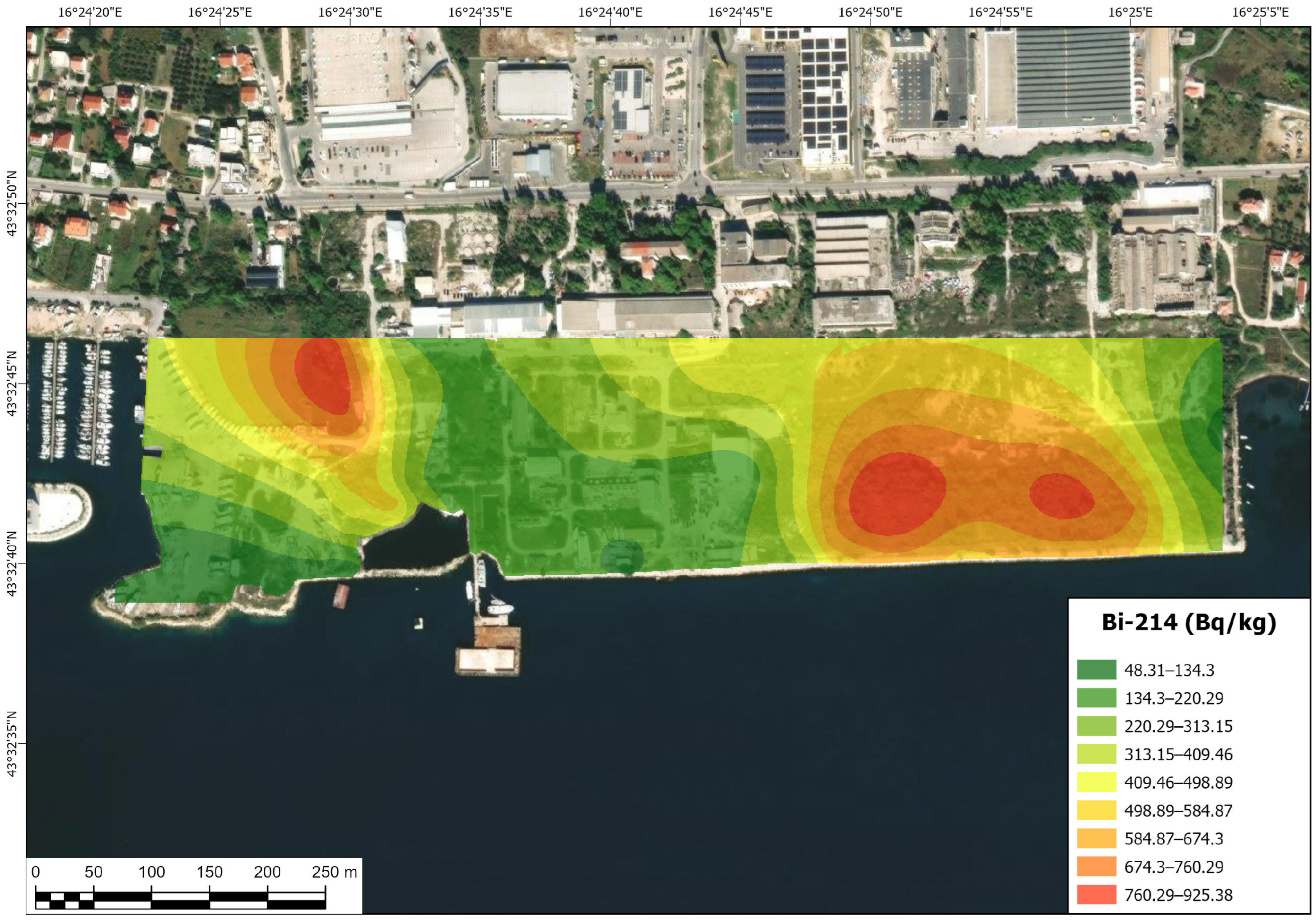

3.3. In Situ Gamma Spectrometry Measurements

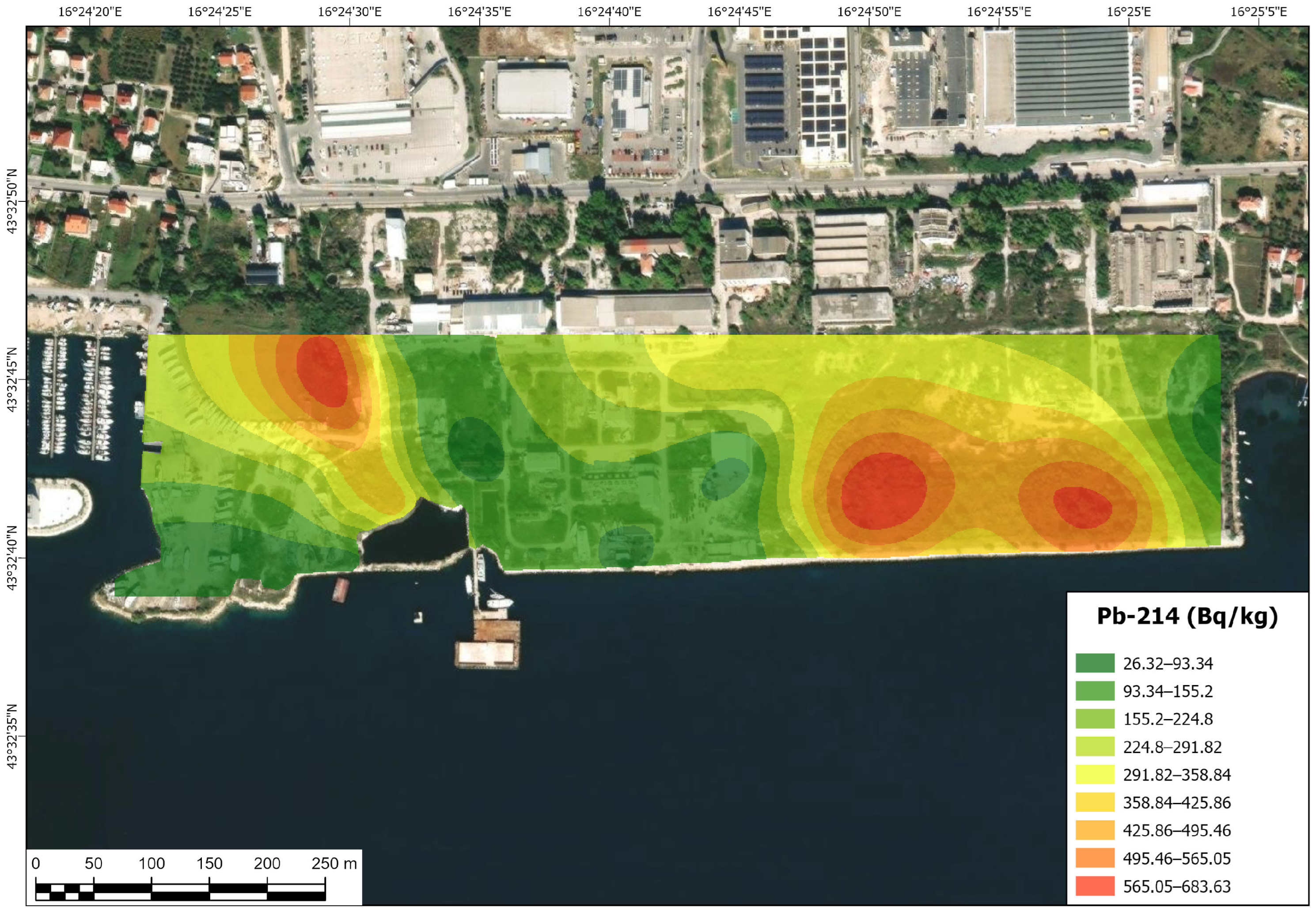

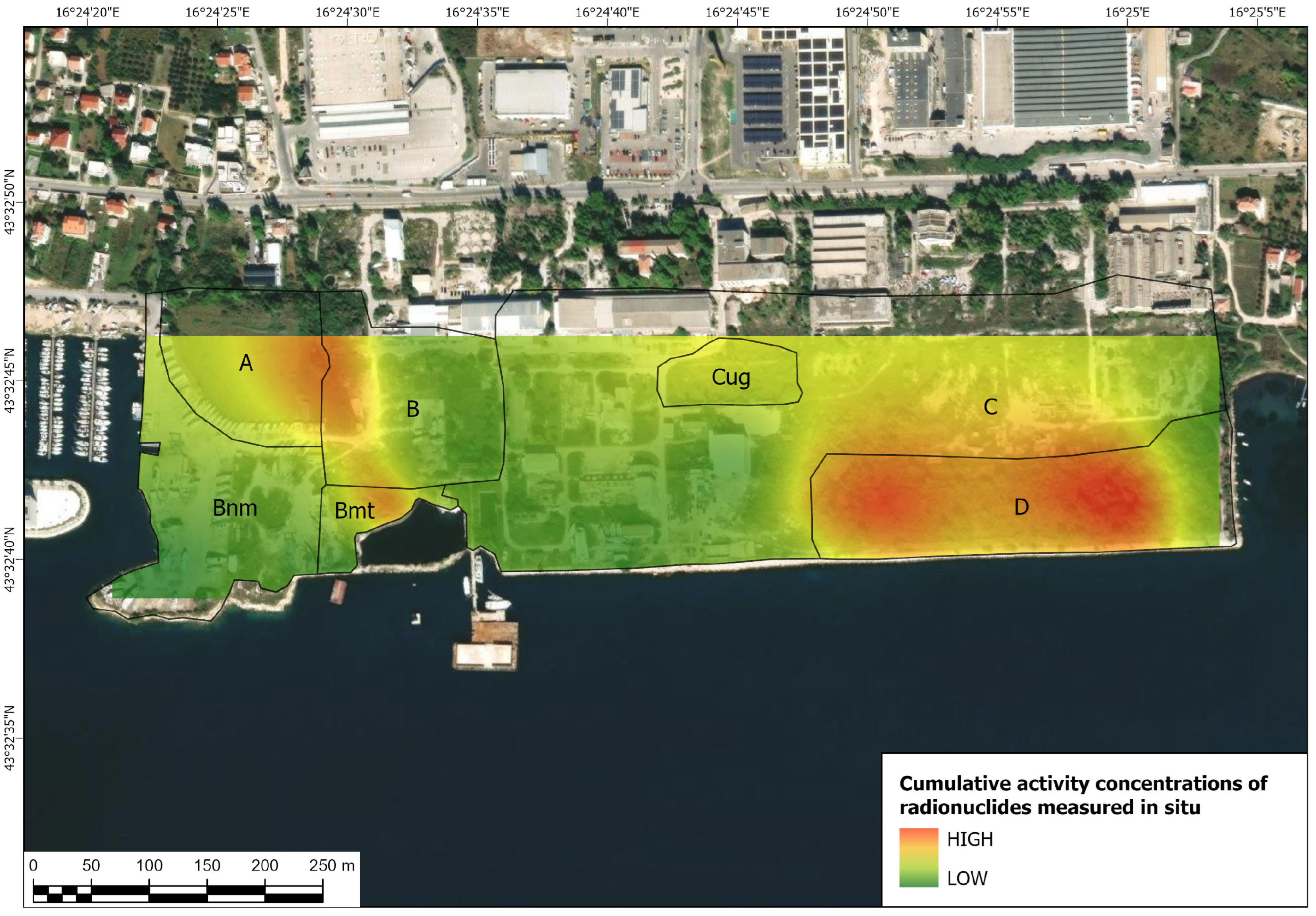

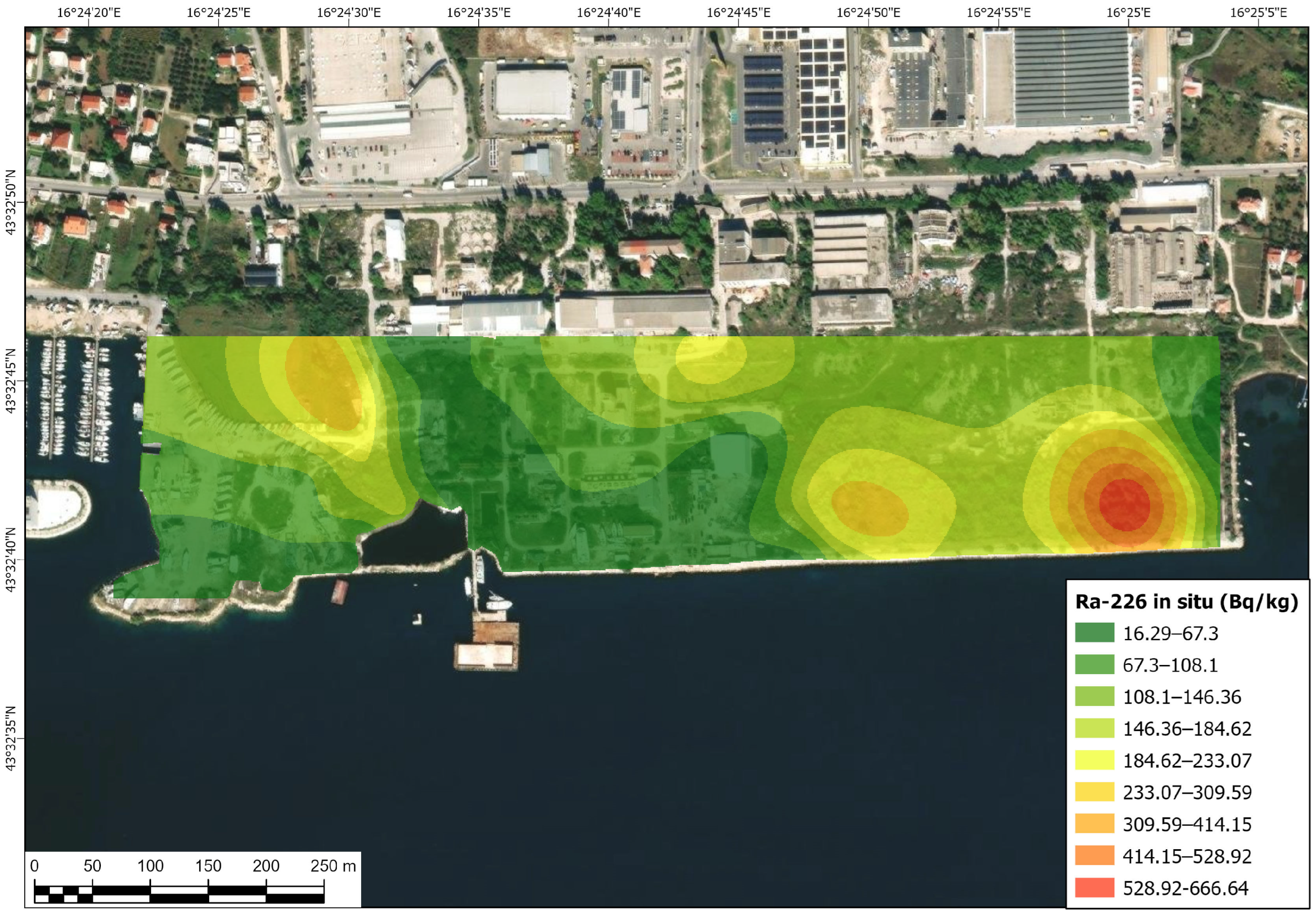

Further research was undertaken by conducting in situ gamma spectrometry measurements of activity concentrations of Ra-226, Pb-214, Bi-214, Ac-228, Bi-212, Tl-208 and K-40 at 35 points at the location (Figure 2); the measured values are given in

Table 3. Activity concentrations of Ra-226, Pb-214, Bi-214, Ac-228, Bi-212, Tl-208 and K-40 acquired by in situ gamma spectrometry measurements (Bq/kg).

Measurement Point Label	Ra-226	Pb-214	Bi-214	Ac-228	Bi-212	Tl-208	K-40
T1	19.58 ± 4.64 2	33.58 ± 4.43	31.42 ± 6.24	22.81 ± 4.09	10.25 ± 2.64	27.22 ± 7.00	96.89 ± 7.23
T2	19.17 ± 4.42	29.34 ± 4.44	43.19 ± 6.60	17.93 ± 3.87	6.60 ± 2.07	18.77 ± 6.29	26.20 ± 3.89
T3	20.44 ± 4.60	19.90 ± 4.31	36.19 ± 6.19	28.77 ± 4.13	11.36 ± 2.91	48.19 ± 7.05	133.97 ± 8.53
T4	19.35 ± 4.27	23.45 ± 4.08	27.17 ± 6.01	15.29 ± 3.62	6.60 ± 2.35	23.15 ± 5.24	93.92 ± 7.11
T5	285.46 ± 17.13	587.74 ± 19.04	860.88 ± 29.08	29.66 ± 9.71	32.40 ± 7.21	38.80 ± 5.94	74.64 ± 8.17
T6	295.14 ± 17.97	632.48 ± 19.73	895.81 ± 30.26	59.08 ± 10.31	29.69 ± 7.66	40.05 ± 6.23	87.00 ± 9.03
T7	95.15 ± 12.96	183.45 ± 12.55	331.03 ± 19.54	25.94 ± 8.17	27.11 ± 6.09	16.90 ± 5.63	49.93 ± 7.08
T8	81.89 ± 10.70	172.20 ± 10.91	111.09 ± 16.64	9.68 ± 6.37	21.47 ± 4.72	48.81 ± 10.89	61.79 ± 6.78
T9	229.25 ± 16.20	544.22 ± 18.66	782.70 ± 28.48	69.65 ± 10.23	12.83 ± 6.94	102.63 ± 17.39	134.46 ± 9.86
T10	87.79 ± 12.78	240.31 ± 13.33	389.35 ± 20.37	31.99 ± 8.32	12.83 ± 6.07	73.22 ± 13.77	81.57 ± 8.30
T11	146.73 ± 14.43	434.40 ± 16.32	612.17 ± 25.25	33.39 ± 8.80	31.40 ± 6.60	108.89 ± 14.99	68.22 ± 7.97
T12	120.63 ± 13.02	301.49 ± 14.31	460.33 ± 22.03	45.51 ± 8.48	2.57 ± 6.15	42.55 ± 6.77	115.18 ± 9.35
T13	98.10 ± 10.32	223.61 ± 11.61	338.80 ± 18.37	11.39 ± 6.54	5.13 ± 4.41	26.28 ± 4.72	70.69 ± 6.80
T14	276.62 ± 17.75	623.05 ± 19.86	922.43 ± 30.73	27.97 ± 10.19	35.87 ± 7.48	45.68 ± 6.10	81.57 ± 8.76
T15	25.68 ± 7.99	78.14 ± 7.53	119.62 ± 11.33	48.37 ± 5.66	16.99 ± 3.84	20.65 ± 6.03	104.80 ± 7.72
T16	225.88 ± 13.47	377.55 ± 14.80	530.64 ± 23.11	42.63 ± 7.81	24.03 ± 5.58	23.87 ± 4.93	69.21 ± 7.20
T17	86.94 ± 9.19	162.34 ± 9.99	229.75 ± 15.19	29.82 ± 5.56	15.37 ± 3.79	14.87 ± 3.25	68.22 ± 6.69
T18	28.07 ± 6.37	36.17 ± 5.56	59.57 ± 8.30	23.95 ± 4.48	10.63 ± 3.07	17.98 ± 4.51	107.77 ± 7.88
T19	846.28 ± 17.35	575.20 ± 19.05	812.28 ± 28.82	49.69 ± 11.06	36.07 ± 7.67	69.46 ± 8.47	110.24 ± 9.87
T20	254.09 ± 18.17	591.64 ± 19.72	909.45 ± 30.74	90.73 ± 11.34	36.95 ± 8.33	46.31 ± 7.84	139.40 ± 10.47
T21	269.25 ± 17.43	590.17 ± 19.31	842.03 ± 29.48	59.96 ± 10.13	35.13 ± 7.66	48.19 ± 7.32	89.48 ± 8.91
T22	257.46 ± 18.12	771.97 ± 21.56	1089.78 ± 33.15	40.98 ± 10.99	39.58 ± 8.20	46.93 ± 7.96	102.33 ± 9.02
T23	206.10 ± 15.99	510.47 ± 17.86	740.18 ± 27.25	61.94 ± 9.43	22.36 ± 6.98	26.28 ± 6.41	111.23 ± 8.84
T24	168.83 ± 12.62	454.22 ± 16.26	588.95 ± 24.59	35.81 ± 7.87	26.13 ± 5.61	18.77 ± 5.63	60.80 ± 6.74
T25	167.78 ± 12.56	373.74 ± 14.94	513.16 ± 23.27	49.58 ± 7.88	23.79 ± 5.35	28.79 ± 5.94	139.90 ± 8.83
T26	226.73 ± 13.38	539.20 ± 17.02	617.02 ± 25.39	64.51 ± 7.85	23.48 ± 5.18	20.65 ± 4.93	76.62 ± 7.30
T29	43.16 ± 6.98	114.83 ± 8.09	144.60 ± 12.36	13.84 ± 4.71	12.08 ± 2.89	15.15 ± 3.86	76.62 ± 6.76
T30	2.74 ± 7.81	45.08 ± 6.98	94.86 ± 11.16	36.20 ± 5.34	16.20 ± 3.88	22.02 ± 5.16	172.03 ± 9.41
T31	55.58 ± 7.90	120.37 ± 8.54	175.07 ± 13.29	22.31 ± 5.00	18.16 ± 3.68	15.43 ± 4.51	107.27 ± 7.86
T32	27.71 ± 6.29	66.72 ± 6.69	93.77 ± 10.31	13.97 ± 4.22	13.12 ± 3.07	10.64 ± 3.19	74.15 ± 6.41
T33	50.52 ± 9.41	176.27 ± 10.37	253.62 ± 15.81	27.98 ± 6.13	14.66 ± 4.53	18.77 ± 4.68	86.51 ± 7.56
T34	103.15 ± 10.38	217.46 ± 11.25	294.22 ± 17.53	33.70 ± 6.60	20.52 ± 4.94	18.15 ± 4.24	109.74 ± 8.05
T35	10.53 ± 6.08	47.42 ± 6.35	88.46 ± 9.42	17.92 ± 4.06	10.94 ± 2.67	9.39 ± 3.31	84.53 ± 6.94

² All values are given in (Bq/kg).

. Measurement points T27 and T28 are out of the zone of interest and therefore are not marked in Figure 2 or listed in the table. It must be noted that activity concentrations for uranium are not given since it was under the detection limit.

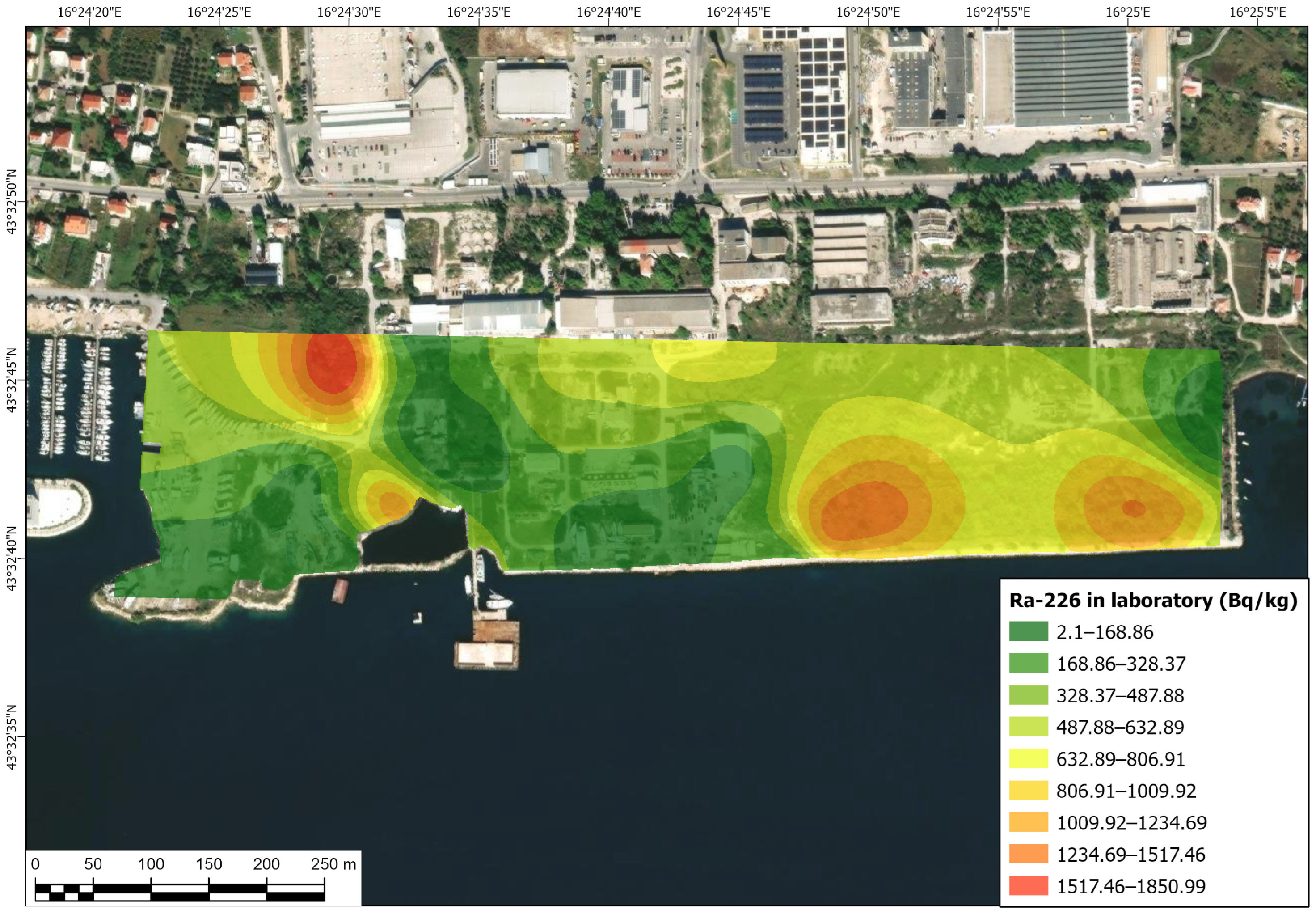

3.4. Laboratory Gamma Spectrometry Measurements of Activity Concentrations of Radionuclides in Composite Samples

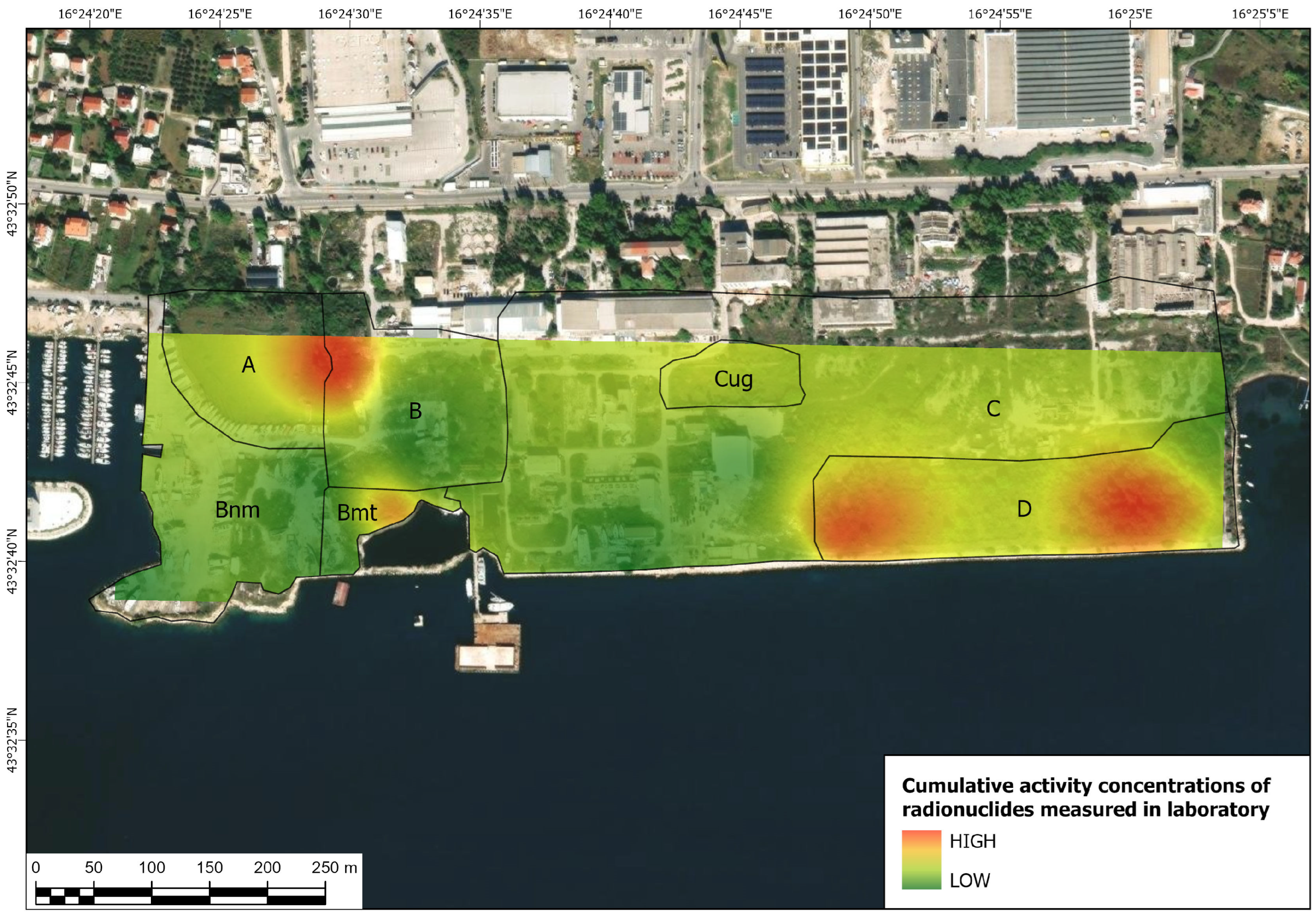

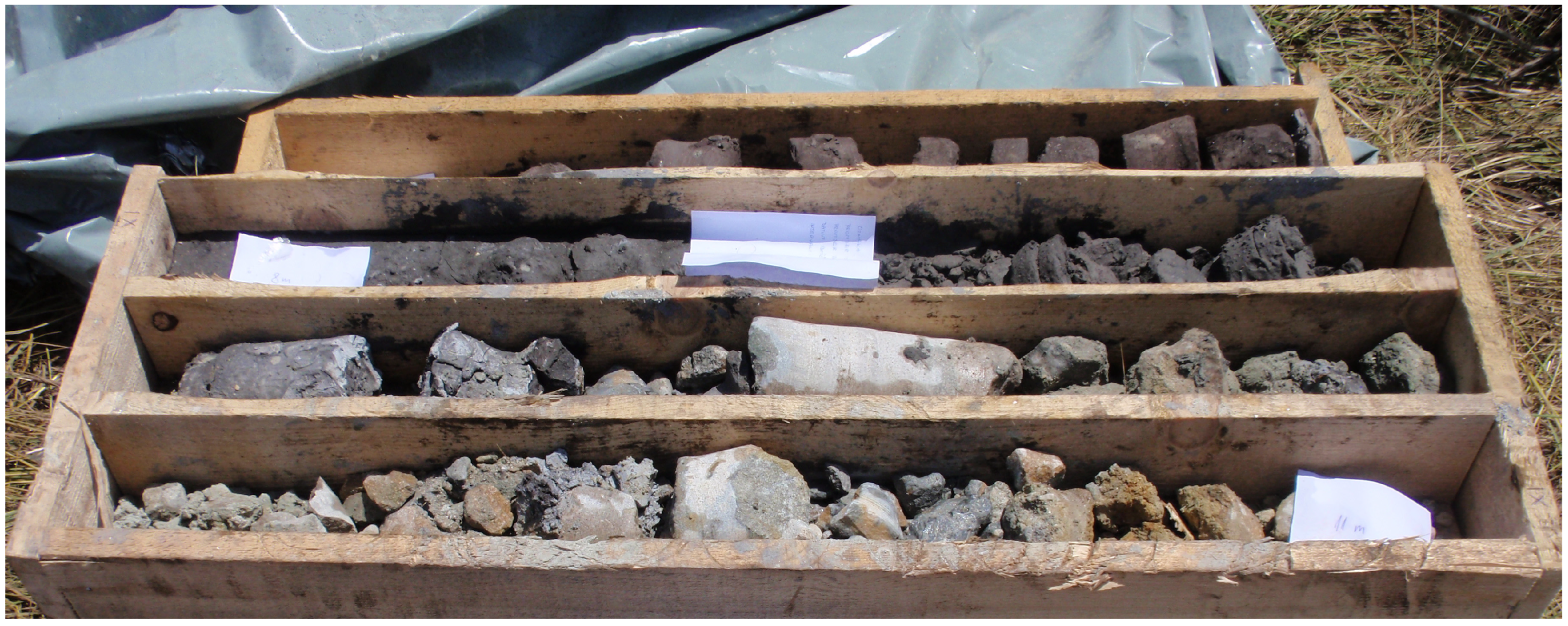

Samples for laboratory gamma spectrometry measurements of activity concentrations (Figure 3) of K-40, U-238, Th-232 and Ra-226 (

Table 4. Activity concentrations of K-40, U-238, Th-232 and Ra-226 in composite samples from 1 m² surfaces and 15 cm in depth (Bq/kg).

Sample Label	K-40	U-238	Th-232	Ra-226
T1	60.96 ± 0.90 3	25.40 ± 4.22	9.52 ± 1.11	19.94 ± 1.04
T2	209.17 ± 1.45	28.81 ± 5.24	14.39 ± 0.831	26.45 ± 1.41
T3	330.52 ± 2.06	37.71 ± 4.55	24.01 ± 0.69	36.31 ± 1.46
T4	202.64 ± 2.94	33.07 ± 2.92	16.682 ± 0.9534	31.20 ± 1.83
T6	232.82 ± 5.73	1721.00 ± 72.00	51.35 ± 3.11	1827.00 ± 19.00
T7	97.82 ± 1.88	145.73 ± 11.96	17.09 ± 1.296	153.10 ± 3.20
T8	160.32 ± 2.95	298.95 ± 25.00	19.96 ± 2.406	355.20 ± 5.50
T9	306.90 ± 5.37	1049.15 ± 53.31	67.78 ± 1.95	1161.00 ± 14.83
T10	244.41 ± 3.84	629.70 ± 48.24	49.42 ± 3.23	646.70 ± 10.01
T11	296.50 ± 5.29	853.70 ± 71.67	52.91 ± 1.825	1004.00 ± 14.72
T12	132.77 ± 1.86	216.40 ± 25.15	20.98 ± 1.44	218.80 ± 4.10
T13	76.70 ± 2.65	190.07 ± 21.61	13.03 ± 1.90	158.60 ± 6.07
T14	254.14 ± 5.87	1735.00 ± 76.40	54.49 ± 2.94	1759.00 ± 19.60
T15	340.15 ± 3.85	205.23 ± 25.13	62.42 ± 2.50	161.73 ± 4.58
T16	103.89 ± 3.45	948.20 ± 40.61	34.54 ± 1.64	681.70 ± 9.60
T17	177.38 ± 3.63	474.99 ± 29.39	34.22 ± 2.92	551.69 ± 9.51
T18	296.80 ± 4.20	23.96 ± 2.80	21.82 ± 2.32	43.14 ± 4.25
T19	441.40 ± 6.41	1212.95 ± 76.91	96.14 ± 5.16	1257.62 ± 15.46
T20	138.05 ± 3.28	882.20 ± 50.46	69.14 ± 6.10	809.65 ± 9.77
T21	311.57 ± 7.57	1337.50 ± 80.00	60.24 ± 2.76	1430.00 ± 24.30
T23	263.10 ± 6.24	1312.78 ± 123.24	87.22 ± 5.52	1301.72 ± 17.33
T24	193.45 ± 4.03	1233.25 ± 66.74	73.98 ± 4.29	997.99 ± 11.95
T30	303.62 ± 5.43	38.20 ± 3.09	24.65 ± 2.38	59.81 ± 4.75
T31	239.49 ± 2.65	205.16 ± 21.97	21.81 ± 1.63	177.51 ± 3.86
T32	149.86 ± 1.28	25.02 ± 8.15	8.32 ± 0.42	15.95 ± 1.07
T33	197.27 ± 3.03	569.95 ± 44.99	31.74 ± 2.66	435.92 ± 7.33
T34	232.03 ± 3.02	271.74 ± 33.68	28.14 ± 2.03	263.34 ± 5.64
T35	148.26 ± 2.26	170.00 ± 18.00	15.08 ± 1.34	130.50 ± 5.40
Soil T_1	251.14 ± 5.11	1219.00 ± 64.00	89.84 ± 4.49	1345.94 ± 28.60
Soil T_4	238.30 ± 4.90	861.70 ± 76.24	52.77 ± 4.50	734.50 ± 12.44

³ All values are given in (Bq/kg).

) were taken from the same locations where in situ gamma and dose rate measurements were done (Figure 2), with the exception of T5, T22, T25, T26 and T29, where samples could not be obtained due to technical difficulties (problems with the approach and sampling), and T27 and T28, which are out of the zone of interest and therefore are not listed in the table. Samples marked as “Soil T-” were mostly soil-like material, hence the different label.

3.5. Laboratory Gamma Spectrometry Measurements of Activity Concentrations of Radionuclides from Exploratory Boreholes

Three exploratory boreholes were drilled, and several samples (Figure 4) were taken for laboratory gamma spectrometry (

Table 5. Activity concentrations of K-40, U-238, Th-232 and Ra-226 in samples taken from exploratory boreholes B2, B3 and B4 (Bq/kg) at given depths.

Borehole Sample Label	Sampling Depth (m)	K-40	U-238	Th-232	Ra-226
B2-0	0.0	147.60 ± 4.15 4	1265.45 ± 81.58	43.83 ± 3.76	957.21 ± 13.62
B2-1	0.6	205.43 ± 8.41	1528.46 ± 128.65	34.69 ± 3.88	1290.51 ± 24.80
B2-2	1.7	175.04 ± 6.83	1128.80 ± 111.10	32.09 ± 3.28	947.56 ± 24.42
B2-5	4.8	104.95 ± 3.53	812.11 ± 99.93	40.49 ± 3.28	665.10 ± 10.39
B2-6	5.6	212.52 ± 6.93	1719.33 ± 72.4	53.83 ± 3.27	1547.72 ± 23.20
B2-7	6.6	135.35 ± 5.02	1257.26 ± 78.3	35.17 ± 2.22	1052.38 ± 16.13
B2-10	9.9	23.20 ± 0.95	4.48 ± 0.74	1.69 ± 0.73	11.96 ± 2.03
B2-11	10.8	144.51 ± 3.22	25.43 ± 3.15	7.07 ± 1.28	18.52 ± 2.19
B2-12	11.8	132.98 ± 3.94	14.89 ± 4.87	7.00 ± 1.25	23.80 ± 2.86
B2-13	12.9	219.48 ± 2.89	13.22 ± 1.14	11.53 ± 1.09	20.55 ± 2.12
B3-2	1.75	295.18 ± 10.33	1134.22 ± 143.64	67.16 ± 8.54	790.30 ± 28.11
B3-4	3.65	286.80 ± 11.96	1174.6 ± 128.49	74.83 ± 6.50	845.15 ± 25.35
B3-6	5.8	147.29 ± 5.47	1224.43 ± 95.77	60.97 ± 5.06	1120.84 ± 18.92
B3-7-0	6.35	171.73 ± 5.37	1417.16 ± 96.20	72.30 ± 4.55	1127.99 ± 17.07
B3-8	7.6	233.74 ± 5.62	1361.98 ± 87.58	49.42 ± 4.51	948.26 ± 16.64
B3-9	8.8	204.89 ± 6.86	1048.43 ± 103.18	45.09 ± 5.26	738.75 ± 18.28
B3-10-0	9.3	150.66 ± 2.84	210.19 ± 14.42	31.71 ± 1.92	188.13 ± 4.09
B3-10-2	9.5	76.78 ± 1.70	53.15 ± 8.89	5.06 ± 0.95	22.56 ± 2.28
B3-10-3	9.85	122.71 ± 2.12	52.07 ± 18.23	9.56 ± 1.02	38.58 ± 2.58
B3-11	10.8	186.95 ± 3.75	67.39 ± 19.04	9.84 ± 1.41	16.27 ± 2.42
B4-3	2.65	267.88 ± 10.06	1290.19 ± 141	61.76 ± 7.15	932.55 ± 23.03
B4-6-0	5.7	262.45 ± 7.21	1374.61 ± 85.93	70.68 ± 6.37	1257.16 ± 21.27
B4-8-1	7.9	291.47 ± 8.63	1541.10 ± 153.74	88.88 ± 6.76	1396.00 ± 29.40
B4-9	8.8	259.78 ± 7.43	1201.48 ± 112.88	64.30 ± 6.03	1158.52 ± 20.36

⁴ All values are given in (Bq/kg).

), to determine activity concentrations of K-40, U-238, Th-232, and alpha spectrometry, for Ra-226 in depth.

The locations of boreholes, as shown in Figure 2, were selected with the aim of sampling coal ash and slag in areas where more significant concentrations of radionuclides are expected, considering the origin of the sampled material and the results obtained by the track method measurements of the surface ambient dose rate. Data from borehole B1 is not relevant to this research since it was drilled to determine only the geological composition of the soil. Borehole B1 was strategically positioned outside the primary contamination plume to serve as a regional reference (background) point for the site’s geological characteristics. The entire study area is characterized by a uniform geological setting consisting of Eocene flysch deposits. Since lithology (alternating layers of sandstone and marl), with limestone as bedrock, is consistent across all sampled points, the geological data from B1 does not introduce any hidden variables that would alter the vertical distribution analysis of pollutants. Instead, B1 confirms the regional geological structure, supporting the assumption of uniform transport conditions across the site.

It must be noted that the coal used for combustion in the power plant did not originate from only one mine but from different coal mines in the former SFRY [21,22,23,24], depending on availability. This, as well as the fact that hydro-transport of ash to the precipitate dumpsite was used, is the reason for the different concentrations of radionuclides by depth and on the surface.

3.6. Laboratory Gamma Spectrometry Measurements of Radon Exhalation Rates

At the time of the research described in this paper, the radon (Rn-222) concentration in soil gas was not measured in situ. To determine the radon exhalation rates from the soils and coal ash and slag at the location, material samples (Figure 2) were analyzed in the laboratory via gamma spectrometry using the secular equilibrium time after the samples were prepared (

Table 6. Results of laboratory gamma spectrometry measurements of radon exhalation rates (Bq/m²/h).

Sample Label	Radon Exhalation Rate (Bq/m2/h)
Rn1	0.14 ± 0.00
Rn2	0.01 ± 0.00
Rn3	0.02 ± 0.01
Rn4	0.02 ± 0.00
Rn5	0.32 ± 0.02
Rn6	0.82 ± 0.02
Rn7	1.29 ± 0.05
Rn8	0.55 ± 0.02
Rn10	0.84 ± 0.03
Rn11	1.49 ± 0.05
Rn12	1.07 ± 0.04
Rn13	0.55 ± 0.03
Rn14	1.09 ± 0.04
Rn15	0.81 ± 0.03
Rn16	0.68 ± 0.03
Rn17	1.15 ± 0.06
Rn18	1.30 ± 0.02
Rn19	0.77 ± 0.03
Rn20	0.78 ± 0.01
Rn21	0.82 ± 0.02
Rn22	1.02 ± 0.04
Rn23	1.47 ± 0.10
Rn24	1.42 ± 0.06

). Sample Rn9 was damaged and hence discarded. The differences in the values of the radon exhalation rate can be attributed partly to the type of samples (soil, coal ash and slag, mixture of materials) and partly to ash and slag originating from different coals since the coal for the power plant was acquired from different mines in the former SFRY. Currently (the first quarter of 2026), extensive measurements of Rn-222 concentration in soil gas are performed on site using an AlphaGUARD Radon Monitor, Bertin Instruments, Montigny-le-Bretonneux. France, which will be considered during the discussion of the results.

3.7. Statistical Preprocessing, Geospatial Inspection of the Acquired Datasets and Map Development

Prior to spatial analysis, all the abovementioned tabular datasets were subjected to quality control, statistical preprocessing and geospatial inspection. Extreme values that were identified as outliers or inconsistent with surrounding observations were removed prior to interpolation. Retained high values that exhibited spatial consistency were treated as valid indicators of localized contamination and preserved in the analysis.

Due to substantial differences among the analyzed variables, data standardization was required to enable meaningful integration of variables expressed in different physical units and value ranges, as well as assessment of combined environmental pressure from multiple contaminants. The minimum–maximum (Min–Max) standardization method was applied to three multivariable datasets (Table 1, Table 3 and Table 4), transforming original values into a common range between 0 and 1 while preserving relative differences among observations. The standardized datasets were used for both correlation analysis and the generation of cumulative spatial maps. Pearson’s correlation analysis was applied to explore intervariable relationships and to support the interpretation of spatial similarities observed in the interpolation maps. As an example,

Table 7. Pearson’s correlation matrix for heavy metal concentrations.

	Correlations (Metals_Standardization) Marked Correlations are Significant at p < 0.01000 N = 30 (Casewise Deletion of Missing Data)
Variable	Cd	Ni	Co	Cr	Tl	Pb	Mn	Cu	Zn	Fe
Cd	1.000
Ni	−0.446	1.000
Co	−0.419	0.965	1.000
Cr	−0.123	0.735	0.663	1.000
Tl	0.341	−0.583	−0.508	−0.414	1.000
Pb	−0.489	0.867	0.868	0.564	−0.525	1.000
Mn	−0.450	0.898	0.936	0.626	−0.441	0.867	1.000
Cu	−0.429	0.916	0.943	0.559	−0.448	0.846	0.872	1.000
Zn	−0.470	0.948	0.980	0.616	−0.560	0.934	0.918	0.941	1.000
Fe	−0.145	0.751	0.671	0.656	−0.481	0.725	0.622	0.579	0.673	1.000

presents the Pearson correlation matrix for heavy metal concentrations obtained using Statistica 14.0.0.15 software [45].

While the strong positive correlations observed between certain heavy metals suggest a common anthropogenic origin related to the site’s former industrial activities, these statistical associations should be interpreted with caution. High correlation coefficients indicate similar spatial distribution patterns and geochemical behavior within the Eocene flysch, but they do not provide unequivocal proof of a singular source. Other factors, such as similar adsorption affinities to soil organic matter or iron oxides, may also contribute to these observed trends. Therefore, while the industrial history of the site remains the most plausible driver, the correlations serve as primary indicators of commonality rather than absolute source attribution.

The correlation structure presented in Table 7 provides important information on the sources and pathways of heavy metals. A significantly positive correlation at p < 0.01 was found between the elemental pairs Zn-Co (0.980), Zn-Ni (0.948), Zn-Pb (0.934), Zn-Mn (0.918), Zn-Cu (0.941), Cu-Ni (0.916), Cu-Co (0.943) and Co-Ni (0.965). Zn-Tl (−0.560), Pb-Tl (−0.525), Tl-Ni (−0.583) and Tl-Co (−0.508) are significantly (but less than in the case of a positive correlation) negatively correlated at p < 0.01. Two examples (since showing all maps would significantly increase the length of this paper) that visually confirm these significant correlations are the interpolated maps of Zn (Figure 5) and Co concentrations (Figure 6).

The reasons for grouping (positive correlation) certain elements are related somewhat to the original industrial activities on site and partly, after the factory was closed, to the shipyard and shipbuilding activities from the 2000s to today. Coal storage before combustion in the power plant, and coal ash and slag disposal and spread, is moderately “responsible” for the distribution of Fe (pyrite) and Cd (present in rock samples as primary sphalerite) and partly for Ni (Ni-Fe sulfates and sulfides) and Cr (chrome-bearing spinels) due to composition and accessory minerals [46,47,48,49,50,51,52,53]. However, industrial activities related to shipbuilding have a significant effect on the presence of most heavy metals in the soil. The main reason for the specific distribution of thallium concentration is related to coal combustion in the local power plant [54,55].

The soil pollution maps of heavy metals generated by using GIS techniques help to analyze the distribution of all heavy metals—correlated heavy metal pairs—and it is easy to recognize graphical (geospatial) matching with Pearson’s correlation matrix. For instance, the maps in Figure 5 and Figure 6 look almost the same, which confirms strong positive correlations, whereas negative correlations between, e.g., Tl and Zn (Figure 5 and Figure 7) show the opposite trend. Thus, whereas the value of Tl increases, the values of Zn, Ni and Pb decrease in terms of the concentration of heavy metal pollution in the soil.

Sampling locations were georeferenced and integrated into a structured GIS database, together with relevant basemap layers. A regular grid with a spatial resolution of 1 × 1 m² was applied consistently across all interpolations to ensure spatial comparability between resulting raster layers. GIS functionality was used for data management, vector-based analysis, raster generation, and spatial overlay operations. Individual interpolation maps were produced for each contaminant variable, resulting in a total of 24 thematic maps, supplemented by four cumulative maps representing grouped contaminant categories.

All variables were spatially interpolated using Empirical Bayesian Kriging (EBK), a geostatistical method implemented in ArcGIS Pro 3.6.1 [56]. EBK was selected after analyzing all other common interpolation methods [57,58,59,60,61] for its ability to account for uncertainty in variogram estimation and its suitability for datasets with limited sampling density and heterogeneous spatial patterns. Unlike traditional kriging, which assumes a single global variogram, EBK subdivides the dataset into local subsets and estimates spatial dependence individually for each, improving prediction reliability and reducing bias—particularly in complex environmental datasets with non-uniform spatial variability. This method was applied uniformly to all datasets, including heavy metals, in situ and laboratory-measured radionuclides, dose rate values and radon concentrations, ensuring methodological consistency across all generated maps [62,63,64].

To evaluate cumulative contamination patterns, standardized EBK interpolation outputs were combined using raster algebra techniques. Three cumulative maps were generated: one representing heavy metal contamination, one representing in situ radionuclide distribution and one representing laboratory-determined radionuclide activities. These cumulative maps provide an integrated representation of overlapping contamination and facilitate the identification of spatial hotspots characterized by elevated contaminant intensity. Excluded data points, after technical validation, contained incorrect geographic coordinates (placing them outside the study area) or incomplete analytical records. These were treated as invalid data entries rather than statistical outliers. Since the site is a former industrial facility, a conservative approach was chosen to identify statistical outliers representing high concentrations (potential hotspots) and retain them in the dataset, which ensured that the final spatial interpolation (EBK) and cumulative maps reflect the actual maximum contamination risks at the site. The accuracy of the spatial interpolation was validated using a leave-one-out cross-validation technique. Detailed interpolation accuracy metrics (ME, RMSE, and RMSS) for all 22 analyzed variables (heavy metals, radionuclides, and dose rates) are provided in Table S1 (Supplementary Material).

Figure 8 shows the interpolated map of all heavy metal concentrations, where higher values correspond to the locations of small shipyards and specific areas affected by the spread of certain elements during power plant activity.

Dose rate measurement was organized according to the expected arrangement of NORM residues, where higher concentrations of radionuclides are expected, and the interpolated map (Figure 9) showed areas of interest for the following research (sampling and in situ measurements of radionuclide activity).

Maps created for specific radionuclides also show a positive correlation between radionuclides, which is evident for Pb-214 and Bi-214 (both belong to the U-238 decay chain, where Bi-214 is formed from the decay of Pb-214). There is a significant positive correlation (Figure 10 and Figure 11) between Pb-214 and Bi-214 (0.980), which is also apparent in the maps for each of these radionuclides.

Cumulative concentrations of radionuclides in the soil at the considered site are shown in Figure 12, as an interpolated map of activity concentrations of Ra-226, Pb-214, Bi-214, Ac-228, Bi-212, Tl-208 and K-40 measured in situ, and Figure 13, as an interpolated map of activity concentrations of K-40, U-238, Th-232 and Ra-226 in composite samples taken at 1 m² surfaces from 15 cm in depth, prepared to reach secular equilibrium and then measured in the laboratory.

Comparing the maps shown in Figure 12 and Figure 13, the in situ and laboratory gamma spectrometry measurements of radionuclide activities indicate that areas with higher activity correspond to each other, although the same set of radionuclides was not analyzed. This is because high-resolution detectors (in situ gamma-ray spectrometers) used to identify radionuclides and measure their concentrations in soil from 1 m above the surface are programmed to identify radionuclides with higher energy outputs and, in certain cases, anthropogenic radionuclides. Laboratory measurements, on the other hand, are usually performed to identify and measure concentrations of primordial naturally occurring radionuclides and their significant progeny (e.g., Ra-226 due to its radiotoxicity). This fact is to be considered in every discussion of measured activities when dealing with NORM residues in the environment. The maps clearly show that higher concentrations of naturally occurring radionuclides correspond to industrial activities related only to coal ash and slag disposal—Zones “A”, “D” and “Bmt”. Also, although the values of radionuclide activity concentrations obtained by in situ measurements are lower than those measured from samples in the laboratory, the maps correspond to each other significantly. Therefore, in situ measurements can provide preliminary data for potential areas with higher concentrations of radionuclides at ex-industrial sites (brownfields) and point to zones where more intensive research (sampling and laboratory measurements) is needed. Considering the level of contamination, after as dense as possible ambient dose rate measurements using the tracking method, laboratory measurements are mandatory to assess the actual situation.

Since this brownfield site contains NORM residues (coal ash and slag) of parent materials (coals) that originated from different mines, it is important to determine the correct amounts of NORM residues with higher activity and especially the spatial (depth) distribution of pockets of ash and slag with higher activity concentrations. The nature of hydro-transport is also somewhat responsible for creating pockets with higher radionuclide concentrations and hence higher activity. Knowing the accurate spatial distribution of these pockets can be of great significance during the remediation of the site, either by identifying which material must not be disturbed or which must be excavated and removed from the site. This will also influence the final cost of site remediation. Although there are some discrepancies in the detailed surface distribution of the deposited ash and slag, the most significant discrepancies are related to the specific depths of the NORM residues in investigation Zone D (Figure 2). Additional investigative activities are needed to reach the original terrain surface (limestone), as well as the level of the water line within the dumpsite.

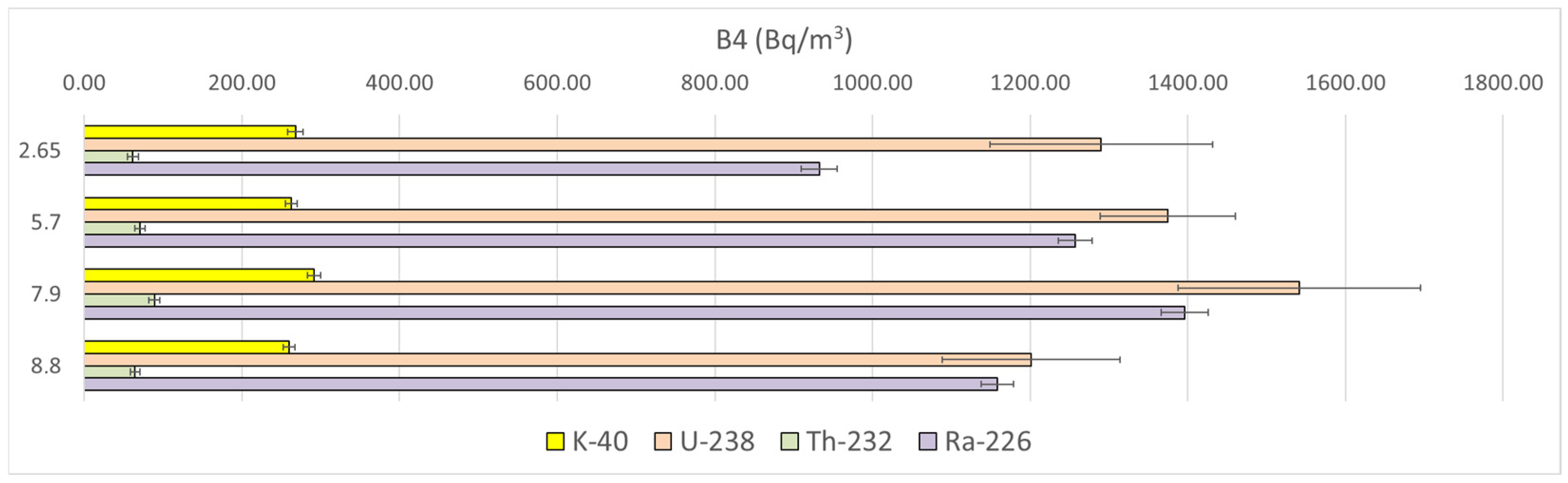

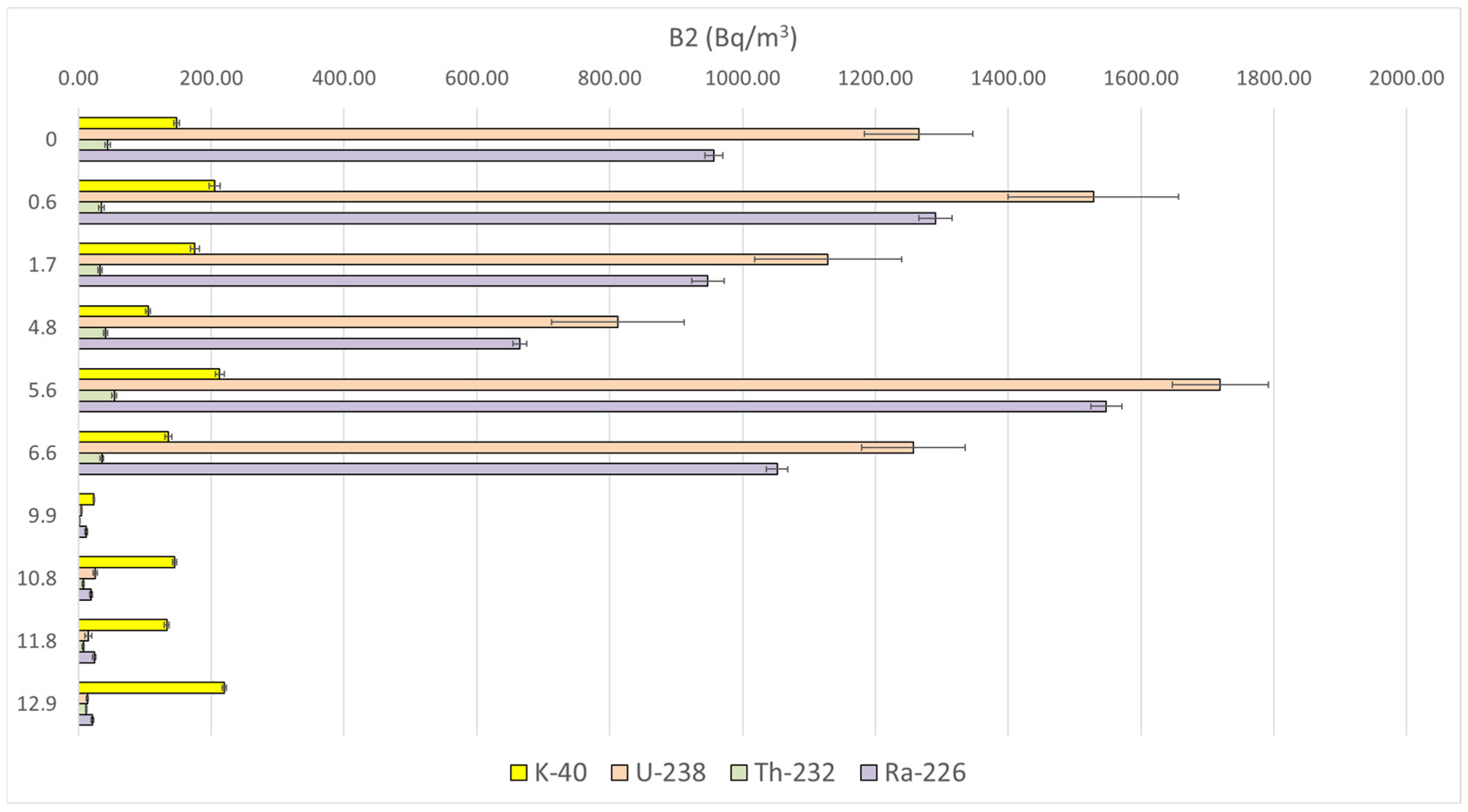

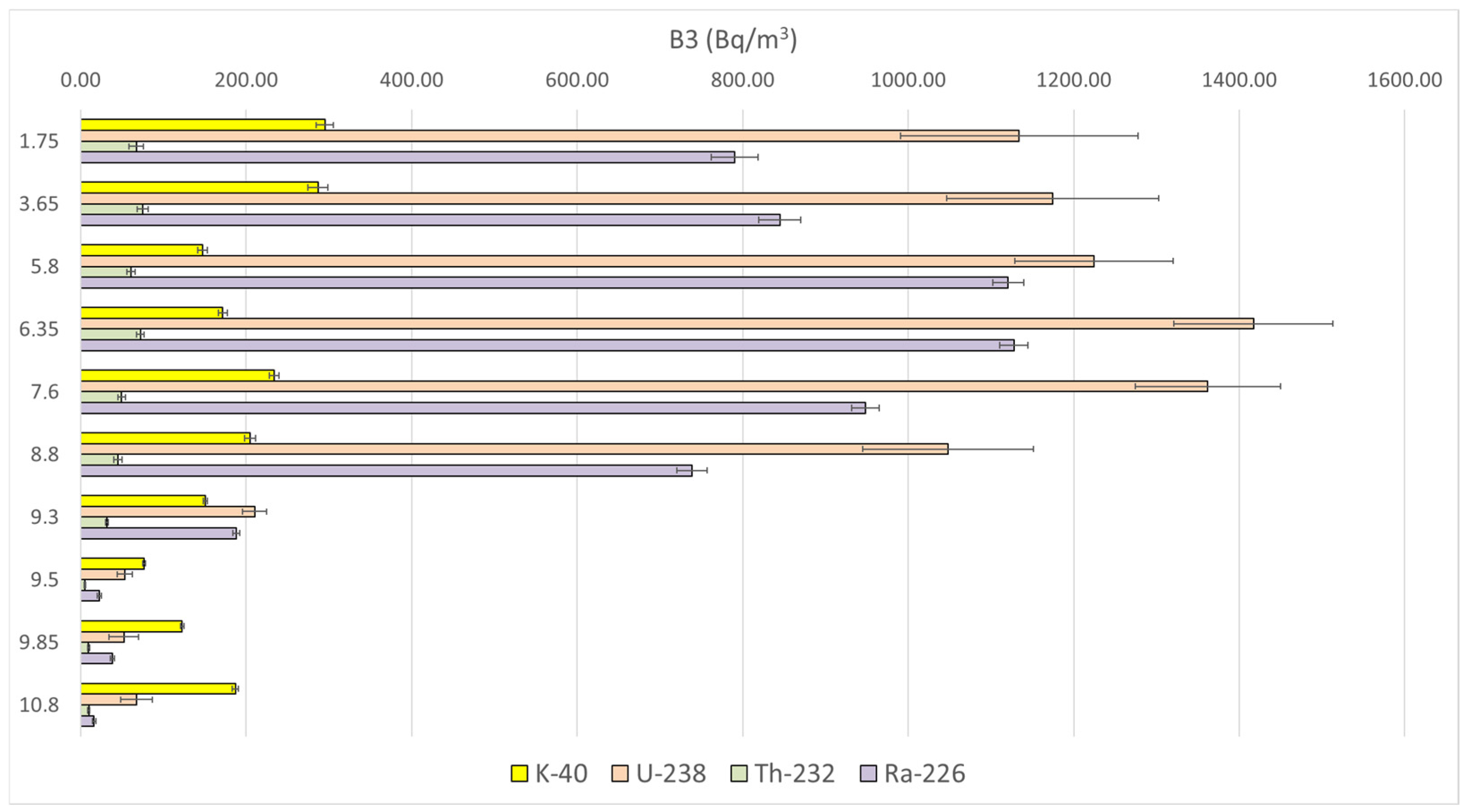

A couple of preliminary exploratory boreholes were drilled, and the samples taken at depth provide a clearer picture of the distribution of contaminants by volume of material. This information will help the decision-making process when considering the selection of possible remediation technology. Data from Table 4 on the activity concentrations of K-40, U-238, Th-232 and Ra-226 in the samples taken from exploratory boreholes B2, B3 and B4 (Bq/kg) are shown in Figure 14, Figure 15 and Figure 16.

The discrepancy in the continuity of isotope concentrations in boreholes B-2 and B-3 (at the depth of ≈9 m) is related to the absence of a coal combustion residual deposit and the occurrence of clay minerals (soil) that are somewhat contaminated with ash and slag.

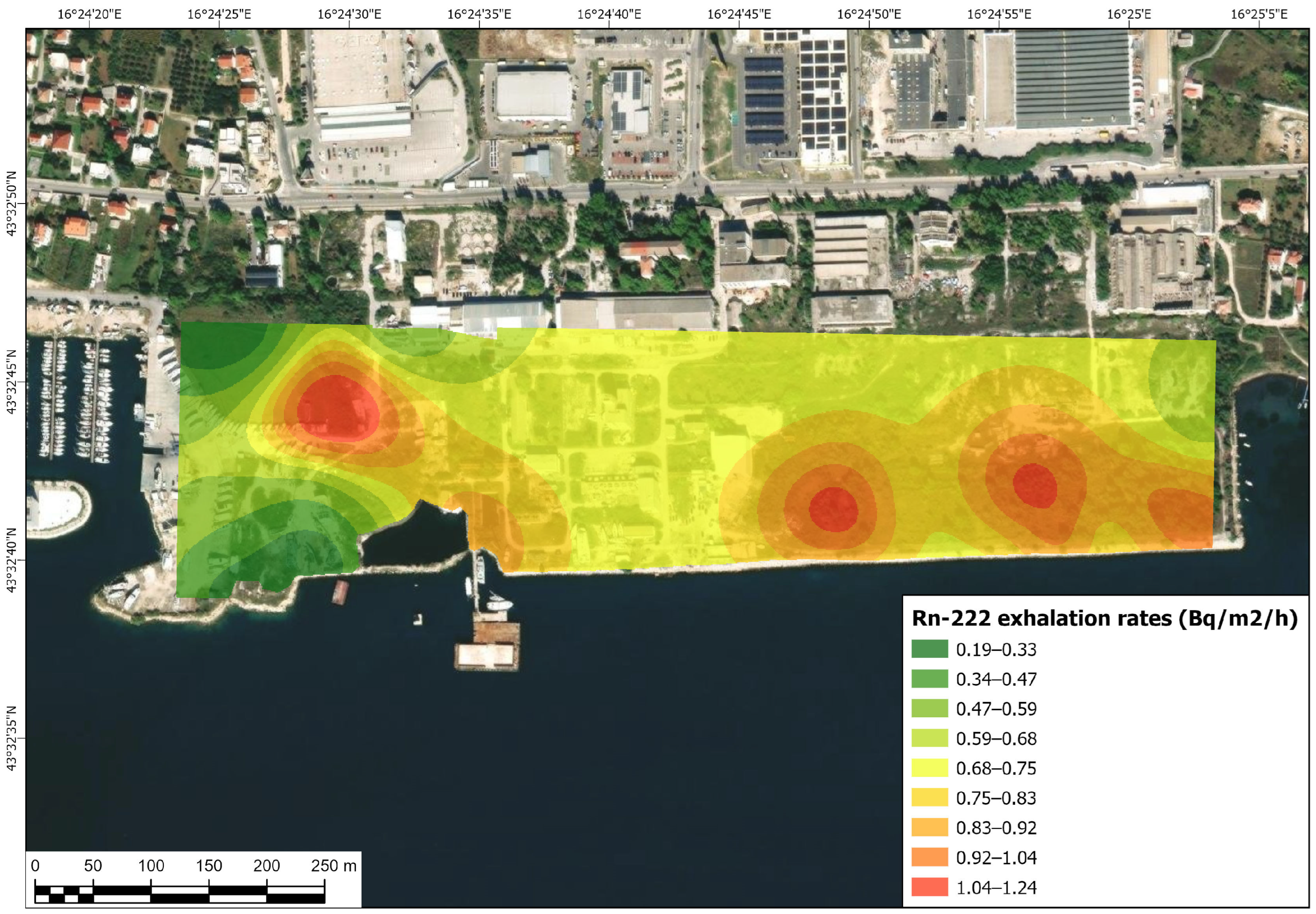

The radon (Rn-222) concentration in soil gas can indicate where higher concentrations of elements from the U-228 decay chain can be expected, and due to the relation between U-238 and U-235, the same is true for isotopes from the U-235 chain. The main reason for Rn-222 measurements is the possible exposure of people in the case of urbanizing a site containing NORM residues. A map of Rn-222 exhalation rates (Figure 17) in the soil samples from the location shows areas with higher emanation of Rn-222, but a more precise map is expected after ongoing research in which radon concentrations in soil/coal ash and slag will be measured in situ.

In this research, special interest was given to Ra-226 since it is a highly radiotoxic, naturally occurring, long-lived (t_1/2 = 1600 ± 7 years) α emitter (undergoes α decay to Ra-222) that emits significant γ radiation as well. Radiological risk assessments for NORM residue disposal sites [65,66,67,68] usually point to Ra-226 as the dominant contributor to dose rates in biota. As a primary “dose driver”, Ra-226 contributes significantly to internal α dose, which can represent 72% to 97% of the total dose in some terrestrial ecosystems. Its progeny, Rn-222 gas, also an α emitter, is considered a major health hazard that, in normal circumstances (not elevated concentrations), accounts for approximately 50% or more of the total radiation dose (both natural and man-made) received by the general population annually. When comparing the interpolated map of activity concentrations of Ra-226 measured in situ—above ground (Figure 18)—with the map of activity concentrations of Ra-226 measured in soil samples in the laboratory (Figure 19), the discrepancies and differences are explained by weathering and, hence, differences in concentrations and activities.

However, the maps do correspond to each other, and compared to an interpolated map of activity concentrations of Rn-222 (Figure 17), there is also an obvious relation. Differences in the maps showing Ra-226 and Rn-222 concentrations are explained by: sampling for laboratory measurements of Ra-226 and Rn-222 at different locations, movements of Rn-222 gas through soil and laboratory measurement instead of in situ measurement of Rn-222 concentration in soil gas.

4. Discussion

One of the questions addressed in this research is whether the concentrations of heavy metals in the soil of Kaštela Bay represent a serious problem. Another question is what kind of additional, originally not planned, remediation of the site is required regarding additional and uncontrolled pollution due to intense small shipyard activity at the site, if it is to be repurposed, urbanized, or greened—i.e., made less harmful to the environment.

Although this location was not and is not planned to become an agricultural area, no existing Croatian regulatory document addresses any other type of land use related to heavy metal reference levels (maximum permitted concentrations), except for the one concerning agricultural land. Therefore, values taken from the Croatian Ordinance on protection of agricultural land from pollution [69] were used purely as comparison values, as shown in

Table 8. Maximum permitted amounts of heavy metals in agricultural soil in Croatia [69] (mg/kg).

Element	Soil pH in 1 M KCl Solution
	<5 (mg/kg)	5–6 (mg/kg)	>6 (mg/kg)
Cd	1	1.5	2
Cr	40	80	120
Cu	60	90	120
Hg	0.5	1	1.5
Ni	30	50	75
Pb	50	100	150
Zn	60	150	200
Mo	15	15	15
As	15	25	30
Co	30	50	60

. It should be noted that values from the Ordinance are used for reference only as a conservative benchmark, since the site is intended for tourism, and these limits provide a higher safety margin compared to urban or industrial soil guidelines, which are not yet defined in Croatian regulatory documents.

According to the Ordinance, agricultural land is considered polluted when it contains more heavy metals and potentially polluting elements than the maximum permitted amount (MPA), expressed in mg kg⁻¹ of air-dry soil. If the location is to be urbanized or remediated by landscaping and creating a promenade, the above table can be considered, but after the local flora was analyzed, the conclusion was that heavy metals do not affect the growth and health of autochthonous Dalmatian flora. Therefore, if material found on the site is not removed to another location during remediation but, for example, leveled and covered with humus during landscaping activities, heavy metal concentrations should not be of significant concern.

On the other hand, regarding possible remediation by means of civil construction at Zone “D” (Figure 2), the Croatian Ordinance on environmental monitoring of radioactivity [70] is to be consulted. It states: “If the assessment of workers’ exposure determines that workers may receive an effective dose of more than 1 mSv and less than 6 mSv in a year, the user of the industrial facility must take measures to reduce workers’ exposure to as low a level as is reasonably achievable, taking into account technical, organizational, economic, health and social factors, inform these workers about the possible risks of exposure to ionizing radiation and provide them with access to the assessment. If it is estimated that workers may receive an effective dose exceeding 6 mSv per year, the user of the industrial facility shall ensure the determination of the personal exposure of workers and periodic health checks and shall take measures to reduce the exposure of workers to as low a level as is reasonably achievable, taking into account technical, organizational, economic, health and social factors. If the measures do not allow the exposure of workers to be reduced below 6 mSv per year, these workers shall be considered exposed workers of category A.”

A calculation of the effective dose for people exposed to ionizing radiation is shown in Table 2. “Dose rates measured on location (nGy/h)” shows that the highest measured dose rate (607.699 ± 0.77955 nGy/h) corresponds to the effective occupational dose to a worker of 1.217 mSv/y under the condition of 2000 working hours per year [71]. The value of 2000 working hours is chosen to represent a conservative “occupational scenario” for a full-time site employee (e.g., maintenance or security staff) spending 40 h per week outdoors for 50 weeks per year (with an occupancy factor of 1.0) during that period. A more realistic occupational scenario would imply significantly fewer working hours in zones of the considered area where a higher effective dose for workers exposed to elevated concentrations of radionuclides is expected. Considering a public (tourist) exposure scenario, assuming a representative stay of 168 h/year (3 weeks) with an outdoor occupancy factor of 1.0 during that period, the dose for tourists would be 0.1 mSv/period or less with a lower occupancy factor (e.g., a 0.2 occupancy factor for a short-term visitor dose would be 0.02 mSv/period). It has to be noted that these values are conservative, and expected doses should be lower after remediation of this location.

The calculation of the effective dose for workers exposed to elevated concentrations of Ra-226 in soil is based on the calculation of the absorbed gamma dose rate in air (nGy/h) at 1 m above the ground surface using the conversion factor of 0.462 nGy/h per Bq/kg of Ra-226 [72,73,74,75], assuming complete decay chain equilibrium, including Bi-214 and Pb-214. To calculate the total dose, the calculated dose must be combined with other primordial radionuclides (Th-232 and K-40) and properly integrated. The total dose rates have been found, for most of the area, to be below the conservative screening benchmark of 10 μGy/h, a value predicted to be the no-effect dose rate.

The radionuclide concentrations were compared with the IAEA GSR Part 3 Radiation Protection and Safety of Radiation Sources: International Basic Safety Standards [76], table I.3 of GSR Part 3. These standards ensure that “Levels for clearance of material: activity concentrations of radionuclides of natural origin, do not exceed activity concentration of 10 Bq/g for K-49, and 1 Bq/g for each radionuclide in the uranium decay chain or the thorium decay chain”. Given the above, areas where excessive activity concentrations of specific radionuclides are observed must be avoided as potential areas for urbanization or any other human activity that would cause additional exposure. To ensure the avoidance of additional exposure and additional doses, certain locations must undergo specific remediation. Also, locations with higher activity concentrations cannot be disturbed by any remediation activity, nor can the material be excavated and transported from the location.

Data in Table 3, Table 4 and Table 5, as well as in Table 2, indicate higher levels of activity concentrations and dose rates related to radionuclides, corresponding to expected values for locations containing NORM residues. The values do not point to a serious problem related to human health, but they do indicate that urbanization of this location, which would include certain amounts of excavated and removed materials for the grounding of construction, is not a feasible option. Therefore, the existing plans for the construction of a five-star tourist complex on the wider area of this site must be accompanied by a proper risk assessment study. The maps in Figure 10, Figure 11, Figure 12, Figure 18 and Figure 19 indicate areas of specific concern that should be avoided as the potential zones for urbanization. However, they can still be considered as useful if properly remediated because only the surface of a small depth is affected in all areas of concern, except at dumpsite “D” and partly at location “Bmt”. The concentrations of Rn-222 also suggest that there would be a serious issue if living or enclosed working places were constructed in the “red areas”.

Only specific contaminant maps with data shown in relation to regulatory documents, which define permitted amounts of certain contaminants, must be considered during decision-making related to selecting the exact areas to be remediated and the remediation technology that should be applied. Three cumulative maps (heavy metal contamination, in situ radionuclide distribution and laboratory-determined radionuclide activities) present the contamination at the considered brownfield site, which will assist decision-makers and stakeholders in general. The data presentation will vary depending on the expertise of stakeholders—from general to specific—with all data and visualizations available as needed. The created maps serve to both reduce concern for a brownfield site, which has long been considered “lost” due to pollution by some stakeholders, and show that not the entire location but only certain areas can be urbanized, as considered by other stakeholders.

Given the heterogeneous datasets and limited sampling locations, GIS served not only as a visualization tool but also as the core environment for spatial modeling, statistical preprocessing, and cumulative mapping. Interpolation maps reveal distinct spatial patterns for individual contaminants, highlighting both localized anomalies and broader trends. Certain areas consistently exhibit elevated values across multiple variables, reflecting heterogeneous distributions of heavy metals and radionuclides.

Cumulative maps effectively summarize the spatial coincidence of mixed contaminants, with heavy metal and radionuclide maps respectively highlighting hotspots and clusters corresponding to site characteristics. Visual comparison of individual maps confirms spatial correspondence between variables with statistically significant correlations, supporting the consistency of numerical correlation analysis and spatial modeling. High-resolution interpolation surfaces allow precise delineation of hotspots and transition zones, providing a detailed framework for environmental interpretation and risk assessment.

Dictated by the regulating authority’s decisions and repurpose plans for this brownfield location, precise remediation techniques, if needed, will be chosen [77]. If urbanization is decided, the problem of constructing buildings or any other facility that needs deep excavation and foundations constructed on coal combustion residuals will raise (from a geotechnical engineering standpoint) the issue of disposing the excavated material. Any removal of combustion residuals from Zone “D” is not reasonable because then the excavated material has to be disposed of in a new special repository at another location, which is considered as the most expensive and most environmentally unsafe solution. No agricultural plans exist so far for the brownfield location in Kaštela Bay; therefore, heavy metal contamination will not represent an issue with regard to the cultivation of vegetation for the pure greening of the location. Anticipated site development will incorporate the erection of structures towards the back of area “D”, inland, and landscaping the greater part of area “D”, introducing textural variety by incorporating multi-stemmed specimens and woody foliage, the promenade, etc., with indigenous plant species, which are the most suitable from an ecological perspective. An alternative solution would be constructing a photovoltaic power station (solar park) since Kaštela Bay has between 2670 h and 2700 h of annual sunshine (according to data from the Croatian Meteorological and Hydrological Service [78]). The idea of using this site partially as a small craft harbor and docking area must be reconsidered or even abandoned, since the construction of infrastructure and supporting facilities would cause significant disturbance and significantly impact the deposited materials at the location.

Due to contemporary policies related to renewable energy, ground-mounted solar installation is a realistic possibility for this location. This would require the construction of a layer of soil material covering most of Zone “D”, as well as the construction of concrete pads and other similar activities. All this work must undergo scrutiny based on a risk assessment study developed specifically for every remediation, repurposing or construction plan. If material in Zone “D” will not be disturbed, some nautical facilities may still possibly exist at the external (toward the sea) border of Zone “D”.

The important issues that must be pointed out are:

• Ensuring the safety of the regulated NORM residue disposal site in Kaštel Gomilica (Zone “A”, in Figure 2), which must not be disturbed and probably will include additional cover, fencing off the area and preventing people from accessing it.
• Reducing existing fear and removing the stigma of a “radioactive location” from this location through scientific research publications, as well as other more adjusted types of communication with stakeholders, especially with the local community.

The first issue is technically feasible, although special scrutiny and attentive engineering activities must be applied. The second issue can take some time, but it can be addressed simultaneously with remediation, landscaping and other selected activities that have to be and can be done at this site. Hence, using the maps of contaminant spatial arrangements, it is possible to plan all the needed activities and select a final reasonable reuse of this ex-industrial site.

5. Conclusions

Remediation of old industrial sites with complex pollution conditions requires multifaceted research to identify which type of contaminant is present in which area and which industrial activity it is associated with. This enables easier decision-making concerning the way to conduct additional research, if needed, and the method and technology to remediate the area. In some cases, e.g., if the “polluter pays” principle is applied, identifying areas with specific contamination will help to resolve financing issues. This is important, especially in the case of locations with long-term legacy contamination from past industrial activities of different types, or the combination of inherited and recent industrial contamination.

The location of the decommissioned factory of plastics and chemical products, Jugovinil, City of Kaštela, Croatia, recently became an important area of interest since it is located right on the seashore and has a high potential for urban development and the establishment of tourist facilities. Except for NORM residues, i.e., coal combustion residuals originated from the power plant constructed for the ex-Jugovinil factory, contamination in this area is related to small shipyards active in the last three decades. The last, but certainly not least, issue related to this site represents the regulated NORM residue repository (Zone “A”) bordering this area. To determine contaminated zones, types and concentrations of contaminants, extensive research was conducted, and the results are presented in contamination maps.

Current and planned further research on this location include: screening topographic features of terrain and monitoring vegetation using a drone, in situ extensive measurements of Rn-222 concentration in soil gas, additional surface and borehole sampling, geotechnical investigations of materials and the development of a 3D model of Zone D—the coal ash and slag precipitate dump site (Figure 2). This research and investigative work are necessary to properly plan the remediation of the site.

Zones with elevated concentrations of radionuclides are not to be disturbed, and remediation techniques that can be applied can only include leveling the terrain without relocating materials, applying a covering layer of inert soil material from the area where the site is located (thickness and composition of the material to be defined after further research), etc. Covering material must provide efficient protection from the population (workers, tourists…) related to the absorbed dose rate, as well as a base for specific remediation (greening or construction of solar panels, for example). The current research results indicate that certain areas with higher concentrations of radionuclide activities in the coal ash and slag deposited at Zone “D” specifically are not suitable for the construction of buildings for accommodation or work, mainly due to potential radon exhalation into buildings and the resulting exposure. Specific areas where the construction of buildings, infrastructure and supporting facilities are not recommended are identified on maps showing the distribution of radionuclides (mainly Ra-226 and Rn-222) at the location. The maps also show which areas are not to be disturbed (regulated NORM repository, Zone “A”) and which areas are to be covered with topsoil, thus remediating them by landscaping and planting grass, bushy plants and small trees, regarding the possible length of roots and the depth/thickness of cover material, at Zone “D”. The probable part of the site repurposed by constructing a solar park also implies partly covering those areas with soil rather than simply leveling, and thus disturbing, the contaminated material.

This study demonstrates the effectiveness of integrating GIS and geostatistical methods for the spatial assessment of complex environmental datasets needed for the remediation of brownfield sites. Standardized interpolation and cumulative mapping enabled the comparison of heavy metals and radionuclides, highlighting hotspots and areas of overlapping contamination. Correlation analysis and spatial patterns were consistent, revealing co-occurrence and divergence not evident from numerical data alone. Integrating physical, ecological, and radiological information provides a comprehensive understanding of contaminant dynamics, potential ecological impacts, and radiological exposure. The multi-map approach offers both detailed local analysis and an overall assessment of cumulative environmental pressure, supporting informed decision-making and site management.

Since this study specifically considers the occurrence of heavy metals and NORM residues, in addition to its geographical position and probable future repurposing, it should be questioned whether the methodological framework used in this study can be used for the assessment of other brownfield sites. Brownfield sites usually include abandoned urban areas, landfills and disposal sites, areas contaminated during the transport of hazardous materials, abandoned military sites, former industrial zones, mines, oilfields, and mineral processing sites; most of these locations or areas can be surveyed using the methodological framework presented in this paper. Although the types and properties of contaminants can vary, if potential contaminants are properly identified and a survey of the location is carried out accordingly, the integration of GIS and geostatistical methods can be used to identify areas with specific conditions, areas with increased pollutant loads and/or “multiple stressors” can be singled out, and potential correlations between the concentrations of different contaminants can be observed. Maps, such as those presented in this paper, can help decision-makers define management of brownfield sites, decide on remediation methods, etc., bearing in mind that in order to solve problems in some locations, one should also have a three-dimensional distribution of contaminants.
