Article

Spatio-Temporal Shoreline Changes and AI-Based Predictions for Sustainable Management of the Damietta–Port Said Coast, Nile Delta, Egypt

by
Hesham M. El-Asmar
*,
Mahmoud Sh. Felfla
and
Amal A. Mokhtar
Geology Department, Faculty of Science, Damietta University, New Damietta City 34517, Damietta, Egypt
*
Author to whom correspondence should be addressed.
Sustainability 2026, 18(3), 1557; https://doi.org/10.3390/su18031557
Submission received: 6 December 2025 / Revised: 16 January 2026 / Accepted: 30 January 2026 / Published: 3 February 2026
Browse Figures
Versions Notes

Abstract

The Damietta–Port Said coast, Nile Delta, has experienced extreme morphological change over the past four decades due to sediment reduction due to Aswan High Dam and continued anthropogenic pressures. Using multi-temporal Landsat (1985–2025) and high-resolution RapidEye and PlanetScope imagery with 50 m-spaced transects, the study documents major shoreline shifts: the Damietta sand spit retreated by >1 km at its proximal apex while its distal tip advanced by ≈3.1 km southeastward under persistent longshore drift. Sectoral analyses reveal typical structure-induced patterns of updrift accretion (+180 to +210 m) and downdrift erosion (−50 to −330 m). To improve predictive capability beyond linear DSAS extrapolation, Nonlinear Autoregressive Exogenous (NARX) and Bidirectional Long Short-Term Memory (BiLSTM) neural networks were applied to forecast the 2050 shoreline. BiLSTM demonstrated superior stability, capturing nonlinear sediment transport patterns where NARX produced unstable over-predictions. Furthermore, coupled wave–flow modeling validates a sustainable management strategy employing successive short groins (45–50 m length, 150 m spacing). Simulations indicate that this configuration reduces longshore current velocities by 40–60% and suppresses rip-current eddies, offering a sediment-compatible alternative to conventional breakwaters and seawalls. This integrated remote sensing, hydrodynamic, and AI-based framework provides a robust scientific basis for adaptive, sediment-compatible shoreline management, supporting the long-term resilience of one of Egypt’s most vulnerable deltaic coasts under accelerating climatic and anthropogenic pressures.

1. Introduction

Coastal deltas are among the most dynamic and vulnerable geomorphic systems on the planet, shaped by the interplay of fluvial sediment delivery, wave climate, and sea-level variability [1,2]. The Nile Delta, one of the world’s archetypal wave-dominated deltas, has experienced profound and rapid transformation since the mid-20th century, largely driven by extensive human intervention [3,4]. The construction of the Aswan High Dam (AHD) in 1964 effectively halted the annual sediment flux that once nourished the delta, reducing the pre-dam load of ≈124 × 106 tons/yr to less than 5 × 106 tons/yr [5,6]. This sediment deficit triggered persistent shoreline retreat along the delta’s three promontories, Rosetta, Burullus and Damietta, where erosion rates commonly exceeded 50 m/yr in unprotected sectors, contributing to at least 1800 ha of cumulative land loss between 1964 and 2020 [7,8,9].

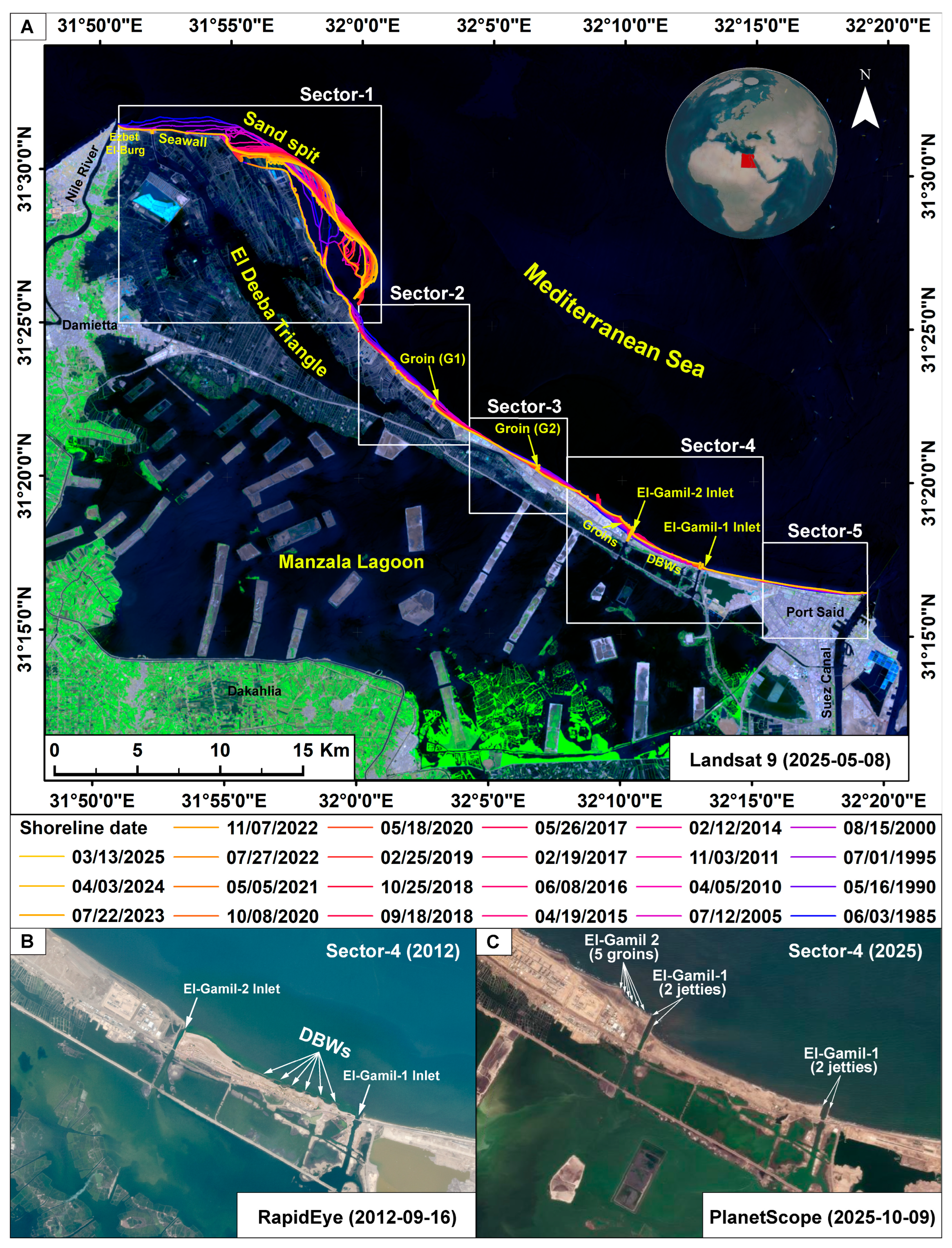

The current study focuses on a 60 km stretch of the northeastern Nile Delta coastline, extending from the western bank of the Damietta Nile branch (31°31′24.9″ N, 31°50′46.3″ E) to Port Said at the entrance to the Suez Canal (31°16′25.0″ N, 32°19′16.6″ E), including the Damietta Promontory and the highly active Damietta sand spit, recognized as one of the most morphodynamically responsive coastal features in the Mediterranean [10,11,12] (Figure 1A).
The spit, a prominent recurved barrier up to 12 km in length, has migrated southeastward at rates of 70–100 m/yr since the 1970s, driven by persistent northwesterly wave action and the near-complete cessation of fluvial sediment supply [13,14] (Figure 1A).
This narrow coastal margin, locally under 700 m wide, serves as the first line of defense for Lake Manzala, Egypt’s largest coastal lagoon. Low-lying zones in the Nile Delta are highly vulnerable to sea-level rise: remote-sensing studies estimate substantial portions of the delta lie below 1–2 m elevation and could be inundated under modest SLR scenarios [4,6,15]. Vulnerability assessments for nearby sectors project significant land loss, saltwater intrusion, and erosion under future sea-level rise [4,8,12,16]. Additionally, modeling of groundwater dynamics in the Nile Delta coast suggests that SLR will exacerbate subsidence and raise the water table [16]. Given that large expanses of the delta lie within just a few meters of current sea level [17,18], preserving this narrow barrier is critical not only for current protection but also as a climate-adaptive buffer against the risks of coastal inundation, back-flooding, or lagoon conversion to open sea.
To counteract severe post-AHD shoreline retreat, a wide array of coastal protection structures has been installed along this sector since the early 1990s. These include six detached breakwaters between the El-Gamil-1 and El-Gamil-2 inlets (2000–2005) (Figure 1), a 6.5 km seawall located immediately west of the study area completed in 2006 (Figure 1A, Sector-1), two large groins, constructed in 2005 and 2017 (Figure 1A, Sector 2, 3), and multiple smaller groins and jetties (2013–2017) [12,19,20,21]. While these interventions have stabilized select shoreline sectors and protected critical infrastructure, they have also interrupted alongshore sediment transport pathways, intensified downdrift erosion, and altered the natural evolution of the Damietta spit system and the El-Gamil inlets [21,22,23].
The main objective of this study is to conduct a comprehensive multi-decadal (1985–2025) assessment of shoreline dynamics along this rapidly urbanizing and morphologically sensitive sector, using high-resolution satellite datasets, the Digital Shoreline Analysis System (DSAS), and machine-learning predictive modeling, specifically Nonlinear Autoregressive with Exogenous Inputs (NARX) and Bidirectional Long Short-Term Memory (BiLSTM) models. By quantifying historical shoreline behavior, evaluating the geomorphic impacts of engineering structures, and forecasting shoreline positions through 2050, this work aims to establish a robust scientific foundation for adaptive coastal management in sediment-starved, inlet-dominated deltaic environments. Comparable challenges have been documented at the São Francisco River mouth in Brazil [24,25,26] and the Robinson River mouth in Western Australia [27,28].

2. Dataset and Methods

2.1. Remotely Sensed Data

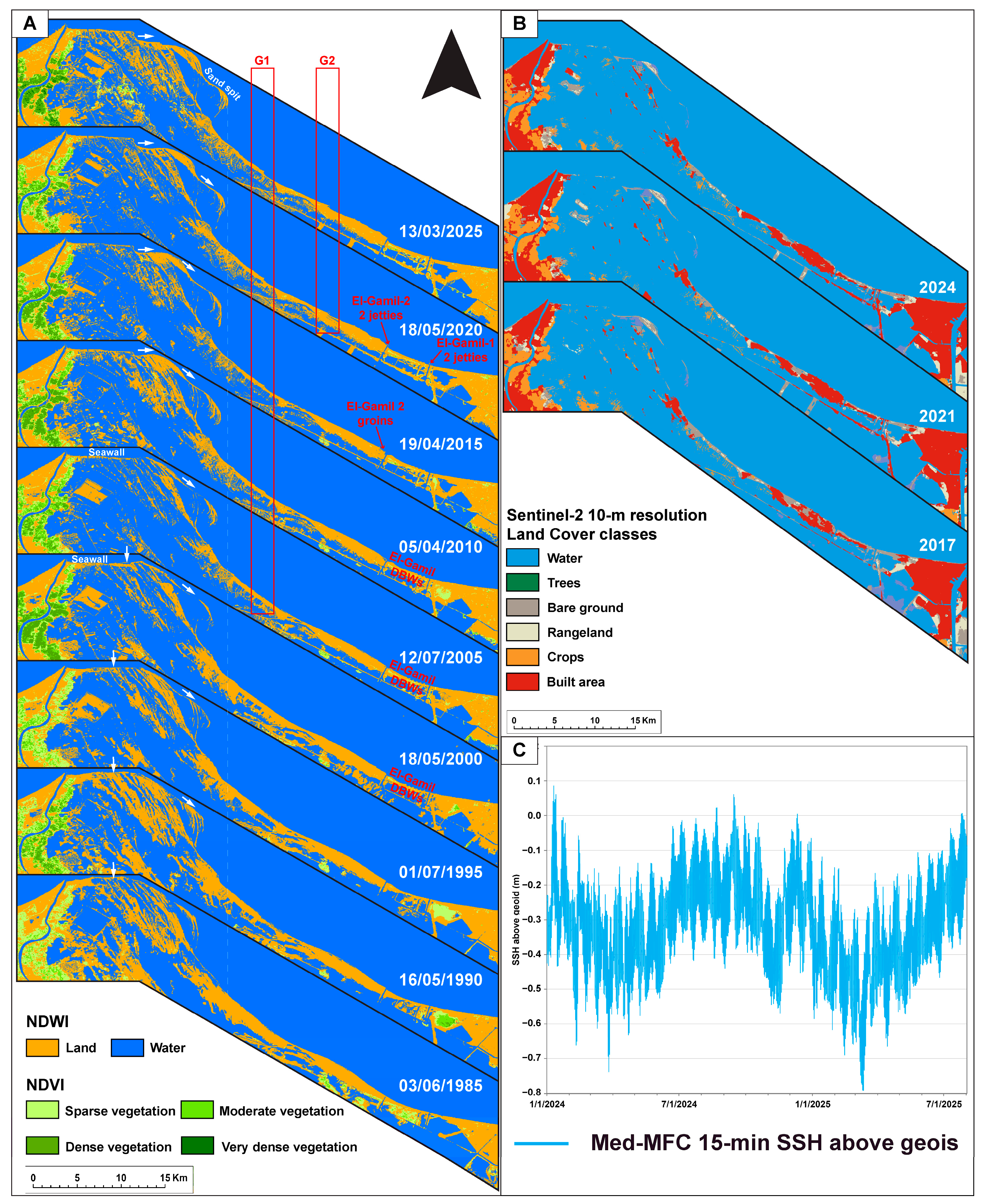

A multi-resolution satellite archive was employed to extract, refine, and validate shoreline positions over the 40-year study period. Landsat-5 TM and Landsat-8 OLI imagery (30 m/pixel) acquired between 1985 and 2025 [29,30] served as the primary source for historical shoreline delineation (Figure 1A, Table 1). To discriminate land–water boundaries, the Normalized Difference Water Index (NDWI) was applied following [31], while the Normalized Difference Vegetation Index (NDVI) was calculated to identify and mask vegetated surfaces using established formulations [32,33,34] (Figure 2A). All Landsat scenes were chosen with cloud cover <5% and preferentially from similar months to reduce tidal and seasonal biases. When optimal dates were unavailable, the best cloud-free images were selected to maintain temporal consistency.
To enhance positional accuracy in recent years, high-resolution PlanetScope imagery (3 m/pixel) and RapidEye data (5 m/pixel) were incorporated for the period 2011–2024 [35] (Figure 1B,C, Table 1). These datasets provided precise visual references for manual shoreline digitization and quality control, ensuring consistent and reliable shoreline extraction throughout the study timeline. Additionally, Sentinel-2 annual Land Use/Land Cover maps (2017–2024) were integrated to highlight recent urban expansion patterns across the study area (Figure 2B).

2.2. Water Surface Elevation

Water surface elevation (WSE) data were obtained from the Copernicus Mediterranean Sea Physics Analysis and Forecast product (Med-MFC) for the period 1 January 2024 to 1 July 2025 at the offshore location 31°31′53.31″ N, 32°10′48.64″ E [36]. The dataset provides sea surface height above geoid (SSH) with a spatial resolution of ≈4 km (1/24°) and hourly temporal resolution. These data were used to derive tidal and non-tidal water level variations (Figure 2C) and to define accurate hydrodynamic boundary conditions for the Coastal Modeling System (CMS) simulation. The Med-MFC product has been extensively validated against coastal tide gauges along the Egyptian Mediterranean coast, exhibiting high correlation (r > 0.91) and low RMSE (<0.08 m) [21,37].

2.3. Climate Data

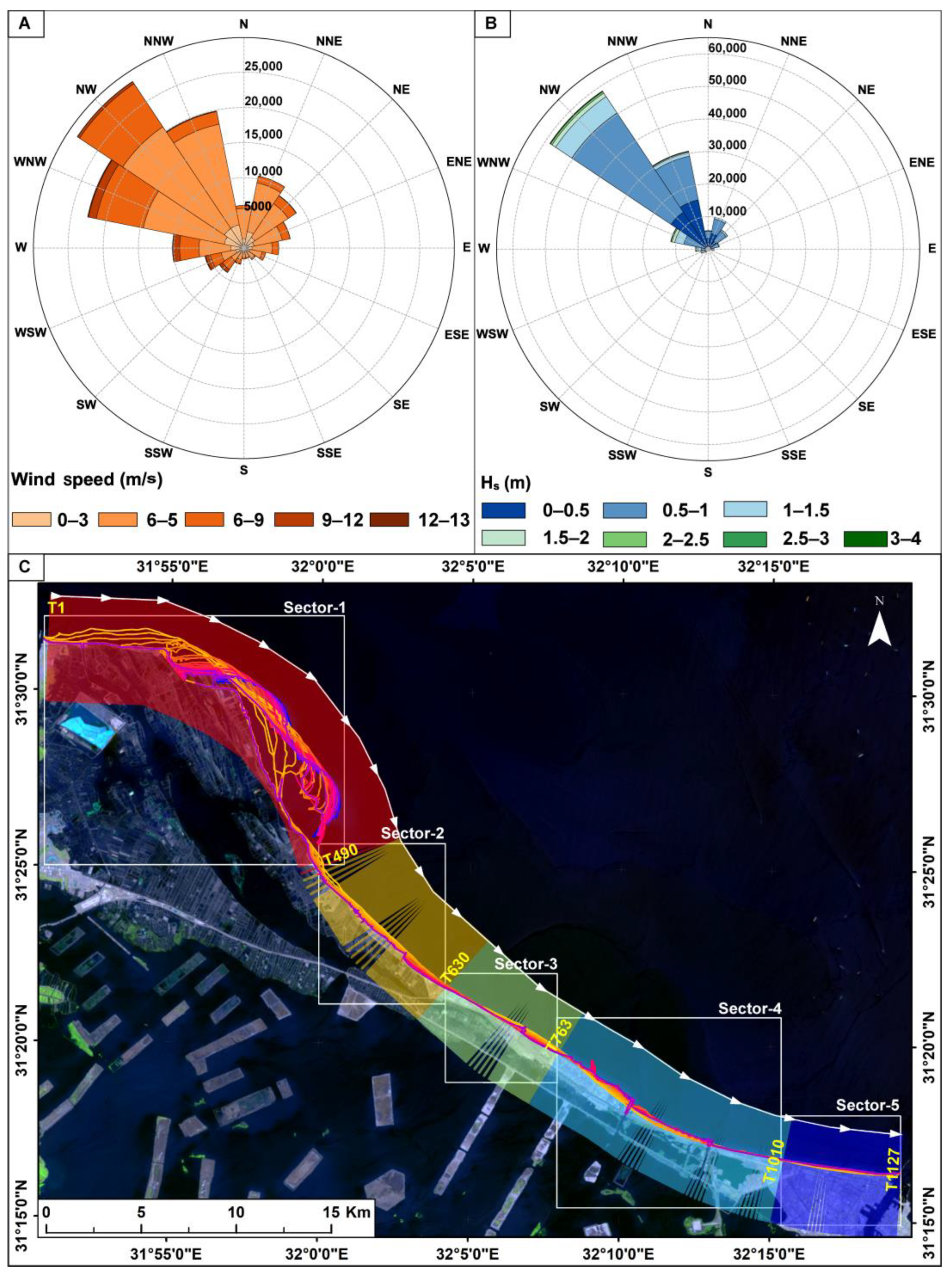

Wind and wave parameters were obtained from the ERA5 reanalysis dataset [38] at the offshore location 31°31′53.31″ N, 32°10′48.64″ E for the period 1975–2024 with a 3 h temporal resolution. The extracted variables, including wind speed, wind direction, significant wave height (Hs), wave direction, and peak wave period (Tp), were used to generate classified wind-rose and wave-rose diagrams (Figure 3A,B). These diagrams were essential for identifying dominant wind regimes and the primary wave directions that influence nearshore currents and sediment transport along the study area’s coastline. The reliability of the ERA5 dataset was confirmed through comparison with available in situ measurements, ensuring robust environmental characterization [3,7,39,40,41].

2.4. Bathymetry Data

Nearshore bathymetry was sourced from the EMODnet Digital Bathymetry (DTM) 2024 product [42], a high-resolution (≈115 m) multilayer grid for European seas compiled from 22,032 bathymetric surveys, composite DTMs, and satellite-derived depths (Landsat-8 and Sentinel-2). EMODnet Bathymetry is widely regarded as the most comprehensive and quality-controlled bathymetric dataset for the Mediterranean [43,44]. Although high-resolution bathymetry is essential for detailed coastal engineering design, the objective of the present modelling is purely qualitative rather than quantitative due to the limited resolution of the available bathymetric data (EMODnet DTM at ≈115 m, not field-measured high-precision depths). The simulations are intended to evaluate the relative effectiveness of proposed protection configurations and to explore their morphodynamic behavior (e.g., current velocity reduction and eddy suppression patterns), not to generate final quantitative engineering parameters such as precise sediment transport volumes or scour depths. Therefore, the EMODnet DTM provides an adequate baseline for this exploratory assessment, while future implementation-grade designs would require higher-resolution field survey data.

2.5. Methods

2.5.1. Field Work Investigations

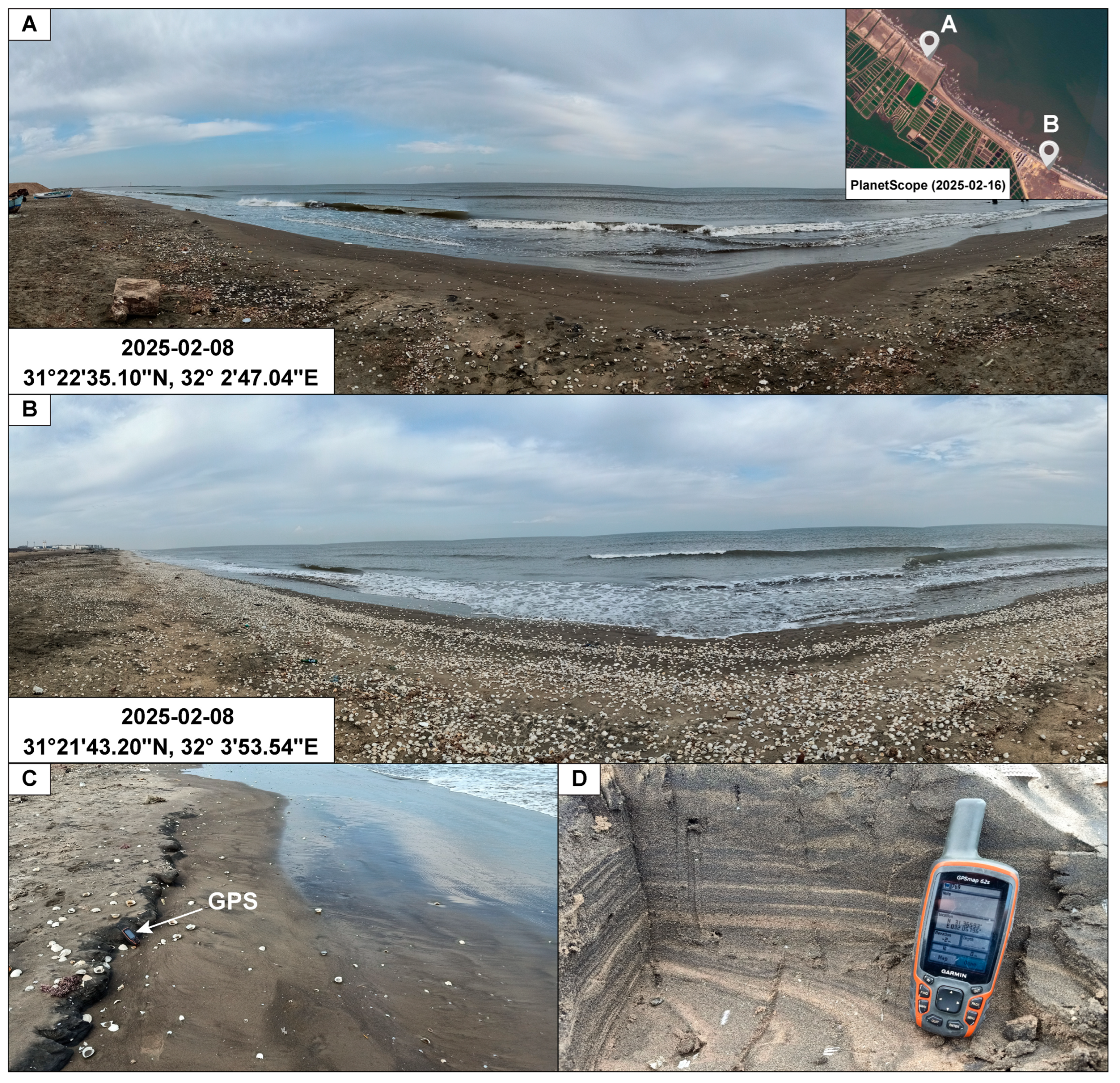

Field investigations were conducted to validate the remotely sensed shoreline positions and ensure the accuracy of the extracted datasets. A Garmin 62 s handheld GPS was used to collect high-precision shoreline points along the study area. The GPS-recorded shoreline traces were then systematically compared with the derived from PlanetScope and Landsat-8 OLI imagery to assess spatial consistency and quantify positional differences. This ground-truth dataset provided an essential benchmark for evaluating the reliability of satellite-based shoreline delineation across the study area (Figure 4).

2.5.2. Digital Shoreline Analysis System

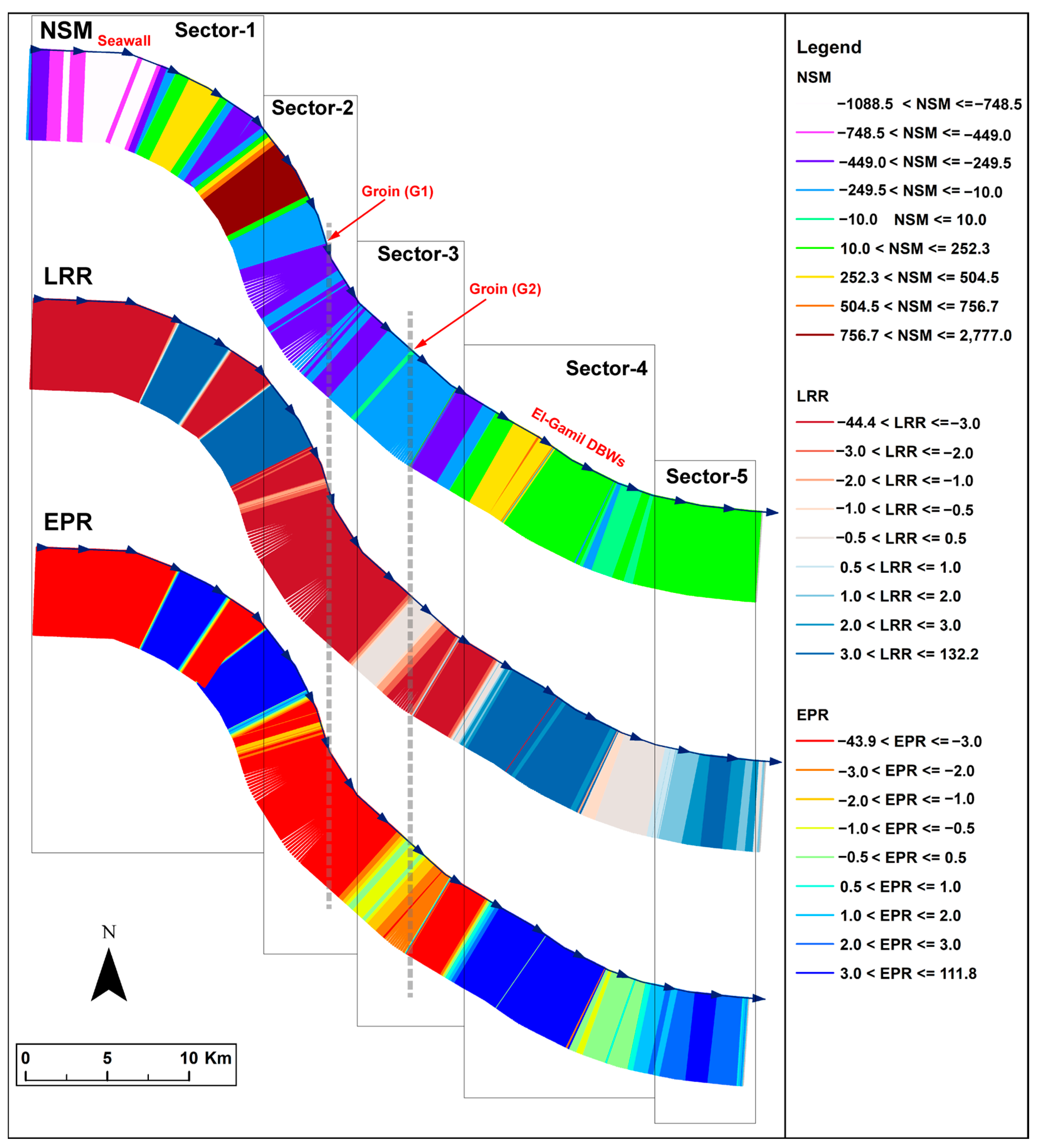

Shoreline change metrics were computed using the Digital Shoreline Analysis System (DSAS v5.1), which automates the quantification of shoreline movement along user-defined transects [45,46]. A baseline was constructed parallel to the main shoreline orientation, and transects were cast at 50 m spacing across the entire study area to ensure consistent sampling density. DSAS was used to calculate three primary indicators of shoreline change: Net Shoreline Movement (NSM), Linear Regression Rate (LRR), and End Point Rate (EPR) [45].
The NSM quantifies the absolute shoreline displacement between the oldest (1985) and most recent (2025) shoreline positions, expressed as:
NSM = L 2025 − L 1985
where NSM is the net shoreline movement (m) along each transect. L2025 is the distance (m) from the baseline to the shoreline position in the year 2025 along a given transect. L1985 is the distance (m) from the baseline to the shoreline position in the year 1985 along the same transect. A positive NSM indicates shoreline seaward advance (accretion), whereas a negative NSM indicates landward retreat (erosion).
The LRR offers a more statistically rigorous estimate by fitting a least-squares regression line through all shoreline intersection points along each transect. The regression equation,
L = b + m x
where L is the shoreline position (m) measured as the distance from the baseline along a given transect. x is time (years), typically represented by the shoreline acquisition date. m is the slope of the regression line (m/yr), representing the shoreline change rate (LRR). b is the y-intercept, representing the estimated shoreline position at x = 0. A positive m indicates long-term shoreline accretion, whereas a negative m indicates shoreline erosion. LRR utilizes all available shoreline observations, reducing sensitivity to short-term variability and providing a stable long-term trend.
The EPR provides a simple yet widely applied measure of shoreline change by dividing the net displacement between the earliest and most recent shoreline positions by the time elapsed. For two shoreline dates and corresponding shoreline–baseline distances, EPR is computed as:
E P R = L 1 − L 2 t 1 − t 2
yielding a shoreline change rate in meters per year. Where EPR is the shoreline change rate (m/yr). L1 is the distance (m) from the baseline to the older shoreline (1985) along a given transect; L2 is the distance (m) from the baseline to the more recent shoreline (2025) along the same transect; t1 is the date (year) of the older shoreline; and t2 is the date (year) of the more recent shoreline [47]. Together, these DSAS-derived metrics provided a comprehensive assessment of spatial and temporal shoreline dynamics along the Damietta–Port Said coast (Figure 5 and Figure 6).

2.5.3. AI-Based Shoreline Forecasting

While classical statistical techniques implemented in DSAS are reliable and widely used for quantifying historical shoreline trends, their ability to forecast future shoreline evolution in highly dynamic coastal environments is limited [45,48]. Several studies and technical assessments have shown that simple rate methods can produce poor predictive accuracy where shoreline behavior is non-stationary, episodic, or strongly affected by localized human interventions [9,21,48,49]. Evaluations that are more recent likewise note that while DSAS is excellent for retrospective trend analysis, its rate-based projections may be inadequate for sites with rapid regime shifts or complex forcing [49,50,51,52,53]. In such settings, traditional approaches tend to extrapolate linear patterns from historical data, yielding unrealistic projections that overlook abrupt shifts or feedback loops [49,50,52].
To address these limitations, advanced AI-based recurrent neural network (RNN) models, NARX and BiLSTM, have been increasingly employed for 2050 shoreline prediction. These models are particularly well suited for time-series forecasting in coastal morphodynamics because they can capture long-term temporal dependencies, nonlinear relationships, and exogenous influences such as engineered structures, sediment supply variations, and SSH historical data [52,54,55,56].
For each DSAS transect, the extracted historical shoreline positions (1985–2025) were first converted into time-series sequences representing shoreline displacement along the transect. Prior to model training, all shoreline position values were normalized to ensure numerical stability and consistent learning behavior. The normalized time series were then transformed into supervised learning datasets using a sliding-window approach, whereby a predefined look-back window was used to construct input–output pairs. In this framework, the model input at each step consists of shoreline positions from the previous number of time steps, while the output corresponds to the shoreline position at the subsequent time step. This approach enables the models to learn temporal dependencies embedded in the multi-decadal shoreline evolution.
The distinction between the two models lies in the structure of their input data. For the BiLSTM model, only the historical shoreline positions were used as predictors. The data were reshaped into a three-dimensional array (samples, time steps, features), where each sample represents a sliding window sequence of shoreline positions along a given transect. This structure is required for LSTM-based architectures, which process sequential data in both forward and backward temporal directions, allowing the model to capture long-term dependencies and nonlinear shoreline behavior.
In contrast, the NARX model incorporates both lagged shoreline positions and exogenous variables representing human interventions. For each transect, a binary indicator was assigned to identify the occurrence of coastal engineering works (0 = no intervention, 1 = intervention). In addition, the normalized NSM associated with the year immediately following each intervention was included as a second exogenous input. This formulation enables the NARX model to explicitly distinguish between natural shoreline evolution and human-induced perturbations. The NARX inputs were structured in a two-dimensional format (samples, features), combining lagged shoreline positions with the exogenous parameters.
Both models were trained independently for each transect using the Adam optimizer and mean squared error (MSE) loss function. A maximum of 300 training epochs was adopted based on preliminary convergence tests, with early stopping applied (patience = 30 epochs) to prevent overfitting [57,58]. Additional regularization measures included dropout (0.3), L2 regularization (0.001), and adaptive learning-rate reduction (ReduceLROnPlateau), with 25% of the data reserved for validation. This standardized training strategy ensures that the predictive performance reflects genuine shoreline dynamics rather than artefacts of model overfitting.

2.5.4. Validation of Predictive Models’ Performance

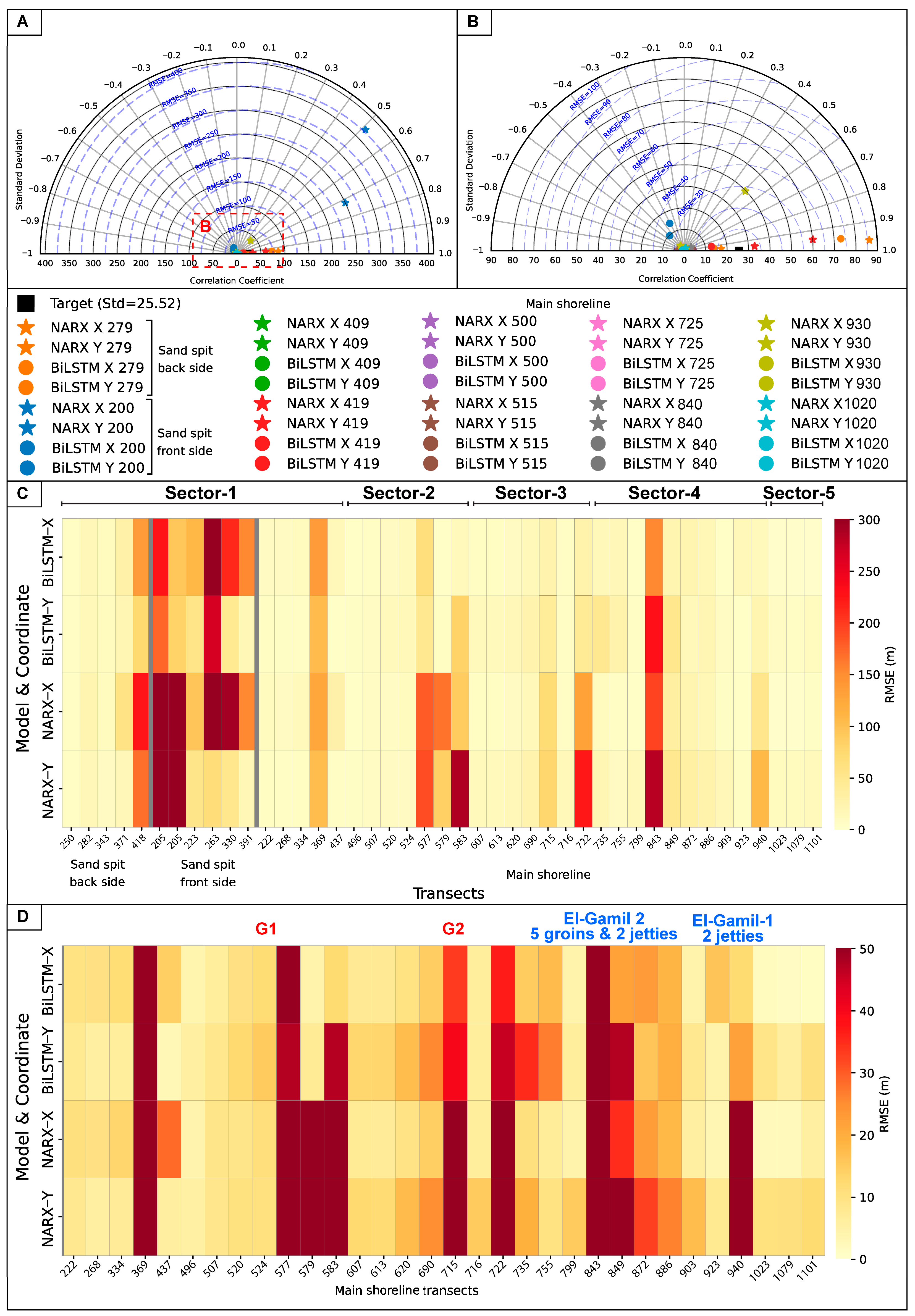

Beyond the quantitative metrics, both models were visually validated against well-established geomorphic patterns repeatedly observed along this coast (Figure 7). These patterns include pronounced accretion in zones immediately updrift of groins and accelerated erosion in downdrift “shadow” areas (Figure 7C,D), consistently documented following each major intervention since the construction of groins G1 and G2. Quantitative evaluation using Taylor diagrams [59] and RMSE heatmaps (Figure 8) further reinforced these visual observations.

2.5.5. Hydrodynamic Modeling

To evaluate wave propagation, longshore sediment transport, and the performance of proposed strategies for coastal management, hydrodynamic simulations were performed using the CMS, a coupled wave–flow–sediment transport model developed by the U.S. Army Corps of Engineers [60,61], within the Surface-water Modeling System (SMS 13.4). A computational grid covering the surf and nearshore zone was constructed, incorporating the merged bathymetric dataset. CMS-Flow was run on a high-resolution telescoping Cartesian grid (cell size 5–15 m in the nearshore zone forced by Med-MFC WSE and ERA5-derived offshore wave and wind conditions (1975–2024).

3. Results

3.1. Historical Spatio-Temporal Shoreline Changes

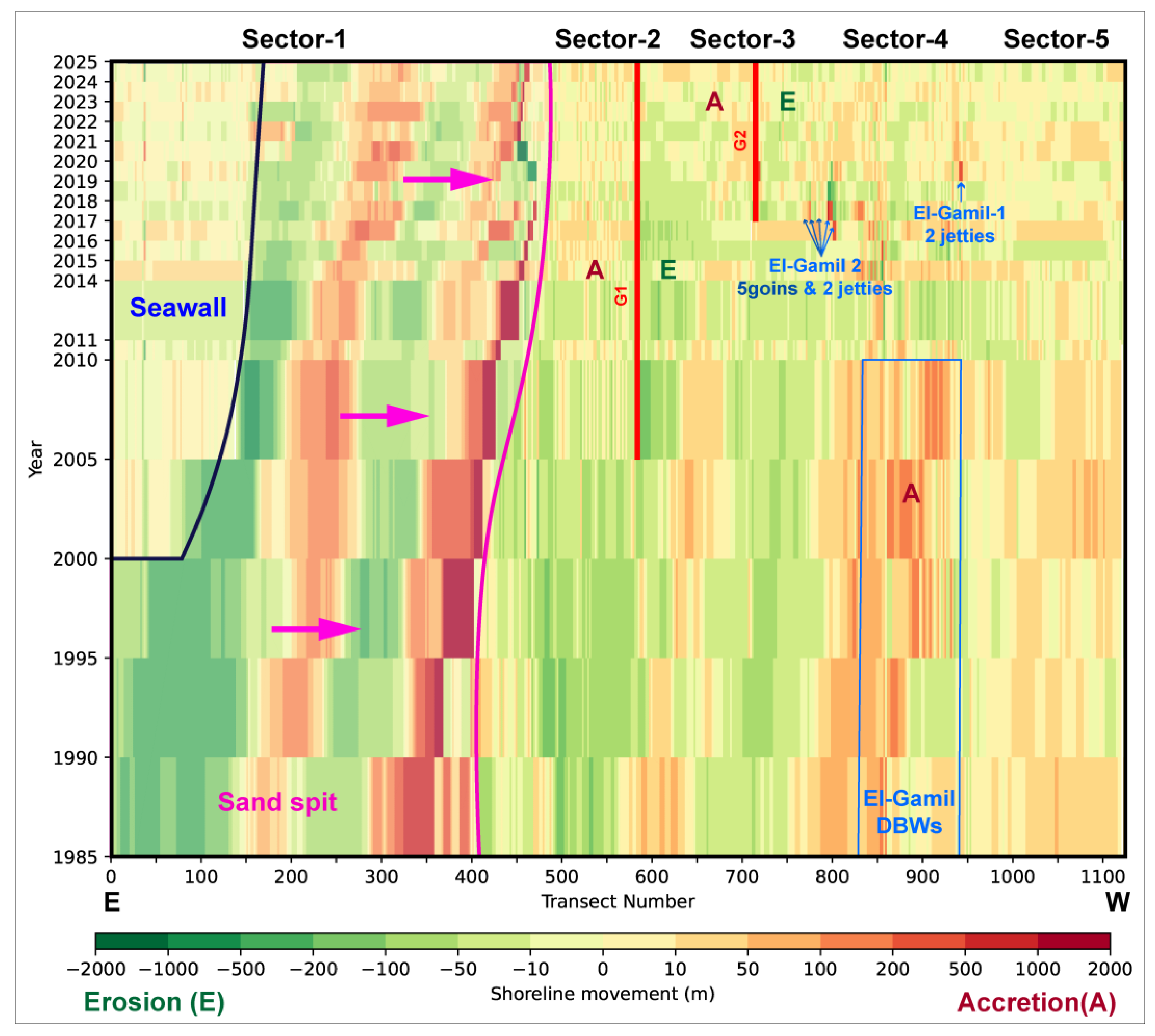

A general west-to-east sediment transport trend dominates the entire coastline, consistent with the prevailing wave climate, coastal currents, and wind regime (Figure 2A and Figure 3A,B). These conditions generate strong eastward longshore drift, in agreement with previous findings for the Nile Delta coast [6,12]. Accordingly, the shoreline is subdivided into five sectors, each characterized by distinct engineering interventions and corresponding morphodynamic responses (Figure 1A, Figure 5 and Figure 6).
The sector boundaries were defined qualitatively based on predominant engineering interventions, major structural transitions, and observed morphodynamic responses to aid interpretation; all quantitative analyses (DSAS metrics and AI forecasting) were conducted continuously across the full 60 km coastline without segmentation.
Sector-1 (Damietta Promontory and Sand spit) encompasses the highly dynamic Damietta sand spit, a recurved barrier extending ≈12 km southeastward from the eastern bank of the Damietta River branch (Figure 1A and Figure 2A). DSAS results indicate that the spit head underwent extreme shoreline retreat with local NSM exceeding −1 km of landward erosion between 1985 and 2025 (Figure 1A, Figure 2A, Figure 5 and Figure 6). Over the same interval, the distal southeastern tip of the spit migrated seaward and southeastward by ≈3100 m, reflecting its rapid and continuous positional shift (Figure 1A, Figure 2A and Figure 6). Between 2000 and 2006, a 6.5 km seawall was constructed along the proximal, urbanized section of the spit to protect the shoreline of Ezbet El-Burg (Figure 1A, Figure 2 and Figure 6).
Sector-2 occupies the immediate downdrift shadow of the Damietta sand spit and is strongly influenced by its hydrodynamic sheltering effect. In 2005, Groin (G1), a 430 m-long groin, was constructed to secure a water passage supplying nearby aquaculture facilities (Figure 1A, Figure 2A and Figure 4). Following its installation, DSAS analyses show pronounced sediment accretion on the updrift side of the groin, accompanied by persistent shoreline retreat downdrift, with NSM between 2005 and 2025 ranging from −250 to −330 m and LRR from −14 to −16 m/yr (Figure 1A, Figure 2A, Figure 4, Figure 5 and Figure 6).
Sector-3 encompasses critical industrial and service facilities along the shoreline, including the Petrojet Pipe-Coating Plant, the Pharaonic Petroleum Company (PHPC) administrative complex for the Zohr gas field, and the United Gas Derivatives Company (UGDC). In 2017, Groin (G2) was constructed at the entrance of a waterway supplying the aquaculture ponds and was subsequently adapted to function as a small-boat harbor (Figure 1). DSAS analyses indicate pronounced sediment accumulation on the updrift side of G2 between 2017 and 2025 (NSM: +180 to +210 m; LRR: +22.5 to +26.25 m/yr) and persistent shoreline retreat downdrift (NSM: −60 m; LRR: −7.5 m/yr), mirroring the sediment-trapping patterns observed in Sector-2.
Sector-4 (El-Gamil Inlets sector) is the most heavily engineered segment of the entire coastline and contains the highest density of coastal structures. It encompasses El-Gamil-1 and El-Gamil-2, the two principal inlets that provide seawater exchange between Lake Manzala and the Mediterranean Sea. In 1986, six detached breakwaters (DBWs) were constructed offshore. Their length, gap width, and distance from the shore were such that they rapidly induced complete tombolo formation, transforming the originally detached structures into features now fully connected to the mainland (Figure 1B,C). DSAS analyses indicate NSM of +150–+210 m and LRR of +3.5 to +6.8 m/yr (Figure 5 and Figure 6). Beginning in 2017, multiple short groins (≈60 m) were installed along the sector primarily to protect existing shoreline infrastructure, with stabilization, rather than deliberate progradation, being the explicit design objective (Figure 1, Figure 2 and Figure 6). To eliminate recurrent siltation of El-Gamil Inlet 2, a defense system comprising five groins (125–225 m, spaced ≈180 m) and two jetties was constructed immediately at the inlet. Similarly, in 2020, two jetties were constructed at El-Gamil Inlet 1. These structures interrupted the dominant west-to-east longshore sediment transport, generating intense accretion on their updrift (western) sides while completely blocking sediment bypass toward the inlets. As a direct consequence, severe and uninterrupted erosion has persisted along the downdrift (eastern) flanks of both inlets through 2025, as clearly documented by DSAS transect statistics and shoreline position analysis (Figure 1B,C, Figure 2, Figure 5 and Figure 6).
Sector-5 has exhibited the highest shoreline stability along the study area over the last decade (2015–2025). Coastal protection works were mainly designed to safeguard the Damietta–Port Said international coastal highway and adjacent tourist resorts. The main structure is a 3.3 km revetment-seawall, constructed immediately landward of the backbeach and running parallel to the highway (31°17′05.8″ N, 32°13′28.2″ E to 31°16′47.7″ N, 32°15′15.8″ E), effectively preventing wave overtopping and roadway inundation. Fourteen short groins (45–50 m long, spaced ≈170 m) were installed perpendicular to the shoreline to retain beach width for recreational use and protect resort infrastructure. DSAS analyses indicate near-complete stabilization (2015–2025), with long-term NSM < 160 m and LRR +1 to +3.5 m/yr (Figure 5 and Figure 6).

3.2. AI-Based 2050 Shoreline Position Forecasts

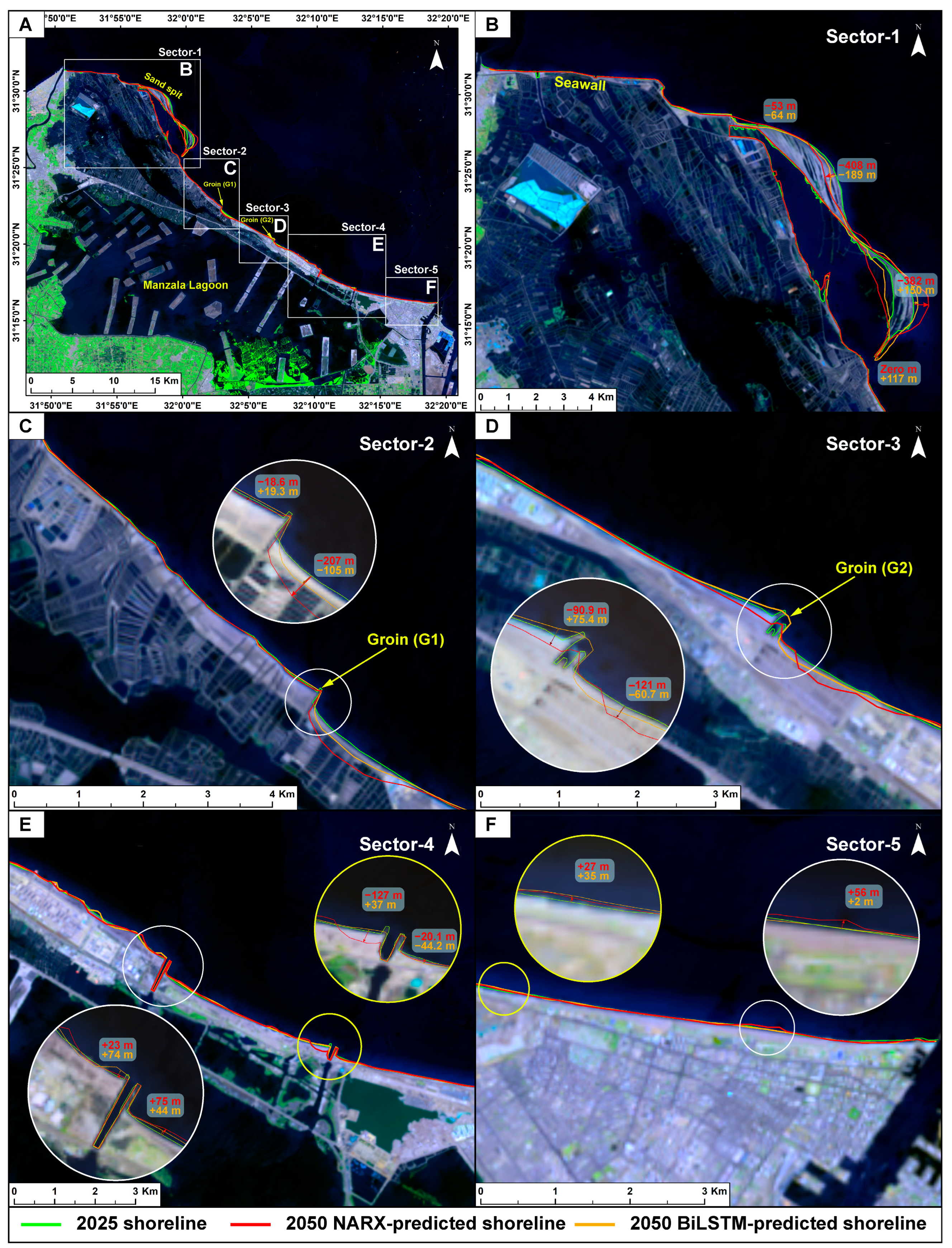

The 2050 shoreline projections were generated using two data-driven predictive models, NARX and BiLSTM, trained under identical conditions and using the same historical, 1985–2025, shoreline dataset. Overall, both models reproduced the general large-scale shoreline configuration of the study area; however, their predictive behaviors showed noticeable differences. While the BiLSTM model generally produced conservative and geologically consistent forecasts, the NARX model occasionally generated anomalous or exaggerated deviations that were not fully aligned with the historical shoreline trajectory or with the established sediment-transport pattern along the coast.
Sector 1: both models consistently predicted complete shoreline stability along the 6.5 km seawall-protected zone, with the 2050 shoreline fully coincident with the 2025 position and no indication of retreat or accretion (Figure 7B). Across the exposed seaward face of the sand spit, the NARX model projected a substantial landward retreat reaching ≈385 m by 2050, relative to the 2025 position. It also forecasted continued eastward migration of the distal spit tip by ≈382 m. In contrast, the BiLSTM model produced more moderate estimates, predicting ≈189 m of retreat along the seaward face and ≈150 m of eastward extension (Figure 7B). At the distal part of the spit, the models diverged: while NARX suggested negligible positional change in the spit’s margin, the BiLSTM model predicted a ≈117 m southeastward shift, indicating continued reorientation of the spit’s curvature through 2050 (Figure 7B). While the NARX model exhibited marked difficulty in forecasting shoreline behavior in this highly dynamic sector, reflected in RMSE values that in some cases exceeded 300 m, particularly in predicting the sand-spit migration, the BiLSTM model demonstrated higher training stability and more reliable predictive performance (Figure 8).
In Sector-2, both models reproduced the pronounced alongshore curvature of the shoreline adjacent to Groin G1 (Figure 7C). The 2050 NARX prediction shows a marked erosion along the downdrift side of the groin, with retreat magnitudes locally reaching −207 m, whereas the BiLSTM model forecasts a more moderate recession of −105 m (Figure 7C). On the updrift side, both models predicted limited positional change relative to 2025, but the NARX model places the 2050 shoreline slightly farther landward (−18 m), whereas the BiLSTM forecasts remarkable accretion (+19.3 m) (Figure 7C). RMSE reaches up to 47 m in this sector (Figure 8).
In Sector-3, near G2 (Figure 7D), both models successfully reproduce the shoreline offset induced by the structure. However, their responses differ markedly on the updrift side. The NARX model predicts updrift erosion, placing the 2050 shoreline NSM of −90.9 m landward relative to 2025, whereas the BiLSTM model forecasts updrift accretion, advancing the shoreline by +75.4 m. On the downdrift side of G2, both models consistently indicate continued erosion. The NARX model shows a maximum retreat of −121 m, while the BiLSTM model estimates a comparatively lower erosion magnitude of −60.7 m (Figure 7D). Despite differences in predicted magnitudes, both models correctly capture the spatial pattern of change characterized by downdrift erosion (Figure 7D). Both predictive models experienced a certain degree of difficulty in learning and forecasting the complex shoreline behavior around G2, particularly due to the sharp morphological gradients imposed by the structure. Nevertheless, the BiLSTM model exhibited slightly higher training stability and more consistent predictive performance compared to the NARX model in this sector (Figure 8).
Sector-4 exhibits the most complex shoreline geometry due to the concentration of groins, detached breakwaters, and jetties (Figure 7E). Across the groins west of El-Gamil-2, the NARX model forecasts minor accretion of up to +23 m, whereas the BiLSTM model predicts a larger accretion of +74 m (Figure 7E). Along the shoreline updrift of the El-Gamil-1 inlet, the NARX model again yields greater retreat (up to –127 m), while the BiLSTM model forecasts shoreline accretion of +37 m (Figure 7E). On the downdrift eastern jetties of El-Gamil-2, both models indicate continued accretion toward 2050, with the NARX model projecting +75 m compared to +44 m from the BiLSTM model (Figure 7E). In contrast, on the downdrift side of the El-Gamil-1 inlet, both models indicate continued retreat through 2050, reaching –20.1 m for the NARX model and –44.2 m for the BiLSTM model (Figure 7E).
Sector-5 remains the most stable portion of the coastline in the forecasts (Figure 7F). Along the section fronted by the 3.3 km revetment, both models maintain the 2050 shoreline effectively superimposed on the 2025 position, with only minimal local displacement (Figure 7F). Across the groin-controlled beach segments, NARX predicts modest seaward protrusions (up to +56 m) relative to 2025, while the BiLSTM model yields smaller forward shifts (Figure 7F). Landward shifts in the downdrift pockets between groins remain limited in both models and do not exceed a few meters (Figure 7F). The two forecasts therefore converge on a state of continued shoreline stability for the sector (Figure 7F).

3.3. Hydrodynamic Model Simulation Results

The coupled wave–flow CMS-Flow simulations confirm the effectiveness of the proposed successive short-groin system (45–50 m length, 150 m spacing) in Sectors 2 and 3 (Figure 9). Compared with the present-day configuration, the new groins markedly disrupt the continuity of the predominant eastward longshore current, reducing longshore current speeds by 40–60% and dissipating wave-driven momentum within the groin field (Figure 9E–H). The closely spaced, low-profile design suppresses strong return-flow eddies (Figure 9E), minimizing localized scour.

4. Discussion

4.1. Legacy of Sediment Starvation and the Aswan High Dam

The construction of the AHD in 1964 abruptly terminated the Nile’s sediment supply to the coast, reducing downstream flux by more than 95% and shifting the delta from a net accretional to a predominantly erosional regime [3,5,6]. Prior to impoundment, the river delivered approximately 20 × 106 m3/yr of sand-sized sediment to nourish the northeastern delta, including the Damietta Promontory and the recurved sand spit that separates Lake Manzala from the Mediterranean [4,8,62,63,64].
DSAS analysis clearly documents the severe consequences: between 1985 and 2025, the proximal portion of the Damietta sand spit experienced more than 1 km of landward retreat, reflecting near-complete cessation of natural beach replenishment (Figure 5 and Figure 6). This deficit was further exacerbated by the 1982 construction of the Damietta Harbor jetties, which intercepted eastward-directed littoral drift, intensifying downdrift sediment starvation, accelerating erosion, and promoting the rapid southeastward migration of the spit’s distal tip [21,64]. Similar post-AHD erosional patterns are evident at the Rosetta and Burullus promontories, underscoring the delta-wide systemic response to sediment deprivation [4,6,8,63,65,66].
The combined effect of post-AHD sediment starvation and subsequent interception by Damietta Harbor structures constitutes the dominant control on the sediment deficit driving spit dynamics; detailed quantitative partitioning of individual contributions was not the focus of this work, given their unidirectional impact on net littoral supply [5,6,19,21,64]. Together, these cascading anthropogenic interventions have left the Damietta–Port Said coast highly vulnerable to continued erosion, potential lagoon isolation, and increased infrastructure risk, highlighting the urgent need for adaptive coastal management and sediment-restoration strategies.

4.2. Morphodynamic Responses to Coastal Engineering Interventions

The five sectors of the Damietta–Port Said coast display the textbook morphodynamic fingerprint of hard-engineering in a sediment-starved, oblique-wave environment: pronounced updrift accretion and intensified downdrift erosion caused by interruption of eastward littoral drift [67]. In sediment-deficient systems such as the post-AHD Nile Delta, even modest protruding structures amplify alongshore imbalances and produce persistent deficits [3,6,11,12,64]
The 6.5 km seawall, at Ezbet El-Burg, successfully stabilized the protected urban shoreline, halting the >1 km retreat recorded between 1985 and 2000 (Figure 1A, Figure 2A, Figure 5 and Figure 6). However, by fixing the shoreline and blocking the natural sediment leakage from the proximal part of the Damietta spit, the structure disrupted alongshore sediment continuity. Under ongoing wave-driven transport, this interception generated accelerated downdrift erosion east of the seawall and sustained southeastward migration of the spit’s distal tip (Figure 1A, Figure 5 and Figure 6). This morphodynamic pattern reflects the classic end-effect of coastal armoring, updrift stabilization coupled with downdrift sediment starvation, widely documented where shore-fixing structures interrupt littoral drift [13,14,68]. Similar end-effects have been reported globally, including pronounced downdrift recession at Kingscliff, New South Wales, Australia [69,70,71], and sustained erosion along the armored coasts of South Bali, Indonesia [72]. The observed response is also consistent with the long-term promontory adjustments across the Nile Delta under cumulative impacts of AHD-induced sediment deficit and local engineering works [7,8].
Sectors-2 and -3 (G1, G2 groins). Groins produced rapid updrift salients (e.g., NSM +180 to +210 m at G2) and deep downdrift embayments (NSM −50 to −70 m) (Figure 3C, Figure 5 and Figure 6). This partitioning reflects classic groin mechanics under oblique wave approach, whereby impermeable protrusions trap sediment on the updrift side and starve the lee side [6,64]. Numerical and field studies confirm groin fields transfer erosional risk downdrift unless paired with bypassing or nourishment [21]. Similar morphodynamic responses have been reported at engineered groin systems worldwide, including at Virginia Beach, USA [73], and the Algarve coast, Portugal [74], reinforcing the universal applicability of groin-induced sediment partitioning.
Sector-4 (El-Gamil inlets and DBWs). Detached breakwaters rapidly evolved into tombolos (NSM +150 to +210 m; LRR +3.5 to +6.8 m/yr), consistent with the tombolo-formation envelope when breakwater geometry and spacing favor shore connection [64,65,75]. Subsequent groin and jetty installations at El-Gamil Inlets 1 and 2 (2017–2020) effectively halted sediment bypassing, intensifying updrift accretion and causing uninterrupted downdrift erosion, a well-documented inlet-jetty starvation effect (Figure 5 and Figure 6) [8].
Sector-5. In this sector, a combination of continuous revetment and closely spaced short groins has achieved relative long-term shoreline stability. Using shorter groins minimizes “shadow” effects while allowing sand redistribution, and when deployed as a groin field, they balance infrastructure protection with minimal system-wide disruption. Similar strategies are supported by field and numerical studies: for instance, a double 15 m permeable groin system achieved net shoreline advance and effective bypassing along the northern Yucatan coast, Gulf of Mexico [76], and multi-groin systems were shown to regulate longshore sediment transport in groin-field configurations [77]. Furthermore, model-based design guidance emphasizes optimizing groin spacing and combining groin fields with shore-parallel structures to reduce downdrift impacts [77], and comparable groin-field engineering has proven effective along the Rosetta Promontory in the Nile Delta [78] and east of Al-Arish Port [79].
Overall, these sectoral responses show that isolated hard defenses in a sediment-starved, high-energy coast redistribute rather than solve erosion risk [67]. Persistent DSAS patterns highlight the need for sediment-compatible strategies, nourishment, engineered bypassing, and adaptive groin design, combined with system-scale planning instead of more impermeable structures.

4.3. Limitations and Comparative Performance of Shoreline Predictive Models

This study provides the first forward-looking predictive model of the Damietta sand spit, a morphodynamically active recurved barrier that has historically migrated southeastward at rates of 70–100 m/yr (Figure 5 and Figure 6). Previous work has been limited to retrospective shoreline reconstructions, which consistently documented the spit’s exceptional variability, its post-AHD retreat exceeding 1 km, and its cyclic reconfiguration under disrupted longshore transport [8,9,11,12,13,14]. As our results reveal (Figure 5 and Figure 6), classical tools such as DSAS remain invaluable for quantifying historical trends but can not generate confident forecasts in highly nonlinear, non-stationary systems where migration rates shift abruptly accumulated engineering impacts [9,49,50]. Methods like LRR and EPR assume sustained, monotonic trajectories; in Damietta, these assumptions produce unrealistic futures (see Figures 8 and 9 in [9]).
To address these limitations, we implemented RNN architectures, NARX and BiLSTM, capable of modelling nonlinear shoreline sequences. NARX networks have been successfully applied in environments dominated by non-stationary behaviors, such as wave forecasting, sediment transport fluctuations, and discharge-driven hydrological variability, owing to their ability to incorporate exogenous forcings [80,81]. However, the Damietta shoreline presents an additional level of complexity: directional reversals in sediment trends (accretion → erosion → accretion), particularly at the sand spit, groin updrift and downdrift zones, and near the El-Gamil inlets. Such bidirectional fluctuations are known to destabilize NARX multi-step forecasting, causing overshooting under rapid sign reversals [82,83]. These issues manifested in our results as exaggerated erosion predictions (e.g., 207 m retreat in Sector-2) and noise-amplified fluctuations (Figure 7 and Figure 8A), consistent with documented NARX sensitivities in variable-transport regimes [83].
In contrast, BiLSTM delivered more stable and geomorphologically coherent forecasts. By processing sequences in both forward and backward temporal directions, BiLSTM preserved contextual dependencies critical to shoreline mobility, reproducing expected patterns such as updrift accretion (Figure 7C,D) and downdrift erosion (Figure 7C,D) around groins. Its predictions remained conservative and aligned with longshore transport basics [84]. RMSE distributions corroborate this advantage: BiLSTM achieved median errors of 1.3–29.41 m across sectors, compared with NARX’s 2.1–52.1 m, with notable improvements in fluctuation-prone downdrift pockets near G1, G2, and El-Gamil inlets jetties (Figure 8). Similar performance gains have been reported in coastal and hydrological time-series modelling, where BiLSTM outperforms NARX by 20–30% under alternating erosion–accretion signals due to its bidirectional gating and reduced sensitivity to noise [85,86].
Overall, while NARX remains highly effective for exogenously forced nonlinear systems, the fluctuated highly dynamic sediment regime of study area, characterized by frequent sign reversals, favors architectures like BiLSTM that can internally resolve bidirectional sequence dependencies. These results highlight the potential for hybrid RNN frameworks to further enhance coastal forecasting in similarly complex deltaic environments.

4.4. Adaptive Strategies for Sustainable Coastal Management

The historical record and predictive forecasts presented here underscore a fundamental challenge for the Damietta–Port Said coast: the near-total loss of fluvial sediment supply following the AHD has transformed a once-prograding deltaic shoreline into a sediment-starved system where any interruption of the residual eastward longshore drift rapidly generates deficits that cannot be naturally replenished [3,6,8]. The Damietta sand spit (Sector-1) historically acted as the primary natural sediment source for the eastern barrier, with its highly dynamic distal tip continuously releasing sand into the littoral system [11,13]. Our results (Figure 5 and Figure 6) demonstrate that protecting the proximal urbanized apex with a seawall, while locally effective, has severed this supply, accelerating downdrift erosion and rendering the entire 60 km barrier increasingly vulnerable.
Rather than continuing to armor isolated segments with seawalls, an approach that merely displaces erosion eastward, a more sustainable strategy is to preserve the Damietta spit as a dynamic, unmanaged sediment reservoir. Allowing natural spit migration and episodic breaching would restore a portion of the lost eastward flux, mimicking pre-AHD conditions and providing a low-cost, self-regulating nourishment mechanism for the downdrift coast [87]. Successful precedents include the unmanaged barrier-spit systems at the Copper River delta, Alaska (60°13′37.2″ N, 145°06′09.1″ W), where natural overwash and spit elongation sustain downdrift beaches despite glacial sediment reduction [87], the dynamic barrier Northern Outer Banks, North Carolina (35°31′27.9″ N, 75°28′13.1″ W), where the elongation of a sand spit built a large coast [87], and the dynamic barrier islands of the Virginia coast, USA (37°23′34.2″ N, 75°51′54.7″ W), where managed retreat and spit preservation have maintained sediment continuity for decades.
Hard structures alone are insufficient for the severely depleted Sectors 2–5. Seawalls and revetments (Sectors 1 and 5) protect infrastructure but reflect wave energy and prevent beach recovery [68], detached breakwaters (Sector 4) induce rapid tombolo formation but are prohibitively expensive for widespread applicability [64,65,75], and traditional long groins, G1 and G2, simply transfer erosion downdrift [20,67]. In contrast, the existing closely spaced short-groin field in Sector 5, the only sector achieving long-term stability, demonstrates that low-profile, successive short groins (≤50 m length, ≈170 m spacing) effectively retain sand while permitting sufficient bypassing to minimize severe downdrift impacts [77,88].

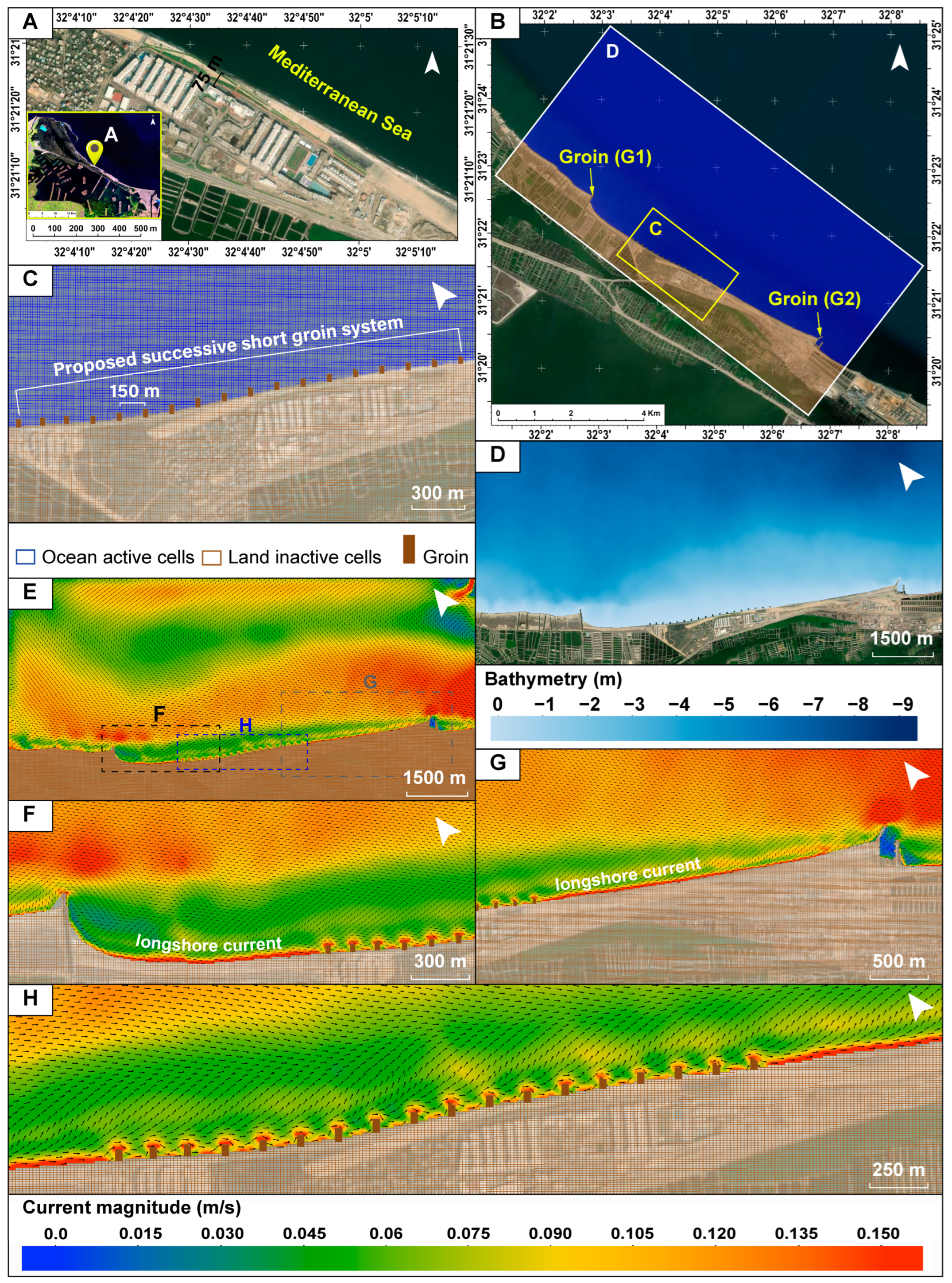

Hydrodynamic modelling (Figure 9) shows that the proposed successive short-groin system (45–50 m length, 150 m spacing) in Sectors 2 and 3 reduces longshore current velocities by 40–60% and suppresses rip-current eddies (Figure 9E–H). This configuration has already demonstrated long-term effectiveness under observed multi-decadal variability, including storms, in Sector 5; while future intensified wave or storm conditions may necessitate refinements (e.g., integration with periodic nourishment), its low-profile design inherently minimizes downdrift impacts compared to traditional hard structures. Once the compartments fill with sediment, the system rapidly transitions to a sediment-laden coast, enabling efficient bypassing of littoral drift to the downdrift side with minimal shadowing or starvation, an outcome precisely observed in Sector 5. Comparable success has been documented on the northern Yucatán coast, Mexico (21°31′15.3″ N, 87°23′09.3″ W), where closely spaced short groins constructed between 2003 and 2009 restored longshore continuity [89,90], and on the Blekusu Coast, Ghana (5°59′25.1″ N, 1°02′11.3″ E), where similar low-profile arrays achieved complete sediment infilling with negligible downdrift impact [91].
Implementation of successive short groins, combined with strategic nourishment using locally sourced sand and preservation of the Damietta spit as a natural feeder, offers a cost-effective, sediment-compatible pathway toward sustainable management. This hybrid approach reconciles immediate protection needs with long-term system resilience, providing a transferable model for other sediment-starved deltaic coasts facing similar anthropogenic pressures.
Beyond methodological advancements, the predicted shoreline trajectories provide actionable insights for sustainable coastal management. By identifying future erosion and accretion hotspots, the results support evidence-based planning of coastal protection measures, optimization of dredging activities, and reduction of socio-economic risks associated with unplanned shoreline retreat.

5. Conclusions

This study presents the first comprehensive, multi-decadal (1985–2025) assessment of shoreline dynamics along the 60 km Damietta–Port Said coastal sector of the Nile Delta, a highly urbanized and morphodynamically sensitive region that serves as a critical natural barrier protecting Lake Manzala and supporting major tourism and industrial infrastructure. DSAS analysis reveals pronounced spatial variability in shoreline behavior, driven by post-AHD sediment starvation and successive hard-engineering interventions. The Damietta sand spit (Sector-1) exhibits the highest dynamism, with more than 1 km of proximal retreat and ≈3100 m southeastward migration of its distal tip, whereas engineered sectors display classic updrift accretion–downdrift erosion patterns, which intensify with each successive structure. Sector-5, stabilized by a revetment and closely spaced short groins, is the only segment to achieve long-term equilibrium, emphasizing the effectiveness of low-impact, sediment-compatible designs.
By integrating multi-temporal satellite observations, DSAS-based shoreline change analysis, hydrodynamic modelling, and advanced AI predictive RNN models (NARX and BiLSTM), this study establishes a robust framework for understanding historical behavior, quantifying anthropogenic impacts, and predicting future coastal trajectories in a sediment-starved deltaic environment. Classical DSAS-based extrapolations were found inadequate for 2050 forecasting in this non-stationary, intervention-dominated system, often generating unrealistic projections that fail to account for abrupt morphodynamic shifts. In contrast, AI-driven RNN successfully captured nonlinear temporal dependencies and structural feedbacks. While NARX occasionally produced exaggerated anomalies in highly fluctuating zones (e.g., sand spit and groin downdrifts), BiLSTM consistently delivered geomorphologically coherent and conservative forecasts, accurately reflecting longshore sediment partitioning trends.
Hydrodynamic CMS-Flow modelling validates the proposed successive short-groin system (45–50 m length, 150 m spacing) as an effective, low-cost measure, reducing longshore current velocities by 40–60% and suppressing rip-current eddies while allowing sufficient sediment bypassing. Combined with preserving the Damietta sand spit as a natural sediment source, this hybrid strategy provides a sustainable pathway to restore littoral continuity and mitigate erosion without the severe downdrift impacts typically associated with traditional long groins or impermeable seawalls.
Overall, these findings underscore the urgent need to shift from reactive hard-engineering toward adaptive, sediment-compatible strategies along sediment-starved deltaic coasts. By integrating high-resolution remote sensing, AI-based predictions, and targeted hydrodynamic interventions, this study provides a transferable framework for balancing immediate coastal protection with long-term resilience, ensuring that the Damietta–Port Said coastline can withstand escalating climate pressures while sustaining its vital ecological, economic, and cultural functions. Accordingly, the integration of remote sensing, shoreline change metrics, and AI-based forecasting offers a transferable framework that supports long-term sustainable coastal planning under increasing anthropogenic and climatic pressures.

Author Contributions

H.M.E.-A. conceptualized and supervised the research, conducted the fieldwork, developed the methodology, and drafted and revised the final manuscript. M.S.F. conducted the fieldwork, performed hydrodynamic modeling and AI-based predictive models contributed to writing the manuscript. A.A.M. conducted the fieldwork, performed remote sensing analyses and drafted the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Academy of Scientific Research and Technology (ASRT) COP-27 grant.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data will be available upon request.

Acknowledgments

This paper is part of the building capacity of the project (Sustainable Development of the Coastal zone between Ras El-Bar and Damietta Harbor in response to sea-level rise and climatic changes). The authors would like to express their sincere gratitude to the Academy of Scientific Research and Technology (ASRT) for funding the project through COP-27.

Conflicts of Interest

The authors declare no conflicts of interest. No personal circumstances or interest that may be perceived as inappropriately influencing the representation or interpretation of reported research results.
