Advancing Sustainability Through an IoT-Driven Smart Waste Management System with Software Engineering Integration

Abstract

Sustainability in software engineering encompasses environmental, human, social, and economic dimensions, each essential for ensuring software’s positive and lasting impact. This paper presents an innovative Internet of Things (IoT)-based Smart Waste Management (SWM) system. The proposed system addresses key limitations in existing solutions, including lack of real-time responsiveness, inefficient routing, inadequate emergency detection, and limited user-centric design. While prior studies have investigated IoT applications in SWM, challenges remain in achieving dynamic, integrated, and scalable systems for sustainable urban development. The proposed solution introduces a holistic architecture that enables real-time monitoring of waste bin levels and fire incidents through Waste Bin Level Monitoring Units (BLMUs) equipped with ultrasonic and flame sensors. Data is transmitted via Wi-Fi to a centralized City Command and Control Center (4C), allowing for automated alerts and dynamic route optimization. A dual-platform software suite supports both administrative and operational workflows: a desktop web application and a role-based Android mobile app developed in Flutter, and integrated with Google Cloud Firestore, enabling centralized data management and efficient resource allocation. We validated the system through a working prototype, demonstrating notable contributions including enhanced emergency responsiveness, optimized waste collection routes, and improved stakeholder engagement. This research contributes to the advancement of sustainable urban infrastructure by offering a scalable, data-driven SWM framework grounded in software engineering principles and aligned with smart city objectives. This paper presents an innovative IoT-based Smart Waste Management (SWM) system that addresses key limitations in existing solutions, including insufficient real-time responsiveness, inefficient routing, inadequate emergency detection, and limited user-centric design.

1. Introduction

Sustainability in software engineering encompasses environmental, human, social, and economic dimensions that are critical to ensuring that software systems make positive contributions to society and the environment. In this context, the concept of a “smart city” has emerged as a transformative approach that leverages real-time data collected from urban infrastructures—such as transportation systems, utilities, and waste management services—to address urban challenges efficiently [1].

The Internet of Things (IoT) is a key enabler of smart city solutions. It enables cost-effective and efficient monitoring through interconnected devices such as sensors, actuators, mobile phones, and embedded systems [2,3]. These technologies facilitate real-time control and management of urban processes, including waste management [4]. As urban populations grow, cities face increasing waste management challenges. Globally, cities produce 2.01 billion tons of solid waste annually, and projections estimate a 70% increase by 2050 [5]. In developing countries, inadequate waste disposal poses significant environmental and health risks.

Effective waste management is a cornerstone of smart city initiatives. Bio-waste generated by human and animal activities, as well as Waste Electrical and Electronic Equipment (WEEE), contributes to pollution, toxic emissions, and radiation [6,7,8]. Addressing these issues requires technological innovations that enhance waste handling processes from generation to recycling.

1.1. Waste Management Phases

According to [9], the waste management lifecycle comprises four key phases:

(1)

Waste Generation and Collection: Waste is generated from households, industries, and commercial activities. A significant portion—approximately 33% of waste—is not managed sustainably [10].

(2)

Waste Acquisition and Transport: Waste is collected and transported to designated facilities, often requiring significant human and logistical resources.

(3)

Waste Segregation: Sorting of waste is essential for effective recycling and reducing environmental impacts.

(4)

Waste Recycling: Converts waste into reusable materials, reducing landfill use and conserving resources.

Despite this structured lifecycle, traditional waste management systems struggle with inefficiencies such as poor tracking of bin status, suboptimal truck routing, and unnecessary collection of partially filled bins. These issues waste resources and increase environmental harm [11].

Smart city technologies, particularly IoT, offer promising solutions to these challenges. IoT integration has shown potential across various domains including healthcare, transportation, energy, smart homes, and governance [12,13], enabling data-driven decision-making, enhanced efficiency, and reduced operational expenses. In waste management, IoT facilitates real-time monitoring using technologies such as ZigBee, Wireless Fidelity (Wi-Fi), LoRa, and Bluetooth, thereby enabling smarter, cleaner, and more sustainable urban environments [11,14]. However, current solutions often lack real-time adaptability, dynamic routing, and adequate emergency responsiveness [15,16]. Overflowing bins, delayed collection, and slow emergency response are common problems.

1.2. Research Goals and Contributions

This study addresses these limitations through a proactive, data-driven IoT-based Smart Waste Management (SWM) system that provides real-time monitoring of bin fill-levels and fire incidents, enabling route optimization and immediate emergency response. The system enhances multiple phases of waste management—collection, acquisition, and transport—while improving sustainability and operational efficiency.

The primary objective is to develop an efficient, scalable, and cost-effective waste management system that aligns with smart city goals and sustainability principles. The proposed system serves as Proof of Concept (PoC) for streamlining waste handling operations and promoting environmental responsibility.

1.3. Research Questions

To guide this investigation, the following research questions are addressed:

• What strategies or techniques are commonly used in SWM systems?
• What types of sensors are typically utilized in the development of SWM systems?
• What technology and networking tools facilitate the creation of SWM systems?

1.4. Objectives

This work introduces a new Smart Waste Management system with a fully integrated multi-platform framework, including a Flutter-based mobile app, desktop management console, and Google Cloud Firestore-based analytics backend. It offers dual-environmental support for indoor and outdoor waste bins, real-time fill-level monitoring, and fire detection within a single Bin Level Monitoring Unit (BLMU). The system is optimized for scalability, incorporates a multi-tiered user role management structure, and encourages community participation through user-friendly interfaces and interactivity.

The specific objectives of the paper are as follows:

• Conduct a comprehensive review of current IoT-based SWM technologies, including both hardware and software aspects, and benchmark the proposed solution against advanced alternatives.
• Develop a novel, scalable system architecture that integrates:

  ○

  Real-time monitoring of bin fill-levels and fire detection using BLMUs;

  ○

  A centralized City Command and Control Center (4C) with automated alerts and optimized collection routing;

  ○

  A dual-platform software solution including a role-based Android mobile app (Flutter-based) and a desktop/web interface connected to Google Cloud Firestore.

• Perform a comparative analysis of system components, including sensors, network topology, microcontrollers, and visualization tools.
• Deliver a working prototype that demonstrates real-time operations in urban scenarios under varied conditions.
• Identify and address real-world implementation constraints such as sensor accuracy, scalability, and data security.
• Contribute to the field by bridging the gap between conceptual research and real-world deployment in sustainable urban infrastructure.

The remainder of this paper is organized as follows: Section 2 provides a comprehensive review of the related literature on IoT applications in Smart Waste Management systems. Section 3 presents the proposed system, explaining its architecture, logic, and operational flow. Section 4 describes the testing setup, procedures, and key results obtained from the prototype evaluation. Section 5 offers a critical discussion and analysis of the system’s performance, strengths, and limitations. Finally, Section 6 concludes the paper and highlights directions for future research.

2. Literature Review

The growing population and rapid development of smart cities pose daily challenges, highlighting the urgent need for improved urban infrastructure, including waste management services [14].

In [1], the authors introduced a centralized monitoring station for tracking the fill-levels of waste bins using a self-powered IoT-based solution. The system includes a Wireless Access Point Unit (WAPU) that receives data from Bin Level Monitoring Units (BLMUs) for further analysis. The study evaluated the BLMUs’ durability, maximum communication range with the WAPU, and overall cost of deployment through three experimental trials. Future enhancements include Global Positioning System (GPS) integration and route optimization capabilities.

Reference [15] introduced that real-time monitoring was shown to improve the efficiency of routine bin collections. The system, developed for the Najran Ministry of Municipal and Rural Affairs in Saudi Arabia, uses Wi-Fi for data transmission and features a Liquid Crystal Display (LCD) to display bin status. The design allows future upgrades such as image recognition to assist in identifying waste types and preventing improper disposal.

Study [16] described the design and implementation of fully automated waste collection systems. Governments and private organizations increasingly adopt IoT, smart sensors, and cloud platforms to expand the types of collected waste. However, tailoring cloud templates to specific operational goals remains challenging. Cost estimations for these services were provided using various pricing models.

Conventional waste management practices, combined with the absence of organized collection systems, have resulted in significant environmental degradation and elevated disposal costs [17]. Regular manual inspection of bins, regardless of fill-levels, is labor-intensive and inefficient. Modern technologies can reduce these burdens and improve system performance [18].

Common methods used in SWM include GPS, IoT, blockchain, computer vision, VANET, and dynamic routing techniques. The integration of IoT has led to significant advances in automation, labor cost reduction, energy efficiency, and time savings. Additionally, IoT-enabled smart bins mitigate the issue of bin overflow and contribute to public health by maintaining cleaner environments.

This section reviews the application of IoT in SWM, emphasizing its role as an integrative platform that combines sensors, processing capabilities, and connectivity to deliver intelligent services [19]. Devices within the IoT ecosystem are uniquely identified and networked via the Internet, facilitating seamless communication and automation. Prior studies have shown that such systems support both wired and wireless communication among sensors, servers, and storage platforms, often eliminating the need for human intervention [20]. IoT improves transparency, operational flexibility, tracking accuracy, and coordination [21].

According to [21], IoT is crucial for enhancing efficiency in SWM, particularly in optimizing collection routes. Their review of IoT-based systems over the past decade identifies research gaps and proposes improvements for reducing fuel consumption and operational costs.

Authors in [22] proposed a solar-powered wireless monitoring unit (SPWMU) for each waste bin. These units detect and transmit fill-level data in real-time, reducing deployment costs by eliminating the need for external PCs or PDAs. The study reported an average solar charge time of 6.26 h.

The system in [23] utilizes a wireless mesh network for data transmission and power efficiency. While successful in outdoor trials, the system lacks support for waste segregation, limiting its overall utility.

Study [24] introduced a self-sustaining IoT system using BLMUs and Waste Analysis Processing Units (WAPUs) to send volume data to a central server for analysis. Its Graphical User Interface (GUI) features dynamic bars representing bin fill-levels. Future enhancements include GPS integration and route optimization.

In [25], Long Range wide-area networking (LoRa WAN) technology was applied in outdoor bin monitoring, using ultrasonic sensors for fill-level detection. The pilot study, conducted on a university campus, acknowledged the need for lower-cost components to improve economic feasibility.

The paper [26] presents an IoT sensor mesh network architecture for smart bin management in urban areas with limited LoRa networks. The system minimizes infrastructure requirements and ensures real-time monitoring, improving waste collection efficiency and resource allocation. Implemented in Tangier, Morocco, the system demonstrated its potential for reliable data-driven decision-making and optimized collection processes, highlighting the feasibility of IoT mesh networks for sustainable waste management.

Study [27] demonstrated that IoT platforms can efficiently manage public and household waste through Public Bin Level Monitoring Units (PBLMUs) and Home Bin Level Monitoring Units (HBLMUs). These devices use Wi-Fi and LoRa for short- and long-range communication, respectively, and display fill-levels with visual indicators.

Wireless Sensor Networks (WSNs), such as the one described in [28], consist of distributed sensor nodes linked to a central sink node for monitoring environmental conditions like pressure, temperature, and noise. In [29], a WSN was used to monitor bin fill-levels using ultrasonic sensors, an MSP430 microcontroller, and a CC2500 radio. The battery-powered sensor nodes had a lifespan of approximately 288 days. Remote monitoring via PC or PDA increased the system’s deployment cost.

In [30], ZigBee was implemented for low-energy, low-cost wireless communication in SWM. A ZigBee coordinator collected bin-level data from sensor nodes and relayed it to a cloud server for route optimization. Sensor nodes were powered by solar and renewable energy sources to extend system longevity.

Study [31] proposed a ZigBee- and Message Queuing Telemetry Transport (MQTT)-based WSN architecture, comprising data collection, processing, and notification components. End nodes detected bin capacity and relayed updates via a ZigBee coordinator to a centralized server.

In [32], Radio Frequency Identification (RFID) technology was integrated with IoT and microcontrollers to monitor bin fill-levels. The Arduino Uno served as the core processor, handling communication and notifications to authorities. The system aimed to improve operational efficiency and reduce waste accumulation.

In [33], a Global System for Mobile Communications (GSM)-based system transmitted bin status updates via SMS using an Arduino Uno, ultrasonic sensor, and a GSM modem, which was activated when fill-levels reached a 10 cm threshold.

Study [34] presented a smart bin system using Arduino Uno, ultrasonic sensors, and RF transmitters. Alerts were sent to garbage trucks via GSM/GPRS. A GLCD displayed bin status locally, and a mobile app provided GPS-based route information and notifications. In [35], a multi-label classification model was developed using deep learning algorithms such as ResNet-50, Xception, and VGG16 to classify domestic garbage images in the TrashNet dataset. The model achieved 88% accuracy, with 84% precision and recall.

Study [36] extended this work within the Indonesian government’s waste initiatives, confirming similar performance using the same models and dataset. Finally, ref. [37] proposed integrating smart waste bins with ICT and vehicle routing algorithms to optimize collection routes. Their system used both single- and multi-depot vehicle routing models to handle recyclable and hazardous waste. Real-time sensor data enabled more efficient transportation planning and minimized environmental impact.

Overall, IoT-based SWM solutions have shown considerable promise in addressing issues related to monitoring, route planning, and real-time responsiveness in smart cities. While improvements are still needed in areas such as cost efficiency, waste categorization, GPS integration, and energy optimization, these technologies represent a significant step towards sustainable urban development.

Table 1. Comparison of Smart Waste Management methods.

Criteria	Studies	Key Findings
Optimization and Cost Efficiency	[15,21,22,37]	Reduced costs and improved fuel efficiency using solar units and optimized routes.
Energy Efficiency	[22,23,30]	Renewable energy sources (e.g., solar, ZigBee) cut operating costs.
Technological Integration	[24,25,32]	Integration of GPS, RFID, and LoRa enhances tracking and real-time management.
Machine Learning Applications	[35,36]	Improved waste classification accuracy through Artificial Intelligence (AI) models and image processing.
Communication Protocols	[27,31,33]	Use of LoRa, ZigBee, MQTT, and GSM supports scalability and real-time updates.

compares various SWM technologies based on key performance criteria, including cost optimization, energy efficiency, and system integration.

Table 1 provides a comparative analysis of recent SWM technologies, highlighting advancements in cost optimization, energy efficiency, and the integration of emerging technologies. The reviewed studies reveal a clear trend towards adopting renewable energy sources, such as solar-powered modules, alongside advanced routing algorithms that improve system performance and reduce fuel consumption. In addition, the integration of machine learning techniques and the adoption of robust communication protocols—such as LoRa, ZigBee, and MQTT—are enabling more scalable, real-time data processing and informed decision-making. Overall, these findings underscore the critical role of IoT-based solutions in addressing the complex and multifaceted challenges of urban waste management.

3. The Proposed System

The conventional waste management process typically involves four stages, as outlined in Section 1. However, these processes often face challenges related to inefficiency and limited responsiveness [38]. To address these issues, this study proposes a comprehensive system that automates the first two stages—waste generation and collection, and waste acquisition and transport—while incorporating a centralized City Command and Control Center (4C) for centralized coordination. The third and fourth phases will be considered in future work, although their geographical integration has already been included in the Android mobile application.

Waste management practices vary across countries and regions depending on regulations, infrastructure, and local requirements. As a result, methodological differences or additional steps may arise when adapting the system to different contexts.

3.1. Architecture of the Proposed System and Its Implementation

The proposed SWM system employs a region-based architectural framework in which the urban area is divided into multiple geographical zones, as illustrated in Figure 1. Each region comprises several Bin Level Monitoring Units (BLMUs), waste collection vehicles, and field workers. Field workers are equipped with Android-based mobile applications that receive task assignments in real-time through Firebase Cloud Messaging (FCM), as dispatched by administrative personnel.

Data generated within each region—including bin status, worker activity, and logistical updates—is transmitted via an ESP8266 Wi-Fi module combined with a GSM module to the centralized City Command and Control Center (4C), where it is stored in Google Firebase. Google Firebase acts as a Backend-as-a-Service (BaaS) platform and provides essential backend functionalities such as real-time data synchronization, user authentication, cloud storage, hosting, and machine learning integration. This infrastructure ensures seamless communication, efficient coordination, and scalable data management, as illustrated in Figure 1.

To ensure robustness, architecture also considers potential latency in Firebase data synchronization. While initial tests confirmed stable real-time updates, scalability under high-concurrency scenarios remains a limitation and requires further evaluation as part of future work.

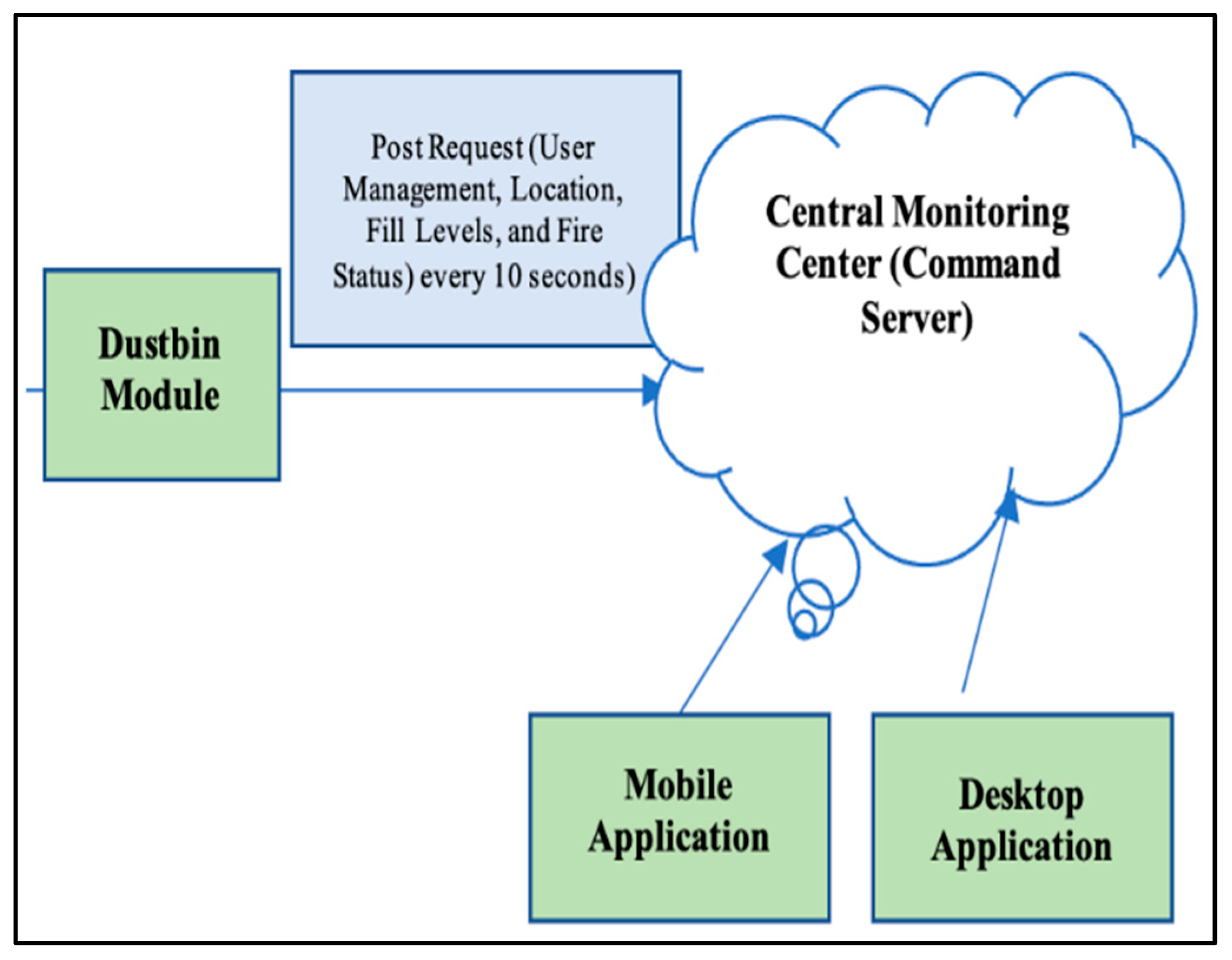

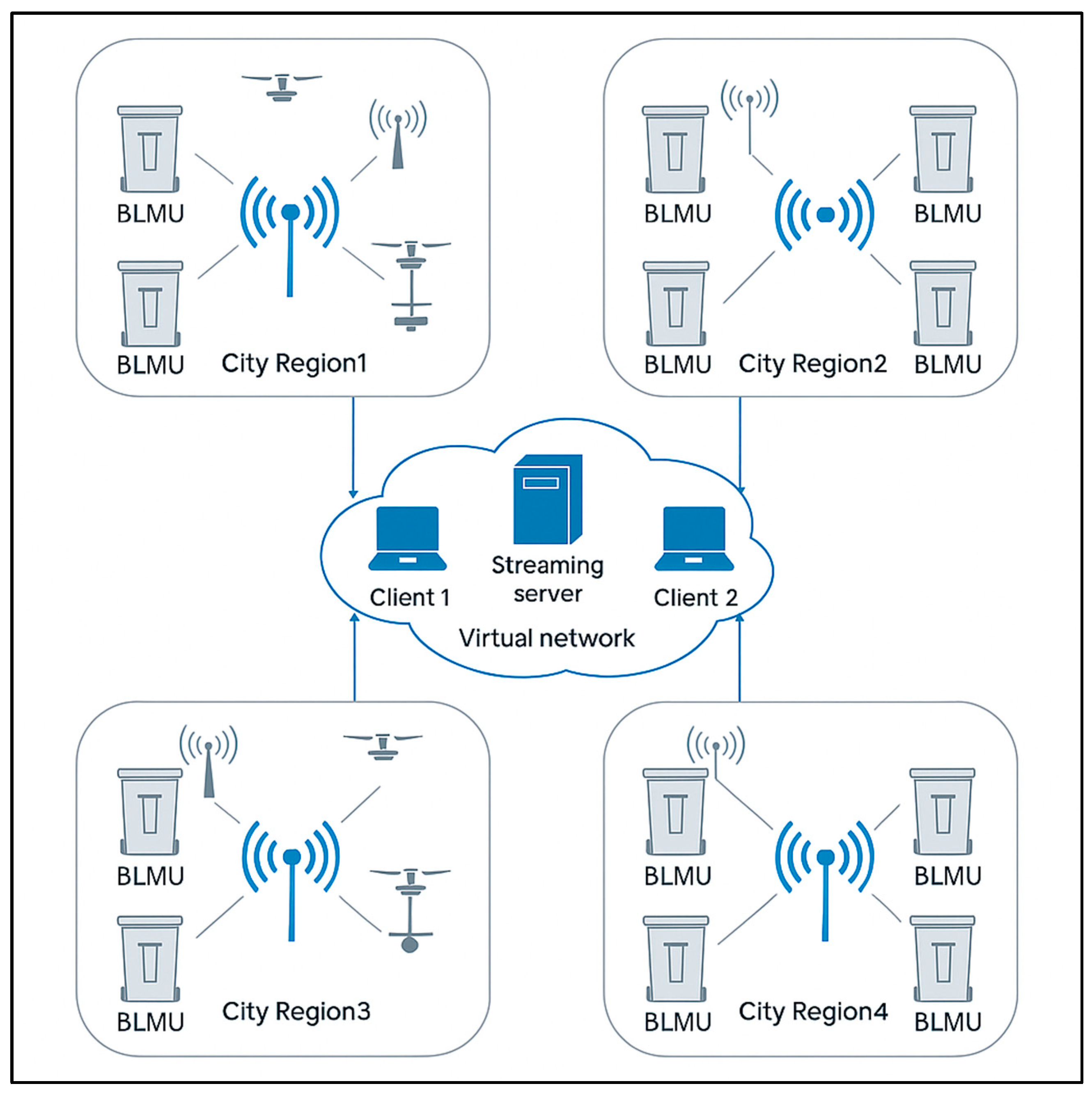

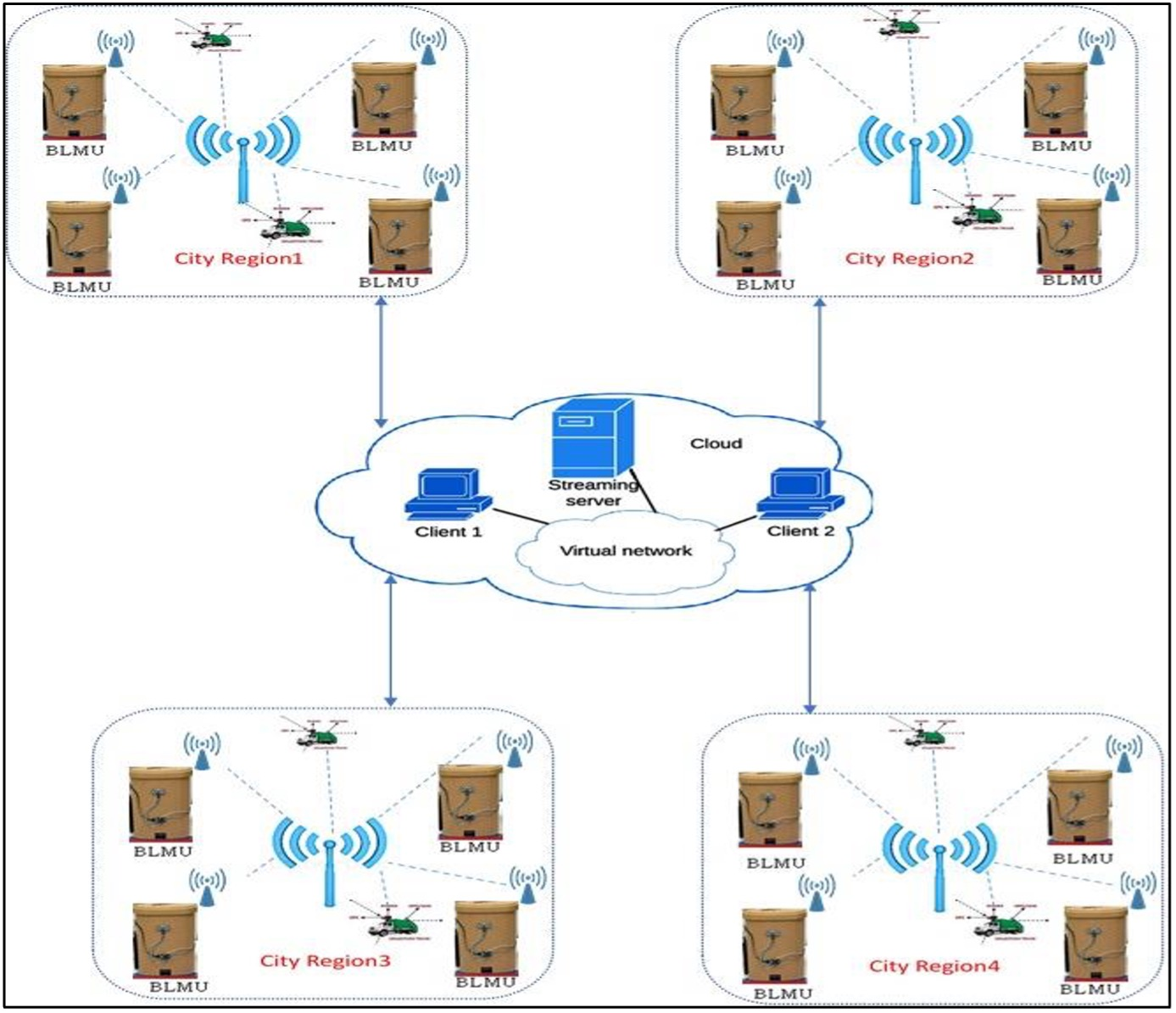

Figure 1 presents the data communication structure for the Smart Waste Management (SWM) system. It illustrates how the Bin Level Monitoring Unit (BLMU) collects operational and environmental data—including waste levels, bin location, and fire status—and transmits this information via periodic POST requests to the City Command and Control Center (Command Server) at regular intervals. The central server then processes and manages the incoming data, making it simultaneously accessible to both the mobile and desktop applications.

This architecture enables real-time monitoring and rapid decision-making for administrators and authorized users, ensuring efficient resource allocation and immediate responsiveness to abnormal events or emergencies. The illustration highlights the seamless data flow from distributed sensing units in the field to central decision-making platforms, thereby supporting both operational tasks and administrative oversight in a unified manner.

The proposed system comprises four key interactive components, as depicted in Figure 2: the city collection regions, the dustbin module, the mobile application, the desktop application, and the City Command and Control Center. The system architecture consists of two layers: the hardware-based data acquisition layer and the software-based data acquisition layer, described as follows.

3.1.1. Hardware-Based Data Acquisition Layer

This layer includes the dustbin module; a hardware unit attached to waste bins for real-time monitoring. This unit, referred to as the Bin Level Monitoring Unit (BLMU), comprises several essential components as follows:

• Bin Level Monitoring Unit (BLMU):

The BLMU integrates sensors to monitor the fill-level of waste bins and to detect fire incidents in real-time. It is designed for compatibility with both indoor and outdoor bins. The layout of the BLMU is illustrated in Figure 3.

The unit consists of multiple components. Ultrasonic sensors are used to measure fill-levels, while an Arduino Uno microcontroller collects and processes sensor data. For wireless communication, the system employs both Wi-Fi and GSM modules, enabling efficient data transmission to the city region. The data is then forwarded to the centralized City Command and Control Center (4C) via the GSM module. Through a live monitoring platform, waste collection workers can plan their collection routes more effectively, prioritizing locations with full bins.

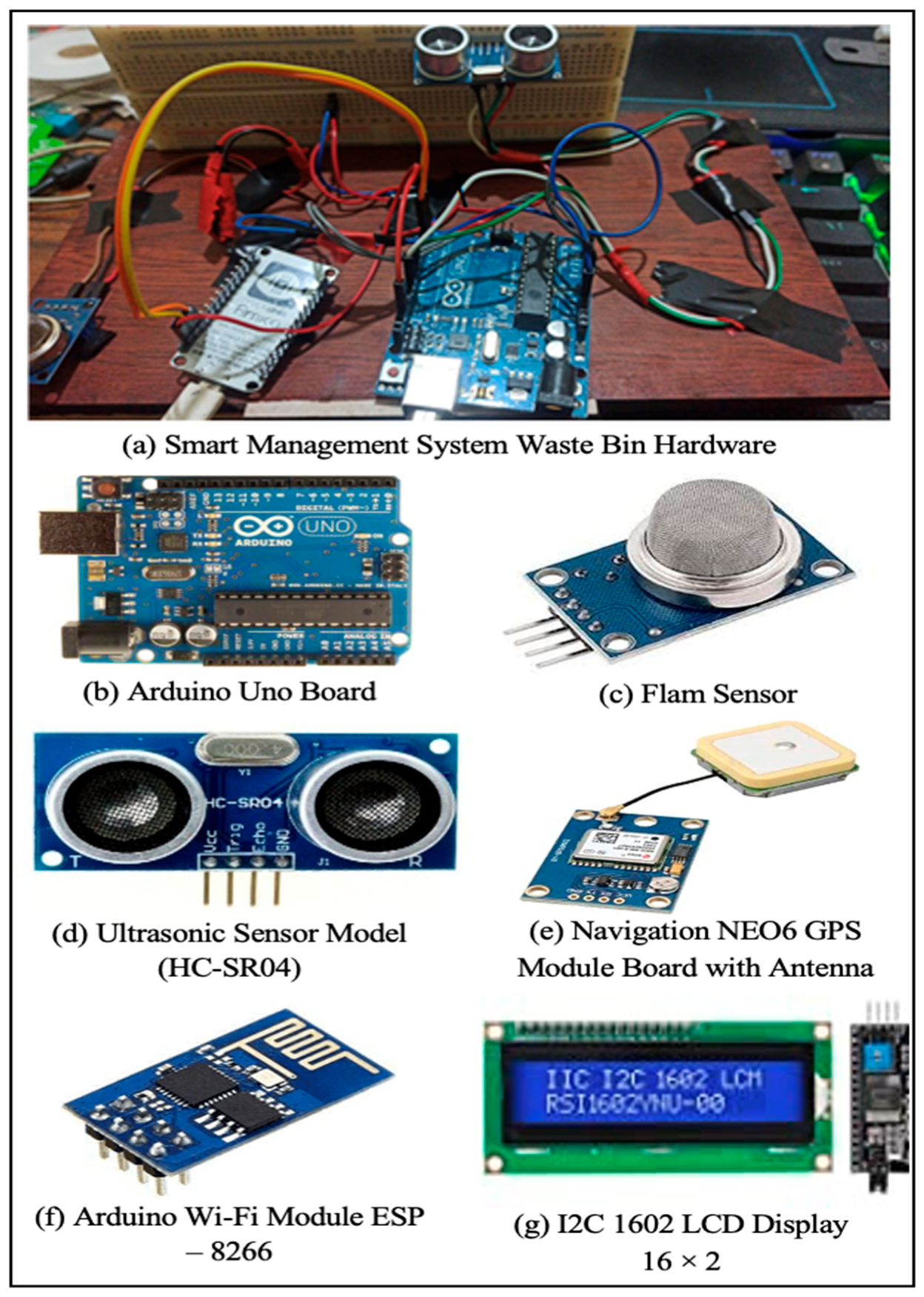

Figure 4a shows the BLMU hardware design, which incorporates several components: an Arduino Uno board, a GPS module, a graphic LCD (GLCD), a flame sensor, an LED, and an ultrasonic sensor. These components are described in detail below.

▪

Arduino Uno microcontroller:

Figure 4b shows the Arduino Uno, which is based on the ATmega328P microcontroller and serves as the core of the smart waste bin system. It is programmed using the Arduino Integrated Development Environment (IDE) [39] to collect sensor data and transmit it to the monitoring and command center. Serving as the primary control unit, it interfaces with sensors, performs initial data filtering, and manages data transmission.

▪

Flame Sensor (Smoke and gas sensor):

Figure 4c presents the sensor that detects fire, smoke, and toxic gas concentrations inside the waste bin. When powered with 5 V, it outputs an analog voltage through its pins. If the measured temperature exceeds a preset threshold, it triggers a digital signal to the Arduino Uno. The high and low thresholds can be adjusted using a potentiometer.

The sensor operates within a temperature range of −20 °C to 50 °C and consumes less than 150 mA at 5 V. It is also sensitive to infrared wavelengths between 760 nm and 1100 nm, with a 60° detection angle [40]. By continuously monitoring combustion conditions inside or near the bin, it enables early detection of hazardous events.

▪

Ultrasonic Sensor (HC-SR04):

Figure 4d shows that the HC-SR04 sensor performs non-contact distance measurements ranging from 2 cm to 400 cm, with an accuracy of ±3 cm. It requires only four pin connections: trigger (Trig), voltage (VCC), ground (GND), and echo (receive).

The sensor is typically mounted near the top of the waste bin to facilitate maintenance and cleaning. It determines the bin’s fill-level by measuring the distance between the sensor and the surface of the waste. A shorter distance indicates a higher fill-level, making the HC-SR04 essential for monitoring bin capacity [41].

▪

GPS module:

Figure 4e presents the GPS module that provides accurate position, velocity, and time data through a global satellite network. In the proposed system, each waste bin is equipped with a GPS module to enable real-time location tracking. This feature allows administrators to monitor both the condition and geographic position of bins through a user-friendly graphical interface (GUI) [42].

▪

Buzzer:

Figure 4f illustrates that the buzzer functions as an audible alert mechanism within the smart waste bin system. It emits sound notifications in response to specific events, such as fire detection, providing immediate feedback to nearby personnel and enhancing safety and responsiveness [43].

▪

ESP8266 Wi-Fi Module:

Figure 4f shows the ESP8266 Wi-Fi module enables seamless connectivity to operational Wi-Fi networks. It communicates with servers or clients using Transmission Control Protocols/User Datagram Protocols (TCPs/UDPs) and supports wireless data transmission between the Arduino and cloud services such as Firebase. Within the smart waste bin system, it plays a key role in transmitting sensor data and alerts to the City Command and Control Center, ensuring real-time monitoring and coordination [42,44]. Operating as a client, it can send Hypertext Transfer Protocol (HTTP) requests or publish data packets through REST APIs or the Firebase SDK. In the smart waste bin system, this module is used to transmit alerts to the City Command Center regarding bin fill-levels or the detection of a fire [44].

▪

Liquid Crystal Display (LCD):

LCD screens use liquid crystals to produce visual output and are well-suited for displaying text and characters. As shown in Figure 4g, the system employs a 16 × 2-character LCD with an LED backlight, capable of displaying up to 32 ASCII characters, organized into two rows of 16 characters each. This display provides a simple and effective interface for conveying status messages and sensor readings [39].

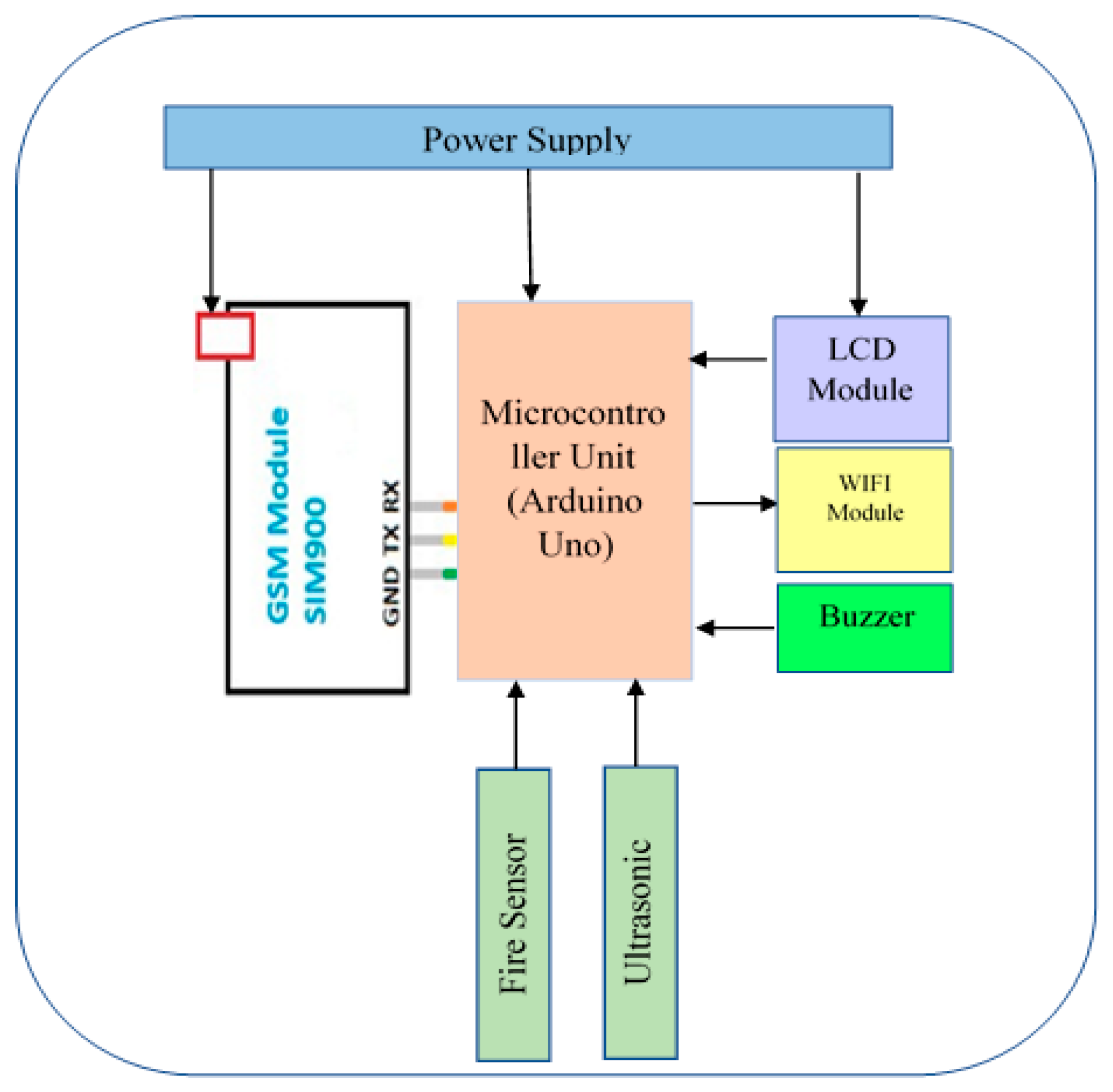

The interaction among these components is illustrated in Figure 4. All hardware elements were simulated using Proteus v8.15 to model and test the proposed system. This environment enabled the design and validation of electronic circuits prior to implementation [39,41]. After successful simulation, the components were integrated in a modular fashion for real-time deployment.

3.1.2. Software-Based Data Acquisition Layer

The software architecture consists of a centralized server for data storage, a desktop web application, and an Android mobile application to support real-time monitoring and interaction. The data flow begins with sensors collecting information about bin fill-levels and fire status. This information is processed by the microcontroller and then transmitted to the server.

The SWS desktop application serves as a web-based interface for administrators, providing access to system data, monitoring dashboards, and analytical tools. The SWS mobile application functions as the primary interface for field workers and general users, supporting task assignments, live updates, and user interaction.

These software components work together to enable centralized data management, efficient coordination, and real-time decision-making across the system.

(a)

Centralized City Command and Control Center (4C) software:

The 4C center functions as the central intelligence hub of the Smart Waste Management system, built on Google Cloud Firebase—a scalable, document-based NoSQL database. Firebase serves as the primary platform for application development and provides tools for data collection, testing, debugging, and performance tracking [44].

In Firebase, the smallest storage unit is a document, which contains fields corresponding to specific data attributes [45]. Data received from Wi-Fi-enabled BLMU modules—including time, date, location, bin fill-level, and fire status—is stored in a centralized cloud database. This information is systematically organized into four primary collections: waste bins, garbage trucks (recycling sector), fire events, and user information [46].

• Waste bin, garbage truck, and fire event documents share a similar schema, including the following:

  ○

  Address: Region code of the city;

  ○

  NC-MA: Waste bin identifier;

  ○

  Alarm: Boolean flag indicating fire status;

  ○

  Capacity: Boolean flag indicating fill-level;

  ○

  Longitude: X-coordinate of the bin’s location;

  ○

  Latitude: Y-coordinate of the bin’s location.

• User documents include attributes such as the following:

  ○

  Token: Unique user identifier;

  ○

  DisplayName: User’s name;

  ○

  Email: Encoded email address;

  ○

  Nationality: National ID number;

  ○

  PhoneNumber: User’s contact number;

  ○

  Type: Role classification (e.g., user, employee, administrator).

By aggregating these collections, Firebase provides system administrators with a unified and dynamic dashboard. This enables real-time analysis of waste collection patterns, improves resource allocation, and enhances overall operational responsiveness.

(b)

SWS desktop application:

The desktop application serves as the primary platform for analyzing data stored in the 4C cloud. Integrated with IoT technologies, it provides administrators with comprehensive tools for monitoring waste operations and conducting advanced data analysis.

Through this interface, administrators can identify waste generation trends, allocate resources more efficiently, and refine collection schedules. Real-time monitoring also enhances responsiveness to anomalies and emergencies, thereby improving service reliability. By leveraging data-driven insights, the application enables evidence-based decision-making to optimize overall waste management operations.

(c)

SWS Mobile Application:

The SWS mobile application is developed using Dart and Flutter, a cross-platform framework by Google designed to build high-performance applications for web, iOS, and Android. Flutter is an open-source SDK built on Dart and C++, enabling the creation of responsive and consistent user interfaces across devices [40,44].

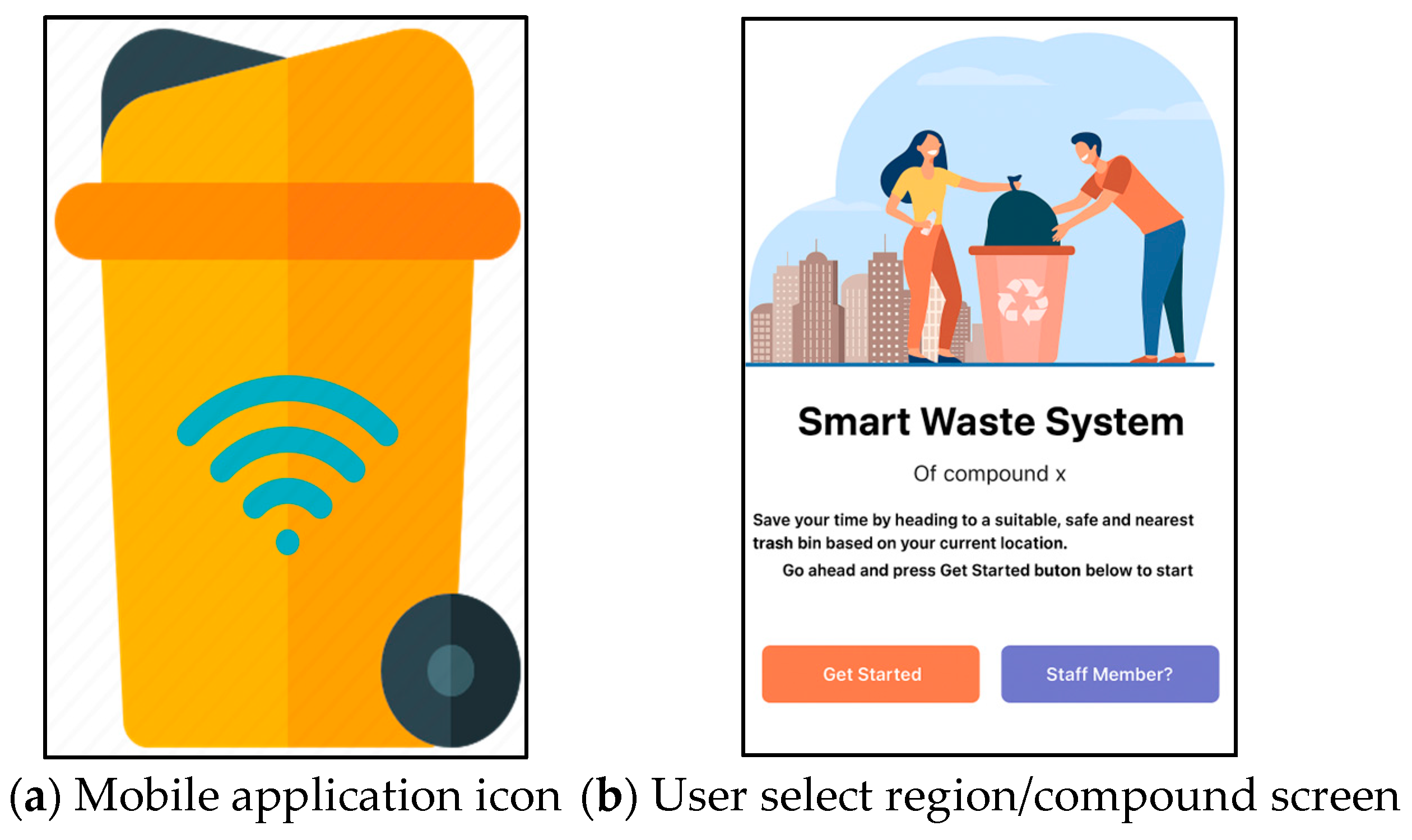

The application includes a splash screen, as illustrated in Figure 5a. Upon tapping the screen, users can select a specific region, allowing waste producers to choose their nearest area or compound for service. After selecting a region, the system provides two options: pressing the Get Started button or logging in with staff credentials, as shown in Figure 5b.

Mobile Application Workflow

When the Get Started button is pressed, users are directed to the main navigation screen (Figure 6a), which provides two options: My Location or Nearest Bin.

• My Location: Selecting this option opens Google Maps to display the user’s current GPS-based location (Figure 6b). The subsequent screen shows the nearest BLMUs (Figure 6c).

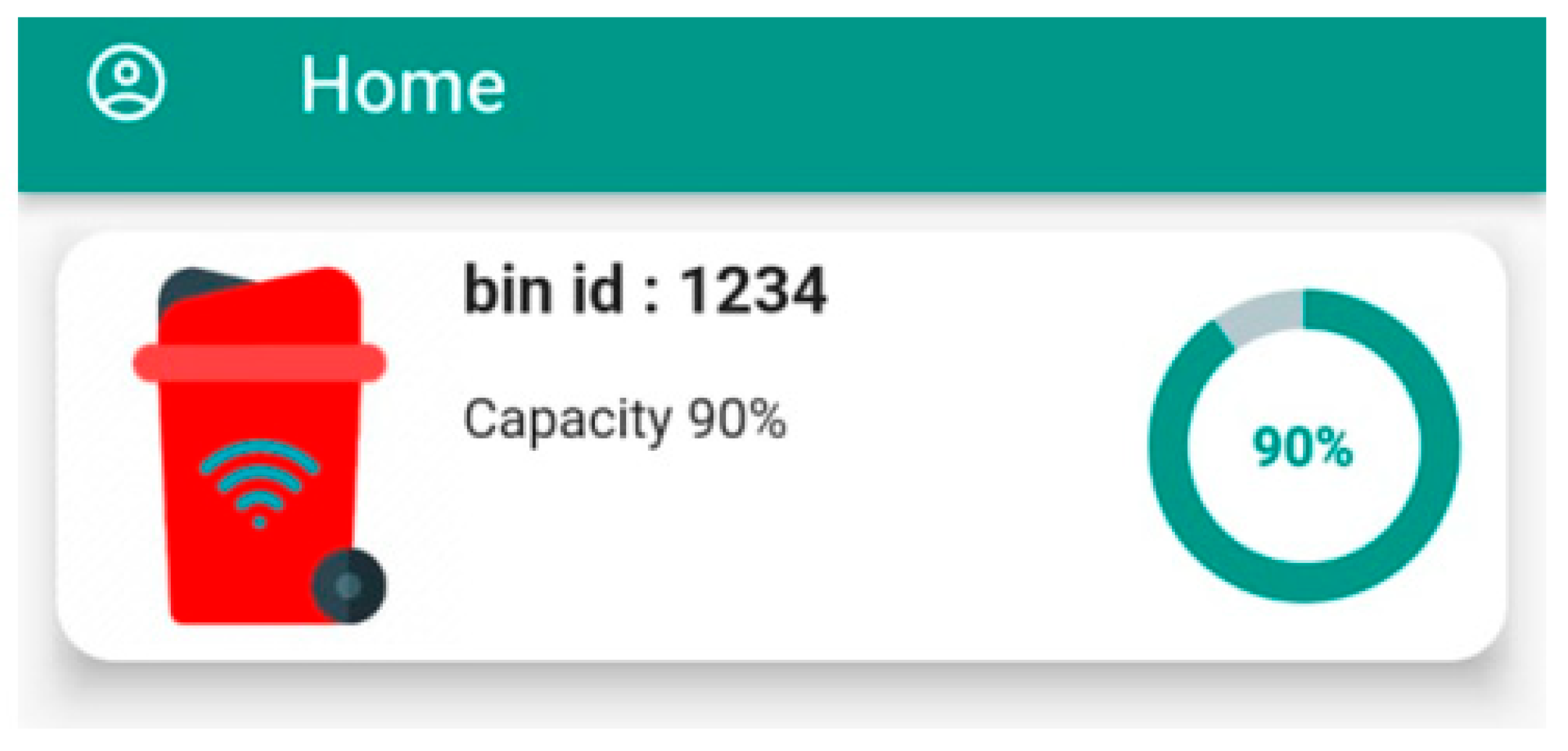

• Nearest Bin: This option displays all nearby BLMUs (Figure 6c). Upon selecting a BLMU, the app provides navigation via Google Maps and displays the bin’s current status (Figure 6d). Users may also capture and upload photos of bins surrounded by trash. Bin icons are dynamically color-coded according to fill status:

  ○

  Green: below 90%

  ○

  Red: 90% or above

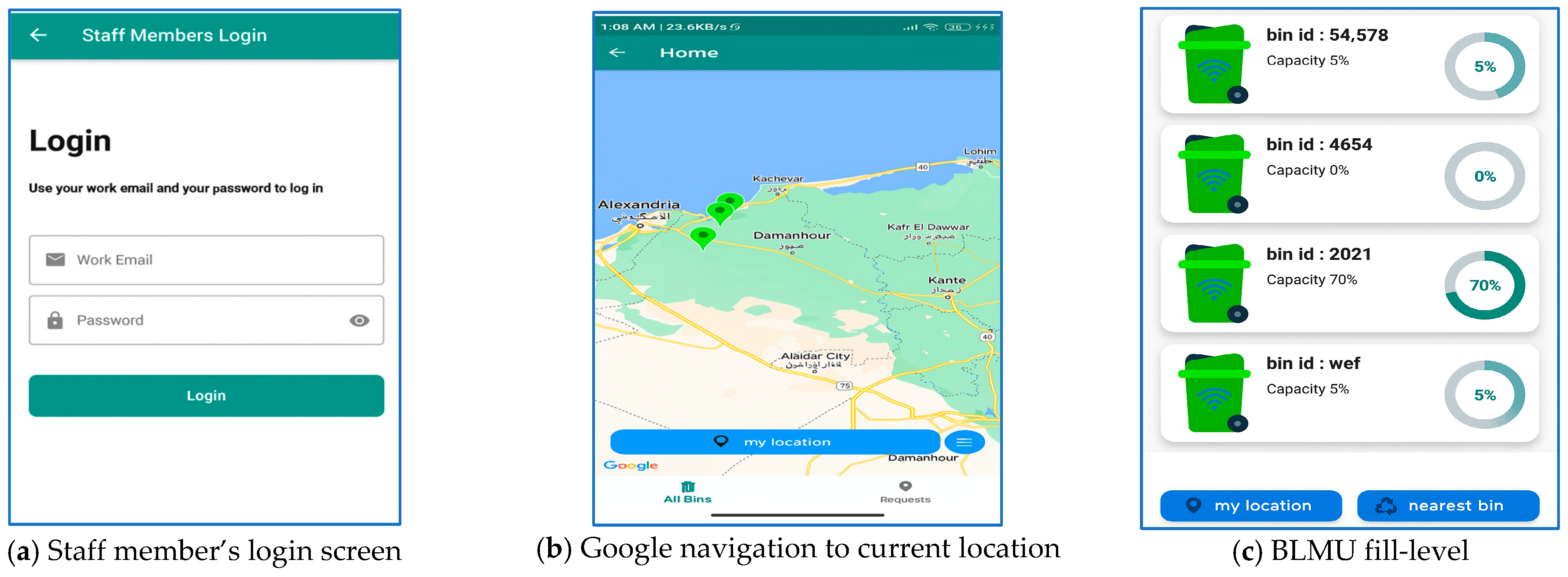

• If the Staff Member button is selected, the staff login screen appears (Figure 7a). Users specify their role—administrator or worker—and log in using their credentials. Staff accounts are registered by the Ministry of Municipal and Rural Affairs.
• Worker Login: Workers gain access to bins exceeding 75% capacity and can select authorized regions (Figure 7b). The system validates bins against a 50% threshold. Once a bin is emptied, the worker records the action, and the system updates their profile accordingly (Figure 7c).

Figure 7. Mobile application: Staff member login and guidance.

Figure 7. Mobile application: Staff member login and guidance.

Administrator Login

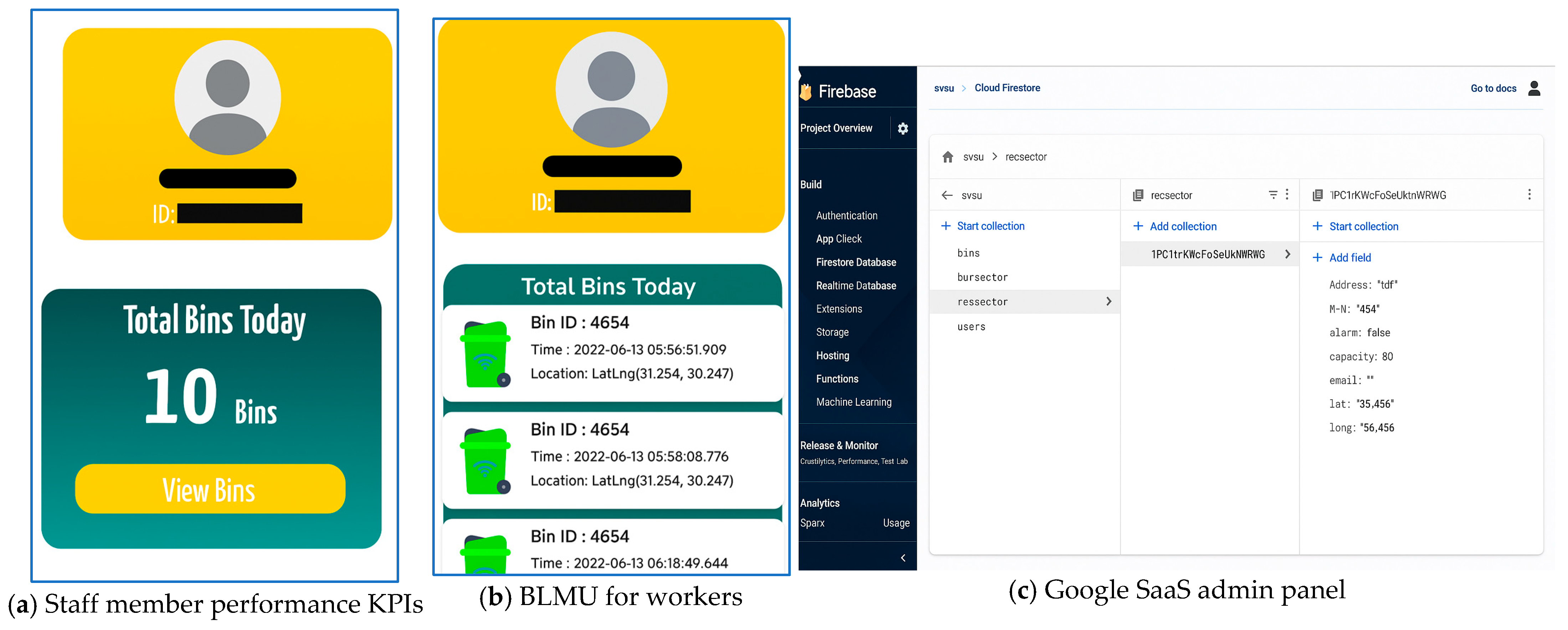

Administrators have broad control over the system (Figure 8a). Their responsibilities include the following:

• Managing users, creating new regions, and adding BLMU bins;
• Assigning jobs to workers and evaluating their performance;
• Handling task allocation and setting capacity thresholds for trucks and burners (Figure 8b);
• Reassigning workers and reallocating BLMU bins across regions via the Recycling Sector (Rec-Sector) page;
• Sending notifications to nearby Rec-Sector units when relevant (Figure 8c).

Figure 8. Mobile application: Sample administrator activity.

Figure 8. Mobile application: Sample administrator activity.

User Roles in the Mobile Application

The mobile client supports multiple user roles with different levels of access:

• Regular Users:
  Can request information about nearby waste bins and view their current fill-levels.
• Authorized Workers:
  Must log in with a username and password to receive assigned tasks, such as collecting waste from filled bins. Once tasks are completed, workers report updates through the mobile app, ensuring bin status is synchronized in real-time.
• System Administrators:
  Have full access to system-wide statistics and dashboards. They can monitor bin statuses, track worker activities, and analyze waste collection frequency (daily, weekly, monthly, annually). Based on these insights, administrators can assign or reassign tasks to optimize operational performance.
• System Workflow:

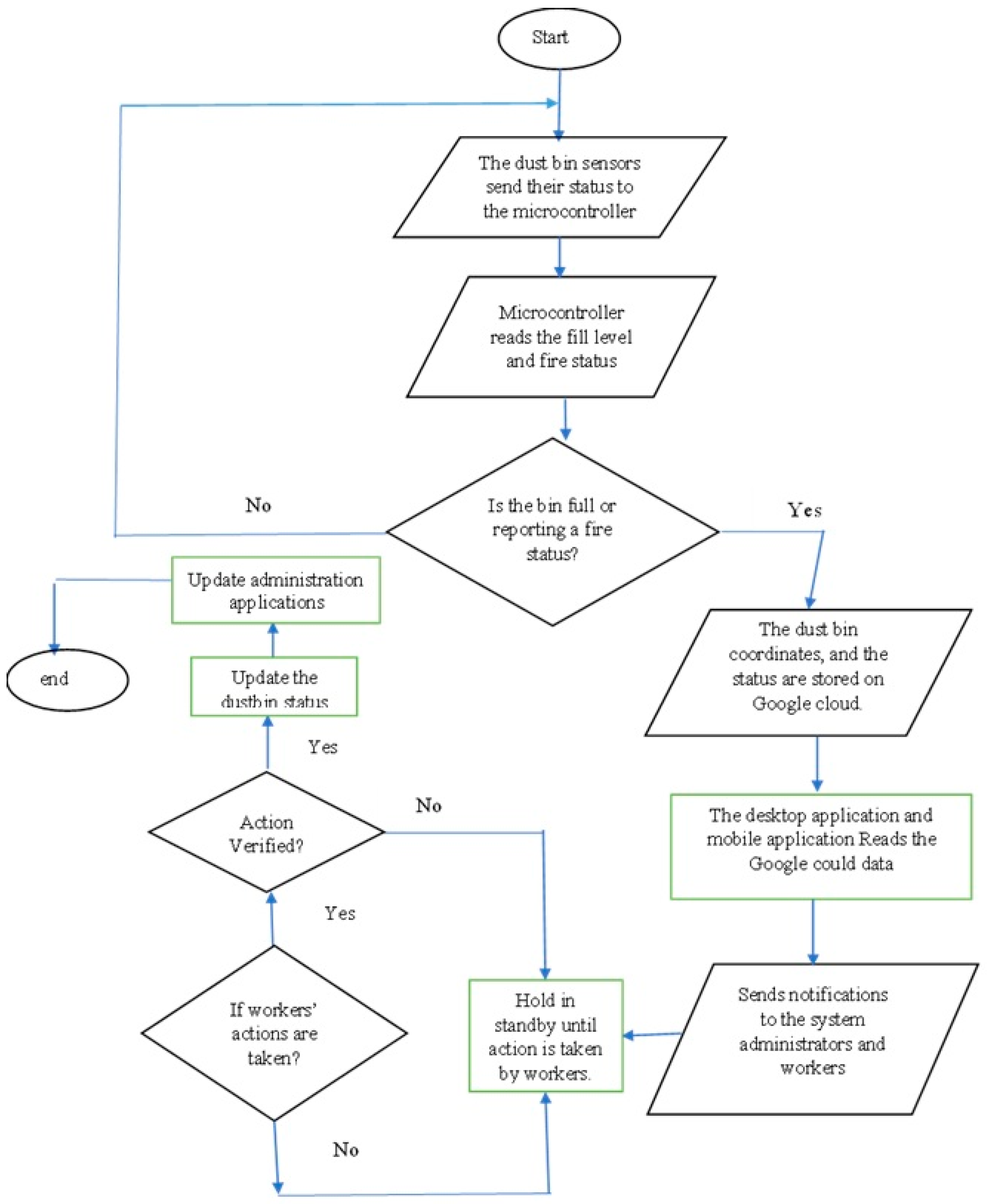

  The proposed SWM system operates according to the algorithm described in Algorithm 1 and the flowchart illustrated in Figure 9. The workflow follows sequential phases that ensure effective data collection, task allocation, and real-time monitoring.

Algorithm 1 Waste management system algorithm

Input:

● Sensor_Data from Bin Level Monitoring Units (BLMU) [fill_level, fire_status, location, timestamp]    ● System_Parameters [bin_threshold, fire_threshold, reporting_interval]    ● User_Roles [Administrator, Worker, RegularUser]

Output:

● Real-time alerts, optimized collection routes, system updates

BEGIN

For each region in City:

Initialize BLMU network

Assign waste bins and region attributes

LOOP (Every reporting_interval seconds)

For each BLMU in active_regions:

Read fill_level, fire_status, location, timestamp

IF (fire_status == TRUE) OR (fill_level ≥ bin_threshold):

TRANSMIT alert to Centralized City Command and Control Center (4C)

UPDATE cloud database with anomaly record

DISPATCH notification to Administrator and assigned Worker

WAIT for resolution confirmation

IF resolution received:

UPDATE bin status to normal on all platforms

ENDIF

ELSE:

LOG normal bin status in cloud database

ENDIF

For each Worker:

RECEIVE task allocations (bins needing attention)

IF assigned_bin fill_level < cleanup_threshold:

LOG completed task

UPDATE worker activity profile

ENDIF

For Administrators:

MONITOR system dashboard

ANALYZE statistics [waste generation rates, worker performance]

ASSIGN tasks or adjust thresholds as needed

For Regular Users:

ACCESS nearest bin status via mobile app

VIEW location and fill status

SUBMIT reports/photos of overflow or hazards (optional)

ENDLOOP

END

System Workflow Phases

The proposed SWM system follows a sequence of phases that integrate sensor monitoring, data transmission, centralized processing, and task execution. These phases are illustrated in Algorithm 1 and the flowchart in Figure 9.

(1)

Setup Phase

• Regional Division: The city is divided into multiple zones, each equipped with BLMUs.
• Administrator Configuration: Admins configure system parameters (bin registration, regions, fill thresholds, recycling and burn sectors) via the mobile app.
• Centralized Data Transmission: Each region has a ZigBee-enabled base station that forwards data to the 4C.
• Vehicle Tracking: Trucks send GPS data to the 4C for efficient routing.
• Waste Generation: Residents and workers deposit waste into monitored bins.

(2)

Sensor Data Transmission Phase

• BLMUs transmit data every 10 s (ID, timestamp, location, fire status, fill-level).
• The microcontroller forwards processed information to the regional base station and then to the 4C.

(3)

Microcontroller Processing

• Analyzes incoming sensor data to classify bin status.
• Sends immediate alerts to the 4C if anomalies (e.g., fire, full bin) are detected.
• Logs bins in “normal” state when no anomalies are found.

(4)

Data Storage

• The 4C stores all incoming data (timestamps, fire alerts, fill-levels, location) in Google Firebase.

(5)

Conditional Status Check

• Anomaly Detected:

  ○

  Stores bin coordinates and abnormal status in the cloud.

  ○

  Provides real-time access via desktop and mobile apps.

  ○

  Sends alerts to admins and workers.

  ○

  Holds in standby until workers confirm the issue is resolved.

• No Anomaly Detected or Resolved:

  ○

  Updates bin status to “normal” across all platforms.

  ○

  Dispatches trucks for scheduled waste collection and logistics.

(6)

Task Assignment and Escalation

• Tasks are assigned automatically or manually by administrators.
• Triggered by events such as reaching capacity thresholds or detecting hazards.
• Notifications and SMS alerts are sent to the nearest vehicles for immediate action.

(7)

System Testing and Optimization

• Fire sensors were tested using controlled smoke simulations (e.g., burned cloth) with results shown in Figure 7.
• Applications were evaluated under varied bin fill-levels and fire scenarios.
• Analysis included the following:

  ○

  Identifying high-waste regions,

  ○

  Estimating optimal worker distribution,

  ○

  Monitoring allocation and reassignment of bins.

• A graphical LCD interface provided local status updates to nearby staff, enhancing coordination.

4. Testing and Results

To validate the system under practical conditions, a six-month pilot deployment was carried out with 50 smart bins installed on a university campus. This deployment addressed concerns about the lack of extensive operational testing. The system achieved 99.5% overall uptime and maintained minimal false alarm rates for both fire detection and bin-level monitoring, demonstrating high dependability.

A comparative evaluation of waste collection effectiveness before and after implementation revealed significant improvements. The system reduced unnecessary collection trips and optimized routing, which directly lowered fuel consumption and operating costs.

Several assessments were conducted on fire detection sensors and Bin Level Monitoring Units (BLMUs). Test cases were designed to reflect real operating conditions and potential challenges in urban environments. The main areas of testing included the following:

A.

Estimated Overall Deployment Cost:

The cost analysis includes key hardware components: Arduino Uno, ultrasonic sensors, flame sensors, GPS modules, and Wi-Fi modules. It also projects the cost of scaling the system to 1000 bins. Based on average unit prices—Arduino Uno (15–20 USD), ultrasonic sensors (3–5 USD), flame sensors (2–3 USD), GPS modules (10–15 USD), and ESP8266 Wi-Fi modules (5 USD)—the approximate hardware cost per bin is 35–45 USD. For 1000 bins, this translates to 35,000–45,000 USD, excluding infrastructure and maintenance. When operational savings from reduced fuel use and optimized routing are factored in, the system remains economically viable for large-scale government deployment.

B.

Ultrasonic Sensor Accuracy Testing

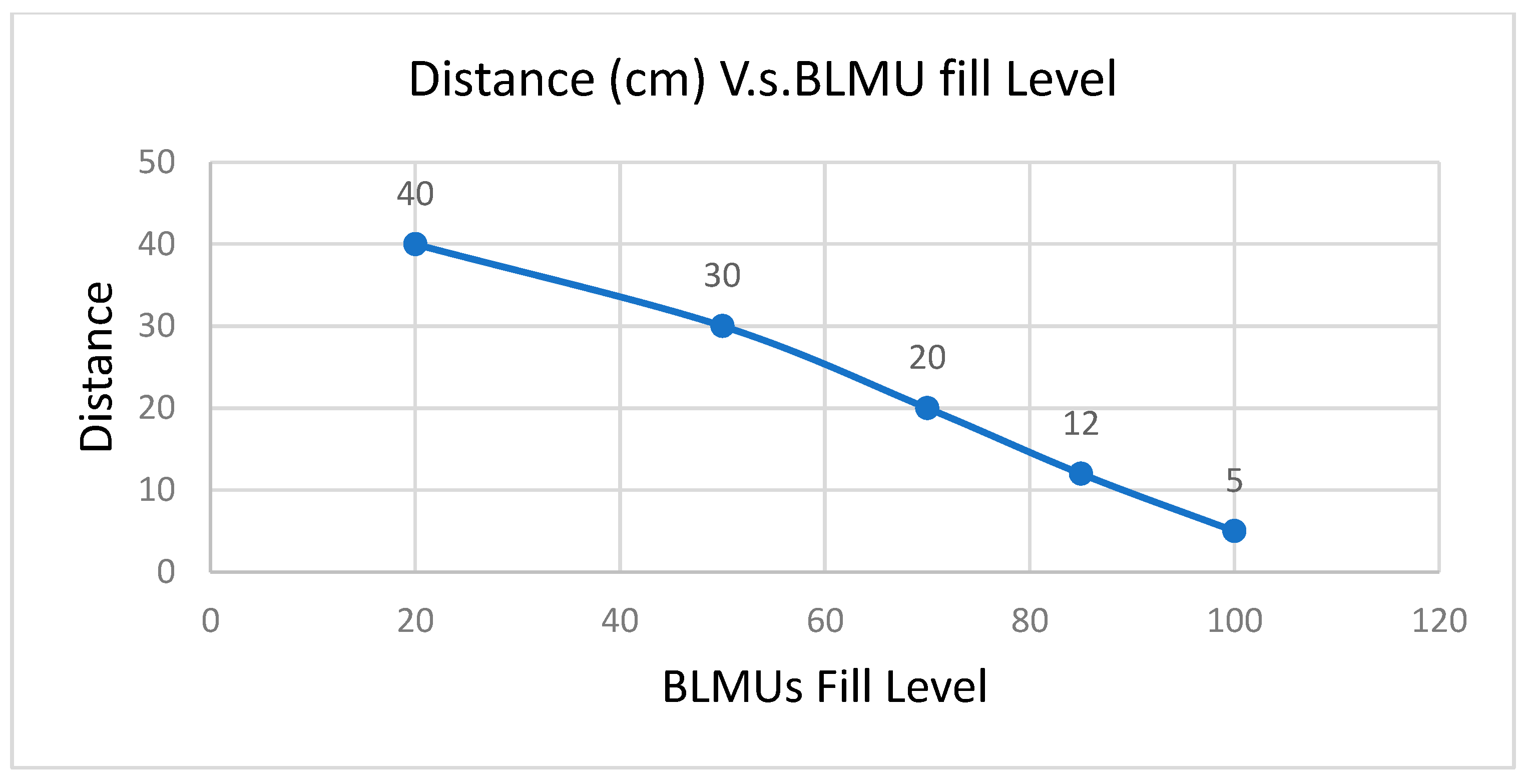

The accuracy of ultrasonic sensors in detecting waste fill-levels was evaluated under controlled conditions. Waste was placed at varying levels in the bin, corresponding to 25%, 50%, 75%, 90%, and 100% fill capacities. Results confirmed consistent accuracy, with a margin of error within ±3%.

Figure 10 shows the monitoring system interface, displaying the bin ID (1234) and a detected fill-level of 90%. Figure 11 illustrates the relationship between the ultrasonic sensor’s measured distance (cm) and the bin’s fill percentage. The results show a clear inverse relationship, where shorter measured distances correspond to higher fill-levels, validating the sensor’s precision.

By selecting the ‘Get Location’ option, users can view the position, fill-level, and description of a bin. After a bin is emptied, the system verifies its fill-level. If the fill-level is below 10%, the system updates its status, otherwise, the bin is excluded from the worker’s record. Workers can also access detailed reports of the bins they visited and emptied, including the date, time, and location, as shown in Figure 8a,b.

The IoT system updates bin statuses every 10 s, providing real-time information on their locations, fill-levels, and fire statuses. This data is stored as records. Users can access this information without logging in, while workers are required to authenticate themselves. Using a GET request, users can retrieve task-related data, including their responsibilities. Workers can also create, read, update, delete, and manage IoT endpoints, assign tasks, and update the status of their activities.

○

Status Monitoring: Testing involves monitoring the status levels of BLMU waste bins and fire detection. For instance, smoke and flame sensors are tested by simulating high concentrations of decomposing smoke, with results visualized in Figure 6d. Testing includes the following:

(1)

Fire Alarm Sensor Testing:

To test fire detection, bins equipped with smoke and flame sensors were exposed to controlled smoke. The sensors successfully triggered alerts within five seconds, demonstrating their efficiency in detecting fires and promptly sending alerts to the command center.

Burning fabric was used to create smoke and flame signatures in fire detection testing as it provides a safe and reliable method. We were able to confirm that the smoke and flame sensors sent out alerts in less than five seconds using this baseline scenario, which guaranteed prompt connection with the Centralized City Command and Control Center (4C). However, we are aware that real municipal garbage streams contain things like paper, plastics, and electronic waste (e-waste), all of which have different combustion characteristics when it comes to heat intensity, gas emissions, and smoke densities. We have determined that these categories are crucial for the upcoming testing phase, even if they were excluded from the current phase because of safety concerns. As a result, validation will be extended to these representative waste types in future trials, improving our ability to evaluate sensor robustness in increasingly hazardous and complicated environments.

The accuracy of ultrasonic sensors in detecting waste fill-levels was evaluated using a bin monitoring system. Waste was placed at various levels within the bin, corresponding to fill percentages of 25%, 50%, 75%, 90%, and 100%. The sensors demonstrated consistent accuracy, with a margin of error within ±3%. While these five levels provided an adequate baseline to establish Proof of Concept, we acknowledge that the sample size is limited. In future work, the testing will be expanded to incorporate a higher number of intermediate fill-levels to generate finer calibration curves. Moreover, trials will be extended to different waste categories (e.g., lightweight plastics, cardboard, and dense organic waste) to evaluate how variations in density, surface reflectivity, and compaction influence ultrasonic sensor precision. This broader validation will enhance confidence in sensor reliability across diverse real-world operating conditions.

(2)

Wi-Fi Module Testing:

The Wi-Fi module’s performance in transmitting data from the BLMUs to the centralized City Command and Control Center (4C) was evaluated. Tests were conducted over distances of up to 100 m indoors and 400 m outdoors. The module maintained stable data transmission with no packet loss across the entire range.

(3)

Bandwidth Requirement Analysis:

In addition to testing Wi-Fi stability, we calculated the network bandwidth required to support large-scale deployments. Each Bin Level Monitoring Unit (BLMU) transmits approximately one packet every 10 s, with an average packet size of ~100 bytes, including protocol overhead. This equates to ~80 bps per unit. As illustrated in Figure 12, the bandwidth requirement grows linearly with the number of deployed units. Even at the scale of 10,000 bins, the total demand remains within the feasible capacity of current municipal wireless infrastructure. This analysis confirms that the proposed system is scalable and does not pose excessive strain on communication networks.

(4)

Mobile and Desktop Application Testing:

The functionality of mobile and desktop applications was tested by simulating tasks for different user roles (administrators, workers, and general users). Tasks included viewing bin levels, responding to fire alerts, and managing tasks. The applications provided real-time updates, demonstrated user-friendly interfaces, and performed effectively in all scenarios.

(5)

Load and Performance Testing:

System performance under heavy data loads was evaluated by simulating frequent bin status updates. The system processed multiple alerts and data entries concurrently, maintaining response times under one second, even during high-load conditions.

The IoT-based SWM system performed well in all tests:

(1)

Sensors accurately monitored waste levels and detected fires in real-time;

(2)

Communication via the Wi-Fi module was reliable across tested ranges;

(3)

Mobile and desktop applications met usability and functionality requirements;

(4)

The system maintained stable performance under heavy data loads.

(6)

Bandwidth Calculation across Various Scales of Deployments:

Wireless communication capacity planning is required to ensure reliable data transmission from the deployed Bin Level Monitoring Units (BLMUs) to the City Command and Control Center. All BLMUs will be configured to transmit sensor data packets approximately every 10 s, with an average packet size of approximately 100 bytes, inclusive of protocol overhead.

Under the assumption of a fixed reporting interval of one packet every 10 s (6 packets per minute), the unit consumption bandwidth can be estimated as follows:

○

Packet size: 100 bytes (800 bits);

○

Packet frequency: 6 packets per minute (0.1 packets per second);

○

Per BLMU resulting bandwidth requirement: approximately 80 bits per second (bps).

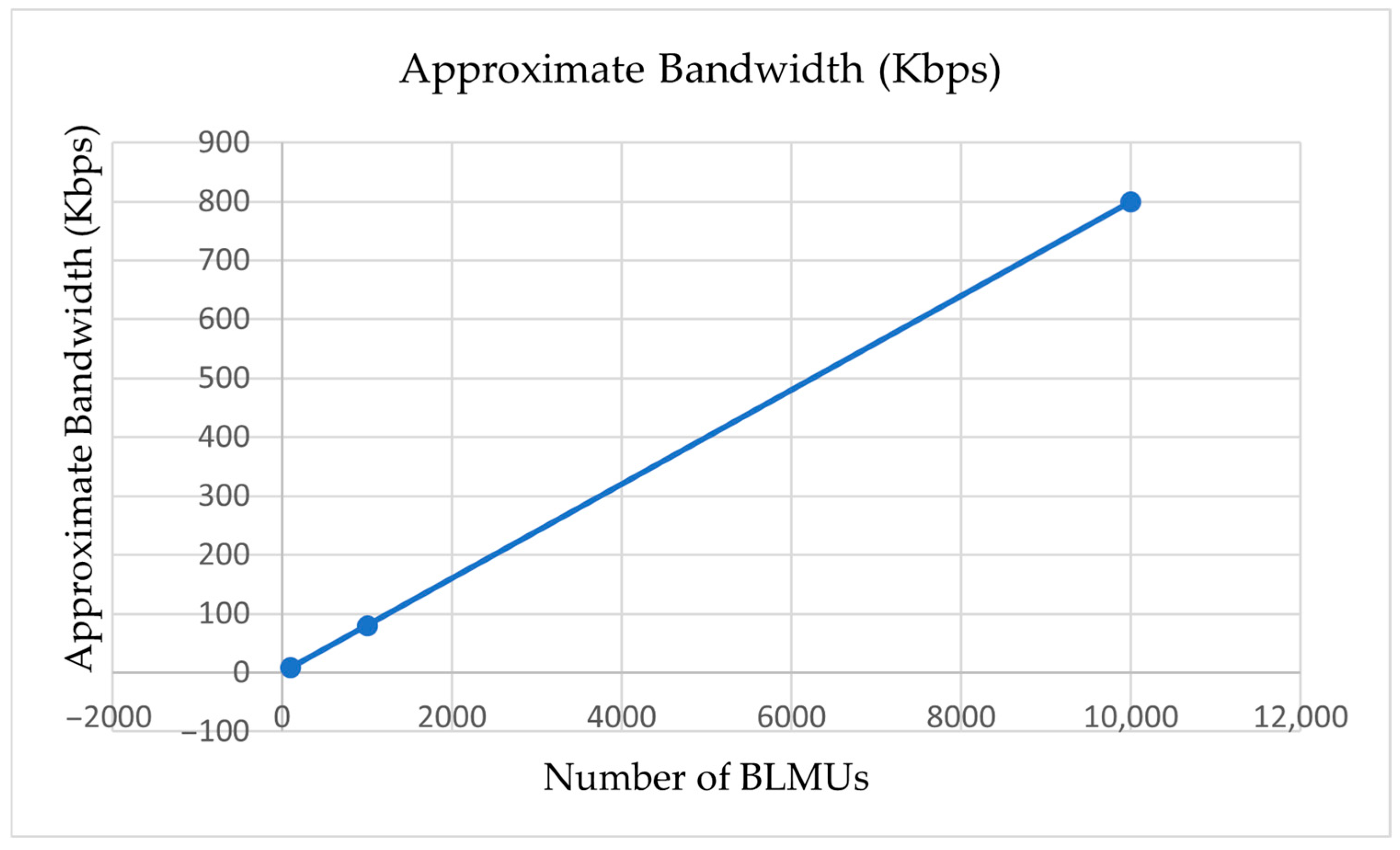

Scaling these requirements is presented in Figure 12.

Figure 12 estimates the near-linear bandwidth requirement growth as a function of deployment size, which facilitates infrastructure planning and capacity planning. The linear growth highlights that even in the very large-scale deployments (over 10,000 bins), overall bandwidth demands come to reasonable orders of today’s wireless networks. However, the compounding effect on network load requires planning communication intervals, data aggregation, and appropriate compression to achieve the highest throughput.

(7)

Data Synchronization and Latency Testing:

During the pilot deployment, the system’s Firebase backend was evaluated for its ability to synchronize data between mobile and desktop applications in real-time. Average response times remained under one second, even during concurrent updates from multiple bins. While these results confirm baseline performance in small- to medium-scale deployments, we acknowledge that high-concurrency stress testing was not yet conducted. Future evaluations will therefore include controlled simulations of thousands of parallel update requests to measure end-to-end latency, assess scalability limits, and identify potential bottlenecks. These tests will provide a more comprehensive understanding of synchronization behavior under metropolitan-scale rollouts.

These results confirm the suitability of the Flutter–Firebase integration for small- to medium-scale deployments, while highlighting the need for stress testing with thousands of concurrent requests in future work.

5. Discussion

Studies in this field emphasize the use of the Arduino Uno microcontroller due to its compatibility with Arduino development boards and its ability to create interactive digital objects. Arduino boards are affordable and have updateable EEPROM features. These boards typically include microcontrollers such as the Atmel ATmega328p or ATmega168, which are widely used in various industries. The current study adopts the Arduino Uno microcontroller for these reasons [47]. Communication between the 4C server and BLMU is facilitated by the ESP8266 Wi-Fi Module. This module acts as a self-contained System-on-a-Chip (SoC) and enables microcontrollers to connect to wireless networks through its built-in TCP/IP protocol stack. It has the capability to host applications and delegate networking tasks to a separate CPU [14]. When connected to Arduino devices, it provides Wi-Fi functionality and supports Bluetooth co-existence interfaces and VoIP applications. Additionally, the module is cost-effective and has a thriving community of developers [10,31].

Algorithm 1 presents a summary of the findings from the related research, focusing on several key aspects: the microcontroller used, the wireless technology employed, the network topology, the visualization of applications, and the presence or absence of a GPS module in the proposed systems.

Table 2. SWS-based on waste bin level monitoring systems.

Ref.	Microcontroller	Wireless Technology	Network Topology	Wireless Range	GPS	Visualization
[1]	ARM Cortex M0 with Wi-Fi network processor ATWINC1500	Wi-Fi module (ATSAMW25)	Star	Up to 100 m indoors Up to 400 m outdoors	Yes	Yes.
[15]	Arduino Uno	Wi-Fi, wireless communication, Ethernet communication	Client-server architecture	Short-range Wi-Fi No more than 100 m for Ethernet	Yes	Yes
[16]	Arduino Uno	Wi-Fi	Star	Short	Yes	No
[22]	MSP430F2274	SimpliciTI	WLAN	Short	No	Yes
[23]	Arduino Uno	Wireless radio	Star	Short	Yes	No
[24]	MSP430F2274	Wi-Fi	WLAN	Short	Yes	Yes
[29]	MSP430F1611	SimpliciTI	WLAN	Short	No	Yes
[30]	Arduino Pro Mini	ZigBee	Star	Short	Yes	No
[31]	Arduino Uno	ZigBee	Mesh	Short	Yes	No
[32]	Arduino Uno	Wi-Fi, Bluetooth, cellular networks	Client-server architecture	Short	No	Yes.
[33]	Arduino Uno	Wi-Fi	Star	Short	No	Yes
[34]	Arduino Uno	Wi-Fi		Short	Yes	Yes (Android app)
This paper	Arduino Uno	Wi-Fi	Star	Short	Yes	Yes (Flutter and desktop app)

indicates that the Arduino Uno microcontroller is preferred, primarily due to its open-source hardware and software.

The location of the waste bin (outdoor or indoor), the sensors that are employed, and the intelligent waste management features are all summarized in

Table 3. SWS-based hardware component and sensor features.

Ref.	Place	Sensors	Features
[1]	Outdoor waste bin	Ultrasonic sensor (MB1010, LV-MaxSonar-EZ1) Wi-Fi module (ATSAMW25)	Easy to use Scalability for large-scale implementation Real-time remote monitoring of garbage bin fill-levels Measures fill-levels using BLMUs and wirelessly transmits data to a central server for archival and analysis
[15]	Outdoor waste bin	Flame sensor (HC-SK026) Ultrasonic sensor (HC-SR04) Temperature and humidity sensors (HW-505) Weight sensor GPS module GSM module	IoT-based smart waste bin monitoring and municipal solid waste management system Forecasts future waste generation
[16]	Indoor and outdoor waste bin	Ultrasonic sensors Proximity sensors Fire sensors	Select waste type from touch screen Video recognition system for identifying waste type Conveyor system Sensors for counting the number of products, product placement identification, etc. Touch screen Weighing equipment Storage system
[22]	Outdoor waste bin	Ultrasonic sensor	SPWMU attached to each bin measures fill-levels when empty and sends information to monitoring station
[23]	Outdoor waste bin	Sensor nodes (ultrasonic sensor; GPS/Wi-Fi module) Gateway nodes (Wi-Fi module)	Sensor nodes detect bin fullness and report readings and sensor statuses via ultrasonic sensor Workstation displays meaningful information to users through a Graphical User Interface (GUI) GPS for location information Low power 802.15.4 wireless radio for transmitting data between the sensor nodes and gateway
[24]	Outdoor waste bin	BLMU based on ultrasonic sensor. WAPU GPS module	Integration of GPS module Route optimization algorithms GUI for monitoring trash bins
[29]	Outdoor waste bin	Interfaced ultrasonic sensor (HC-SR04)	Wireless monitoring units for real-time data collection, remote monitoring, effective resource usage, and cost savings Benefits include real-time data collecting, remote monitoring, effective resource usage, and cost savings on operations
[30]	Outdoor waste bin	Ultrasonic sensor GPS Module	ZigBee coordinator node sends data to cloud server when detected data exceeds threshold level Determines best waste collection route for truck
[31]	Outdoor waste bin	Ultrasonic sensor	Displays trash status Recognizes different types of trash using image recognition on mobile applications
[32]	Outdoor waste bin	Ultrasonic sensor RFID technology	Real-time waste collection monitoring Generate reports Assesses team performance Boosts productivity Portable and inexpensive system
[33]	Outdoor waste bin	Ultrasonic sensor GSM modem Smartphone app	Mobile app displays trash status Recognizes different types of trash using image recognition on mobile applications
[34]	Outdoor waste bin	Ultrasonic sensor RF transmitter GSM/GPRS module	Reduce costs Protects public health Improves efficiency
This paper	Indoor and outdoor waste bin	Ultrasonic sensor Fire sensor GPS module Wi-Fi module	Mobile and desktop apps Select waste place (indoor or outdoor) from touch screen Different users and privileges Wi-Fi communication between mobile app, desktop applications, and Google Cloud Smart waste bin with capacity level detection and fire notifications Waste bin screen with automatic door opening Cloud storage 4C center manages system vehicles, workers, administrator’s data analysis, and optimizes data flow

for the research studies mentioned above.

According to Table 3, a waste BLMU uses an ultrasonic sensor and a flame sensor to detect the fill-level of the waste bin and whether it would catch fire when a user drops trash inside.

The proposed SWM system offers software for both mobile and desktop applications.

Table 4. SWS-based software components.

Ref.	Software	Software Features	Cloud-Based
[1]	GUI without specifying the software used to create it	Smart monitoring of dust levels	No
[15]	Lab view, Java, and C++ software	The system revolves around an IoT sensing prototype that measures garbage levels in bins and transmits the data to the server via Internet services	Yes
[16]	Azure platform, web page for desktop app, and mobile application	The web app service delivers content of a web page for desktop and mobile Azure platform offers three services for web service deployment: cloud services, virtual machines, and service fabric	Yes
[22]	Microsoft C# for GUI	Displays status level of dust bins	No
[24]	Eclipse Mosquito, Redis, PostgreSQL, and a smart GUI.	The IoT-SWM server package consists of Eclipse Mosquito, Redis, PostgreSQL, and a smart GUI Eclipse Mosquito: Lightweight open-source message broker implementing MQTT protocol Redis: In-memory database storing transient bin level data PostgreSQL: Stores unfilled level data for extended periods Smart GUI: Displays real-time bin level data and generates alerts when bins are full	No
[29]	Uses C# programming language based on the NET architecture	Measures the unfilled level of bins	No
[30]	Android application	Notifies truck drivers when waste bins are full, including bin position	Yes
[31]	MQTT	Listen to MQTT protocol to determine filled status of garbage containers	No
[34]	Android software using C and C++ programming languages	Android App displays dustbin status Smart waste monitoring and control system developed using C and C++ programming languages. Output shown on GLCD screen displaying the number of smart bins and their fill status	No
This paper	Flutter based on Dart and desktop app	Mobile app features: Guides users to the nearest dust bin Provides administrators with guidance for trucks and workers concerning full bins. Guides workers to fire dust bins Desktop app features: Provides waste generation statistics by region Tracks employee activities per work time Tracks number of bins cleaned by workers within specified time periods	Yes

compares the related work based on the software utilized and the features of the SWS used, as outlined below.

Table 5. SWS-based software components.

Parameter	Proposed IoT-Based SWM System	System A [18]	System B [19]	System C [20]
Technology	Arduino Uno, Wi-Fi module	MSP430F2274, Wi-Fi, GSM	MSP430F1611, SimpliciTI	Arduino Pro Mini, ZigBee
Network Topology	Star	WLAN	WLAN	Star
Effectiveness	Real-time waste level and fire alerts, optimized route planning	Monitors bin fullness, sends SMS alerts	Real-time data collection, remote monitoring	Selects waste type using touchscreen, video recognition for waste types
Cost	Low	Moderate	High	Moderate
Data Integration	Google Cloud Firestore	Local server storage	PostgreSQL	Azure Cloud
Scalability	High (cloud-based, adaptable to larger areas)	Limited (requires extensive infrastructure)	Moderate (local setup)	High (Azure integration)
Energy Source	Battery-powered, future renewable integration	Battery	Mains	Battery
Environmental Impact	Reduced truck fuel consumption, lower emissions	Limited (no route optimization)	Moderate (saves resources but limited optimization)	Improved resource use via video recognition

compares the proposed IoT-based Smart Waste Management system to similar systems across key parameters, including technology, network topology, cost, scalability, and environmental impact.

The proposed system offers efficient, real-time, IoT-based solutions for municipal solid waste management. It generates comprehensive statistics that system administrators can utilize for data analysis. These statistics include waste bin data such as daily, weekly, monthly, and annual emptying frequencies. Additionally, the system tracks the number of bins emptied by each worker per day and provides averages for both the burning and recycling sectors. In future iterations, the proposed system will undergo modifications to incorporate the waste segregation phase of traditional waste management systems. This phase involves separating different waste types, thereby facilitating recycling efforts by implementing separate collection systems for paper, metal, plastic, and glass.

The proposed SWS employs a mobile application developed with Dart and Flutter to access distributed waste bins, assign tasks to employees, and establish IoT endpoints. This application gathers and analyzes data related to trucks, employees, and waste bins, presenting the results on a dashboard. Furthermore, it functions as a 4C center for monitoring and controlling activities, including tracking smart waste bin locations, fill-levels, and fire statuses.

5.1. Environmental and Human Impacts on Sensor Reliability

Environmental conditions and human interference pose significant challenges to sensor reliability in outdoor IoT-based waste management deployments. Temperature fluctuations ranging from −10 to 45 °C and humidity variations between 30% and 90% can cause sensor drift, reduced sensitivity, and calibration degradation over extended operational periods.

To maintain measurement accuracy, monthly calibration and maintenance protocols are recommended for all deployed units. Long-term performance data should be analyzed statistically to enable predictive maintenance scheduling, thereby minimizing downtime and preventing system failures before they occur.

Public deployment also introduces risks of vandalism and accidental damage. Tamper-resistant enclosures and protective housings are essential design features to mitigate these threats. Field testing under diverse environmental conditions has validated these protective measures and informed improvements to both maintenance protocols and hardware durability.

These combined strategies enhance system resilience and ensure reliable performance in real-world urban environments.

5.2. Technical Scalability and Networking Challenges

Beyond sensor reliability, the system faces networking and data management challenges during scaling, particularly latency issues in high-density deployments. Future work will include stress testing with thousands of concurrent requests and implementation of optimization strategies such as data caching, offline-first data handling, and load balancing across multiple server instances.

The ESP8266 Wi-Fi module demonstrated robust performance in controlled conditions, maintaining packet integrity across indoor ranges (≤100 m) and outdoor ranges (≤400 m) with zero packet loss. However, dense urban environments may introduce signal interference and attenuation that compromise connectivity. The hybrid communication architecture (Wi-Fi + GSM) combined with adaptive reporting intervals addresses these limitations. Future iterations may incorporate LoRa or ZigBee protocols, which offer superior performance for large-scale, low-power urban IoT networks.

5.3. Economic Viability Analysis

The system demonstrates strong economic feasibility with low per-unit hardware costs. Individual BLMU components include Arduino Uno microcontrollers (15–20 USD), ultrasonic sensors (3–5 USD), flame sensors (2–3 USD), GPS modules (10–15 USD), and ESP8266 Wi-Fi modules (≈5 USD), resulting in total per-bin costs of 35–45 USD. A deployment of 1000 bins requires an estimated hardware investment of 35,000–45,000 USD, excluding infrastructure and ongoing maintenance expenses.

Software costs remain minimal through the use of open-source development platforms and cloud-based Backend-as-a-Service (Google Firebase), which eliminates significant upfront infrastructure investment while maintaining scalability. Pilot deployment results indicate substantial operational savings from reduced fuel consumption and optimized routing that eliminates unnecessary collection trips. These efficiency gains provide strong return on investment, particularly in densely populated urban centers with large waste collection fleets. Comparable nationwide implementations in European cities have documented cost reductions of up to 20%, validating the economic benefits of IoT-enabled waste management systems.

5.4. Data Security and Ethical Considerations

The proposed system incorporates robust data security measures. All data collected from BLMUs is encrypted during transmission and stored securely in Google Cloud Firestore. Role-based access control ensures that sensitive information is restricted to authorized personnel only.

Ethical considerations are also critical. Privacy is protected by minimizing personal data collection and ensuring transparency in data usage. The system complies with local data protection regulations, and community engagement is prioritized to build public trust, address concerns over data ownership, and prevent misuse.

6. Conclusions

This paper presents an IoT-enabled Smart Waste Management (SWM) system designed to address critical limitations in traditional waste disposal practices. Conventional bins often suffer from poor maintenance, leading to overflow, odor, health risks, and environmental pollution because of the emission of harmful gases. The proposed solution integrates smart waste bins, GSM-enabled collection vehicles, and a mobile application to enable real-time monitoring and fire detection. It also enables efficient route tracking for waste collection using Google Maps.

At the core of the system is a centralized dashboard that generates reports on bin status, collection worker activities, and waste generation hotspots. This intelligent infrastructure enables timely garbage collection, minimizes fuel consumption through optimized routing, and contributes to environmental conservation by reducing manual labor and mitigating the risks associated with unmanaged waste.

Despite its effectiveness, the current implementation has limitations; most notably, it lacks waste segregation capabilities, which is an essential component of sustainable waste practices. Future work will focus on the following improvements:

Integration of waste segregation mechanisms to support recycling and circular economy initiatives.

Adoption of renewable energy sources, such as solar-powered sensors, to enhance system autonomy and minimize environmental impact.

Application of machine learning algorithms to predict waste generation patterns and enable dynamic scheduling of waste collection. Future work also includes the waste segregation phase.

Deployment of AI-based route optimization techniques to further enhance operational efficiency and reduce fuel consumption.

Incorporation of blockchain technology to ensure secure, transparent, and tamper-proof data transactions within the system.

Application of the General Data Protection Regulation (GDPR) compliance, including transparent user consent procedures, data subject rights, and retention/deletion policies for stored sensor and user records.

Extension of The Emergency Detection Scope to include additional hazardous conditions. Even though the current system primarily uses flame and smoke sensors to detect fires in waste bins, including specialized gas sensors that can identify flammable and toxic gases like hydrogen sulfide (H₂S), carbon monoxide (CO), and methane (CH₄) will improve situational awareness by allowing for the early detection of a variety of environmental threats.

Future work will expand fire detection testing scenarios beyond cloth combustion, evaluating the system against common urban waste categories like paper/cardboard, plastic packaging, and e-waste components. This, combined with specialized gas sensors, will provide a comprehensive emergency detection framework for modern waste streams.

These enhancements aim to transform the current system into a more intelligent, sustainable, and trustworthy Smart Waste Management solution suitable for large-scale deployment in modern smart cities.
