Community Group Purchasing of Next-Day Delivery: Bridging the Last Mile Delivery for Urban Residents during COVID-19

Abstract

The rapid development of new retail and the impact of COVID-19 have catalyzed the blowout growth of community group purchasing. The emergence of community group purchasing collection and delivery points (CGPCDPs) has become a new way to solve the “last mile” problem of new retail delivery. Based on the point of interest (POI) data of CGPCDPs of Nansha District, Guangzhou City, this study advances our understanding by identifying unique operational models, service targets, and spatial distribution patterns of CGPCDPs, which differ significantly from traditional pick-up points (PPs). The conclusions are as follows: (1) Most CGPCDPs depend on wholesale and retail shops, and their main service targets are urban and rural communities, followed by industrial areas. (2) The distribution of CGPCDPs has apparent spatial differentiation. At the macro scale, it shows the characteristics of “central agglomeration and peripheral dispersion”. It is distributed along the “northwest-southeast” direction and presents a “dual-core multi-center” pattern. At the meso–micro scale, different built environments in developed areas of cities, villages in the city (ChengZhongCun), and rural areas show distinct distribution patterns. (3) The main influencing factors of their spatial distribution are population density, construction land, house price, supporting place, residence density, urban community, and road proximity.

1. Introduction

In the background of e-commerce, traditional retail has gradually declined due to the impact of the e-commerce internet. New retail integrating online services, offline experience, and modern logistics has developed rapidly since its introduction. Community group purchasing is one of the popular new retail types that serves the community and focuses on the fresh food market. Due to the increasing demand for fresh products in China, many capitals and enterprises have entered this enormous community fresh market, with new community group purchasing brands since 2016. In addition, with the outbreak of COVID-19 in 2020, the implementation of the ban policy, and restrictions on residents’ travel, people’s demand for online shopping has increased, so the large-scale popularization of community-based services, including community group purchasing, has been promoted. With major Internet giants such as Didi, Meituan, and Pinduoduo joining, community group purchasing has become competitive.

Community group purchasing is a retail model that relies on small community areas to sell and deliver large sales of fresh goods through the social relationships of acquaintances and semi-acquaintances [1]. It originated in the second and third-tier cities, with a prominent expansion from rural areas to urban areas [2]. Community group purchasing mainly adopts the “pre-sale + self-pickup” mode and uses pick-up points as the platform for goods delivery, transit, and sale. It provides fresh products such as fruits and vegetables, meat, and seafood for its user group, mainly married women [3]. The goods ordered online will be delivered to the self-pickup points the next day. The essence of this business model is community scene + group purchasing + social attributes + C2B retail [1]. According to the role of initiators, the basic group purchase modes can be categorized into “children’s mother + community” and “store manager + community”. Classified by the commodity supply chain, there are three supply modes: front warehouse distribution, origin distribution, delivery to the selling warehouse, and direct delivery to the consumers [3].

The ‘last mile’ problem has always been one of the significant problems restricting the development of e-commerce, leading to delivery failures, high end-to-end distribution costs, low delivery service quality, poor delivery timeliness, low convenience of pick-up, severe environmental pollution, and the inability to meet the diversified needs of consumers [4,5,6,7,8,9,10,11,12]. The generation of Collection and Delivery Points (CDPs) is regarded as an essential solution to the problem of the last-mile distribution of goods [13,14], which is defined as the last leg in business-to-consumer delivery service, wherein a consignment is delivered to a particular location (e.g., a consumer’s residence or a collection point) [15]. There are two types of CDPs: automated parcel stations (APSs)/locker points and pick-up points (PPs)/service points. APSs are unattended collections of lockers (using luggage locker technology and personal identification number codes) that accommodate the delivery and collection of parcels and returned goods [16], while PPs use existing shops where customers can pay, collect, and return their parcels, such as grocery shops, fuel stations, pharmacies, and post offices [13]. Compared to APSs, PPs are safer and simpler in operation, with larger storage capacity for flexible parcel sizes and shapes [13]. In addition, PPs are more likely to combine with other commercial activities, attracting people who pick up parcels to consume and increase shops’ revenue [16].

In most location choice research, CDPs are taken as POI (Point of Interest) data. POI typically refers to point data in internet electronic maps, generally including four attributes: name, address, geographic coordinates, and category. POIs can be restaurants, hotels, tourist attractions, ATMs, gas stations, schools, parks, etc. POIs can be temporary, such as an event, or permanent, such as a building or even a city. Such data is widely used in studies on facility spatial layout, urban functional zoning, urban center and boundary identification, and spatial relationships of urban sites. POI types are diverse, involving public services, commerce, finance, entertainment, cultural facilities, and public transportation. The research object of this paper, community group purchasing pickup facilities, can be seen as typical POI data. Common commercial facility POI data types include catering, traditional retail, and entertainment facilities. Research directions include the layout patterns of different formats in urban spaces, the evolution process and clustering patterns of urban commercial patterns, the competitive and cooperative relationships within and between various commercial facilities (industrial cluster phenomenon), and the similarities and differences in location selection among different retail formats.

With the emergence of new retail and the development of the logistics industry in recent years, POI data of emerging formats have gradually been applied to studies on their spatial strategies and decision factors. Li Gang’s team used Cainiao stations as research objects (Cainio, Hangzhou, China), analyzing their spatial location strategies and decision factors in cities like Wuhan, Xi’an, and Shenzhen to solve the last-mile delivery problem. The study concluded that the spatial pattern of emerging delivery points like Cainiao stations results from the combined effects of factors such as regional GDP, population density, transportation convenience, and land use type. Comparative studies between Cainiao stations and China Post were conducted in some cities, revealing significant differences in their reliance methods and service objects. Consequently, despite being functionally competitive, they can complement each other. Additionally, some scholars have studied the spatial strategy and service scope of new retail formats like Freshippo.

Community group purchasing collection and delivery points (CGPCDPs) are a new type of community consumption scenario that emerged during the pandemic and is a brand-new topic for earlier studies. Carrying out research on them will help us deeply understand the reshaping of the community life circle during the pandemic and hopefully build a new theoretical explanation framework. Studies mentioned above have explored the spatial distribution characteristics of PPs and several factors related to PPs’ spatial distribution. However, CGPCDPs have unique characteristics and spatial requirements compared with PPs (

Table 1. Comparison between PP and CGBPP.

	PPs	CGPCDPs
Package type	Various types of packages: envelopes, fresh products, groceries, Electrical appliances	Fresh products: fruits, vegetables, meat
Storage time	Three to seven days	One day
Operating pattern	Cooperation and self-operation	Cooperation
Refrigeration demand	Yes/No	Yes
Quantity	One pickup point for multiple communities	Multiple pick-up points for one community
Service object	Community, school, commercial district	Community

). For example, PPs have two operation modes: self-operated and joint venture [17], and mainly serve communities, schools, and business districts [18]. The types of packages that can be deposited include groceries, fresh products, letters, small packages, electrical appliances, and other goods, which generally have a storage time of 3 to 7 days. In contrast, most CGPCDPs adopt a joint venture model, mainly storing fresh products [3], so it has refrigeration demand and shorter storage time. Moreover, CGPCDPs mainly focus on community services [1]. Sometimes, multiple CGPCDPs will serve one community. Lastly, in addition to shops, CGPCDPs will also depend on self-operated PP and residences. Therefore, it is necessary to conduct an in-depth study on CGPCDPs because of their unique characteristics, putting forward the first problem to be solved:

1.

What are the operating model, service objects, and basic characteristics of CGPCDPs during the COVID-19 pandemic?

The pandemic has profoundly changed People’s Daily lives and consumption patterns, and CGPCDPs are the spatial product and consumption mode that came into being in this process. Therefore, research on them is also an important perspective to reveal the impact of the pandemic on society and the economy. The research on the spatial distribution of PPs is mainly based on the national [19,20] and regional [21,22,23] macro scale. It is found that PPs are usually located in village centers and community centers in urban areas [21,24]. Weltevreden [20] further pointed out that cities, communities, and convenience centers are more suitable for PPs than villages and remote areas because PPs are used more frequently within a 5-min drive of residence. In cities, PPs are concentrated in the main commercial streets. Even in suburbs and rural areas, PPs are usually located in the most “urban” areas. Regional and local train stations are the preferred targets for PP location selection [25]. The spatial distribution of PPs is influenced by population density, traffic accessibility, household internet penetration, ownership of modern electronic devices, shopping trip frequency, and residential property types [19,21,26]. Li et al. [22] found that the spatial distribution of PPs in China matches the distribution of residential land. PPs are less distributed in urban fringe areas and tend to be close to the entrances and exits of communities, companies, industrial parks, shopping malls, and other facilities. They further pointed out that regional economic development level, residents’ purchasing power, population distribution, transportation convenience, and land use type determine the potential PP location. It should be noted [23] that recent articles discuss newer technological and organization solutions, such as IoT, autonomous vehicles, crowd-shipping, and parcel lockers, and concentrate on the behavior analysis of e-customers. Zhao et al. [27] find that the effectiveness of post-COVID-19 recovery stimulus varied across China depending on the fiscal and administrative capacity and the policy motivation of the prefecture. Subnational fiscal and procurement policies were more effective for the wholesale and retail sectors and the hotel and catering sectors, whereas the manufacturing and business services sectors required more effort regarding employment policies.

In addition, Refs. [28,29] found that residents’ social attributes, residence, employment, travel, and other behaviors, as well as PPs’ service radius and business hours, will also affect the location of PPs. Some studies have explored the spatial distribution characteristics of PPs and several factors related to PPs’ spatial distribution. However, CGPCDPs have unique characteristics and spatial requirements compared with PPs. Few studies have involved the spatial distribution characteristics and factors of CGPCDPs, so it raises two research questions to be solved:

2.

What is the spatial distribution pattern of CGPCDPs on different spatial scales?

3.

What factors and mechanisms affect the operating model and spatial distribution of CGPCDPs?

This research aims to solve these three problems from a geographical perspective. A case study was conducted in Nansha District, Guangzhou, the frontier city of new retail development from the micro-scale. Take Xingshengyouxuan CGPCDPs (Changsha City, China) as an example, which is a unicorn company in the field of community group purchasing. The goal of this research is to provide a reference for solving the last-mile distribution problem of e-commerce logistics, contributing to the healthy development of new retail and community life circle planning.

The second part of this article introduces the study area, research data, and research methods. The third part presents the operation mode and basic characteristics of CGPCDPs. The fourth part adapts spatial analysis tools to explore the distribution characteristics of CGPCDPs. The fifth part explores the factors influencing the spatial distribution of CGPCDPs. The sixth part concludes and discusses further research directions.

2. Materials and Methods

2.1. Study Area

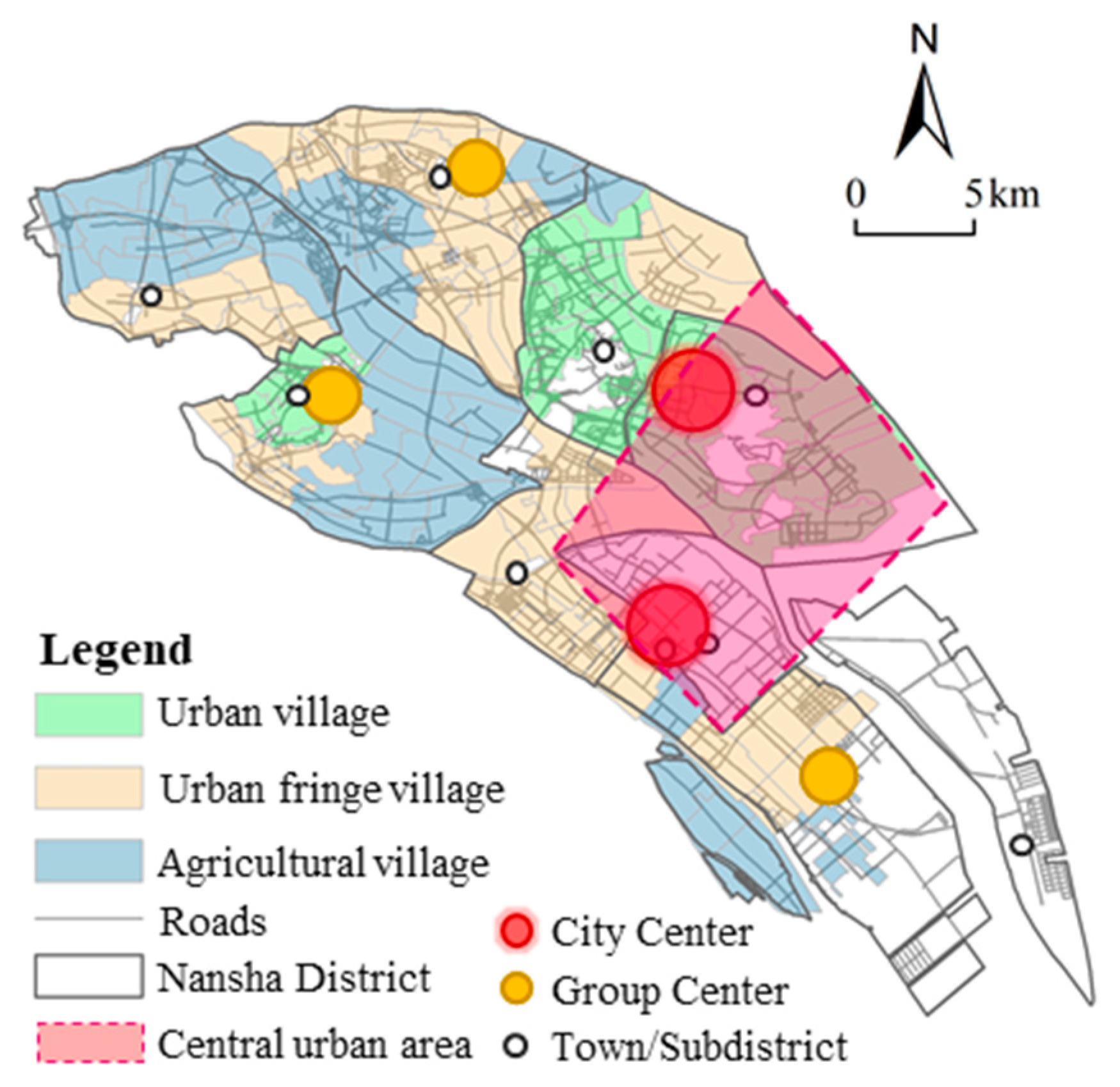

Guangzhou City is located in south China and is known as the “thousand-year commercial capital”. It has continuously been listed in the GaWC International Metropolis list and was rated as the Alpha world’s first-tier city in 2018. In 2018, Guangzhou ranked fifth in the comprehensive national index of new retail city development, indicating that it is a frontier city for new retail development and a key market of Xingshengyouxuan.

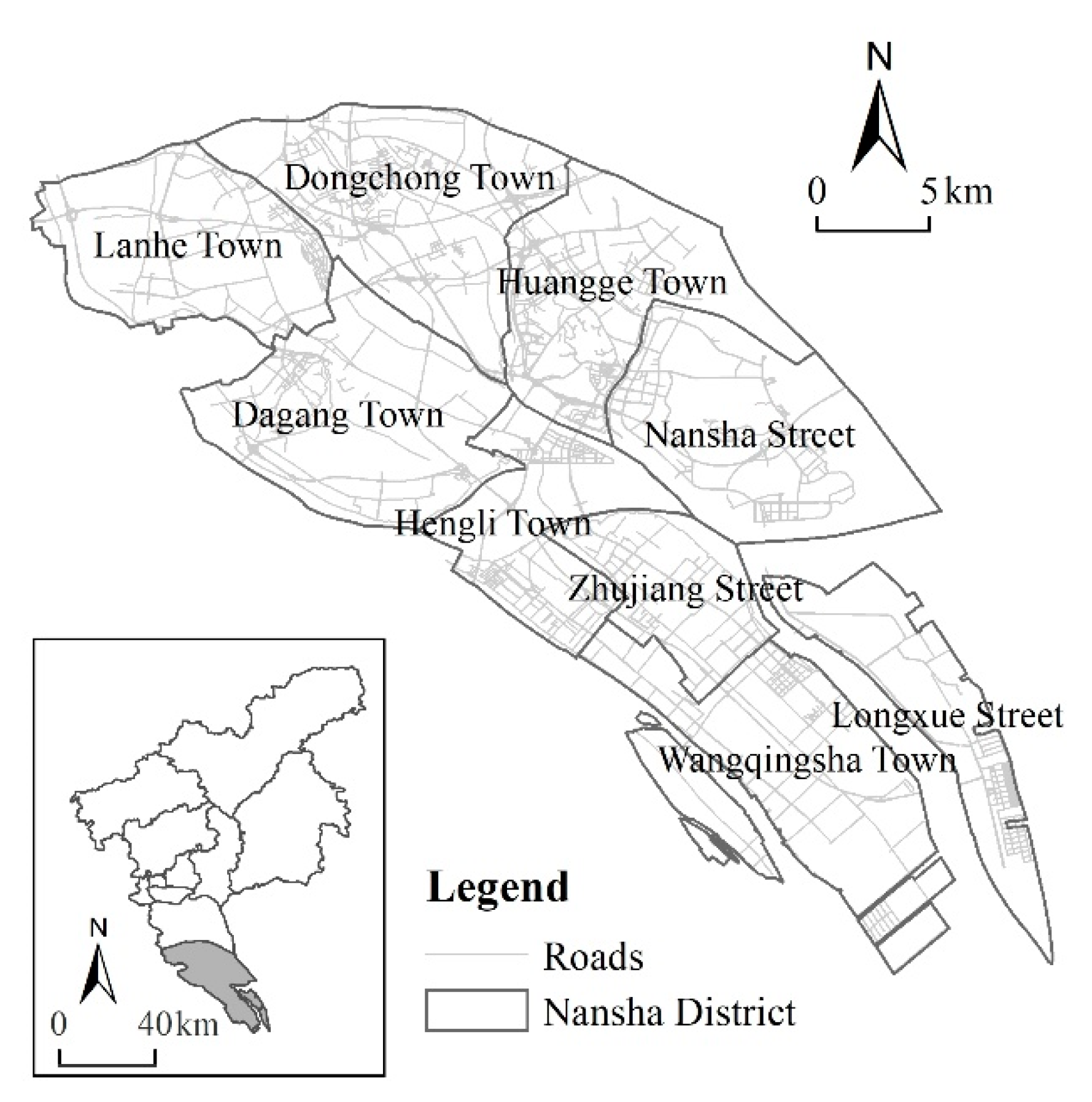

Nansha District (22°26′ N~23°06′ N, 113°13′ E~113°43′ E) is located in the southernmost part of Guangzhou city (Figure 1). It is the sixth state-level new district established by the People’s Republic of China and the first state-level new district governed by a prefecture-level city. Therefore, the development of new economic forms, such as new retail and community group purchasing, has received strong support here. From its inception, Xingshengyouxuan has established numerous self-pickup points in this area, resulting in a relatively stable spatial distribution pattern that provides ample data support. Additionally, this region is located at the estuary of the Pearl River and the geographical and geometric center of the Guangdong-Hong Kong-Macao Greater Bay Area. It serves as Guangzhou’s only seaward outlet and is a crucial hub connecting cities around the Pearl River estuary and the Hong Kong-Macao area. Its flat terrain and developed transportation network mean that socio-economic factors significantly influence the development of community group purchasing. Nansha District has formed a diverse living environment in the rapid urbanization process. The Urban Master Plan of Nansha New District in Guangzhou City (2012–2025) includes central urban areas: Nansha Street, Zhujiang Street, Hengli Island, and the northern part of Longxue Island, two main urban centers: Jiaomen River Center and Zhujiang Coastal Center, and villages which are categorized into urban village, urban fringe village, and agricultural village (Figure 2). Research in this area can offer valuable insights into the layout and planning of the retail industry in other economic development zones and new districts with complex socio-economic environments.

2.2. Data Sources

Xingshengyouxuan was established in 2017. In just a few years, the annual GMV has increased from 800 million to about 40 billion, and the number of CGPCDP has risen from 20,000 to more than 500,000. Its business has spread to 15 provinces (municipalities), such as Hunan, Hubei, and Guangdong, as well as more than 6500 cities and towns and over 50,000 counties. In 2020, it was listed on the Hurun Global Unicorn List and was the first “unicorn” enterprise in Hunan province with a valuation of more than 1 billion US dollars. We selected Xingshengyouxuan for several reasons. Firstly, as a pioneer and major player in the market, Xingshengyouxuan has established a comprehensive and mature operational model that offers valuable insights into the industry’s best practices. Secondly, the company’s extensive network and significant market share provide a rich dataset that is representative of the broader community group purchasing landscape. Thirdly, Xingshengyouxuan’s early and large-scale deployment of collection and delivery points in Nansha District allows for a detailed and stable analysis of spatial distribution patterns and influencing factors. By focusing on a well-established unicorn company, our study can draw more reliable and generalizable conclusions that can be applied to other similar entities in the industry.

The data were collected from the following databases: (1) The point of interest (POI) data of CGPCDPs of Nansha District were crawled from the Xingsheng optimization website (https://www.xsyxsc.com/, accessed on 15 August 2021) with Python. The selection criteria for POI data included different dependency types and open self-pickup points that allow order placement. The data content included detailed addresses, longitude and latitude coordinates, business types, operational status, and opening hours. Through data cleaning, elimination, coordinate correction, and address information correction and completion, by mid-August 2021, we have collected 1353 CGPCDPs of Xingshengyouxuan. (2) POI data of related facilities such as residential areas, convenience stores, supermarkets, shopping malls, and transportation stations were collected from the Baidu map (https://map.baidu.com/, accessed on 15 August 2021) with Python 3.9. (3) Housing price data comes from China’s housing platform Beike.com (https://bj.ke.com/, accessed on 15 August 2021) in mid-August. Each record contains the community’s name, latitude and longitude, and housing price. (4) Road network data comes from OpenStreetMap (https://www.openstreetmap.org/, accessed on 15 August 2021), population distribution data comes from mobile phone signaling data analysis in 2019 [30], and satellite remote sensing data comes from Baidu Map (https://map.baidu.com/, accessed on 15 August 2021). Finally, the vector data of China National Geographic Information Center’s 1:300,000 National Basic Geographic Database is an auxiliary data source. To ensure the accuracy and reliability of our findings, we adopted a rigorous data validation process. All the data mentioned above were collected from multiple authoritative sources and underwent extensive cleaning, elimination of duplicates, coordinate correction, and address information completion to ensure validity and freshness.

2.3. Research Methods

Given the unique spatial and operational characteristics of CGPCDPs, our research methods are designed to capture these aspects comprehensively. The Standard Deviational Ellipse helps us understand the overall spatial distribution direction, while Kernel Density Estimation (KDE) visually reveals the macroscopic distribution patterns. Furthermore, spatial regression models, including Ordinary Least Squares (OLS), Geographically Weighted Regression (GWR), and Multi-scale Geographically Weighted Regression (MGWR), are employed to analyze the influencing factors and driving mechanisms behind the spatial differentiation of CGPCDP distribution. These methods collectively allow us to provide a detailed and nuanced understanding of CGPCDPs, contributing to the broader literature on new retail and e-commerce logistics.

2.3.1. Standard Deviational Ellipse

The standard deviation ellipse is mainly used to study the spatial distribution characteristics of discrete data sets. The average center of the ellipse is the center of gravity of geographical elements in space. The azimuth Angle represents the main trend of its distribution, the direction of the long axis represents the main distribution direction of data, and the area represents the concentration degree of discrete points [31]. The research uses the standard deviation ellipse to study the direction of the spatial distribution of CGPCDPs. The specific calculation formula is as follows:

$${SDE}_X=\sqrt{{\displaystyle \frac{{\sum }_{i=1}^n{\left(x_i-\overline{x}\right)}^2}{n}}}$$

(1)

$${SDE}_y=\sqrt{{\displaystyle \frac{{\sum }_{i=1}^n{\left(y_i-\overline{Y}\right)}^2}{n}}}$$

(2)

where $x_i$ and $y_i$ are the coordinates of element i; {$\overline{X}$,$\overline{Y}$} represents the average center of the element; n is equal to the total number of elements.

2.3.2. Kernel Density Estimation

Kernel density estimation (KDE) believes that there is a measurable event density at any location in the region, which can be estimated by the number of event points in the unit area around it, aiming at examining the spatial distribution of random variables [32,33]. This research uses the KDE to visually reveal the macroscopic distribution pattern of CGPCDPs in the study area. The specific calculation formula is as follows:

$$f\left(x\right)={\displaystyle \frac{1}{{nh}_n}}\sum _{i=1}^{n}k\left({\displaystyle \frac{x-x_i}{h_n}}\right)$$

(3)

where $n$ is the number of samples; $h_n$ is the bandwidth, namely the search radius; $k\left({\displaystyle \frac{x-x_i}{h_n}}\right)$ is the kernel function.

2.3.3. Spatial Regression Model

1.

Ordinary Least Squares (OLS)

OLS is a global regression model that implicitly assumes that the observed values in the study area are independent and constant and that the error terms are not correlated without considering spatial correlation [34,35]. The calculation formula is as follows:

$$y_i={\beta }_0+x_i\beta +{\epsilon }_0$$

(4)

where $y_i$ is the CGPCDPs density value of the location i; ${\beta }_0$ is the intercept; $x_i$ is the explanatory variable; β is the regression coefficient of variable i; ${\epsilon }_0$ is the random error.

2.

Geographically Weighted Regression

Geographically Weighted Regression (GWR) is an improved spatial linear regression model that estimates local parameters at each location, assuming non-stationary relationships between response variables and explanatory variables [36,37,38]. The model applies the spatial weight matrix to the linear regression model, vividly showing the spatial structure differentiation. The calculation formula is as follows:

$$y_i={\beta }_{i0}+{{\sum }_{n=1}^k{\beta }_{ij}x}_{ij}+{\epsilon }_i,i=\mathrm{1,2},\cdots ,n$$

(5)

where $y_i$ is the CGPCDPs density value of the location i; ${\beta }_{i0}$ is the intercept; ${\beta }_{ij}$ is the regression parameter j; $x_{ij}$ is the value of the explanatory parameter j; ${\epsilon }_i$ is the random error.

While GWR offers the advantage of accounting for spatial heterogeneity by estimating local parameters, it also has limitations. The method assumes that the relationship between variables changes smoothly over space, which may not always be the case. Furthermore, GWR can be computationally intensive and may suffer from multicollinearity among the explanatory variables. To mitigate these limitations, we conducted a multicollinearity diagnosis and adjusted bandwidths to ensure the stability of local parameter estimates.

3.

Multi-scale Geographically Weighted Regression

GWR considers spatial changes in the regression modeling process, but the setting of the spatial scale is still constant [39,40]. Multi-scale Geographically Weighted Regression (MGWR) is an extension of GWR and uses different bandwidths for each influencing factor instead of a single constant bandwidth to measure the relationship between the independent variable and dependent variable space changes at various scales [39]. The calculation formula is as follows:

$$y_i={\beta }_{i0}+{{\sum }_{n=1}^k{\beta }_{bwj}x}_{ij}+{\epsilon }_i,i=\mathrm{1,2},\cdots ,n$$

(6)

where ${\beta }_{bwj}$ is the bandwidth used to calibrate the relationship j, and the remaining parameters are the same as Equation (5). Compared with GWR, MGWR can accurately describe spatial heterogeneity, reduce collinearity, and reduce deviation in parameter estimation [39,40]. However, MGWR also requires careful selection of bandwidths for each variable, which can be complex. We addressed this by using cross-validation to select optimal bandwidths for each explanatory variable, ensuring the robustness of our findings.

We chose these spatial analysis tools for their ability to account for spatial heterogeneity and provide insights into the local variations in the relationships between CGPCDP density and influencing factors. These tools are preferable over traditional regression models that assume uniform relationships across space, which would overlook the spatial nuances critical to our study. By employing OLS, GWR, and MGWR, we aim to offer a comprehensive analysis that captures both global and local patterns in the data, thereby enhancing the credibility and depth of our research findings.

The research constructs OLS, GWR, and MGWR models, respectively, to explain the influencing factors and driving mechanisms of the spatial differentiation of CGPCDP distribution.

3. Results

3.1. Basic Characteristics of CGPCDPs

3.1.1. Operation Mode

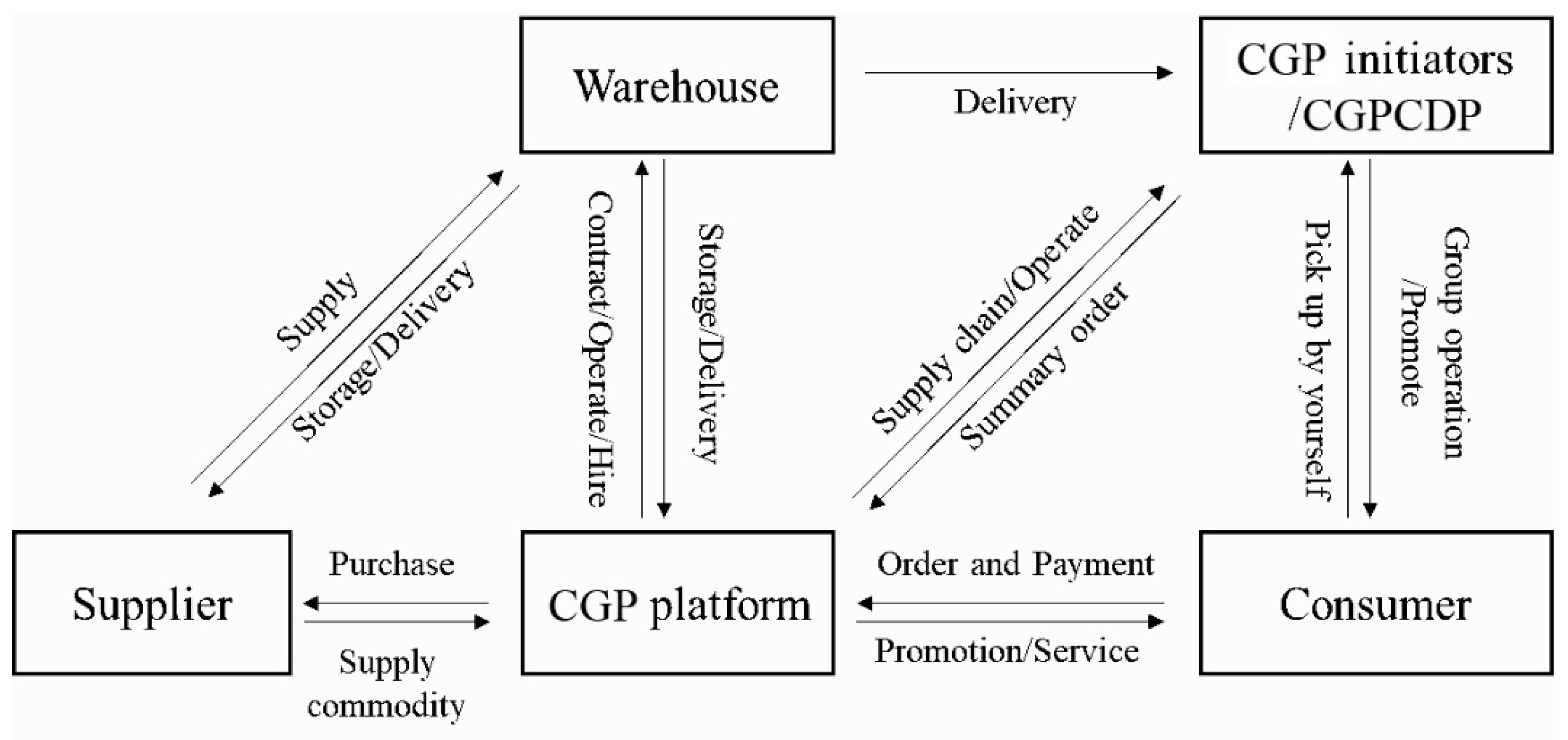

Taking Xingshengyouxuan as an example, the operation mode of community group purchasing (Figure 3) is: Taking the community as a unit, the community group purchasing group is established by recruiting initiators to gather consumers with similar consumption needs. Initiators are responsible for product promotion, daily operation, attracting group members to place orders, and organizing orders. Then, the platform provides centralized procurement from suppliers and uses the established logistics network to deliver the products to CGPCDPs the next day. Next, initiators notify the customer to pick up the goods after the goods are distributed, and the users pick up the goods by themselves. Community group purchasing is oriented to the daily needs of the community residents, and sales are carried out by initiators who have social relationships with acquaintances or semi-acquaintances.

In addition, it adopts the pre-sale and “purchase by sale” models, storing goods in CGPCDPs adjacent to consumers so that they can save on storage and logistics costs. CGPCDPs can be joined at zero cost, only providing goods storage and self-pickup space and getting the flow of people and revenue commission.

3.1.2. Initiator Characteristics

Table 2. Categories of Community Group Purchasing Initiators in Nansha District.

Category	Shopkeeper		Resident		Express Stationmaster		Company Owner		Residential Property Workers		Others
Gender	Male	Female	Male	Female	Male	Female	Male	Female	Male	Female	Male	Female
Number	433	586	77	156	21	27	16	11	5	7	6	8
Total	1019		233		48		27		12		14
Ratio	75.31%		17.22%		3.55%		2.00%		0.89%		1.03%

shows that the initiators are mainly shopkeepers (such as supermarkets and convenience stores), residents, and express stationmasters. Among them, shopkeepers have the highest priority, accounting for 75.31%, mainly because physical stores naturally have offline pick-up scenes and the conditions to store fresh goods. Followed by residents and express stationmasters, accounting for 17.22% and 3.55%, respectively. Further study on the gender ratio of various initiators found no significant gender difference between shopkeepers and station managers. However, among residents, the number of women initiators is significantly higher than that of men. This is related to China’s social division between “men dominate outside, and women dominate”. Compared with men, women have more leisure time and are more willing to do business to support their families.

3.1.3. Support Types

According to “China National Economic Industry Classification (GB/T 4754-2017)” [41] and “China Retail Industry Classification (GB/T 18106-2021)” [42] (std.samr.gov.cn, accessed on 15 August 2021), the supporting types of CGPCDPs are divided into 9 categories (

Table 3. Support types of CGPCDPs in Nansha District.

	Support Types	Quantity	Ratio
Wholesale and Retail	Convenience store, Clothing store, Store, Stationery shop, ect.	751	55.51%
Resident Services	Printing shop, Photo studio, Nursery, Laundry, etc.	67	4.95%
Accommodation and Catering	Snack bar, Milk tea shop, Bakery, Hotel, etc.	119	8.80%
Express and Warehouse	Cainiao Station, SF Express, Storehouse, etc.	65	4.80%
Fresh stores	Vegetable shop, Fruit shop, etc.	69	5.10%
Recreation and Entertainment	Internet café, Beauty shop, Lottery station, etc.	22	1.63%
Residence	Commodity Housing, Self-built house	244	18.03%
Company	Company	10	0.74%
Others	Door post, Parking lot, Driving school, etc.	6	0.44%

). It was found that most CGPCDPs appear in the form of joint ventures, mainly dependent on wholesale and retail, recreation and entertainment, accommodation and catering, and other types. Wholesale and retail, especially convenience stores, supermarkets, and stores, are the first choice for CGPCDPs because of their comprehensive layout, advantageous location, and storage space conditions, accounting for 55.51%. Next is the residence, accounting for 18.03%, which belongs to residents who voluntarily operate low-cost or no-cost local operations to earn additional income. Accommodation and catering, logistics and warehousing, and life services are also common places where CGPCDPs depend. It is worth mentioning that the proportion of fresh stores with high consistency of products provided by CGPCDPs is also high. According to the survey, the main reason is probably that entering CGPCDPs can bring additional income even if they share similar goods.

3.1.4. Service Objects

Different functional areas have different needs for CGPCDPs. CGPCDPs are committed to solving the last mile distribution problem, which is generally distributed near the target of its service. With CGPCDPs as the center and 500 m as the radius, the neighboring facilities (communities, companies, industrial parks, etc.) are determined. The service objects are selected according to the principle of minimum distance. A further determination is made in combination with field investigation and satellite images.

Table 4. Types of the targeted service objects CGPCDPs in Nansha District.

Category	Community	Industry Area
Number	1189	126
Ratio	87.88%	9.31%

shows that CGPCDPs mainly serve communities (including urban and rural communities), accounting for 87.88%. It was followed by the industrial zone, accounting for 9.31%, mainly because of the many high-tech equipment, automobile, and marine industries in Nansha District.

3.2. Spatial Pattern of CGPCDPs

3.2.1. Macro Distribution Characteristics of CGPCDPs

1.

Overall pattern

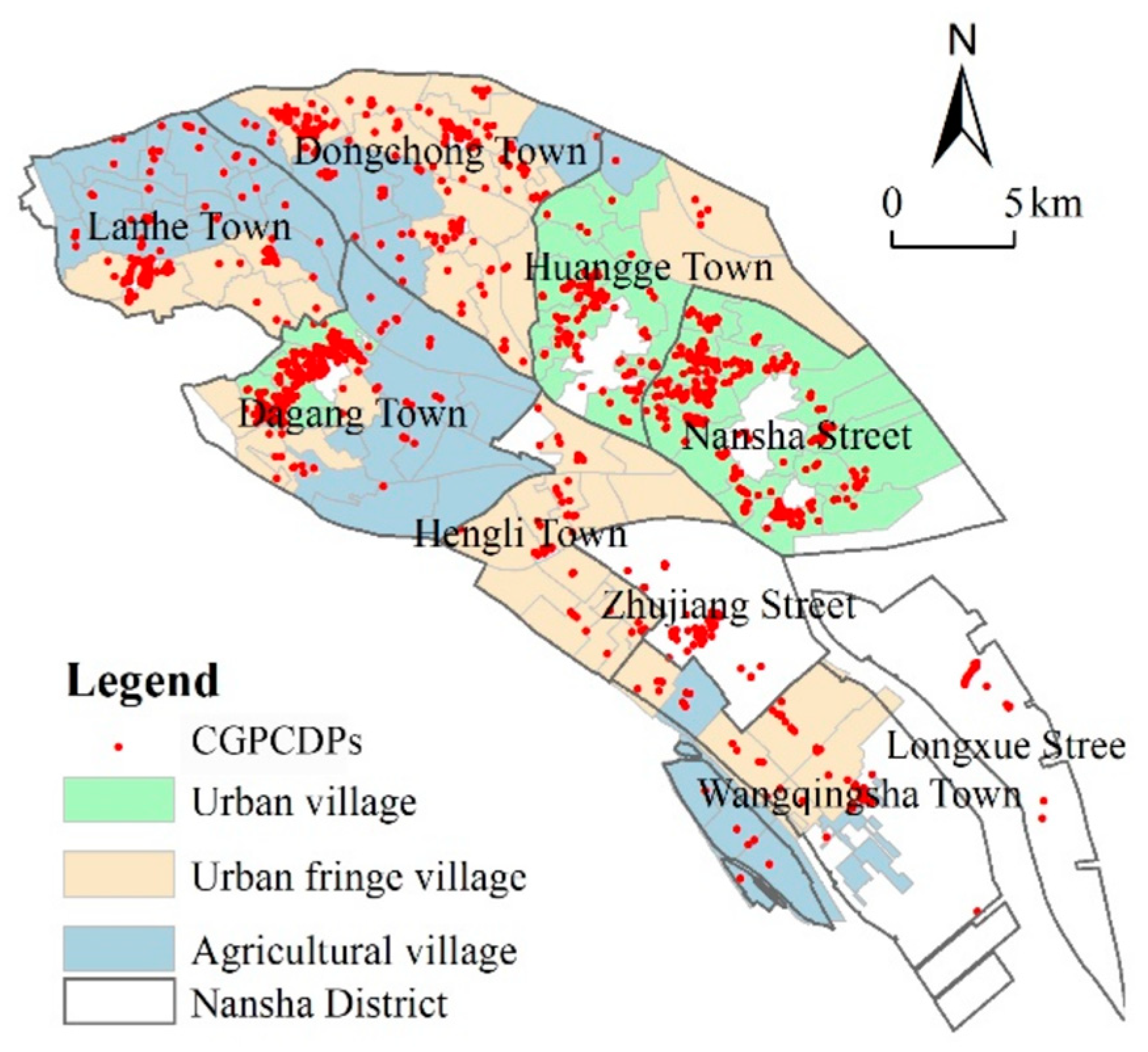

Figure 4 shows that the spatial distribution of CGPCDPs in Nansha District is unbalanced, which is dense in the north and scattered in the south. It is mainly concentrated in Nansha Street, Zhujiang Street, Huangge Town, Dagang Town, and Dongyong Town, with rapid economic development, long-term urban construction, and a large population. It is sparsely distributed in Wanqingsha town and Longxue Street in the south. Calculate the average predicted distance and nearest neighbor index of CGPCDPs in the urban community, urban village, urban edge village, and agricultural village; using the mean nearest neighbor [43], calculate the average predicted distance and nearest neighbor index of CGPCDPs in the urban community, urban village, urban edge village, and agricultural village. The average predicted distance and nearest neighbor indexes are 94.72 m and 0.14 for the urban community, 121.97 m and 0.26 for urban villages, 153.86 m and 0.33 for urban edge villages, and 177.63 m and 0.35 for agricultural villages. It is found that the distribution of CGPCDPs presents the pattern of “central agglomeration and peripheral dispersion”. To be specific, it is concentrated in urban communities and urban villages and has a trend of diffusion and reduction to peripheral urban edge villages and agricultural villages. It is closely related to the population distribution, urban construction, and residents’ demand in Nansha District.

Further, we analyze the spatial distribution of its support facilities (Figure 5), including wholesale and retail, residential and accommodation, and catering (accounting for 82.34%), among others. All the support facilities of CGPCDPs are mainly distributed in urban communities and urban villages. Wholesale and retail are covered in urban and rural areas, with a wide range and a large number. Residences are mainly concentrated in urban areas but rarely in rural areas, mainly related to traffic convenience, attraction, and sufficiency. There is no apparent urban-rural difference in accommodation, catering, and other types, but all their distributions are relatively scattered due to their numbers.

2.

Spatial distribution direction characteristics

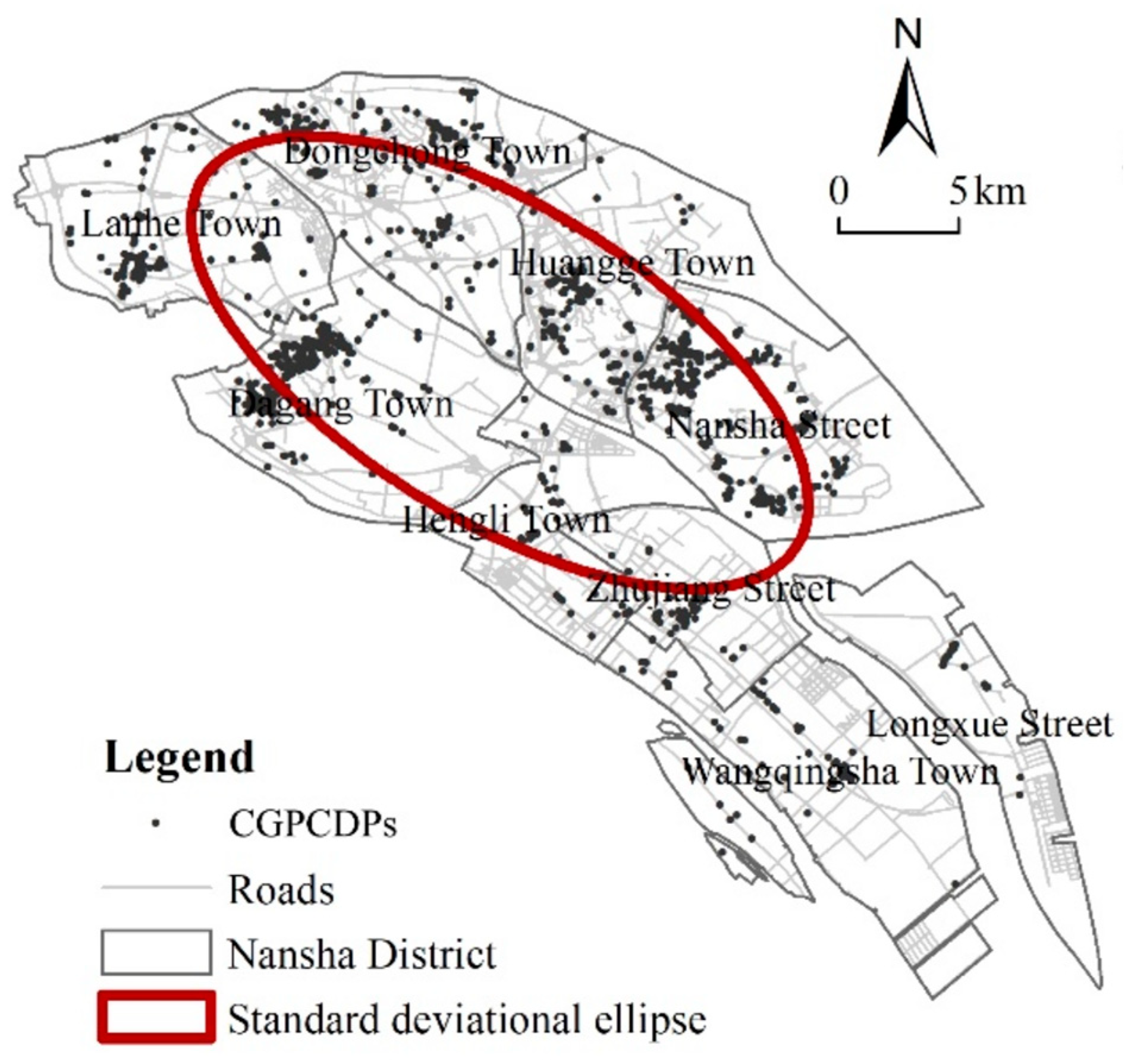

The distribution of CGPCDPs is directional; that is, the degree of dispersion in each direction is different. This research uses the standard deviation ellipse analysis method to analyze the difference in the degree of dispersion of CGPCDPs. It can be seen from Figure 6 that the length of the major axis and the minor axis of the standard deviation ellipse are quite different. The spatial distribution of CGPCDPs shows a “northwest-southeast” trend, which means the distribution is concentrated in the northwest and scattered in the southeast. This is mainly because of the direction of the urban spatial development and axis of the Nansha District. It connects with the downtown area of Guangzhou to the north and develops marine and port industries to the south.

3.

Spatial agglomeration characteristics

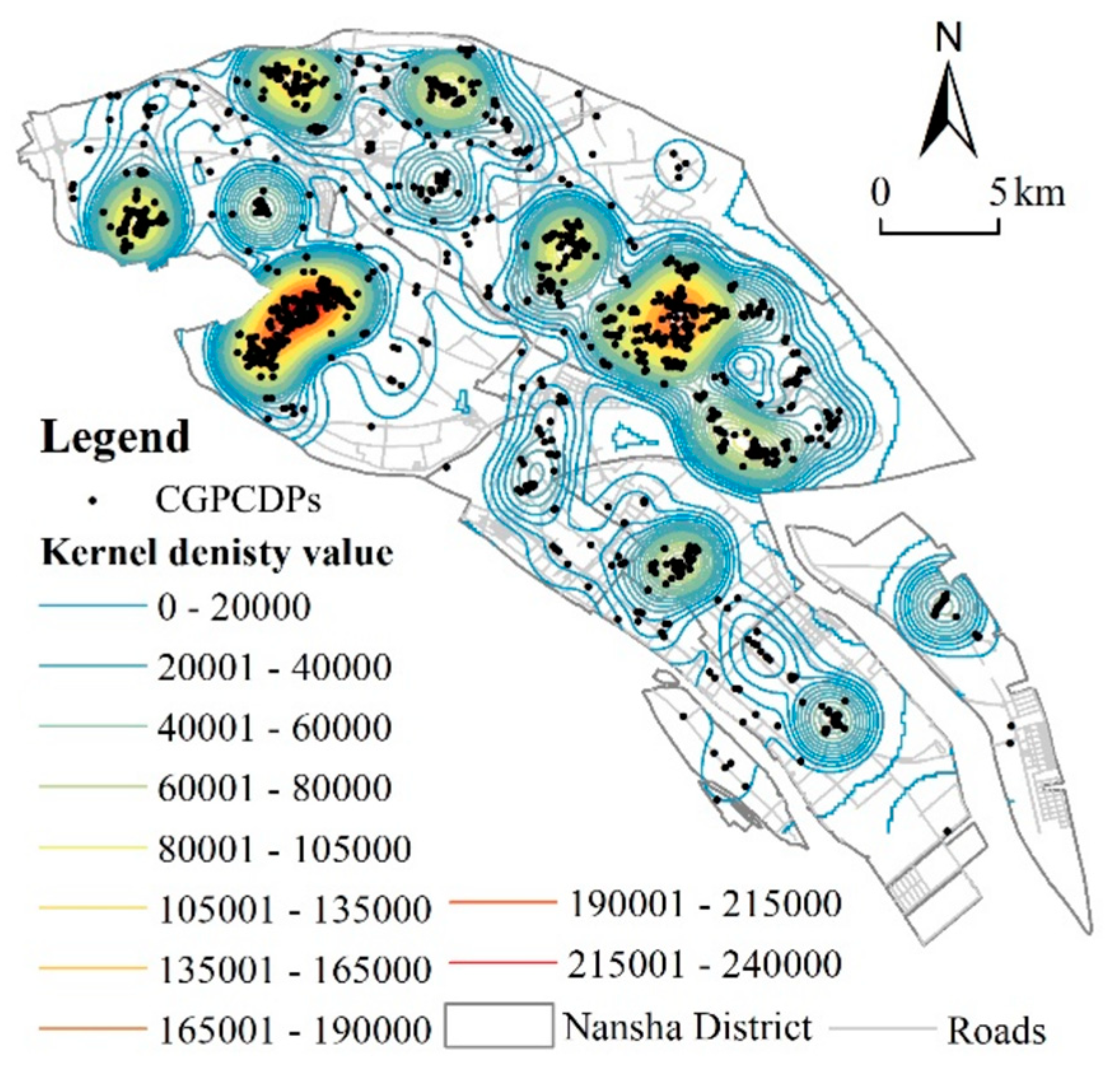

The kernel density analysis of CGPCDPs in Nansha District revealed prominent distribution hotspots (Figure 7). It presents a “dual-core and multi-center” overall distribution pattern. The first core is located in the Jiaomen River area, north of the Nansha Sub-district, the main urban center of the Nansha District. It undertakes the function of urban public services. Jiaomen bus terminus, Jinzhou, and Jiaomen subway stations are located here, with a dense population, complete supporting facilities, convenient transportation, and high income of residents. The second core is the northern area of Dagang Town, the old town center of Dagang Town, which has a dense population, high construction density, and strong consumer demand. The multiple centers are located in the south of Lanhe Town, the north of Dongchong Town, the south of Huangge Town, the middle of Zhujiang Street, the middle of Wanqingsha Town, and the central and northern areas of Kongxue Street. Most of these areas are town (street) centers and high-speed railway station neighborhoods, which are the most densely populated and have a high level of economic development. In addition, the distribution density of CGPCDPs mainly decreases from the center to the edge, and there are many areas with extremely low density or even zero regions, which are non-construction land areas.

3.2.2. Meso–Micro Distribution Pattern of CGPCDPs

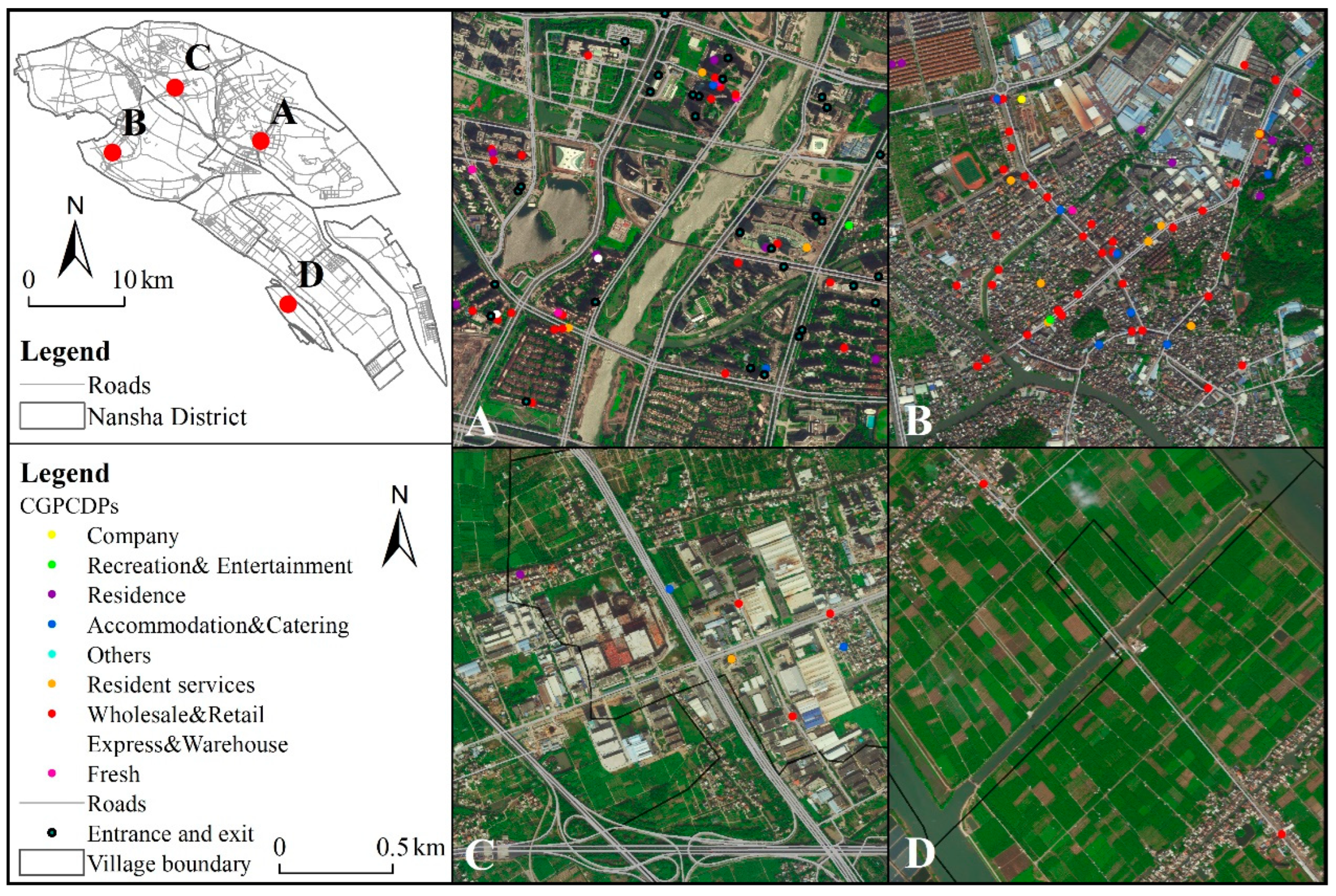

Through the previous analysis, it is found that the distribution of CGPCDPs has spatial heterogeneity. To specifically examine the spatial differences and characteristics of CGPCDPs under different built environments, four regions (an urban area A in Figure 8A, an urban village area B in Figure 8B, an urban border village area C in Figure 8C with industry as the mainstay, and a rural area with agriculture as the mainstay D in Figure 8D) were selected (Figure 8).

(A)

Located in the Jiaomenhe Community of Nansha Street, it is the main center of the Nansha District, with convenient transportation and a dense population. CGPCDPs are densely distributed and have rich types of support. They are usually adjacent to residential areas and have a significant “many-to-one” distribution trend: multiple CGPCDPs in a residential area. There are mainly three spatial distribution modes. The first is adjacent to the inner center of the residential area and has multi-directional high accessibility. The second is located at the edge of the residential area along the side of the main road, adjacent to the main entrances and exits of the residential area, and is around the central pedestrian passage. The third is located on both sides of the roads or intersections on the periphery of the residential area, serving the residents’ daily consumption of the surrounding communities.

(B)

Located in Weiyu Village and Dagang Town, it has high building density, high population density, and many small-scale commerce and catering businesses. CGPCDPs are densely distributed, with rich supporting types and a uniform distribution trend. It is mainly concentrated on both sides of the main roads in urban villages, and the layout is directional because the population and construction density of urban villages are too large. However, there is no prominent density center and a structural paradigm of “spreading big cakes”.

(C)

Located in Dongshen Village and Dongyong Town, there are many electronic and logistics industries, such as Mark Industrial Zone and Guangzhou Linyi New Energy Technology Company. The number of CGPCDPs is small, and the distribution is relatively scattered. They are mainly distributed around the factory or on both sides of the roads where residents live.

(D)

Located in Minjian Village and Minxing Village, Wanqingsha Town, and Nansha District, the construction land is scattered, and many agricultural lands are distributed. A village usually has one or two CGPCDPs, mainly depending on the wholesale and retail shops, which are scattered, mainly distributed on both sides of the main roads, and mostly the “urban core” of rural areas, which gets similar conclusions with the study of Morganti [26].

3.3. Influencing Factors of CGPCDPs Spatial Differentiation

3.3.1. Selection of Influencing Factors

The study found that the location of CGPCDPs in Nansha District showed apparent differences in distribution at different scales. This feature can be explained by a spatial regression model that considers spatial features. Therefore, this research constructs OLS, GWR, and MGWR models to analyze the factors influencing the spatial distribution of CGPCDPs. A possible explanation is that consumers’ social and financial attributes, population density, distance from transportation nodes and social and economic centers, accessibility of transportation, and land use types may affect the distribution of CGPCDPs. Considering the spatial distribution characteristics of CGPCDPs in Nansha District, several indicators are drawn up from socioeconomic, traffic location, and spatial environment. After multiple linear stepwise regression, the variables with high collinearity and low contribution rate were eliminated, and finally, 9 main influencing factors were selected (

Table 5. Model variable description statistics.

Category	Characteristic Variables	Variables	Variable Description
Dependent variable	CGPCDPs density	Y	The CGPCDP density value of each grid
Socioeconomic	Population density	X1	The population density value of each grid
	House prices	X2	House prices of each grid
Traffic and Location	Road network density	X3	The road network density value of each grid
	Distance to urban community center	X4	Distance from each grid to the nearest urban community center
	Distance to roads	X5	Distance from each grid to the nearest main road
	Traffic station density	X6	Bus and subway station density value of each grid
Space and Environment	Construction land	X7	The construction land density value of each grid
	Supporting places	X8	Main supporting places of CGPCDPs density value of each grid
	Residential density	X9	Communities and villages density value of each grid

).

3.3.2. Model Construction and Testing

The Nansha District was divided into 738 regular hexagonal grids with an area of 1 km². The values of dependent variables and independent variables of each grid were calculated. Then, OLR, GWR, and MGWR were used for analysis, and the results are shown in

Table 6. Comparison of fitting results of OLS, GWR, and MGWR models.

Model	R2	Adjusted R2	RSS	AICc
OLS	0.818	126	133.949	855.270
GWR	0.981	0.973	14.370	−253.349
MGWR	0.985	0.982	10.892	−648.808

. From the overall fit R² of the model, the R² value of the MGWR model is 0.985, which is the best overall fit among the three models, indicating that MGWR can explain 98.5% of the CGPCDPs density distribution in the Nansha District. In addition, the Residual Sum of Squares (RSS) and AICc of the MGWR model are the smallest among the three models. Therefore, compared with the OLR and GWR models, MGWR has the best fitting effect and can describe the spatial variation and scale difference between CGPCDP density and its influencing factors more accurately.

According to the local variable coefficients of MGWR (

Table 7. Local variable coefficients of MGWR model.

Variable	Bandwidth	Mean	STD	Min	Median	Max	p-Value
X1	737.000	0.062	0.001	0.060	0.061	0.064	0.000 **
X2	43.000	−0.024	0.097	−0.318	−0.013	0.455	0.000 **
X3	737.000	0.000	0.001	−0.001	−0.000	0.001	0.397
X4	43.000	−0.048	0.165	−0.422	−0.045	0.401	0.027 *
X5	737.000	−0.002	0.002	−0.005	−0.003	0.002	0.014 *
X6	44.000	0.107	0.164	−0.182	0.083	0.855	0.397
X7	45.000	0.045	0.083	−0.122	0.025	0.336	0.000 **
X8	43.000	0.931	0.322	0.543	0.805	1.712	0.000 **
X9	43.000	0.202	0.233	−0.614	0.255	0.650	0.012 *

** and * are significant at the level of 1% and 5%, respectively.

), the spatial bandwidth of each variable is different. That is, the influence of each variable on CGPCDP distribution is operated at various scales. Except for the fact that the density of the road network and traffic station is insignificant in the 95% confidence interval, the other influencing factors all have significant sample points. The number of significant samples of statistically significant factors (p ≤ 5%), population density, distance from urban community centers, distance from roads, and supporting places is significant globally. In contrast, housing prices, construction land, and community density are significant locally.

3.3.3. Influence Mechanism

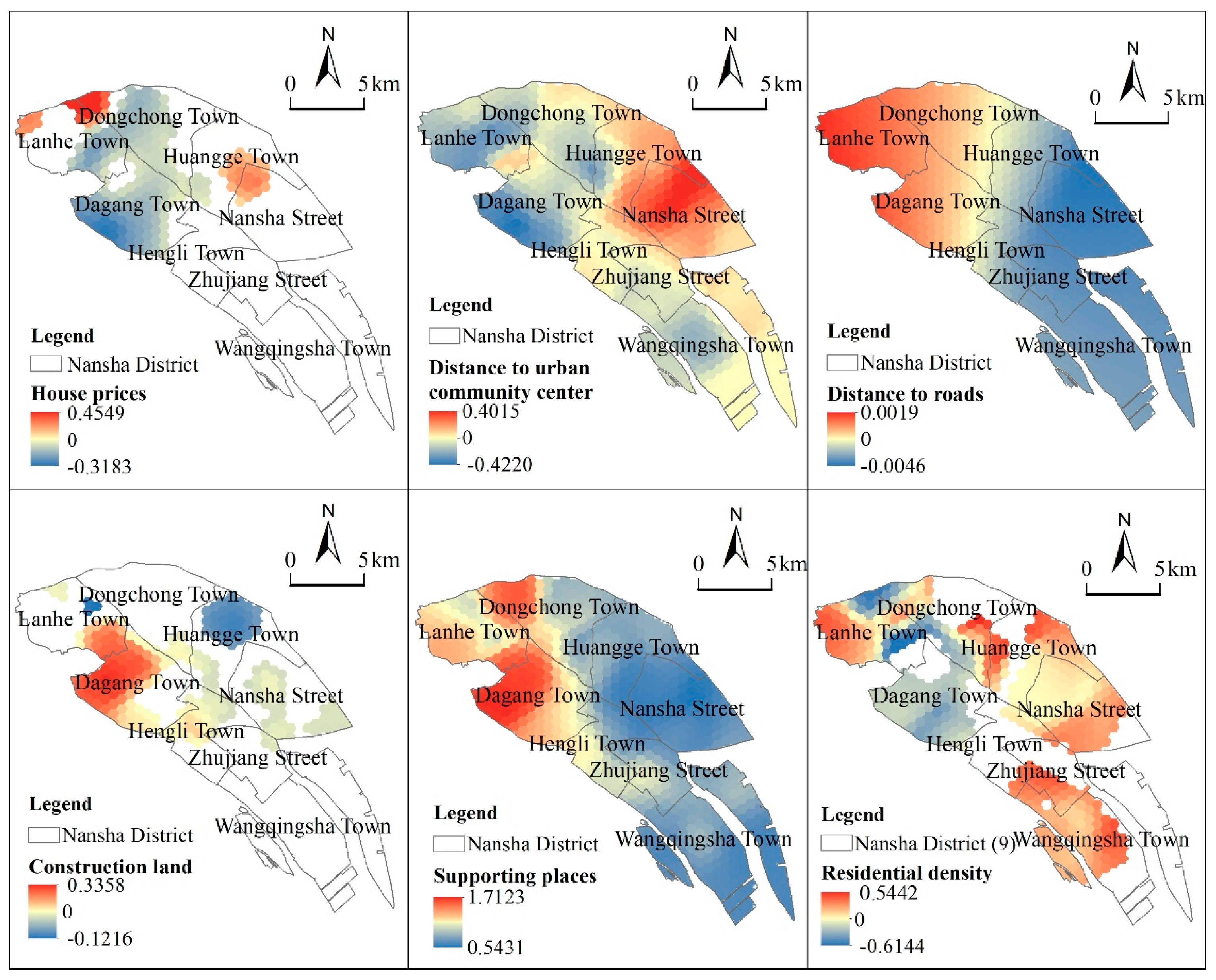

According to the regression coefficient results of MGWR (Table 7 and Figure 9), the influence mechanism of CGPCDPs’ spatial differentiation is explored from the socioeconomic, traffic location, and spatial environment levels.

1.

Socioeconomic factors

The bandwidth value of population density is 737, and the regression coefficient value is between 0.06 and 0.064, indicating that population density has a relatively stable positive influence on the distribution of CGPCDPs in the global scope. Because the population density can represent the consumer demand to a certain extent, the greater the population density, the greater the consumption demand of community group purchasing, and the more CGPCDPs. Housing prices are mainly affected in the local area of the Nansha District. The main regression coefficient is negative, indicating that the higher the housing price, the fewer CGPCDPs. The reason is that the price of community group purchasing goods is low, and the high housing price reflects the high-income level of residents, who are less interested in it. At the junction of Huangge Town and Nansha Street and in the northwest of Dongyong Town, housing prices positively impact the distribution of CGPCDPs because there are mainly industrial areas and newly built districts, and high housing prices mean more residents. The northwest area of Dongyong town is mainly because of its proximity to the Panyu district of Guangzhou, which is affected by regional factors.

2.

Traffic location factors

The distance from the road affects the distribution of CGPCDPs globally in the Nansha District, but there are differences between urban and rural areas. It has a positive impact in rural areas and a negative impact in urban areas, showing a transparent gradient from northwest to southeast. The reason is that the road network in rural areas is sparse, and the residential area is far from the road. The road network in urban areas is dense, the residential area is adjacent to the road, and there are many places where CGPCDPs depend on both sides of the streets. The factor bandwidth of distance from the urban community center is 43, which has apparent spatial heterogeneity, and the regression coefficient decreases outward from the urban community center. In the area around the urban community center, the greater the distance from the urban community center, the more CGPCDPs, mainly related to the house price level. In the area farther away from the urban community center, the farther the distance, the less the number of CGPCDPs, similar to the research results of Weltevreden [21] and Esser and Kurte [25]. Mainly because the rural population density is low and there are conditions for self-supplied fresh products, but the demand for CGPCDPs is relatively small.

3.

Spatial environmental factors

The regression coefficient of construction land in most areas is positive. The more construction land, the greater the number of CGPCDPs. However, it has a significant negative impact on the eastern area of Huangge Town. The reason is that construction land is mostly industrial land in the area, with less residential land and fewer potential consumers. The regression coefficient of supporting places of CGPCDPs is the largest and most positive, so it has the most significant influence on the distribution of CGPCDPs. The regression coefficient shows a decreasing change from northwest to southeast, mainly because the northwest is rural. There is a lack of supporting places for CGPCDPs, which decreases marginally the impact of urban areas on the distribution of CGPCDPs. The residential area is the service space of CGPCDPs, and the residential density has a positive incremental effect on the spatial distribution of CGPCDPs in the Nansha District. The greater the community density, the more CGPCDPs serve the population and the more CGPCDPs there are. However, the abnormal negative impact area in Dagang Town is mainly due to the concentration of self-built houses in Huangge Town. Although the number of residential areas is small, the population density is high, and the demand for CGPCDPs is high.

4. Discussion

PPs are essential to solving the “last mile” problem. Their spatial layout and location selection play an important role in transportation efficiency [21,26]. Under the new retail background, CGPCDPs, which focus on community life services, have unique characteristics and needs compared with PP for package transportation. Therefore, research in operation model, layout, and location selection, and influencing factors of CGPCDPs based on big data is necessary. On the one hand, this research supplements the lack of space research on CGPCDPs with qualitative methods in the field of business and logistics [1]. On the other hand, it makes up for the lack of a micro-scale study of PPs [21,22], providing a new way to break new retail’s “last mile” logistics bottleneck.

Our research found that the distribution of CGPCDPs has significant differentiation in different scales and built environments, resulting from the interaction of consumers, operators, and the space environment. House price, distance from the urban community center and road and supporting places also have an essential impact on the distribution of CGPCDPs and have different impact effects in various regions and scales, deepening and supplementing the previous research results of scholars. Optimizing the location and layout of CGPCDPs in different built environments to improve last-mile delivery efficiency requires further research. In addition, this paper explores the factors that influence CGPCDP distribution. Similarly, the influence of CGPCDPs on residents’ behavior, retail business, and community planning is also worth further study.

CGPCDPs mainly depend on establishing commercial or living spaces in existing communities and have the characteristics of multiple CGPCDPs serving one community. Integrating resources, achieving a win-win between operators and CGPCDPs, and the cooperation and differentiated development between adjacent CGPCDPs are worth studying in the future. At the same time, the entry of CGPCDPs enriches the function of community space and improves the vitality of space. With the development and transformation of new retail, the number of CGPCDPs in urban and rural areas increases, and CGPCDPs have more potential to improve the allocation of public service facilities, establishing urban and rural community life circles (especially in rural areas), improving residents’ happiness, and eliminating urban-rural differences. Combined with practical cases, studying how to consider CGPCDPs in community life circle planning and urban design in urban and rural areas is urgent.

Finally, the market and the government regulate the development of community group purchasing. At present, China’s community group purchasing enterprises are rapidly expanding the market. The number of CGPCDPs is excessively high, and the future spatial pattern may change with the policy and enterprise strategy. In addition, community group buying complaints are mainly focused on refund, delivery, product quality, false promotion, after-sales service, information leakage, frozen merchant funds, invoices not being timely, and other issues. How to reasonably control and plan the distribution of CGPCDPs and avoid the waste of resources needs continuous attention and research.

However, this research still has limitations and areas for further improvement. Firstly, due to data availability constraints, this study uses cross-sectional data rather than panel data. Future research could continuously collect relevant data on CGPCDPs and organize it into panel data to explore the dynamic spatiotemporal evolution process of CGPCDPs. Secondly, this study selects Nansha as a typical case area, which has certain limitations. Future research could consider comparative analysis across multiple cities to investigate the similarities and differences in CGPCDPs’ spatial strategies in different regions. Thirdly, future research could incorporate field surveys and interviews to gather consumer evaluations of CGPCDPs, considering the experiences of different consumer groups to improve data representativeness. Fourthly, the economic implications of applying these strategies to real-world problems are not sufficiently explained. Future research could focus on optimizing the distribution of objective weights, using more detailed methods to solve multi-objective programming problems, and providing more thorough economic explanations when solving optimal strategies to better guide practical decision-making. Lastly, the competitive and cooperative relationships between different community group purchasing brands are not considered in this study. Future research could discuss resource integration and facility sharing among different community group purchasing brands to maximize cost savings, expand the service range of community group purchasing, and promote the fair and reasonable distribution of resources. Future studies also need to explore the social issues such as accessibility, equity, and privacy that may be brought about by community group buying.

Community group buying is the next-day logistics, while Freshippo is the same-day logistics, and Cainiao station is multi-day logistics; these different models are expected to carry out comparative analysis and cooperation possibility assessment. In addition, the spatio-temporal interaction between these manned self-pickup points and self-pickup cabinets is also worth analyzing.

5. Conclusions

This study innovatively incorporates the impact of internet technology into traditional economic geography perspectives on location selection, constructing a new decision-making mechanism that integrates both online and offline factors, thus providing theoretical updates for new retail models like community group purchasing. It also uniquely combines community life circle planning theory with traditional location theory to develop a new framework for understanding consumer behavior in community group purchasing. By integrating quantitative methods from management science with spatial analysis techniques from geography, the study enhances the precision of its findings and presents spatial layouts through map visualization, making the results more intuitive and applicable. The main conclusion contains the following:

(1)

Basic characteristics of CGPCDPs: Community group purchasing is a new retail model that serves the community and realizes the sale of fresh products through the social relationship of acquaintances and semi-acquaintances. CGPCDP initiators are mainly shopkeepers, residents, and express stationmasters, and there are gender differences among the residents. They depend on different types, mainly wholesale and retail shops, followed by residences, accommodation, and catering shops. Service targets are predominantly urban and rural communities, followed by industrial areas.

(2)

Spatial distribution characteristics of CGPCDPs: The distribution of CGPCDPs has apparent spatial differentiation. At the macro scale, the distribution of CGPCDPs is dense in the north and scattered in the south, showing the differentiation characteristics of “central agglomeration and peripheral dispersion”. There are quantitative and spatial distribution differences in different support types. It is distributed along the “northwest-southeast” direction and presents a “dual-core multi-center”. At the meso–micro scale, there are three distribution patterns of CGPCDPs in urban areas: adjacent to the residential area center, along the edge of the residential area on one side of the main road, along both sides of the road outside the residential area or at the intersection. CGPCDPs are mainly distributed on both sides of main roads in urban villages. They are scattered on both sides of main streets, close to the “urban core” in rural areas.

(3)

Spatial differentiation influence mechanism of CGPCDPs: OLS, GWR, and MGWR regression models are constructed to investigate the influence mechanism of CGPCDPs spatial differentiation. MGWR regression model has a better fitting effect. Population density, construction land, house price, supporting place, residence density, urban community, and road proximity are the main influencing factors, and there are significant differences in different regions.
