Technical and Economic Analysis of Solar PV/Diesel Generator Smart Hybrid Power Plant Using Different Battery Storage Technologies for SRM IST, Delhi-NCR Campus

by
Shilpa Sambhi
1,
Himanshu Sharma
1,*,
Vikas Bhadoria
2,
Pankaj Kumar
1,
Ravi Chaurasia
1,
Georgios Fotis
3,* and
Vasiliki Vita
3
1
Department of Electrical and Electronics Engineering, SRM Institute of Science and Technology, Delhi-NCR Campus, Ghaziabad 201204, Uttar Pradesh, India
2
Industry Integration Cell, Shri Vishwakarma Skill University, Palwal 121102, India
3
Department of Electrical and Electronic Engineering Educators, School of Pedagogical and Technological Education, 14121 Athens, Greece
*
Authors to whom correspondence should be addressed.
Sustainability 2023, 15(4), 3666; https://doi.org/10.3390/su15043666
Submission received: 14 December 2022 / Revised: 2 February 2023 / Accepted: 15 February 2023 / Published: 16 February 2023
(This article belongs to the Special Issue Challenges and Issues of the Smart Grid Technologies Implementation: Targeting Grid Resilience with Digitalization)
Browse Figures
Versions Notes

Abstract

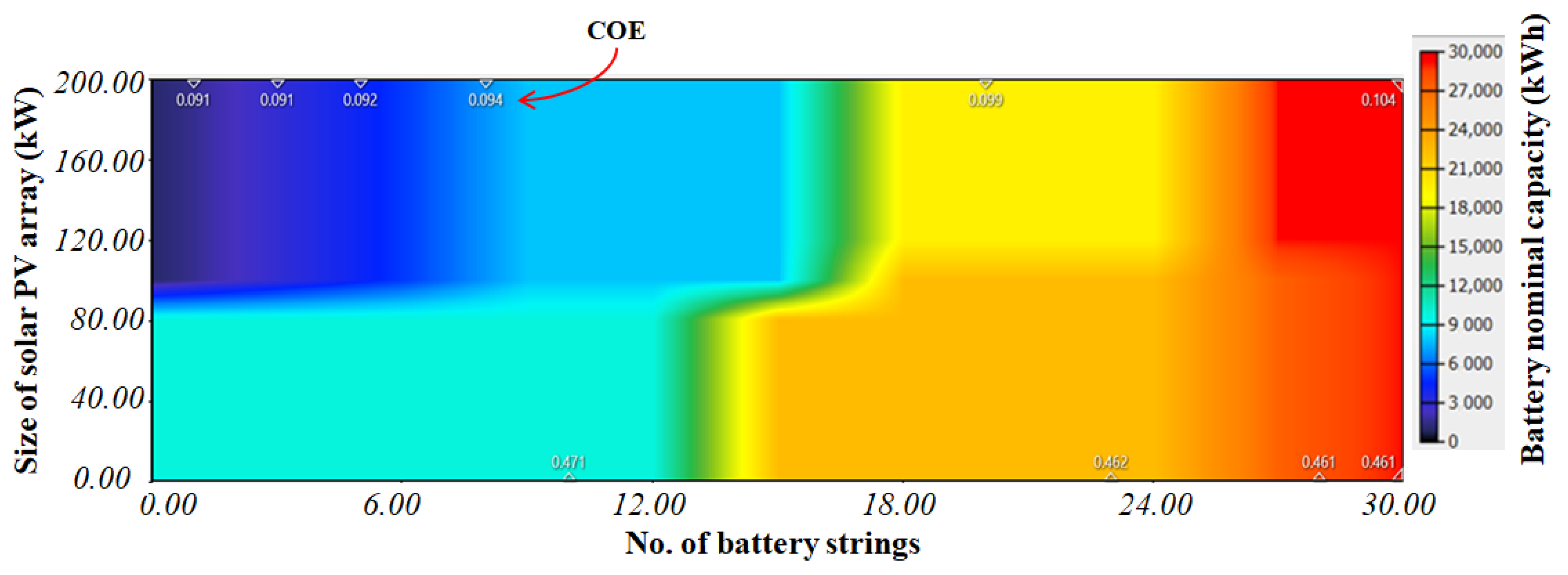

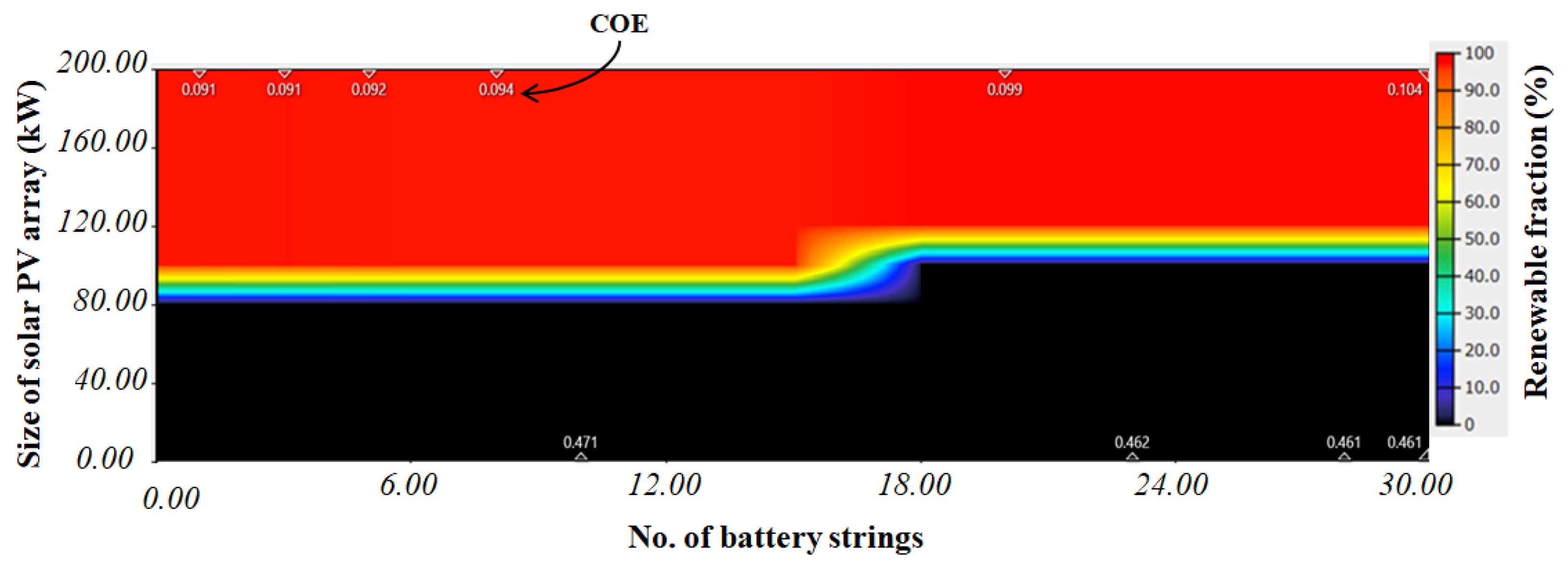

This paper presents atechnical and economic analysis of the proposed solar PV/diesel generator smart hybrid power plant for a part of SRM IST, Delhi-NCR campus. The analysis was performed using five battery storage technologies: lead-acid, lithium-ion, vanadium flow, zinc bromide and nickel-iron. The analysis also used the HOMER Pro software. The analysis was conducted to assess performance parameters such as initial cost, simple payback period, return on investment, energy produced, renewable penetration and emission of air pollutants. The optimal solution was obtained as SPP(200 kW)/DG(82 kW)/ZB(2000 kWh), with cycle charging dispatch strategy. The initial cost of this configuration is estimated to be USD163,445, and the operating cost is USD534 per year. The net present cost is estimated to be USD170,348, and the estimated cost of energy with this configuration has been obtained as USD0.090 per kWh. It is estimated that with this optimal solution, the diesel generator may consume only 110 L/year of diesel, which is the minimum of all configurations. Sensitivity analysis was performed between the size of the solar PV array and the size of the battery, along with variations in the battery’s nominal capacity and renewable fraction.
Keywords: technical–economic analysis; levelized cost of energy; net present cost; hybrid power plant; battery technology technical–economic analysis; levelized cost of energy; net present cost; hybrid power plant; battery technology
