Review

Land Application of Biosolids-Derived Biochar in Australia: A Review

1
Centre for Agricultural Engineering, University of Southern Queensland, Toowoomba, QLD 4350, Australia
2
CSIRO Agriculture and Food, Canberra, ACT 2601, Australia
*
Author to whom correspondence should be addressed.
Sustainability 2023, 15(14), 10909; https://doi.org/10.3390/su151410909
Submission received: 27 May 2023 / Revised: 1 July 2023 / Accepted: 3 July 2023 / Published: 12 July 2023
(This article belongs to the Special Issue Recycling Biomass for Agriculture and Bioenergy Production)

Abstract

:
Thermal treatment in Australia is gaining interest due to legislative changes, waste reduction goals, and the need to address contaminants’ risks in biosolids used for agriculture. The resulting biochar product has the potential to be beneficially recycled as a soil amendment. On-farm management practices were reviewed to identify barriers that need to be overcome to increase recycling and examine the role of pyrolysis and gasification in effectively improving the quality and safety of biochar intended for land application. Key findings revealed the following: (1) thermal treatment can effectively eliminate persistent organic pollutants, microplastics, and pathogens, and (2) more than 90% of the total heavy metals content in biosolids may become immobilized when these are converted to biochar, thus reducing their bioavailability following land application. While the reported research on the short-term effects of biosolids-derived biochar suggests promising agronomic results, there is a dearth of information on long-term effects. Other knowledge gaps include the optimization of land application rates, understanding of the rate of breakdown, and the fate of contaminants in soil and water, including heavy metal mobility and redistribution in the environment by processes such as erosion and runoff following land application. An improved understanding of nutrients and contaminants dynamics in soils receiving biosolids-derived biochar is a pre-requisite for their safe use in Australian agriculture, and therefore, it is highlighted as a priority area for future research.

1. Introduction

Biosolids are the solid end-product of urban wastewater treatment plants, consisting of sewage sludge that is treated to achieve safe environmental and public health standards [1]. While biosolids are rich in organic matter and contain significant concentrations of plant nutrients, they also contain contaminants, including organic compounds, heavy metals, pathogens, and microplastics, which cause concern due to the potential for long-term environmental and public health impacts [2,3]. Biosolids’ production increases proportionally to the growth of the population and the adoption of cleaner technology for the treatment of effluents [4]. Annual sewage sludge production has been estimated approximately at 11 million tons of dry solids in Europe, 7 million tons of dry solids in the United States, and China produces 60 million tons of sewage sludge (80% water by weight) with an annual increase rate of 10% [5]. In 2021, Australia generated approximately 380,000 dry tons of biosolids [1], which represented a 24% increase compared with the mean annual production recorded between 2010 and 2019 [6]. Restrictions regarding the use of biosolids in Australia continue to increase with a trend toward diverting their reutilization as a source of carbon and nutrients in agriculture [7]. However, there is renewed interest both nationally and internationally in finding an alternative waste management strategy that applies circular economy principles to recover carbon, nutrients, and energy from biosolids while reducing the need for landfill disposal [8,9].

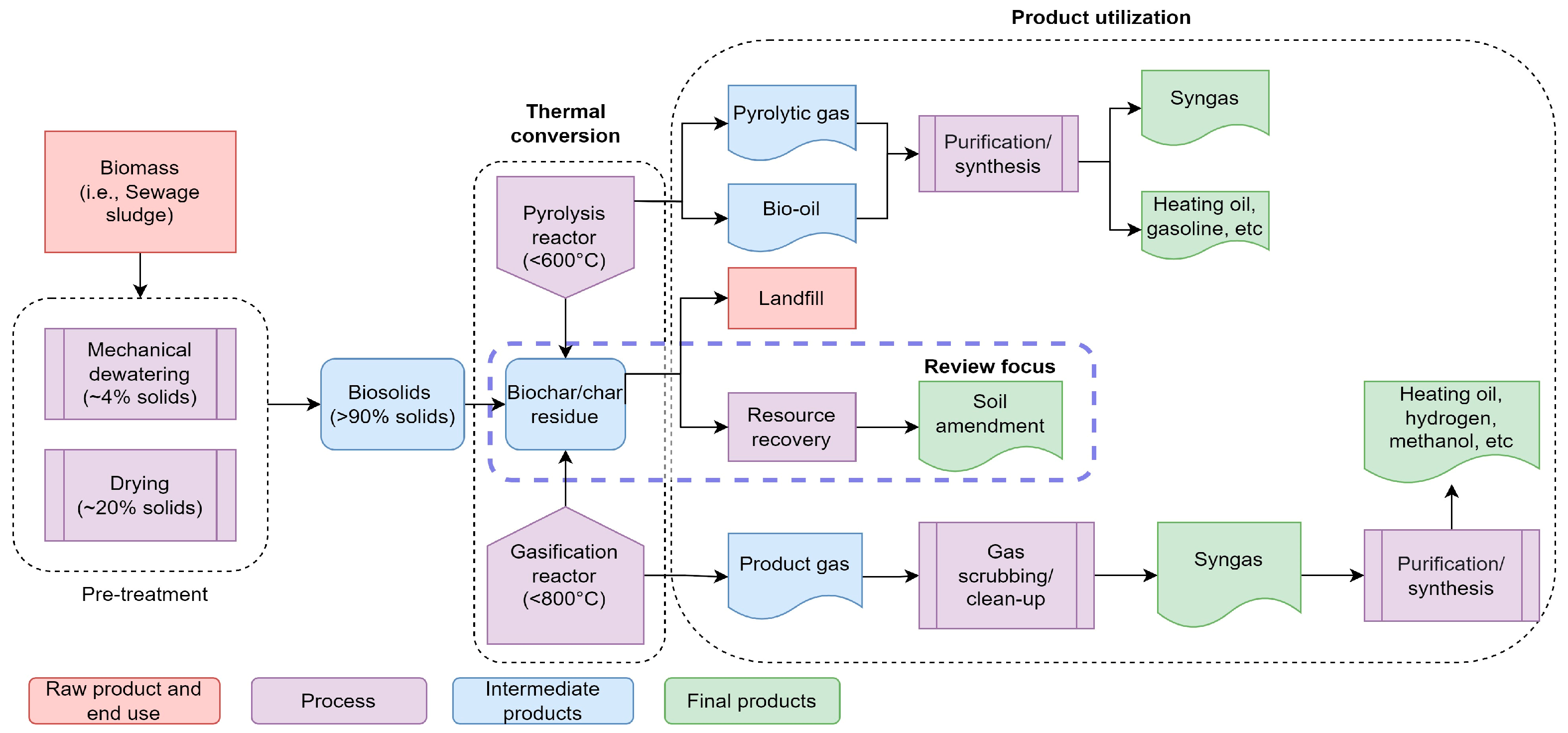

Thermal treatment including pyrolysis, gasification, and hydrothermal technology can be employed to sustainably process the biosolids intended for land application [8]. The materials that result from these processes offer several advantages compared with biosolids, including the following: (1) reduction in or improved control of odor, pathogens, organic, and inorganic contaminants; (2) mass reduction (range: 30% to 90%), which subsequently reduces handling, transport, and storage costs; and (3) the conversion of biosolids into higher-value products such as bio-oil, syngas, and biochar [10,11]. These advantages should be perceived as opportunities to improve regulatory compliance, reduce existing costs, and generate additional revenue streams.
The work reported in this article was conducted to critically review the potential of biosolids-derived biochar to be used as a soil amendment in Australian agriculture. This assessment was required to identify the knowledge and technology gaps, and inform practice and policy going forward. Current biosolids management practices and regulatory frameworks in Australia were first reviewed to identify the limitations associated with biosolids recycling to land. Subsequently, available thermal treatment methods (pyrolysis and gasification) were studied to determine if they could offer alternative solutions to biosolids’ management and reutilization. The physicochemical properties of biosolids-derived biochar and the fate of contaminants were reviewed to assess their potential for land application in comparison with biosolids. The aim of the review was therefore to synthesize the current state of knowledge and to determine if biosolids-derived biochar could be proposed as a promising soil amendment by highlighting the opportunities and challenges for its use in agriculture.

2. Current Biosolids Management Practices and Regulatory Framework in Australia

In 2019, Australia produced approximately 400,000 tons of dry biosolids (DBS) [1,6]. Approximately 70% was applied to agricultural land and around 24% was used for landscaping or land rehabilitation. The remaining 6% was stockpiled, landfilled, or discharged to the ocean [6].
A national regulatory framework strictly controls the land application of biosolids [12], and state guidelines have been developed to ensure a high level of protection for both the environment and public health [13]. However, current guidelines for controlling nutrients, pathogens, and contaminants in land application of biosolids vary between states in Australia, as highlighted by McCabe et al. [14]. As a result, Victoria, Tasmania, and the Northern Territory [1] are faced with the problem of stockpiling biosolids that fail to meet the regulatory criteria [15]. Currently, there are no guidelines in Australia on the issue of microplastics present in biosolids.

3. Limitations with Recycling Biosolids to Land

The concerns around environmental health, food safety, and quality are due to heavy metals and metalloids, persistent organic pollutants (POPs), microplastics, and pathogens [16]. These contaminants can hinder the land application of biosolids.

3.1. Heavy Metals and Metalloids

The risk of metals being released to the environment, transported to ground- or surface waters, being taken up by plants or microorganisms, or transferred to the food chain are key concerns for the land application of biosolids [5,17,18]. Arsenic (As), copper (Cu), lead (Pb), zinc (Zn), and nickel (Ni) present in sewage sludge may be concentrated during treatment [19]. Land application of these elements may result in uptake by plants and subsequently be transferred to the food chain [20,21] or environmental losses by processes such as leaching and runoff [2,22].
The degree of these risks depends on both the concentration of heavy metals and metalloids in the soil amendment, the application rate and method, and timing of application. The elemental concentrations vary depending on the location, wastewater source (commercial, domestic, or industry), and sludge treatment process [15]. However, the most critical factors that affect the mobility and bioavailability of heavy metals in the soil are the mineral components of the soil, such as clay, Fe-Mn-Oxides, and carbonate minerals, along with the soil’s redox potential, soil pH, soil permeability, soil organic matter content, and soil microbial activity [23].

3.2. Persistent Organic Pollutants

Persistent organic pollutants (POPs), derived from synthetic organic compounds used in numerous industries, are present in wastewater and accumulate in biosolids [24]. Although primary and secondary treatments in wastewater treatment plants (WWTP) result in the partial removal of organic pollutants (e.g., polyfluorinated alkyl substances (PFAS) [25] and triclosan [26], some may remain in residual concentrations in biosolids and include perfluorinated chemicals (PFOS, PFOA), polychlorinated biphenyls (PCB), polychlorinated alkanes (PCAs), polybrominated diphenyl ethers (PBDE), triclosan, polyaromatic hydrocarbons (PAH), polybrominated diphenyl ethers (PBDEs), dioxins, steroids, and antibiotics [24]. The concentration of total PFOS, PFOA, and total PCB detected in Australian samples of biosolids ranged from 0.021 to 0.386 mg kg−1, 0.003 to 0.05 mg kg−1, 0.27 to 0.77 mg kg−1, and 0.02 to 0.41 mg kg−1, respectively [25]. Consequently, the existence of POPs in land-applied biosolids may result in ecosystem contamination with the potential for bioaccumulation in plants and animals [26] and the risk of human and animal toxicity [27].
To address the risk of environmental persistence, human and animal toxicity, and bioaccumulation of POPs in the food chain, the Australian government introduced strict concentration limits to restrict the land application of biosolids with high concentrations of POPs [28]. In Australia, the allowable limits of POPs in biosolids ranged from: PFOS 0.3–4.2 mg kg−1; PFOA 0.05–33.6 mg kg−1; total DDT 0.5–1 mg kg−1; and total PCBs 0.05–0.5 mg kg−1 [12]. Although the disposal of biosolids in Australia complies with these limits, concerns remain regarding their bioavailability and mobility when applied to the soil [27]. More research is required to understand the bioavailability and mobility of heavy metals from biosolids when applied on land in the Australian context.

3.3. Microplastics

Microplastic particles range from 1 mm to 5 mm and can be detected in surface water, soil, sediment, and biota [29]. Microplastics commonly detected in biosolids are generally produced from polyethylene, polypropylene, polystyrene, polyvinylchloride, polyethylene terephthalate, and other polymers [30,31]. These microplastics originate from the synthetic fibers of clothing and plastics used in personal care products which eventually enter WWTPs and can enter the environment via subsequent application of biosolids to land [32,33].
The microplastic contamination of biosolids is widespread in Australia. For example, Okoffo et al. [34] collected biosolids samples from 82 WWTPs across Australia and reported that 99% of samples contained plastics at a concentration between 0.4 and 23.5 mg kg−1 DBS. Okoffo et al. [34] further projected that around 4700 Mt of plastics are released into the Australian environment through biosolids end-use each year, of which 3800 Mt is released onto agricultural land.
Microplastics can persist in the environment for decades after their application. Although microplastics are not biodegradable, they are prone to photodegradation and thermo-oxidative degradation [32,34]. The degradation of microplastics to nanoplastics (typically less than 100 nanometers in size, resulting from the degradation and fragmentation of larger plastic) is a concern for plants and animals [35]. At the nanoscale, plastics can pass through cell membranes and enter the food chain [36]. Microplastics and nanoplastics may adversely affect soil physiochemical properties and terrestrial food webs causing growth inhibition in earthworms, lethal toxicity to fungi, mammalian lung inflammation, and broad cytotoxicity [37].

3.4. Pathogens

The transmission of infectious pathogens from biosolids to humans, animals, or plants is a significant public health concern [19]. Biosolids contain pathogenic microorganisms, including viruses, bacteria, protozoa, and helminths [38]. The pathogen load depends on the feedstock, treatment, and stabilization processes used to produce the biosolids [19]. Moderate applications of biosolids can increase the diversity of the soil ecosystem, as the additional organic matter and nutrient inputs support the growth of microbial populations, leading to an increase in diversity [1,39]. However, the impact of biosolids on soil microbial diversity is not always positive. For instance, a study conducted by Mossa et al. [40] found that the increasing application of biosolids resulted in a change in the soil microbial diversity. Soil samples collected from 17 maize fields showed that diversity decreased with increasing zinc concentration in soils with more than 1000 mg kg−1 Zn. This indicates that above a certain level of accumulation of biosolids, the positive impact of organic matter on soil microorganisms is offset by the negative effect of high metal contamination [40].
Further inactivation of these pathogens depends on temperature, moisture content, pH, soil type texture, and sunlight [41]. While viral and bacterial pathogens will die in 1–3 months, protozoan oocysts and helminth ova can survive in biosolids for up to a year [42]. Overall, the application of biosolids on soil can have a significant impact on soil microbial diversity and abundance, and its effects depend on the amount of biosolids applied, the level of metal contamination in the sewage sludge, and the soil type [39]. However, the lack of data makes it challenging to review viral and protozoan pathogens in biosolids and is worthy of further research [43].

4. Thermal Treatment of Biosolids

Several factors drive the international uptake of thermal treatment, including current market changes and policy developments, energy generation from waste, waste minimization, and reduced associated disposal costs (Figure 1) [44,45]. Pyrolysis and gasification are the two main thermal processes applied to the management of biosolids and provide two benefits. Firstly, the destruction of POPs [46], microplastics [47], and pathogens [3] and secondly, the technology requires a reduced land footprint relative to other, more hazardous, waste management facilities (i.e., landfill or stockpiles) [8].

4.1. Pyrolysis

Pyrolysis involves heating organic materials in the absence of an oxidizing agent in a non-reactive environment (i.e., in the absence of oxygen). Contaminants including POPs, plastics, and pathogens are destroyed during three major stages: (i) dehydration and removal of lightweight volatile compounds at 25–200 °C; (ii) treatment of low and high molecular weight hydrocarbon complexes occurring at 200–600 °C; and (iii) decomposition of inorganics and formation of stable gases at >600 °C [48,49]. Typical processes require a vapor residence time ranging from 3 to 1500 s [10]. The reaction produces the following products: bio-crude oil, solid biochar, and syngas (Figure 1), with the proportion of the products dependent on the pyrolysis method, reaction time, and quality of sewage sludge. Regarding biochar, as the process time and/or temperature increase, the biochar yield decreases [50].

4.2. Gasification

In contrast to pyrolysis, gasification takes place at a much higher temperature ranging from 800 to 1200 °C (Figure 1) and a range of pressures (atmospheric to 35 bar) with controlled introduction of oxygen (~3%) to allow some combustion. Due to the partial combustion of the products of thermal treatment, gasification typically converts organic compounds to 15% biochar and 85% combustible gases which drive the process [51]. Similarly, as with pyrolysis, as process time and/or temperature increase, the biochar yield decreases, and the biochar properties depend on the physicochemical properties of the feedstock biosolids. Currently, biochar generated from biosolids can be used for applications in landfill, agriculture, or in construction [11].
Both pyrolysis and gasification of biosolids reduce volumes and masses, minimize the risk of pathogens, and reduce heavy metals and POPs [52]. However, the implementation of these technologies for large-scale application in WWTPs can be hindered by the high capital and operating costs [53,54].

5. Biosolids-Derived Biochar

5.1. Physicochemical Characteristics of Biosolids-Derived Biochar

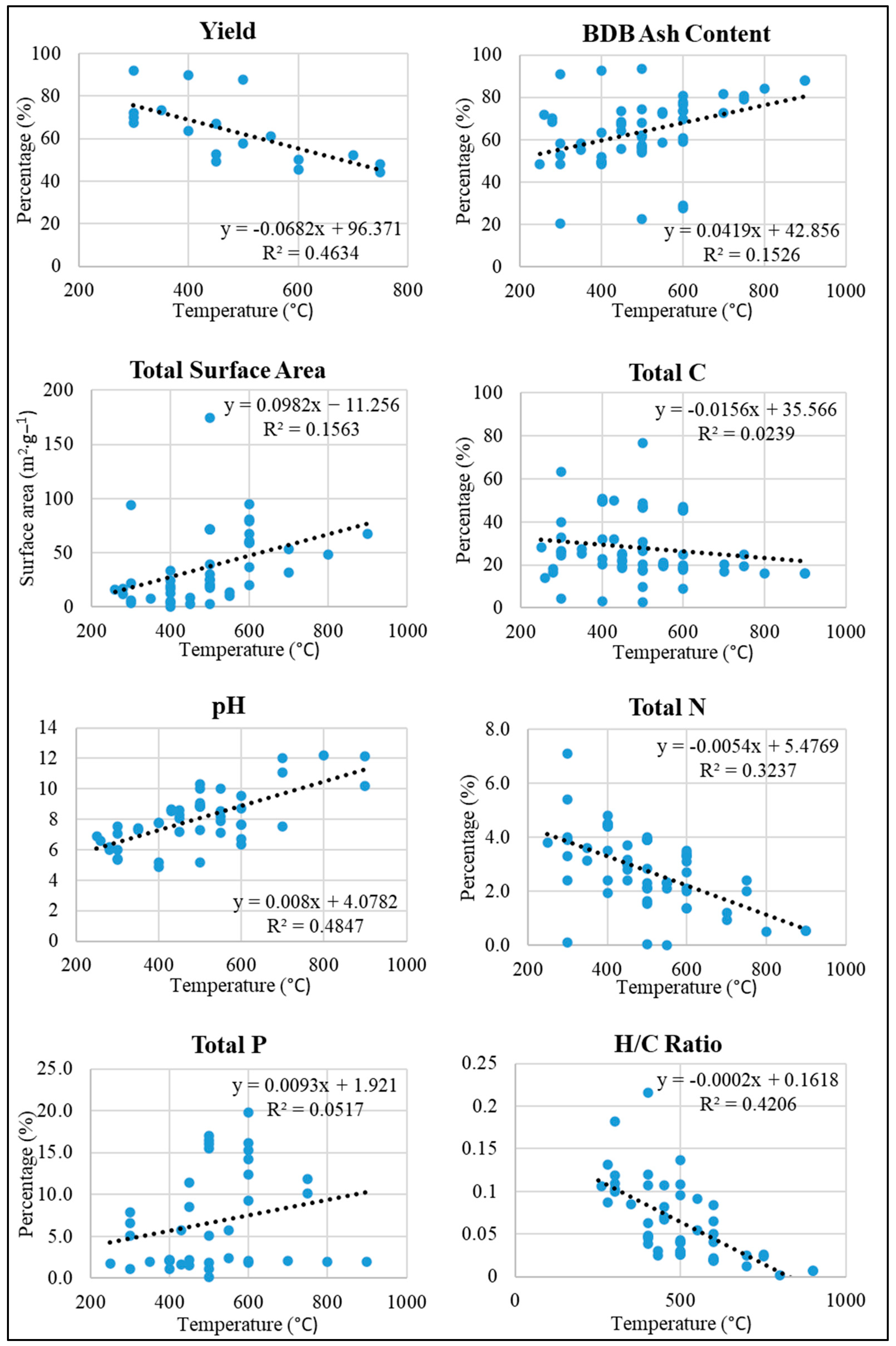

The physiochemical characteristics of biosolids-derived biochar are highly variable and depend on the composition of the input feedstock, the thermal treatment process, the temperature, and the residence time [54,55,56,57]. Characteristics of particular interest include biochar yield; surface area; porosity; pH; electrical conductivity; concentrations of C, N and H; and N and P content. Table 1 and Figure 2 present data related to the variation in BDB properties as a function of the temperature of pyrolysis/gasification. The data were compiled using UC Davis Biochar [58] and data from published, peer-reviewed articles worldwide [59,60,61,62,63,64,65,66]. The complete data sets used are presented in the Supplementary Materials (Table S1).

5.1.1. Biochar Yield

While significant mass reduction in biosolids is achievable, the amount of biochar produced varies significantly depending on the production procedure and source properties [55,67,68]. During thermal treatment, the high organic content of biosolids is transformed and fixed in the stable carbon phase [69]. The decrease in yield is attributed to the volatilization of hydrocarbons and gasification of the carbonaceous compounds at high temperatures [55,70]. The relative ash content of biochar increases with pyrolysis residence time and temperature, which is expected as ash remains in the solid fraction while organic matter undergoes thermal decomposition [71,72,73]. Due to the elimination of volatiles, some of the nutrients and metals contained in feedstock biosolids become concentrated in biochar [74].

5.1.2. Surface Area and Porosity

Surface area and porosity play a crucial role in biochar applications, such as wastewater treatment and soil remediation. These properties are decisive to the quantity/quality of the available active sites in biochar and therefore enhance other biochar properties such as cation exchange capacity, water holding capacity, and adsorption capacity [75,76]. The surface area and porosity of BDB are interlinked [77], and generally increase with process temperature due to three factors: (1) an increasing degree of aromatization and rearrangement in the chemical compounds [78]; (2) mass loss during thermal decomposition due to the liberation of water and volatile matter [79]; and (3) the volatilization of moisture content in biosolids could create micropores in the biochar [80]. However, under extreme temperatures, the surface area decreases which is likely due to the destruction of the porous structure and the development of deformation, cracking, or blockage of micropores in BDB [81,82].
Table 1. Chemical analysis of biochar derived from biosolids at different temperatures. Results reported as average and (standard deviation).
Table 1. Chemical analysis of biochar derived from biosolids at different temperatures. Results reported as average and (standard deviation).
TechnologySample a, Temp °CpHElemental Analysis (%)Nutrient Composition (g kg−1)
CHNCaFeKMgPS
Pyrolysis 1BS 255.125.64.13.026.5 (19.4)37.0 (22)4.1 (3.3)8.1 (9.9)28.5 (6.8)23.2 (24.8)
BDB 3005.9 (0.6)23.1 (2.7)2.7 (0.8)3.0 (0.6)31.24 (24)44.01 (30.4)4.17 (3.2)10.18 (12.8)32.89 (8.2)23.23 (1.9)
BDB 4006 (1.3)19.9 (0.4)12.2 (0.3)42.13 (19.7)48.94 (35.5)6.52 (3.5)13.31 (13.4)32.83 (8.7)28.46 (26.5)
BDB 5007.1 (0.5)15.3 (5.1)0.9 (0.8)1.0 (0.8)40.41 (32.6)54.72 (41.6)5.12 (4.5)13.19 (17.4)41.83 (14.9)24.43 (29.94)
BDB 550718.6 (12.5)0.8 (0.2)2.5 (0.5)------
BDB 6008.7 (0.7)---2441.713.37.8645.1-
BDB 7009.6 (2.0)13.9(5.6)-1.0 (0.3)48.96 (21.7)60.66 (43.3)12.35 (6.0)13.99 (12.7)40.92 (7.8)35.1 (37.7)
BDB 900115-071.8233.379.8329.0640.659.69
Slow
pyrolysis 2
BS 257.125.64.54.542.4 (23.6)30.4 (28.0)5.1 (2.6)9.3 (5.9)38.7 (9.2)20.9 (10.7)
BDB 3007.3 (0.2)27.5 (4.7)3.1 (0.3)4.5. (0.9)25.76 (28.7)7.10 (2.9)3.5 (2.6)12.40 (7.4)49.69 (21.6)7.92 (3.0)
BDB 4007.3 (0.2)22.2 (5.6)1.9 (0.2)3.6 (0.8)7.43 (5)-2.17 (0.2)9.10 (4)42.03 (15.1)6.07 (0.6)
BDB 450-22.5 (4.1)1.7 (0.1)3.4 (0.5)------
BDB 5007.4 (0.3)22.2 (4.0)1.2 (0.6)2.8 (1.1)56.47 (48.5)63.8 (47.5)7.59 (5.2)13.56 (9)56.73 (19.8)19.73 (16.9)
BDB 6009.6 (1.6)22.2 (3.9)0.9 (0.3)2.6 (0.9)58.96 (42.5)48.8 (50.5)8.32 (4.9)17.85 (13.5)68.93 (2.9)15.6 (13.9)
BDB 70012.5 (0.4)22.5 (3.6)0.5 (0.1)2.3 (0.4)93.05 (24.5)51.93 (53.4)11.98 (2.9)20.42 (9.4)83.63 (24.7)24.08 (20)
Fast
pyrolysis 3
BS 43.406.995.6627.18.55.96.023.910.1
BDB 400-29.91.1
(0.6)
2.5
(1.4)
------
BDB 5008.819.7
(3.14)
1.1 (0.6)2.5 (1.4)73.2 (19.8)28.8 (3.2)13.2 (6.7)17.2 (3.6)46.6 (40.2)-
BDB 6009.519.5
(1.6)
0.6 (0.6)2.3 (1.3)62.7133.608.4015.4518.76-
BDB 70011.116.90.21.064.3735.329.3016.3620.35-
BDB 80012.216.20.00.565.8335.769.2016.5719.35-
BDB 90012.215.90.10.569.5637.208.6017.5220.23-
Flash
Pyrolysis 4
BDB 3507.720.52.48.217.070.413.529.8824.12-
BDB 400-15.41.66.6------
BDB 450-121.25.9------
BDB 500-12.61.23.9------
BDB 550-10.90.94------
BDB 650-10.30.70.7------
BDB 7008.7100.5ND5.35ND23.2013.622.89-
BS----513056408
Two stage gasificationBDB 850-5.8-0.1147.51517.011.220
LT-CFB b gasification 5BDB 750-7.2-0.6138.11517.01110
Gasification 6BS----49.738.739.641.89.5
BDB 7001222.30.771.9118.87.624.510.2-
BDB 900122.90.180.2514.511.910.935.114.2-
a BS—biosolids; BDB—biosolids-derived biochar; b LT-CFB—Low temperature circulating fluidized bed; ND—not detected. 1 [55,83,84,85,86,87,88]; 2 [89,90,91]; 3 [92,93,94]; 4 [95,96]); 5 [97]; 6 [98].

5.1.3. Electrical Conductivity and pH

The electrical conductivity (EC) and pH of biochar influence the mobility of macro- and micro-nutrients and heavy metals [99]. Electrical conductivity indicates the content of soluble salts. Biochar’s high-in-ash content typically contains proportionally higher concentrations of salt ions. These salt ions act to reduce the exchangeable hydrogen and aluminum ions in the soil. Consequently, this has the effect of increasing the soil pH [99]. As the treatment temperature increases, the EC of the material reduces dramatically, particularly with temperatures >500 °C [55,71,100]. Biochar EC correlates better with feedstock type than pyrolysis temperature because it is a function of ash content and elemental composition [101,102].
In contrast with EC, resulting biochar pH increases with temperature from around pH 7 at 300 °C to pH 10–12 at 900 °C (Table 1, Figure 1) [55,69,103]. At temperatures higher than 550 °C, cations such as Ca, K, Mg, Na, and Si present in the biosolids will form carbonates and oxides leading to an increase in pH [104]. As pH increases, heavy metals become reduced and are present in residual phases or bound to carbonates, oxides, and organic matter [99].

5.1.4. H:C Molar Ratio

Biosolids-derived biochar is very stable. Estimates of the mean residence time of BDB in soil are in the order of 2000 years [105]. The molar H:C ratio is an indicator of this stability. More specifically, the ratio is an indicator of the degree of carbonization that can be used to characterize the degree of aromaticity of the biochar [77,106]. This is indicated by a reduction in H relative to C, indicating increased aromatization and consequently increased chemical stability [106].
Consequently, biochar stability increases as the degree of aromatic condensation increases [107]. H and C concentration decreases significantly with increases in process temperature (Table 1). This occurs primarily due to the volatilization of elements such as CO, CO2, H2O, and hydrocarbons [19]. Additional losses of H occur due to the reduction in hydroxyl (OH-) functional groups, dehydration, and condensation in the thermal treatment processes [108].

5.1.5. Nutrients

Nitrogen, alongside phosphorus, is important for determining the fertilizer value of biosolids-derived biochar but experiences significant losses during thermal treatment (Table 1) [94]. Most nitrogen is lost due to the volatilization of the different nitrogen groups (i.e., NH4-N or NO3-N) at low temperatures [50], and with temperatures above 600 °C, nitrogen is gradually transformed into pyridine-like structures [92,109]. Thomsen et al. [110] operated numerous thermal technologies across a temperature range of 600–850 °C, both with and without oxidation. Without oxidation, nitrogen content decreased from 3.7% in DBS to 2.2% in BDB at 600 °C, 0.6% at 750 °C, and 0.1% at 850 °C. In contrast, the addition of oxidation at 600 °C resulted in a nitrogen content of 0.1% in BDB, which decreased further to 0% at subsequent temperatures. Consequently, a low process temperature without oxidation should be used if biochar with high nitrogen retention is sought [110].
Conversely, while there appears to be a loss of phosphorus during thermal treatment [55], total phosphorus concentration in biochar generally increases with the process temperature (Table 1) [97]. Thomsen et al. [110] measured an increase in total P from 4% in DBS to around 8% in BDB formed at 600 °C and to 11% in BDB formed at 750 °C. This increase could be due to the increased contact of Ca, Mg, and P upon the transformation of organic matter in the biosolids, which would lead to the formation of insoluble Ca-P and Mg-P compounds [71]. However, while total P increases, the available fraction of phosphorus (Colwell P) decreases with an increasing process temperature [55,71]. Unavailable P, however, may become progressively available, albeit slowly [97].
There are several other agronomically essential nutrients contained within BDB. While the total nutrient concentrations of K, Ca, Mg, and Fe typically increase with increasing temperature [55,110], the total H:C ratio and sulfur decreases (Figure 2 and Table S1 in Supplementary Materials) [111].

5.2. Contaminants in Biosolid-Derived Biochar

5.2.1. Fate of Heavy Metals in Biosolids-Derived Biochar

Heavy metals and metalloids contained within biosolids are either volatilized during thermal treatment or become concentrated in the biochar product [112,113,114]. Mercury, for example, has a low boiling point, and at temperatures above 500 °C, almost all mercury can be volatilized during pyrolysis (Table 1) [88]. Furthermore, Hossain et al. [55] observed the enrichment of Pb, Ni, and Cr in the biochar at temperatures of up to 500 °C, followed by a decrease in concentration at 700 °C, indicating the partial loss of these metals at elevated temperatures. Consequently, the focus has shifted to understanding the conversion of stabilized heavy metals into bioavailable forms and the subsequent mobility of heavy metals in a soil environment [95,105].
High-temperature thermal treatment reduces the ability for heavy metals to leach from biochar into soils, and this phenomenon increases with temperature [78,89,99]. These BDB have high pH and cation exchange capacity (CEC) values (Table 1), along with more chemically stable heavy metal fractions that result in unfavorable conditions for leaching (Table 1) [115]. As a secondary effect of pH increasing with process temperature, heavy metal solubility decreases with increases in pH. Devi and Saroha (2014) [115] demonstrated that pH has a strong effect on water-soluble heavy metals, whereby the extractable rates of Pb, Zn, and Cu decreased from 16%, 82%, and 43% in sewage sludge to 1%, 2%, and 2% in biochar, respectively, as pH increased from 3 to 7.
Consequently, heavy metal bioavailability is reduced by thermal treatment and attributed to reductions in soil pH and the physical changes in both the heavy metals and biochar [116,117,118]. Yang et al. [88] pyrolyzed eight biosolids from four different wastewater treatment plants in southeast Melbourne, Australia. They produced biochar at two different temperatures (500 and 700 °C) with residence times of 5 h and a heating rate of 5 °C min−1. The concentrations of plant-available Cd, Cu, Pb, and Zn decreased by 93%, 84%, 98%, and 86%, respectively. In this case, treatment at 700 °C was no more beneficial than 500 °C. However, Yang et al. [88] declared that the DTPA method used to estimate plant-available heavy metal content extracts both readily exchangeable and more persistently bound heavy metals. Although the magnitude of reduction in plant-available heavy metals is large, these values may under-represent the benefit of thermal treatment.
Similar to Yang et al. [88]’s work, Hossain et al. [55] thermally treated biosolids from a Sydney (NSW, Australia) WWTP at 300, 400, 500, and 700 °C with an unreported dwell time. Elements including Cu, Cd, and Zn were extracted with DTPA to estimate their plant-available fractions. Copper initially experienced a decrease of at least 99% at a temperature of 300 °C. However, when exposed to 400 and 500 °C, Cu experienced a decrease of only 35% and 24%, respectively, before decreasing back to 99% at 700 °C. Cadmium saw a similar effect at 400 °C, displaying an increase in availability over the feedstock by 33%, while at all other temperatures, Cd was below the limit of detection, with an apparent decrease in the availability of at least 93%. By comparison, Zn followed a temperature-dependent reduction in plant-availability of 52%, 72%, 82%, and 100% at 300, 400, 500, and 700 °C, respectively [55]. Unfortunately, without a dwell time, it is difficult to compare results.
For international comparison, Lu et al. [90] pyrolyzed biosolids from three different wastewater treatment plants in China at 300, 400, and 500 degrees with a dwell time of 2 h and a heating rate of 10 °C min−1. Heavy metal bioavailability was in the range of 0–4%, 0–9%, 0–3%, 0–2%, and 0–4% of total concentrations of Pb, Zn, Cu, Fe, and Mn, respectively (Table 2). DTPA-extractable heavy metals increased at higher treatment temperatures. Across the three WWTPs, a treatment temperature of 300 °C resulted in an average reduction in plant-available extract by 99%, decreasing to 88% at 400 °C, and 89% at 500 °C (Table 2).
The optimum temperature and dwell time appear to be somewhat feedstock specific. For example, both Yang et al. [88] and Lu et al. [90] produced no added benefit from additional treatment temperature (Table 1), while the results from Hossain et al. [55] indicated a higher treatment temperature is more effective at reducing heavy metal bioavailability in the biochar product. Therefore, independent feedstocks should be evaluated for optimum treatment temperature to maximize heavy metal immobilization while ensuring unnecessary energy expense.
Although there are competing results from various investigations, thermal treatment of biosolids can immobilize most of the heavy metals in the resulting biochar, and the expected environmental risk is low (Table 2). However, data explaining the change in heavy metal and metalloid availability that occurs during thermal treatment are scarce [105]. Consequently, the detailed mechanism of how thermal treatment temperature influences the distribution and fraction transformation of heavy metals in sewage sludge still needs further investigation.

5.2.2. Fate of Organic Pollutants and Microplastics in Biosolids-Derived Biochar

Although biosolids are essential vectors for the transfer of POPs and microplastics to the environment, both can be destroyed by thermal treatment. Ross et al. [127] demonstrated that 2.5 min of pyrolysis at 500 °C eliminates some common pollutants, including triclocarban and triclosan from the biochar product. At a temperature of 500 °C, the removal rate of POPs, specifically dioxins (PCDD/PCDF), was 97% in sewage sludge [128]. Conversion of biosolids to biochar reduced PAH content by 95% [91]. Thermal degradation of PAH is further supported in Table 2. Thermal treatment is a promising technology for the decomposition of microplastics at higher temperatures [129]. Ni et al. [47] reported that the microplastic concentration in BDB decreased significantly from 550 to 960 particles per gram to 1.4–2.3 particle per gram with an increase in the pyrolysis temperature up to 500 °C. According to Ni et al. [47], thermal treatment of biosolids at high temperatures (>450 °C) can reduce microplastic concentration by 99%. A recent case study summarized evidence on this topic covering 20 studies and more than 100 different organic pollutants and concluded that pyrolysis reduces the concentration of organic contaminants with an efficacy of >95% to >96% in most cases [130].
While pyrolysis has been demonstrated to be an effective method for removing organic contaminants, it is important to ensure the quality of biochar products meets the established guidelines. This may require an approval process that includes not only chemical analyses, but also bioassays to test the ecotoxicity to soil, water organisms, and plants.

6. Use of Biosolids-Derived Biochar as a Soil Amendment

The current understanding of the agricultural effects of biosolids-derived biochar in Australian agricultural soil is limited and is primarily based on few biomass feedstock materials. Furthermore, commercial biochar in Australia is marketed with only limited (or without) analytical data for the biochar [131]. For the land application of biochar, it is vital to know the composition of the biochar and, consequently, the properties of soils used [132]. Thus, international experiences do not necessarily apply to Australian soils, and research and development must be undertaken to integrate information on Australian soils into management decisions.
There are no legislative standards available in Australia that prescribe limits for the concentrations of heavy metals in biochar intended for soil application. Regulations and standards for composts and biosolids in Australia are based upon an assessment of the total concentration of metals in the material, without any consideration of their mobility in soil and bioavailability. Consequently, inappropriate regulation may limit the use of these nutrient-rich bioresources [105]. Voluntary biochar quality standards exist in Europe, i.e., the European Biochar Certificate [120], and in the USA, i.e., the International Biochar Initiative, and they aim to guarantee the quality of a product. These voluntary schemes define biochar as a material produced by the thermal treatment of biomass under low oxygen conditions, and consequently both these guidelines allow the use of biosolids as feedstocks for biochar production under defined regulation [119]. Importantly, according to these guidelines, organic contaminant and heavy metal concentrations are the major determinants of the end-use of the biochar [119,120].

6.1. Soil Effects

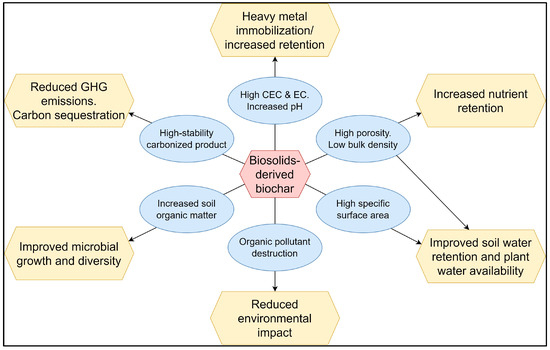

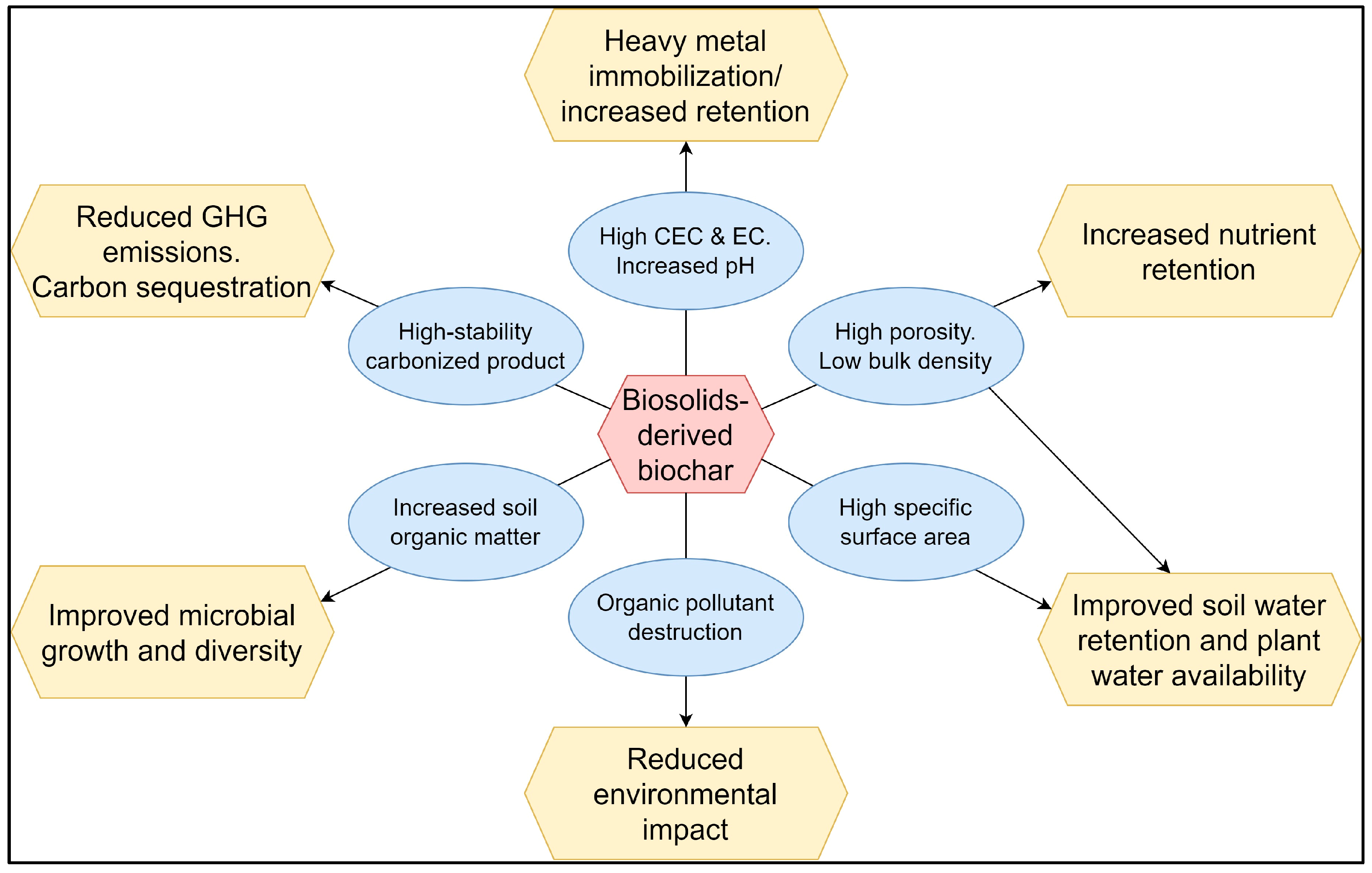

Biochar applied to soil can be used for locking carbon in soil, heavy metal immobilization, greenhouse gas reduction, and soil water retention (Figure 3) [131,133,134].

6.1.1. Soil Acidity and Nutrient Leaching

Naturally, high pH and CEC values for BDB can reduce soil acidity, limit nutrient leaching, and heavy metal release in soil. Hossain et al. [55] demonstrated that by manipulating the temperature of pyrolysis, it is possible to create a range of BDB products with pH values targeted for application in acidic or in alkaline soils. Additionally, the highly negative surface-charge density of biochar enables the retention of cationic nutrients via ion exchange, whereas the relatively extensive surface area, internal porosity, and polarizability facilitate the sorption of anionic nutrients via covalent bonds [135]. Therefore, BDB could adsorb heavy metals and organic contaminants such as pesticides and herbicides from the environment [11].

6.1.2. Soil Hydrology

Biosolids-derived biochar has both a high specific surface area and porosity, which could represent an improvement in soils’ nutrient status and physical properties such as water retention and hydraulic conductivity [136]. The bulk density of biochar is lower than that of mineral soils [137], suggesting that the application of biochar can alter soil hydrology and further increase soil porosity, which can result in long-term impacts on soil aggregation [134,138]. Méndez et al. [100] applied the BDB obtained at 600 °C at 8% (w/w) application rate and observed increases in soil field capacity from 23% to 29%, and available water increased from 10% to 16%.
Typically, high biochar application rates are necessary to improve soil physical and hydraulic properties, such as water-holding capacity or bulk density (e.g., >40 t ha−1, [139]). However, lower biochar application rates (e.g., 10–20 t ha−1) have been also shown to improve physical soil properties [140,141]. There is a lack of research regarding the appropriate level of biochar application for different soil types, particularly in Australia [131,142].

6.1.3. Greenhouse Gas Emissions

Organic materials, such as sewage sludge, added to the soil result in N2O emissions that are sometimes far greater than equivalent amounts of chemical fertilizer [143,144]. Van Zwieten et al. [144] demonstrated that if biosolids are processed via slow pyrolysis, they do not pose the same greenhouse gas risk as untreated organic material. Biosolids-derived biochar was effective in reducing overall emissions of N2O compared with the control soil. The control soil that received an equivalent 165 kg N (in the form of urea) released 15% of this N as N2O, while amendment of the soil with 5% BDB resulted in only 2% of the N being converted into N2O (i.e., an 84% decrease). Grutzmacher et al. [145] conducted an incubation experiment in which they applied a range of biochar from different feedstocks to the soil and investigated the potential of biochar to reduce fertilizer induced N2O emissions. When ammonium nitrate was co-applied with biochar, the smallest emission was observed in soil amended with BDB, which reduced the N2O emission by 87% [145].

6.1.4. Soil Nutrients, Soil Organic Matter, and Soil Carbon

Pyrolysis makes biosolids very stable against chemical and biological degradation, and biosolids-derived biochar in the soil can store carbon in the form of stable structures for centuries. de Figueiredo et al. [84] evaluated the effects of applying BDB in combination with mineral fertilizer on soil organic carbon fractions (SOC). They demonstrated that the increase in organic C in the soil promoted by biochar varies with the pyrolysis temperature employed [51,146]. The biochar produced under lower pyrolysis temperature (300 °C) affected the more labile fractions of soil organic matter (SOM), whereas the biochar produced under higher pyrolysis temperature (500 °C) influenced the more stable fractions of SOM [84,147]. These differences among biochar greatly influence their mineralization rates, nutrient release, and C accumulation in the soil [148]. Considering the importance of equilibrating the supply of C in both labile and stable forms of SOM, the biochar produced at the 300 °C pyrolysis temperature presents great potential to be used for agro-environmental purposes [84]. Additionally, BDB is beneficial for the soil microbiota. Carbonized organic matter represents energy for microorganisms that inhabit the soil [149], and its application to the soil increases soil microbial activity [150,151]. Furthermore, the high surface area and porosity increase microbial activity by promoting optimal growth conditions [152].
Compared with biochar derived from plant residues, BDB generally contains a higher level of nutrients [153]. Additionally, the high porosity increases the surface area in the structure of the material. It facilitates the adsorption of both hydrophilic and hydrophobic molecules [62], which subsequently improves nutrient retention [72]. In one of the first studies in Australia, Bridle and Pritchard (2004) [154] investigated the effect of BDB on N and P recovery in an incubation experiment over eight weeks. Water-soluble N was retained in the biochar. Biosolids-derived biochar did not initially increase soil mineral N levels, as observed with land application of biosolids, although soil bicarbonate–extractable P levels gradually increased. This study demonstrated that nitrate and ammonium concentrations did not increase in soil within 56 days after application, suggesting that land application can minimize the risk of nitrogen leaching [154].
Biochar also provides a source of P for plant growth and could have applications on soils as a slow-release form of P [154]. Biosolids-derived biochar can be utilized as a reservoir of P for soils, and a certain fraction of this P is in a suitable form available for plant uptake [71,155].

6.2. Crop Effects

6.2.1. Crop Yield

All of the above-mentioned soil impacts play an important role in promoting crop yield (Table 3). Sousa and Figueiredo (2016) [156] reported enrichment of nutrients in soil treated with BDB, especially P, available N, and exchangeable cations (Ca and Mg). This enriched soil promoted the development of radish plants with increased plant height, above-ground dry weight, and number of leaves at different rates of BDB application. Furthermore, Hossain et al. [157] studied the use of BDB on the production of cherry tomato and found the addition of biochar (10 t·ha−1) increased the average dry weight of shoot production from 62 to 74 g·plant−1, and increased yield by 64%.
The interaction between soil and BDB can alter over a long period of time. An extensive search of the literature revealed limited investigations that demonstrated long-term impacts of BDB on soil and crop yield (Table 3). Faria et al. [105] conducted a two-year field experiment which resulted in increased soil fertility, mainly P, Mg, Cu, and Zn, and an increase in CEC, while soil K was not affected. Increased soil fertility resulted in greater crop yield, especially in the second cropping season. Figueiredo et al. [158] investigated the direct (first and second cropping season) and residual (third and fourth cropping season) effects of BDB on soil P fractions, P uptake and corn grain yield. Positive effects of the trial were observed on corn yield and P content in soil. BDB also maintained a high soil P content for two years without re-application, indicating that BDB can behave as a slow-release P-fertilizer [158]. Given that there are limited long-term studies, it is challenging to assess the long-term effect of BDB when applied to land. Despite the increasing research effort in recent years in this area, a sound understanding of the relationship between desired biochar characteristics, production conditions, and feedstock is still lacking. Further work is needed, especially to identify which combination of feedstock and treatment conditions would provide the most appropriate properties for biochar as a soil amendment [77].
Table 3. Effect of biosolids-derived biochar on soil physicochemical characteristics, crop yield and heavy metal bioaccumulation. Thermal treatment process used to biochar from biosolids was pyrolysis.
Table 3. Effect of biosolids-derived biochar on soil physicochemical characteristics, crop yield and heavy metal bioaccumulation. Thermal treatment process used to biochar from biosolids was pyrolysis.
Temp
°C
Plant
Species
Soil FertilityAgronomic PerformanceReference
Crop YieldHeavy Metals Bioaccumulation
300RadishIncreased soil base saturation, CEC, available P, Ca, and Mg, except K. Soil pH was not affected.Increased plant height, yields, and above-ground dry weight.-[156]
450WheatIncreased soil CEC, K, and available P.Increased plant height, biomass, and grain yield.-[46]
500RiceIncreased pH, EC, total N, C and available P and K. Availability of heavy metals in the soil was reduced.Increased shoot biomass, grain yields, and above-ground dry weight.
Reduced bioaccumulation of As, Co, Cr, Cu, Ni, and Pb in rice grains, stems, and leaves.[125]
400–550Garlic-Increased average plant height, plant biomass (stems and leaves) and garlic yield when compared with control.No heavy metal accumulation was found in stems and leaves.
However, higher Zn and Cu content was found in roots and bulbs compared to the control.
[72]
550Coolatai grass-Increased grass yield was observed, specifically when biosolids-derived biochar was combined with chemical fertilizer.-[159]
550Cherry tomatoes-Increased plant height and fruit yield.Heavy metals’ concentrations in the fruits were lower in the biochar treatment than the biosolids treatment.[160]
550Cucumber-Increased plant biomass and fruit yieldsReduced bioaccumulation of As, Cu, Cd, Zn, and Pb in the fruit when compared to the biosolids treatment.[124]
200–700Turf grassIncreased soil organic carbon, total N, available P and K, decreased soil pH.Increased above-ground dry matter and total N, P, and K content.Reduced bioaccumulation of heavy metals was observed in above-ground biomass[161]

6.2.2. Bioavailability and Bioaccumulation of Pollutants

The main limitation in using biosolids and BDB as a soil amendment is the presence of heavy metals and PAH (Table 2). To cause a toxic effect, heavy metals must dissolve in soil solution, be taken up by organisms, and transported to cells where a toxic effect can occur [162]. Through conversion of biosolids to biochar, it is possible to decrease PAH concentrations (Table 2) and the bioavailability of heavy metals (Table 4). Waqas et al. [124] conducted research on contaminated soil from farmland near an iron refinery plant in Fujian Province, China, in which the researchers applied both biosolids and BDB. The conversion of biosolids to biochar significantly decreased the concentration of PAH and available heavy metal concentration (Table 2). Additionally, the application of BDB to soil was much more effective in reducing the availability of PAHs and heavy metals than biosolids, and therefore reducing pollutant transfer from soil to water and subsequently to plants. Consistent with these observations, plants with biochar application were less prone to PAH accumulation. Studies that involved growing lettuce [126], tomatoes [122], and cucumber [124] with biosolids and BDB, revealed that the PAH concentration in plant biomass was lower in the biochar trials (Table 3).
In a Mediterranean context, Mendez et al. [162] evaluated the effects of biochar from pyrolyzed sewage sludge applied on agricultural soil. The evaluated properties included heavy metal solubility and bioavailability in BDB-treated soils compared to those treated with raw sewage sludge. The risk of leaching of Cu, Ni, and Zn were lower in the soil treated with BDB than in the sewage sludge treatment [162]. Biochar-amended samples also reduced the availability of Ni, Zn, Cd, and Pb in plants compared to amended samples of sewage sludge (Table 3 and Table 4).
While the bioaccumulation of heavy metals in plants grown in BDB is a potentially concerning pathway for them to enter the food chain, the bioavailability of heavy metals represents a low risk. Jin et al. [107] and Lu et al. [163] reported that although carbonization leads to the enrichment of heavy metals in the matrix of BDB, they exist mostly in oxidizable and residual forms. This results in a significantly reduced bioavailability of these pollutants and presents a very low ecological risk [107]. Hossain et al. [157] investigated the effect of BDB on cherry tomatoes and concluded that, while heavy metals were taken up by the plant, there was no significant bioaccumulation in the fruit (Table 4). In contrast, an experiment conducted by Song et al. [72] reported the accumulation of heavy metals, mostly Ni, in garlic tissues in soil amended with BDB. It should be noted that this study used high application rates of BDB (50%), which are unrealistic from an agronomic point of view. However, this does indicate that plants undertake preferential storage of heavy metals in different tissues. More research is required to understand the specifics of preferential heavy metal storage in edible crops. Furthermore, interactions between biochar, soil, microbes, and plant roots are known to occur within a short period of time after application to the soil [134]. However, the extent, rates, and implications of these interactions are still far from understood, and this knowledge is needed for an effective evaluation of the use of biochar as a soil amendment [44,101].
Despite increasing the concentration of total heavy metals in relation to the raw material, pyrolysis reduces the bioavailability of metals [3,84]. Due to the reduced metal leaching resulting from immobilization during thermal treatment, BDB is generally understood to be safe, and hence, several researchers recommend establishing limit values in Australian regulations on the leachability of metals instead of total metal concentrations [88,89]. For example, in an Australian study by Hossain et al. [157], 10 t ha−1 of BDB was used, which were over the maximum concentrations allowed by the Australian food standards. Although total metal concentrations in the soil exceeded the guidelines, tomatoes grown in this environment did not result in the accumulation of potentially toxic concentrations of heavy metals (Table 3 and Table 4).
Table 4. Heavy metal accumulation in plants. All treatments were applied as % w/w basis and are represented as mg kg−1.
Table 4. Heavy metal accumulation in plants. All treatments were applied as % w/w basis and are represented as mg kg−1.
PlantsTreatmentsAsCdCrCuNiPbZnReferences
Rice grainControl
5% BDB
10% BDB
0.45
0.19
0.17
0.4
0.32
0.28
ND
ND
ND
20
17
16
ND
ND
ND
0.95
0.6
0.5
54
44
41
[164]
TomatoControl0.350.26ND2.8ND0.585[157]
2% BDB0.172.6ND4ND0.2520
5% BDB0.162.5ND2ND0.212
10% BDB0.122ND1.2ND0.178
Rice grainControl
5% BDB
10% BDB
0.14
0.05
0.04
0.02
0.12
0.13
0.3
0.21
0.17
4.8
4.7
4.6
0.68
0.55
0.49
0.35
0.1
0.05
8
26
28
[125]
Turnip2% BDB0.120.11ND3.2ND0.2248[165]
5% BDB0.110.1ND1.9ND0.1936
Turf grassControl0.1400.190.25ND0.180.59[161]
1% BDB0.080.020.080.12ND0.20.23
5% BDB0.0300.040.1ND0.050.11
10% BDB0.0700.060.14ND0.140.18
20% BDB0.0600.050.1ND0.080.11
50% BDB0.0500.040.1ND0.050.05
BDB—Biosolids-derived biochar; ND—not detected.

7. Conclusions and Future Research Needs

Options for beneficially using biosolids in Australia are centered on application to arable land. The presence of contaminants such as heavy metals, persistent organic pollutants, microplastics, and pathogens are of concern, and represent a risk to the environment, human, and animal health. It is anticipated that measures implemented towards achieving a low- or neutral-carbon economy, assisted by technological advances for the treatment of sewage sludge (e.g., improved removal of contaminants and energy recovery from treatment processes), coupled with the volatility of fertilizer and energy markets, will stimulate increased uptake of biosolids in Australian agriculture. Increased recycling of biosolids and biosolids-derived products to land may go some way to reduce the reliance on synthetic and mineral fertilizers and help improve the carbon balance of arable land. The use of biosolids is leaning towards nutrient recovery and power generation, as witnessed, for example, in some European Union countries and the United States.
This review brought together scientific evidence showing that thermal treatment (e.g., pyrolysis and gasification) of biosolids can be employed to reduce pathogens, microplastics, and organic pollutants’ load, and decrease the bioavailability of heavy metals maintaining them within environmentally and agronomically safe levels. Where biosolids or biochar are used, on-farm implementation of the best (or recommended) management practices for crops, soil, and applied nutrients must always be exercised to mitigate risks. While research into the short-term effects (e.g., <10 years) of biosolids-derived biochar on crop, soil, and environment appears to support their use in agriculture, the longer-term effects are less known, and therefore longer-term studies will be beneficial. Nutrient and contaminant dynamics in soils receiving biosolids-derived biochar, and the inherent risk of transferring these contaminants to the food chain need to be determined together with measures to mitigate such risks. Key research gaps identified by this review are summarized below:
  • Exploration of the potential for cost-effective thermal technology to treat biosolids, including alternatives for recovering energy for electricity generation and conversion of biosolids to biochar;
  • Thermal treatment appears to be effective at eliminating persistent organic pollutants, microplastics, and pathogenic contaminants from biosolids. However, the efficacy of thermal treatment in reducing (or avoiding) soil contamination from these sources is not well documented. This information is critical for supporting the safe use of biosolids-derived biochar as a soil amendment and for removing concerns associated with recycling;
  • There is potential to customize biochar products to suit specific users’ needs (e.g., soil and crop type, farm application method), which will require understanding of the relationship between the desired biochar characteristics and the production conditions and feedstock. The optimal combination of feedstock and treatment conditions to match specific crop and soil requirements needs to be determined. Optimization of the physical and mechanical properties of biosolids-derived biochar will enable field application with standard fertilizer applicators, improving field delivery efficiency and logistics, and their acceptability by farmers.

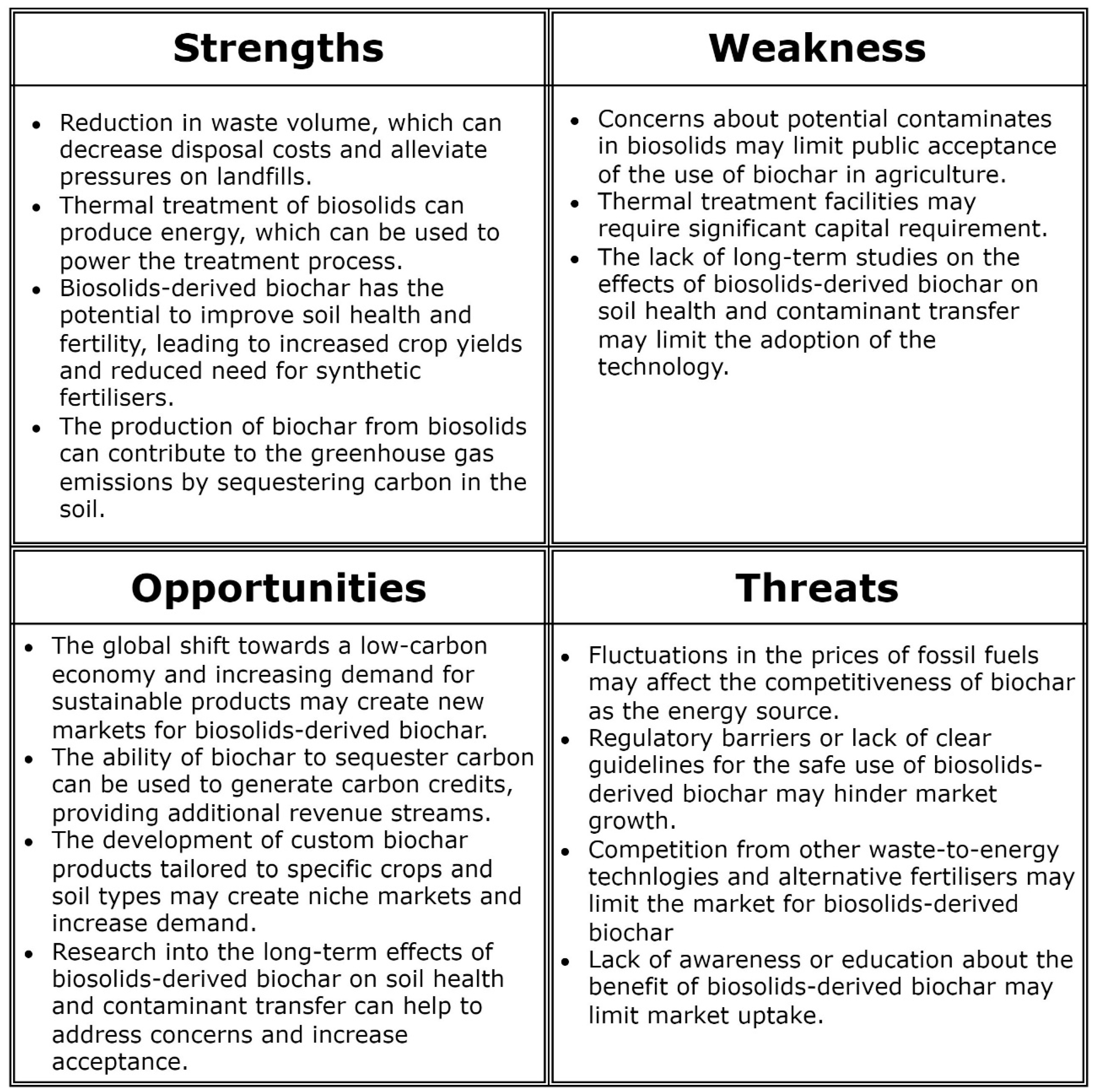

A comprehensive analysis of the strengths, weakness, opportunities, and threats associated with the conversion of biosolids to biochar in the Australian market is presented in Figure 4. The circular economy approach and closing the waste-loop gap are identified as opportunities. However, challenges such as the lack of long-term studies, understanding nutrient and contaminant dynamics, and the cost of equipment for the thermal treatment are recognized as weaknesses.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/su151410909/s1, Table S1: Variation in BDB properties as a function in pyrolysis/gasification temperature. The data were compiled using the UC Davis Biochar Database and data from published peer-reviewed articles from around the world.

Author Contributions

P.S.: Conceptualization, investigation, formal analysis, writing—original draft preparation; S.M.: Conceptualization, formal analysis, visualization, writing—reviewing and editing; P.H.: Conceptualization, formal analysis, visualization, writing—reviewing and editing; D.L.A.: Conceptualization, visualization, writing—reviewing and editing; B.K.M.: Conceptualization, visualization, funding acquisition, supervision, writing—reviewing and editing. All authors have read and agreed to the published version of the manuscript.

Funding

The financial support for Payel Sinha was received from an Australian Research Training Program scholarship to support international tuition and a University of Southern Queensland International Postgraduate Scholarship. The authors are grateful to the Centre for Agricultural Engineering at the University of Southern Queensland (Toowoomba, QLD, Australia) for support in conducting this research.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interests.

Abbreviations

BDB: Biosolids-derived biochar; CEC: Cation exchange capacity; DBS: Dry biosolids; WWTP: Wastewater treatment plant; POPs: Persistent organic pollutants; PFOS, PFOA: Perfluorinated group of chemicals; PCBs: Polychlorinated biphenyls; PCAs: Polychlorinated alkanes; PBDEs: Polybrominated diphenyl ethers; PAHs: Polyaromatic hydrocarbons; PBDEs: Polybrominated diphenyl ethers.

References

  1. Marchuk, S.; Tait, S.; Sinha, P.; Harris, P.; Antille, D.L.; McCabe, B.K. Biosolids-derived fertilisers: A review of challenges and opportunities. Sci. Total Environ. 2023, 875, 162555. [Google Scholar] [CrossRef] [PubMed]
  2. Marchuk, S.; Antille, D.L.; Sinha, P.; Tuomi, S.; Harris, P.W.; McCabe, B.K. An investigation into the mobility of heavy metals in soils amended with biosolids-derived biochar. In 2021 ASABE Annual International Meeting; ASABE Paper No. 2100103; American Society of Agricultural and Biological Engineers: St. Joseph, MI, USA, 2021. [Google Scholar] [CrossRef]
  3. Paz-Ferreiro, J.; Nieto, A.; Méndez, A.; Askeland, M.P.; Gascó, G. Biochar from biosolids pyrolysis: A review. Int. J. Environ. Res. Public Health 2018, 15, 956. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Goldan, E.; Nedeff, V.; Barsan, N.; Culea, M.; Tomozei, C.; Panainte-Lehadus, M.; Mosnegutu, E. Evaluation of the use of sewage sludge biochar as a soil amendment—A review. Sustainability 2022, 14, 5309. [Google Scholar] [CrossRef]
  5. Collivignarelli, M.C.; Canato, M.; Abbà, A.; Carnevale Miino, M. Biosolids: What are the different types of reuse? J. Clean. Prod. 2019, 238, 117844. [Google Scholar] [CrossRef] [Green Version]
  6. Australian & New Zealand Biosolids Partnership. 2020. Available online: https://www.biosolids.com.au/guidelines/australian-biosolids-statistics/ (accessed on 30 April 2023).
  7. Department of Environment and Science. End of Waste Code: Biosolids (ENEW07359617). Queensland Government, Australia. 2020. Available online: https://environment.des.qld.gov.au/data/assets/pdf_file/0029/88724/wr-eowc-approved-biosolids.pdf (accessed on 22 July 2022).
  8. Oladejo, J.; Shi, K.; Luo, X.; Yang, G.; Wu, T. A review of sludge-to-energy recovery methods. Energies 2019, 12, 60. [Google Scholar] [CrossRef] [Green Version]
  9. Chojnacka, K.; Moustakas, K.; Witek-Krowiak, A. Bio-based fertilizers: A practical approach towards circular economy. Bioresour. Technol. 2020, 295, 122223. [Google Scholar] [CrossRef]
  10. Racek, J.; Sevcik, J.; Chorazy, T.; Kucerik, J.; Hlavinek, P. Biochar—Recovery material from pyrolysis of sewage sludge: A review. Waste Biomass Valorization 2020, 11, 3677–3709. [Google Scholar] [CrossRef]
  11. Patel, S.; Kundu, S.; Halder, P.; Ratnnayake, N.; Marzbali, M.H.; Aktar, S.; Selezneva, E.; Paz-Ferreiro, J.; Surapaneni, A.; de Figueiredo, C.C.; et al. A critical literature review on biosolids to biochar: An alternative biosolids management option. Rev. Environ. Sci. Biotechnol. 2020, 19, 807–841. [Google Scholar] [CrossRef]
  12. Natural Resource Management Ministerial Council. National Water Quality Management Strategy: Guidelines for Sewerage Systems Biosolids Management. 2004. Available online: https://environment.des.qld.gov.au/assets/documents/regulation/wr-eowc-approved-biosolids.pdf (accessed on 15 June 2022).
  13. McCabe, B.K.; Harris, P.; Antille, D.L.; Schmidt, T.; Lee, S.; Hill, A.; Baillie, C. Toward profitable and sustainable bioresource management in the Australian red meat processing industry: A critical review and illustrative case study. Crit. Rev. Environ. Sci. Technol. 2020, 50, 2415–2439. [Google Scholar] [CrossRef]
  14. McCabe, B.K.; Antille, D.L.; Marchuk, S.; Tait, S.; Lee, S.; Eberhard, J.; Baillie, C.P. Biosolids-derived organomineral fertilizers from anaerobic digestion digestate: Opportunities for Australia. In 2019 ASABE Annual International Meeting; ASABE Paper No. 1900192; American Society of Agricultural and Biological Engineers: St. Joseph, MI, USA, 2019. [Google Scholar] [CrossRef]
  15. Pritchard, D.L.; Penney, N.; McLaughlin, M.J.; Rigby, H.; Schwarz, K. Land application of sewage sludge (biosolids) in Australia: Risks to the environment and food crops. Water Sci. Technol. 2010, 62, 48–57. [Google Scholar] [CrossRef] [Green Version]
  16. Maulini-Duran, C.; Artola, A.; Font, X.; Sánchez, A. A systematic study of the gaseous emissions from biosolids composting: Raw sludge versus anaerobically digested sludge. Bioresour. Technol. 2013, 147, 43–51. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Kim, R.-Y.; Yoon, J.-K.; Kim, T.-S.; Yang, J.E.; Owens, G.; Kim, K.-R. Bioavailability of heavy metals in soils: Definitions and practical implementation—A critical review. Environ. Geochem. Health 2015, 37, 1041–1061. [Google Scholar] [CrossRef]
  18. Asmoay, A.S.; Salman, S.A.; El-Gohary, A.M.; Sabet, H.S. Evaluation of heavy metal mobility in contaminated soils between Abu Qurqas and Dyer Mawas Area, El Minya Governorate, Upper Egypt. Bull. Natl. Res. Cent. 2019, 43, 88. [Google Scholar] [CrossRef] [Green Version]
  19. Lu, Q.; He, Z.L.; Stoffella, P.J. Land application of biosolids in the USA: A Review. Appl. Environ. Soil Sci. 2012, 2012, 201462. [Google Scholar] [CrossRef] [Green Version]
  20. Torri, S.I.; Corrêa, R.S. Downward movement of potentially toxic elements in biosolids amended soils. Appl. Environ. Soil Sci. 2012, 2012, 145724. [Google Scholar] [CrossRef] [Green Version]
  21. Antille, D.L.; Godwin, R.J.; Sakrabani, R.; Seneweera, S.; Tyrrel, S.F.; Johnston, A.E. Field-Scale evaluation of biosolids-derived organomineral fertilizers applied to winter wheat in England. Agron. J. 2017, 109, 654–674. [Google Scholar] [CrossRef] [Green Version]
  22. Wuana, R.A.; Okieimen, F.E. Heavy Metals in Contaminated Soils: A review of sources, chemistry, risks and best available strategies for remediation. ISRN Ecol. 2011, 2011, 402647. [Google Scholar] [CrossRef] [Green Version]
  23. Silveira, M.L.A.; Alleoni, L.R.F.; Guilherme, L.R.G. Biosolids and heavy metals in soil. Sci. Agric. 2003, 60, 739–806. [Google Scholar] [CrossRef] [Green Version]
  24. Darvodelsky, P.; Hopewell, K. Assessment of emergent contaminants in biosolids. Online J. Aust. Water Assoc. 2018, 3, 3. [Google Scholar] [CrossRef]
  25. Schultz, M.M.; Higgins, C.P.; Huset, C.A.; Luthy, R.G.; Barofsky, D.F.; Field, J.A. Fluorochemical mass flows in a municipal wastewater treatment facility. Environ. Sci. Technol. 2006, 40, 7350–7357. [Google Scholar] [CrossRef] [Green Version]
  26. Lozano, N.; Rice, C.P.; Ramirez, M.; Torrents, A. Fate of Triclocarban, Triclosan and Methyltriclosan during wastewater and biosolids treatment processes. Water Res. 2013, 47, 4519–4527. [Google Scholar] [CrossRef] [PubMed]
  27. Mackay, D.; Fraser, A. Bioaccumulation of persistent organic chemicals: Mechanisms and models. Environ. Pollut. 2000, 110, 375–391. [Google Scholar] [CrossRef] [PubMed]
  28. Abdel-Shafy, H.I.; Mansour, M.S.M. A review on polycyclic aromatic hydrocarbons: Source, environmental impact, effect on human health and remediation. Egypt. J. Pet. 2016, 25, 107–123. [Google Scholar] [CrossRef] [Green Version]
  29. Clarke, B.O.; Porter, N.A.; Marriott, P.J.; Blackbeard, J.R. Investigating the levels and trends of organochlorine pesticides and polychlorinated biphenyl in sewage sludge. Environ. Int. 2010, 36, 323–329. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Ng, E.-L.; Huerta Lwanga, E.; Eldridge, S.M.; Johnston, P.; Hu, H.-W.; Geissen, V.; Chen, D. An overview of microplastic and nanoplastic pollution in agroecosystems. Sci. Total Environ. 2018, 627, 1377–1388. [Google Scholar] [CrossRef]
  31. Nizzetto, L.; Futter, M.; Langaas, S. Are agricultural soils dumps for microplastics of urban origin? Environ. Sci. Technol. 2016, 50, 10777–10779. [Google Scholar] [CrossRef] [Green Version]
  32. Piehl, S.; Leibner, A.; Löder, M.G.J.; Dris, R.; Bogner, C.; Laforsch, C. Identification and quantification of macro- and microplastics on an agricultural farmland. Sci. Rep. 2018, 8, 17950. [Google Scholar] [CrossRef] [Green Version]
  33. He, D.; Luo, Y.; Lu, S.; Liu, M.; Song, Y.; Lei, L. Microplastics in soils: Analytical methods, pollution characteristics and ecological risks. Trends Anal. Chem. 2018, 109, 163–172. [Google Scholar] [CrossRef]
  34. Okoffo, E.D.; Tscharke, B.J.; O’Brien, J.W.; O’Brien, S.; Ribeiro, F.; Burrows, S.D.; Choi, P.M.; Wang, X.; Mueller, J.F.; Thomas, K.V. Release of Plastics to Australian land from biosolids end-use. Environ. Sci. Technol. 2020, 54, 15132–15141. [Google Scholar] [CrossRef]
  35. Mahon, A.M.; O’Connell, B.; Healy, M.G.; O’Connor, I.; Officer, R.; Nash, R.; Morrison, L. Microplastics in sewage sludge: Effects of treatment. Environ. Sci. Technol. 2017, 51, 810–818. [Google Scholar] [CrossRef] [Green Version]
  36. Mohajerani, A.; Karabatak, B. Microplastics and pollutants in biosolids have contaminated agricultural soils: An analytical study and a proposal to cease the use of biosolids in farmlands and utilise them in sustainable bricks. Waste Manag. 2020, 107, 252–265. [Google Scholar] [CrossRef] [PubMed]
  37. De Souza Machado, A.A.; Kloas, W.; Zarfl, C.; Hempel, S.; Rillig, M.C. Microplastics as an emerging threat to terrestrial ecosystems. Glob. Chang. Biol. 2018, 24, 1405–1416. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Panepinto, D.; Genon, G. Wastewater sewage sludge: The thermal treatment solution. WIT Trans. Ecol. Environ. 2014, 180, 201–212. [Google Scholar] [CrossRef] [Green Version]
  39. Goyal, S.; Walia, M.; Gera, R.; Kapoor, K.; Kundu, B. Impact of sewage sludge application on soil microbial biomass, microbial processes and plant growth—A review. Agric. Rev. 2008, 29, 1–10. Available online: http://arccarticles.s3.amazonaws.com/webArticle/articles/ar291001.pdf (accessed on 3 November 2022).
  40. Mossa, A.-W.; Dickinson, M.J.; West, H.M.; Young, S.D.; Crout, N.M. The response of soil microbial diversity and abundance to long-term application of biosolids. Environ. Pollut. 2017, 224, 16–25. [Google Scholar] [CrossRef] [PubMed]
  41. Bradford, S.A.; Morales, V.L.; Zhang, W.; Harvey, R.W.; Packman, A.I.; Mohanram, A.; Welty, C. Transport, and fate of microbial pathogens in agricultural settings. Crit. Rev. Environ. Sci. Technol. 2013, 43, 775–893. [Google Scholar] [CrossRef]
  42. Goberna, M.; Simón, P.; Hernández, M.T.; García, C. Prokaryotic communities and potential pathogens in sewage sludge: Response to wastewaster origin, loading rate and treatment technology. Sci. Total Environ. 2018, 615, 360–368. [Google Scholar] [CrossRef]
  43. Sidhu, J.P.S.; Toze, S.G. Human pathogens and their indicators in biosolids: A literature review. Environ. Int. 2009, 35, 187–201. [Google Scholar] [CrossRef]
  44. Edgerton, B.; Buss, W. A Review of the Benefits of Biochar and Proposed Trials, Biochar Literature Review and Proposed Trials: Potential to Enhance Soils and Sequester Carbon in the ACT for a Circular Economy. AECOM, Canberrra. 2019. Available online: https://www.environment.act.gov.au/__data/assets/pdf_file/0011/1394471/a-review-of-the-benefits-of-biochar-and-proposed-trials.pdf (accessed on 12 August 2022).
  45. Gao, N.; Kamran, K.; Quan, C.; Williams, P.T. Thermochemical conversion of sewage sludge: A critical review. Prog. Energy Combust. Sci. 2020, 79, 100843. [Google Scholar] [CrossRef]
  46. Raheem, A.; Sikarwar, V.S.; He, J.; Dastyar, W.; Dionysiou, D.D.; Wang, W.; Zhao, M. Opportunities and challenges in sustainable treatment and resource reuse of sewage sludge: A review. Chem. Eng. J. 2018, 337, 616–641. [Google Scholar] [CrossRef]
  47. Ni, B.-J.; Zhu, Z.-R.; Li, W.-H.; Yan, X.; Wei, W.; Xu, Q.; Xia, Z.; Dai, X.; Sun, J. Microplastics mitigation in sewage sludge through pyrolysis: The role of pyrolysis temperature. Environ. Sci. Technol. 2020, 7, 961–967. [Google Scholar] [CrossRef]
  48. Magdziarz, A.; Werle, S. Analysis of the combustion and pyrolysis of dried sewage sludge by TGA and MS. Waste Manag. 2014, 34, 174–179. [Google Scholar] [CrossRef]
  49. Udayanga, C.W.D.; Veksha, A.; Giannis, A.; Lisak, G.; Chang, V.W.C.; Lim, T.-T. Fate and distribution of heavy metals during thermal processing of sewage sludge. Fuel 2018, 226, 721–744. [Google Scholar] [CrossRef]
  50. Tripathi, M.; Sahu, J.N.; Ganesan, P. Effect of process parameters on production of biochar from biomass waste through pyrolysis: A review. Renew. Sustain. Energy Rev. 2016, 55, 467–481. [Google Scholar] [CrossRef]
  51. Rada, E.C. Thermochemical Waste Treatment: Combustion, Gasification, and Other Methodologies, 1st ed.; Apple Academic Press: Palm Bay, FL, USA, 2017. [Google Scholar]
  52. Srinivasan, P.; Sarmah, A.K.; Smernik, R.; Das, O.; Farid, M.; Gao, W. A feasibility study of agricultural and sewage biomass as biochar, bioenergy and biocomposite feedstock: Production, characterization and potential applications. Sci. Total Environ. 2015, 512–513, 495–505. [Google Scholar] [CrossRef]
  53. Romero, P.; Coello, M.D.; Quiroga, J.M.; Aragón, C.A. Overview of sewage sludge minimisation: Techniques based on cell lysis-cryptic growth. Desalination Water Treat. 2013, 51, 5918–5933. [Google Scholar] [CrossRef]
  54. Salman, C.A.; Schwede, S.; Thorin, E.; Li, H.; Yan, J. Identification of thermochemical pathways for the energy and nutrient recovery from digested sludge in wastewater treatment plants. Energy Procedia 2019, 158, 1317–1322. [Google Scholar] [CrossRef]
  55. Hossain, M.K.; Strezov, V.; Chan, K.Y.; Ziolkowski, A.; Nelson, P.F. Influence of pyrolysis temperature on production and nutrient properties of wastewater sludge biochar. J. Environ. Manag. 2011, 92, 223–228. [Google Scholar] [CrossRef]
  56. Zhao, L.; Cao, X.; Mašek, O.; Zimmerman, A. Heterogeneity of biochar properties as a function of feedstock sources and production temperatures. J. Hazard. Mater. 2013, 256–257, 1–9. [Google Scholar] [CrossRef] [Green Version]
  57. Oh, S.-Y.; Son, J.-G.; Chiu, P.C. Black carbon-mediated reductive transformation of nitro compounds by hydrogen sulfide. Environ. Earth Sci. 2015, 73, 1813–1822. [Google Scholar] [CrossRef]
  58. Mukome, F.N.D.; Parikh, S.J. UC Davis Biochar Databse. Available online: https://biochar.ucdavis.edu/ (accessed on 4 October 2022).
  59. De la Rosa, J.; Paneque, M.; Miller, A.; Knicker, H. Relating physical and chemical properties of four different biochars and their application rate to biomass production of Lolium perenne on a Calcic Cambisol during a pot experiment of 79 days. Sci. Total Environ. 2014, 499, 175–184. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Chen, T.; Zhou, Z.; Xu, S.; Wang, H.; Lu, W. Adsorption behavior comparison of trivalent and hexavalent chromium on biochar derived from municipal sludge. Bioresour. Technol. 2015, 190, 388–394. [Google Scholar] [CrossRef] [PubMed]
  61. Leng, L.; Yuan, X.-Z.; Huang, H.; Shao, J.; Hou, W.; Chen, X.; Zeng, G. Bio-char derived from sewage sludge by liquefaction: Characterization and application for dye adsorption. Appl. Surf. Sci. 2015, 346, 223–231. [Google Scholar] [CrossRef]
  62. Liang, C.; Gascó, G.; Fu, S.; Méndez, A.; Paz-Ferreiro, J. Biochar from pruning residues as a soil amendment: Effects of pyrolysis temperature and particle size. Soil Tillage Res. 2016, 164, 3–10. [Google Scholar] [CrossRef]
  63. Rahman, M.S.; Schefe, C.; Rajput, S.; Keizer, D.; Weatherley, A. O-aryl and Carbonyl Carbon Contents of Food Waste and Biosolid Predict P Availability in an Acidic Soil. Front. Sustain. Food Syst. 2021, 4, 277. [Google Scholar] [CrossRef]
  64. Netherway, P.; Reichman, S.M.; Laidlaw, M.; Scheckel, K.; Pingitore, N.; Gascó, G.; Méndez, A.; Surapaneni, A.; Paz-Ferreiro, J. Phosphorus-Rich Biochars Can Transform Lead in an Urban Contaminated Soil. J. Environ. Qual. 2019, 48, 1091–1099. [Google Scholar] [CrossRef] [PubMed]
  65. Wang, Z.; Liu, S.; Liu, K.; Ji, S.; Wang, M.; Shu, X. Effect of temperature on pyrolysis of sewage sludge: Biochar properties and environmental risks from heavy metals. E3S Web Conf. 2021, 237, 01040. [Google Scholar] [CrossRef]
  66. Frišták, V.; Pipíška, M.; Soja, G. Pyrolysis treatment of sewage sludge: A promising way to produce phosphorus fertilizer. J. Clean. Prod. 2017, 172, 1772–1778. [Google Scholar] [CrossRef]
  67. Lehmann, J.; Gaunt, J.; Rondon, M. Bio-char sequestration in terrestrial ecosystems—A review. Mitig. Adapt. Strateg. Glob. Chang. 2006, 11, 403–427. [Google Scholar] [CrossRef]
  68. Xu, X.; Cao, X.; Zhao, L.; Sun, T. Comparison of sewage sludge- and pig manure-derived biochars for hydrogen sulfide removal. Chemosphere 2014, 111, 296–303. [Google Scholar] [CrossRef]
  69. Steiner, C.; Glaser, B.; Geraldes Teixeira, W.; Lehmann, J.; Blum, W.E.H.; Zech, W. Nitrogen retention and plant uptake on a highly weathered central Amazonian Ferrosol amended with compost and charcoal. J. Soil Sci. Plant Nutr. 2008, 171, 893–899. [Google Scholar] [CrossRef]
  70. Pituello, C.; Francioso, O.; Simonetti, G.; Pisi, A.; Torreggiani, A.; Berti, A.; Morari, F. Characterization of chemical–physical, structural and morphological properties of biochars from biowastes produced at different temperatures. J. Soils Sediments 2015, 15, 792–804. [Google Scholar] [CrossRef]
  71. Adhikari, S.; Gascó, G.; Méndez, A.; Surapaneni, A.; Jegatheesan, V.; Shah, K.; Paz-Ferreiro, J. Influence of pyrolysis parameters on phosphorus fractions of biosolids derived biochar. Sci. Total Environ. 2019, 695, 133846. [Google Scholar] [CrossRef]
  72. Song, X.D.; Xue, X.Y.; Chen, D.Z.; He, P.J.; Dai, X.H. Application of biochar from sewage sludge to plant cultivation: Influence of pyrolysis temperature and biochar-to-soil ratio on yield and heavy metal accumulation. Chemosphere 2014, 109, 213–220. [Google Scholar] [CrossRef] [PubMed]
  73. Van Wesenbeeck, S.; Prins, W.; Ronsse, F.; Antal, M.J. Sewage sludge carbonization for biochar applications: Fate of heavy metals. Energy Fuels 2014, 28, 5318–5326. [Google Scholar] [CrossRef]
  74. Callegari, A.; Capodaglio, A.G. Properties and beneficial uses of (bio)chars, with special attention to products from sewage sludge pyrolysis. Resources 2018, 7, 20. [Google Scholar] [CrossRef] [Green Version]
  75. Weber, K.; Heuer, S.; Quicker, P.; Li, T.; Løvås, T.; Scherer, V. An alternative approach for the estimation of biochar yields. Energy Fuels 2018, 32, 9506–9512. [Google Scholar] [CrossRef]
  76. Leng, L.; Xiong, Q.; Yang, L.; Li, H.; Zhou, Y.; Zhang, W.; Jiang, S.; Li, H.; Huang, H. An overview on engineering the surface area and porosity of biochar. Sci. Total Environ. 2021, 763, 144204. [Google Scholar] [CrossRef]
  77. Kookana, R.S.; Sarmah, A.K.; Van Zwieten, L.; Krull, E.; Singh, B. Chapter three—Biochar application to soil: Agronomic and environmental benefits and unintended consequences. Adv. Agron. 2011, 112, 103–143. [Google Scholar] [CrossRef]
  78. Agrafioti, E.; Bouras, G.; Kalderis, D.; Diamadopoulos, E. Biochar production by sewage sludge pyrolysis. J. Anal. Appl. Pyrolysis 2013, 101, 72–78. [Google Scholar] [CrossRef]
  79. Tomczyk, A.; Sokołowska, Z.; Boguta, P. Biochar physicochemical properties: Pyrolysis temperature and feedstock kind effects. Rev. Environ. Sci. Biotechnol. 2020, 19, 191–215. [Google Scholar] [CrossRef] [Green Version]
  80. Tomczyk, B.; Siatecka, A.; Jędruchniewicz, K.; Sochacka, A.; Bogusz, A.; Oleszczuk, P. Polycyclic aromatic hydrocarbons (PAHs) persistence, bioavailability and toxicity in sewage sludge- or sewage sludge-derived biochar-amended soil. Sci. Total Environ. 2020, 747, 141123. [Google Scholar] [CrossRef] [PubMed]
  81. Mahapatra, K.; Ramteke, D.S.; Paliwal, L.J. Production of activated carbon from sludge of food processing industry under controlled pyrolysis and its application for methylene blue removal. J. Anal. Appl. Pyrolysis 2012, 95, 79–86. [Google Scholar] [CrossRef]
  82. Xu, G.; Yang, X.; Spinosa, L. Development of sludge-based adsorbents: Preparation, characterization, utilization and its feasibility assessment. J. Environ. Manag. 2015, 151, 221–232. [Google Scholar] [CrossRef]
  83. De Figueiredo, C.C.; Reis, A.D.S.P.J.; de Araujo, A.S.; Blum, L.E.B.; Shah, K.; Paz-Ferreiro, J. Assessing the Potential of Sewage Sludge-Derived Biochar as a Novel Phosphorus Fertilizer: Influence of Extractant Solutions and Pyrolysis Temperatures. Waste Manag. 2021, 124, 144–153. [Google Scholar] [CrossRef] [PubMed]
  84. De Figueiredo, C.C.; Chagas, J.K.M.; da Silva, J.; Paz-Ferreiro, J. Short-term effects of a sewage sludge biochar amendment on total and available heavy metal content of a tropical soil. Geoderma 2019, 344, 31–39. [Google Scholar] [CrossRef]
  85. De Figueiredo, C.C.; Farias, W.M.; Coser, T.R.; de Paula, A.M.; Da Silva, M.R.S.; Paz-Ferreiro, J. Sewage sludge biochar alters root colonization of mycorrhizal fungi in a soil cultivated with corn. Eur. J. Soil Biol. 2019, 93, 103092. [Google Scholar] [CrossRef]
  86. Yuan, H.; Lu, T.; Huang, H.; Zhao, D.; Kobayashi, N.; Chen, Y. Influence of pyrolysis temperature on physical and chemical properties of biochar made from sewage sludge. J. Anal. Appl. Pyrolysis 2015, 112, 284–289. [Google Scholar] [CrossRef]
  87. Vaughn, S.F.; Dinelli, F.D.; Kenar, J.A.; Jackson, M.A.; Thomas, A.J.; Peterson, S.C. Physical and chemical properties of pyrolyzed biosolids for utilization in sand-based turfgrass rootzones. Waste Manag. 2018, 76, 98–105. [Google Scholar] [CrossRef]
  88. Yang, Y.; Meehan, B.; Shah, K.; Surapaneni, A.; Hughes, J.; Fouché, L.; Paz-Ferreiro, J. Physicochemical properties of biochars produced from biosolids in Victoria, Australia. Int. J. Environ. Res. Public Health 2018, 15, 1459. [Google Scholar] [CrossRef] [Green Version]
  89. Roberts, D.A.; Cole, A.J.; Whelan, A.; de Nys, R.; Paul, N.A. Slow pyrolysis enhances the recovery and reuse of phosphorus and reduces metal leaching from biosolids. Waste Manag. 2017, 64, 133–139. [Google Scholar] [CrossRef] [PubMed]
  90. Lu, H.; Zhang, W.; Wang, S.; Zhuang, L.; Yang, Y.; Qiu, R. Characterization of sewage sludge-derived biochars from different feedstocks and pyrolysis temperatures. J. Anal. Appl. Pyrolysis 2013, 102, 137–143. [Google Scholar] [CrossRef]
  91. Zielińska, A.; Oleszczuk, P. The conversion of sewage sludge into biochar reduces polycyclic aromatic hydrocarbon content and ecotoxicity but increases trace metal content. Biomass Bioenergy 2015, 75, 235–244. [Google Scholar] [CrossRef]
  92. Chen, T.; Zhang, Y.; Wang, H.; Lu, W.; Zhou, Z.; Zhang, Y.; Ren, L. Influence of pyrolysis temperature on characteristics and heavy metal adsorptive performance of biochar derived from municipal sewage sludge. Bioresour. Technol. 2014, 164, 47–54. [Google Scholar] [CrossRef]
  93. Barry, D.; Barbiero, C.; Briens, C.; Berruti, F. Pyrolysis as an economical and ecological treatment option for municipal sewage sludge. Biomass Bioenergy 2019, 122, 472–480. [Google Scholar] [CrossRef]
  94. Zhou, J.; Liu, S.; Zhou, N.; Fan, L.; Zhang, Y.; Peng, P.; Anderson, E.; Ding, K.; Wang, Y.; Liu, Y.; et al. Development and application of a continuous fast microwave pyrolysis system for sewage sludge utilization. Bioresour. Technol. 2018, 256, 295–301. [Google Scholar] [CrossRef] [PubMed]
  95. Piskorz, J.; Scott, D.S.; Westerberg, I.B. Flash pyrolysis of sewage sludge. Ind. Eng. Chem. Process Des. Dev. 1986, 25, 265–270. [Google Scholar] [CrossRef]
  96. Uchimiya, M.; Hiradate, S.; Antal, M.J. Dissolved phosphorus speciation of flash carbonization, slow pyrolysis, and fast pyrolysis biochars. ACS Sustain. Chem. Eng. 2015, 3, 1642–1649. [Google Scholar] [CrossRef]
  97. Thomsen, T.P.; Sárossy, Z.; Ahrenfeldt, J.; Henriksen, U.B.; Frandsen, F.J.; Müller-Stöver, D.S. Changes imposed by pyrolysis, thermal gasification and incineration on composition and phosphorus fertilizer quality of municipal sewage sludge. J. Environ. Manag. 2017, 198, 308–318. [Google Scholar] [CrossRef] [Green Version]
  98. Hernandez, A.B.; Ferrasse, J.-H.; Chaurand, P.; Saveyn, H.; Borschneck, D.; Roche, N. Mineralogy and leachability of gasified sewage sludge solid residues. J. Hazard. Mater. 2011, 191, 219–227. [Google Scholar] [CrossRef]
  99. Yang, F.; Wang, B.; Shi, Z.; Li, L.; Li, Y.; Mao, Z.; Liao, L.; Zhang, H.; Wu, Y. Immobilization of heavy metals (Cd, Zn, and Pb) in different contaminated soils with swine manure biochar. Environ. Pollut. Bioavailab. 2021, 33, 55–65. [Google Scholar] [CrossRef]
  100. Méndez, A.; Terradillos, M.; Gascó, G. Physicochemical and agronomic properties of biochar from sewage sludge pyrolysed at different temperatures. J. Anal. Appl. Pyrolysis 2013, 102, 124–130. [Google Scholar] [CrossRef]
  101. Joseph, S.D.; Camps-Arbestain, M.; Lin, Y.; Munroe, P.; Chia, C.H.; Hook, J.; van Zwieten, L.; Kimber, S.; Cowie, A.; Singh, B.P.; et al. An investigation into the reactions of biochar in soil. Soil Res. 2010, 48, 501–515. [Google Scholar] [CrossRef]
  102. Ok, Y.S.; MUchimiya, S.M.; Change, S.X.; Bolan, N. Biochar: Production, Characterisation and Applications; CRC Press: New York, NY, USA, 2015. [Google Scholar]
  103. Sánchez, M.E.; Menéndez, J.A.; Domínguez, A.; Pis, J.J.; Martínez, O.; Calvo, L.F.; Bernad, P.L. Effect of pyrolysis temperature on the composition of the oils obtained from sewage sludge. Biomass Bioenergy 2009, 33, 933–940. [Google Scholar] [CrossRef]
  104. Dai, Z.; Zhang, X.; Tang, C.; Muhammad, N.; Wu, J.; Brookes, P.C.; Xu, J. Potential role of biochars in decreasing soil acidification—A critical review. Sci. Total Environ. 2017, 581–582, 601–611. [Google Scholar] [CrossRef] [PubMed]
  105. Farrell, M.; Rangott, G.; Krull, E. Difficulties in using soil-based methods to assess plant availability of potentially toxic elements in biochars and their feedstocks. J. Hazard. Mater. 2013, 250–251, 29–36. [Google Scholar] [CrossRef]
  106. Cayuela, M.L.; Jeffery, S.; van Zwieten, L. The molar H:Corg ratio of biochar is a key factor in mitigating N2O emissions from soil. Agric. Ecosyst. Environ. 2015, 202, 135–138. [Google Scholar] [CrossRef]
  107. Jin, J.; Li, Y.; Zhang, J.; Wu, S.; Cao, Y.; Liang, P.; Zhang, J.; Wong, M.H.; Wang, M.; Shan, S.; et al. Influence of pyrolysis temperature on properties and environmental safety of heavy metals in biochars derived from municipal sewage sludge. J. Hazard. Mater. 2016, 320, 417–426. [Google Scholar] [CrossRef]
  108. Antal, M.J.; Grønli, M. The art, science, and technology of charcoal production. Ind. Eng. Chem. Res. 2003, 42, 1619–1640. [Google Scholar] [CrossRef]
  109. Bagreev, A.; Bandosz, T.J.; Locke, D.C. Pore structure and surface chemistry of adsorbents obtained by pyrolysis of sewage sludge-derived fertilizer. Carbon 2001, 39, 1971–1979. [Google Scholar] [CrossRef]
  110. Thomsen, T.P.; Hauggaard-Nielsen, H.; Gøbel, B.; Stoholm, P.; Ahrenfeldt, J.; Henriksen, U.B.; Müller-Stöver, D.S. Low temperature circulating fluidized bed gasification and co-gasification of municipal sewage sludge. Part 2: Evaluation of ash materials as phosphorus fertilizer. Waste Manag. 2017, 66, 145–154. [Google Scholar] [CrossRef] [Green Version]
  111. Al-Wabel, M.I.; Al-Omran, A.; El-Naggar, A.H.; Nadeem, M.; Usman, A.R.A. Pyrolysis temperature induced changes in characteristics and chemical composition of biochar produced from conocarpus wastes. Bioresour. Technol. 2013, 131, 374–379. [Google Scholar] [CrossRef] [PubMed]
  112. Beesley, L.; Moreno-Jiménez, E.; Fellet, G.; Melo, L.; Sizmur, T. Biochar and Heavy Metals; Earthscan: Oxford, UK, 2015; pp. 563–594. [Google Scholar]
  113. Liu, T.; Liu, B.; Zhang, W. Nutrients and Heavy Metals in Biochar Produced by Sewage Sludge Pyrolysis: Its Application in Soil Amendment. Pol. J. Environ. 2014, 23, 271–275. [Google Scholar]
  114. Huang, H.J.; Yuan, X.Z. The migration and transformation behaviors of heavy metals during the hydrothermal treatment of sewage sludge. Bioresour. Technol. 2016, 200, 991–998. [Google Scholar] [CrossRef]
  115. Devi, P.; Saroha, A.K. Risk analysis of pyrolyzed biochar made from paper mill effluent treatment plant sludge for bioavailability and eco-toxicity of heavy metals. Bioresour. Technol. 2014, 162, 308–315. [Google Scholar] [CrossRef]
  116. Sauvé, S.; Hendershot, W.; Allen, H.E. Solid-solution partitioning of metals in contaminated soils:  dependence on ph, total metal burden, and organic matter. Environ. Sci. Technol. 2000, 34, 1125–1131. [Google Scholar] [CrossRef]
  117. Hameed, R.; Cheng, L.; Yang, K.; Fang, J.; Lin, D. Endogenous release of metals with dissolved organic carbon from biochar: Effects of pyrolysis temperature, particle size, and solution chemistry. Environ. Pollut. 2019, 255, 113253. [Google Scholar] [CrossRef] [PubMed]
  118. Wang, X.; Li, C.; Li, Z.; Yu, G.; Wang, Y. Effect of pyrolysis temperature on characteristics, chemical speciation and risk evaluation of heavy metals in biochar derived from textile dyeing sludge. Ecotoxicol. Environ. Saf. 2019, 168, 45–52. [Google Scholar] [CrossRef]
  119. International Biochar Initiative. Standardized Product Definition and Product Testing Guidelines for Biochar That Is Used in Soil. 2015. Available online: https://biochar-international.org/ (accessed on 15 April 2022).
  120. Schmidt, H.-P.; Abiven, S.; Kammann, C.; Glaser, B.; Bucheli, T.; Leifeld, J.; Shackley, S. European Biochar Certificate–Guidelines for a Sustainable Production of Biochar. European Biochar Foundation. 2013. Available online: https://www.european-biochar.org/media/doc/2/version_en_9_5.pdf (accessed on 15 April 2022).
  121. Li, L.; Xu, Z.R.; Zhang, C.; Bao, J.; Dai, X. Quantitative evaluation of heavy metals in solid residues from sub- and super-critical water gasification of sewage sludge. Bioresour. Technol. 2012, 121, 169–175. [Google Scholar] [CrossRef] [PubMed]
  122. Waqas, M.; Li, G.; Khan, S.; Shamshad, I.; Reid, B.J.; Qamar, Z.; Chao, C. Application of sewage sludge and sewage sludge biochar to reduce polycyclic aromatic hydrocarbons (PAH) and potentially toxic elements (PTE) accumulation in tomato. Environ. Sci. Pollut. Res. 2015, 22, 12114–12123. [Google Scholar] [CrossRef] [PubMed]
  123. Luo, F.; Song, J.; Xia, W.; Dong, M.; Chen, M.; Soudek, P. Characterization of contaminants and evaluation of the suitability for land application of maize and sludge biochars. Environ. Sci. Pollut. Res. 2014, 21, 8707–8717. [Google Scholar] [CrossRef] [PubMed]
  124. Waqas, M.; Khan, S.; Qing, H.; Reid, B.J.; Chao, C. The effects of sewage sludge and sewage sludge biochar on PAHs and potentially toxic element bioaccumulation in Cucumis sativa L. Chemosphere 2014, 105, 53–61. [Google Scholar] [CrossRef] [PubMed]
  125. Khan, S.; Chao, C.; Waqas, M.; Arp, H.P.H.; Zhu, Y.-G. Sewage sludge biochar influence upon rice (Oryza sativa L.) yield, metal bioaccumulation and greenhouse gas emissions from acidic paddy soil. Environ. Sci. Technol. 2013, 47, 8624–8632. [Google Scholar] [CrossRef] [PubMed]
  126. Khan, S.; Wang, N.; Reid, B.J.; Freddo, A.; Cai, C. reduced bioaccumulation of PAHs by Lactuca satuva L. grown in contaminated soil amended with sewage sludge and sewage sludge derived biochar. Environ. Pollut. 2013, 175, 64–68. [Google Scholar] [CrossRef] [PubMed]
  127. Ross, J.J.; Zitomer, D.H.; Miller, T.R.; Weirich, C.A.; McNamara, P.J. Emerging investigators series: Pyrolysis removes common microconstituents triclocarban, triclosan, and nonylphenol from biosolids. Environ. Sci. Water Res. 2016, 2, 282–289. [Google Scholar] [CrossRef] [Green Version]
  128. Dai, Q.; Wen, J.; Jiang, X.; Dai, L.; Jin, Y.; Wang, F.; Chi, Y.; Yan, J. Distribution of PCDD/Fs over the three product phases in wet sewage sludge pyrolysis. J. Anal. Appl. Pyrolysis 2018, 133, 169–175. [Google Scholar] [CrossRef]
  129. Undri, A.; Rosi, L.; Frediani, M.; Frediani, P. Efficient disposal of waste polyolefins through microwave assisted pyrolysis. Fuel 2014, 116, 662–671. [Google Scholar] [CrossRef]
  130. Buss, W. Pyrolysis solves the issue of organic contaminants in sewage sludge while retaining carbon—Making the case for sewage sludge treatment via pyrolysis. ACS Sustain. Chem. Eng. 2021, 9, 10048–10053. [Google Scholar] [CrossRef]
  131. Singh, B.; Macdonald, L.M.; Kookana, R.S.; van Zwieten, L.; Butler, G.; Joseph, S.; Weatherley, A.; Kaudal, B.B.; Regan, A.; Cattle, J.; et al. Opportunities and constraints for biochar technology in Australian agriculture: Looking beyond carbon sequestration. Soil Res. 2014, 52, 739–750. [Google Scholar] [CrossRef] [Green Version]
  132. Ojeda, G.; Mattana, S.; Àvila, A.; Alcañiz, J.M.; Volkmann, M.; Bachmann, J. Are soil–water functions affected by biochar application? Geoderma 2015, 249–250, 1–11. [Google Scholar] [CrossRef]
  133. Haider, F.U.; Coulter, J.A.; Liqun, C.; Hussain, S.; Cheema, S.A.; Jun, W.; Zhang, R. An overview on biochar production, its implications, and mechanisms of biochar-induced amelioration of soil and plant characteristics. Pedosphere 2022, 32, 107–130. [Google Scholar] [CrossRef]
  134. Lehmann, J.; Joseph, S. Biochar for Environmental Management: Science, Technology and Implementation, 2nd ed.; Routledge: London, UK, 2015. [Google Scholar]
  135. Lu, Y.; Silveira, M.L.; O’Connor, G.A.; Vendramini, J.M.B.; Erickson, J.E.; Li, Y.C.; Cavigelli, M. Biochar impacts on nutrient dynamics in a subtropical grassland soil: 1. Nitrogen and phosphorus leaching. J. Environ. Qual. 2020, 49, 1408–1420. [Google Scholar] [CrossRef] [PubMed]
  136. Hossain, M.Z.; Bahar, M.M.; Sarkar, B.; Donne, S.W.; Wade, P.; Bolan, N. Assessment of the fertilizer potential of biochars produced from slow pyrolysis of biosolid and animal manures. J. Anal. Appl. Pyrolysis 2021, 155, 105043. [Google Scholar] [CrossRef]
  137. Hossain, M.K.; Strezov, V.; Nelson, P.F. Thermal characterisation of the products of wastewater sludge pyrolysis. J. Anal. Appl. Pyrolysis 2009, 85, 442–446. [Google Scholar] [CrossRef]
  138. Watts, C.W.; Whalley, W.R.; Brookes, P.C.; Devonshire, B.J.; Whitmore, A.P. Biological and physical processes that mediate micro-aggregation of clays. Soil Sci. 2005, 170, 573–583. [Google Scholar] [CrossRef]
  139. Omondi, M.O.; Xia, X.; Nahayo, A.; Liu, X.; Korai, P.K.; Pan, G. Quantification of biochar effects on soil hydrological properties using meta-analysis of literature data. Geoderma 2016, 274, 28–34. [Google Scholar] [CrossRef]
  140. Herath, H.M.S.K.; Camps-Arbestain, M.; Hedley, M. Effect of biochar on soil physical properties in two contrasting soils: An Alfisol and an Andisol. Geoderma 2013, 209–210, 188–197. [Google Scholar] [CrossRef]
  141. Mukherjee, A.; Lal, R.; Zimmerman, A.R. Effects of biochar and other amendments on the physical properties and greenhouse gas emissions of an artificially degraded soil. Sci. Total Environ. 2014, 487, 26–36. [Google Scholar] [CrossRef]
  142. McHenry, M.P. Agricultural bio-char production, renewable energy generation and farm carbon sequestration in Western Australia: Certainty, uncertainty, and risk. Agric. Ecosyst. Environ. 2009, 129, 1–7. [Google Scholar] [CrossRef] [Green Version]
  143. Jones, S.K.; Rees, R.M.; Skiba, U.M.; Ball, B.C. Influence of organic and mineral N fertiliser on N2O fluxes from a temperate grassland. Agric. Ecosyst. Environ. 2007, 121, 74–83. [Google Scholar] [CrossRef]
  144. Van Zwieten, L.; Kimber, S.; Morris, S.; Downie, A.; Berger, E.; Rust, J.; Scheer, C. Influence of biochars on flux of N2O and CO2 from Ferrosol. Soil Res. 2010, 48, 555–568. [Google Scholar] [CrossRef]
  145. Grutzmacher, P.; Puga, A.P.; Bibar, M.P.S.; Coscione, A.R.; Packer, A.P.; de Andrade, C.A. Carbon stability and mitigation of fertilizer induced N2O emissions in soil amended with biochar. Sci. Total Environ. 2018, 625, 1459–1466. [Google Scholar] [CrossRef]
  146. Cely Parra, P.; Tarquis, A.; Paz-Ferreiro, J.; Méndez, A.; Gascó, G. Factors driving carbon mineralization priming effect in a soil amended with different types of biochar. Solid Earth 2014, 6, 849–868. [Google Scholar] [CrossRef] [Green Version]
  147. Zhao, L.; Zheng, W.; Cao, X. Distribution and evolution of organic matter phases during biochar formation and their importance in carbon loss and pore structure. Chem. Eng. J. 2014, 250, 240–247. [Google Scholar] [CrossRef]
  148. Melas, G.B.; Ortiz, O.; AlacaÑIz, J.M. Can biochar protect labile organic matter against mineralization in soil? Pedosphere 2017, 27, 822–831. [Google Scholar] [CrossRef]
  149. Das, S.K.; Varma, A. Role of enzymes in maintaining soil health. In Soil Enzymology; Shukla, G., Varma, A., Eds.; Springer: Berlin/Heidelberg, Germany, 2011; pp. 25–42. [Google Scholar]
  150. Beesley, L.; Moreno-Jiménez, E.; Gomez-Eyles, J.L.; Harris, E.; Robinson, B.; Sizmur, T. A review of biochars’ potential role in the remediation, revegetation and restoration of contaminated soils. Environ. Pollut. 2011, 159, 3269–3282. [Google Scholar] [CrossRef]
  151. Paz-Ferreiro, J.; Fu, S.; Méndez, A.; Gascó, G. Interactive effects of biochar and the earthworm Pontoscolex corethrurus on plant productivity and soil enzyme activities. J. Soils Sediments 2014, 14, 483–494. [Google Scholar] [CrossRef]
  152. Paz-Ferreiro, J.; Gascó, G.; Gutiérrez, B.; Méndez, A. Soil biochemical activities and the geometric mean of enzyme activities after application of sewage sludge and sewage sludge biochar to soil. Biol. Fertil. Soils 2012, 48, 511–517. [Google Scholar] [CrossRef]
  153. Bolan, N.; Hoang, S.A.; Beiyuan, J.; Gupta, S.; Hou, D.; Karakoti, A.; Joseph, S.; Jung, S.; Kim, K.-H.; Kirkham, M.B.; et al. Multifunctional applications of biochar beyond carbon storage. Int. Mater. Rev. 2021, 67, 150–200. [Google Scholar] [CrossRef]
  154. Bridle, T.R.; Pritchard, D. Energy and nutrient recovery from sewage sludge via pyrolysis. Water Sci. Technol. 2004, 50, 169–175. [Google Scholar] [CrossRef]
  155. Chagas, J.K.M.; Figueiredo, C.C.d.; Silva, J.d.; Shah, K.; Paz-Ferreiro, J. Long-term effects of sewage sludge–derived biochar on the accumulation and availability of trace elements in a tropical soil. J. Environ. Qual. 2021, 50, 264–277. [Google Scholar] [CrossRef] [PubMed]
  156. Sousa, A.A.T.C.; Figueiredo, C.C. Sewage sludge biochar: Effects on soil fertility and growth of radish. Biol. Agric. Hortic. 2016, 32, 127–138. [Google Scholar] [CrossRef]
  157. Hossain, M.K.; Strezov, V.; Yin Chan, K.; Nelson, P.F. Agronomic properties of wastewater sludge biochar and bioavailability of metals in production of cherry tomato (Lycopersicon esculentum). Chemosphere 2010, 78, 1167–1171. [Google Scholar] [CrossRef] [PubMed]
  158. De Figueiredo, C.C.; Pinheiro, T.D.; de Oliveira, L.E.Z.; de Araujo, A.S.; Coser, T.R.; Paz-Ferreiro, J. Direct and residual effect of biochar derived from biosolids on soil phosphorus pools: A four-year field assessment. Sci. Total Environ. 2020, 739, 140013. [Google Scholar] [CrossRef]
  159. Hossain, M.K.; Strezov, V.; McCormick, L.; Nelson, P.F. Wastewater sludge and sludge biochar addition to soils for biomass production from Hyparrhenia hirta. Ecol. Eng. 2015, 82, 345–348. [Google Scholar] [CrossRef]
  160. Hossain, M.K.; Strezov, V.; Nelson, P.F. Comparative assessment of the effect of wastewater sludge biochar on growth, yield and metal bioaccumulation of cherry tomato. Pedosphere 2015, 25, 680–685. [Google Scholar] [CrossRef]
  161. Yue, Y.; Cui, L.; Lin, Q.; Li, G.; Zhao, X. Efficiency of sewage sludge biochar in improving urban soil properties and promoting grass growth. Chemosphere 2017, 173, 551–556. [Google Scholar] [CrossRef]
  162. Méndez, A.M.; Barriga, S.; Guerrero, F.; Gascó Guerrero, G. The effect of paper mill waste and sewage sludge amendments on acid soil properties. Soil Sci. 2012, 177, 451–457. [Google Scholar] [CrossRef]
  163. Lu, T.; Yuan, H.; Wang, Y.; Huang, H.; Chen, Y. Characteristic of heavy metals in biochar derived from sewage sludge. J. Mater. Cycles Waste Manag. 2016, 18, 725–733. [Google Scholar] [CrossRef]
  164. Khan, S.; Reid, B.J.; Li, G.; Zhu, Y.-G. Application of biochar to soil reduces cancer risk via rice consumption: A case study in Miaoqian village, Longyan, China. Environ. Int. 2014, 68, 154–161. [Google Scholar] [CrossRef] [Green Version]
  165. Khan, S.; Waqas, M.; Ding, F.; Shamshad, I.; Arp, H.P.H.; Li, G. The influence of various biochars on the bioaccessibility and bioaccumulation of PAHs and potentially toxic elements to turnips (Brassica rapa L.). J. Hazard. Mater. 2015, 300, 243–253. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Schematic representation of thermal treatment of biosolids to produce biochar. The blue dotted area illustrates the focus of the literature review.
Figure 1. Schematic representation of thermal treatment of biosolids to produce biochar. The blue dotted area illustrates the focus of the literature review.
Sustainability 15 10909 g001
Figure 2. Change in the biosolids-derived biochar (BDB) properties as a function of temperature.
Figure 2. Change in the biosolids-derived biochar (BDB) properties as a function of temperature.
Sustainability 15 10909 g002
Figure 3. Relevant properties of biosolids-derived biochar that can improve soil properties and reduce environmental risks associated with their use in agriculture.
Figure 3. Relevant properties of biosolids-derived biochar that can improve soil properties and reduce environmental risks associated with their use in agriculture.
Sustainability 15 10909 g003
Figure 4. SWOT analysis of conversion of biosolids–biochar in the Australian market.
Figure 4. SWOT analysis of conversion of biosolids–biochar in the Australian market.
Sustainability 15 10909 g004
Table 2. Heavy metals and organic pollutants in biosolids and biosolids-derived biochar and their allowable range according to guidelines.
Table 2. Heavy metals and organic pollutants in biosolids and biosolids-derived biochar and their allowable range according to guidelines.
GuidelinesSampleTemp
°C
Total Heavy Metals (mg kg−1 DBS) bTotal PAHs
μg kg−1 d.b.
Reference
AsCdCrCuPbHgNiZn
AWA-Biosolid--20–301–20100–600100–2000150–4201–1560–270200–2500-[12]
IBI-BiocharCategory A
Category B
-13
100
1.4
20
93
100
143
6000
121
300
1
10
47
400
416
7400
6000
300,000
[119]
EBC-BiocharPremium
Basic
-13
13
1
1.5
80
90
100
100
120
150
1
1
30
50
400
400
4000
12,000
[120]
Technology
PyrolysisBSN/A-2.3–5.3-401–611136–224--629–1238-[19]
BDB300-3.3–7.5-480–043190–350--849–1909
BDB400-3.8–9.8-549–1198194–438--912–2104
BDB500-4.3–8.9-565–1267212–506--1014–2305
PyrolysisBSN/A-7.54-545189-1022398 [100]
BDB400-9.67-632239-1292983-
BDB600-9.76-740253-1343922
GasificationBS
BDB
N/A
750
-
-
1.0–2.5
1.5–5.5
34–66
80–182
-
-
41
84–110
1.5
0.2
24
87–158
-
-
-[97]
GasificationBS
BDB
BDB
-
350
400
-0.93
1.5–1.6
1.5–1.7
80.8
218–227
228–247
580
851–900
886–922
78.27
114–121
120–125
402
597–623
612–637
-[121]
GasificationBS
BDB
BDB
-
700
900
-1
ND
ND
36 (7)
98 (1)
104 (2)
529 (8)
1159 (8)
1346 (6)
45
88(1)
51(1)
2
ND
ND
66(2)
122(1)
165(4)
423(10)
753 (5)
757 (4)
-[98]
PyrolysisBDB2007.6–16.72–9.167.6–281712–100028.4–60 65–6351964–2940 [122]
PyrolysisBDS
BDB
BDB
BDB
BDB
25
200
500
600
700
-1.0
1.1
1.4
1.1
0.7
173
180
233
239
247
143
149
193
198
202
51.1
54.7
67.9
69.1
74.2
42
41.1
55.1
56.1
55.2
698
735
887
976
986
3339
1644
70,385
1241
179
[123]
PyrolysisBS
BDB
BDB
25
300
500
-3.6
5.5
6.5
-487
733
841
167
260
506
--922
1417
1705
-[90]
PyrolysisBS
BDB
-
550
2.6
12
1.7
2.7
-160
210
44
82
--1200
2080
3860
900
[124]
PyrolysisBS
BDB

550
2.3
11.9
1.5
2.3
-171
237
53.8
71.9
--1105
1879
5780
1701
[122]
PyrolysisBS
BDB
BDB
Air
400
500
18
9.4
14
ND
3.2
3.2
20
60.7
61
165
357
334
42
83
92.6
23
77.1
68.4
703
1478
1704
-[72]
PyrolysisBDB5509.33.774.122227 34.51102-[125]
PyrolysisBS
BDB
-
500
--------2950
4350
[126]
PyrolysisBS
BDB
-
500
--------8625–13,333
612–766
[80]
TechnologySample aTemp
°C
Available heavy metals (mg kg−1 DBS b) Reference
AsCdCrCuPbHgNiZn
PyrolysisBS
BDB
BDB
BDB
BDB
25
300
500
600
700
-7.80
0.45
2.30
5.90
10.5
9
11
9
8.5
8
700
45.5
205
295
365
309
48
27.5
67
115
-135
20.5
25
37
46.5
3565
280
385
635
970
[123]
PyrolysisBS
BDB
BDB
25
300
500
-1.8
ND
ND
-139
1.7
0.4
34.9
ND
6.5
--586.6
4.5
50.8
[90]
PyrolysisBS
BDB
-
550
1.1
0.04
1.1
0.2
-37
3.4
8.2
2.5
--371
66
[124]
PyrolysisBS
BDB
-
550
1.07
0.05
1.03
0.17
-35.3
4.35
9.02
3.41
--387
56.7
[122]
PyrolysisSS
BDB
BDB
Air
400
500
-
0.9
0.6
-
ND
ND
-
0.2
ND
-
0.3
0.2
-
0.5
0.6
--
0.3
ND
-
7.9
1.8
[72]
PyrolysisBDB5500.040.261.246.52.13 2.26127 [126]
GasificationBS
BDB
BDB
-
350
400
-0.62
0.03–0.12
0.01–0.24
1.26
1–3.91
1.2–7.51
22.63
0.42–1.17
0.37–0.97
2.74
0.58–1.13
0.59–1.40
--112
7.67–17.19
9.05–12.25
[121]
GasificationBS
BDB
BDB
-
700
900
--8.89
0.06
0.04
16.3
0.49
2.08
--3.44
0.04
<0.01
- [98]
a BS—biosolids; BDB—biosolids-derived biochar; b DBS—dry biosolids; N/A—not applicable; ND—not detected.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Sinha, P.; Marchuk, S.; Harris, P.; Antille, D.L.; McCabe, B.K. Land Application of Biosolids-Derived Biochar in Australia: A Review. Sustainability 2023, 15, 10909. https://doi.org/10.3390/su151410909

AMA Style

Sinha P, Marchuk S, Harris P, Antille DL, McCabe BK. Land Application of Biosolids-Derived Biochar in Australia: A Review. Sustainability. 2023; 15(14):10909. https://doi.org/10.3390/su151410909

Chicago/Turabian Style

Sinha, Payel, Serhiy Marchuk, Peter Harris, Diogenes L. Antille, and Bernadette K. McCabe. 2023. "Land Application of Biosolids-Derived Biochar in Australia: A Review" Sustainability 15, no. 14: 10909. https://doi.org/10.3390/su151410909

APA Style

Sinha, P., Marchuk, S., Harris, P., Antille, D. L., & McCabe, B. K. (2023). Land Application of Biosolids-Derived Biochar in Australia: A Review. Sustainability, 15(14), 10909. https://doi.org/10.3390/su151410909

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
