Article

Identification of Relative Poverty Based on 2012–2020 NPP/VIIRS Night Light Data: In the Area Surrounding Beijing and Tianjin in China

1
School of Management, China University of Mining and Technology, Beijing 100083, China
2
School of Aeronautical Science and Engineering, Beihang University, Beijing 100191, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Sustainability 2022, 14(9), 5559; https://doi.org/10.3390/su14095559
Submission received: 9 March 2022 / Revised: 22 April 2022 / Accepted: 29 April 2022 / Published: 5 May 2022

Abstract

:
As absolute poverty in China, measured by the current standard, is being eliminated, the focus of future poverty reduction projects will necessarily shift to addressing relative poverty. Contiguous poverty areas have been identified in Hebei province around Beijing and Tianjin (HABT), and this is not conducive to the coordinated development of the Beijing-Tianjin-Hebei region. The dynamic identification of relative poverty at the county level within the region must be the basis for formulating scientific strategies for poverty reduction. Night light (NTL) data can reveal socio-economic information and reflect human activities, and has a wide range of other applications for evaluating and identifying poverty. For this reason, NPP/VIIRS (Visible Infrared Imaging Radiometer Suite equipped on the Suomi National Polar orbiting Partnership satellite) NTL data from 2012 to 2020 were corrected, and NTL data for HABT were obtained. A multidimensional relative poverty index (MRPI) that assesses being “free from worries over food and clothing and having access to compulsory education, basic medical services, and safe housing” using social statistical data was created with the analytic hierarchy process and entropy weight method. A panel regression model with fixed effects was established for MRPI and corrected NPP/VIIRS NTL data. The R2 of fitting was 0.6578 and confirmed a strong correlation between MRPI and corrected NPP/VIIRS NTL data. Based on this, the MRPI estimation model was constructed based on the MRPI and corrected NPP/VIIRS NTL data, and passed the accuracy test. Finally, using the national list of poverty counties, it was verified that, at the county scale, the corrected NPP/VIIRS NTL data could effectively identify areas of relative poverty. This study lays the foundation for the use of NPP/VIIRS NTL data in the identification of areas of relative poverty. It provides a feasible method and data reference for analyzing relative poverty at a smaller scale. The dynamic identification of areas of relative poverty can also provide a basis for formulating scientific poverty reduction strategies.

1. Introduction

Poverty is a long-term dilemma that governments face worldwide in the 21st century, especially in developing countries [1]. The elimination of absolute poverty and reduction in relative poverty are the primary goals of the Sustainable Development Goals (SDGs) set forth by the United Nations [2,3]. China began to implement reforms and opening up more than 40 years ago and has achieved sustained development [4,5]. From 2012 to 2019, the number of people living in poverty in China decreased from 98.99 million to 5.51 million, and the incidence of poverty decreased from 10.2% to 0.6% [6]. In December 2020, China achieved its “poverty eradication” targets. In addition, 832 poverty-stricken counties in China have been lifted out of poverty, absolute poverty has been eliminated, and poverty reduction targets, set by the United Nations 2030 Agenda for Sustainable Development for eliminating extreme poverty, have been achieved, 10 years ahead of schedule [6]. These achievements laid the foundation for constructing a moderately prosperous society and achieving common prosperity for Chinese citizens [7]. The Chinese government [8] set the goal to “Resolutely win the battle against poverty, consolidate the achievements of poverty alleviation, and establish a long-term mechanism to address relative poverty”. According to this orientation, China’s poverty alleviation work is intended to shift from eliminating absolute poverty to alleviating relative poverty [6]. However, within China’s overall rapid economic development, its regional economic development has become unbalanced [6,9]. A survey conducted by the Asian Development Bank found that, around the cities of Beijing and Tianjin, where the economy has always shown rapid economic development, poverty-stricken areas are concentrated in Hebei Province [10,11]. To implement the coordinated development of Beijing-Tianjin-Hebei in the new era, it is necessary to evaluate and identify the areas of relative poverty in Hebei province around Beijing and Tianjin (HABT). Evaluating and accurately identifying relative poverty is an important precondition for the Chinese government to formulate a reasonable policy of poverty alleviation.
Absolute and relative poverty differ from each other, but they are also interdependent [12]. As the economy and society have developed, scholars’ focus on poverty has shifted from absolute to relative poverty [13]. Basic needs are at the center of the concept of absolute poverty. The World Bank defined absolute poverty in 1981 [14] and 1990 [15] as the inability to reach a minimum standard of living. Relative poverty measures the income imbalance of different groups in a society, which is related to the income of different groups, in addition to social equity and self-identity [16]. Fuchs (1967) [17] first proposed the concept of relative poverty, which stated that if a person or family’s living conditions were lower than the average social level to a certain extent, they could be considered as being in a state of relative poverty. Absolute poverty can be eliminated through poverty alleviation, but relative poverty exists at any stage of social development [6,18,19]. Based on existing research, the conditions of absolute poverty and relative poverty can be summarized as follows: Absolute poverty refers to “subsistence poverty”, that is, under certain circumstances, individuals or families cannot maintain their basic living needs by relying on their labor income and other legal income. Relative poverty does not mean the lack of the basic needs to maintain life, but refers to the state in which the resources related to the economy, life, education, medical care, social security, and other aspects owned by some members of society are obviously lower than the average level of resources controlled by other members of society. In the contemporary era, China’s poverty alleviation work focuses on alleviating relative poverty, which reflects regional inequalities [4,6,7]. This requires the development of standards for evaluating relative poverty.
Previous studies have shown two main methods for measuring poverty. The first is to measure poverty based on one-dimensional indicators. The advantages of this approach are its simplicity and easy accessibility to data. One of the disadvantages of one-dimensional indicators is that they cannot truly reflect poverty [20]. In addition, it is difficult to fully reflect the complexity, persistence, and vulnerability of relative poverty by such means. The second set of measures are multidimensional assessments of poverty. Sen (1981) [21] first proposed the concept of multidimensional poverty in 1981. In 2010, the UNDP [22], together with the Oxford Poverty and Human Development Center (2010), constructed the Multidimensional Poverty index (MPI). The MPI is measured by ten specific indicators across the three dimensions of health, education, and living standards. MPI has also been recognized as a valuable tool by many scholars and has been widely used as a reference [23,24,25]. Multidimensional poverty is an important approach to measuring relative poverty. The results of the MPI are closely associated with relative poverty [26]. Studies by Chinese scholars [4,5,6,7,8,27,28] show that, although the poverty alleviation departments of the Chinese government did not explicitly announce the adoption of multidimensional poverty standards, multidimensional poverty alleviation strategies and measurements have clearly been applied in the treatment of relative poverty [29,30,31]. Relative poverty is identified and assessed with multidimensional instruments based on statistical data, and this approach has achieved good results. Thus, this study used MPI to measure relative poverty.
However, studies using socio-economic statistical data have obvious shortcomings [28,32,33], such as the minimum statistical scale of statistical data is the county unit, and it is difficult to monitor relative poverty at the township level. Moreover, the acquisition of statistical data is difficult and takes a long time, and it is not convenient to monitor small-scale relative poverty in a timely manner. In turn, this is not conducive to the formulation of relative poverty alleviation strategies according to local conditions. Since NTL data can reflect comprehensive information, such as economic growth [34], human activities [35], urban development [36], energy consumption [37], and carbon emissions [38], it encompasses transportation, roads, economic development, population change, urban expansion, and other information closely related to human development. As a result of the development of NTL data and related analysis techniques, NTL data has been used prominently in the field of poverty monitoring [39].
Currently, three main types of NTL data are used in poverty research. These are the Program’s Operational Linescan System (DMSP/OLS); the Visible Infrared Imaging Radiometer Suite equipped on the Suomi National Polar-orbiting Partnership satellite (NPP/VIIRS); and the LuoJia1-01 satellite launched in June 2018. However, DMSP/OLS NLT data have defects such as the lack of online calibration, insufficient spatial resolution, oversaturation of the signal (the NLT value in the urban center remains unchanged) [32], and having only a single band [40]. In addition, the spatial resolution of DMSP/OLS NLT data is only 1000 m, which means it cannot meet the needs of in-depth analysis. More importantly, DMSP/OLS NLT data have not been available since 2013 [33]. Although Luojia-1 has a finer spatial resolution (130 m) [33], the data provided by the satellite cannot provide the long-term sequence required for research before 2018. Unlike DMSP/OLS, NPP/VIIRS NLT data are a better choice due to their higher spatial resolution (500 m) [32,40]. In contrast to the Luojia-1 date, the NPP/VIIRS NLT data are available from 2012 to the present, which meets the long-term research requirements. Therefore, many scholars have used NPP/VIIRS NLT data to evaluate poverty.
Studies of poverty in China using NPP/VIIRS NTL data can be divided into two main categories. The first verifies the accuracy of poverty estimates using the NPP/VIIRS NTL data with statistical multidimensional assessments as a baseline. Previous work [5,28,32,40] identified multidimensional poverty at the county level using NPP/VIIRS NTL data for a single year. The authors [41,42] did so with NPP/VIIRS NTL data for consecutive years. Another group of studies combined NPP/VIIRS NTL data with other geographic or statistical indicators to enable the application of an MPI. The authors [2,43] used NPP/VIIRS NTL data from 2015 to establish an integrated MPI. Yin (2021) [44] combined NPP/VIIRS NTL data and geographic environment remote sensing data from 2012 to 2019 to identify counties with greater poverty.
Two main problems have arisen in the existing poverty research based on NPP/VIIRS NTL data. First, the NPP/VIIRS NTL data used by most research institutes covers a single year. This characteristic depends on the data provided by NPP/VIIRS, as 2015 and 2016 data are provided as annual data, and the data for other years are monthly data. This limits the spatiotemporal analysis of the poverty areas. Second, most existing long-sequence NPP/VIIRS NTL data on poverty studies are intended to support absolute poverty analysis. At present, China needs to formulate a countermeasure against relative poverty. This paper investigates whether NTL data can evaluate and provide spatial identification of relative poverty and whether the results are accurate.
The purpose of this study was to establish an MRPI calculation model from a multidimensional perspective in view of China’s poverty alleviation goals in the new era. An MRPI estimation model was established using the corrected nighttime light data to verify the accuracy of this data in estimating relative poverty. Finally, for the monitoring of relative poverty at the township scale, where statistical data is lacking, feasible methods and data references are proposed. The results of this study broaden the scope of application of NTL data and provide a basis for the analysis of relative poverty of NTL data. The dynamic identification of relative poverty in the HABT is conducive to formulating scientific and effective poverty reduction strategies.

2. Study Area and Methodology

2.1. Study Area

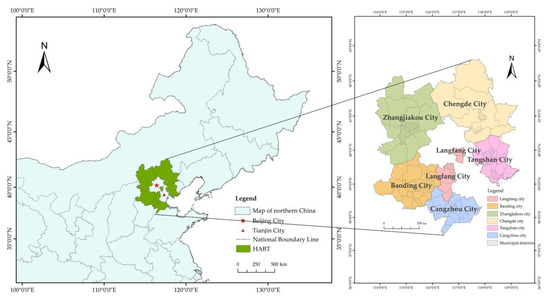

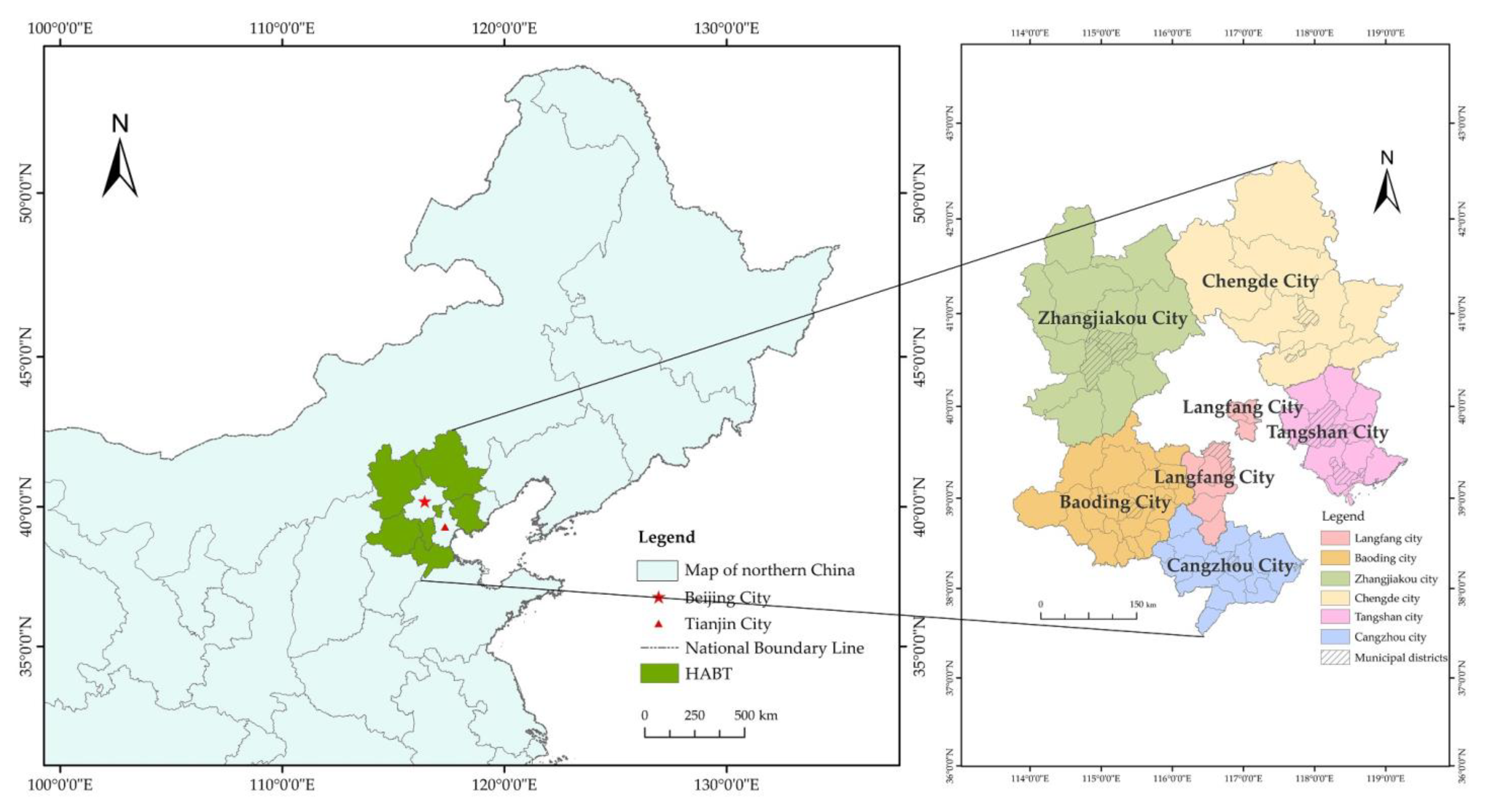

In 2010, the Hebei provincial government published a map of HABT that included six regions, including Langfang city, Baoding city, Zhangjiakou city, Chengde city, Tangshan city, and Cangzhou city. This defines the geographical area of HABT.
The county is the basic unit of poverty assessment [32], and this study follows this by using the county as the unit scale of relative poverty to identify the areas of relative poverty. HABT contains 73 counties/cites (excluding municipal districts). The distribution of counties is as follows: 8 in the city of Langfang, 22 in the city of Baoding, 13 in the city of Zhangjiakou, 8 in the city of Chengde, 8 in the city of Tangshan, and 14 in the city of Cangzhou. The specific distribution is shown in Figure 1.

2.2. Index Selection of Relative Poverty

In the early stage of poverty governance, the measure of absolute poverty in China was based on per capita income [45]. At present, absolute poverty has been eliminated and the task of poverty alleviation has shifted to alleviating relative poverty; however, academia has not reached a unified consensus on relative poverty standards. In order to identify relative poverty, the establishment of a multidimensional relative poverty standard is urgently needed. Chinese scholars have attempted to construct relative poverty systems using different dimensions, and most studies referred to MPI [46], which was proposed by the United Nations Planning and Development Agency. This index measures the three dimensions of health, education, and life. The Chinese government’s new poverty alleviation target is “By 2020, the poverty alleviation targets are free from worries over food and clothing and have access to compulsory education, basic medical services and safe housing [47]”. In terms of quality of life, education, medical care, and social security, the index shows that China’s current poverty alleviation goal is not just to solve the problem of survival, but to focus on the self-development of relative poverty groups. Based on this criterion, taking into account the availability of statistical data, 13 indicators were selected from the five dimensions of economy, living quality, education, health care, and social security to establish an MRPI for HABT. This study evaluated and identified the relative poverty of HABT from a multidimensional perspective. The specific index selection is shown in Table 1.

2.3. Data Sources

2.3.1. NPP/VIIRS NTL Data

The NPP/VIIRS NTL data from 2012 to 2020 were obtained from the website https://eogdata.mines.edu/products/vnl/, accessed on 10 January 2022. Among these, 2015 and 2016 data were annually synthesized. The annual composites were only made using the vcm version, which excludes any data impacted by stray light. Monthly composite data are available for 2012, 2013, 2014, 2017, 2018, 2019, and 2020. Two versions of the monthly data [48] are provided, namely, vcm and vsmsl. The vcmsl version, which provides data corrected for stray light, has more data coverage toward the poles, but its data has reduced quality. Due to consideration of data consistency and continuity, the vcm version was used for both annual and monthly data.

2.3.2. Social Statistics

The MRPI was established based on social statistics, and specific indicators are shown in Table 1. All data were collected from 2012 to 2019, and were at the county scale. In addition, the county GDP information was derived from the China County Statistical Yearbook (https://data.cnki.net/area/Yearbook/Single/N2021050065?dcode=D26, accessed on 10 January 2022). The employment rate came from the statistical yearbooks for the six target cities. All other data were drawn from the Hebei Economic Yearbook and the Hebei Statistical Yearbook (http://tjj.hebei.gov.cn/res/nj2019/zk/indexch.htm, accessed on 10 January 2022). To ensure the integrity of data, data were collected from 71 counties/cites, for a total of 568 samples. In total, 14 gaps in the data were filled using the mean value.

2.4. Methodology

2.4.1. MRPI

According to the weights and standardized values of the above indexes, MRPI in counties in HABT was established. The specific calculation is shown in Formula (1):
M R P I = i = 1 n w i × a i
where, MRPI is the multidimensional relative poverty index. i is some index from 1 to n. w i is the weight value of the ith index, obtained by the entropy weight method. a i is the standardized value of each index.

2.4.2. Analytic Hierarchy Process

Analytic hierarchy process is a commonly used subjective weighting method, abbreviated as AHP. Analytic hierarchy process (AHP) decomposes the decision-making problem into different elements, and the elements are combined according to the correlation and affiliation to form a multi-level analysis structure from the overall objective to each level of the sub-objectives. Thus, the decision-making problem can be reduced to the determination of the relatively important weight from the lower level to the highest level.
In this study, a fuzzy consistent matrix was used as the judgment matrix of analytic hierarchy process, and the specific calculation steps are as follows.
Step 1: Build a hierarchy model. Using the top-down method, the multidimensional poverty indicators are divided into three layers. From top to bottom, they are the target layer, the criterion layer, and the indicator layer, and each layer of indicators belongs to its upper layer.
Step 2: Starting from the criterion layer, determine the weights of the indicators of each layer by pairwise comparison and construct the complementary judgment matrix. The general representation of the complementary judgment matrix is shown in Formula (2):
A = a 11 a 1 n a n 1 a n n ,   a i j = 1 a j i .
The value description of a i j in the formula is shown in Table 2.
Step 3: Transform the complementary judgment matrix into a consistency matrix. The calculation method of the consistency matrix is shown in Formulas (3) and (4):
a i j = k = 1 n a i k , i = 1 , 2 , , n
a i j = a i a j 2 n + 0.5
Step 4: According to the consistency matrix, the weight value of each level index relative to the previous level index is calculated using the comparative weight of the index. The specific calculation is shown in Formula (5).
g i k = 1 n 1 2 c + j = 1 n a i j n c , ( i = 1 , 2 , , n )
In the formula, c = ( n 1 ) / 2 , and k is the number of index layers.

2.4.3. Entropy Weight Method

The entropy weight method is objective, and the index weight is determined by the data without interference from human factors [49].
Firstly, the selected indicators should be normalized. Since the selected indicators are all positive indicators, the standardized formula of the range method is shown in Formula (6):
a i j = x i j min ( x i j ) / max ( x i j ) min ( x i j )
where, x i j is the statistical value of each indicator.
Then, the entropy weight method is used to determine the weight of each index after standardization, and the specific steps are shown in Formulas (7)–(9):
p i j = a i j / i = 1 n a i j
e j = k i = 1 n p i j ln p i j
w i = d j / j = 1 m d j
where, j is the number of index items (j = 1, 2…,m). i is the research object (i = 1, 2…,n). a i j is the standardized value of the jth index of the ith sample. p i j is the proportion of the ith sample value of the jth index in the modified index. e j is the entropy value of the jth index, k = 1 / ln ( n ) . w i is the weight value of item i. d j is the poverty measurement dimension of item j, which satisfies e j 0 and makes d j = 1 e j .

2.4.4. Fixed Effect Models

The general form of the panel data model is shown in Formula (10):
y i t = k = 1 K β k i x k i t + u i t
where i = 1 , 2 , 3 , , N , represent individual. t = 1 , 2 , 3 , , T represent time-points. y i t is the observed value of the explained variable to individual i at time-point t. x k i t is the observed value of the kth non-random explanatory variable for individual i at time-point t. β k i is the parameter to be estimated. u i t is the random error term. This is expressed by the matrix, as shown in Formula (11):
Y i = X i β i + U i   ( i = 1 , 2 , 3 , , N )
Fixed effect models are divided into three types [50]; The details are as follows.
The individual fixed effect model is a model with different intercept terms for different time series (individuals), as shown in Formula (12).
y i t = λ i + k = 2 K β k x k i t + u i t
The time-point fixed effect model is a model with different intercepts for different sections (time-points) , as shown in Formula (13).
y i t = γ t + k = 2 K β k x k i t + u i t
The time-point individual fixed effect model is a model with different intercepts for different sections (time-points) and different time series (individuals), as shown in Formula (14).
y i t = λ i + γ t + k = 2 K β k x k i t + u i t

2.4.5. Error Test

The relative error (RE) and average relative error (ARE) are used to test the error of MRPI. The calculation formula of the error test is shown in Formulas (15) and (16):
RE = ( MRPI e MRPI d ) / MRPI d × 100 %
ARE = i = 1 n ( RE ) i / n
where RE is the relative error and ARE is the average relative error. MRPI e is the MRPI estimated using NTL data at the county level. MRPI d is the MRPI calculated by statistical data of the county. n is the number of counties.

3. Results

3.1. NPP/VIIRS NTL Data Correction

The NPP/VIIRS NTL data include annual and monthly data. The annual data are for 2015 and 2016. Monthly data are for 2012–2014 and 2017–2020. In order to maintain data consistency, the vcm version was selected. The correction of NPP/VIIRS data includes the following six steps [51].
(1)
Annual synthesis of monthly NTL data
In order to maintain the consistency of data, monthly lighting data were averaged for fusion processing. The monthly data of NPP/VIIRS were imported from 2012–2014 and 2017–2020 into ArcGIS 10.4.1 software, the “cell statistics” in “Spatial Analyst Tools“ were used to calculate the average value, and the annual data of the corresponding year were synthesized. Finally, NPP/VIIRS NTL data for 2012–2020 were obtained.
(2)
Reprojection and resampling
The “projection transformation“ function in ArcGIS software was used to convert the 2012–2020 VIIRS/NPP data into the “Albers Equal Area Conic“ projection. The relevant parameters were set to: Central_Meridian: 105.0, Standard_Parallel_1: 25.0, Standard_Parallel_2: 48.0, Latitude_Of_Origin: 0.0. The resampling was 1 km × 1 km spatial resolution.
(3)
Cutting

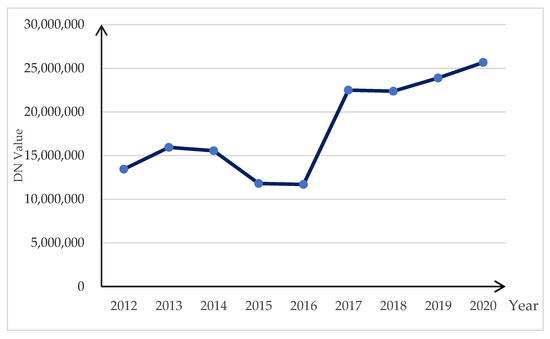

In order to observe whether the DN value of nighttime light data is consistent with the economic development of China, the nighttime light data were clipped for China. “Extraction—Extract by Mask“ in ArcGIS software was used to cut the reprojection and resampling images to obtain the annual synthetic NTL data of Chinese administrative boundaries. The initial DN value is shown in Figure 2. Abnormal fluctuations are shown in the data, and further correction was thus required.
(4)
Stability correction
IIn order to reduce the influence of the background noise in the NPP/VIIRS NTL data, the NPP/VIIRS NTL data in 2016 were chosen as the constant area. The “con()“ statement in the “raster calculator” in ArcGIS software was used to binarize the NPP/VIIRS NTL data in 2016 according to Formula (17).
DN 2016 = 1 , DN 2016 > 0 0 , DN 2016 0
The binarization result was multiplied with the data of other years to correct the stability of the data of other years. The correction formula is shown in Formula (18):
DN ( n , i * ) = DN ( 2016 , i > 0 ) × DN ( n , i )
where n = 2012 , 2013 , 2014 , 2015 , 2017 , 2018 , 2019 , 2020 , DN ( n , i ) is the DN value of the ith pixel in the nth year. DN ( n , i * ) is the DN value after stability correction in the nth year. DN ( 2016 , i > 0 ) is the binarized value in 2016.
(5)
Elimination of outliers
Observing the data after stability correction, the lowest value of some years was negative. According to Formula (19), negative values were normalized to 0 with the “raster calculator”:
DN ( n , i * ) = 0 ,   when   DN ( n , i * ) < 0
where n is the year in which the lowest value is negative. DN ( n , i * ) is the DN value after stability correction in the nth year.
(6)
Time series correction
The basic assumption of the time series correction is that the NPP/VIIRS NTL data are in a state of continuous diffusion and enhancement, which is consistent with China’s rapid social and economic development. Therefore, it was necessary to ensure that the earlier DN values were not greater than the later DN values. For unstable pixels that were missing in some images, their DN value was replaced with 0. The calibration process is shown in Formula (20):
DN ( n , i ) = 0 , D N ( n + 1 , i ) = 0 DN ( n , i ) = DN ( n 1 , i ) , DN ( n + 1 , i ) > 0   and   DN ( n 1 , i ) > DN ( n , i ) DN ( n , i ) = DN ( n , i ) , other
DN ( n 1 , i ) , DN ( n , i ) and DN ( n + 1 , i ) are, respectively, the DN value of pixel i after time series correction in the (n − 1)th year, the nth year, and the (n + 1)th year, respectively.

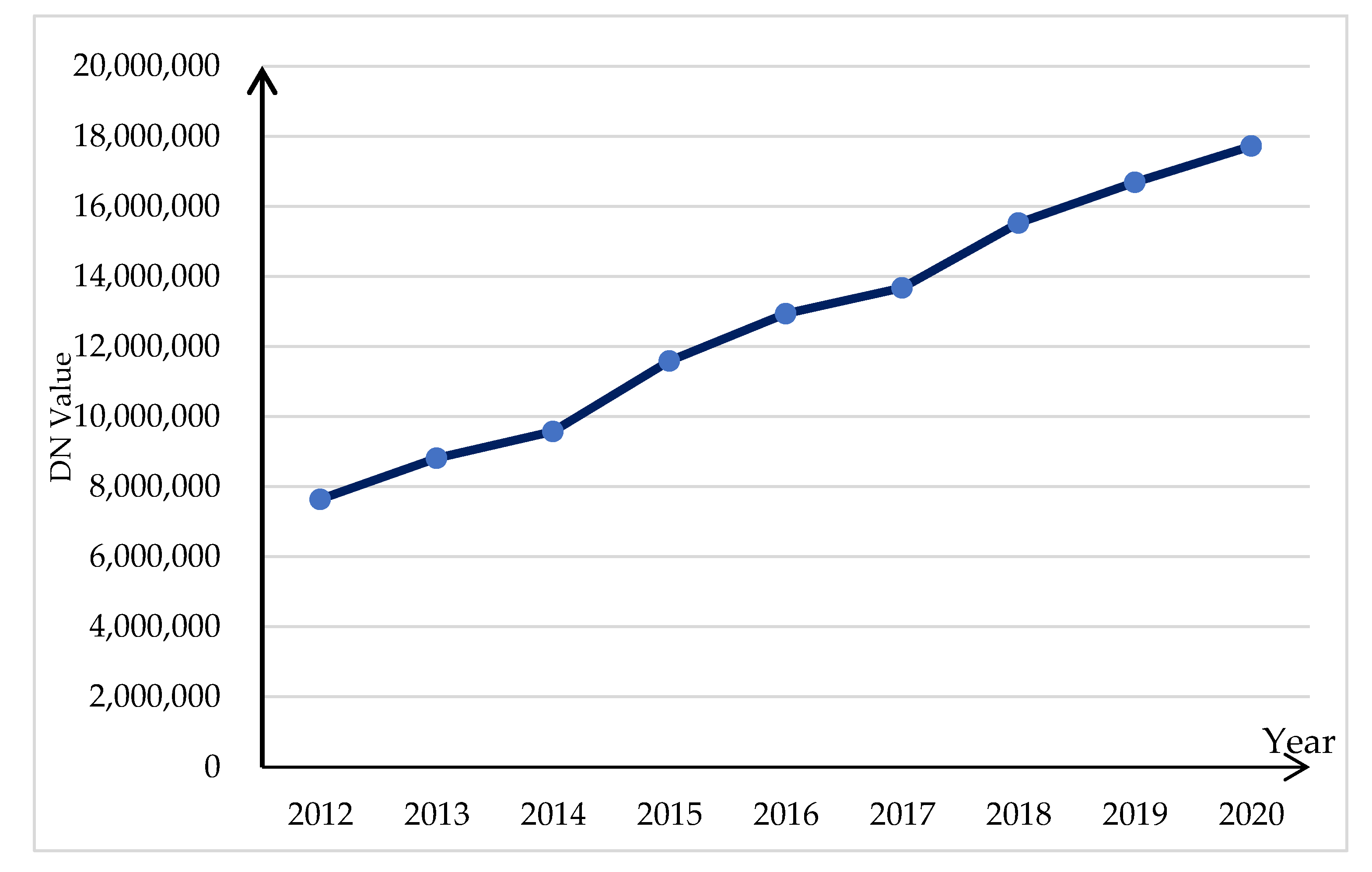

After the above data correction process, the corrected NPP/VIIRS NTL data of China from 2012 to 2020 were obtained. The DN values of the corrected NPP/VIIRS NTL data are shown in Figure 3. The corrected NPP/VIIRS NTL data rise steadily, which is consistent with China’s social development reality.

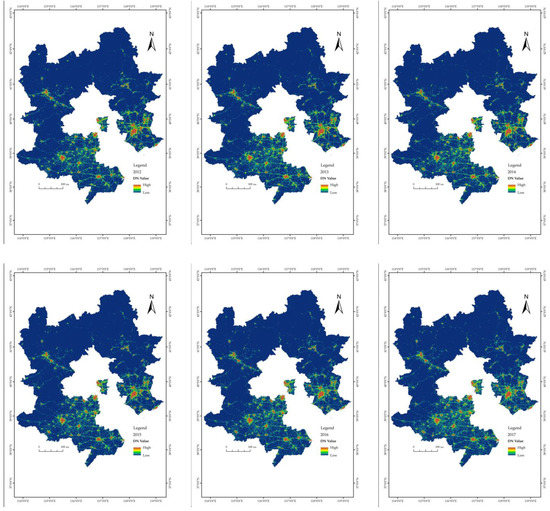

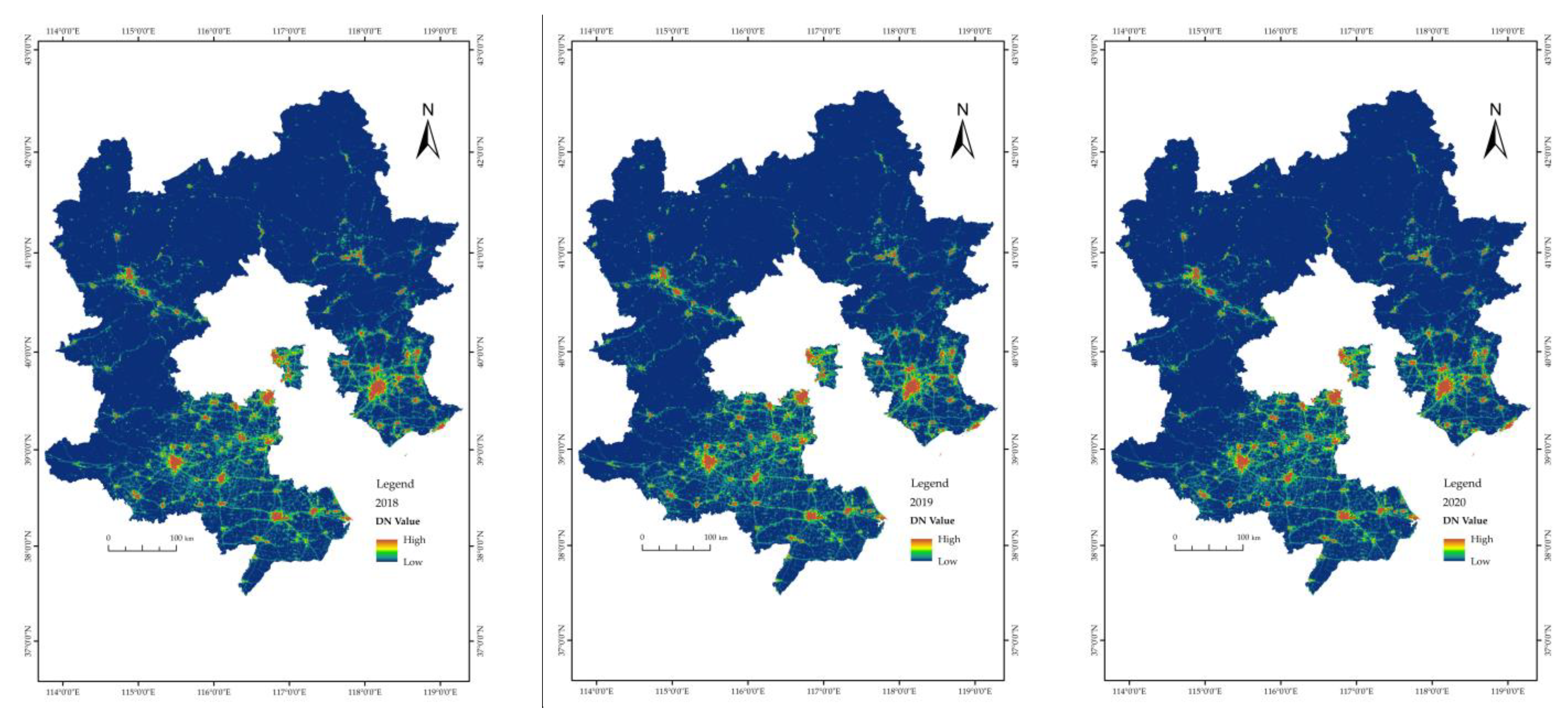

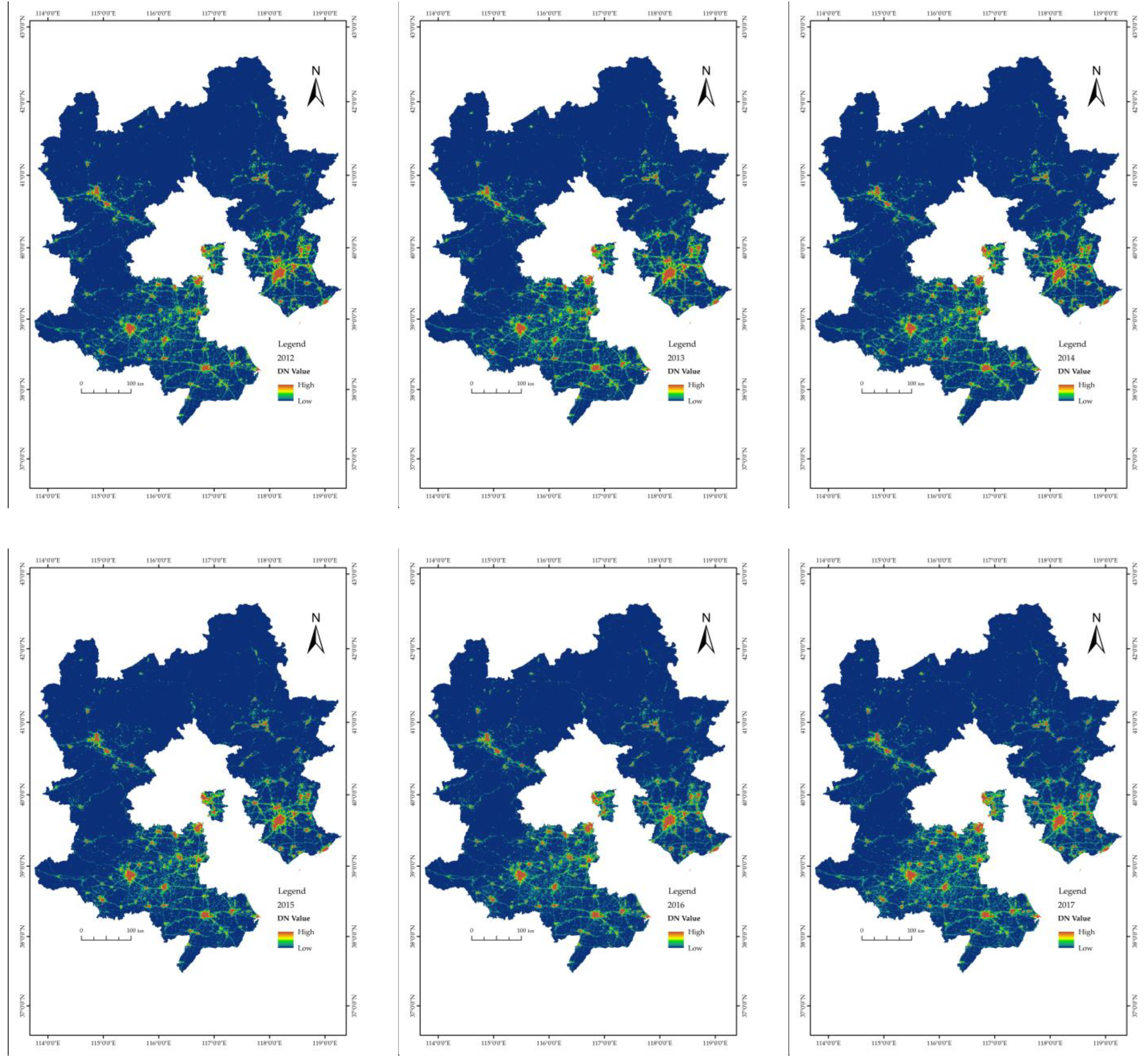

Target area clipping was performed on the corrected NPP/VIIRS NTL data and zoning statistics were derived for the average night light data (ANTL) (as shown in Table A1). The target area was HABT. The cropped NPP/VIIRS images from 2012 to 2020 are shown in Figure 4.

3.2. Results of Multidimensional Relative Poverty Index

To distinguish the differences between various indicators, the AHP and entropy weight methods were used to assign weights to the MRPI, and the average weight was selected as the final weight. The result of weighting is shown in Table 3. After empowerment, MRPI is shown in Table A2.

3.3. Identification of Relative Poverty at County Level in HABT

This study refers to the relevant research experience of relative poverty in China [4,6,7,26,27] and the author’s multidimensional relative poverty identification standard [52]. Firstly, the score of each dimension of the multidimensional relative poverty index was measured, and then 60% of the median of each dimension was selected as the relative poverty evaluation standard. Thus, the identification criteria of relative poverty from 2012 to 2019 are shown in Table 4.
The five dimension scores of the multidimensional relative poverty index of each county from 2012 to 2019 were compared with the dimension standard of the corresponding year. Counties with one of the dimensions below the standard were identified as having mild relative poverty. Counties with two dimensions below the standard were identified as having moderate relative poverty. Counties with three or more dimensions below the standard were identified as having severe relative poverty. The number of relative poverty counties from 2012 to 2019 is summarized in Table 5.
It can be seen from Table 5 that the maximum number of counties experiencing relative poverty was 29 in 2013, and the relative poverty incidence rate was 40.85%. The minimum number was 18 in 2016, and its relative poverty incidence was 25.35%. From 2012 to 2013, the number of relative poverty counties increased slowly. However, from 2013 to 2016, the number of relative poverty counties declined. From 2016 to 2019, the number of relative poverty counties experienced an unstable state of “increase-decrease-increase”. From 2012 to 2019, mild relative poverty was the main type in HABT, and the number of counties experiencing severe relative poverty was the least.
The list of counties experiencing relative poverty in HABT from 2012 to 2019 is summarized in Table A3. As shown in Table A3, from 2012 to 2019, there were 13 counties in a state of long-term relative poverty for 8 years: Boye county, Chicheng county, Chongli county, Dachang county, Fuping county, Guyuan county, Huaian county, Kangbao county, Laishui county, Mengcun county, Shangyi county, Wei county, and Yangyuan county. There were five counties in a state of long-term relative poverty for 6 years: Haixing county, Laiyuan county, Wangdu county, Xinglong county, and Zhangbei county. There are four counties in a state of long-term relative poverty for 5 years: Fengning county, Wanquan county, Yongqing county, and Zhulu county. Anxin County, Gu’an county, Kuancheng county, and Weichang county were in a state of relative poverty for four years. Luanping county, Rongcheng county, and Xiong county were in a state of relative poverty for three years.

3.4. Establishment of Multidimensional Relative Poverty Index Estimation Model

MRPI (as shown in Table A2) and corrected NPP/VIIRS ANTL data from 71 counties in the HABT region from 2012 to 2019 were used as the dependent and independent variables to establish the panel regression model. The Hausman test was used to determine the choice of the fixed-effects model. The obtained results of the fixed-effects panel regression model are shown in Table 6.
As shown in Table 6, the R2 of the individual–time fixed-effects model is the best. The regression results of the individual–time fixed-effects model were used as the multidimensional relative poverty index estimation model. The fitting formula is as follows:
MRPIre = 0.0523ANTL + 0.1907
where MRPIre is MRPI at the county scale in HABT, and ANTL represents the NPP/VIIRS Average Night Light Index at the county scale.

3.5. Accuracy Test of MPRI Estimation Model

In order to verify the accuracy of the MRPI estimation model, RE and ARE were obtained for the estimated value and the real value of MRPI. The precision percentage of RE is shown in Table 7.
From Table 7, in 2012–2019, more than 50% of counties over a period of 8 years had high accuracy, and the proportion of counties with low precision from 2012 to 2019 was less than 10%. From the analysis of the RE test, the MRPI estimation model based on the corrected NPP/VIIRS nighttime light data passed the error test.
The results in Table 8 show that the ARE of fifty-two counties was within 25%, the ARE of seventeen counties was between 25% and 50%, and the ARE of two counties was greater than 50%. From the analysis of the ARE, the MPRI estimation model based on the corrected NPP/VIIRS nighttime light data passed the error test. Combining RE and ARE, it was found that using the 2012–2019 NPP/VIIRS ANTL to estimate MRPI at the county scale passed the accuracy test. This lays a theoretical foundation for the subsequent study of the identification of relative poverty by night light data.

3.6. Identification of Relative Poverty at the Township Scale in the HABT

According to Table A3, there were 13 counties in a state of long-term relative poverty for 8 years: Boye county, Chicheng county, Chongli county, Dachang county, Fuping county, Guyuan county, Huaian county, Kangbao county, Laishui county, Mengcun county, Shangyi county, Wei county, and Yangyuan county. One of the counties was randomly selected, and Chongli county was taken as an example to identify relative poverty at the township level.
According to Formula (21), the grid calculator in ArcGIS software was used to calibrate the night light data in Chongli District at the county level. The estimated multidimensional relative poverty index of 11 villages and towns in Chongli District is shown in Table 9.
Thus, the relative poverty index of Chongli district at the township scale was estimated. It provides a data reference and a indicates a feasible method for monitoring relative poverty on the township scale.

4. Discussion

Having eliminated absolute poverty, China will focus on alleviating relative poverty in the new era. The lack of identification standards of relative poverty leads to difficulties in the implementation of targeted poverty alleviation policies and is not conducive to the formulation of scientific policies for the alleviation of regional poverty. Taking HABT as an example, in order to facilitate the implementation of the Beijing-Tianjin-Hebei integration policy, MRPI was constructed at the county scale, to enable relevant research to be carried out.
The traditional evaluation of poverty is based on social statistical data, which are often untimely and difficult to collect. This leads to challenges in the realization of research on relative poverty at a smaller scale (such as the township scale) in the new era. NPP/VIIRS NTL data may contain more detailed human activity information, greater spatial resolution, and richer light signals. For this reason, NPP/VIIRS NTL data from 2012 to 2020 were obtained. After the annual fusion of monthly data, the DN values of China from 2012 to 2020 were produced. The original NPP/VIIRS NTL data exhibited abnormal fluctuations, for which stability correction and time series correction were carried out. Thus, the corrected 2012–2020 NPP/VIIRS NTL data for China were obtained. The 2012–2020 NPP/VIIRS NTL images of HABT were cut out, as shown in Figure 4. The corrected NPP/VIIRS ANTL data in HABT at the county scale are shown in Table A1. The images show the economic development of HABT at a grid scale, which is consistent with China’s social reality.
The first step in studying relative poverty is to determine the evaluation criteria. Adopting the standard of “free from worries over food and clothing and have access to compulsory education, basic medical services and safe housing”, combined with MPI, MRPI was established, as shown in Table 1. It contains five dimensions: economy, living quality, education, health care, and social security. Because the county is the basic unit of poverty assessment, 71 counties in HABT from 2012 to 2019 were selected as assessment objects. The AHP and entropy methods were used to assign weights, as shown in Table 3. The results of MRPI at the county scale in HABT are shown in Table A2.
In order to identify relative poverty at the county scale, 60% of the median of each dimension in the MRPI was selected as the relative poverty evaluation standard. The identification criteria for relative poverty from 2012 to 2019 are shown in Table 4. The recognition results were classified, and the classification results are shown in Table A3. As shown in Table A3, from 2012 to 2019, there were 13 counties in a state of long-term relative poverty for 8 years, five counties in a state of long-term relative poverty for 6 years, and four counties in a state of long-term relative poverty for 5 years. The number of counties experiencing relative poverty from 2012 to 2019 is summarized in Table 5. The maximum number of counties experiencing relative poverty was 29 in 2013, and the relative poverty incidence rate was 40.85%. The minimum number was 18 in 2016, and its relative poverty incidence was 25.35%. From 2012 to 2019, mild relative poverty was the main type in HABT, and the number of counties experiencing severe relative poverty was the least.
To confirm the correlation between the MRPI and the corrected NTL data, a panel fixed effect model was selected to perform regression fitting for the two variables. The R2 of the individual-time fixed effect model was greater than 0.6. The results show that there is a strong correlation between MRPI and the corrected NTL data. Based on this, the MRPI estimation model was constructed using the individual–time fixed-effects model, as shown in Formula (21). As shown in Table 7 and 8, the accuracy test of the relative poverty estimation model confirmed that both NPP/VIIRS NTL data estimation and MRPI showed good results.
Taking Chongli District as an example, according to Formula (21), the nighttime light data of Chongli District from 2012 to 2020 were corrected at the county level, and the nighttime light data of Chongli District from 2012 to 2020 were cut at the township scale. The estimated value of MRPI at the township scale in Chongli District from 2012 to 2020 was obtained, as shown in Table 9. This study provides a feasible method for the identification of relative poverty at the township scale, and provides a data reference for the monitoring of relative poverty.
The research results of this study can be used as a reference for other regions:
(1)
This study selected HABT as the study area, and used “free from worries over food and clothing and have access to compulsory education, basic medical services, and safe housing” as the standard for establishing MRPI. In the study of relative poverty in other regions of China, researchers can refer to this choice of indicator.
(2)
To conduct multidimensional relative poverty assessment based on social statistics, it may be necessary to wait for a long period until existing statistics are updated through economic censuses. Knowledge of the relative poverty in an area cannot be kept up to date over a short period of time, which limits targeted poverty alleviation work. The use of night light data can effectively identify the areas of relative poverty in a timely and effective manner. It also provides a convenient means of conducting poverty research in regions lacking social statistics.
(3)
This study established an MRPI estimation model at the county scale based on MRPI and NTL data. The feasibility of using NTL data to evaluate the relative poverty of counties and identify areas of relative poverty was verified. This lays the foundation for the application of night light data in the identification of relative poverty at the county scale, and provides additional ideas for the identification of relative poverty in other regions on the county or smaller scales.
However, this study still features some limitations:
(1)
When constructing MRPI, a five-dimension index system was constructed that takes into account the availability of statistical data. In the further study of relative poverty by government departments and scholars, more multidimensional indicators of relative poverty may be used to develop more reliable studies.
(2)
Due to space limitations, after providing the estimates of the MRPI at the township scale, this paper does not further discuss and monitor the relative poverty at the township scale. In the future, further research on relative poverty at the township scale can be carried out, in order to provide a smaller-scale scope of reference for the policy formulation of relevant departments, and to provide a more refined spatial reference for the prevention of a large-scale return to poverty.
(3)
As the scale of poverty research has been continuously narrowing and deepening, as a result of the future development of the work of the relevant departments, it will be feasible to obtain smaller-scale statistical data, which will provide an improved basis for the study of NTL data.

5. Conclusions

(1)
The 71 counties of HABT from 2012 to 2019 were selected as the research scope, and MRPI was established in terms of the five dimensions of economy, quality of life, education, health care, and social security. Then, 60% of the median of each dimension was selected as the relative poverty evaluation standard, and 71 counties of HABT from 2012 to 2019 were identified. The identification results show that the maximum number of relative poverty counties was 29 in 2013, and the relative poverty incidence rate was 40.85%. From 2012 to 2019, mild relative poverty was the main type in HABT, and the number of severe relative poverty counties was the least.
(2)
Analysis of the identified list of counties experiencing relative poverty from 2012 to 2019 shows that, from 2012 to 2019, there were 13 counties in a state of long-term relative poverty for 8 years: Boye county, Chicheng county, Chongli county, Dachang county, Fuping county, Guyuan county, Huaian county, Kangbao county, Laishui county, Mengcun county, Shangyi county, Wei county, and Yangyuan county. There were five counties in a state of long-term relative poverty for 6 years: Haixing county, Laiyuan county, Wangdu county, Xinglong county, and Zhangbei county. There are four counties in a state of long-term relative poverty for 5 years: Fengning county, Wanquan county, Yongqing county, and Zhulu county. Anxin Coun-ty, Gu’an county, Kuancheng county, and Weichang county were in a state of relative poverty for four years. Luanping county, Rongcheng county, and Xiong county were in a state of relative poverty for three years.
(3)
A panel regression model was established using MRPI and adjusted NPP/VIIRS ANTL data of 71 counties in the HABT region from 2012 to 2019 as the dependent and independent variables. Hausman’s test was used to determine the choice of fixed-effects model. Comparing the three fixed-effects models, it was found that the R2 of the individual–time fixed-effects model was best at 0.6573. Thus, an MRPI estimation model was obtained. From the results of the RE test, more than 50% of the counties had high accuracy for a period of 8 years, and the proportion of counties with low precision from 2012 to 2019 was less than 10%. The results of the ARE test showed that the ARE of fifty-two counties was within 25%, and the ARE of seventeen counties was between 25% and 50%. Combining the results of the RE and ARE tests, it was found that using the 2012–2019 NPP/VIIRS ANTL to estimate MRPI at the county scale passed the accuracy test. This lays a theoretical foundation for the subsequent study of the identification of relative poverty using night light data.
(4)
This study constructed a multi-dimensional relative poverty index calculation model, and calculated the multi-dimensional relative poverty index from 2012 to 2019. A multidimensional relative poverty index estimation model was constructed using the corrected nighttime light data and the multidimensional relative poverty index. On this basis, county-level correction was performed on the nighttime light data in Chongli District, and the estimation of the multi-dimensional relative poverty index at the township level was realized. This provides a feasible method and data reference for the identification of relative poverty at the township scale. This study provides a theoretical reference for the identification of relative poverty and a practical basis for the application of NPP/VIIRS NTL data in the study of relative poverty. It provides a feasible method for the identification and monitoring of relative poverty at the township scale. Achieving the identification of small-scale relative poverty is helpful for formulating scientific and effective poverty reduction strategies, and is of great significance for preventing a large-scale return to poverty. This study provides a spatial reference for alleviating relative poverty in the future.

Author Contributions

J.W. and H.L. (Haibin Liu) conceived and designed the study. H.L. (Hao Liu) and J.W. processed the data and performed analysis, contributed to the interpretation of the results and wrote the study. H.L. (Hao Liu) and Y.C. provided assistance in software operation. X.L., Y.G. and H.H. participated in the revision of the article. All authors reviewed and edited the draft, approved the submitted manuscript, and agreed to be listed and accepted the version for publication. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Beijing Municipal Natural Science grant number 9212015 and the Fundamental Research Funds for the Central Universities grant number 2021YJSGL12 and College Student Innovation Training Project of China University of Mining and Technology (Beijing) grant number 202105033 and The APC was funded by China University of Mining and Technology, Beijing.

Data Availability Statement

See the Appendix A for research data.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

The corrected NPP/VIIRS ANTL of 71 counties in HABT from 2012 to 2020 were calculated using ArcGIS software.
Table A1. NPP/VIIRS ANTL at county level in HABT from 2012 to 2020.
Table A1. NPP/VIIRS ANTL at county level in HABT from 2012 to 2020.
County (City)201220132014201520162017201820192020
Anguo City0.1674 0.2182 0.2497 0.2998 0.4428 0.7807 1.0172 1.5205 1.8742
Anxin County0.3921 0.4937 0.5140 0.6041 0.6980 0.8585 0.9321 1.0655 1.1509
Bazhou City1.3672 1.9701 2.2171 3.0671 3.4518 3.5537 3.7595 3.9348 4.0658
Botou City0.2368 0.3257 0.3573 0.4680 0.5623 0.6640 0.7431 0.8463 0.8978
Boye County0.1494 0.1943 0.2264 0.2748 0.3462 0.4630 0.4823 0.5579 0.5840
Cang County0.4310 0.5753 0.6581 0.8213 0.9165 1.0619 1.1349 1.2329 1.3829
Chengde County0.0796 0.0951 0.1072 0.1538 0.1831 0.1923 0.2076 0.2304 0.2417
Chicheng County0.0218 0.0240 0.0249 0.0288 0.0345 0.0381 0.0439 0.0466 0.0492
Chongli County0.0363 0.0399 0.0446 0.0752 0.1056 0.1237 0.1449 0.1695 0.1811
Dachang County1.3392 1.8691 2.4094 4.3303 5.0571 4.8889 5.3144 5.4682 5.5228
Dacheng County0.3764 0.4855 0.5589 0.6673 0.7651 0.8349 0.8814 0.9258 0.9625
Dingxing County0.2069 0.2961 0.3241 0.4064 0.5309 0.6098 0.6280 0.6995 0.7764
Dingzhou City0.3730 0.4696 0.6384 0.9147 1.0941 1.1493 1.2578 1.3944 1.4782
Dongguang County0.2200 0.2867 0.3086 0.3980 0.4648 0.5138 0.5373 0.6392 0.7048
Fengning County0.0122 0.0174 0.0196 0.0242 0.0363 0.0487 0.0748 0.0895 0.0940
Fuping County0.0564 0.0649 0.0697 0.0857 0.1072 0.1365 0.1546 0.1909 0.1949
Gaobeidian City0.4602 0.6311 0.6974 0.9079 1.0510 1.5716 1.6020 1.7157 2.1909
Gaoyang County0.5315 0.7095 0.7369 0.9284 1.0070 1.1590 1.2402 1.3908 1.4612
Gu’an County0.6720 0.9814 1.1592 1.7491 1.8760 1.6357 2.1287 2.3000 2.4401
Guyuan County0.0184 0.0221 0.0250 0.0398 0.0768 0.0881 0.0924 0.0979 0.1019
Haixing County0.1936 0.2372 0.2519 0.2968 0.4125 0.5241 0.5461 0.5711 0.6014
Hejian City0.4338 0.5421 0.5609 0.6583 0.7439 0.9395 0.9591 1.0639 1.1344
Huai’an County0.1370 0.1545 0.1694 0.1929 0.2303 0.2372 0.2579 0.2807 0.2988
Huailai County0.2297 0.2477 0.2629 0.3539 0.4694 0.5274 0.5632 0.6502 0.6695
Huanghua City0.7422 0.9460 1.0565 1.4227 1.7471 1.9624 2.1021 2.2609 2.4212
Kangbao County0.0098 0.0123 0.0145 0.0175 0.0236 0.0264 0.0300 0.0334 0.0372
Kuancheng County0.2077 0.2499 0.3035 0.4520 0.4863 0.4794 0.5278 0.5528 0.5651
Laishui County0.1401 0.1982 0.2406 0.2787 0.3288 0.3575 0.3860 0.4117 0.4152
Laiyuan County0.1071 0.1399 0.1599 0.1994 0.2325 0.2284 0.2589 0.2785 0.2924
Laoting County0.7485 0.9613 1.1972 1.6685 1.7655 1.6307 1.8349 1.8847 2.0133
Li County0.3238 0.4391 0.5054 0.6183 0.7328 0.8368 0.8716 0.9965 1.0164
Longhua County0.0372 0.0468 0.0515 0.0661 0.0762 0.0770 0.0914 0.0973 0.1033
Luannan County0.5173 0.6705 0.8730 1.0476 1.1947 1.1619 1.3243 1.3730 1.4270
Luanping County0.1064 0.1294 0.1456 0.1792 0.2070 0.2120 0.2436 0.2679 0.2819
Luan County0.7970 0.9361 1.1186 1.4407 1.7710 1.7344 1.8645 1.9412 1.9886
Mancheng County0.4285 0.5625 0.6537 0.8352 0.9580 1.0215 1.1078 1.3815 1.4080
Mengcun County0.5272 0.6197 0.6384 0.7210 0.8134 0.9736 0.9923 1.0117 1.0708
Nanpi County0.1962 0.2780 0.3163 0.4271 0.4921 0.5672 0.6107 0.6881 0.7890
Pingquan County0.0763 0.0856 0.1023 0.2090 0.2454 0.2544 0.2692 0.2833 0.2974
Qian’an City1.6468 1.7522 1.8390 2.3232 2.4110 2.1379 2.5231 2.6936 2.7425
Qianxi County0.3206 0.3570 0.3742 0.4589 0.4993 0.4805 0.5530 0.6597 0.6988
Qing County0.3224 0.4126 0.4366 0.5102 0.5782 0.6931 0.7096 0.7469 0.7950
Qingyuan County0.3630 0.4725 0.5030 0.6429 0.7734 1.0300 1.0733 1.1628 1.1910
Quyang County0.1504 0.1952 0.2195 0.2550 0.3686 0.4566 0.4751 0.5483 0.6113
Renqiu City0.9509 1.2426 1.2980 1.8350 2.0062 2.2886 2.4693 2.6765 2.8404
Rongcheng County0.4159 0.5868 0.6446 0.8058 0.9186 1.0334 1.2011 1.4784 3.2714
Sanhe City1.7494 2.2241 2.4639 3.4282 3.7081 3.5692 3.8877 4.1110 4.2072
Shangyi County0.0253 0.0263 0.0306 0.0453 0.0560 0.0592 0.0690 0.0847 0.0919
Shunping County0.1310 0.1807 0.2096 0.2512 0.2982 0.3667 0.3910 0.4472 0.4576
Suning County0.5118 0.6858 0.8100 1.1882 1.2578 1.1861 1.4226 1.6085 1.7791
Tang County0.1145 0.1558 0.1811 0.2177 0.2676 0.3253 0.3449 0.3967 0.4041
Wangdu County0.1813 0.2287 0.2639 0.3617 0.4358 0.4970 0.5307 0.6684 0.6829
Wanquan County0.2334 0.2627 0.2760 0.3397 0.3764 0.3690 0.4179 0.4674 0.4881
Weichang County0.0116 0.0144 0.0170 0.0234 0.0341 0.0396 0.0424 0.0470 0.0490
Wen’an County0.5697 0.7874 0.8525 1.0383 1.1373 1.2163 1.2725 1.3472 1.4510
Wuqiao County0.1421 0.1605 0.1814 0.2030 0.2350 0.2956 0.3078 0.3557 0.4100
Xianghe County0.8936 1.2764 1.4544 2.5333 3.2387 3.3366 3.4399 3.6372 3.7330
Xian County0.2202 0.2870 0.3084 0.3503 0.3924 0.4235 0.4637 0.5319 0.5656
Xinglong County0.0487 0.0544 0.0597 0.0892 0.1027 0.1190 0.1330 0.1431 0.1496
Xiong County0.5719 0.8206 0.9141 1.2111 1.4471 1.5141 1.5826 1.7841 2.3284
Xushui County0.4586 0.6196 0.7585 0.9600 1.4613 1.7740 1.8890 2.2952 2.5431
Yangyuan County0.0777 0.0889 0.0968 0.1215 0.1443 0.1479 0.1754 0.1849 0.1886
Yanshan County0.2929 0.3764 0.4201 0.4895 0.5822 0.6371 0.6673 0.7103 0.7803
Yi County0.0641 0.0965 0.1211 0.1398 0.1817 0.2195 0.2308 0.2523 0.2565
Yongqing County0.4143 0.5378 0.5840 0.6822 0.8872 1.0940 1.1669 1.3244 1.4318
Yutian County0.4681 0.5478 0.7487 1.1575 1.2908 1.3088 1.4088 1.5028 1.5477
Yu County0.0785 0.0857 0.0945 0.1113 0.1382 0.1423 0.1562 0.1687 0.1740
Zhangbei County0.0487 0.0513 0.0570 0.1026 0.1541 0.1630 0.1732 0.1859 0.1921
Zhuolu County0.0833 0.1002 0.1150 0.1524 0.1727 0.1975 0.2095 0.2262 0.2345
Zhuozhou City0.6021 0.8054 0.9169 1.1499 1.3278 1.4362 1.5309 1.6434 1.7157
Zuihua City0.4142 0.4505 0.4654 0.5419 0.6215 0.6677 0.7254 0.8388 0.8685
Table A2. MRPI of relative poverty at county level in HABT from 2012 to 2019.
Table A2. MRPI of relative poverty at county level in HABT from 2012 to 2019.
County (City)20122013201420152016201720182019
Anguo City0.20620.21300.22280.23060.23780.24790.24300.2562
Anxin County0.18810.19420.19320.19620.20230.20470.19870.2196
Bazhou City0.26860.28240.28190.28610.30000.31040.32570.3731
Botou City0.2874 0.3084 0.2656 0.3009 0.2976 0.3020 0.2636 0.3021
Boye County0.19590.17950.18050.17680.19170.19660.20670.2120
Cang County0.23560.23610.23340.25250.25270.26210.27030.3090
Chengde County0.18760.21460.21250.21030.20850.22900.23140.2606
Chicheng County0.14210.15300.15700.15660.14370.16850.16300.1813
Chongli County0.16920.16400.19170.19060.20850.21650.19640.2139
Dachang County0.25860.28750.32850.37390.37780.39230.41970.4505
Dacheng County0.21170.22050.21800.22390.22710.25430.25580.2936
Dingxing County0.21040.20350.21150.21650.22600.23600.23230.2521
Dingzhou City0.22450.26230.24410.29010.29620.32550.33000.4618
Dongguang County0.22970.23290.25460.24330.24940.27040.26740.2681
Fengning County0.16280.18190.19420.20020.20130.23750.23970.2520
Fuping County0.14570.14730.16220.16440.16750.18210.17920.2139
Gaobeidian City0.20070.21390.21950.21630.23570.25290.26710.3087
Gaoyang County0.20570.21620.22860.22610.23360.25980.26920.2809
Gu’an County0.20740.21740.24740.25440.27200.28210.32710.3427
Guyuan County0.17170.17300.17820.17230.17590.19860.20210.1763
Haixing County0.15670.16930.17920.19210.19840.22080.22560.2084
Hejian City0.21590.22350.23280.21920.24280.23030.23340.2971
Huai’an County0.22790.18540.18280.19790.17620.19100.21260.2065
Huailai County0.19410.21750.24860.22960.23680.24620.26030.2804
Huanghua City0.29510.30600.30390.30150.30360.31510.30920.3400
Kangbao County0.13990.15900.18900.17030.18120.20170.19080.1952
Kuancheng County0.23170.25990.25940.25260.26240.28130.26030.2577
Laishui County0.16760.17410.18040.19450.19170.19670.20100.2240
Laiyuan County0.17480.19500.19110.19490.19970.20420.21590.2209
Laoting County0.25490.27170.26580.28750.30030.31460.35420.3826
Li County0.18780.17000.20240.20850.21580.23710.23550.2577
Longhua County0.18850.18790.20990.20160.20680.22470.23000.2498
Luannan County0.26570.29570.30210.29350.28750.28940.31200.3516
Luanping County0.18820.20550.21840.21260.22320.22850.26750.2599
Luan County0.28410.29240.31580.31250.30730.32100.32730.3799
Mancheng County0.20620.21560.22390.22400.23130.24390.25030.2731
Mengcun County0.19600.19990.22770.22150.20620.20690.20790.1873
Nanpi County0.21370.22330.22280.22610.23070.24760.25120.2418
Pingquan County0.19470.20940.21070.20970.21740.24200.23120.2515
Qian’an City0.38010.39470.38860.25100.38710.40080.42350.4900
Qianxi County0.29370.29170.29770.29040.30650.30830.32510.3547
Qing County0.21880.22580.23320.23430.24950.24830.25380.2754
Qingyuan County0.19190.19760.20390.22810.23970.25400.25620.3012
Quyang County0.17650.17720.19530.19990.21440.23320.24720.2899
Renqiu City0.28850.29180.31510.33040.32930.33820.36190.4033
Rongcheng County0.20180.21260.21670.22410.21820.22860.23050.2163
Sanhe City0.35120.37220.37760.39030.39010.37750.38840.4476
Shangyi County0.13260.15700.16600.16640.13260.18210.16180.1533
Shunping County0.17570.17930.20160.20640.20760.22290.22840.2394
Suning County0.23020.23840.25530.25310.25210.26130.27470.2785
Tang County0.17480.17540.17980.19080.20390.21640.22380.2849
Wangdu County0.22080.24030.23610.23240.24370.25100.25270.2336
Wanquan County0.18350.20980.21040.21340.21110.21550.22540.2250
Weichang County0.16100.17470.17660.17840.19180.22770.23830.2677
Wen’an County0.23250.23620.25690.25350.25100.28320.29070.3010
Wuqiao County0.24190.25050.25270.24370.24990.25950.26550.2229
Xianghe County0.27650.30260.30680.33820.34360.34770.35790.4043
Xian County0.20960.21360.22260.22250.23520.23770.24670.2819
Xinglong County0.17660.18940.19290.19320.19950.20780.23210.2441
Xiong County0.19870.19890.22410.22850.22510.22040.20560.2337
Xushui County0.22710.23690.24420.24540.25860.30600.29770.2878
Yangyuan County0.14310.15270.16640.16280.17260.18820.18680.2045
Yanshan County0.19420.20240.20660.21700.20120.20880.20280.2391
Yi County0.17720.18440.19320.20210.19990.22860.23120.2711
Yongqing County0.19250.20530.20690.22090.22960.25530.26110.2894
Yutian County0.28040.28890.28540.27070.27840.28360.29740.3392
Yu County0.14280.15670.15730.15560.15690.17810.18320.2043
Zhangbei County0.17600.17910.18630.19790.18460.20270.20980.2453
Zhuolu County0.17490.18740.19930.20280.17900.19590.18530.2144
Zhuozhou City0.24590.25440.26270.28260.29510.31110.31740.3469
Zuihua City0.26320.27480.27550.26870.27710.27660.29510.3803
Table A3. Relative poverty degree of each county in 2012–2019.
Table A3. Relative poverty degree of each county in 2012–2019.
County20122013201420152016201720182019
Anguo City-mildmild-----
Anxin Countymildmildmild---mild-
Boye Countymildmildmildmildmildmildmildmoderate
Chicheng Countymoderatemoderatemoderatemoderatemoderatemoderatemoderatemild
Chongli Countymoderatemoderatemoderatemoderatemoderatemoderatemoderatemoderate
Dachang Countymildmildmildmildmildmildmildmoderate
Dongguang County---mild----
Fengning Countymildmildmildmildmild---
Fuping Countymildmildmildmildmildmildmoderatemild
Guyuan Countymoderatemoderatemoderatemildmoderatemildmildmoderate
Gu’an Countymildmild-mild-mild--
Haixing Countymildmildmildmild--mildmoderate
Huai’an Countymildmildmildmildmildmildmildmoderate
Huailai County-mild------
Kangbao Countymoderatemoderatemildmildmildmildmildmoderate
Kuancheng County--mild--mildmildmild
Laishui Countymoderatemoderatemildmildmildmildmildmoderate
Laiyuan Countymildmoderatemild--mildmildmild
Li Countymildmild------
Luanping Countymildmild---mild--
Mengcun Countymildmildmildmildmildmildmildmoderate
Rongcheng County---mild-mild mild
Shangyi Countymoderatemoderatemoderatemoderateseveremoderateseveresevere
Suning County-----mild--
Wanquan Countymildmildmild-mild--mild
Wangdu Countymildmildmildmild--mildmoderate
Weichang Countymildmildmildmild----
Xinglong Countymildmildmildmildmildmild--
Yu Countymildmildmildmildmildmildmildmild

References

  1. Elvidge, C.D.; Sutton, P.C.; Ghosh, T.; Tuttle, B.T.; Baugh, K.E.; Bhaduri, B.; Bright, E. A global poverty map derived from satellite data. Comput. Geosci. 2009, 35, 1652–1660. [Google Scholar] [CrossRef]
  2. Niu, T.; Chen, Y.; Yuan, Y. Measuring urban poverty using multi-source data and a random forest algorithm: A case study in Guangzhou. Sustain. Cities Soc. 2020, 54, 102014. [Google Scholar] [CrossRef]
  3. Padda, I.U.H.; Hameed, A. Estimating multidimensional poverty levels in rural Pakistan: A contribution to sustainable development policies. J. Clean. Prod. 2018, 197, 435–442. [Google Scholar] [CrossRef]
  4. Jiao, K.Y.; Chen, G.B.; Fang, Y. Achievements and Prospects of Targeted Poverty Alleviation—Empirical Study Based on Tracing Invesitigational Data from Chinese Families. Qinghai J. Ethnol. 2020, 31, 44–53. [Google Scholar] [CrossRef]
  5. Pan, J.H.; Hu, Y.X. Spatial Identification of Multidimensional Poverty in China Based on Nighttime Light Remote Sensing Data. Econ. Geogr. 2016, 36, 124–131. [Google Scholar] [CrossRef]
  6. Wang, S.G.; Liu, Y.M. From Absolute poverty to Relative poverty: Theoretical relationships, Strategic Shifts and Policy Priorities. Soc. Sci. Dig. 2020, 12, 17–20. [Google Scholar]
  7. Wang, S.G.; Hu, J. From Survival to Development: The Great Practice of New China’s Anti—Poverty in the Past Seven Decades. Issues Agric. Econ. 2020, 2, 4–14. [Google Scholar] [CrossRef]
  8. Liu, Y.; Liao, H.; Li, J.; Li, T.; Cai, J.; He, T. Measurement and mechanism analysis of relative poverty of farming households in the post 2020 period: A case study of Changshou District, Chongqing Municipality. Prog. Geogr. 2020, 39, 960–971. [Google Scholar] [CrossRef]
  9. Yin, J.; Qiu, Y.; Zhang, B. Identification of Poverty Areas by Remote Sensing and Machine Learning: A Case Study in Guizhou, Southwest China. ISPRS Int. J. Geo-Inf. 2021, 10, 11. [Google Scholar] [CrossRef]
  10. Fan, J.; Zhou, K.; Wu, J.X. Typical Study on Sustainable Development in Relative Poverty Areas and Policy Outlook of China. Bull. Chin. Acad. Sci. 2020, 35, 1249–1263. [Google Scholar] [CrossRef]
  11. Asian Development Bank, Hebei Provincial Finance Department. Research on the Development Strategy of Hebei Province; Asian Development Bank: Beijing, China, 2004; p. 10. [Google Scholar]
  12. Ravallion, M.; Chen, S.H. Weakly relative poverty. Rev. Econ. Stat. 2011, 93, 1251–1261. [Google Scholar] [CrossRef]
  13. Laderchi, C.R. The Monetary Approach to Poverty: A Survey of Concepts and Methods; Queen Elizabeth House: Oxford, UK, 2000. [Google Scholar]
  14. World Bank. World Development Report 1980; Chinese Financial & Economic Publishing House: Beijing, China, 1980. [Google Scholar]
  15. World Bank. World Development Report 1990; Chinese Financial & Economic Publishing House: Beijing, China, 1990. [Google Scholar]
  16. Gao, Q.; Kong, X.Z. On Relative Poverty and Measures to Cope with It. J. Xinjiang Norm. Univ. (Ed. Philos. Soc. Sci.) 2020, 41. [Google Scholar] [CrossRef]
  17. Fuchs, V. Redefining poverty and redistributing income. Public Interest 1967, 14, 88. [Google Scholar]
  18. Zuo, T.; He, L.; Liu, W.J. Theory of Relative Poverty Control and China’s Local Practical Experience. J. Hohai Univ. (Philos. Soc. Sci.) 2019, 21, 1–9. [Google Scholar] [CrossRef]
  19. Wan, G.H.; Hu, X.S.; Liu, W.Q. China’s poverty reduction miracle and relative poverty: Focusing on the roles of growth and inequality. China Econ. Rev. 2021, 68, 101643. [Google Scholar] [CrossRef]
  20. Zhang, Q.H.; Zhang, J.H. The dynamics of China’s rural poverty: 1981–2005—Based on alternative lines and indices. Stat. Res. 2010, 27, 28–35. [Google Scholar] [CrossRef]
  21. Sen, A. Poverty and Famines: An Essay on Entitlement and Deprivation; Oxford University Press: Oxford, UK, 1982. [Google Scholar]
  22. UNDP. Human Development Report. 2011. Available online: http://hdr.undp.org (accessed on 10 January 2022).
  23. Alkire, S.; Santos, M.E. Measuring acute poverty in the developing world: Robustness and scope of the multidimensional poverty index. World Dev. 2014, 59, 251–274. [Google Scholar] [CrossRef] [Green Version]
  24. Santos, M.E.; Villatoro, P. A multidimensional poverty index for Latin America. Rev. Income Wealth 2018, 64, 52–82. [Google Scholar] [CrossRef] [Green Version]
  25. Pinilla-Roncancio, M.; Alkire, S. How Poor Are People with Disabilities? Evidence Based on the Global Multidimensional Poverty Index. J. Disabil. Policy Stud. 2021, 31, 206–216. [Google Scholar] [CrossRef]
  26. Sun, J.W.; Zhang, Q. The Criteria for Measuring Relative Poverty in Post-2020 China: Experience, Practice and Theory. J. Xinjiang Norm. Univ. (Ed. Philos. Soc. Sci.) 2021, 42, 79–91+2. [Google Scholar] [CrossRef]
  27. Chen, Y.F.; Wang, Y.H.; Wang, X.L. Measurement and spatial analysis of poverty-stricken villages in China. Geogr. Res. 2016, 35, 2298–2308. [Google Scholar] [CrossRef]
  28. Pan, J.H.; Hu, Y.X. Spatial identification of multi-dimensional poverty in rural China: A perspective of nighttime-light remote sensing data. J. Indian Soc. Remote Sens. 2018, 46, 1093–1111. [Google Scholar] [CrossRef]
  29. Cheng, H.; Dong, S.; Li, F.; Yang, Y.; Li, Y.; Li, Z. A circular economy system for breaking the development dilemma of ‘ecological Fragilitye Economic poverty’ vicious circle: A CEEPS-SD analysis. J. Clean. Prod. 2019, 212, 381–392. [Google Scholar] [CrossRef]
  30. Griggs, D.; Stafford-Smith, M.; Gaffney, O.; Rockström, J.; Ohman, M.C.; Shyamsundar, P.; Steffen, W.; Glaser, G.; Kanie, N.; Noble, I. Sustainable development goals for people and planet. Nature 2013, 495, 305–307. [Google Scholar] [CrossRef]
  31. Wu, R.; Yang, D.; Dong, J.; Zhang, L.; Xia, F. Regional inequality in China based on NPP/VIIRS night-time light imagery. Remote Sens. 2018, 10, 240. [Google Scholar] [CrossRef] [Green Version]
  32. Yu, B.L.; Shi, K.F.; Hu, Y.J.; Huang, C.; Chen, Z.Q.; Wu, J.P. Poverty Evaluation Using NPP/VIIRS Nighttime Light Composite Data at the County Level in China. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2015, 8, 1217–1229. [Google Scholar] [CrossRef]
  33. Lin, J.Y.; Luo, S.Y.; Huang, Y.Q. Poverty estimation at the county level by combining LuoJia1-01 nighttime light data and points of interest. Geocarto Int. 2021, 2, 1–17. [Google Scholar] [CrossRef]
  34. Elvidge, C.D.; Baugh, K.E.; Kihn, E.A.; Kroehl, H.W.; Davis, E.R.; Davis, C.W. Relation between satellite observed visible-near infrared emissions, population, economic activity and electric power consumption. Int. J. Remote Sens. 1997, 18, 1373–1379. [Google Scholar] [CrossRef]
  35. Tselios, V.; Stathakis, D.; Faraslis, I. Concentration of populations and economic activities, growth, and convergence in Europe using satellite-observed lighting. Geocarto Int. 2020, 35, 1527–1552. [Google Scholar] [CrossRef]
  36. Liu, X.; Hu, G.; Chen, Y.; Li, X.; Xu, X.; Li, S.; Pei, F.; Wang, S. High-resolution multi-temporal mapping of global urban land using Landsat images based on the Google Earth Engine Platform. Remote Sens. Environ. 2018, 209, 227–239. [Google Scholar] [CrossRef]
  37. Cao, X.; Wang, J.; Chen, J.; Shi, F. Spatialization of electricity consumption of China using saturation corrected DMSP/OLS data. Int. J. Appl. Earth Obs. Geoinf. 2014, 28, 193–200. [Google Scholar] [CrossRef]
  38. Ghosh, T.; Elvidge, C.D.; Sutton, P.C.; Baugh, K.E.; Ziskin, D.; Tuttle, B.T. Creating a Global Grid of Distributed Fossil Fuel CO2 Emissions from Nighttime Satellite Imagery. Energies 2010, 3, 1895–1913. [Google Scholar] [CrossRef]
  39. Zhao, M.; Zhou, Y.; Li, X.; Cao, W.; He, C.; Yu, B.; Li, X.; Elvidge, C.D.; Cheng, W.; Zhou, C. Applications of Satellite Remote Sensing of Nighttime Light Observations: Advances, Challenges, and Perspectives. Remote Sens. 2019, 11, 1971. [Google Scholar] [CrossRef] [Green Version]
  40. Liu, Y.; Liu, J.; Zhou, Y. Spatio-temporal patterns of rural poverty in China and targeted poverty alleviation strategies. J. Rural Stud. 2017, 52, 66–75. [Google Scholar] [CrossRef]
  41. Liu, Y.; He, X.; Li, C. Assessment of Poor Regions in Hebei Province Using NPP/VIIRS Nighttime Light Composite Data. In Proceedings of the 2018 26th International Conference on Geoinformatics, Kunming, China, 28–30 June 2018; pp. 1–4. [Google Scholar] [CrossRef]
  42. Shen, D.; Zhou, L.; Wang, P.A. Identification of poverty based on nighttime light remote sensing data: A case study on contiguous special poverty-stricken areas in Liupan Mountains. Remote Sens. Land Resour. 2019, 31, 157–163. [Google Scholar] [CrossRef]
  43. Pan, W.; Fu, H.; Zheng, P. Regional Poverty and Inequality in the Xiamen-Zhangzhou-Quanzhou City Cluster in China Based on NPP/VIIRS Night-Time Light Imagery. Sustainability 2020, 12, 2547. [Google Scholar] [CrossRef] [Green Version]
  44. Shi, K.F.; Chang, Z.J.; Chen, Z.Q.; Wu, J.P.; Yu, B.L. Identifying and evaluating poverty using multisource remote sensing and point of interest (POI) data: A case study of Chongqing. China J. Clean. Prod. 2020, 255, 120245. [Google Scholar] [CrossRef]
  45. Fan, Y.F.; Hou, J.X.; Zhao, H. A Research on the Economic Disparity of Spatial-Temporal Evolution of the Poverty Belt around Beijing and Tianjin. Mod. Financ. Econ. J. Tianjin Univ. Financ. Econ. 2016, 36, 18–27. [Google Scholar] [CrossRef]
  46. Townsend, P. Poverty in the United Kingdom: A Survey of Household Resources and Standards of Living; University of California Press: Berkeley, CA, USA, 1979. [Google Scholar]
  47. Chen, Z.S.; Shen, Y.Y.; Zhou, Y.B. On the Absolute and Relative Changes in the Poverty in China’s Villages and on the Setting of the Relative Poverty Line. Manag. World 2013, 1, 67–75. [Google Scholar] [CrossRef]
  48. Shi, K.; Huang, C.; Yu, B.; Yin, B.; Huang, Y.; Wu, J. Evaluation of NPP/VIIRS night-time light composite data for extracting built-up urban areas. Remote Sens. Lett. 2014, 5, 358–366. [Google Scholar] [CrossRef]
  49. Abeje, M.T.; Tsunekawa, A.; Haregeweyn, N.; Ayalew, Z.; Nigussie, Z.; Berihun, D.; Adgo, E.; Elias, A. Multidimensional Poverty and Inequality: Insights from the Upper Blue Nile Basin, Ethiopia. Soc. Indic. Res. 2020, 149, 585–611. [Google Scholar] [CrossRef]
  50. Wang, T.; Chen, J.S.; Wang, T.; Wang, S. Entropy weight set pair analysis based on tracer techniques for dam leakage investigation. Nat. Hazards 2015, 76, 747–767. [Google Scholar] [CrossRef]
  51. Lv, Q.; Liu, H.B.; Wang, J.T.; Liu, H.; Shang, Y. Multiscale analysis on spatiotemporal dynamics of energy consumption CO2 emissions in China: Utilizing the integrated of DMSP/OLS and NPP/VIIRS nighttime light datasets. Sci. Total Environ. 2020, 703, 134394. [Google Scholar] [CrossRef] [PubMed]
  52. Xu, L.D.; Deng, X.Z.; Jiang, Q.O.; Ma, F.K. Identification and poverty alleviation pathways of multidimensional poverty and relative poverty at county level in China. Acta Geogr. Sin. 2021, 76, 1445–1470. [Google Scholar] [CrossRef]
Figure 1. County distribution in HABT.
Figure 1. County distribution in HABT.
Sustainability 14 05559 g001
Figure 2. The DN value of the initial NPP/VIIRS.
Figure 2. The DN value of the initial NPP/VIIRS.
Sustainability 14 05559 g002
Figure 3. The DN value of the corrected NPP/VIIRS NTL data.
Figure 3. The DN value of the corrected NPP/VIIRS NTL data.
Sustainability 14 05559 g003
Figure 4. The corrected NPP/VIIRS images from 2012 to 2020.
Figure 4. The corrected NPP/VIIRS images from 2012 to 2020.
Sustainability 14 05559 g004aSustainability 14 05559 g004b
Table 1. Index selection of MRPI.
Table 1. Index selection of MRPI.
DimensionIndicatorsIndicators Explanation
EconomyPer capita GDPCounty GDP/county population
Per capita fiscal revenueGeneral public budget revenue/county population
The employment rateEmployees/county population
Living qualityPer capita output of grainTotal grain output/county population
Tap water benefit village rateVillages benefiting from tap water/number of villages
Mobile Phone subscriber rateMobile phone subscribers/county population
Density of road networkRoad mileage/county area
EducationTeaching facultyTotal number of teachers/students
Education levelTotal number of students/county population
Health careNumber of beds in health facilitiesNumber of medical beds/10,000 citizens
Proportion of medical techniciansMedical staff/county population
Social securityBasic medical insurance participation rateNumber of basic medical insurance participants/county population
Basic endowment insurance participation rateNumber of basic endowment insurance participants/county population
Table 2. A scale of relative importance between peer indicators.
Table 2. A scale of relative importance between peer indicators.
ScalingDefinition
0.5equally important
0.6slightly important
0.7obviously important
0.8much more important
0.9extremely important
Table 3. Weight summary from 2012 to 2019.
Table 3. Weight summary from 2012 to 2019.
The Index NameAHPEWMAverage Weight
Per capital GDP0.05330.14760.1425
Per capital fiscal revenue0.06130.00380.0337
Employment rate0.04540.22750.2417
Per capita output of grain0.03940.06810.0616
Tap water benefit village rate0.04610.01710.0371
Mobile Phone subscriber rate0.06150.06090.0384
Density of road network0.05800.08460.0822
Teaching faculty0.10500.04780.0590
Education Level0.07000.02990.0262
Number of beds in health facilities0.11830.09790.1043
Proportion of medical technicians0.09680.08710.1007
Basic medical insurance participation rate0.11030.05430.0294
Basic endowment insurance participation rate0.13480.07340.0431
Table 4. Multidimensional relative poverty criteria, 2012–2019.
Table 4. Multidimensional relative poverty criteria, 2012–2019.
YearEconomyLiving QualityEducationHealth CareSocial Security
20120.03300.04000.02610.00920.0141
20130.03460.04220.02620.01040.0171
20140.03480.04400.02670.01100.0170
20150.03540.04190.02730.01250.0167
20160.03630.04250.02610.01410.0162
20170.03580.04430.02700.01600.0186
20180.03690.04630.02890.01710.0176
20190.03820.04540.02980.01860.0260
Table 5. Number of multidimensional counties experiencing relative poverty from 2012 to 2019.
Table 5. Number of multidimensional counties experiencing relative poverty from 2012 to 2019.
YearNumber of Mild Relative Poverty CountiesNumber of Moderate Relative Poverty CountiesNumber of Severe Relative Poverty CountiesNumber of Relative Poverty CountiesRelative Poverty Incidence
201221702839.44%
201321802940.85%
201420502535.21%
201519402332.39%
201613411825.35%
201719402332.39%
201814512028.17%
201991112129.58%
Table 6. The results of the fixed-effects panel regression model.
Table 6. The results of the fixed-effects panel regression model.
ModelR2p-Value
Individual fixed effect0.43090.0000
Time fixed effect0.61980.0000
Individual–Time fixed effect0.65780.0000
Table 7. Precision percentages for counties.
Table 7. Precision percentages for counties.
YearNumber of Counties Precision Percentage (%)
RE < 25%RE (25~50%)RE > 50%HighMiddleLow
2012561320.790.180.03
2013531710.750.240.01
2014551600.770.230.00
2015541430.760.200.04
2016511730.720.230.04
2017511910.720.270.01
2018521630.730.230.04
2019422360.590.320.09
Table 8. Average relative estimation error (%).
Table 8. Average relative estimation error (%).
CountyARECountyARECountyARECountyARE
Anguo City0.0624Gu’an County0.0724Mengcun County0.1508Wen’an County0.2235
Anxin County0.1373Guyuan County0.3340Nanpi County0.0144Wuqiao County0.2976
Bazhou County0.1352Haixing County0.0949Pingquan County0.0392Xian County0.0955
Botou City0.1201Hejian City0.1052Qian’an City0.2563Xianghe County0.4091
Boye County0.1356Huai’an County0.1839Qianxi County0.3015Xinglong County0.2512
Cang County0.1838Huailai County0.1538Qing County0.0920Xiong County0.1869
Chengde County0.0821Huanghua City0.3133Qingyuan County0.0672Xushui County0.2413
Chicheng County0.2637Kangbao County0.5223Quyang County0.0983Yanshan County0.0581
Chongli County0.0769Kuancheng County0.2553Renqiu City0.1354Yangyuan County0.1701
Dachang County0.4424Laishui County0.1188Rongcheng County0.0841Yi County0.1314
Dacheng County0.6339Laiyuan County0.0512Sanhe City0.0875Yongqing County0.0820
Dingxing County0.0303Laoting County0.3275Shangyi County0.2486Yutian County0.3190
Dingzhou City0.2680Li County0.2552Shunping County0.0624Yu County0.4749
Dongguang County0.0545Longhua County0.0732Suning County0.0364Zhangbei County0.0689
Fengning County0.1055Luannan County0.3483Tang County0.1001Zhuolu County0.0600
Fuping County0.1684Luanping County0.0957Wanquan County0.0277Zhuozhou City0.1248
Gaobeidian City0.1663Luan County0.3651Wangdu County0.1253Zuihua City0.2256
Gaoyang County0.0327Mancheng County0.1424Weichang County0.1338
Table 9. The estimated MRPI of 11 villages and towns in Chongli District.
Table 9. The estimated MRPI of 11 villages and towns in Chongli District.
20122013201420152016201720182019
Saiwanzi Street0.281120.281120.282980.409600.431460.430970.456750.47235
Sitaizui Township0.194070.194300.194980.195970.197240.198950.202670.20908
Saiwanzi Township0.193980.194170.194600.196780.201500.207590.209700.21083
Gaojiaying Town0.193820.194430.194850.197820.198880.199120.200110.20049
Baiqi Township0.191160.191500.191530.191560.200180.201190.201270.20132
Shizuizi Township0.190900.190960.190990.191300.191480.191610.191680.19175
Qingsanying Township0.190890.191200.191520.191820.192640.192950.193160.19316
Shizigou Township0.190780.190880.190880.190940.191130.191350.191350.19136
Hongqiying Township0.190740.190750.190860.190940.191030.191050.191090.19111
Yimatu Township0.190710.190720.190720.190730.190820.190900.190900.19090
Shiyaozi Township0.190700.190700.190700.190700.190700.190700.190700.19070
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Liu, H.; Wang, J.; Liu, H.; Chen, Y.; Liu, X.; Guo, Y.; Huang, H. Identification of Relative Poverty Based on 2012–2020 NPP/VIIRS Night Light Data: In the Area Surrounding Beijing and Tianjin in China. Sustainability 2022, 14, 5559. https://doi.org/10.3390/su14095559

AMA Style

Liu H, Wang J, Liu H, Chen Y, Liu X, Guo Y, Huang H. Identification of Relative Poverty Based on 2012–2020 NPP/VIIRS Night Light Data: In the Area Surrounding Beijing and Tianjin in China. Sustainability. 2022; 14(9):5559. https://doi.org/10.3390/su14095559

Chicago/Turabian Style

Liu, Hao, Jingtao Wang, Haibin Liu, Yuzhuo Chen, Xinghan Liu, Yanlei Guo, and Hui Huang. 2022. "Identification of Relative Poverty Based on 2012–2020 NPP/VIIRS Night Light Data: In the Area Surrounding Beijing and Tianjin in China" Sustainability 14, no. 9: 5559. https://doi.org/10.3390/su14095559

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
