Article

Linkages between Typologies of Existing Urban Development Patterns and Human Vulnerability to Heat Stress in Lahore

1
Institute of Spatial and Regional Planning (IREUS), University of Stuttgart, 70569 Stuttgart, Germany
2
Remote Sensing Lab, Foundation for Research and Technology Hellas, 70013 Heraklion, Greece
*
Author to whom correspondence should be addressed.
Sustainability 2022, 14(17), 10561; https://doi.org/10.3390/su141710561
Submission received: 6 July 2022 / Revised: 16 August 2022 / Accepted: 21 August 2022 / Published: 24 August 2022

Abstract

:
The combined effects of global warming, urbanization, and demographic change influence climate risk for urban populations, particularly in metropolitan areas with developing economies. To inform climate change adaptation and spatial planning, it is important to study urban climatic hazards and populations at risk in relation to urban growth trends and development patterns. However, this relationship has not been adequately investigated in studies dedicated to climate vulnerability. This study identifies the typologies of development patterns within Lahore, Pakistan, investigates the heat vulnerability of residents at a neighborhood scale, and establishes a relationship between both of these factors. We identified urban clusters with diverse development patterns. Fourteen context- and site-specific indicators were selected to construct a human heat vulnerability index. Weighted sum, cluster analysis, and ANOVA test of variance were conducted to analyze the data. Our results demonstrate that development patterns significantly influence human vulnerability to heat stress, e.g., vulnerability is higher in older cities and undeveloped neighborhoods with less diverse land uses. These findings are essential for informing policy-makers, decision-makers and spatial planners about proactive adaptation planning in dynamic urban environments.

1. Introduction

Urbanization has become a ubiquitous process in recent decades and is recognized as the most defining feature of climate change [1,2,3]. On average, the size of cities has doubled in comparison to urban population growth, which resulted in a rapid transformation of global land cover and land-use patterns [4,5]. Urban areas cover 2% of the surface of the globe; however, they are responsible for 70% of climate changes [3]. Moreover, the concentration of economic activities, enormous traffic volumes, and disregard for urban green planning are pressing issues faced by many cities in the developing world [6]. Consequently, these anthropogenic changes have made cities increasingly vulnerable to climate change impacts [3]. Among all the effects caused by the substitution of natural ecosystems for urban land use, the most pronounced is the increase in the amount of energy stored in the urban canopy, which causes the urban heat island (UHI) effect [7]. Extreme events in the form of heatwaves have created enormous sustainability challenges in rapidly urbanizing cities.
Cities are recognized as centers of global climate action [3]. In the IPCC’s sixth assessment report, urban areas are recognized as the main driver of greenhouse gas emissions [5,8]. Several studies have shown how urban texture and density as well as the geometrical structure shaped by the spatial distribution of urban elements, for example, buildings, roads, green areas, and open spaces, can significantly alter local urban climates [9]. Hence, it is established that urban development pattern typology has a significant impact on local, regional, and global climate [3,9]. It can also be concluded from the literature that the relevance between development patterns and urban climate is studied mainly in terms of how exposed different settlement types are to the impacts of climate change [5,10,11,12]. However, this climate–development nexus is even more advanced than the state of the art, and thus requires a greater understanding beyond the exposure dimension [12,13,14]. For instance, it is also important to explore how people living in different area types (such as developed and undeveloped neighborhoods) are vulnerable to the impacts of climate change [15,16]. It is crucial to study this climate vulnerability and development nexus at different scales because adaptation needs for different typologies of development patterns vary between and within urban areas [15,16,17,18].
Moreover, the wide diversity of physical, environmental, demographic, and socioeconomic aspects within cities highlights the need for understanding the spatial planning contexts, in which these variations emerged [19]. Vulnerability assessment at the neighborhood scale is an entry point for exploring intra-city disparities regarding these various aspects [20,21]. In most cases, the index-based vulnerability assessment approach provides the first overview of hotspots in a particular location [22,23,24]. However, it is difficult to derive specific adaptation needs from these hotspots in the absence of environmental/physical information about the urban fabric and functions within a neighborhood [25,26]. Therefore, for context- and site-specific climate change adaptation planning, it is important to identify distinct neighborhood types based on the clustering of zones within urban areas considering various aspects [17,27]. The first step for identifying typologies is to explore urban development patterns considering disparities within cities [9,28]. The study of the interaction between these typologies is crucial in understanding how cities can contribute to climate change adaptation, and which mix of economic, social, and environmental policies can be implemented to better adapt to climate change impacts.
A rapidly growing canon of scientific literature exists on vulnerability assessment frameworks and methods, as well as typologies of urban development pattern and their clustering [15,29,30,31,32,33]. Missing from the current understanding is the interrelation of how metrics of vulnerability encompass the development pattern typologies of cities [16,27,34]. Because every single neighborhood within a city has its own distinct development characteristics, it is important to identify different neighborhoods based on the clustering of their relevant characteristics. To formulate and implement specific adaptation strategies, policies and measures, there is a need to establish the relevance between urban development patterns and human vulnerability. Following this discussion, this paper focuses on the use case of the metropolitan city of Lahore, Pakistan and answers the following three research questions:
  • What are the typologies of existing development patterns for Lahore based on urban configuration (settlement types, density) and urban composition (land-use pattern)?
  • What is the spatial variability of human vulnerability to heat in Lahore?
  • What are the linkages between urban development patterns/structures and human vulnerability to heat stress in different urban settings?

2. Theoretical and Conceptual Perspectives on Typologies of Urban Development Pattern and Human Vulnerability

With a focus on understanding the relevance of urban development pattern typology for human heat vulnerability, a growing number of scientific reports and journal articles have been studied. In this section, key terms used in the study relating to typologies of urban development patterns and heat vulnerability are discussed. Moreover, a conceptual framework for understanding the relevance of typologies of development patterns for human vulnerability is developed, which forms the basis of this study.

2.1. Typologies of Urban Development Pattern, Human Vulnerability, and Their Interdependence

An urban development pattern refers to the extent of both types of spatial/physical growth and is defined as: ‘’the spatial pattern of human activity at a certain point in time’’ [35]. Thus, spatial and temporal aspects are important in terms of defining urban development patterns [35,36]. In the literature, two dimensions of urban typologies are used to distinguish patterns of urban development, the first dimension is configuration, and the second dimension is composition [34,35,36]. Urban configuration is a spatial description [37] that refers to the distribution and arrangement of land cover, built-up areas and other urban elements [18]. In other words, urban configuration represents the spatial reality of an urban area. Various factors related to structure, density, and geometry are included in this category [35,38]. On the other hand, urban composition describes the distribution of land-use features in specific relation [39,40]. Therefore, composition relates to the proportion of various land-use features in relation to each other. There are various other dimensions of urban development, for instance, related to demography, economy, society, etc. However, this study focuses on a pattern of urban development, which is manifested by the spatial and physical growth of an urban area because of human activities.
Typologies of urban development patterns can directly influence the exposure to climate hazards within an area [10,27,41]. However, people living in identical neighborhoods and buildings are not equally exposed to climate hazards due to different socio-cultural backgrounds and economic conditions [42]. In this respect, there is an additional layer of information required, which can highlight the characteristics of a population. Therefore, in addition to information about climate hazards, there is a growing consensus on assessing human vulnerability to proactively manage hazard risks and address climate change adaptation [4,42,43,44]. This review of the literature confirms that vulnerability assessment is a key step toward enhancing the resilience of a system [22,45,46]. In this context, there are many different approaches to vulnerability assessments based on conceptualization, dimensions, factors, quantification methods, and spatial and temporal scales due to the strong crossover in several disciplines (e.g., climate change research and disaster risk reduction). In this study, an approach based on IPCC 2014 and 2022 was used for the vulnerability assessment [4,5]. It caters to the researchers from both climate change and disaster risk reduction disciplines, and the assessment reports of the IPCC emerge from a large body of assessed literature [4,5,12].
In the IPCC, vulnerability refers to “the propensity or predisposition to be adversely affected” [47]. In this paper, social vulnerability can be defined in the context of “an inherent property of a system arising from its internal characteristics” which may encompass “the characteristics of a person or group and their situation that influences their capacity to anticipate, cope with, resist, and recover from the adverse effects of physical events” [48]. A vulnerability assessment has three components: (a) sensitivity or susceptibility of a system to be harmed and its response capacities, including the lack of capacity to (b) cope and (c) adapt [4,42,49]. Thus, not only is the fragility or susceptibility of a population group, community or infrastructure important, but also their capacity for dealing with and adapting to climate hazards for a vulnerability assessment [5,12]. There are both qualitative and quantitative approaches and methodologies for evaluating human vulnerability [49,50,51,52,53,54]. The indicator-based approach has been widely used in the literature and is highly acceptable despite criticism regarding data limitations and uncertainty [55]. Social and economic vulnerability encompasses these intangible factors, which are difficult to quantify and validate. In this case, proxy variables are used, which affect the significance of the assessment [56]. However, this indicator-based quantitative approach is widely used because it allows for a multi-dimensional perspective of urban development and captures different facets of human vulnerability [57,58]. Hence, it allows the operationalization of various aspects, related to the social, environmental, economic, and political system through time and space; therefore, it significantly systemizes the monitoring process and reduces complexity [42]. There are multiple dimensions to the vulnerability assessment of a system, but in this study, we focus on human vulnerability and how it varies among different typologies of development patterns.
The study of urban development patterns and their interrelationship with climate hazards has a long history, with various disciplines emphasizing the importance of urban form and its role in altering local climate [59,60]. Some studies have established this interdependence to comprehend key aspects of urban structure, which are strongly associated with climate risk [61]. However, despite numerous studies, there is a lack of consensus on the most critical aspects of climate risk relative to urban development patterns. Moreover, this interdependence between urban climate hazards and typologies of development patterns is mainly studied in terms of hazard exposure, thus ignoring the susceptibility and capacities of people to address these hazards, which are crucial for climate risk [11,14,62,63]. Thus, there is a need for new urban typologies related to urban climate to emerge, characterizing the trajectories and dynamics of land expansion and urban densification, as well as the human vulnerability to climate change [17].

2.2. Conceptual Framework

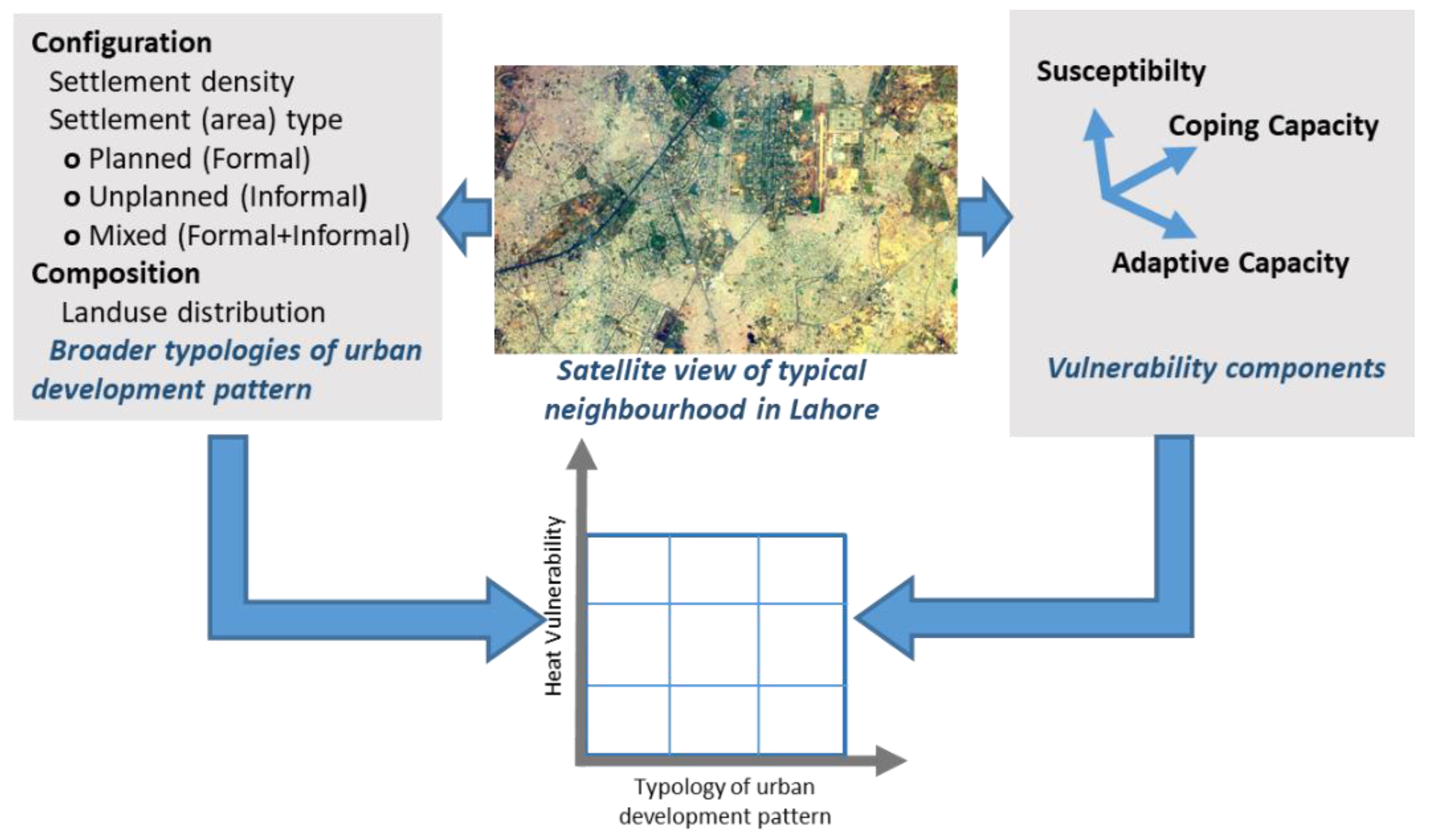

In this study, the framing of the typologies of urban development patterns is based on urban configuration covering settlement forms (i.e., developed or undeveloped areas) and settlement density, as well as urban composition catering to land-use distribution. On the other hand, a human vulnerability assessment is outlined by incorporating its three components, i.e., susceptibility, as well as coping and adaptive capacity. For both identifying urban development pattern typologies and estimating human vulnerability components, satellite imageries are processed. Finally, the interrelation between these two variables is examined by computing the variance of human vulnerability in different typologies of urban development patterns (see Figure 1).
In this study, various dimensions of current urban development patterns related to human vulnerability are explored. The first dimension encompasses formal and informal settlement areas. Weak urban planning regulation implementation, for example, a lack of enforcement of land-use regulations, as well as building codes and permissions, intensifies the risk for those who live and work in urban areas. Most vulnerable groups, typically living under the poverty line, tend to settle and construct homes in informal settlement areas, which are unsafe and do not have an adequate supply of utilities, provision of infrastructures, and availability of green areas [64,65]. Those living in urban poverty are predominantly vulnerable to climate hazards because of their location within cities [5]. The other dimension is building density, another important defining feature of development patterns. Settlement density has a direct positive relation with climate hazard exposure [65], and it is vital to establish its relationship with human vulnerability, which remains unclear. The third dimension is related to the composition of development patterns, and thus land-use distribution. Land use is even more diverse since social and natural infrastructures tend to be more accessible [66]. However, its link with human vulnerability remains unclear [15,34,43]. Therefore, this study attempts to explore the interrelations between these different aspects of urban development patterns and human vulnerability.

3. Contextual Analysis of Lahore

Lahore is a rapidly growing metropolis and the second-largest city in Pakistan, with more than 11 billion inhabitants [67]. With a remarkable heterogeneity in terms of development patterns and socio-economic conditions across its nine administrative districts, the city covers an area of 1772 km2 [67]. Lahore has exponentially expanded upon its rich cultural heritage, creating a thriving base for economic activities, driven by business, industry, trade, and education [6].

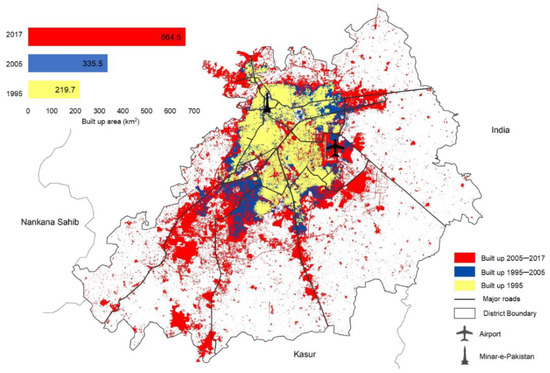

Massive urbanization, driven by the rapid expansion of the city, is one of the most dominant transformations and has characterized the growth of Lahore in recent years [68,69]. With the mix of urbanized and peri-urban areas, this metropolitan region presents a spatial variation in the dynamics of urbanization [6,69]. Figure 2 presents the built-up area of Lahore City in the years 1995, 2005, and 2017. It is evident from Figure 2 that several areas, first identified as peri-urban or even rural in 1995 and 2005, have become part of a continuous urban expansion over the years. From the graph in Figure 2, it is evident that the built-up area of Lahore increased by nearly one-third, i.e., from 220 km2 to 336 km2 between 1995 and 2005 [70]. However, this expansion doubled in the next 12 years, as an increase in built-up land was witnessed: up to 665 km2 in 2017 [70]. While the annual area growth rate in the first decade was 4.3%, it increased to 7.1% in the second period of this time frame [70].
Lahore is situated in a semi-arid climate zone. The summer season starts in April and ends in September when the mean maximum temperature in June, July, and August exceeds 40 °C and is even higher in dense inner-city areas [67,71]. May, and especially June, are observed as the hottest months of the year when the maximum temperature reaches up to 48 °C. December and January are the coldest months; the mean temperature recorded during these months is approximately 5 °C [71]. Moreover, strong monsoon conditions in this region make the weather extremely unstable. Currently, record-breaking heatwaves are hitting the region and influencing the daily lives of residents [72,73]. Overall, the environmental features of the region are greatly affected by these weather conditions, thus making the climate change impacts in the city quite pronounced [74,75].

4. Data and Methods

This study firmly coincides with the space-specific vulnerability assessment paradigm and used a method in conjunction with vulnerability assessment approaches employed by other researchers. In addition, three dimensions of urban development pattern typology are coupled with human vulnerability. Briefly, our approach to analyzing the pattern of urban development and its linkages with human heat vulnerability can be distinguished into three steps. The first part relates to the systemization of different urban development pattern typologies at the union council level in Lahore. The union council is the lowest administrative scale in Lahore. The second step relates to the assessment of human heat vulnerability and the identification of vulnerability hotspots within the city. Finally, the level of vulnerability in different urban settings is explored and the relationship between human heat vulnerability and urban development pattern typologies is statistically tested. The following subsections provide a detailed view of these steps.

4.1. Typologies of Urban Development Pattern in the Case Study

As mentioned in the conceptual framework, patterns of urban development are analyzed based on urban configuration and composition. Broadly, urban configuration at the city scale is studied by settlement area type and density. Data regarding settlement area typology were acquired from the Urban Unit, Lahore [70]. Based on these data, three categories of settlement areas: planned, undeveloped and mixed development (partially developed and partially undeveloped), are proposed. These areas are demarcated based on different structural characteristics such as the pattern of houses, building lines, layout and width of streets, extent of open spaces, as well as plot size [70]. See ‘Appendix A’ for details about the criteria and characteristics distinguishing these areas. Even though urban morphology could be similar between these categories at times, the perspective of settlement area typology is important to stress how informal settlement areas affect the overall urban development. It is important to mention that for clustering and statistical analysis, the settlement area type of each union council is interpreted from these vector data, thus, the predominant settlement area type is assigned to each union council. The second indicator of urban configuration is building density. Data regarding building density are gathered from the Lahore development authority. For clustering and systematization, building density was differentiated into three quantiles, i.e., high, medium, and low.
On the other hand, the urban composition is attributed to land-use distribution. In this respect, the land-use mix index was calculated to quantify the diversity in land-use patterns, ensuring urban sustainability [76]. There is a wide range of conceptual underpinnings and mathematical formulas to quantify the land-use mix index [76,77,78]. Comparing the advantages and limitations of various indices, the entropy index (ENT) is selected to measure the land-use diversity in the study area. The ENT measures the relative percentage of the types of land use within an area [79]. The following mathematical expression is used to calculate the ENT for union councils in Lahore:
E N T = j = 1 k ( P j ln ( P j ) ) / ln ( k )
Pj is the percentage of land-use type j in an area;
k ≥ 2 is the total number of land-use types.
ENT ranges from 0 to 1, where 1 represents the maximum diversity of land uses in an area. Finally, a k-mean cluster analysis was performed in SPSS to group the census tracks based on their development typology: settlement area type, building density and land-use distribution. To choose the appropriate value of k, i.e., the number of clusters to build, a hierarchical cluster analysis was conducted. In this case, Ward’s method was applied to group the data into uniform-size clusters (see Appendix B) [80]. Finally, the typologies of the development patterns are grouped into three heterogeneous and robust clusters depending on their z-score.

4.2. Human Heat Vulnerability Assessment

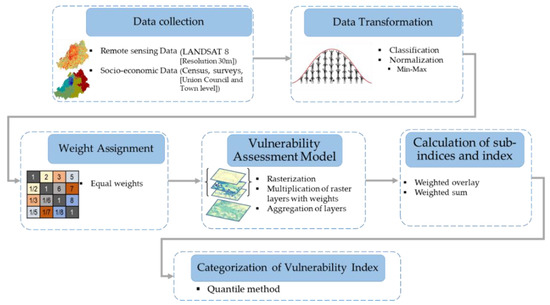

The assessment of the human heat vulnerability index for the case study is an important aspect of this research. Overall, Figure 3 summarizes the steps required for index computation. These steps range from data collection and data transformation to the weight assignment, computation, and categorization of the urban human vulnerability index in relation to heat stress.

4.2.1. Data Collection and Normalization

An extensive range of data regarding the environmental and socio-economic state and dynamics in the city is required for a human heat vulnerability assessment. Fourteen indicators were selected to compute the index based on previous research [20,21,27,29,74,81,82,83,84]. From our literature review, a list of indicators was derived from different sources and grouped into the categories of susceptibility, as well as coping and adaptive capacity, as shown in Table 1. For aggregation, all indicators are normalized based on the data unit of the source (see Table 1) and transformed into a dimensionless rank level between 0 and 1. Table 1 presents the indicators, their justification, data source as well as the transformation methods used for the 15 indicators characterizing human heat vulnerability.

4.2.2. Data Aggregation and Index Development

Considering the equal relative importance of the indicators, all the indicators are equally weighted [20,27,29]. Equal weighting implies a recognition of the equal status of all the indicators [74]. Weighted sum [90] is used to quantify the spatial indexes related to susceptibility, coping and adaptive capacity, and, finally, human vulnerability. Different areas of the city have been categorized based on their respective vulnerability score using five quantiles ranging from high to low. It is important to mention that this spatial analysis is based on the administrative boundary of the city, providing an opportunity to develop policy recommendations that can be implemented by specific administrative units.

4.3. Interrelation between Typologies of Urban Development Patterns and Human Heat Vulnerability

The typologies based on developed and undeveloped neighborhoods, building densities, and diversity of land uses were plotted against their mean vulnerability scores to confirm if there is a link between vulnerability scores and urban development pattern typologies. A general linear model ANOVA test of variance was performed to compare the marginal means of vulnerability scores for different typologies of development patterns.

5. Results

This section presents the findings of the study based on the case study of the city of Lahore. The clustering of census tracks based on their typologies of urban development pattern is presented in Section 5.1 followed by their heat vulnerability score presented in Section 5.2. Finally, the results of the ANOVA test of variance are presented in Section 5.3 to establish the interrelation between human heat vulnerability and typologies of development patterns.

5.1. Clustering of the Typologies of Urban Development Pattern

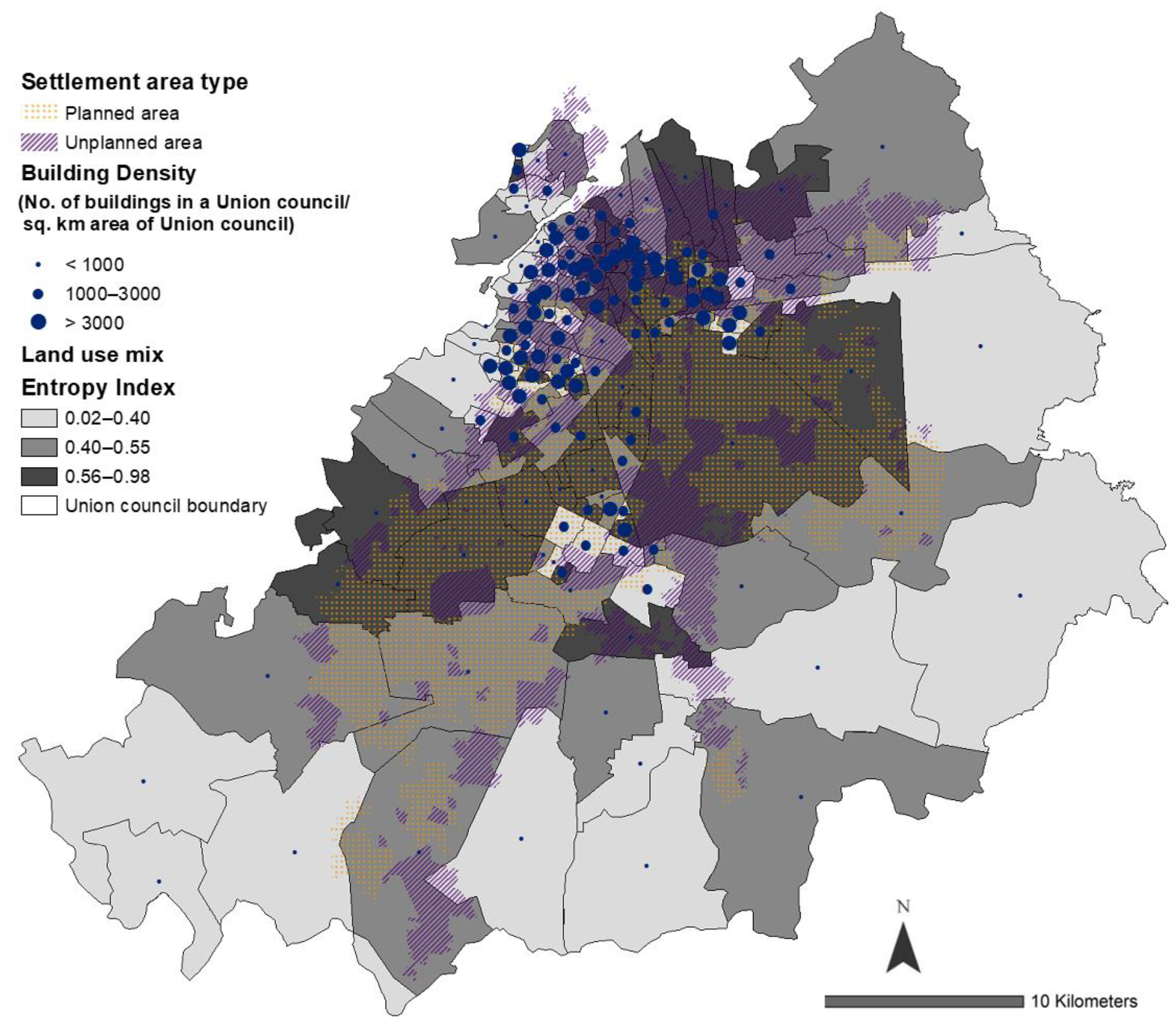

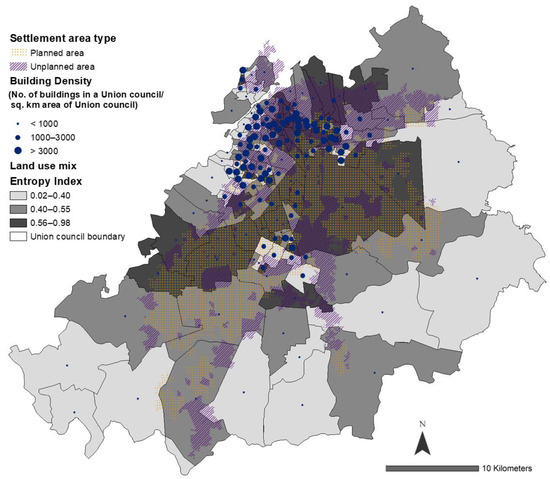

Figure 4 presents the clustering of typologies of development patterns for the case of Lahore at the spatial scale of union councils. There is a huge heterogeneity of development across the administrative units of Lahore. Based on the conceptual framework (see Section 2.2), the differentiation shown is based on settlement area types, building density, and land-use mix index. Settlement areas are grouped into developed, undeveloped, and mixed development types. Building index and ENT are categorized into three quantiles: low, medium, and high. Nearly half of the built-up areas in Lahore are undeveloped [70], where building density is quite high and land use is less diverse. Importantly, the land-use mix index is higher, and the building density ranges from low to medium in the developed areas because of the high adherence to planning regulations in these areas. Moreover, more than half of the union councils have both developed and undeveloped zones, where building density values, as well as land-use diversity, are relatively higher in these areas. According to k-mean clustering analysis, a large number of union councils in Lahore have high building density and their ENT is medium to high, which means that land use is more diverse.

5.2. Hotpots of Human Heat Vulnerability

The sum of susceptibility and lack of coping and adaptive capacity calculates heat vulnerability [52]. Thus, it incorporates both the conditions, as well as the processes of societies that determine, whether a disaster may ensue when a climate hazard occurs. In the case study area, there exists a diverse pattern of susceptibility and coping and adaptive capacity. While there is less variation in terms of economic and educational disparities, a clear differentiation can be observed in terms of access to natural and social infrastructures (see Appendix C). Overall, central areas of the city are less susceptible, and this susceptibility dramatically increases when moving towards peri-urban areas. On the other hand, central and northern areas are more robust in terms of capacities, while old urban areas in the Ravi, Data Gunj Buksh and Shalimar towns, as well as southern locations, lack coping and adaptive capacity. Ravi town has a significantly higher susceptibility and less coping and adaptive capacity (see Appendix C). Moreover, the Aziz Bhatti and Iqbal towns have a high coping capacity. Since the urban growth of Lahore mainly extends southward, it is important to note that this location already lacks coping and adaptive capacity, so there is a need for prerequisite measures to promote climate change adaptation in these areas.

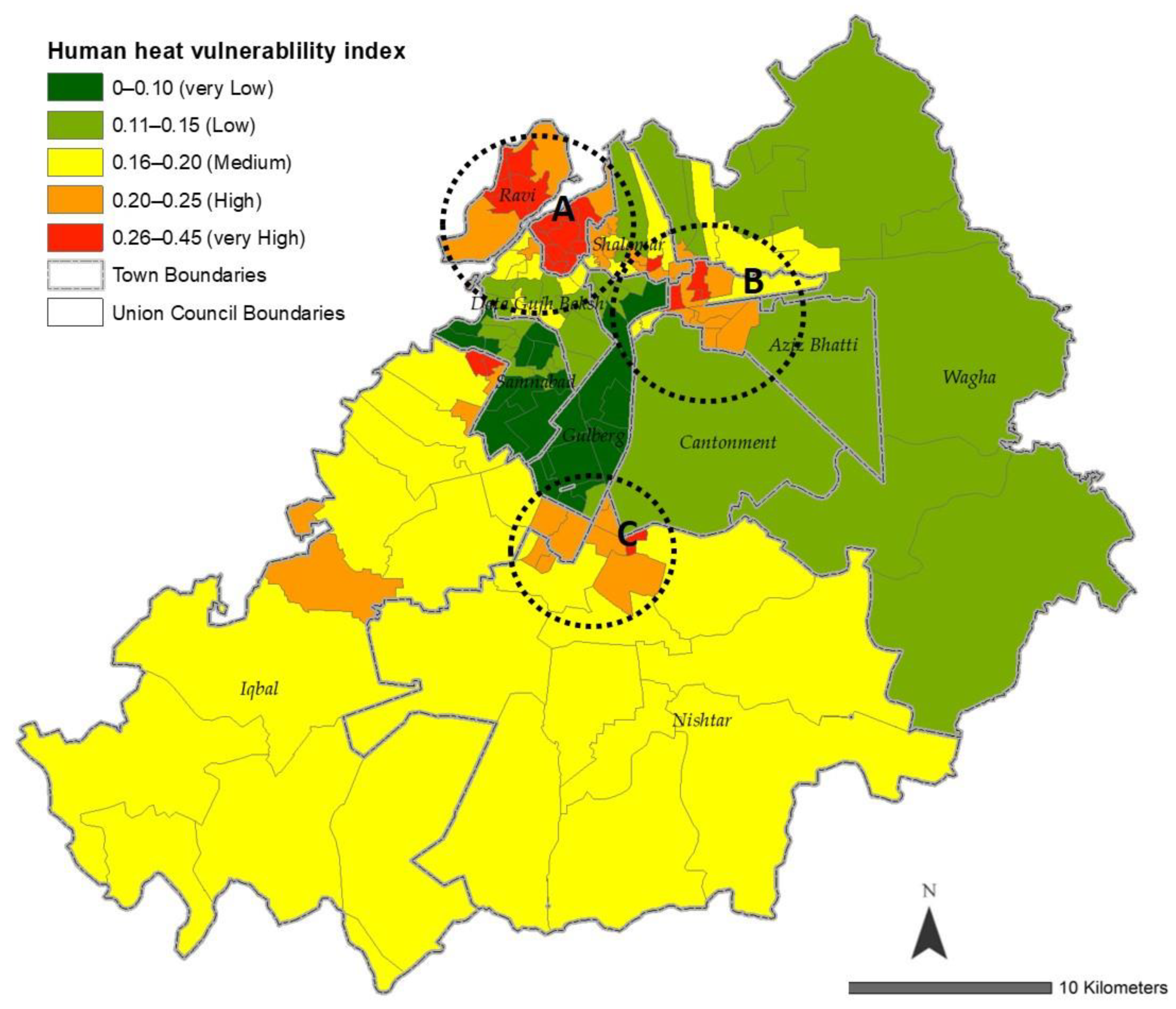

Finally, Figure 5 presents the relative heat vulnerability scores of the union councils of Lahore city. It is clear that the heat vulnerability of Lahore city is higher towards the northwest, particularly in Ravi town. Moreover, some parts of the Shalimar and Aziz Bhatti towns also fall into the category of highly vulnerable areas due to the socio-economic and demographic profile of those, who are living in these areas. Generally, the vulnerability values of the southern part of the city are higher than in the northern areas, especially the northeastern part. Towards the south, the Allama Iqbal and Nishtar towns are in the category of medium vulnerability. However, central areas of the city, including Gulberg and Cantonment, have a lower heat vulnerability score due to the socio-economic profiles (e.g., income levels) of people and their access to green spaces. In Figure 5, three hotspots are circled with dash lines. A full overview of the results of all indices, including individual ranks of the union councils is shown in Appendix C. However, the analysis revealed the following hotspots of human heat vulnerability in Lahore:
  • Vulnerability hotspot A: Areas around the Ravi river course, formerly an industrial district and nowadays predominantly inhabited by a working-class population. In these locations, the susceptibility index is relatively high and coping and adaptive capacities are quite low.
  • Vulnerability hotspot B: Undeveloped old parts of the city that lack green places. Moreover, the population and building densities are significantly higher in these areas.
  • Vulnerability hotspot C: Recently and rapidly urbanizing areas of the city performing poorly in terms of coping capacities. The access to natural and social infrastructures is also quite low in these locations.

5.3. Links between Human Heat Vulnerability and Typologies of Urban Development Pattern

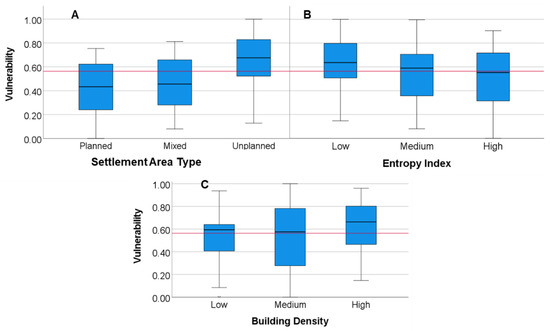

The analysis of human heat vulnerability considering the typologies of development patterns yielded interesting results. Figure 6 presents box plots that illustrate the vulnerability index (VI) and three typologies of development patterns: settlement area type, ENT index, and building density. Vulnerability is attributed depending on developed, undeveloped, and mixed development, and low-to-high scores of ENT and building density. Between settlement area type and vulnerability, there is a positive significant correlation (r = 0.425, p = 0.01). In terms of settlement area types, VI is 0.43 in developed areas, compared to 0.46 in mixed areas (partially developed and partially undeveloped). However, VI is 0.68 in the undeveloped areas, which is very high compared to the mean VI. The variance in VI is also plotted, which is quite high in the undeveloped areas. An unbalanced development trend is a major reason behind this high variance. In the case of ENT, a negative relation (r = −0.19, p = 0.01) is explored with the VI. For areas with a low ENT, VI is 0.64 compared to VI = 0.55, when the ENT is low. This means that land-use diversity reduces human vulnerability to heat stress. In this category, the variance within VI is relatively constant for the high, medium, and low ENT. Finally, plot B presents the VI for low-to-high building densities. From the results, it is evident that there is no significant correspondence between these variables.

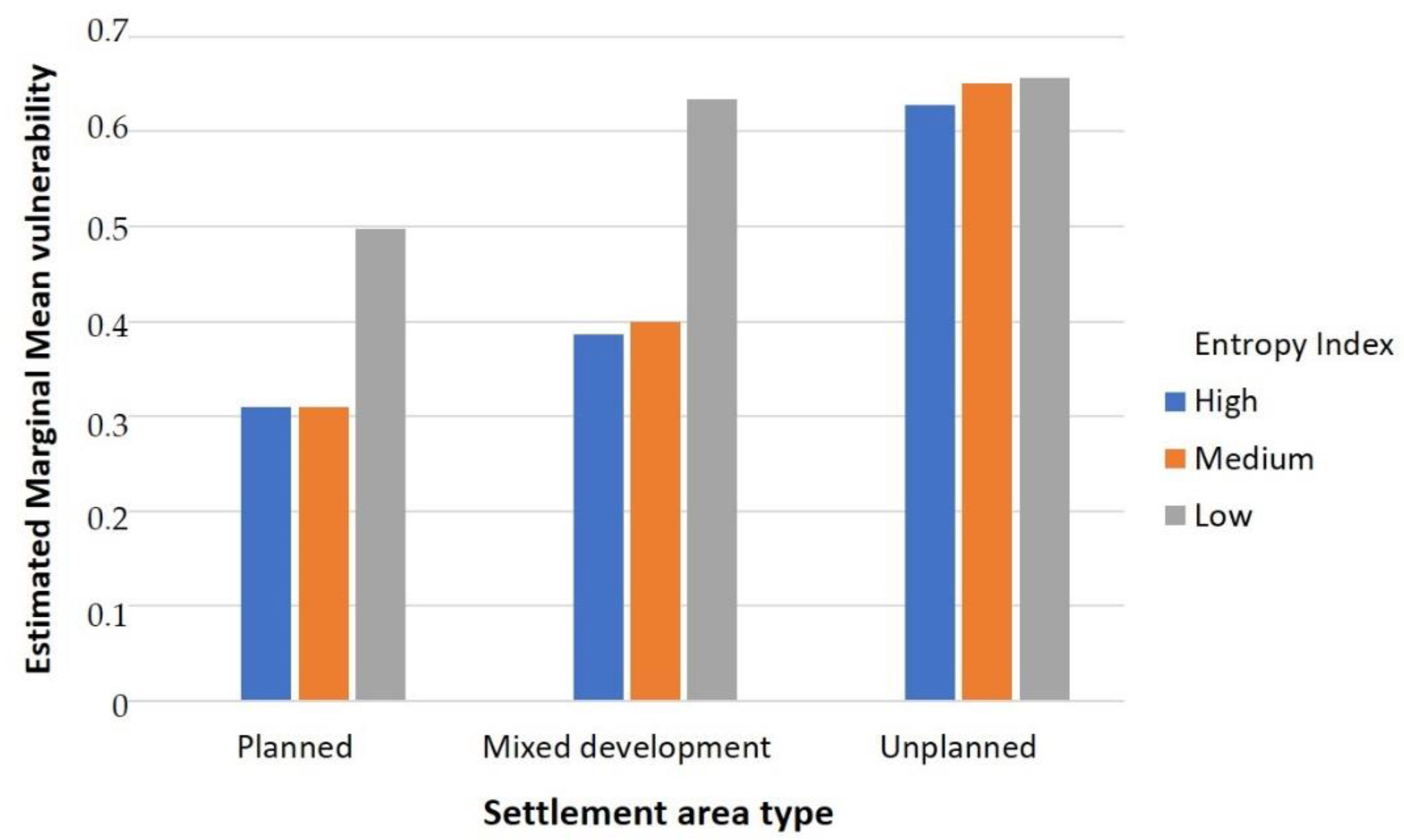

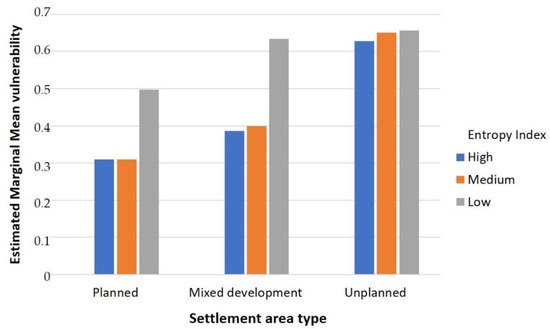

Table 2 presents the results from the general linear model two-way ANOVA analysis of variance. It is clearly seen that some typologies of development patterns strongly influence human heat vulnerability. Between the types of settlement areas (planned, undeveloped, and mixed) and human vulnerability, there is a strong relationship, whereby, the statistical significance is less than 0.001. Likewise, the significance between the ENT and human heat vulnerability is 0.004, so there is a considerable relationship between human vulnerability and land-use diversity. On the other hand, the significance is 0.277 in the case of building density, meaning that there is a less substantial influence of the building density on the human vulnerability to heat waves/stress. It is also evident from the analysis that the interactions of the settlement type with the building density and the settlement type with the ENT significantly contribute (p = 0.004 and p = 0.012, respectively) to influencing overall human vulnerability.
Lastly, the adjusted r-squared value shows that 27.3% of the variance in vulnerability is attributed to the settlement type, building density, and ENT. This value indicates the strength of the model, i.e., the strength of the relationship between typologies of development patterns and human vulnerability. Thus, the study statistically proves that there is a strong influence of settlement area type and land-use diversity on human heat vulnerability. In Figure 7, estimated marginal mean vulnerability (EMMV) is plotted against settlement area types and ENT. It is also important to note that within the same settlement area type, vulnerability dramatically increases depending on the ENT. When land-use diversity is high, the EMMV in the developed areas is 0.32; however, when the ENT is low in the same settlement area type, EMMV = 0.49. In the other two settlement area types (i.e., mixed and undeveloped areas), the same trends apply.

6. Discussion, Conclusions, and Outlook

This paper identified and explored key links between typologies of urban development patterns and human heat vulnerability at a union council scale. The most important aspects of this research are as follows.

6.1. Relevance of Development Patterns for Human Heat Vulnerability

Several previous studies stressed the need for a local-scale assessment of vulnerability to identify risk hotspots within cities [15,16,91,92,93]. Human vulnerability assessment in a localized context with a spatial focus on development pattern typologies facilitates the identification of specific adaptation needs in the context of heat stress [16,41]. However, few pieces of evidence from the literature interlink these vulnerable hotspots with urban development patterns. For instance, Kim and Ryu have captured the spatial patterns of heat-related vulnerability from the perspective of urban design typologies in the Korean city of Suwon [94]. This study examined the heat vulnerability of different urban districts based on their geometry [94]. With a particular focus on settlement density and related indicators such as elevation, building footprint, urban geometry, and road density, various other aspects of urban development typologies, for instance, land-use patterns, settlement types, etc., are not adequately incorporated. Therefore, particular attention is given to exploring the linkage between typologies of development patterns and human vulnerability to heat stress in different urban settings, which have undergone distinct development processes. Despite their proximity, there is a marked variation regarding the heat vulnerability amongst the households living in different settlement areas (see Figure 6). From the analysis, it is evident that the developed areas generally have lower levels of human vulnerability to heat stress as compared to undeveloped areas. This can be explained by various factors, for example, households living in developed areas have improved socio-economic conditions and access to important facilities and infrastructures [95]. Moreover, the ENT is higher, which means that land use is more diverse (see Appendix D). Furthermore, people have good access to green areas and social infrastructures, such as medical services [42,78,95,96].
On the other hand, undeveloped areas generally contain more people with a higher level of human vulnerability (see Appendix C) to heat stress due to the socio-economic characteristics of households and limited access to social and natural infrastructures [88,97]. This can increase the adaptive capacity of people to heat stress [30,36,95]. For example, residents of two settlements (in a case study by Makhan Pura and Wassan Pura) that underwent informal urban development processes had a higher susceptibility index (see Appendix B). At the same time, land-use types are less diverse in these locations, which may have hindered the capacity of households to access green areas and other social services, such as medical services (see Appendix C). All the above conditions influence the overall vulnerability of residents to heat stress. It can therefore be understood that whereas the spatial patterns shaped through informal development are highly vulnerable to heat stress, those formed by pre-planned development processes reduce the heat stress [88,97]. The analysis and discussion reveal that the capacity of the residents can be increased by effective land-use planning, which enhances land-use diversity. However, the challenges remain for undeveloped areas, which are often characterized by a lack of institutional capacities. These areas need to be strengthened through integrated urban planning strategies and programs to enable cities to strategically reduce vulnerability. Therefore, the clustering of vulnerability based on the settlement area types is important for understanding the importance of spatial planning paradigms and the climate change adaptation needs of specific households located in different urban settings.

6.2. Study Limitations

Generally, one of the most important aspects of the calculation of the spatially explicit index is the robustness of spatial data and trade-offs between data and indicators [98]. In this research, the spatial unit used for quantification purposes is the union council. The data emerging from satellite imagery with remote sensing techniques are always well-distributed in space because of the fixed spatial mapping unit—the pixel. However, the socio-economic data collected from various sources for some indicators are less spatially explicit in most cases, including the case of Lahore. For instance, the data related to household insurance coverages and access to services are available at a town scale and are downscaled to a union council scale for the assessment. The improvement of the scale of socio-economic data can highly influence the assessment of the heat VI. Another important aspect is the use of proxy indicators in the assessment. In this regard, some complementary variables related to household characteristics, such as knowledge and preparation regarding heat events that can support the warning or recovery system, are difficult to quantify. Therefore, education level and access to information are used as proxy variables. Finally, the selection of indicators largely represents the dimension of susceptibility. Coping and especially adaptive capacity dimensions are underrepresented. These issues can be addressed via primary data collection for a vulnerability assessment. On the other hand, some other aspects associated with urban configuration, i.e., floor space ratio and building structure, require further studies.

6.3. Transferability of the Methodology and Future Research Potentials

Overall, this methodology is transferable to other cases with the context-specific adjustments of some indicators. For instance, development nomenclature is quite diverse among different regions around the world and can be adapted for each specific case study. Moreover, adding context-specific variables for a vulnerability assessment based on the hazard type and locational characteristics are essential. Moreover, the lessons learned from our analysis can generally be applied to other case studies. However, in some cases, our results are specific, for instance in cities with similar types of urban development patterns in emerging economies with formal and informal development patterns.
Overall, a methodology for this study is established to explore the relationship between heat-related human vulnerability and typologies of development patterns. The key objective is to strengthen the knowledge about the climate change adaptation needs of residents living in different urban areas at different stages of development. However, there is an urgent need to dynamically understand cities, their transformation processes, and their exposure and vulnerability to overall climate hazards in order to devise policy recommendations. Therefore, more research is required on how to develop an integrative assessment framework that can capture the dynamics of urban development (densification vs. expansion, demographic change, and economic development), dynamics of behavior (travel pattern and activities profiles), dynamics of exposure (day and nighttime temperature) and dynamics of vulnerability.

Author Contributions

Conceptualization N.I., M.R. and A.J.; literature review N.I.; analyses N.I. and A.J.; writing N.I.; review N.I., M.R., A.J., J.B., G.S., Z.M. and N.C. and supervision J.B. All authors have read and agreed to the published version of the manuscript.

Funding

This work is part of the urbisphere project (www.urbisphere.eu) (accessed on 13 August 2022), a synergy project funded by the European Research Council (ERC-SyG) within the European Union’s Horizon 2020 research and innovation program under grant agreement no. 855005. The article reflects only the authors’ views, and the European Union is not liable for any use that may be made of the information contained herein.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are available upon reasonable request.

Acknowledgments

The author acknowledges the support from the colleagues of the Urban Unit, Lahore, and Lahore Development Authority for the provision of spatial data.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. Criteria of developed and undeveloped areas.
Table A1. Criteria of developed and undeveloped areas.
CharacteristicsUndeveloped Areas/Informal AreasPlanned Areas/Formal Areas
DensityHighLow–medium
Pattern of housesIrregularUniform
Building line **Less than 5 ft. 5 ft. to 20 ft. or more *
Layout of roadsIrregular layout patternUniform layout pattern
Width of streetsLess than 30 ft.30 ft. to 220 ft. or more *
Number of green spacesFewerMore
Plot size Max. 5 marla
1 marla = 225 sq. feet (Lahore City)
1 marla = 272.5 sq. feet (other cities)
5 Marla to 4 Kanal or more *
Source: The Urban Unit, 2018. * If the value exceeds from the maximum value, it will be considered an anomaly. ** Building line means a line beyond which the outer face of any building except compound wall, may not project in the direction of any street existing or proposed.

Appendix B

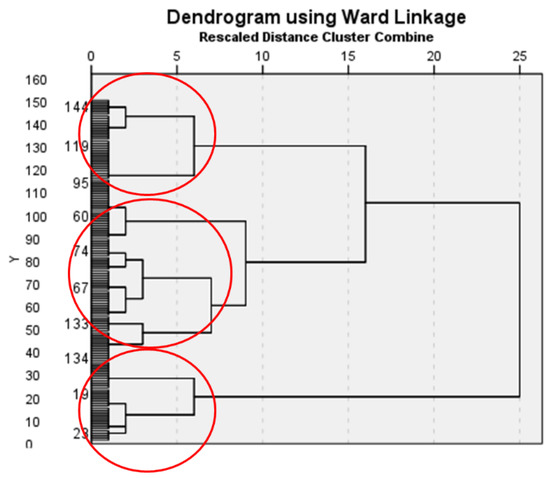

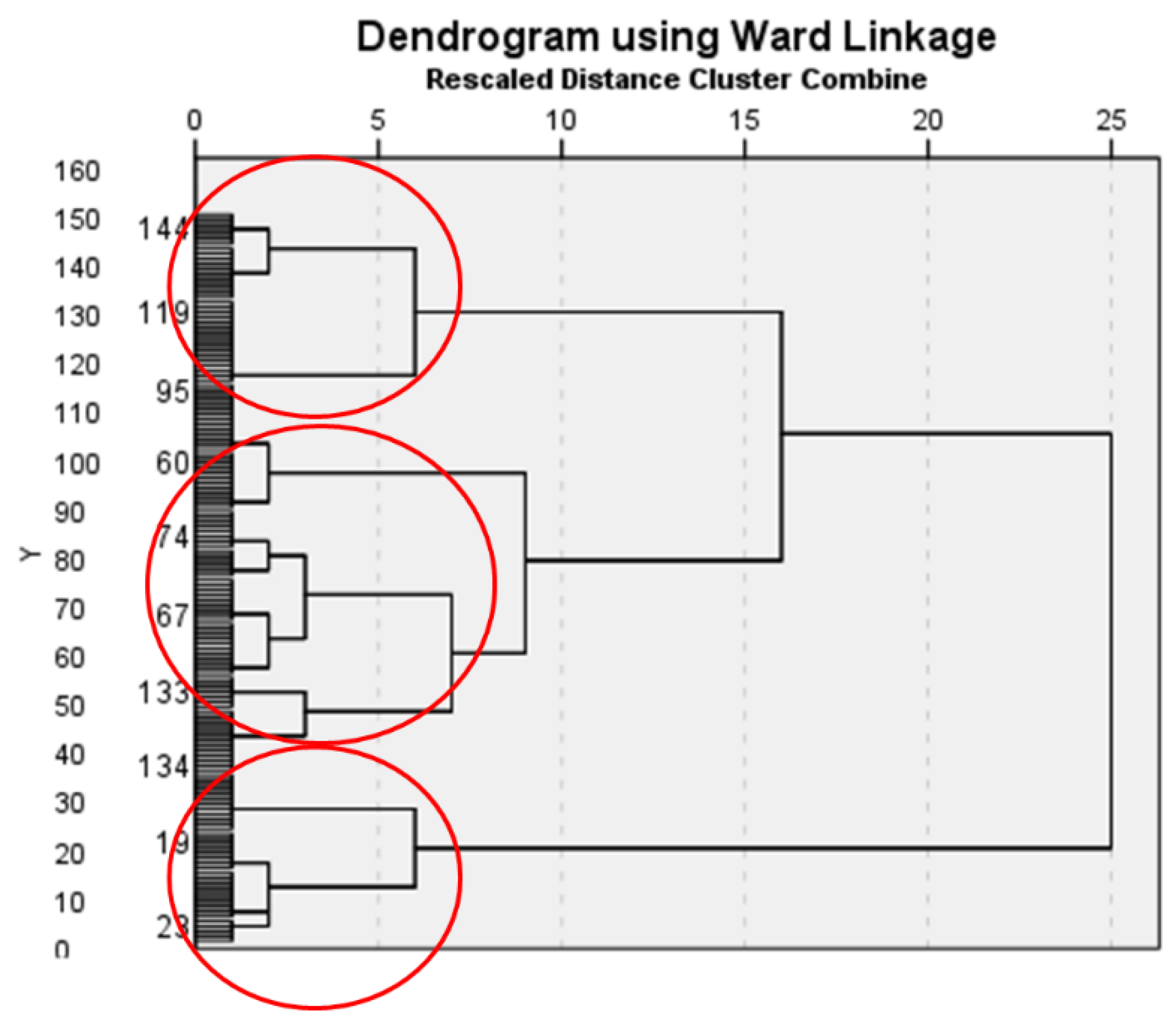

Figure A1. Dendrogram from hierarchical cluster analysis (red circles present optimal clusters, i.e., the value of k). Source: Own figure.
Figure A1. Dendrogram from hierarchical cluster analysis (red circles present optimal clusters, i.e., the value of k). Source: Own figure.
Sustainability 14 10561 g0a1

Appendix C

Table A2. Exposure, susceptibility, capacity, and vulnerability index at UC level in Lahore.
Table A2. Exposure, susceptibility, capacity, and vulnerability index at UC level in Lahore.
NO.UCExposure IndexSusceptibility IndexCapacity IndexVulnerability IndexVulnerability Rank
1Cantonment0.590.450.450.00Lower
2Bhangali0.310.440.440.00Lower
3Anarkali0.680.350.350.01Lower
4Sanda Kalan0.820.330.320.01Lower
5Chohan Park0.440.350.340.01Lower
6Darogha Wala0.460.520.500.01Lower
7Qila Gujjar Singh0.740.360.340.02Lower
8Bilal Park0.820.450.440.02Lower
9Jinnah Hall0.720.350.340.02Lower
10Gujjar Pura0.410.340.320.02Lower
11Railway Colony0.740.430.450.03Lower
12Muslim Abad0.420.540.510.04Lower
13Barki0.380.510.550.04Lower
14Riwaz Garden0.580.410.370.04Lower
15Muhammad0.310.520.560.04Lower
16Dograi Kalan0.250.510.560.05Lower
17Kareem Park0.550.430.380.05Lower
18Minhala0.170.510.570.05Lower
19Mian Meer0.270.480.430.06Lower
20Hadiara0.340.490.550.06Lower
21Shadman0.510.330.400.07Lower
22Muhamad Colony0.620.390.330.07Lower
23Mustafa Abad0.450.480.410.07Lower
24Hanjarwal0.320.420.340.08Lower
25Lakhodher0.270.490.570.08Lower
26Chah Miran0.810.310.240.08Lower
27Sodiwal0.840.380.460.08Lower
28Maraka0.390.450.360.08Lower
29Mozang0.750.440.360.09Lower
30Salamat Pura0.900.540.450.09Lower
31Sare Sultan0.830.410.320.09Lower
32Gulgasht Colony0.830.380.470.09Lower
33Sanda Khurd0.800.410.320.10Lower
34Garhi Shahu0.520.400.500.10Lower
35Shahpur0.380.450.350.10Lower
36New Samanabad0.830.350.460.11Lower
37Harbanspura0.640.470.360.11Lower
38Shamke Bhattian0.010.500.390.11Lower
39Bhaseen0.000.490.600.11Lower
40Haloke0.780.440.330.11Lower
41Jia Bagga0.380.460.350.11Lower
42Bhaseen0.560.620.510.11Lower
43Shah Kamal0.770.350.470.11Lower
44Bilal Ganj0.760.430.320.11Lower
45Ali Raza Abad0.750.450.330.12Low
46Pandoki0.180.490.370.12Low
47Kot Khawaja0.830.340.220.12Low
48Chandrai0.680.440.320.12Low
49Kot Lakhpat0.700.330.450.12Low
50Hair0.260.490.360.13Low
51Faiz Bagh0.840.340.210.13Low
52Ganj Kalan0.830.430.300.13Low
53Dhaloke0.250.490.350.13Low
54Pakki Thatti0.810.320.460.14Low
55Sabzazar0.460.480.340.14Low
56Gajju Matta0.470.460.330.14Low
57Khawaja Saeed0.470.500.360.14Low
58Kasur Pura0.260.540.400.14Low
59Sham Nagar0.810.320.460.14Low
60Gulshan-e-ravi0.820.320.460.14Low
61Race Course0.300.300.440.14Low
62Manga0.190.530.380.14Low
63Bibi Pak Daman0.650.320.470.15Low
64Ichhra0.730.350.500.15Low
65Islam Pura0.820.460.320.15Low
66Kahna Nau0.310.490.340.15Low
67Gawalmandi0.800.460.310.15Low
68Niaz Beg0.340.500.350.15Low
69Paji0.590.500.350.15Low
70Johar Town0.630.480.330.15Low
71Daras Baray Mian0.590.340.500.16Medium
72Baghbanpura0.820.390.230.16Medium
73Green Town0.730.470.300.16Medium
74Kamahan0.640.490.320.17Medium
75Rizwan Park0.750.320.490.17Medium
76Dullo Khurd Kalan0.580.490.320.17Medium
77Chung0.600.530.350.18Medium
78Guldasht Colony0.670.520.340.18Medium
79Fateh Garh0.880.610.290.18Medium
80Shad Bagh0.860.420.240.19Medium
81Faisal Town0.500.330.520.19Medium
82Al-faisal Town0.800.500.310.19Medium
83Rehman Pura0.820.270.460.19Medium
84Sultan Mehmood0.790.620.430.19Medium
85Gulberg0.460.300.490.19Medium
86Township0.740.480.290.19Medium
87Wassanpura0.830.430.230.20Medium
88Farid Colony0.750.470.270.20Medium
89Tajpura0.820.500.300.20Medium
90Ameen Pura0.850.510.310.20Medium
91Township Sec A0.700.510.310.20Medium
92Bahawalpur Hs0.690.290.490.20Medium
93Baghat Pura0.800.480.270.20Medium
94Rehmat Pura0.830.450.250.21High
95Nawan Kot0.790.270.480.21High
96Taj Bagh0.720.520.310.21High
97Gulshan-e-iqbal0.780.270.480.22High
98Babu Sabu0.370.290.510.22High
99Makkah Colony0.510.270.500.23High
100Liaqatabad0.390.300.530.23High
101Makhanpura0.830.450.220.23High
102Begum Pura0.830.450.220.23High
103Siddique Colony0.200.260.500.24High
104Angori Bagh0.750.500.260.24High
105Keer Kalan0.690.520.290.24High
106Maryam Colony0.640.550.310.24High
107Bhamman0.190.500.250.25High
108Mujahidabad0.830.500.250.25High
109Kashmir Block0.820.210.470.25High
110Kot Begum0.450.500.240.26Higher
111Crown Park0.810.500.230.27Higher
112Bostan Colony0.790.560.290.27Higher
113Samanabad0.680.240.510.27Higher
114Nabipura0.840.580.310.27Higher
115Ghaziabad0.780.580.300.28Higher
116Awan Town0.820.560.280.28Higher
117Ismail Nagar0.840.530.240.28Higher
118Saidpur0.850.530.250.29Higher
119Dhair0.100.580.290.29Higher
120Zaman Park0.390.210.500.29Higher
121Attari Saroba0.590.580.280.29Higher
122Pindi Rajputan0.660.160.460.30Higher
123Naseer Abad0.530.220.520.30Higher
124Mughalpura0.780.610.300.30Higher
125Al-hamra0.220.240.550.31Higher
126Madhu Lal Husain0.830.530.220.31Higher
127Muslim Town0.500.240.550.31Higher
128Aziz Colony0.560.520.210.31Higher
129Rashidpura0.850.610.290.32Higher
130Fateh Garh0.830.470.290.32Higher
131Siddiqia Colony0.540.560.240.32Higher
132Faisal Park0.540.550.220.33Higher
133Androon Texali 0.670.560.230.33Higher
134Bakar Mandi0.830.590.250.33Higher
135Sikandar Block0.570.180.530.35Higher
136Raiwind0.850.590.240.35Higher
137Farooq Ganj1.000.500.150.35Higher
138Androon Bhatti 0.580.590.230.36Higher
139Siddique Pura0.410.580.220.36Higher
140Rang Mahal0.820.530.170.37Higher
141Model Town0.390.160.530.37Higher
142Garden Town0.440.140.510.38Higher
143Androon Dehli 0.670.590.210.38Higher
144Shahdara0.470.600.220.38Higher
145Qaiser Town0.270.630.250.38Higher
146Jia Musa0.700.580.180.39Higher
147Qila Lachhman 0.740.580.180.41Higher
148Bangali Bagh0.790.580.170.41Higher
149Kot Mohibbu0.720.600.160.44Higher
150Sittara Colony0.730.680.240.44Higher
151Fruit Mandi0.580.640.190.45Higher
Source: Own data based on index calculations.

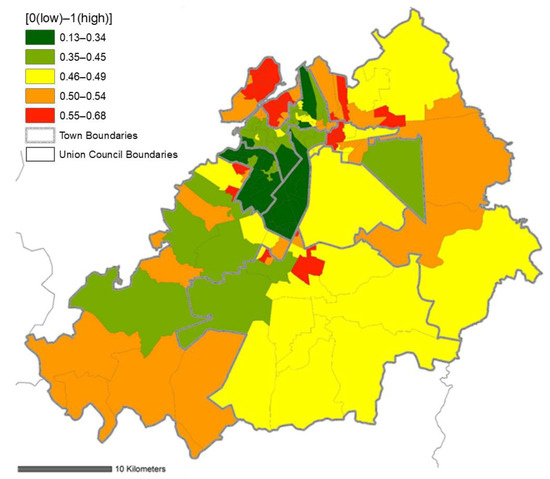

Figure A2. Map showing the susceptibility of residents to heat stress in Lahore city. Source: Own figure based on Population Census 2017, MICS 2008, JICA 2012, and Health Report Lahore 2017.
Figure A2. Map showing the susceptibility of residents to heat stress in Lahore city. Source: Own figure based on Population Census 2017, MICS 2008, JICA 2012, and Health Report Lahore 2017.
Sustainability 14 10561 g0a2

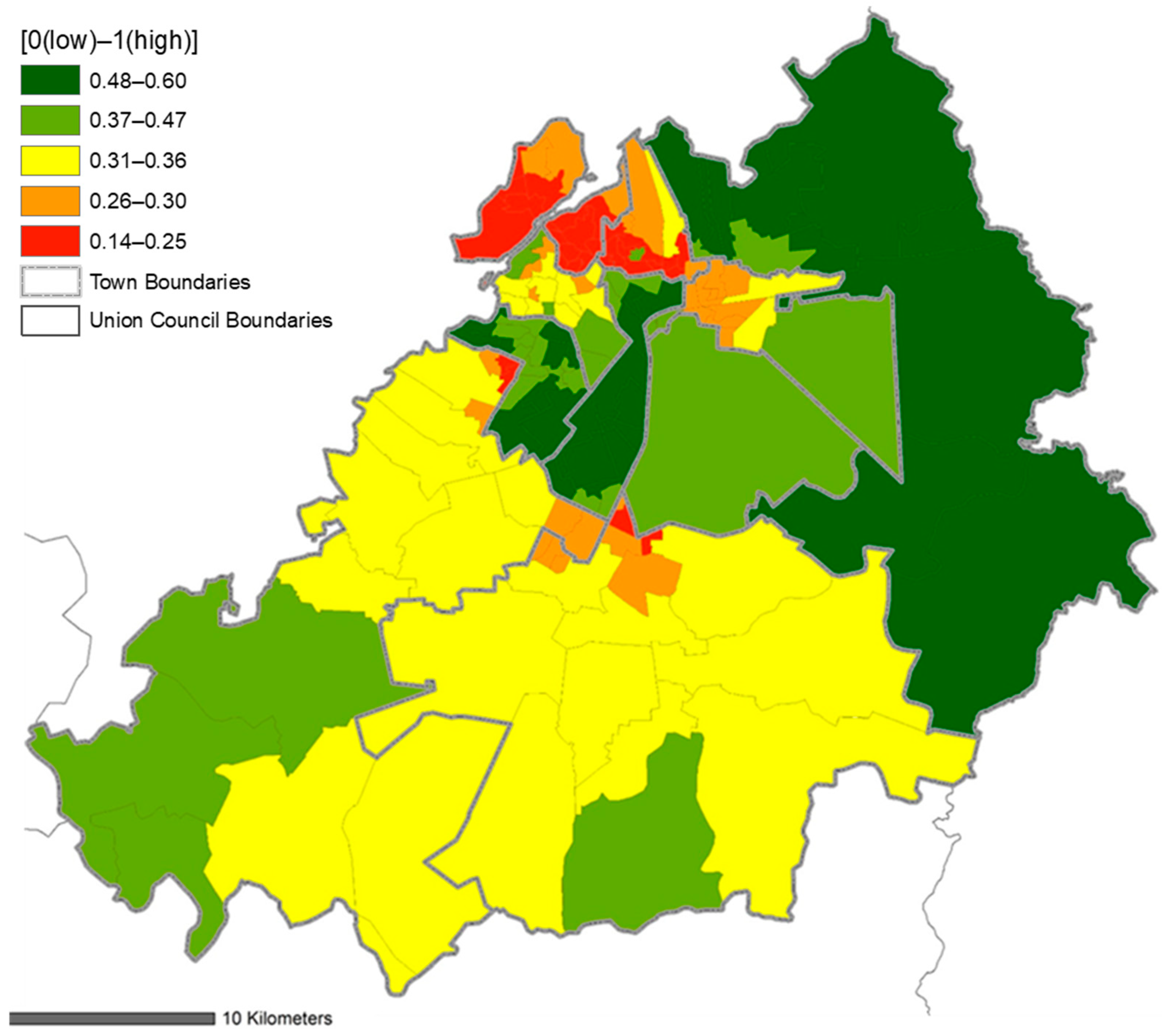

Figure A3. Map showing lack of coping and adaptive capacity of residents to heat stress in Lahore city. Source: Own figure based on Population Census 2017, MICS 2008, and Landsat 8 data.
Figure A3. Map showing lack of coping and adaptive capacity of residents to heat stress in Lahore city. Source: Own figure based on Population Census 2017, MICS 2008, and Landsat 8 data.
Sustainability 14 10561 g0a3

Appendix D

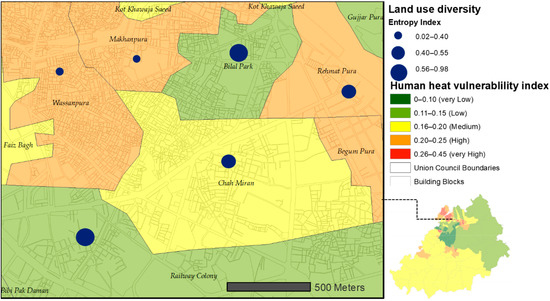

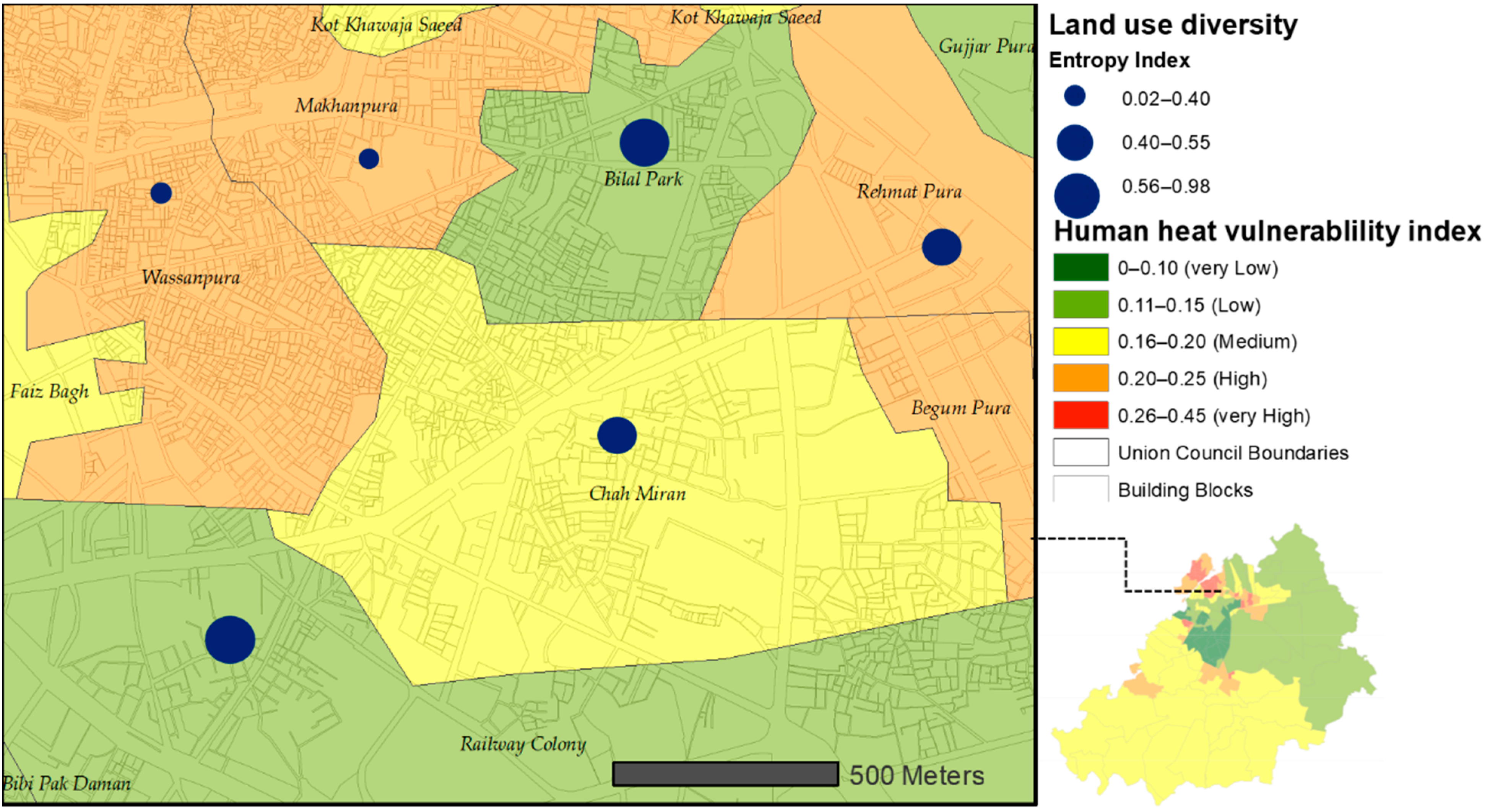

Figure A4. A map showing the settlement patterns, land-use diversity, and human heat vulnerability in a neighborhood in Lahore. Source: Own figure.
Figure A4. A map showing the settlement patterns, land-use diversity, and human heat vulnerability in a neighborhood in Lahore. Source: Own figure.
Sustainability 14 10561 g0a4

References

  1. Satterthwaite, D. Chapter 8: Urban Areas from Climate Change 2014: Impacts, Adaptation, and Vulnerability. In Chapter from Climate Change 2014: Impacts, Adaptation, and Vulnerability; Cambridge University Press: Cambridge, UK; New York, NY, USA, 2014. [Google Scholar]
  2. Paul, S.; Sanyaolu, O.; Urbanization. In Political Science and International Relations; Paul Sanyaolu’s Lab. 2018. Available online: https://books.google.co.jp/books?hl=zh-CN&lr=&id=QuTEDwAAQBAJ&oi=fnd&pg=PP7&dq=Political+Science+and+International+Relations&ots=4BIBDbdMcD&sig=rgGhYZmx1AJt-FcFHV0c-AScKLg&redir_esc=y#v=onepage&q=Political%20Science%20and%20International%20Relations&f=false (accessed on 20 August 2022).
  3. UN-Habitat. Urbanization and Development: Emerging Futures; UN-Habitat: Nairobi, Kenya, 2016; ISBN 978-92-1-132708-3. [Google Scholar]
  4. Pachauri, R.K.; Meyer, L.A. Climate Change 2014: Synthesis Report: Contribution of Working Groups I, II and III to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change; IPCC: Geneva, Switzerland, 2014; p. 151. [Google Scholar]
  5. IPCC. IPCC WGII Sixth Assessment Report: Summary for Policy Makers; IPCC: Geneva, Switzerland, 2022. [Google Scholar]
  6. Adeel, A.; Notteboom, B.; Yasar, A.; Scheerlinck, K.; Stevens, J. Insights into the Impacts of Mega Transport Infrastructures on the Transformation of Urban Fabric: Case of BRT Lahore. Sustainability 2021, 13, 7451. [Google Scholar] [CrossRef]
  7. Oke, T.R.; Mills, G.; Christen, A.; Voogt, J.A. Urban Climates; Cambridge University Press: Cambridge, UK, 2017; ISBN 9781139016476. [Google Scholar]
  8. Gensuo, J.; Shevliakova, E.; Land–climate interactions. In Climate Change and Land: An IPCC Special Report on Climate Change, Desertification, Land Degradation, Sustainable Land Management, Food Security, and Greenhouse Gas Fluxes in Terrestrial Ecosystems; in press. 2019. Available online: https://www.ipcc.ch/site/assets/uploads/sites/4/2020/08/05_Chapter-2-V3.pdf (accessed on 20 August 2022).
  9. Brebbia, C.A.; Galiano-Garrigos, A. (Eds.) The Sustainable City XI. In Proceedings of the SUSTAINABLE CITY 2016, Alicante, Spain, 12–14 July 2016; WIT Press: Southampton, UK, 2016. [Google Scholar]
  10. Hamin, E.M.; Gurran, N. Urban form and climate change: Balancing adaptation and mitigation in the U.S. and Australia. Habitat Int. 2009, 33, 238–245. [Google Scholar] [CrossRef]
  11. Garschagen, M.; Romero-Lankao, P. Exploring the relationships between urbanization trends and climate change vulnerability. Clim. Chang. 2015, 133, 37–52. [Google Scholar] [CrossRef]
  12. Lavell, A.; Oppenheimer, M.; Diop, C.; Hess, J.; Lempert, R.; Li, J.; Muir-Wood, R.; Myeong, S.; Moser, S.; Takeuchi, K. Climate Change: New Dimensions in Disaster Risk, Exposure, Vulnerability, and Resilience: A Special Report of Working Groups I and II of the Intergovernmental Panel on Climate Change (IPCC); Cambridge University Press: Cambridge, UK; New York, NY, USA, 2022; pp. 25–64. Available online: https://www.ipcc.ch/site/assets/uploads/2018/03/SREX-Chap1_FINAL-1.pdf (accessed on 20 May 2022).
  13. Birkmann, J.; Liwenga, E.; Pandey, R.; Boyd, E.; Djalante, R.; Gemenne, F. Poverty, Livelihoods and Sustainable Development: Climate Change 2022: Impacts, Adaptation and Vulnerability. In Contribution of Working Group II to the Sixth Assessment Report of the Intergovernmental Panel on Climate Change; Cambridge University Press: Cambridge, UK; New York, NY, USA, 2022; Available online: https://www.ipcc.ch/report/ar6/wg2/downloads/report/IPCC_AR6_WGII_Chapter08.pdf (accessed on 9 August 2022).
  14. Kreibich, H.; van Loon, A.F.; Schröter, K.; Ward, P.J.; Mazzoleni, M.; Sairam, N.; Abeshu, G.W.; Agafonova, S.; AghaKouchak, A.; Aksoy, H.; et al. The challenge of unprecedented floods and droughts in risk management. Nature 2022, 608, 80–86. [Google Scholar] [CrossRef] [PubMed]
  15. Gencer, E.A. The Interplay between Urban Development, Vulnerability, and Risk Management: A Case Study of the Istanbul Metropolitan Area; Springer: Heidelberg, Germany; New York, NY, USA; Dordrecht, The Netherlands; London, UK, 2013; ISBN 978-3-642-29470-9. [Google Scholar]
  16. Fang, C.; Wang, Y.; Fang, J. A comprehensive assessment of urban vulnerability and its spatial differentiation in China. J. Geogr. Sci. 2016, 26, 153–170. [Google Scholar] [CrossRef]
  17. Solecki, W.; Seto, K.C.; Balk, D.; Bigio, A.; Boone, C.G.; Creutzig, F.; Fragkias, M.; Lwasa, S.; Marcotullio, P.; Romero-Lankao, P.; et al. A conceptual framework for an urban areas typology to integrate climate change mitigation and adaptation. Urban Clim. 2015, 14, 116–137. [Google Scholar] [CrossRef]
  18. Zhou, W.; Huang, G.; Cadenasso, M.L. Does spatial configuration matter? Understanding the effects of land cover pattern on land surface temperature in urban landscapes. Landsc. Urban Plan. 2011, 102, 54–63. [Google Scholar] [CrossRef]
  19. Romero-Lankao, P.; Bulkeley, H.; Pelling, M.; Burch, S.; Gordon, D.J.; Gupta, J.; Johnson, C.; Kurian, P.; Lecavalier, E.; Simon, D.; et al. Urban transformative potential in a changing climate. Nat. Clim. Chang. 2018, 8, 754–756. [Google Scholar] [CrossRef]
  20. Jalalzadeh Fard, B.; Mahmood, R.; Hayes, M.; Rowe, C.; Abadi, A.M.; Shulski, M.; Medcalf, S.; Lookadoo, R.; Bell, J.E. Mapping Heat Vulnerability Index Based on Different Urbanization Levels in Nebraska, USA. Geohealth 2021, 5, e2021GH000478. [Google Scholar] [CrossRef]
  21. Koman, P.D.; Romo, F.; Swinton, P.; Mentz, G.B.; de Majo, R.F.; Sampson, N.R.; Battaglia, M.J.; Hill-Knott, K.; Williams, G.O.; O’Neill, M.S.; et al. MI-Environment: Geospatial patterns and inequality of relative heat stress vulnerability in Michigan. Health Place 2019, 60, 102228. [Google Scholar] [CrossRef]
  22. Burton, C.G. Social Vulnerability and Hurricane Impact Modeling. Nat. Hazards Rev. 2010, 11, 58–68. [Google Scholar] [CrossRef]
  23. Cutter, S.L.; Boruff, B.J.; Shirley, W.L. Social Vulnerability to Environmental Hazards. Soc. Sci. Q. 2003, 84, 242–261. [Google Scholar] [CrossRef]
  24. Fatemi, F.; Ardalan, A.; Aguirre, B.; Mansouri, N.; Mohammadfam, I. Social vulnerability indicators in disasters: Findings from a systematic review. Int. J. Disaster Risk Reduct. 2017, 22, 219–227. [Google Scholar] [CrossRef]
  25. Fekete, A. Validation of a social vulnerability index in context to river-floods in Germany. Nat. Hazards Earth Syst. Sci. 2009, 9, 393–403. [Google Scholar] [CrossRef]
  26. Handayani, W.; Rudiarto, I.; Setyono, J.S.; Chigbu, U.E.; Sukmawati, A.M. Vulnerability assessment: A comparison of three different city sizes in the coastal area of Central Java, Indonesia. Adv. Clim. Chang. Res. 2017, 8, 286–296. [Google Scholar] [CrossRef]
  27. Lee, W.; Choi, M.; Bell, M.L.; Kang, C.; Jang, J.; Song, I.; Kim, Y.-O.; Ebi, K.; Kim, H. Effects of urbanization on vulnerability to heat-related mortality in urban and rural areas in South Korea: A nationwide district-level time-series study. Int. J. Epidemiol. 2022, 51, 111–121. [Google Scholar] [CrossRef]
  28. Aksoy, E.; Gregor, M.; Fons, J.; Garzillo, C.; Cugny-Seguin, M.; Löhnertz, M.; Schröder, C. City typologies of Europe: A tool to support urban sustainability studies and practices. In The Sustainable City XI, Proceedings of the SUSTAINABLE CITY 2016, Alicante, Spain, 12–14 July 2016; Brebbia, C.A., Galiano-Garrigos, A., Eds.; WIT Press: Southampton, UK, 2016; pp. 199–210. [Google Scholar]
  29. Michalczyk, J. Urban Vulnerability Analysis towards Heat Based on the Example of the City Hanover; Institutionelles Repositorium der Leibniz Universität Hannover: Hannover, Germany, 2019; pp. 33–56. [Google Scholar]
  30. Heidari, H.; Arabi, M.; Warziniack, T.; Sharvelle, S. Effects of Urban Development Patterns on Municipal Water Shortage. Front. Water 2021, 3, 694817. [Google Scholar] [CrossRef]
  31. Tsilimigkas, G.; Deligianni, M.; Zerbopoulos, T. Spatial typologies of Greek coastal zones and unregulated Urban growth. J. Coast. Conserv. 2016, 20, 397–408. [Google Scholar] [CrossRef]
  32. Yang, J.; Gong, J.; Tang, W.; Liu, C. Patch-based cellular automata model of urban growth simulation: Integrating feedback between quantitative composition and spatial configuration. Comput. Environ. Urban Syst. 2020, 79, 101402. [Google Scholar] [CrossRef]
  33. Farkas, J.Z.; Hoyk, E.; Rakonczai, J. Geographical analysis of climate vulnerability at a regional scale: The case of the Southern Great Plain in Hungary. Hung. Geogr. Bull. 2017, 66, 129–144. [Google Scholar] [CrossRef] [Green Version]
  34. Soltanifard, H.; Aliabadi, K. Impact of urban spatial configuration on land surface temperature and urban heat islands: A case study of Mashhad, Iran. Theor. Appl. Climatol. 2019, 137, 2889–2903. [Google Scholar] [CrossRef]
  35. Jeddi Farzane, O.; Daryani, S.; Mokhberkia, M.M. Explanation of Urban Development Patterns in Order to Sustainable Development. J. Urban Manag. Energy Sustain. 2019, 2, 55–63. [Google Scholar] [CrossRef]
  36. Frenkel, A.; Ashkenazi, M. Measuring Urban Sprawl: How Can We Deal with It? Environ. Plan. B Plan. Des. 2008, 35, 56–79. [Google Scholar] [CrossRef]
  37. Krafta, R. Urban Convergence: Morphology and Attraction. Environ. Plan. B Plan. Des. 1996, 23, 37–48. [Google Scholar] [CrossRef]
  38. Yue, W.; Liu, X.; Zhou, Y.; Liu, Y. Impacts of urban configuration on urban heat island: An empirical study in China mega-cities. Sci. Total Environ. 2019, 671, 1036–1046. [Google Scholar] [CrossRef]
  39. Phinn, S.; Stanford, M.; Scarth, P.; Murray, A.T.; Shyy, P.T. Monitoring the composition of urban environments based on the vegetation-impervious surface-soil (VIS) model by subpixel analysis techniques. Int. J. Remote Sens. 2002, 23, 4131–4153. [Google Scholar] [CrossRef]
  40. Rashed, T.; Weeks, R.; Roberts, D.; Rogan, J.; Powell, R. Measuring the Physical Composition of Urban Morphology Using Multiple Endmember Spectral Mixture Models. Photogramm. Eng. Remote Sens. 2003, 69, 1011–1020. [Google Scholar] [CrossRef]
  41. Sun, S.; Wang, Z.; Hu, C.; Gao, G. Understanding Climate Hazard Patterns and Urban Adaptation Measures in China. Sustainability 2021, 13, 13886. [Google Scholar] [CrossRef]
  42. Birkmann, J.; Cardona, O.D.; Carreño, M.L.; Barbat, A.H.; Pelling, M.; Schneiderbauer, S.; Kienberger, S.; Keiler, M.; Alexander, D.; Zeil, P.; et al. Framing vulnerability, risk and societal responses: The MOVE framework. Nat. Hazards 2013, 67, 193–211. [Google Scholar] [CrossRef]
  43. Ford, J.D.; Pearce, T.; McDowell, G.; Berrang-Ford, L.; Sayles, J.S.; Belfer, E. Vulnerability and its discontents: The past, present, and future of climate change vulnerability research. Clim. Chang. 2018, 151, 189–203. [Google Scholar] [CrossRef] [Green Version]
  44. Birkmann, J.; Jamshed, A.; McMillan, J.M.; Feldmeyer, D.; Totin, E.; Solecki, W.; Ibrahim, Z.Z.; Roberts, D.; Kerr, R.B.; Poertner, H.-O.; et al. Understanding human vulnerability to climate change: A global perspective on index validation for adaptation planning. Sci. Total Environ. 2022, 803, 150065. [Google Scholar] [CrossRef] [PubMed]
  45. Malakar, K.; Mishra, T. Assessing socio-economic vulnerability to climate change: A city-level index-based approach. Clim. Dev. 2017, 9, 348–363. [Google Scholar] [CrossRef]
  46. Yoon, D.K. Assessment of social vulnerability to natural disasters: A comparative study. Nat. Hazards 2012, 63, 823–843. [Google Scholar] [CrossRef]
  47. IPCC. Annex I: Glossary. In Global Warming of 1.5 °C; IPCC, Ed.; Cambridge University Press: Cambridge, UK, 2022; ISBN 9781009157940. [Google Scholar]
  48. Wisner, B.; Blaikie, P.; Cannon, T.; Davis, I. At Risk: Natural Hazards, People’s Vulnerability and Disasters, 2nd ed.; Routledge Taylor & Francis Group: London, UK, 2003. [Google Scholar]
  49. Jamshed, A.; Birkmann, J.; Feldmeyer, D.; Rana, I.A. A Conceptual Framework to Understand the Dynamics of Rural–Urban Linkages for Rural Flood Vulnerability. Sustainability 2020, 12, 2894. [Google Scholar] [CrossRef]
  50. Jamshed, A.; Rana, I.A.; Birkmann, J.; Nadeem, O. Changes in Vulnerability and Response Capacities of Rural Communities After Extreme Events: Case of Major Floods of 2010 and 2014 in Pakistan. J. Extrem. Events 2017, 4, 1750013. [Google Scholar] [CrossRef]
  51. Birkmann, J.; Mechler, R. Advancing climate adaptation and risk management. New insights, concepts and approaches: What have we learned from the SREX and the AR5 processes? Clim. Chang. 2015, 133, 1–6. [Google Scholar] [CrossRef]
  52. Birkmann, J.; Welle, T. Assessing the risk of loss and damage: Exposure, vulnerability and risk to climate-related hazards for different country classifications. Int. J. Glob. Warm. 2015, 8, 191. [Google Scholar] [CrossRef]
  53. Birkmann, J. (Ed.) Measuring Vulnerability to Natural Hazards: Towards Disaster Resilient Societies; United Nations University Press: Tokyo, Japan, 2006; ISBN 92-808-1135-5. [Google Scholar]
  54. Maharjan, S.K.; Maharjan, K.L.; Tiwari, U.; Sen, N.P. Participatory vulnerability assessment of climate vulnerabilities and impacts in Madi Valley of Chitwan district, Nepal. Cogent Food Agric. 2017, 3, 1310078. [Google Scholar] [CrossRef]
  55. Chrysoulakis, N.; Somarakis, G.; Stagakis, S.; Mitraka, Z.; Wong, M.-S.; Ho, H.-C. Monitoring and Evaluating Nature-Based Solutions Implementation in Urban Areas by Means of Earth Observation. Remote Sens. 2021, 13, 1503. [Google Scholar] [CrossRef]
  56. Feldmeyer, D.; Wilden, D.; Kind, C.; Kaiser, T.; Goldschmidt, R.; Diller, C.; Birkmann, J. Indicators for Monitoring Urban Climate Change Resilience and Adaptation. Sustainability 2019, 11, 2931. [Google Scholar] [CrossRef] [Green Version]
  57. Feldmeyer, D.; Birkmann, J.; Welle, T. Development of Human Vulnerability 2012–2017. J. Extrem. Events 2017, 4, 1850005. [Google Scholar] [CrossRef]
  58. Sorg, L.; Medina, N.; Feldmeyer, D.; Sanchez, A.; Vojinovic, Z.; Birkmann, J.; Marchese, A. Capturing the multifaceted phenomena of socioeconomic vulnerability. Nat. Hazards 2018, 92, 257–282. [Google Scholar] [CrossRef]
  59. Somarakis, G.; Stagakis, S.; Chrysoulakis, N. ThinkNature/Nature-Based Solutions Handbook; European Union. 2019. Available online: https://www.researchgate.net/publication/361888678_NATURE-BASED_SOLUTIONS_HANDBOOK (accessed on 20 August 2022).
  60. Stewart, I.D.; Oke, T.R. Local Climate Zones for Urban Temperature Studies. Bull. Am. Meteorol. Soc. 2012, 93, 1879–1900. [Google Scholar] [CrossRef]
  61. Wendnagel-Beck, A.; Ravan, M.; Iqbal, N.; Birkmann, J.; Somarakis, G.; Hertwig, D.; Chrysoulakis, N.; Grimmond, S. Characterizing Physical and Social Compositions of Cities to Inform Climate Adaptation: Case Studies in Germany. Urban Plan. 2021, 6, 321–337. [Google Scholar] [CrossRef]
  62. McGranahan, G.; Balk, D.; Anderson, B. The rising tide: Assessing the risks of climate change and human settlements in low elevation coastal zones. Environ. Urban. 2007, 19, 17–37. [Google Scholar] [CrossRef]
  63. de Sherbinin, A.; Schiller, A.; Pulsipher, A. The vulnerability of global cities to climate hazards. Environ. Urban. 2007, 19, 39–64. [Google Scholar] [CrossRef]
  64. Abebe, F.K. Modelling Informal Settlement Growth in Dar es Salaam, Tanzania; University of Twente: Enschede, The Netherlands, 2011. [Google Scholar]
  65. Wekesa, B.W.; Steyn, G.S.; Otieno, F. A review of physical and socio-economic characteristics and intervention approaches of informal settlements. Habitat Int. 2011, 35, 238–245. [Google Scholar] [CrossRef]
  66. Kisingo, A.; Muabsa, E.N. (Eds.) Impacts of Landuses on Diversity and Abundance of Avifauna in a Wetland: A Case of Lake Natron Basin. In Proceedings of the Sixth TAWIRI Scientific Conference, Arusha, Tanzania, 3–6 December 2007; Available online: https://www.researchgate.net/publication/299538108_Impacts_of_landuses_on_diversity_and_abundance_of_avifauna_in_a_wetland_A_case_of_Lake_Natron_basin (accessed on 20 August 2022).
  67. Government of Pakistan, Pakistan Demographic Survey, Ministry of Planning, Development and Special Initiatives, Pakistan Bureau of Statistics. Annu. Rep. 2022. Available online: https://www.pbs.gov.pk/publication/report-key-findings-pakistan-demographic-survey-2020 (accessed on 12 May 2022).
  68. Groote, P. Urban Planning in Lahore: A Confrontation with Real Development; Vakgroep Sociale en Economische Geografie: Groningen, The Netherlands, 1989; ISBN 903670183X. [Google Scholar]
  69. Rana, I.A.; Bhatti, S.S. Lahore, Pakistan—Urbanization challenges and opportunities. Cities 2018, 72, 348–355. [Google Scholar] [CrossRef]
  70. The Urban Unit. Punjab Cities Growth Atlas 1995–2015. 2018. Available online: https://urbanunit.gov.pk/UrbanAtlasCity/index.html#p=1 (accessed on 12 May 2022).
  71. Pakistan Meteorological Department. Annual Report 2020. Available online: https://www.pmd.gov.pk/meteorogram/punjab.php?district=Lahore&division=Lahore (accessed on 13 May 2022).
  72. CNN. Climate Change Is Making Record Heatwaves in India and Pakistan 100 Times More Likely. Available online: https://edition.cnn.com/2022/05/18/asia/climate-india-pakistan-heatwave-intl/index.html (accessed on 30 May 2022).
  73. Justin Rowlatt. Climate Change Swells Odds of Record India, Pakistan Heatwaves. BBC News, 18 May 2022. Available online: https://www.bbc.com/news/science-environment-61484697 (accessed on 30 May 2022).
  74. Zuhra, S.S.; Tabinda, A.B.; Yasar, A. Appraisal of the heat vulnerability index in Punjab: A case study of spatial pattern for exposure, sensitivity, and adaptive capacity in megacity Lahore, Pakistan. Int. J. Biometeorol. 2019, 63, 1669–1682. [Google Scholar] [CrossRef]
  75. The Guardian. We Are Living in Hell: Pakistan and India Suffer Extreme Spring Heatwaves. The Guardian, 5 February 2022. Available online: https://www.theguardian.com/world/2022/may/02/pakistan-india-heatwaves-water-electricity-shortages (accessed on 30 May 2022).
  76. Jiao, J.; Rollo, J.; Fu, B. The Hidden Characteristics of Land-Use Mix Indices: An Overview and Validity Analysis Based on the Land Use in Melbourne, Australia. Sustainability 2021, 13, 1898. [Google Scholar] [CrossRef]
  77. Song, Y.; Merlin, L.; Rodriguez, D. Comparing measures of urban land use mix. Comput. Environ. Urban Syst. 2013, 42, 1–13. [Google Scholar] [CrossRef]
  78. Im, H.N.; Choi, C.G. The hidden side of the entropy-based land-use mix index: Clarifying the relationship between pedestrian volume and land-use mix. Urban Stud. 2019, 56, 1865–1881. [Google Scholar] [CrossRef]
  79. Turner, M.G.; Gardner, R.H. Landscape Ecology in Theory and Practice; Springer: New York, NY, USA, 2015; ISBN 978-1-4939-2793-7. [Google Scholar]
  80. Yang, X.; Liu, S.; Jia, C.; Liu, Y.; Yu, C. Vulnerability assessment and management planning for the ecological environment in urban wetlands. J. Environ. Manag. 2021, 298, 113540. [Google Scholar] [CrossRef] [PubMed]
  81. Sandholz, S.; Sett, D.; Greco, A.; Wannewitz, M.; Garschagen, M. Rethinking urban heat stress: Assessing risk and adaptation options across socioeconomic groups in Bonn, Germany. Urban Clim. 2021, 37, 100857. [Google Scholar] [CrossRef]
  82. Conlon, K.C.; Mallen, E.; Gronlund, C.J.; Berrocal, V.J.; Larsen, L.; O’Neill, M.S. Mapping Human Vulnerability to Extreme Heat: A Critical Assessment of Heat Vulnerability Indices Created Using Principal Components Analysis. Environ. Health Perspect. 2020, 128, 97001. [Google Scholar] [CrossRef]
  83. Xu, L.; Cui, S.; Tang, J.; Nguyen, M.; Liu, J.; Zhao, Y. Assessing the adaptive capacity of urban form to climate stress: A case study on an urban heat island. Environ. Res. Lett. 2019, 14, 44013. [Google Scholar] [CrossRef]
  84. Li, Y.; Schubert, S.; Kropp, J.P.; Rybski, D. On the influence of density and morphology on the Urban Heat Island intensity. Nat. Commun. 2020, 11, 2647. [Google Scholar] [CrossRef]
  85. Yang, X.S. Nature-Inspired Optimization Algorithms; Elsevier: Amsterdam, The Netherlands, 2014; ISBN 9780124167438. [Google Scholar]
  86. Spielman, S.E.; Tuccillo, J.; Folch, D.C.; Schweikert, A.; Davies, R.; Wood, N.; Tate, E. Evaluating social vulnerability indicators: Criteria and their application to the Social Vulnerability Index. Nat. Hazards 2020, 100, 417–436. [Google Scholar] [CrossRef]
  87. Zhou, B.; Rybski, D.; Kropp, J.P. The role of city size and urban form in the surface urban heat island. Sci. Rep. 2017, 7, 4791. [Google Scholar] [CrossRef]
  88. Bek, M.A.; Azmy, N.; Elkafrawy, S. The effect of undeveloped growth of urban areas on heat island phenomena. Ain Shams Eng. J. 2018, 9, 3169–3177. [Google Scholar] [CrossRef]
  89. Mills, E. Insurance in a climate of change. Science 2005, 309, 1040–1044. [Google Scholar] [CrossRef]
  90. Yang, X.-S. Multi-Objective Optimization. In Nature-Inspired Optimization Algorithms; Elsevier: Amsterdam, The Netherlands, 2014; pp. 197–211. [Google Scholar]
  91. Wang, Y.; Li, X.; Li, J.; Huang, Z.; Xiao, R. Impact of Rapid Urbanization on Vulnerability of Land System from Complex Networks View: A Methodological Approach. Complexity 2018, 2018, 1–18. [Google Scholar] [CrossRef]
  92. Pouriyeh, A.; Lotfi, F.H.; Pirasteh, S. Vulnerability Assessment and Modelling of Urban Growth Using Data Envelopment Analysis. J. Indian Soc. Remote Sens. 2021, 49, 259–273. [Google Scholar] [CrossRef]
  93. Rinner, C.; Patychuk, D.; Bassil, K.; Nasr, S.; Gower, S.; Campbell, M. The Role of Maps in Neighborhood-level Heat Vulnerability Assessment for the City of Toronto. Cartogr. Geogr. Inf. Sci. 2010, 37, 31–44. [Google Scholar] [CrossRef]
  94. Kim, S.; Ryu, Y. Describing the spatial patterns of heat vulnerability from urban design perspectives. Int. J. Sustain. Dev. World Ecol. 2015, 22, 189–200. [Google Scholar] [CrossRef]
  95. Hassanien Al-Sayed, S. The role of strategic planning in Spatial Competing between developed and undeveloped urban areas (Case study: Urban Areas of Greater Cairo). JES. J. Eng. Sci. 2021, 49, 850–870. [Google Scholar] [CrossRef]
  96. Mahtta, R.; Mahendra, A.; Seto, K.C. Building up or spreading out? Typologies of urban growth across 478 cities of 1 million+. Environ. Res. Lett. 2019, 14, 124077. [Google Scholar] [CrossRef]
  97. Ribeiro, F.L. Undeveloped Urban Development: A Neglected Global Threat. Curr. Urban Stud. 2021, 9, 434–444. [Google Scholar] [CrossRef]
  98. Salas, J.; Yepes, V. Urban vulnerability assessment: Advances from the strategic planning outlook. J. Clean. Prod. 2018, 179, 544–558. [Google Scholar] [CrossRef]
Figure 1. Conceptual framework for schematic analyses of heat vulnerability and urban development typology. Source: Own figure.
Figure 1. Conceptual framework for schematic analyses of heat vulnerability and urban development typology. Source: Own figure.
Sustainability 14 10561 g001
Figure 2. Built-up areas in Lahore between 1995 and 2017. Source: Own figure based on data from The Urban Unit, 2018.
Figure 2. Built-up areas in Lahore between 1995 and 2017. Source: Own figure based on data from The Urban Unit, 2018.
Sustainability 14 10561 g002
Figure 3. Overview of the methodology for the calculation of urban human vulnerability. Source: Own figure.
Figure 3. Overview of the methodology for the calculation of urban human vulnerability. Source: Own figure.
Sustainability 14 10561 g003
Figure 4. Typologies of urban development patterns in Lahore. Source: Own Figure based on data from The Urban Unit and Lahore Development Authority.
Figure 4. Typologies of urban development patterns in Lahore. Source: Own Figure based on data from The Urban Unit and Lahore Development Authority.
Sustainability 14 10561 g004
Figure 5. Map presenting relative human heat vulnerability at union council scale in Lahore (the dotted circles marked with A, B, and C are showing vulnerability hotspots in the city). Source: Own figure.
Figure 5. Map presenting relative human heat vulnerability at union council scale in Lahore (the dotted circles marked with A, B, and C are showing vulnerability hotspots in the city). Source: Own figure.
Sustainability 14 10561 g005
Figure 6. Box plots between human heat vulnerability and typologies of development pattern (settlement area type (A), entropy index (B) and building density (C)). Redline indicates the mean value of the overall vulnerability. Source: Own figure.
Figure 6. Box plots between human heat vulnerability and typologies of development pattern (settlement area type (A), entropy index (B) and building density (C)). Redline indicates the mean value of the overall vulnerability. Source: Own figure.
Sustainability 14 10561 g006
Figure 7. The estimated marginal means of vulnerability (y-axis) for the different development pattern typologies (x-axis) and entropy index (x-axis). Source: Own figure based on categories explained in Section 2.2.
Figure 7. The estimated marginal means of vulnerability (y-axis) for the different development pattern typologies (x-axis) and entropy index (x-axis). Source: Own figure based on categories explained in Section 2.2.
Sustainability 14 10561 g007
Table 1. Indicators used to assess human vulnerability in urban areas, data sources, justification of the indicators, and the transformation method used.
Table 1. Indicators used to assess human vulnerability in urban areas, data sources, justification of the indicators, and the transformation method used.
IndicatorSourceExplanation and Relevant StudiesUnit Transformation Method
Susceptibility
Age group < 5 and >65Population censusPeople aged between 0 to 4 years and above 65 years is an important vulnerability determinant concerning weather-related stresses [20,29,81].Inhabitants Min–max normalization
Pre-existing illnessRolling plan of the health departmentPopulations with existing health issues are more susceptible to heat stress [74,82,84].Percentage Scaled 0 to 1
Household IncomeLahore Urban Transport Master PlanRelative poverty causes social exclusion and increases an individual’s susceptibility [85]Average Min–max normalization
Education levelMultiple indicators cluster survey (MICS)A lower education level closely correlates with the individual’s ability to comprehend climate hazards [20,74,86].Percentage Scaled 0 to 1
Household sizeMICSThe larger the family size, the more people are vulnerable to heat stress [20,74].Percentage Scaled 0 to 1
Coping and adaptive capacity
Ownership statusMICSPeople who own a house and other assets have more ability to adapt [87,88].PercentageScaled 0 to 1
Access to hospitalsMICS Access to healthcare is another factor that determines the copying capacity of individuals to heat events [20].Percentage Scaled 0 to 1
Access to greenLandsat 8The density of green spaces on a patch of land is important to describe the capacity of people that can withstand extreme heating events [29,74]−1 to +1Min–max normalization
Access to waterLandsat 8A water body tends to have low radiation and strong absorption; therefore, it significantly reduces the heat stress [20,29].−1 to +1 Min–max normalization
Access to electricityMICSThe access to electricity can increase an individual’s capacity to cope with heat stress [20,86].Percentage Scaled 0 to 1
Access to an improved water sourceMICSThe access to improved water supply can be helpful to minimize the effects of heat-related events [20,29,86].Percentage Scaled 0 to 1
Access to informationMICSThe access of households to electronic or print media is an important determinant while quantifying heat-relevant coping capacity [34,81].Percentage Scaled 0 to 1
Use of air conditioning MICSAir conditioning is a spontaneous coping-related measure for rising temperatures [27,38].Percentage Scaled 0 to 1
Insurance coverageMICSBy dealing with the effects of heat stress, insurance coverages can provide financial security [86,89].Percentage Scaled 0 to 1
Table 2. The influence of typologies of development patterns on the human heat vulnerability in Lahore.
Table 2. The influence of typologies of development patterns on the human heat vulnerability in Lahore.
Dependent Variable: Human Heat Vulnerability
SourceSum of SquaresDegree of Freedom (df)Mean SquareFSignificance (p)
Corrected model3.375 a.220.1533.565<0.001
Intercept23.676123.676550.196<0.001
Settlement area type1.53520.76817.841<0.001
Building density0.11220.0561.2960.277
ENT0.49220.2465.7210.004
Settlement area type * Building density0.48730.1623.7710.012
Settlement type * ENT0.27540.0691.5960.179
Building density * ENT0.12040.0300.6960.596
Settlement area type * Building density * ENT0.26050.0521.2090.309
Error5.5081280.043
Total56.870152
Corrected total8.883150
a. R squared = 0.380 (adjusted R squared = 0.273). * sign is presenting the interaction effect of different typologies of urban development pattern.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Iqbal, N.; Ravan, M.; Jamshed, A.; Birkmann, J.; Somarakis, G.; Mitraka, Z.; Chrysoulakis, N. Linkages between Typologies of Existing Urban Development Patterns and Human Vulnerability to Heat Stress in Lahore. Sustainability 2022, 14, 10561. https://doi.org/10.3390/su141710561

AMA Style

Iqbal N, Ravan M, Jamshed A, Birkmann J, Somarakis G, Mitraka Z, Chrysoulakis N. Linkages between Typologies of Existing Urban Development Patterns and Human Vulnerability to Heat Stress in Lahore. Sustainability. 2022; 14(17):10561. https://doi.org/10.3390/su141710561

Chicago/Turabian Style

Iqbal, Nimra, Marvin Ravan, Ali Jamshed, Joern Birkmann, Giorgos Somarakis, Zina Mitraka, and Nektarios Chrysoulakis. 2022. "Linkages between Typologies of Existing Urban Development Patterns and Human Vulnerability to Heat Stress in Lahore" Sustainability 14, no. 17: 10561. https://doi.org/10.3390/su141710561

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
