An Investigation of Compression Bearing Capacity of Concrete-Filled Rectangular Stainless Steel Tubular Columns under Axial Load and Eccentric Axial Load

Abstract

In order to study the compression bearing capacity of concrete-filled rectangular stainless steel tubular columns, the influence of the stainless steel tube thickness, relative eccentricity, and slenderness ratio on the compression bearing capacity is analyzed, and then the calculation formula of compression bearing capacity is proposed. The results show that the finite element model can effectively simulate the compression bearing capacity, the mean of finite element calculations N_ufem to the test N_uexp is 0.985, and the variance is 0.000621. The slenderness ratio and relative eccentricity have a great influence on the load–displacement curves. The thickness of the stainless steel tube has little influence on the load–displacement curves. With the increase in slenderness ratio and relative eccentricity, the compression bearing capacity decreases. With the increase in the slenderness ratio, the failure model of the specimen gradually changes from plastic failure to elastoplastic failure and then elastic failure. When the slenderness ratio is the same, if the relative eccentricity is larger, increasing the thickness of the stainless steel tube will be more effective in improving the compression bearing capacity. When the relative eccentricity is the same, if the slenderness ratio is smaller, increasing the thickness of the stainless steel tube will be more effective for improving the compression bearing capacity. The slenderness ratio and relative eccentricity have a great influence on the longitudinal stress distribution in the cross-section. When the slenderness ratio and relative eccentricity are greater, the longitudinal compressive stress in parts of the cross-section gradually becomes longitudinal tensile stress. The proposed formula can effectively predict the compression bearing capacity of concrete-filled rectangular stainless steel tubular columns. The mean of theoretical calculations to the test and the finite element is 1.054, and the variance is 0.0247.

1. Introduction

Concrete-filled steel tubes are widely used in engineering due to their full use of the strength of their two constituent materials, such as in high-rise buildings, large ocean platforms, and bridge construction. The steel tube of an ordinary concrete-filled steel tube is exposed to the air, and with the progression of time, it is prone to corrosion, especially in the Marine environment, so anti-corrosion treatment of the steel tube is required. Once steel tube corrosion occurs, it will have an adverse impact on its bearing capacity, can reduce the durability of the structure, and will produce high maintenance costs. In order to solve the problem of the corrosion of ordinary steel tubes, scholars at home and abroad have proposed concrete-filled stainless steel tubes. Due to the great difference in mechanical properties between stainless steel tubes and ordinary carbon steel tubes, scholars at home and abroad have carried out a series of studies on the mechanical properties of concrete-filled stainless steel tubular columns, including experiment, finite element method and numerical manifold method [1,2,3,4].

Lam et al. [5] mainly studied the compression bearing capacity of concrete-filled circular stainless steel tubular short columns, the influence of concrete strength on the compression bearing capacity was analyzed, and the continuous strength method, which is applicable for calculating the compression bearing capacity was proposed. Uy et al. [6] mainly studied the behavior of short and slender concrete-filled stainless steel tubular columns with tests, and their results show that all of the codes are somewhat conservative in predicting the load-carrying capacities of both short and slender columns. Ellobody et al. [7,8,9] mainly studied fiber reinforced concrete-filled stainless steel tubular columns through experimental investigation and finite element analysis, and their results show that Eurocode 4 was quite conservative for predicting the ultimate loads of the eccentrically loaded columns, the conservatism of the Eurocode 4 predictions is increased as the eccentricity increases. Tokgoz et al. [10] mainly studied the behavior of plain and steel fiber concrete-filled stainless steel tubular columns under biaxial bending, and axial compression through experimental investigation and the effects of concrete compressive strength, cross-section, load eccentricity, steel fiber material, and slenderness on the behavior of plain and steel fiber concrete-filled stainless steel tubular columns were examined. Hassanein M F et al. [11] mainly studied the flexural buckling of circular concrete-filled stainless steel tubular (CFSST) slender columns through finite element analysis, and the results show that the proposed design model is shown to predict the strengths of CFSST columns well. Refat et al. [12] mainly studied the compressive strengths of stiffened and unstiffened concrete-filled austenitic stainless steel tubular short columns through finite element analysis, and the results show that the Eurocode 4 predictions appear to be suitable for CFSST columns but conservative for concrete-filled stiffened stainless steel hollow tubular (CFSSST) columns. Al-Mekhlafi et al. [13] mainly studied the behavior of eccentrically loaded concrete-filled stainless steel tubular stub columns confined by carbon fiber reinforced polymer (CFRP) composites through experimental investigation and finite element analysis, and the results show that the CFRP wrapping effectively improves the ultimate strength of the CFRP-bonded CFSST stub columns and the analytical axial force-bending moment interaction model provided conservative predictions when compared to the experimental and FE results. Patel et al. [14] mainly studied the compression bearing capacity of concrete-filled circular stainless steel tubular short columns with a nonlinear analysis method, and the results show that the three-stage stress-strain relationship can simulate its axial load-strain behavior. He et al. [15] mainly studied the compression bearing capacity of concrete-filled circular stainless steel tubular short columns; the influence of concrete strength, stainless steel tube size, and compression area were analyzed, and the results show that the compression area and restraint effect coefficient are the key factors affecting its bearing capacity. Tang et al. [16] mainly studied the axial compression bearing capacity of concrete-filled circular stainless steel tubular short column and proposed the calculation formula. Duan et al. [17] mainly studied the axial compression bearing capacity of recycled concrete-filled circular stainless steel tubular short columns with the finite element analysis method, and the results show that the steel ratio has an obvious influence on its bearing capacity. Liao et al. [18] mainly studied the axial compression mechanical properties of concrete-filled circular stainless steel tubular short columns and concrete-filled square stainless steel tubular short columns, the influence of stainless steel tube thickness, section shape, and concrete type on the axial compression performance was analyzed, and the results show that stainless steel tubes have a strong constraint effect and that the calculation of axial compression bearing capacity is conservative. Ding et al. [19] mainly studied the constraint effect of concrete-filled square stainless steel tubular short columns, the results show that the constraint effect of the stainless steel tube on core concrete is stronger than that of an ordinary carbon steel tube, and the superposition method used to calculate its compression bearing capacity has high accuracy. Dai et al. [20] mainly studied the axial compression mechanical performance of concrete-filled square stainless steel tubular short columns, the influence of steel tube thickness and concrete strength on its axial compression mechanical performance was analyzed, and the results show that the steel tube thickness has a great influence on the axial compression bearing capacity and that the calculation methods of bearing capacity in the norm are safe. In addition to the above scholars, some scholars studied the axial compression and eccentrically compression mechanical performance of concrete-filled rectangular stainless steel tubular short columns and the axial compression mechanical performance of compound concrete-filled stainless steel tubular short columns [21,22,23,24].

From the above research, it can be seen that the research on the mechanical performance of concrete-filled rectangular stainless steel tubular columns is less common and mainly focuses on the mechanical properties of short columns and the axial compression performance. When a concrete-filled rectangular stainless steel tubular column is applied in practical engineering, in addition to the axial load, there is also the eccentric axial load. Thus, it is particularly important to study the axial compression and eccentric compression behavior of concrete-filled rectangular stainless steel tubular short and long columns. Based on the experimental research in [21], the compression bearing capacity of rectangular stainless steel tubular concrete columns is studied in depth. Firstly, the influence of stainless steel tube thickness, relative eccentricity, and slenderness ratio on the compression bearing capacity is analyzed. Then, the longitudinal stress distribution of the stainless steel tube and core concrete is further analyzed. Finally, based on the experimental and finite element calculations, the formula of compression bearing capacity considering the effect of slenderness ratio and relative eccentricity is proposed by using theoretical analysis.

2. Experiment Overview

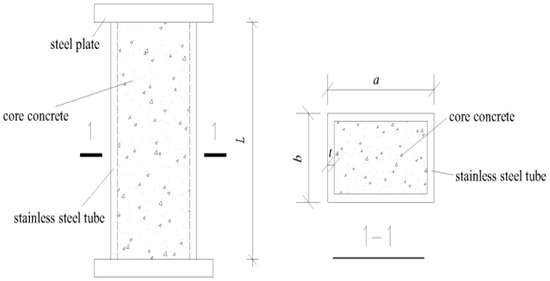

The specimens were designed to mainly consider the influence of section form and steel tube thickness, and a total of 7 specimens were examined [21]. The schematic diagram of a specimen is shown in Figure 1, and the parameters are shown in

Table 1. Parameters of specimens.

Specimen Number	Length of Steel Tube a/mm	Width of Steel Tube b/mm	Thickness of Steel Tube t/mm	Length of Specimen L/mm	Compression Bearing Capacity Nuexp/kN
S1	120	60	4	360	1261
S2	120	60	5	360	1632
S3	120	80	4	360	1362
S4	120	80	5	360	1732
S5	120	120	4	360	1814
S6	120	120	5	360	2224
S7	120	120	6	360	2913

. The steel plates are welded with the outer stainless steel tube. The steel tubes of specimens were austenitic 304 seamless stainless steel tubes with thicknesses 4 mm, 5 mm, and 6 mm, and the average yield strength f_y was 534.3 MPa, 572.3 MPa, and 598.0 MPa, respectively. The core concrete in specimens was C40, the average cubic compressive strength f_cu was 43.96 MPa, and the axial compressive strength f_c was 29.48 MPa. The Eurocode 4, Eurocode 3, and Chinese code [25,26,27,28,29,30] were followed.

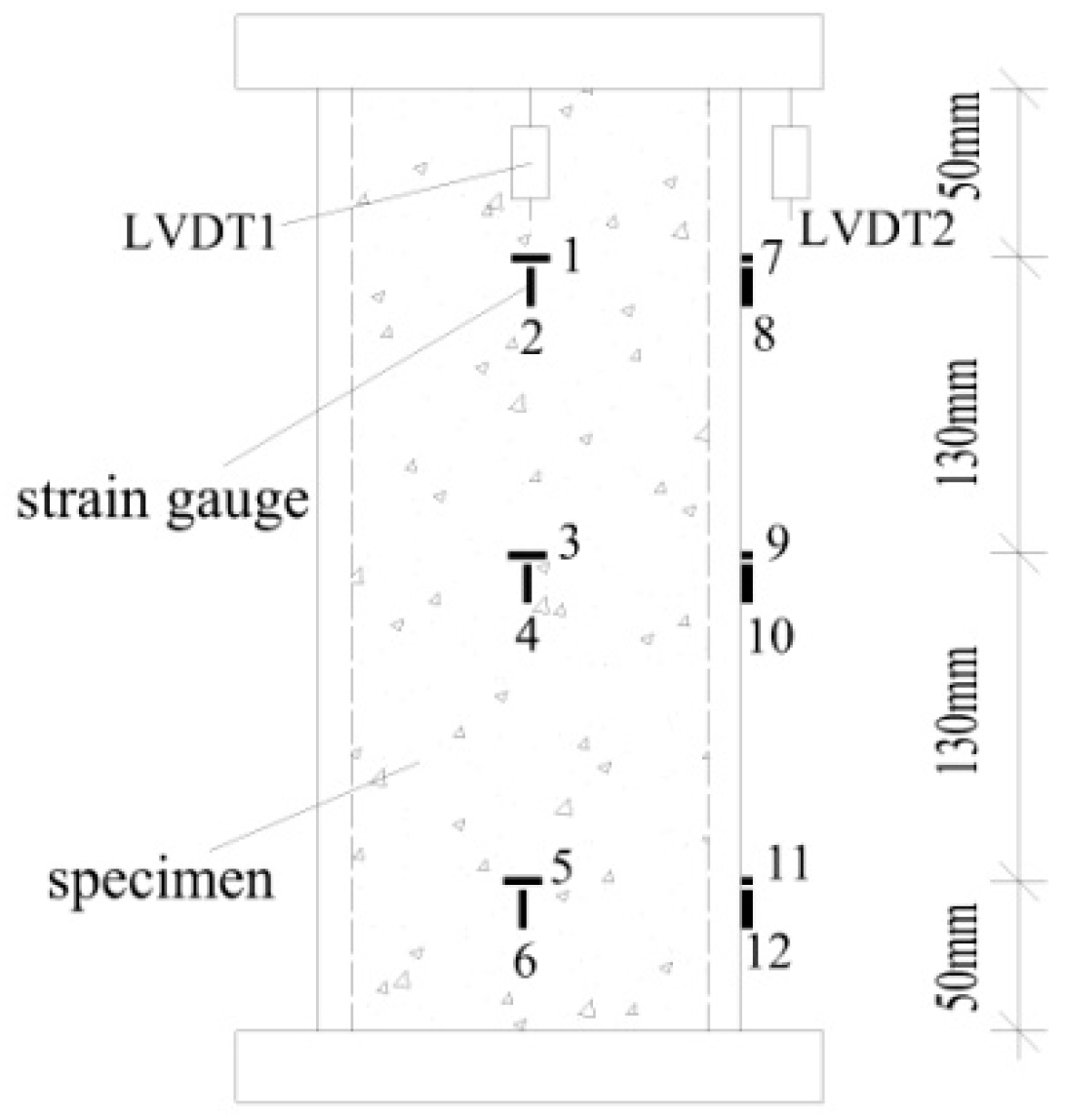

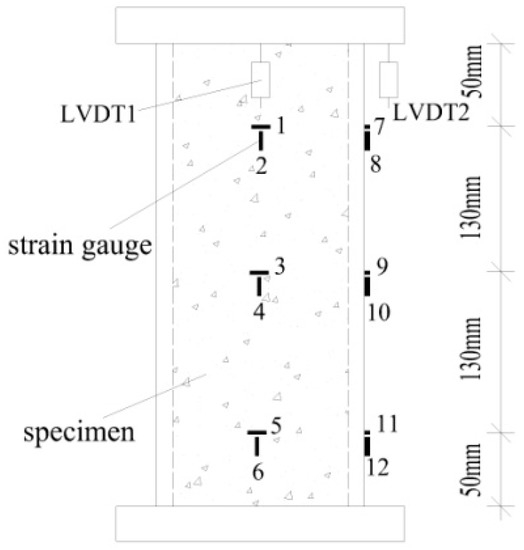

The test used a 300-ton electrohydraulic servo-long-column press machine with a displacement-controlled loading rate of 0.01 mm/s. A total of 2 LVDT displacement meters were arranged on the top of the two adjacent sides of the specimen to measure the axial deformation of the specimen, and 12 strain gauges were arranged on the upper, middle, and lower parts of the two adjacent sides of the specimen to measure the longitudinal and hoop strain of the specimen. The arrangement of strain gauges and LVDT displacement meters is shown in Figure 2. The test was terminated if the load dropped to 75% of the peak load or the axial displacement of the specimen was 5% of the length of the specimen. The Eurocode 4 and Chinese code [25,31] was followed.

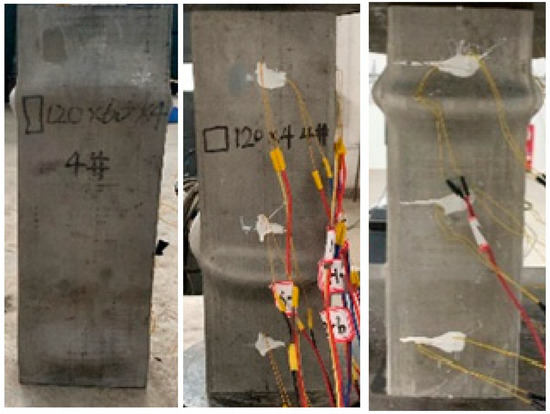

Through the test, the axial compression bearing capacity and the typical failure mode of specimens were obtained. The axial compression bearing capacity is shown in Table 1, and the typical failure mode is shown in Figure 3. It can be seen from Figure 3 that the typical failure mode of rectangular stainless steel tube concrete short column under axial load is localized outward buckling deformation of the specimens. The stainless steel tube was subjected to both vertical stress and hoop stress, and the hoop stress mainly came from the transverse deformation of core concrete.

3. Finite Element Analysis

3.1. Finite Element Model

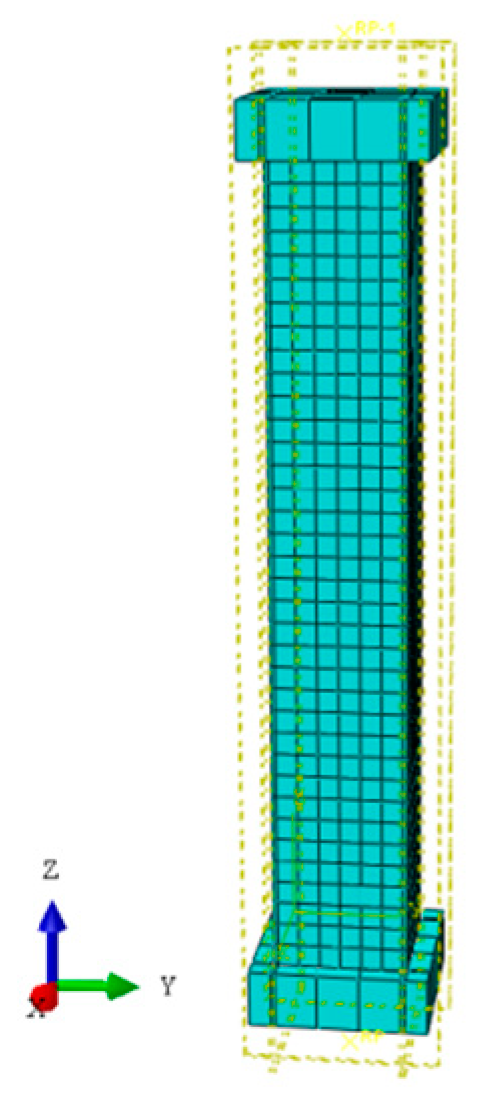

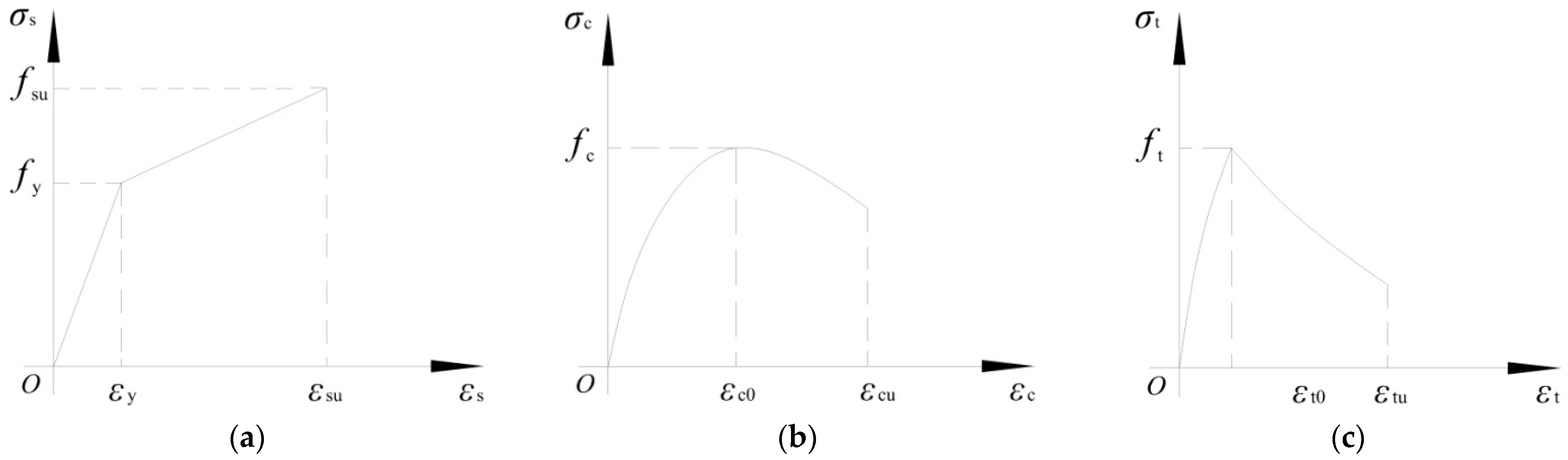

The finite element program ABAQUS was used to numerically simulate the specimens. The 3D solid element was used to simulate stainless steel tube, core concrete, and steel plate, and the type of element is C3D8I (An 8-node linear brick with incompatible modes). The plastic model was used to simulate the constitutive relation of the stainless steel tubes, and the stress-strain curve is a bi-fold line model. The concrete damage plasticity model is used to simulate the constitutive relation of the core concrete, and the compression and tensile stress-strain relation is a bi-curve model [32]. The constitutive models of stainless steel and core concrete are shown in Figure 4. The interactions between the steel plate and the main body were identified as “Tie”. Face–face interaction is used between the stainless steel tube and core concrete, and the friction coefficient is 0.25 [2]. The steel plate at each end of specimens was coupled to reference points RP1 and RP2, respectively. The freedom of longitudinal displacement was released at the reference point RP1 at the upper steel plate, and the freedoms in other directions were all constrained. All DOFs of the reference point RP2 at the lower steel plate were constrained and set to the fully constrained end. Displacement-controlled loading was used in finite element analysis. In order to ensure the calculation accuracy and reduce the computational time, the approximate mesh size of the stainless steel tube was 20 mm, and the core concrete was 15 mm. The initial imperfections and residual stress were ignored when using the finite element model to simulate the specimens [1]. The finite element model is shown in Figure 5, and the finite element model parameters are shown in

Table 2. Parameters of finite element models.

Finite Element Model Type	Length of Steel Tube a/mm	Width of Steel Tube b/mm	Thickness of Steel Tube t/mm	Yield Strength of Steel Tube fy/MPa	Axial Compressive Strength of Concrete fc/MPa	Slenderness Ratio λ	Relative Eccentricity e
FEM 1	120	60	4	534.3	29.48	6~48	0~2.667
FEM 2	120	60	5	572.3	29.48	6~48	0~2.667
FEM 3	120	80	4	534.3	29.48	6~48	0~2
FEM 4	120	80	5	572.3	29.48	6~48	0~2
FEM 5	120	120	4	534.3	29.48	3~96	0~1.333
FEM 6	120	120	5	572.3	29.48	3~48	0~1.333
FEM 7	120	120	6	598.0	29.48	3~48	0~1.333

.

3.2. Finite Element Model Verification

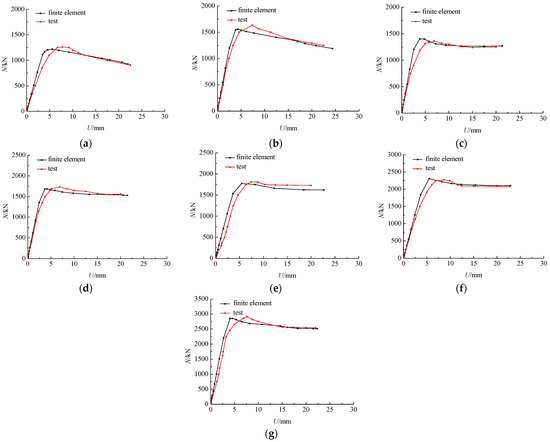

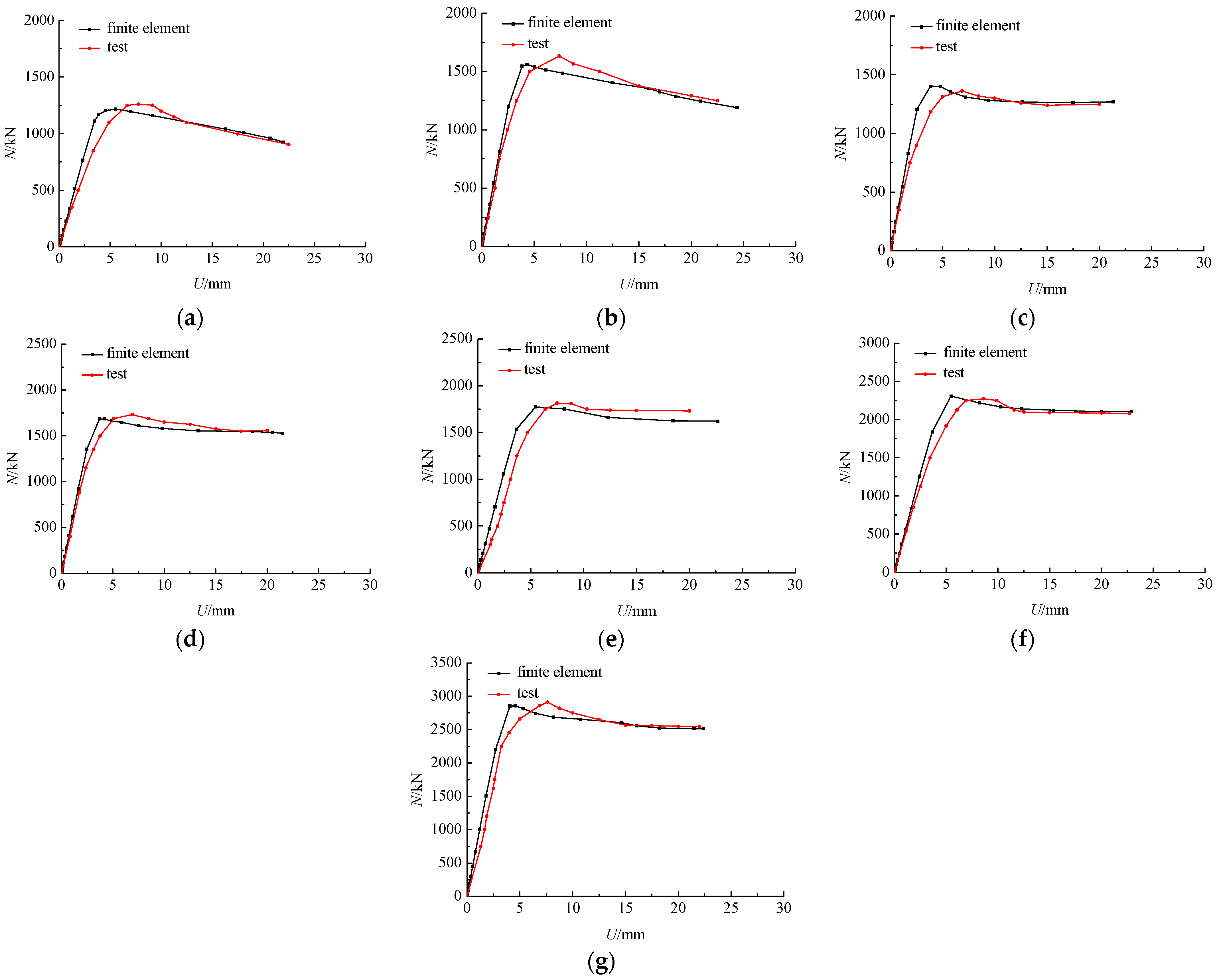

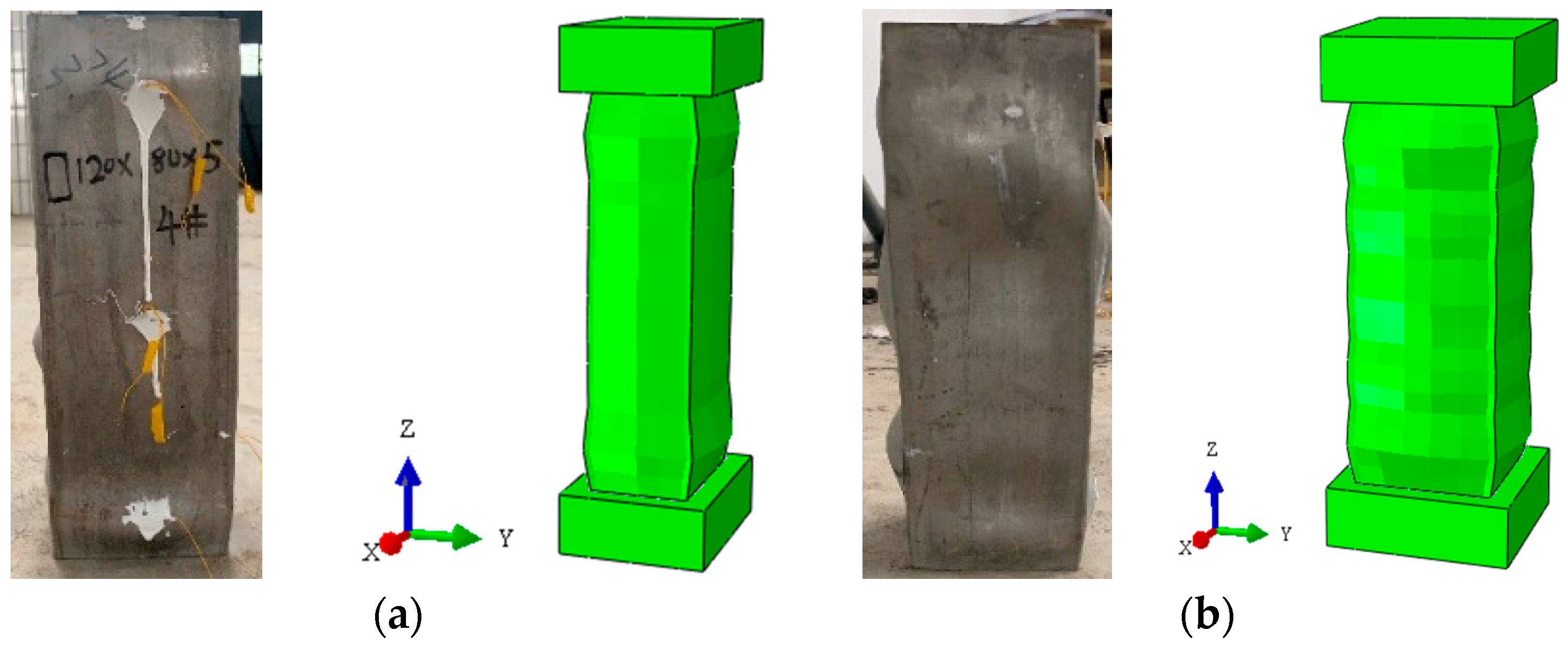

In order to verify the FEM, seven test specimens in [21] were simulated, and the typical failure mode and load–displacement curves of FEM were compared with the test, which are shown in Figure 6 and Figure 7. It can be seen from Figure 6a that the ring drum appears at the upper and lower ends for rectangular specimens, which is similar to the test. It can be seen from Figure 6b that the ring drum occurs in the stainless steel tube along the length for square specimens, which is also similar to the test. It can be seen from Figure 7 that the load–displacement curves are mainly divided into a straight ascending segment, a curved ascending segment, and a curved descending segment, which are in good agreement with the test. The mean of finite element calculations N_ufem to the test N_uexp is 0.985, and the variance is 0.000621. Then it also can be seen from Figure 7 that there is a variance between the displacements with peak load by the finite element method and the test, and in the straight ascending segment period, the load by FEM is always greater than the test. It is because the steel tube and concrete poured in the test specimen are uneven, the compactness of the concrete is less than that of the finite element model, and the stiffness of the finite element model is greater than that of the test specimen. Overall, it is effective to use the FEM to calculate the compression bearing capacity of concrete-filled rectangular stainless steel tubular columns.

3.3. Analysis of Finite Element Calculation

In view of the effectiveness of the above finite element model, more parameters of concrete-filled rectangular stainless steel tubular columns were considered, and 337 specimens were calculated. The main parameters are the thickness of the stainless steel tube, the relative eccentricity, and the slenderness ratio, among which the thickness of stainless steel tubes t is 4 mm~6 mm, the relative eccentricity e is 0~2.667, and the slenderness ratio λ is 3~96.

3.3.1. Analysis of Load–Displacement Curves

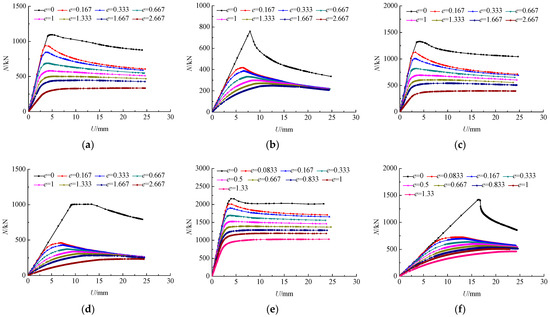

A comparison of the load–displacement curves subject to different parameters is shown in Figure 8, and 120604C40720 indicates that the length of the stainless steel tube a is 120 mm, the width of the stainless steel tube b is 60 mm, the thickness of steel tube t is 4 mm, the concrete strength is C40, and the length of the specimen L is 720 mm. The other parameters are similar and will not be repeated.

It can be seen from Figure 8 that when the thickness of the stainless steel tube and relative eccentricity of the specimen are the same, with an increase in the slenderness ratio, the slope of the ascending segment of the load–displacement curves gradually decreases after reaching the ultimate load, and the compression bearing capacity of specimens decreases more significantly. When the slenderness ratio is the same, with the increase in relative eccentricity, the load–displacement curves gradually change from ascending and descending segments to ascending and approximate horizontal segments. Meanwhile, with the increase in relative eccentricity, the slope of the ascending segment of the load–displacement curves is shallower. When the slenderness ratio and relative eccentricity are the same, the thickness of the stainless steel tube has little influence on the load–displacement curve. It also can be seen from Figure 8 that when the thickness of the steel tube is the same, with the increase in slenderness ratio, the displacement of the specimen is greater when the peak load is reached. When the thickness of the stainless steel tube and slenderness ratio is the same, with an increase in relative eccentricity, the displacement of the specimen is greater when the peak load is reached. When the slenderness ratio and relative eccentricity are the same, with the increase in stainless steel tube thickness, the displacement changes very little when the peak load is reached. This shows that the change in slenderness ratio and relative eccentricity have a greater influence on the change in load–displacement curves.

3.3.2. Analysis of Compression Bearing Capacity

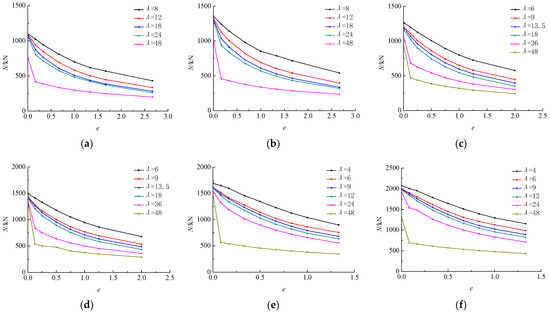

A comparison of the variation of compression bearing capacity with relative eccentricity under different slenderness ratios is shown in Figure 9, and 120604C40 indicates that the length of the stainless steel tube a is 120 mm, the width of the stainless steel tube b is 60 mm, the thickness of the stainless steel tube t is 4 mm, the concrete strength is C40. The other parameters are similar and will not be repeated.

It can be seen from Figure 9a,b that when the specimen is subjected to an axial compression load, the slenderness ratio increases from 8 to 48, and the compression bearing capacity of the specimen decreases by 31.43% and 25.81%, respectively, which shows that, the greater the thickness of the stainless steel tube, the smaller the decrease in the compression bearing capacity. When the specimen is subjected to an eccentric compression load, with the increase in relative eccentricity, the compression bearing capacity shows a decreasing trend under the same slenderness ratio, and the trend is large to small. When the slenderness ratio is eight, the relative eccentricity increases from 0 to 2.67, and the compression bearing capacity decreases by 60.97% and 60.12%, respectively. When the slenderness ratio is 48, the relative eccentricity increases from 0 to 2.67, and the compression bearing capacity decreases by 73.64% and 76.69%, respectively. This indicates that the larger the slenderness ratio and the greater the relative eccentricity, the larger the decrease in the compression bearing capacity. When the relative eccentricity is the same, with the increase in the slenderness ratio, the compression bearing capacity also shows a decreasing trend gradually from large to small to large. For Figure 9a, when the relative eccentricity is one, the slenderness ratio gradually increases from 8 to 48, and the compression bearing capacity decreases by 16.95%, 12.49%, 4.99%and 38.31%, respectively. When the relative eccentricity is 0.167, 1, and 2.67, the slenderness ratio increases from 8 to 48, and the compression bearing capacity decreases by 59.16%, 57.40%, and 53.70%, respectively. For Figure 9b, when the relative eccentricity is one, the slenderness ratio gradually increases from 8 to 48, and the compression bearing capacity decreases by 18.69%, 11.80%, 6.79%, and 40.62%, respectively. When the relative eccentricity is 0.167, 1, and 2.67, the slenderness ratio increases from 8 to 48, and the compression bearing capacity decreases by 63.03%, 60.30%, and 56.63%, respectively.

Comparing Figure 9a,b, when the slenderness ratio is eight and the relative eccentricity is 0.167 and 2.67, respectively, the thickness of the stainless steel tube increases from 4 mm to 5 mm, and the compression bearing capacity increases by 21.29% and 25.11%, respectively. When the slenderness ratio is 48 and the relative eccentricity is 0.167 and 2.67, respectively, the thickness of the stainless steel tube increases from 4 mm to 5 mm, and the compression bearing capacity increases by 9.81% and 17.18%, respectively. This indicates that increasing the thickness of the stainless steel tube is more effective at improving the compression bearing capacity at a larger relative eccentricity. When the relative eccentricity is the same, the smaller the slenderness ratio, the more effective the increase in the thickness of the stainless steel tube is in improving the compression bearing capacity. The thickness of the stainless steel tube has little influence on the variation trend of compression bearing capacity with relative eccentricity under the same slenderness ratio.

It can be seen from Figure 9c,d that when the width of the stainless steel tube b is 80 mm, the variation of the compression bearing capacity with relative eccentricity under different slenderness ratios is similar to that in Figure 8a,b. When the slenderness ratio is six, the relative eccentricity increases from 0 to 2, and the compression bearing capacity decreases by 54.46% and 54.56%, respectively. When the slenderness ratio is 48, the relative eccentricity increases from 0 to 2, and the compression bearing capacity decreases by 74.25% and 78.15%, respectively. Comparing Figure 8c,d, when the slenderness ratio is six and the relative eccentricity is one, the thickness of the stainless steel tube increases from 4 mm to 5 mm, and the compression bearing capacity increases by 18.18%. When the slenderness ratio is 48 and the relative eccentricity is one, the thickness of the stainless steel tube increases from 4 mm to 5 mm, and the compression bearing capacity increases by 17.44%.

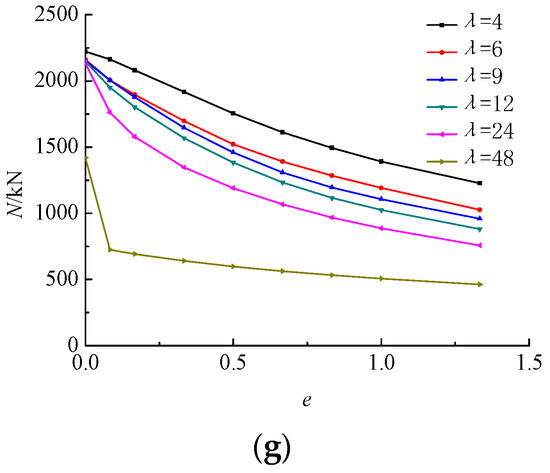

It can be seen from Figure 9e–g that when the width of the stainless steel tube b is 120 mm, the decreasing trend of the compression bearing capacity is reduced; the smaller the slenderness ratio, the smaller the decreasing trend, and the variation is similar to the above. When the slenderness ratio is four, the relative eccentricity increases from 0 to 1.33, and the compression bearing capacity decreases by 47.04%, 44.40%, and 44.78%, respectively. When the slenderness ratio is 48, the relative eccentricity increases from 0 to 1.33, and the compression bearing capacity decreases by 77.06%, 66.90%, and 67.47%, respectively. When the relative eccentricity is 0, the slenderness ratio increases from 4 to 48, and the compression bearing capacity decreases by 11.42%, 36.73%, and 36.08%, respectively. When the relative eccentricity is 1.33, the slenderness ratio increases from 4 to 48, and the compression bearing capacity decreases by 61.64%, 62.33%, and 62.34%, respectively. Comparing Figure 8e–g, when the slenderness ratio is four and the relative eccentricity is one, the thickness of the stainless steel tube increases from 4 mm to 5 mm and then from 5 mm to 6 mm, and the compression bearing capacity increases by 24.61% and 7.41%, respectively. When the slenderness ratio is 48 and the relative eccentricity is one, the thickness of the steel tube increases from 4 mm to 5 mm and then from 5 mm to 6 mm, and the compression bearing capacity increases by 25.56% and 6.05%, respectively.

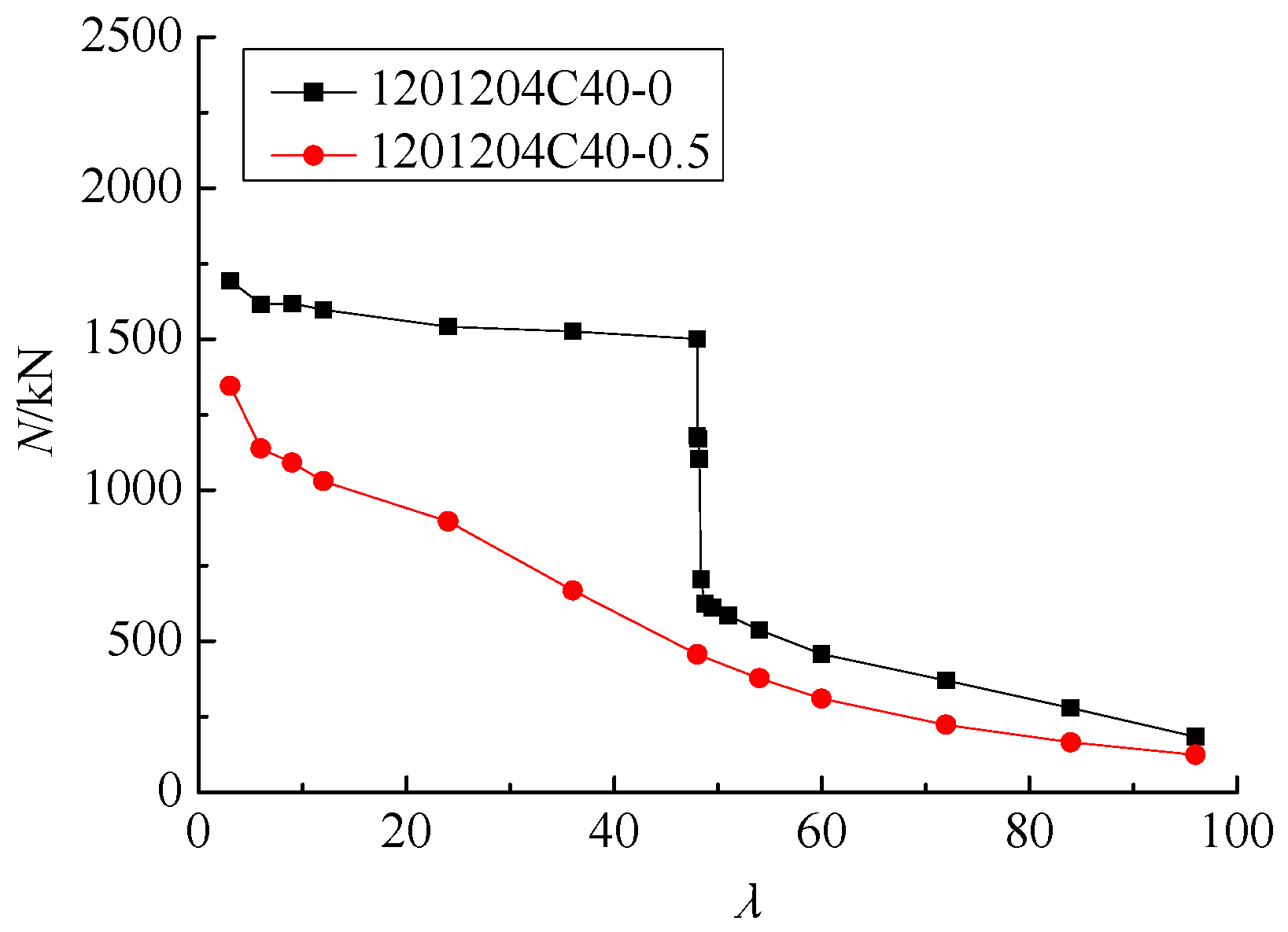

The variation of compression bearing capacity with slenderness ratio under axial compression load and eccentric axial compression load is shown in Figure 10, and 1201204C40-0 indicates that the length of the stainless steel tube a is 120 mm, the width of the stainless steel tube b is 120 mm, the thickness of the stainless steel tube t is 4 mm, the concrete strength is C40, the relative eccentricity e is 0. It can be seen from Figure 10 that the variation of compression bearing capacity with the slenderness ratio under axial compression load is divided into three stages: a shallow slope descent, a steep slope (nearly vertical) descent, and moderate slope descent. When the slenderness ratio is lower than 48, with the increase in slenderness ratio, the compression bearing capacity is reduced to a certain extent, and the reduction trend is relatively gentle. When the slenderness ratio increases from 4 to 48, the compression bearing capacity decreases by 11.42%. When the slenderness ratio exceeds 48, with the increase in slenderness ratio, the compression bearing capacity is greatly reduced; when the slenderness ratio increases from 48 to 48.375, the reduction in the compression bearing capacity reaches 52.97%. When the slenderness ratio exceeds 48.375, with the increase in slenderness ratio, the decreasing trend of compression bearing capacity increases compared with the first stage, and the decreasing trend of the compression bearing capacity decreases significantly compared with the second stage. When the slenderness ratio increases from 48.375 to 96, the compression bearing capacity is reduced by 78.19%. It can also be seen from Figure 10 that the variation of compression bearing capacity with the slenderness ratio under eccentric compression load is obviously different from that under axial compression load. It has only one stage: moderate slope descent. Those show that, with the increase in the slenderness ratio, the failure model of the specimen gradually changes from plastic failure to elastoplastic failure and then elastic failure.

3.3.3. Analysis of Longitudinal Stress Distribution in the Central Cross-Section

• Analysis of longitudinal stress distribution of the stainless steel tubes in the central cross-section

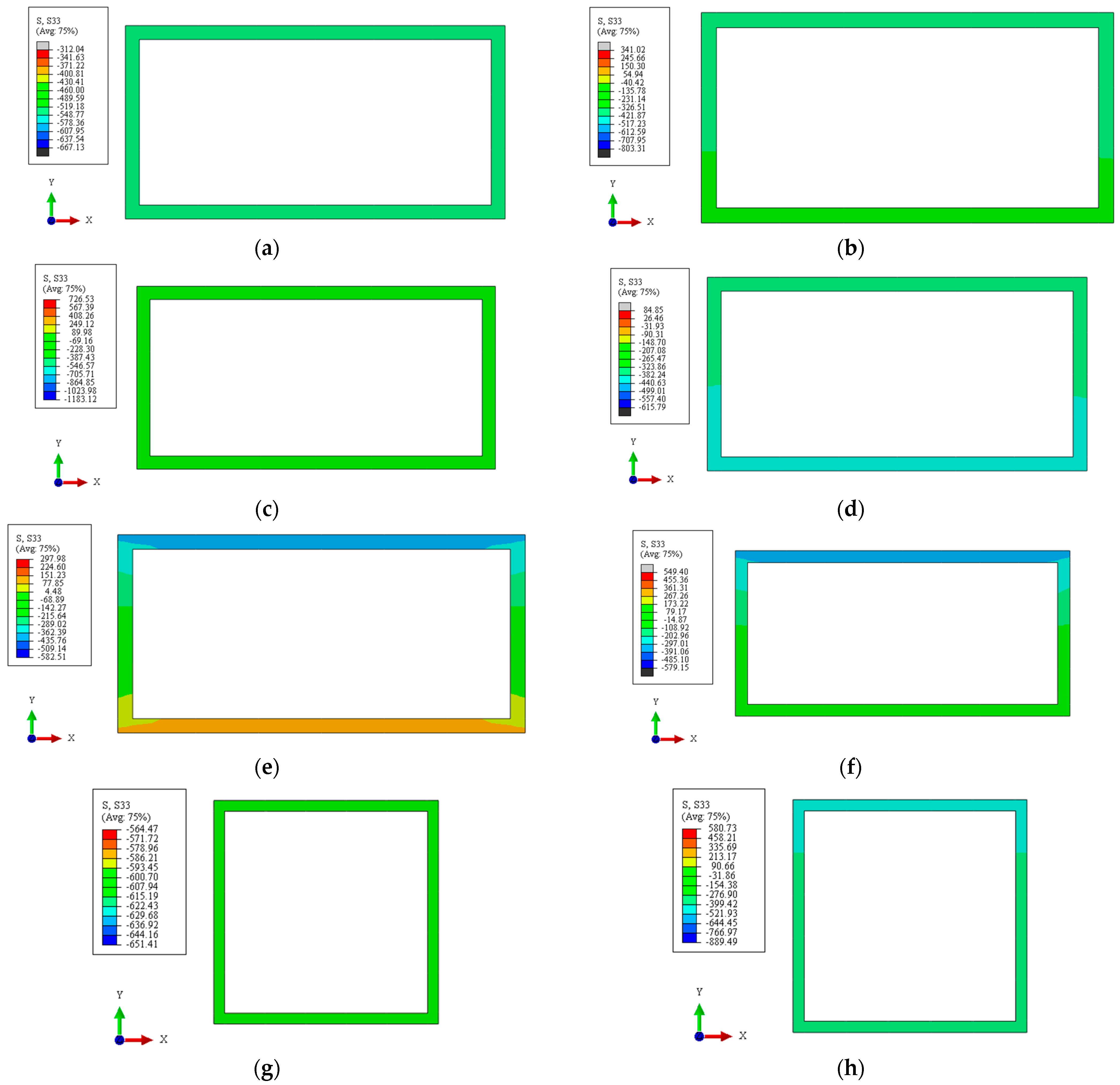

The longitudinal stress distribution of the stainless steel tube in the central cross-section when the ultimate bearing capacity is reached is shown in Figure 11, and 120604C40-0-8 indicates that the length of the stainless steel tube a is 120 mm, the width of the stainless steel tube b is 60 mm, the thickness of the stainless steel tube t is 4 mm, the concrete strength is C40, the relative eccentricity e is 0, the slenderness ratio λ is eight. The other parameters are similar and will not be repeated.

For rectangular specimens, we take specimen 120604C40 as an example. It can be seen from Figure 11a–c that when the specimen is under axial compression load and the slenderness ratio is eight, the longitudinal stress of the stainless steel tube has uniform distribution in the cross-section, and the longitudinal compressive stress exceeds the f_y, which is the yield strength of the stainless steel tube, at up to 1.020 f_y. When the specimen is under an eccentric compression load, the longitudinal stress of the stainless steel tube does not have a uniform distribution in the cross-section. When the relative eccentricity is one, the maximum longitudinal compressive stress and the minimum longitudinal compressive stress of the stainless steel tube are 0.961 f_y and 0.430 f_y, respectively. With the increase in relative eccentricity, the neutralization axis gradually moves upward along the y-axis, and the longitudinal stress in parts of the cross-section gradually changes from compressive stress to tensile stress. When the relative eccentricity is 2.67, the maximum longitudinal compressive stress and the maximum longitudinal tensile stress do not exceed f_y, and the maximum longitudinal compressive stress and the maximum longitudinal tensile stress are 0.72 f_y and 0.463 f_y, respectively.

It can be seen from Figure 11d–f that when the slenderness ratio is 48, the longitudinal stress of the stainless steel tube is not uniformly distributed in the cross-section regardless of the axial compression state or eccentric compression state. With the increase in relative eccentricity, the neutralization axis gradually moves upward along the y-axis, and the upward displacement of the neutralization axis is significantly greater than that when the slenderness ratio is eight. Meanwhile, the tensile stress occurs in parts of the cross-section. When the relative eccentricity is 0, the maximum longitudinal compressive stress and minimum longitudinal compressive stress do not exceed f_y and are 0.819 f_y and 0.602 f_y, respectively. When the relative eccentricity is one, the longitudinal stress of the stainless steel tube is divided into compressive stress and tensile stress on the cross-section, and the maximum longitudinal compressive stress and the maximum longitudinal tensile stress do not exceed f_y, at 0.810 f_y and 0.281 f_y, respectively. When the relative eccentricity is 2.67, the maximum longitudinal compressive stress and the maximum longitudinal tensile stress of the stainless steel tube are 0.727 f_y and 0.497 f_y, respectively.

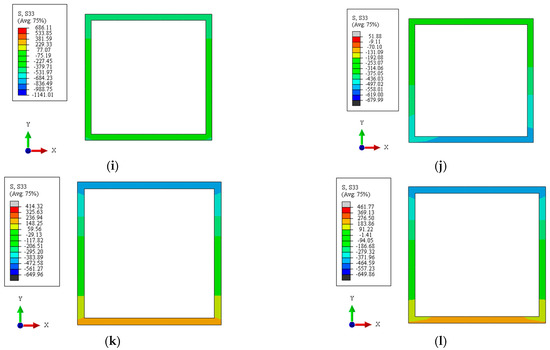

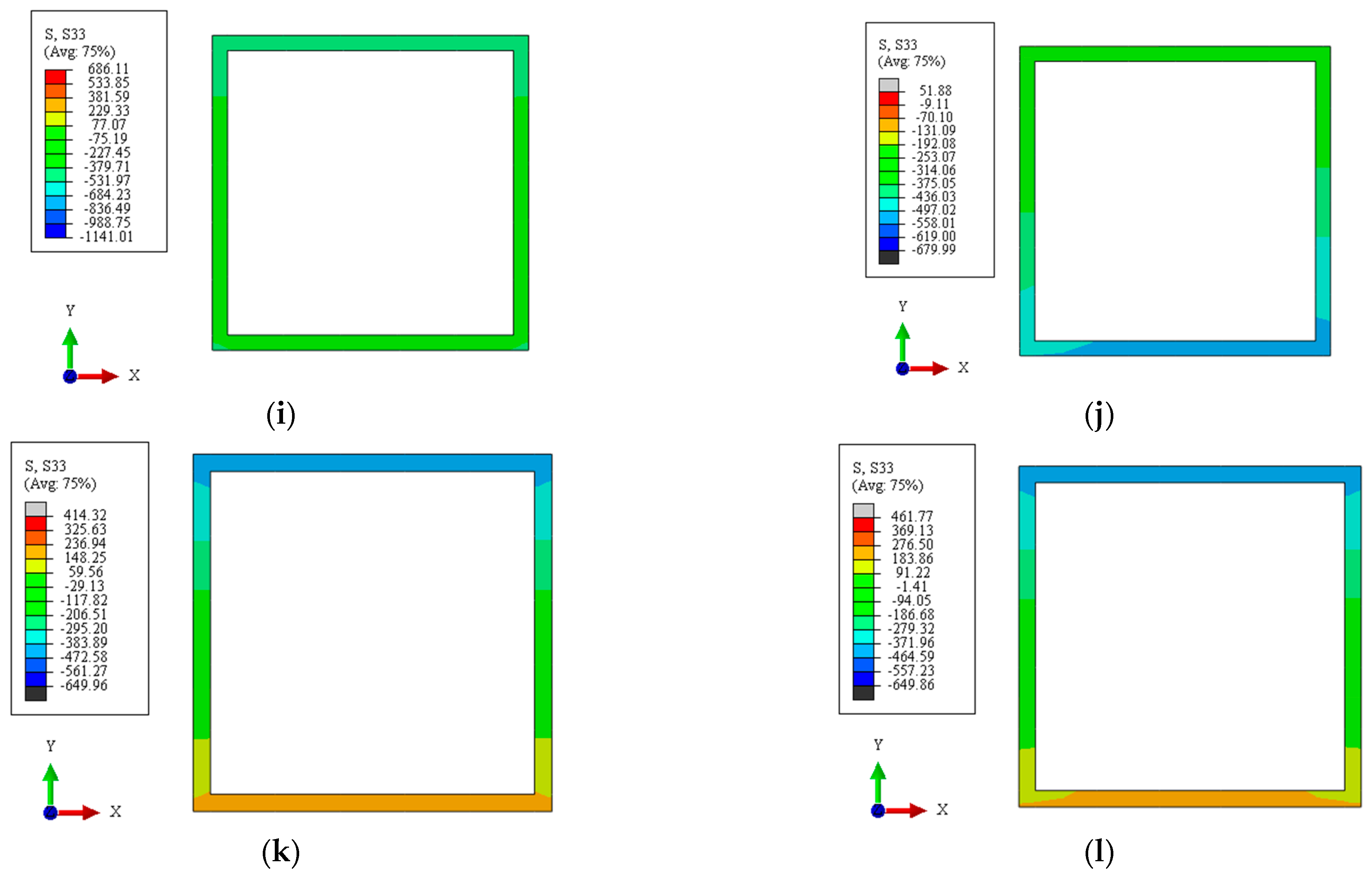

For square specimens, we take specimen 1201206C40 as an example. It can be seen from Figure 11g–i that when the specimen is under axial compression load, and the slenderness ratio is 4, the longitudinal stress of the stainless steel tube is relatively uniformly distributed in the cross-section, and the longitudinal compressive stress is 1.029 f_y. When the specimen is under an eccentric compression load, the longitudinal stress of the stainless steel tube in the cross-section is not uniformly distributed. With the increase in relative eccentricity, the longitudinal stress in parts of the cross-section changes from compressive stress to tensile stress. When the relative eccentricity is one, the maximum longitudinal compressive stress and the minimum longitudinal compressive stress of the stainless steel tube are 1.078 f_y and 0.258 f_y, respectively. When the relative eccentricity is 1.33, the maximum longitudinal compressive stress and the maximum longitudinal tensile stress of the stainless steel tube are 0.890 f_y and 0.129 f_y, respectively.

It can be seen from Figure 11j–l that when the slenderness ratio is 48, the longitudinal stress of the stainless steel tube is not uniformly distributed in the cross-section. When the relative eccentricity is 0, the maximum longitudinal compressive stress and the minimum longitudinal compressive stress of the stainless steel tube are 0.831 f_y and 0.321 f_y, respectively. When the relative eccentricity is one, the maximum longitudinal compressive stress and the maximum longitudinal tensile stresses of the stainless steel tube are 0.642 f_y and 0.496 f_y, respectively. When the relative eccentricity is one, the maximum longitudinal compressive stress and the maximum longitudinal tensile stresses of the stainless steel tube are 0.622 f_y and 0.462 f_y, respectively.

2.

Analysis of longitudinal stress distribution of core concrete in the central cross-section

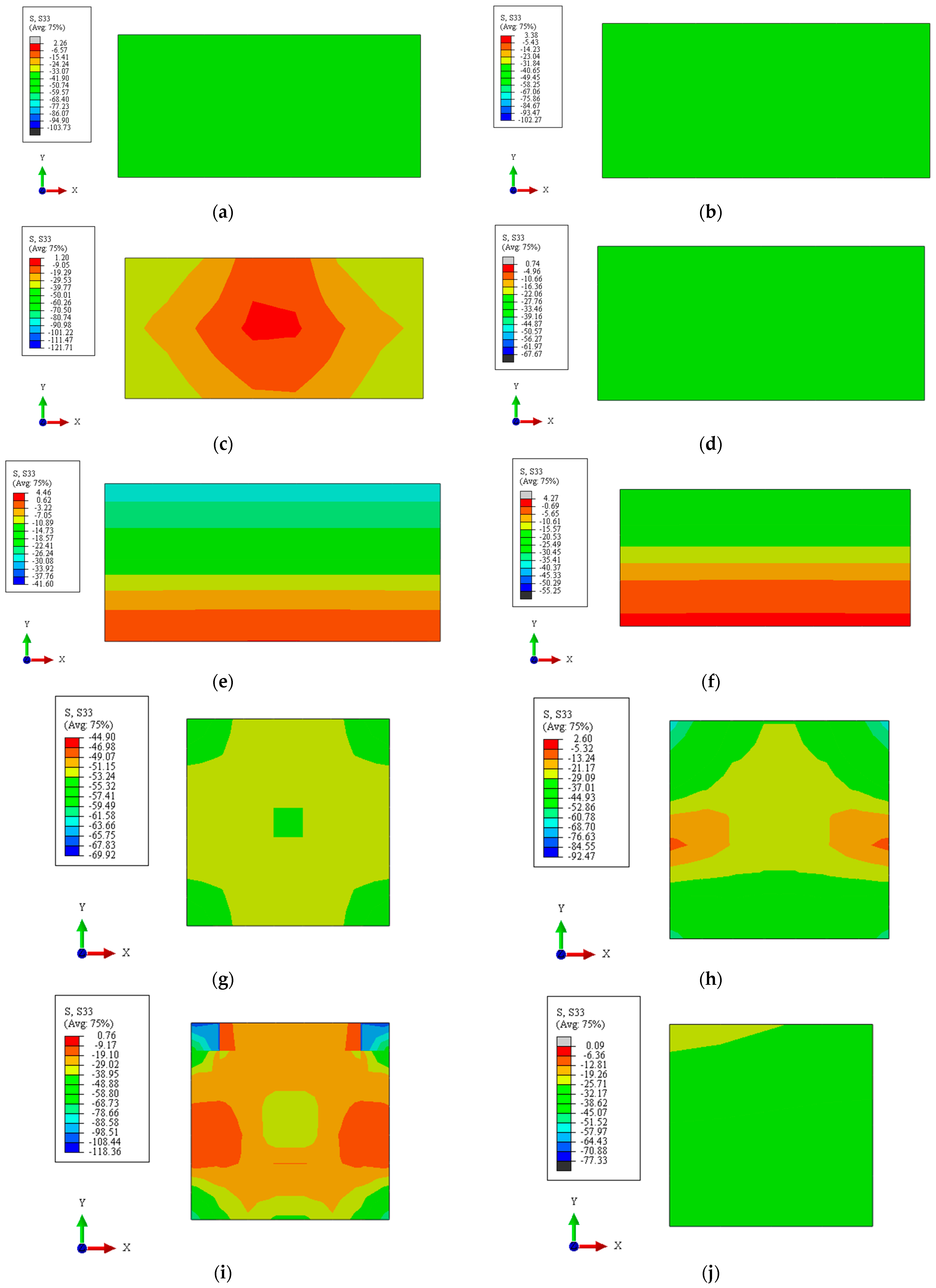

The longitudinal stress distribution of core concrete in the central cross-section when the ultimate bearing capacity is reached is shown in Figure 12. As can be seen from Figure 12a–c, when the specimen is under axial compression load and the slenderness ratio is eight, the longitudinal stress distribution of the core concrete also has a uniform distribution. However, with the increase in relative eccentricity, the longitudinal stress distribution is not uniformly distributed. When the relative eccentricity is 0, the maximum longitudinal stress of the core concrete obviously exceeds f_c, which is the axial compressive strength of the core concrete, at up to 2.021 f_c. When the relative eccentricity is one, the maximum longitudinal compressive stress and the minimum longitudinal compressive stress of the core concrete are 1.379 f_c and 0.782 f_c, respectively. When the relative eccentricity is 2.67, the maximum longitudinal compressive stress and the minimum longitudinal compressive stress of the core concrete are 1.349 f_c and 0.307 f_c, respectively.

It can be seen from Figure 12d–f that, when the slenderness ratio is 48, with the increase in relative eccentricity, the neutralization axis moves gradually upward along the y-axis, the core concrete experiences obvious tensile stress in the cross-section, and the tensile stress area increases significantly. When the relative eccentricity is 0, the maximum longitudinal compressive stress of core concrete is 1.328 f_c. When the relative eccentricity is one, the maximum longitudinal compressive stress and the maximum longitudinal tensile stress of core concrete are 0.89 f_c and 0.138 f_t, respectively. When the relative eccentricity is 2.67, the maximum longitudinal compressive stress and the maximum longitudinal tensile stress of core concrete are 0.865 f_c and 0.951 f_t, respectively.

It can be seen from Figure 12g–i that when the specimen is under axial compression load and the slenderness ratio is four, the longitudinal stress of core concrete is symmetrically distributed in the cross-section. The longitudinal compressive stress in the central area and the corner area is larger, and the maximum longitudinal compressive stress is 2.017 f_c. With the increase in relative eccentricity, the longitudinal stress distribution status also changes significantly. When the relative eccentricity is one, the maximum longitudinal compressive stress of the core concrete is 2.061 f_c, and it is mainly located in the two corner areas. When the relative eccentricity is 1.33, the longitudinal stress in more areas of the cross-section of the core concrete is smaller. It can be seen from Figure 12j–l that when the slenderness ratio is 48, the longitudinal stress distribution of the core concrete in the cross-section is similar to that of the specimen 120604C40 under the same slenderness ratio. When the relative eccentricity is 0, the maximum longitudinal compressive stress and the minimum longitudinal compressive stress of the core concrete are 1.529 f_c and 0.653 f_c, respectively. When the relative eccentricity is one, the maximum longitudinal compressive stress and the maximum longitudinal tensile stress of the core concrete are 1.124 f_c and 0.933 f_t, respectively. When the relative eccentricity is 1.33, the maximum longitudinal compression stress and the maximum longitudinal tensile stress of the core concrete are 1.049 f_c and 0.942 f_t, respectively.

4. Calculation Formula of Compression Bearing Capacity

4.1. Failure Mode Analysis

According to the analysis in Section 3.3.3 and other model analysis results, the longitudinal stress distribution in the cross-section of the middle part of a specimen is obviously different when the ultimate bearing capacity is reached under different slenderness ratios and relative eccentricities, and the position of the neutralization axis is also obviously different. The failure mode is related to the tensile (compressive) failure of the stainless steel tube, the compressive (tensile) failure of core concrete, and the position of the neutralization axis, as shown in

Table 3. Failure modes of specimens.

Failure Mode	Neutralization Axis	Tensile Area of the Stainless Steel Tube	Compressive Area of the Stainless Steel Tube	Tensile Area of the Core Concrete	Compressive Area of the Core Concrete
1	Not through the cross-section	No tensile area	All are under compression, which is yielding	No tensile area	All are under compression, which has reached the ultimate compressive strength
2	Not through the cross-section	No tensile area	All are under compression, which is not yielding	No tensile area	All are under compression, some areas have reached the ultimate compressive strength, while other areas have not reached it
3	Not through the cross-section	No tensile area	All are under compression, but some areas are yielding and other areas are not yielding	No tensile area	All are under compression, some areas have reached the ultimate compressive strength, while other areas have not reached it
4	Through the cross-section	There are tensile areas, which are not yielding	There are tensile areas, which are not yielding	No tensile area	All are under compression, some areas have reached the ultimate compressive strength, while other areas have not reached it
5	Through the cross-section	There are tensile areas, which are not yielding	There are tensile areas, which are not yielding	There are tensile areas, which have reached the ultimate tensile strength	There are compression areas, which have not reached the ultimate compressive strength
6	Through the cross-section	There are tensile areas, which are not yielding	There are tensile areas, which are not yielding	There are tensile areas, which have reached the ultimate tensile strength	There are compression areas, which have reached the ultimate compressive strength
7	Through the cross-section	There are tensile areas, which are yielding	There are tensile areas, which are yielding	There are tensile areas, which have reached the ultimate tensile strength	There are compression areas, which have reached the ultimate compressive strength

.

4.2. Calculation Method of Compression Bearing Capacity

4.2.1. Calculation Formula of Compression Bearing Capacity of Short Column under Axial Compression Load

For the short column under an axial compression load, the failure mode is mainly the failure mode one. The superposition method is used to calculate the compression bearing capacity of the cross-section, which is divided into the compression bearing capacity of the stainless steel tube and the compression bearing capacity of the core concrete. When considering the interaction influence of stainless steel tube and core concrete [33], the calculation formula is shown in Formulas (1)~(3).

$$N_{\mathrm{su}}=N_{\mathrm{ss}}+N_{\mathrm{cc}}=\alpha f_{\mathrm{y}}{A}_{\mathrm{ss}}+\beta f_{\mathrm{c}}{A}_{\mathrm{cc}}$$

(1)

$$\alpha =0.00447\xi +1.00854\begin{array}{ccc}& \left(0.65\le \xi \le 6.06\right)& \end{array}$$

(2)

$$\beta =0.01944\xi +1.78799\begin{array}{ccc}& \left(0.65\le \xi \le 6.06\right)& \end{array}$$

(3)

In Formulas (1)~(3), N_su is the compression bearing capacity of the short column; N_ss is the compression bearing capacity of the stainless steel tube; N_cc is the compression bearing capacity of the core concrete; α is the yield strength improvement coefficient of the stainless steel tube; β is the compression strength improvement coefficient of the core concrete; A_ss is the cross-sectional area of the stainless steel tube; A_cc is the cross-sectional area of the core concrete; ξ is the constraint effect coefficient, and the calculation method is shown in [34].

4.2.2. Calculation Formula of Compression Bearing Capacity of Long Column under Axial Compression Load

According to the analysis in Section 3.3.2, it is known that the slenderness ratio has a great influence on the compression bearing capacity of a long column, and the larger the slenderness ratio, the lower the compression bearing capacity. Therefore, on the basis of the compression bearing capacity of a short column, considering the influence of the slenderness ratio [33], the calculation formula is shown in Formulas (4) and (5).

$$N_{\mathrm{lsu}}=\phi N_{\mathrm{su}}$$

(4)

$$\phi =\{\begin{array}{l}1\begin{array}{cccc}& & & 3\le \lambda <6\end{array}\\ -0.00213\lambda +0.97796\begin{array}{ccc}& 6\le \lambda \le 48& \end{array}\\ -1.05644\lambda +51.53573\begin{array}{ccc}& 48<\lambda \le 48.375& \end{array}\\ -0.00569\lambda +0.63387\begin{array}{ccc}& 48.375<\lambda \le 96& \end{array}\end{array}$$

(5)

In Formulas (4) and (5), N_lsu is the compression bearing capacity of the long column, and φ is the stability coefficient.

4.2.3. Calculation Formula of Compression Bearing Capacity of Eccentric Column

According to the analysis in Section 3.3.2, it is known that the relative eccentricity and slenderness ratio has a great influence on the compression bearing capacity of an eccentric column. The larger the relative eccentricity and slenderness ratio, the lower the compression bearing capacity. Meanwhile, the influence of the compression bearing capacity is different under different slenderness ratios when the relative eccentricity is changed, and the failure modes are mainly failure modes 2~7. The calculation method of compression bearing capacity of eccentric columns is generally expressed in the form of implicit axial force and moment equation, which is not conducive to direct engineering application. Therefore, in order to facilitate engineering application, considering the influence coefficient η of relative eccentricity, the explicit expression of compression bearing capacity of eccentric columns is used to analyze the compression bearing capacity [22,35]. The calculation formula is shown in Formula (6).

$$N_{\mathrm{psu}}=\{\begin{array}{l}\eta \phi N_{\mathrm{su}}\begin{array}{cccc}& & \left(e_x=0,e_y\ne 0;e_x\ne 0,e_y=0\right)& \end{array}\\ \\ \\ 0.5\frac{\min \{e_x,e_y\}}{\max \{e_x,e_y\}}\left[-1.116\max \{e_x,e_y\}+1.558\right]\eta \phi N_{\mathrm{su}}\begin{array}{cc}& \left(e_x\ne 0,e_y\ne 0\right)\end{array}\end{array}$$

(6)

In Formula (6), N_psu is the compression bearing capacity of the eccentric column; e_x is the relative eccentricity in the x-axis; e_y is the relative eccentricity in the y-axis; η is the relative eccentricity influence coefficient’s correlation with the slenderness ratio, and the calculation formula is shown in

Table 4. The formula of the influence coefficient η of relative eccentricity.

Slenderness Ratio λ	The Formula of η	Scope of Application
λ ≤ 4	$\eta =0.07487e^3-0.04403e^2-0.41727e+1.00409$	0 < e ≤ 2.667 e = max{ex, ey}
4 < λ ≤ 6	$\eta =-0.03224e^3+0.24713e^2-0.63878e+1.00018$
6 < λ ≤ 8	$\eta =-0.03193e^3+0.19992e^2-0.53382e+1.00317$
8 < λ ≤ 13.5	$\eta =-0.06516e^3+0.37696e^2-0.80405e+0.99221$
13.5 < λ ≤ 18	$\eta =-0.07015e^3+0.39878e^2-0.83841e+0.97895$
18 < λ ≤ 24	$\eta =-0.10133e^3+0.52723e^2-0.95313e+0.95699$
24 < λ ≤ 36	$\eta =-0.12129e^3+0.60338e^2-1.01076e+0.83234$
36 < λ ≤ 48	$\eta =-0.19951e^3+0.90127e^2-1.20665e+0.78439$

, where e is the relative eccentricity.

4.2.4. Verification of the Proposed Formula of Compression Bearing Capacity

The compression bearing capacity of the 39 test specimens in [20,21,22] and the 337 finite element specimens in this paper were calculated using the proposed formula for compression bearing capacity, and the verification of the proposed formula for the compression bearing capacity is shown in Figure 13. The compression bearing capacity of the 39 test specimens in [20,21,22] is shown in

Table 5. The compression bearing capacity of the 39 test specimens in [20,21,22].

Specimen Number	Compression Bearing Capacity Nuexp/kN	Data Sources	Specimen Number	Compression Bearing Capacity Nuexp/kN	Data Sources
304-t8C50	6290	Reference [20]	120 × 60 × 4	1261	Reference [21]
304-t10C50	7113		120 × 60 × 5	1632
304-t12C50	7924		120 × 80 × 4	1362
304-t8C70	6743		120 × 80 × 5	1732
304-t10C70	7947		120 × 120 × 4	1814
304-t12C70	8575		120 × 120 × 5	2224
304-t8C80	7436		120 × 120 × 6	2913
304-t10C80	8430		r-0-0-a	1542	Reference [22]
304-t12C80	9257		r-0-0-b	1498
2205-t8C50	8771		r-0.50-0.50-a	734
2205-t10C50	10,111		r-0.50-0.50-b	716
2205-t12C50	12,472		r-0.75-0.75-a	485
2205-t8C70	9686		r-0.75-0.75-b	497
2205-t10C70	10,820		rc1-0.5-0.5-a	533
2205-t12C70	12,560		rc1-0.5-0.5-b	524
2205-t8C80	9962		rc2-0.5-0.5-a	824
2205-t10C80	11,728		rc2-0.5-0.5-b	814
2205-t12C80	13,272		rl1-0.5-0.5-a	795
–	–		rl1-0.5-0.5-b	778
–	–		rl2-0.5-0.5-a	562
–	–		rl2-0.5-0.5-b	564

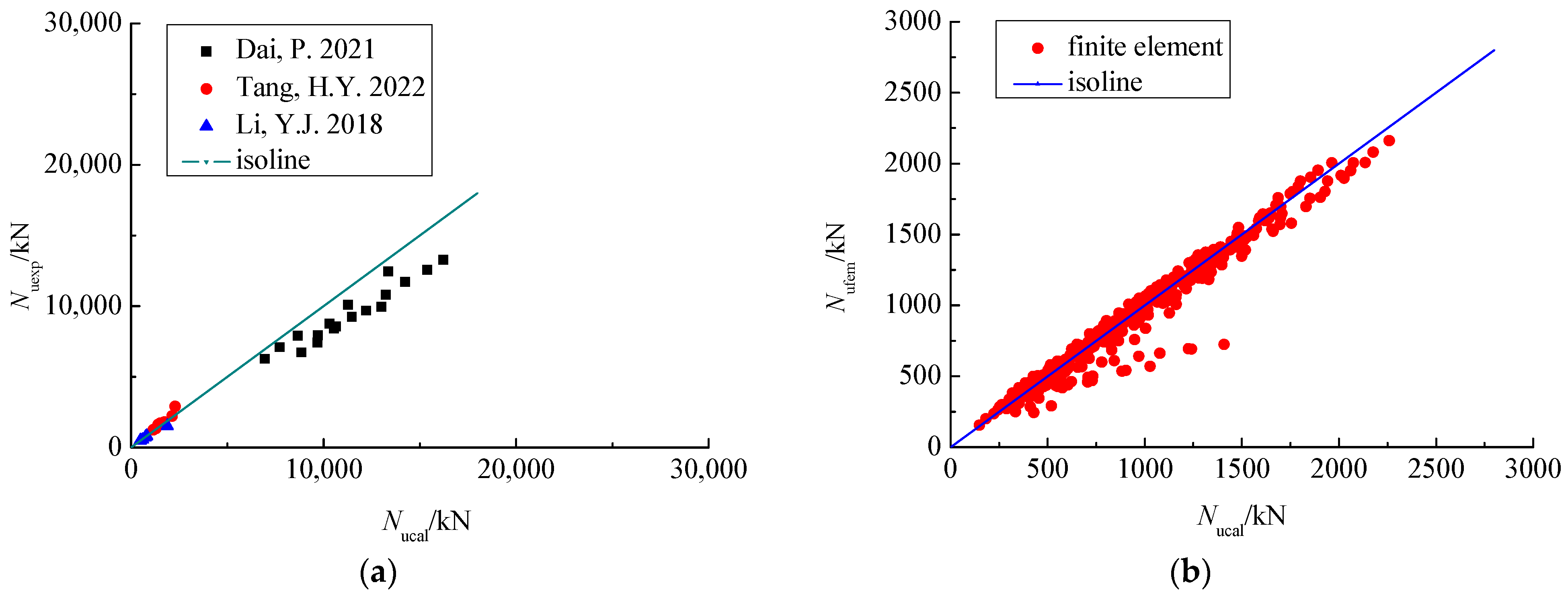

. It can be seen from Figure 13 that- the theoretical calculations N_ucal are in good agreement with the test N_uexp and finite element N_ufem, and the mean of theoretical calculations to the test and the finite element is 1.054, while the variance is 0.0247. It is shown that the proposed formula of compression bearing capacity can effectively predict the compression bearing capacity of concrete-filled rectangular stainless steel tubular columns. The application range of the proposed formula for the compression bearing capacity is for concrete-filled rectangular stainless steel tubular columns, and the constraint effect coefficient ξ is from 0.65 to 6.06, the slenderness ratio λ is from 3 to 96, the relative eccentricity e is from 0 to 2.667.

5. Conclusions

Based on the experimental research in [21], the compression bearing capacity of concrete-filled rectangular stainless steel tubular columns is studied in depth by using finite element software and theoretical analysis in this paper. The main conclusions are as follows:

(1)

The finite element model can effectively simulate the compression bearing capacity; the mean of finite element calculations N_ufem to the test N_uexp is 0.985, and the variance is 0.000621.

(2)

The slenderness ratio and relative eccentricity have a great influence on the load–displacement curves. The thickness of the stainless steel tube has little influence on the load–displacement curves. With the increase in slenderness ratio and relative eccentricity, the compression bearing capacity decreases.

(3)

With the increase in the slenderness ratio, the failure model of the specimen gradually changes from plastic failure to elastoplastic failure and then elastic failure.

(4)

When the slenderness ratio is the same, if the relative eccentricity is larger, increasing the thickness of the stainless steel tube will be more effective in improving the compression bearing capacity. When the relative eccentricity is the same, if the slenderness ratio is smaller, increasing the thickness of the stainless steel tube will be more effective in improving the compression bearing capacity.

(5)

The slenderness ratio and relative eccentricity have a great influence on the longitudinal stress distribution in the cross-section. When the slenderness ratio and relative eccentricity are larger, the longitudinal compressive stress in parts of the cross-section gradually becomes the longitudinal tensile stress.

(6)

The proposed formula can effectively predict the compression bearing capacity of concrete-filled rectangular stainless steel tubular columns. The mean of theoretical calculations to the test and the finite element is 1.054, and the variance is 0.0247.
