Non-Energetic Chemical Products by Fermentation of Hydrolyzed Sewage Sludge

Abstract

Hydrolysis and the solubilization of sewage sludge processes are important tools to obtain small and medium molecules with different application perspectives. Although the production of biomethane and other products such as biohydrogen from sludge as biofuel alternatives has been profusely studied, the current perspectives are mainly focused on the use of the sludge hydrolysate to produce non-energy bioproducts and biomaterials. In this review, the most recent bibliography dealing with the use of sludge hydrolysates as fermentation media for the bioproduction of new non-energetic products with industrial interest is here revised and discussed. In this regard, the main research effort has been focused on the bioproduction of short-chain fatty acids due to their direct use in industrial applications or as a carbon source for polyhydroxyalkanoates-producing microorganisms. The use of sludge hydrolysates as fermentation media using pure cultures to produce more complex biomolecules, such as enzymes or lipids, is gaining interest, but it remains an undervalued topic. The literature has been divided into processes where hydrolysis and fermentation stages took place simultaneously or separately, centering them on the effect of the main operational conditions on the yields and properties of the corresponding metabolites produced. In general, the main limiting step of these kinds of processes is the proper solubilization and hydrolysis of the sludge, which can improve the bioassimilation of nutrients and, subsequently, the productivities and compositions of the metabolites obtained. Biological and/or thermal pretreaments are the options more profusely employed, which are frequently assisted by different promoters such as oxidants, surfactants, or cation exchange resins.

Highlights

• A growing number of new products are being proposed.
• The production of complex metabolites (enzymes or lipids) is promising but understudied.
• Hydrolysis and solubilization are critical in final product yields and profiles.
• Positive synergies by coupling thermal pretreatment and pure culture fermentation.
• Assisted biological hydrolysis is the most employed pretreatment.

1. Introduction

Wastewater treatment plants (WWTPs) are mainly responsible for decontaminating wastewaters resulting from human activities. As a consequence of this depuration process, huge amounts of sewage sludge, ranging from 3.1 to 8.2 L per inhabitant and day, are generated [1]. As a reference to provide an idea of how much sludge is generated, more than 10 million tons of sludge are expected to be produced in 2020 only in the EU, on the basis of the statistical data collected in recent years [2]. These large quantities of sludge require a proper management, since this waste comprises microorganisms and suspended and colloidal matter, thus involving potential hazards, due to the presence of, among other pollutants, heavy metals or pathogens, such as viruses [3]. In fact, the management of this sludge usually comprises between 20% and 60% of the operational costs in a WWTP [1].

The traditional uses for sewage sludge have included land application (with or without previous composting), landfilling, or energy recovery. Nevertheless, the following should be noted: (i) land application has to compete with other waste streams, the demand is variable and the legislation about this topic is becoming increasingly strict, (ii) landfilling is an unsustainable outlet due to concerns over pollution, loss of recyclable materials, and loss of void for those wastes which cannot be recycled, and (iii) incineration is a high cost/high technology option and is currently only likely to be cost-effective for large cities, and it does not have a high level of public acceptability due to concerns over gas emissions [4]. Another sludge management strategy commonly used in the WWTPs is the anaerobic digestion, that is to say, the sludge self-digestion to produce biogas [5,6]. However, the intermediate steps of this process require long times and well-controlled conditions.

As can be seen, conventional sludge management strategies are only focused on stabilizing the sludge and reducing its volume, obtaining low value energy products at its best. In this sense, some more recent alternatives include the conversion of the sludge into bio-oils and biochars from pyrolysis; biofuels, syngas, and chemicals from gasification as well as recovering minerals such as struvite [7,8]. Nevertheless, analyzing the sludge composition, these approaches clearly underestimate its potential. As previously indicated, sludge is composed by microorganisms and dissolved organic matter. Therefore, focusing on its biochemical composition, sludge comprises a complex mixture of proteins, carbohydrates, and lipids, an important proportion of humic substances, nutrients, and minerals [9,10,11]. Hence, sludge is now emerging as a renewable source for biomolecules with a higher added value than biogas or compost. This approach will allow putting WWTPs into the circular economy context, by taking advantage of a waste that it is currently underused. In a long term and with adequate treatments, WWTPs will be turned into bio-factories, where wastes will be minimized in favor of obtaining green feedstocks [12,13,14], thus matching the objectives recently proposed by the EU in its New Circular Economy Action Plan [15].

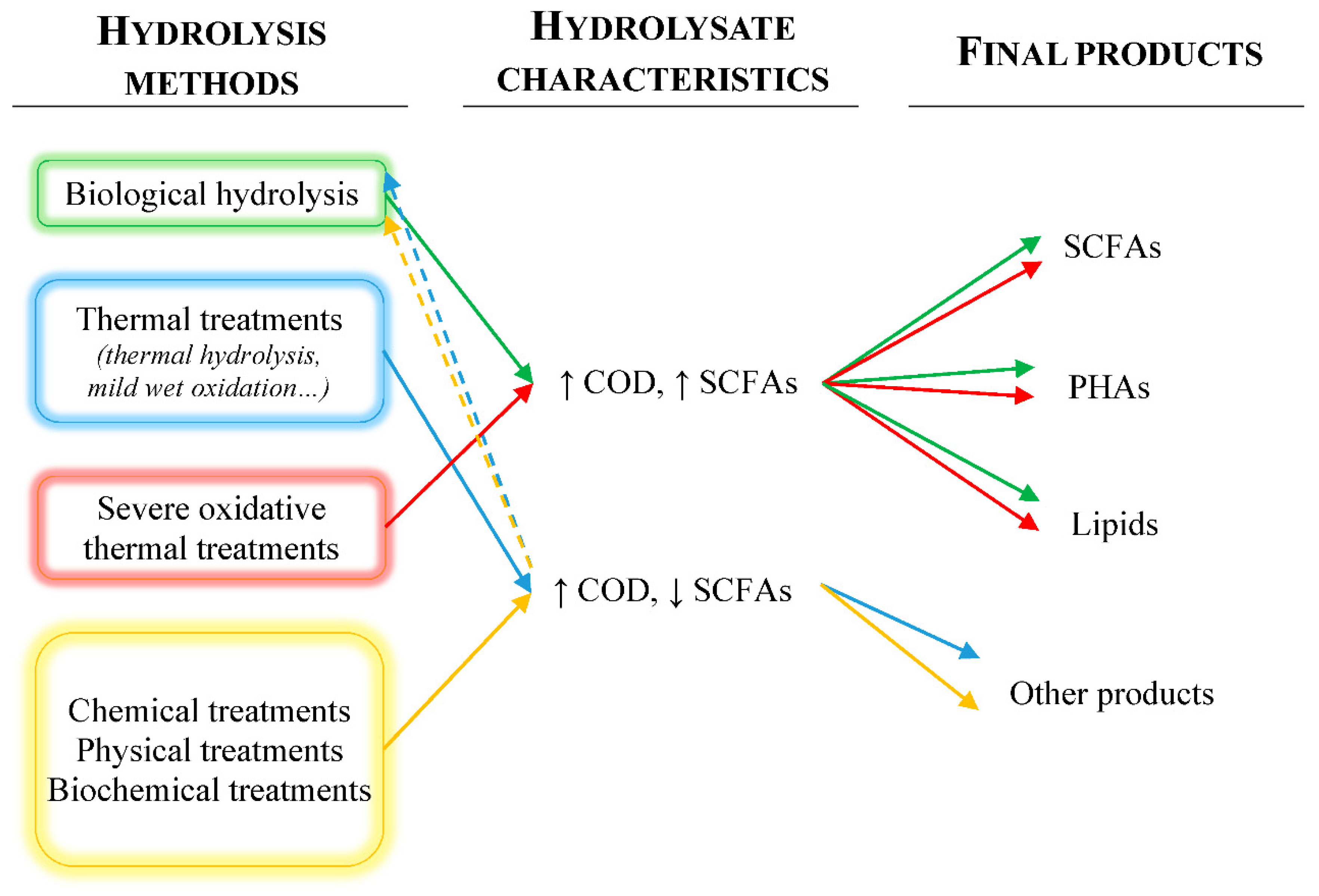

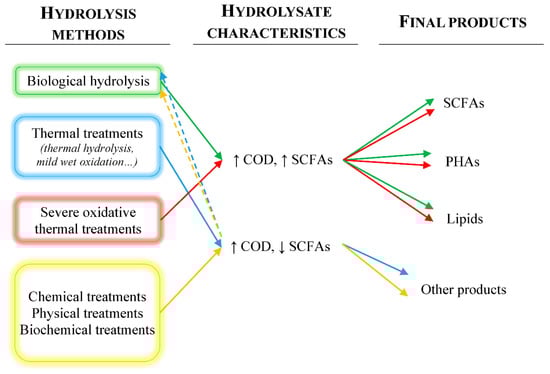

It is interesting to note that many of the either conventional or new strategies for sludge valorization require an initial pretreatment to solubilize the biomolecules from the microorganisms or the sludge flocs [16]. With the objective of achieving an appropriate sludge disruption, different technologies have been applied, including either biological, thermal, chemical, physical or biochemical treatments. Although this is a well-documented field, a brief review of these technologies will be here carried out in order to put into perspective their different hydrolysis mechanisms.

The most employed hydrolysis treatment may be the biological one. In this method, the own sludge microorganisms are responsible for the reactions that break cells and extracellular polymeric substances (EPS) structures via enzymatic reactions [17]. The second method for sludge solubilization is the thermal one, which is based in the supply of heat to the cells to achieve protein denaturation and membrane disintegration, provoking the cytoplasmatic content release. Usually, thermal methods also involve high pressures to raise the water boiling point, thus allowing higher temperatures. These methods are known as hydrothermal ones. A modification of these is also possible by introducing in the mixture an oxidant, being the process defined as wet oxidation. The particularity of these processes lies on the reactivity of the oxygen at high temperatures, being able to enhance the solubilization, although it can also transform the molecules structure by the generation of carboxyl, carbonyl, hydroxyl, and other functional groups that include oxygen in their structure [18].

On the other hand, chemical methods are based on the addition of reagents that could alter different parameters of the environment to achieve either EPS structure or membrane integrity disruption as well as both of them. This is the case of ozone, surfactants, or other reagents (Ca(OH)₂, CaO, NaOH…) [19,20]. Physical methods employ shear forces to achieve the cell breakage, thus releasing their inner contents. These shear forces can be generated from several sources: homogenizers, mills, pressure jets, or ultrasounds [21,22]. Finally, biochemical treatments, including the use of hydrolytic enzymes such as proteases, cellulases, or amylases, which are also capable of destroying the sludge structure, solubilizing the EPS and, if an adequate enzyme cocktail is employed, destroying the cell wall as well [9,23].

Once the sludge has been hydrolyzed and the target molecules have been solubilized, the first approach that can be made is their direct recovery from the hydrolysate in a more or less pure form to exploit their commercial value. In this way, the recovered proteins can be used in the formulation of coatings, biofilms, adhesives, surfactants, or organic fertilizers [24,25,26,27,28]. Humic acids also have commercial value, being used as fertilizers or surfactants [29]. Lipids can be employed as feedstock for biodiesel production [30]. The phosphorus present in the sludge has been already recovered as struvite as previously commented. With this aim, several approaches have been made, although results were not as promising as to unseat the conventional treatment methods, since low recoveries or low purified streams were usually obtained [31,32,33,34]. Then, more research in this field is required to develop better strategies with higher recoveries and purities for further green uses of these biopolymers.

Other approaches that are being deeply studied and that also fulfill the circular economy goal involve the use of these sludge hydrolysates as fermentation media for the bioproduction of different metabolites with industrial interest. In this regard, depending on the hydrolysis method employed, the hydrolysate will show different characteristics that will make them more suitable for the bioproduction of certain products with respect to others. When it comes to choosing a hydrolysate as fermentation medium, by revising the products obtained from the fermentation of sludge hydrolysates, it can be concluded that the cornerstone is the content of short-chain fatty acids (SCFAs) in the hydrolysates. Therefore, a little reclassification of the hydrolysis methods has to be done. The only change is the separation of extreme versions of oxidative hydrothermal treatments (long times and severe temperature and pressure conditions), which can also be carried out to produce effluents with a high proportion of SCFAs, thus emulating the sludge hydrolysates obtained by biological processes [35,36]. Figure 1 shows a scheme of the different hydrolysis methods, the main characteristics of the hydrolysate and the final products that could be obtained with each treatment, in order to improve the understanding of which hydrolysate is supposed to be better for its use as substrate for subsequent fermentations.

As explained, biological hydrolysis is carried out by microorganisms. However, these microorganisms hydrolyze the sludge to use it as substrate and in consequence, they transform the biomolecules present in the sludge into SCFAs. Since both hydrolysis and acidogenic processes are almost simultaneous, it is very difficult to separate them. This is the reason why biological fermentation of the sludge yields a high content of SCFAs, such as acetic acid, propionic acid, etc., than other hydrolysis processes [37,38]. Therefore, this kind of hydrolysates would be useful as substrate for fermentations in which the fermentative microorganisms need a readily assimilable carbon source, for instance, in polyhydroxyalkanoates (PHAs) or lipids production [39,40,41].

Moving on to the hydrolysates obtained from thermal treatments, these will be composed by proteins, lipids, carbohydrates, and humic substances as well as cell debris and nutrients, such as ammonium or phosphorus [10,42,43]. Therefore, they will show high chemical oxygen demand (COD) contents due to the solubilization of organics such as proteins and carbohydrates, but low SCFAs concentration [44]. This composition is suitable for its use as a fermentation medium for producing high molecular weight products such as enzymes. Obviously, hydrolysates obtained after a hydrothermal treatment can also be employed as substrate for a further biological fermentation to produce SCFAs, which can be subsequently recovered or used as substrate for PHAs production. As mentioned, the extreme versions of the oxidative thermal treatments lead to high SCFAs production and would be adequate for sludges containing high proportions of humic substances or other molecules toxic or recalcitrant to biological degradation [45]. The hydrolysates thus obtained can be employed in the same processes as those generated by biological hydrolysis.

Separately, chemical, physical, and biochemical hydrolysis methods will produce hydrolysates similar to those obtained by thermal methods, which can be employed in the same applications to those mentioned before [9,46]. At this point, it must be highlighted that the combination of different hydrolysis methods is feasible and can generate some positive synergies. Many examples of these combinations will be seen in the following sections by studying particular cases.

Therefore, the aim of this review is to recompile and discuss the most recent literature dealing with the use of sludge hydrolysates as fermentation substrates to obtain different bioproducts and the potential applications of these, paying special attention to the effect of the main operational conditions on yields. Previously, studies were divided into processes where hydrolysis and fermentation stage took place simultaneous or separately.

It should be stressed that among the products that can be obtained by fermentation of sludge hydrolysates, the production of either biogas or biohydrogen has already been extensively studied in the bibliography; excellent reviews about these topics exist in the literature [5,47,48,49,50,51]. As a result, the bioproduction of these metabolites has not been included in this work, which is more focused on more innovative products.

2. Short-Chain Fatty Acids

2.1. General Considerations

New approaches focused on the sludge anaerobic digestion as fermentative alternative to produce short-chain fatty acids (SCFAs), and not biogas, have gained a heightened interest in the last few years. This strategy, based on stopping the anaerobic digestion at the end of the acidification step and before the acetogenic one, could balance the economics of a WWTP due to the production and accumulation in the sludge hydrolysate of SCFAs such as acetic, propionic, or butyric ones [38].

The worth of the SCFAs underlies in their commercial applications even if they are not in their pure forms. The potential uses of these molecules have already been extensively reviewed and they will be here cited very briefly [52,53,54,55,56]. These include their employment as substrates to obtain different products or electricity by fermentation as well as nutrient removal in the WWTP. After purification steps, their potential applications comprise food industry, as preservatives; the cosmetic industry; and pharmaceuticals. The economical aspects regarding SCFAs productions can be found in the literature [57,58].

In recent times, SCFAs production from sludge hydrolysates has attracted some attention with several reviews [46,59,60,61]. In this review, only the most recently published articles were included, discussing the effect of the main operational conditions on the production and composition of SCFAs generated. These have been summarized in

Table 1. Summary of the main parameters of the studies dealing with SCFAs production. “‒” indicates data not available or unable to be calculated.

Sludge	Conditions for Pretreatment	Pretreatment Results	Conditions for Biological Hydrolysis (Anaerobic in All Cases)	Fermentation Results (Best Results Were Those with Higher SCFAs Concentration)							References
Settled secondary (VSSo = 15.8 g/L) (TCODo = 26.56 g/L) (SCODo = 3.73 g/L)			Reactor: expanded granular sludge blanket reactor Acclimation at 35 °C and pH 10: two stages of 8 days each one, at 8th and 16th day 2/3 of sludge were replaced at pH 10 (after 16th day, steady state was reached) Semi-continuous operation at 35 °C and pH 10, 5 cycles of 20 days each. After each cycle, 2/3 of volume was replaced with fresh sludge	[SCFAsMAX] ≈ 610 mg COD/g VSS (8 d of 2nd cycle) SCFAsMAX /SCOD = ‒ SCOD/SCODo ≈ 2.1 for each cycle							Li et al. 2018
				Acid (%)	Ac.	Pr.	n-bu.	i-bu.	i-va.	n-va.
					84	11.3	0.7	1.2	2.7	0.1
Clarified secondary (VSSo = 11.91 g/L) (TCODo = 17.98 g/L) (SCODo = 0.12 g/L)			Reactor: semi-continuous mixed at 37 °C for 80 days 5 pHs = uncontrolled, 7, 8, 9 and 10 No acclimation Equal parts of inoculum and feedstock 0.05 L replaced daily → HRT = 8 d, OLR = 1.49 g VS L−1 d−1	Best results at pH 10 [SCFAsMAX] = 3762 mg COD/L (from 10 days) SCFAsMAX/SCOD = 0.58 (from 10 days) SCOD/SCODo = 53.73 (from 10 days)							Ma et al. 2019
				Acid (%)	Ac.	Pr.	n-bu.	i-bu.	i-va.	n-va.
					44.7	17.1	9.2	10.5	15.8	2.6
Settled secondary with poly-aluminum chloride (VSo = 12.01 g/L) (TCODo = 13.29 g/L) (SCODo = 0.05 g/L)			Reactor: semi-continuous mixed at 35–40 °C for 111 days pH (8 to 11) incremented in 1 unit after, at least, 2 SRTs No acclimation 0.1 L replaced daily → SRT = 8 d, OLR = 1.33 g COD L−1 d−1	Best results at pH 11 [SCFAsMAX] = 4300 mg COD/L SCFAsMAX/SCOD = 0.68 SCOD/SCODo = 127							Yan et al. 2021
				Acid (%)	Ac.	Pr.	n-bu.	i-bu.	i-va.	n-va.
					39.6	13.9	11.1	10.4	16	9
Settled secondary (VSo = 12.83 g/L) (TCODo = 23.87 g/L) (SCODo = 0.65 g/L)			Reactor: CSR batch at room temperature for 16 days 3 pH scenario: free pH, initial pH = 10, initial and daily pH adjustment to 10 No acclimation	Best results at initial and daily pH adjustment to 10 [SCFAsMAX] = 3080 mg COD/L (15 days) SCFAsMAX/SCOD = 0.5 (15 days) SCOD/SCODo = 9.43 (15 days)							Chen et al. 2021
Settled secondary (VSSo = 13.21 g/L) (TCODo = 17.11 g/L) (SCODo ≈ 0.25 g/L)			Reactor: CSR batch at 35 °C, 12 days CER dosages of 0 (control), 1, 1.75, 3.5 g dry weight/g SS pH neither controlled nor monitored	Best results with 1.75 and 3.5 g CER/g SS (data for 1.75/data for 3.5) [SCFAsOPT] = 4415/4727 mg COD/L (4 days) SCFAsOPT/SCOD = 0.69/0.65 (4 days) SCOD/SCODo = 25.6/29 (4 days)							Pang et al. 2020
				Acid (%)	Ac.	Pr.	n-bu.	i-bu.	i-va.	n-va.
				1.75 g CER/g SS	37.5	20	15	7.5	15	5
				3.5 g CER/g SS	40	17.5	14	8.5	15	5
Settled secondary (VSSo = 12.2 g/L) (TCODo = 16.7 g/L) (SCODo = 0.26 g/L)			Reactor: batch at 35 °C Different CER dosages, stirring intensities and fermentation times according to a CCD pH neither controlled nor monitored	Optimal results							Pang et al. 2021
				CER (g/g SS)	Time (d)	Stirring (rpm)	DDM (%)	SCFAs (mg COD/L)	CER (g/g SS)	Time (d)
				2.05	4.97	246.9	42.1	4351.5	2.05	4.97
				1.78	6.46	261.2	42.8	4570.5	1.78	6.46
Waste activated (VSSo = 9.96 g/L) (TCODo = 13.45 g/L) (SCODo = 0.15 g/L)			Reactor: CSR batch at 37 °C, 14 days Sand dosages to achieve VSS/TSS ratios of 45%, 50% and 55% (TSSo adjusted to 15 g/L by diluting with tap water) and control without sand (VSS/TSS ratio of 63.1%) Initial pH adjusted to 10	[SCFAsMAX] = 3002 mg COD/L (6 days) SCFAsMAX/SCOD = ‒ SCOD/SCODo = ‒							Jiang et al. 2021
				Acid (%)	Ac.	Pr.		Bu.		Val.
					58.1	13.3		10.2		18.4
Settled secondary (VSSo = 8.63 g/L) (TCODo = 17.33 g/L) (SCODo = 0.26 g/L)			Reactor: CSR batch at 35 °C No acclimation Fermentation at 35 °C with Fe powder, persulfate (PS), Fe + PS and control for 12 days pH no controlled	Best results with Fe + PS [SCFAsMAX] ≈2255 mg COD/L (8 days) SCFAsMAX/SCOD = ‒ SCOD/SCODo = ‒							Luo et al. 2019
				Acid (%)	Ac.	Pr.		Bu.		Val.
					76.9	9.7		5.3		8.1
Settled secondary (VSSo = 10.95 g/L) (TCODo = 23.67 g/L) (SCODo = ‒)			Reactor: CSR batch at 35 °C, 14 days No acclimation 4 conditions: control, PDS + Fe2+, PDS + ZVI, PDS + NZVI pH neither controlled nor monitored	Best results with PDS + Fe2+ [SCFAsMAX] = 5537 mg COD/L (10 days) SCFAsMAX/SCOD = ‒ SCOD/SCODo = ‒							Luo et al. 2020
				Acid (%)	Ac.	Pr.	n-bu.	i-bu.	i-va.	n-va.
					59.6	7.6	11.4	6.3	11.4	3.7
Waste activated (VSo = 7.97 g/L) (TCODo = ‒) (SCODo = 0.08 g/L)	CaO for 15 h at different dosages: 0, 0.01, 0.03, 0.05 and 0.07 g/g TS (TSo = 17.39 g/L)	Best solubilization 0.07 g CaO/g TS SCOD/SCODo = 15.14 SCOD/TCOD = ‒ VS/VSo = ‒	Reactor: semi-continuous at 35 °C, 12 days HRT = 16.7 by replacing 0.06 L daily Inoculum ratio 2:1 (sludge: inoculum) pH neither controlled nor monitored Feeding with sludge pretreated with 0.07 g CaO/g TS	[SCFAsMAX] = 2611 mg COD/L (6 days) SCFAsMAX/SCOD = ‒ SCOD/SCODo = ‒							Xin et al. 2021
				Acid (%)	Ac.	Pr.	n-bu.	i-bu.	i-va.	n-va.
					28	10	32	9	15	5
Sewage sludge (VSSo = 38.42 g/L) (TCODo = 79.49 g/L) (SCODo = 17.02 g/L)	Autoclaving at 120 °C, 2 bar, 15 min	SCOD/SCODo = 1.16 SCOD/TCOD = 0.26 VSS/VSSo = 1.1	Inoculum: anaerobic sludge (32 g VS/L) Batch fermentation Reactor: CSR at 30 °C, pH not controlled, 30 days 4 experiments with pretreated sludge and 4 without pretreatment, assaying in both cases substrate to inoculum ratios of 1, 2, 4, and 6 (g VS/g VS) Semi-continuous fermentation Reactor: 2 L semi-continuous stirred at 37 °C, with 0.4 L of inoculum and 1.6 L of untreated sludge. pH maintained at 5.6 by the feeding Acclimation of inoculum during first week with OLR of 0.9 g COD L−1 d−1 Operation of 65 days at OLR of 1.3–1.6 g COD L−1 d−1 and 2.4–3.5 g COD L−1 d−1. HRT of 10 days by replacing 0.2 L with fresh sludge daily	Batch fermentation Best results at S/I = 6 with or without pretreatment [SCFAsMAX] ≈9500 mg COD/L (≈17 d) SCFAsMAX/SCOD = ‒ SCOD/SCODo = ‒							Iglesias-Iglesias et al. 2019
				Acid	Ac.	Pr.	n-bu.	i-bu.	i-va.	n-va.
				Untreat. (%)	48	18	15	5	7	7
				Treat. (%)	39	23	19	3	9	7
				Semi-continuous fermentation Best results at high OLR SCFAsMAX ≈650 mg COD/L (≈17 d at high OLR) SCFAsMAX/SCOD = ‒ SCOD/SCODo = ‒
				Acid (%)	Ac.	Pr.	n-bu.	i-bu.	i-va.	n-va.
					36	17	21	5	11	10
Settled secondary (VSo = 8.06 g/L) (TCODo = 11.67 g/L) (SCODo = 0.08 g/L)	Thermal pretreatment 70 °C for 1 h Chemical pretreatment SDBS dosage of 0.01 g/g TS for 1 h at 20 °C Chemical + thermal pretreatment Different SDBS dosages of 0.005, 0.01 and 0.02 g/g TS for 1 h at 70 °C TSo = 12.41 g/L	SCOD/SCODo = 24 SCOD/TCOD = ‒ VSS/VSSo = ‒ SCOD/SCODo = 3.3 SCOD/TCOD = ‒ VSS/VSSo = ‒ (SDBS = 0.01 g/g TS) SCOD/SCODo = 28.7 SCOD/TCOD = ‒ VSS/VSSo = ‒	Reactor: CSR batch at 37 °C, 7 days pH not controlled but monitored	Results for SDBS = 0.01 g/g TS [SCFAsMAX] = 187 mg COD/g VS (6 days) SCFAsMAX/SCOD = ‒ SCOD/SCODo = ‒							Wan et al. 2020
				Acid (%)	Ac.	Pr.	n-bu.	i-bu.	i-va.	n-va.
					39.4	18.6	7	10	21	4
				Best results with 70 °C + SDBS = 0.01 g/g TS [SCFAsMAX] = 320 mg COD/g VS (4 days) SCFAsMAX/SCOD = ‒ SCOD/SCODo = ‒
				Acid (%)	Ac.	Pr.	n-bu.	i-bu.	i-va.	n-va.
					56.4	13.6	10	6	9	5

.

2.2. Simultaneous Hydrolysis and Fermentation

2.2.1. Biological Hydrolysis without Additives

Effect of pH

Several authors have concluded that pH plays a key role during the direct fermentation of sludge to produce SCFAs. In this sense, Li et al. [62] studied the alkaline fermentation, at pH 10 and 35 °C, of a settled secondary sludge in a semi-continuous process.

Although results for sludge fermentation at the same conditions but without pH adjustment were not provided, this strategy at pH 10 allowed a high sludge solubilization, with final soluble COD (SCOD) at the end of each cycle two times higher than the initial one. The production of SCFAs was also significant at pH 10, with a maximum value of approximately 610 mg COD/g VSS (VSS stands for volatile suspended solids) for a sludge retention time (SRT) of 8 days. However, for higher SRT, SCFAs concentration began to slowly decrease, which was probably due to the substrate depletion and the methanogenic activity. Focusing on the SCFAs composition, acetic acid was the overwhelming acid during the whole anaerobic fermentation time, accounting for about 84% of SCFAs, followed by propionic, which accounted for approximately 11%. Iso-butyric, n-butyric, iso-valeric, and n-valeric acids were also detected, but at very low concentrations: 1.2%, 0.7%, 2.7%, and 0.1%, respectively. These authors also reported the predominance of Clostridium, Bacillus, Amphibacillus, and Peptostreptococcaceae in the microbiota during the alkaline fermentation of sludge.

A deeper study about the pH effect during the sludge fermentation on SCFAs production was carried out by Ma et al. [63], who studied the acidogenic fermentation and characterized the dissolved organic matter (DOM) under different alkaline pH values. For this purpose, a secondary sludge was subjected to a set of fermentations in a semi-continuous mode, at 37 °C for 80 days, with a hydraulic retention time (HRT) of 8 days and an organic load rate (OLR) of 1.49 g VS L⁻¹ d⁻¹, under different controlled pH, ranging from 7 to 10 between experiments. Additionally, another fermentation was conducted at the same conditions but without pH control as reference.

Results revealed that the higher the pH, the higher the sludge solubilization. As an example, SCOD for fermentation at pH 10 was 53.73 times higher than under uncontrolled pH, whereas this value was clearly lower for less alkaline media (11.69 times for pH = 7). In parallel, soluble protein concentration at alkaline pH values was significantly higher than that at uncontrolled pH or 7, whereas soluble polysaccharide increased slightly with the increase in pH, but its content was always lower than the content of solubilized protein in all the reactors. This intense solubilization at alkaline pH also led to a higher accumulation of SCFAs, increasing productions from 1315 mg COD/L, for uncontrolled pH, to 3762 mg COD/L at pH 10.

Nevertheless, pH had a low impact on the SCFAs/SCOD ratio, which slightly enhanced from 0.51 without pH adjustment to 0.58 at pH 10. To assess these findings, authors studied DOM evolution during the fermentations at each pH value, discovering that in spite of solubilizing more intensely, alkaline pHs led to higher accumulation of refractory compounds, such as humic substances and lignin-like compounds.

Finally, although these authors reported an increase in the concentrations of acetic, propionic, butyric, iso-butyric, valeric, and iso-valeric acids, the proportion of each acid did not change significantly with pH. Thus, the SCFAs profile at pH 10 was dominated by acetic acid (44.7%), followed by propionic acid (17.1%), iso-valeric acid (15.8%), iso-butyric acid (10.5%), n-butyric acid (9.2%), and, finally, n-valeric acid (2.6%). This SCFAs profile was slightly different to the obtained during the fermentation at uncontrolled pH, being the percentages for the same sequence of acids 46.2%, 26.9%, 9.6%, 7.7%, 3.8%, and 5.8%. Therefore, it can be observed that an increase in the pH value during the fermentation led to a slight increase in iso-valeric and n-butyric acid proportions at the expense of a reduction in the corresponding to propionic acid.

Continuing with the alkaline fermentation of sludge, Yan et al. [64] also investigated the performance of SCFAs production by anaerobic digestion for 111 days under mesophilic conditions (35–40 °C) with stepwise pH increases from 8 to 11 but employing a sludge previously dosed with poly-aluminum chloride. The results showed that either the SCOD concentration or SCFAs production increased gradually with increasing pH, with a maximum yield of SCFAs of 358.03 mg COD/g VS (volatile solid) at pH 11. Thus, SCOD/SCOD_o and SCFAs/SCOD ratios ranged from 0.51 for pH 8 to 0.68 for pH 11, respectively.

As in the previous studies, acetic and propionic acids were the main SCFAs for all the pH tested, whereas butyric and valeric acids were detected and accumulated at pH of 10 and 11. Specifically, at pH 11, acetic acid predominated (39.6%) followed by iso-valeric acid (16%), propionic acid (13.9%), n-butyric acid (11.1%), iso-butyric acid (10.4%), and, finally, n-valeric acid (9%). On the other hand, only acetic and propionic acid were present at pH 8, being their percentages of 30% and 70%, respectively. According to Yan et al. [64], these changes in the SCFAs distribution were related to the solubilization degree, since when more proteins were present, a higher proportion of butyric and valeric acids (and their iso forms) were synthesized by the microorganisms.

Finally, an attempt to better understand the pH control on the acidogenic fermentation was made by Chen et al. [65], who evaluated sludge fermentations under different pH control strategies: without pH control, only fitting initial pH to 10, or keeping the pH constant at a value of 10 during the whole process. Their feedstock was a settled secondary sludge, carrying out batch fermentations at room temperature for 16 days without using especial inoculum or acclimation steps. Results revealed that fermentation at controlled pH 10 yielded the highest solubilization (SCOD/SCOD_o = 9.43) and SCFAs accumulation, 3080 mg COD/L, which represented the 50.2% of the SCOD, after 15 days. On the other hand, when only initial pH was fitted to 10, the maximum SCFAs concentration was reduced to 1750 mg COD/L after 10 days, whereas SCFAs/SCOD was 0.58 and SCOD/SCOD_o was 4.62. As can be seen, when the pH was only initially adjusted to pH 10 relative to when the pH was continuously maintained at 10, the purity of SCFAs in the fermented liquid was improved. In addition, initial pH 10 fermentation also improved the phosphorous removal efficiency, and fermented sludge dewaterability during waste activated sludge (WAS) fermentation.

Regrettably, no information about SCFAs composition was given in this work, although, as seen in the previous studies, it is expectable that the different strategies provided different SCFAs profiles.

As can be seen, all authors coincided in stating that a strongly alkaline biological hydrolysis led to higher solubilization as well as the release of compounds refractory to biological transformation. Moreover, increasing the pH provoked a decrease in propionic acid proportion but favored the butyric and valeric acids ones in the SCFAs profiles.

Effect of OLR

Although less studied than pH, the organic load rate (OLR) is another operational condition with a high impact on the acidogenic fermentation. Iglesias-Iglesias et al. [66] performed a continuous lab-scale experiment at 37 °C and without pH control to study the OLR effect, from 1300 to 3500 mg COD L⁻¹ d⁻¹, on the SCFAs production. The authors observed the greatest SCFAs accumulations occurred at the highest OLR, achieving a maximum value of 0.65 g SCFAs_COD L⁻¹ d⁻¹ for an OLR of 3500 mg COD L⁻¹ d⁻¹ but not the best SCFA/SCOD ratio (18%). This latter was found at a low OLR, 1600 g COD L⁻¹ d⁻¹, with a value of 22%. Nevertheless, the SCFAs content at this OLR, 0.35 g SCFAs _COD L⁻¹ d⁻¹, was distinctly lower than for 3500 mg COD L⁻¹ d⁻¹. The authors attributed this fact to the overload of the substrate as well as to the accumulation of heavy metals and other inhibitory compounds at high OLR. The SCFAs profile was dominated by acetic, propionic, butyric, and iso-valeric acids for all the OLR tests, although it was reported that butyric and n-valeric acids proportion increased with the OLR.

Effect of Inoculum Size

Although an inoculum is not required to start the anaerobic digestion of sludge, its use can boost the process and even modify the SCFAs profile obtained. This finding was reported by Iglesias-Iglesias et al. [66], who carried out the acidogenic batch fermentation of sewage sludge at different substrate/inoculum ratios (S/I, from 1 to 6 g VS substrate/g VS inoculum). The inoculum used was collected from an anaerobic digester in a brewery WWTP. The authors reported that all the fermentations started immediately after the inoculation, and once the maximum SCFAs concentration was reached, its value remained almost constant. Results revealed that the higher the inoculum size, the lower the SCFAs accumulation, which ranged from 6450 mg COD_SCFAs/L for a S/I = 6 to 2000 mg COD_SCFAs/L for the S/I = 1 (results for non-inoculated sludge were not provided). Regardless of the S/I ratio selected, acetic acid was the dominant product, followed by propionic, butyric, and n-valeric acids. Nevertheless, the butyric acid concentration increased with the S/I ratio; meanwhile, the proportion of acetic acid decreased. The authors proposed that higher S/I ratios involved higher organic loads, higher accumulation of SCFAs and, subsequently, a decrease of pH, favoring the long-chain fatty acids production.

2.2.2. Biological Hydrolysis with Additives

Effect of Cation Exchange Resins

The use of cation exchange resins (CER) is an interesting approach to promote the sludge solubilization due to the recoverability and reusability of these. In this sense, Pang et al. [20] fermented a secondary sludge at 35 °C for 12 days and in the presence of different CER dosages (from 0 to 3.5 g/g SS). This CER was able to exchange its Na⁺ cations with the multivalent ones present in the flocs, thus disrupting their structure and improving the cell breakage. As expected, higher dosages of resin led to higher solubilization. As an example, the SCOD/SCOD_o ratio at the end of the fermentation without CER was 8, but it was raised up to 25.6 if 1.75 g CER/g SS were added. Nevertheless, as authors stated, increasing the CER dosage beyond 1.75 g/g SS did not involve a significant improvement in terms of sludge solubilization. The same trend was also found during the SCFAs production, where maximum SCFAs concentrations were 1279, 4415, or 4727 mg COD/L after 4-day fermentation in the absence or presence of 1.75 or 3.5 g CER/g SS, respectively, with the SCFAs/SCOD ratio remaining almost constant in a value of around 0.67.

Putting the light on the SCFAs compositions, CER dosages higher than 1.75 g CER/g SS had a negligible effect in SCFAs profiles, with the following mean proportions: 40% acetic acid, 18.5% propionic acid, 15% n-butyric acid, 15% iso-valeric acid, 8% iso-butyric acid, and finally, 5% n-valeric acid. However, this SCFAs profile strongly differed to that found in presence of lower CER dosage, which favored the propionic acid production in comparison to other acids.

These authors complemented this approach in a subsequent article [67], where a central composite design (CCD) evaluated by response surface methodology (RSM) was carried out to find optimal conditions of CER dosage (0.25–3.25 g/g SS), fermentation time (1–8 days), and stirring strength (50–400 rpm) in terms of disintegration degree and of SCFAs production. Results showed that the optimal inputs were 1.78 g CER/g SS, 6.46 days, and 261.2 rpm, which led to a disintegration degree of 42.8% and a SCFAs concentration of 4570.5 mg COD/L. As can be checked, these results are not far away from the best conditions obtained in the previous study [20]. The authors stated that when the input factors were lower than the corresponding optimal parameters, the removal efficiency of multivalent cations was increased as the increase of CER dosage, while the increased stirring strength was beneficial for the cation transfer via thorough sludge-CER mixing. However, the further increase in input factors did not improve sludge solubilization and SCFAs production because either CER dosage, stirring strength, or treatment time were high enough to not involve a significant effect on sludge solubilization.

Effect of Sand

The use of inert additives as promoters for sludge acidogenic digestion was explored by Jiang et al. [68]. These authors studied the fermentation of waste activated sludge in batch (37 °C, 14 days, initial pH 10) employing different superfine sand dosages (VSS/TSS ratios from 63%, for control without sand, to 45%). Sand acted as fermentation enhancer, which promoted the sludge hydrolysis by creating shear forces on the cells during the stirring. The effect of superfine sand on the solubilization stage was also characterized by measuring soluble protein and carbohydrate contents.

As expected, because of the presence of superfine sand, more shear force was generated, which accelerated the destruction of extracellular polymers, thus increasing the solubilization at high sand dosages. However, results also revealed that superfine sand had no effect on the subsequent hydrolysis rate of soluble organic materials in sludge, from proteins and carbohydrates to amino acids and monosaccharides. The authors reported that SCFAs production during WAS anaerobic fermentation was positively affected by superfine sand, as indicated by an increase of 1.2 times after 4 days, from 2513 mg COD/L without superfine sand to 3002 mg COD/L with superfine sand (VSS/TSS = 50%). Nevertheless, higher sand dosages worsened SCFAs production, which was probably due to excessive shear forces that can also affect SCFA-producing microorganisms. Regarding the final distribution of SCFAs, acetic, propionic and valeric acid played dominant roles, although butyric acid was also present in significant proportions. When superfine sand was present in the WAS, the production of acetic and valeric acids was boosted.

Effect of Oxidants

Another way to enhance the classical biological process is the incorporation of different chemicals to the fermentation medium, which act as oxidants and solubilize the sludge. This facilitates the hydrolysis step, which is considered the limiting one in the biological digestions, as previously explained.

This was the strategy followed by Luo et al. [69], who carried out classical acidogenic fermentations in the presence of Fe(0) (1.25 mM/g TSS), persulfate (PS) (1.0 mM/g TSS), and the combination of both (Fe(0)/PS) (1.25 /1.0 mM)/g TSS). All the fermentations were conducted with sedimented secondary sludge in stirred batch reactors at a temperature of 35 °C and without pH control. The authors reported that the solubilization and hydrolysis efficiencies were mildly improved with the sole Fe treatment, whereas the contributing effect was further enhanced remarkably with the involvement of PS. As a strong oxidant, PS was able to chemically disrupt the EPS structure and result in the release of substrates. The disruptive effects of PS were aggravated due to the generation of strong oxidizing sulfate radicals with the activation of Fe. Surprisingly, the maximal concentration of soluble substrates was observed in PS reactor and not in the PS/Fe one. The authors attributed this fact to the higher reactivity of sulfate radicals, compared with PS, thus causing a more severe inhibition on the hydrolases activity.

Moving on to the SCFAs profiles, acetic acid predominated when PS was present, individually or together with Fe (76.9% and 66.5% for Fe + PS and PS alone, respectively). In the absence of PS, these percentages decreased drastically (37.1% and 21.9%, for Fe alone and control, respectively). It should be noticed that although propionic acid was the main SCFAs at the end of sludge fermentations either without additives or with sole Fe (72.8% and 53%, respectively), the presence of PS in the medium highly inhibited its formation (9.7% and 4.9% for Fe + PS and PS alone, respectively). Moreover, PS favored the presence of valeric acid (8.1% and 11.2% for Fe + PS and PS alone, respectively). Butyric acid was present in all cases, although its proportion did not follow a clear pattern.

Due to the promising results obtained, Luo et al. [70] also evaluated the roles of peroxydisulfates (PDS), and different iron forms as enhancers for acidogenic fermentations. To this purpose, they carried out batch fermentations at 35 °C for 14 days, adding three different iron forms (Fe²⁺, ZVI (zero-valent iron), and NZVI (nano zero-valent iron)) to a settled secondary sludge already containing PDS.

Experiments revealed that the most efficient activation of PDS was achieved by Fe²⁺, as well as promoting a best sludge dewatering and the highest VSS reduction. Thus, maximum SCFAs accumulation with PDS + Fe²⁺ was 5537 mg COD/L after 10 days, this being clearly higher than those achieved with other iron forms (3036 mg COD/L for PDS + ZVI, 3533 mg COD/L for PDS + NZVI—in this case after 8 days—and 702 mg COD/L for control). In any case, the SCFAs production was clearly diminished with no chemical addition (PS or activator), with the highest accumulation for the control reactor of only 702 mg COD/L after 10 days. Again, the synergistic effects of PDS and activators in contributing to SCFAs promotion were clearly demonstrated.

Regarding the effects of these activators on the SCFAs final composition, the addition of PDS and any iron form sharply increased the production of acetic acid, from 13.8% for the control to 59.6% with PDS + Fe²⁺, 66% with PDS + NZVI or 72.2% with PDS + ZVI. On the contrary, these compounds also lowered propionic acid formation from 61.1% for the control to 7.6% with PDS + Fe²⁺, 20% with PDS + NZVI and 9.8% with PDS + ZVI. The changes in other SCFAs (for instance, n and iso-butyric and n and iso-valeric acids) due to the presence of the different iron forms and PDS were less marked. As an example, n-butyric presence was not detected for control and PDS + NZVI fermentations but represented a 1.3% and an 11.4% of the total SCFAs for the PDS + ZVI and PDS+ Fe²⁺ fermentation.

2.3. Separated Hydrolysis and Fermentation

2.3.1. Chemical Hydrolysis

Effect of CaO

The SCFAs production by acidogenic fermentation of sludge previously subjected to a chemical solubilization by adding calcium oxide (CaO) was assayed by Xin et al. [71]. Focusing firstly on the chemical solubilization, a waste-activated sludge was subjected to a 15-h treatment under different CaO dosages, from 0 to 0.07 g CaO/g TS. As expected, the higher the CaO dosage, the greater the sludge solubilization, with the SCOD/SCOD_o at the end of the pretreatment ranging from no variation, in the absence of CaO, to 15.14 with a dosage of 0.07 g CaO/g TS. During the sludge solubilization, CaO generated hydroxy radicals, which promoted the dissolution of flocs, and at the same time, Ca²⁺ affected the sludge floc structure via bonding with functional groups, thus also improving the solubilization.

After the CaO pretreament, Xin et al., [71] compared the acidogenic fermentations of the non-pretreated sludge (OLR = 0.005 g COD L⁻¹ d⁻¹) and the hydrolysate obtained by treating the sludge with 0.07 g CaO/g TS (OLR = 0.073 g COD L⁻¹ d⁻¹). The conditions of fermentation involved perfect mixing, an HRT of 16.7 days, and a temperature of 35 °C. However, even though authors indicated that pH was measured, these data did not appear reported throughout the text. Maximum SCFAs concentration was achieved with the CaO pretreated hydrolysate tests after 6 days, being 1.5-fold higher than for the control test at the same time (2611 mg COD/L and 1800 mg COD/L, respectively).

Additionally, the microbial diversity was shifted in CaO-pretreated sludge fermentation. However, SCFAs profiles at this point were quite similar, regardless of the previous addition of CaO to sludge. Thus, the main acid was n-butyric (34% for control and 32% with pretreamtent), followed by acetic acid (25% and 28%), iso-valeric acid (12% and 15%), propionic (8% and 10%), iso-butyric (13% and 9%), and n-valeric acids (7% and 5% for pretreated sludge). As can be observed, there is a relatively high abundance of SCFAs with “long” chains (butyric and valeric acids), which is a phenomenon that the authors linked to a high content of proteins in the hydrolysates, although this was not experimentally checked.

Effect of Surfactants

Wan et al. [72] tested the effect of sodium dodecylbenzene sulfonate (SDBS) addition as a pretreatment method on the SCFAs production. To this end, 0.01 g SDBS/ g TS were added to a secondary settled sludge, which after 1 h at room temperature was fermented, comparing the results with the fermentation of the same sludge in the absence of SDBS. After a week of fermentation at 35 °C, it was checked that SDBS significantly improved the production of SCFA from 60 mg COD g VS-1 to 170 mg COD g VS-1. In addition, the presence of SDBS also had an impact on the SCFAs distribution, favoring the production of acetic and n-butyric acids in comparison to propionic acid. In fact, propionic acid was the main acid in the control fermentation (38%) but not in the presence of SDBS, where acetic acid turned out to be the predominant one (37%), being lowered the content in propionic acid to 18.6%. The percentages for all the other acids did not change when adding SDBS: iso-valeric acid (21%), iso-butyric acid (11%), n-butyric acid (6%), and n-valeric acid (3%).

2.3.2. Thermal Hydrolysis

This section involves all the recent studies dealing with thermal hydrolysis as sludge pretreatment for the subsequent acidogenic fermentation of the hydrolysate obtained.

Effect of Inoculum Size

Iglesias-Iglesias et al. [66] evaluated the combined effects of using a thermal pretreatment and inoculum size (120 °C and 2 bar for 15 min) on the SCFAs production. By means of the application of the thermal pretreatment, the SCOD increased 16%, as well as the concentrations of N-NH₄⁺ and P-PO₄⁻³ (5% and 19%, respectively). Another effect of the thermal treatment was a 4% reduction in total COD (TCOD) due to the loss of volatile soluble compounds. Then, the hydrolysate obtained was inoculated with the microbiota of an anaerobic digestor at different S/I ratios, ranging from 1 to 6 g VS substrate/g VS inoculum, and fermented at 30 °C for 30 days without pH control.

Researchers found a higher SCFAs production with compared to without thermal pretreatment, although this difference was less marked at high S/I, at which the maximum acidogenic potential was found (9500 mg COD_SCFAs L⁻¹ after 10 days). As in the case of the raw sludge fermentation (see Effect of Inoculum Size paragraph in Section 2.2.1), the higher the S/I ratio, the higher the SCFAs accumulation after the fermentation of the thermally hydrolyzed sludge. However, when authors calculated the degree of acidification, (the amount of acids generated per unit of initial TCOD), this was found to be higher when larger inocula were used for fermenting the thermally hydrolyzed sludge, ranging from 45% for S/I = 1 to 37% for S/I = 6. Therefore, low inoculum sizes produced more concentrated but less pure streams of SCFAs at the end of the fermentation. In any case, higher degrees of acidification were observed when the sludge was thermally pretreated, especially at low S/I ratios. Finally, in comparison to the non-pretreated sludge, the thermal pretreatment also modified the final SCFAs profile, enhancing the proportions of propionic, iso-butyric, n-butyric, iso-valeric, and n-valeric acids at all the S/I ratios tested.

Effect of Surfactants

The combination of pretreatments is also feasible. This is the case of Wan et al. [72], who tested the efficiency of combining SDBS and low-thermal pretreatment to improve the production of SCFAs from a secondary settled sludge. To this end, sewage sludge was firstly subjected to a thermal treatment (1 h, 70 °C) in the presence of different SDBS dosages (from 0 to 0.02 g/g TS) and then fermented in batch reactors at 35 °C for a week without employing an inoculum.

From the characteristics of hydrolysates obtained after the different pretreatments, it clearly emerged that the combination of SDBS and thermal treatment was the most effective option to solubilize the sludge. Thus, the SDBS addition (0.01 g/g TS) during the thermal pretreatment increased around 20% the SCOD in the hydrolysate in comparison to the sole low thermal treatment. Meanwhile, the combination of temperature and SDBS also made it possible to enhance by 768% the final SCOD with respect to the sole SDBS pretreatment. Comparatively, sole thermal pretreatment was clearly more effective than sole SDBS dosage solubilizing the sludge.

The combined SDBS and thermal pretreament was also the most effective in terms of acidogenic potential of the hydrolysate obtained. The maximum SCFAs concentration was obtained after 4 days of fermentation of the sludge previously hydrolyzed by a combination of thermal treatment and 0.01 g SDBS/g TS, with a value of 320 mg COD/g VS. This value was 1.8, 1.7, and 4.0 times higher than those from sole low-thermal, sole SDBS, and the control test, respectively. It can be stressed that the dosage of more than 0.01 g SDBS/g TS resulted in a toxic effect during the acidogenic fermentation, which not only led to a reduction in the maximum SCFAs concentration but also to a delay in the time at which it was reached.

Focusing on the SCFAs profiles, these differed depending on the pretreatment chosen. First of all, the SCFAs profile for the control test was 21% of acetic acid, 38% of propionic acid, 12% of iso-butyric acid, 5% of n-butyric acid, 2% of n-valeric acid, and 22% of iso-valeric acid. The employment of a low thermal treatment involved a clear increase in acetic acid (up to 62.6%) and an impoverishment in propionic, iso-butyric, and iso-valeric acid percentages (down to 15.4%, 3%, and 14%, respectively). The presence of SDBS (0.01 g/g TS) during the thermal pretreatment caused slight decreases in the acetic (from 62.6% to 56.4%) and iso-valeric acids percentages and, therefore, slight increases in the propionic, butyric, and n-valeric acids.

3. Polyhydroxyalkanoates

3.1. General Considerations

Although the methods described in the previous section generate added value products from sewage sludge, there are more alternatives comprising both sludge management and circular economy to be explored. In this regard, taking into account that society is currently more aware than ever of the problems generated by petrol-based plastics, the demand of new green materials that could replace them is opening up new opportunities for the sludge valorization. Among these green materials, ones with high potential are PHAs, which are biopolymers mainly composed by polyhydroxybutyrate (PHB) monomers, although polyhydroxyvalerate (PHV) is often found in their composition as well [73].

Chemically, PHAs are polyesters that microorganisms use as energy storage [74,75]. PHAs composition is similar to polypropylene; therefore, they can substitute petrol-based plastics. In fact, their use has been explored in the packaging of cosmetics or feminine hygiene products, food coatings, formulation of wood composites, and 3D printing inks, among others. Due to their biocompatibility, PHAs have also been employed in several fields of medicine, such as tissue engineering, repairing blood vessels, nerves conduits, artificial heart valves or implants, or as drug carrier material. Other applications for PHAs included their use as encapsulation material for enzymes, fertilizers or insecticides, or as materials to cover and protect the growing plants, the synthesis of chiral compounds or, even, their depolymerization to obtain platform molecules for further uses [75,76,77,78,79]. The economic aspects of PHAs production can be found elsewhere in the literature [80,81].

Although several types of species can synthesize PHAs, the ones here meaningful are bacteria, owing to its predominant proportion in sewage sludge and their faster growth abilities. The biochemical mechanism of PHAs accumulation by bacteria during WWTPs operation is well studied, so it is not required to be detailed here [82]. Suffice it to say that PHAs production naturally occurs in WWTPs simultaneously with phosphorus removal, since this biopolymer is naturally accumulated by bacteria under situations of anaerobiosis (and in absence of either nitrites and nitrates) by means of the uptake of low-complex carbon molecules, such as SCFAs, which can be easily obtained from sludge [82]. It is interesting to note that several studies have showed that some microorganisms were able to accumulate even more PHAs in aerobic conditions [82,83,84].

Given that SCFAs are the main substrate for PHA-producing microorganisms and their presence in raw sludge is low, a previous sludge acidogenic fermentation is required, although other non-biological pretreatments are also possible for this purpose, as will be explained ahead. In any case, the PHA-producing reactor feeding should have a significant content of SCFAs in its composition, since it is proved that the presence in a proportion higher than 30% of other carbon molecules, such as proteins or carbohydrates, largely hinders the PHAs accumulation [85,86]. Consequently, all those methods employed to enhance SCFAs production from sludge (see previous section) also represent an excellent pretreatment to improve the subsequent PHAs accumulation.

PHAs production not only depends on the total concentration of SCFAs but also on the profile of these. Thus, the presence of a high proportion of acids with an even number of carbon atoms, such as acetic or butyric acids, is a determining factor during the PHAs accumulation by microorganisms, although this phenomenon will be checked and discussed after the description of the studies [87]. Soluble nitrogen concentration plays another important role in the final PHAs production, since nitrogen is needed for cellular metabolism. Particularly, the higher the C/N ratio, the higher the PHAs accumulation, at least in ranges of C/N (in mass basis) lower or equal to 144 [88].

In the following paragraphs, the most recent studies dealing with PHAs production from hydrolyzed sludge obtained by different pretreatments will be discussed. It must be pointed out that only works where the feeding of the PHA-producing step is clearly detailed were included. A summary of these studies can be found in

Table 2. Summary of the main parameters found in the studies dealing with PHAs production.

Sludge	Thermal Treatment		Acidogenic Fermentation		PHA Fermentation		References
	Conditions	Results	Conditions	Results	Conditions	Results
Settled activated sludge			Spontaneous fermentation at 36 °C, 100 rpm for 1 day Different pHs: 10.0, 9.0, 8.0, 7.0, 6.0, 5.0, and 4.0	Better SCFAs/SCOD results at pH 10.0, 9.0 and 4.0: 61.8%, 57.0%, and 58.0% respectively Mainly acetic acid, propionic acid, and low valeric acid quantities	Seed sludge acclimated in ADF (10% of inoculum) at 25 °C in SBR for at least 3 cycles of 12 h Feeding of SCFAs liquid, nutrient solution of N and P, trace elements and seed sludge Five stages per cycle in a SBR at 25 °C: influent (5′), anaerobic with mixing (25′), aerobic (660′), settling (25′), and effluent (5′)	0.6 g PHA/g VSS using pH 10 SCFAs liquid after 0.5 h Mainly composed of PHB (>90%)	(Liu et al., 2020)
Sludge from thickening tank (lab-scale experiments) Diluted dewatered sludge (pilot-scale experiments)			Lab-scale: spontaneous fermentation at 40 °C, 1200 rpm without pH control Pilot scale: 50 °C	55.83% and 65.17% of SCFA/COD for lab-scale and pilot scale respectively. Mainly acetic acid, similar concentrations of propionic acid, butyric acid, and iso-valeric acid	Seed sludge from secondary sedimentation tank acclimated in synthetic media at 30 °C and pH 7 in at least 3 cycles in feast-famine strategy Lab scale: 30 °C, 150 rpm and pH 7 for 60 h Pilot scale: feast–famine cycles (120 h) at 30 °C, 150 rpm without pH control	0.23 g PHA/g dry cell after 36 h 0.59 g PHA/g dry cell after 72 h and 4 batch at pilot scale	(Jia et al., 2014)
Thickened waste-activated sludge			Spontaneous fermentation at 35 °C, 42 °C and 55 °C in 10 days batches. No pH control	90% of SCFA/SCOD at 42 °C and 4–5 days (the best condition) Mainly acetic acid (38%) followed by butyric acid (20%) and similar percentages of propionic, valeric and iso-valeric acids (≈10%)	Seed sludge from a SBR treating real wastewater in feast–famine (12 cycles a day) Production by feed-on-demand. Temperature and pH not controlled. Different accumulation times	Maximum of 0.38 g PHA/g VSS (22–25 °C, pH ranging from 7.5 to 8.1) after 15 h 70% of PHB, 30% of PHV (mean values)	(Morgan-Sagastume et al., 2015)
Secondary from sedimentation tank			Spontaneous fermentation in anaerobiosis Different temperatures and pHs: 21, 35, 60 °C; pH 8, 9, 10, and 11 Addition of 0.02 g/g VSS of SDBS	Optimal conditions: 60 °C and pH 11.0 2.56 g SCFA/L as TOC Mainly acetic acid (80.5%) and propionic acid (11.4%). Lower concentrations of butyric and valeric acids and their isomers	Sludge from aeration tank without acclimationFeeding in three pulses, when substrate exhausted 21 °C, no pH control, 250 rpm	0.565 g PHA/g dry cell after 3 h 40′ 88.1% of PHB, 11.9% of PHV	(Mengmeng et al., 2009)
Chemically enhanced (FeCl3) sedimentation primary sludge			Spontaneous fermentation at 37 °C. No pH control Addition of different CaO2 concentrations to enhance hydrolysis	Better results with 0.1 g CaO2/g VSS: 93.5% SCFAs/SCOD after 16 days Mainly propionic and acetic acids (50% and 35% respectively) followed by a 10% of iso-valeric acid	SBR (feast–famine) with activated sludge as inoculum. 21 °C with SRT of 10 days	Maximum of 0.223 g PHA/g VSS at day 35 Polymer made of equal parts of PHB and PHV	(Xu et al., 2018)
Municipal and primary + municipal waste-activated sludge subjected to a CAMBITM process			Semi-continuous spontaneous fermentation at 42 °C, 20–30 g/L d of organic load rate	In mix of sludges, 50% SCFAs/SCOD with predominance of acetic acid (≈27%) and butyric acid (≈23%), similar proportions of propionic and valeric acids (≈17%) and lower representation of valeric, caproic and isobutyric acids In only municipal sludge: 58% SCFAs/SCOD, being acetic acid the main one (≈32%) followed by butyric acid and propionic acid (≈18%), isovaleric acid (≈14%) and isobutyric and valeric acids (≈8%)	SBR reactor in feast–famine regime, with activated sludge as inoculum, controlled at 35 °C and 400 rpm. No pH control. Cycles of 4 h	0.2 g PHA/g TSS Polymer made of a 74% of PHB and a 26% of PHV	(Morgan-Sagastume et al., 2010)
Primary + secondary sludge	155–175 °C, 6 bar for 30 min (CAMBI)	Increase of SCOD (from 2% to 27%), proteins (from 1% to 50%) and carbohydrates (from 1% to 69%) Little effect on SCFAs: only 0.3% more in TH sludge (1.1 g SCOD/L and 1.3 gSCOD/L in raw and TH sludge respectively)	Fermentation using anaerobic digested sludge as inoculum Fermentations at 35 °C with TH sludge and raw sludge; 55 °C with TH sludge and raw sludge. No pH control (ranging from 6.0 to 6.6). First at batch mode (10 days), then semi-continuous with SRT of 4 days.	71% and 62% SCFAs/SCOD for raw sludge at 35 °C and 55 °C, respectively 50% and 45% SCFAs/SCOD for raw sludge at 35 °C and 55 °C, respectively Mainly acetic acid (≈30%), followed by butyric (≈27%), valeric (≈24%) and propionic acids (≈17%)	Inoculum from aeration tank Feast–famine regime at 35 °C and 150 rpm Organic load at 5 g SCOD/L	Results from acidified TH-sludge at 35 °C after 15 h in the eight cycle: 0.346 g PHA/g dry cell 70% of PHB and 30% of PHV	(Zhang et al., 2019)
Waste sludge from sedimentation tank	Thermal treatment at 60, 80, 100, and 120 °C for 2 h	55.4% (the highest) SCFAs/COD at 60 °C with higher proportion of acetic acid than propionic, butyric, or valeric ones			Seed sludge acclimated in synthetic wastewater, SBR with ADF at 25 °C, pH 7.5 in 3 cycles of 12 h Feeding of thermally treated liquid, nutrient solution of N and P, trace elements, and seed sludge SBR with ADF at 25 °C, pH 7.5 in cycles of 12 h	0.241 g PHA/g VSS using 60 °C liquid after 1.5 h Mainly composed of PHB	(Liao et al., 2018)
Mix of primary and waste-activated sludge with acidogenic fermentation	240 °C and 20 bar with O2 (wet oxidation)	46% SCFAs/TOC Mainly acetic acid (74%) and lower proportions of propionic acid (12%) and butyric acid (8%)			Biomass conditioning in SBR in 12-h cycle of feast–famine with effluent of WO at 800 mg C/L Temperature and pH controlled at 30 °C and 7.0–8.8, respectively	0.4 g PHA/g TSS Polymer made of 77% of PHB and 23% of PHV	(Wijeyekoon et al., 2018)

.

3.2. Biological Hydrolysates for PHAs Production

3.2.1. Non-Assisted Biological Procedures

This section covers those studies dealing with the PHAs production from a sludge previously subjected to an acidogenic fermentation and without adding any reagent as the simplest approach to obtain these biopolymers.

Effect of pH

In this light, Liu et al. [89] evaluated the effect of the initial pH on both SCFAs formation and subsequent PHAs production by fermentation, employing a settled activated sludge as feedstock. The initial pH values studied ranged from 4 to 10, and the acidogenic fermentations were carried out at 36 °C for only 1 day.

As explained in previous sections, results confirmed that fermenting waste sludge under initially alkaline conditions was more beneficial to solubilize and release organic matters than under initial acidic or neutral conditions.

Initial pH also had impact on the release of nitrogen from sludge during the acidogenic fermentation, observing the highest COD/NH₄⁺ ratios at alkaline conditions, with values of 19.5 and 15.96 for pH 9 and pH 10, respectively. For lower initial pH values, this parameter ranged from 5.26 (pH = 7) to 9.57 (pH = 6). It was found that initial alkaline pH values enhanced the SCFAs production than acidic ones, obtaining hydrolysates with more than 50% of the soluble COD corresponding to SCFAs at initial pH values of 10 (61.8%), 9 (57%) and, surprisingly, also at 4 (58%). However, it should be notice that a lower soluble COD value was reported at pH 4, with this being close to a half of that corresponding at initially alkaline pH values.

SCFAs profiles at the end of the acidogenic fermentations at different initial pH values were consistently dominated by acetic (45.0–74.2%), propionic (8.8–47.0%), butyric (3.9–20.0%), and little of valeric (2.2–6.2%) acid. It was observed that initial acidic pH during sludge fermentation favored the production of acetic acid, whereas alkaline conditions promoted the generation of butyric acid, and near neutral pH conditions sped up the formation of propionic acid and valeric acid.

Once acidogenic fermentation was completed, the different sludge hydrolysates obtained were fermented to produce PHAs. It was found that the maximal PHAs content accounted for 60.3% of the dry cell, and it was achieved employing the acidogenic liquid hydrolysate obtained from sludge at an initial pH of 10. Under these conditions, the recovered polymer composition was 98.3% PHB and 1.7% PHV by mass. This PHAs accumulation was almost three times higher than the achieved using the hydrolysate from raw sludge at initial pH 7 as substrate.

The effect of initial pH of the raw sludge on the final production and composition of PHAs was linked to the composition of the acidogenic liquid obtained. Exploring the preferential consumption of the organic acids, Liu et al. [89] found that PHA-storing microorganisms preferred SCFAs with an even number of carbon atoms as substrates. At the same time, the consumption of these even-number SCFAs also increased the proportion of PHB in the final polymer, whereas the bacterial uptake of odd-number SCFAs led to a higher production of PHV. Moreover, the authors also delved into the consumption of other non-SCFAs substrates available in the sludge hydrolysate after the acidogenic fermentation, such as proteins or fulvic and humic acids. They reported that protein concentration sharply decreased, with more than 70% of the solubilized protein consumed in less than an hour. On the contrary, humic-like substances were poorly metabolized during the PHA-producing fermentation. This is an interesting fact, since sludge hydrolysates usually present an important content of humic acids [31,43].

Effect of Temperature

Morgan-Sagastume et al. [90] subjected a thickened waste-activated sludge to a spontaneous acidogenic fermentation at temperatures ranging from 30 to 55 °C at pilot scale for 10 days. The centrates obtained were subsequently used to accumulate PHAs, thus discussing the effect of temperature on either the production or composition of these.

These experiments revealed that the optimal temperature for SCFAs production was 42 °C—a temperature at which the SCFAs represented 90% of the soluble COD in the centrate after 4–5 days of acidogenic fermentation. Nevertheless, WAS fermentation at 35 and 55 °C also produced SCFAs-rich centrates with lower but reasonably good SCFAs/SCOD ratios (>70%), which are also amenable for use as substrate for PHAs production. It should be noticed that although higher temperatures solubilized more solids and increased the SCFAs specific production rates per loaded waste sludge, they also involved lower SCOD conversions into SCFAS. In fact, the maximum SCFAs volumetric concentrations achieved were not statistically significantly different among the three tested temperatures, with a mean value of around 8 g COD_SCFA/ L. Differences in SCFAs profiles due to temperature were slight, with these being dominated by acetic (28–38%, COD basis), butyric (15–26%), propionic (13–23%), iso-valeric (12–18%), and valeric (4–11%) acids, with little of iso-butyric (6–9%) and trace amounts of caproic (<1%) acids.

Regrettably, Morgan-Sagastume et al. [90] only tested sludge hydrolysate obtained by acidogenic fermentation at 42 °C as substrate for the PHA-producing fermentation. The maximum PHAs accumulation reported was 0.39 g PHA/g VSS, which were constituted by a mixture of PHB (70%) and PHV (30%).

Mengmeng et al. [91] continued studying the effect of fermenting sludge at different temperatures (from 21 to 60 °C) on the PHA-producing potential of the acidic hydrolysates generated. Nevertheless, when comparing to Morgan-Sagastume et al. [90], two clear differences in the experimental procedures can be distinguished. Firstly, Mengmeng et al. [91] added sodium dodecylbenzene sulfonate (SDBS) at the dosage of 0.02 g/g VSS in each batch experiment to improve sludge solubilization. Secondly, these authors also used MgCl₂·6H₂O after the sludge fermentation to recover ammonium and phosphorus by struvite deposition, and to control the carbon to nitrogen ratio in the PHA-producing fermentation. As expected, during the fermentations, SCFAs concentration value increased gradually with the rise of temperature at each pH tested (from 8 to 11), which indicated that more soluble substrates were produced from particulate organics in excess sludge under the alkaline conditions. It was also found that pH lower than 9 favored the production of butyric and valeric acids. Under the best conditions (pH 11, 60 °C and 6 days), the maximum yield of SCFAs was 258.65 mg TOC/g VSS, with acetic and propionic acids being the main products. Specifically, after struvite recovery, sludge hydrolysate was mainly composed by acetic acid (80.5%—the highest found among all the revised studies), with 11.4% of propionic acid and a low presence of other SCFAs, such as iso-valeric (2.2%), iso-butyric (1.3%), n-butyric (4.0%), and n-valeric acids (0.6%). The reason for the high ratio of acetic acid to other SCFAs was attributed to the high protein and carbohydrate content (55%) in the sludge of this study, which contributed to the generation of SCFAs with 2–5 carbon chains. Propionic, iso-butyric, n-butyric, iso-valeric, or n-valeric acids were easily biodegraded to form acetic acid and were not much accumulated in the anaerobic fermentation system.

As in the case of Morgan-Sagastume et al. [90], only the best centrate obtained (pH 11, 60 °C) was employed as substrate for the PHAs-producing fermentation by Mengmeng et al. [91]. It was reported a maximum accumulation of 56.5% of PHAs on a dry cell basis after 220 min of fermentation. As expected, acetic acid was again the most easily assimilable by PHA-producing microorganisms. Finally, due to the high percentage of acids with an even number of carbon atoms (86%) in the hydrolysate, the PHA polymer was mainly composed by PHB (88.1%).

Effect of Scaling Up

Jia et al. [85] studied the PHAs generation from excess sludge fermentation liquid at lab and pilot scale. For the former, PHAs-producing fermentations were carried out using either a hydrolysate obtained by acidogenic fermentation of thickened sludge at 40 °C in batch experiments or a simulated acidic centrate with a similar composition but prepared using commercial SCFAs, nitrogen, and phosphorus sources. On the other hand, a hydrolysate obtained by acidogenic digestion at 50 °C of a dewatered sludge in a real WWTP was employed for the pilot-scale fermentations.

Lab-scale PHAs fermentation in simulated sludge fermentation liquid produced a maximal PHAs content of 59.18% of the cell dry weight at 36 h. The specific uptake rate of acetic acid was the highest, which was followed by butyric acid, and the last was propionic acid, which confirmed that PHA-producing consortium preferred to utilize even-number acids. On the other hand, employing a real centrate for lab tests, fermentation led to a significantly lower PHAs accumulation, with only around 25% of the dry cell weight after 36 h. This lower value using the real centrate was attributed to a higher cell growth due to its lower SCFAs/SCOD ratio (56%), in comparison to simulated fermentation liquid (96%), which was almost completely composed of SCFAs. On the other hand, the highest PHAs production during the fermentation of the real acidogenic liquid at pilot scale was 59.47% of the dry cell weight, once the consortium was completely adapted to the environment and obtained a high ability of PHAs synthesis in this pilot-scale reactor. This value was significantly greater than at lab scale. These authors proposed that the adverse impact of excess nitrogen and non-SCFAs fraction in the real centrate on PHAs accumulation might be eliminated by pilot-scale domestication, which might result in community structure optimization and substrate selective ability improvement of the microbial population.

These findings should be viewed with caution due to the different characteristics of the real acidogenic liquids used for lab or pilot scale PHAs-producing fermentations. As an example, COD/NH₄⁺ ratios were 19 for the hydrolysate employed in the laboratory experiments, 15.68 for the one used at pilot scale, and 20.5 for the simulated acidogenic liquid. Additionally, no information is provided about the composition of the PHAs obtained. In any case, the authors proved that the integration of anaerobic digestion and PHAs fermentation at pilot scale was feasible to reduce excess sludge disposal and produce PHAs with low cost.

Continuing with the study of the scaling process, Morgan-Sagastume et al. [90] evaluated the integrated production of polyhydroxyalkanoates (PHAs) with municipal wastewater and sludge treatment by operating a pilot plant for 22 months. Although this study has already discussed in Effect of Temperature paragraph in Section 3.2.1, it should be recalled that the authors stated that producing a biomass with 0.5 g PHA/g VSS is considered to be realistically achievable within the typically available carbon flows at municipal waste management facilities.

3.2.2. Assisted Biological Procedures

Some authors have also opted to combine the biological hydrolysis of sludge with the addition of different chemicals in order to find potential synergistic effects between them on the PHAs production.

Effect of Additives (Peroxides)

Xu et al. [92] studied the feasibility of producing PHAs with calcium peroxide (CaO₂) treated chemically enhanced primary sedimentation sludge fermentation liquor. With this aim, different CaO₂ dosages, ranging from 0.02 to 0.1 g CaO₂/g SS, were added to a primary sludge previously thickened by FeCl₃ coagulation, observing a significant enhancement in the SCFAs generation during the subsequent acidogenic digestion at 37 °C and without pH control, in comparison to the control without CaO₂ addition. On the other hand, the release of P from sludge decreased with increasing CaO₂ dosage, which was probably attributed to the precipitation of calcium phosphate. CaO₂ also induced the microbial reduction of Fe (III) and helped to maintain the alkaline conditions, facilitating the sludge disintegration.

Numerically, a CaO₂ dosage of a 0.1 g/g SS increased the SCOD_o solubilization by 35% and the SCFAs yield by 44.7% compared with the control sludge. It was also proved that the SCFAs yield with H₂O₂ treatment was not enhanced as much as CaO₂ was, due to a serious inhibition of the acidogenic bacteria by H₂O₂ at high dosages. CaO₂ addition not only changed the proportion of SCFAs but also their distribution by increasing the quantities of propionic acid (48% with CaO₂ and 40% for control) and lowering the acetic acid ones (36% with CaO₂ and 42% for control).

It should be noticed that CaO₂ addition also decreased Fe²⁺ concentration, which was toxic for the microbes. Therefore, CaO₂ dosage was beneficial to the further utilization of fermentation liquor as a substrate for PHAs biosynthesis due to the reduced concentration of Fe²⁺. Another advantage is that the release of P from sludge decreased with the increasing CaO₂ dosage, due to the precipitation of calcium phosphate, which was also beneficial to utilize the fermentation liquor as substrate for PHAs production. Utilizing the fermentation liquor obtained with a CaO₂ dosage of a 0.1 g/g SS as medium, the PHAs content in activated sludge reached 22.3% after 35 days, which was comparable to those obtained using waste materials as carbon source. PHAs composition was 50% PHB and 50% PHV. This did not turn out to be surprising, taking into the high proportion of acids with an odd number of carbon atoms (57.4%) in the initial biological hydrolysate.

Effect of Thermal Pretreatment

This section would include those studies dealing with thermally assisted biological hydrolysis procedures. However, this strategy could also be considered as a biologically assisted thermal hydrolysis. In this basis, the studies focused on these procedures were considered the same, so the reader is referred to Section 3.3.2.

3.3. Thermal Hydrolysates for PHAs Production

The aforementioned studies make it clear that biological hydrolysis is a feasible sludge pretreatment to obtain suitable substrates for subsequent PHAs bioproduction. However, there are other available pretreatments to improve the production of PHAs. In this sense, hydrothermal processes can enhance the solubilization, hydrolysis, and SCFAs content of the sludge. This is why, in the following lines, studies involving the hydrothermal pretreatment of sludge in order to enhance SCFAs production and, consequently, PHAs accumulation in a subsequent fermentation, will be revised.

3.3.1. Non-Assisted Thermal Procedures

This section includes all those recent studies where thermally hydrolyzed sludge is directly used as substrate for PHAs-producing fermentations, completely avoiding the acidogenic digestion of the sludge.

Effect of Temperature

In this context, Liao et al. [93] assayed the effect of temperature during thermal pretreatrment of a waste sludge from a secondary sedimentation tank on the subsequent PHAs-producing fermentation. The range of temperature tested was 60–120 °C and the duration of the pretreatment was 2 h.

Predictably, alongside the increase of heat-pretreatment temperature, SCOD, and concentrations of soluble proteins, carbohydrate, ammonia nitrogen, and SCFAs increased. The maximum solubilization was reached at 100 °C, with final soluble COD and SCFAs concentrations 7.3 and 29 times higher than the initial ones. It is noticeable that temperatures higher than 100 °C involved a lower solubilization, which was due to the proteins precipitation by conformational changes in their structure.

Nevertheless, the lowest SCFAs/SCOD ratio was also found at 100 °C (25.5%), whereas it increased as the temperature moved away from this value. In fact, 60 °C was the best value of the tested heat-pretreatment temperature range to improve the PHAs productivity, because the SCFA/SCOD was the highest (55.6%).

The pretreatment temperature did not only have an effect on the amount but also on the distribution of SCFAs. Results showed that the predominant SCFA in the hydrolysis liquid at 60 °C was acetic acid, accounting for 47.1% of total SCFAs, while propionic acid was the major component in the hydrolysis liquid at 80, 100, and 120 °C (46.0%, 53.4% and 42.2% for each).

During the PHAs-producing fermentation itself, microorganisms showed a quick adaptation to sludge carbon source at any pretreatment temperature. It was confirmed that 60 °C was the optimal temperature for the sludge pretreament in terms of PHAs synthesis, with a maximal PHAs content of 24.1% of dry cell in less than 3 h (≈14% for other temperatures). For all the pretreatment temperatures, PHA polymer was mainly composed by PHB, with the highest PHV percentage being observed using 100 °C hydrolysate (17.9%); at this temperature, the highest percentage of odd-numbered SCFAs was found.

Effect of Oxidizing Atmosphere

Although thermal hydrolysis is clearly the most commonly used non-biological technique to improve PHAs production (either in combination with a subsequent biological hydrolysis or alone), there is another hydrothermal treatment that has also been employed: wet oxidation. This is an oxidative treatment that shares hydrolytic characteristics with thermal hydrolysis, although it adds oxidation reactions due to the presence of pressurized oxygen during the treatment instead of an inert atmosphere, thus being more effective in terms of solubilization [18]. The main advantage of this technique is that it promotes the generation of SCFAs as final products under appropriate conditions, which in turn should improve the subsequent PHAs-producing fermentation.

On this basis, Wijeyekoon et al. [94] employed a wet oxidation pretreatment at 240 °C and 20 bar for 2.5 h to obtain a sludge hydrolysate from a mixed sludge. It is interesting to note that prior to the wet oxidation treatment, this sludge was subjected to an acidogenic pre-fermentation, although the characteristics of either this pre-fermentation or the initial sludge were not reported; it was only indicated that wet oxidation was able to remove almost 98% of the VSS. These authors not only tested the wet oxidation hydrolysate but also same hydrolysate after being subjected to an ammonia stripping process with air, aiming to increase the C/N ratio from 4 to 12. Either the raw or ammonia-stripped hydrolysates showed a SCFAs/TOC ratio of around 46.4% and were mainly composed of acetic acid (74.3%) and propionic acid (12.5%).

The results revealed that the maximum PHAs accumulation (40.1% of the TSS) was reached using ammonia-stripped hydrolysate as substrate and after 7 h of fermentation at 30 °C. It is interesting to note that non-removal of ammonia slowed down the PHAs production (from 7 to 12 h) but not the maximum accumulation (39%). Ammonia concentration in the hydrolysate did not have a significant effect on the PHAs composition for both hydrolysates, with 76.8% of the polymer weight being due to PHB and 23.2% remaining PHV. The authors also found that feeding regimes affected the rate of PHAs accumulation and composition. Equal doses of substrate fed hourly at 25% DO saturation was found to be the best conditions based on PHAs yield on substrate.

3.3.2. Assisted Thermal Procedures

This section collects all those recent studies where thermally hydrolyzed sludge is subsequently subjected to an acidogenic digestion to increase its content in SCFAs before being fed to the PHA-producing fermenter.

The first study with this approach was published by Morgan-Sagastume et al. [95], who used a biologically fermented effluent from a CAMBI process as substrate for a subsequent PHAs-producing fermentation. CAMBI technology refers to a commercial thermal hydrolysis technology. During the CAMBI process, sludge is dewatered and preheated to 100 °C; then, it is subjected to temperatures between 160 and 180 °C and pressures about 6 bars and finally directed to a flash tank where a sudden temperature and pressure decrease leads to a high cell breakage and solubilization [96].

The CAMBI hydrolysate was later fermented at 42 °C for 2 days, reaching final SCFAs/SCOD and COD/NH₄⁺ ratios of 0.5 and 10.53, respectively. This biological hydrolysate was rich in acetic acid (27.1%), butyric acid (23.1%), propionic acid (17.1%), iso-valeric acid (17.1%), caproic acid (7%), valeric acid (5%), and iso-butyric acid (3.5%).

Putting the light on the PHAs production results, the high proportion of non-SCFAs compounds in the substrate (only 50% of the SCOD was due to SCFAs) tarnished the results of PHAs accumulation, only reaching a yield of 19.5% (0.195 g PHA/g TSS), although it is also true that this value was reached after 1.6 h of cycle, resulting in a reasonably high specific PHAs production rate. PHA polymer was composed of PHB (74%) and PHV (26%). Again, following the previously addressed relationship between PHAs composition and the SCFAs number of carbons, acids with an even number of carbon atoms accounted for 61% of the total SCFAs, so it seems logical that PHA was mainly composed of PHB, as was experimentally observed, representing a higher percentage instead of PHV.

Zhang et al. (2019) also proposed a PHAs-producing process from sludge, which was very similar to the studied one by Morgan-Sagastume et al. [95]. During their study, they compared the SCFAs yields during the acidogenic fermentation under mesophilic (35 °C) and thermophilic (55 °C) temperatures of raw or thermally hydrolyzed sludges. The highest production of SCFAs was found to occur at mesophilic temperatures (35 °C) and with a thermally hydrolyzed sludge, reaching a maximum of 9.63 gCOD_SCFAs/L. It is important to remark that although the highest concentration of SCFAs was reached under these conditions, the highest SCFAs/SCOD ratio was observed using raw sludge at 35 °C (SCFAs/SCOD = 71.4%) and not with the hydrolysate from thermally pretreated sludge at 35 °C (SCFAs/SCOD = 50.2%).

Temperature did not have an effect on the SCFAs profile when raw sludge was the substrate, with less than 3% variation in percentages between experiments. On the other hand, temperature did have an impact on SCFAs distribution with thermally pretreated sludge as substrate for the acidogenic fermentation. In this case, higher fermentation temperatures led to a small increase in the proportions of acetic acid (28% and 33% for 35 °C and 55 °C) and a slight decrease in valeric acid (26% and 21% for 35 °C and 55 °C).

Even though it is generally accepted that the higher SCFAs/SCOD ratio, the more favorable the PHAs accumulations, Zhang et al. [97] only selected the hydrolysate with the highest SCFAs concentration (raw sludge at 35 °C) but not with the highest SCFAs/SCOD ratio (thermally pretreated sludge at 35 °C) for assaying the PHAs bioproduction. This acidified hydrolysate, with a COD/NH₄⁺ ratio of 14.3, surprisingly, showed butyric acid as the main acid present (30%), followed by acetic acid (28%), valeric acid (26%), and propionic acid (16%). The PHAs fermentation was carried out at 35 °C and led to a PHAs accumulation of 34.6% of the dry cell weight after 15 h. PHA polymer was mainly composed of PHB (ranging from 71% to 76% of the total PHA mass, depending on the sampling time), whereas PHV only accounted for a maximum of 29% after 10 h. This is an expected finding, taking into account the prevalence of acids with an even number of carbon atoms (56.3% of the total acids) in the medium after the acidogenic fermentation.

3.4. Other Considerations

As it has been just seen, there exists a high variance in terms of PHAs yields and compositions, which is likely to be due to the wide range of operation conditions, treatments, and raw sludges employed. Obviously, these facts greatly complicate the comparison of results between different authors. In order to try to facilitate this discussion, a table showing the most relevant parameters affecting the final PHAs content (SCFA/SCOD ratio, COD/NH₄⁺ ratio, percentage of SCFAs with an even number of carbon atoms, and acclimation of biomass) was included (

Table 3. Summary of the key characteristics of the hydrolysates and other factors that influence final PHAs production in each work. - Indicates data not available. * authors measured TOC instead of COD.

Sludge Employed	SCFA/SCOD Ratio	% of Acids with an Even Number of Carbon Atoms	COD: NH4+:P (COD/NH4+)	Acclimation of Fermentative Biomass	% PHA in Dry Cell Basis (Δ%) (Time)	References
Settled activated sludge	62%	66%	1621.2:101.6: (15.96)	Yes	60% (46%) (0.5 h)	(Liu et al., 2020)
Sludge from thickening tank (lab scale) Diluted dewatered sludge (pilot scale)	56% (lab. scale) 65% (pilot scale)	63% 66%	174.78:9.2:1 (19) 230.46:14.7:1 (15.68)	Yes, in both processes	23.2% (-) (36 h) 59% (34%) (72 h of the 4th batch)	(Jia et al., 2014)
Thickened waste activated sludge	90%	65%	100:10:5 (10)	Yes	38% (36%) (15 h)	(Morgan-Sagastume et al., 2015)
Secondary from sedimentation tank	36%*	86%	661.3:6.9:1 (95.84) *	No	56.5% (52.5%) (3.7 h)	(Mengmeng et al., 2009)
Chemically enhanced (FeCl3) sedimentation primary sludge	93.5%	42.6%	269:13.5:1 (19.93)	No	22.3% (after 32 d) 18% (13%) (0.375 h of cycle)	(Xu et al., 2018)
Thermally hydrolyzed primary + municipal waste activated sludge	49.75%	61%	200:19:3 (10.53)	Yes	19.5% (after 75 d) 19.5% (4%) (1.6 h of the cycle)	(Morgan-Sagastume et al., 2010)
Primary + secondary sludge	50.2%	57.4%	418.1:29.3:1 (14.3)	No	34.6% (28.6%) (15 h)	(Zhang et al., 2019)
Secondary from sedimentation tank	55.4%	56.3%	977.5:66:- (14.72)	Yes	24.1% (11.6%) (1.5 h)	(Liao et al., 2018)
Mix of primary and waste-activated sludge with acidogenic fermentation	46.3% *	85.1%	47:3.92:1 (12) *	Yes	40.1% (39.1%) (7 h)	(Wijeyekoon et al., 2018)

).

3.4.1. Sludge Characteristics

It is interesting to notice from Table 3 that many authors selected secondary activated sludges as starting materials [85,86,90,91,93]. These sludges, which were typically withdrawn from the sedimentation tank of a WWTP, showed TSS concentrations ranging from 4.5 to 13.1 g/L [89,91,93]. Other authors opted for more dewatered sludges with solid concentration between 30 and 43 g TSS/L [85,90].

The use of mixtures of primary and secondary sludges was less common, with solid contents ranging from 24 and 46 g VS/L [94,95,97]. Curiously, this combination was selected as the influent of thermal hydrolysis processes, whose hydrolysates were latterly the substrates of the PHAs production operations. Finally, only Xu et al. [92] used a primary sludge (5.7 gTSS/L) as the starting material.

3.4.2. Hydrolysate Characteristics

Focusing now on the hydrolysis method employed as pretreatment before the PHA-producing fermentation, anaerobic digestions were the predominant ones [85,89,90], followed by thermal hydrolysis [93,95,97]. Paying attention to biological hydrolysis, typical conditions to generate the SCFAs that will be later transformed into PHAs include temperatures ranging from 36 to 60 °C with or without pH adjustment. It should be noticed that even when it was addressed that alkaline pH values yielded more SCFAs in the previous section (see Section 2), it seems that this parameter did not have much relevance in comparison to SCFAs/COD ratios in terms of PHAs production. In this regard, SCFAs/COD ratios for sludge hydrolysates from acidogenic fermentation typically ranged from 55.83% to 65% [81,82]. The high SCFAs/COD ratio (90%) reported by Morgan-Sagastume et al. [90] is surprising, which is probably due to the lack of a primary waste sludge treatment in the WWTP, according to the authors.

For its part, the proportion of acids with an even number of carbon atoms in biological hydrolysates usually slightly oscillates among studies, from 63% to 66%, regardless of the conditions of treatment and the initial sludge characteristics. The results suggest that the SCFAs/COD ratio can be increased by adding chemicals before the acidogenic fermentation, such as CaO₂ or SDBS.

Moving on to the hydrothermal treatments as pretreatment for biological acidification, the final hydrolysate had a lower SCFAs/COD ratio than the one obtained by only employing biological treatments [95,97]. Nevertheless, the feeding in these cases included primary sludges, whereas secondary sludges were employed in the studies with only biological acidification, so the effect of the thermal pretreatment could be compromised by the presence of the primary sludges. In any case, during the use of thermal treatments either as pretreatment or sole treatment to obtain the hydrolysate, the composition of the SCFAs showed little reduction on the proportion of acids with an even number of carbons, also if primary sludge was not present in the feeding (57.4% and 61% versus 56.3%). These values were lower to those obtained for acidogenic fermentations without thermal pretreatments.

The selection of hydrothermal treatments, either as the sole hydrolysis method or as pretreatment for a subsequent acidogenic digestion, also reduced the final PHAs production, not only provoking a lower SCFAs/COD ratios in the hydrolysate but also reducing the microbial growth due to the generation of inhibitory compounds during the treatment [18]. Nevertheless, these drawbacks can be avoided by means of the presence of oxygen during the hydrothermal treatment. Thus, wet oxidation promoted the generation of SCFAs and reduced the formation of inhibitory products such as HMF or phenolic derivatives [45,98]. However, these statements need further research to be confirmed.

3.4.3. PHA Effluent Characteristics

Concerning the generation of PHAs itself using the hydrolysates obtained, initial inoculum usually consists of microorganisms from the activated sludge of the WWTP which are cultivated in an sequencing batch reactor (SBR) with a feast–famine strategy in cycles, using as feed real hydrolysates or, to a lesser extent, synthetic hydrolysates. However, some authors decided to use non-acclimated inocula directly [91,92,97].

Although it is extremely difficult to establish comparisons between different studies due to the high heterogeneity of conditions during both SCFAs and PHAs generations, results suggest that the prior acclimation of the PHA-producing inoculum is not a determining factor for increasing the final PHAs accumulation at the end of the fermentation. As an example, Mengmeng et al. [91] reported a 56.5% of PHAs accumulation on a dry cell basis directly using raw sludge to inoculate the fermenter, whereas Jia et al. [85] or Liao et al. [93] achieved lower yields, 23.2% and 24.1% of PHAs, respectively, even when they used a previously acclimated sludge.

It is also difficult to establish a pattern of the effects of the hydrolysate sludge composition on the final PHAs accumulation by microorganisms, again attending to the high heterogeneity in operating conditions and raw sludge characteristics. The results from Table 3 suggest that the PHAs production is favored by sludge hydrolysates rich in SCFAs. However, when comparing the works of Liu et al. [89] and Morgan-Sagastume et al. [90], both showing similarities in either the initial sludge or the hydrolysis method (biological hydrolysis), it can be deduced that an excessively high SCFAs/COD ratio can have a negative impact on PHAs bioproduction.

More specifically, Liu et al. [89] reported a SCFAs/COD ratio of 62% and the maximum PHAs accumulation of 60%. Meanwhile, Morgan-Sagastume et al. [90], with a SCFAs/COD ratio of 90%, observed a final PHAs content in the biomass of only 38%. In the same way, Xu et al. [92] also observed a low PHAs yield (18%) using a sludge hydrolysate with a high SCFAs/COD ratio (93.5%). Therefore, SCFAs/COD ratios higher than 90% hinder the PHAs production. At the same time, more than 30% of non-SCFAs in the feeding reduces the final PHAs production. Therefore, it can be concluded that the highest PHAs accumulation can be obtained for SCFAs/COD ratios around 60–70%. At higher ratios, SCFAs inhibited the bacterial growth, whereas low ratios caused an excessive cell proliferation and no accumulation of PHAs, which only takes place under nutrient-limiting conditions.

Additionally, nutrients as nitrogen also played an important role during the PHAs-producing fermentation. According to Table 3, too low or too high COD/NH₄⁺ ratios in the sludge hydrolysates had a negative impact on PHAs production, observing maximum PHAs accumulations for ratios around 16.

Finally, the last but not least parameter of the hydrolysate composition that played an important role on the final PHAs production is the percentage of acids with an even number of carbon atoms. This is in line with the reported preferential uptake of these SCFAs by microorganisms during PHAs production. As can be deduced from Table 3, a higher percentage of these SCFAs in the sludge hydrolysate is usually linked to a higher PHAs accumulation by microorganisms, as long as the SCFAs/COD ratio was not higher than 90%, as previously discussed. For instance, the best PHAs yields corresponded to those hydrolysates with a higher proportion of acids with an even number of carbon atoms, which is the case of the works of Liu et al. [89], Jia et al. [85], Mengmeng et al. [91], and Wijeyekoon et al. [94]. In these studies, where even-numbered SCFAs predominate (66%, 66%, 86%, and 85.1%, respectively), the final PHAs content was among the highest reported (60%, 59%, 56.5%, and 40.1%).

4. Other Metabolites

As seen in previous sections, sewage sludge hydrolysates are a powerful substrate to obtain added-value products that could improve the sludge reuse during its management and introduce WWTPs in the circular economy. Despite having been the subject of many in-depth studies for the last few years, SCFAs and PHAs are not the one and only products that could be obtained from sludge hydrolysates by fermentation. Other metabolites with higher molecular weights, such as enzymes or lipids, can also be obtained from sludge by selecting adequate microorganisms and operation conditions during either its hydrolysis pretreatment or the subsequent fermentation process. Using sludge hydrolysates for the production of these metabolites involves significant industrial savings, since typical fermentation media for these kind of processes account for 30–40% of the total production cost [99], whereas sludge is a cheap and ubiquitous waste.

However, as will be checked, these are still low explored alternatives, even though they represent a very attractive renewable source of high-value products.

4.1. Enzymes

4.1.1. General Considerations

As proteases and laccases are the enzymes whose production will be here described, their applications will be cited. These have been extracted from the reviews of Razzaq et al. [100] and Rodríguez Couto and Toca Herrera, [101].

Proteases are commonly used enzymes in several fields. For example, they are widely spread in detergents. They are also used to facilitate the chemical synthesis of organics from amino acids. Textile applications include the degumming of silk or the dehairing of leather. Their role in the food industry is related to the production of bioactive peptides or hydrolysates with antioxidant activity or the improvement in dough properties by gluten breakage and in cheese manufacturing. Proteases have also been applied in the decontamination of wastewaters that contain hair or feathers as well.

Regarding laccases uses, they have been employed in the wood and paper industry for bleaching and pulping, as well as in the decontamination of effluents. Their capability of degrading phenolic compounds makes them useful for the decontamination of wastewaters from textile industries. Laccases can also be applied in the food industry for the elimination of colored phenols from beverages and to produce crosslinking for more resistant and less elastic doughs. They also have cosmetic applications, for example in the manufacturing of hair dyes.

Putting firstly the focus on enzyme production, proteases are probably the most promising candidate to be obtained from sludge hydrolysates, attending to their composition. In this sense, proteins are largely the most abundant biopolymer in the sludge, nearing 60% [102]. Thus, sludge hydrolysates can be used as potential fermentation media for microorganisms with a significant proteolytic enzymatic activity. Proteases production is a matter of great interest, since these enzymes are responsible for almost 60% of the enzyme market [103]. Among the microorganisms available for this purpose, Bacillus species are known to be proteolytic and profusely producers of proteases such as subtilisin or alkaline proteases [103,104,105].

4.1.2. Production

The inoculation of Bacillus in sewage sludge hydrolysates with the aim of producing proteases was firstly studied by Drouin et al. [106], paying special attention to the effect of the sludge hydrolysis pretreatments on the final protease yields. The hydrolysis methods consisted of an alkaline thermal hydrolysis at pH 10 and at two different temperatures (121 and 140 °C) for 30 min. The authors also carried out fermentations using the raw secondary sludge and the hydrolysate obtained at 140 °C mixed with raw sludge (1:1) as substrates. In each case, Bacillus licheniformis was inoculated during its exponential growth phase, with the fermentation being carried out at 35 °C for 48 h and keeping the pH controlled and fitted to 7.5, which was the optimal value for the microorganism development.

Results showed that mixing raw sludge and thermo-alkaline hydrolysate (140 °C) promoted the highest protease activity at the end of the fermentation, whereas the lowest protease activity was reported employing only thermo-alkaline-treated sludge as the fermentation medium. This fact was attributed by the authors to a high viscosity in the thermo-alkaline hydrolysate that made oxygen transfer difficult. Nevertheless, the difference in proteolytic activities was approximately of only 3 units (from 13.0 U/mL for the mixture to 9.8 U/mL for the thermo-alkaline hydrolysate). When in situ hydrolyzed sludge or raw sludge were employed as growth media for B. licheniformis, similar proteolytic activities were reported, 11.5 U/mL or 10.4 U/mL, respectively.

These activity values seem very low, especially in the comparison of hydrolysates with raw sludge. As the authors reported, viscosity could harm the oxygen transfer. Moreover, as mentioned in the Introduction, hydrothermal treatments could generate inhibitors to microbial growth that also led to the poor results observed.

Recent research dealing with enzymes production from sludge hydrolysates include not only proteases but also laccases recovery. The simultaneous production of both protease and laccase enzymes was reported by García et al., currently pending of publication [107] by means of the growth of B. licheniformis in thermally hydrolyzed secondary sludge. In this study, the authors compared the employment of thermal hydrolysates obtained in the presence (wet oxidation) or absence (thermal hydrolysis) of an oxidizing atmosphere as fermentation media for B. licheniformis. Both treatments were carried out at 160 °C and 40 bar of oxygen or nitrogen for 70 min, aiming not to completely destroy the biopolymers present in the sludge. Afterwards, B. licheniformis was inoculated in the hydrolysates, which were already sterilized after the thermal treatment. The fermentation was carried out at 37 °C, with an initial pH adjusted to 7.2. Moreover, the authors also evaluated the B. licheniformis fermentation of either diluted hydrolysates (1:1) or in a synthetic hydrolysate, to investigate the potential generation of toxics during the hydrothermal treatment and to provide a basis of comparison, respectively.

Results showed that B. licheniformis was able to grow in both hydrolysates. In the case of the wet oxidation, it did it better in the diluted hydrolysate, which was probably due to the formation of toxics during the oxidizing treatment, such as furfurals. Regarding biopolymers evolution in the thermal hydrolysis liquid, B. licheniformis firstly consumed carbohydrates, followed by proteins and finally humic acids, which were only degraded when the stationary growth phase was reached (96 h). Similar trends were observed when the diluted hydrolysate obtained in the absence of oxygen was employed as substrate. In the case of the wet oxidation hydrolysates, diluted or not, the sequential uptake behavior was more marked. It is interesting to note that the initial carbohydrates uptake using the wet oxidation hydrolysates was higher than selecting the thermal hydrolysis hydrolysates, which was probably due to the greater solubilization provided by oxidizing atmospheres. In turn, proteins from wet oxidation hydrolysate were less consumed and only metabolized during the stationary phase; this phenomenon was attributed to the higher damage caused by oxidation reactions. The humic acid’s behavior was similar to that reported for protein.

Regarding the activities of proteases and laccases, the production of the former was almost doubled during the fermentation of the thermal hydrolysis liquid in comparison to the wet oxidation one (898 and 495 U/mL, respectively). For both hydrolysates, proteases were mainly generated during the stationary growth phase, coinciding with the most intense protein uptake (72 h in the case of the thermal hydrolysis and 120 in the case of the wet oxidation). The effect of dilution on the protease activity was in line with the expectations, halving the maximum protease activity and demonstrating that the potential toxic compounds did not affect protease activity at the same time. On the other hand, focusing on laccase production, this was much lower for the thermal hydrolysis hydrolysate than for the wet oxidation one (28.8 U/OD at the end of the experiment and 55 U/OD after only 72 h with final values in a rising trend), which was probably due to an easier assimilation of proteins from hydrolysates obtained under inert atmospheres, in contrast with the oxidizing ones, thus not requiring to produce its laccases to start the metabolization of humic acids.

The dilution of hydrolysates strongly affected laccase production but in different trends. For the fermentation carried out with thermal hydrolysis effluent previously diluted, final laccase activity was almost negligible, whereas using diluted wet oxidation hydrolysate, laccases production was strongly enhanced, reaching values higher than 50 U/OD in the first 24 h, although it decreased until the end of the experiment.

Finally, the authors also employed a synthetic hydrolysate with similar concentrations of biopolymers to those found in the real hydrolysates tested. In this medium, B. licheniformis was able to at least double its growth in comparison to the previously reported for real hydrolysates. The consumption of biopolymers in synthetic media corroborated the preferential uptake of carbohydrates, especially the reducing ones, as was addressed for the real hydrolysates. The authors also reported a strong uptake of proteins when carbohydrate consumption was less intense.

Despite the high biopolymer uptake, enzymatic activity behavior did not show significant differences to that found in the real hydrolysates when glucose was used as a carbohydrate model. Nevertheless, the use of starch as reference highly increased the production of either proteases or laccases. According to the authors, this increase in enzymes production in the presence of complex carbohydrates is attributed to lower bioassimilation of these by the bacteria, forcing them to use other carbon sources, such as proteins and carbohydrates. The authors concluded that although results obtained from real hydrolysates were promising, there is still a lot of work to be done to improve the production of enzymes in sludge hydrolysates—for example, optimizing both hydrolysis and cultivation conditions, as well as exploring the microorganisms that could produce high quantities of enzymes.

4.2. Lipids

4.2.1. General Considerations

Moving now to the applications of lipids, these include mainly the production of oleochemicals. Examples of these are fatty alcohols, which have been used in detergents, biofuels, or cosmetics. Moreover, they can be employed as substrates for the synthesis of rhamnolipids, sophorolipids, and n-acetylethanolamines. Rhamnolipids and sophorolipids are biosurfactants, whereas n-acetylethanolamines are used in pharmaceutical synthesis. However, the main application of lipids is the synthesis of biodiesel [30].

4.2.2. Production

Liu et al. [108] employed several pretreatments to obtain a final hydrolysate suitable to be used as growth medium for an oleaginous yeast, Cryptococcus curvatus ATCC 20509. Firstly, they subjected a dewatered secondary sludge (VSS = 5 g/L) to a thermal alkaline hydrolysis at 90 °C and pH 10 for 6 h. Then, the hydrolysate obtained was anaerobically fermented at pH 8 for 10 days to produce a medium rich in SCFAs, especially in acetic (almost 3.5 g/L) and propionic acids (1.6 g/L), and with low concentrations of iso-butyric, n-butyric, and valeric acids (0.77, 0.75, and 0.85 g/L, respectively). Afterwards, the fermentation broth obtained was subjected to two different treatments: a struvite precipitation and a struvite precipitation plus an acid separation. The authors included these steps to increase the C/N ratio, whose initial value was 10. By means of the former, struvite precipitation, inorganic ammonia was removed, raising the C/N ratio to 60. With the second treatment, struvite precipitation plus acid separation, inorganic ammonia, and proteins were removed, which resulted in raising the C/N ratio to 111.

These effluents with different C/N ratios were subsequently fermented by Cryptococcus curvatus ATCC 20509, in a sequencing batch reactor at 30 °C. This reactor was periodically fed, replacing the medium by fresh hydrolysate when the yeast reached the stationary growth phase.

Lipid accumulation by the yeast showed results of 1.11 g/L (0.155 g lipid/g biomass) using the liquid obtained after struvite precipitation. This value, which was under the authors expectations, was attributed to a low C/N ratio. Nevertheless, the introduction of an acid precipitation step allowed to increase the C/N ratio more but not the production of lipids, which was around 0.98 g/L (0.31 g lipid/g biomass). In this case, the authors suggested that the low lipid yield was yet caused by an excess of organics, such as proteins, carbohydrates, or humic acids. This was the reason why the authors decided added a third separation step, a coagulation step with poly-aluminum chloride, prior to struvite precipitation and acid separation.

The combination of these three treatments did not change to a great extent the C/N ratio achieved with only struvite precipitation and acid separation with coagulation, but it significantly increased lipid accumulation to 1.95 g/L (0.397 g lipid/g biomass). This yield was 2.56 times higher than the one achieved with only struvite precipitation and 1.28 times higher than the content reported with struvite precipitation and acid separation.

5. Conclusions and Future Outlook

It has been shown that hydrolyzed sewage sludge is a very promising fermentation medium for the bioproduction of added-value, non-energy molecules. The main limiting step of this approach is a proper solubilization and hydrolysis of the sludge in order to improve the bioassimilation of nutrients by the corresponding microorganism. To this end, biological and/or thermal pretreaments are the options more profusely employed by researchers.

In the literature, the bioproduction of SCFAs has been well studied due to their wide range of industrial applications. This SCFAs bioproduction from sludge consists mainly of conventional anaerobic digestions in which the methanogenic microorganisms are inhibited. Therefore, biological hydrolysis and SCFAs generation processes are coupled, and an inoculation is not required. In this sense, pH plays a key role, with alkaline pHs speeding up the sludge solubilization and, at the same time, inhibiting the methanogenic population. However, a strongly alkaline biological hydrolysis led to higher solubilizations as well as the release of compounds refractory to biological transformation, reducing the final SCFAs/SCOD ratio. The purity of SCFAs in the fermented liquid was also improved when pH was only initially adjusted to alkaline pH instead of keeping it continuously controlled during the whole fermentation. Moreover, increasing the pH provoked a decrease in propionic acid proportion but favored the butyric and valeric acids ones in the SCFAs profiles.

SCFAs distribution was also related to solubilization degree, since when more proteins were present, a higher proportion of butyric and valeric acids were synthesized by the microorganisms. It was found that an excessive OLR caused the overload of the substrate as well as to the accumulation of heavy metals and other inhibitory compounds, decreasing the production of SCFAs. The initial inoculation of the sludge boosted the SCFAs generation and modified its profile. Results revealed that the higher the inoculum size, the lower either the SCFAs accumulation or the production of long-chain fatty acids.

Biological hydrolysis can be also improved by adding CER, sand, or oxidants during fermentation, although an excessive dosage of these had a negative impact on the SCFAs generation.

The initial stages of solubilization and hydrolysis of sludge can be also carried out separately from the biological production of SCFAs by chemical or thermal or pretreatments. Focusing on the former, the dosage of CaO generated hydroxy radicals, which promoted the dissolution of flocs, and, at the same time, Ca²⁺ affected the sludge floc structure via bonding with functional groups, thus also improving the solubilization and the generation of butyric and valeric acids. In a similar way, adding SDBS to sludge improved the production of SCFAs, favoring the production of acetic acid and n-butyric acid in comparison to the propionic acid.

Thermal pretreatments also increased the SCFAs bioproduction and the proportions of propionic, iso-butyric, n-butyric, iso-valeric, and n-valeric acids, although a subsequent inoculation of the hydrolysate was always mandatory. In this regard, the higher the S/I ratio, the higher the SCFAs accumulation but lower their purity in the effluent after the fermentation of the thermally hydrolyzed sludge. The combination of chemical (SDBS) and thermal pretreaments was highly effective in terms of acidogenic potential of the hydrolysate obtained.

The productions of SCFAs and PHAs are highly interconnected because the former are the main substrate for PHAs-producing microorganisms. Taking into account that the SCFAs content in raw sludge is low, a previous sludge acidogenic fermentation is required to boost the PHAs production, although other non-biological pretreatments are also possible for this purpose. This also explains why findings previously explained for SCFAs production from sludge are also valid for PHAs. Nevertheless, there exists a high variance in terms of PHAs yields and compositions, which is likely to be due to the wide range of operation conditions, treatments, and raw sludges employed. Obviously, these facts greatly complicate the comparison of results between different authors.

The proportion of acids with an even number of carbon atoms in biological hydrolysates usually slightly oscillate among studies, from 63% to 66%, regardless of the conditions of treatment and the initial sludge characteristics. Results suggest that the SCFAs/COD ratio can be increased by adding chemicals before the acidogenic fermentation, such as CaO₂ or SDBS, or employing thermal pretreatments. The prior acclimation of the PHAs-producing inoculum was not a determining factor for increasing the final PHAs accumulation at the end of the fermentation. It can be concluded that the highest PHAs accumulation can be obtained for sludge hydrolysates with SCFAs/COD ratios around 60–70%, COD/NH₄⁺ ratios around 16, and with even-numbered SCFAs predominating.

Despite having been the subject of many in-depth studies for last years, SCFAs and PHAs are not the one and only products that could be obtained from sludge hydrolysates by fermentation. Other metabolites with higher molecular weights, such as enzymes or lipids, can also be obtained from sludge by selecting adequate microorganisms and operation conditions during either its hydrolysis pretreatment or the subsequent fermentation process. In this regard, Bacillus licheniformis was able to properly develop using sludge raw hydrolysates as substrate, with any kind of nutrient supplementation, sterilization, or previous dilution, to produce either proteases or laccases, although the presence of oxygen during the hydrothermal treatment promoted the formation of inhibitory substances. Cryptococcus curvatus can also use thermally hydrolyzed sludge as growth medium to produce lipids, although combined conditioning processes were required to increase productivities.

Future research about the use of sludge hydrolysates as fermentation media should look deeper into the development of new fermentative processes using pure cultures. This approach would allow obtaining non-energy metabolites with a higher added value than SCFAs, such as enzymes, lipids, proteins, etc. The coupling of these processes with a previous thermal pretreatment of the sludge shows some positive synergies, such as higher capacities than biological or chemical pretreatments, the production of a stabilized sludge, the insolubilization of heavy metals during the pretreatment, or the direct inoculation of the hydrolysate, without requiring a previous sterilization. A lot of work stills remain ahead to be done, such as testing different microorganisms or even by incorporating genetic engineering tools. Clearly, another factor to be taken into account in future research should be the downstream processing of the fermentation effluent to ensure either production volume or specification compliance for the product recovered.
