# Impact of Building Design Parameters on Daylighting Metrics Using an Analysis, Prediction, and Optimization Approach Based on Statistical Learning Technique

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. Daylighting Metrics

#### 1.2. Limitations of Current Daylighting Metrics and Proposed Approach

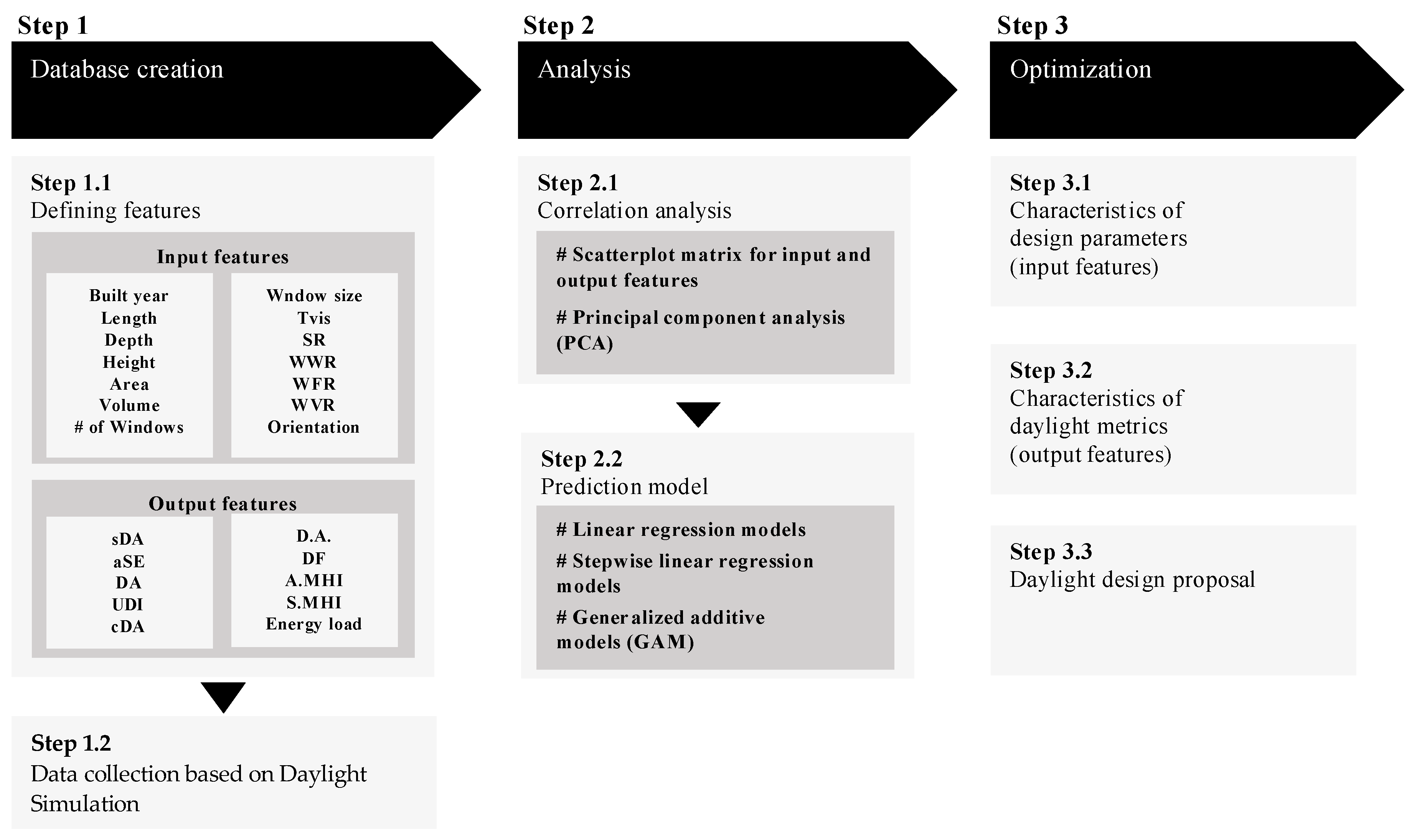

## 2. Methods

#### 2.1. Database Creation

#### 2.2. Analysis, Prediction, and Optimization

#### 2.2.1. Analysis

#### 2.2.2. Prediction

#### 2.2.3. Optimization

## 3. Results and Discussion

#### 3.1. Analysis Stage

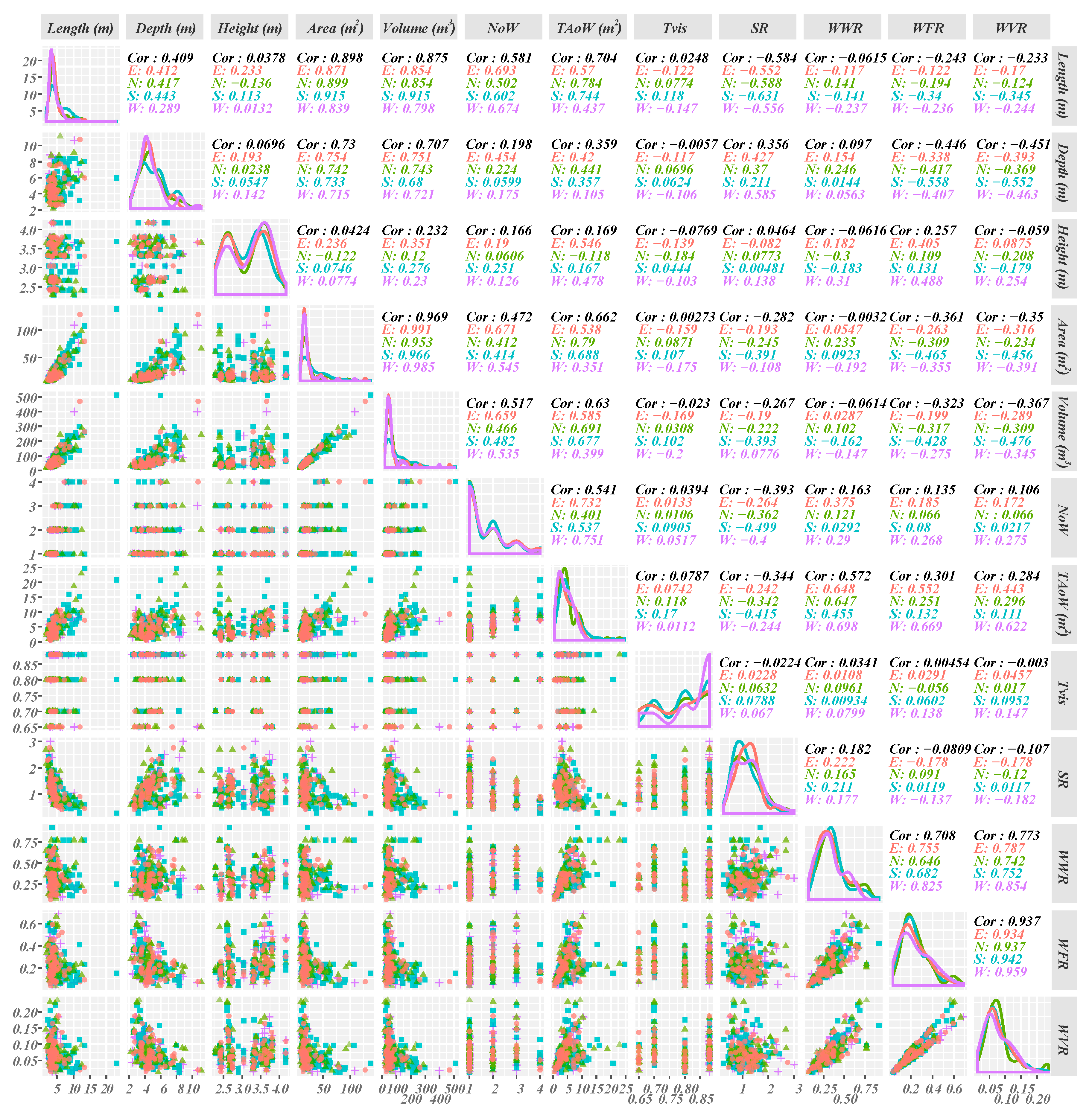

#### 3.1.1. Correlation Analysis of Input Features

#### 3.1.2. PCA of Input Features

#### 3.1.3. Correlation Analysis between DF and A.MHI

#### 3.1.4. Correlation Analysis of DA Related Metrics

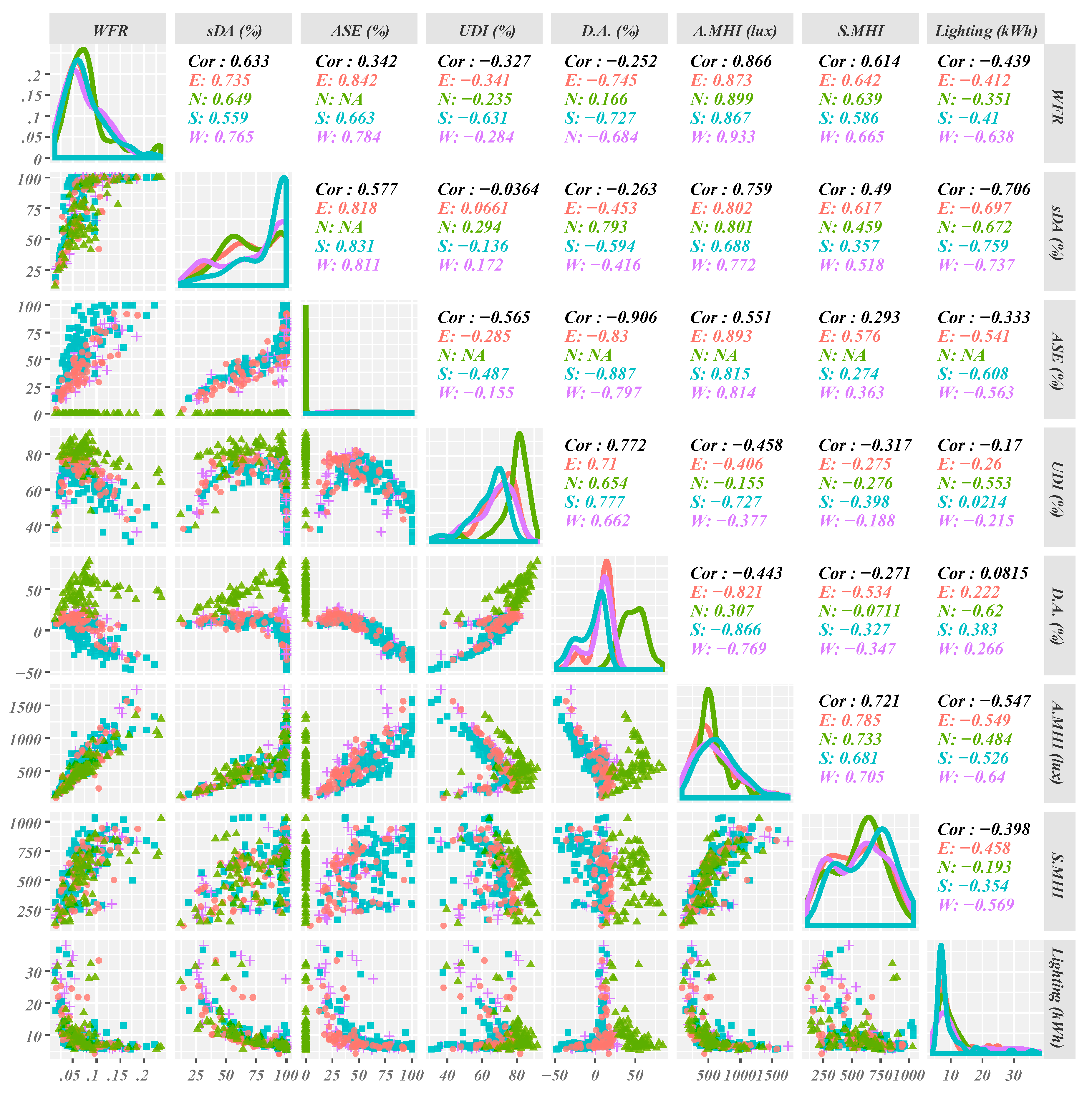

#### 3.1.5. Correlation Analysis of Output Features

#### 3.2. Prediction Stage

#### 3.2.1. Simple Linear Regression and Stepwise Linear Regression

#### 3.2.2. Generalized Additive Models (GAM)

#### 3.3. Optimization Stage

#### 3.3.1. Characteristics of Design Parameters

#### 3.3.2. Characteristics of Daylighting Metrics

## 4. Conclusions

- In the conventional computer simulation, a 3-D model is used to analyze daylight. Because of the computer simulation, this conventional method requires modelling techniques, which can have difficulty analyzing how each design parameter affects daylight availability. Therefore, this cubic model was deconstructed and classified based on design parameters and used as an input feature. Also, nine well-known daylighting metrics were selected as output features. For the target building, 300 rooms were randomly selected based on a total of 70 university buildings.

- The input parameters showing relatively high correlations are (1) WWR, WFR, and WVR, (2) size and volume. Since the height of the room does not change significantly within a certain range, the above three results are obtained. In addition, it is more effective to use WFR or WVR than to use WWR, which is the most commonly used parameter to describe the percentage of windows occupied in a building or room.
- According to PCA, our analyses indicated that only 7 room attributes (Length, Depth, Volume, TAoW, Tvis, SR, and WFR) out of 13 input attributes can predict the internal change to about 97.7%. Therefore, the number of input features can be relatively reduced, which can greatly enhance the interpretability of the models. The overall tendency of the results of PCA is similar to that of the correlation analysis.
- As an alternative to the DF metric, A.MHI may be used, since it contains most of the characteristics of DF.
- DA related metrics, DA, sDA, and cDA are highly correlated, and there is no major problem in using the most recently proposed sDA as a representative value.

- In the statistical prediction process, the simple linear regression model was analyzed as a basic model.
- Log transformation was performed on some skewed data, and a stepwise linear regression model was created and compared with the basic model. Based on RMSE, the prediction accuracy has increased in all output features. Also, based on feature selection, the input features were reduced and the interpretability was increased.
- GAM model shows that the model’s predictive power is significantly better than other models based on RMSE. The variable selection also shows a similar tendency to the stepwise linear regression model. In particular, some input and output features have non-linear relationships, making the GAM model highly suited to current data.

- Our study has shown that using one single metric may not be a panacea to predicting performance in all scenarios. and that using one single metric is unlikely to result in a better daylight environment.
- The daylighting metric used as the output feature can be classified into three categories; (1) sDA, DA, CDA, DF, and A.MHI, (2) UDI and D.A, and (3) lighting according to the correlation between the measurement purpose and the result value.
- Based on the correlation results, we have proposed which combination of metrics best represents the daylighting condition. For example, it is necessary to use one of the sDA-related metrics and one of the UDI-related metrics. Also, a supplemental use of aSE (especially in the north) is necessary because it can appear to vary greatly depending on orientation.
- Among the design parameters, the WFR or WVR value has a large influence on the output features. However, it is difficult to explain the optimal daylight design by WFR alone. SR is an additional design parameter that can be supplemented. Thus, according to the SR, the relative window size of building floor area, that is, the WFR value, must be reconsidered. For daylight optimization, as SR becomes smaller, WFR should be relatively smaller. On the contrary, when SR becomes larger, a relatively large WFR is advantageous.
- The South, West, and East require proper shading design. The sDA and A.MHI are relatively large and enough light enters. However, even though the aSE should be small, in most cases the aSE value is large, indicating the high probability of excessive light and glare. This problem can be solved by installing shading inside or outside of a window.
- The absence of shading design in the North may be advantageous in most cases.

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Boubekri, M.; Cheung, I.N.; Reid, K.J.; Wang, C.-H.; Zee, P.C. Impact of windows and daylight exposure on overall health and sleep quality of office workers: A case-control pilot study. J. Clin. Sleep Med. Jcsm Off. Publ. Am. Acad. Sleep Med.
**2014**, 10, 603. [Google Scholar] [CrossRef] [PubMed] - Boubekri, M. Daylighting, Architecture and Health; Routledge: London, UK, 2008. [Google Scholar]
- Sahin, L.; Wood, B.M.; Plitnick, B.; Figueiro, M.G. Daytime light exposure: Effects on biomarkers, measures of alertness, and performance. Behav. Brain Res.
**2014**, 274, 176–185. [Google Scholar] [CrossRef] [PubMed] - Boyce, P.R. The impact of light in buildings on human health. Indoor Built Environ.
**2010**, 19, 8–20. [Google Scholar] [CrossRef] - Rea, M.; Figueiro, M. Light as a circadian stimulus for architectural lighting. Light. Res. Technol.
**2018**, 50, 497–510. [Google Scholar] [CrossRef] - Leccese, F.; Salvadori, G.; Casini, M.; Bertozzi, M. Analysis and measurements of artificial optical radiation (AOR) emitted by lighting sources found in offices. Sustainability
**2014**, 6, 5941–5954. [Google Scholar] [CrossRef] - Baker, N.; Steemers, K. Daylight Design of Buildings: A Handbook for Architects and Engineers; Routledge: London, UK, 2014. [Google Scholar]
- Boubekri, M. Daylighting Design: Planning Strategies and Best Practice Solutions; Birkhäuser: Basel, Switzerland, 2014. [Google Scholar]
- Leccese, F.; Salvadori, G.; Casini, M.; Bertozzi, M. Lighting of indoor work places: Risk assessment procedure. Wit Trans. Inf. Commun. Technol.
**2012**, 44, 89–101. [Google Scholar] - Reinhart, C.F.; Walkenhorst, O. Validation of dynamic RADIANCE-based daylight simulations for a test office with external blinds. Energy Build.
**2001**, 33, 683–697. [Google Scholar] [CrossRef] - Friedman, J.; Hastie, T.; Tibshirani, R. The Elements of Statistical Learning; Springer: New York, NY, USA, 2001; Volume 1. [Google Scholar]
- James, G.; Witten, D.; Hastie, T.; Tibshirani, R. An Introduction to Statistical Learning; Springer: New York, NY, USA, 2013; Volume 112. [Google Scholar]
- Deb, K. Multi-Objective Optimization Using Evolutionary Algorithms; John Wiley & Sons: Hoboken, NJ, USA, 2001; Volume 16. [Google Scholar]
- Blischke, W.R.; Murthy, D.P. Reliability: Modeling, Prediction, and Optimization; John Wiley & Sons: Hoboken, NJ, USA, 2011; Volume 767. [Google Scholar]
- Bamdad, K.; Cholette, M.E.; Guan, L.; Bell, J. Ant colony algorithm for building energy optimisation problems and comparison with benchmark algorithms. Energy Build.
**2017**, 154, 404–414. [Google Scholar] [CrossRef] - Assouline, D.; Mohajeri, N.; Scartezzini, J.-L. Quantifying rooftop photovoltaic solar energy potential: A machine learning approach. Sol. Energy
**2017**, 141, 278–296. [Google Scholar] [CrossRef] - Chen, Y.; Tan, H. Short-term prediction of electric demand in building sector via hybrid support vector regression. Appl. Energy
**2017**, 204, 1363–1374. [Google Scholar] [CrossRef] - Deb, C.; Lee, S.E. Determining key variables influencing energy consumption in office buildings through cluster analysis of pre-and post-retrofit building data. Energy Build.
**2018**, 159, 228–245. [Google Scholar] [CrossRef] - Costanzo, V.; Evola, G.; Marletta, L.; Pistone Nascone, F. Application of Climate Based Daylight Modelling to the Refurbishment of a School Building in Sicily. Sustainability
**2018**, 10, 2653. [Google Scholar] [CrossRef] - IESNA. LM-83-12 IES Spatial Daylight Autonomy (sDA) and Annual Sunlight Exposure (ASE); Lesna Lighting Meas: New York, NY, USA, 2012. [Google Scholar]
- Mardaljevic, J.; Heschong, L.; Lee, E. Daylight metrics and energy savings. Light. Res. Technol.
**2009**, 41, 261–283. [Google Scholar] [CrossRef] [Green Version] - Rogers, Z. Daylighting Metric Development Using Daylight Autonomy Calculations in the Sensor Placement Optimization Tool; Archit. Energy Corp.: Boulder, CO, USA, 2006; Available online: http://www.daylightinginnovations.com/system/public_assets/original/SPOT_Daylight%20Autonomy%20Report.pdf (accessed on 8 March 2019).
- Nabil, A.; Mardaljevic, J. Useful daylight illuminances: A replacement for daylight factors. Energy Build.
**2006**, 38, 905–913. [Google Scholar] [CrossRef] - Green Building Council. LEED v4 User Guide; Green Building Council: Washington, DC, USA, 2013; Volume 12, p. 2014. [Google Scholar]
- Reinhart, C.F.; Wienold, J. The daylighting dashboard–A simulation-based design analysis for daylit spaces. Build. Environ.
**2011**, 46, 386–396. [Google Scholar] [CrossRef] - Moon, P. Illumination from a non-uniform sky. Illum. Eng.
**1942**, 37, 707–726. [Google Scholar] - Tregenza, P. Mean daylight illuminance in rooms facing sunlit streets. Build. Environ.
**1995**, 30, 83–89. [Google Scholar] [CrossRef] - Nocera, F.; Lo Faro, A.; Costanzo, V.; Raciti, C. Daylight Performance of Classrooms in a Mediterranean School Heritage Building. Sustainability
**2018**, 10, 3705. [Google Scholar] [CrossRef] - Reinhart, C.F.; Mardaljevic, J.; Rogers, Z. Dynamic daylight performance metrics for sustainable building design. Leukos
**2006**, 3, 7–31. [Google Scholar] - Boubekri, M.; Lee, J. A comparison of four daylighting metrics in assessing the daylighting performance of three shading systems. J. Green Build.
**2017**, 12, 39–53. [Google Scholar] [CrossRef] - Lee, K.S.; Han, K.J.; Lee, J.W. The Impact of Shading Type and Azimuth Orientation on the Daylighting in a Classroom–Focusing on Effectiveness of Façade Shading, Comparing the Results of DA and UDI. Energies
**2017**, 10, 635. [Google Scholar] [CrossRef] - Mangkuto, R.A.; Rohmah, M.; Asri, A.D. Design optimisation for window size, orientation, and wall reflectance with regard to various daylight metrics and lighting energy demand: A case study of buildings in the tropics. Appl. Energy
**2016**, 164, 211–219. [Google Scholar] [CrossRef] - Van Dijk, D.; Platzer, W. Reference Office for Thermal, Solar and Lighting Calculations; IEA-Shc Task: Delft, The Netherlands, 2001; Volume 27. [Google Scholar]
- Tahmasebi, M.M.; Banihashemi, S.; Hassanabadi, M.S. Assessment of the variation impacts of window on energy consumption and carbon footprint. Procedia Eng.
**2011**, 21, 820–828. [Google Scholar] [CrossRef] - Jakubiec, J.A.; Reinhart, C.F. DIVA 2.0: Integrating daylight and thermal simulations using Rhinoceros 3D, Daysim and EnergyPlus. In Proceedings of the Building Simulation, Sydney, Australia, 14–16 November 2011; pp. 2202–2209. [Google Scholar]
- Crawley, D.B.; Lawrie, L.K.; Winkelmann, F.C.; Buhl, W.F.; Huang, Y.J.; Pedersen, C.O.; Strand, R.K.; Liesen, R.J.; Fisher, D.E.; Witte, M.J. EnergyPlus: Creating a new-generation building energy simulation program. Energy Build.
**2001**, 33, 319–331. [Google Scholar] [CrossRef] - Cohen, J.; Cohen, P.; West, S.G.; Aiken, L.S. Applied Multiple Regression/Correlation Analysis for the Behavioral Sciences; Routledge: London, UK, 2013. [Google Scholar]
- Tipping, M.E.; Bishop, C.M. Probabilistic principal component analysis. J. R. Stat. Soc. Ser. B (Stat. Methodol.)
**1999**, 61, 611–622. [Google Scholar] - R Core Team. R: A Language and Environment for Statistical Computing; R Core Team: Vienna, Austria, 2013. [Google Scholar]
- Neter, J.; Kutner, M.H.; Nachtsheim, C.J.; Wasserman, W. Applied Linear Statistical Models; Irwin: Chicago, IL, USA, 1996; Volume 4. [Google Scholar]
- Asadi, S.; Amiri, S.S.; Mottahedi, M. On the development of multi-linear regression analysis to assess energy consumption in the early stages of building design. Energy Build.
**2014**, 85, 246–255. [Google Scholar] [CrossRef] - Ghiaus, C. Experimental estimation of building energy performance by robust regression. Energy Build.
**2006**, 38, 582–587. [Google Scholar] [CrossRef] - Wilkinson, L. Tests of significance in stepwise regression. Psychol. Bull.
**1979**, 86, 168. [Google Scholar] [CrossRef] - Hastie, T.J. Generalized additive models. In Statistical Models in S; Routledge: London, UK, 2017; pp. 249–307. [Google Scholar]
- Willmott, C.J.; Matsuura, K. Advantages of the mean absolute error (MAE) over the root mean square error (RMSE) in assessing average model performance. Clim. Res.
**2005**, 30, 79–82. [Google Scholar] [CrossRef] [Green Version] - Heschong, L.; Wymelenberg, V.D.; Andersen, M.; Digert, N.; Fernandes, L.; Keller, A.; Loveland, J.; McKay, H.; Mistrick, R.; Mosher, B. Approved Method: IES Spatial Daylight Autonomy (sDA) and Annual Sunlight Exposure (ASE); IES-Illuminating Engineering Society: New York, NY, USA, 2012. [Google Scholar]
- Raynham, P. BS 8206-2: 2008 Lighting for Buildings—Part 2 Code of Practice for Daylighting; British Standards Institute: London, UK, 2008. [Google Scholar]
- Lee, J.; Jung, H.; Park, J.; Lee, J.; Yoon, Y. Optimization of building window system in Asian regions by analyzing solar heat gain and daylighting elements. Renew. Energy
**2013**, 50, 522–531. [Google Scholar] [CrossRef] - Love, J.A. The evolution of performance indicators for the evaluation of daylighting systems. In Proceedings of the IEEE Industry Applications Society Annual Meeting, Houston, TX, USA, 4–9 October 1992; pp. 1830–1836. [Google Scholar]
- Tregenza, P.; Mardaljevic, J. Daylighting buildings: Standards and the needs of the designer. Light. Res. Technol.
**2018**, 50, 63–79. [Google Scholar] [CrossRef] [Green Version] - Reinhart, C.F. Lightswitch-2002: A model for manual and automated control of electric lighting and blinds. Sol. Energy
**2004**, 77, 15–28. [Google Scholar] [CrossRef] - Changyong, F.; Hongyue, W.; Naiji, L.; Tian, C.; Hua, H.; Ying, L. Log-transformation and its implications for data analysis. Shanghai Arch. Psychiatry
**2014**, 26, 105. [Google Scholar]

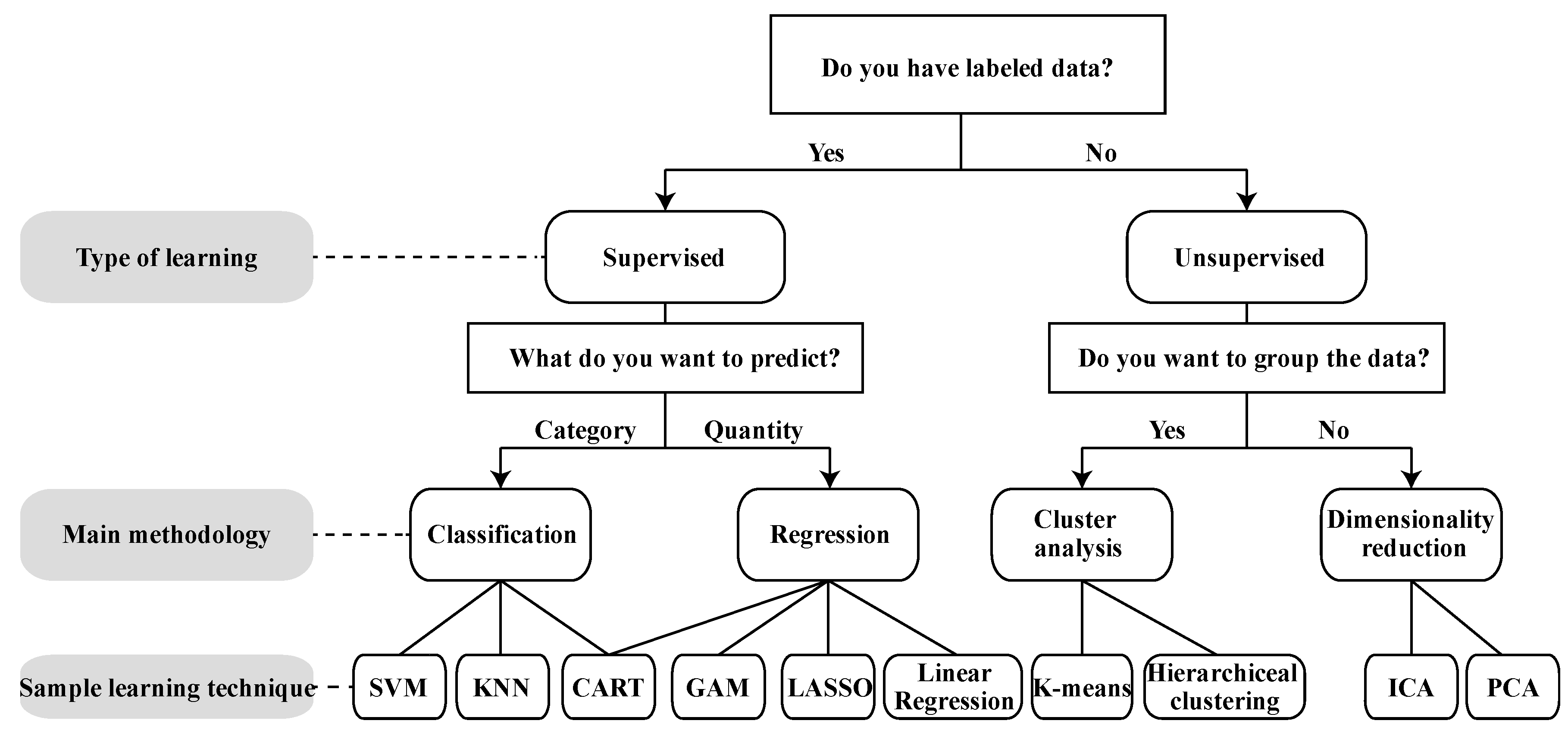

**Figure 1.**Diagram of statistical learning techniques [11].

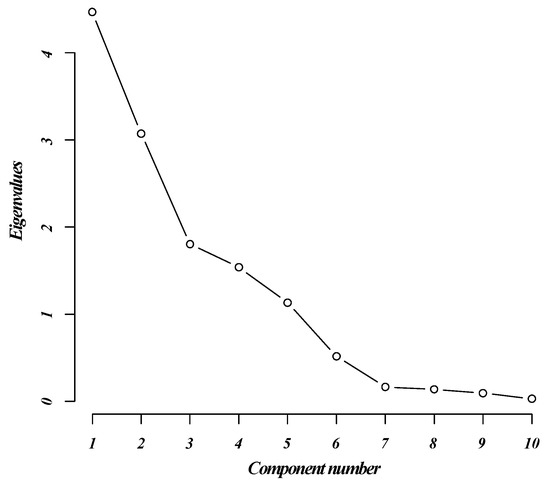

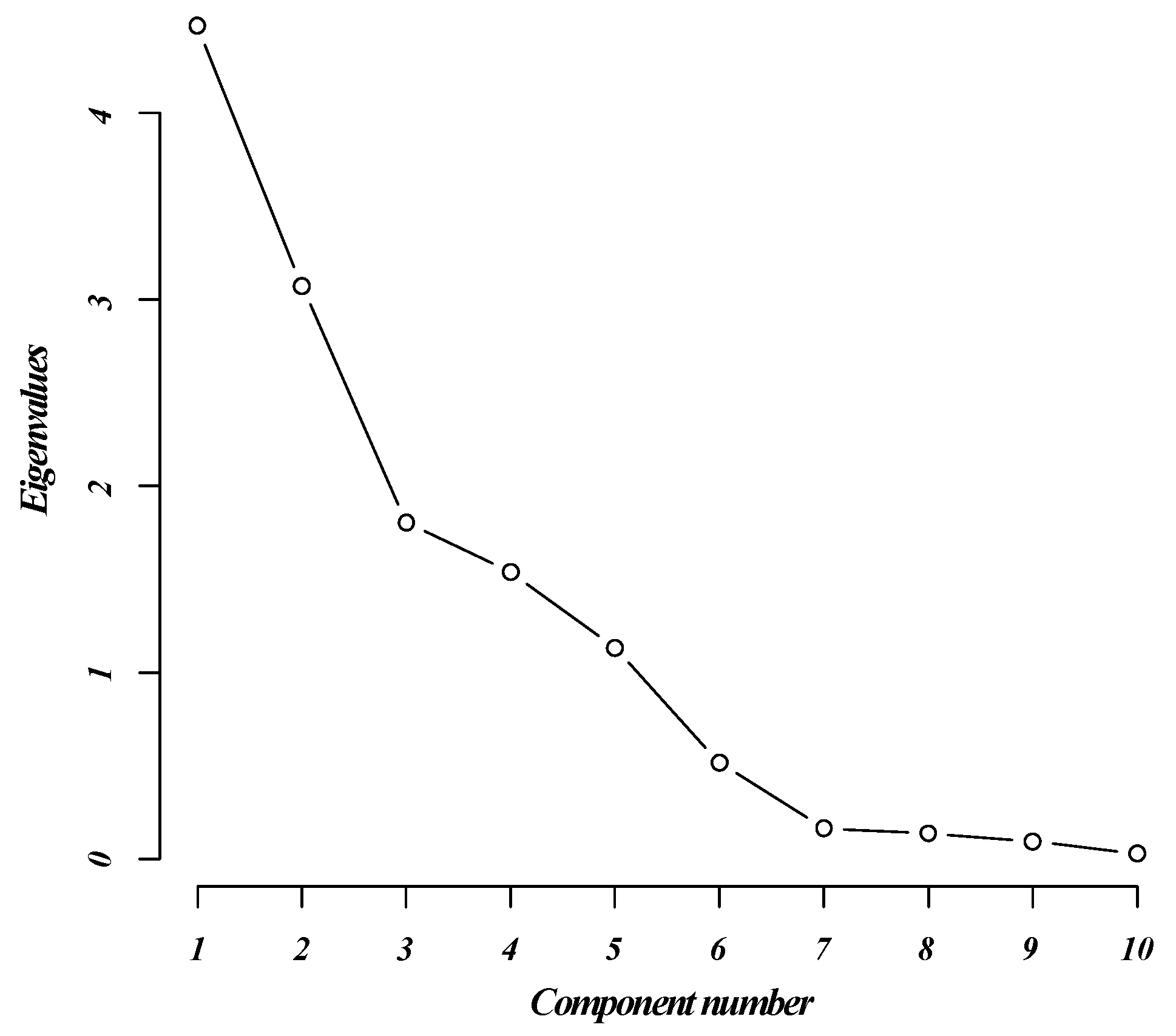

**Figure 5.**Plot of cumulative portion (Eigenvalue vs. the number of components in the principal component analysis).

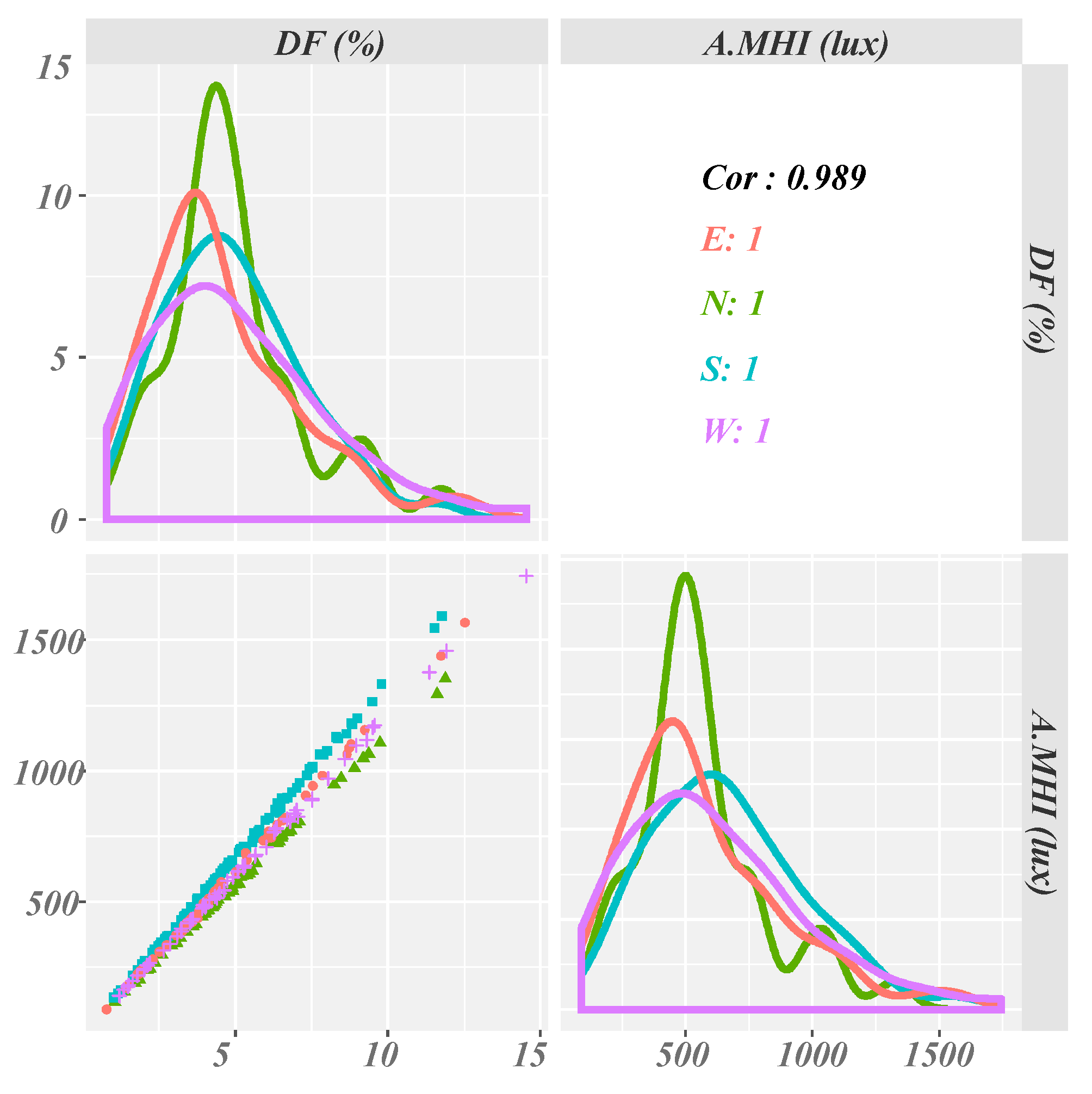

**Figure 6.**Scatterplot between the Daylight Factor (DF) and the Annual Mean Hourly Illuminance (A.MHI.).

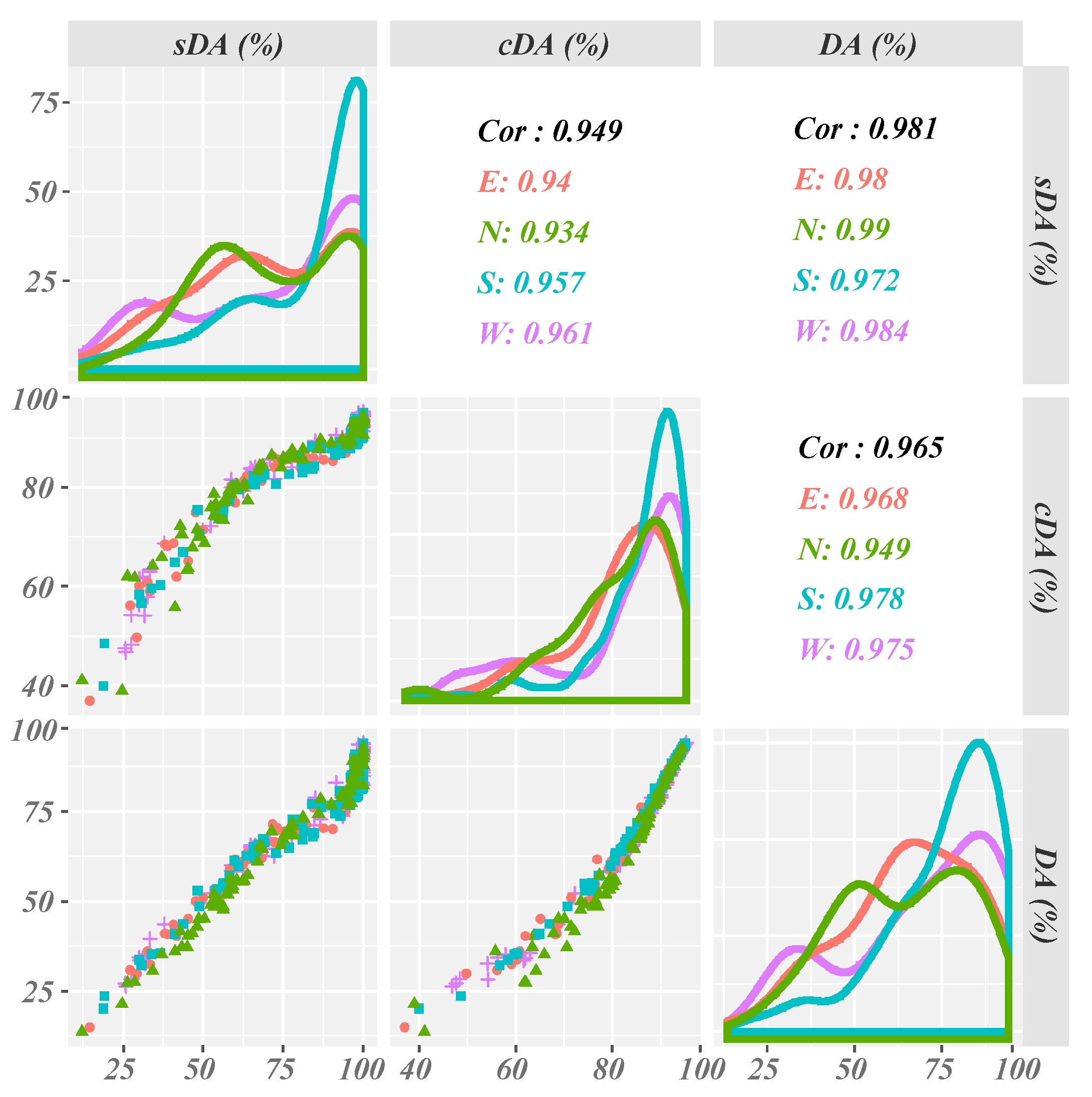

**Figure 7.**Scatterplot in terms of the Spatial Daylight Autonomy (sDA), the Continuous Daylight Autonomy (cDA), and the Daylight Autonomy (DA).

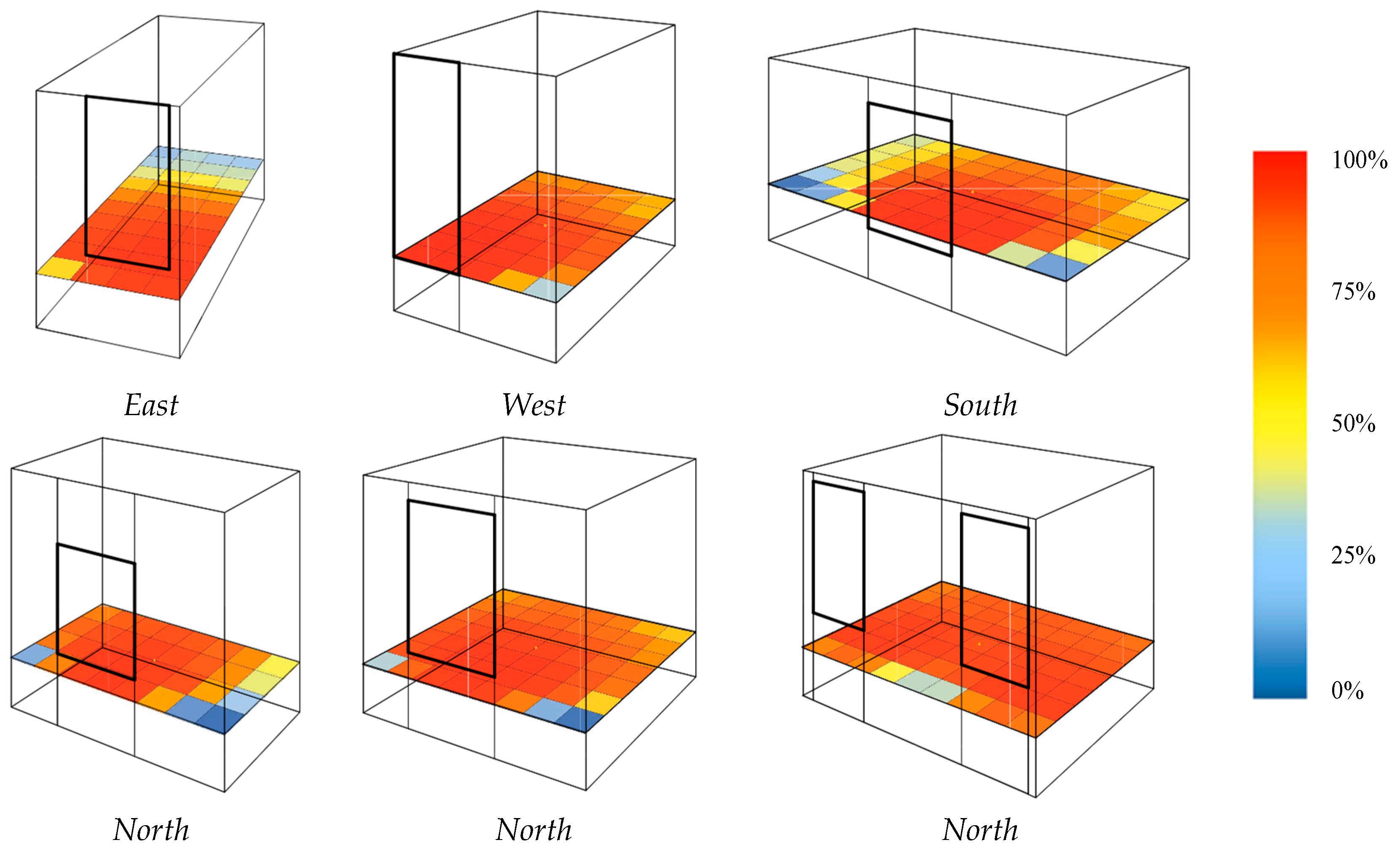

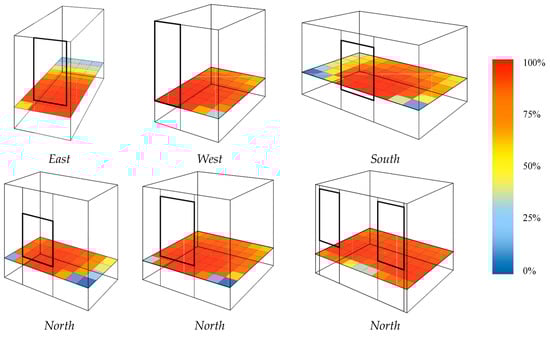

**Figure 9.**3-D drawing of six optimized models based on daylighting metrics with DA grids distribution.

Type | Internal Cognitions | Window Properties | Design Factors | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|

Length (m) | Depth (m) | Height (m) | Area (m^{2}) | Volume (m^{3}) | NoW | TAoW (m^{2}) | Tvis | SR | WWR | WFR | WVR | |

Max | 23.1 | 11.1 | 4.2 | 138 | 509 | 4.0 | 24.7 | 0.88 | 3.0 | 0.92 | 0.69 | 0.24 |

Min | 1.7 | 2.2 | 2.3 | 6.9 | 20.0 | 1.0 | 0.5 | 0.65 | 0.3 | 0.06 | 0.03 | 0.01 |

Mean | 4.8 | 4.9 | 3.2 | 25.4 | 80.5 | 1.6 | 5.1 | 0.80 | 1.2 | 0.34 | 0.24 | 0.08 |

Median | 4.0 | 4.5 | 3.3 | 17.0 | 54.8 | 1.0 | 4.5 | 0.80 | 1.1 | 0.31 | 0.21 | 0.07 |

Type | sDA (%) | aSE (%) | DA (%) | UDI (%) | cDA (%) | D.A. (%) | DF (%) | A.MHI (lux) | S.MHI | Light (kWh) |
---|---|---|---|---|---|---|---|---|---|---|

Max | 100.0 | 100.0 | 94.2 | 91.8 | 95.3 | 84.1 | 14.5 | 1744.9 | 1037.8 | 37.9 |

Min | 12.1 | 0.0 | 13.6 | 30.8 | 37.0 | −47.8 | 0.8 | 88.5 | 110.1 | 4.3 |

Ave | 76.4 | 40.1 | 68.9 | 69.5 | 82.9 | 12.7 | 4.9 | 608.8 | 579.0 | 10.6 |

Median | 84.8 | 42.3 | 73.0 | 70.8 | 86.8 | 10.6 | 4.4 | 541.3 | 615.1 | 7.8 |

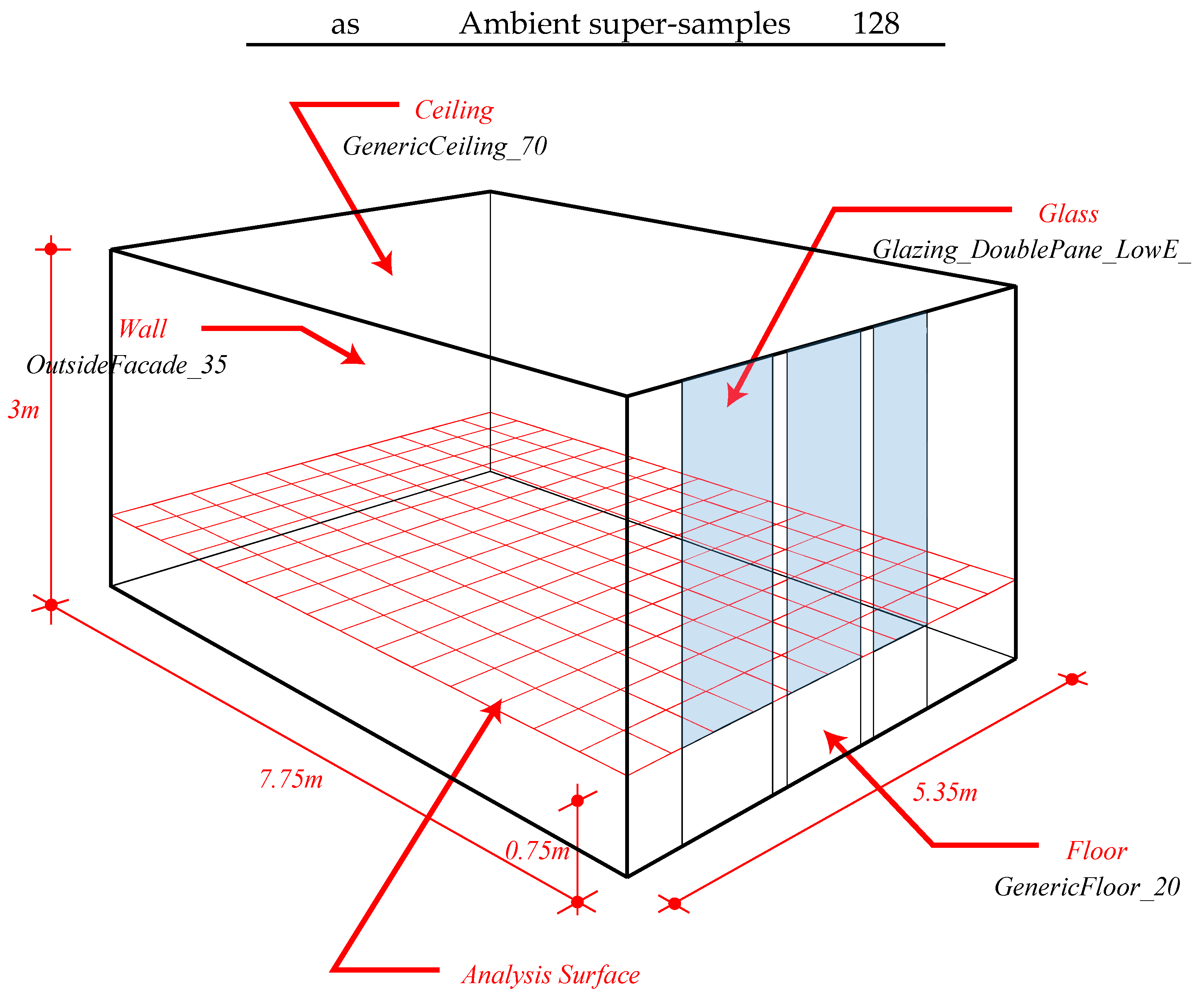

Parameters | Description | Setting |
---|---|---|

ab | Ambient bounces | 2 |

aa | Ambient accuracy | 0.15 |

ar | Ambient resolution | 256 |

ad | Ambient divisions | 512 |

as | Ambient super-samples | 128 |

Types | PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | PC8 | PC9 |
---|---|---|---|---|---|---|---|---|---|

BuiltYear | 0.013 | −0.150 | −0.674 * | 0.153 | 0.062 | 0.068 | −0.223 | 0.634 * | −0.196 |

Length | −0.440 | 0.058 | −0.094 | −0.195 | 0.077 | −0.144 | −0.028 | 0.120 | 0.428 |

Depth | −0.320 | −0.131 | 0.160 | 0.505 * | 0.070 | 0.076 | −0.111 | −0.172 | −0.544 * |

Height | −0.066 | 0.088 | 0.122 | 0.063 | −0.895 * | −0.123 | 0.012 | 0.192 | −0.139 |

Area | −0.461 * | −0.015 | −0.009 | 0.082 | 0.100 | −0.146 | −0.258 | −0.102 | 0.064 |

Volume | −0.459 * | −0.015 | 0.002 | 0.073 | −0.091 | −0.093 | −0.376 | −0.106 | 0.128 |

NoW | −0.284 | 0.226 | −0.080 | −0.153 | −0.110 | 0.900 * | 0.100 | −0.038 | 0.013 |

TAoW | −0.327 | 0.365 | −0.003 | 0.082 | 0.054 | −0.234 | 0.549 * | 0.311 | 0.057 |

Tvis | −0.013 | 0.084 | 0.646 * | −0.255 | 0.230 | 0.076 | −0.290 | 0.577 * | −0.181 |

SR | 0.170 | −0.139 | 0.232 | 0.648 * | −0.037 | 0.219 | −0.061 | 0.205 | 0.611 |

WWR | 0.023 | 0.471 * | 0.013 | 0.388 | 0.228 | −0.034 | 0.236 | 0.015 | −0.170 |

WFR | 0.166 | 0.511 * | −0.061 | 0.030 | −0.178 | −0.058 | −0.350 | −0.023 | 0.037 |

WVR | 0.177 | 0.505 * | −0.124 | 0.031 | 0.113 | −0.025 | −0.389 | −0.149 | 0.053 |

Type | sDA | UDI | A.MHI | S.MHI | Lighting |
---|---|---|---|---|---|

Selected features of stepwise linear regression | BuiltYear * Length * Depth ** Height *** Size NoW ** TAoW *** Tvis ** WFR *** | BuiltYear *** Length * Size *** Volume *** TAoW *** SR * WFR *** | Length * Depth * Size Volume * TAoW *** Tvis *** WWR * WVR | BuiltYear *** Length *** Size *** Volume *** NoW *** TAoW *** | BuiltYear Depth Height * Size *** Volume ** TAoW *** SR * WFR *** |

RMSE of stepwise linear regression | 0.147 | 0.100 | 0.017 | 0.119 | 0.101 |

RMSE of linear regression | 0.160 | 0.101 | 0.119 | 0.125 | 0.412 |

Type | sDA | UDI | A.MHI | S.MHI | Lighting |
---|---|---|---|---|---|

RMSE | 0.104 | 0.068 | 0.013 | 0.098 | 0.074 |

Anova for Parametric Effects | BuiltYear *** Depth *** Height *** Size *** Volume *** NoW *** TAoW *** WFR ** WVR * Orien *** | BuiltYear *** Height *** Size *** NoW ** TAoW *** Tvis *** SR *** WWR *** WFR *** Orien *** | BuiltYear *** Length *** Depth *** Height *** Size ** NoW *** TAoW *** Tvis *** Orien *** | BuiltYear *** Height *** Volume *** TAoW *** Tvis *** WVR *** Orien ** | BuiltYear *** Depth *** Height *** Volume *** TAoW *** SR * Orien ** |

Anova for Nonparametric Effects | Size * WVR *** | Depth *** Height ** TAoW ** Tvis ** WWR * WVR ** | BuiltYear *** Height ** TAoW *** Tvis *** SR * WWR * | BuiltYear *** Length * Depth ** Height *** Volume * TAoW *** Tvis *** | BuiltYear ** Depth * WVR * |

id. | BuiltYear | Length | Depth | Height | Size | Volume | NoW | TAoW | Tvis | SR | WWR | WFR | WVR | Orien |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

1 | 1987 | 2.13 | 4.88 | 3.33 | 10.41 | 34.62 | 1 | 2.67 | 0.80 | 2.29 | 0.38 | 0.26 | 0.077 | E |

2 | 2001 | 3.79 | 3.28 | 3.80 | 12.45 | 47.34 | 1 | 4.46 | 0.65 | 0.86 | 0.31 | 0.36 | 0.094 | N |

3 | 2006 | 3.06 | 2.67 | 3.66 | 8.16 | 29.86 | 1 | 2.31 | 0.65 | 0.87 | 0.21 | 0.28 | 0.077 | N |

4 | 1986 | 3.98 | 3.70 | 3.68 | 14.72 | 54.22 | 1 | 4.02 | 0.80 | 0.93 | 0.27 | 0.27 | 0.074 | N |

5 | 1992 | 4.41 | 3.40 | 3.56 | 14.97 | 53.24 | 2 | 4.53 | 0.80 | 0.77 | 0.29 | 0.30 | 0.085 | N |

6 | 2006 | 3.84 | 2.18 | 3.66 | 8.38 | 30.66 | 1 | 2.31 | 0.65 | 0.57 | 0.16 | 0.28 | 0.075 | N |

7 | 1999 | 7.21 | 4.81 | 3.38 | 34.64 | 117.03 | 2 | 9.16 | 0.70 | 0.67 | 0.38 | 0.26 | 0.078 | N |

8 | 1904 | 4.72 | 2.92 | 2.46 | 13.80 | 33.90 | 1 | 2.01 | 0.88 | 0.62 | 0.17 | 0.15 | 0.059 | S |

9 | 1910 | 2.61 | 3.94 | 3.61 | 10.30 | 37.14 | 1 | 3.17 | 0.88 | 1.51 | 0.34 | 0.31 | 0.085 | W |

10 | 1904 | 4.53 | 3.11 | 2.46 | 14.11 | 34.65 | 1 | 1.96 | 0.88 | 0.69 | 0.18 | 0.14 | 0.057 | W |

id. | sDA | aSE | DA | UDI | D.A. | DF | A.MHI | S.MHI | Lighting |
---|---|---|---|---|---|---|---|---|---|

1 | 75.00 | 32.50 | 69.30 | 77.65 | 20.70 | 4.10 | 493.60 | 391.14 | 6.72 |

2 | 97.62 | 0.00 | 86.24 | 82.45 | 64.33 | 6.25 | 725.90 | 518.31 | 5.85 |

3 | 93.33 | 0.00 | 79.77 | 89.67 | 76.50 | 4.43 | 507.20 | 296.51 | 6.07 |

4 | 94.64 | 0.00 | 79.87 | 87.37 | 70.75 | 4.83 | 541.07 | 352.11 | 6.56 |

5 | 96.83 | 0.00 | 84.11 | 91.78 | 84.11 | 4.91 | 541.33 | 213.15 | 6.88 |

6 | 81.25 | 0.00 | 73.00 | 86.38 | 69.91 | 4.26 | 487.63 | 316.47 | 6.91 |

7 | 96.03 | 0.00 | 80.51 | 84.14 | 65.30 | 5.35 | 604.95 | 527.61 | 7.14 |

8 | 81.48 | 44.44 | 69.52 | 71.72 | 15.91 | 3.74 | 506.59 | 713.86 | 6.42 |

9 | 97.50 | 30.00 | 83.15 | 76.13 | 27.25 | 5.64 | 675.40 | 733.97 | 6.50 |

10 | 72.22 | 31.48 | 62.52 | 76.44 | 28.37 | 3.61 | 433.56 | 626.67 | 7.03 |
