A Method for Rockburst Prediction in the Deep Tunnels of Hydropower Stations Based on the Monitored Microseismicity and an Optimized Probabilistic Neural Network Model

Abstract

Hydropower is one of the most important renewable energy sources. However, the safe construction of hydropower stations is seriously affected by disasters like rockburst, which, in turn, restricts the sustainable development of hydropower energy. In this paper, a method for rockburst prediction in the deep tunnels of hydropower stations based on the use of real-time microseismic (MS) monitoring information and an optimized probabilistic neural network (PNN) model is proposed. The model consists of the mean impact value algorithm (MIVA), the modified firefly algorithm (MFA), and PNN (MIVA-MFA-PNN model). The MIVA is used to reduce the interference from redundant information in the multiple MS parameters in the input layer of the PNN. The MFA is used to optimize the parameter smoothing factor in the PNN and reduce the error caused by artificial determination. Three improvements are made in the MFA compared to the standard firefly algorithm. The proposed rockburst prediction method is tested by 93 rockburst cases with different intensities that occurred in parts of the deep diversion and drainage tunnels of the Jinping II hydropower station, China (with a maximum depth of 2525 m). The results show that the rates of correct rockburst prediction of the test samples and learning samples are 100% and 86.75%, respectively. However, when a common PNN model combined with monitored microseismicity is used, the related rates are only 80.0% and 61.45%, respectively. The proposed method can provide a reference for rockburst prediction in MS monitored deep tunnels of hydropower projects.

1. Introduction

With the rapid growth of the global population and economic development worldwide, the need for clean energy sources is increasing. Energy security is undoubtedly one of the main building blocks of economic development and social and political stability [1]. Hydropower is one of the most important renewable energy sources. Of all renewable energy sources, hydropower produces the most energy, contributing ~16% to global electricity production. Hydropower also has a positive effect on water supply, irrigation, flood control, and ice prevention, if properly handled [2]. According to statistics from the International Renewable Energy Agency, over the past decade, global installed hydropower has increased from 926,340 MW to 1,245,708 MW, making a great contribution to energy transformation. It is expected that hydropower will continue to dominate more than half of the worldwide installed capacity of renewables in the future [3,4,5]. Therefore, an increasing number of hydropower stations have been constructed, such as the Jinping II, Xiluodu, Baihetan, Shimen, Jilebulake, Sinan River, and Pankou stations in China, and the Neelum-Jhelum station in Pakistan [2,4,5,6,7,8]. There are many deep tunnels in these hydropower projects. Many rockbursts occurred during the tunnel excavation due to high in situ stress at some of the hydropower stations. A rockburst is defined as damage to an excavation that occurs in a sudden or violent manner and is associated with a seismic event [9,10]. It is a type of dynamic disaster encountered in deep, hard rock underground engineering. With the expansion of the scale of deep underground engineering operations, rockbursts occur more frequently and with greater severity [8,9,10,11,12,13,14,15,16,17,18,19,20,21]. Two rockburst examples are shown in Figure 1. The safety of hydropower station construction is seriously affected by rockburst disaster, which restricts the sustainable development of hydropower energy. Therefore, how to predict rockburst so as to reduce casualties and equipment and economic losses during hydropower station construction urgently needs to be addressed.

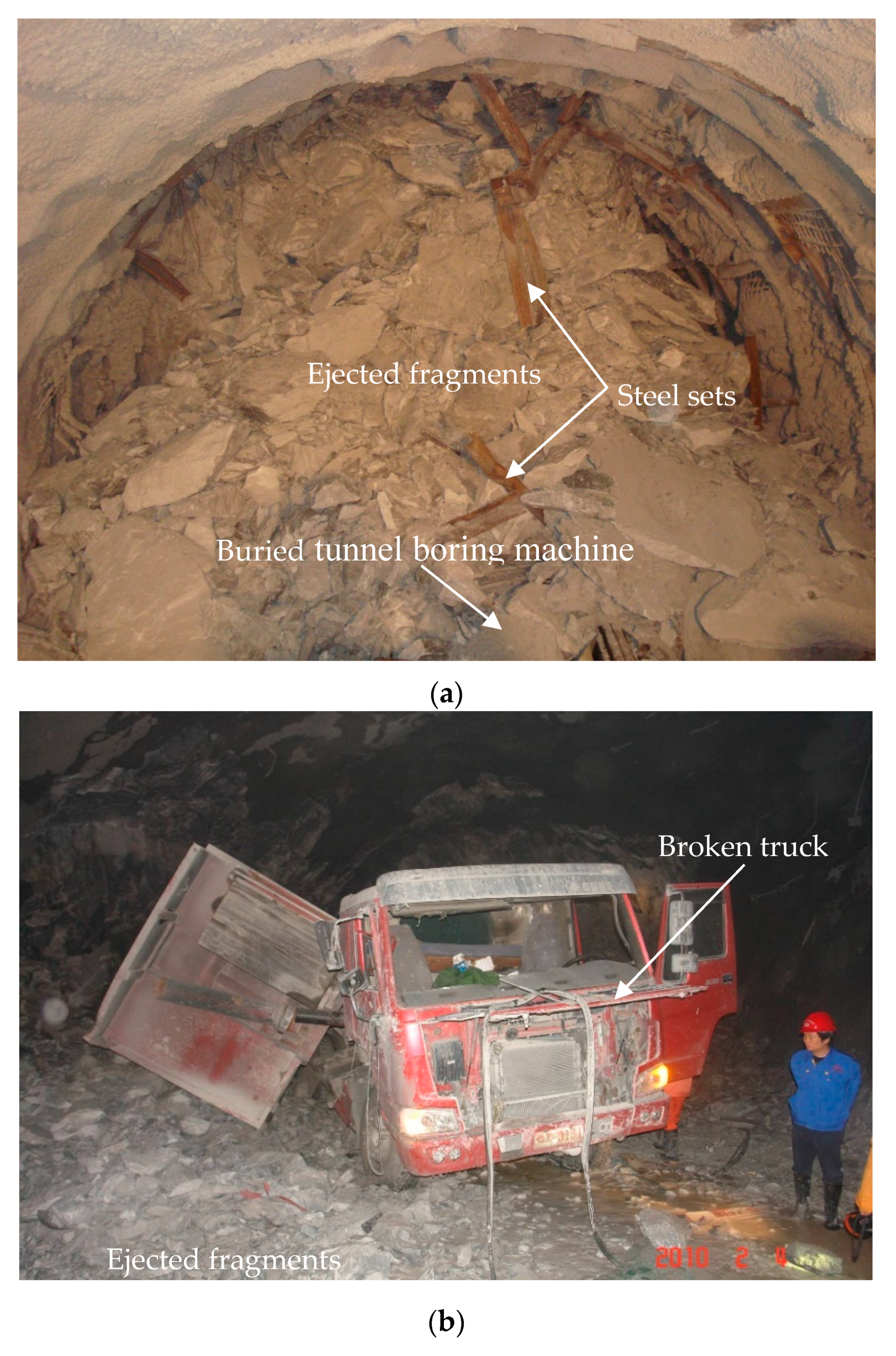

Figure 1. Examples of rockbursts in tunnels of the Jinping II hydropower station, China. (a) Extremely intense rockburst on 28 November 2009 in drainage tunnel that caused seven deaths and one injury and total destruction of a tunnel boring machine. (b) Extremely intense rockburst on 4 February 2010 in headrace tunnel #2 that created three fissures in the floor. A truck was severely damaged and its windshield was shattered. Three workers in the truck were injured by the violent shakes [20].

Microseismic (MS) monitoring techniques involving the three-dimensional monitoring of MS events produced by the microcracking of rocks have been widely used around the world for many years to monitor and predict rockbursts, with different degrees of success [8,14,15,16,17,18,19,20,21,22,23,24,25,26]. For example, Feng et al. [14] proposed a dynamic method of warning of rockburst development processes in tunnels based on monitored microseismicity. The method has been successfully applied to rockburst warning in deep tunnels of the Jinping II hydropower project. Xu et al. [21] found that the MS source cluster of one extremely intense rockburst was the result of the combined effects of movement in the geological structure. The concentration of MS events before strainburst was found to be a significant precursor in a deep rock tunnel of the hydropower project. Liu et al. [22] studied the temporal and spatial variations in MS activities in an attempt to predict ground pressure hazards in the Hongtoushan copper mine in China. MS data contain enormous amounts of information; however, the problem of how to utilize the data to make accurate rockburst predictions remains to be solved.

Other researchers have suggested a combination of artificial intelligence and rock mechanics. For example, neural networks, fuzzy comprehensive evaluation methods, analytic hierarchy processes, random forest methods, Bayesian models, support vector machines, cloud models, multivariate time series reconstruction, abstraction ant colony clustering algorithms, etc. [8,27,28,29,30,31,32,33,34], have been used to study rock mechanics problems. Therefore, we can try to predict and can warn of rockburst risk by using the intelligent method and MS data together. Neural networks derived from modeling of the human brain can display good performance in signal restoration [33]. Feng et al. [8] used MS information and a neural network to predict rockburst risk in deep tunnels of the Jinping II hydropower project. Zhou et al. [34] successfully predicted the risk of rockburst in the construction of Tongyu and Qinling tunnels by using the probabilistic neural network (PNN) model; however, when using PNN for rockburst prediction, if the dimension of variables in input samples is large or there is a correlation between the variables, the prediction performance will be reduced [35], and the parameter smoothing factor in PNN affects the classification performance [36].

PNN is used for rockburst prediction in this paper. However, in order to reduce the correlation between MS parameters and determine the smoothing factor accurately in the PPN model used for rockburst prediction, an optimized PNN model is proposed. In this model, the mean impact value algorithm (MIVA) is used to reduce the dimension of the input index (monitored MS parameters) in the PNN, and a modified firefly algorithm (MFA) is used to optimize the parameter smoothing factor therein (MIVA-MFA-PNN model). Then, a rockburst prediction method in the deep tunnel of the hydropower station using real-time MS monitoring information and the optimized model is established. The prediction accuracy and applicability of the method are verified by 93 rockburst cases in the diversion and drainage tunnels of the Jinping II hydropower station, China (with a maximum depth of 2525 m). The proposed method can provide a reference for rockburst prediction in MS monitored deep tunnels of hydropower projects.

2. An Optimized PNN Model for Rockburst Prediction: MIVA-MFA-PNN

The MIVA-MFA-PNN model proposed in this paper consists of MIVA, MFA, and PNN. The MIVA is used to reduce the interference from redundant information in the multiple MS parameters in the input layer of the PNN. The MFA is used to optimize the parameter smoothing factor in the PNN and reduce the error caused by artificial determination. There are three improvements in the MFA compared to the standard firefly algorithm.

2.1. PNN Model

The PNN is a type of adjusted radial basis function network and is a feed-forward neural network. It is a supervised network classifier based on Bayesian decision theory with the advantages of a simple learning process, high accuracy of pattern classification, strong fault tolerance, and generalizability [33]. The topological structure of the PNN is shown in Figure 2.

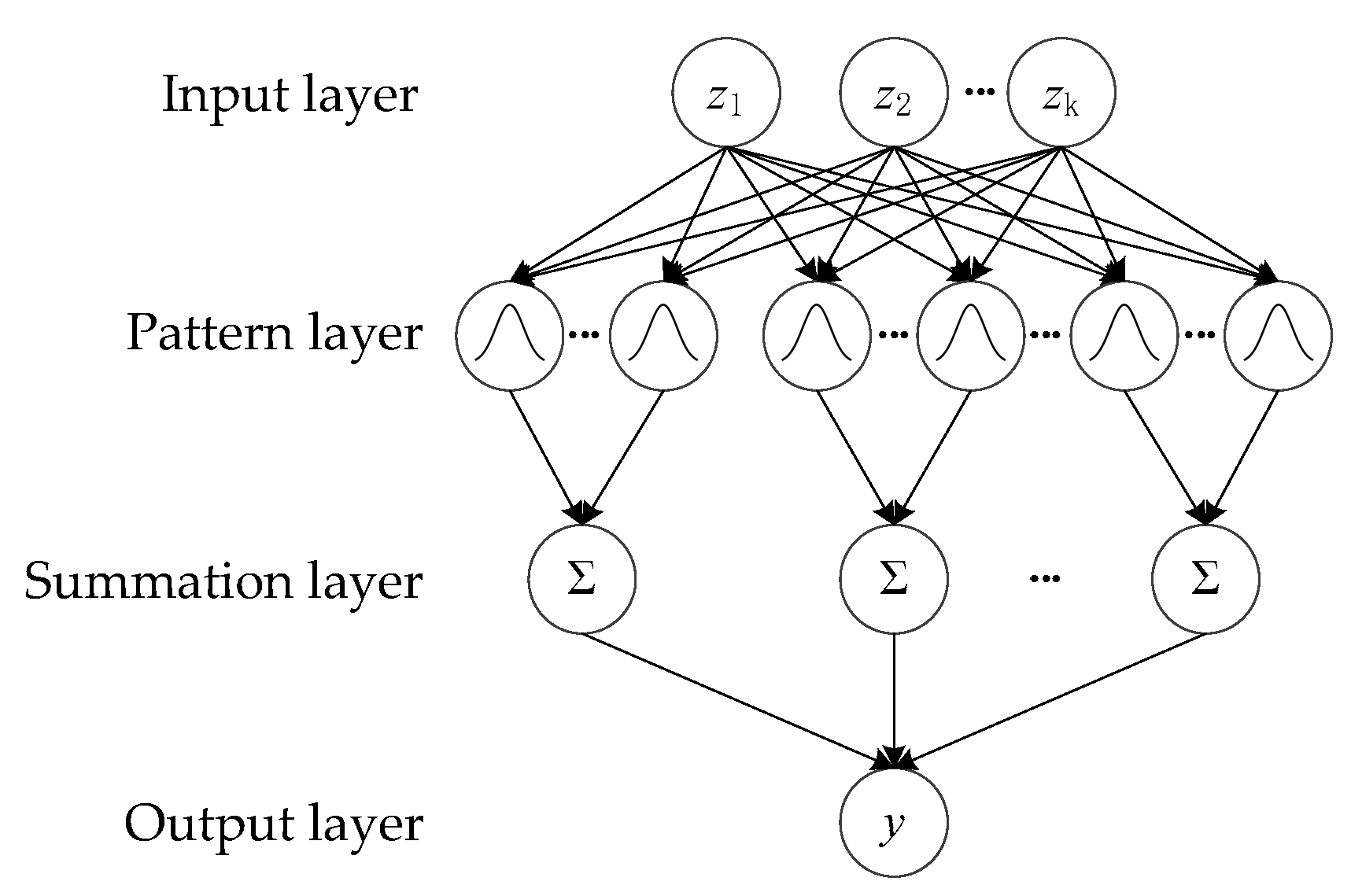

Figure 2. Probabilistic neural network (PNN) block diagram.

In Figure 2, the first layer is the input layer. The input vector is X = (z₁, z₂, …, z_k), k is the number of neurons, and z_k is the kth neuron. The second layer is the pattern layer. The output from the second layer is given by

$$f(X,w_k)=\frac{1}{{(2\pi )}^{p/2}{\sigma }^p}exp(-\frac{{{(x}_k{-w}_k)}^T{(x}_k{-w}_k)}{2{\sigma }^2})$$

(1)

In Equation (1), w_k is the weight of the neuron in the input layer, p is the dimension of each sample, and σ is the smoothing factor. The third layer is the summation layer, in which the output probability of the implicit neurons belonging to the same class in the pattern layer is accumulated. In the third layer, a weighted result is obtained by using Equation (2):

$$v_m=\frac{{\displaystyle \sum _{l=1}^Q{f(X,w}_i{)}_l}}{Q}$$

(2)

In Equation (2), m denotes the number of classes to be identified and v_m denotes the class output. Q denotes the total number of neurons of class m and l is the lth neuron in the pattern layer. The fourth layer is the output layer. The maximum median value in the summation layer is 1 and in the others is 0. The class related to 1 in the summation layer is the class of the sample. As shown in Equation (3), y is the output category:

$${y=argmax(v}_m)$$

(3)

2.2. MIVA

Duda et al. [37] found that when the dimension of the feature vector exceeds the threshold, the accuracy of the classifier will decrease, and if the eigenvectors are mutually correlated, the performance of the classifier decreases. If the dimension of the parameter in the MS information is large, and there are multiple collinearities among the parameters, the prediction result of rockburst by the PNN will be poor. Therefore, the MIVA is used to reduce the dimension of each parameter, thus solving the problem of data redundancy in input samples.

The MIVA, which was proposed by Dombi et al. [38], is a single factor sensitivity analysis method. The specific calculation method is as follows; data pertaining to one parameter in the original training sample I varies by ±10% (which can be adjusted) and the other parameter values remain unchanged. New input samples (I₁ and I₂) are then obtained. After inputting the new input samples in the trained neural network model, we can get the outputs O₁ and O₂. The difference between O₁ and O₂ is the impact value (IV), which comes from the change in the independent variable. After dividing the IV by the total number of samples, we can get the effect of the parameter fluctuations on the output of the neural network; this is, in essence, the MIV. The same operation is performed on each parameter in the input sample to get the MIV for each parameter; the MIV of each parameter can be taken as the rate of contribution to the output result, and parameters with strong correlations can be combined into a new parameter according to the proportion of contributions. This can reduce the dimension of the input sample and the linear correlation among the parameters.

2.3. MFA

An improved firefly algorithm is used to determine the smoothing factor in this PNN. The firefly algorithm [39] is a swarm intelligence optimization algorithm based on the luminescence of fireflies and their mutually attractive group behavior. It has been successfully applied to solve optimization problems in many fields [40,41]. It offers the advantages of simplicity and few required parameters and has better performance than a genetic algorithm or particle swarm optimization algorithm in optimizing some test functions.

Assuming that the solution space of the objective function to be optimized is d-dimensional, a group of fireflies (x₁, x₂, …, x_n) is initialized randomly, where n is the number of fireflies and ${{(x}_{i1}{, x}_{i2},\dots {,x}_{id})}^T$ represents a possible solution of the objective function to be optimized, denoting the position of firefly x_i in the solution space. The absolute brightness of firefly i is recorded as I_i, and its value is equal to that of the objective function of firefly x_i, that is,

$$I_i{=f(x}_i)$$

(4)

The relative brightness of firefly i to firefly j is recorded as I_ij, with a value of

$$I_{ij}{=I}_i{e}^{{-\gamma r}_{ij}}$$

(5)

where γ is the light absorption coefficient within the range [0.01, 100] and r_ij is the Euclidean distance from firefly i to firefly j.

The attractive force β_ij of firefly i to firefly j is given by

$${\beta }_{ij}{=\beta }_0{e}^{{-\gamma r}_{ij}{}^2}$$

(6)

where β₀ is the largest attraction force of fireflies in the light source (generally β₀ = 1). A firefly is attracted to another firefly with greater brightness. The location updating formula is as follows

$$x_j{(t+1)=x}_j{(t)+\beta }_{ij}{(x}_i{(t)-x}_j(t))+\alpha \epsilon$$

(7)

In Equation (7), t is the number of iterations; x_i and x_j are the spatial positions of fireflies i and j; and αε is a random disturbance term, where α is generally a constant within [0, 1]; and ε is a uniformly distributed random number vector. By updating the position and brightness, fireflies will gather around other fireflies with higher brightness, and the optimal solution of the objective function can be obtained.

The standard firefly algorithm tends to find a local optimum solution, and the phenomenon of “precocity” arises, which leads to poor global search ability. Convergence of the algorithm is slow when a large-range function is optimized. Therefore, considering the properties of smoothing factors in the PNN, the following three improvements are used to improve the ability of the standard firefly algorithm.

(1) Optimization of the initial positions of fireflies

When the smoothing factor of the PNN is optimized by the standard firefly algorithm, the position of the firefly represents the value of the smoothing factor. In the standard firefly algorithm, the initial position of the firefly is determined randomly. Considering that the value range of the smoothing factor is generally (0, 1], to reduce the search range and convergence time and improve the global search ability of fireflies, the initial positions of fireflies are uniformly distributed on (0, 1]. The initial position of the firefly is given by

$$x_i=\frac{i}{q}$$

(8)

where q is the number of fireflies.

(2) Improvement of the perturbed term in the position updating formula

If the random perturbation term in the position updating formula has a large step size in the early iterations of the algorithm, the fireflies can search for the optimal solution in the global range. If the step size decreases gradually in later iterations of the algorithm, a firefly can fine search in a local area. In order to obtain the performance above, αε in Equation (7) is optimized as follows

$$\alpha \epsilon =(1-\frac{t}{MaxGegeration})(2rand-1{)r}_{\mathrm{ij}}$$

(9)

where MaxGeneration is the maximum number of iterations, t is the number of the current iteration, and rand is a random number of uniform distribution on [0,1]. When the distance between fireflies is large, the second term (attractive force) in the position updating Equation (7) is affected slightly on the renewal of a firefly’s position. At this point, the random perturbation term makes the firefly move autonomously within [−r_ij, r_ij]. Therefore, the algorithm can search in a larger space. (1–t/MaxGeneration) is the number of random perturbation terms, which decreases with the iteration. Therefore, the MFA has better global search ability in the early stage of iteration and better local search ability in the later stage.

(3) Improvement of the attractive force formula

From Equation (6), it can be found that when the distance r_ij between fireflies tends to be positive infinity, that is, when the distance is big enough, the attractive force β_ij tends to be zero. This is not good for the renewal of its position. In order to solve this problem, the minimum attraction β_min is proposed and used. β_min guarantees that even if the distance between fireflies is large, there is still a certain attractive force to make the positions of fireflies update normally. The improved formula for attractive force is given by

$${\beta }_{ij}{=(\beta }_0{-\beta }_{min}{)e}^{{-\gamma r}_{ij}{}^2}{+\beta }_{min}$$

(10)

The error rate of the predicted results of test samples based on the PNN is regarded as the objective function in the MFA. Then the smoothing factor in the PNN model can be obtained and optimized by searching the minimum error rate in the solution space. This will reduce the error caused by determining the smoothing factor based on the trial method in the PNN model. The pseudocode of the smoothing factor search in the PNN model is shown in the Appendix A.

To sum up, in the proposed MIVA-MFA-PNN model, the MIVA is used to reduce the dimension of the original evaluation index in the PNN. This will reduce interference from redundant information in the sample, and the input layer neuron in the PNN and complexity of the PNN structure are both reduced. Considering the properties of the smoothing factor in the PNN, three improvements are made in the standard firefly algorithm and the MFA is proposed. It will improve the global search ability and the rate of convergence. The error caused by empirical determination of the smoothing factor will be avoided. Therefore, when the new model is combined with the real-time monitored MS information, a good prediction result of rockburst in the tunnel of the hydropower project can be obtained.

The process of rockburst prediction based on the monitored MS information and the proposed MIVA-MFA-PNN model is as follows; first, a correlation analysis of the MS parameters is carried out. If the correlation among parameters is strong, the mean influence value of each parameter will be calculated by using the MIVA. The parameters with strong correlation will be combined with each other to form a new evaluation index for rockburst prediction. Second, the smoothing factor in the PNN is optimized by the MFA to reduce the error caused by experience determination. Finally, the data pertaining to the new evaluation index are used as the input sample of the MIVA-MFA-PNN model to output the rockburst prediction result.

3. Application of the Rockburst Prediction Method to Deep Tunnels of Hydropower Stations: A Case Study

3.1. Engineering Overview

The deep tunnels of the Jinping-II hydropower project (located on the Yalong River, Sichuan Province, Southwest China) are illustrated in Figure 3. It has a total installed capacity of 4800 MW, which provides an average annual generation of 24.23 TWh. The station relies on the water flowing along a 150 km reach of the Yalong River and uses a 310 m natural fall to generate power. This station has the highest waterhead (288 m) and the largest installed capacity of stations along the river. Seven main tunnels were excavated: four are diversion tunnels (#1–4) and two are auxiliary tunnels (A and B). Between the diversion and auxiliary tunnels, there is a drainage tunnel that is used to discharge excess water. The eastern ends of the tunnels are mainly buried in the T_2y marble of the Yantang group, whereas the western ends are in the T₁ chlorite schist, T₃ sand slate, and T_2z marble of the Zagunao group and the middle of the T_2b marble of the Baishan group. Approximately 80% of the rock mass the tunnels pass through is of marble lithology. The strata that the headrace tunnels pass through are all Triassic: lower Triassic (T₁), salt tang group (T_2y), Baishan group (T_2b), miscellaneous valley brain group (T_2z), and upper Triassic (T₃). The sections of the headrace tunnels are mainly composed of moderately thick T⁵_2y marble, thin-layered T⁶_2y marble, and a thick layer of T_2b marble. The T⁵_2y and T_2b strata have typical features of high-strength compact rock structures, and the strainburst hazard is high when tunneling through these strata. More than 75% of the tunnel sections have an overburden depth greater than 1700 m. Most of the tunnel’s rock consists of marble, which is characterized by its brittleness and high strength (uniaxial compressive strength is ~100 MPa and tensile strength is 3–6 MPa). Rockbursts with different intensities occurred frequently in the construction of the tunnels. MS monitoring was conducted in some of the tunnels [18]; MS monitoring and microseismicity data analysis have been described in detail elsewhere [5,9,18,19,20,21,22].

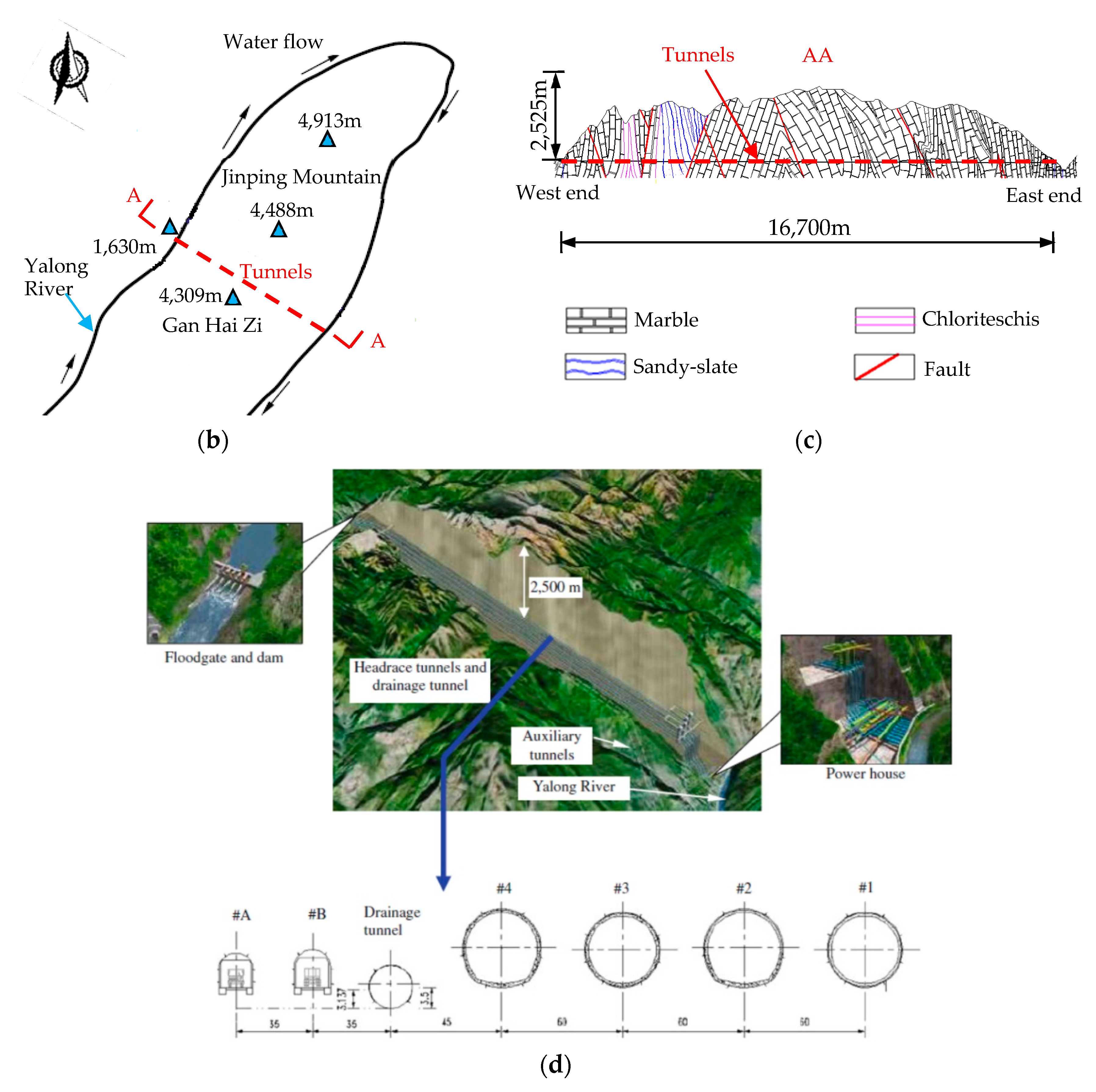

Figure 3. Deep tunnels of Jinping II hydropower station, China. (a) Map of China and location of the station, (b) plan of the station, (c) geological cross-section along the tunnels, and (d) layout of the tunnels [19].

3.2. Input and Output Layers in the MIVA-MFA-PNN Rockburst Prediction Model

The input layer is the real-time MS monitoring information in the deep tunnels of the Jinping II hydropower project. Considering that the selected evaluation index should be closely related to microfracture activity in the rockburst development process and can reflect the evolution of the rockburst, six MS parameters reflecting the accumulation of total rupture time, strength, and deformation of the rock mass are selected. Originally, the cumulative number of MS events (N), cumulative MS energy (E), and cumulative MS apparent volume (V) were considered for rockburst prediction in the drilling and blasting tunnel. To account for the temporal evolution factor, three MS parameters pertaining to time were added: event rate (n), energy rate (e), and apparent volume rate (v).

The output layer is the rockburst intensity. Because there is no extreme rockburst in the collected rockburst cases, the output rockburst intensities are intense, moderate, slight, and no rockburst. Considering that the output of a PNN is 0 or 1, the output data are set as follows; [1,0,0,0], [0,1,0,0], [0,0,1,0], and [0,0,1,0], representing intense, moderate, slight, and no rockburst, respectively.

3.3. Samples

Some 93 events in part of the diversion and drainage tunnels were used as samples (13 intense, 25 moderate, and 21 slight rockbursts, and 34 nonevents). The number of rockbursts with different intensities approximately obeys a Gaussian distribution. A total of 10 cases were selected from the 93 cases as test samples. The remaining 83 cases were used as learning samples to verify the prediction result. Some cases are listed in Table 1 as examples. The values of the six MS parameters and the rockburst intensity of the cases are shown in Table 1, where IV, III, II, and I represent intense, moderate, slight, and no rockburst, respectively.

Table 1. Learning and testing samples.

Sample Category	No.	MS Monitoring Information						Rockburst Intensity
		N	Lg (E/J)	Lg (V/m3)	n (1/d)	Lg (e/J/d)	Lg (v/m3/d)	IV	III	II	I
Learning sample	1	45	4.803	4.838	4.091	3.762	3.796	1	0	0	0
	2	11	4.110	3.624	2.200	3.411	2.925	1	0	0	0
	3	49	6.419	4.995	12.250	5.817	4.393	1	0	0	0
	4	29	5.513	4.777	5.800	4.814	4.078	1	0	0	0
	5	70	6.147	5.152	7.000	5.147	4.152	1	0	0	0
	6	58	7.094	4.975	3.625	5.890	3.771	1	0	0	0
	18	17	4.754	4.397	1.889	3.800	3.443	0	1	0	0
	19	6	5.008	4.627	1.148	3.577	3.195	0	1	0	0
	20	11	4.966	4.154	2.750	4.364	3.552	0	1	0	0
	21	18	5.295	4.703	1.800	4.295	3.703	0	1	0	0
	22	10	5.322	4.238	1.429	4.477	3.393	0	1	0	0
	23	3	5.060	4.438	0.429	4.215	3.593	0	1	0	0
	43	10	4.614	4.611	1.111	3.660	3.657	0	0	1	0
	44	29	3.882	4.156	2.900	2.882	3.156	0	0	1	0
	45	20	4.760	3.843	1.250	3.556	2.639	0	0	1	0
	46	4	4.530	4.557	0.667	3.752	3.779	0	0	1	0
	47	12	3.543	4.223	4.000	3.066	3.746	0	0	1	0
	48	3	4.610	3.732	1.000	4.133	3.255	0	0	1	0
	66	7	4.300	3.018	0.778	3.345	2.064	0	0	0	1
	67	1	2.970	4.164	0.333	2.493	3.687	0	0	0	1
	68	5	3.996	3.279	1.000	3.297	2.58	0	0	0	1
	69	2	1.210	4.146	0.500	0.608	3.544	0	0	0	1
	70	5	3.154	3.309	2.500	2.853	3.008	0	0	0	1
	71	4	5.820	3.728	0.308	4.706	2.614	0	0	0	1
Test sample	7	41	5.968	4.694	3.727	4.926	3.653	1	0	0	0
	13	44	5.459	4.865	2.933	4.283	3.689	1	0	0	0
	17	20	5.982	4.453	2.500	5.079	3.550	0	1	0	0
	27	23	4.408	4.873	2.556	3.454	3.918	0	1	0	0
	35	12	5.098	3.516	1.714	4.253	2.671	0	1	0	0
	42	7	4.834	4.116	0.538	3.721	3.002	0	0	1	0
	51	6	5.561	4.043	1.000	4.783	3.265	0	0	1	0
	65	3	3.668	3.609	0.500	2.890	2.831	0	0	0	1
	76	4	4.737	4.173	0.800	4.038	3.374	0	0	0	1
	82	5	2.435	3.878	0.455	1.393	2.836	0	0	0	1

3.4. Rockburst Intensity Prediction

3.4.1. MIVA Processing of Input Data

It is necessary to reduce the dimension of the evaluation indices in the input when the correlation among some evaluation indices is strong. The correlation between input variables can be measured by the correlation coefficient r (Table 2) [42]. Correlation analysis of the evaluation indices was conducted, and the result is shown in Table 3.

Table 2. Relationship between the size of |r| and the degree of relevance.

Range of Values of |r|	0	(0, 0.2]	(0.2, 0.4]	(0.4, 0.6]	(0.6, 0.8]	(0.8, 1)	1
Degree of relevance	Irrelevance	Very weak	Weak	Medium	Strong	Extremely strong	Relevance

Table 3. Correlation of evaluation indices.

Evaluation Index	N	LgE	LgV	n	Lge	Lgv
N	1	–	–	–	–	–
LgE	0.524	1	–	–	–	–
LgV	0.543	0.576	1	–	–	–
n	0.788	0.408	0.385	1	–	–
Lge	0.467	0.974	0.519	0.449	1	–
Lgv	0.415	0.400	0.888	0.453	0.439	1

Table 3 shows a strong correlation among some evaluation indices. For example, the correlation between the cumulative number of MS events and the MS event rate is 0.788 (a strong positive correlation). The correlation between the cumulative MS apparent volume and the MS apparent volume rate is 0.888. The correlation between the cumulative MS release energy and the MS energy rate is 0.974. Therefore, dimensionality reduction of the six evaluation indices used as input should be carried out. In order to eliminate the large difference caused by different dimensions of the parameters in MS monitoring information, regularization transformation was conducted to normalize all the data (Equation (11)):

$$x_{ab}^{\ast }=\frac{x_{ab}-x_{min}}{x_{max}-x_{min}}$$

(11)

where a is the dimension of input data (a = 1, 2, …,6), b is the total number of samples (b = 1, 2, …,93), x_ab represents the value of the MS parameter before normalization, $x_{ab}^{\ast }$ represents the normalized value of the MS parameter, and x_max represents the largest and x_min the smallest values of the MS parameter. After the transformation, the range of values of the sample data is [0,1].

After the value of each evaluation index with transformation in the total sample was changed by ±30%, it was put into the PNN. The actual prediction results were obtained and were compared with the expected prediction results. The related change rates between the actual and expected prediction results are the MIVs, shown in Table 4. We find that some MIVs are large. For example, the MIV of the cumulative MS event number N is 0.2796, which indicates that the fluctuation of N has a big influence on the output prediction result.

Table 4. Mean impact values (MIVs) of the six evaluation indices.

Evaluation Index	N	LgE	LgV	n	Lge	Lgv
MIV	0.2796	0.0430	0.0215	0.0108	0.0323	0.0108

Form the results of Table 4, N and n, LgE and Lge, and LgV and Lgv are synthesized to form new parameters based on their MIVs, as shown in Equation (12). Then, new samples based on the new parameters can be obtained:

$$\{\begin{array}{l}{P}_N=\frac{{MIV}_N}{{MIV}_N{+MIV}_n}\times N+\frac{{MIV}_n}{{MIV}_N{+MIV}_n}\times n\\ P_E=\frac{{MIV}_{LgE}}{{MIV}_{LgE}{+MIV}_{Lge}}\times LgE+\frac{{MIV}_{Lge}}{{MIV}_{LgE}{+MIV}_{Lge}}\times Lge\\ P_V=\frac{{MIV}_{LgV}}{{MIV}_{LgV}{+MIV}_{Lgv}}\times LgV+\frac{{MIV}_{Lgv}}{{MIV}_{LgV}{+MIV}_{Lgv}}\times Lgv\end{array}$$

(12)

where P_N, P_E, and P_V are the new parameters used for rockburst prediction and MIV_N, MIV_n, MIV_LgE, MIV_Lge, MIV_LgV, and MIV_Lgv are the MIVs of the evaluation indices N, LgE, LgV, n, Lge, and Lgv, respectively.

3.4.2. Determination of Smoothing Factor Based on the MFA

The parameters in the MFA are set as follows; number of fireflies n = 20, maximum number of iterations MaxGeneration = 50, maximum attractive force β₀ = 1, minimum attractive force β_min = 0.2, and optical absorption coefficient r = 1. The data after dimension reduction are used as input in the PNN. The results based on the PNN optimized with the MFA and with the firefly algorithm are shown in Figure 4.

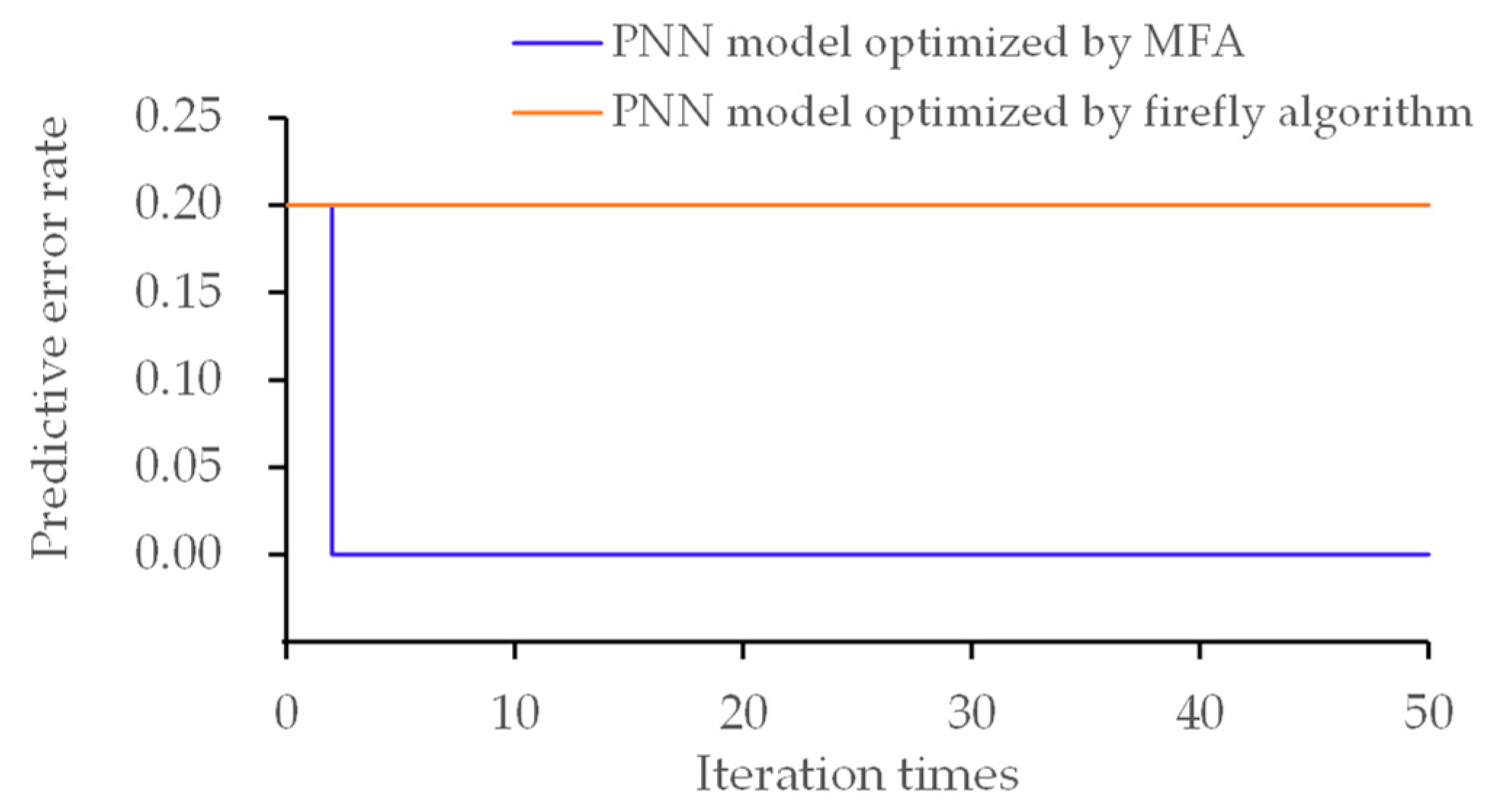

Figure 4. Result of predictive error rates by using PNN with modified firefly algorithm (MFA) and firefly algorithm.

From Figure 4, we find that when the firefly algorithm is used to optimize the smoothing factor in the PNN, it falls into a local optimum. The error rate in rockburst prediction in test samples stayed at the locally optimal result of 0.2. However, by using the MFA, it reached a global optimum at the third iteration. This shows that convergence speed and global search ability are improved by the MFA. By using the MFA, the smoothing factor in the PNN is optimized, with a value of 0.0143.

3.4.3. Rockburst Prediction

Results of rockburst prediction of the 10 test samples based on the MS monitoring information and the MIVA-MFA-PNN model are shown in Table 5. In Table 5, the expected output is the actual intensity of the rockburst and the actual output is the prediction result. The rockburst intensity predicted by the MIVA-MFA-PNN model is exactly the same as the actual results in the study sample. All 10 cases of test samples are predicted correctly. The error rate of rockburst prediction based on real-time MS monitoring information and the MIVA-MFA-PNN model is zero.

Table 5. Result of rockburst prediction based on MS monitoring information and the proposed optimized probabilistic neural network model.

No.	Expected Output				Actual Output
	IV	III	II	I	IV	III	II	I
7	1	0	0	0	1	0	0	0
13	1	0	0	0	1	0	0	0
17	0	1	0	0	0	1	0	0
27	0	1	0	0	0	1	0	0
35	0	1	0	0	0	1	0	0
42	0	0	1	0	0	0	1	0
51	0	0	1	0	0	0	1	0
65	0	0	0	1	0	0	0	1
76	0	0	0	1	0	0	0	1
82	0	0	0	1	0	0	0	1

A comparison of predictions based on non-preprocessed original data and the PNN model with a smoothing factor of 0.1 was studied, and the result is shown in Figure 5.

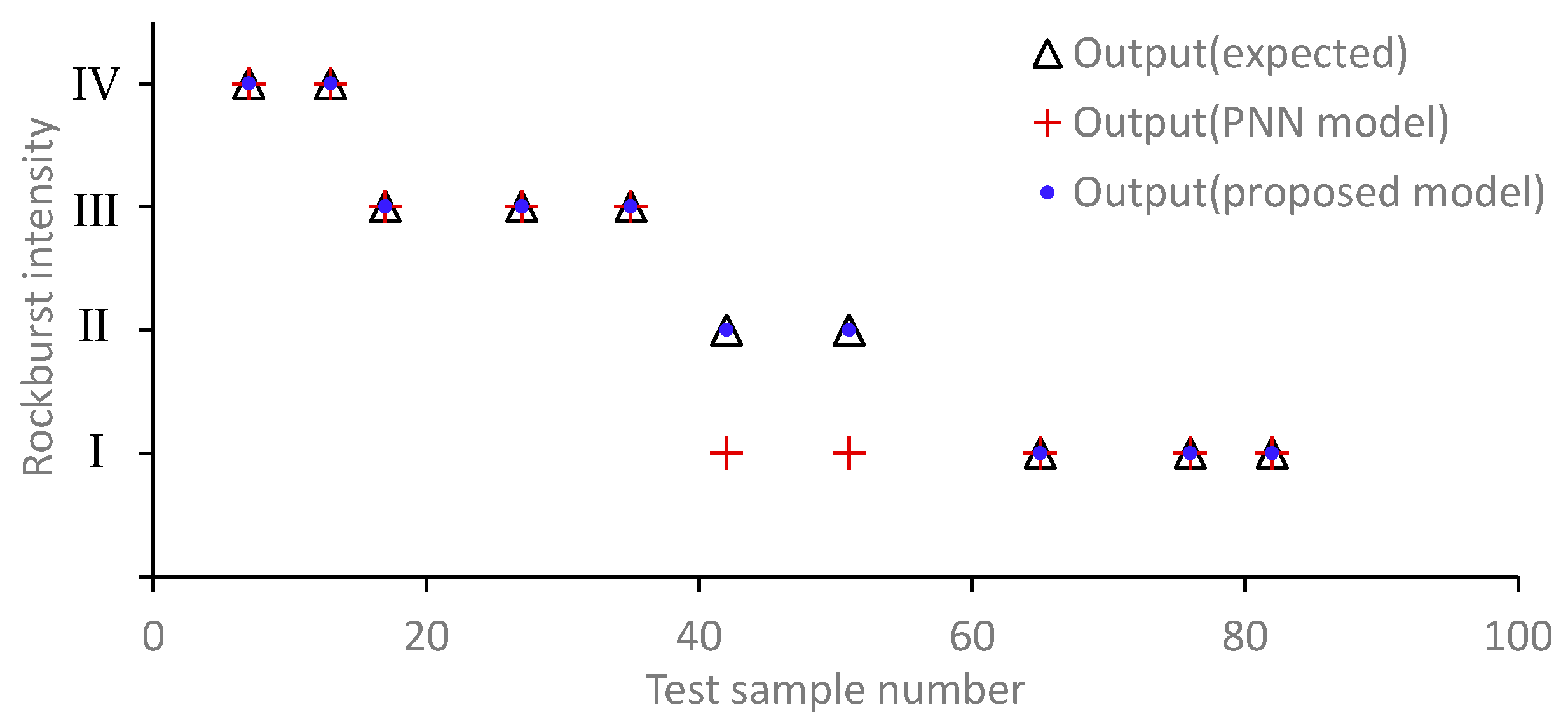

Figure 5. Comparison of prediction results between PNN and MIVA-MFA-PNN models.

It can be seen from Table 5 and Figure 5 that the MIVA-MFA-PNN model performs better for rockburst prediction than the PNN model. The rockburst predictions for the test samples using the MIVA-MFA-PNN model are all correct, while only 80% are correct using the PNN model. Two samples (42 and 51) were originally moderate rockbursts but were wrongly predicted as nonevents.

The results of rockburst prediction of the learning samples based on the MIVA-MFA-PNN model are shown in Figure 6. There are 11 rockburst cases with incorrect predictions (correct prediction rate of 86.75%). The learning samples with incorrect predictions are summarized in Table 6. The reasons for the few incorrect predictions are as follows; (1) in some samples, there is a large dispersion of MS parameter values. For example, microseismicity of rockburst case 2 greatly differs from the statistical characteristics of rockbursts of that intensity. (2) In order to ensure good generalizability, the neural network tries to avoid overfitting. In this case, the best generalization error is achieved by sacrificing the training error. (3) The number of samples is not large enough. In this case, the characteristics of the rockburst cannot be learned very well by the MIVA-MFA-PNN model.

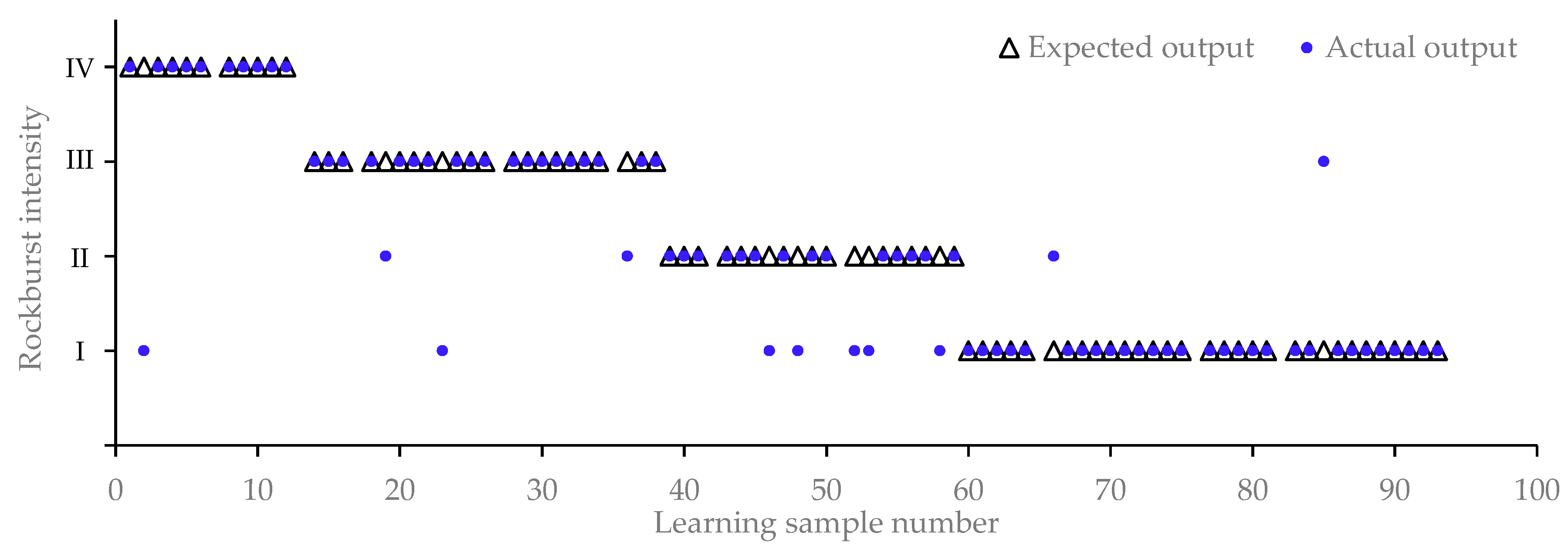

Figure 6. Result of rockburst prediction with learning samples.

Table 6. Incorrectly predicted learning samples.

No.	Expected Output				Actual Output
	IV	III	II	I	IV	III	II	I
2	1	0	0	0	0	0	0	1
19	0	1	0	0	0	0	1	0
23	0	1	0	0	0	0	0	1
36	0	1	0	0	0	0	1	0
46	0	0	1	0	0	0	0	1
48	0	0	1	0	0	0	0	1
52	0	0	1	0	0	0	0	1
53	0	0	1	0	0	0	0	1
58	0	0	1	0	0	0	0	1
66	0	0	0	1	0	0	1	0
83	0	0	0	1	0	1	0	0

When the common PNN model is used to predict the rockburst of the learning samples, the correct rate is only 61.45%. Once again, the proposed MIVA-MFA-PNN model is better for rockburst prediction.

4. Conclusions

The safety and scheduling of hydropower station construction are seriously affected by rockburst disaster, which restricts the sustainable development of hydropower energy. Therefore, a method for rockburst prediction in the deep tunnels of hydropower stations based on the use of real-time MS monitoring information and the MIVA-MFA-PNN model is proposed in this paper. In the proposed MIVA-MFA-PNN model, the MIVA is used to reduce the dimension of the original evaluation index in the PNN, reducing interference from redundant information in the sample as well as the input layer neuron and structural complexity of the PNN. Considering the properties of the smoothing factor in the PNN, three improvements are made in the standard firefly algorithm, and the MFA is proposed to improve global search ability and the rate of convergence. The error caused by empirical determination of the smoothing factor is avoided. Therefore, combining the new model with the real-time monitored MS information obtains good prediction results for rockburst in the tunnels of hydropower projects. The proposed prediction method is verified and analyzed based on 93 rockburst events with different intensities that occurred in parts of the diversion and drainage tunnels of the Jinping II hydropower station, China (with a maximum depth of 2525 m). The performance of the MIVA-MFA-PNN model is good.

During the construction of deep tunnels in hydropower stations, the proposed method can be used for risk warning of rockburst. Therefore, rockburst disaster will be reduced and the safety of the construction and sustainable development of hydropower energy will be ensured. However, the mechanism of rockburst formation is complicated in deep tunnels of hydropower stations. Future work will focus on the feasibility of the proposed rockburst prediction model in other deep tunnels of hydropower station projects.
