Communication

Linking Land and Sea through Collaborative Research to Inform Contemporary applications of Traditional Resource Management in Hawai‘i

1
Department of Botany, University of Hawai’i at Mānoa, Honolulu, HI 96822, USA
2
School of Ocean and Earth Science and Technology, University of Hawai‘i at Mānoa, Honolulu, HI 96822, USA
3
Hawai‘i Institute of Marine Biology, University of Hawai‘i at Mānoa, Kaneohe, HI 96744, USA
4
Department of Natural Resources and Environmental Management, University of Hawai‘i at Mānoa, Honolulu, HI 96822, USA
5
Limahuli Garden and Preserve, National Tropical Botanical Garden, Hā‘ena, HI 96714, USA
6
Wildlife Conservation Society, Melanesia Program, Suva, Fiji
7
Sea Grant College Program & Hui ‘Āina Momona, University of Hawai‘i at Mānoa, Honolulu, HI 96822, USA
8
School of Molecular and Life Sciences, Curtin University, Perth, WA 6102, Australia
9
University of Hawai‘i Water Resources Research Center, University of Hawai‘i, Honolulu, HI 96822, USA
10
University of Hawai‘i Economic Research Organization, University of Hawai‘i, Honolulu, HI 96822, USA
11
Oceantroller LLC, Honolulu, HI 96819, USA
*
Author to whom correspondence should be addressed.
Sustainability 2018, 10(9), 3147; https://doi.org/10.3390/su10093147
Received: 22 July 2018 / Revised: 20 August 2018 / Accepted: 28 August 2018 / Published: 3 September 2018
(This article belongs to the Special Issue Biocultural Restoration in Hawaiʻi)

Abstract

Across the Pacific Islands, declining natural resources have contributed to a cultural renaissance of customary ridge-to-reef management approaches. These indigenous and community conserved areas (ICCA) are initiated by local communities to protect natural resources through customary laws. To support these efforts, managers require scientific tools that track land-sea linkages and evaluate how local management scenarios affect coral reefs. We established an interdisciplinary process and modeling framework to inform ridge-to-reef management in Hawai‘i, given increasing coastal development, fishing and climate change related impacts. We applied our framework at opposite ends of the Hawaiian Archipelago, in Hā‘ena and Ka‘ūpūlehu, where local communities have implemented customary resource management approaches through government-recognized processes to perpetuate traditional food systems and cultural practices. We identified coral reefs vulnerable to groundwater-based nutrients and linked them to areas on land, where appropriate management of human-derived nutrients could prevent increases in benthic algae and promote coral recovery from bleaching. Our results demonstrate the value of interdisciplinary collaborations among researchers, managers and community members. We discuss the lessons learned from our culturally-grounded, inclusive research process and highlight critical aspects of collaboration necessary to develop tools that can inform placed-based solutions to local environmental threats and foster coral reef resilience.
Keywords: ridge-to-reef; groundwater; land-use; nutrients; bleaching; scenario; resilience; collaboration; scientific tools; management ridge-to-reef; groundwater; land-use; nutrients; bleaching; scenario; resilience; collaboration; scientific tools; management

1. Introduction

Pacific Islands are ideal systems to understand land-sea links in the context of social-ecological system resilience [1,2,3], defined as the capacity of the system to cope with disturbances without shifting to an alternative state while maintaining its functions and supporting human uses [4,5]. Around the Pacific Islands [6,7], local knowledge and associated management practices (e.g., agroforestry, fisheries management) have been recognized to play a key role in building resilience to disturbances [8,9,10]. These local ecological knowledge systems (henceforth LEK) are customary knowledge-practice-belief systems passed down orally over generations, through adaptive management [8]. This knowledge is formed through historical resource-use practices and long-term, qualitative observations over a restricted geographical area. LEK continues to be modified under rapidly changing social, economic and ecological contexts. Where indigenous peoples depend on local environments for resources, they have also adopted conservation practices, which in some cases can enhance abundance or/and biodiversity [11]. For instance, traditionally managed community fisheries in Hawai‘i have exhibited equal or higher biomass than even no-take marine protected areas [9,12]. Because of the long-term and place-based understanding embodied in LEK systems, there is increasing recognition of the importance of integrating LEK into management strategies to build resilience [13,14,15], especially in Pacific Islands, where environments are unpredictable and highly vulnerable to climate change [16].
Awareness of natural resource decline has contributed to a cultural renaissance across the Pacific Islands, where local communities seek to revive local customary and place-based management approaches [17], such as customary moku (ridge-to-reef) management approaches [18,19], kapu (traditional closures) and pono (sustainable) practices to protect biocultural resources and foster social-ecological resilience [17,20]. These social-ecological systems can be defined as Indigenous and community conserved areas (ICCA), where “natural and/or modified ecosystems containing significant biodiversity values, ecological services and cultural values, are voluntarily conserved by indigenous, mobile and local communities, through customary laws and other effective means” [21]. In ICCAs, local people, who are intimately connected to the environment, culturally and/or through their livelihoods make decisions over how resources are used and have the capability to enforce regulations, which can lead to effective conservation outcomes (even if conservation is not the primary objective) [22,23]. Ridge-to-reef management systems that integrate LEK can enhance social-ecological resilience through reducing impact from climate disturbances and strengthening governance systems with capacity to quickly organize and act [2]. These types of ICCAs offer lessons in integrating traditional knowledge and management practices into sustainability and conservation planning but require national level legal and policy changes to accommodate and empower the ICCAs operating at the watershed-reef level [8,24]. The restoration of local management is challenging, because users have often grown in number and shifted in character from small, homogenous resident populations using resources for subsistence, to transient, global tourist populations using the same resources for recreation [25,26].
After nearly two centuries of decline of the Hawaiian biocultural resource management system, there has been a resurgence of interest—from within academia and the policy realm, as well as at the community level—in reviving that system to restore biocultural resource abundance [27]. This renaissance has inspired an attempt to align traditional Hawaiian biocultural resource management with contemporary frameworks of ecosystem-based management that re-establish the cohesive links between terrestrial and marine systems, encompassing integrated ecological and social processes from ridge-to-reef [28,29,30]. There has been a growing focus on a land-division scale known as moku to revive traditional resource management in a localized context as a means for communities to engage in biocultural restoration. Ahupuaa are social-ecological communities nested within moku, which are delineated as land-divisions that often extend from the mountains to the sea and exist within the context of the Hawaiian system of governance and biocultural resource management [27]. Motivations by Hawaiian communities to employ contemporary ICCAs include access to and restoration of biocultural resources, security of land and resource tenure, security from outside threats, financial benefit from resources or social-ecological system functions, participation in management, empowerment, capacity building and cultural identity and cohesiveness [8,11,31]. Perpetuating ancestral practices related to food systems provides roles for community members of all ages, while maintaining relationships and balance with the natural world in specific areas [32,33].
Despite management challenges, declining resource health and conflicts over access, two ahupuaa (social-ecological communities) embody this cultural renaissance [34]. Hā‘ena on the windward side of Kaua‘i Island and Ka‘ūpūlehu on the leeward side of Hawai‘i Island have successfully maintained control of a critical component of their food system by enhancing the management of their coastal resources through the creation of innovative ICCA’s (Figure 1). Both places have become the first, officially sanctioned ICCAs in the U.S. State of Hawai‘i. Coral reef fish caught near shore with nets, pole and line, or spears, are a very important component of community food systems [6,35]. Therefore, both communities in this study initiated marine closures of different sizes to protect fishery species, many of which are also known to feed on algae (herbivorous fishes). Without these herbivorous species, algae blooms can cover the reef when excess nutrients flow into the sea from the land. By eating the algae, these protected fishes create space for new corals to settle and ensure the persistence or resilience of the reefs.
These local communities are also interested in reviving the ahupua’a approach by better understanding how land-based sources of pollutants from golf courses, lawns and cesspools affect their marine ecosystems to inform alternative land-use options [36]. Even with healthy herbivorous fish populations, these pollutants take a toll on coral reefs, especially with increases in ocean temperature and acidity as a result of climate change. Therefore, it is important to these communities and the health of all marine ecosystems, to ensure that future coastal planning takes land-based impacts into account. Effective ridge-to-reef management requires improved understanding of land-sea linkages and tools to evaluate the effects of land (e.g., nutrients carried through groundwater) and marine (e.g., wave power and reef topography) drivers on coral reefs to inform resilience management in the face of climate change. In response to these gaps, we adopted the traditional ahupua‘a framework to study the effect of coastal development on coral reefs under projected climate impacts and identified place-based management actions that can boost system resilience. Here, we provide an overview of: (1) the renaissance of the traditional resource management system of Hawai‘i, with a focus on two communities with ICCAs; (2) how applied collaborative science can support management; and (3) the development of decision support tools grounded in place-based management.

2. The Renaissance of Traditional Resource Management of Hawai‘i

2.1. The Story of How Hā‘ena Became a Marine ICCA

Recognizing the importance of customary Hawaiian management and subsistence fishing, Hawai‘i enacted legislation in 1994 that allows the Department of Land and Natural Resources (DLNR) to designate community based subsistence fishing areas (CBSFAs) for “reaffirming and protecting fishing practices customarily and traditionally exercised for purposes of Native Hawaiian subsistence, culture and religion” [37]. This created a pathway to designate marine ICCA’s in Hawai‘i. Achieving a CBSFA designation allows community members to assist DLNR to develop and enforce place-specific management strategies/laws that regulate resources they depend on from the shoreline to one mile out to sea, or the edge of the coral reef, based on Native Hawaiian values and ancestral practices [37]. This designation allows residents to work with the state DLNR Division of Aquatic Resources (DAR) to develop and enforce laws (S.B. 2501, 23rd Leg., Reg. Sess. Hawai‘i 2006) [6,25]. Through traditional Hawaiian values, the CBSFA designation emphasizes the connection between the environment and communities, whereby if you care for the environment, the environment will care for you. CBSFAs represent an agency-recognized avenue for local community groups to assert their indigenous rights by proposing management measures informed by customary fishing and management practices to sustain the health and abundance of marine resources for generations in the Hawaiian Islands [38].
Like many other places in Hawai‘i, land privatization, along with coastal development of vacation and luxury homes, fragmented the land in the 1960s [39], which led many long-time families to move from the area [6]. Today, the rural ahupuaa is mostly owned by the State of Hawai‘i and the non-profit organization, National Tropical Botanical Garden (NTBG), with ~140 private residences along the coast (Figure 2A). The NTBG, Kānaka Maoli (indigenous Hawaiian) and kamaāina (place-based community) of Hā‘ena (henceforth Hā‘ena community) persisted in the creation of rules guided by ancestral norms: ihi (respectful reciprocity), konohiki (inviting ability) and kuleana (rights based on responsibilities) [33,40]. In 2006, the State of Hawai‘i designated Hā‘ena as its first CBSFA [25]. After this designation, the community was empowered to work with the state resource management agency to co-develop fishing regulations and secure their approval through the same onerous public process as any administrative rules promulgated by state government agencies [33].
In August 2015, after nearly ten years of planning and negotiation, over seventy meetings, fifteen rule drafts, three public hearings and multiple studies undertaken to document visitor impacts, user groups, fishery health and the importance of locally caught fish within and beyond the Hā‘ena community, these rules became law [6,33] (Figure 2B). The community of Hā‘ena managed to restore local-level management of their near-shore fishery by co-creating CBSFA rules to govern fishing and all coastal uses, including recreational activities based on customary practices and customary norms for the area [37]. The significance of this event cannot be understated. This was the first time in the state of Hawai‘i that local-level fisheries management rules, based on indigenous Hawaiian practices, were recognized. Passage of these rules made Hā‘ena the first coastal area in Hawai‘i to be permanently governed by community developed, local-level rules based on ancestral knowledge and practices [33]. As the first site to work with DAR to co-create rules formally adopted as state law, Hā‘ena set a precedent for at least 19 other Hawai‘i communities pursuing co-management of local fisheries [37]. Many communities across Hawai‘i view this effort as a larger community movement to increase self-sufficiency and restore formal local-level control over ocean resources as a food source [33].
Traditional coastal management in Hā‘ena relied on protecting key spawning and feeding areas for fishes [25,40]. One of the largest fringing reef systems in the main Hawaiian Islands is found in Hā‘ena, where a large lagoon formed by the back-reef provides wave sheltered nursery habitat for culturally and economically important soft and hard bottom target fish species [3,33,41]. The reefs provide daily fish protein for many Hawaiian and other local families, as well as for ‘ahaaina (feasts commemorating events including weddings, birthdays, funerals and graduations) and other celebrations on Kaua‘i [6]. Therefore, among these rules, a marine refuge (Makua Pu‘uhonua) was designated in the sheltered lagoon of Makua to protect a key fish nursery area (see Figure 2A). By closing this area to fishing and all recreational use, the community successfully created a refuge grounded in indigenous practices and knowledge [11]. This closure protects culturally important fish species from being captured by fishers or disturbed by snorkelers, kite boarders, stand-up paddlers and others during vulnerable life stage (spawning) and behavior (feeding) [25].

2.2. The Story of How Ka‘ūpūlehu Became a Marine ICCA

Ka‘ūpūlehu is both commercially and residentially more developed than Hā‘ena, with two large luxury resorts, a golf course and several private residences along the southern end of the coast (see Figure 3A). Few lineal descendants and longtime residents of Ka‘ūpūlehu live within the ahupua‘a but many live nearby, maintaining strong connections to their ancestral lands [14,36]. The entire ahupuaa is owned by the largest private landowner in the state of Hawai‘i, Kamehameha Schools (KS–an indigenous Hawaiian educational trust and the State of Hawaii’s largest private landowner), which was established for the benefit of Kānaka Maoli [34,36]. KS seeks to balance multiple economic, educational, cultural and environmental goals [34,36,42,43]. Cultural and place-based values are of high priority for KS and kamaāina of Ka‘ūpūlehu, (henceforth Ka‘ūpūlehu community) are involved in resource management advisory councils, educational programs and cultural restoration projects in the ahupua‘a [36]. Environmental outcomes, including groundwater recharge and restoring abundant nearshore fisheries, are also highly valued for cultural and economic purposes, as groundwater is the main water source statewide and fisheries are used for subsistence [44].
Given that the scarcity of water resources limits agriculture, marine resources gathered historically from the ocean played a vital role in the diet of Ka‘ūpūlehu families and their subsistence practices [45]. The families that lived (and live) in Ka‘ūpūlehu were experts in their resources and knew how to survive within these rugged lands [45]. However the community has observed drastic declines in their coastal resources within the past 40 years, with the opening of the resort and the Ka‘ahumanu Highway in 1975 thereby requiring and providing easier access to the isolated waters of Ka‘ūpūlehu [45]. In response, the community sought to maintain and restore coastal and marine life health along with their interconnected traditions, before the system could no longer recover and all knowledge was forgotten. In 2015, after nearly ten years of planning and negotiation and over 350 community meetings and multiple studies undertaken to document fishing impacts and coral reef health, the community of Ka‘ūpūlehu initiated a law implementing a 10-year fishing rest period known as ‘Try Wait’ (see Figure 3B), which adopted a term in the local pidgin language meaning, “Let’s wait a moment.” The protected area extends out to 120 feet deep (or 36.6 m) along a large portion of the coastline. This resulted in the protection of the entire fringing reef (see Figure 3A). Providing full protection of the nearshore reef for a 10 year period while the community develops their long-term management plan is a management strategy grounded in indigenous practices [11].

3. Developing Scientific Tools through Collaboration Grounded in a Hawaiian Approach

Collaborative research among scientists and local communities has the potential to overcome limitations of often-practiced ‘expert’ driven, narrowly focused scientific research. Collaborative research incorporates the dynamic interactions between people and nature, rather than viewing people only as “managers” or “stressors” [26], and positive outcomes for social-ecological management have been documented (e.g., [46]). Processes to define research questions and objectives based on collaborative approaches can also empower indigenous people and communities [26] and generate possibilities for complementary use of scientific and traditional knowledge [13,15,26]. This type of research requires understanding linkages and feedback loops between nature and people to inform local management in those particular places [26].
Our research process included five main steps and involved managers, scientists and the stewards of the land at different stages: (1) Problem formulation; (2) scenario design; (3) conceptual and model development; (4) scenario modeling and analysis; and (5) informing land-sea planning (Figure 4 and Table 1). Both communities were interested in restoring a ridge-to-reef approach to address contemporary environmental issues, including coastal development and fishing pressure impacts on coral reefs combined with bleaching from climate change. In collaboration with local landowners and communities, we developed a decision support framework grounded in Native Hawaiian culture by adopting the traditional ahupua‘a lens to assess the impact of coral reefs under projected land use and climate change scenarios, combined with the marine closures. Key collaborators included local community members (e.g., landowners, care takers and active nonprofits), managers with jurisdiction across the ridge-to-reef ecological unit and local experts and scientists. Through local leaders (e.g., K.B.W. and M.B-.V. at Hā‘ena, who are co-authors on this paper) and previous work with community members, we identified environmental concerns, ground-truthed models and identified solutions to mitigate local threats. Managers at the state level included the Hawai‘i Department of Health (HDOH), which manages water quality from ridge-to-reef and ensures compliance with the Clean Water Act. Scientists and local experts from multiple disciplines, including terrestrial and marine ecologists, social scientists, economists, modelers, hydrogeologists and geographers were involved at different stages of the process to identify and link all the key processes and components that are important in the decision-making process spanning the top of the mountains to the sea and the community in between.
First, we formulated the problem and key policy questions by consulting community members (e.g., landowners, caretakers and active nonprofits), managers with jurisdiction across the ridge-to-reef ecological unit and local experts and scientists to define the decision contexts. Second, we designed scenarios in partnership with local communities to capture their concerns, which included increases in coastal development and climate change impacts on coral reef habitat (e.g., corals and turf) and associated culturally important fisheries (e.g., surgeonfishes, parrotfishes and jacks) and the potential recovery from the recently enacted marine closures. We reviewed zoning documents produced by the County of Kaua‘i of Hawai‘i and the Office of Planning related to coastal zone planning to determine where coastal development was allowable and feasible to project future land-use change. At the same time, we compiled all the existing data at both sites to calibrate the land-sea models. The database from the HDOH was used to inform the calibration of land-use nutrient loadings rates (e.g., the wastewater injection well loading rate). A local non-profit (The Nature Conservancy) and research group at the University of Hawai‘i (Fisheries Ecology & Research Lab) provided empirical data to calibrate the coral reef models at Ka‘ūpūlehu and Hā‘ena, respectively. Wedetermined the impact of co-occurring human drivers on coral reefs by coupling the human driver scenario analysis (climate change, coastal development and marine closures) with the development of a novel linked land-sea modeling framework for Hā‘ena and Ka‘ūpūlehu ahupua‘a. Local ecological and expert knowledge about the coral reef benthic habitat and key fish distributions was used to ground-truth our coral reef indicator maps under present conditions, resulting from the model development phase. For example, the first version of the models provided some outputs that were not consistent with local observations, which led to revisions of the modeling framework until consistency was reached. Subsequently, the downstream fate of nutrients from upstream sources was modeled and projected impacts on coral reefs was assessed under the different scenarios to identify areas on land where managing human-derived nutrients can promote coral reef resilience [3,47]. The modeled scenario outputs were evaluated against the local communities’ observations about the location of re-occurring algae blooms and bleaching impacts. Based on the community and managers’ feedback, our findings are currently being used to shape place-based management solutions grounded in a ridge-to-reef approach and the indicators can be monitored to track the policy effectiveness. The HDOH also funded the dissemination of these research findings through a statewide conference in 2018 (July–August).

4. A Novel Linked Land-Sea Decision Support Tool for Local Management

The framework links land to sea through groundwater and tracks changes in abundance and distribution of multiple benthic and fish indicators under each scenario (Figure 5) (see [3] for more details). For each site, natural driver data, including topography and bathymetry, and rainfall and wave patterns, were included in the ridge-to-reef modeling framework to represent the natural disturbance regimes specific to each place (Figure 5A). The terrestrial drivers modeled included groundwater flow and nutrient fluxes, incorporating natural and human-derived nutrient flux. The marine drivers characterized the marine habitat conditions and were derived from the SWAN wave model and LiDAR bathymetry data with GIS-based models (Figure 5F). The coral reef predictive models were calibrated on local coral reef survey data [41,48]. To measure proxies of ecological resilience, which also represented important cultural resources to the local communities, the coral reef models focused on four benthic groups, known to change under land-based runoff and bleaching impacts, and four fish indicator groups subject to fishing pressure. The benthic groups were crustose coralline algae (CCA), hard corals, turf and macroalgae (Figure 5G). CCA and corals are active reef builders which provide habitat for reef fishes. CCA also stabilize the reef in high-wave environments. Abundant benthic algae can be a sign of high nutrients and/or low numbers of herbivorous fish, and can harm coral health through competition for space. Herbivorous and piscivorous fish identified as important by the communities (e.g., surgeonfishes, parrotfishes and jacks) were modeled based on their feeding modes and ecological role: (1) browsers; (2) grazers; and (3) scrapers; along with (4) piscivores, which are key fishery species and indicators of fishing pressure [49] (Figure 5H).
The human driver scenarios included coral bleaching, coastal development and marine closures [50]. Two future coastal development scenarios were based on current land zoning from the Hawai‘i State Office of Planning and utilized the three commonly used types of wastewater treatment systems in Hawai‘i (cesspools, septic tanks and injection wells) (Figure 5B). Nitrogen and phosphorus fluxes were modeled under each coastal development scenario and diffused in the ocean using a GIS-based coastal discharge model (Figure 5E). Two coral bleaching scenarios were derived from projected coral bleaching impacts for the region (Figure 5C). The marine closure scenario assumed removal of fishing pressure within the marine closure boundaries (Figure 5D) [38,44]. The climate change scenarios were applied in combination with the coastal development and marine closure scenarios [51,52]. Under each scenario, our land-sea models predicted the change in nutrient flux and associated abundance of the coral reef indicators (Figure 5G,H). Based on predicted changes, this approach informs place-based solutions rooted in the ahupua‘a approach, by identifying priority areas on land where management can promote coral reef resilience to climate change (Figure 5I). The development of this new technology necessitated a collaborative process, which leveraged both scientific and local knowledge by involving scientists, community members and resource managers.

4.1. Place-Based Models

Due to direct exposure to the prevailing trade winds, Hā‘ena ahupuaa receives very high rainfall (4040 mm·year−1), resulting in large fluvial and groundwater inputs [54] (see Figure 6A). Dominated by steep cliffs, the Hā‘ena ahupuaa is 7.3 km2 and spans 1006 m elevation from the summit of Ali‘inui Mountain to the sea, with two flowing perennial streams in the Limahuli and Mānoa valleys. On the other hand, Ka‘ūpūlehu ahupuaa receives much less precipitation (ranging from 1350 to 260 mm·year−1 from ridge-to-reef) due to its location in the rain shadows of Mauna Loa and Mauna Kea mountains [55]. Geologically young, the surface is less eroded with poorly developed ephemeral stream channels and groundwater seeping along the coast [56] (see Figure 6B). The ahupuaa covers 104 km2 and spans 2518 m elevation from the summit of Hualalai Mountain to the sea. High rainfall in Hā‘ena results in nearly three times more groundwater discharge (10,279 m3/year/m) compared to Ka‘ūpūlehu (3085 m3/year/m), which also means that nutrients are more diluted (less concentrated) than Ka‘ūpūlehu, which is much drier. Our groundwater models showed that groundwater in Ka‘ūpūlehu has higher levels of nitrogen from natural sources (38,900 kg/year or 7.08 kg/m/year) compared to Hā’ena (29,200 kg/year or 6.02 kg/m/year). Hā‘ena is rural with limited development and agriculture, so most of the nutrients come from natural processes, with the exception of land areas to the east of the ahupua‘a where nutrients are largely human-derived (human-derived nutrients: N: 7.8% and P: 5.5%), compared to more developed Ka‘ūpūlehu (human-derived nutrients: N: 24% and P: 35%). The key sources of human-derived nutrients were wastewater from houses on cesspools at Hā‘ena and the golf course and wastewater from the injection well at Ka‘ūpūlehu.
Due to its older geological age and exposure to marine erosion from oceanic swells at Hā‘ena (nearly one order of magnitude higher than Ka‘ūpūlehu) has over time carved wider and shallower reef flats and produced shallow lagoons protected from the swell by well-developed reef crests [57]. The back-reef areas form lagoons that are protected from wave power by well-developed reef crests and support a benthic community dominated by corals and macroalgae [41]. The benthic community on the wave-exposed fore-reef is dominated by crustose coralline algae (CCA) and turf algae [58,59]. Our coral reef models showed that high wave power at Hā‘ena has shaped the living community of the reefs, which are dominated by CCA and turf algae with many grazers and less scrapers (see Figure 7A). The Makua lagoon area is an exception where corals are able to grow, sheltered from powerful waves by a well-developed reef crest. In comparison, the coral reefs of Ka‘ūpūlehu are younger and form a relatively narrow fringe on the steep slope of that island [57]. Because the reef is sheltered from large winter waves, its slopes are dominated by corals and have high habitat complexity, which supports higher fish biomass, particularly scrapers, while the shallow reef flats are dominated by turf algae with some CCA and support lower fish biomass (see Figure 7B) [48]. Browser abundance was low at both sites. Our coral reef models also showed that land-based nutrients from groundwater can increase benthic algae, suppress coral and CCA and decrease numbers of locally important fish at both sites.

4.2. Place-Based Solutions

Using this framework, we located coral reefs vulnerable to local and global human stressors and linked them to areas on land where limiting sources of human-derived nutrients could prevent increases in benthic algae and promote chances of coral recovery from bleaching. Under the high coastal development scenario, most of the total nutrient increase (>2000 kg) occurs to the east and center of the ahupua‘a, where flushing and mixing from waves is limited by the reef crests of Makua and Pu‘ukahua reefs. Some of these areas that contribute high levels of human-nutrients lie upstream from the protected reef fish nursery at Makua. Coral reefs in Hā‘ena may appear less susceptible to nutrient inputs from coastal development because they benefit from dilution and mixing from high freshwater and wave power. However, we showed that the back-reef of Makua is vulnerable to algae blooms (habitat area loss: 8.2%; shift in fish biomass composition, marked in pink in Figure 8A) and coral bleaching (habitat area loss: 13%, coral percent cover loss: 0–9%, fish biomass loss: −3.3%; marked in yellow in Figure 8A) due to the nearness of human-derived nutrient sources, limited mixing due to shallow depths and low wave power, and abundant corals and algae. Under the high coastal development scenario at Ka‘ūpūlehu, most of the nutrient increase (>8000 kg) occurs to the north of the ahupua‘a, downstream from the proposed development. On the other hand, coral reefs appear more vulnerable to nutrient inputs from more coastal development, combined with higher levels of background nitrogen in the groundwater and limited dilution and mixing from low rainfall and wave power (habitat area loss: 14%, fish biomass loss: 0.6%; marked in pink in Figure 8B). Additionally, Ka‘ūpūlehu’s plentiful coral cover is prone to coral bleaching (habitat area loss: 13%, coral cover loss 0–13%, fish biomass loss: −1.5%; in yellow in Figure 8B).
Although the extent to which nutrient levels interact with elevated SST to affect the outcome of bleaching events remains poorly understood, it is increasingly recognized that water quality plays a complex role in the fate of nearshore coral reefs under climate change [60,61,62]. This seems to be the case since excess nutrients have been shown to impact coral reefs by promoting benthic algae growth and reducing coral’s ability to recover from bleaching impacts [63,64]. When combining the effects of future coastal development and climate change on coral reefs, the impact worsens at both sites. Coral reefs vulnerable to both (coral reef areas marked in red in Figure 8A,B) do not overlap at Ka‘ūpūlehu (habitat area loss: 20.8%, fish biomass loss: −1.6%), while the shallow back-reef of Makua at Hā‘ena is vulnerable to both stressors due to limited wave mixing (habitat area loss: 21.1%, fish biomass loss: −3.3%).
Given that climate change and coastal development occur simultaneously, these results suggest that adopting local management can benefit both places. Land-based management can improve the benthic habitat conditions by preventing increases in benthic algae, which promotes coral recovery from bleaching within & outside the marine closures (habitat gain: 8% at both sites). Therefore, to promote coral reef resilience to climate change, the Hā‘ena community may benefit from upgrading cesspools in the priority areas we identified, located upstream from Makua (located in pink zone in Figure 8A). Based on our findings, the Ka‘ūpūlehu community could focus on minimizing phosphorus inputs from the wastewater injection well by increasing the nutrient removal through treatment (located in the pink zone below the injection well in Figure 8B) to reduce the vulnerability of coral reefs located downstream. In addition, the community could help foster resilience of their coral reefs by ensuring that environmentally sound practices are continued when fertilizing the golf course, particularly in the land areas located upstream from Uluweuweu bay and Kahuwai bay (located in pink zone in Figure 8B). This may also help to protect the water quality of a culturally important groundwater spring (Wai a Kāne) that was identified by the Ka‘ūpūlehu community in Kahuwai bay (Figure 3B). While marine-based management increases the herbivore population within the reserves, which can supplement adjacent reef through spillover (fish biomass gain within the marine closure boundaries: +13% at Hā‘ena and +2.6% at Ka‘ūpūlehu). Overall, this research supports the communities’ concerns and provides evidence that more coastal development can potentially negatively impact culturally important fisheries at both sites.

4.3. Application and Transferability

Ridge-to-reef management that integrates LEK has been widely advocated because it can improve social-ecological resilience. Watershed units have commonly defined the ecological systems in traditional management systems, which have been found in the Pacific north west, Asia, Africa and Oceania [65]. Among the richest set of ridge-to-reef, social-ecological system approaches to natural resources management is found in Oceania [8,65]. Examples include the tambak in Indonesia [66], the puava in the Solomon Islands, the tabinau in Yap, the vanua in Fiji [67] and the moku in Hawai‘i [27]. Through this research, we show that place-based solutions that integrate land and sea processes are critical for addressing local environmental threats. We demonstrate that culturally grounded and inclusive research can guide management actions with multiple benefits such as improved groundwater and coastal water quality and foster the resilience of coral reefs, which are important food production systems for local communities. The lessons learned from this process highlight the critical aspects of collaboration necessary to develop scientific tools that can inform these practical and appropriate management actions. Managing ICCAs requires taking into account interests at all levels, evaluating trade-offs and finding win-win solutions [23].
There is a strong need for planning tools that can prioritize local management actions at relevant spatial scales for decision makers, which are simple to interpret and implement [68,69]. These decision support tools can easily be updated as more data becomes available, or model components of the framework can be substituted or added based on management objectives. For example, in another application, we substituted the groundwater models with the open source Integrated Valuation of Ecosystem Services and Tradeoffs (InVEST) spatially-explicit Sediment Delivery Ratio Model (SDR version 3.2) [70] to model the impact of sediment runoff on coral reefs in Fiji [71]. To support Fijian communities currently working with government, NGOs and the private sector to design and implement Integrated Coastal Management plans [72], we applied the modified land-sea modeling framework with scenario planning in Kubulau District (Fiji), where logging and commercial agriculture expansion competes with forest conservation and potentially fisheries livelihoods, to identify where forest conservation or restoration actions could benefit coral reefs [71]. In addition to fostering collaboration, this approach offers a flexible, transferable, data-driven, place-based model that is spatially-explicit and relies on increasingly available free remote sensing imagery and bathymetry data (i.e., Worldview III, GEBCO).

5. Conclusions

These research findings suggest that different environmental conditions make place-based solutions essential [23], because one-size-fits-all kinds of management ignore issues of place and scale [26]. Rodgers et al. [73] provided the first quantitative statewide evidence that watershed and adjacent coral reef health are significantly interconnected in Hawai‘i, with the exception of ridge-to-reef systems on the windward side due to exposure to high rainfall and wave power, implying that reefs in these locales are less vulnerable to land-based activities. Consistent with Rodgers et al. [73], our impact assessment showed that Ka‘ūpūlehu is vulnerable to local land-use change, as well as climate change impacts. Our findings also revealed that coral reefs on the windward side are vulnerable to local land-use change at the local-scale, especially back-reef systems, like Makua back-reef. In addition, our results show that managing local human drivers can foster coral reef resilience to global human drivers. Although the marine closures can promote reef recovery, they are not always able to offset the impacts from coastal development and other land-based activities on coral reefs, especially beyond their boundaries. Due to the risk that coastal development can undermine local marine conservation efforts, it is essential to manage upstream land-use change.
Therefore, local-scale and place-based solutions are particularly important in Hawai‘i, where locally sourced food is socially and culturally important and food systems are vulnerable to coastal development and climate change impacts [18,33]. Our research provides place-based case studies of the interaction of researchers, community members, resource managers and policy makers to inform future planning. ICCAs, such as Hā‘ena and Ka‘ūpūlehu, can help redefine co-management and the role of local communities and institutions throughout Hawai‘i. Although this management approach may be more suited for communities with strong ancestral ties to the place, as larger and more heterogeneous communities, such as Maunalua Bay on East O‘ahu, will require early onset and more efforts to build consensus [74] and necessitate creative strategies to engage the various members [75]. However, this type of research can help coordinate and facilitate reaching agreements across different community groups by testing policies prior to implementation and bridging gaps between managers and communities by visualizing synergies and trade-offs on maps.

Author Contributions

Conceptualization, J.M.S.D., K.B.W., S.D.J., M.B.-V., L.L.B., K.B., T.T.; Methodology, J.M.S.D., K.B.W., S.D.J.; Software, J.L.T.; Validation, J.M.S.D. and K.B.W.; Formal Analysis, J.M.S.D.; Investigation, K.B.W., S.D.J., M.B.-V., K.B., T.T.; Resources, J.M.S.D., J.L.T.; Data Curation, J.M.S.D.; Writing—Original Draft Preparation, J.M.S.D. and K.B.W.; Writing—Review & Editing, K.B.W., S.D.J., M.B.-V., L.L.B., K.A.S., K.B., P.G., J.L.T., T.T.; Visualization, J.M.S.D. & J.L.T.; Supervision, K.W., S.D.J., T.T.; Project Administration, K.B.W.; Funding Acquisition, K.B.W., S.D.J., M.B.-V., K.B., T.T.; J.M.S.D., J.L.T., K.A.S. revised the illustrations to reflect the specificity of each place.

Funding

This research was funded by the NSF Coastal SEES project number 1325874 and the APC was funded by Hawai‘i Community Foundation.

Acknowledgments

Many thanks to a collaborating artist, Sophie Eugène, for the illustrations and the Integration and Application Network, University of Maryland Center for Environmental Science (ian.umces.edu/symbols/) for the marine symbols. The authors are very grateful for Robert Whittier from the Hawai‘i Department of Health for embarking on this collaborative research that allowed us to produce a story that goes beyond the sum of its parts. The authors would like to acknowledge the Principal Investigators (Alan M. Friedlander, Heather McMillen), the research collaborators (Greg Guannel, Natalie Kurashima, Lisa Mandle, Robert Toonen, Anders Knudby, Jonatha Giddens, Cheryl Geslani) and data providers (Tracy Wiegner, Chad Wiggins, & Eric Conklin) on this research project. Finally, we are grateful to our community members, key landowner partners, Kamahameha schools in Ka‘ūpūlehu and, Limahuli Gardens and Preserve in Hā‘ena, who inspired this research and made this project possible.

Conflicts of Interest

The authors declare no competing interests as defined by Sustainability, or other interests that might be perceived to influence the results and/or discussion reported in this paper. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript and in the decision to publish the results.

References

  1. Maris, K.A. Under What Circumstances do People Put Unsustainable Demands on Island Environments?: Evidence from the North Atlantic. Ph.D. Thesis, University of Edinburgh, Edinburgh, UK, 2007. [Google Scholar]
  2. Jupiter, S.D.; Wenger, A.; Klein, C.J.; Albert, S.; Mangubhai, S.; Nelson, J.; Teneva, L.; Tulloch, V.J.; White, A.T.; Watson, J.E. Opportunities and constraints for implementing integrated land–sea management on islands. Environ. Conserv. 2017. [Google Scholar] [CrossRef]
  3. Delevaux, J.M.S.; Whittier, R.; Stamoulis, K.A.; Bremer, L.L.; Jupiter, S.; Friedlander, A.M.; Poti, M.; Guannel, G.; Kurashima, N.; Winter, K.; et al. A linked land-sea modeling framework to inform ridge-to-reef management in high oceanic islands. PLoS ONE 2018, 13, e0193230. [Google Scholar] [CrossRef] [PubMed]
  4. Folke, C.; Carpenter, S.R.; Walker, B.; Scheffer, M.; Chapin, T.; Rockström, J. Resilience Thinking. Ecol. Soc. 2010, 15, art20. [Google Scholar] [CrossRef]
  5. Nyström, M.; Folke, C.; Moberg, F. Coral reef disturbance and resilience in a human-dominated environment. Trends Ecol. Evol. 2000, 15, 413–417. [Google Scholar] [CrossRef]
  6. Vaughan, M.B.; Vitousek, P.M. Mahele: Sustaining communities through small-scale inshore fishery catch and sharing networks. Pac. Sci. 2013, 67, 329–344. [Google Scholar] [CrossRef]
  7. Barnett, J.; Campbell, J. Climate Change and Small Island States: Power, Knowledge, and the South Pacific; Earthscan: London, UK, 2010. [Google Scholar]
  8. Berkes, F. Indigenous ways of knowing and the study of environmental change. J. R. Soc. N. Z. 2009, 39, 151–156. [Google Scholar] [CrossRef]
  9. Friedlander, A.M.; Shackeroff, J.M.; Kittinger, J.N. Customary marine resource knowledge and use in contemporary Hawai‘i. Pac. Sci. 2013, 67, 441–460. [Google Scholar] [CrossRef]
  10. Ticktin, T.; Whitehead, A.N.; Fraiola, H. Traditional gathering of native hula plants in alien-invaded Hawaiian forests: Adaptive practices, impacts on alien invasive species and conservation implications. Environ. Conserv. 2006, 33, 185–194. [Google Scholar] [CrossRef]
  11. Gadgil, M.; Berkes, F.; Folke, C. Indigenous Knowledge for Biodiversity Conservation. Ambio 1993, 22, 151–156. [Google Scholar]
  12. Poepoe, K.K.; Bartram, P.K.; Friedlander, A.M. The use of traditional knowledge in the contemporary management of a Hawaiian community’s marine resources. In Fishers’ Knowledge in Fisheries Science and Management; Haggan, N., Neis, B., Baird, I.G., Eds.; UNESCO Publishing: Paris, France, 2005. [Google Scholar]
  13. Berkes, F.; Colding, J.; Folke, C. Rediscovery of traditional ecological knowledge as adaptive management. Ecol. Appl. 2000, 10, 1251–1262. [Google Scholar] [CrossRef]
  14. McMillen, H.; Ticktin, T.; Friedlander, A.; Jupiter, S.; Thaman, R.; Campbell, J.; Veitayaki, J.; Giambelluca, T.; Nihmei, S.; Rupeni, E.; et al. Small islands, valuable insights: Systems of customary resource use and resilience to climate change in the Pacific. Ecol. Soc. 2014, 19, 44. [Google Scholar] [CrossRef]
  15. Berkes, F.; Folke, C.; Colding, J. Linking Social and Ecological Systems: Management Practices and Social Mechanisms for Building Resilience; Cambridge University Press: Cambridge, UK, 2000; ISBN 978-0-521-78562-4. [Google Scholar]
  16. Keener, V. Climate Change and Pacific Islands: Indicators and Impacts: Report for the 2012 Pacific Islands Regional Climate Assessment; Island Press: Washington, DC, USA, 2013. [Google Scholar]
  17. Johannes, R.E. The renaissance of community-based marine resource management in Oceania. Annu. Rev. Ecol. Syst. 2002, 33, 317–340. [Google Scholar] [CrossRef]
  18. McGregor, D.P.; Morelli, P.; Matsuoka, J.; Minerbi, L.; Becker, H.A.; Vanclay, F. An ecological model of well-being. In The International Handbook of Social Impact Assessment Conceptual and Methodological Advances; Edward Elgar Publishing: Cheltenham, UK, 2003; pp. 109–126. [Google Scholar]
  19. Minerbi, L. Indigenous management models and protection of the ahupua‘a. Soc. Process Hawai‘i 1999, 39, 208–225. [Google Scholar]
  20. Foale, S.; Cohen, P.; Januchowski-Hartley, S.; Wenger, A.; Macintyre, M. Tenure and taboos: Origins and implications for fisheries in the Pacific. Fish Fish. 2011, 12, 357–369. [Google Scholar] [CrossRef]
  21. IUCN. Indigenous and Community Conserved Areas; IUCN: Gland, Switzerland, 2008. [Google Scholar]
  22. Pathak, N.; Bhatt, S.; Balasinorwala, T.; Kothari, A.; Borrini-Feyerabend, G. Community Conserved Areas: A Bold Frontier for Conservation. TILCEP/AIUCN, CENESTA, CMWG and WAMIP: Tehran. Available online: http://cmsdata.iucn.org/downloads/cca_briefing_note.pdf (accessed on 3 September 2018).
  23. Berkes, F. Community conserved areas: Policy issues in historic and contemporary context. Conserv. Lett. 2009, 2, 20–25. [Google Scholar] [CrossRef]
  24. Oviedo, G. Community-conserved areas in South America. Parks 2006, 16, 49–55. [Google Scholar]
  25. Vaughan, M.B.; Ardoin, N.M. The implications of differing tourist/resident perceptions for community-based resource management: A Hawaiian coastal resource area study. J. Sustain. Tour. 2014, 22, 50–68. [Google Scholar] [CrossRef]
  26. Berkes, F. Rethinking Community-Based Conservation. Conserv. Biol. 2004, 18, 621–630. [Google Scholar] [CrossRef][Green Version]
  27. Winter, K.B.; Beamer, K.; Vaughan, M.B.; Friedlander, A.M.; Kido, M.; Akutagawa, M.K.H.; Kurashima, N.; Nyberg, B. The Moku System: Managing biocultural resources for abundance within social-ecological regions. Sustainability 2018. under review. [Google Scholar]
  28. Bremer, L.L.; Delevaux, J.M.; Leary, J.J.; Cox, L.J.; Oleson, K.L. Opportunities and Strategies to Incorporate Ecosystem Services Knowledge and Decision Support Tools into Planning and Decision Making in Hawai‘i. Environ. Manag. 2015, 55, 884–899. [Google Scholar] [CrossRef] [PubMed]
  29. Jokiel, P.L.; Rodgers, K.S.; Walsh, W.J.; Polhemus, D.A.; Wilhelm, T.A. Marine resource management in the Hawaiian Archipelago: The traditional Hawaiian system in relation to the Western approach. J. Mar. Biol. 2010, 2011, 151682. [Google Scholar] [CrossRef]
  30. Derrickson, S.A.K.; Robotham, M.P.; Olive, S.G.; Evensen, C.I. Watershed management and policy in Hawaii: Coming full circle. J. Am. Water Resour. Assoc. 2002, 38, 563–576. [Google Scholar] [CrossRef]
  31. Jupiter, S.D.; Cohen, P.J.; Weeks, R.; Tawake, A.; Govan, H. Locally-managed marine areas: Multiple objectives and diverse strategies. Pac. Conserv. Biol. 2014, 20, 165–179. [Google Scholar] [CrossRef]
  32. McGregor, D. Na Kua’aina: Living Hawaiian Culture; University of Hawaii Press: Honolulu, HI, USA, 2007; ISBN 978-0-8248-2946-9. [Google Scholar]
  33. Vaughan, M.B.; Ayers, A.L. Customary Access: Sustaining Local Control of Fishing and Food on Kaua‘i’s North Shore. Food Cult. Soc. 2016, 19, 517–538. [Google Scholar] [CrossRef]
  34. Pascua, P.; McMillen, H.; Ticktin, T.; Vaughan, M.; Winter, K.B. Beyond services: A process and framework to incorporate cultural, genealogical, place-based, and indigenous relationships in ecosystem service assessments. Ecosyst. Serv. 2017, 26, 465–475. [Google Scholar] [CrossRef]
  35. Kittinger, J.N.; Teneva, L.T.; Koike, H.; Stamoulis, K.A.; Kittinger, D.S.; Oleson, K.L.L.; Conklin, E.; Gomes, M.; Wilcox, B.; Friedlander, A.M. From Reef to Table: Social and Ecological Factors Affecting Coral Reef Fisheries, Artisanal Seafood Supply Chains, and Seafood Security. PLoS ONE 2015, 10, e0123856. [Google Scholar] [CrossRef] [PubMed]
  36. Bremer, L.L.; Mandle, L.; Trauernicht, C.; Pascua, P.; McMillen, H.L.; Burnett, K.; Wada, C.A.; Kurashima, N.; Quazi, S.A.; Giambelluca, T.; et al. Bringing multiple values to the table: Assessing future land-use and climate change in North Kona, Hawai’i. Ecol. Soc. 2018, 23. [Google Scholar] [CrossRef]
  37. Vaughan, M.B.; Caldwell, M.R. Hana Pa’a: Challenges and lessons for early phases of co-management. Mar. Policy 2015, 62, 51–62. [Google Scholar] [CrossRef]
  38. DAR. Management Plan for the Hā‘ena Community-Based Subsistence Fisheries Area, Kauai; Division of Aquatic Resources, Hawaii Department of Land and Natural Resources: Honolulu, HI, USA, 2016.
  39. Andrade, C. Ha’ena: Through the Eyes of the Ancestors; University of Hawaii Press: Honolulu, HI, USA, 2008; ISBN 978-0-8248-3119-6. [Google Scholar]
  40. Vaughan, M.B.; Thompson, B.; Ayers, A.L. Pāwehe Ke Kai a‘o Hā‘ena: Creating State Law based on Customary Indigenous Norms of Coastal Management. Soc. Nat. Resour. 2017, 30, 31–46. [Google Scholar] [CrossRef]
  41. Goodell, W. Coupling Remote Sensing with In-Situ Surveys to Determine Reef Fish Habitat Associations for the Design of Marine Protected Areas. Master’s Thesis, The University of Hawai‘i, Honolulu, HI, USA, 2015. [Google Scholar]
  42. Goldstein, J.H.; Caldarone, G.; Duarte, T.K.; Ennaanay, D.; Hannahs, N.; Mendoza, G.; Polasky, S.; Wolny, S.; Daily, G.C. Integrating ecosystem-service tradeoffs into land-use decisions. Proc. Natl. Acad. Sci. USA 2012. [Google Scholar] [CrossRef] [PubMed]
  43. Kamehameha Schools. Kūhanauna: A Generation on the Rise; Kamehameha Schools Strategic Plan 2015–2020; Kamehameha Schools: Honolulu, HI, USA, 2016. [Google Scholar]
  44. TNC. Kaʻūpūlehu Conservation Action Plan; The Nature Conservancy: Arlington County, VA, USA, 2015. [Google Scholar]
  45. McMillen, H.; Ticktin, T.; Springer, H.K. The future is behind us: Traditional ecological knowledge and resilience over time on Hawai‘i Island. Reg. Environ. Chang. 2017, 17, 579–592. [Google Scholar] [CrossRef]
  46. Olsson, P.; Folke, C. Local Ecological Knowledge and Institutional Dynamics for Ecosystem Management: A Study of Lake Racken Watershed, Sweden. Ecosystems 2001, 4, 85–104. [Google Scholar] [CrossRef]
  47. Delevaux, J.M.S.; Stamoulis, K.; Whittier, R.B.; Jupiter, S.D.; Bremer, L.L.; Friedlander, A.M.; Kurashima, N.; Vaughan, M.B.; Winter, K.B.; Giddens, J.L.; et al. Local place-based management can promote coral reef resilience to climate change. Ecol. Appl. 2018. under review. [Google Scholar]
  48. Minton, D.; Conklin, E.; Friedlander, A.; Most, R.; Pollock, K.; Stamoulis, K.; Wiggins, C. Establishing the Baseline Condition of the Marine Resources: Results of the 2012 and 2013 Ka‘ūpūlehu, Hawai‘i Marine Surveys; The Nature Conservancy: Arlington County, VA, USA, 2015; pp. 1–46. [Google Scholar]
  49. Sandin, S.A.; Smith, J.E.; DeMartini, E.E.; Dinsdale, E.A.; Donner, S.D.; Friedlander, A.M.; Konotchick, T.; Malay, M.; Maragos, J.E.; Obura, D.; et al. Baselines and Degradation of Coral Reefs in the Northern Line Islands. PLoS ONE 2008, 3, e1548. [Google Scholar] [CrossRef] [PubMed][Green Version]
  50. The Integration and Application Network. Symbols. Available online: ian.umces.edu/symbols/ (accessed on 3 September 2018).
  51. Hoeke, R.K.; Jokiel, P.L.; Buddemeier, R.W.; Brainard, R.E. Projected changes to growth and mortality of Hawaiian corals over the next 100 years. PLoS ONE 2011, 6, e18038. [Google Scholar] [CrossRef] [PubMed]
  52. Lovell, E.; Sykes, H.; Deiye, M.; Wantiez, L.; Garrigue, C.; Virly, S.; Samuelu, J.; Solofa, A.; Poulasi, T.; Pakoa, K.; et al. Status of Coral Reefs in the South West Pacific: Fiji, Nauru, New Caledonia, Samoa, Solomon Islands, Tuvalu and Vanuatu. Status Coral Reefs World 2004, 2, 337–362. [Google Scholar]
  53. Liu, Y.; Gupta, H.; Springer, E.; Wagener, T. Linking science with environmental decision making: Experiences from an integrated modeling approach to supporting sustainable water resources management. Environ. Model. Softw. 2008, 23, 846–858. [Google Scholar] [CrossRef]
  54. Calhoun, R.S.; Fletcher, C.H. Measured and predicted sediment yield from a subtropical, heavy rainfall, steep-sided river basin: Hanalei, Kauai, Hawaiian Islands. Geomorphology 1999, 30, 213–226. [Google Scholar] [CrossRef]
  55. Izuka, S.K.; Engott, J.A.; Bassiouni, M.; Johnson, A.G.; Miller, L.D.; Rotzoll, K.; Mair, A. Volcanic Aquifers of Hawai‘i—Hydrogeology, Water Budgets, and Conceptual Models; Scientific Investigations Report; U.S. Geological Survey: Reston, VA, USA, 2016; p. 172.
  56. Knee, K.L.; Street, J.H.; Grossman, E.E.; Boehm, A.B.; Paytan, A. Nutrient inputs to the coastal ocean from submarine groundwater discharge in a groundwater-dominated system: Relation to land use (Kona coast, Hawaii, U.S.A.). Limnol. Oceanogr. 2010, 55, 1105–1122. [Google Scholar] [CrossRef]
  57. Fletcher, C.H.; Bochicchio, C.; Conger, C.L.; Engels, M.S.; Feirstein, E.J.; Frazer, N.; Glenn, C.R.; Grigg, R.W.; Grossman, E.E.; Harney, J.N.; et al. Geology of Hawaii Reefs. In Coral Reefs of the USA; Riegl, B.M., Dodge, R.E., Eds.; Springer: Cham, The Netherlands, 2008; pp. 435–487. ISBN 978-1-4020-6846-1. [Google Scholar]
  58. Jokiel, P.L.; Brown, E.K.; Friedlander, A.; Rodgers, S.K.; Smith, W.R. Hawai’i Coral Reef Assessment and Monitoring Program: Spatial Patterns and Temporal Dynamics in Reef Coral Communities. Pac. Sci. 2004, 58, 159–174. [Google Scholar] [CrossRef]
  59. Friedlander, A.M.; Brown, E.K.; Jokiel, P.L.; Smith, W.R.; Rodgers, K.S. Effects of habitat, wave exposure, and marine protected area status on coral reef fish assemblages in the Hawaiian archipelago. Coral Reefs 2003, 22, 291–305. [Google Scholar] [CrossRef]
  60. Anthony, K.R.N. Enhanced energy status of corals on coastal, high-turbidity reefs. Mar. Ecol. Prog. Ser. 2006, 319, 111–116. [Google Scholar] [CrossRef][Green Version]
  61. Wenger, A.S.; Williamson, D.H.; da Silva, E.T.; Ceccarelli, D.M.; Browne, N.K.; Petus, C.; Devlin, M.J. Effects of reduced water quality on coral reefs in and out of no-take marine reserves. Conserv. Biol. 2015, 30, 142–153. [Google Scholar] [CrossRef] [PubMed]
  62. Morgan, K.M.; Perry, C.T.; Johnson, J.A.; Smithers, S.G. Nearshore Turbid-Zone Corals Exhibit High Bleaching Tolerance on the Great Barrier Reef Following the 2016 Ocean Warming Event. Front. Mar. Sci. 2017, 4, 224. [Google Scholar] [CrossRef]
  63. Fabricius, K.E. Effects of terrestrial runoff on the ecology of corals and coral reefs: Review and synthesis. Mar. Pollut. Bull. 2005, 50, 125–146. [Google Scholar] [CrossRef] [PubMed]
  64. Smith, J.E.; Brainard, R.; Carter, A.; Grillo, S.; Edwards, C.; Harris, J.; Lewis, L.; Obura, D.; Rohwer, F.; Sala, E.; et al. Re-evaluating the health of coral reef communities: Baselines and evidence for human impacts across the central Pacific. Proc. R. Soc. B 2016, 283, 20151985. [Google Scholar] [CrossRef] [PubMed]
  65. Berkes, F.; Kislalioglu, M.; Folke, C.; Gadgil, M. Minireviews: Exploring the basic ecological unit: Ecosystem-like concepts in traditional societies. Ecosystems 1998, 1, 409–415. [Google Scholar] [CrossRef]
  66. Johannes, R.; Lasserre, P.; Nixon, S.; Pliya, J.; Ruddle, K. Traditional Knowledge and Management of Marine Coastal Systems. Biol. Int. Spec. 1983. Special Issue No. 4. Available online: iubs.org/pdf/publi/BISI/SPECIAL%20ISSUE%204a.pdf (accessed on 30 August 2018).
  67. Ruddle, K.; Akimichi, T. Maritime Institutions in the Western Pacific; Serie Ethnological Studies; National Museum of Ethnology: Osaka, Japan, 1984; Volume 17. [Google Scholar]
  68. Melbourne-Thomas, J.; Johnson, C.R.; Fung, T.; Seymour, R.M.; Chérubin, L.M.; Arias-González, J.E.; Fulton, E.A. Regional-scale scenario modeling for coral reefs: A decision support tool to inform management of a complex system. Ecol. Appl. 2011, 21, 1380–1398. [Google Scholar] [CrossRef] [PubMed]
  69. Guerry, A.D.; Ruckelshaus, M.H.; Arkema, K.K.; Bernhardt, J.R.; Guannel, G.; Kim, C.-K.; Marsik, M.; Papenfus, M.; Toft, J.E.; Verutes, G. Modeling benefits from nature: Using ecosystem services to inform coastal and marine spatial planning. Int. J. Biodivers. Sci. Ecosyst. Serv. Manag. 2012, 8, 107–121. [Google Scholar] [CrossRef]
  70. Hamel, P.; Chaplin-Kramer, R.; Sim, S.; Mueller, C. A new approach to modeling the sediment retention service (InVEST 3.0): Case study of the Cape Fear catchment, North Carolina, USA. Sci. Total Environ. 2015, 524, 166–177. [Google Scholar] [CrossRef] [PubMed]
  71. Raudsepp-Hearne, C.; Peterson, G.D.; Bennett, E.M. Ecosystem service bundles for analyzing tradeoffs in diverse landscapes. Proc. Natl. Acad. Sci. USA 2010, 107, 5242–5247. [Google Scholar] [CrossRef] [PubMed][Green Version]
  72. Delevaux, J.M.S.; Jupiter, S.D.; Stamoulis, K.A.; Bremer, L.L.; Wenger, A.S.; Dacks, R.; Garrod, P.; Falinski, K.A.; Ticktin, T. Scenario planning with linked land-sea models inform where forest conservation actions will promote coral reef resilience. Sci. Rep. 2018, 8, 12465. [Google Scholar] [CrossRef] [PubMed]
  73. Ku‘ulei, S.R.; Kido, M.H.; Jokiel, P.L.; Edmonds, T.; Brown, E.K. Use of integrated landscape indicators to evaluate the health of linked watersheds and coral reef environments in the Hawaiian Islands. Environ. Manag. 2012, 50, 21–30. [Google Scholar]
  74. Ayers, A.L.; Kittinger, J.N. Emergence of co-management governance for Hawai‘i coral reef fisheries. Glob. Environ. Chang. 2014, 28, 251–262. [Google Scholar] [CrossRef]
  75. Lowry, K.; Adler, P.; Milner, N. Participating the Public: Group Process, Politics, and Planning. J. Plan. Educ. Res. 1997, 16, 177–187. [Google Scholar] [CrossRef]
Figure 1. Locations of Hā‘ena and Ka‘ūpūlehu ahupua‘a on Kaua‘i and Hawai‘i along the main Hawaiian Island chain, with island age and the direction of the prevailing north-east trade winds and ocean swell indicated.
Figure 1. Locations of Hā‘ena and Ka‘ūpūlehu ahupua‘a on Kaua‘i and Hawai‘i along the main Hawaiian Island chain, with island age and the direction of the prevailing north-east trade winds and ocean swell indicated.
Sustainability 10 03147 g001
Figure 2. Ha‘ēna study site. (A) Ha‘ēna land use and community based subsistence fishing area (CBSFA) marine refuge boundaries and (B) The opening pule (prayer) prior to the public hearing in Hanalei for the Ha‘ēna CBSFA package rules.
Figure 2. Ha‘ēna study site. (A) Ha‘ēna land use and community based subsistence fishing area (CBSFA) marine refuge boundaries and (B) The opening pule (prayer) prior to the public hearing in Hanalei for the Ha‘ēna CBSFA package rules.
Sustainability 10 03147 g002
Figure 3. Ka‘ūpūlehu study site. (A) Ka‘ūpūlehu land use and marine reserve map; (B) Gathering for the opening pule prior to the public hearing for the ‘Try Wait’ fishing rest area in Ka‘ūpūlehu.
Figure 3. Ka‘ūpūlehu study site. (A) Ka‘ūpūlehu land use and marine reserve map; (B) Gathering for the opening pule prior to the public hearing for the ‘Try Wait’ fishing rest area in Ka‘ūpūlehu.
Sustainability 10 03147 g003

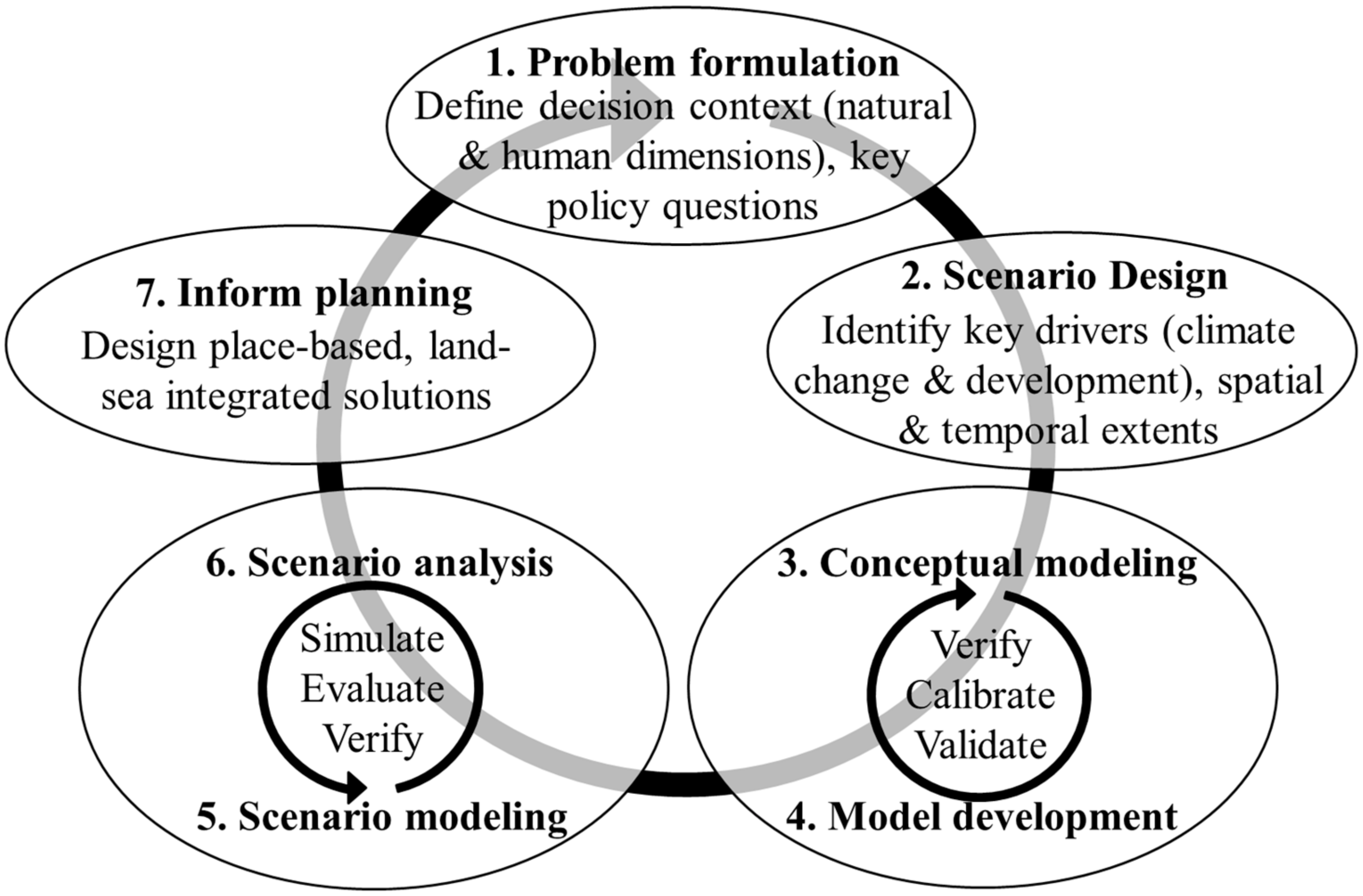

Figure 4. Collaborative science process. The collaborative science process involves stewards/care takers, managers and scientists, or a combination at multiple stages (see Table 1 for roles fulfilled by each group of actors).
Figure 4. Collaborative science process. The collaborative science process involves stewards/care takers, managers and scientists, or a combination at multiple stages (see Table 1 for roles fulfilled by each group of actors).
Sustainability 10 03147 g004
Figure 5. Linked land-sea modeling framework. The framework accounted for (A) natural and human drivers of coral reefs. Human drivers consisted of (B) land-based (coastal development) and (C,D) marine-based (bleaching and closure) scenarios. (E) The terrestrial drivers included submarine groundwater and nutrient discharge. (F) The marine drivers characterized the marine habitats. Under each scenario, coral reef models track changes in (G) benthic and (H) fish indicator abundance. This approach identified (I) priority areas on land where management can promote coral reef resilience to climate change through a collaborative process. Adapted from [3,47,53].
Figure 5. Linked land-sea modeling framework. The framework accounted for (A) natural and human drivers of coral reefs. Human drivers consisted of (B) land-based (coastal development) and (C,D) marine-based (bleaching and closure) scenarios. (E) The terrestrial drivers included submarine groundwater and nutrient discharge. (F) The marine drivers characterized the marine habitats. Under each scenario, coral reef models track changes in (G) benthic and (H) fish indicator abundance. This approach identified (I) priority areas on land where management can promote coral reef resilience to climate change through a collaborative process. Adapted from [3,47,53].
Sustainability 10 03147 g005
Figure 6. Illustration of the groundwater system at Hā‘ena and Ka‘ūpūlehu. (A) Hā‘ena is located on old, wet, wave exposed coast of Kaua‘I; (B) Ka‘ūpūlehu is young, dry and wave sheltered.
Figure 6. Illustration of the groundwater system at Hā‘ena and Ka‘ūpūlehu. (A) Hā‘ena is located on old, wet, wave exposed coast of Kaua‘I; (B) Ka‘ūpūlehu is young, dry and wave sheltered.
Sustainability 10 03147 g006

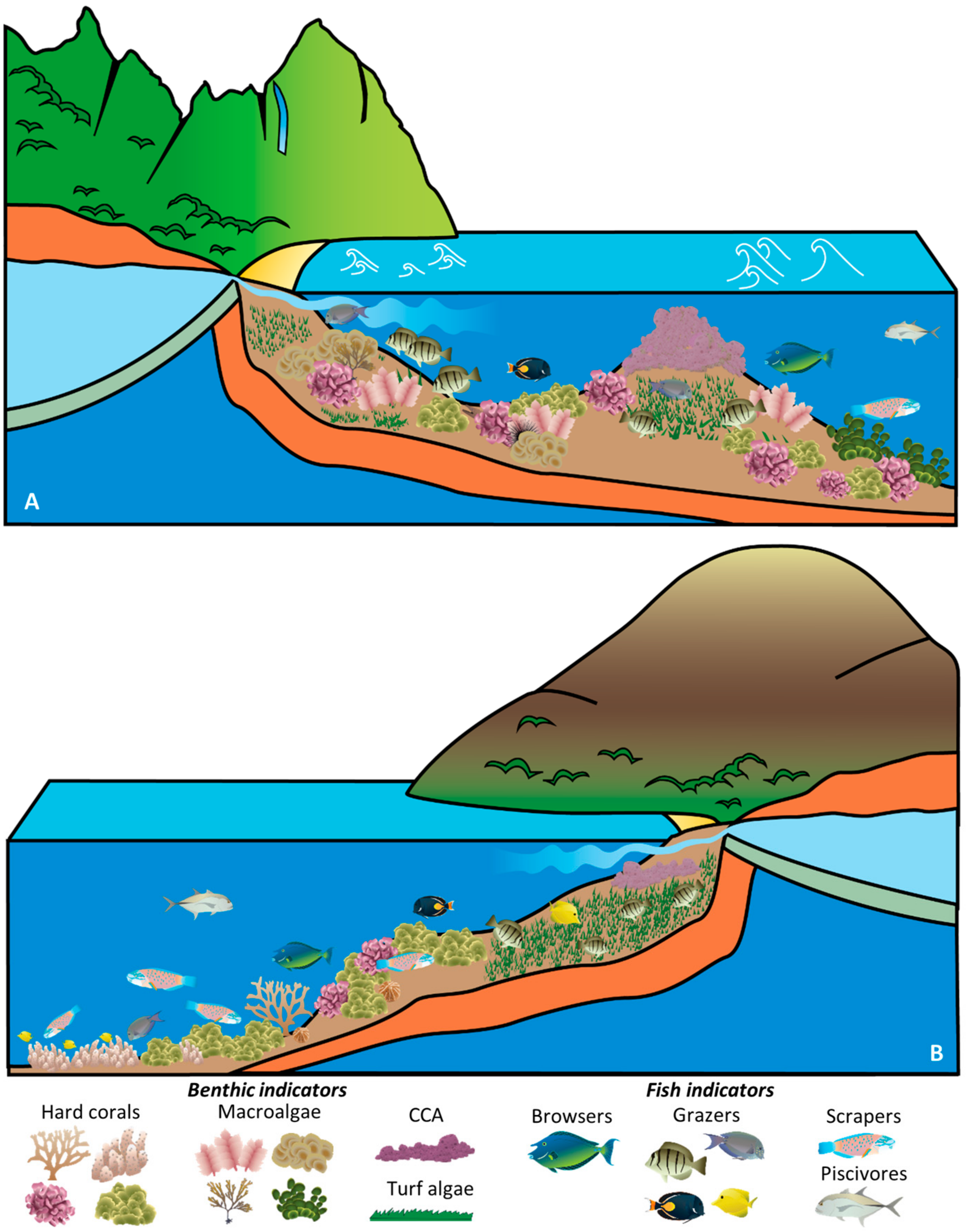

Figure 7. Illustrations of the coral reefs. (A) Coral reefs in Hā‘ena are characterized by a reef crest dominated by crustose coralline algae (CCA) and turf algae and back reef with abundant corals and macroalgae with many grazers and less scrapers and (B) Coral reefs in Ka‘ūpūlehu are dominated by corals on the slopes and turf algae on the reef flats with many scrapers.
Figure 7. Illustrations of the coral reefs. (A) Coral reefs in Hā‘ena are characterized by a reef crest dominated by crustose coralline algae (CCA) and turf algae and back reef with abundant corals and macroalgae with many grazers and less scrapers and (B) Coral reefs in Ka‘ūpūlehu are dominated by corals on the slopes and turf algae on the reef flats with many scrapers.
Sustainability 10 03147 g007

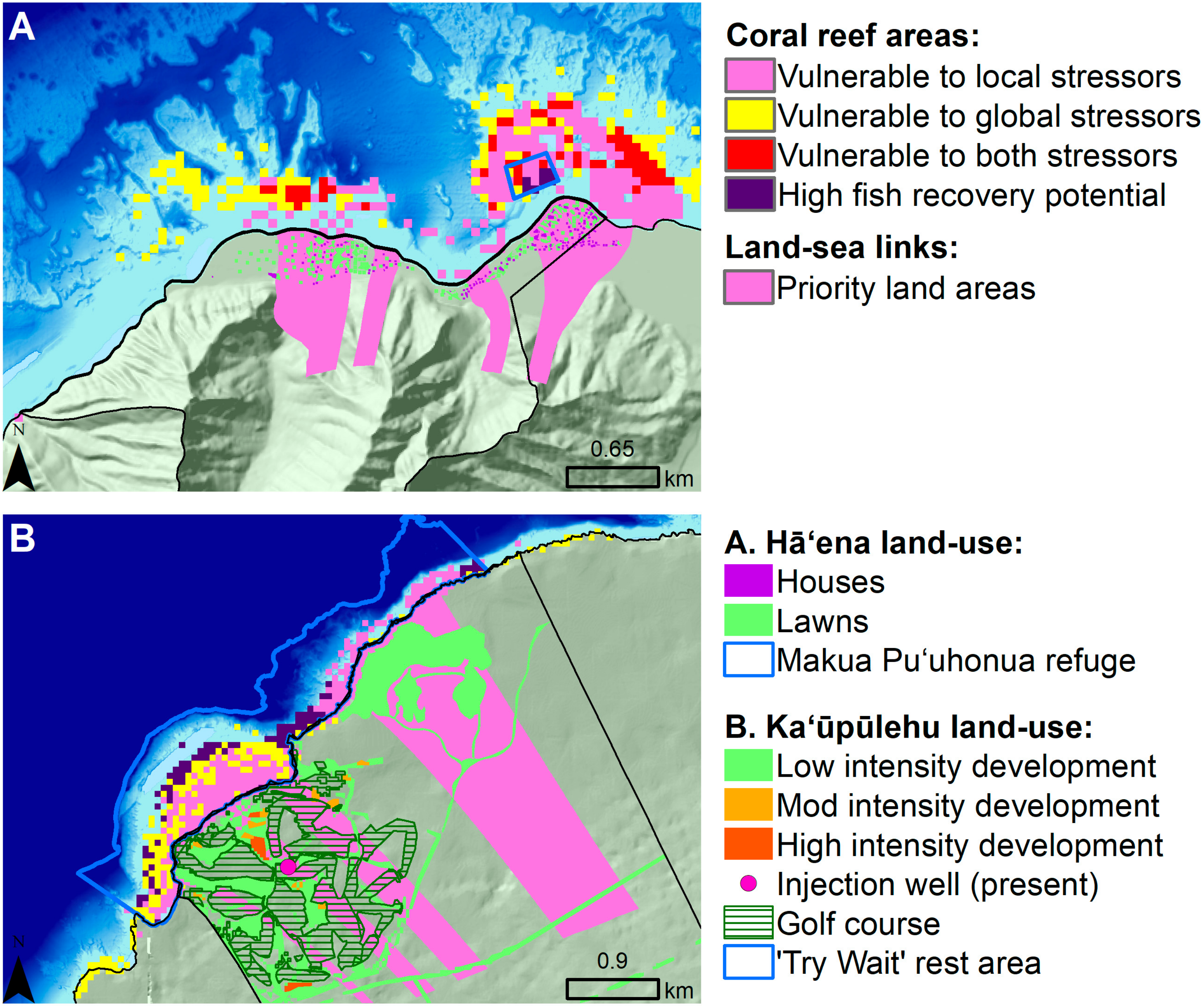

Figure 8. Coral reef areas vulnerable to local and global human stressors (i.e., nutrients and bleaching), coral reef areas with high fish recovery potential and priority land areas for management. Coral reef areas vulnerable to local and global human stressors (i.e., nutrients and bleaching), coral reef areas with high fish recovery potential and priority land areas, where local management actions can target wastewater and fertilizer practices at (A) Hā‘ena and (B) Ka‘ūpūlehu. Projected high coastal development land use/cover and marine closure/fishing rest areas are also shown.
Figure 8. Coral reef areas vulnerable to local and global human stressors (i.e., nutrients and bleaching), coral reef areas with high fish recovery potential and priority land areas for management. Coral reef areas vulnerable to local and global human stressors (i.e., nutrients and bleaching), coral reef areas with high fish recovery potential and priority land areas, where local management actions can target wastewater and fertilizer practices at (A) Hā‘ena and (B) Ka‘ūpūlehu. Projected high coastal development land use/cover and marine closure/fishing rest areas are also shown.
Sustainability 10 03147 g008
Table 1. Roles of multiple actors in a collaborative science process. Stewards/care takers, resource managers and scientists, or a combination play multiple roles at multiple stages.
Table 1. Roles of multiple actors in a collaborative science process. Stewards/care takers, resource managers and scientists, or a combination play multiple roles at multiple stages.
StagesActorsRoles
1. Problem formulationStewards/care takersCommunity members, land owners and non-profits
ScientistsGeographer, ecologist, hydro-geologist & planners
Resource managersHawai‘i Department of Health
2. Scenario designStewards/care takersPreferences, vision & concerns
ScientistsCompile data & map scenarios
Resource managersShare data
3. Conceptual modelingStewards/care takersDetermine key system components, indicators and processes
Scientists
Resource managers
4. Model developmentScientistsMeasure indicators, design & build models, develop user friendly outputs
5. Scenario modelingScientistsModel indicator changes per scenario
Resource managersAssess & ground-truth outputs
Stewards/care takers
6. Scenario analysisScientistsPerform indicator analysis & assess potential risk for each scenario
7. Inform planningStewards/care takersGuide place-based management
ScientistsSynthesize & communicate scenario results
Resource managersGuide policy-making
Back to TopTop
