Stan4SWAP: Towards Efficient Standards for Light Electric Vehicle Battery Swap

Abstract

Light electric vehicles within the L category are expected to play a significant role in promoting sustainable urban transport, advantageous for both society and the environment. The batteries in these vehicles are well suited for swapping, necessitating appropriate standards. This paper outlines the European Stan4SWAP project, which analyzed the standardization and regulation framework relevant to this application, and drafted the standardization roadmap which highlights development needs on short, medium and long term.

1. Introduction

In urban traffic, due to their beneficial effect on the environment, electric vehicles are an important factor for the improvement of traffic, and more particularly, for a healthier living environment. Light vehicles (L-category, as defined by UNECE [1]) can contribute to cutting greenhouse gas emissions as set by the European Green Deal. Issues such as range anxiety remain, however, but may be tackled with swappable battery systems (Figure 1).

Battery swapping is an innovative system allowing owners of electric light vehicles to swap out their discharged batteries for fully recharged ones in a matter of seconds, eliminating long recharging stops and allowing flexible vehicle operation. This system has the potential to revolutionize electric mobility, facilitating the widespread adoption of electric vehicles. Standardizing battery designs and interfaces, however, presents obstacles, limiting interoperability between vehicle and battery makers.

The European Stan4SWAP project (https://stan4swap.standards.eu/, accessed 21 May 2026) (Figure 2) aims to speed up the market introduction of interchangeable battery systems for light vehicles. By creating a standardization roadmap, Stan4SWAP intends to guarantee interoperability and compatibility between vehicles and batteries from various manufacturers, thereby encouraging the uptake of battery-electric L-Category vehicles. Alongside addressing the technical, market, and regulatory issues, as well as promoting education and awareness about the importance of standardization, one primary goal is to pinpoint the specific needs and challenges linked to swappable battery systems to aid their market launch and increase stakeholder involvement. The needs identified for swappable battery systems, along with those for pre-normative research, provide the foundation for spotting standardization gaps and tackling them in the standardization plan [2].

This paper was originally presented on the EVS38 in Gothenburg [3] and has been expanded to include the outcomes of the project.

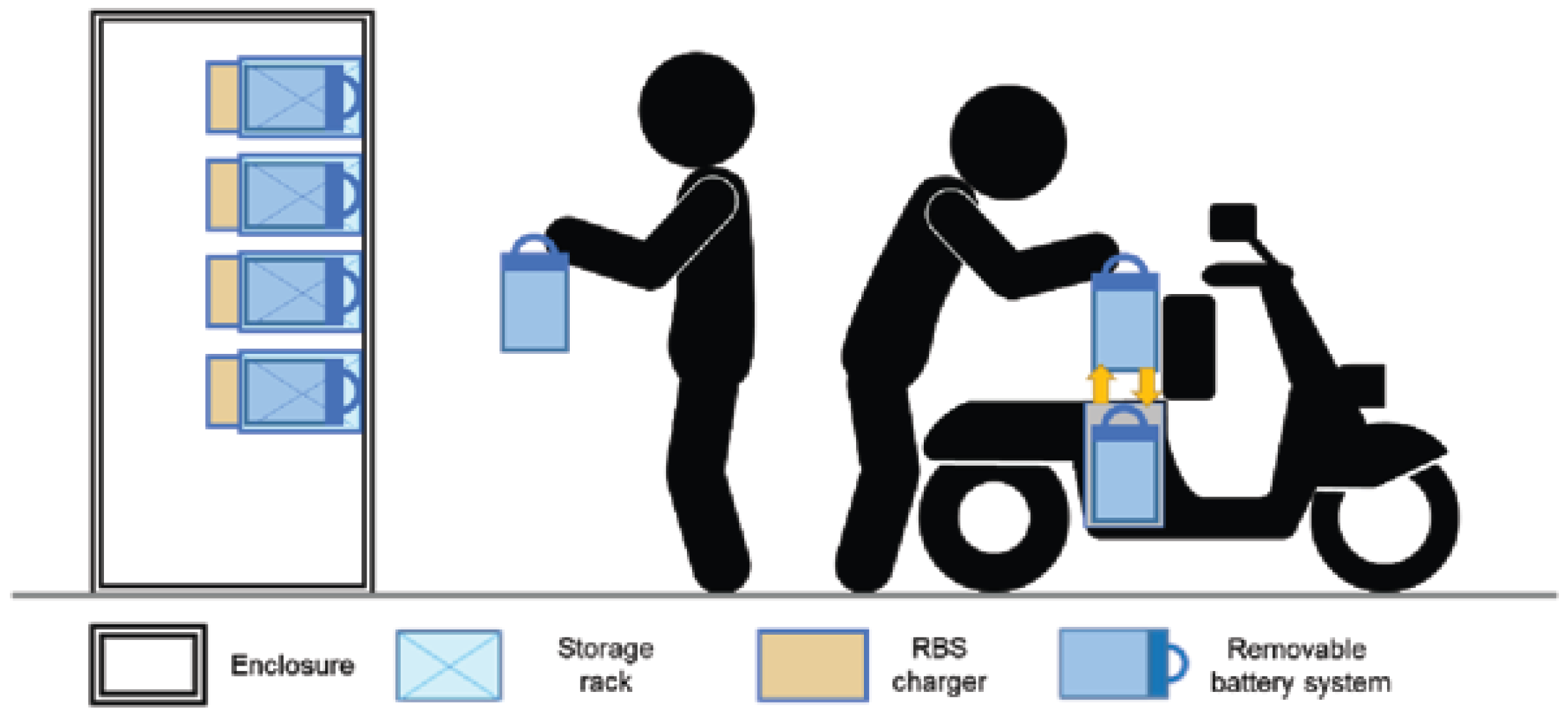

Figure 1. Manual swapping station layout [4] © 2025 IEC.

Figure 1. Manual swapping station layout [4] © 2025 IEC.

Figure 2. Stan4SWAP project logo.

Figure 2. Stan4SWAP project logo.

2. General Methodology

This paper summarizes the outcome of the Stan4SWAP project. Firstly, the existing regulation and standardization landscapes are described in Section 3 and Section 4, discussing selected standards with direct relevance to the subject. An overview of interested stakeholders is given in Section 5.

The standardization roadmap in Section 6 analyzes the existing standardization gaps and gives action recommendations, paving the way for new developments in the conclusion in Section 8. Section 7 examines the standardization process itself through a behavioral-monitoring lens informed by contemporary metaheuristic research, delineating metrics that may enhance the effectiveness of the roadmap implementation.

3. Regulatory Background [5]

Although standards and regulations are fundamentally different concepts, it is interesting to look at some European regulatory instruments, as these have an influence on the development of harmonized European standards through the standardization mandates issued by the European Commission to CEN and CENELEC.

Recent relevant regulations include the new Battery Regulation (2023/1542) [6], which specifies mandatory requirements for all batteries placed on the EU market, covering aspects such as sustainability and safety, labeling, marking and information, due diligence, waste battery management and recycling, battery passport and green public procurement.

Of interest is also the Alternative Fuels Infrastructure Regulation AFIR (2023/1804) [7], which sets binding national targets for the development of EU alternative fuel infrastructure. Furthermore, it establishes common technical specifications and requirements regarding the information to vehicle users for the provision of data and payment requirements, as well as the low voltage directive LVD (2014/35/EU) [8] which ensures that electrical equipment provides a high level of protection for European citizens.

4. Relevant Standardization Work [5]

4.1. Introduction

To make a battery-swapping system practical, it is crucial to have standardized specifications across various manufacturers and models. The varied European automotive industry, featuring a wide range of manufacturers and vehicle types, poses a notable challenge to standardization. Without unified standards for battery dimensions, shape, and connectivity, the system’s interoperability remains constrained.

The standardization work relevant to the subject is mainly done within IEC regarding the infrastructure issues, with specific vehicle-based aspects covered by ISO. Most work takes place at the global level, with the resulting international standards being adopted as European ones by CEN and CENELEC.

The main IEC committee dealing with charging infrastructure standards is IEC TC69.

4.2. Battery Swap Standards: IEC 62840

The subject of swappable batteries is covered by the IEC 62840 family of standards titled “Electric vehicle battery swap system”. Its Part 1, “General and guidance” [4], was first published as a technical specification in 2016, and made it to the international standard level in 2025.

This first part gives a general overview of battery exchange systems for electrical road vehicle batteries, introducing system concepts and use cases. It marks the difference between “swappable” and “removable” battery systems, describing typical system components for both. The swappable battery system, where the batteries are moved by the charging station handling system, is foremostly aimed at larger vehicles (cars and heavy-duty vehicles), while the removable system aims at lighter vehicles such as those covered by the project. An example of a removable battery system is given in Figure 1.

The second part on “Safety requirements” was published as an international standard in 2016 [9] and the second edition in 2025 [10]. It contains the general safety requirements for swappable or removable battery systems. The battery swap system shall be so designed and constructed that in normal use, its performance is reliable and minimizes the risk of danger to human individuals, equipment and surroundings. Specific additional aspects related to the application are covered, including the operational safety of the vehicle lane system, the battery handling and storage systems, removable/swappable batteries and chargers. Special attention is given to electrical safety requirements.

The third part of IEC 62840, dealing with particular safety and interoperability requirements for battery swap systems operating with removable RESS/battery systems, has had a checkered history.

Initially, this document was intended to be part of the IEC 61851-3 series, aimed at the conductive charging of “light electric vehicles” (LEVs). However, the exact definition of LEVs proved to be difficult, as it depended on varying national regulations, taking into account factors like mass, number of wheels, or maximum speed, which are hardly related to the electrical safety aspects of the charging process, which were the real scope of the standard. For this reason, the documents of the 61851-3 series refer to ”DC EV supply equipment where protection relies on double or reinforced insulation”, which is, in fact, the protection method most widely used for LEVs. Such “Class II” equipment shall not be earthed. The various parts of IEC 61851-3 were eventually published as a technical specification in 2023. However, the third part, 61851-3-3, dealing with removable battery systems, was taken out of the series and transferred to the 62840 project. It was decided to publish the document as a Publicly Available Specification (PAS) based on the existing draft, as an intermediate document that meets a specific need, which has been published prior to the development of a complete international standard. As such, IEC PAS 62840-3 was still heavily indebted to the 61851-3 series [11].

The new version, however, which is now at the Committee Draft level, will be fully integrated into the IEC 62840 series.

The new part 3 of 62840 provides specific requirements and test methods for battery swap systems operating with handheld swappable battery systems of totally or partly electrically propelled vehicles. It extends parts 1 and 2 with specific requirements for the given application.

The light electric vehicles with swappable batteries considered by the Stan4SWAP project cover various technology realms, involving several other standardization committees, discussed in the following subsections.

4.3. Accessory Standards (IEC SC23H)

Accessories to be used with the considered systems are covered by IEC SC23H, of which two documents are particularly interesting:

• IEC/TS 62196-4 [12], covering the dimensional compatibility and interchangeability requirements for DC pin and contact-tube accessories for Class II or Class III applications. Class II and III refer to the measures taken to protect against electric shock, i.e., double or reinforced insulation for Class II and extra-low voltage for Class III.
• IEC 63066, first published as a technical specification in 2017 [13] and expected as an international standard in 2026 (the FDIS [14] being approved), covers low-voltage docking connectors for removable energy storage units.
  IEC 63066 applies to DC docking connectors incorporated in or fixed to electrical equipment, intended to connect removable and/or swappable energy storage units to a dedicated electric power conversion unit, an energy-consuming unit, or another energy storage unit. These accessories are not suitable for mating or unmating under load.
  Pluggable energy storage technology has great demand and potential in certain areas. With the advent of electric vehicles, energy storage units for renewable energy and other applications, guidance is needed to ensure safe and reliable operation, interoperability, environmental protection and energy efficiency. The industry needs such a standard to promote the technological development and popularization of pluggable energy storage technology.
  In comparison to other accessories, certain items are taken into account. The operator might not have tactile feedback during the mating process to correctly align the two parts of the connector. Additionally, a mechanical feed in the mating process might prevent proper alignment of the connector parts. To address these challenges, the accessory design may include movable components to compensate for mechanical feed and tolerances.
  Requirements are given for electrical and mechanical properties of the accessories; these requirements are largely based on IEC60309-1—the general standard for industrial plugs and connectors—amended where necessary for the specific needs of docking connectors.
  The forthcoming standard defines three types of accessories in standard sheets, two of which directly relate to light vehicle battery swap systems:

  –

  A docking connector for electrically powered two-wheelers, providing electrical power, signaling and data connection between removable battery and electric vehicles, removable battery and battery swap system, for battery swap systems according to IEC 62840-2:2025, Annex A [10], rated 60 V DC and 96 A DC;

  –

  A docking connector for light electric vehicles, providing electrical power, signaling and data connection between removable battery and electric vehicles, removable battery and battery swap system, for battery swap systems according to IEC PAS 62840-3 [11], rated 60 V DC and 50 A DC.

4.4. Battery Safety Standards (IEC TC21, IEC SC21A, CLC TC21X, ISO TC22 SC37, ISO TC22 SC38)

As for the standardization of batteries and their safety aspects, several committees are active, each with its specific approach.

When the battery is considered a system in the vehicle, the main work comes from vehicle committees, such as ISO TC22 SC37, with the general safety standard ISO 6469-1 [15] for EV batteries, or ISO TC22 SC38, where ISO 18243 [16] specifies the test procedures for lithium-ion battery packs and systems used in electrically propelled mopeds and motorcycles.

A specific European development has been the EN 50604-1 ”Secondary lithium batteries for light electric vehicle” [17]. It specifies the test procedures and provides acceptable safety requirements for voltage Classes A and B (i.e., below or above 60 V DC) removable lithium-ion battery packs and systems to be used as traction batteries for electrically propelled road vehicles.

This standard is primarily system-oriented—excluding individual cells—and is to be considered in conjunction with the ISO standard 6469-1, supplementing or modifying the corresponding clauses in the ISO standard.

The selected test items are designed to replicate scenarios that may happen during handling (such as removal or replacement) or during use, including normal operation, rough handling, and potential misuse or negligent handling.

EN 50604-1 is now being elevated to the international level under the aegis of the IEC, as project IEC 63623-1 “Secondary lithium batteries for light EV (electric vehicle) applications - Part 1: General safety requirements and test methods”. The NP for this standard has been approved. Its scope will include lithium-ion traction batteries of voltage Class A (up to 60 V DC) for light mobility applications such as electrically power-assisted cycles (EPACs), speed-EPACS (S-EPACs), carrier-cycles, personal light electric vehicles (PLEVs), personal mobility devices (PMDs) and e-transporters.

For the safety aspects on the cell level, these standards refer to the IEC 62660 series ”Secondary batteries for the propulsion of electric road vehicles”, where Parts 2 [18] and 3 [19] deal respectively with safety testing and safety requirements for battery cells and modules.

Although these standards are primarily aimed towards larger vehicle batteries, cells covered by IEC 62660 are also likely to be used in LEV applications, albeit in smaller systems than for heavier vehicles.

For portable secondary lithium cells and batteries, there is the IEC 62133-2 [20] standard drafted by IEC SC21A, which specifies requirements and tests for the safe operation, considering both intended use and reasonably foreseeable misuse. The latter is defined as use in a way which is not intended by the supplier, but which may result from readily predictable human behavior.

This standard covers a wide array of cell types and sizes, some of which may be applicable for LEV battery assemblies.

4.5. Battery Charger Standards (IEC TC61)

Battery chargers for light electric vehicles often are considered akin to household appliances and ruled by corresponding standards such as IEC 60335-2-29 [21] and IEC 60335-1 [22]. These documents also serve as a basis for IEC/TS 61851-3-2 [23], which supplements or modifies the 60335 requirements and tests for mechanical and electrical safety.

General standards on functional electrical safety, such as IEC 61508 [24], may also be applicable. This standard provides a generic framework for all safety lifecycle activities involving systems composed of electrical, electronic, and/or programmable electronic (E/E/PE) elements that perform safety functions. This standardized methodology aims to establish a rational and consistent technical policy for all electrically based safety-related systems. The standard introduces safety integrity levels for specifying the target level of safety integrity for the safety functions to be implemented. This document has a broad scope of application and is not specifically aimed at swappaple battery systems.

4.6. Communication Protocol Standards (IEC TC69)

There is substantial standardization activity on communication protocols, the most famous example being the Open Charge Point Protocol (OCPP), a widely used consortium standard developed by the Open Charge Alliance (OCA), enshrined as an IEC international standard IEC 63584 [25] through the fast-track procedure in 2024. This document reflects OCPP 2.0.1 and does not refer to battery swapping.

However, the latest version 2.1, implemented as IEC document 63584-210 [26] in 2025, features a new section that describes use cases for the control of a battery swap station. Battery swapping differs from conventional charging in that a battery swap action cannot be recorded by the usual OCPP messages. The action of swapping a battery is not considered a charging transaction; instead, it is a separate service. OCPP 2.1 introduces a new use case to record the swapping of batteries.

A battery swap station has multiple slots to dock batteries. In OCPP, a battery swap station is treated as a charging station. Similar to charging stations, where one EVSE charges one EV, OCPP assumes that, in a battery swap station, conceptually one EVSE powers one battery slot. Different types of battery slots can be represented in the device model.

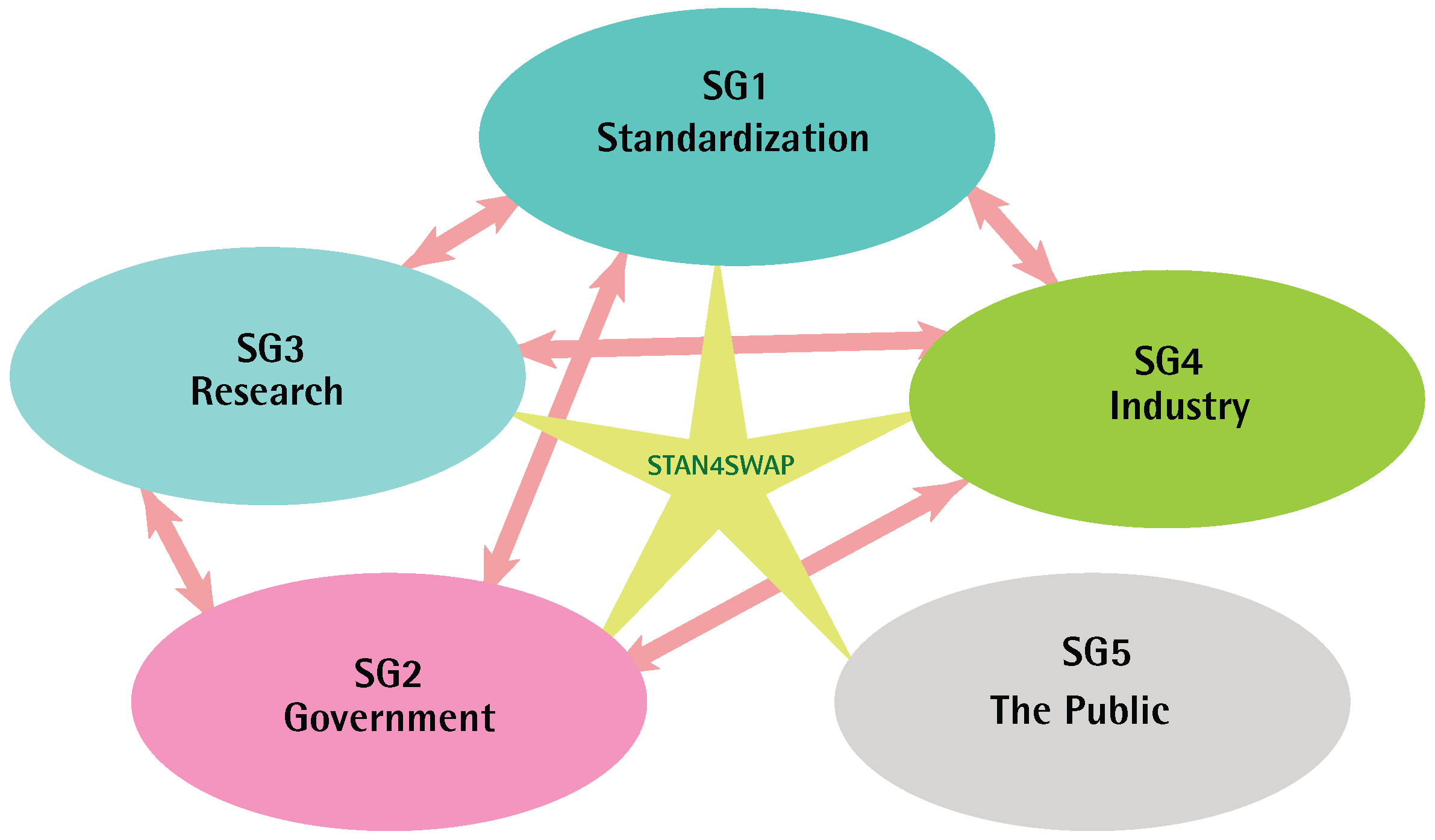

5. Stakeholders Involved

Considering the technical and societal impact of battery swapping technology standardization for light electric vehicles, one should realize that this exercise goes beyond single parties. A wide array of stakeholder groups are in fact involved (Figure 3), of which the mapping will allow a targeted approach for reaching the desired objectives and adding value to the project. The coordination among the different parties shall be enhanced to establish a standardized framework that best satisfies the requirements of all stakeholders involved. Five principal stakeholder groups are distinguished:

1.

Standardization committees and organizations.

Several global and regional standards outline the criteria for safety, compatibility, and performance of replaceable battery systems. Much of the standardization in electrotechnology is performed by the IEC worldwide, while CENELEC both adopts international standards as European standards and drafts specific standards for Europe when necessary. Specifically for vehicles, standardization is performed by ISO and CEN, respectively.

2.

Government services.

Public authorities are responsible for defining the policy and regulatory framework needed for the deployment of environmentally friendly mobility and the related infrastructure. The authorities are established at different levels according to the subsidiarity principle: European, national and local, defining the regulatory framework and promoting specific developments:

3.

Research and academic interests.

The influence of scientific research and development on innovation is paramount. Academic research is performed at universities where major research groups are focusing on electric mobility. A further channel is through fellow European research projects, funded by public authorities or by the industry. A key role is also foreseen for research-focused organizations providing funding or coordinating R&D activities.

4.

Commercial and industrial actors.

The industrial sector regroups key actors in product development. The enterprises involved cover several domains such as the manufacturing industry (involving not only the vehicles proper, but also subsystems or ancillary infrastructures), the energy industry and the services industries.

5.

The general public.

The end user of the technology is the general public, and its choices will measure the technology’s success.

6. Roadmap: Standardization Gaps and the Need for New Standards

6.1. Introduction

The design of a standardization roadmap [27] for swappable batteries was the main aim of the Stan4SWAP project. A major point is the identification of the most relevant standardization gaps where additional measures have to be taken.

The roadmap is organized around three main goals:

• Enabling interoperability among manufacturers and operators;
• Guaranteeing that batteries, vehicles, and charging infrastructure work seamlessly together;
• Creating strong communication standards across all layers of the ecosystem.

Safety and cybersecurity are addressed as overarching, cross-cutting, issues throughout.

Findings are organized across four system levels:

• Battery level;
• Vehicle level;
• Charging station/infrastructure level;
• Interfaces and full system management.

At each level, the document differentiates between topics that still need additional Pre-Normative Research (PNR) before standardization can move forward, and topics for which standardization gaps have already been identified, and work can start. Every gap is evaluated in terms of its priority (T1 within 2 years, T2 within 4 years, T3 within 5 years), its regulatory context, the standardization committees involved, and the main stakeholders who should lead or take part.

6.2. Battery Level

At the battery level, the roadmap highlights safety-related specifications as the most critical and insufficiently addressed area. Key issues such as acceptable temperature ranges, strategies to reduce fire risk, and the control of thermal runaway and its propagation currently lack a fully coordinated and harmonized regulatory framework across the EU. This is the case even though existing standards, including EN 50604-1 [17] and IEC 62619 [28], only partially cover these aspects and leave important gaps. To mitigate these shortcomings, the document recommends exploring extensions to IEC 62840-3 [29], in particular to explicitly encompass indoor battery swapping applications and the specific risks associated with them, as well as the development of more efficient and unified certification procedures for Li-ion batteries. In addition, it identifies the formulation of insurance underwriting criteria and guidelines for battery pools operated by multiple entities as a closely related and still unmet requirement.

Battery management systems (BMSs) constitute an additional domain of strategic importance. Although mature and reliable BMS technologies are already deployed, the sector currently lacks a standardized, cross-industry data model for representing State of Charge (SoC) and State of Health (SoH) parameters in a uniform way across original equipment manufacturers (OEMs) and charging or storage station networks. To address this fragmentation, the roadmap proposes the development and formal adoption of a common data scheme—potentially by extending or refining the framework provided in IEC 62840-1 [4] that would facilitate harmonized data reporting, interoperable analytics, and seamless cross-network integration. The recommended implementation horizon for establishing and operationalizing this unified data structure is approximately two years.

End-of-life handling and pathways into secondary use are currently classified as issues of intermediate importance. However, existing recommendations for recycling, final disposal, and repurposing of batteries are still rudimentary and must be more closely aligned with the EU Battery Regulation [6] and its overarching circular-economy ambitions.

In parallel, there is a clear need for standardized methodologies to evaluate battery lifetime and degradation behavior. Test protocols should be harmonized and designed to reproduce realistic operating environments, including fluctuating temperatures, varying humidity levels, and diverse load and usage profiles over time. Although IEC 62660-1 [30] and ISO 12405-4 [31] offer an initial methodological framework, the absence of uniform performance metrics and reporting formats across manufacturers currently hampers meaningful cross-comparison of results and technologies.

Furthermore, standards for modular battery design—encompassing aspects such as the scalability, interchangeability, and adaptability of pack-level architectures to different applications and system sizes—are likewise assigned a medium level of priority. Nonetheless, they are regarded as pivotal for ensuring long-term compatibility, facilitating maintenance and upgrades, and thereby future-proofing the broader battery ecosystem.

The mechanical interface that connects the vehicle to the battery is classified as a top-priority issue. Current automotive connector standards and the corresponding solutions developed for permanently integrated traction batteries are not fully suited to the distinctive requirements of battery swapping. In swappable architectures, a single, interoperable interface must simultaneously accommodate high-power transfer, bidirectional data communication, and reliable mechanical latching and guidance, which imposes additional constraints beyond those considered for fixed installations. Ongoing standardization activities in ISO TC22/SC38, CEN TC301, and IEC SC23H (see, for example, IEC 63066 [14]) are anticipated to deliver relevant specifications within roughly two years; however, the roadmap explicitly indicates that substantial technical work and validation are still required to close existing gaps. In parallel, key physical characteristics of the battery pack—such as external dimensions (length, width, height), mass, ingress protection (IP) level, and human–machine interaction and ergonomic aspects—differ significantly between OEMs. These variations necessitate harmonization and formal standardization in order to realize truly cross-brand, interoperable battery swapping on a large scale.

A typical battery expected to be used in this application could have a voltage of 48 V, an energy content of 1.6 to 2 kWh, a peak charging power of 3 kW, and a peak output of 6 kW, all this packed in a unit of no more than 15 kg weight [32].

6.3. Vehicle Level

At the whole-vehicle level, numerous gaps identified at the battery level re-emerge, since the identical interface points must also be standardized from the standpoint of the vehicle as a system. This applies to the mechanical coupling and connector design, the allowable physical envelope and mounting constraints, the electrical interface parameters (including operating voltage range, usable capacity, permissible charging power, and permissible parallel/series configurations), as well as the data and control communication protocol governing interactions between the vehicle and the battery. Each of these aspects requires the development of dedicated, harmonized standards specifically defined at the vehicle–battery interface. Within the roadmap, these standardization needs are classified as high priority and are assigned a short-term implementation horizon (T1).

A characteristic regulatory challenge at the vehicle level concerns whole-vehicle type approval (WVTA). Under the current EU L-category Type Approval Regulation 168/2013 [33], a vehicle cannot obtain type approval unless its specific propulsion battery is included as part of the approval package. This requirement poses a fundamental obstacle for concepts based on standardized, interchangeable (swappable) traction batteries, since the vehicle is, by design, intended to operate with multiple compatible battery units rather than a single dedicated pack.

To address this, the roadmap proposes a targeted amendment of Regulation 168/2013 to explicitly acknowledge that the vehicle’s maximum performance characteristics are determined primarily by its inherent systems—such as the electric motor and power converter—and not by the particular battery installed at any given time. Such a clarification would enable type approval of vehicles designed for battery swapping without tying the approval to a specific battery model. The proposed change is classified as a measure of medium strategic importance, with an indicative implementation horizon of approximately four years (T2).

6.4. Charging Station and Infrastructure Level

At the station level, fire safety emerges as the primary and overriding concern. Although several piloted battery swapping stations with integrated fire-safety functionalities are already in operation, these solutions are fragmented and lack a coherent, EU-wide regulatory framework. The roadmap therefore proposes the development of harmonized fire protection criteria applicable to both indoor and outdoor station configurations. This includes the systematic expansion of the IEC 62840 standard series to more comprehensively address indoor battery swapping applications, as well as the establishment of uniform, science-based testing methodologies for assessing the performance of thermal runaway barriers in multi-battery rack systems. Given the potential consequences of battery-related fire incidents, this topic is classified as the top-priority action (T1) at the station level, with specialized fire safety organizations, including TÜV and DEKRA, identified as essential collaboration partners for standardization, testing, and certification.

Fundamental installation parameters—such as equipment footprint, air circulation and exhaust management, minimum clearances, and consistency with applicable construction regulations—are likewise classified as top-priority issues (T1). In the current regulatory landscape, the lack of harmonized, EU-level guidance compels station operators to comply with a fragmented set of national and municipal building regulations, land-use and zoning provisions, and fire-safety or fire-brigade approval procedures. Within this context, the roadmap proposes the development of a CEN/CLC technical specification or a fully fledged European standard that would establish coherent, continent-wide design principles and implementation guidelines.

With respect to integration into the electricity grid, the roadmap highlights a medium-to-high prospective value in deploying swappable batteries as distributed grid resources. These resources could support load shifting and peak shaving, enable vehicle-to-grid (V2G) functionalities, and participate in aggregator-coordinated virtual power plants and other flexibility markets. Despite this promise, practical implementation is still largely confined to early-stage pilot projects with limited scale and scope.

Several critical gaps must be addressed before broader deployment is feasible. First, existing aggregator communication protocols need to be adapted or extended specifically for the characteristics of swappable battery nodes, including their mobility, intermittency of grid connection, and varying states of ownership and control. Second, clear ownership, liability, and regulatory frameworks are needed to govern the injection of energy from mobile battery systems back into the grid, including questions around asset responsibility, metering, billing, and dispute resolution. Third, robust and transparent economic models are required to define how swappable batteries can be compensated for grid services, and under what conditions distribution and transmission system operators are willing to accept such assets as part of their flexibility portfolios.

Within this context, the standards environment for V2G communication is particularly relevant. The IEC 62840 series [4], which addresses battery swap systems, the IEC 63119 series [34], which focuses on roaming information exchange for electric vehicle charging and related services, and ISO 15118-20 [35], which specifies advanced V2G communication capabilities, are all identified as key normative references that frame current and future developments in this domain.

Tax treatment and fiscal policy for battery swapping (energy supply versus service, cross-border scenarios) are noted as medium priority but important for market deployment, with a longer T2–T3 timeline. These are not strictly standardization topics but would benefit from harmonized data-reporting formats.

Insurance and risk governance for multi-operator battery installations are assigned a moderate level of strategic importance (T2-T3). This prioritization arises predominantly from requirements and expectations articulated by the insurance and underwriting community, rather than from initiatives led by technical standards development organizations. The roadmap consequently advocates for the formulation of industry-led, practice-oriented guidelines that clarify appropriate insurance coverage, allocation of liabilities among multiple operators, and conditions for claims. In developing these guidelines, it is recommended to draw conceptually on established risk management frameworks, such as ISO 31000 [36], to ensure a systematic and transparent approach to identifying, assessing, and mitigating risks.

6.5. Interfaces and Full System Management

At the system architecture level, the roadmap underscores an acute requirement for a cyber-resilient backend infrastructure that can reliably handle data acquisition, data exchange, and financial settlement processes among batteries and charging infrastructures operated by multiple, potentially competing, Energy-as-a-Service (EaaS) providers. At present, no dedicated solution tailored to this specific use case is available on the market, although functionally similar platforms in the banking and telecommunications sectors serve as informative reference points for design and governance. The overarching regulatory framework is shaped by the Cyber Resilience Act (CRA) [37], the Data Act [38], and the General Data Protection Regulation (GDPR) [39].

In parallel, the standards environment is defined by IEC 63584-210 [26] (OCPP 2.1), which includes battery swapping scenarios, alongside other standards in the IEC 63110, IEC 63119, and ISO 15118 series. Within the European standardization bodies, authentication mechanisms and cybersecurity requirements are explicitly identified as high-priority thematic areas under the remit of CEN/CENELEC JTC 13, signaling the need for rapid and coordinated advancement in these domains.

Battery lifecycle management is identified as a medium-to-high priority area over approximately the next four years (T2). This encompasses the establishment of standardized procedures for quantifying energy throughput, the development of robust methodologies for predicting remaining battery life, and the adoption of a harmonized data-exchange format that is interoperable and compliant with the EU Battery Passport framework. In contrast, the implementation of comprehensive conformance testing regimes and the achievement of consistent cross-border coverage are regarded as longer-term objectives (T3, around a five-year timeframe). These latter activities are expected to be primarily driven by independent certification and testing organizations, including entities such as TÜV and DEKRA, which will play a central role in defining, validating, and enforcing the corresponding standards and protocols.

6.6. Communication Standards

The roadmap assigns a central role to communication, defining it as an independent area of standardization. For the underlying communication protocol, it designates the CAN bus as the primary reference standard. It also specifies an extensive catalog of data elements that must be exchanged in a uniform, interoperable manner. These include, among others, SoC, SoH, the operational status of the BMS, diagnostic and error codes, permissible charge and discharge limits, battery identifiers, effective usable capacity, self-discharge characteristics, projected service life, date of manufacture, cumulative energy and capacity throughput, records of harmful or abnormal events, and the number of completed charge–discharge cycles.

At the same time, the roadmap highlights a regulatory friction between conformity with Annex VII of the Battery Regulation (which defines the parameters for determining the state of health of electric vehicle batteries) and the obligations arising from the Cyber Resilience Act. The interaction between data-access requirements, cybersecurity safeguards, and integrity-check mechanisms in the selected CAN implementations is insufficiently resolved and therefore calls for explicit guidance and harmonized interpretation at the EU regulatory level. Specific issues to be resolved here include the resetting of battery data and defining a convenient solution for the CAN communication to meet the CRA.

Visual communication specifications are required for all labeling and marking tasks throughout the entire service life of the battery. These specifications must encompass, at a minimum, manufacturer identification, unique battery identification, chemical composition, the presence and type of hazardous substances, information on the carbon footprint, and safety-related notices supported by harmonized, standardized pictograms. In addition, they must include QR codes that provide access to the digital battery passport and the applicable CE conformity marking.

In parallel, written communication requirements cover standardized user and handling instructions, safety and hazard information, detailed technical documentation, declarations of conformity, disclosures on the share and origin of recycled content, and the reporting of electrochemical performance and durability metrics. All written documentation must be fully harmonized with, and explicitly compliant with, the provisions of the EU Battery Regulation.

Digital communication is primarily organized around the Battery Passport (as formally established in the EU Battery Regulation), complemented by digital information flows related to waste-battery collection, treatment, and recycling pathways. Every one of these communication dimensions—visual, written, and digital—is classified as a high-priority requirement, with an implementation and rollout horizon of approximately two years (T1).

6.7. Validation of Swap Actions at Charging Stations

Several parameters require validation during a battery swapping process. These parameters are systematically organized into three primary categories:

1.

Safety, encompassing protection against electric shock, prevention of short circuits, and mitigation of thermal runaway phenomena;

2.

Integrity, which covers aspects such as compatibility with the electrical grid, acceptable power factor behavior, and accurate as well as reliable energy metering;

3.

Interoperability, which includes the facilitation of energy and monetary transactions between different operators, the establishment of cybersecure channels for data communication, and the assurance that end-users are not technically or contractually locked into a single network provider.

The roadmap emphasizes that, in the absence of robust and standardized interoperability frameworks, the battery swapping ecosystem is likely to experience structural inefficiencies. These include:

• The emergence of fragmented markets characterized by isolated, non-communicating systems;
• Chronically underutilized swapping stations due to incompatible solutions;
• Increased cost per kilowatt-hour resulting from poor asset utilization and redundant investments;
• Reductions in user convenience and service accessibility;
• The widespread rollout of parallel, overlapping infrastructures that duplicate functionality instead of leveraging shared, interoperable platforms.

The detailed topics span physical station dimensions and compartment design, environmental specifications (IP rating, lightning protection, ventilation, heating), safety systems (flood detection, smoke detectors, fire extinguishers, emergency power suppression, anti-theft measures), electrical requirements (surge protection, certified energy meters, charging efficiency above 93%, grid compliance), and communication features (chemistry-independent charging protocols, display screens, audio feedback, customer identification via QR/NFC/Bluetooth, backup power for control circuits). The roadmap also recommends that future EU-funded projects support digital twin development at both the city level (optimal station placement) and the station level (capacity optimization, grid-service management).

6.8. Roadmap Overview

The Stan4SWAP roadmap outlines a nascent yet rapidly consolidating ecosystem in which numerous technical components are already available, but remain only partially aligned and interoperable.

The critical tasks to be performed on short, medium and long term are summarized in

Table 1. Roadmap overview.

Short Term T1	Medium Term T2	Long Term T3
2 Years	4 Years	5 Years
Defining and standardizing the mechanical and communication interfaces that link battery, vehicle, and station. Ensuring fire safety for both batteries and swapping stations. Establishing a cybersecure backend infrastructure capable of supporting data exchange and settlement among multiple operators. Completing a comprehensive set of communication protocol specifications alongside clear, harmonized labeling requirements.	Grid integration of battery-swapping systems; Development of lifecycle and end-of-life management frameworks. Design of appropriate insurance and risk-sharing schemes. Revision of type-approval processes to accommodate swappable batteries. Alignment of fiscal and taxation regimes.	Systematic conformance and interoperability testing. Achievement of regulatory and technical consistency across national borders. Enabling truly cross-border deployment of swapping services.

.

7. Behavioral Monitoring Layer

In addition to the work performed in the framework of the European project, it is interesting to assess it from the viewpoint of behavioral monitoring; that is, how to measure, diagnose, and steer a process whose internal dynamics determine the quality of its outcome. This concept has been the subject of recent research, such as described in [40], where an exploration-aware behavioral insight framework (EABIF) is defined. EABIF conceptualizes a search or innovation process as a population whose internal dynamics—such as the diversity of candidate positions, velocity of change, balance between decentralized exploration and convergence on a common solution, and coverage of the pertinent problem space—can be monitored using a concise set of metrics and leveraged to identify failure patterns, including early lock-in to suboptimal outcomes.

Another relevant contribution is the comprehensive survey by [41], which evaluates a range of algorithms for process optimization. Framed within the context of this standardization initiative, one can conclude from this paper that a research area can become redundant and fragmented when ostensibly new approaches merely repackage established concepts—an issue that closely parallels the danger that rival battery-swapping specifications may appear more distinct than they are in substance.

Applying the EABIF approach to the priority targets (T1) defined by Stan4SWAP, one can define four indicators to be applied to each:

• Stakeholder-group entropy: Reflecting the diversity between the different stakeholders (Section 5) and their influence on the process; for example, the balance of industrial input (SG4) versus regulatory requirements from government (SG2) versus consumer expectations (SG5) facing the different standardization committees (SG1).
• Landscape coverage: With diverse vehicle types within the L-category, the proposed solutions shall address these appropriately. Tracking coverage across vehicle classes during T1 makes it correctable while the working groups are still flexible.
• Velocity dispersion: Measuring the rate at which draft documents are substantively changing—are working groups iterating actively on their drafts, or has movement frozen because nobody dares perturb a fragile consensus?
• Exploration–exploitation balance: A useful measure that contrasts how quickly delegates (experts, NCs) update their technical stances with how rapidly the working-group consensus itself changes. If delegates adjust their views more rapidly than the consensus moves, individual judgment is effectively discarded in favor of whichever proposal currently has momentum; if, instead, the consensus evolves more quickly than delegates’ positions, views become entrenched, and genuine convergence fails to happen.

For the purpose of tracking the standardization process laid out in the roadmap, the EABIF methodology stresses how crucial the first phase (T1) is, as it should achieve broad coverage with clearly defined performance thresholds. The current prioritization relies solely on urgency, but collapse risk should also be taken into account—a topic that reaches convergence quickly but in a fragile way should be ranked below one that progresses more slowly yet develops in a more stable and resilient manner.

Decisions taken in T1 regarding the mechanical interface, fire safety framework, and communication protocols will carry over into T2 and T3, where changing them later will be very costly.

(Fire) safety and (cyber)security function as overarching, cross-cutting issues that extend across all layers of the system. In later stages of consensus-building, these concerns can quietly fade from working-group discussions—not because anyone explicitly chooses to ignore them, but because the technical topics under consideration at those meetings focus on things like interface sizes or data formats, and the broader cross-cutting issues are implicitly postponed.

This form of monitoring attains practical significance when coupled with predefined interventions associated with specific collapse patterns; for example, a prolonged decline in stakeholder-group entropy might initiate a focused consultation process or an open solicitation for further input, whereas a stagnation in velocity dispersion in tandem with ongoing disagreement might activate a formalized cross-review procedure or, where suitable, the reopening of a sub-issue previously considered resolved.

EABIF’s methodology could support the development process by introducing a formalized protocol for modifying the priority level of a gap in response to empirically observed process dynamics. Currently, priority assignments are embedded in the roadmap and adjusted only through informal discussion. A more systematic framework would delineate explicit criteria for when a T1 gap should be downgraded to T2 (for example, when behavioral monitoring indicates that apparent consensus is being compelled rather than organically achieved, implying that the schedule is not viable), as well as criteria for when a T2 or T3 gap should be escalated to T1 (for example, when an exogenous event—such as a significant incident, an impending regulatory milestone, or a new pre-normative research finding—materially alters the risk landscape). Conceptually, this functions as a compact, predefined mapping from observed behavioral states to parameter updates, applied in a systematic manner instead of through ad hoc judgment.

Behavioral monitoring is especially useful in contexts where an industrial pre-consensus is already in place—as with the SBMC specification—because it offers a quantifiable framework for separating convergence arising from genuine technical superiority from convergence arising merely from historical precedence.

This entire analysis illustrates that a standard emerging from a behaviorally sound process is more resilient than one produced through mere procedural compliance alone. Robustness depends on whether a genuinely broad range of alternatives was actively examined and dismissed for well-founded reasons, instead of being ignored altogether. In this respect, Stan4SWAP’s roadmap is sufficiently well structured to gain from such a methodology, a property that not all standardization documents share.

Consequently, the recommendations presented in the conclusion can be interpreted simultaneously as substantive priorities for standardization and as potential subjects for the form of instrumented oversight outlined in this section.

8. Conclusions

Throughout all the phases of Table 1, the EU Battery Regulation [6] and the AFIR [7] constitute the principal regulatory reference points that shape and constrain technical and market developments. In parallel, the main standardization work is expected to be driven within the established international and European bodies, in particular IEC TC69—especially WG13, responsible for the IEC 62840 series—and CEN TC301, with its new working group WG19 on swappable battery systems for L-category vehicles, which together form the key institutional arenas where the detailed technical standards for battery swapping will be developed, refined, and maintained.

This standardization work will draw on and build over the industrial initiatives already taken in this field by the “Big Four” motorcycle manufacturers in Japan—Honda, Kawasaki, Suzuki, and Yamaha—and by the international ”Swappable Battery Motorcycle Consortium” (SBMC), aiming to standardize swappable battery systems for L-category electric vehicles.

Reaching the interoperability of batteries among various vehicles and swapping stations is an ambitious goal that will benefit users by removing range anxiety, reducing charging time and lowering end-user costs. Furthermore, it will facilitate reusing and repurposing batteries for a second life application, aligning with a circular economy approach. To achieve these goals, it is essential to establish a thoroughly optimized standardization framework that can support all relevant technical, operational, and interoperability requirements.

Such standard batteries will allow interchangeability whilst meeting durability standards to withstand the demanding environment of frequent swapping and manipulation. The swapping procedure shall be user friendly and foolproof. They form part of an ecosystem consisting of the battery cells proper and the battery management system (BMS), interacting with the two biotopes of the swappable battery: on one hand, the vehicle, and on the other hand, the charging station. The batteries shall, of course, comply with regulatory requirements set out in the Battery Regulation [6] concerning durability, health monitoring and recycling.

One of the main challenges of keeping up the proposed timeline is the actual development time of international standards, which can take several years due to the multi-stage consensus process. Although this slow process is often considered a weakness of international standardization, it is, in fact, one of its strong points, as it allows for drafting documents relying on a strong international consensus. As for regulatory documents, they may be even slower, as they depend on administrative and political processes.

In this context, the standardization roadmap developed within the Stan4SWAP project constitutes a central strategic instrument, as it systematically identifies, organizes, and prioritizes the standards needed for the large-scale implementation of efficient and reliable battery swapping infrastructures for light electric vehicles. By providing this structured guidance, the roadmap significantly facilitates coordinated actions among industry stakeholders, policymakers, and standardization bodies, thereby accelerating the deployment and harmonization of effective battery-swapping systems.
